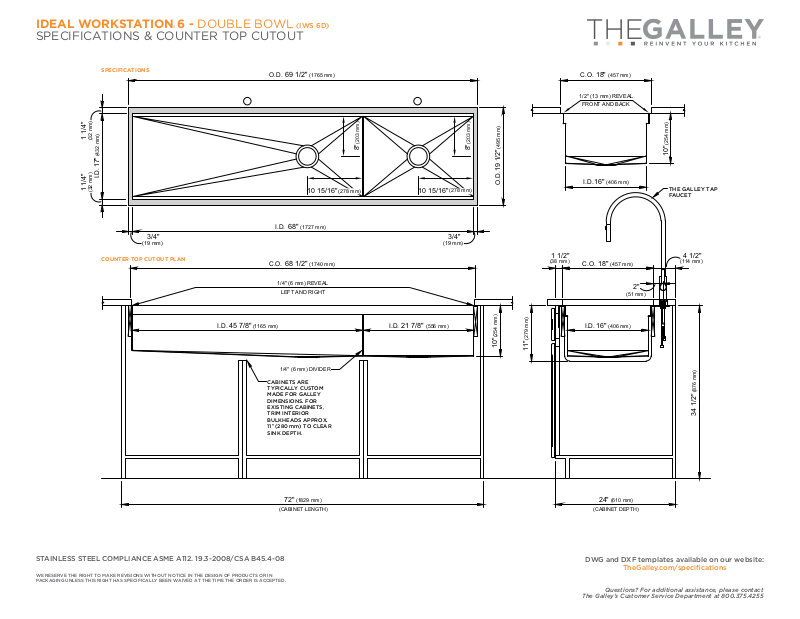

IDEAL WORKSTATION 6 - DOUBLE BOWL (IWS 6D)
SPECIFICATIONS & COUNTER TOP CUTOUT
SPECIFICATIONS
1 1/4"
(32 mm)
(432 mm)
17"
I.D.
1 1/4"
(32 mm)
(19 mm)
COUNTER TOP CUTOUT PLAN
3/4"
45 7/8"
O.D.
C.O.
(1165 mm)
(1765 mm)
69 1/2"
10 15/16"
68"
(1727 mm)I.D.
68 1/2"
(1740 mm)
1/4" (6 mm) REVEAL
LEFT AND RIGHT
(278 mm)
(203 mm)
8"
21 7/8"
10 15/16"
(556 mm)I.D.I.D.
(278 mm)
3/4"
(19 mm)
(203 mm)
8"
(495 mm)O.D.
19 1/2"
(254 mm)
10"
(279 mm)
11"
1 1/2"
(38 mm)
C.O.
(457 mm)
18"
1/2" (13 mm) REVEAL
FRONT AND BACK
(406 mm)I.D.
16"
C.O. 18" (457 mm)
(406 mm)I.D.
16"
2"
(51 mm)
(254 mm)
10"
THE GALLEY TAP
FAUCET
4 1/2"
(114 mm)
CABINETS ARE
TYPICALLY CUSTOM
MADE FOR GALLEY
DIMENSIONS. FOR
EXISTING CABINETS,
TRIM INTERIOR
BULKHEADS APPROX.
11
" (280 mm) TO CLEAR
SINK DEPTH.
STAINLESS STEEL COMPLIANCE ASME A112. 19.3-2008/CSA B45.4-08
WE RESERVE THE RIGHT TO MAKE REVISIONS WITHOUT NOTICE IN THE DESIGN OF PRODUCTS OR IN
PACKAGING UNLESS THIS RIGHT HAS SPECIFICALLY BEEN WAIVED AT THE TIME THE ORDER IS ACCEPTED.
1/4" (6 mm) DIVIDER
(1829 mm)
72"
(CABINET LENGTH)
(876 mm)
34 1/2"
(610 mm)
24"
(CABINET DEPTH)
DWG and DXF templates available on our website:
TheGalley.com/specifications
Questions? For additional assistance, please contact
The Galley’s Customer Service Department at 800.375.4255
