Page 1
TA18
active subwoofer
user manual
Page 2
Musikhaus Thomann e.K.
Treppendorf 30
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
email: [email protected]
Internet: www.thomann.de
30.11.2011
Page 3
Table of contents
1 General notes............................................................................................................................................... 4
2 Safety instructions..................................................................................................................................... 7
3 Operating elements............................................................................................................................... 11
4 Installation.................................................................................................................................................. 14
4.1 Pin assignment.................................................................................................................................. 16
5 Technical specifications....................................................................................................................... 18
6 Cleaning and care.................................................................................................................................... 20
7 Protecting the environment.............................................................................................................. 21
Table of contents
TA18
3
Page 4
1 General notes
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products are subject to a process of continuous development. We therefore reserve the
right to make changes without notice.
This section gives an overview of the symbols and signal words used in this user manual.Symbols and signal words
General notes
active subwoofer
4
Page 5
Signal word Meaning
DANGER! This combination of symbol and signal word
indicates an immediate dangerous situation
that will result in death or serious injury if it is
not avoided.
WARNING! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in death or serious injury if it is not
avoided.
CAUTION! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in minor injury if it is not avoided.
NOTICE! This combination of symbol and signal word
indicates a possible dangerous situation that
can result in material and environmental
damage if it is not avoided.
General notes
TA18
5
Page 6

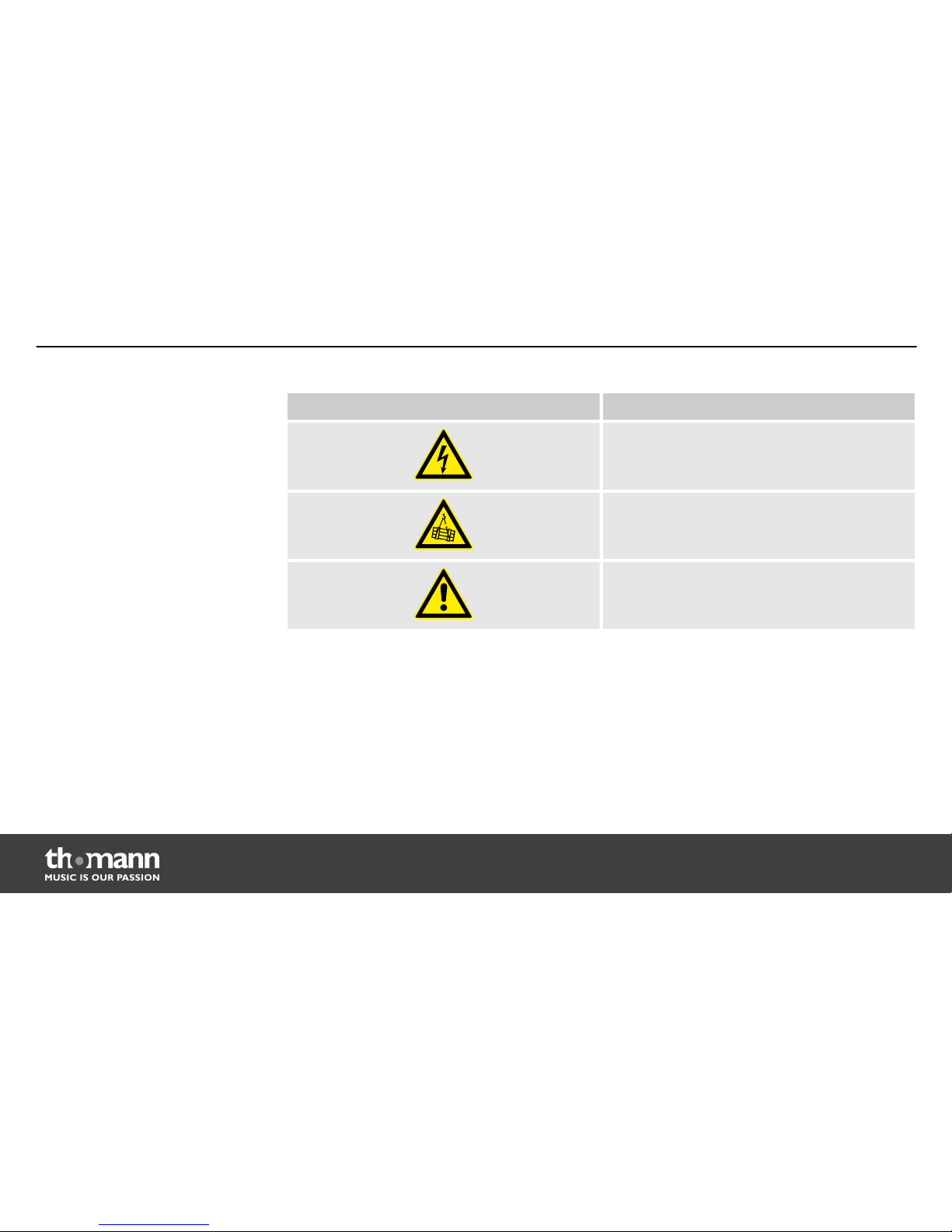

Warning signs Type of danger
Warning – high-voltage.
Warning – suspended load.
Warning – danger zone.
General notes
active subwoofer
6
Page 7
2 Safety instructions
This device is intended to be used in a sound reinforcement system. Use the device only as
described in this user manual. Any other use or use under other operating conditions is consid‐
ered to be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety instructions
TA18
7
Page 8
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis‐
tered electrician.
Safety instructions
active subwoofer
8
Page 9
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use suffi‐
cient ear protectors.
NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
Safety instructions
TA18
9
Page 10
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
Safety instructions
active subwoofer
10
Page 11

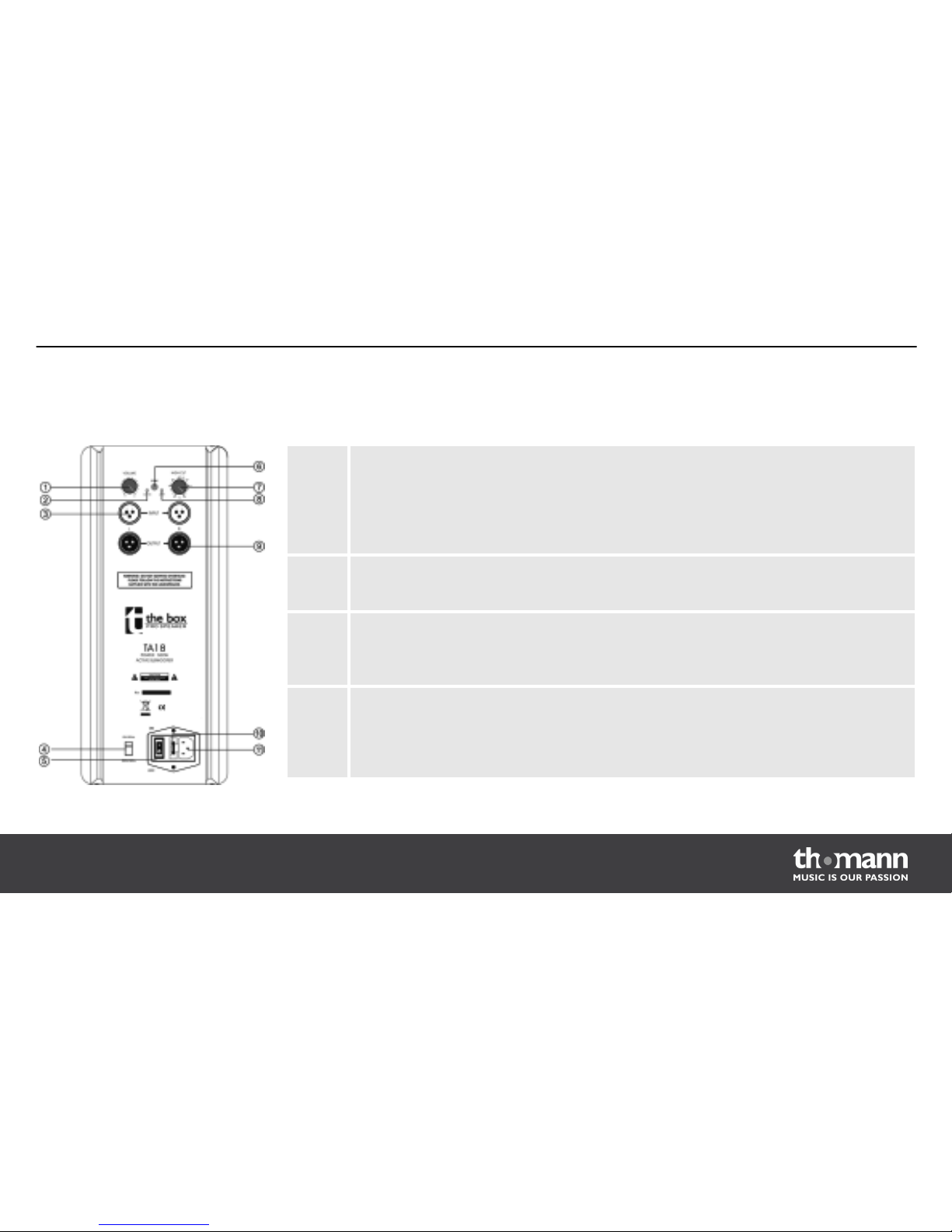

3 Operating elements
1 Volume
Volume control for the input. Increase the volume by rotating clockwise and
decrease the volume by rotating counter-clockwise. First please adjust the volume
to minimum before switching the unit on or making connections. Then adjust the
appropriate volume.
2 ACTIVE
This LED lights up when the unit is switched on.
3 INPUT sockets
Connect the stereo line input signals for channels L & R to these balanced
mounting plugs.
4 115 V / 230 V
Mains voltage selector. Make sure this selector is set correctly for the actual supply
voltage at the operating location. Use this switch only when the device is switched
off!
Operating elements
TA18
11
Page 12
5 ON / OFF
Power ON/OFF switch.
6 INV
Phase inversion switch.
7 HIGH CUT
Turn this control to adjust the frequency of the high cut filter between 80 Hz and
250 Hz.
8 LIMIT
This LED lights up when the limiter circuit becomes active.
9 OUTPUT sockets
L/R line outputs for the connection of active mid/high speakers.
Operating elements
active subwoofer
12
Page 13
10 Mains fuse
If this fuse blows, you first have to disconnect the device from the mains. Then
replace the broken fuse by a new one with same specifications.
11 Mains power supply connector
Make sure that the voltage selector (4) is in the position that matches with the
actual supply voltage available for operation, BEFORE you connect the mains
power here.
Operating elements
TA18
13
Page 14
4 Installation
Unpack and check carefully there is no transportation damage before using the unit.
Establish all connections as long as the unit is switched off. Use the shortest possible highquality cables for all connections.
WARNING!
Risk of injury caused by falling objects
Make sure that the installation complies with the standards and rules that apply
in your country. Always secure the device with a secondary safety attachment,
such as a safety cable or a safety chain.
Installation
active subwoofer
14
Page 15
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans‐
port and installation.
NOTICE!
Possible property damage by magnetic fields
Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate
distance to devices that can be adversely affected or damaged by an external
magnetic field.
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
Installation
TA18
15
Page 16

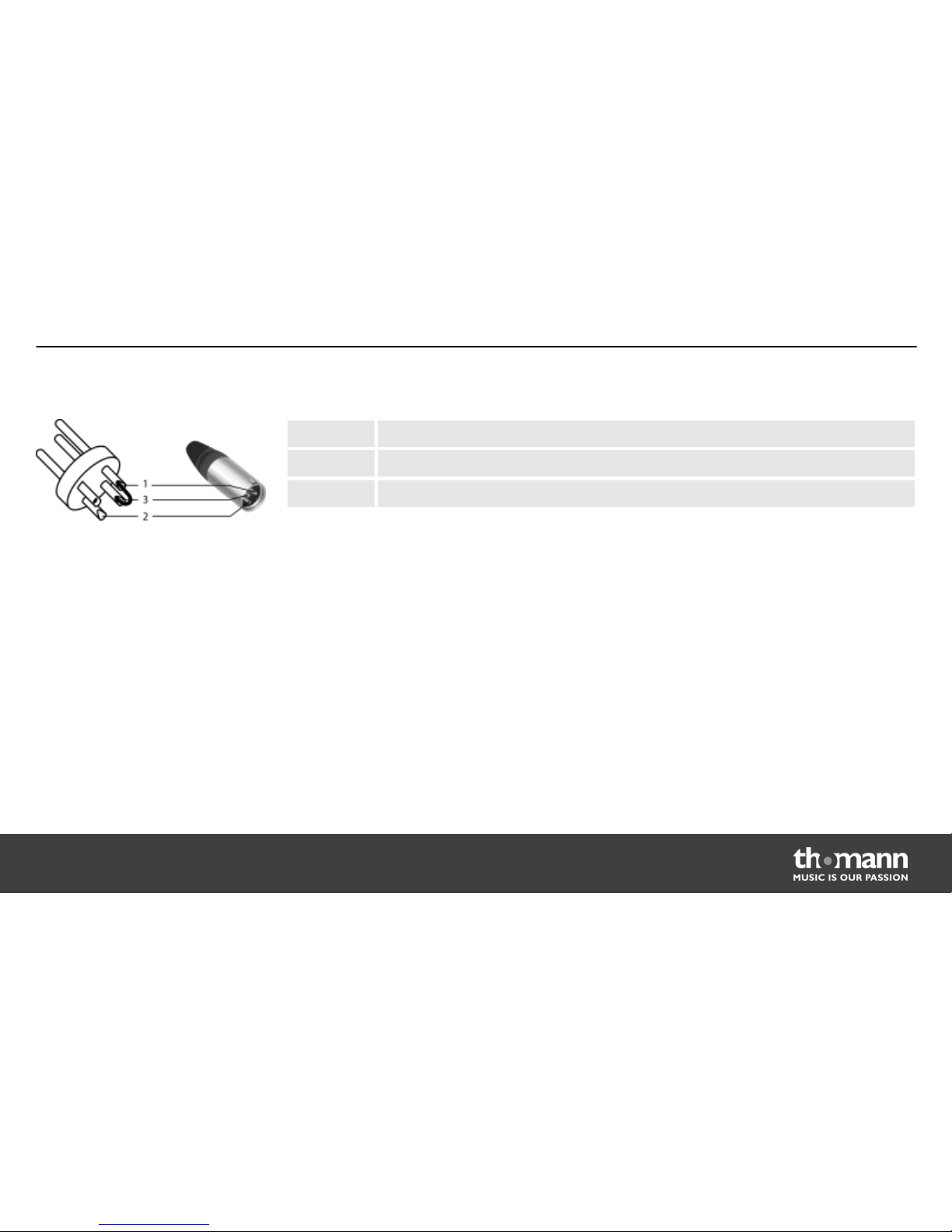

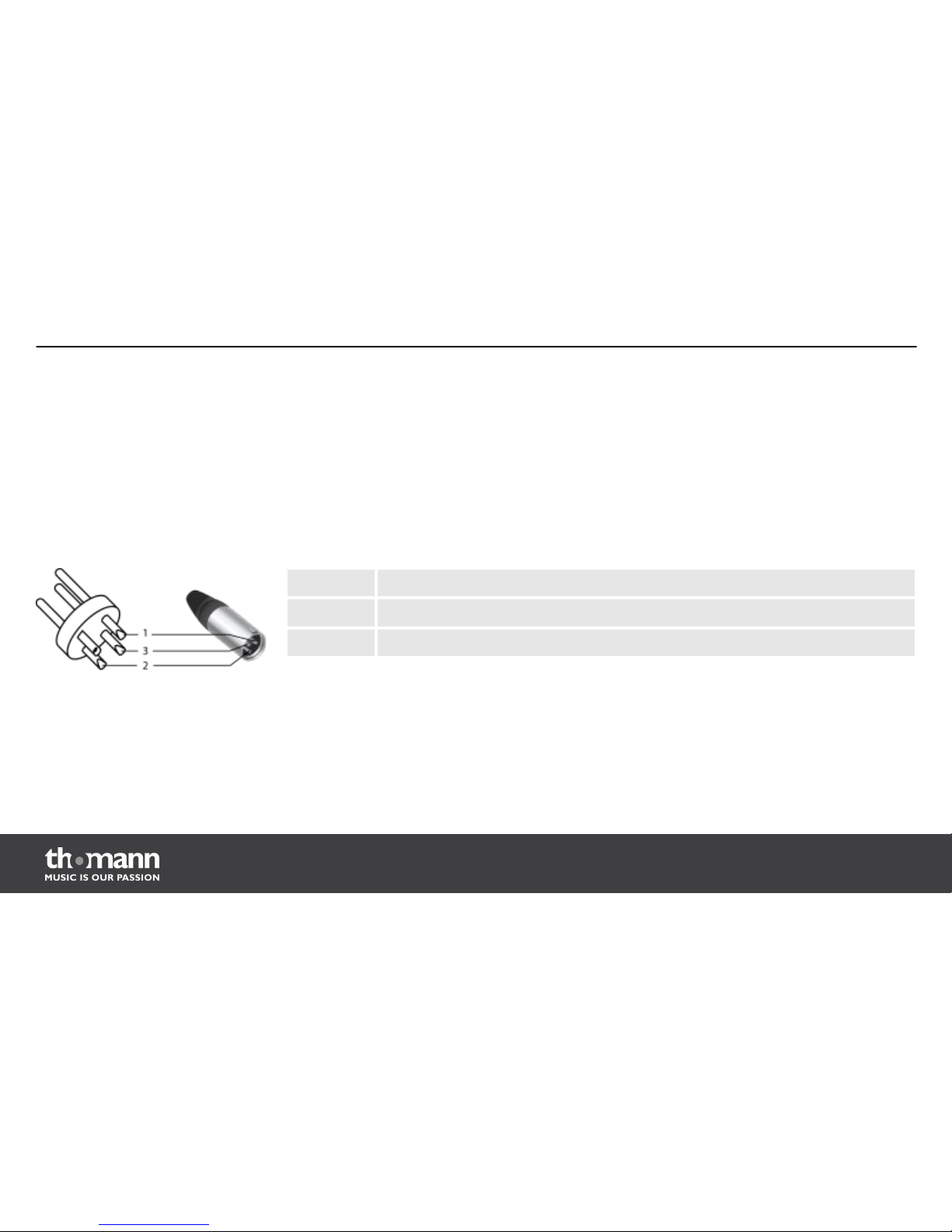

4.1 Pin assignment
You can use XLR connectors with either balanced or unbalanced wiring.
XLR mounting sockets are provided for signal inputs. XLR mounting plugs are provided for
signal outputs. Drawings and descriptions explain the pin assignment.
Balanced wiring:
1 Ground, shielding
2 Positive signal (+)
3 Negative signal (–)
XLR connection for signal in and
outputs
Installation
active subwoofer
16
Page 17
Unbalanced wiring:
1 Ground, shielding
2 Signal
3 Bridged with Pin 1
Installation
TA18
17
Page 18
5 Technical specifications
Mains voltage 115 V~/60 Hz, 230 V~/50 Hz
System Active subwoofer
Cabinet colour Black
Driver 1 × 18" (woofer)
Frequency response 35 Hz - 250 Hz (-3 dB)
Max SPL (1m) 133 dB (free field)
Output power 500 W
Distortion <2%
Input impedance Balanced: 20 kΩ, unbalanced: 10 kΩ
Connectors XLR input / output
Dimensions (W x D x H) 693 × 530 × 580 mm
Packing dimensions (W x D x H) 793 × 680 × 630 mm
Technical specifications
active subwoofer
18
Page 19
Net weight 45 kg / pc.
Gross weight 50 kg / pc.
Technical specifications
TA18
19
Page 20
6 Cleaning and care
Do not use aggressive cleaners. Wipe the casing only with a slightly damp cloth.Cleaning plastic housing
Cleaning and care
active subwoofer
20
Page 21
7 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose these materials with your normal household waste, but make sure that
they are fed to a recovery. Please follow the notes and markings on the packaging.
This device is subject to the European directive 2002/96/EC.
Do not dispose the device with your normal household waste.
Dispose this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of the packaging mate‐
rial
Disposal of your old device
Protecting the environment
TA18
21
Page 22
Notes
active subwoofer
22
