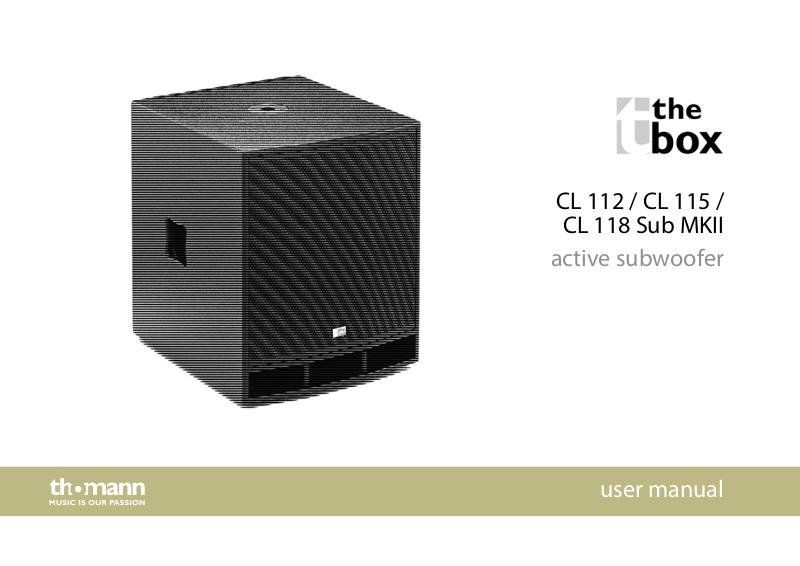

The box CL 112, CL 115, CL 118 SUB MKII User Manual

CL 112 / CL 115 /

CL 118 Sub MKII

active subwoofer

user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [e-mail]
Internet: www.thomann.de

23.10.2015, ID: 341323, 341324, 341325

Table of contents

Table of contents

1 General information................................................................................................................................. 4

1.1 Further information........................................................................................................................... 5

1.2 Notational conventions.................................................................................................................... 6

1.3 Symbols and signal words............................................................................................................... 6

2 Safety instructions..................................................................................................................................... 8

3 Features....................................................................................................................................................... 12

4 Installation.................................................................................................................................................. 13

4.1 Tips on handling speakers............................................................................................................ 15

5 Connections and operating elements........................................................................................... 16

6 Technical specifications....................................................................................................................... 20

7 Plug and connection assignments.................................................................................................. 22

8 Protecting the environment.............................................................................................................. 26

CL 112 / CL 115 / CL 118 Sub MKII

3

General information

1 General information

This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.

Our products are subject to a process of continuous development. Thus, they are subject to
change.

active subwoofer

4

1.1 Further information

General information

On our website (www.thomann.de) you will find lots of further information and details on the
following points:

Download This manual is also available as PDF file for you to download.

Keyword search

Online guides

Personal consultation For personal consultation please contact our technical hotline.

Service

Use the search function in the electronic version to find the topics of
interest for you quickly.

Our online guides provide detailed information on technical basics
and terms.

If you have any problems with the device the
customer service will gladly assist you.

CL 112 / CL 115 / CL 118 Sub MKII

5

General information

1.2 Notational conventions

This manual uses the following notational conventions:

Letterings

The letterings for connectors and controls are marked by square brackets and italics.

Examples: [VOLUME] control, [Mono] button.

1.3 Symbols and signal words

In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.

6

active subwoofer

General information

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an

immediate dangerous situation that will result in death or
serious injury if it is not avoided.

CAUTION! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in minor injury if it
is not avoided.

NOTICE! This combination of symbol and signal word indicates a pos‐

sible dangerous situation that can result in material and
environmental damage if it is not avoided.

Warning signs Type of danger

Warning – high-voltage.

Warning – danger zone.

CL 112 / CL 115 / CL 118 Sub MKII

7

Safety instructions

2 Safety instructions

Intended use

Safety

8

This device is intended to be used in a sound reinforcement system. Use the device only as
described in this user manual. Any other use or use under other operating conditions is consid‐
ered to be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.

This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.

DANGER!
Danger for children

Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!

Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!

Never let children unattended use electrical devices.

active subwoofer

Safety instructions

DANGER!
Electric shock caused by high voltages inside

Within the device there are areas where high voltages may be present. Never
remove any covers.

There are no user-serviceable parts inside.

DANGER!
Electric shock caused by short-circuit

Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a regis‐
tered electrician.

CL 112 / CL 115 / CL 118 Sub MKII

9

Safety instructions

CAUTION!
Possible hearing damage

The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.

Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use suffi‐
cient ear protectors.

NOTICE!
Risk of fire

Do not cover the device nor any ventilation slots. Do not place the device near
any direct heat source. Keep the device away from naked flames.

10

active subwoofer

Safety instructions

NOTICE!
Operating conditions

This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.

NOTICE!
Power supply

Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.

Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.

CL 112 / CL 115 / CL 118 Sub MKII

11

Features

3 Features

Special features of the device:

n Inputs: XLR and 1/4" phone sockets, RCA sockets (CL 115 and CL 118)
n Outputs: NL4 chassis connectors for passive speaker boxes (top), DIRECT OUT (CL 115 and

CL 118)

n 36 mm pole mount flange
n Butterfly handles
n Transport casters
n PU coating
n Protective cover optionally available

12

active subwoofer

4 Installation

Installation

Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.

For operation, the device must be placed on its rubber feet. Therefore tip the unit over its pro‐
tected edge. Do not take the device into operation while standing on its casters. Otherwise
there's a danger of overheating and the chance for uncontrolled movement.

Establish all connections as long as the unit is switched off. Use the shortest possible high­quality cables for all connections.

CL 112 / CL 115 / CL 118 Sub MKII

13

Installation

CAUTION!
Risk of injury due to heavy weight

Due to the heavy weight of the device, at least two persons are required for trans‐
port and installation.

NOTICE!
Possible property damage by magnetic fields

Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate
distance to devices that can be adversely affected or damaged by an external
magnetic field.

14

active subwoofer

4.1 Tips on handling speakers

We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.

Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.

For optimum results both impedance and power handling of the speakers must match the
requirements of the amplifier. Always follow the technical specifications of the speakers! The
overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.

If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐
tortion.

Installation

CL 112 / CL 115 / CL 118 Sub MKII

15

Connections and operating elements

5 Connections and operating elements

Rear panel CL 112 SUB MKII

16

active subwoofer

Rear panel CL 115 SUB MKII,
CL 118 SUB MKII

Connections and operating elements

CL 112 / CL 115 / CL 118 Sub MKII

17

Connections and operating elements

1 Mains switch [POWER]

Turns the device on and off.

2 IEC chassis plug with fuse holder for the power supply.
3 [SAT POWER OUT RIGHT | LEFT]

Speaker outputs (NL4 chassis connectors).

4 [INPUT RIGHT | LEFT]

Inputs for balanced or unbalanced line level signals (XLR sockets).

5 [INPUT RIGHT | LEFT]

Inputs for balanced or unbalanced line level signals (RCA sockets).

6 [POWER]

This LED indicates that the device is switched on and operational.

7 [SUB LEVEL]

This rotary control can be used to adjust the subwoofer volume.

18

active subwoofer

Connections and operating elements

8 [SUB PHASE]

This slide switch can be used to reverse the phasing (0 ° / 180 °). This avoids unwanted cancellation effects in combi‐
nation with other speakers.

9 [MAIN LEVEL]

This rotary control can be used to adjust the overall volume (subwoofer and connected external speakers).

10 [PROTECT]

This LED lights up red when the unit switches to protection mode. In this case, check the cables for short circuit or
bad connection. If this LED lights constantly, please contact our service centre. Contact details can be found at
www.thomann.de.

11 [INPUT RIGHT | LEFT]

Inputs for balanced or unbalanced line level signals (XLR / 1/4" combo sockets).

12 [DIRECT OUT]

Outputs for connecting the subwoofer to another active sound system.

CL 112 / CL 115 / CL 118 Sub MKII

19

Technical specifications

6 Technical specifications

CL 112 SUB MKII (item

no. 341323)

System Active subwoofer Active subwoofer Active subwoofer
Speakers 1 × 12" woofer 1 × 15" woofer 1 × 18" woofer
Inputs 2 × XLR (balanced), 2 × 1/4" (bal‐

anced/unbalanced)

Outputs Lockable NL4 chassis connector

(1+/1-)

Impedance passive
speakers

Frequency response 40…150 Hz 35…130 Hz 33…110 Hz
Power output sub‐

woofer

min. 4 Ω min. 4 Ω min. 4 Ω

120 W (RMS) 220 W (RMS) 350 W (RMS)
300 W (PEAK) 500 W (PEAK) 700 W (PEAK)

CL 115 SUB MKII (item
no. 341324)

2 × XLR (balanced), 2 × 1/4" (bal‐
anced/unbalanced), 2 × RCA

Lockable NL4 chassis connector
(1+/1-), 2 × DIRECT OUT (XLR)

CL 118 SUB MKII (item
no. 341325)

2 × XLR (balanced), 2 × 1/4" (bal‐
anced/unbalanced), 2 × RCA

Lockable NL4 chassis connector
(1+/1-), 2 × DIRECT OUT (XLR)

active subwoofer

20

Technical specifications

CL 112 SUB MKII (item

no. 341323)

Power output to satel‐
lites

Sound pressure level 118 dB (max.) 122 dB (max.) 124 dB (max.)
Operating supply

voltage
Power consumption 600 W 1000 W 1000 W
Fuse 3.15 A / 250 V, slow-blow,

Dimensions
(W × D × H)

Weight 29 kg 40 kg 47 kg

2 × 120 W (RMS) 2 × 220 W (RMS) 2 × 220 W (RMS)
2 × 300 W (PEAK) 2 × 500 W (PEAK) 2 × 500 W (PEAK)

AC 220…240 V , 50/60 Hz AC 220…240 V , 50/60 Hz AC 220…240 V , 50/60 Hz

5 × 20 mm
420 mm × 475 mm × 500 mm 460 mm × 565 mm × 610 mm 540 mm × 620 mm × 660 mm

CL 115 SUB MKII (item
no. 341324)

5.0 A / 250 V, slow-blow,
5 × 20 mm

CL 118 SUB MKII (item
no. 341325)

5.0 A / 250 V, slow-blow,
5 × 20 mm

CL 112 / CL 115 / CL 118 Sub MKII

21

Plug and connection assignments

7 Plug and connection assignments

Introduction

Balanced and unbalanced trans‐
mission

22

This chapter will help you select the right cables and plugs to connect your valuable equip‐
ment in such a way that a perfect sound experience is ensured.

Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a
plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short
circuit or ‘just’ in poor transmission quality!

Unbalanced transmission is mainly used in semi-professional environment and in hifi use.
Instrument cables with two conductors (one core plus shielding) are typical representatives of
the unbalanced transmission. One conductor is ground and shielding while the signal is trans‐
mitted through the core.

Unbalanced transmission is susceptible to electromagnetic interference, especially at low
levels, such as microphone signals and when using long cables.

In a professional environment, therefore, the balanced transmission is preferred, because this
enables an undisturbed transmission of signals over long distances. In addition to the conduc‐
tors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers
the signal, but phase-shifted by 180°.

active subwoofer

1/4" TS phone plug (mono,
unbalanced)

1/4" TRS phone plug (mono, bal‐
anced)

Plug and connection assignments

Since the interference affects both cores equally, by subtracting the phase-shifted signals, the
interfering signal is completely neutralized. The result is a pure signal without any noise inter‐
ference.

1 Signal
2 Ground, shielding

1 Signal (in phase, +)
2 Signal (out of phase, –)
3 Ground

CL 112 / CL 115 / CL 118 Sub MKII

23

Plug and connection assignments

1/4" TRS phone plug (stereo,
unbalanced)

XLR plug (balanced)

1 Signal (left)
2 Signal (right)
3 Ground

1 Ground, shielding
2 Signal (in phase, +)
3 Signal (out of phase, –)

24

active subwoofer

XLR plug (unbalanced)

NL4 connections

Plug and connection assignments

1 Ground, shielding
2 Signal
3 Bridged to pin 1

1, + Signal 1 (in phase)
1, – Signal 1 (out of phase)

CL 112 / CL 115 / CL 118 Sub MKII

25

Protecting the environment

8 Protecting the environment

Disposal of the packaging mate‐
rial

For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.

Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose of these materials with your normal household waste, but make sure that

they are collected for recycling. Please follow the notes and markings on the packaging.

Disposal of your old device

This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE). Do not dispose with your normal household waste.

Dispose of this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.

26

active subwoofer

Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
