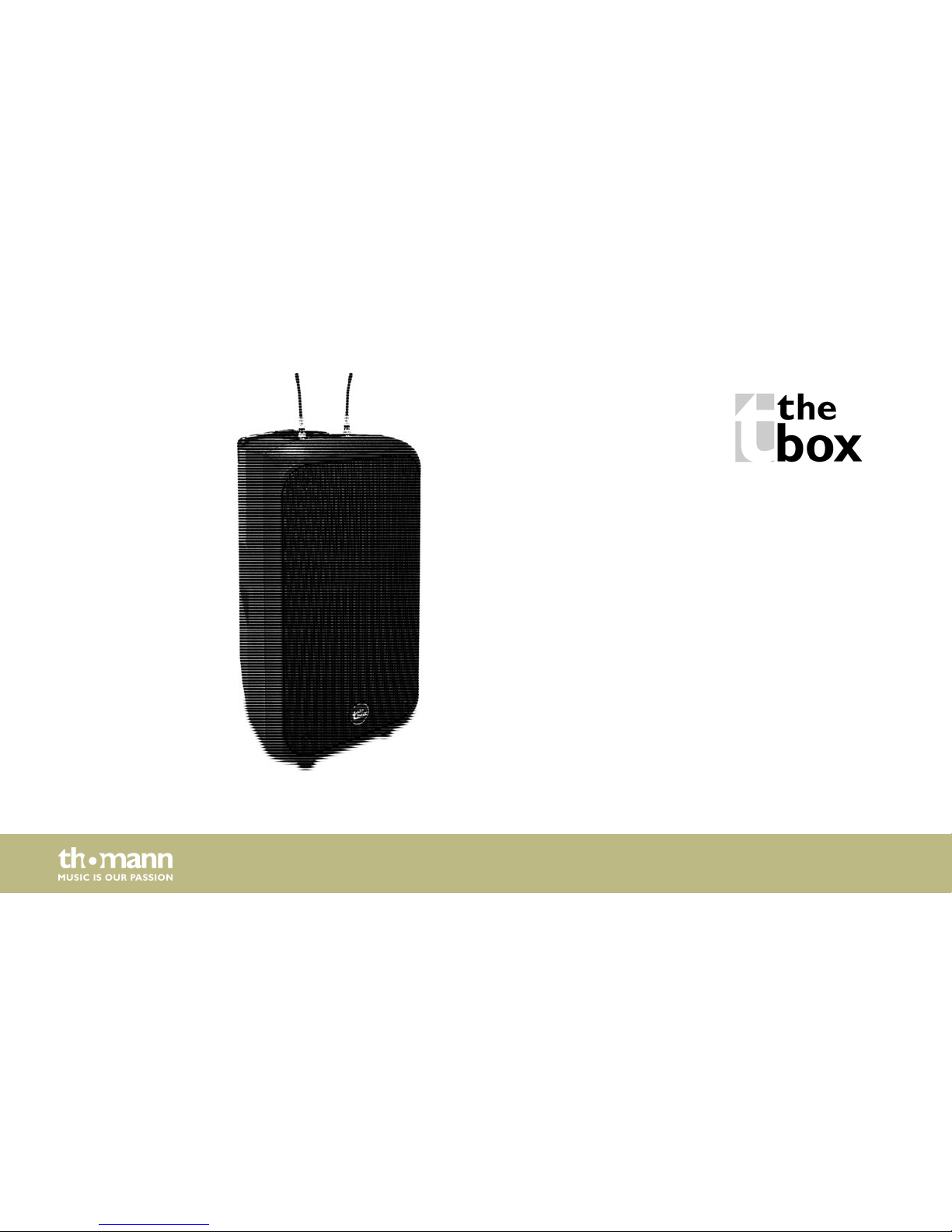

AK 10
active speaker
user manual
Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: +49 (0) 9546 9223-0
E-mail: info@thomann.de
Internet: www.thomann.de
11.12.2017, ID: 415642 (V2)
Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 14
4 Installation and starting up................................................................................................................ 15
4.1 Antenna............................................................................................................................................... 16
4.2 Microphone........................................................................................................................................ 16
5 Connections and controls................................................................................................................... 17
6 Technical specifications....................................................................................................................... 28
7 Plug and connection assignment.................................................................................................... 30
8 Cleaning....................................................................................................................................................... 34
9 Protecting the environment.............................................................................................................. 35
Table of contents
AK 10
3
1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
active speaker
4
1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search
Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides
Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service
If you have any problems with the device the customer service will
gladly assist you.
General information
AK 10
5
1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
1.3 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
General information
active speaker
6
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos-
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos-
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
AK 10
7
2 Safety instructions
This device is intended to be used in a sound reinforcement system. Use the device only as
described in this user manual. Any other use or use under other operating conditions is considered to be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety instructions
active speaker
8
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or fire. If in doubt, seek advice from a registered electrician.
Safety instructions
AK 10
9
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use sufficient ear protectors.
NOTICE!
Risk of fire
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked flames.
Safety instructions
active speaker
10
NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or fire.
NOTICE!
Risk of fire due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries.
Ensure that proper polarity is observed when inserting batteries.
Safety instructions
AK 10
11
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device.
Take batteries out of the device if it is not going to be used for a longer period.
NOTICE!
Possible damage due to incorrect storage
Deep discharge can cause batteries to become permanently damaged or lose
some of their capacity.
Before prolonged rest periods, charge the batteries to around 50 % of their
capacity and then switch the equipment off. Store the equipment at a temperature between 10 °C and 32 °C in as dry an environment as possible. During
extended storage periods, charge the batteries to 50 % approximately every three
months.
Safety instructions
active speaker
12
n This equipment uses a frequency range that is free of charge and registration within the
European Union.
For more information, please visit: http://www.thomann.de.
n
When operating, make sure that transmitter and receiver are set to the same channel.
n
Never set more than one transmitter to the same channel.
n
Make sure that no metal objects are located between transmitter and receiver.
n
Avoid interference by other radio and in-ear systems.
Notes on radio transmission
Safety instructions
AK 10
13
3 Features
n Active 2-way loudspeaker with two built-in UHF radio systems
n
10" woofer, 1" tweeter
n
Frequency range 65 Hz … 20 kHz
n
Output power 200 W (RMS)
n
Built-in 2-band equalizer
n
Built-in media player with recording function
n
1 × switchable MIC / LINE input
n
1 × line output
n
1 × stereo AUX input (RCA)
n
Plastic housing with pole mount, carrying handle, trolley handle and casters
n
Two plastic microphones included
Features
active speaker
14
4 Installation and starting up
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage by magnetic fields
Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate
distance to devices that can be adversely affected or damaged by an external
magnetic field.
Installation and starting up
AK 10
15
4.1 Antenna
Attach the two provided radio antennas to the BNC sockets above the control panel.
4.2 Microphone

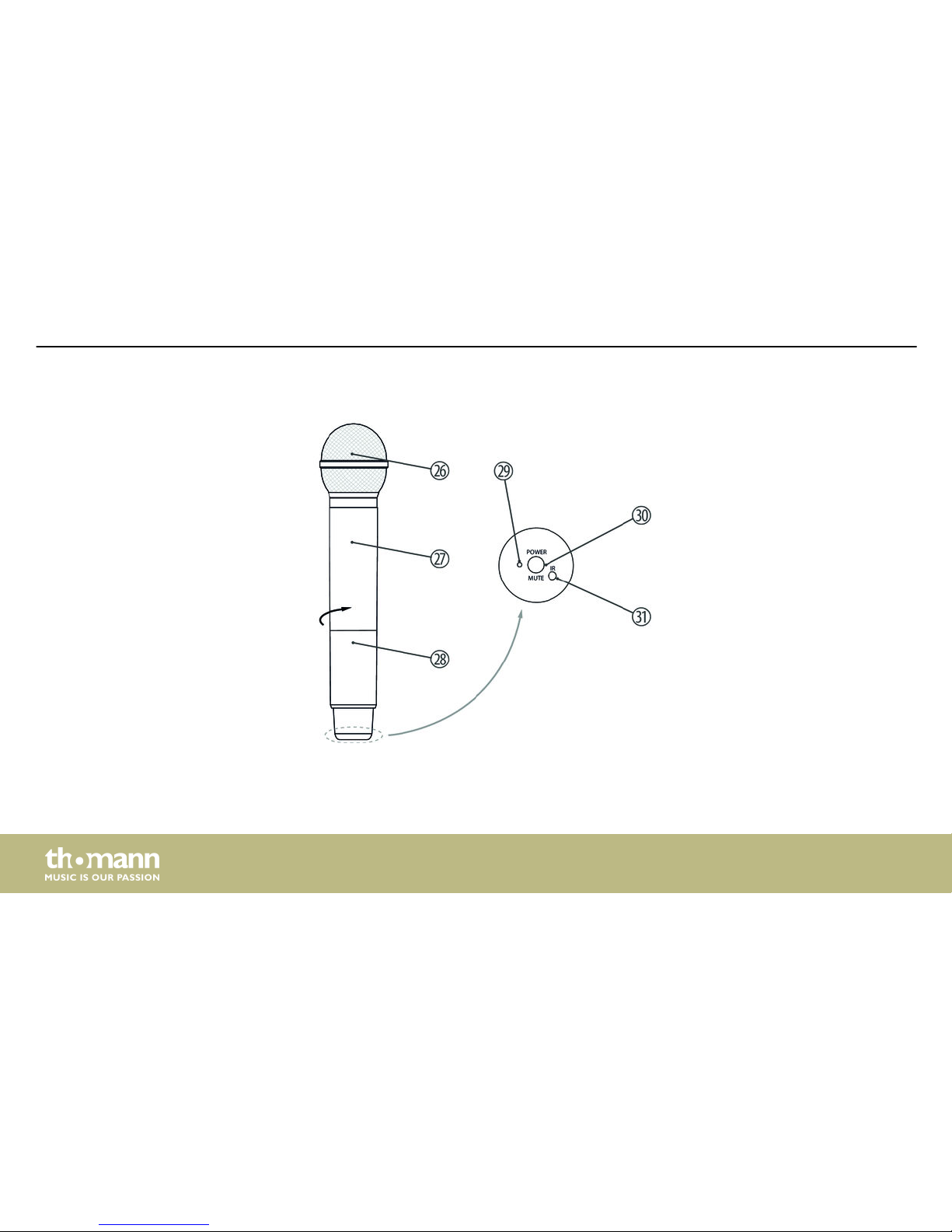

The battery compartment of the microphone is embedded in the microphone body. To open
it, hold the microphone with one hand underneath the microphone head and rotate the
microphone handle counterclockwise with your free hand. After replacing the battery, screw
the microphone handle firmly back on the microphone body.
Use only LR6 AA (1.5 V) batteries or rechargeable Ni-MH batteries (nickel metal hydride). Note
the correct polarity when inserting the batteries.
The hinged mounting clips over the microphone holders secure the microphones against
falling out during transport. When carrying the device by the side handles, still make sure that
the microphones do not fall out.
insertion and replacement of
the batteries of the supplied
microphones
Transport
Installation and starting up
active speaker
16
5 Connections and controls
Rear panel
Connections and controls
AK 10
17
1 Main switch to turn the device on and off.
2 IEC chassis plug for mains connection, with fuse holder.
3 Microphone holder.
Connections and controls
active speaker
18

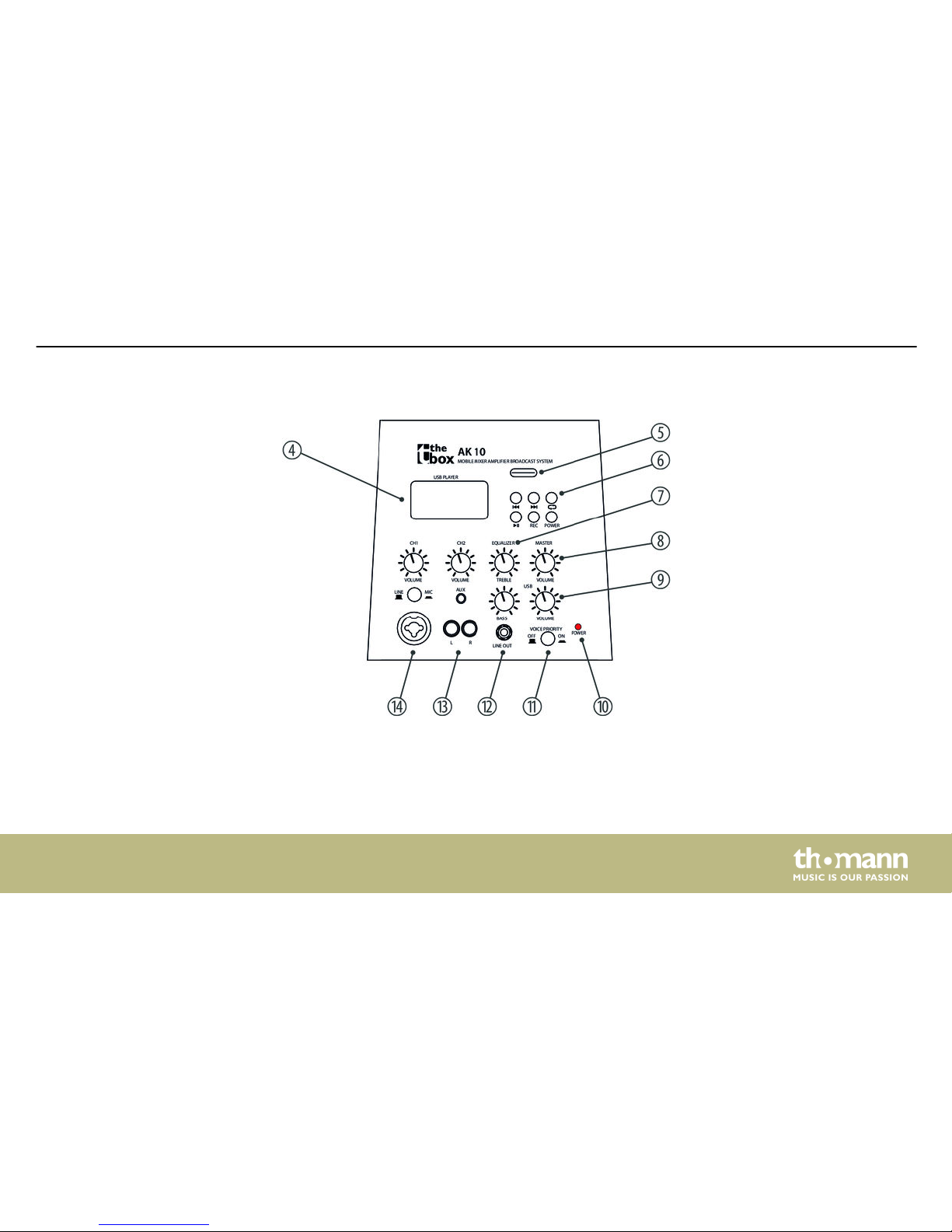

Control panel
Connections and controls
AK 10
19
4 Display for the built-in media player.
5 USB port.
6 Control buttons for the built-in media player:
Search reverse / skip to previous track.
Search ahead / skip to next track.
Repeat mode selector.
The active mode (normal playback, random playback, all tracks in endless loop, current track in endless loop) and the
title of the current track are displayed.
Play / pause button to start / stop playback.
Connections and controls
active speaker
20
[REC]
Button to start recording. To stop recording, press [POWER].
[POWER]
Button to turn the media player on and off.
7 [EQUALIZER]
Built-in 2-band equalizer with bass and treble control.
8 [MASTER VOLUME]
Overall output volume control
9 [USB VOLUME]
Media player volume control.
10 [POWER]
Power indicator. This LED lights red when the unit is powered and turned on.
11 [VOICE PRIORITY]
Momentary switch for priority of CH1 and wireless microphones. When the button is pressed and a signal from CH1
or one of the wireless microphones is present, channels CH2, AUX and MP3 are temporarily muted.
Connections and controls
AK 10
21
12 [LINE OUT]
Line output (1/4" phone socket, unbalanced) to connect an amplifier or PA.
13 [CH2]
Channel 2 with separate volume control, AUX input (3.5 mm socket) and RCA input sockets for connecting an
external audio device.
14 [CH1]
Channel 1 with separate volume control, XLR / 1/4" combo socket for connecting a microphone or an external audio
source and toggle switch for LINE or MIC input signal level.
Connections and controls
active speaker
22

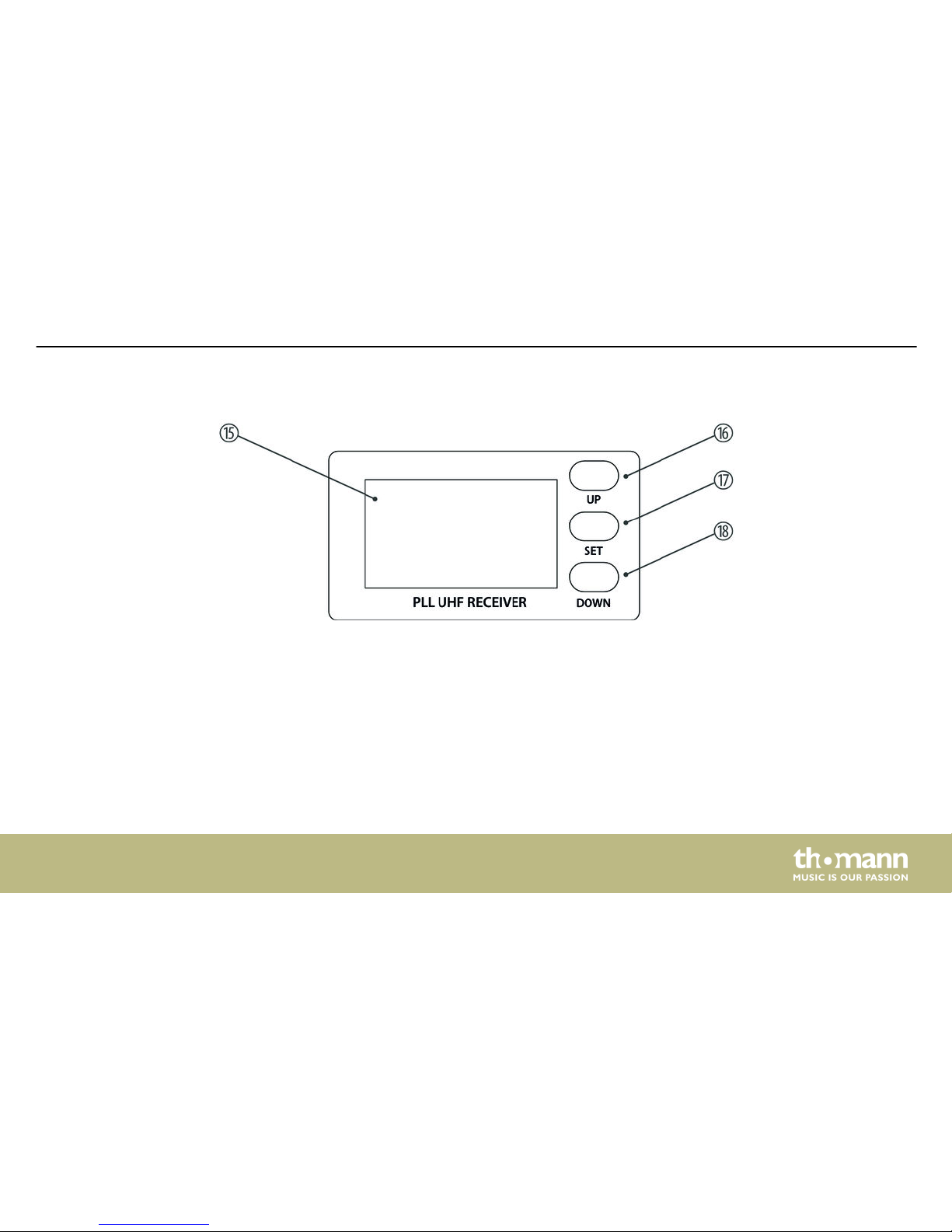

Built-in radio receiver
Connections and controls
AK 10
23
15 Display with following indicators: Channel, transmission frequency, volume / mute microphone, AF / RF signal
strength, battery charge level.
16 [UP]
Button to select the transmission frequency for radio operation with the microphones and the portable microphone
transmitter.
Press and hold the button for three seconds to transmit the channel to the portable microphone transmitter via IR
signal. Hold the portable microphone transmitter with its underside close to the display.
Connections and controls
active speaker
24
17 [SET]
Press the button once briefly, then use [UP] or [DOWN] to adjust the volume of the receiver.
Press the button twice briefly, then use [UP] or [DOWN] to enable or disable the noise reduction.
18 [DOWN]
Button to select the transmission frequency for radio operation with the microphones and the portable microphone
transmitter.
Press and hold the button for three seconds to perform an automatic frequency scan. This transfers the value via an
IR signal to the portable microphone transmitter. Hold the portable microphone transmitter with its underside close
to the display.
Connections and controls
AK 10
25
Microphone
Connections and controls
active speaker
26
26 Microphone head grill to prevent damage and to reduce wind and breath noise.
27 Upper housing part.
28 Lower housing part. To insert or replace the batteries, unscrew the lower housing part from the upper part.
29 Indicator LED.
n green (solid): normal operation
n
red (solid): microphone muted
n
red (flashing): low capacity of the inserted batteries
30 [POWER/MUTE]
Press the button to mute or unmute the microphone once briefly. Press and hold the button to turn the microphone
on and off for about three seconds.
31 [IR]
Infrared receiver for the signals for automatic synchronization of the radio frequency.
Connections and controls
AK 10
27
6 Technical specifications
Inputs 1 × XLR / 1/4" combo socket for microphone / line input with switchable sensi‐
tivity
1 × 3.5 mm phone socket for AUX input
1 × RCA sockets (L/R) for additional signal input
Output 1 × 1/4" phone socket for line output
Speakers Two-way system with 1" compression driver and 10" woofer
Frequency range 65 Hz … 20 kHz
Crossover frequency 5 kHz
Dispersion angle (V × H) 45 × 90
Sound pressure level (max.) 117 dB
Output power 200 W (RMS)
Frequency band 863 MHz – 865 MHz
Technical specifications
active speaker
28
Power consumption 150 W
Operating supply voltage
AC 100/230 V 50 / 60 Hz
Fuse 110 V: 5 mm × 20 mm, 1.6 A, 250 V, slow-blow
230 V: 5 mm × 20 mm, 1.0 A, 250 V, slow-blow
Charging time approx. 4 h
Dimensions (W × H × D) 370 mm × 612 mm × 380 mm
Weight 19 kg
Technical specifications
AK 10
29
7 Plug and connection assignment
This chapter will help you select the right cables and plugs to connect your valuable equipment in such a way that a perfect sound experience is ensured.
Please note these advices, because especially in ‘Sound & Light’ caution is indicated: Even if a
plug fits into the socket, an incorrect connection may result in a destroyed power amp, a short
circuit or ‘just’ in poor transmission quality!
Unbalanced transmission is mainly used in semi-professional environment and in hifi use.
Instrument cables with two conductors (one core plus shielding) are typical representatives of
the unbalanced transmission. One conductor is ground and shielding while the signal is transmitted through the core.
Unbalanced transmission is susceptible to electromagnetic interference, especially at low
levels, such as microphone signals and when using long cables.
In a professional environment, therefore, the balanced transmission is preferred, because this
enables an undisturbed transmission of signals over long distances. In addition to the conductors ‘Ground’ and ‘Signal’, in a balanced transmission a second core is added. This also transfers
the signal, but phase-shifted by 180°.
Introduction
Balanced and unbalanced transmission
Plug and connection assignment
active speaker
30
Since the interference affects both cores equally, by subtracting the phase-shifted signals, the
interfering signal is completely neutralized. The result is a pure signal without any noise interference.
1 Signal
2 Ground, shielding
1 Signal (in phase, +)
2 Signal (out of phase, –)
3 Ground
1/4" TS phone plug (mono,
unbalanced)
1/4" TRS phone plug (mono, balanced)
Plug and connection assignment
AK 10
31
1 Signal (left)
2 Signal (right)
3 Ground, shielding
1 Ground, shielding
2 Signal (in phase, +)
3 Signal (out of phase, –)
Three-pole 1/8" mini phone jack
(stereo, unbalanced)
XLR plug (balanced)
Plug and connection assignment
active speaker
32
Drawing and table indicate the pin assignment of an RCA plug.
1 Signal
2 Ground, shielding
RCA connection
Plug and connection assignment
AK 10
33
8 Cleaning
Clean the device components that are accessible from the outside regularly. The cleaning frequency depends on the operating environment: damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the device components.
n Clean with a dry soft cloth.
n
Stubborn dirt can be removed with a slightly dampened cloth.
n
Never use solvents or alcohol for cleaning.
Device components
Cleaning
active speaker
34
9 Protecting the environment
For the transport and protective packaging, environmentally friendly materials have been
chosen that can be supplied to normal recycling.
Ensure that plastic bags, packaging, etc. are properly disposed of.
Do not just dispose these materials with your normal household waste, but make sure that
they are fed to a recovery. Please follow the notes and markings on the packaging.
Batteries must not be disposed of as domestic waste or thrown into fire. Dispose of the batteries according to national or local regulations regarding hazardous waste. To protect the
environment, dispose of empty batteries at your retail store or at appropriate collection sites.
Disposal of the packaging material
Disposal of batteries
Protecting the environment
AK 10
35
This product is subject to the European Waste Electrical and Electronic Equipment Directive
(WEEE). Do not dispose with your normal household waste.
Dispose this device through an approved waste disposal firm or through your local waste
facility. When discarding the device, comply with the rules and regulations that apply in your
country. If in doubt, consult your local waste disposal facility.
Disposal of your old device
Protecting the environment
active speaker
36
Notes
AK 10
37
Notes
active speaker
38
Musikhaus Thomann · Hans-Thomann-Straße 1 · 96138 Burgebrach · Germany · www.thomann.de
Loading...
