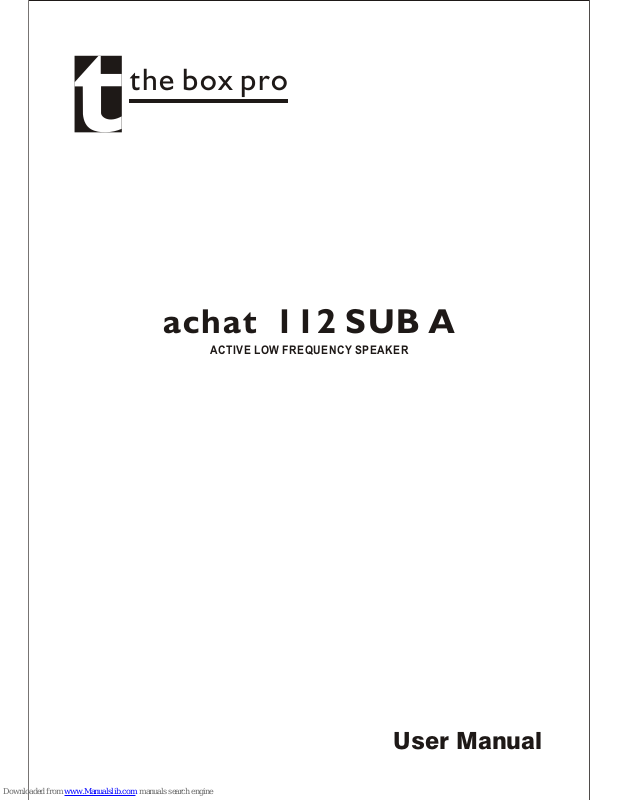

User Manual
achat 112 SUB A
the box pro
ACTIVE LOW FREQUENCY SPEAKER
Page 2
Safety Precautions
Flying and installation of this speaker cabinet must be carried out by suitably qualified
personnel following the approved safety standards.
Do not attempt to clean the plastic enclosure with solvents or petrochemical based
cleaners.
Do not place objects which are sources of heat on the speaker cabinet such as lighting
equipment or smoke machines.
Do not expose the speaker cabinet to direct precipitation or stand in water. Liquid getting
into the box will risk a short circuit and will be hazardous.
Do not stack the speaker cabinet in a manner that could cause injury should a cabinet
become dislodged.
Attention
Before connecting or operating your new THOMANN MUSIKHAUS speaker, please study
the accompanying instruction manual paying particular attention to the operating
precautions and wiring procedure.
THOMANN MUSIKHAUS will not assume responsibility for incorrect installation or
operation of this product.
Page 3
VOLUME
HIGH CUT
LIMIT
ACTIVE
INPUT
OUTPUT
INV
ON
OFF
0
No:
POWER: 350W/ 4 OhmPOWER: 350W/ 4 Ohm
ACTIVE SUB WOOFERACTIVE SUB WOOFER
achat 112SUBa
115V/60Hz 230V/50Hz
1
2
3
4 5
6 7 8 9 10 11

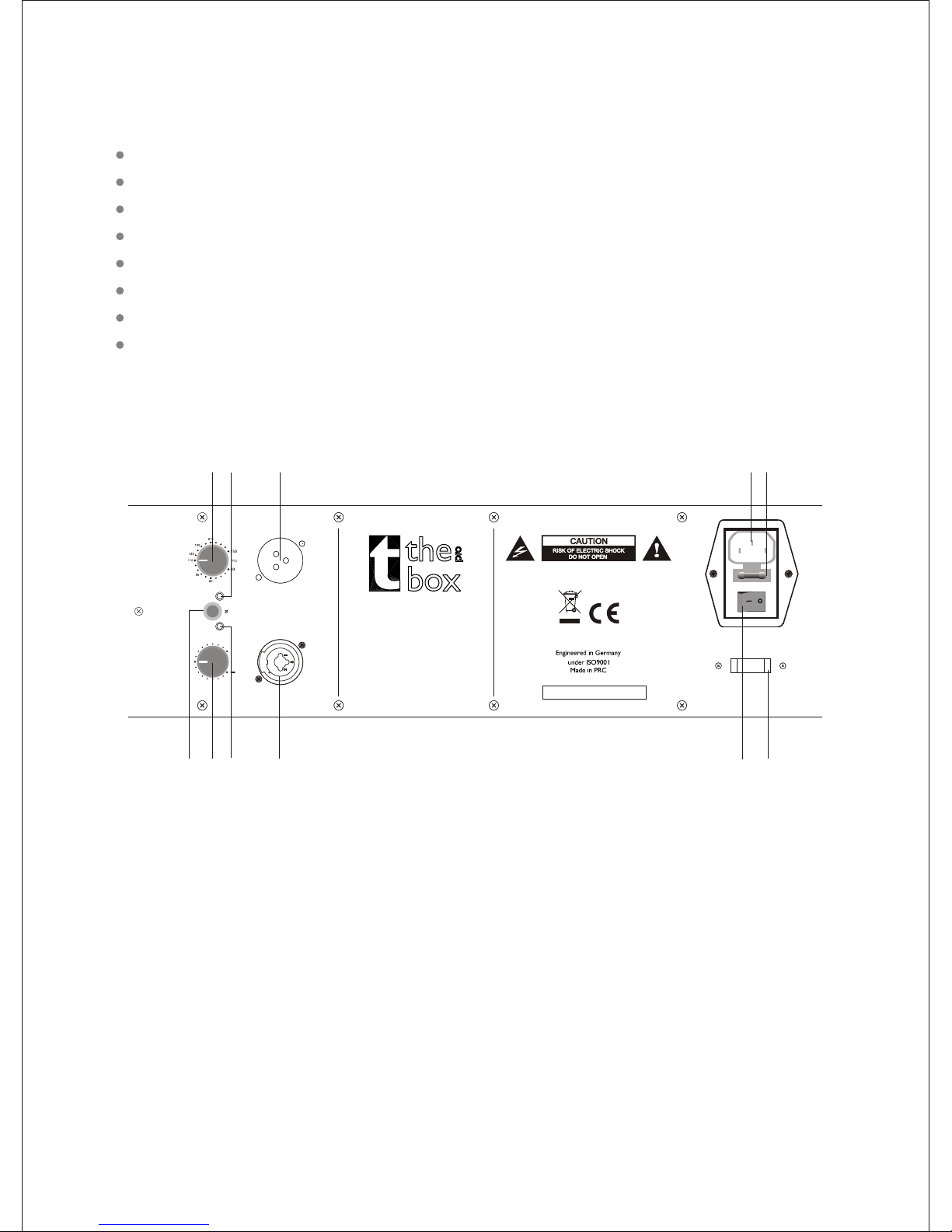

6. Phase inverting switch.
7. Volume control.
8. Active indicator.
9. Line input.
10.Power ON/OFF switch.
11.AC 110V/220V voltage input selector.
1.High cut.(80Hz~250Hz adjustable)
2.Limit indicator.
3.Line output.
4.Protection fuse.
5.Power supply input. Make sure that the
voltage selector is set for your country's
correct voltage.
Amplification Module
Features:
12" chassis , 350 W.
Built-in Amplifier with XLR/ jack combo input.
Frequency response 45-250 Hz, adjustable high cut 80-250 Hz.
Cabinet plywood with M20 pole mount socket on top.
Shallow profile, fits under a 40cm stage platform.
Black textured paint.
Rigid steel front grille.
NL4 speakon connectors.
Page 4
Specifications
* In the interests of product development, THOMANN MUSIKHAUS reserves the
right to change and improve all specifications quoted.
Active low frequency speaker
Plywood
Black
1x12" (Bass)
40Hz-250Hz
124dB/1M
350W
0.02%(Line)
4 Ohm(Bass)
20 KOhm
XLR, K3P, J3P
115V/230V, 50/60Hz
450x456x370mm
560x560x485mm
22.0kg
24.5kg
System:
Cabinet material:
Cabinet Colors:
Drive Quantity:
Frequency Response(-3dB):
Max Sound Level:
Output Power:
Distortion:
Load Impedance:
Input Impedance:
Connectors:
Power Supply:
Dimensions(WxDxH mm/pcs):
Packing Dimensions(WxDxH mm/pcs)
Net Weight(Kg/pcs):
Gross Weight(Kg/pcs):
