Prima Auditorium Seating

Planning, Specifications & Installation

121 Park Avenue Quakertown, PA 18951

Tel 215-538-8033 Fax 215-538-8974

[email protected]

www.theatresolutions.net

Prima Auditorium Seating

Contents

About TSI ................................................................................................................................................................................ 5

The Prima Series

Prima A1-U Prima A1-W Prima C1-U Prima C1-W Prima C3-U Prima C3-W

.................................................................................................................................................................. 5

Prima Chair Features

......................................................................................................................................................... 5

Prima Options

....................................................................................................................................................................... 6

Prima Product Advantages

Warranty

............................................................................................................................................. 7

Market Focus

Performing Arts Centers Courtrooms Corporate & Hospital Training Facilities Museums

......................................................................................................................................................................... 9

Planning Information

Figure 1 – Prima A1-U/W Front, Side, and Plan Views Figure 2 – Prima C1-U/W Front, Side, and Plan Views Figure 3 – Prima C3-U/W Front, Side, and Plan Views Figure 4 – Prima Seating Layout Dimensions

....................................................................................................................................................... 13

Prima Specifications

Part 1 – General ................................................................................................................................................................ 17

Related Documents Summary Submittals Quality Assurance Project Conditions Delivery, Storage, and Handling Extra Materials

Part 2 – Products (Prima A1-U Seating) .......................................................................................................................... 18

Seating Materials Fabrication, General Mounting Upholstered Leg Panels Upholstered Seats/Backs

Part 2 – Products (Prima A1-W Seating) ......................................................................................................................... 20

Seating Materials Fabrication, General Mounting Veneer Leg Panels Upholstered Seats/Backs

Prima Auditorium Seating

Part 2 – Products (Prima C1-U Seating) .......................................................................................................................... 22

Seating Materials Fabrication, General Mounting Upholstered Leg Panels Upholstered Seats/Backs

Part 2 – Products (Prima C1-W Seating) ......................................................................................................................... 24

Seating Materials Fabrication, General Mounting Veneer Leg Panels Upholstered Seats/Backs

Part 2 – Products (Prima C3-U Seating) .......................................................................................................................... 26

Seating Materials Fabrication, General Mounting Upholstered Leg Panels Upholstered Seats/Backs

Part 2 – Products (Prima C3-W Seating) ......................................................................................................................... 28

Seating Materials Fabrication, General Mounting Veneer Leg Panels Upholstered Seats/Backs

Part 3 – Options (all Prima A1-U/W Models) ................................................................................................................... 30

Aisle Light Hardwood Edges, Outer Seat and Back Inset Upholstery, Back Seat and Row Identification Tags Bookracks Compliance with California Technical Bulletin 133

Part 3 – Options (all Prima C1-U/W Models) ................................................................................................................... 31

Aisle Light Hardwood Edges, Outer Back Inset Upholstery, Back Seat and Row Identification Tags Bookracks Compliance with California Technical Bulletin 133

Part 3 – Options (all Prima C3-U/W Models) ................................................................................................................... 32

Aisle Light Seat and Row Identification Tags Bookracks Compliance with California Technical Bulletin 133

Part 4 – Warranty .............................................................................................................................................................. 33

Part 5 – Execution ............................................................................................................................................................. 33

Examination General Adjusting

Contents

Prima Auditorium Seating

Contents

Installation Instructions

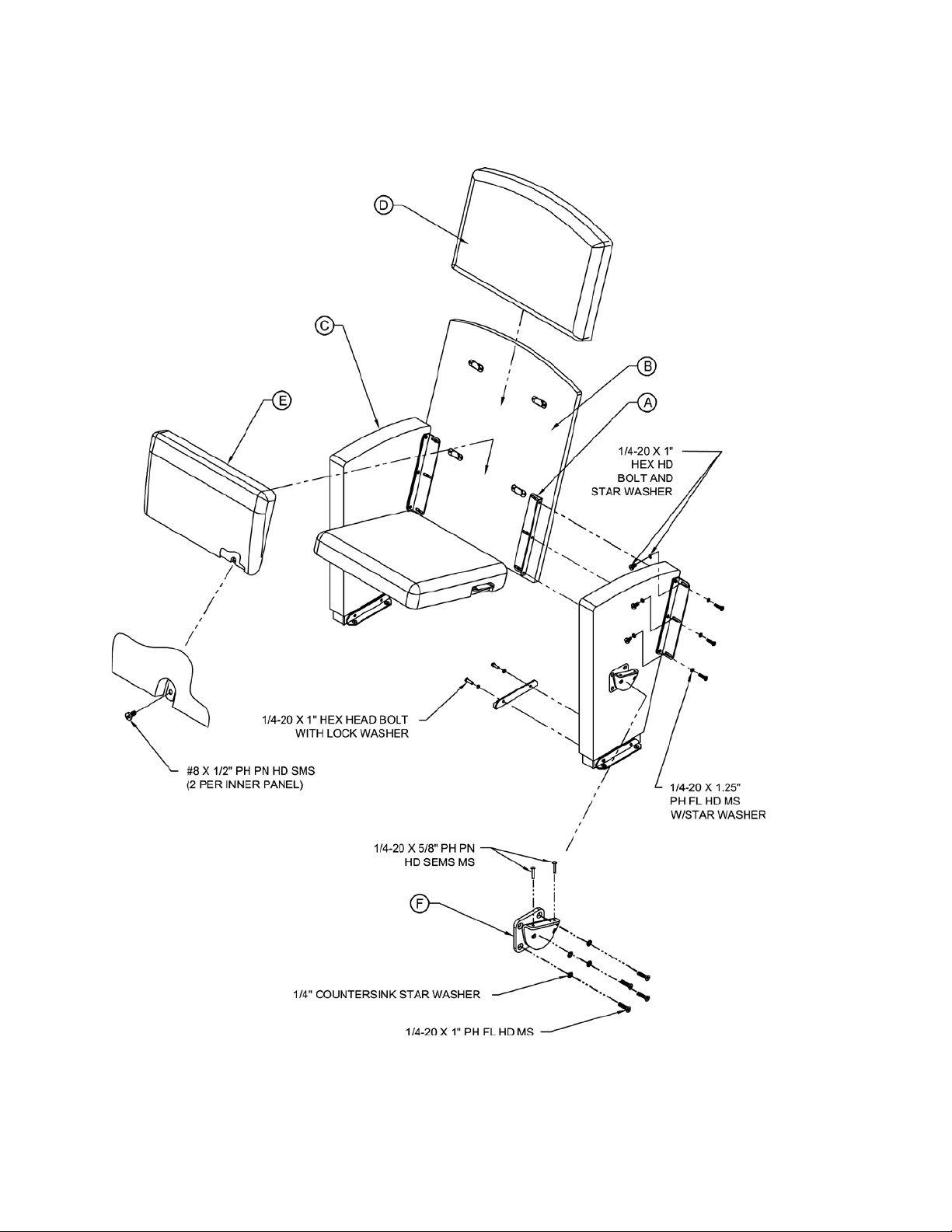

Figure 5 – Prima A1/C1 Exploded Assembly Figure 6 – Prima C3 Exploded Assembly Figure 7 – Floor Mounting Details

.................................................................................................................................................. 34

Maintenance Instructions .............................................................................................................................................. 38

This page intentionally blank.

About TSI

Theatre Solutions, Inc. (TSI) desig ns and pr od uce s dist inc tiv e and dura ble fixed seating. We are committed to pr ovi din g the highest quality fixed seating and associated services in the world.

Quality, aesthetics, comfort and flexibility make TSI fixed seating the preferred choice for any building type. In addition to the advantages of our products, the attention TSI gives to every detail through each phase of the project makes us a valued ally to the architect, the ater cons ult ant , or build ing ow ner.

The Prima Series

The Prima auditorium chair is the obvious choice when luxury and attention to detail are factors during the selection process. Ideal for the corporate training facility, museum, or an intimate theatre, the Prima offers a refined look, clean lines, and a feeling of stability and superior comfort.

The Prima back is constructed with two inner back panels. The lower panel incorporates a lumbar cushion for extra back support. The solid leg panels give the chair a more substantial feel and the availability of a wider seat allow this chair to accommodate a greater range of users. The following Prima models are available:

Prima A1-U Equipped with inner upholstered seat and back cushions, and outer wood veneer panels with a finished plywood edge for acoustical quality and refined appearance. The Prima A1-U includes upholstered leg panels. Customized detailing on the backrest upholstery of the outer wood panels is optional.

Prima A1-W Equipped with inner upholstered seat and back cushions, and outer wood veneer panels with a finished plywood edge for acoustical quality and refined appearance. The Prima A1-W includes veneer leg panels. Customized detailing on the backrest upholstery of the outer wood panels is optional.

Prima C1-U Combines the beauty of a wood veneer outer back panel with the economy and warmth of a fullyupholstered seat. The Prima C1-U includes upholstered leg panels. The seat is equipped with a zippered slip-on fabric cover.

Prima C1-W Combines the beauty of a wood veneer outer back panel with the economy and warmth of a fullyupholstered seat. The Prima C1-W includes veneer leg panels. The seat is equipped with a zippered slip-on fabric cover.

Prima C3-U Features fully-upholstered seat and back cushions for an elegant and warm appearance. The Prima C3-U includes upholstered leg panels. Fabric slip-on covers are equipped with a zipper for easier on-site replacement.

Prima C3-W Features fully-upholstered seat and back cushions for an elegant and warm appearance. The Prima C3-W includes veneer leg panels. Fabric slip-on covers are equipped with a zipper for easier on-site replacement.

Prima Chair Features

• Gravity, bumpered seat mechanism insures that the seat will always return to a consistent vertical position.

• Leg support panels and integrated armrests are availab le f ully -upholstered or in a variety of veneers and finishes.

• Durable powder coat finish is standard on all steel components.

• Back is available fully-upholstered. A top reveal, three-sided reveal or non-inset upholstery detail is available with

the outer veneer panel option.

• Standard lumbar cushion.

• Double needle stitching on leather compone nts.

• Standard spacing is 20", 21", 22", 23", and 24" c.c. (of leg panels)

• Lifetime Warranty is standard on the Prima.

Prima Auditorium Seating Planning, Installation & Specification Manual 5

Prima Options

The Prima chair is available with many options. Choose the options that are appropriate for the project.

Back & Leg Options The Prima is available in a variety of upholstery options. Backs and seats can be either fully-upholstered or fitted with an outer veneer panel. Additionally, backs with outer veneer panels can be specified with a reveal at the top or on three sides. Leg panels can be specified in veneer or fully-upholstered.

Aisle Lights Low-voltage (24v) aisle lights discreetly illuminate dark aisles and steps, enhancing safety and visual appeal. Aisle lights are installed in the end leg panel. Wiring is routed through the frame to provide a clean installation.

Seat & Row Identification and Donor Tags Seat & row identification plates and donor tags are available in a variety of shapes and finishes. To achieve a flush, clean appearance, and in order to resist tampering, ID plates mounted on wood are recessed.

California Technical Bulletin 133 Fire Code Compliance (when required by local codes) Solid Wood Edges Providing a higher level of warmth, solid wood edges hide the appearance of the plywood

layers that can be seen on the edges of the optional outer wood seat and back panels.

6 Planning, Installation & Specification Manual Prima Auditorium Seating

Prima Product Advantages

Gravity Tip-Up Seat The Prima seat tip-up action is attained by the use of a gravity counterweight mechanism.

The advantages of a gravity mechanism over a spring or cyli nder mechan is m are as follows:

Consistent and automatic return to the upright position. Spring mechanisms can have inconsistent tipup action due to the variation of the strength or fatigue of the steel springs. This affects the aesthetics of the room and may affect compliance with egress codes since the seats may not return to a consistent upright position.

Silent action. Spring mechanisms are likely to develop sque aks and norm al ly produ ce se v eral loud hit s before coming to a stop.

Seat tip-up will never fail. Because the Prima mechanism relies on gravity, it will never fail to return the seat to its upright position. In contrast, as a spring mechanism fatigues, the seat tip-up action will get slower. Eventually, the spring mechanism may fail to return the seat to the upright position, producing a possible violation of egress codes.

Seat Construction The Prima seat construction is patterned after office chairs for long-term comfort and durability. Flexible polyurethane foam is glued directly to the structure of the seat. The advantages of this type of construction are as follows:

Silence, durability, comfort. Seats constructed with serpentine springs often fatigue, sag and fail. This creates an uncomfortable noisy seat, which may require replacement. TSI’s flexible polyurethane foam construction offers significant user comfort over long seating periods. Additio nal ly, the abs ence of steel springs insures completely silent compr ession duri ng use.

Upholstered options. Unlike metal seat pans with serpentine springs, Prima’s all-wood construction allows for custom upholstery detailing. The fully-upholstered seat has a zippered slip-on fabric cover for easier onsite replacement.

TSI Chair Frames Prima legs are laminated assemblies of furniture grade particle board with steel hinge assemblies. The advantages of this type of construction are listed below:

Flexibility. The Prima’s laminated wood assembly allows for simple and cost efficient design modifications for conformance to unique building conditions.

Cost of Ownership Due to the obvious product advantages of Prima seating as mentioned above, and the superior service and warranty levels offered by TSI, purchasing Prima seating is a better long-term value. The initial savings associated with the purchase of a less expensive chair is likely to be lost through ongoing maintenance and replacement during the lifetime of the product.

Prima Auditorium Seating Planning, Installation & Specification Manual 7

installed by authorized TSI technicians.

Warranty The Prima’s “Lifetime Warranty” speaks for itself in describing Theatre Solutions’ commitment to superior

quality.

Prima Lifetime Warran ty

Theatre Solutions, Inc. (TSI) warrants its’ products against failures and

manufacturing defects for the life of the product. This warranty applies only to

the original purchaser and is non-transferable. TSI will provide parts and labor to

replace defective parts for the first two years after installation. Thereafter, TSI will

provide replacement parts for the life of the product. This warranty does not

cover damage from abuse, misuse, neglect or act of God. Damage caused by

modifications to the product by anyone other than an authorized TSI technician

will void this warranty. This warranty does not apply to fabrics or products not

8 Planning, Installation & Specification Manual Prima Auditorium Seating

Market Focus

Theatre Solutions provides seating for a variety of building types. Our products and services are tailored to meet the specific requirements of each project type.

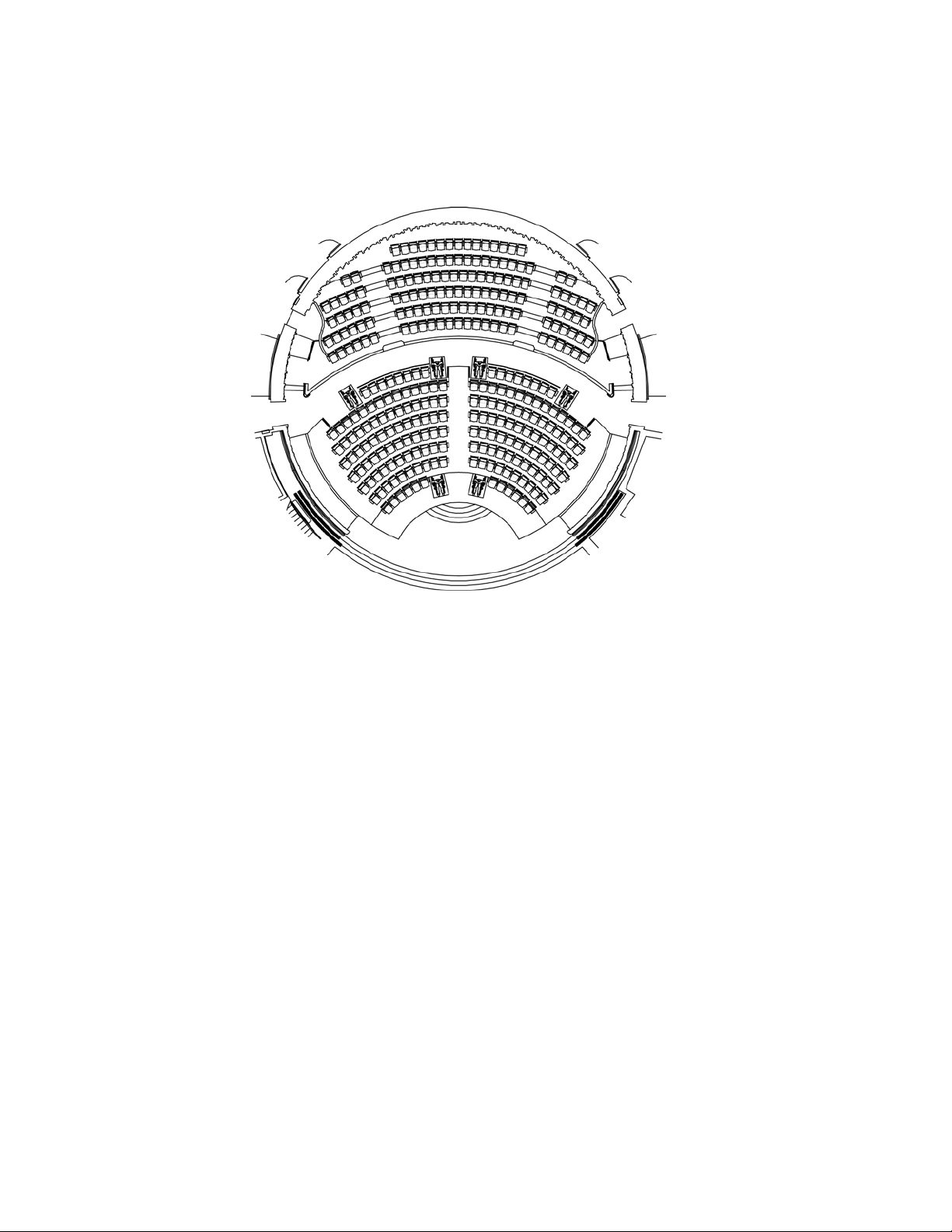

Performing Arts Centers

• Available outer wood veneer seat and back panels provide the reflective surfaces required to achieve excellent acoustics and provide extra protection.

• When a fully-upholstered look is desired, sli p-on seat covers equipped with zippers are available, which provide for easier on-site replacement.

• The Prima chair is equipped with a gravity seat tip-up mechanism, which provides a soft and silent action. Regardless of how many times our seats are lowered and raised, the action is always consistent and quiet. This silent action is critical to the acoustic success of a performing arts center.

• All chairs are built with high-quality flame-retardant foam. In addition to reduced maintenance, solid foam seats provide significant user comfort over lon g seating periods.

• Chairs may be specified as individual units with two arms per chair. This allows for greater comfort than the standard common leg configuration in which two adjacent occupants share a center armrest.

• The availability of a wider seat (up to 24”) allows the Prima to accommodate a greater range of users.

• Solid leg panels give the chair a more substantial feel than typical open leg chairs.

• Lumbar cushion provides added comfort during prolonged seating periods.

• Durability and reduced maintenance are the hallmarks of all TSI theater seating, confirmed by our Lifetime Warranty.

• Prima provides the ultimate level of luxury, attention to detail, and comfort for performing arts spaces.

Prima Auditorium Seating Planning, Installation & Specification Manual 9

Courtrooms

• Available outer wood veneer seat and back panels provide the reflective surfa ce s required to achieve excellent acoustics and provide extra protection.

• When a fully-upholstered look is desired, sli p-on seat covers equipped with zippers are available, which provide for easier on-site replacement.

• Chairs may be specified as individual units with two arms per chair. This allows for greater comfort than the standard common leg configuration in which two adjacent occupants share a center armrest.

• Solid leg panels give the chair a more substantial feel than typical open leg chairs.

• The Prima chair is equipped with a gravity seat tip-up mechanism, which provides a soft and silent action. Regardless of how many times our seats are lowered and raised, the action is always consistent and quiet. This silent action is critical to the acoustic success of the courtroom.

• All chairs are built with high-quality flame-retardant foam. In addition to reduced maintenance, solid foam seats provide significant user comfort over lon g seating periods.

• The availability of a wider seat (up to 24”) allows the Prima to accommodate a greater range of users.

• Lumbar cushion provides added comfort during prolonged seating periods.

• Durability and reduced maintenance are the hallmarks of all TSI theater seating, confirmed by our Lifetime Warranty. These attributes are important in any public space, but become critical in a courtroom due to the quantity and variety of people using the facility.

• Prima provides a secure seating experience with an ultimate level of comfort.

10 Planning, Installation & Specification Manual Prima Auditorium Seating

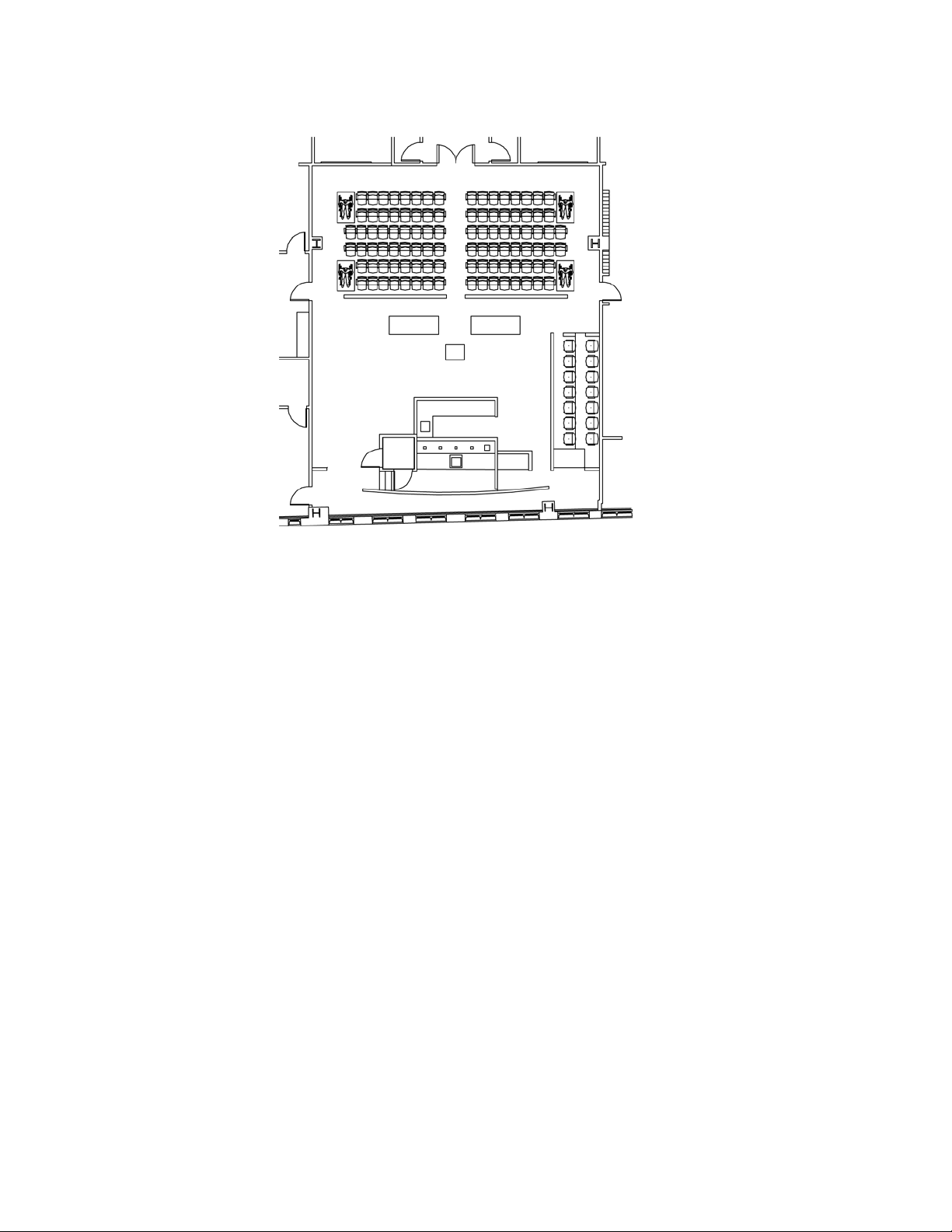

Corporate & Hospital Training Facilities

• Outer wood veneer seat and back panels provide extra protection in high volume areas.

• When a fully-upholstered look is desired, sli p-on seat covers equipped with zippers are available, which provide for easier on-site replacement.

• The Prima chair is equipped with a gravity seat tip-up mechanism, which provides a soft and silent action. Regardless of how many times our seats are lowered and raised, the action is always consistent and quiet.

• All chairs are built with high-quality flame-retardant foam. In addition to reduced maintenance, solid foam seats provide significant user comfort over lon g seating periods.

• The availability of a wider seat (up to 24”) allows the Prima to accommodate a greater range of users.

• Chairs may be specified as individual units with two arms per chair. This allows for greater comfort than the standard common leg configuration in which two adjacent occupants share a center armrest.

• Solid leg panels give the chair a more substantial feel than typical open leg chairs.

• Lumbar cushion provides added comfort during prolonged seating periods.

• Durability and reduced maintenance are the hallmarks of all TSI theater seating, confirmed by our Lifetime Warranty.

• Prima provides the luxurious refined look and superior comfort of an executive office chair in a fixed version; ideal for corporate/hospital training rooms.

Prima Auditorium Seating Planning, Installation & Specification Manual 11

Museums

• Available outer wood veneer seat and back panels provide the reflective surfaces required to achieve excellent acoustics and provide extra protection.

• When a fully-upholstered look is desired, sli p-on covers equipped with zippers are available, which provide for easier on-site replacement.

• The Prima chair is equipped with a gravity seat tip-up mechanism, which provides a soft and silent action. Regardless of how many times our seats are lowered and raised, the action is always consistent and quiet.

• All chairs are built with high-quality flame-retardant foam. In addition to reduced maintenance, solid foam seats provide significant user comfort over lon g seating periods.

• The availability of a wider seat (up to 24”) allows the Prima to accommodate a greater range of users.

• Chairs may be specified as individual units with two arms per chair. This allows for greater comfort than the standard common leg configuration in which two adjacent occupants share a center armrest.

• Solid leg panels give the chair a more substantial feel than typical open leg chairs.

• Lumbar cushion provides added comfort during prolonged seating periods.

• Durability and reduced maintenance are the hallmarks of all TSI theater seating, confirmed by our Lifetime Warranty.

• Prima provides a refined look, clean lines, and superior attention to details.

12 Planning, Installation & Specification Manual Prima Auditorium Seating

Planning Information

Theatre Solutions offers a variety of services designed to help in the planning and successful completion of any project requiring the use of fixed seating. Our services include anal yzing proposed architectural plans and develo ping a seating layout that best meets the project criteria. We will assist in resolving issues related to code compliance and sight line development. All TSI preliminary services are free to architects and potential customers.

Further assistance is offered at those times when the architect has a need for custom components or a totally new product concept. The TSI team of experienced product designers welcomes the opportunity to assist designers in developing solutions to the most unique project requirements.

Program/Schematic Design Based on the estimated project requirements, we will assist architects in the development of a preliminary budget cov ering the fixed seating. This will ensure the establishment of a project budget that includes adequate funding for the product that meets the architect’s requirements.

Design Development During this critical phase of the project, we will assist the architect in the development of preliminary chair layout drawings, taking into consideration proper sightlines and code complian ce. In many cases, the layout drawings must be perfected through several submissions. Special product requirements and possible solutions will be offered at this time. TSI will develop preliminary fixed seating specifications, which will be submitted to the architect for review and possible modifications. By solving design and specifications problems in greater detail during this phase of the work, the architect is able to simplify project documentation and avoid potentially costly oversights.

Custom Designs TSI’s staff includes experienced product designers who are capable of creating custom products and components which may be required to address unique project specifications. Additionally, TSI enjoys greater flexibility in product ion as a result of our diverse manufacturing and supply infrastructure.

When SOM (Chicago) Architects, Chang Jo Architects, and Artec Consultants determined the construction design for the LG Arts Center in Seoul, South Korea, they knew they wanted a finished wood surface on the face of all risers. With structural and acoustic considerations in mind, the final design included a build-out of more than 2” from the structural concrete. TSI developed a unique riser mount connection that provided excellent strength, ease of installation, and elegant design.

During the construction of the Kodak Theater, the home of the Academy Awards, architect David Rockwell and theater consultants, Theatre Projects Consultants, requested that TSI be responsible for developing cast glass sculptures for the end panels of the chairs and for the wall panels. In response, TSI identified and commissioned the services of a glass artist capable of producing the required complicated molds necessary to cast these beautiful sculptures. These unique glass sculptures, which are back lit, can be seen in the custom end panels of the chairs and in the panels located on the walls of the room.

Construction Documents As the architectural working drawings are finalized, TSI will update the chair layout and produce drawings to reflect all changes implemented since the preliminary documentation. TSI will also finalize the seating specifications in any format required by the architect to insure consistency with the rest of the contract documents. This will allow the architect to include the specifications and drawings in the construction documents without further work.

Project Management Every project awarded to TSI, regardless of size, will be assigned to a dedicated project manager who ensures that every detail of the contract receives full attention. The shop drawing submission will be completed in accordance to the project requirements and will take into consideration every detail unique to the project. It will include the exact location of every chair, installation details, the selected fabric and other appropriate details such as aisle lights, removable chairs, tablet arms, and any other options that are included in the contract. Once the shop drawing submittal is approved , TSI will schedule the production of the order in coordination with the project schedule.

If the installation is included in TSI’s contract, it will always be accomplished by a factory-trained installer and, in cases where necessary, under the supervision of TSI factory representatives.

Every portion of this work will be accomplished under the direct supervision of one or more of the TSI principals who, along with the project manager, will always be available to clarify any questions or discuss any aspect of the project with the project leaders.

The TSI design staff is anxious to work with you on your next theater chair project.

Prima Auditorium Seating Planning, Installation & Specification Manual 13

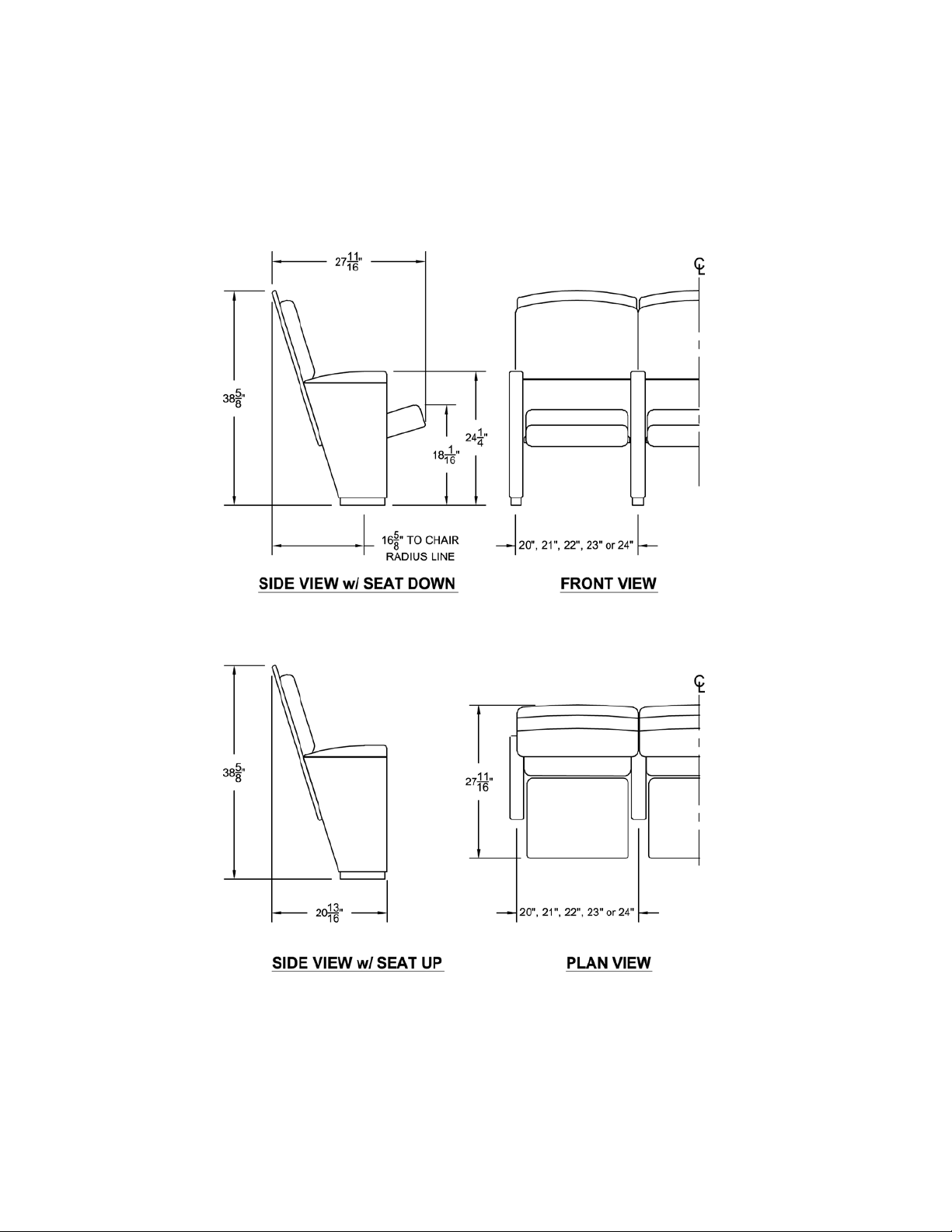

Figure 1 - Prima A1-U/W Front, Side, and Plan Views

(This model has inner-upholstered seat and back cushions, both with outer wood veneer panels and optional inset back upholstery.)

14 Planning, Installation & Specification Manual Prima Auditorium Seating

Figure 2 - Prima C1-U/W Front, Side, and Plan Views

(This model has an inner-upholstered back cushion with outer wood veneer panels and optional inset back upholstery, and a fully-upholstered seat.)

Prima Auditorium Seating Planning, Installation & Specification Manual 15

Figure 3 - Prima C3-U/W Front, Side, and Plan Views

(This model has both fully-upholstered seat and back.)

16 Planning, Installation & Specification Manual Prima Auditorium Seating

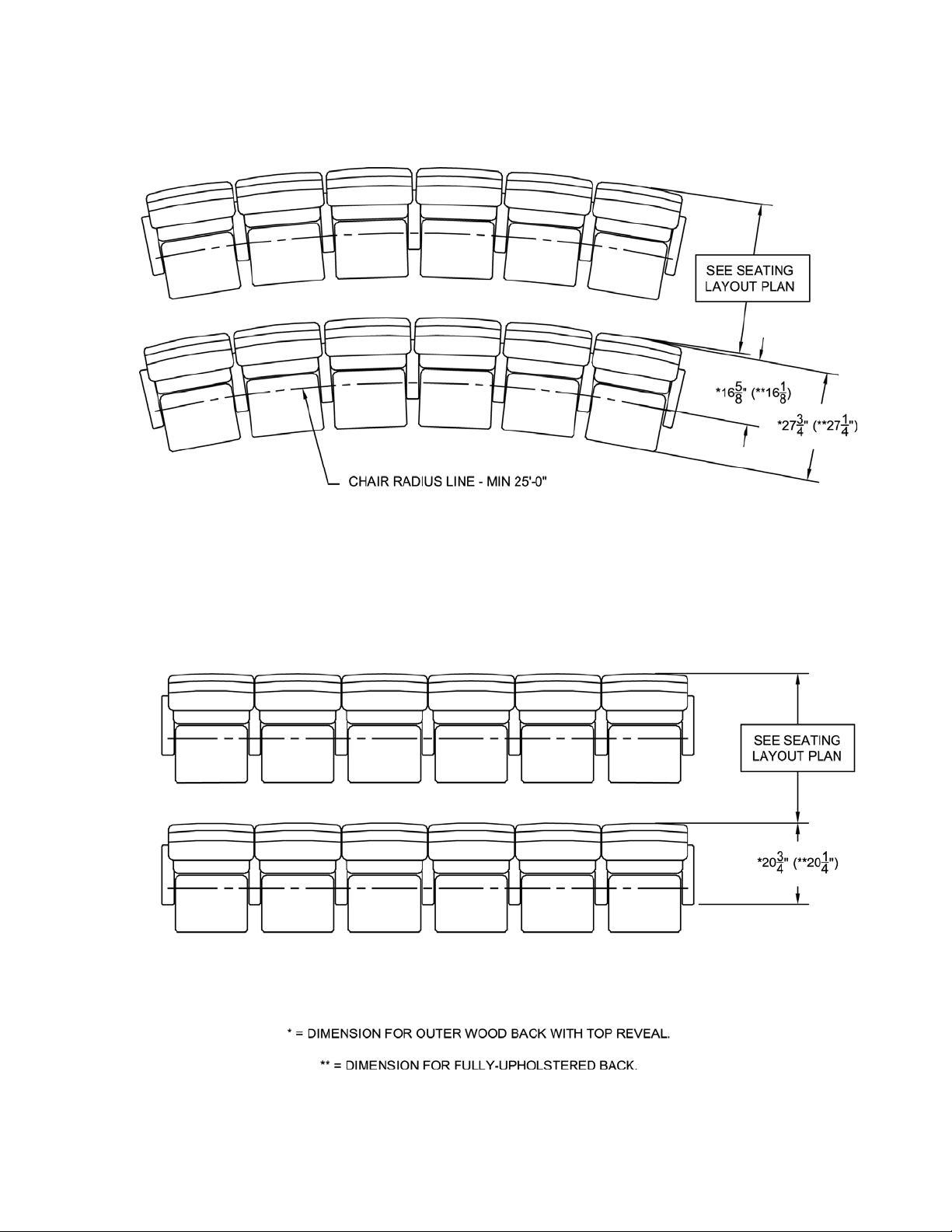

Figure 4 - Prima Seating Layout Dimensions

Prima Auditorium Seating Planning, Installation & Specification Manual 17

varied

finishes including painting is complete, and ceilings are complete.

Prima Specifications – Theatre Seating

(This section pertains to all models of the Prima chair.)

PART 1 – GENERAL

1.1 RELATED DOCUMENTS A. Drawings and general provisions of the Contract, including General and Supplementary Conditions, apply

to this section

1.2 SUMMARY A. This section includes the following:

1. Common standard floor mounted chairs as detailed in Part 2 of these specifications.

1.3 SUBMITTALS A. Product data for each type of product specified. Include installation methods. B. Shop drawings, prepared for architectural draw ings and from field dimen si ons, showing the seating layout,

seat numbering sequence, chair sizes, and aisle widths. Also show a section view with profile dimensions of the seating and back-to-back dim ensions.

C. Samples for initial selection purposes in the form of manufacturer’s color charts or samples of materials

showing the full range of standard colors, finishes, and patterns.

1. Fabric

2. Metal Finishes

3. Wood Finishes D. Statement signed by the theater seating manufacturer confirming that the products submitted comply with

the specified requirements.

1.4 QUALITY ASSURANCE A. Provide installer’s qualifications confirming the installer is qualified to install the manufacturer’s chairs B. Provide seating that complies with California Technical Bulletin 117. C. Obtain each type of seating, including accessories and mounting components, from a single manufacturer. D.

1.5 PROJECT CONDITIONS A.

1.6 DELIVERY, STORAGE, AND HANDLING A. Deliver seating in manufacturer’s unopened cartons clearly labeled with manufacturer’s name and

B. Handle seating in manner to prevent damage.

1.7 EXTRA MATERIALS A. Furnish from the same production run as the materials installed. Package materials with protective

1. Seat and back covers to be furnished in a quantity equal to 5 percent of the amount of chairs

Design and install seating with end standards aligning from first to last row and with backs and seats in width to optimize sightlines. Comply with ADA rules and regulations.

Environmental Conditions: Do not install seating until space is enclosed and weatherproof, wet work in space is complete and dry, installation of Do not install seating until ambient temperature and humidity conditions are continuously maintained at final occupancy values.

contents.

covering and identify with labels describing contents.

installed.

18 Specifications Prima Auditorium Seating

up, along with a complete list of specification discrepancies

thick urethane foam padding. The top and vertical edge shall be covered in 1/2” thick

Prima A1-U Specifications – Theatre Seating

(This section pertains to the Prima A1-U model. The seat assembly has an inner-uphol stered cushion and outer plywood panel with stained edges. The back assembly has an inner-upholster ed cus hio n and outer plyw o od pane l with stained edges. The leg panels are upholstered.)

PART 2 – PRODUCTS

2.1 SEATING A.

1. Basic floor mounted chair.

2. Inner upholstered seat and back.

3. Outer wood veneer seat and back with stained edges.

4. Upholstered leg panels with integrated upholstered armrest B.

1. By offering a quote for this project, the bidder assumes full responsibility for complying with the

C. Failure to comply with the warranty described in Part 4 of these specifications will be cause for

2.2 MATERIALS A. Padding material shall be flexible polyurethane foam which conforms to the standards of the California

B. Seating fabric shall be _______________________________________________ with the color to be

C. Exposed wood on the outer back and seat panels shall be veneer. The panel edges shall be stained to

2.3 FABRICATION, GENERAL A. Fabricate the theater seating in contoured form for maximum comfort using materials that are carefully

2.4 MOUNTING A. Fabricate seating units for floor attachment, using leg panels that have been manufactured to conform to

2.5 UPHOLSTERED LEG PANELS A. All leg panels shall be constructed of two layers of 1” thick 45-50 lb. density particleboard which are glued

B. Center leg panels shall include two hinge assemblies consisting of a 5/16” x 3” x 3” hot-rolled pickled-in-oil

C.

Provide from Theatre Solutions, Inc., 121 Park Avenue, Quakertown, PA 18951, the Prima “ A1-U” model as follows:

Model noted is based on the Theatre Solutions, Inc. Prima “A1-U” model with the intent of establishing the high level of quality required for the project. Other brands submitted for approval will be given consideration provided that a full seating mo ckbetween the proposed substitution and the product specified is received at least 10 working days prior to the bid date.

specifications for this project and shall be totally responsible for any expenses incurred if the product quoted does not comply with the specifications.

disqualification.

Bureau of Home Furnishings 117-75. The back shall be 2” thick. The seat shall be 3” thick.

selected from the standard choice of colors. All upholstery shall be first quality without creases, stretch lines, or wrinkles.

match the veneer faces. All wood shall be stained in any of the manufacturer’s standard finishes.

selected to be free from defects, objectionable projections, or irregularities. Smooth round corners and edges to present the least possible snagging and pinching hazards.

the slope of the floor while maintaining seat and back in same angular relationship to leg panels throughout.

and machined to form one integral 2” thick panel. Center leg panels shall include two mounting plates of 11 gauge cold-rolled steel containing four 1/4-20 rivet nuts. These mounting plates will be embedded between the two layers of particleboard and attached with four #10 x 5/8” pan head sheet metal screws. End leg panels shall contain one interior mounting plate. These mounting plates provide the structure for the hinge assemblies.

steel plate with one 1/2” diameter 12L14 steel stop pin and one 3/4” machined hinge pin of 12L14 steel. The pin bar weldment is finished with a black epoxy powder coating and assembled to the leg panel w ith four 1/4-20 flat head machine screws. End leg panels shall contain one hinge assembly.

Upholstered leg panels shall be profile shaped to include an integrated armrest surface and shall be encapsulated in 1/4” urethane foam padding. All foam shall be compliant with the California Bureau of Home Furnishings Technical Bulletin 117.

Prima Auditorium Seating Specifications 19

les at the bottom, resulting in a rigid connection with no visible fasteners. The veneer face and edges of the outer panel shall resulting in a rigid connection with no visible fasteners. The veneer face and edges of the outer panel shall

thick polyurethane foam; the padding material on the lumbar cushion shall be 2” thick. All padding shall be

Bulletin

el component

D. All leg panels shall include a plinth base of seasoned maple hardwood fitted with 1/4-20 threaded inserts

for assembly of floor attachment hardware.

2.6 UPHOLSTERED SEATS/BACKS A. General: Fabricate theater seating with padding and fabric covering. Equip each seat with a gravity self-

rising mechanism so that unoccupied seats return to an upright position perpendicular to the base line of floor of auditorium. Spring compensating mechanism will not be acceptable. Chair profile with the seat in the upright position cannot exceed 20-13/16”.

B.

C. Back Construction: Solid back construction comprised of a plywood veneer outer panel, one inner lumbar

Seat Construction: Solid seat bottom construction comprised of a plywood veneer outer panel fastened solidly and without voids to an inner structural plywood panel. The outer panel shall be 3/4” thick, faced one side with Grade A veneer centered across the width of the panel, and exposed plywood laminations along all edges. The inner panel shall be 3/4” thick. Both shall be electronically glued hardwood plywood and shall be fastened together with bayonet hanging brackets at the top and two steel ang

be stained to match the architect’s sample. The polyurethane foam padding material shall be two-ply and shall consist of 2” thick 55 lb. ILD and 1” thick 45 lb. ILD, shall be glued to the inner panel, and shall conform to the California Bureau of Home Furnishings Technical Bulletin 117. The complete seat assembly shall be supported by two 7 gauge formed steel mounting brackets which will attach the seat assembly to the hinges on the leg panels. The seat shall have a built-in coun terweight to insure automatic self-rising without the aid of springs. Arch-spring seat construction will not be acceptable.

plywood panel, and one inner shoulder plywood panel. The outer panel shall be 3/4” thick, faced one side with Grade A veneer centered across the width of the panel, and exposed plywood laminations along all edges. The inner panels shall be 1/2” thick. Plywood panels shall be electronically glued hardwood plywood. Inner panels shall be fastened to the outer panel with four bayonet hanging brackets at the top and four 16 gauge flat steel brackets using four #8 x 1/2” pan head sheet metal screws at the bottom,

be stained to match the architect’s sample. The padding material on the shoulder cushion shall be 1-1/2” glued to the inner panel, and shall conform to the California Bureau of Home Furnishings Technical

117. The outer panel shall contain six 1/4-20 threaded inserts and shall be assembled to the leg panels with two 11 gauge steel angle brackets.

D. Hinge: The seat hinge shall be a weldment consisting of a 7 gauge hot-rolled pickl ed-in-oil ste

and shall be formed and punched to receive a 0.56” id x 0.75” od x 0.5” long steel bushing. A selflubricating nylon sleeve shall be fitted between the seat hinge and the standard seat hinge pin. The hinge shall be machined to provide a positive stop location for the seat in both occupied and unoccupied positions. The hinge shall be fitted with a plastic cover to eliminate all pinch points and shall include a 3/16” thick urethane rubber pad to dampen noise upon the seat return to the vertical position.

20 Specifications Prima Auditorium Seating

model

up, along with a complete list of specification discrepancies

Prima A1-W Specifications – Theatre Seating

(This section pertains to the Prima A1-W model. The seat assembly has an inner-upholstered cushion and outer plywood panel with stained edges. The back assembly has an inner-upholstered cushion and outer plywood panel with stained edges. The leg panels are wood veneer.)

PART 2 – PRODUCTS

2.1 SEATING A.

1. Basic floor mount ed cha ir.

2. Inner upholstered seat and back.

3. Outer wood veneer seat and back with stained edges.

4. Veneer leg panels with inte gr a ted hardwood armrest B.

1. By offering a quote for this project, the bidder assumes full responsibility for complying with the

C. Failure to comply with the warranty described in Part 4 of these specifications will be cause for

2.2 MATERIALS A. Padding material shall be flexible polyurethane foam which conforms to the standards of the

B. Seating fabric shall be _______________________________________________ with the color to be

C. Exposed wood on the outer back and seat panels and leg panels shall be veneer. The panel edges shall

2.3 FABRICATION, GENERAL A. Fabricate the theater seating in contoured form for maximum comfort using materials that are carefully

2.4 MOUNTING A. Fabricate seating units for floor attachment, using leg panels that have been manufactured to conform to

2.5 VENEER LEG PANELS A. All leg panels shall be constructed of two layers of 1” thick 45-50 lb. density particleboard which are glued

B. Center leg panels shall include two hinge assemblies consisting of a 5/16” x 3” x 3” hot-rolled pickled-in-oil

C. Veneer leg panels shall be finished with Grade A veneer on both sides, centered across the width of the

Prima Auditorium Seating Specifications 21

Provide from Theatre Solutions, Inc., 121 Park Avenue, Quakertown, PA 18951, the Prima “A1-W” as follows:

Model noted is based on the Theatre Solutions, Inc. Prima “A1-W” model with the intent of establishing the high level of quality required for the project. Other brands submitted for approval will be given consideration provided that a full seating mockbetween the proposed substitution and the product specified is received at least 10 working days prior to the bid date.

specifications for this project and shall be totally responsible for any expenses incurred if the product quoted does not comply with the specifications.

disqualification.

CaliforniaBureau of Home Furnishings 117-75. The back shall be 2” thick. The seat shall be 3” thick.

selected from the standard choice of colors. All upholstery shall be first quality without creases, stretch lines, or wrinkles.

be stained to match the veneer faces. All wood shall be stained in any of the manufacturer’s standard finishes.

selected to be free from defects, objectionable projections, or irregularities. Smooth round corners and edges to present the least possible snagging and pinching hazards.

the slope of the floor while maintaining seat and back in same angular relationship to leg panels throughout.

and machined to form one integral 2” thick panel. Center leg panels shall include two mounting plates of 11 gauge cold-rolled steel containing four 1/4-20 rivet nuts. These mounting plates will be embedded between the two layers of particleboard and attached with four #10 x 5/8” pan head sheet metal screws. End leg panels shall contain one interior mounting plate. These mounting plates provide the structure for the hinge assemblies.

steel plate with one 1/2” diameter 12L14 steel stop pin and one 3/4” machined hinge pin of 12L14 steel. The pin bar weldment is finished with a black epoxy powder coating and assembled to the leg panel with four 1/4-20 flat head machine screws. End leg panels shall contain one hinge assembly.

panel. The vertical edges shall be banded with 1/8” hardwood of the same species as the veneer. An integral armrest along the top of the leg panel shall be hardwood to match the veneer face, shall be nominally 2-7/16” x 2-1/16” and shall be profile shaped to a 36” radius.

and shall be fastened together with bayonet hanging brackets at the top and two steel angles at the bottom,

nel shall

with no visible fasteners. The veneer face and edges of the outer panel shall

ll be 2” thick. All padding shall be

glued to the inner panel, and shall conform to the California Bureau of Home Furnishings Technical Bulletin

oil steel component

D. All leg panels shall include a plinth base of seasoned maple hardwood fitted with 1/4-20 threaded inserts

for assembly of floor attachment hardware.

2.6 UPHOLSTERED SEATS/BACKS A. General: Fabricate theater seating with padding and fabric covering. Equip each seat with a gravity self-

rising mechanism so that unoccupied seats return to an upright position perpendicular to the base line of floor of auditorium. Spring compensating mechanism will not be acceptable. Chair profile with the seat in the upright position cannot exceed 20-13/16”.

B.

C. Back Construction: Solid back construction comprised of a plywood veneer outer panel, one inner lumbar

Seat Construction: Solid seat bottom construction comprised of a plywood veneer outer panel fastened solidly and without voids to an inner structural plywood panel. The outer panel shall be 3/4” thick, faced one side with Grade A veneer centered across the width of the panel, and exposed plywood laminations along all edges. The inner panel shall be 3/4” thick. Both shall be electronically glued hardwood plywood

resulting in a rigid connection with no visible fasteners. The veneer face and edges of the outer pa be stained to match the architect’s sample. The polyurethane foam padding material shall be two-ply and shall consist of 2” thick 55 lb. ILD and 1” thick 45 lb. ILD, shall be glued to the inner panel, and shall conform to the California Bureau of Home Furnishings Technical Bulletin 117. The complete seat assembly shall be supported by two 7 gauge formed steel mounting brackets which will attach the seat assembly to the hinges on the leg panels. The seat shall have a built-in counterweight to insure automatic self-rising without the aid of springs. Arch-spring seat construction will not be acceptable.

plywood panel, and one inner shoulder plywood panel. The outer panel shall be 3/4” thick, faced one side with Grade A veneer centered across the width of the panel, and exposed plywood laminations along all edges. The inner panels shall be 1/2” thick. Plywood panels shall be electronically glued hardwood plywood. Inner panels shall be fastened to the outer panel with four bayonet hanging brackets at the top and four 16 gauge flat steel brackets using four #8 x 1/2” pan head sheet metal screws at the bottom, resulting in a rigid connection be stained to match the architect’s sample. The padding material on the shoulder cushion shall be 1-1/2” thick polyurethane foam; the padding material on the lumbar cushion sha

117. The outer panel shall contain six 1/4-20 threaded inserts and shall be assembled to the leg panels with two 11 gauge steel angle brackets.

D. Hinge: The seat hinge shall be a weldment consisting of a 7 gauge hot-rolled pickl ed-in-

and shall be formed and punched to receive a 0.56” id x 0.75” od x 0.5” long steel bushing. A selflubricating nylon sleeve shall be fitted between the seat hinge and the standard seat hinge pin. The hinge shall be machined to provide a positive stop location for the seat in both occupied and unoccupied positions. The hinge shall be fitted with a plastic cover to eliminate all pinch points and shall include a 3/16” thick urethane rubber pad to dampen noise upon the seat return to the vertical position.

22 Specifications Prima Auditorium Seating

up, along with a complete list of specification discrepancies

Prima C1-U Specifications – Theatre Seating

(This section pertains to the Prima C1-U model. The seat is fully-upholstered. The back assembly has an innerupholstered cushion and outer plywood panel with stained edges. The leg panels are upholstered. )

PART 2 – PRODUCTS

2.1 SEATING A.

1. Basic floor mount ed cha ir.

2. Inner upholstered back and fully upholstered seat.

3. Outer wood veneer back with stained edges.
