Page 1

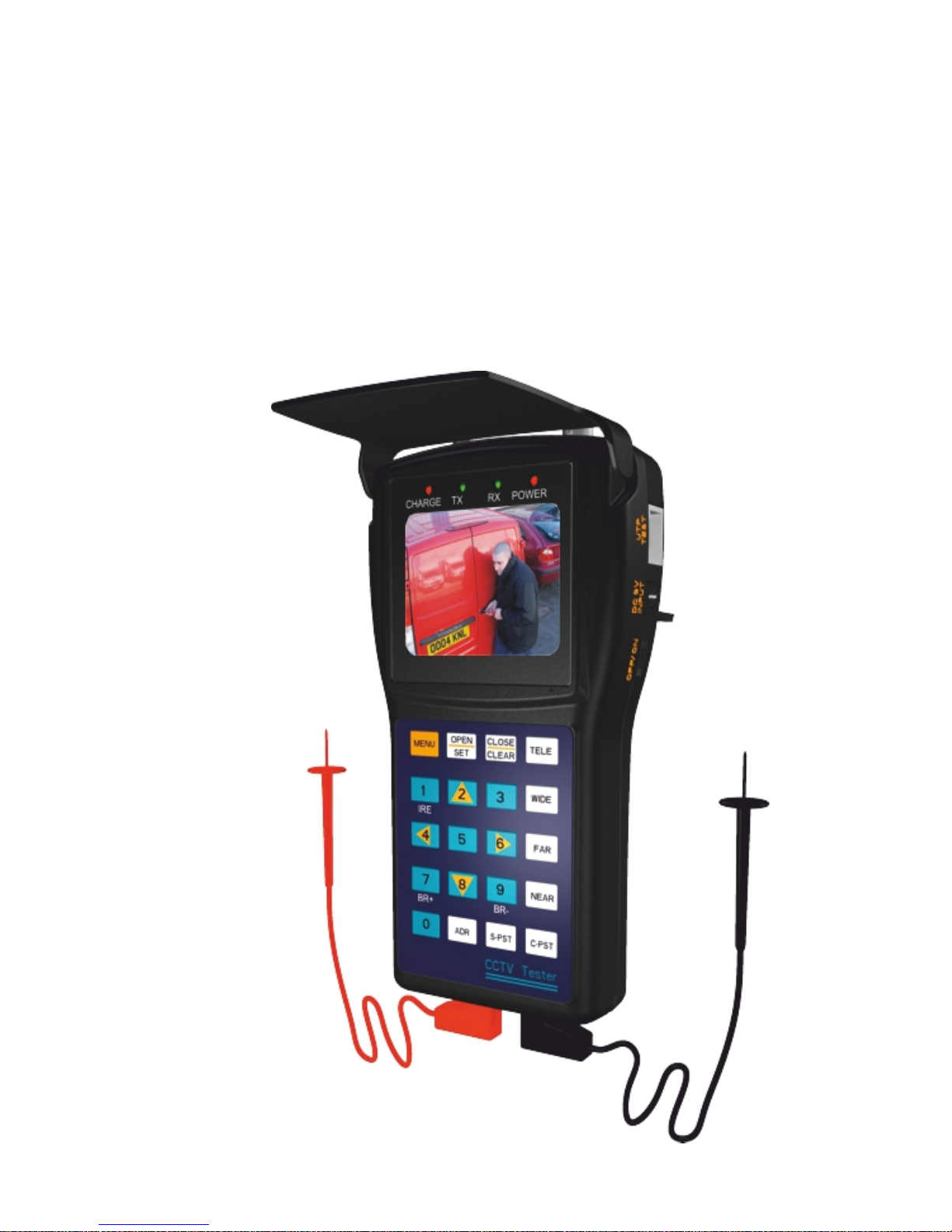

CCTV Tester
CCTV TesterCCTV Tester
CCTV Tester
User’s Manual
Page 2
CCTV Tester User’s Manual
1
Table of Contents
1，，，， Safety Information..................................................................................................................2
1.1 Precaution before using the tester .................................................................................2
1.2 Precautions when using the tester.................................................................................2
1.3 Precautions for battery charging and using ................................................................2
2，，，， Introduction.............................................................................................................................2
2.1 Features and function........................................................................................................2
2.2 Standard items.....................................................................................................................3
2.3 Function of each part .........................................................................................................4
2.4 Specification.........................................................................................................................6
3，，，， Operation Introduction.........................................................................................................7
3.1 Power and battery...............................................................................................................7
3.2 Main menu introduction.....................................................................................................7
3.3 Video test...............................................................................................................................7
3.4 System information sub-menu.........................................................................................8
3.5 PTZ test..................................................................................................................................8
3.6 Video signal attenuation analyzing.................................................................................9
3.7 Screen brightness adjustment.......................................................................................10
3.8 UTP cable test....................................................................................................................10
3.7 Video generating................................................................................................................11
3.10 RS485 data test................................................................................................................11
3.11 Digital multi-meter...........................................................................................................12
3.12 Output power to camera................................................................................................13
4，，，， Warranty.................................................................................................................................14
4.1 Warranty items ...................................................................................................................14
4.2 Warranty exception...........................................................................................................14
4.3 Complemented items........................................................................................................14
Page 3
CCTV Tester User’s Manual
2
1，，，， Safety Information
1.1 Precaution before using the tester
A. Make sure to read the user’s manual before using the product.
B. Make sure to check the input and output range of voltage or current at every input and
output ports before connecting, so that the system cannot be overloaded.
C. The following operational environment should be maintained constantly:
Temperature: -30℃--- 70℃
Relative humidity: 30% ~ 90%
Recharging voltage: DC5V
1.2 Precautions when using the tester
A. Do not use the tester in damp humidity or leaking gas environments.
B. Do not touch the tester with wet hands.
C. Be mindful not to shock or shake the tester while in use to avoid damage.
D. Avoid the places of strong magnetism or electric wave, which could cause incorrect
measuring.
E. Be careful not to expose the ports or joints to dirt or liquid.
F. Do not disassemble the tester.
1.3 Precautions for battery charging and using
A. Use only original chargeable battery with the tester, when charge the batteries, please
use the original power adapter.
B. Make sure not to disorient the polarization of batteries.
C. Do not short-circuit or disassemble batteries.
2，，，， Introduction
2.1 Features and function
A. Video test
The video signal and the quality of picture can be tested.
B. PTZ controlling
It has the basic operational test of PTZ products, function include pan/tilt, zoom in/out,
preset setting and operation, speed adjustment etc; support multi-protocol and baud
rate, communication via RS-232, RS422 simplex and RS485 port.
RS485 protocol include: Pelco D,P, Samsung, Panasonic, Molynx.
Page 4
CCTV Tester User’s Manual
3
Baud rate include: 2400, 4800, 9600, 19200.
C. Power to camera
The tester can output DC12V power to camera; it’s a helpful function when testing
person can’t find power supply when they test a camera.
D. Digital multi-meter
The tester can detect the AC/DC voltage and resistance, high testing range and
precision can help installer find out the circuit problem.
E. Video signal attenuation analyzing
The tester can help installer to analyze the video signal attenuation by catching the
video signal parameters.
F. UTP cable test
The wiring condition (disconnected, short of UTP cable) can be tested and show in
the screen clearly.

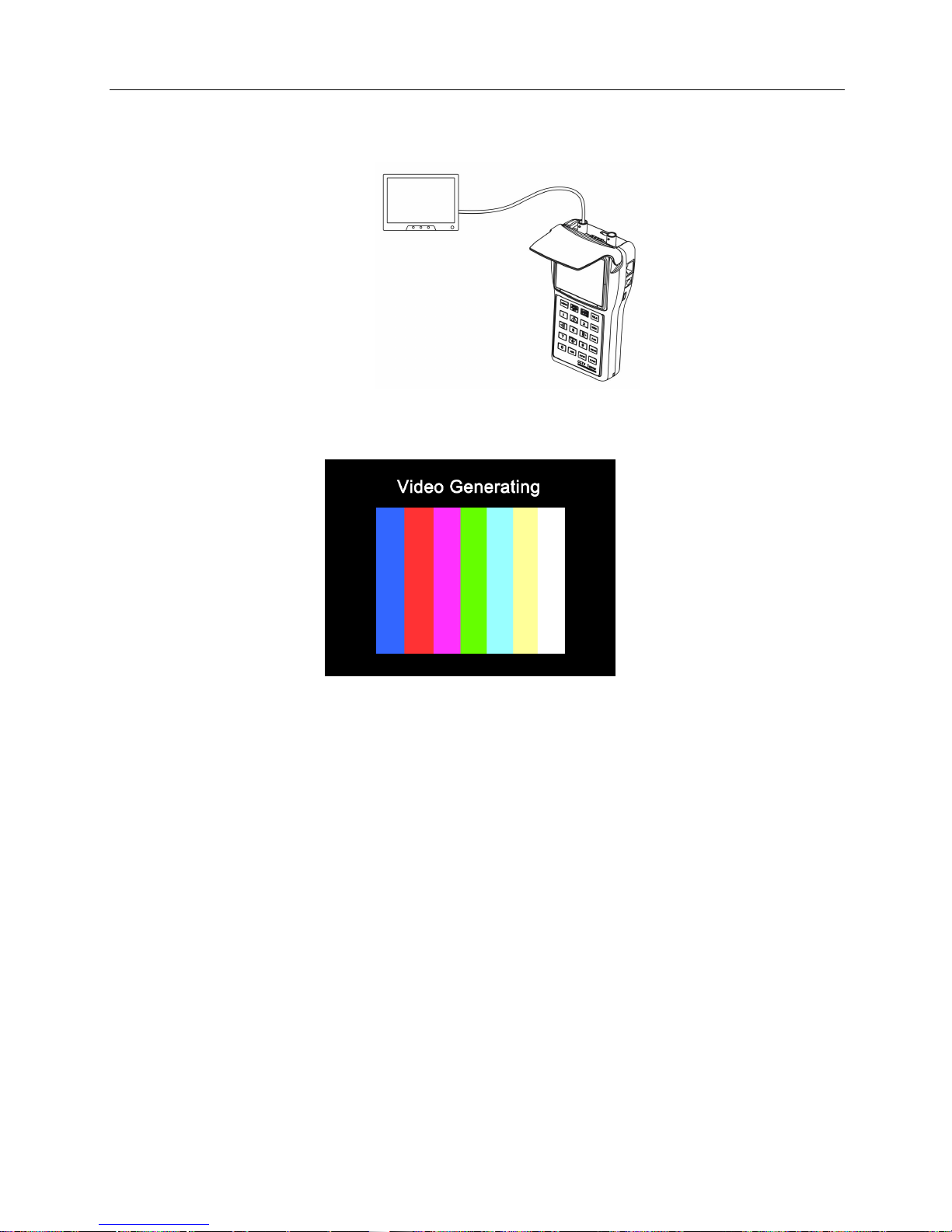

G. Video signal generating
It can output Green, white Black and Blue screen to allow technician to inspect video
monitor or DVR. The generating signal support PAL or NTSC (don’t support both
meanwhile) format.
H. RS485 data test
It can test the RS485 data sent from controlling device, display the hexadecimal data
content for engineer to analyze.
2.2 Standard items
Item Quantity
CCTV tester
1
Battery
1
Power adapter
1
UTP cable tester
1
BNC connect cable
1
Test lead set
1
Necklace
1
DC12V power cable
1
User manual
1
Page 5
CCTV Tester User’s Manual
4

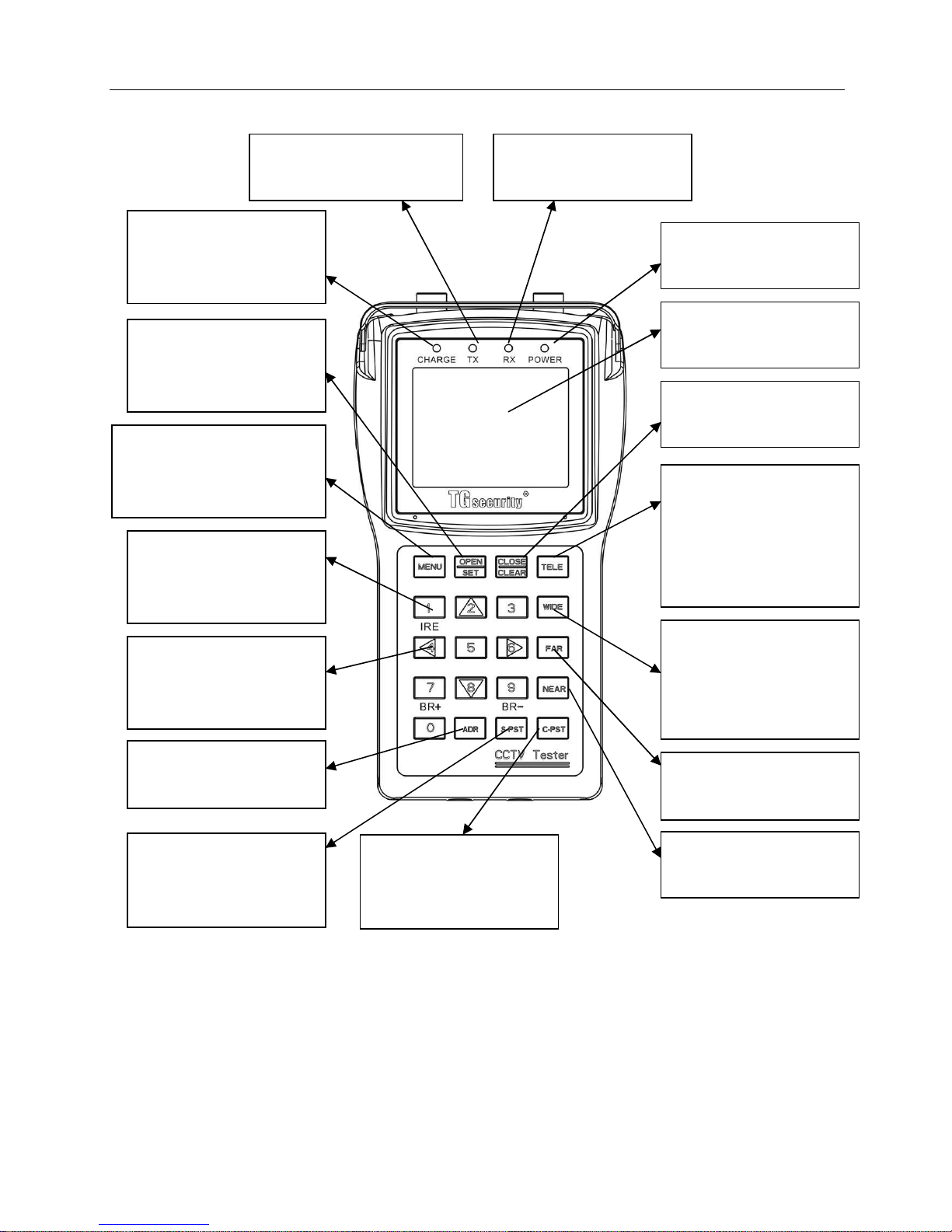

2.3 Function of each part
Shift setup buttons::
Shifts up, down, right, left for
PTZ & menus & others.
0--9 num-buttons:
Input number when setup
preset, call preset & PTZ ID
Address:
Setup PTZ ID
Charge Indicating LED
:
It is on when being charged.
Glitters when charge finish.
Data Transmitting LED:
It lights when transmitting data.
Menu:
Long press back to main menu,
display/hide sub-menu
Open & setup:
Open iris & setup the
functions
Close & clear:
Close Iris & clear the setup
Data Receiving LED:
It lights when receiving data.
Power LED:
It is on when the tester is on.
2.5 inch LCD Screen:
960x240 resolution.
Far:
To adjust PTZ focus to far
Near:
To adjust PTZ focus to near
Tele:
To zoom in the PTZ lens &
send the generated video
signal out to the display
device.
Wide:
To zoom out the PTZ lens &
recalls the generated video
signal.
Call preset:
In PTZ mode，press to start
to call preset
Set preset:
In PTZ mode，press to start
to set preset
Page 6
CCTV Tester User’s Manual
5

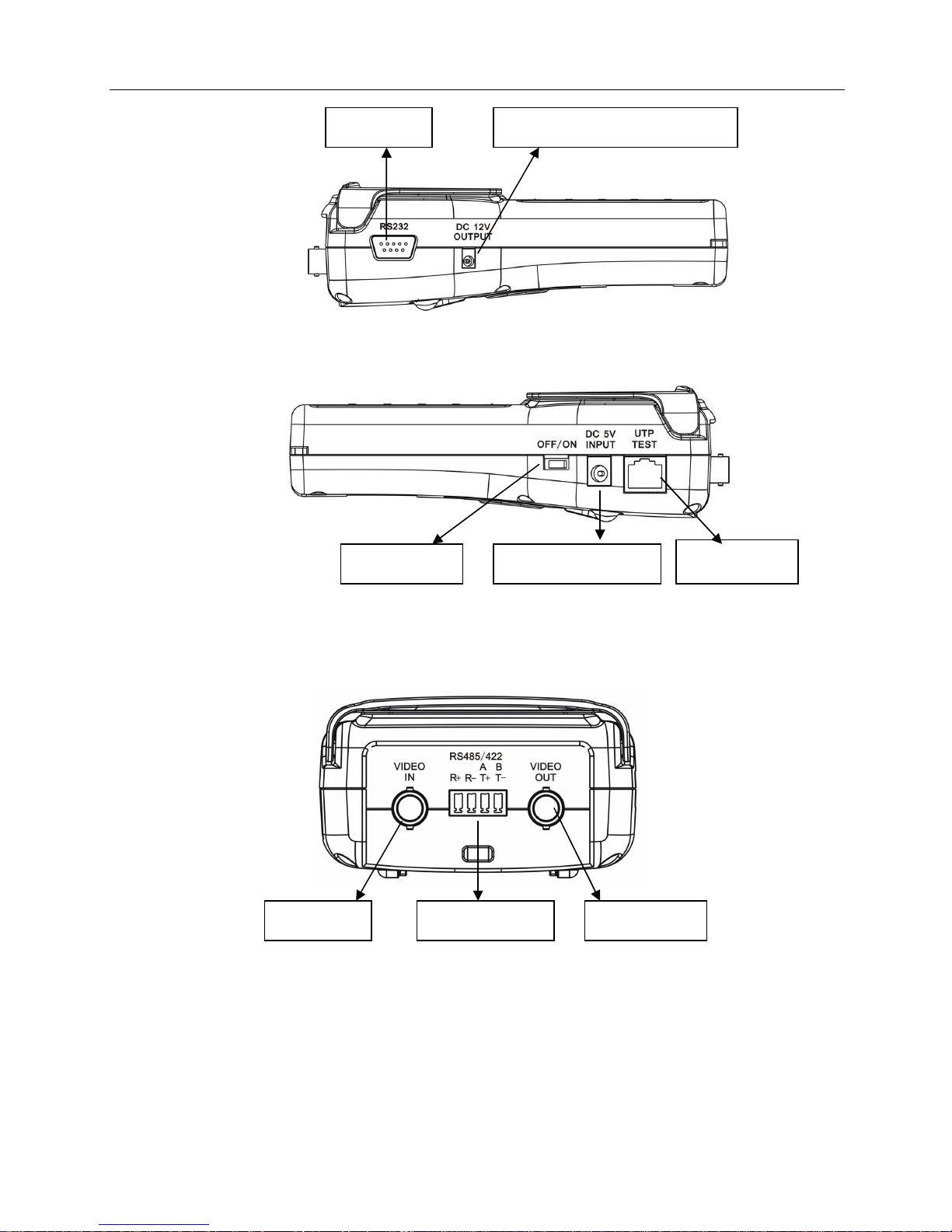

DC5V power jack Power switcher
UTP cable jack
RS232 port
Video input
RS422/485 port
Video output
DC12V power output jack
Page 7
CCTV Tester User’s Manual
6
2.4 Specification
Model CCTV Tester
Signal Mode
NTSC/PAL automatically suitable
Display
2.5 inch LCD screen, 960 x 240 resolution
Video Input
1 channel BNC
Video Output
1 channel BNC
Video Test
Adjustable
Brightness adjustable
Communication
RS232, RS422 simplex and RS485
Protocol
Include more than 20 kinds of protocols or customized
PTZ Control
and Test
Baud Rate
2400,4800,9600,19200
DC Voltage Test
Max: 1000V, Precision: 0.1mV
AC Voltage Test
Max: 750V, Precision: 0.1mV
Multi-meter
Function
Resistance Test
Max: 40MΩ, Precision: 0.1Ω
Voltage
DC12V
Working Time
4-5 hours to normal camera
Power to
Camera
Max Current
200mA
Video analyzing
Video signal attenuation analyzing
UTP Cable Test
Test UTP cable connection state
Signal Generating
Output 1 channel video signal for testing monitor
RS485 Data Test
Test the RS485 data sent from controlling device
OSD Menu
English OSD menu
Other
Functions
Keyboard
New design with number buttons, easy to operation
Power Adapter
DC5V
Battery
3000mAh rechargeable battery inside
Rechargeable
6 hours recharging time
Low Consumption
Sleeping mode, display battery power state
Power and
Battery
Working Time
10 hours
Work Temperature
-30℃---+70℃
Work Humidity
30%-90%
Dimension
166mm x91mm x48mm
Others
Weight
280g
Page 8
CCTV Tester User’s Manual
7
3，，，， Operation Introduction
3.1 Power and battery
A. The power slide switch is located at the side of the tester. Turn the power slide switch
on to power on the tester, turn it off to power off the tester;
B. After the tester turning to sleeping mode, turn the slide switch on again to restart it;
C. This tester has panel battery inside the device, more capacity, longer working time;
D. Without the authorization from the manufacturer, please don’t release the rear panel
and try to repair the battery;
E. The batteries should be plugged in over 5 hours for full charge, when charged the
Charge Indicating LED will on, after full charging, the Charge Indicating LED light
will off and the charging work can stop automatically.
F. The charged batteries can operate for 10 hours or more.
G. When the battery indicator in system information menu shows 25 (the status number
includes 100, 90, 75, 50, 25, 5), please recharge it for use.
H. The tester can be used when it is being charged.
3.2 Main menu introduction
Turn on the device; you will see the main menu, as the following shows:
1-5 are five independent sub-menu;
Press the corresponding number button to get into the sub-menu;
Version number and S/N cant be edited;
1 SYSTEM SETUP
——>
System information
2 PTZ CONTROLLING
——>
PTZ controlling function
3 UTP TESTING
——>
UTP testing function
4 VIDEO GENERATING
——>
Video generating function
5 RS485 DATA ANALYZING
——>
RS485 protocol analyzing
6 MULTI METER
VER:V1.09 S/N:08110910
——>
Software version and S/N
3.3 Video test
Page 9
CCTV Tester User’s Manual
8
A. Connect the output terminal of video output system to the video input BNC of tester,
turn on the tester, the video can be display on the screen.
B. Connect the video output BNC of tester to the video input of other display device, it
can display the video signal generated by the tester or looped by tester.
3.4 System information sub-menu
A. Press “1” to switch to the system information sub-menu, as follows:
PROTOCOL Pelco P ——>
PTZ protocol
COM 485 ——>
Communication port in used
RATE 4800 ——>
Baudrate: 2400/4800/9600/19200
SPEED 016 ——>
Pan and tilt speed
IDLE TIME 000 ——>
Idle time from last operation to auto turn off (minute)
BATTERY 090 ——>
Battery power status: 100/90/75/50/25/5
B. Press Set button to start the set up:
C. Press num-button ”2” and ”8” (PTZ direction button “UP” and “DOWN”) to select
the option; (Battery power status can be edited)
D. Press num-button “2/6/8” (PTZ direction button “UP/DOWN/RIGHT”) to adjust the
parameter;
E. Press num-button “4” (PTZ direction button “LEFT” )to save and quit;
F. Press num-button “4” again to finish the setup situation, the characters in the menu
will stop glitter;
G. Press MENU button for 1 second to back to the main menu.
Note: In our device, PTZ there are 16 (some protocol ok has 7) levels for the PTZ, 0
means the minimum speed, 17 (or 7) means the maximum speed.
3.5 PTZ test
A. Connection

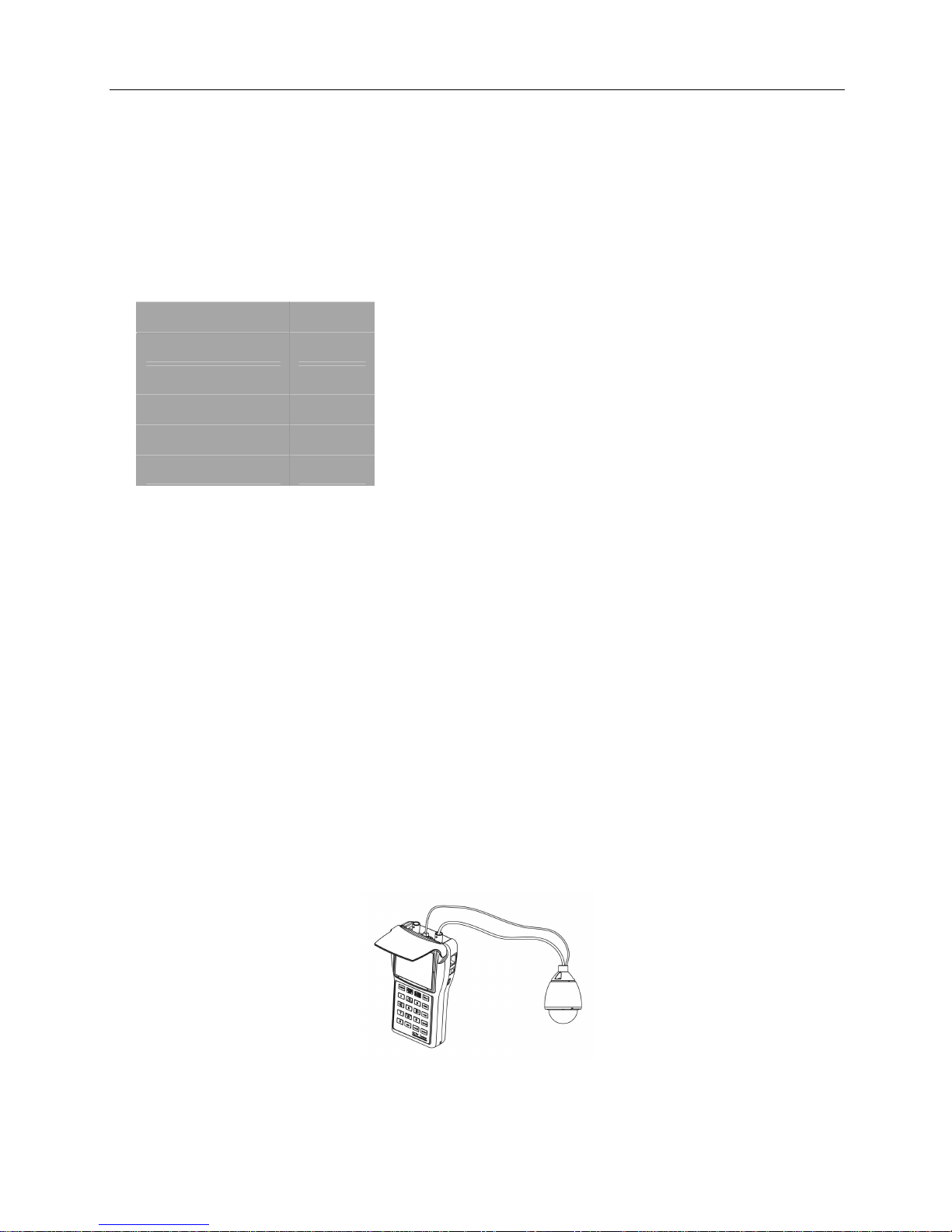

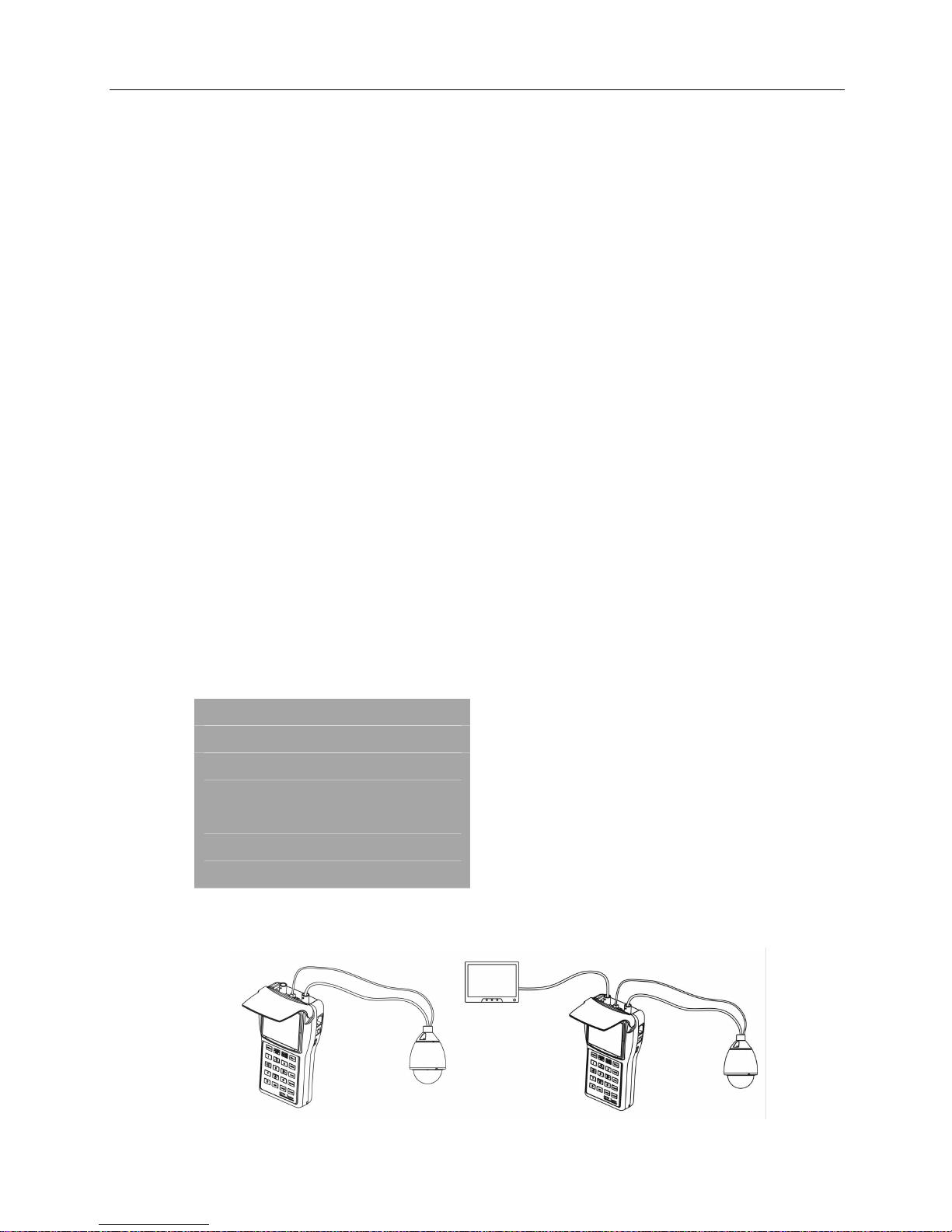

Connect the tester with the PTZ camera as the picture shows.
In the main menu, press num-button “2” to switch to the PTZ testing function
Page 10
CCTV Tester User’s Manual
9
sub-menu, as the following
PTZ ID
<——
ADDRESS:001 VIDEO:NULL
——>
Video format
001-255
PAL/NTSC/NULL
B. Operation
Press the ADR button, input the PTZ address by using num-button;
Press the SET button to save the setup;
Press the MENU button to hide the menu information and show a clean screen for
camera image;
Press MENU button for 1 second to back to the main menu.
C. PTZ controlling
When connect to the PTZ correctly, the camera image will displayed in the screen of the
tester, after setup the proper protocol, baud rate and the ID of the PTZ, user can control
the PTZ as the following method:
Press UP/DOWN/LEFT/RIGHT to control the movement of the PTZ;
Press OPEN/CLOSE to control the iris;
Press FAR/NEAR to adjust the focus manually;
Press WIDE/TELE to zoom in/out the camera lens.
D. Preset position
Set up the preset position
In the PTZ controlling mode, press S-PST button, then input the preset position
number by the num-buttons, press SET to save the setup operation, user can use
this method to set several preset positions one by one;
Calling the preset position
In the PTZ controlling mode, press the C-PST button, then input the preset position
number by the num-buttons, press SET to save the setup operation, user can use
this method to call several preset positions one by one;
3.6 Video signal attenuation analyzing
At the mode of video and PTZ testing, when there is a analogue video signal connect in
and display in the screen correctly, press the num-button “1” to catch the parameter
of video signal as:
MAX Vpp: means the difference between maximum and minimum of video signal
strength, the video signal will be brighter when this parameter is bigger.
AVERAGE Vpp: means average of the difference between maximum and minimum
Page 11
CCTV Tester User’s Manual
10
of video signal strength, if the signal sent out by camera is 1Vpp, and the detected
signal from tester is less than 1V, for example, its 0.8V, this means the attenuation
of video signal is 20%.
SYNC SIGNAL：means the voltage of the synchro signal, 0.3V means the best
signal.
If there is no signal is detected, “No Video” will be displayed.
3.7 Screen brightness adjustment
At the mode of video and PTZ testing, user can press the num-button “7”（（（（BR+））））and “9”
（
（（
（BR-））））to adjust the brightness of screen.
3.8 UTP cable test

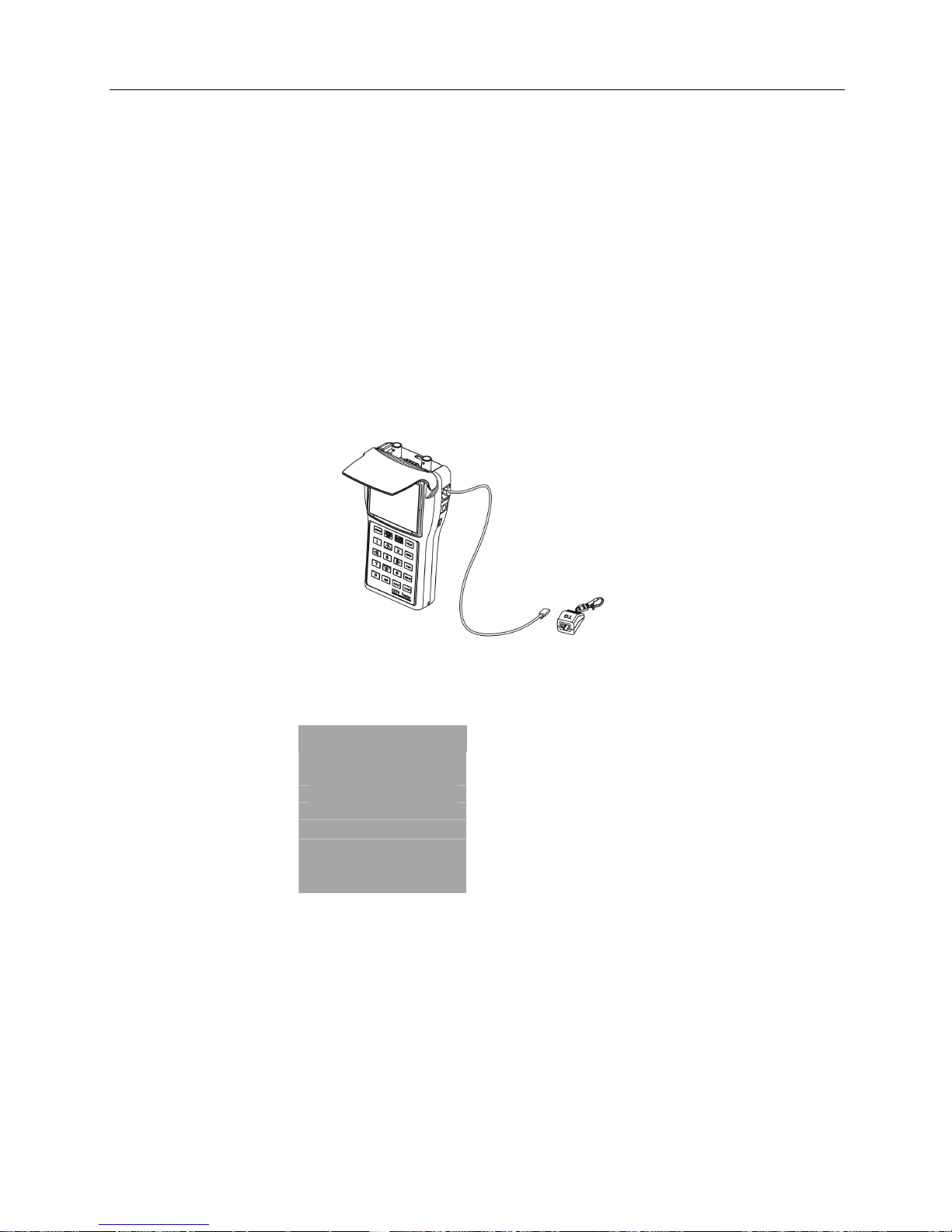

A. Connect the tester to the UTP cable tester as the picture shows:
B. In the main menu mode, press num-button “3” to switch to the UTP testing mode;
C. Press Set to start the test, UTP cable information will be displayed in the screen.
D. User can estimate the UTP cable connection situation from the information.
UTP CABLE TEST
1
－－－ －－－－
3
——>
UTP tester side sequence
2
－－－ －－－－
6
3
－－－ －－－－
1
4
－－－ －－－－
0
——>
”0” means open circuit
5
－－－ －－－－
0
——>
6
－－－ －－－－
2
7
－－－ －－－－
7
CCTV
Tester
side
sequence
<——
8
－－－ －－－－
8
If there are 2 line show “0”, it maybe:
They open circuit separately;
They short circuit to each other;
E. User can estimate the connect situation base on the information;
F. Press Menu button for 1 second to back to the main menu.
Page 12
CCTV Tester User’s Manual
11
3.9 Video generating
A. Connect the tester to the displayer device as the picture shows:
B. In the main menu, press the num-button”4” to switch to the video generating function
sub-menu, as the follows:
C. Operation setup
Press num-button “4” to switch to the video generating function mode.
Press SET to switch the video generating signal: Color bar, Blue, Red, Pink, Green,
Cyan, Yellow and White.
Press TELE to send the generated video signal to the display device.
Press WIDE to recall the generated video signal.
Press MENU button in short time to hid/display the video generating menu
character.
Press MENU button for 1 second to back to the main menu.
3.10 RS485 data test

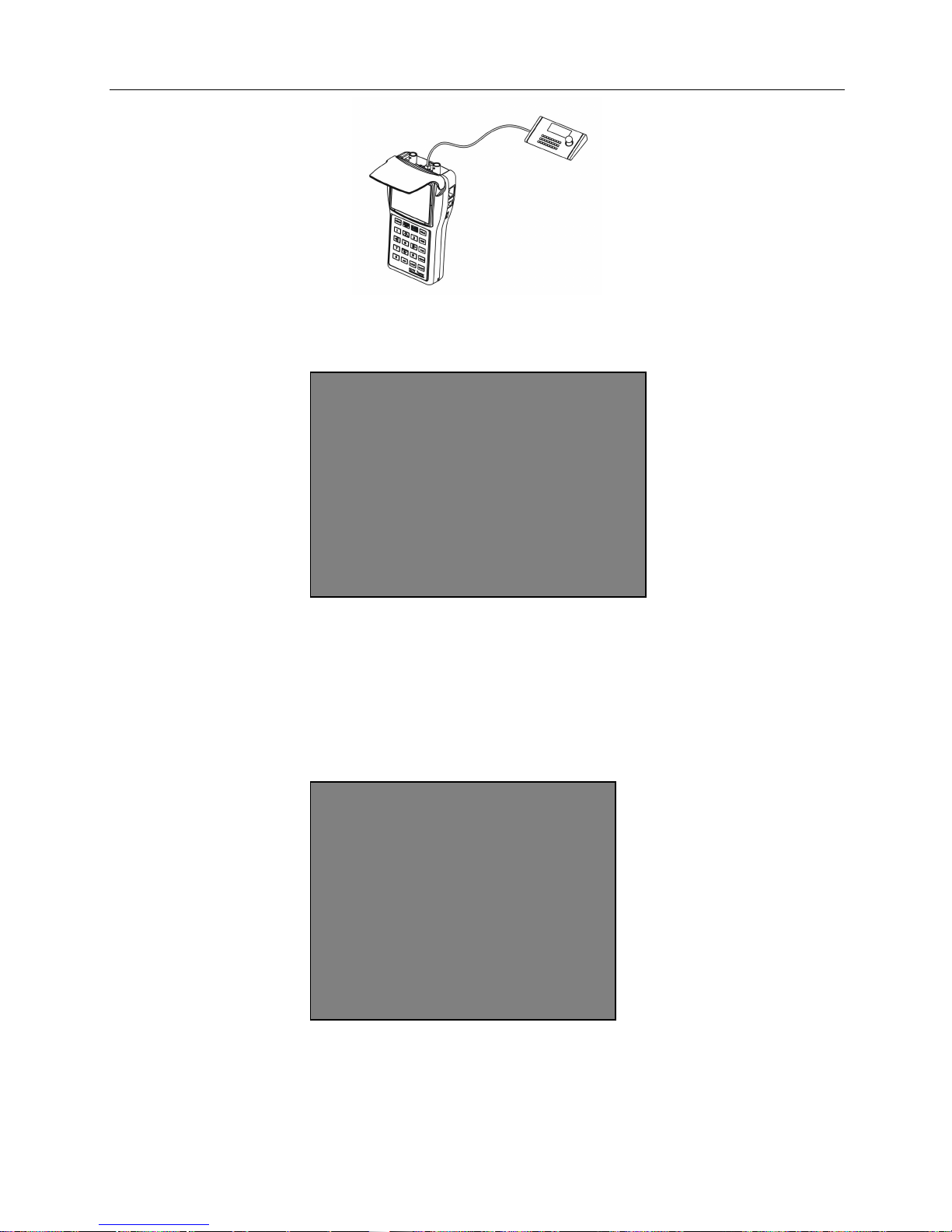

A. Connect the tester to the controlling device as the picture shows:
Page 13
CCTV Tester User’s Manual
12
B. In the main menu, press num-button “5” to switch to the RS485 protocol analyzing
mode, as follows:
C. Press SET to start the setup of baud rate.
D. Press UP/DOWN to select the tester’s baud rate, make it same with the controlling
device’s. baud rate in using.
E. Make the controlling device transfer the RS485 data to the tester, the hexadecimal
signal data will displayed in the screen as follows, engineer can analyze the data to
know if the controlling device work with the correct protocol.
3.11 Digital multi-meter

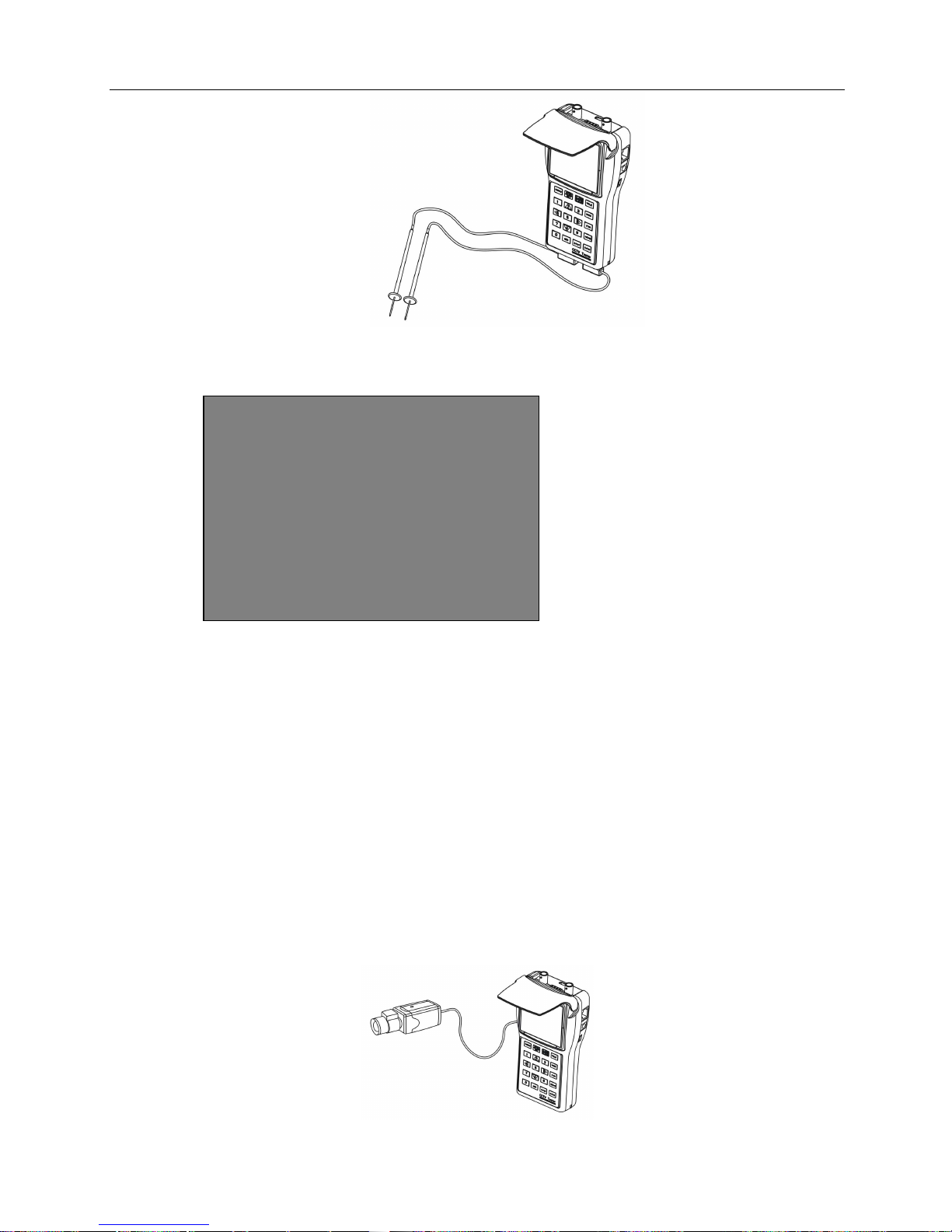

A. Connect the 2 detecting cable on the tester as the picture shows：
DATA ANALYZING
DATA ANALYZING
A0 00 01 00 00 00 AF 0F
A0 00 00 00 00 00 AF 0E
A0 00 00 01 00 00 AF 0F
A0 00 01 00 00 00 AF 4F
A0 00 00 00 00 00 AF EF
A0 00 00 00 00 00 AF 2F
Page 14
CCTV Tester User’s Manual
13
B. Press the num-button “6” to go to the multi-meter sub-menu as follows:
C.
Press the num-button 1,2,3 can select the corresponding option:
DC voltage test range
：0-1000V，precision：0.1mV；
AC voltage test range
：750V，precision：0.1mV；
Resistance test range：0-40MΩ，precision：0.1Ω。
D. Press MENU button for 1 second to back to the main menu.
Note：：：：Please don’t test the voltage over the testing range, it can make the tester
broken.
3.12 Output power to camera
Connect the camera with the tester as the picture shows, connect the DC12V output from
tester to the DC12V input port from the camera using the accessory “DC12V power
cable”：
3
RESISTANCE
2
AC VOLTAGE
1
DC VOLTAGE
DC:
-
121.3mV
Page 15
CCTV Tester User’s Manual
14
The working time of camera are different because of different consumption camera, it can
work more than 4 hours if it work with a camera that consumption current is less than
100mA, The maximum output current from tester is 200mA, please use the proper camera
to work with.
Note: 1. The output voltage of tester is DC12V, please make sure it work with the
proper camera.
2. Please don’t connect the output to the input of tester itself, this can make
the tester broken.
4，，，， Warranty
4.1 Warranty items
Since the delivery day:
1) Exchanging service within 15 days from the receiving day, we responsible for the
freight charge (battery exchanging service within 90 days from the receiving day).
2) Repairing service within 1 year, change accessories and repair for free, customers
should responsible for the freight charge (repairing service don’t include battery).
3) We provide whole life repairing service for our products with proper charge;
customers should responsible for the freight charge.
4.2 Warranty exception
We provide repairing service with proper charge, customers responsible for the
freight charge
1) Damage caused by abuse, unreasonable use, mistreatment, or neglect.
2) Damage caused by modification or repair not authorized by our company, working in
hostile environments, or natural disaster.
3) Damage caused by improper or improperly used packaging, or other devices work in
the same system.
4.3 Complemented items
1) Company is not responsible for other assurance and other derivative from capital loss:
The product and the user guides are not assured for particular users and some
special purpose of use.
2) If the products returning for exchanging was damaged, modified or miss accessory,
we will charge the proper payment.
3) If the components are no longer produced during the warranty-limited period,
company will make a decision to replace similar products at no charge.
4) Don't offer exchanging service for special design products by customers.
Loading...
