TFA Dostmann ST485 Operating Manual

Page 1

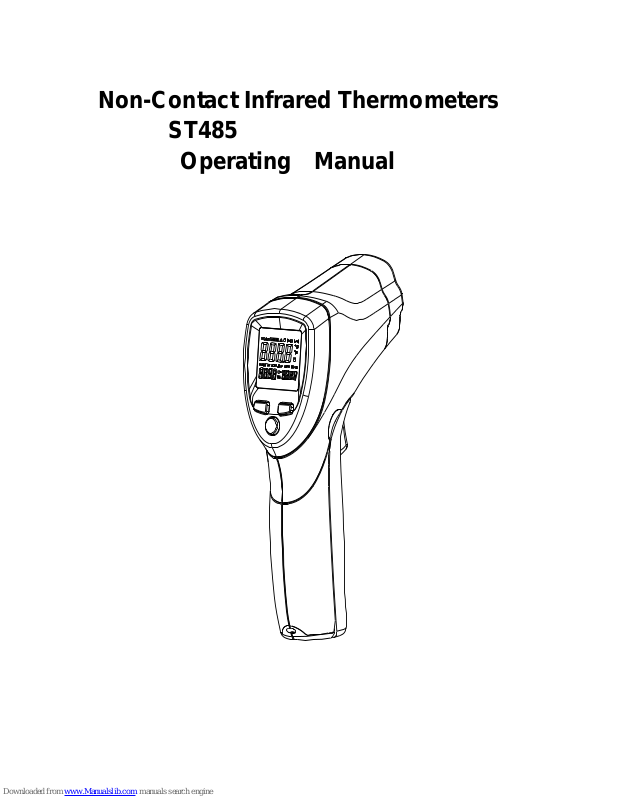

Non-Contact Infrared Thermometers
ST485 Operating Manual
Page 2
2
TABLE OF CONTENTS
INTRODUCTION………………………………………3 FEATURES……………………………………………3 WIDERANGEAPPLICATION ………………………… 4 SAFETY……………………………………………… 4 DISTANCE&SPOTSIZE……………………………… 5 SPECIFICATIONS…………………………………… 6 FRONTPANELDESCRIPTION……………………… 8 INDICATOR……………………………………………8 BUTTONS………………………………………………9 MEASURMENTOPERATION………………………… 12 BATTERYREPLACEMENT…………………………… 13 NOTES……………………………………………… 13 MAINTENANCE …………………………………… 17
Page 3
3
INTRODUCTION
Thank you for purchase of the IR Thermometer. This is capable of non-contact (infrared) temperature measurements at the touch of a button. The built-in laser pointer increases target accuracy while the backlight LCD and handy push-buttons combine for convenient, ergonomic operation. The Non-contact Infrared Thermometers can be used to
measure the temperature of objects’ surface that is improper
to be measured by traditional (contact) thermometer (such as moving object, the surface with electricity current or the objects which are uneasy to be touched.) Proper use and care of this meter will provide years of reliable service.
FEATURES:
Rapid detection function  Precise non-contact measurements  Dual laser sighting  Unique flat surface, modern housing design  Automatic Data Hold  / switch
Page 4
4
Emissivity Digitally adjustable from 0.10 to 1.0  MAX temperature displays  Backlight LCD display  Automatic selection range and Display Resolution 0.1º
C(0.1ºF)
Trigger lock  Set high and low alarms
WIDE RANGE APPLICATION:
Food preparation, Safety and Fire inspectors, Plastic molding, Asphalt, Marine and Screen printing, measure ink and Dryer temperature, HVAC/R, Diesel and Fleet maintenance.
SAFETY
Use extreme caution when the laser beam is turned on.  Do not let the beam enter your eye, another person’s
eye or the eye of an animal.
Be careful no to let the beam on a reflective surface
strike your eye.
Do not allow the laser light beam impinge on any gas
which can explode.
Page 5
5
Distance & Spot Size
As the distance (D) from the object increases, the spot size (S) of the area measured by the unit becomes larger. The relationship between distance and spot size for each unit is
listed below. The focal point for each unit is 914mm (36”).
The spot sizes indicate 90% encircled energy.
Page 6
6
ST485
D:S= 20:1
D
S
20in.
2.0in @
10in.
1.0in @
50.8mm @
508mm
254mm
25.4mm @
1. SPECIFICATIONS
MODEL Temperature range D: S
ST485 -50 to 800 oC(-58 ~ 1472) 20:1 Display resolution 0.1 oC(0.1) <1000
1 >1000 Accuracy for targets:
Assumes ambient operating temperature of 23 to 25 oC (73 to 77)
-50 … -20(-58 t…-4): ±5(±9)
-20 … 538 (-4 … 1000): ± 2.0% or +2(±3.6); 538 … 800(1000 … 1472): ± 3.5% or ± 5(±9)
Repeatability
Page 7
7
-35~20(-31~68) : ±1.3(2.3)
20~800(68~1472): ±0.5% or ±0.5(0.9)
Response time 150ms Spectral response 8~14um Emissivity Digitally adjustable from 0.10 to 1.0 Over range indication LCD will show “---- Polarity Automatic (no indication for positive polarity);
Minus (-) sign for negative polarity Diode laser output <1mW,Wavelength 630~670nm, Class II laser product Operating temp. 0 to 50(32 to 122) Storage temp. –10 to 60 (14 to 140) Relative humidity 10%~90%RH operating, <80%RH storage Power supply 9V battery, NEDA 1604A or IEC 6LR61, or equivalent Safety “ CE ” Comply with EMC
Note: Field of View: Make sure that the target is larger than
the unit’s spot size. The smaller the target, the closer
you should be to it. When accuracy is critical, make
Page 8
8
sure the target is at least twice as large as the spot size.
2. FRONT PANEL DESCRIPTION
IR sensor LCD Display Laser
pointer beam
up button down button mode button Measurement Trigger Battery Cover Handle Grip
3. INDICATOR
Data hold Laser ” on” symbols Lock symbol High alarm and low alarm symbol / symbol Low power symbols Emissivity symbol and value Temperature values for the MAX Symbols for MAX
Page 9
9
Current temperature value
4. Buttons
Up button (for
EMS,HAL,LAL)
Down button (for
EMS,HAL,LAL)
MODE button
(for cycling through the mode loop)
Functional Design
1. the switches of C/F sat in a cell switching
2. In the measuring time up, down keys to adjust the
Emissivity.
3. IN the hold time up keys to turn on or off the
laser Down keys to turn on or off the backlight
4. To set values for the High Alarm (HAL), Low Alarm (LAL) and Emissivity (EMS), press the MODE button until the appropriate code appears in the display, press the UP and down buttons to adjust the desired values.
MODE Button Function
Page 10
10
Press the mode button also allows you to access the set state,Emissivity(EMS),Lo ck on/off,HAL on/off, HAL adjustment LOW on/off,LOW adjustment,Each time you press set you advance through the mode cycle. The diagram shows the sequence of functions in the mode cycle. EMS adjustment. The Emissivity(EMS) digitally
adjustable from 0.10 to 1.0, LOCK on/off. The lock mode
is particularly useful for continuous monitoring of temperatures. Press the up button or down button to turn on or off . Press the Measurement Trigger to confirm the lock measurement mode. The ST485 will continuously display the temperaure until press again
LOCK on/off
HAL on/off
HAL adjustment
LOW on/off
LOW adjustment
EMS adjustment
Page 11
11
the Measurement Trigger.
In lock mode, press the up button or down button adjustable the Emissivity.HAL (LOW) on/off. Press the up button or down button to turn on or turn off. Press the Measurement Trigger to confirm the High(Low)alarm mode.Hal(LOW) adjustment. The high(Low) alarm adjustable form
ST485 -50 to 800 oC(-58 ~ 1472)
Switching C/F
Select the temperature units (oC or oF) using the oC/oF switch ( )
Max indicate the max record that displays between the pressing and releasing the "ON/OFF" button each time
MEASUREMENT OPERATION
Hold the meter by its Handle Grip and point it toward the surface to be measured.
Pull and hold the Trigger to turn the meter on and
Page 12
12
begin testing. The display will light if the battery is good. Replace the battery if the display does not light.
Release the Trigger and the HOLD display icon will appear on the LCD indicating that the reading is being held. In HOLD status, press the UP button to turn on or off the laser. And press the DOWN button to turn on or off the backlight. The meter will automatically power down after approximately 7 seconds after the trigger is released.(Unless the unit is locked on)
Note: Measurement considerations
Holding the meter by its handle, point the IR Sensor toward the object whose temperature is to be measured. The meter automatically compensates for temperature deviations from ambient temperature. Keep in mind that it will take up to 30 minutes to adjust to wide ambient temperatures are to be measured followed by high temperature measurements, some time (several minutes) is required after the low (and before the high) temperature measurements are made.
Page 13
13
This is a result of the cooling process, which must take place for the IR sensor.
5. BATTERY REPLACEMENT
As battery power is not sufficient, LCD will display
“ ” replacement with
one new battery type 9V is required.
Open battery cover,
then take out the battery from instrument and replace with a new 9-Volt battery and place the battery cover back.
6. NOTES:
How it Works
Infrared thermometers measure the surface
temperature of an object. The unit’s optics sense
emitted, reflected, and transmitted energy, which is collected and focused onto a detector. The unit’s electronics translate the information into a temperature reading, which is display on the unit. In units with a
Page 14
14
laser, the laser is used for aiming purposes only.
Field of View
Make sure that the target is larger than the unit’s spot size. The smaller the target, the closer you should be to it. When accuracy is critical, make sure the target is at least twice as large as the spot size.
Distance & Spot Size
As the distance (D) from the object increases, the spot size (S) of the area measured by the unit becomes larger. See: Fig: 1.
Locating a hot Spot
To find a hot spot aim the thermometer outside the area of interest, then scan across with an up and down motion until you locate hot spot.
Reminders
Not recommended for use in measuring shiny or
polished metal surfaces ( stainless steel, aluminum, etc.).See Emissivity
The unit cannot measure through transparent surfaces
such as glass. It will measure the surface temperature of the glass instead.
Steam, dust, smoke, etc., Can prevent accurate
Page 15
15
measurement by obstructing the unit’s optics.
Emissivity
Emissivity is a term used to describe the energy-emitting characteristics of materials. Most (90% of typical applications) organic materials and painted or oxidized surfaces have an emissivity of
0.95 (pre-set in the unit). Inaccurate readings will result from measuring shiny or polished metal surfaces. To compensate, cove the surface to be measured with masking tape or flat black paint. Allow time for the tape to reach the same temperature as the material underneath it. Measure the temperature of the tape or painted surface.
Emissivity Values
Substance
Thermal emissivity
Substance
Thermal emissivity
Asphalt
0.90 to 0.98
Cloth (black)
0.98
Concrete
0.94
Human skin
0.98
Page 16
16
Cement
0.96
Lather
0.75 to 0.80
Sand
0.90
Charcoal (powder)
0.96 Earth
0.92 to 0.96
Lacquer
0.80 to 0.95
Water
0.92 to 0.96
Lacquer (matt)
0.97
Ice
0.96 to 0.98
Rubber (black)
0.94 Snow
0.83
Plastic
0.85 to 0.95
Glass
0.90 to 0.95
Timber
0.90
Ceramic
0.90 to 0.94
Paper
0.70 to 0.94
Marble
0.94
Chromium oxides
0.81
Plaster
0.80 to 0.90
Copper oxides
0.78 Mortar
0.89 to 0.91
Iron oxides
0.78 to 0.82
Brick
0.93 to 0.96
Textiles
0.90
7. MAINTENANCE
Repairs or service are not covered in this manual and
should only be carried out by qualified trained technician.
Page 17
17
Periodically, wipe the body with a dry cloth. Do not use
abrasives or solvents on this instrument.
For service, use only manufacturer’s specified parts.
