WIRELESS 868 MHz TEMPERATURE STATION
Thank you for choosing this wireless temperature station from TFA.
BEFORE YOU USE IT
Please be sure to read the instruction manual carefully.
This information will help you to familiarise yourself with your new device, learn all of its functions
and parts, find out important details about i ts first use and how to operate it, and get advi ce in the
event of faults.
Following the instruction manual will prevent damage to the device and loss of your statutory rights
arising from defects due to incorrect use.
We shall not be liable for any damage occurring as a result of not following these
instructions.
consequences which may result from them.
Please take particular note of the safety advice!
Please look after this manual for future reference.
SCOPE OF DELIVERY:
•
•
•
Likewise, we take no responsibility for any incorrect readings and for any
Temperature station (basic unit)
Outdoor transmitter
Instruction manual
Instruction Manual
Cat. No. 30.3050.IT
27
FIELD OF OPERATION AND ALL OF THE BENEFITS OF YOUR NEW TEMPERATURE
STATION AT A GLANCE:
•
DCF Radio controlled time with manual setting option
•
Time reception ON/OFF
•
Daylight saving time (DST) function selectable (ON/OFF)
•
Time zone option –2h to +5h
•
Calendar display (month, date; year only in manual setting)
•
Temperature display in degrees Celsius (°C)
•
MIN/MAX indoor and outdoor temperature di splay with time and date of recordings
•
Manual reset of the MIN/MAX temperature records
•
Low battery indicator
•
Table standing or wall mounting
FOR YOUR SAFETY:
•
The product is exclusively intended for the fi eld of application described above. The prod uct
should only be used as described within these i nstructions.
•
Unauthorised repairs, modifications or changes to the product are prohibited.
•
The product is not to be used for medical purpose or for public information, but is intended
solely for home use.
Caution!
Risk of injury:
28
•
Keep this instrument and the batteries out of reach of children.
•
Batteries must not be thrown into the fire, short-circuited, taken apart or recharged. Risk of
explosion!
•
Batteries contain harmful acids. Low batteri es should be changed as soon as possible to
prevent damage caused by a leaking battery. Never use a combination of old and new
batteries together or batteries of different types. Wear chemical-resistant protective gloves
and glasses when handling leaked batteries.
! Important information on product safety!
•
Do not expose the instrument to extreme temperatures, vibration or shock.
•
The outdoor transmitter is protected against splash water, but is not watertight. Choose a
shady and dry position for the transmitter.
29
ELEMENTS:
LCD
display
The temperature station
Hanging hole
Battery
compartment
cover
Function
keys
Foldout
stand
30
The temperature transmitter
INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE TRANSMITTER
•
Remote transmission of outdoor temperature to temperature station by
868 MHz signals
•
Casing protected against splash water
•
Wall mounting and table stand
•
Suitable for connection with sensor cable for pool, freezer etc. (optional)
The temperature transmitter uses 2 x AAA, IEC LR3, 1.5V batteries. To install
and replace the batteries, please follow the steps below:
1. Slide the battery cover downwards and remove.
2. Insert the batteries, observing the correct pol arity (see marking).
3.
Replace the battery cover.
31
INSTALL AND REPLACE BATTERIES IN THE TEMPERATURE STATION
The temperature station uses 2 x AAA, IEC LR3, 1.5V batteries. To
install and replace the batteries, please foll ow the steps below:
1. Remove the cover at the back of the temperature station.
2. Insert batteries observing the correct polari ty (see marking).
3. Replace compartment cover.
Battery replacement
•
Replace the batteries when the battery symbol of the temperature station appears near t he
indoor temperature display.
•
When the batteries of the transmitter are used up, the low battery icon appears near the
outdoor temperature display.
Note:
In the event of changing batteries in any of the units, all units need to be reset by following the
setting up procedures. This is because a random security code is assigned by the transmitter at
start-up and this code must be received and stored by the temperature station in the fi rst 3
minutes of power being supplied to it.
32
SETTING UP:
1.
First, insert the batteries into the transmitter (see “Install and replace batteries in the
temperature transmitter” below).
2.
Within 30 seconds of powering up the transmitter, insert the batteries to the temperature
station (see “Install and replace batteries in the temperature station” below). Once the
batteries are in place, all segments of the LCD will light up briefly. Then the indoor
temperature and the time as 0:00 will be displ ayed. If they are not shown on LCD after 60
seconds, remove the batteries and wait for at least 60 seconds before reinserting them.
Once the indoor data is displayed, user may proceed to the next step.
3.
After the batteries are inserted, the temperature station will start receiving data signal from
the transmitter.
4.
In order to ensure sufficient 868 MHz transmission, the position between the temperature
station and the transmitter should not be more than 100 meters (see notes on “Positioning”
and “868 MHz Reception”).
5.
Once the remote temperature has been recei ved and displayed on the temperature stati on,
the DCF time code reception is automatically started. This takes typically between 3-5
minutes in good conditions.
DCF-77 RADIO CONTROLLED TIME
The time base for the radio-controlled time i s a Cesium Atomic Clock operated by the Physikalisch
Technische Bundesanstalt Braunschweig which has a time deviation of less than one seco nd in
one million years. The time is coded and transmitted from Mainflingen near Frankfurt via frequency
signal DCF-77 (77.5 kHz) and has a transmitting range of approximately 1,500 km. Your radio-
33
controlled temperature station receives this signal and converts it to show the precise time in
summer or wintertime. The quality of the reception depends greatly on the geographic location. In
normal cases, there should be no reception problems within a 1500km radius of Frankfurt.
Once the outdoor temperature is displayed on t he temperature station, the DCF tower i con in the
clock display will start flashing in the upper l eft corner. This indicates that the clock has detected
that there is a radio signal present and is tryi ng to receive it. When the time code is received, the
DCF tower becomes permanently lit and the time will be displayed.
DCF reception is done twice daily at 02:00 and 03:00 am. If the reception is not successful at
02:00 am, then the next reception takes place t he next hour and so on until 06:00am, or unti l the
reception is successful. If the reception is not successful at 06:00 am, then the next attempt will
take place the next day at 02:00 am.
If the tower icon flashes, but does not set the time or the DCF tower does not appear at all , then
please take note of the following:
•
Recommended distance to any interfering sources like computer monitors or TV sets is a
minimum of 1.5 - 2 meters.
•
Within ferro-concrete rooms (basements, superstructures), the received signal is naturally
weakened. In extreme cases, please place the unit close to a window and/ or point its fro nt
or back towards the Frankfurt transmitter.
•
During nighttime, the atmospheric disturbances are usually less severe and reception is
possible in most cases. A single daily reception is adequate to keep the accuracy devi ation
below 1 second.
34
FUNCTION KEYS:
key
+ key
Temperature station:
The temperature station has four easy to use function keys.
SET key (Setting):
•
+ key
•
•
IN key
•
•
•
OUT
Press and hold to enter the setting mode for the following settings: time zone, time reception
(RCC ON/OFF), daylight saving time (DST ON/OFF), ma nual time and calendar settings.
To make adjustment for various settings
To display the calendar (display returns to ti me display automatically after 5 seconds)
To toggle between the MIN/MAX and current indoor temperature
Press and hold to reset the MIN/MAX indoor temperature records
Press to exit the manual setting mode
SET key
IN key
35
OUT key
ndoor
erature
Time
reception
Outdoor signal
reception icon*
outdoor
erature
oor
•
To toggle between the MIN/MAX and current outdoor temperature
•
Press and hold to reset the MIN/MAX outdoor temperature records
•
Press to exit the manual setting mode
LCD SCREEN:
icon
Ind
temperature
MIN i
temp
MIN
temp
Time
Low battery icon
(temperature station)
MAX indoor
temperature
MAX outdoor
temperature
Outdoor temperature
Low battery icon
(transmitter)
36
* When the signal is successfully received by the temperature station, the outdoor transmission
icon will be switched on. (If not successful, the icon will not be shown on LCD). The user can then
easily see whether the last reception was successful (icon on) or not (icon off). On the other hand,
the short blinking of the icon shows that a reception is currently taking place.
MANUAL SETTINGS:
The following manual settings can be done i n the setting mode:
•
Time zone setting
•
Time reception ON/OFF setting (RCC)
•
Daylight saving time (DST) ON/OFF
•
Manual time setting
•
Calendar setting (Year, Month, Date)
Press and hold the SET key for about 3 seconds to advance to the setting mode:
TIME ZONE SETTING:
The time zone default of the temperature stati on is 0h. To change to another time zone:
1. The time zone “0” start flashing. Use the + key set t he time zone. The range runs from –2h
to +5h and then runs from +5h to -2h back i n 1hour interval.
Time zone flashing
37
2. Press the SET key to confirm and enter the “Time reception On/Off setting”.
TIME RECEPTION ON/OFF SETTING
In areas where reception of the atomic time is not possible, the time reception function can be
turned OFF. The clock will then work as a normal quartz clock. (Default setting is “1” (ON)).
1. The digit “1” (ON) and the time reception icon will start flashing on the LCD. Use the + key to
turn “0” (OFF) or “1” (ON) the time reception function.
2. Confirm with the SET key and enter the “
Note:
If the time reception function is turned OFF manually, the clock will not attempt any reception of
the DCF time as long as the time reception OFF function is activated. The time reception icon will
not be displayed on the LCD.
DAYLIGHT SAVING TIME ON/OFF SETTING (DST)
The daylight saving time (DST) function can be set ON “1” or OFF “0”. Default setting is “1” (ON):

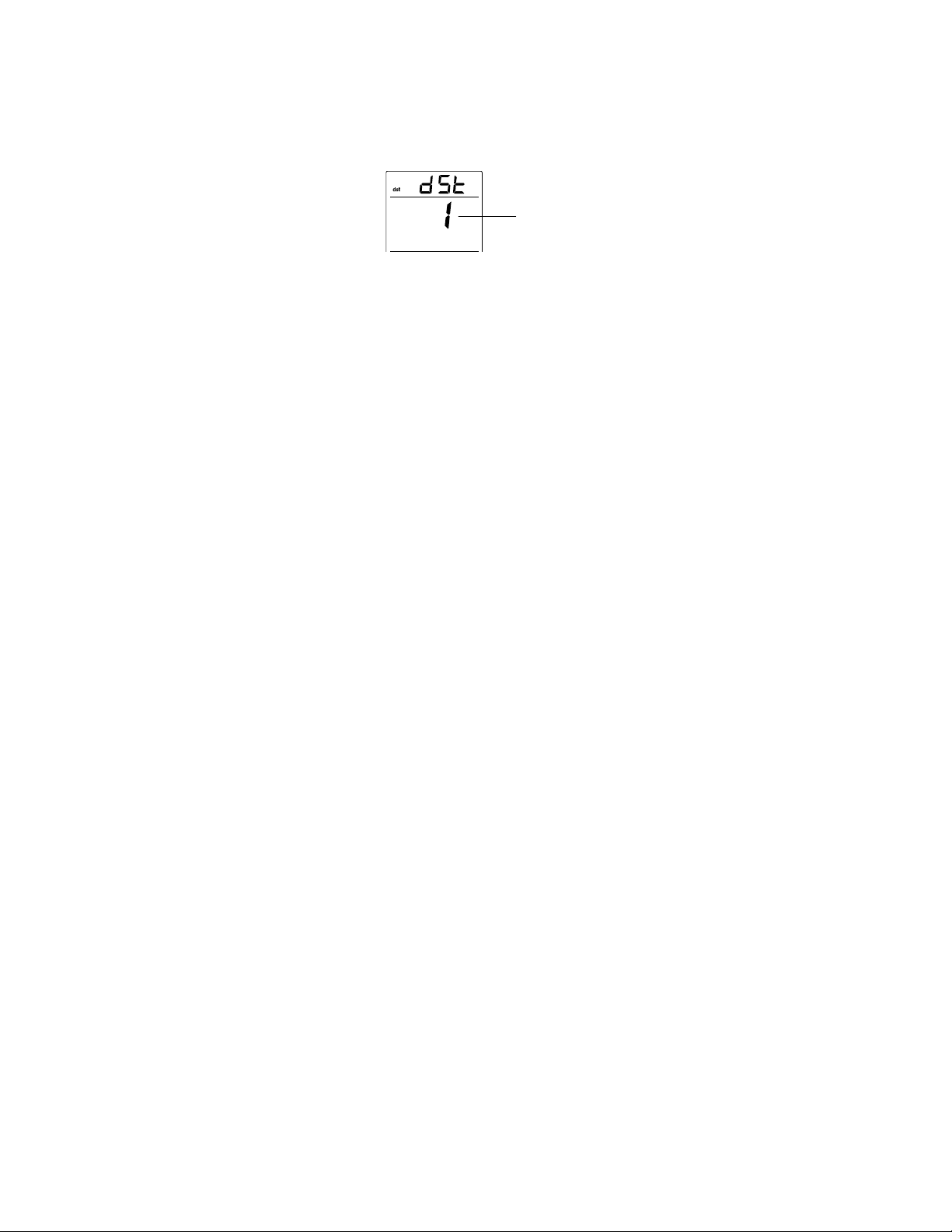

Daylight saving time (DST) ON/OFF
Flashing
”.
38
Important:
This function is only significant if the time reception set ting is turned OFF “0”.
•
Daylight saving time setting “1” (ON): the clock calculates DST automatically in normal
quartz mode. DST begins on the last Sunday of March and ends on the last Sunday of
October.
Daylight saving time setting “0” (OFF): DST feature is OFF and the clock will not change
•
time automatically.
If the time reception setting is turned ON “1”, please set the daylight saving time “1” (ON):
the time change will be updated by the DCF-77 signal (as long as a proper reception i s possible).
In case of daylight saving time setting “0” (OFF): the time will be transmitted by the DCF-77 signal,
but the clock calculates automatically a “no-DST time”.
1. “1” (ON) will flash on the LCD with "dSt" displ ayed. Use the + key to turn the daylight saving
time function ON or OFF.
2. Confirm with the SET key and enter the “Manual time setting”.
Flashing
39
MANUAL SETTING OF THE CLOCK
In case the temperature station is not able to detect the atomic time (DCF) signal (disturbances,
transmitting distance, etc.), the time can be manually set. The clock will then work as a normal
quartz clock.
Hours (flashing)
To set the clock:
1. The hour digits start flashing in the time displ ay section.
2. Use the + key to adjust the hours and then press SET key t o go to the minute setting.
3. The minute will be flashing. Press the + key to adjust the minutes.
4. Confirm with the SET key and enter the “Calendar setting”.
Note:
The unit will still try to receive the signal despite it being manually set. When it does receive the
signal, it will change the manually set time into the received time. During reception attempts the
DCF tower icon will flash. If reception has been unsuccessful, then the DCF tower icon will not
appear but reception will still be attempted the following hour.
CALENDAR SETTING
The date default of the temperature station is 1. 1. of the year 2012 after initial set-up. Once the radiocontrolled time signals are received, the date is automatically updated. However, if the si gnals are not
received, the date can also be set manually.
Minutes (flashing)
40
Icon
1. The year is flashing. Using the + key, set the year req uired. The range runs from 2012 to
2039 (default is 2012).
2. Press the SET key to enter the month setting mode.
3. The month digit will be flashing. Press the + key to set the month and then press the SET
key to go to the day setting.
4. The day digit will be flashing. Press the + key to set t he day.
5. Confirm with the SET key to exit the setting mode.
DISPLAY OF INDOOR TEMPERATURE READING:
The indoor temperature is measured and di splayed on the second section of the LCD.
Indoor
Year
Date
Indoor
temperature
Month
41
DISPLAY OF OUTDOOR TEMPERATURE READING:
Outdoor reception
signal
The bottom LCD section shows the outdoor temperature.
Outdoor icon
Outdoor
temperature
DISPLAY OF INDOOR MIN/MAX RECORDS:
1. Continuously press the IN key several times to view:
•
MIN indoor temperature and time of recording
•
MIN indoor temperature and date of recordi ng
•
MAX indoor temperature and time of recordi ng
•
2. Press again the IN key to return to normal di splay.
Note: the measuring indoor MIN/MAX temperature range is: -9ºC to +39ºC with 1ºC resolution
DISPLAY OF OUTDOOR MIN/MAX RECORDS:
1. Continuously press the OUT key several times to view:
MAX indoor temperature and date of recordi ng
•
MIN outdoor temperature and time of recording
•
MIN outdoor temperature and date of recordi ng
42
•
MAX outdoor temperature and time of recording
•
2. Press again the OUT key to return to normal display.
Note: the measuring outdoor MIN/MAX temperature range is: -40ºC to +60ºC with 1ºC resolution
RESETTING THE INDOOR AND OUTDOOR MIN/MAX RECORDS
1. Press and hold the IN or OUT key for about 3 seconds, this will reset the currently shown
868 MHz RECEPTION
The temperature station should receive the temperature data within 3 minutes after set-up. If the
temperature data is not received 3 minutes after setting up (not successfully continuously, the
outdoor display shows “- - -” ), please check the following points:
1. The distance of the temperature station or transmitter should be at least 1.5 to 2 meters
2. Avoid positioning the temperature station onto or in the immediate proximity of metal
3. Using other electrical products such as headphones or speakers operating on the same
5. Neighbors using electrical devices operating on the 868MHz signal frequency can also
MAX outdoor temperature and date of recordi ng
indoor or outdoor MIN/MAX data to the current time, date and temperature respectivel y.
away from any interfering sources such as computer monitors or TV sets.
window frames.
signal frequency (868MHz) may prevent correct signal transmission and reception.
cause interference.
43
Note:
When the 868MHz signal is received correctly, do not re-open the battery cover of either the
transmitter or temperature station, as the batteries may spring free from the contacts and force a
false reset. Should this happen accidentally then reset all units (see Setting up above) otherwise
transmission problems may occur.
The transmission range is about 100 m from the transmitter to the temperature station (in open
space). However, this depends on the surroundi ng environment and interference level s. If no
reception is possible despite the observation of t hese factors, all system units have to be reset
(see Setting up).
POSITIONING THE TEMPERATURE STATION:
The temperature station is designed to hang onto wall or free standing.
To wall mount
Before wall mounting, please check that the outdoor temperature values can be
received from the desired locations.
1. Fix a screw (not supplied) into the desired wall, leaving the head
extended out the by about 5mm.
2. Hang the station onto the screw. Remember to ensure that it locks into
place before releasing.
44
Free standing
With the foldout stand, the temperature stati on can be placed onto
any flat surface.
POSITIONING THE TEMPERATURE TRANSMITTER
The transmitter is supplied with a holder that may be attached to a wall with the
two screws supplied. The transmitter can also be positioned on a flat surface by
mounting the holder at the bottom of the transmitter.
Choose a sheltered place. Avoid direct rain and sunshine.
45
To wall mount:
1. Secure the holder onto a desired wall using the screws and plastic
anchors.
2. Clip the transmitter onto the holder.
Before permanently fixing the transmitter wall base, place all units in the desired locations to check
that the outdoor temperature reading is recei vable. In event that the signal is not received, relocate
the transmitter or move it slightly as this may help the signal reception.
CARE AND MAINTENANCE
•
Clean the instrument and the transmitter wi th a soft damp cloth. Do not use solvents or
scouring agents. Protect from moisture.
•
Remove the batteries if you do not use the prod uct for a lengthy period.
MALFUNCTION
Problems Troubleshooting
No indication on the
temperature station
Note:
•
Ensure batteries polarity is correct
•
Change batteries
46
No transmitter reception
Display "---"
No DCF reception
Incorrect display
•
Check batteries of external transmitter (do not use
rechargeable batteries!)
•
Restart the transmitter and temperature station as per
the manual
•
Choose another place for the transmitter and/or the
temperature station
•
Reduce the distance between the transmitter a nd the
temperature station
•
Check if there is any source of interference
•
Time reception setting “ON”
•
Choose another place for the temperature stati on
•
Manual time setting
•
Wait for attempted reception during the night
•
Change batteries
WASTE DISPOSAL
This product has been manufactured using hig h-grade materials and components which can be
recycled and reused.
Never throw flat batteries and rechargeable batteries in household waste.
As a consumer, you are legally required to take them to your retail store or to
appropriate collection sites according to nati onal or local regulations in order to
protect the environment.
47
The symbols for the heavy metals contained are: Cd=cadmium, Hg=mercury, Pb=lead
SPECIFICATIONS:
Recommended operating temperature: +5ºC to +40ºC
Temperature measuring range:
Indoor : -9.9ºC to +39.9ºC with 0.1ºC resolution (“OF.L” displayed if outside this range)
Outdoor : -39.9ºC to +59.9ºC with 0.1ºC resol ution (“OF.L” displayed if outside this range)
Indoor temperature checking interval : every 16 seconds
Outdoor data reception : every 4 seconds
Power consumption:
Temperature station : 2 x AAA, IEC, LR3, 1.5V
Temperature Transmitter : 2 x AAA, IEC, LR3 1.5V
Battery life (Alkaline batteries recommended)
Temperature station : Approximately 12 months
Temperature transmitter : Approximately 12 months
This instrument is labelled in accordance with the EU Waste Electrical and
Electronic Equipment Directive (WEEE).
Please do not dispose of this product with other household waste. The user is
obligated to take end-of-life devices to a designated collection point for the disposal
of electrical and electronic equipment, in order to ensure environmentallycompatible disposal.
48
Dimensions (L x W x H)
Temperature station : 95 x 18.8 x 136 mm
Temperature transmitter : 41 x 19 x 128 mm
TFA Dostmann GmbH & Co. KG, Zum Ottersberg 12, D - 97877 Wertheim
No part of this manual may be reproduced wi thout written consent of TFA Dostmann. The
technical data are correct at the time of goi ng to print and may change without prior notice.
DECLARATION OF CONFORMITY
Herewith we declare, that this wireless transmission device does comply with the essentials
requirements of R&TTE Directive 1999/5/EC.
A copy of the signed and dated Declaration of Co nformity is available on request via info@tfadostmann.de.
www.tfa-dostmann.de
01/13
Loading...
