Textron Tempo Marker-Mate EML 100 Instruction Manual

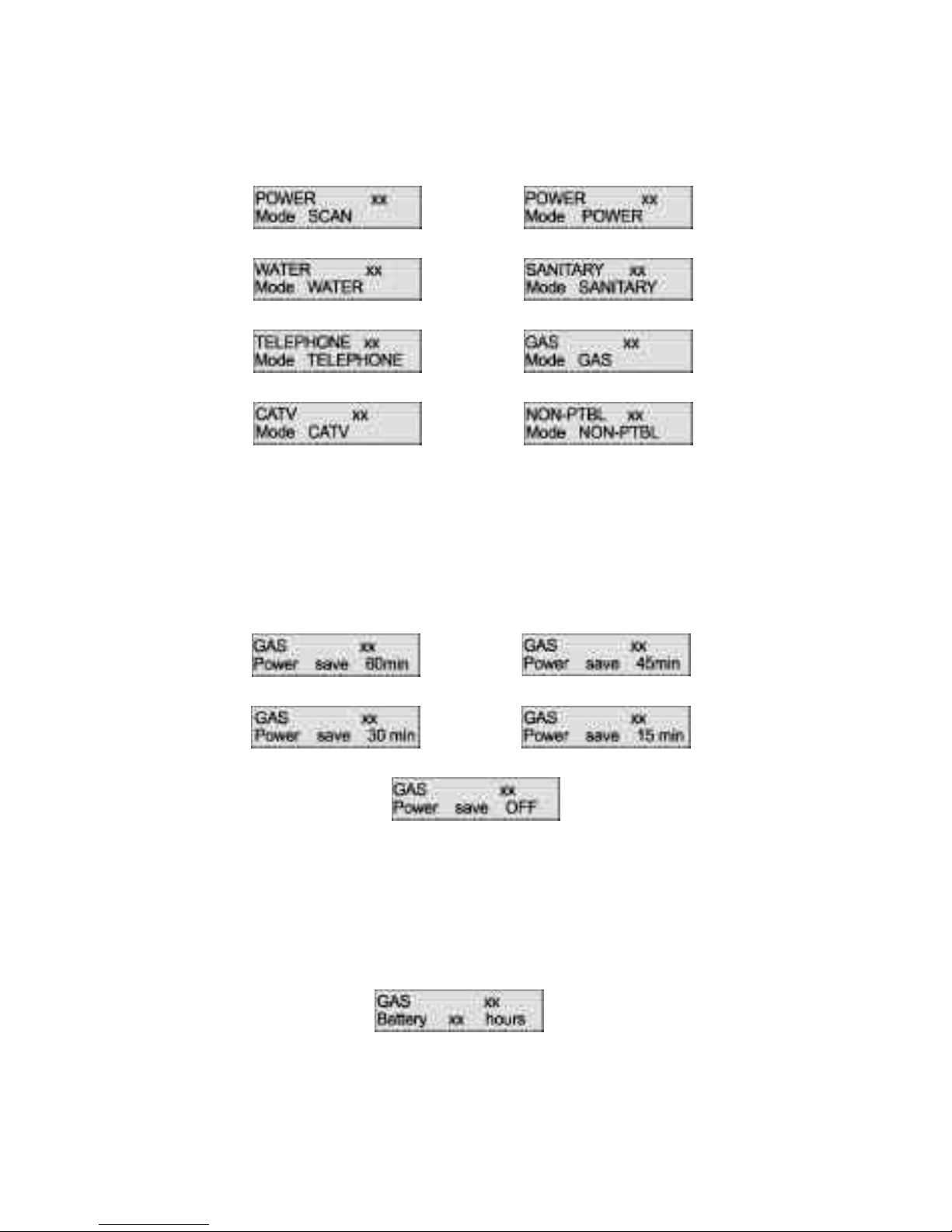

The Model EML100 is a universal electronic marker locating tool for locating
P o w e r, Wa t e r, Sanitary, Telephone, Gas, Cable T V, and Non-Potable
Electronic markers.
The Model EML100 consists of:
EML100 Electronic Marker Locator
Optional Accessories:
Headset
Carrying Case
95E0089 © 2003 REV A 03/03
MARKER-MATE™ EML 100
ELECTRONIC MARKER LOCATOR
MARKER-MATE™ EML 100 MARKER LOCATOR
Read and understand this material before operating or servicing
this equipment.
WARNING
This Instruction Manual Supports Firmware Version 1.0
NOTICE: This document is an unpublished work protected by United States
copyright laws and is proprietary to Tempo. Disclosure, copying, reproduction,
merger, translation, modification, enhancement or use by anyone other than
authorized employees or licensees of Tempo and its affiliate companies
without prior consent of Tempois prohibited.
©2003 Tempo Research Corporation - All Rights Reserved
SAFETY
ALERT
SYMBOL
This symbol is used to call your attention to hazards or unsafe practices which could result in an
injury or property damage. The signal word, defined below, indicates the severity of the hazard.
The message after the signal word provides information for preventing or avoiding the hazard.
Hazards which, if not avoided, COULD result in severe injury or death.
DANGER
WARNING
CAUTION
• Use this unit for the manufacturer’s intended purpose only, as described in this manual. Any other
use can impair the protection provided by the unit.
• Use accessories that are appropriate for the application.
• Inspect the accessory before use.
• Do not attempt to repair this unit. It contains no user-serviceable parts.
• Do not expose the unit to extreme temperatures. See Specifications.
Failure to observe these precautions can result in injury and can damage the instrument.
WARNING
CAUTION
Immediate hazards which, if not avoided, WILLresult in severe injury or death.
Hazards which, if not avoided, MAY result in injury.
Sanitary Green 172 60773
Telephone Orange 173 60774
Gas Yellow 174 60775
Cable TV Orange/Black 175 60776
Non-Potable Purple 178
Omni Markers
The Tempo Omni Marker provides an improved method to electronically mark
and locate underground facilities. Unlike other marking devices that use just a
single coil, the Omni Marker contains three orthogonal tuned circuits. When
excited by any standard marker locator, these passive circuits produce a
uniform, spherical RF field in every direction. Because of their unique patented
design, the Omni Marker offers benefits that are superior to any other
electronic marking system. (See Figure 31)
Application Color Model UPC
Power Red 160 60765
Water Blue 161 60766
Sanitary Green 162 60767
Telephone Orange 163 60768
Gas Yellow 164 60769
Cable TV Orange/Black 165 60770
Non-Potable Purple 168
Omni Marker & Uni Marker Signals
Omni Markers and Uni Markers each emit a distinct type of signal as shown in
Figures 32 and 33. Omni Markers produce a uniform, spherical RF field in
every direction, while Uni Markers emit dipole field signals primarily up and
down. (See Figures 32 - 33)
Headset
Model UPC
361 60778
11
Fig. 32 - Omni Marker Signal
Fig. 33 - Uni Marker Signal
Fig. 31 - Omni Markers
10
4. SPECIFICATIONS
Battery
EML 100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . (12) 1.5 volt AA
Battery Life (nominal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 hrs
Physical
Measurements
Length: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77.8 cm (30.7“)
Width: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19.8 cm (7.8“)
Height:. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32.5 cm (12.8“)
Weight (with batteries): . . . . . . . . . . . . . . . . . . . . . . . . . 2.04 Kg (4.5 lbs)
Operating/Storage Conditions
Operating Temperature:
Celsius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20°C to 50°C
Fahrenheit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -4°F to 122°F
Storage Temperature:
Celsius . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°C to 70°C
Fahrenheit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -40°F to 158°F
5. MAINTENANCE
The only service required for maintaining proper operation is the periodic
replacement of the batteries in the transmitter/receiver unit.
Battery Replacement
To replace the batteries:
1. Loosen the (8) captive screws on the left side of
the unit and remove the battery compartment
cover. (See Figure 29)
2. Replace the (12) AA 1.5V batteries. Observe
polarity.
3. Replace cover and tighten screws. DO NOT
OVERTIGHTEN SCREWS.
Cleaning
Periodically wipe with a damp cloth and mild detergent; do not use abrasives
or solvents.
6. COMPATIBLE TEMPO MARKERS
Uni Markers
The Tempo Uni Marker provides an economical way to electronically mark
buried facilities. The Uni Marker is a passive electronic marker that provides a
unique electronic frequency when activated by a
marker locator and is packaged in a rugged
polyethylene case that ensures years of useful life.
(See Figure 30)
Application Color Model UPC
Power Red 170 60771
Water Blue 171 60772
Fig. 29 - Battery Cover
Fig. 30 - Uni Markers
