TEXIO LSG SERIES, LSG-350, LSG-175, LSG-1050, LSG-2100S Instruction Manual

Download

LSG-175

LSG-350

LSG-1050

LSG-2100S

LSG SERIES

INSTRUCTION MANUAL

ELECTRONIC LOAD

LSG SERIES

B71-0408-01

■ About a trademark, a registered trademark

A company name and the brand name mentioned in this instruction manual are the trademark or the registered trademark of each company or group in each country and region.

■ About this instruction manual

When copying the part or all of contents of this instruction manual, seek the copyright holder. In addition, the specifications of the product and the contents of this instruction manual are subject to change without notice for improvement. Please check to our website for the latest version.

■ About Version of LSG Series

This manual will correspond to the Ver 1.27 the firmware of LSG series.

USING THE PRODUCT SAFELY ························································ Ⅰ-Ⅳ

1. GETTING STARTED ............................................................... 1

1-1. LSG Series Introduction ...................................................... 1

1-1-1. Model Line Up ............................................................................... 1

1-1-2. Main Features ............................................................................... 1

1-2. Accessories ........................................................................ 2

1-2-1. Accessories................................................................................... 2

1-2-2. Package Contents ........................................................................ 3

1-3. Appearance ......................................................................... 4

1-3-1. LSG Series Front Panel ................................................................ 4

1-3-2. Rear Panel .................................................................................... 7

1-3-3. Display .......................................................................................... 9

1-4. First Time Use Instructions ................................................ 10

1-4-1. Rack Mount Kits .......................................................................... 10

1-4-2. Power Up and Self Test .............................................................. 12

1-4-3. Load Default Settings ................................................................. 12

1-4-4. Setting the Date and Time .......................................................... 13

1-4-5. Load Wiring ................................................................................. 14

1-4-6. Load Wire Connections .............................................................. 16

1-4-7. Using the Front Panel Input Terminals ....................................... 17

1-4-8. Using the Rear Panel Input Terminals ........................................ 18

1-4-9. Using the Terminal Cover(PEL -011) ......................................... 18

1-4-10. Using the Terminal Cover (PEL -013) ...................................... 20

1-4-11. Remote Sense .......................................................................... 21

1-4-12. Firmware Update ...................................................................... 22

1-4-13. Conventions .............................................................................. 23

1-4-14. Help Menu................................................................................. 27

2. OPERATION ........................................................................ 28

2-1. Basic Operation ................................................................ 28

2-1-1. CC Mode ..................................................................................... 28

2-1-2. CR Mode ..................................................................................... 29

2-1-3. CR Units ...................................................................................... 30

2-1-4. CV Mode ..................................................................................... 31

2-1-5. CP Mode ..................................................................................... 32

2-1-6. +CV Mode ................................................................................... 33

2-1-7. Turning on the Load .................................................................... 34

2-1-8. Shorting the Load ....................................................................... 34

2-1-9. Safety Short ................................................................................ 35

2-1-10. Short Key Configuration ............................................................ 36

2-1-11. Short Function Enable/Disable ................................................. 36

2-1-12. Locking the Front Panel Controls ............................................. 36

2-2. Basic Configuration ........................................................... 37

2-2-1. Select the Switching Function..................................................... 37

2-2-2. Select the Display Units for Dynamic Mode Levels .................... 39

2-2-3. Select the Switching Time Configuration for Dynamic Mode ..... 40

2-2-4. Slew Rate.................................................................................... 40

2-2-5. CV Mode Response Speed ........................................................ 41

2-2-6. CC,CR and CP Mode Response Speed ..................................... 42

2-3. Advanced Configuration Settings ....................................... 42

2-3-1. Soft Start Setting ......................................................................... 42

2-3-2. Von Voltage Settings .................................................................. 43

2-3-2-1. Von Voltage Level ................................................................... 43

2-3-2-2. Von Voltage Latch ................................................................... 43

2-3-2-3. Von Voltage Delay ................................................................... 44

2-3-3. Timer Functions .......................................................................... 44

2-3-3-1. Count Time .............................................................................. 44

2-3-3-2. Cut Off Time ............................................................................ 45

2-3-4. Auto Load Configuration ............................................................. 45

2-3-5. Load Off (Mode) and Load Off (Range) ...................................... 46

2-4. Step Resolution Configuration ........................................... 46

2-4-1. Cursor Mode Configuration......................................................... 46

2-4-2. Step Mode Configuration ............................................................ 47

2-5. Protection Settings ............................................................ 48

2-5-1. OCP ............................................................................................ 48

2-5-2. OPP ............................................................................................ 49

2-5-3. UVP ............................................................................................. 50

2-5-4. UVP Ring Time ........................................................................... 50

2-5-5. OVP ............................................................................................ 51

2-5-6. UnReg ......................................................................................... 51

2-5-7. Para ............................................................................................ 52

2-5-8. RVP ............................................................................................. 52

2-6. System Settings ................................................................ 53

2-6-1. Sound Settings ........................................................................... 53

2-6-1-1. Speaker Settings ..................................................................... 53

2-6-1-2. Alarm Tone Settings ................................................................ 53

2-6-2. Contrast and Brightness ............................................................. 54

2-6-3. Control Settings .......................................................................... 54

2-6-4. Language Settings ...................................................................... 54

2-6-5. Input/Output Trigger Settings...................................................... 54

2-6-5-1. Trigger In Delay ....................................................................... 54

2-6-5-2. Trigger Out Width .................................................................... 55

2-7. Go-NoGo .......................................................................... 55

2-7-1. Setting the Go-NoGo Limits ........................................................ 55

2-7-2. Running a Go-NoGo Test ........................................................... 56

2-8. Save Recall ...................................................................... 57

2-8-1. File Structure............................................................................... 57

2-8-2. File Types ................................................................................... 58

2-8-3. Saving Files to Internal Memory ................................................. 58

2-8-4. Saving Files to USB Memory ...................................................... 59

2-8-5. Recalling Files from Internal Memory ......................................... 61

2-8-6. Recalling Files from USB Memory .............................................. 62

2-8-7. Recall Memory Safety Setting .................................................... 63

2-8-8. File Utility .................................................................................... 63

2-8-9. Preset .......................................................................................... 64

2-8-9-1. Quick Preset Save ................................................................... 64

2-8-9-2. Quick Preset Recall ................................................................. 65

2-8-10. Default Settings ........................................................................ 65

2-8-10-1. Factory Default Settings ........................................................ 65

2-8-10-2. User’s Default Setting ............................................................ 65

3. Function MENU .................................................................... 66

3-1. Function Menu Overview ................................................... 66

3-1-1. Select a Function ........................................................................ 66

3-1-2. Turning on the Load with the Selected Function ........................ 67

3-1-3. Complete Ring Time ................................................................... 67

3-1-4. NSEQ Timer................................................................................ 68

3-2. Program ............................................................................ 69

3-2-1. Program Overview ...................................................................... 69

3-2-2. Create a Program ....................................................................... 70

3-2-3. Create a Program Chain ............................................................. 73

3-2-4. Running a Program or Chain ...................................................... 74

3-3. Sequence ......................................................................... 75

3-3-1. Normal Sequence Overview ....................................................... 75

3-3-2. Timing Edit Configuration ........................................................... 78

3-3-3. Data Edit Configuration ............................................................... 79

3-3-4. Running a Normal Sequence...................................................... 80

3-3-5. Fast Sequence Overview ............................................................ 81

3-3-6. Timing Edit Configuration ........................................................... 84

3-3-7. Data Edit Configuration ............................................................... 85

3-3-8. Running a Fast Sequence .......................................................... 87

3-4. OCP TestAutomation ......................................................... 87

3-5. OPP Test Automation ........................................................ 92

3-6. BATT Test Automation ....................................................... 97

4. EXTERNAL CONTROL ........................................................103

4-1. Analog Control .................................................................103

4-1-1. J1 Connector Overview ............................................................ 103

4-1-2. External Voltage Control - Overview ........................................ 104

4-1-3. External Voltage Control – Operation ....................................... 104

4-1-4. External Resistance Control - Overview ................................... 106

4-1-5. External Resistance Control – Operation ................................. 107

4-1-6. Turning the Load On using External Control ............................ 109

4-1-7. Load On/Off Status ................................................................... 110

4-1-8. External Control of the Range .................................................. 110

4-1-9. I Range Status .......................................................................... 111

4-1-10. External Trigger Signal ........................................................... 111

4-1-11. External Control of the Alarm ................................................. 112

4-1-12. Alarm Status ........................................................................... 112

4-1-13. Short Control ........................................................................... 112

4-1-14. Monitor Signal Output ............................................................. 113

4-1-14-1. Trigger Signal Output .......................................................... 113

4-1-14-2. Current Monitor Output ........................................................ 114

4-2. Parallel Operation ............................................................ 115

4-2-1. Capacity .................................................................................... 115

4-2-2. Connection ................................................................................ 115

4-2-3. Configuration ............................................................................ 116

4-2-4. Turning the Load On ................................................................. 118

4-2-5. Disable Parallel Mode ............................................................... 118

5. REMOTE CONTROL ........................................................... 119

5-1. Interface Configuration ..................................................... 119

5-1-1. Configure to USB Remote Interface ......................................... 119

5-1-2. Configure GP-IB Interface ........................................................ 119

5-1-3. Configure RS-232C .................................................................. 120

5-1-4. RS-232C/USB Remote Control Function Check ...................... 120

5-1-5. Using Realterm to Establish a Remote Connection ................. 121

5-1-6. GP-IB Function Check .............................................................. 123

6. FAQ ....................................................................................125

7. APPENDIX ..........................................................................126

7-1. Replacing the Dust Filter ..................................................126

7-2. GP-IB Installation .............................................................126

7-3. LSG Series Default Settings .............................................127

7-4. Frame Control Connector Contacts ...................................129

7-5. Operating Mode Description .............................................133

7-5-1. CC Mode ................................................................................... 133

7-5-2. CR Mode ................................................................................... 134

7-5-3. CP Mode ................................................................................... 135

7-5-4. CV Mode ................................................................................... 136

7-6. Operating Area .................................................................137

7-7. LSG Series Specifications ................................................140

7-7-1. Rating ........................................................................................ 140

7-7-2. CC Mode ................................................................................... 140

7-7-3. Rating (Booster / Slave) ............................................................ 141

7-7-4. CR Mode ................................................................................... 142

7-7-5. CV Mode ................................................................................... 142

7-7-6. CP Mode ................................................................................... 143

7-7-7. Slew Rate.................................................................................. 143

7-7-8. Meter ......................................................................................... 144

7-7-9. Dynamic Mode .......................................................................... 145

7-7-10. Soft Start ................................................................................. 147

7-7-11. Remote Sensing ..................................................................... 147

7-7-12. Protection Function ................................................................. 147

7-7-13. Sequence ................................................................................ 148

7-7-14. Other ....................................................................................... 149

7-7-15. Analog External Control .......................................................... 149

7-7-16. Front Panel BNC Connector ................................................... 150

7-7-17. General ................................................................................... 151

7-8. LSG Series Dimensions ....................................................152

7-8-1. LSG-175, LSG-350 ................................................................... 152

7-8-2. LSG-1050.................................................................................. 153

7-8-3. LSG-2100S ............................................................................... 153

USING THE PRODUCT SAFELY

Some part of this product or the instruction manual may show This pictorial indication. In this case, if the product is incorrectly used in that part, a serious danger may be brought about on the user's body or the product. To use the part with this pictorial indication, be sure to refer to this instruction manual.

<Warning character

Indication>

WARNING CAUTION

If you use the product, ignoring this indication, you may get killed or seriously injured. This indication shows that the warning item to avoid the danger is provided.

If you incorrectly use the product, ignoring this indication, you may get slightly injured or the product may be damaged. This indication shows that the caution item to avoid the danger is provided.

■ Preface

To use the product safely, read this instruction manual to the end. Before using this product, understand how to correctly use it. If you read this manual but you do not understand how to use it, ask

us or your local dealer. After you read this manual, save it so that you

can read it anytime as required.

■ Notes on reading this instruction manual

◆ The contents of this instruction manual include technical terms in part

of their explanation. If you do not understand those terms, do not hesitate to ask us or your local dealer.

■ Pictorial indication and warning character indication

This instruction manual and product show the warning and caution items required to safely use the product. The following pictorial indication and warning character indication are provided.

USING THE PRODUCT SAFELY

WARNING

■ Do not remove the product's covers and panels

Never remove the product's covers and panels for any purpose. Otherwise, the user's electric shock or a fire may be incurred.

■ Warning on using the product

The warning items given below are to avoid danger to the user's body and life and avoid the damage and deterioration of the product. Use the product, observing the following warning and caution items.

■ Warning items on power supply

● Power supply voltage

As the rated power supply voltage of the product, the range from 100 to 240 VAC can be used without being switched.

● Power cord

Important: The attached power cord set can be used for this device only.

● Protection fuse If an input protection fuse is blown, the product does not operate. When the fuse is blown, the user can replace it. However, replace it correctly, observing the warning and caution items that are provided in the section of the instruction manual where the fuse replacement is explained. If the fuse is incorrectly replaced, a fire may occur.

● Changing the power supply voltage

The rated power supply voltage cannot be changed. Use the product only at the rated power supply voltage indicated on the product. Otherwise, a fire may occur. The product's rated power supply voltage is from 100 to 240 VAC. Use the product in this range. (For use at a voltage higher than 125 VAC, Please confirm the voltage ratings of the power cord.)

■ Warning item on grounding

The product has the GND terminal on the panel surface to protect the user from electric shock and protect the product. Be sure to ground the product to safely use it.

USING THE PRODUCT SAFELY

WARNING

■ Warning item on installation environment

● Operating temperature

Use the product within the operating temperature indicated in the rating column. If the product is used with the vents of the product blocked or in high ambient temperatures, a fire may occur.

● Operating humidity Use the product within the operating humidity indicated in the rating column. Watch out for condensation by a sharp humidity change such as transfer to a room with a different humidity. Also, do not operate the product with wet hands. Otherwise, an electric shock or fire may occur.

● Use in a gas Use in and around a place where an inflammable or explosive gas or steam is generated or stored may result in an explosion and fire. Do not operate the product in such an environment.

Also, use in and around a place where a corrosive gas is generated or spreading causes a serious damage to the product. Do not use the product in such an environment.

● Do not let foreign matter in Do not insert metal and flammable materials into the product from its vent and spill water on it. Otherwise, an electric shock and fire may occur.

■ Warning item on abnormality while in use

If smoke or fire is generated from the product while in use, stop using the product, turn off the switch, and remove the power cord plug from the outlet. After confirming that no other devices catch fire, call the company or each sales office.

■ Front Panel

Please do not lift up the product, while touching the front grille.

III

USING THE PRODUCT SAFELY

CAUTION

■ Input/output terminal

Maximum input to the input terminals is specified to prevent the product from being damaged. Do not supply input, exceeding the specifications that are indicated in the "Rating" or "Caution on use" column in the

instruction manual of the product. Otherwise, a product failure is caused.

Also, do not supply power to the output terminals from the outside. Otherwise, a product failure is caused.

■ When the product is left unused for a long time

Be sure to remove the power plug from the outlet.

(Calibration)

Although the performance and specifications of the product are checked under strict quality control during shipment from the factory, they may aging rate because of aging rate in its parts. It is recommended to periodically calibrate the product so that it is used with its performance and specifications stable. For consultation about the product calibration, call the dealer or the company or each sales office where you bought the product.

(Daily maintenance)

When you clean off the dirt of the product covers, panels, and knobs, avoid solvents such as thinner and benzene. Otherwise, paint may peel off or the resin surface may be affected. To wipe off the covers, panels, and knobs, use a soft cloth with neutral detergent in it. During cleaning, be careful that water, detergents, and other foreign matters do not get into the product. If a liquid or metal gets into the product, an electric shock and fire are caused. During cleaning, remove the power cord plug from the outlet.

Use the product correctly and safely, observing the above warning and caution items. Because the instruction manual indicates caution items even in individual items, observe those caution items to correctly use the product.

If you have questions or comments about the content of the instruction manual, ask us or E-Mail us.

Model

Operating Voltage (DC)

Current

Power

LSG-175

1.5V~150V

35A

175W

LSG-350

1.5V~150V

70A

350W

LSG-1050

1.5V~150V

210A

1050W

Booster Model

Operating Voltage (DC)

Current

Power

LSG-2100S

1.5V~150V

420A

2100W

Performance

 High slew rates of up to 16A/μS(LSG-1050) for a fast

response speed

 High capacity when used in parallel:

5250W, 1050A (LSG-1050 x 5)/ 9450W, 1890A (LSG-1050 + LSG-2100S x 4)

 High resolution – 16 bit

1. GETTING STARTED

This chapter provides a brief overview of the LSG Series, the package contents, instructions for first time use and an introduction to the front panel, rear panel and GUI.

1-1. LSG Series Introduction

The LSG Series is a family of high performance DC electronic loads positioned to test a wide range of different power sources. The DC electronic loads are fully programmable to simulate anything from basic static loads to complex dynamic loads. With the ability to operate independently or in parallel, the LSG Series is extremely robust and capable of molding to any test environment.

Please note that throughout this manual the term “LSG Series” refers to any one of the models in the series lineup, unless specifically stated otherwise.

1-1-1. Model Line Up

There are a total of 3 DC electronic load models and 1 booster pack model.

1-1-2. Main Features

Features

 7 operating modes:

CC, CV, CR, CP, CC+CV, CR+CV, CP+CV

 Independent and parallel operation  Fully programmable with normal and fast sequences  Soft start  Dynamic mode  OCP, OVP and other protection features  Remote sense  Integrated meter  Rack-mountable  Load booster

Interface

 USB, RS-232C and GP-IB  External voltage or resistance control  Front panel trigger out BNC  Front panel current monitoring BNC  Analog external control

Standard Accessories

Part number

Description

Accessories CD-ROM

Instruction manual Programming manual USB driver

Region dependent

Power cord

PEL-011

Load input terminal Cover x1 M3 Screw x1

PEL-012

Terminal fittings: 2 sets of bolts/nuts/springs /washers (type: M8)

M8 x 20

Spring washer Flat washer

M8 nut

PEL-013 (LSG-2100S only)

Flexible terminal cover:

Velcro

fasteners x4

Rubber

sheeting x2

1-2. Accessories 1-2-1. Accessories

PEL-014

Frame control connector with strain relief x2.

Strain relief

Connector

61SF-062104N1

Front terminal washers. (M6) x2

GTL-255 (LSG-2100S only)

Frame Link Cable

Optional Accessories

Part number

Description

GRA-413

Rack mount bracket for booster LSG-2100S for EIA/JIS

GRA-414-E

Rack mount frame for LSG-175, LSG-350, LSG-1050 /EIA

GRA-414-J

Rack mount frame for LSG-175, LSG-350, LSG-1050 /JIS

GTL-248

GP-IB cable, 2.0m

GTL-246

USB cable, Type A - Type B

PEL-010

Dust Filter

PEL-004

GP-IB option

Opening the box

Contents (single unit)

 Main unit  Accessories CD  Terminal fittings  Power cord x1 (region dependent)

1-2-2. Package Contents

Check the contents before using the instrument.

I MON OUT TRIG OUT

1.5 - 150V

175W

0 - 35A

CAL.

Lock

Utility

Local

File

EnterClear

Shift

Preset

Load

On/ Off

Main

Help

FUNC

Short

Air inlet LCD Display Power key

FUNC/ File

Help/Utility

Short

Load On/Off

USB Port, Preset and Shift keys

Number pad, Clear/ Lock and Enter keys

Main/Local

Scroll wheel

Function keys

Input terminals

I MON OUT, TRIG OUT

CAL.

Lock

Utility

Local

File

EnterClear

Shift

Preset

Load

On/ Off

Main

Help

FUNC

Short

TRIG OUT

I MON

OUT

1.5 - 150V

1050W

0 - 70A

LINK STBY

1-3. Appearance 1-3-1. LSG Series Front Panel

･LSG-175 / LSG-350

･LSG-1050

･LSG-2100S Booster Pack

Air Inlet (Front grille)

The air inlet has a removable dust filter. Please do not lift up the product, while touching the front grille.

LCD display

3.5 inch LCD display

Function keys

The function keys directly correspond to the soft menu keys at the bottom of the display.

ON/STBY

Turns the unit on or puts the unit into standby mode. Use the power switch on the rear panel to turn the unit off.

Main/Local

Main

Main: Sets the operating mode: CC, CV, CR, CP mode.

Local

Main

Shift

Local (Shift + Main): Puts the instrument back into local mode from remote mode.

FUNC/File

FUNC

FUNC: Sets the program function, sequence function or other special functions.

File

FUNC

Shift

File (Shift + FUNC): Accesses the file system.

Help/Utility

Help

Help: Access the help menu.

Utility

Help

Shift

Utility (Shift + Help): Access the utility menu.

Short

Pressing the Short key will simulate shorting the input terminals. The Short key will be lit when active.

Load on/off

Load

On/

Off

Turns the load on or off. The Load On/Off key will be lit when active.

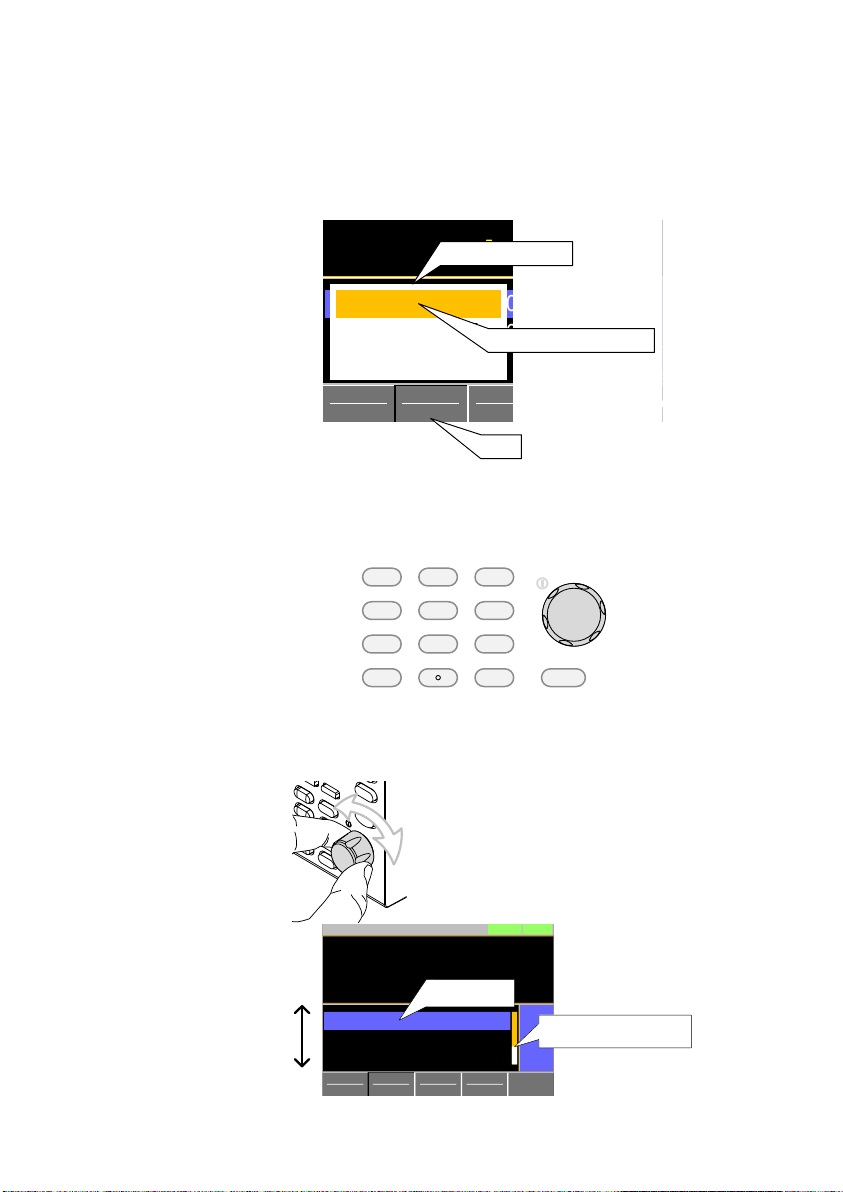

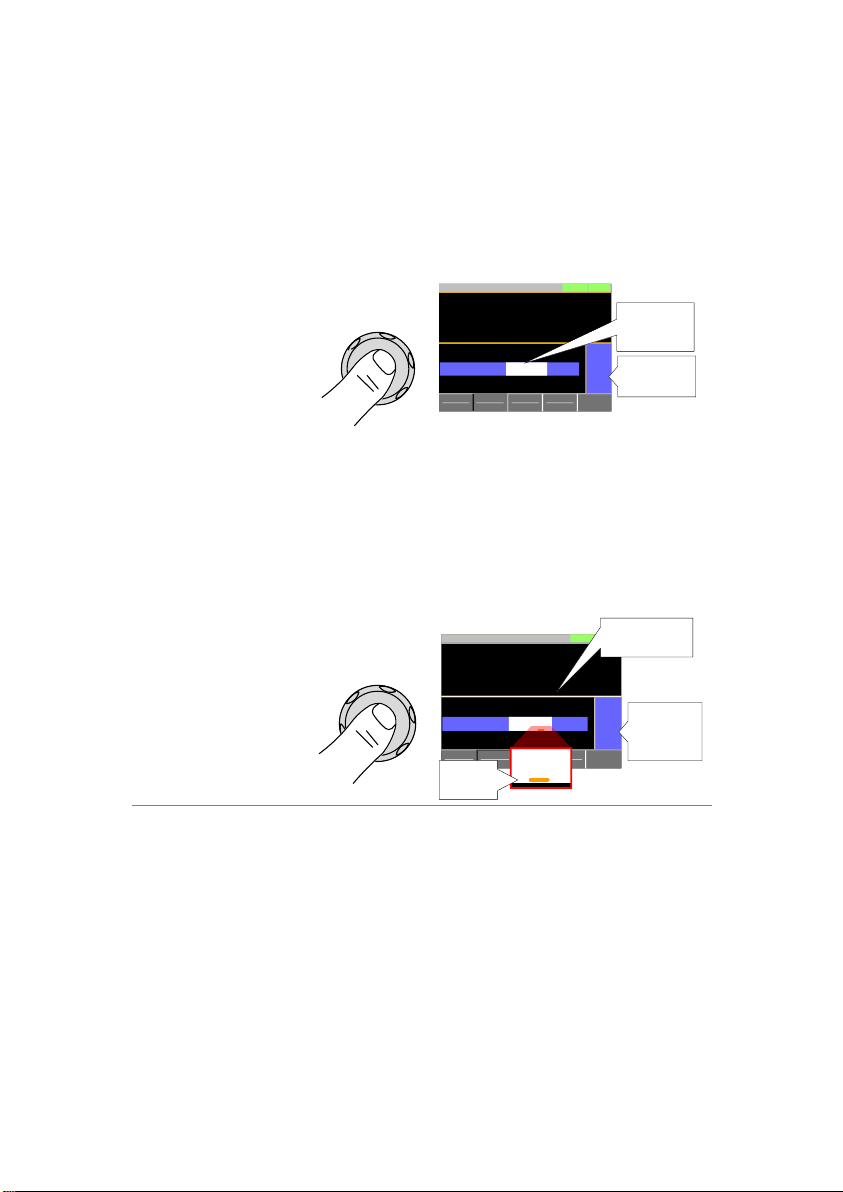

Scroll wheel

Use the scroll wheel to navigate the menu system. Pushing the scroll wheel will toggle between coarse and fine adjustment, or Select digit.

Enter

Press the Enter key to select highlighted menu items.

Clear/Lock

Lock

Clear

Clear: Clears the current parameter values.

Lock (Shift + Clear): Locks the front panel keys and selector knob.

Number pad

CAL.

Lock

Clear

Number pad: Used to enter numerical values. P0~P9 (Preset + Number keys): Loads one of 10 preset settings.

Shift

Shift: Used in conjunction with other keys to select secondary functions.

Preset

Used in conjunction with the number pad to save or load preset settings P0 to P9.

USB Port

USB A port. Used for save and recall functions.

Front panel input terminals

1.5 - 150V

175W

0 - 35A

Negative terminal.

Positive terminal.

IMON Out

I MON OUT

Current monitor BNC terminal: Output connector used to monitor the current by outputting a voltage. An output voltage of 1V corresponds to the full scale current for the H and L ranges.

0.1V corresponds to the full scale current in the M range.

TRIG OUT

Trigger out BNC terminal: Outputs a pulse signal during sequence or dynamic operation. The trigger signal has a 4.5V output with a pulse width of a least 2us and an impedance of 500Ω.

LINK/STBY Indicator (LSG-2100)

LINK STBY

The LINK and STBY indicators indicate when the booster pack is properly connected and when the power has been turned on, respectively.

47 - 63 Hz

90 VA MAX.

100 - 120 VAC 200 - 240 VAC

FRAME CONT

J 1

J 2

SER. NO. LB

RS232C

GPIB

WARNING

TO AVOID ELECTRIC SHOCK THE POWER CORD

DO NOT REMOVE COVERS.

NO OPERATOR SERVICEABLE COMPONENTS INSIDE.

PROTECTIVE GROUNDING CONDUCTOR MUST BE

REFER SERVICING TO QUALIFIED PERSONNEL.

CONNECTED TO GROUND.

Remote sense inputs

Frame control ports, J1, J2

RS-232C

port

USB

port

USB device port

Exhaust fan

GP-IB

Power socket and switch

Rear panel inputs

port

CAL.

Lock

Utility

Local

File

EnterClear

Shift

Preset

Load

On/ Off

Main

Help

FUNC

Short

TRIG OUT

I MON

OUT

1.5 - 150V

1050W

0 - 70A

1-3-2. Rear Panel

･LSG-175 / LSG-350

LSG-1050

･

･LSG-2100S Booster Pack

RS-232C Port GP-IB USB B

The USB B, RS-232C and GP-IB port are used for remote control.

USB B port

RS-232C 9 pin

DSUB port.

GP-IB 24 pin female.

Frame control ports, J1, J2

FRAME CONT

J 1

J 2

J1: The J1 connector is assigned to external control. J2: The J2 connector is used for parallel operation control.

Exhaust fan

The exhaust fan is used to expel the heat from the unit. Please ensure there is at least 20cm distance between any object and the fan.

Rear Panel

Input terminals

Rear Panel Input Terminals. Electrically connected to the front panel input terminals. Accepts M8 bolts or M4/M3 sized screws. See page 18 for connection details.

Remote Sensing Terminals

Sensing terminals for remote sense. See page 21. Accepts M3 sized screws.

Power Socket

Power Socket: 100~120V, 200~240V 47~63Hz.

Power Switch

Turns the unit on/off.

USB A

USB A Slave port. USB 1.1/2.0

ModeCVI Range

H 35A

V Range

L 15V

Function

Static

Configure

0.000

0.00

SlewRate 2500.00

CC B Value 0.000

CC A Value 0.000

LOADRS232

A Value

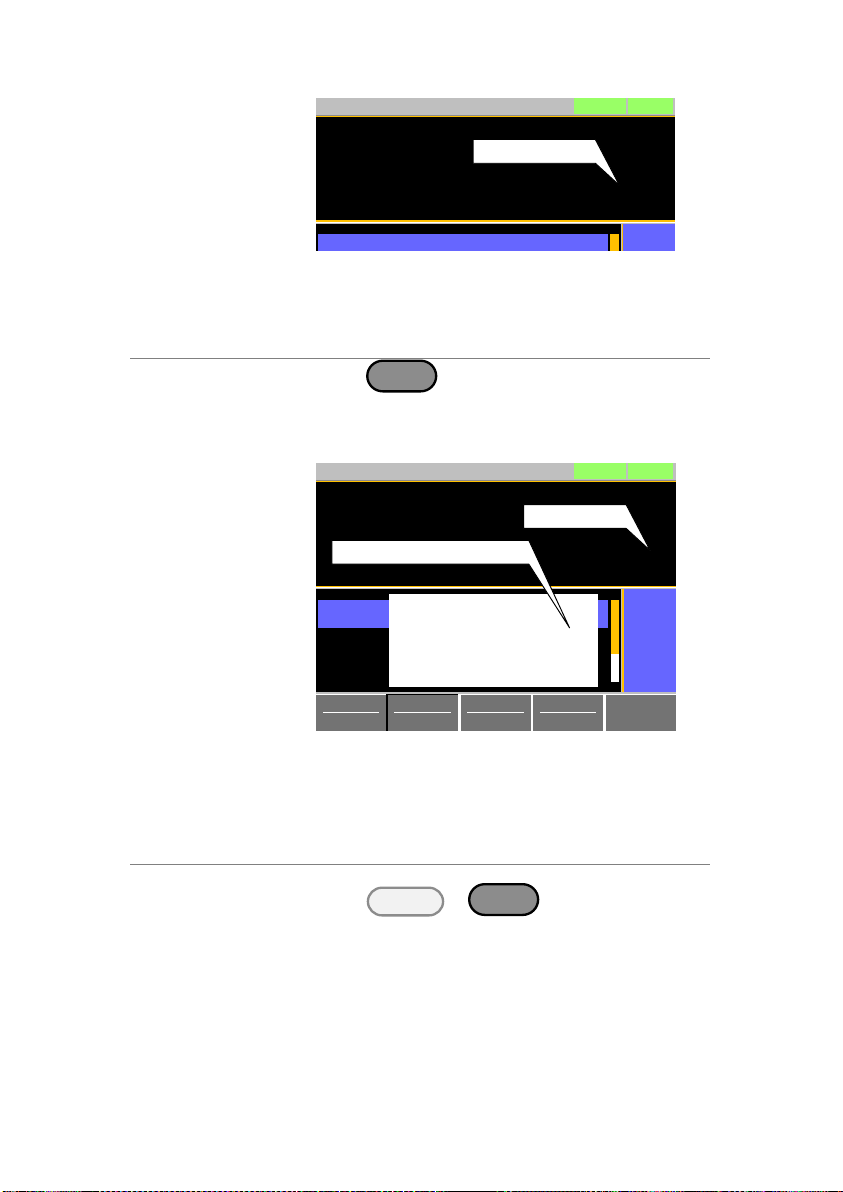

Fine

31/Oct/2013

mA/us

Date

Setting

area

Operation

status panel

Measurement area

Mainframe status panel

Softkeys

Setting area

The setting area is used to display and edit the settings for the current mode / function.

Measurement area

Displays the voltage, current and power values.

Date

Displays the date

Mainframe status panel

The mainframe status panel displays the status of the load, remote control and short function. When an icon is green it indicates that the function is off. When the icon is orange, the function is on.

Operation Status Panel

This status panel is used to display the status of the current mode.

Soft-keys

The soft-key menus are used to select different functions or parameters.

1-3-3. Display

Description

The LSG Series has a number of rack mount options for installation. The GRA-413 rack mounts are suitable for the LSG-2100S booster pack. The GRA-414 rack mounts are capable of holding 1x LSG-1050 or 2x LSG-175/350 units. For installation details, please see the GRA-413 and GRA-414 Rack Mount Assembly Manual. Please see your distributor for which rack mount is suitable for your application.

GRA-413 (For LSG-2100)

128

(149)

1-4. First Time Use Instructions

Use the procedures below when first using the LSG Series to install the rack mount kit, power up the instrument, set the internal clock, restore the factory default settings and check the firmware version. Lastly, the Conventions section will introduce you to the basic operating conventions used throughout the user manual.

1-4-1. Rack Mount Kits

GRA-414-E (EIA standard)

132

382

477

GRA-414-J (JIS standard)

149

382

477

Steps

1. Insert the AC power cord into the power socket.

2. Turn the external power

switch on. (O → —)

3. If the unit doesn’t turn on, press the On/Standby

key for a second.

 The ON/STBY key will go from standby (red) to

on (green).

4. The unit will show the splash screen and then

load the settings from when the unit was last powered down.

5. To turn off the power, press the ON/STBY key

again for a second.

Note

If the LSG Series fails to start up properly or does not turn on, please see your local distributor.

Description

When first using the LSG Series, recall the factory default settings to ensure the unit is in a known state. See page 127 for a list of the default settings.

Operation

1. Press

Shift

File

FUNC

Select Media/Default[F1]. Select Factory Default[F2].

Media

Default

Factory Default

Save Recall

LOADRS232

A Value

Fine

31/Oct/2013

Load Default Setup

CC 35A 15V

Static

Recall The Default Settings!

Pressing F2 Again will

Warning!!!

1-4-2. Power Up and Self Test

1-4-3. Load Default Settings

Description

The date and time settings are used to timestamp files when saving files.

 The date and time is shown on top of the

display.

Operation

1. Press

Shift

Utility

Help

> Time Set[F4] to

set the date and time.

Settings:

Month, Day, Year, Hour, Minute

System

Info

Load Interface Time Set

LOADRS232

31/Oct/2013

Other

Hour 0

Year 2012

Minute

Day

Month

Date/Time

Date

1-4-4. Setting the Date and Time

Wire Gauge considerations

Before connecting the unit to a power source, the wire gauge must be taken into account. Load wires must be large enough to resist overheating when a short-circuit condition occurs as well as to maintain a good regulation. The size, polarity and length of a wire are all factors in determining if a wire will withstand short circuiting.

Wires that are selected must be large enough to withstand a short circuit and limit voltage drops to no more than 2V per wire. Use the table below to help make a suitable selection.

AWG Gauge

Conduct or Diameter mm

Ohms per km

Max amps for chassis wiring 0000

11.684

0.16072

380

000

10.4038

0.2027

328

9.26592

0.25551

283

0 8.25246

0.32242

245

1 7.34822

0.40639

211

2 6.54304

0.51266

181

3 5.82676

0.64616

158

4 5.18922

0.81508

135

5 4.62026

1.02762

118

6 4.1148

1.29593

101

7 3.66522

1.6341

8 3.2639

2.0605

9 2.90576

2.59809

2.58826

3.27639

2.30378

4.1328

2.05232

5.20864

1.8288

6.56984

1.62814

8.282

Load Line Inductance Considerations

When using the LSG Series load generator, voltage drop and voltage generated due to load line inductance and current change must be taken into account. Extreme changes in voltage may exceed the minimum or maximum voltage limits. Exceeding the maximum voltage limit may damage the LSG Series.

To determine the voltage generated, the following equation can be used. E = L x (∆ I / ∆ T)

E= voltage generated L=load line inductance

1-4-5. Load Wiring

∆ I= change of current (A) ∆ T= time (us)

Load line inductance (L) can be approximated

as 1uH per 1 meter of wire. (∆ I / ∆ T) is the slew

rate in A/us.

Current

Voltage

time

∆I

∆T

Min. V

The diagram above shows how changes in current can affect voltage.

Limiting Load line inductance

Load line inductance can be reduced in two ways.

1. Ensure load wires are as short as possible and twist the positive and negative load wires together.

2. Current change can be limited by limiting the slew rate or response speed when switching in CR and CC mode.

“Twisted pair” will be shown on any connection

diagram where the load wires should be twisted together.

DUT

Electronic

Load

Twisted

pair

DUT

Electronic

Load

Description

The LSG Series has input terminals on both the front and rear panels. Follow the procedures below for all load connections. Please adhere to the following precautions to ensure your safety and to protect the unit from damage.

Connection

When connecting the LSG Series to the DUT, make sure that the polarity of the connection between the DUT and the unit matches.

Ensure that the maximum input voltage is not exceeded. The maximum input voltage is 150 volts.

DUT

Electronic

Load

Caution

If the polarity to the input terminals is reversed, the reverse voltage protection function is tripped. The reverse voltage protection function is tripped when reverse voltages greater than -0.3V are detected.

Warning

Do not touch any of the input terminals when the unit is on.

Warning

Connecting the input terminals to the wrong polarity can damage the DUT or the LSG Series.

Warning

The front panel and rear panel input terminals are physically connected. Any voltage that is input to one set of terminals will also appear on the other set of terminals.

1-4-6. Load Wire Connections

Description

The front panel input terminals feature polaritydistinct caps and accept M6 sized crimped terminals.

Caution

The front panel input terminals on the LSG Series are physically connected to the rear panel terminals.

Step

1. Turn the power off from the rear panel or put the

unit into standby mode.

2. Turn the power off from the DUT.

3. Connect the load wires to the input terminals:

 Connect the positive (+) input terminal on the

load generator to the high potential output of the DUT.

 Connect the negative (-) input terminal to the

low potential output of the DUT.

- potential + potentional

Positive terminal

Negative

terminal

1-4-7. Using the Front Panel Input Terminals

Description

The rear panel input terminals accept up to M8sized crimped terminals. The rear terminals come with a load input terminal cover for safety.

Caution

The front panel input terminals on the LSG Series are physically connected to the rear panel terminals.

Steps

1. Turn the power off from the rear panel or put the

unit into standby mode.

2. Turn the power off from the DUT.

3. Connect the load wires to the input terminals:

 Connect the positive (+) input terminal on the

load generator to the high potential output of the DUT.

 Connect the negative (-) input terminal to the

low potential output of the DUT.

+ potentinal

- potential

Description

The rear panel terminal cover should be used to prevent electric shock. The rear panel terminal covers should always be used when connecting a load to the rear panel terminals. As the front panel and rear panel terminals are physically connected, the terminal cover should also be used as a safety measure when a DUT is connected to the front terminals

Caution

Ensure the power is off before making any connections to the LSG Series.

Note

In the following diagrams, the cable wiring is not shown for clarity.

1-4-8. Using the Rear Panel Input Terminals

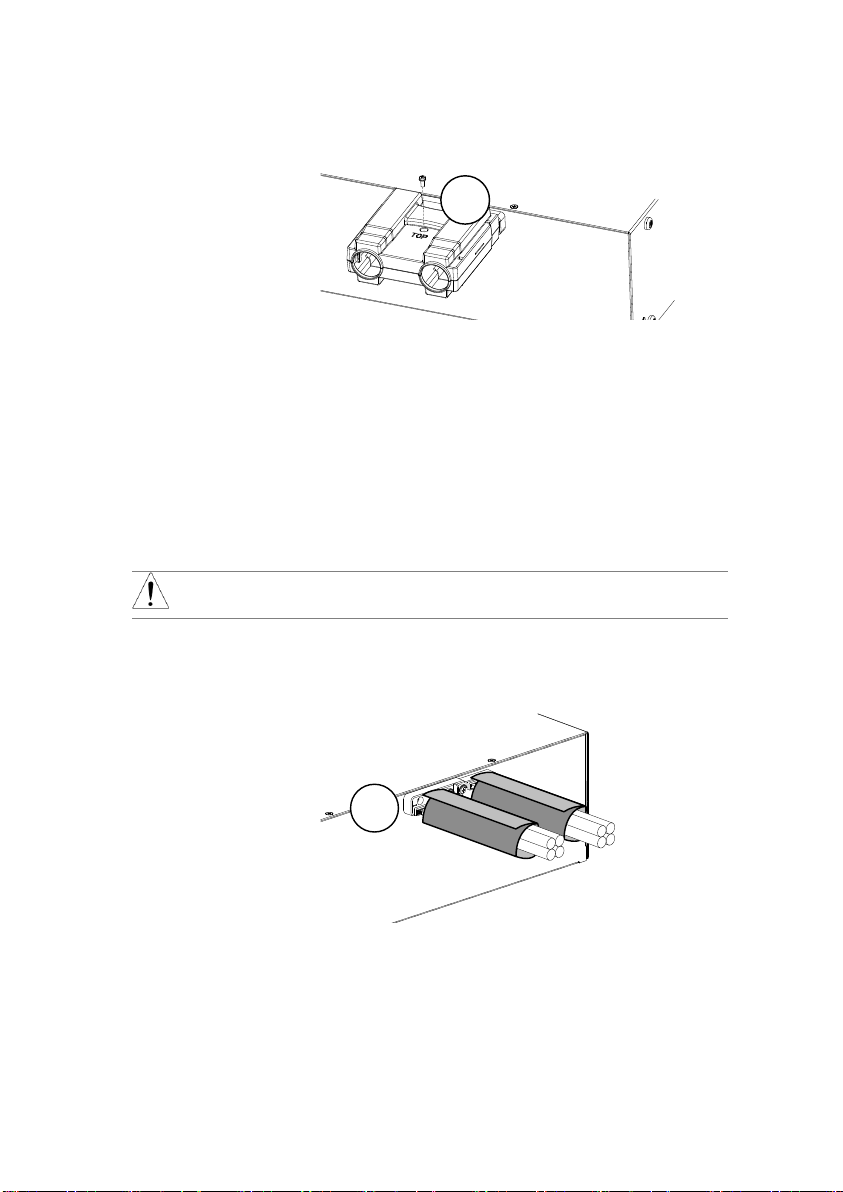

1-4-9. Using the Terminal Cover(PEL -011)

1. Remove the screw holding the top cover to the

bottom cover.

2. Line-up the bottom cover with the notches in the

output terminals.

3. Place the top terminal cover over the bottom

cover.

Detail

4. Use your thumb to slide the terminal covers shut,

as shown in the diagram below.

5. When the top and bottom covers are flush,

reinsert the screw that was removed in step 1.

Description

The flexible rear panel terminal cover should be used when the load wiring becomes too thick to be used with the PEL-011 terminal cover. This is especially true when using the load generators in parallel. Like the PEL-013 terminal cover, the PEL-011 is used to prevent electric shock. The rear panel terminal covers should always be used when connecting a load to the rear panel terminals.

Caution

Ensure the power is off before making any connections to the booster pack.

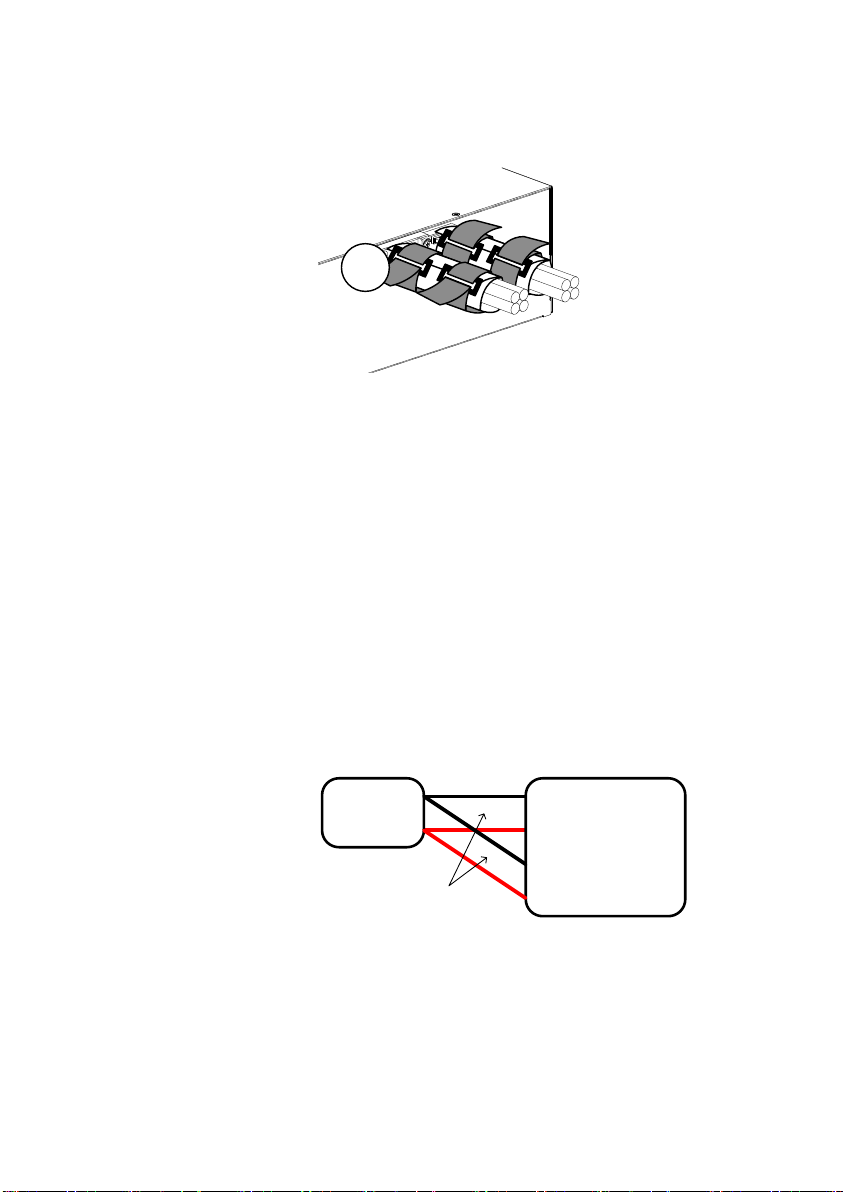

1. Wrap the insulation sheets around the terminals and load cables, as shown below. Make sure the terminals and any exposed wires are covered by the sheets.

Insulation sheet

1-4-10. Using the Terminal Cover (PEL -013)

2. Secure the insulation sheets using the supplied velcro fasteners. 2 fasteners should be used for each sheet.

Fasteners

Description

Remote sense can be used to help compensate for long cable length. The longer the cable, the higher the potential resistance and inductance, therefore a short cable is best. Twisting the cable can help reduce induced inductance and using the Vsense terminals compensates the voltage drop seen across the load leads, especially leads with higher resistance. This is useful when used in CV, CR or CP mode.

Steps

1. Turn the power off from the rear panel or put the

unit into standby mode.

2. Turn the power off from the DUT.

3. Connect the sense wires to the sense terminals:

 Connect the positive sense (+S) terminal to the

high potential output of the DUT.

 Connect the negative sense (-S) terminal to

the low potential output of the DUT.

DUT

Programable

Electronic

Load

-S

Twisted

pair

1-4-11. Remote Sense

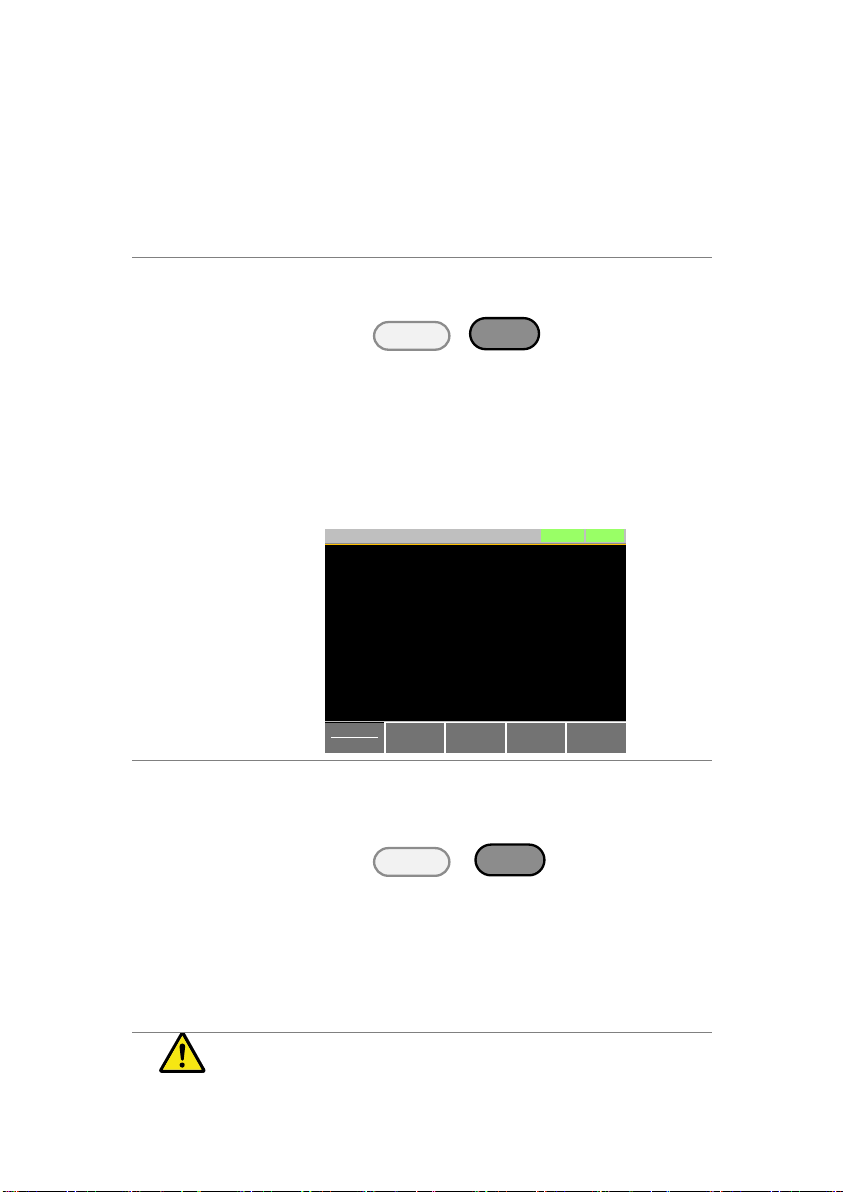

Description

The LSG Series allows the firmware to be updated by end-users. Before using the LSG Series, please check the TEXIO TECHNOLOGY website or ask your local distributor for the latest firmware.

System version

Before updating the firmware, please check the firmware version.

Operation

1. Press

Shift

Utility

Help

2. Select System/Info[F1].

3. The System information is listed on the display.

 Model: Model number of the LSG.  Serial Number: Serial number of the LSG.  Firmware Ver: Firmware version of the LSG.  http: Texio website address.

4. To view other system information, press

System[F1] and select Memo.

System

Info

Load Interface Time Set

LOADRS232

31/Oct/2013

Model: LSG-xxxx

http://www.texio.co.jp

Firmware Ver: x.xx.xxx

Serial Number: xxxxxxxx

Other

Update Firmware

1. Insert a USB drive into the USB port. Ensure the

USB drive has the firmware file located in the root directory.

2. Press

Shift

File

FUNC

3. Select USB with the Media[F1] soft-key.

4. Press the File Utility[F5] soft-key.

5. Select the *.UPG upgrade file and press

Select[F1] twice. Once to select the file and once to confirm.

6. Wait for the update to complete and reset the

power when prompted.

Note

Do not turn the load generator off or remove the USB memory when the firmware is being read or upgraded.

1-4-12. Firmware Update

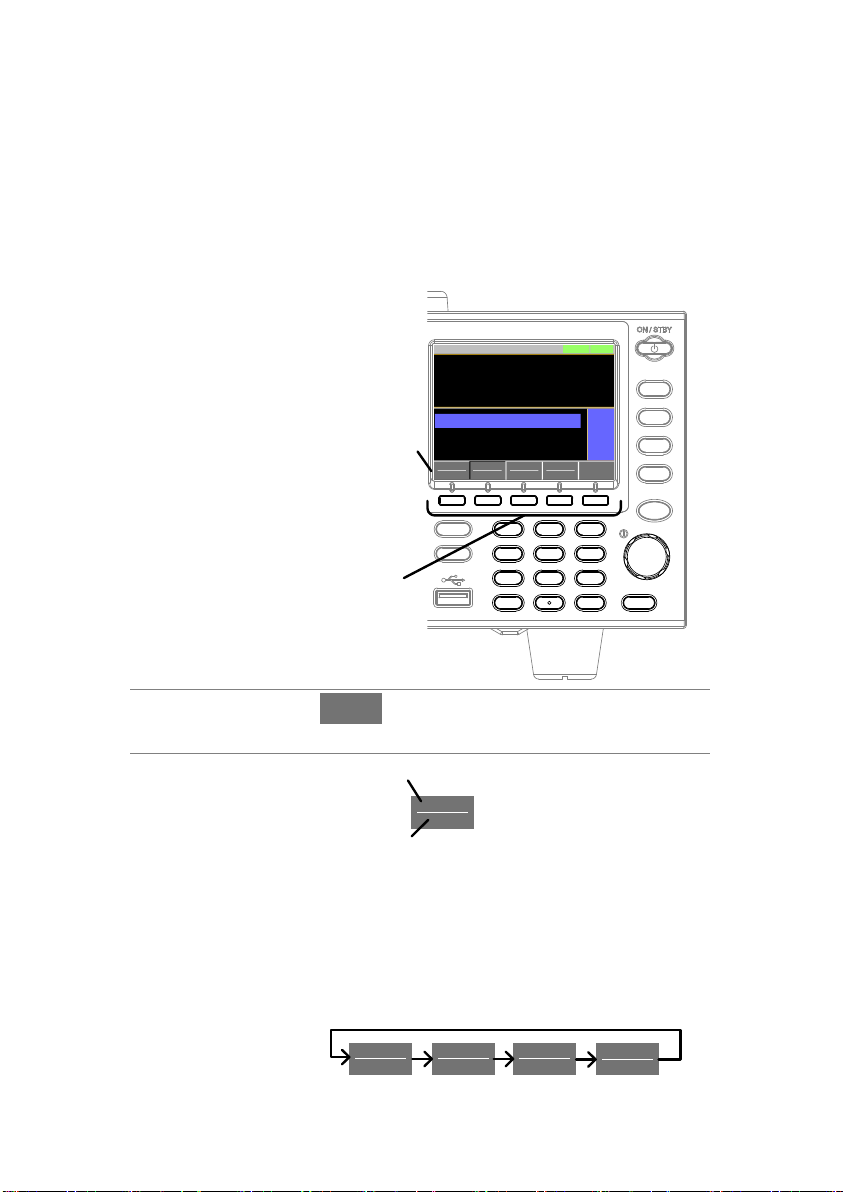

Soft Menu keys

The F1 to F5 function keys at the bottom of the display correspond directly to the soft-menu keys on top.

CAL.

Lock

Utility

Local

File

EnterClear

Shift

Preset

Load

On/ Off

Main

Help

FUNC

Short

F1 ~ F5

Function keys

Soft-menu keys

ModeCCI Range

H 35A

V Range

L 15 V

Function

Static

Configure

0.000

0.000A

0.00w

SlewRate 2500.00

CC B Value 0.000

CC A Value 0.000

LOADRS232

A Value

Fine

31/Oct/2013

mA/us

Select Sub Menu

Configure

Pressing this type of soft-menu key will

enter a submenu.

Toggle Parameter or State

Mode

Function/Item

Parameter or State

This type of soft-menu icon has the function /item on the top of the label and the selected setting or mode on the bottom of the label. Repeatedly press the associated function key (F1~F5) to cycle through each setting. For example, repeatedly pressing the Mode softmenu key will cycle through the CC, CR, CV and CP modes.

Mode

1-4-13. Conventions

The following conventions are used throughout the user manual. Read the conventions below for a basic grasp of how to operate the LSG Series menu system using the front panel keys.

For some parameters, a popup window will also appear. Selection of the setting is the same. Repeatedly pressing the relevant function key (F1~F5) will cycle through each setting. The selection on the popup window will also be reflected on the label.

ModeCCI Range

H 35A

V Range

L 15V

Function

Static

Configure

0.000

0.00

SlewRate 2500.00

CC B Value 0.000

CC A Value 0.000

LOADRS232SHORT

A Value

Fine

03/09/12

mA/uS

LOW

Middle

High

0.35A

3.5A

35A

label

Popup window

Parameter selection

Parameter Input

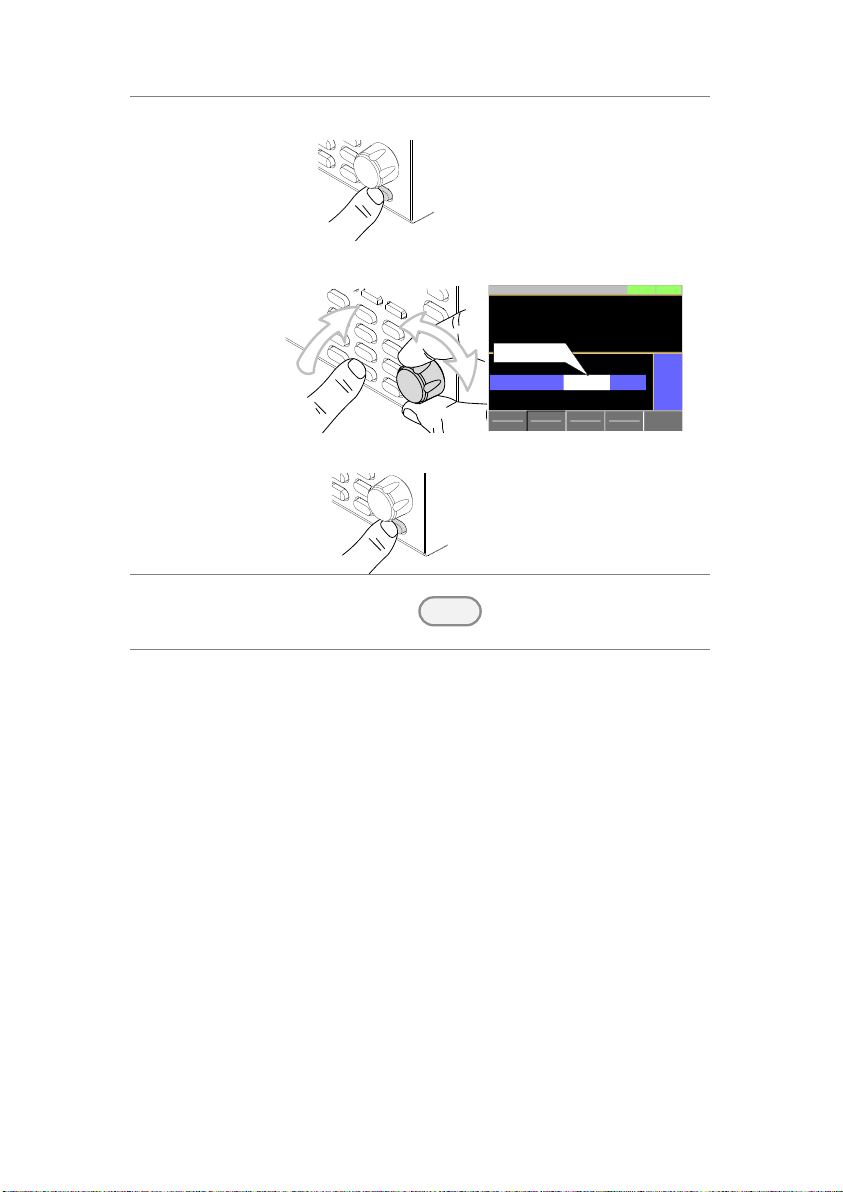

The scroll wheel, Enter key and number pad can be used to edit parameter values.

Number pad

Scroll wheel

Enter key

CAL.

Lock

Clear Enter

1. Use the scroll wheel to move the cursor to the

desired parameter.

 A scroll bar is shown when there are additional

parameters off-screen.

ModeCPI Range

H 35A

V Range

L 15V

Function

Dynamic

Configure

0.000

0.000A

0.00w

Timer1 0. 025

Level 2 0.00

Level

0.00

LOADRS232

Fine

31/Oct/2013

Scroll bar

Cursor

2. Press the Enter key to select the parameter. The

parameter will become highlighted in white.

3. Then use the number pad* or scroll wheel** to

edit the parameter value.

ModeCCI Range

H 35A

V Range

L 15V

Function

Static

Configure

0.000

0.000A

0.00w

SlewRate 2500.00

CC B Value

CC A Value 0. 000

LOADRS232

A Value

Fine

31/Oct/2013

mA/us

1.000

Parameter

4. Press the Enter key again to finish editing the

parameter value.

Clearing a Value

*When editing a parameter with the number pad, pressing the

Clear

key will restore the

parameter to the previous value.

Using the Scroll Wheel to Edit a Parameter**

**To edit a parameter using the scroll wheel, simply turn the scroll wheel. Clockwise increases the value, counterclockwise decrease the value. Pressing the scroll wheel when a parameter is highlighted allows you to change the step resolution. There are two different step resolution methods: Step Mode and Cursor Mode.

Step Mode:

This is the default step resolution method and will only be available to use when it is applicable (Indicated by Fine or Coarse in the Operation Status panel). When a parameter is highlighted (step 3 above) pressing the scroll wheel will toggle the step resolution between fine and coarse. For details on how to set the step resolution

ModeCCI Range

H 35A

V Range

L 15V

Function

Static

Configure

0.000

0.000A

0.00w

SlewRate 2500.00

CC B Value

CC A Value 0.000

LOADRS232

A Value

Fine

31/Oct/2013

mA/us

AA1.000

Coarse/Fine

adjustment

Highlighted

parameter

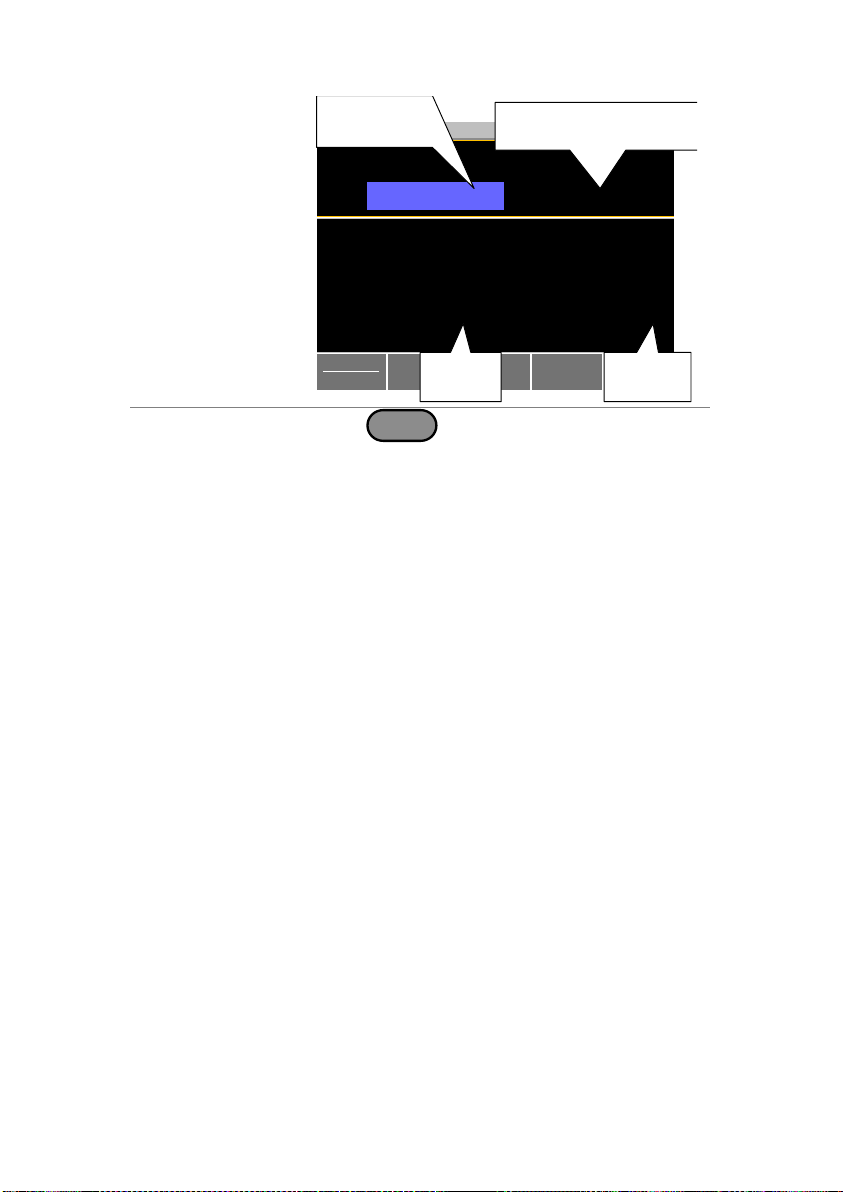

Cursor Mode:

This method must first be enabled before it can be used. Pressing the scroll wheel when a parameter is highlighted allows you to set the step resolution by a digit value. An orange line will appear under the currently selected digit value. Repeatedly pressing the scroll wheel moves to the next digit.

ModeCCI Range

H 35A

V Range

L 15V

Function

Static

Configure

0.000

0.000A

0.00w

SlewRate 2500.00

CC B Value

CC A Value 0.000

LOADRS232

A Value

Cursor

31/Oct/2013

mA/us

AA1.000

Cursor Mode Indicator

0.00

LOADRS232

Higｈlighted parameter

Cursor position

Entering Alphanumeric Characters

When renaming files, creating memos or notes, you will be required to enter alphanumeric characters when the character entry screen appears.

Only alphanumeric characters as well as space [ ], underscore [_] and minus [-] characters allowed.

1. Use the scroll wheel to move the cursor to the

desired character.

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 1 2 3 4 5 6 7 8 9 0 _ 1

Rename:

Filename

Cursor

2. Press the

Enter

key or Enter

Character[F1] to select a character.

Enter

Character

3. To delete a character, press Back Space[F2].

4. To save the file name or memo, press Save[F3].

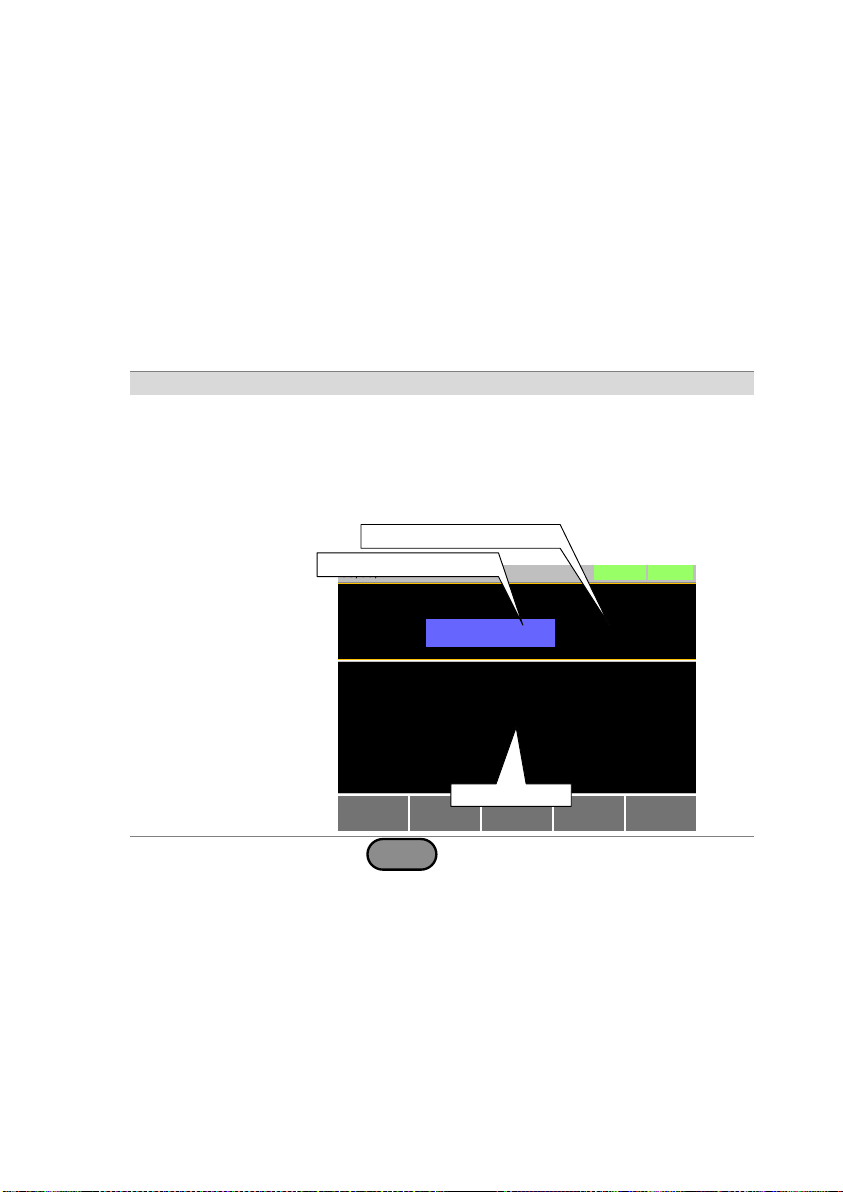

Help Selection

1. Press any function key or soft-menu key.

2. Press

Help

to see the help contents on that

particular function key or menu.

3. Use the scroll to navigate the help contents.

4. Press the Exit[F5] key to exit the help menu.

LOADRS232

31/Oct/2013

Exit

HELP

Press F5 to exit the Help mode. Rotate the VARIABLE knob to scroll all

the contents.

-End-

1-4-14. Help Menu

When any function key has been pressed or when a menu has been opened, the HELP key can be used to display a detailed description.

Description

In Constant Current Mode the load units will sink the amount of current programmed. Regardless of the voltage, the current will stay the same. For more details on CC mode, please see the appendix on page 133.

Warning

If you change the mode or the range when the load is already on, the load will be turned off automatically.

Operation

1. Make sure the load is off.

2. Press

Main

3. Select CC mode with the Mode[F1] soft-key.

4. Select the current range with the I Range[F2]

soft-key.

Range:

High, Middle, Low

5. Select the voltage range with the V Range[F3]

soft-key.

Range:

High, Low

6. Set the current level parameters using the scroll

wheel and number pad.

 For Static mode, set CC A Value and/or CC B

Value.

 For Dynamic mode, set Level1 and Level2.  The maximum and minimum current levels

depend on the selected ranges.

7. To add CV mode to CC mode (CC+CV), see

page 33.

8. Set the remaining basic configuration settings

such as the slew rate, and switching mode settings. See page 37 for details.

2. OPERATION

2-1. Basic Operation

The LSG Series supports 7 main operating modes:

CC, CC+CV, CR, CR+CV ,CV ,CP, CP+CV

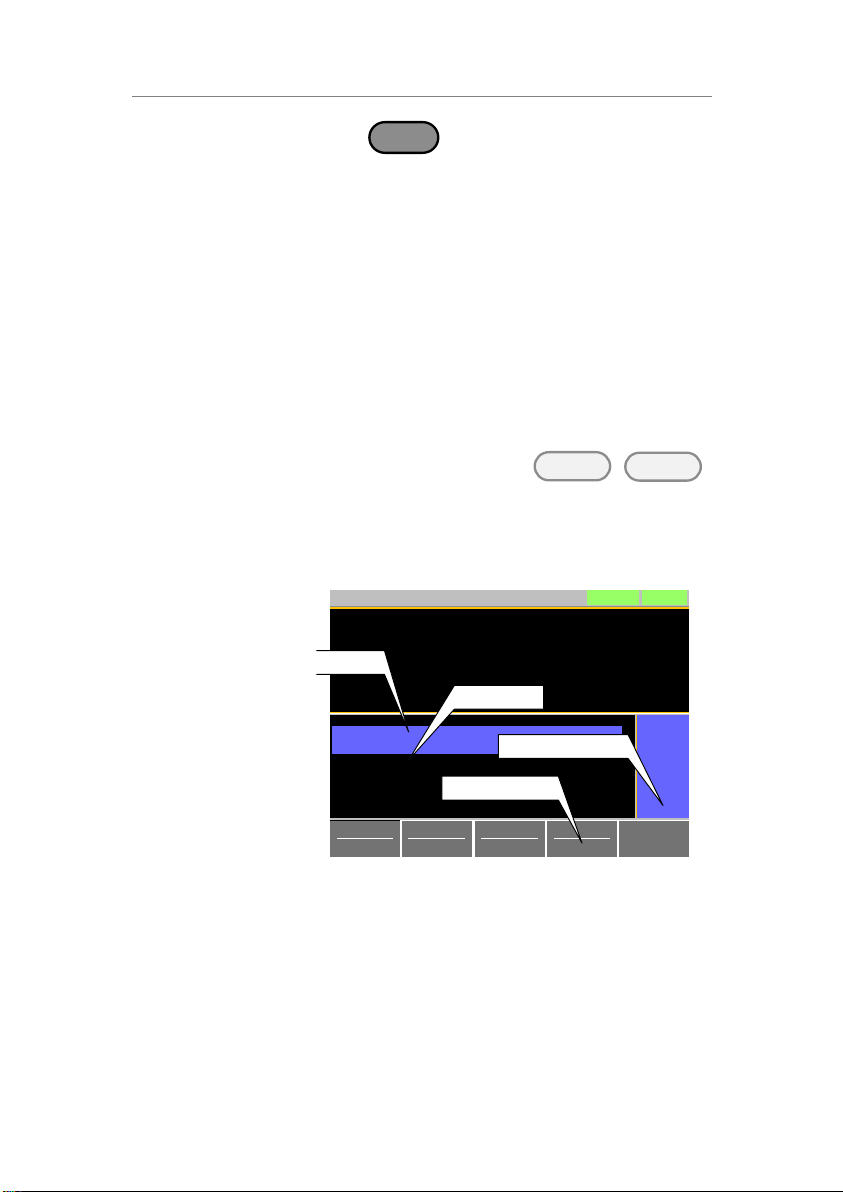

2-1-1. CC Mode

Display

ModeCCI Range

H 35A

VRange

L 15V

Function

Static

Configure

0.000

0.00

SlewRate 2500.00

CC B Value 0.000

CC A Value 0.000

LOADRS232

A Value

Fine

31/Oct/2013

mA/uS

Mode

Current range

Voltage range

Active setting

Current setting A Current setting B

Note

Basic CC mode configuration is complete. See page 37 for more configuration options. The current range and voltage range applies to all the operating modes.

Description

In Constant Resistance Mode, the unit will maintain a constant resistive load by varying the

current. CR mode uses ohms, Ω (resistance) or

siemens,S (conductance) for the setting units. For more details on CR mode, see the appendix on page 134.

Warning

If you change the mode or the range when the load is already on, the load will be turned off automatically.

Operation

1. Make sure the load is off.

2. Press

Main

3. Select CR mode with the Mode[F1] soft-key.

4. Select the current range with the I Range[F2]

soft-key.

Range:

High, Middle, Low

5. Select the voltage range with the V Range[F3]

soft-key.

Range:

High, Low

2-1-2. CR Mode

6. Set the resistance or conductance level

parameters using the scroll wheel and number pad.

 For Static mode, set CR A Value and/or CR B

Value.

 For Dynamic mode, set Level1 and Level2.  The maximum and minimum conductance/

resistance levels depend on the selected current range.

7. To add CV mode to CR mode (CR+CV), see

page 33.

8. Set the remaining basic configuration settings

such as the slew rate, and switching mode settings. See page 37 for details.

Display

ModeCRI Range

H 35A

V Range

L 15V

Function

Static

Configure

0.000

0.00

SlewRate 250.000

CR B Value 0.04082

CR A Value 0.04082

LOADRS232

A Value

Fine

31/Oct/2013

mA/uS

Ω

Mode

Current range

Voltage range

Active

setting Conductance/ Resistances

Conductance/ Resistance settings

Note

Basic CR mode configuration is complete. See page 37 for more configuration options. The current range and voltage range applies to all the operating modes.

Description

The CR setting units can be set to ohm (Ω) or

milli-siemens (mS).

Operation

1. Make sure the load is off.

2. Press

Main

> Configure[F5] > Other[F2] and

set the CR Unit setting.

Range:

Ω (resistance) or milli-siemens,mS (conductance) for the setting units.

2-1-3. CR Units

Description

In Constant Voltage Mode, the unit will maintain a constant voltage. In CV mode you set the constant voltage level. For more details on CV mode, see the appendix on page 136.

Warning

If you change the mode or the range when the load is already on, the load will be turned off automatically.

Operation

1. Make sure the load is off.

2. Press

Main

3. Select CV mode with the Mode[F1] soft-key.

4. Select the current range with the I Range[F2]

soft-key.

Range:

High, Middle, Low

5. Select the voltage range with the V Range[F3]

soft-key.

Range:

High, Low

6. Set the voltage level parameters using the scroll

wheel and number pad.

 Set CV A Value and/or CV B Value.  The maximum and minimum voltage levels

depend on the selected voltage range.

7. Set the remaining basic configuration settings

such as the response settings. See page 37 for details.

Display

ModeCVI Range

H 35A

V Range

L 15V

Response

Slow

Configure

0.000

0.00

CV B Value 15.000

CV A Value 15.000

LOADRS232

A Value

Fine

31/Oct/2013

Mode

Current range

Voltage range

Active

setting

Current setting

Voltage settings

Note

Basic CV mode configuration is complete. See page 37 for more configuration options. The current range and voltage range applies to all the operating modes.

2-1-4. CV Mode

Description

In Constant Power Mode, the unit will maintain a constant power by varying the current. For more details on CP mode, see the appendix on page

135.

Warning

If you change the mode or the range when the load is already on, the load will be turned off automatically.

Operation

1. Make sure the load is off.

2. Press

Main

3. Select CP mode with the Mode[F1] soft-key.

4. Select the current range with the I Range[F2]

soft-key.

Range:

High, Middle, Low

5. Select the voltage range with the V Range[F3]

soft-key.

Range:

High, Low

6. Set the power level parameters using the scroll

wheel and number pad.

 For Static mode, set CP A Value and/or CP B

Value.

 For Dynamic mode, set Level1 and Level2.  The maximum and minimum power levels

depend on the selected current range.

 For static mode, the parameter that is set last

becomes the “active” setting. This will be shown in the Operation Status Panel.

7. To add CV mode to CP mode (CP+CV), see

page 33.

8. Set the remaining basic configuration settings

such as the slew rate, and timer settings. See page 37 for details.

2-1-5. CP Mode

Display

ModeCPI Range

H 35A

V Range

H 150V

Function

Static

Configure

0.00

0.000

0.00

CP B Value 0.00

CP A Value 0.00

LOADRS232

A Value

Fine

31/Oct/2013

Current range

Active setting

Current setting

Power settings

+CV OFF

Mode

Voltage range

Note

Basic CP mode configuration is complete. See page 37 for more configuration options. The current range and voltage range applies to all the operating modes.

Description

CV mode can be added to CC, CR and CP mode.

 The +CV settings apply to all applicable modes.

Operation

1. Make sure the load is off.

2. Press

Main

to return to the main menu for

the current mode.

3. Set the +CV voltage level. (You may need to

scroll down to the +CV setting)

Range:

OFF ~ rated voltage+5%

Display

ModeCPI Range

H 35A

V Range

L 15V

Function Dynamic

Configure

0.000

0.00

+CV 5.500

Timer2 0.025

Timer1 0.025

LOADRS232

Fine

31/Oct/2013

+CV setting

2-1-6. +CV Mode

Note

The +CV settings apply to all the applicable operating modes. For example: The +CV settings made in CR mode will be carried over to the +CV settings in CC and CP mode.

Note

+CV settings cannot be controlled with external control.

Description

1. The load can be turned on and off by pressing the

Load

On/

Off

key.

 The

Load

On/

Off

key will turn orange when the load

is “on”.

 The LOAD icon in the Main Frame status panel

will turn orange when the load is on.

Note

 The load can be set to automatically turn on at

start up. See page 45. The load can be turned on via remote control. See the programming manual. The load can be turned on via external control. See page 109.

Display

LOADRS232

31/Oct/2013

LOAD on

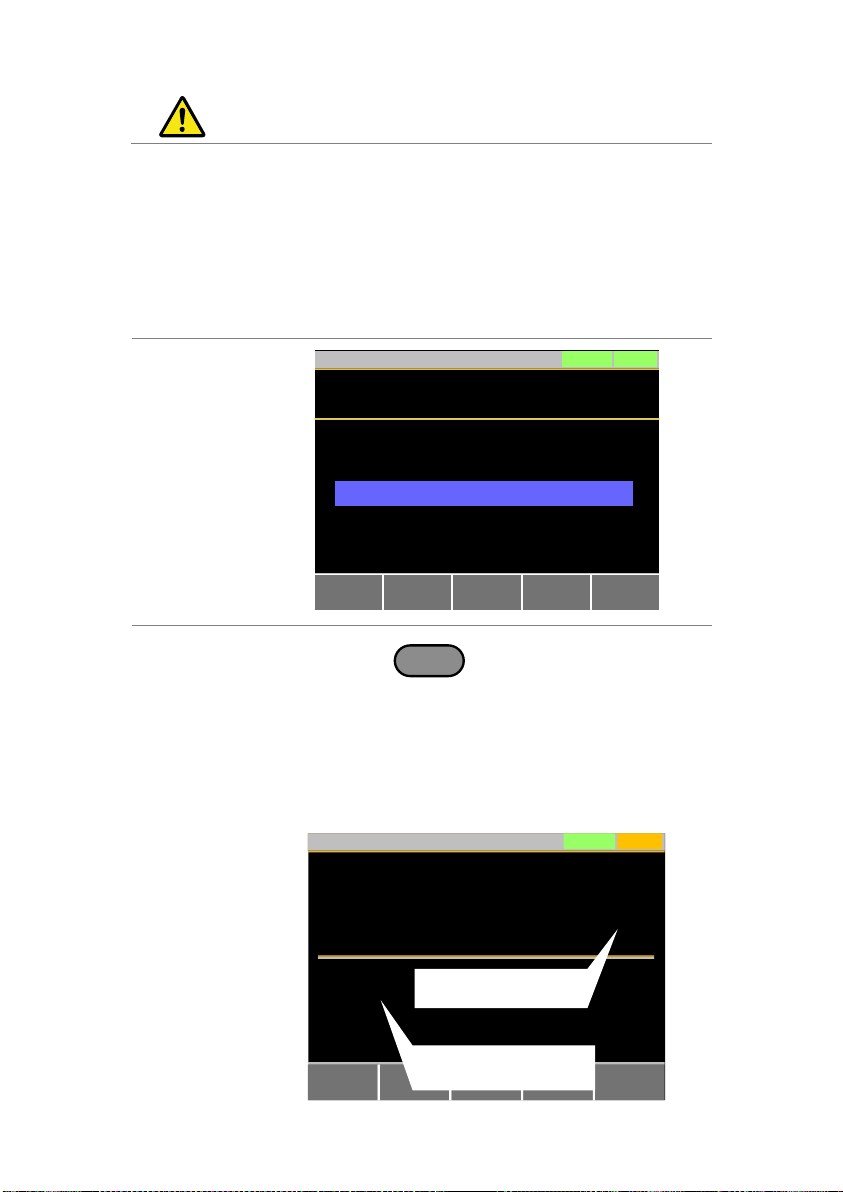

Description

The Short key can be used to simulate a short circuit of the load input terminals. A short circuit is simulated by:

 Setting the current to the maximum value in CC

mode.

 Setting the resistance to the minimum value in

CR mode.

 Setting the voltage to the minimum value in CV

mode.

 Setting the power to the maximum value in CP

mode.

 When the load is shorted, the external

controller also sends a short signal. See page 112 for usage details.

2-1-7. Turning on the Load

2-1-8. Shorting the Load

Operation

1. The short function can be turned on and off by

pressing the

Short

key.

 The

Short

key will turn red when the short

function is active.

 The Short icon will appear when the short

function is active.

Range:

Toggle, Hold

Display

LOADRS232SHORT

31/Oct/2013

SHORT on

Note

If the load is already off, pressing the Short key will turn the load on (shorted) at the same time. Pressing the Short key again will also turn the load off again as well.

If the load is already on and the Short key is pressed, then when the Short key is pressed again the load will remain on (the electronic load will return to its previous load condition).

Description

When activated, the safety short function only allows the short key to be used when the load is already on.

Operation

1. Press

Main

> Configure[F5] > Other[F2] and

set the Short Safety.

 When set to OFF, the load can be shorted at

anytime.

 When set to ON, the load can only be shorted

when the load is already on.

Short(Safety) :

OFF,ON

Note

The Short Safety setting will be grayed out if Short Function is set to OFF.

2-1-9. Safety Short

Description

The Short key can be configured to Toggle or Hold. By Default the Short key is set to Toggle.

 Toggle: Pressing the Short key will toggle the

shorting function on or off.

 Hold: Holding the short key will short the load.

Operation

1. Press

Main

> Configure[F5] > Other[F2] and

set the Short Key setting.

Range:

Toggle, Hold

Description

The short key can be disabled to prevent the operator accidentally shorting the load.

Operation

1. Press

Main

> Configure[F5] > Other[F2] and

set the Short Function.  When set to OFF, the Short key is disabled

and all short configuration options in the Main > Configure> Other menu are also disabled.

 When set to ON, the Short key is enabled.

Short Function:

OFF,ON

Description

The keys and scroll wheel on the front panel can be locked to prevent settings from being changed.

Operation

1. The keys can be locked and unlocked by

pressing

Shift

Lock

Clear

 LOCK will appear in the Mainframe status

panel when the keys are locked.

 The

Load

On/

Off

key will not be locked if the load

is on.

Display

LOADRS232

31/Oct/2013

LOCK

LOCK icon

2-1-10. Short Key Configuration

2-1-11. Short Function Enable/Disable

2-1-12. Locking the Front Panel Controls

Description

The LSG Series has two switching modes, static and dynamic. The switching modes allow the LSG Series to switch between two preset levels. Static mode can only switch between the two levels manually, while Dynamic mode switches between each level automatically based on a timer.

 Static mode: A Value, B Value  Dynamic mode: Level1, Level2

When the unit is set to static mode, only one value (A Value or B Value) can be active at a time. The active value is shown in the Operation Status Panel.

Configure

LOADRS232SHORT

A Value

Fine

Active setting

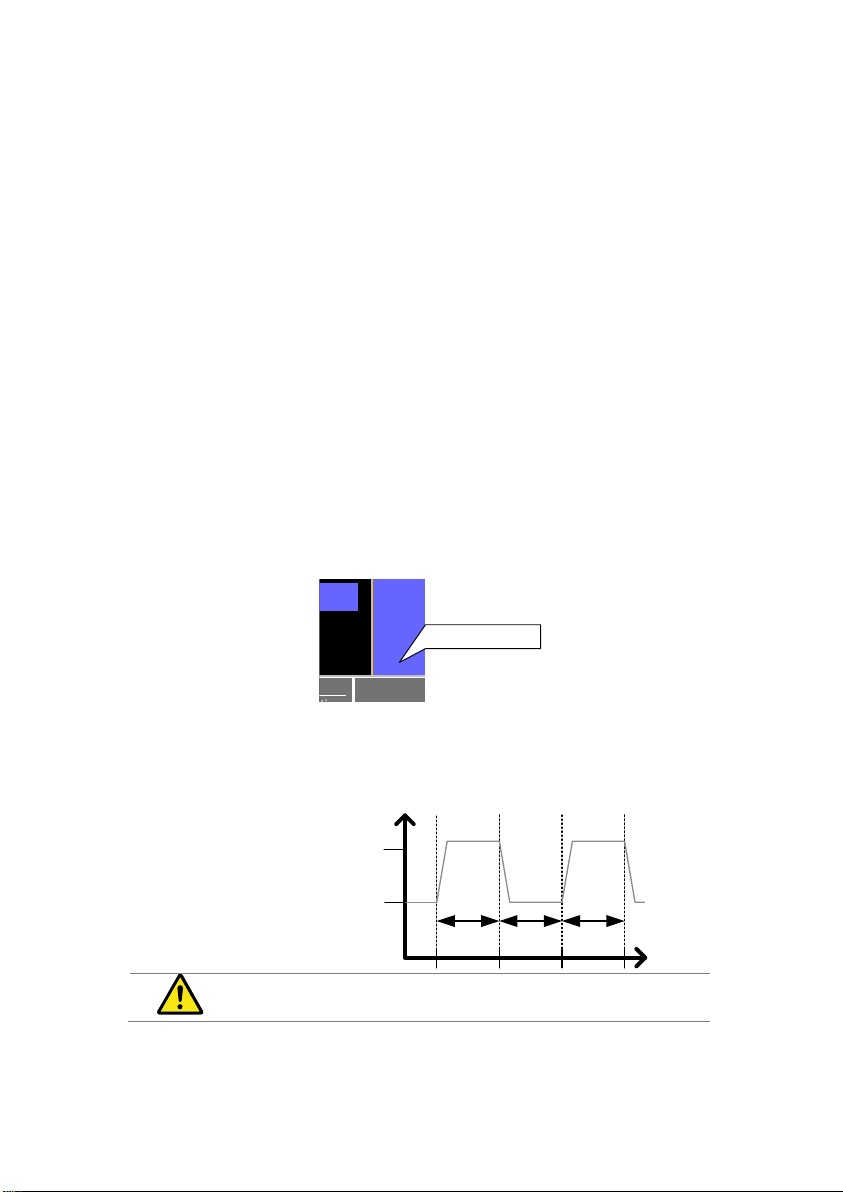

When the unit is set to dynamic mode, the unit will switch between Level1 and Level2 based on the Timer1 and Timer2 parameters, shown below.

Level

Time

Level 2

Level 1

Timer1 Timer2 Timer1

Dynamic Mode

Note

Dynamic mode is not available for CV mode.

2-2. Basic Configuration

The basic configuration settings are the common configuration settings that are used for each operating mode. After selecting a basic operating mode (CC, CR, CV or CP mode), the slew rate, switching mode, response rate and other common parameters should be configured.

2-2-1. Select the Switching Function

Operation

1. Make sure the load is off.

2. Press

Main

3. Select Dynamic or Static mode with the

Function[F4] soft-key.

 A different switching mode can be set for CC,

CR and CP mode.

4. For dynamic mode, set the Timer1 and Timer2

parameters using the scroll wheel and number pad.

 Timer1 sets the Level1 on-time.  Timer2 sets the Level2 on-time.  Take the slew rate settings into consideration

when setting the timers.

 The frequency of the dynamic switching is

output via the TRIG OUT BNC.

 To select whether A Value or B Value is the

“active” setting, press the

Shift

Preset

keys.

 The “active” value will be shown in the

Operation Status Panel.

 The load can be “on” when switching between

A Value and B Value.

Display: Static Mode

ModeCPI Range

H 35A

V Range

H 150V

Function

Static

Configure

0.00

0.000

0.00

CP B Value 0.00

CP A Value 0.00

LOADRS232

A Value

Fine

31/Oct/2013

Active setting

B Value

+CV OFF V

Static mode

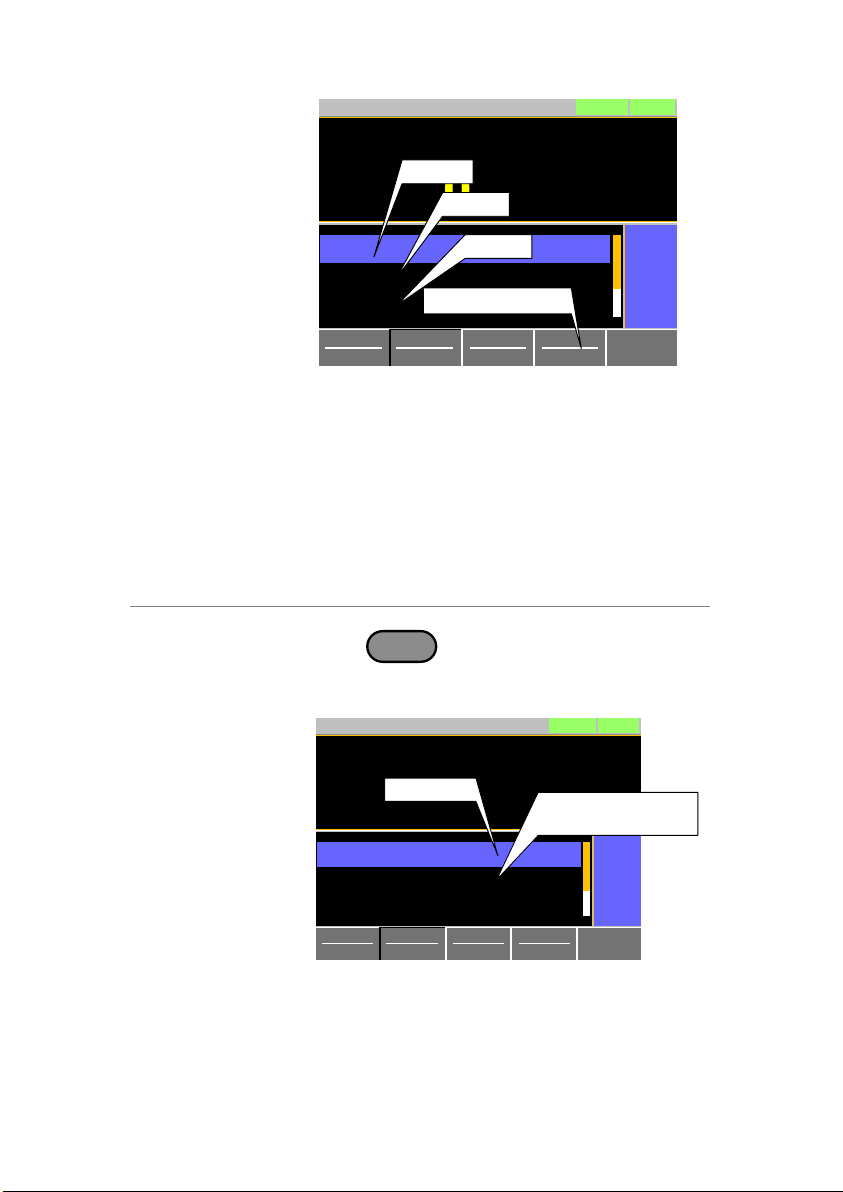

Display: Dynamic Mode

ModeCPI Range

H 35A

V Range

L 15V

Function Dynamic

Configure

0.000

0.00

Timer1 0.025

Level2 0.00

Level1 0.00

LOADRS232

Fine

31/Oct/2013

Dynamic mode

Level1

Level2

Timer1

Description

When Dynamic switching mode is selected, the Level1 and Level2 values can be set to either discrete values or as a percentage of a set value.

 The setting applies to all applicable operation

modes.

 By default the units are set to Value.  When Percent is chosen, 100% = 100% of the

Set power, current or resistance value.

Operation

1. Make sure the load is off.

2. Press

Main

> Configure[F5] > Other[F2] and

set the Dyna. Level setting.

Range:

Value, Percent

Display: Percent Setting

ModeCPI Range

H 35A

V Range

L 15V

Function Dynamic

Configure

0.000

0.00

Timer1 0.025

Level 50.0

Set 1.00

LOADRS232

Fine

31/Oct/2013

Set level

% from the Set value

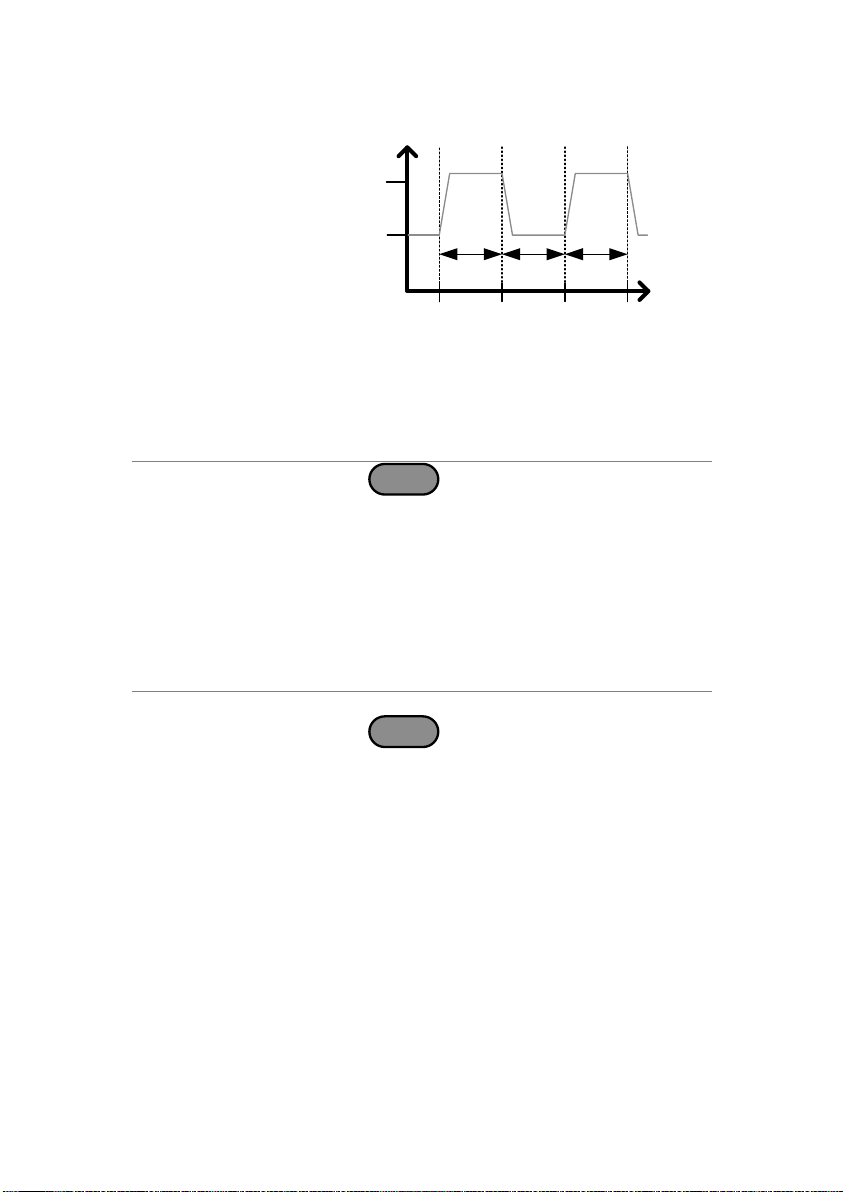

2-2-2. Select the Display Units for Dynamic Mode Levels

Example

Level

Time

Set

Level

Timer1 Timer2 Timer1

Dynamic Mode:

Dyna. Level = Percent

Description

The switching time for dynamic mode can be configured to switch between two preset ontimes (Timer1, Timer2) or by setting a switching frequency and duty cycle.

Operation

1. Press

Main

> Configure[F5] > Other[F2] and

set the Dyna. Time setting.

Range:

T1/T2, Freq. Duty

Description

The current slew rate can be set for CC and CR mode. The slew rate setting is used to limit the change in current when switching. For static mode, only a single slew rate can be set.

Operation

1. Make sure the load is off.

2. Press

Main

3. Set the slew rate(s) using the scroll wheel and

number pad.

 For static mode, only a single slew rate can be

set.

 For dynamic mode, set both the rising and

falling slew rates.

 Take the timer settings into consideration when

setting the slew rates.

2-2-3. Select the Switching Time Configuration for Dynamic

Mode

2-2-4. Slew Rate

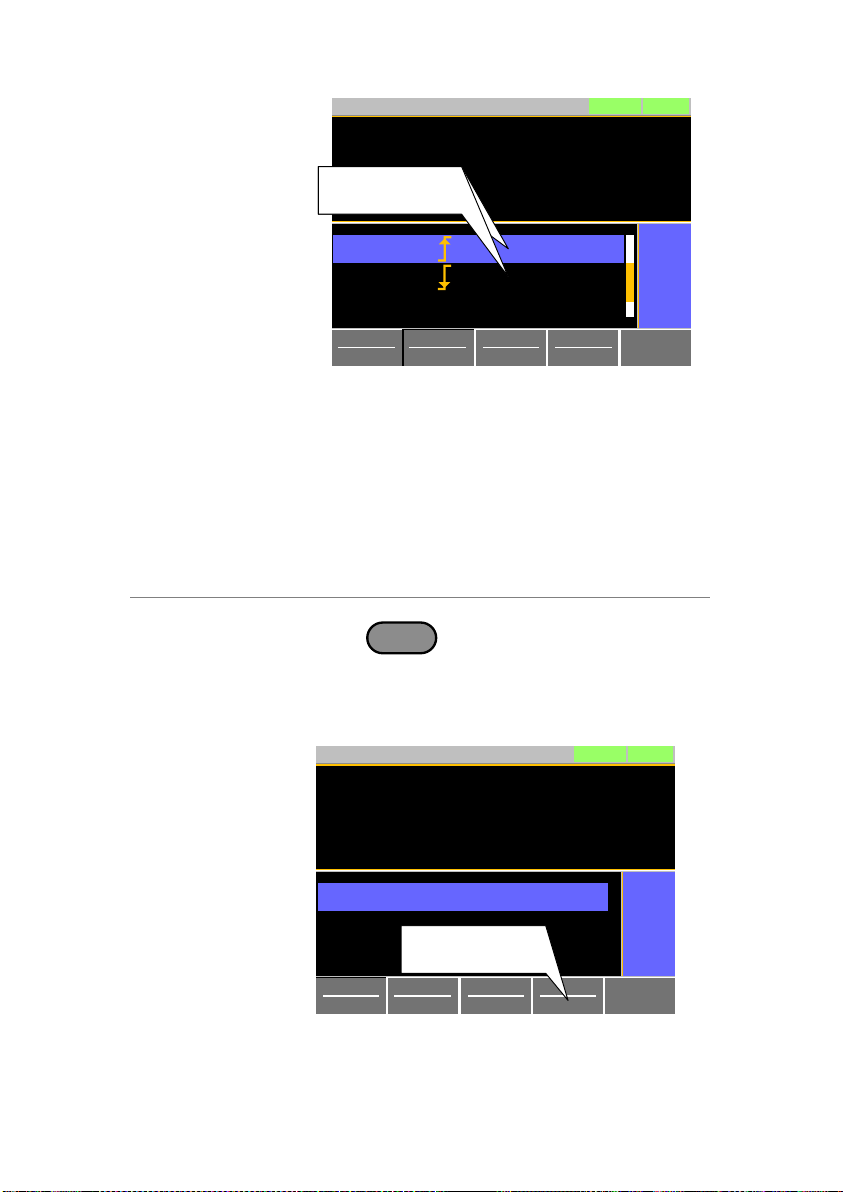

Display

ModeCCI Range

H 35A

V Range

H 150V

Function Dynamic

Configure

0.00

0.000

0.00

Timer1 0.025

SlewRate 2500.00

LOADRS232

Fine

31/Oct/2013

mA/us

Slewrate settings

Description

The response speed setting is the response speed for the negative feedback control of the load current when used in CV mode. Response speed settings are only applicable to CV mode.

 A response speed that is too fast could cause

the unit to be unstable.

 Reducing the response speed can improve

stability.

Operation

1. Make sure the load is off.

2. Press

Main

. Make sure the unit is in CV

mode by using the Mode[F1] soft-key.

3. Select the response speed with the

Response[F4] soft-key.

Range:

Slow, Fast

Display

ModeCVI Range

H 35A

V Range

L 15V

Response

Slow

Configure

0.000

0.00

CV B Value 15.000

CV A Value 15.000

LOADRS232

A Value

Fine

31/Oct/2013

Response setting

2-2-5. CV Mode Response Speed

Description

By default, the “normal current response” speed

is set to 1/1. The response speed can be reduced to 1/2, 1/5, 1/10.

 Reducing the current response speed can

affect other settings such as the slew rate and soft start settings.

Operation

1. Make sure the load is off.

2. Press

Main

> Configure[F5] > Other[F2] and

set the Response parameter.

Range:

1/1,1/2,1/5,1/10

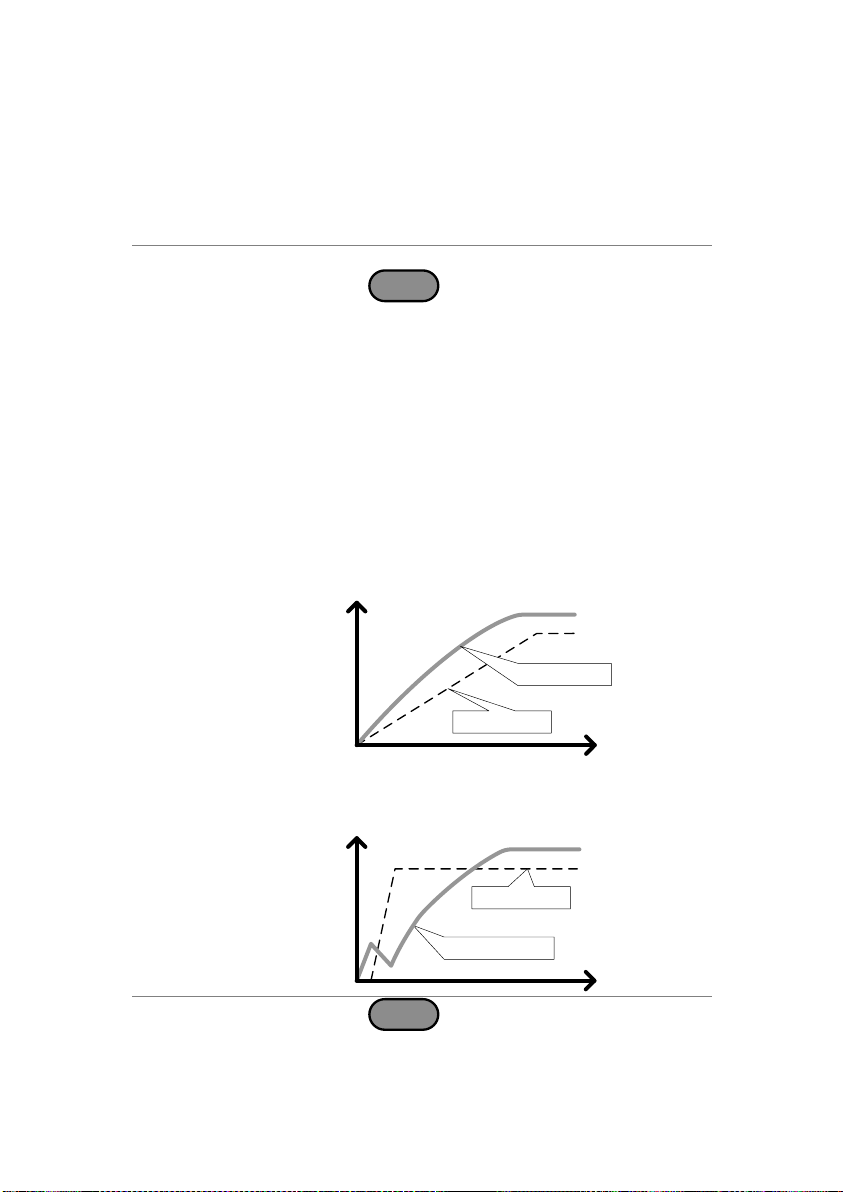

Description

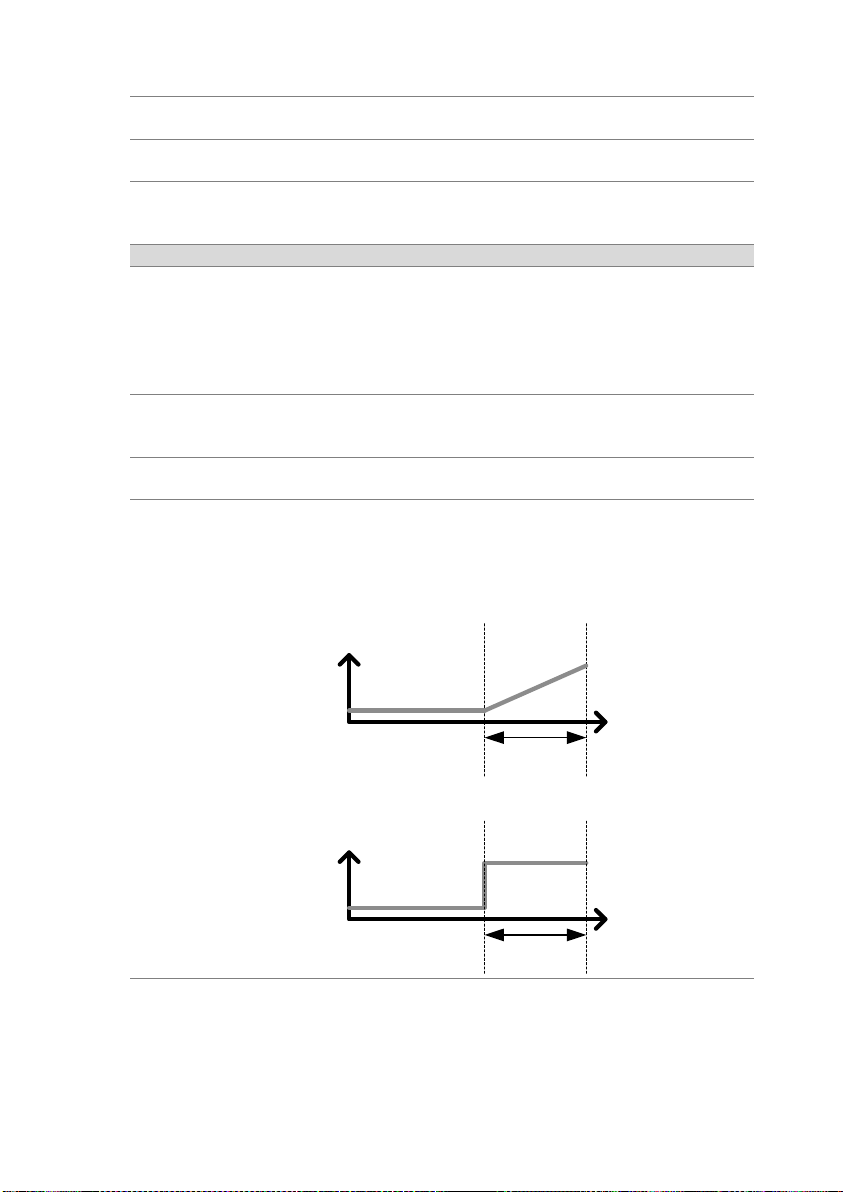

The soft start setting is used to limit the amount of input current at start-up or from when the Von Voltage threshold is tripped.

 The soft start setting only applies to CC & CR

mode.

Input I

Time

Soft Start = ON

Input I

Time

Soft Start= OFF

Rise voltage

Rise current

Rise voltage

Operation

1. Press

Main

> Configure[F5] > Other[F2] and

set the Soft Start time.

Range:

OFF, 1~200ms

2-2-6. CC,CR and CP Mode Response Speed

2-3. Advanced Configuration Settings

Use the advanced configuration settings to configure settings other than those described in the basic configuration chapter.

2-3-1. Soft Start Setting

Description

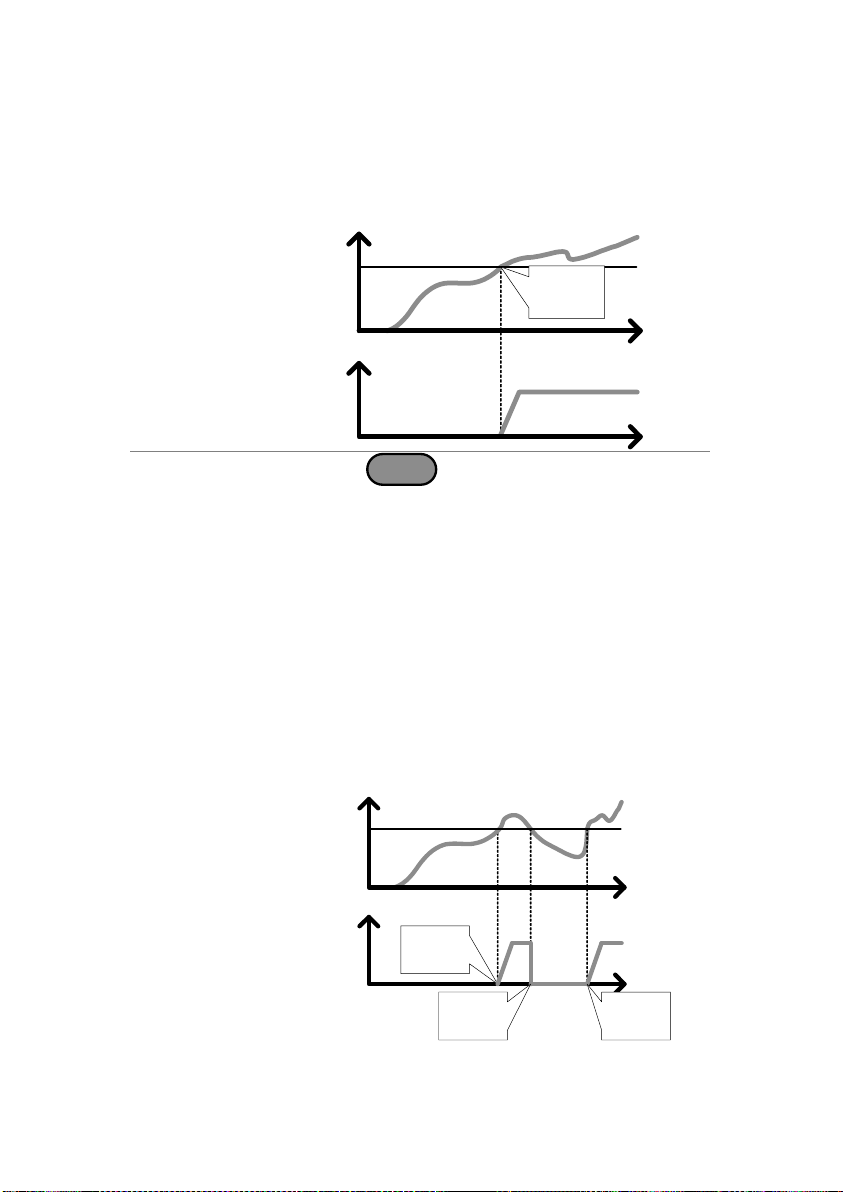

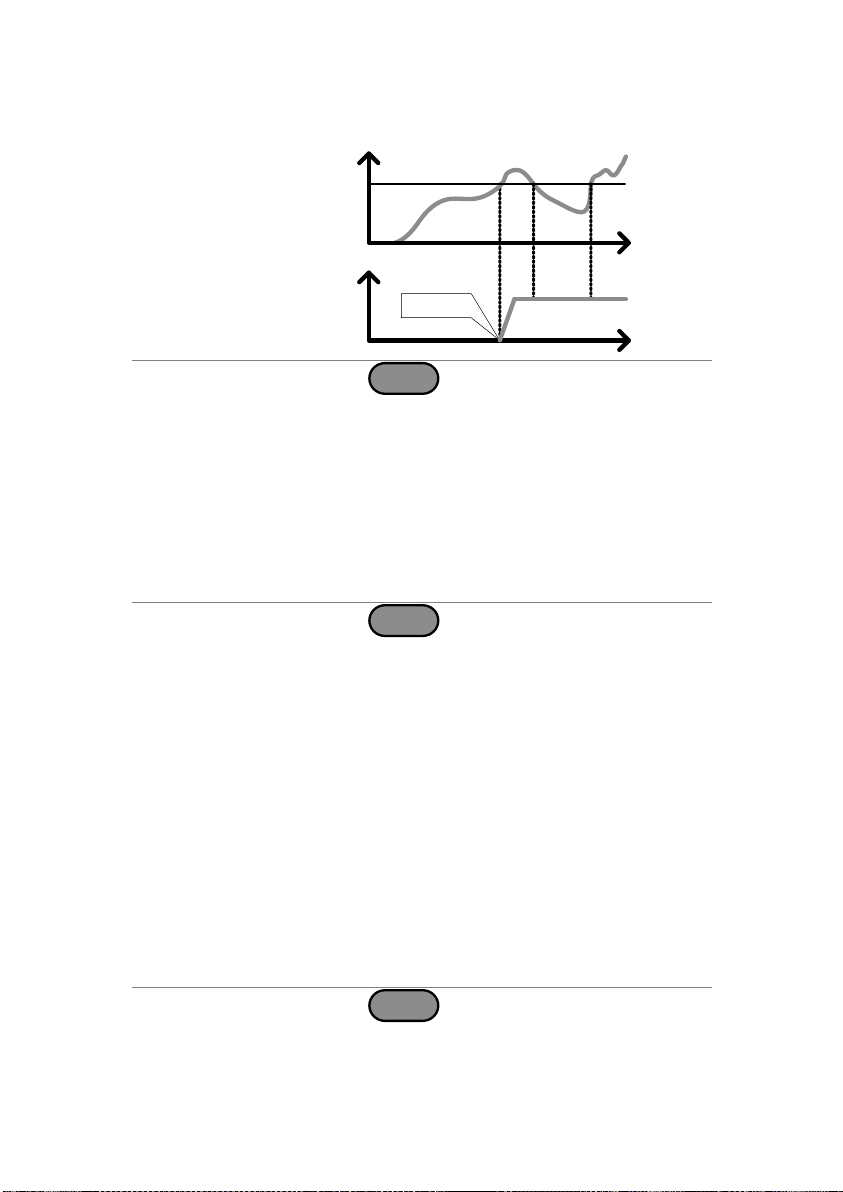

The Von Voltage is the threshold voltage at which the load module will start to sink current.

Time

Von voltage

Von

Time

V out

Load

Operation

1. Press

Main

> Configure[F5] > Other[F2] and

set the Von Voltage level.

Range:

Von Voltage: 0.00~rating voltage

Description

When Von Latch is set to ON, the load will

continue to sink current after being “latched”,

even if the voltage drops below the Von Voltage threshold level. When Von Latch is set to OFF, the load will turn off when the voltage drops below the Von Voltage threshold level.

 By default Von Latch is set to OFF.

Time

Von Latch = OFF

Von

Time

V out

Load

off

Load

2-3-2. Von Voltage Settings 2-3-2-1. Von Voltage Level

2-3-2-2. Von Voltage Latch



Time

Von Latch = ON

Von

Time

V out

Load on

Operation

1. Press

Main

> Configure[F5] > Other[F2] and

set the Von Latch setting.

Range:

Von Latch: OFF, ON

Description

Von Delay is the amount of time the unit will wait before turning the load on after the Von Voltage threshold has been latched. This will prevent overshoot current from affecting the Von Voltage threshold.

Operation

2. Press

Main

> Configure[F5] > Other[F2] and

set the Von Delay time.

Range:

Von Delay: OFF, 0.5~60ms

CR mode can have the delay time set separately from the other modes (called Von Delay –CR when in CR mode).

Description

When Count Time is set to on, it will count the elapsed time from when the load was turned on to when it was turned off.

 This function is applicable to manual and

automatic shutdown (such as from protection functions such as UVP etc.)

 The elapsed time will be shown in the display

Measurement area.

Operation

1. Press

Main

> Configure[F5] > Other[F2] and

turn the Count Time on or off.

Range:

ON, OFF

2-3-2-3. Von Voltage Delay

2-3-3. Timer Functions 2-3-3-1. Count Time

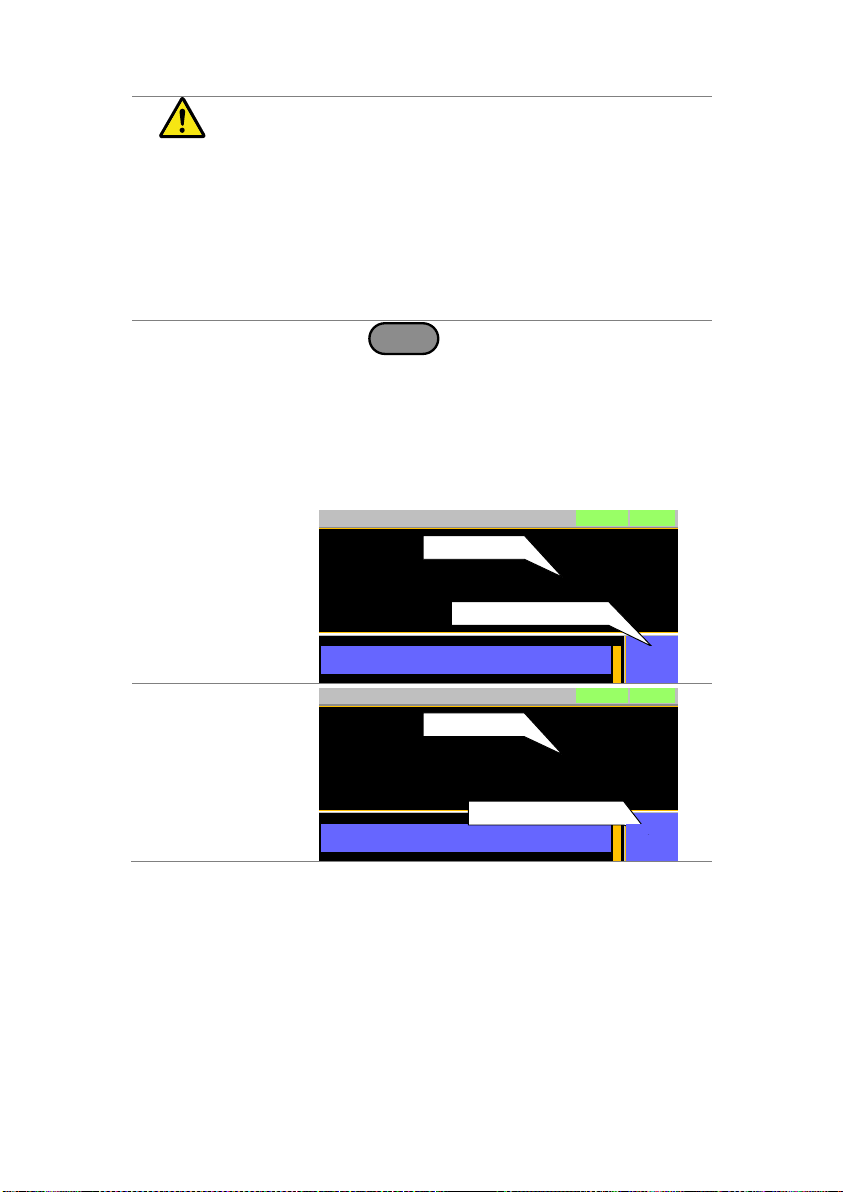

Display

0.000

0.00

LOADRS232

31/Oct/2013

0:00:05

Elapsed time

Description

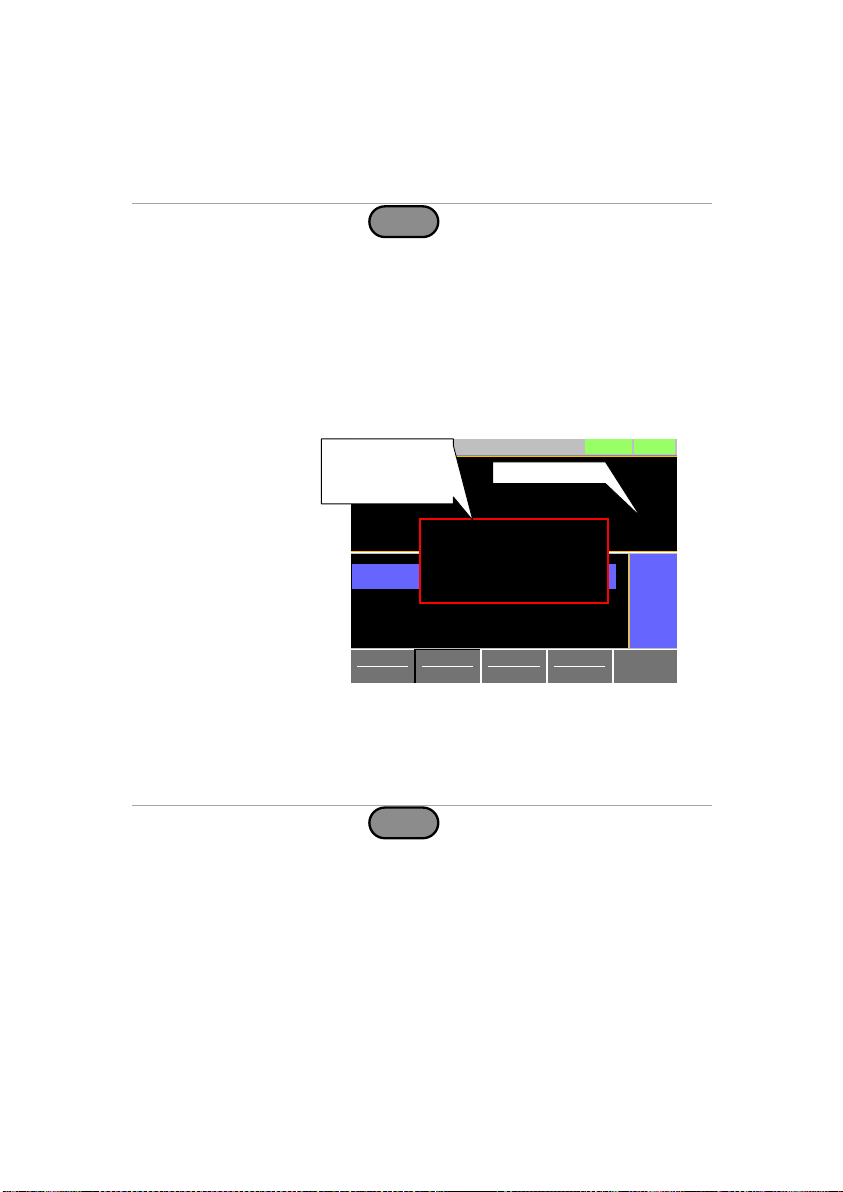

The Cut Off Time function will turn the load off after a set-amount of time. After the load has been turned off, a popup screen will display the voltage level when the load was turned off.

Operation

1. Press

Main

> Configure[F5] > Other[F2] and

set the Cut Off Time.

Range:

OFF, 1 second –

999 hours:59minutes:59 seconds

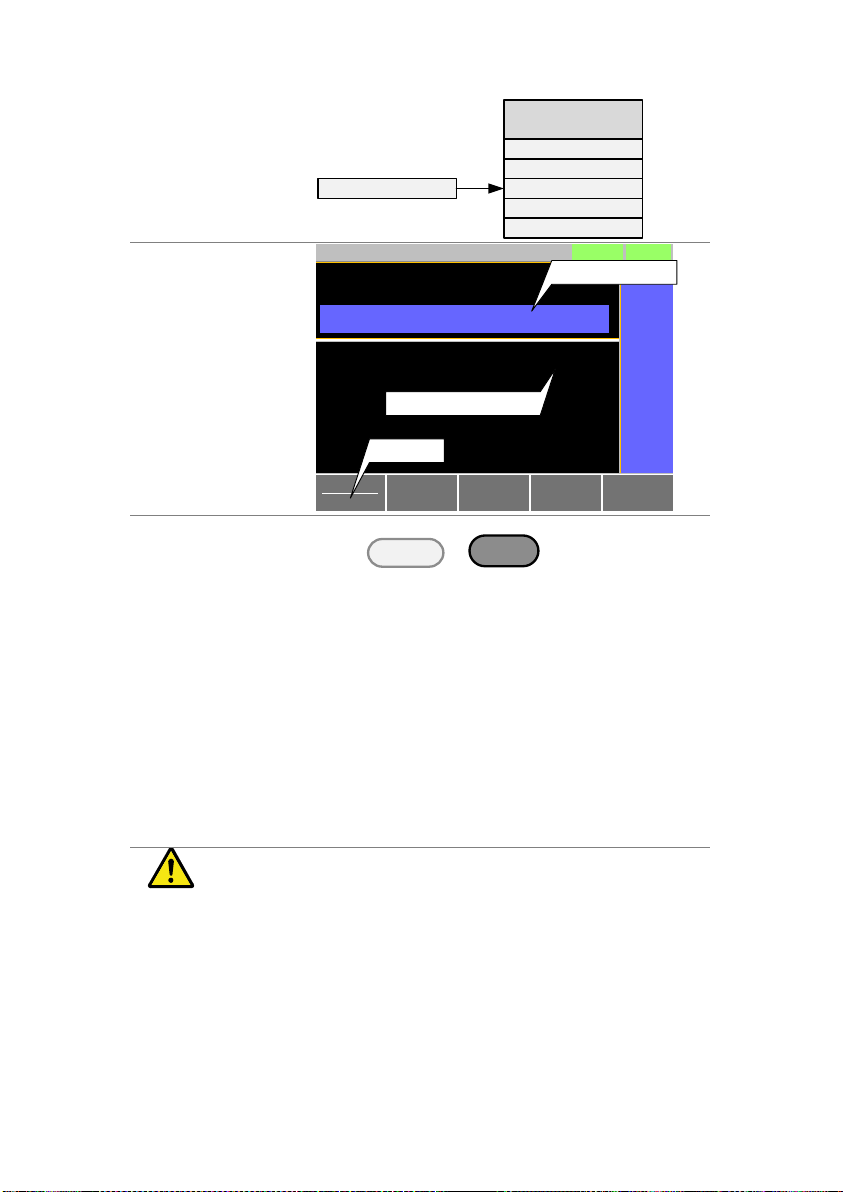

Display

ModeCPI Range

H 35A

V Range

L 15V

Function

Dynamic

Configure

0.000

0.00

Timer1 0.025

Level2 0.00

Level1 0.00

LOADRS232

Fine

31/Oct/2013

0:00:05

Cut off time

Time Up

Voltage : 5.1223V

Enter

Voltage at cut off time

Description

The LSG Series can be configured to automatically load the last program, normal sequence, fast sequence or load setting at startup. By default, this setting is disabled.

Operation

1. Press

Shift

Utility

Help

> Load[F2].

2. Turn Auto Load On or Off.

 When set to OFF, the Auto Load setting is

disabled.

3. Select the Auto Load On configuration.

 This will select whether the LSG Series will

automatically load the last program, normal sequence, fast sequence or load settings.

Auto Load On:

Load, Prog, NSeq, FSeq

2-3-3-2. Cut Off Time

2-3-4. Auto Load Configuration

Description

By default the load will automatically turn off when the either the operating mode (CC, CV, CR, CP) or the range (I range, V range) is changed. To allow the load to stay on when the operating mode is changed, set the Load Off (Mode) setting to OFF. To allow the load to stay on when the current or voltage range is changed, set the Load Off (Range) setting to OFF. By default, these settings are set to ON.

Operation

1. Press

Shift

Utility

Help

> Load[F2].

2. Select Load Off (Mode) setting.  When set to OFF, the load will stay on when

the operating mode is changed.

Load Off(Mode):

OFF,ON

3. Select Load Off (Range) setting.

 When set to OFF, the load will stay on when

the range is changed.

Load Off(Range):

OFF,ON

Description

Cursor mode allows you to edit the selected parameter one digit at a time. When editing a parameter, pressing the scroll wheel determines which digit is selected. Turning the scroll wheel will then edit the parameter by the step resolution of the digit.

Operation

1. Press

Main

> Configure[F5] > Next Menu

[F4] > Knob[F2] and set the Status setting is set

to Cursor.

2-3-5. Load Off (Mode) and Load Off (Range)

2-4. Step Resolution Configuration

There are two different ways to set the set resolution when using the scroll wheel to edit parameters. Step Mode and Cursor Mode. Step Mode is the default method. Only one mode can be active at a time; When one mode is active, the other mode is deactivated.

2-4-1. Cursor Mode Configuration

Display

Parallel Knob External

0.4

CCL Step 0.183575

CCM Step 0.5000

LOADRS232

31/Oct/2013

CRH Step

CCH Step

Status

1.000

CursorA

CC 35A 15V

Static

Configure

Description

When set to Step Mode, the voltage, current, resistance and power settings can have the step resolution configured. The step resolution refers to the step resolution of the coarse adjustment for these settings. The fine adjustment cannot be configured.

Settings

The step resolution of each setting is configured separately for each current range.

Settings

Description

CCH Step

CC mode, IRange = High

CCM Step

CC mode, IRange = Middle

CCL Step

CC mode, IRange = Low

CRH Step

CR mode, IRange = High

CRM Step

CR mode, IRange = Middle

CRL Step

CR mode, IRange = Low

CVH Step

CV mode, VRange = High

CVL Step

CV mode, VRange = Low

CPH Step

CP mode, IRange = High

CPM Step

CP mode, IRange = Middle

CPL Step

CP mode, IRange = Low

Operation

1. Press

Main

> Configure[F5] > Next

Menu[F4] > Knob[F2] and set the desired step

resolution settings.

2. Set the desired step resolution settings. (The

step resolution settings are only available when Status=Step)

 For example if the step resolution for CCM Step

is 0.5A, then the resolution can be incremented in 0.5A steps.

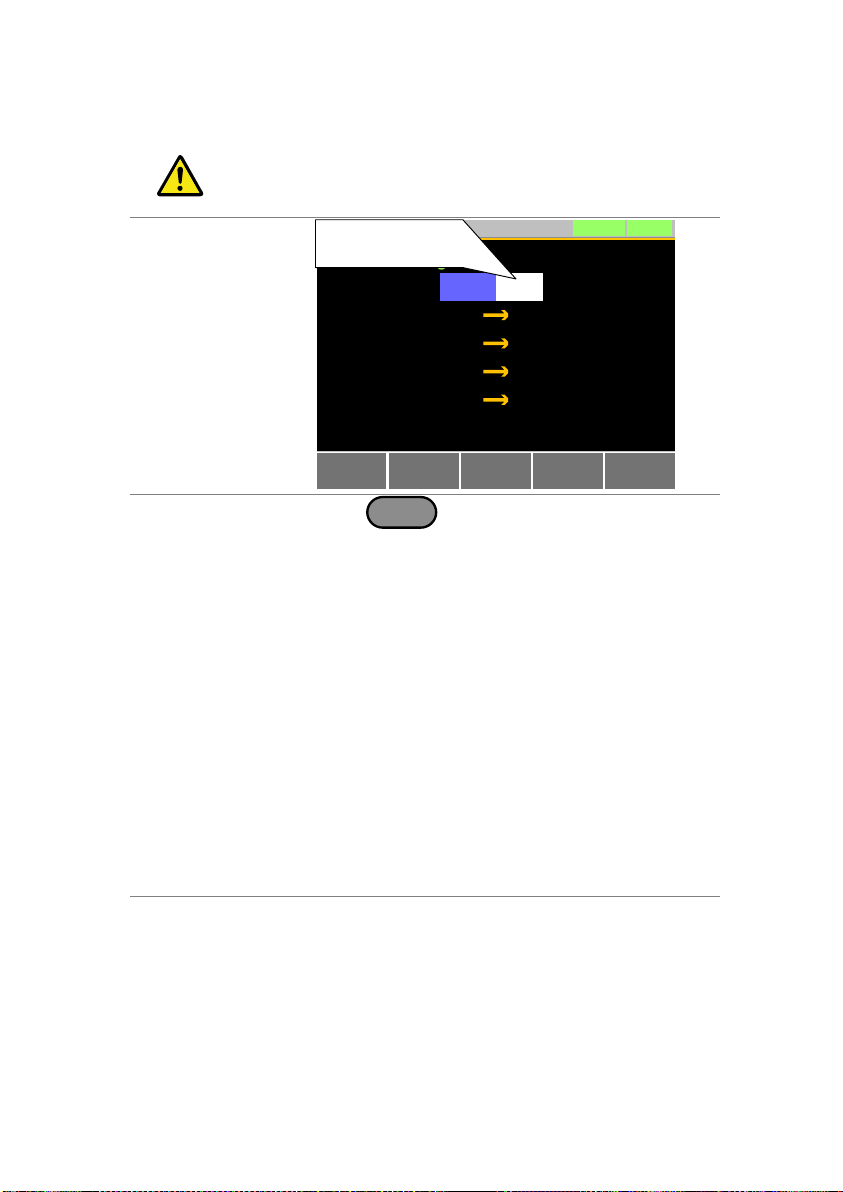

2-4-2. Step Mode Configuration

Display

Parallel Knob External

CRH Step 0.4

CCL Step 0. 183575

LOADRS232

31/Oct/2013

Step

CCM Step

CCH Step

0.5000

1.000AA

CC 35A 15V

Static

Configure

Status

Description

For OCP, the LSG Series can be configured to either limit the current or turn off the load. The OCP levels can be set to 10% higher than the rating current.

Operation

1. Press

Main

> Configure[F5] > Protection[F1]

and set the OCP Level and OCP Setting.

Range:

OCP Level: Rating current + 10% OCP Setting: LIMIT, Load Off

Alarm

 When OCP Setting is configured to Load Off, a

message will be displayed on the screen when OCP is tripped. The Enter key must be pressed to clear the alarm message.

 When configured to LIMIT, OCP will be

displayed on the screen when the OCP is tripped and the current will be limited to the OCP Level setting.

2-5. Protection Settings

The Protection settings are used to prevent damage to the unit or the DUT by excessive current, voltage or power.

An alarm is generated and a message is displayed on the screen when a protection setting is tripped. When an alarm is activated, the load is turned off (or limited), and the ALARM STATUS pin of the J1 connector on the rear panel (pin 16) turns on (open collector output by a photocoupler). The protection settings can be used regardless of whether the remote sense connections are used or not.

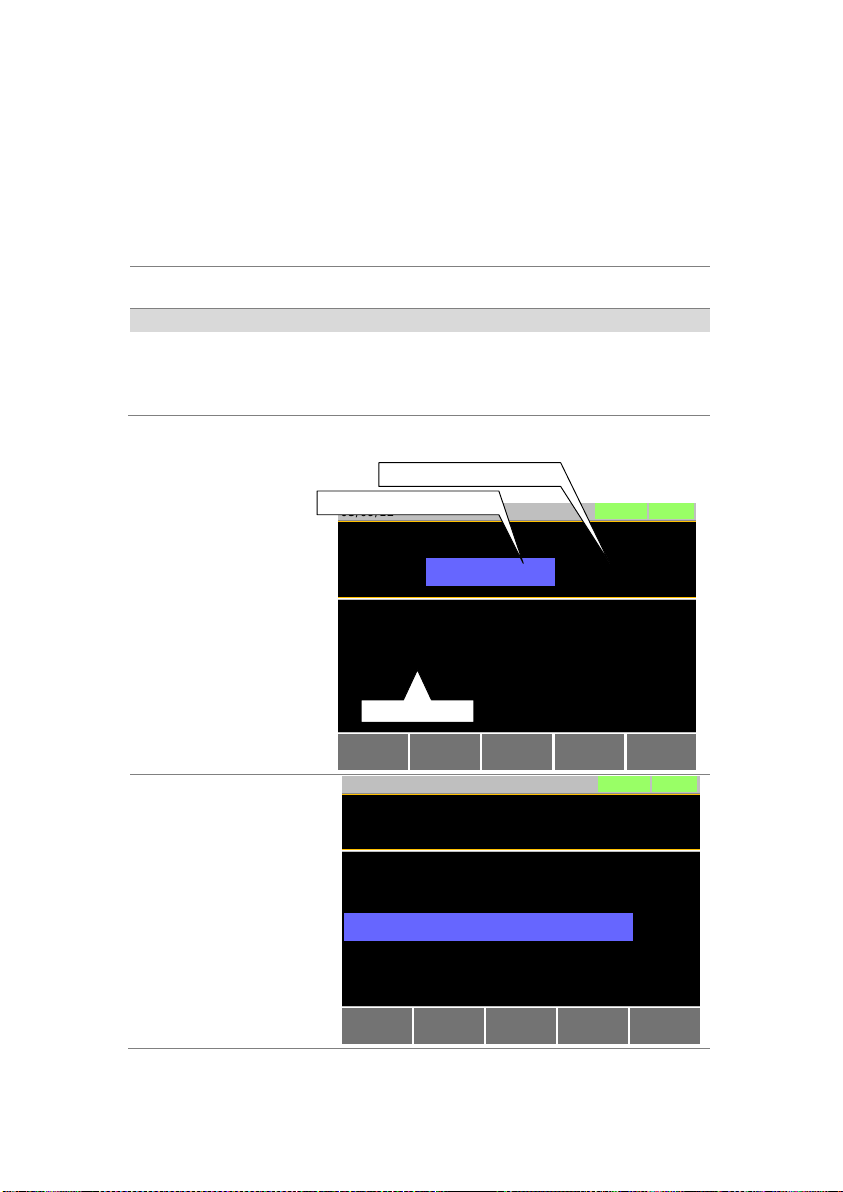

2-5-1. OCP

Display

2.596

500.06

1.2982

CV B Value 15.000

CV A Value 15.000

LOADRS232

A Value

Fine

03/09/12

OCP Alarm

Please Press Enter

To Clear Alarm

OCP

OCP indicator

Alarm message when OCP is set to Load Off

ModeCVI Range

L 0.7A

V Range

L 15V

Response

Fast

Configure

Description

For OPP, the LSG Series can be configured to either limit the power or turn off the load. The OPP levels can be set to 10% higher than the rating power.

Operation

1. Press

Main

> Configure[F5] > Protection[F1]

and set the OPP Level and OPP Setting.

Range:

OPP Level: Rating power + 10% OPP Setting: LIMIT, Load Off

Alarm

 When OPP Setting is configured to Load Off, a

message will be displayed on the screen when OPP is tripped. The Enter key must be pressed to clear the alarm message.

 When configured to LIMIT, OPP will be

displayed on the screen when the OPP is tripped and the power will be limited to the OPP Level setting.

Display

2.596V

500.06 mA

1.2982w

CV B Value 15.000

CV A Value 15.000

LOADRS232

A Value

Fine

03/09/12

OPP Alarm

Please Press Enter

To Clear Alarm

Alarm message when OPP is set to Load Off

ModeCVI Range

L 0.7A

V Range

L 15V

Response

Fast

Configure

OPP

OPP indicator

2-5-2. OPP

Description

If the UVP is tripped, the LSG Series will turn off the load. The UVP levels can be set from 0V to 10% higher than the rating voltage.

Operation

1. Press

Main

> Configure[F5] > Protection[F1]

and set the UVP Level.

Range:

UVP Level: OFF, 0~Rating voltage + 10%

Alarm

 The UVP indicator will only appear on the

screen when the input voltage is below the UVP level.

 Pressing the Enter key will clear the message.  The UVP indicator will remain on the display

until the voltage level rises back above the UVP level.

Display

2.596

500.06

1.2982

CV B Value 15.000

CV A Value 15.000

LOADRS232

A Value

Fine

03/09/12

UVP Alarm

Please Press Enter

To Clear Alarm

UVP

UVP indicator

Alarm message when UVP is tripped

ModeCVI Range

L 0.7A

V Range

L 15V

Response

Fast

Configure

Description

The UVP Ring Time settings allows the UVP alarm to keep sounding for a user-set amount of time after the UVP has been tripped.

Operation

1. Press

Main

> Configure[F5] > Protection[F1]

and set the UVP Ring Time.

Range:

UVP Ring Time: OFF, 0~600s

Alarm

 When the voltage dips below the UVP level, the

UVP indicator and message will appear on the screen. The UVP buzzer will sound if UVP Ring Time is set.

 Pressing the Enter key will clear the message

and the buzzer.

 If the voltage rises back above the UVP level,

the buzzer will continue to sound until the UVP Ring Time has elapsed.

2-5-3. UVP

2-5-4. UVP Ring Time

Description

If the OVP is tripped, the LSG Series will turn off the load. The OVP levels can be set from 0V to 10% higher than the rating voltage.

Operation

1. Press

Main

> Configure[F5] > Protection[F1]

and set the OVP Level.

Range:

OVP Level: OFF, 0~Rating voltage + 10%

Note: To turn OVP off, set the OVP voltage greater than the current rating voltage + 10%.

Display

2.596

500.06

1.2982

CV B Value 15.000

CV A Value 15.000

LOADRS232

A Value

Fine

03/09/12

OVP Alarm

Please Press Enter

To Clear Alarm

OVP

OVP indicator

Alarm message when OVP is tripped

ModeCVI Range

L 0.7A

V Range

L 15V

Response

Fast

Configure

Description

The UnReg error message will appear on the display when the electronic load is operating in an unregulated state.

Alarm

 The UnReg indicator will appear on the display

when the set load is inadequate for the source.

 To clear the UnReg indicator, increase the load

or reduce the load requirements.

Display

2.596

500.06

1.2982

CV B Value 15.000

CV A Value 15.000

LOADRS232

A Value

Fine

31/Oct/2013

UnReg

UnReg indicator

ModeCVI Range

L 0.7A

V Range

L 15V

Response

Fast

Configure

2-5-5. OVP

2-5-6. UnReg

Description

The Para error message will appear on the display when the LSG is used in parallel and if an error is produced.

Alarm

 The Para error message indicates one of the

following possible conditions: UnReg, R.OCP, OTP.

 To clear the Para indicator, remove the cause

of the alarm.

Display

2.596

500.06

1.2982

CV B Value 15.000

CV A Value 15.000

LOADRS232

A Value

Fine

03/Sep/2012

Para

Para indicator

ModeCVI Range

L 0.7A

V Range

L 15V

Response

Fast

Configure

Description

If the RVP is tripped, the LSG Series will turn off the load.

Alarm

 The RVP error message indicates when the

terminal voltage is negative.

 The Enter key must be pressed to clear the

alarm message.

Display

2.596

500.06

1.2982

CV B Value 15.000

CV A Value 15.000

LOADRS232

A Value

Fine

03/09/12

RVP Alarm

Please Press Enter

To Clear Alarm

RVP

RVP indicator

Alarm message when RVP is tripped

ModeCVI Range

L 0.7A

V Range

L 15V

Response

Fast

Configure

2-5-7. Para

2-5-8. RVP

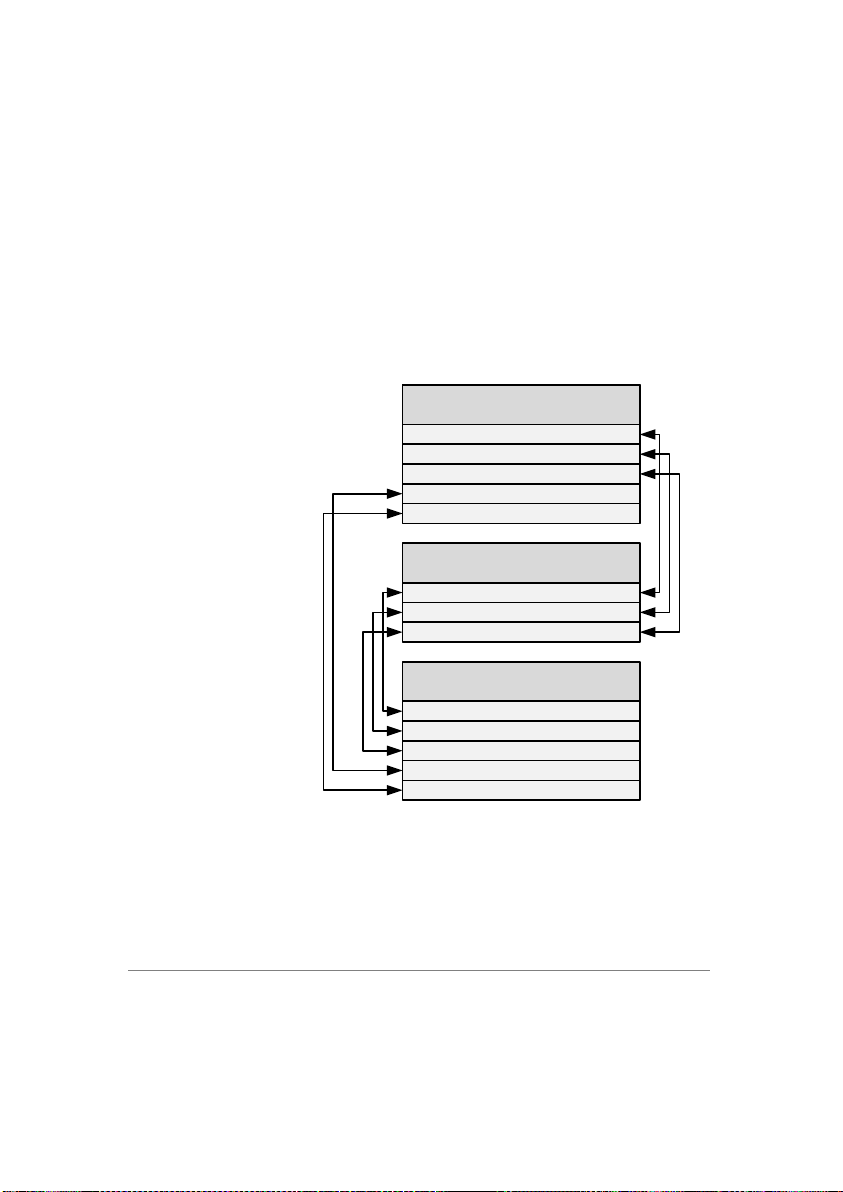

Speaker settings

Display settings Alarm tone settings Input control settings Language settings Input/output trigger setting

Description

Turns the speaker sound on or off for the user interface, such as key press tones and scrolling tones.

Operation

1. Press

Shift

Utility

Help

> Other[F5].

2. Set the Speaker settings on or off.

 When set to OFF, the speaker setting will not

disable the tones for Go-NoGo or protection alarms.

Description

The alarm tone for the unit during normal operation and for Go-NoGo testing can be turned on or off in the utility menu.

Operation

1. Press

Shift

Utility

Help

> Other[F5].

2. Set the alarm tone settings on or off.

 The alarm tone settings ignore the Speaker

setting.

Alarm Tone: UnReg Tone: Go_NoGo Tone:

ON, OFF ON, OFF ON, OFF

2-6. System Settings

The following section covers a number or miscellaneous system settings such as:

All system settings are accessible in the Utility menu.

2-6-1. Sound Settings 2-6-1-1. Speaker Settings

2-6-1-2. Alarm Tone Settings

Description

Sets the contrast level.

Operation

1. Press

Shift

Utility

Help

> Other[F5].

2. Set the Contrast and Brightness settings.

Range:

Contrast: 3 ~ 13 (low ~ high) Brightness: 50 ~ 90 (low ~ high)

Description

The Knob Type setting determines if values are updated immediately as they are edited or if they are only updated after the Enter key is pressed. The Updated setting is applicable for when the load is already on and the user wishes to change the set values (current, voltage, etc.) in realtime. The Old setting is will only update the values after the Enter key is pressed.

Operation

1. Press

Shift

Utility

Help

> Other[F5].

2. Set the Knob type and Slave knob settings.

Range:

Knob type: Updated, Old

Description

The LSG Series supports only English.

Operation

1. Press

Shift

Utility

Help

> Other[F5].

2. Set the Language setting.

Supported languages:

English

Description

The Trig In Delay setting determines how long to delay any action after a trigger is received.

Operation

1. Press

Shift

Utility

Help

> Other[F5].

2. Set the Trig In Delay setting.

Range:

0.0 – 5000us (Default:0.0us)

2-6-2. Contrast and Brightness

2-6-3. Control Settings

2-6-4. Language Settings

2-6-5. Input/Output Trigger Settings 2-6-5-1. Trigger In Delay

Description

The Trigger Out Width setting sets the

trigger output signal’s pulse width.

Operation

1. Press

Shift

Utility

Help

> Other[F5].

2. Set the Trig Out width.

Range:

2.5– 5000us (Default:10.0us)

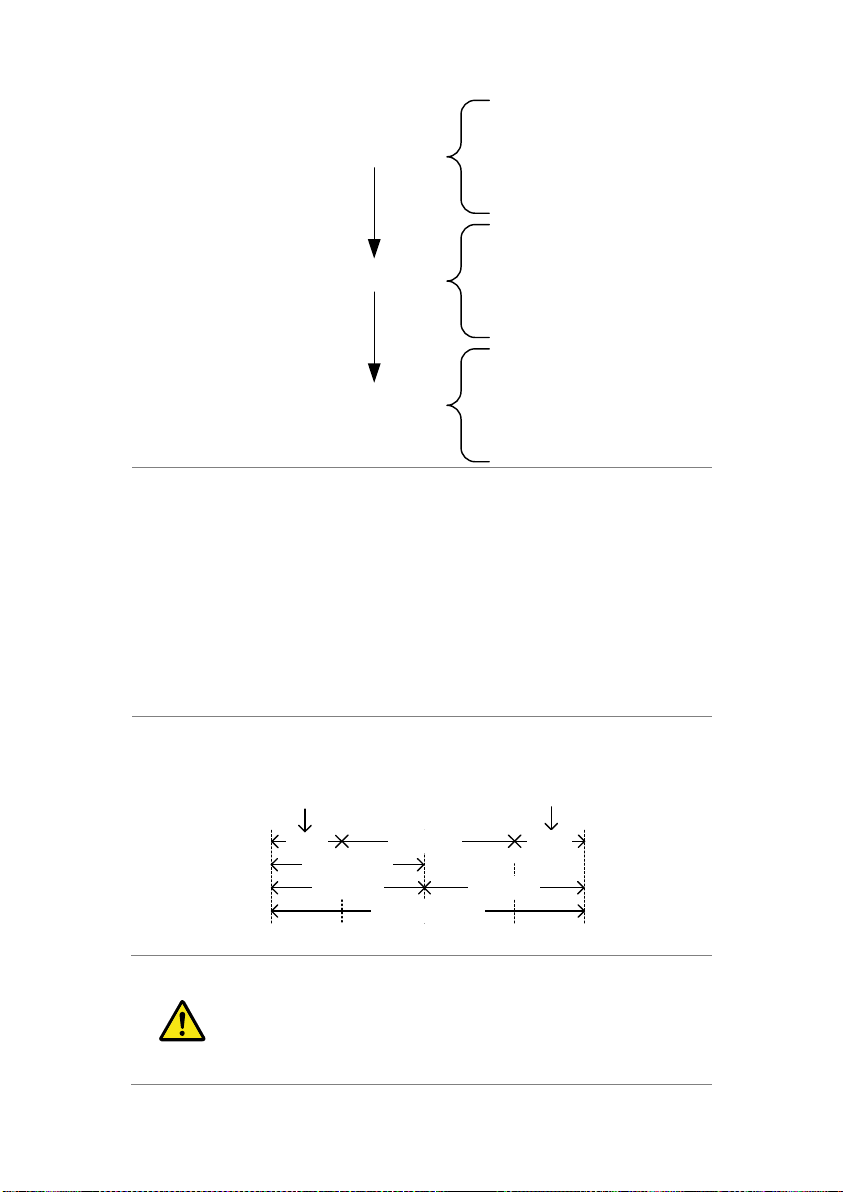

Description

The Go-NoGo setting limits can be set as either discrete high & low values or as a percentage offset from a center value.

Operation

1. Press

Main

> Configure[F5] > Go-NoGo[F3].

2. Select Entry Mode and choose how to set the

pass/fail limits.

 Value will allow you to set the limits as discrete

values.

 Percent will allow you to set the limits as a

percentage offset from a center value.

3. If Entry Mode was set to Value, Set the High &

Low limit values.

High: Low:

0~rating current/voltage 0 ~rating current/voltage

4. If Entry Mode was set to Percent, Set the Center

voltage/current and High, Low % values.

Center: High: Low:

0~rating current/voltage 0~100% of center voltage/current 0~100% of center voltage/current

5. Set the Delay Time.

 The delay time setting will delay activating the

Go-NoGo testing by a specified amount of time.

 The delay setting can compensate for startup

oscillation and other instabilities during startup.

Delay Time

0.0~1.0 seconds (0.1s resolution )

2-6-5-2. Trigger Out Width

2-7. Go-NoGo

The Go-NoGo configuration is used to create pass/fail limits on the voltage or current input. If the voltage/current exceeds the pass/fail limits, an alarm will be output. The Go-NoGo configuration can be used with the Program function to create complex pass/fail tests.

2-7-1. Setting the Go-NoGo Limits

Note

When the Main settings are saved or recalled, the Go-NoGo settings are also saved/recalled. See the Save/Recall chapter for details, page

57.

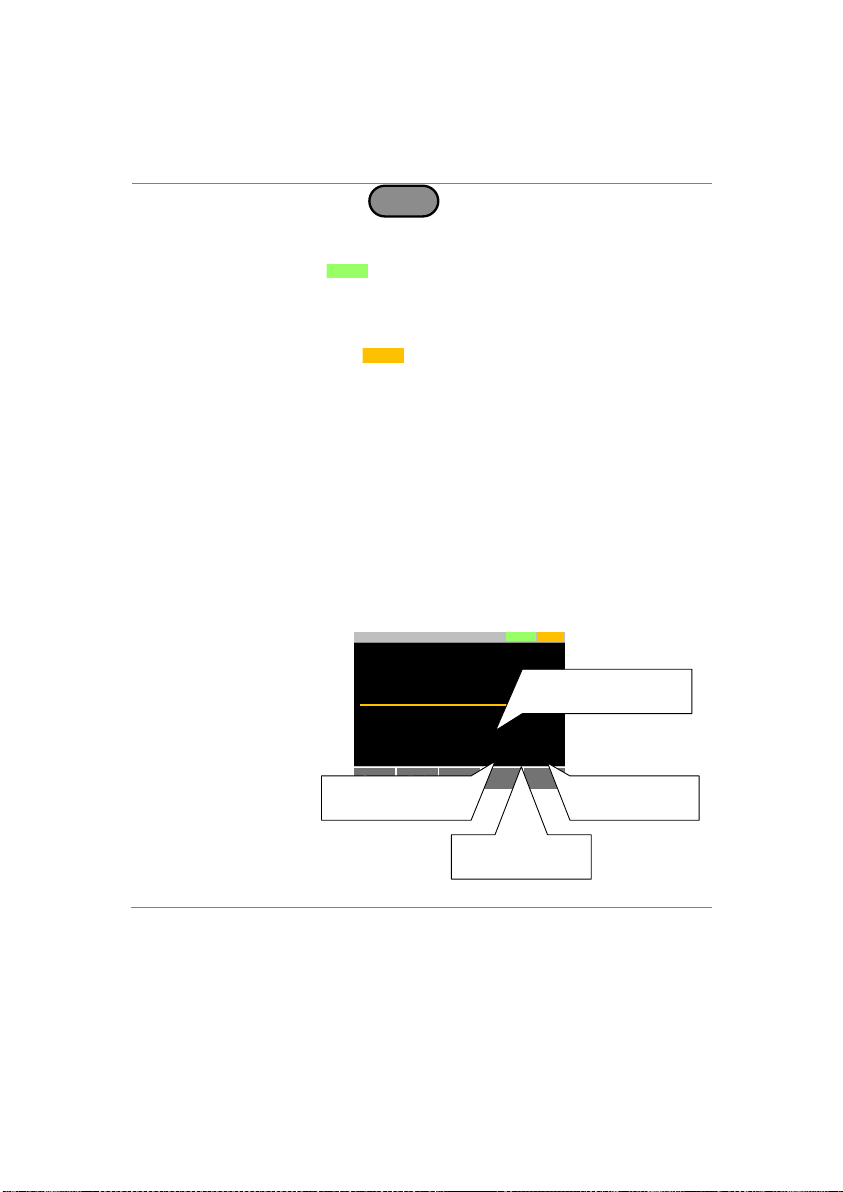

Description

Go-NoGo test results are displayed in the measurement panel.

 GO indicates pass (good).  NG indicates fail (no good).

Operation

1. Press

Main

> Configure[F5] > Go-NoGo[F3].

2. Set SPEC Test to ON.

 When SPEC Test is ON, SPEC will appear in

the Operation Status Panel. This means the unit is ready for Go-NoGo testing.

3. Turn the load on.

 The test starts from the time the load was

turned on + the Delay Time.

Display: GO

0.000

0.00

Level1 0.00

LOADRS232

31/Oct/2013

SPEC test = ON

SPEC

Test result

Display: NG

0.000

0.00

Level1 0.00

LOADRS232

31/Oct/2013

SPEC test = ON

SPEC

Test result

2-7-2. Running a Go-NoGo Test

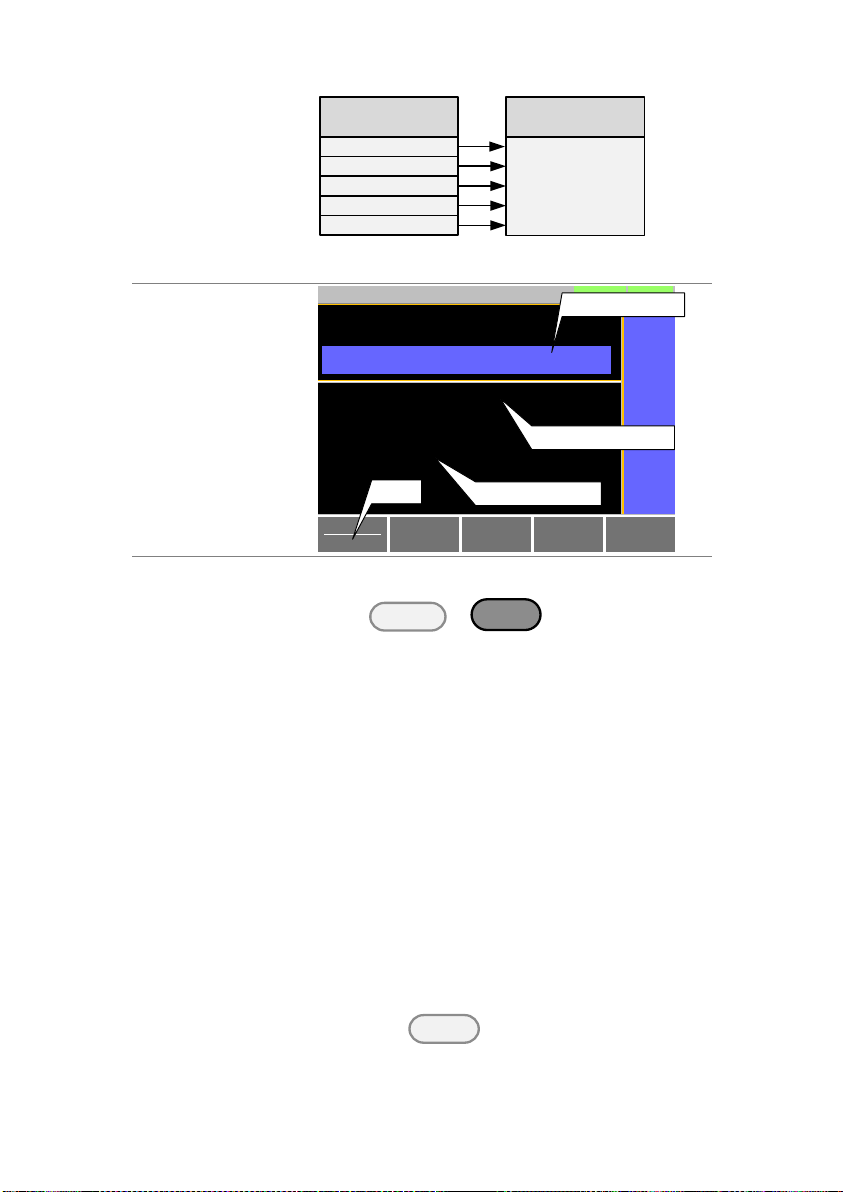

Description

The LSG Series file system can save files to internal memory (Media | Memory) and external memory (Media | USB). To save or recall Memory, Setup or Preset data, the LSG Series uses a three tier system where files are saved or recalled in the following order: Active settings <> Internal memory <> USB. This can be best described in the picture below.

Local Memory

Media | Memory

Media | USB

Memory data

Setup data x1 Nseq. data x1

Fseq. data x1

Preset data x1

Memory data (M001 ~ M256)

Setup data (001 ~ 100)

Preset data (P0 ~ P9)

Memory data (M001 ~ M256)

Setup data (001 ~ 100)

Nseq. data x1 Fseq. data x1

Preset data (P0 ~ P9)

Active Settings

Memory data x1

For example: To load Preset Data P7 from USB, you must first load Preset Data P0~P9 to internal memory, then from internal memory load Preset P7 to be the active preset setting. For normal and fast sequences however, files can be saved or recalled directly to/from USB memory.

2-8. Save Recall

The LSG Series can save and recall system settings, preset data, memory data, Go-NoGo settings as well as normal and fast sequences to internal memory or to USB.

2-8-1. File Structure

Memory Data

Memory data contains general settings and is used for creating programs. Memory Data contains the operating mode, range, response and Go/NoGo settings. Memory data can be stored both internally and externally to USB. Preset data and Memory data store the same contents.

Internal Format

M001 ~ M256

External Format

model no_file no.M example: 3021_01.M

Setup Data

Setup data contains all general configuration settings, protection settings, program and program chain settings, as well as parallel configuration settings.

Internal Format

1 ~ 100

External Format

model no_file no.S example: 3021_00.S

Preset Data

Preset Data contains the same settings as the Memory Data. Preset Data contains the operating mode, range, response and Go-NoGo settings.

Internal Format

P0 ~ P9

External Format

model no_file no.P example: 3021_00.P

NSeq Data

NSeq Data contains the Normal Sequence settings.

Internal Format

None

External Format

model no_file no.N example: 3021_00.N

FSeq Data

FSeq Data contains the Fast Sequence settings.

Internal Format

None

External Format

model no_file no.F example: 3021_00.F

Description

When saving Memory, Setup or Preset Data to internal memory, the currently active setting is saved to one of the internal memory slots. Memory Data has 256 memory slots, Setup Data has 100 memory slots and Preset Data has 10 memory slots.

2-8-2. File Types

2-8-3. Saving Files to Internal Memory

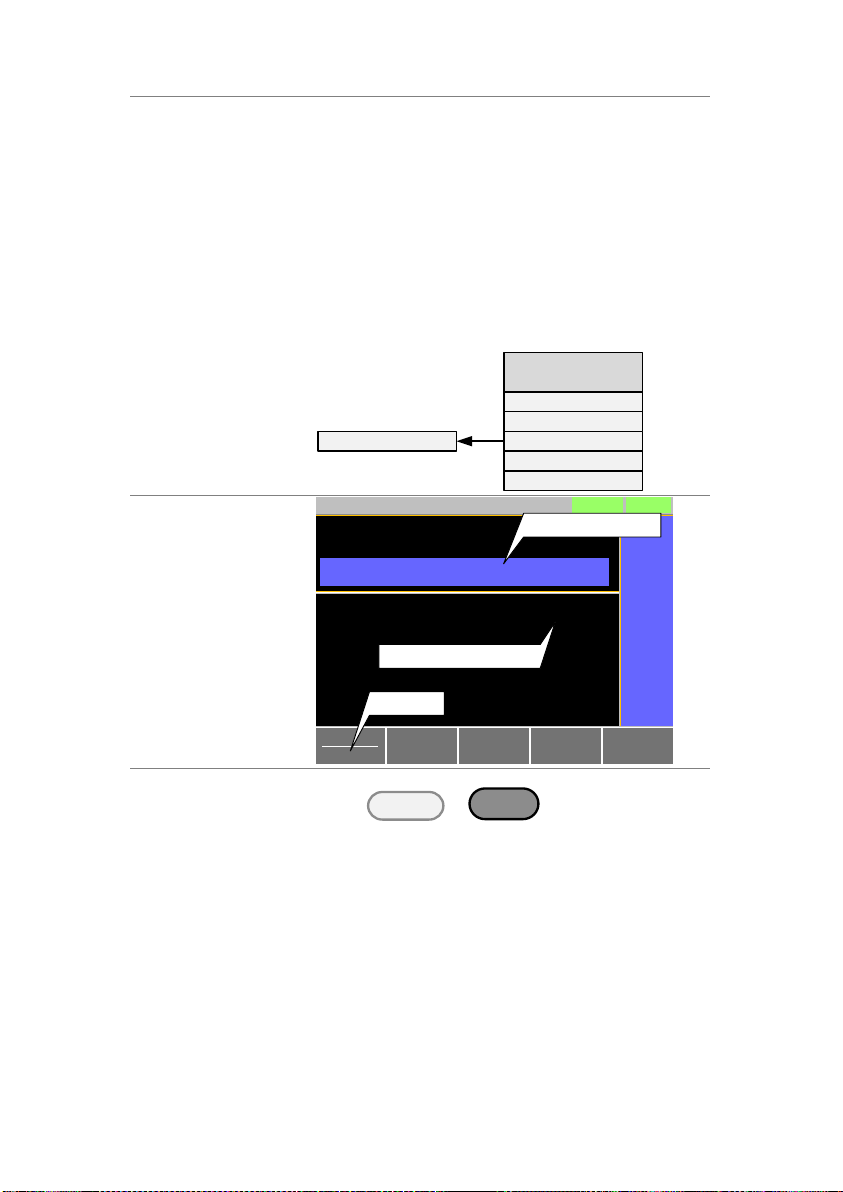

Memory Data Example

Active setting

M001

: :

M256

MXXX

Media | Memory

Display

Save

Data Type Memory

RS232

31/Oct/2013

Memory M256

A Value

0.35A 15V

Static

LOAD

Media

Memory

Recall

Memory

Save file location

Save file type

File

Utility

Operation

1. Press

Shift

File

FUNC

2. Select Memory with the Media[F1] soft-key.

3. Select the Data Type and choose the type of file

to save.

Data Type:

Memory Data, Setup Data, Preset Data

4. Select which internal memory location to save

the file.

Memory: Setup Memory: Preset:

M001 ~ M256 1 ~ 100 P0 ~ P9

5. Press Save[F3] to save.

 Save Ok will be displayed when the  save has been completed.

Note

Normal Sequence and Fast Sequence data cannot be recalled from or saved to an internal memory slot.

Description
