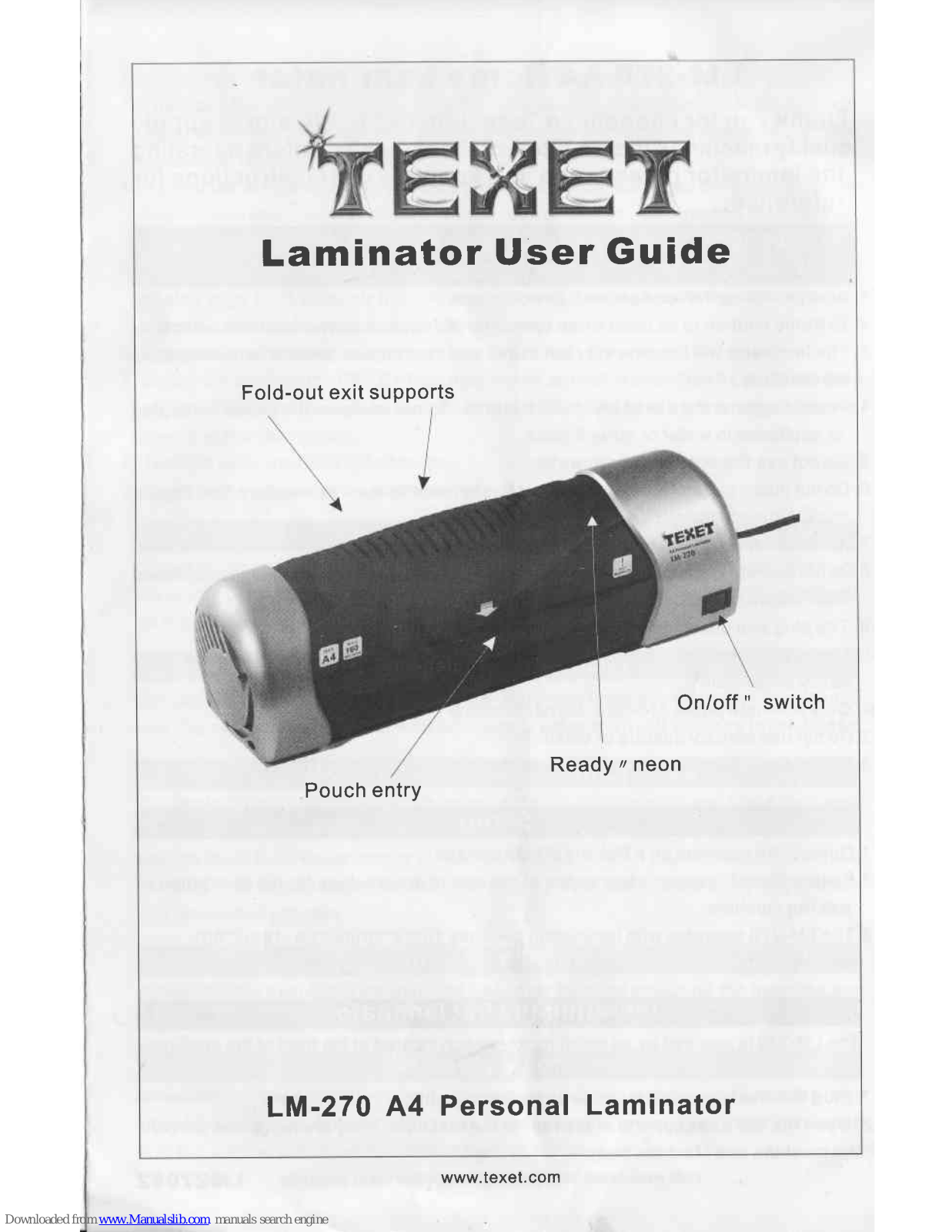

Laminator
User
Guide
Fold-out
exit supports
On/off
"
switch
ReadY
//
neon
LM-270
A4
Personal
Laminator
Pouch
entry
www.texet.com

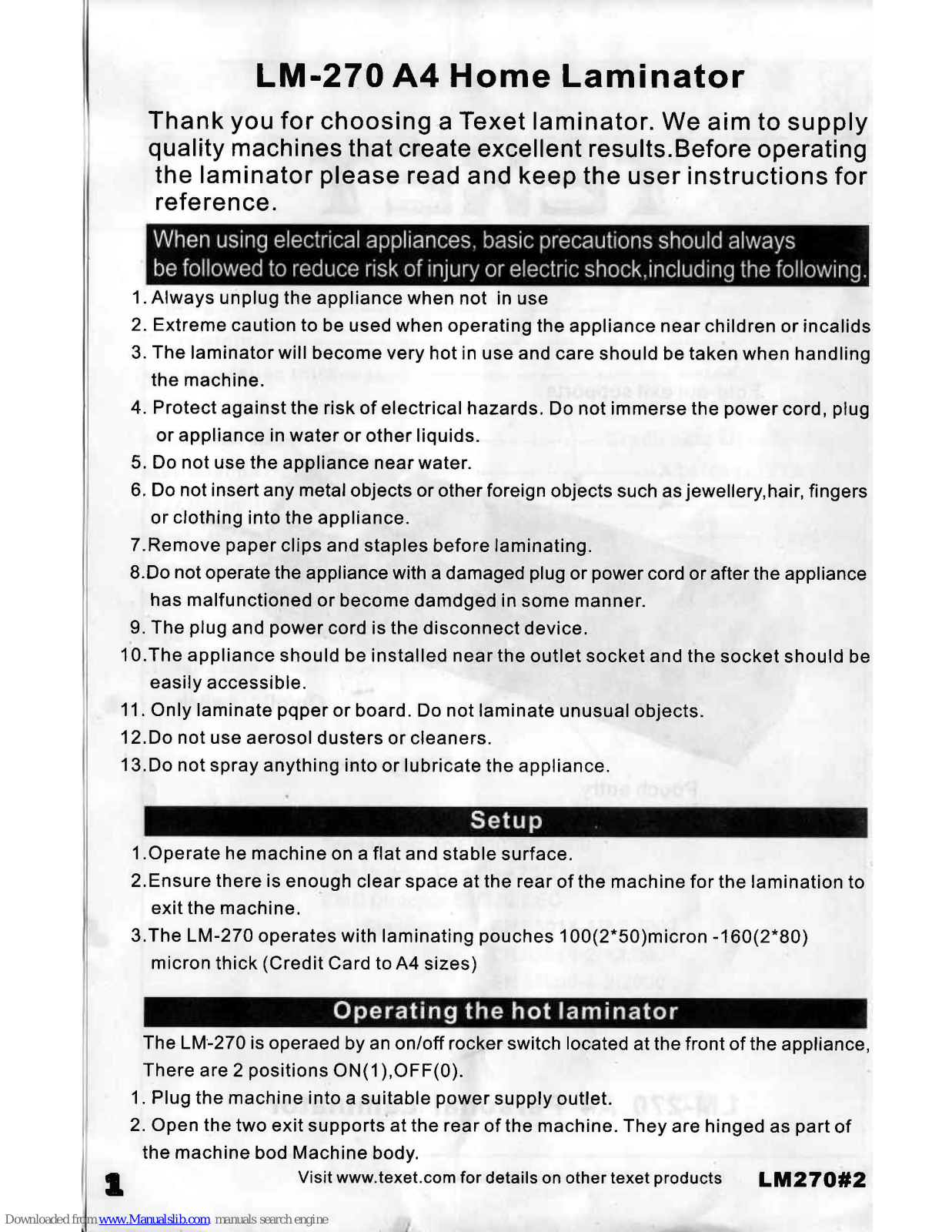

LM-27O A4 Home Laminator
Thank
you
for
choosing a Texet
laminator. We
aim to supply
quality
machines
that
create excellent results.Before
operating
the laminator
please
read
and keep the user instructions
for
reference.
1. Always
unplug the appliance when
not in use
2. Extreme
caution to
be used when operating
the appliance near children
or
incalids
3.
The
laminator will
become very hot in use and
care should be taken when handling
the machine.
4. Protect
against the risk of electrical hazards.
Do not immerse the
power
cord,
plug
or appliance in water
or other liquids.
5. Do not
use the appliance near water.
6. Do not insert any metal
objects or other foreign
objects such as
jewellery,hair,
fingers
or
clothing
into the appliance.
T.Remove
paper
clips and staples
before
laminating.
8.Do
not
operate the
appliance with a damaged
plug
or
power
cord or after the appliance
has malfunctioned
or
become damdged in some manner.
9. The
plug
and
power
cord is the disconnect
device.
10.The appliance
should be installed near the
outlet socket and the
socket should be
easily
accessible.
11 . Only laminate
pqper
or board. Do not laminate
unusual objects.
12.Do not use
aerosol dusters or cleaners.
13.Do
not spray anything into
or lubricate the appliance.
l.Operate he
machine on a flat and
stable surface.
2. Ensure there is
enough clear space at the rear
of the machine for the lamination
to
exit the machine.
3.The LM-270
operates with laminating
pouches
100(2-50)micron
-160(2.80)
micron
thick
(Credit
Card to 44
sizes)
I
The LM.270 is operaed
by an on/off rocker switch located
at the front of the
appliance,
There
are 2
positions
ON(1),OFF(0).
1 . Plug the machine into
a suitable
power
supply outlet.
2. Open the
two exit supports at the rear
of the machine. They
are hinged as
part
of
the machine
bod
Machine
body.
Visit www.texet.com for
details on other texet
products
LM27O#2

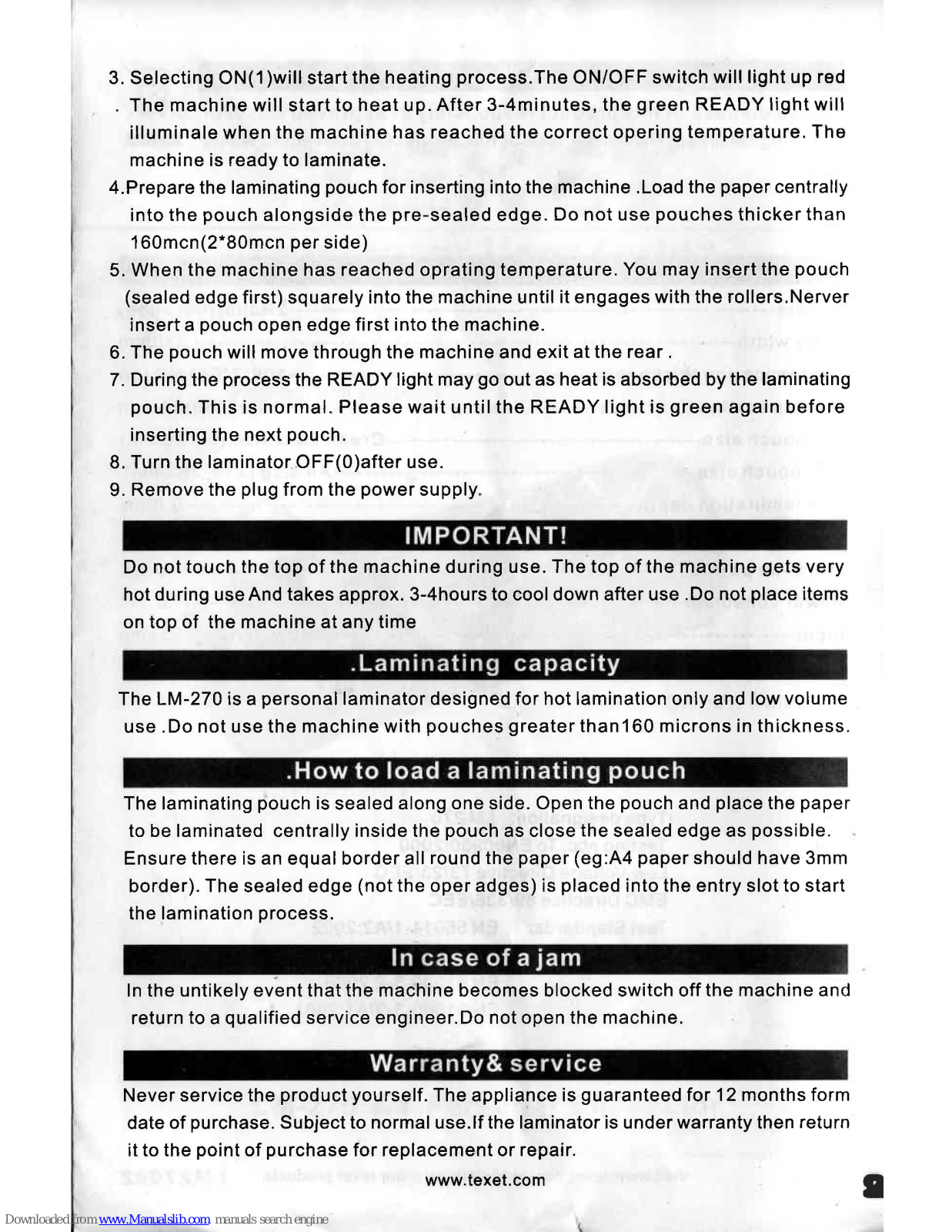

3. Selecting ON(1)will start
the heating
process.The
ON/OFF switch
will light up red
. The machine will start to heat up.
After 3-4minutes, the
green
READY
light will
illuminale when
the machine has reached the correct opering
temperature. The
machine is ready to laminate.
4.Prepare the laminating
pouch
for inserting into the machine .Load the
paper
centrally
into the
pouch
alongside the
pre-sealed
edge.
Do not use
pouches
thicker than
1 60mcn(2-80mcn
per
side)
5. When
the
machine
has reached oprating temperature.
You may insert
the
pouch
(sealed
edge first) squarely into the machine until
it engages with the rollers.Nerver
insert a
pouch
open edge first into the machine.
6. The
pouch
will move through the machine and exit
at the rear .
7. During the
process
the READY
light may
go
out as heat is absorbed by the laminating
pouch.
This is
normal. Please wait untilthe READY light is
green
again before
inserting
the next
pouch.
8. Turn the
laminator OFF(O)after use.
9.
Remove the
plug
from the
power
supply
Do not
touch the top
of
the machine during use. The top of the machine
gets
very
hot during
use
And takes approx. 3-4hours to cool down after use
.Do not
place
items
on top of the machine at any time
The
LM-270 is
a
personal
laminator designed for hot lamination only and
low volume
use
.Do not use the machine with
pouches greater
than160 microns in thickness.
The laminating
pouch
is
sealed along
one side. Open the
pouch
and
place
the
paper
to be laminated centrally inside the
pouch
as close
the
sealed edge as
possible.
Ensure there is an equal border all
round the
paper (eg:A4 paper
should have 3mm
border). The sealed edge
(not
the oper adges) is
placed
into the entry slot to start
the lamination
process.
In the untikely event that the machine becomes blocked switch off
the machine and
return
to
a
qualified
service engineer.Do not open the machine.
Never service the
product
yourself.
The appliance is
guaranteed
for 12 months form
date of
purchase.
Subject to normal use.lf the laminator is under warranty then
return
it to the
point
of
purchase
for replacement or repair.
I
www.texet.com

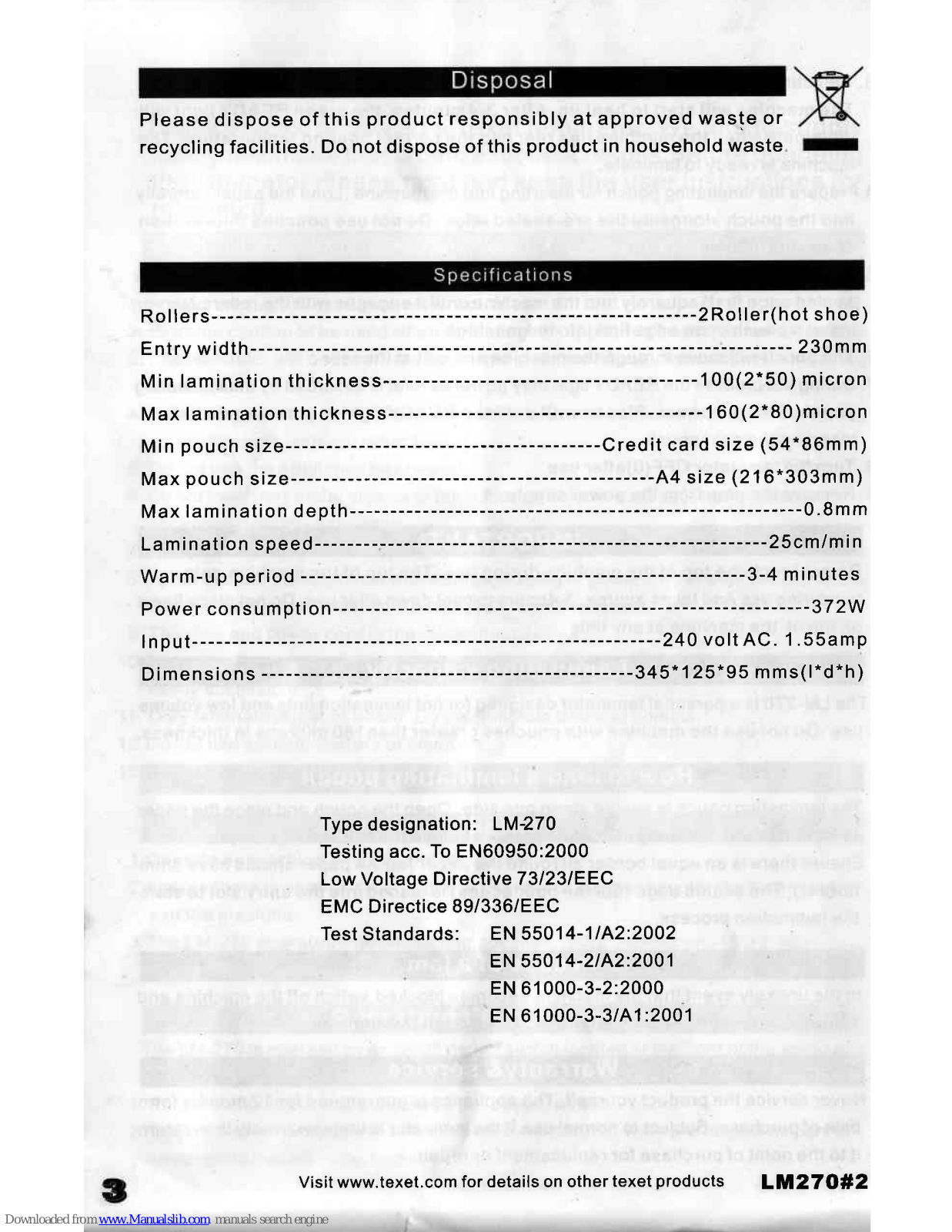

Please
dispose of
this
product
responsibly at approved
waste or
recycling facilities.
Do not dispose
of this
product
in household
waste
Rollers-----
---2Roller(hot
shoe)
Entry width --
230mm
Min lamination
thickness-----------
--100(2-50)
micron
Max
lamination thickness-----------
--160(2.80)micron
Min
pouch
size--------
----Credit
card
size
(54.86mm)
Max
pouch
size--------
----------'A4
size
(216.303mm)
Max
lamination depth- ---0.8mm
Lamination
speed------
-----------25cm/min
Warm-up
period
---3-4
minutes
Power
consumotion------------
--------372W
lnput-------
------------240
volt AC. 1 .55amp
Dimensions
-------345*125*95
mms(l*d*h)
Type designation:
LM270
Testing
acc. To EN60950:2000
Low Voltage
Directive 73l23lEEC
EMC
Directice 89/336/EEC
TestStandards:
EN 55014-1/42:2002
EN 55014-21A2:2O01
EN 61000-3-2:2000
EN 61000-3-3141:2OO1
Visit www.texet.com
for details on other
texet
products
LM27O#2
