Page 1

MASTER USER MANUAL

Security Control Panel

Issue 1

THANK YOU FOR VOTING TEXECOM

Page 2

Contents Premier 8SP Master User Manual

2 INS237

Contents

1. About the Alarm System ............................ 3

Introduction ......................................................................3

About this Manual ............................................................ 3

Fire Detection................................................................... 3

Monitoring ........................................................................ 3

Zones ............................................................................... 3

Access Codes.................................................................. 3

Remote Keypads .............................................................. 3

Keypad Types .................................................................. 3

Keypad Layouts ............................................................... 4

Function Keys .................................................................. 5

Emergency Keys.............................................................. 5

2. Operating the Alarm System .....................6

Introduction ......................................................................6

Access Codes.................................................................. 6

Arming & Disarming the Alarm System........................... 6

Checking if the System is Ready to Arm ........................ 6

Away Arming .................................................................... 6

Stay Arming ..................................................................... 6

Cancelling the Arming Process ....................................... 7

Disarming During Entry ................................................... 7

Disarming when not in Entry ........................................... 7

Disarming after an Alarm ................................................. 7

Auto Stay Arming ............................................................. 7

Changing from Delayed to Instant Stay.......................... 7

Bypassing Zones.............................................................. 8

Manually Bypassing Zones ............................................. 8

Unbypassing Zones......................................................... 8

Group Bypass .................................................................. 8

Quick Bypass and Arm.................................................... 9

3. User Functions Menu ............................... 10

Reset Alarms ..................................................................10

Last Alarm Log ...............................................................10

Service Faults.................................................................10

Acknowledging a New Service Fault ............................ 10

View Service Faults........................................................ 10

Anti-code Reset.............................................................. 11

Toggle Chime On and Off .............................................. 11

Change User Code.........................................................12

View Log (LCD Only)......................................................12

Abort Communications ..................................................12

4. System Program Menus........................... 13

Programming Text (LCD Only)...................................... 13

Programming Users ....................................................... 14

Program User !"................................ 15

User Type !#................................ 15

User Options !$................................ 16

User Text (LCD Only) !%................................ 16

Program Manager Users !&................................ 16

System Tests & Utilities .................................................17

Walk Test '"................................ 18

Test Speakers & Outputs '#................................ 18

Send Test Call '$................................ 18

Enable Remote/Engineer Access '% .................. 18

Start Call Back '(................................ 18

Program Time '&................................ 18

Program Date ')................................ 18

Program Banner Text (LCD only) '* .................. 18

Print 100 Events '!................................ 18

Exit Program Mode ''................................ 18

5. Fire Safety & Maintenance .......................19

Fire Safety .......................................................................19

Fire Alarm Operation ......................................................19

Household Fire Safety Audit ..........................................19

Fire Escape Planning .....................................................19

Maintenance ...................................................................20

Glossary..........................................................................20

6. Installation Records..................................21

Control Panel .................................................................. 21

Keypads..........................................................................21

Timers .............................................................................21

Zones .............................................................................. 21

Users...............................................................................22

Installer Details ...............................................................22

Notes............................................................................... 23

DO NOT REMOVE COVER

MAINS VOLTAGES INSIDE

No user serviceable parts, servicing by qualified

personnel only.

Page 3

Premier 8SP Master User Manual About the Alarm System

INS237 3

1. About the Alarm System

Introduction

Your alarm system consists of a control panel, one or more keypads and various detectors and sensors. The control panel will normally be mounted out of sight in a utility room or basement etc. The control panel houses the system’s electronics and stand-by battery. There is normally no reason for anyone except an installer or service person to have access to the control panel.

The remote keypad is used to send commands to the system and to display the current system status via the various coloured lights (LED’s). The keypad also provides audible feedback each time a key is pressed. Each keypad will be mounted in convenient locations inside the protected premises, near designated points of entry/exit.

Read this manual carefully and have your installer instruct you on your system’s operation. Become familiar with the features that have been implemented on your system. All users of this system should be equally instructed in its use.

About this Manual

This manual is a thorough explanation of all system functions, including troubleshooting and programming Access codes in addition to performing basic system functions. Most users of the system will not need to know all of this information. The section of this manual, titled “Operating your Alarm System” explains general system concepts and instructs the user on how to arm and disarm the system and bypass zones. The remaining sections of the manual are reserved for more detailed system information.

Fire Detection

This equipment is capable of monitoring fire detection devices such as smoke detectors and providing a warning alarm if a fire condition is detected. Good fire detection depends on having adequate numbers of fire detectors placed in appropriate locations. This equipment should be installed in accordance with the relevant local authority fire regulations. Carefully review the “Fire Escape Planning” guidelines in this manual.

Your installer must enable the fire detection feature of this equipment before it will work.

Monitoring

This system is capable of transmitting alarms, troubles and emergency information over telephone lines to an alarm monitoring station. If you inadvertently initiate an alarm, immediately call the Alarm Receiving Centre (ARC) to prevent an unnecessary response.

Your installer must enable the monitoring function before it will work.

Zones

Your installer has divided the protected premises into zones. A zone is an area of protection that has one or more detection sensors connected to it (motion detectors, glassbreak detectors, door contacts or shock sensors). A single zone might be a room, a hallway or a door or window.

Access Codes

As a user of the alarm system, you will be assigned a 4, 5 or 6 digit Access code. Access codes are used to arm and disarm the system. Some Access codes can perform additional system functions, such as programming system options, bypassing zones and performing system tests.

Remote Keypads

One or more remote keypads will be installed throughout the protected premises, usually one at each entry/exit door.

Keypad Types

The following keypad types are available:

Premier RKP8 SP: The Premier RKP8 SP is the standard remote keypad for the Premier 8SP control panel. This remote keypad has 8 zone indicator lights and four status lights (Alarm, Service, Armed and Ready).

Premier RKP16 SP: As Premier RKP8 SP with 16 zone indicator lights. This keypad is normally used when the system is expanded to 16 zones.

Premier RKP8 Plus: The Premier RKP8 Plus has all the features of the standard Premier RKP8 SP plus dedicated indications for Fire, Bypass, Instant and Stay. It also features two programmable zone inputs that can be utilised by your installer for detection devices close to the location of the remote keypad.

Premier RKP16 Plus: As Premier RKP8 Plus with 16 zone indicator lights. This keypad is normally used when the system is expanded to 16 zones.

Premier LCD: The Premier LCD has a standard size 32 character back-lit Liquid Crystal Display. It also features two programmable zone inputs that can be utilised by your installer for detection devices close to the location of the remote keypad.

Premier LCDL: The Premier LCDL has a large size 32 character back-lit Liquid Crystal Display. It also features two programmable zone inputs that can be utilised by your installer for detection devices close to the location of the remote keypad.

Premier LCDP: As Premier LCD with a built in proximity tag reader.

Premier LCDLP: As Premier LCDL with a built in proximity tag reader.

Page 4

About the Alarm System Premier 8SP Master User Manual

4 INS237

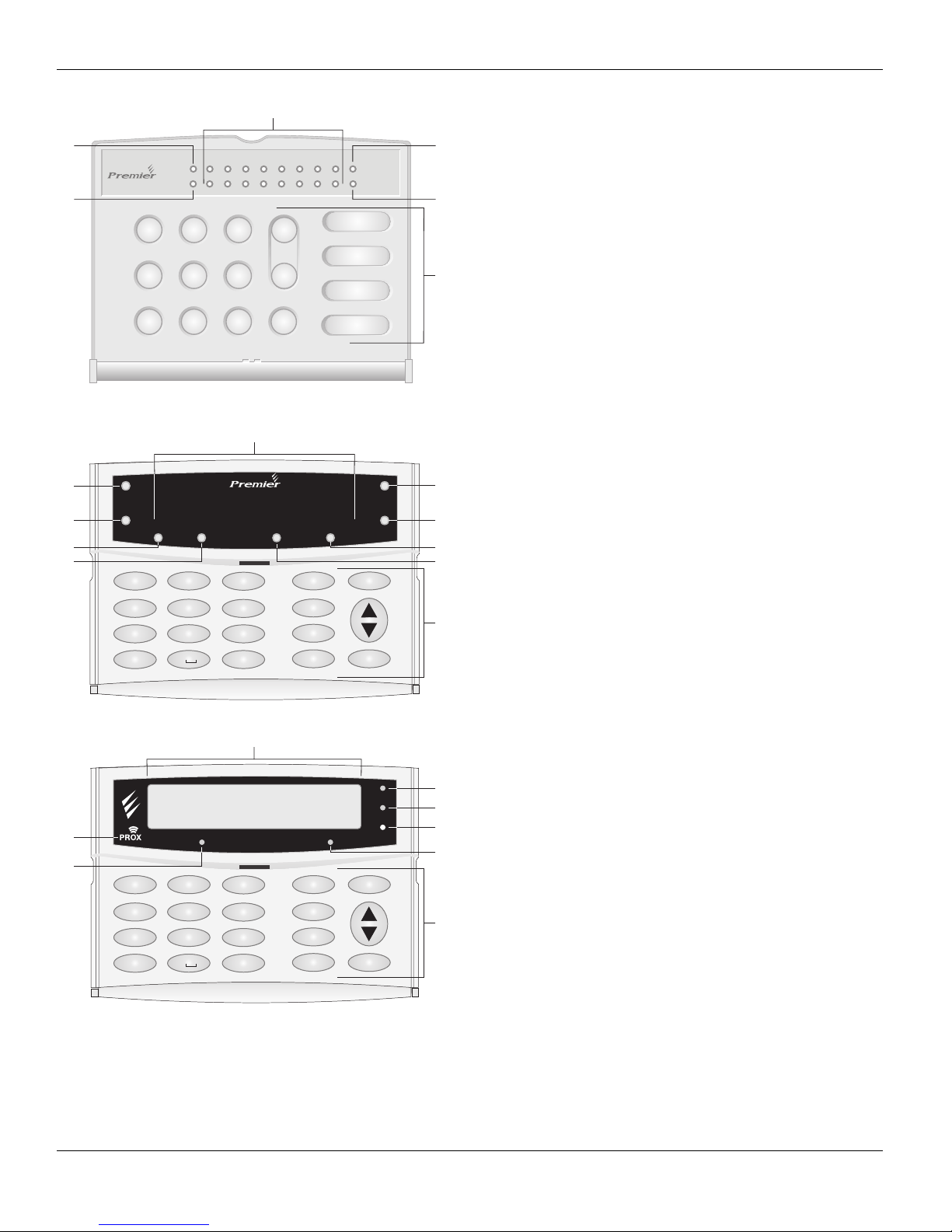

Keypad Layouts

456

123

7890

Armed

Zones

8167156145134

3112

1019

Ready

Alarm

Service

ARM

STAY

CHIME

PAS S

RESET

Premier RKP8/16 SP

Alarm

Armed

Service

Ready

Stay

Fire

11 12

Bypass Instant

Premier RKP8/16 Plus

ghi

abc

def

pqrs

Area

jkl

tuv

mno

wxyz

Yes

Stay

Chime

Bypass

Reset

Bypass

Service

Power

Armed

Ready

Premier 8SP

12:55.22 28/04

ghi

abc

def

pqrs

Area

jkl

tuv

mno

wxyz

Yes

Stay

Chime

Bypass

Reset

Premier LCD/LCDL/LCDP/LCDLP

= 3 4

Alarm Light: If an alarm has occurred whilst the system is armed the Alarm light will illuminate.

The alarm system cannot be Armed until a standing Alarm has been acknowledged/reset (see “Acknowledging an Alarm” on page 10).

Service Light: The Service light will flash when a new fault occurs and will change to on steady when the fault has been acknowledged. When the system is free of all faults the Service light will be off.

The alarm system cannot be armed until the new faults have been acknowledged (see “Service Faults” on page

10).

Armed Light: The Armed light indicates the armed status o

the system. The Armed light is on when the system is armed. When the Armed light is off the system is disarmed. The Armed light will flash as follows:

System in Exit: Slow flash (1 second on, 1 second off).

Delayed Stay Armed: Slow flash (1 second on, 1 second

off).

Instant Stay Armed: Fast flash (200 milliseconds on, 200 milliseconds off).

Ready Light: If the Ready light is on the system is ready for arming. If the Ready light is off, one or more zones are violated, check the relevant zones as indicated on the keypads. If the Ready light is flashing, one or more zones are bypassed or are violated and force-armable.

Zone Lights: The zone lights indicate the status of each alarm zone within the system. When a zone is violated or in trouble the relevant zone light will illuminate. When a zone is secure the relevant zone light will be off.

A keypad can be programmed to blank its display after a period of time. To re-enable the display, simply press any key.

Zone display is always enabled when the alarm system is in alarm.

(

Function Keys: See “Function Keys”.

)

Fire: if the Fire light is on with no zone indicators illuminated, then a fire alarm has occurred from one of the 2-wire smoke sensors. If there is an accompanied zone indication, the fire alarm has occurred from the smoke sensor on the indicated zone.

Bypass: If the Bypass light is on, one or more zones have been manually bypassed, (see “Manually Bypassing Zones” on page 8).

Stay: If the Stay light is on, the system is in the stay armed mode. The Armed light will also be flashing.

Instant: If the Instant light is on, the system is in the stay armed mode and the delayed zones (front door etc) are instant. The Armed light will also be flashing rapidly.

Power Light: The power light is on steady when mains supply is present and flashes when the system is running on battery (mains fail).

LCD Display: 16 character Liquid Crystal Display (LCD).

Proximity Tag Reader: On Premier LCDP and LCDLP only.

Page 5

Premier 8SP Master User Manual About the Alarm System

INS237 5

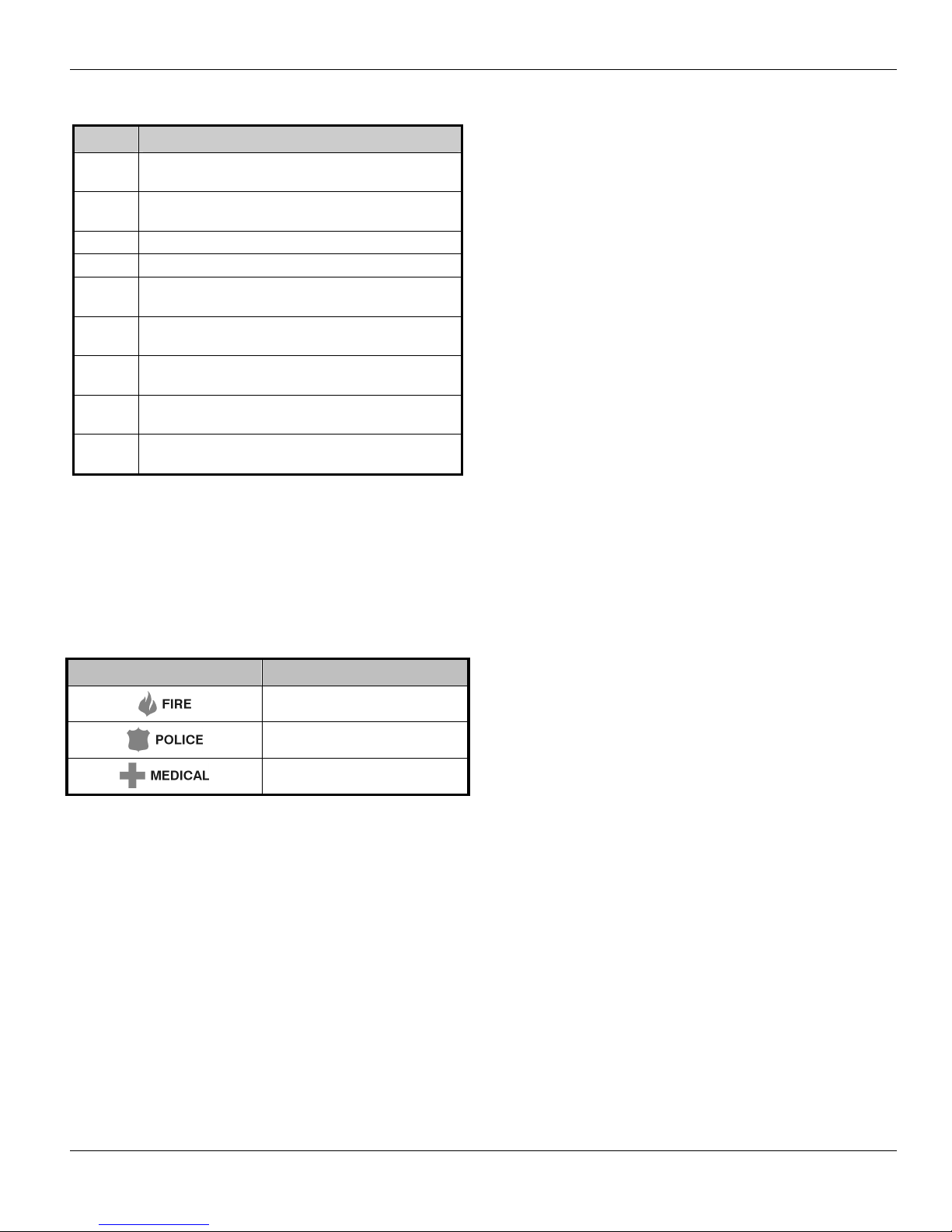

Function Keys

The remote keypad function keys are described as follows:

Key Function

The Bypass key is used for either group or manual bypass of zones (see page 8).

The Menu key is used to access the more advanced user functions and programming options.

., The Arm key is used when away arming the system. /, The Stay key is used when Stay arming the system.

The Area key is when viewing the log on the LCD remote keypad.

The Chime key is used to enable/disable the chime feature, see page 11.

The Reset key is used to reset the system after an alarm or service fault condition, see page 10.

The Yes key is used to arm the system and to select menu options.

The No key is used when editing text on the LCD remote keypad.

When a keypad is in use other keypads will be lockedout except for emergency functions. The lock-out will persist 4 seconds after the last key is pressed. Information tones will be limited to the keypad in use.

Emergency Keys

In case of emergency, the alarm system can provide three immediate emergency alarms by pressing and holding two specific keys for three seconds.0

Emergency Alarm Press Keys

# & %

( & )

* & '

The emergency keys can be individually enabled or disabled for each keypad on your alarm system by the installer.

The Panic alarm can be individually programmed for either audible or silent operation for each keypad.

Emergency commands are detailed on the inside flap label of each remote keypad.

Page 6

Operating the Alarm System Premier 8SP Master User Manual

6 INS237

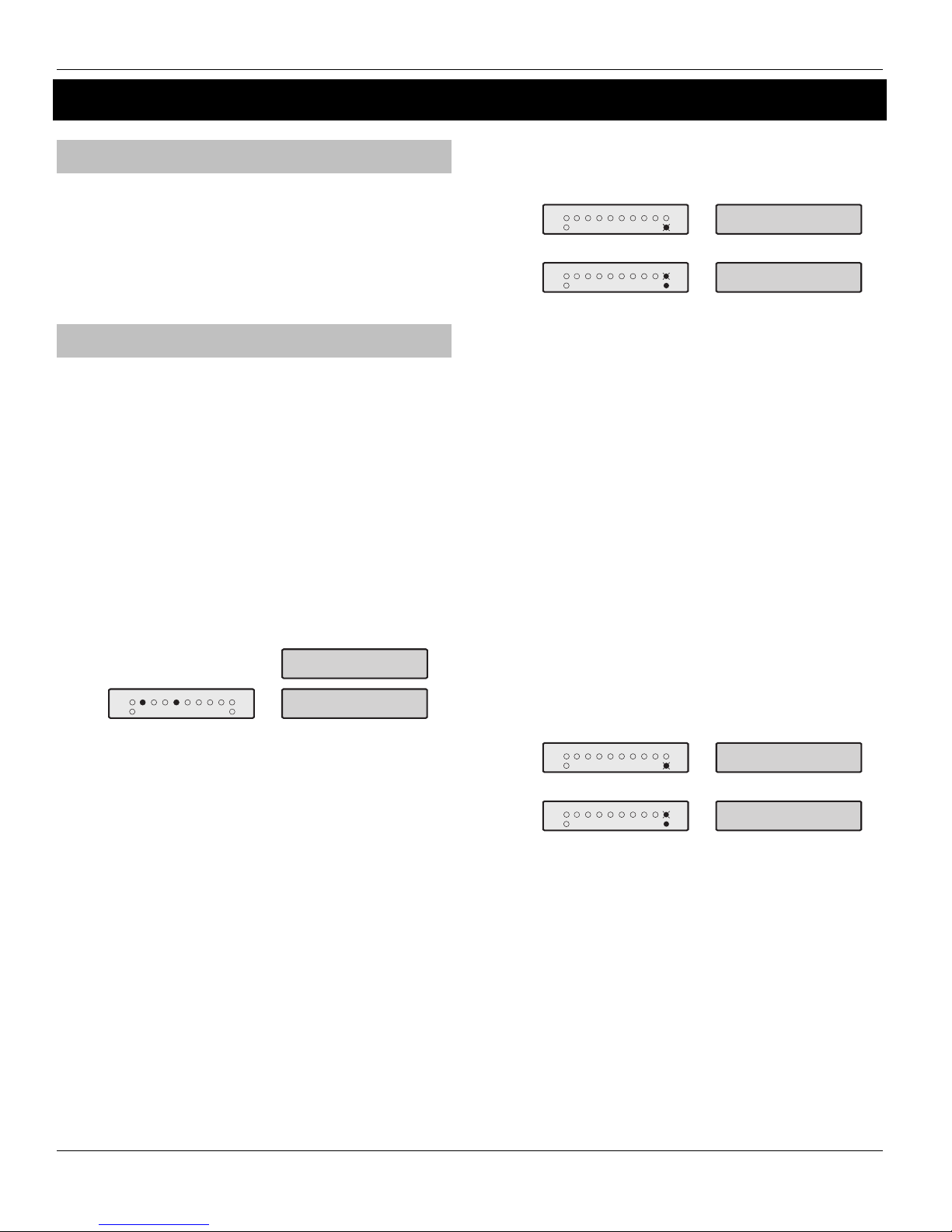

2. Operating the Alarm System

Introduction

Before attempting to operate the alarm system ensure you have familiarised yourself with all the arming and disarming methods covered in this section.

Access Codes

• If you make a mistake whilst entering your Access code, simply enter the correct Access code.

Arming & Disarming the Alarm System

Checking if the System is Ready to Arm

To help prevents faults during arming, a Ready light has been provided on each keypad. The Ready light works as follows:

• If the Ready light is on steady then the alarm system is

ready to be armed.

• If the Ready light is flashing then the alarm system has

bypassed zones and/or Force Armable zones that are violated, check these zones before proceeding.

• If the Ready light is off then one or more zones are

violated, either secure or bypass these zones before proceeding. The keypads will display the zones that are violated:

Zone 04 Active Patio Doors

Armed

Zones

87654321

Ready

Alarm

Service

Zone 01 Active Front Door

Active zones are scrolled

in sequence on LCD keypads

Active zones are indicated by

the relevant zone lights on

LED Keypads

If any unbypassed zones that are not enabled for “Force Arming” are violated at the end of the exit delay this is termed an exit error and the alarm system will go into fail set state (internal alarm). If programmed by the installer the external bell will also sound. Enter a valid user Access code to silence this alarm.

Away Arming

The Away arming mode is normally used when leaving the premises. When the system is armed in this mode all detection zones will be armed.

The Ready light must be on steady before the alarm system can be Away armed.

" To Away arm the alarm system proceed as follows:

Please Exit....

17:30.21 28/04

YES to Arm? MENU for Options

The light will flash and the exit tone will sound.Armed

Press a

Enter Access code ????

Press y

Armed

Zones

87654321

Ready

Alarm

Service

Armed

Zones

87654321

Ready

Alarm

Service

Leave the premises, when the system has armed the

exit tone will stop. The system is now Away armed.

If the Quick Keys feature is enabled you can omit step 1 from the above procedure.

Stay Arming

The Stay arming mode is normally used when the premises will be occupied. When the system is armed in this mode all Interior detection zones will be bypassed. Before Stay arming check the following:

• Secure or bypass any perimeter zones that are violated.

• Ensure no perimeter zones are bypassed

unintentionally.

• Ensure no perimeter Force Armable zones are violated unintentionally.

" To Stay arm the alarm system proceed as follows:

* SYSTEM ARMED *

17:30.21 28/04

YES to Arm? MENU for Options

The alarm system will arm immediately and the

light will flash.

Armed

Press s

Enter Access code ????

Armed

Zones

87654321

Ready

Alarm

Service

Armed

Zones

87654321

Ready

Alarm

Service

The system is now Stay armed.

If the Quick Keys feature is enabled you can omit step 1 from the above procedure.

If the system is fitted with a Premier RKP8/16 Plus then the Stay light will also illuminate when the system is Stay armed.

Page 7

Premier 8SP Master User Manual Operating the Alarm System

INS237 7

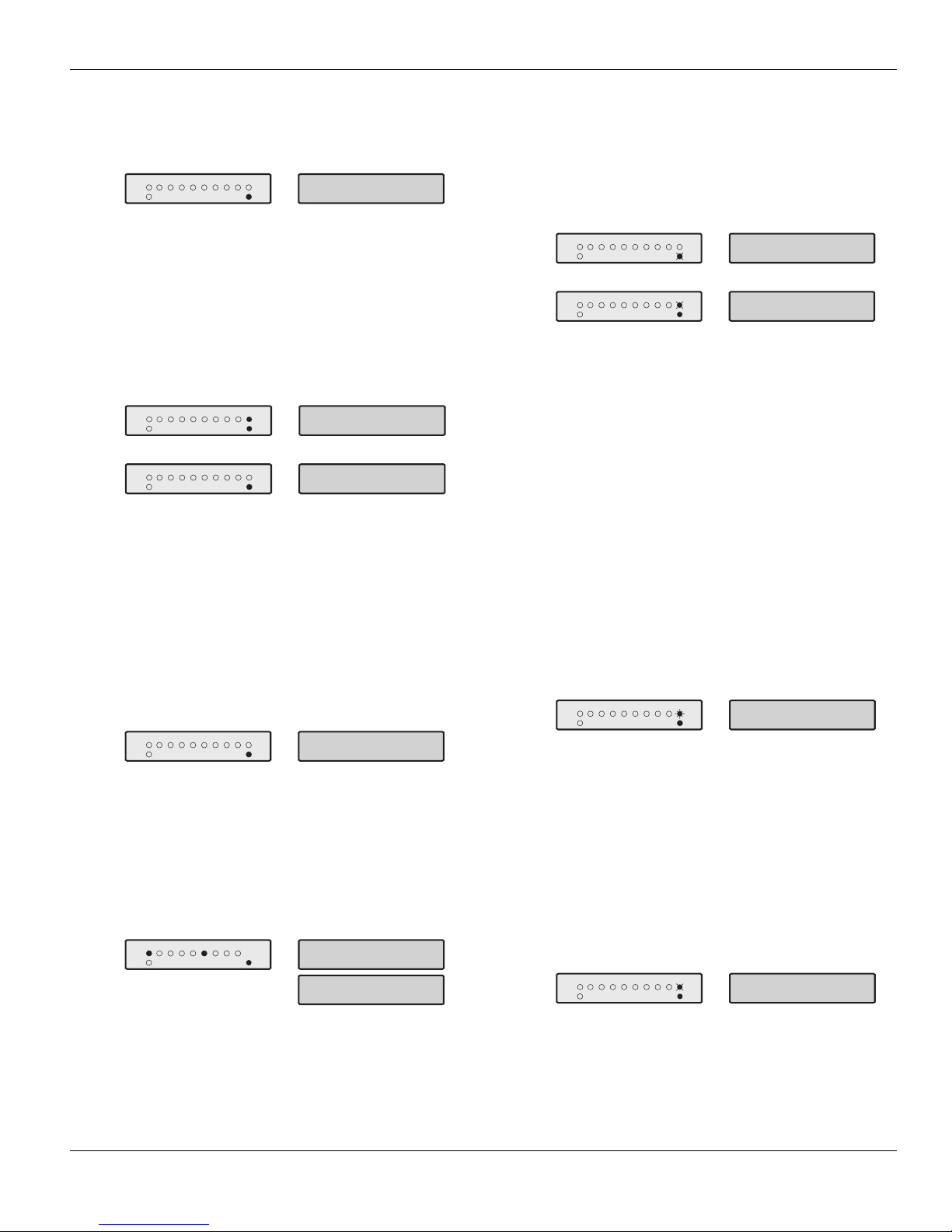

Cancelling the Arming Process

" To cancel the arming process during the exit delay:

SYSTEM DISARMED

17:30.21 28/04

Armed

Zones

87654321

Ready

Alarm

Service

Arming has been cancelled and the alarm system is

now disarmed.

Enter Access code ????

Disarming During Entry

" To disarm the alarm system during entry, proceed as

follows:

SYSTEM DISARMED

08:31.12 28/04

Armed

Zones

87654321

Ready

Alarm

Service

Enter Your Code

08:30.59 28/04

The entry tone will stop and the light will turn off.

The alarm system is now disarmed.

Armed

Enter Access code ????

Armed

Zones

87654321

Ready

Alarm

Service

Enter the premises via the designated entry point,

the entry tone will sound. Proceed directly to the

remote keypad.

If a valid Access code is not entered before the end of the entry delay, an alarm will occur.

Disarming when not in Entry

" To disarm the alarm system when not in entry, proceed

as follows:

SYSTEM DISARMED

17:30.21 28/04

Armed

Zones

87654321

Ready

Alarm

Service

The light will turn off. The alarm system is now

disarmed.

Armed

Enter Access code ????

Disarming after an Alarm

" To disarm the alarm system after an alarm, proceed as

follows:

Zone 05 Active Master Bedroom

Master Bedroom

21:10.56 28/04

The system is disarmed and the keypads display the

source of the alarm.

Enter Access code ????

Armed

Zones

87654321

Ready

Alarm

Service

The system must now be reset before you can arm again, see page 10 for details on resetting alarms.

Auto Stay Arming

If your installer has enabled the Auto Stay feature the system will automatically Stay arm if the entry/exit zone (front door) is not activated whilst attempting to Away arm the system.

" To auto Stay arm your alarm system proceed as follows:

Please Exit....

17:30.21 28/04

YES to Arm? MENU for Options

The light will flash and the exit tone will sound.Armed

Press a

Enter Access code ????

Press y

Armed

Zones

87654321

Ready

Alarm

Service

Armed

Zones

87654321

Ready

Alarm

Service

Do NOT leave the premises during the exit delay. At

the end of the exit delay the alarm system will Stay arm.

Changing from Delayed to Instant Stay

When Stay arming the system the delayed zones (front door etc) are normally delayed, i.e., when a delayed zone is violated it will start the entry delay timer. However, it is possible to change the delayed zones to instant when the system is in a Stay armed mode. If a delayed zone is violated when the system is in the “Instant Stay” mode the system will generate an alarm immediately.

" To change from Delayed Stay to Instant Stay, proceed

as follows:

INSTANT STAY

17:30.21 28/04

The light will flash quickly.

The system is armed.

Armed

Instant Stay

Press and hold the key until you hear the

confirmation tone.

Ensure that the system is armed.Stay

Armed

Zones

87654321

Ready

Alarm

Service

If the system is fitted with a Premier RKP8/16 Plus the Instant light will also illuminate.

" To change from Instant Stay to Delayed Stay, proceed

as follows:

Armed

Zones

87654321

Ready

Alarm

Service

DELAYED STAY

17:38.21 28/04

The light will flash slowly.

The system is armed.

Armed

Delayed Stay

Press and hold the key until you hear the

confirmation tone.

Ensure that the system is armed.Instant Stay

If your system is fitted with a Premier RKP8/16 Plus the Instant light will go off.

Page 8

Operating the Alarm System Premier 8SP Master User Manual

8 INS237

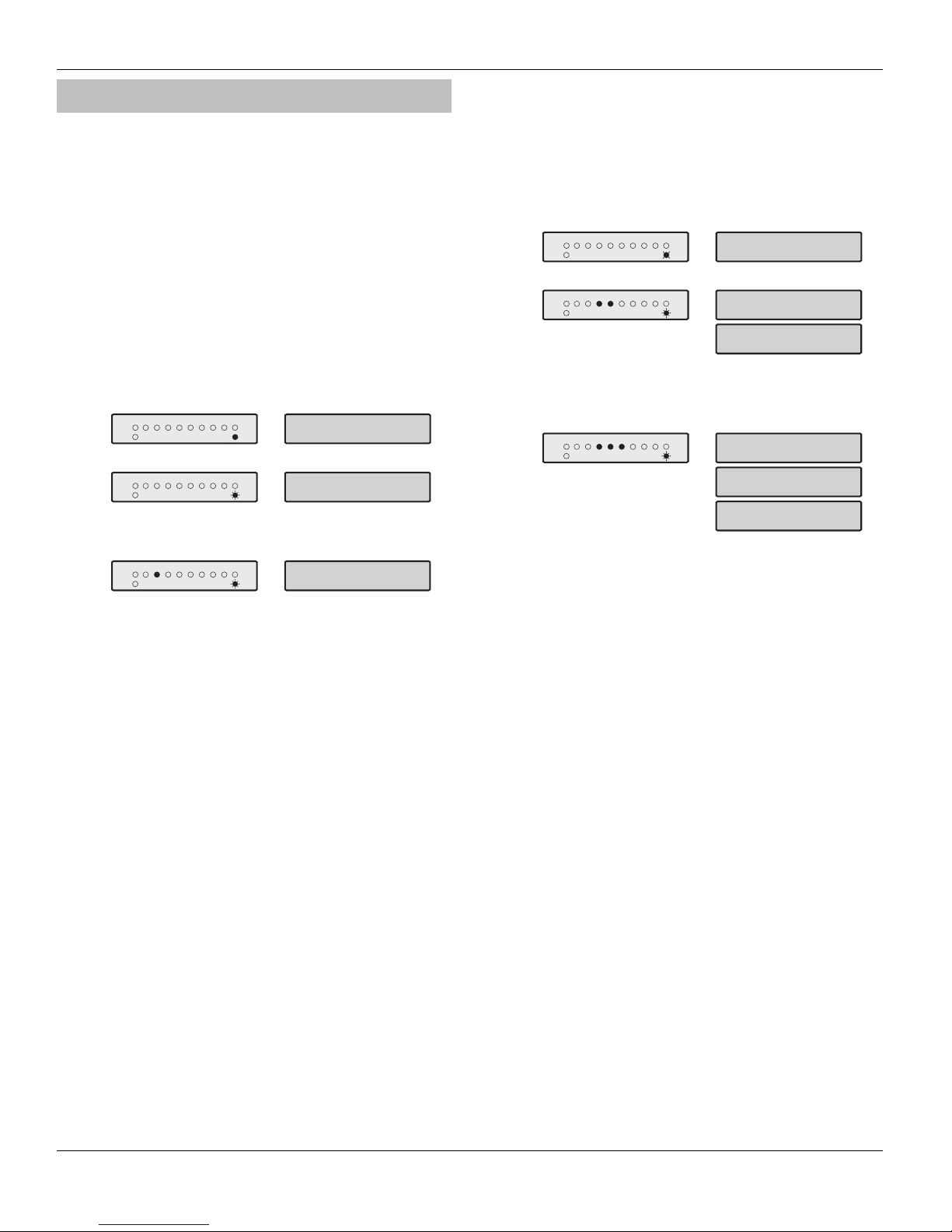

Bypassing Zones

Manually Bypassing Zones

Bypassing a zone prevents it from causing an alarm.

After manually bypassing a zone, the bypass will remain in place until the zone is manually unbypassed.

The bypass mode will time-out if no key is pressed for 60 seconds.

24 hour zones cannot be unbypassed if they are violated.

" To manually bypass zones, proceed as follows:

Bypass Zone> 00 *NONE BYPASSED*

Armed

Zones

87654321

Ready

Alarm

Service

YES to Arm? MENU for Options

The light will flash quickly.Ready

Enter the zone number ,

e.g. Enter to select Zone 2.

Press B

Enter Access code ????

Armed

Zones

87654321

Ready

Alarm

Service

Bypass Zone> 02 Zone 02 Bypassed

The selected zone is now bypassed. Repeat step 3 to

bypass additional zones.

Armed

Zones

87654321

Ready

Alarm

Service

Once the selected zones have been bypassed press:

/ to Away arm

to Stay arm

to return to the normal disarmed state

If the Quick Keys feature is enabled you can omit step 1 from the above procedure.

When one or more zones are bypassed the Ready light will flash. If the system is fitted with a Premier RKP8/16 Plus or LCD remote keypad then the Bypass light will also illuminate.

Unbypassing Zones

To manually unbypass zones, perform the manual bypass procedure on a zone that is already bypassed.

• 24 hour zones cannot be unbypassed if they are still violated.

• If your installer has enabled the “Reinstate Bypassed Zones on Disarm” option all zones will automatically be unbypassed each time the system is disarmed.

Group Bypass

The Group Bypass feature allows you to Bypass a predefined group of zones. The alarm system has up to four groups.

" To Bypass a group of zones, proceed as follows:

Bypass Zone> 00 Zone 03 Bypassed

YES to Arm? MENU for Options

The keypad will display the bypassed zones.

If required, zones can be added or removed from the

group by entering the required zone number ,

e.g. Enter to add Zone 5.

Enter bypass group 14- followed by B

Enter Access code ????

Armed

Zones

87654321

Ready

Alarm

Service

Bypass Zone> 05 Zone 03 Bypassed

The selected zone is now bypassed. Repeat step 3 to

bypass additional zones.

Armed

Zones

87654321

Ready

Alarm

Service

Once the selected zones have been bypassed press:

/ to Away arm

to Stay arm

to return to the normal disarmed state

Bypass Zone> 00 Zone 04 Bypassed

Bypass Zone> 05 Zone 04 Bypassed

Bypass Zone> 05 Zone 05 Bypassed

Armed

Zones

87654321

Ready

Alarm

Service

If the Quick Keys feature is enabled you can omit step 1 from the above procedure.

When one or more zones are bypassed the Ready light will flash. If the system is fitted with a Premier RKP8/16 Plus or LCD remote keypad then the Bypass light will also illuminate.

Page 9

Premier 8SP Master User Manual Operating the Alarm System

INS237 9

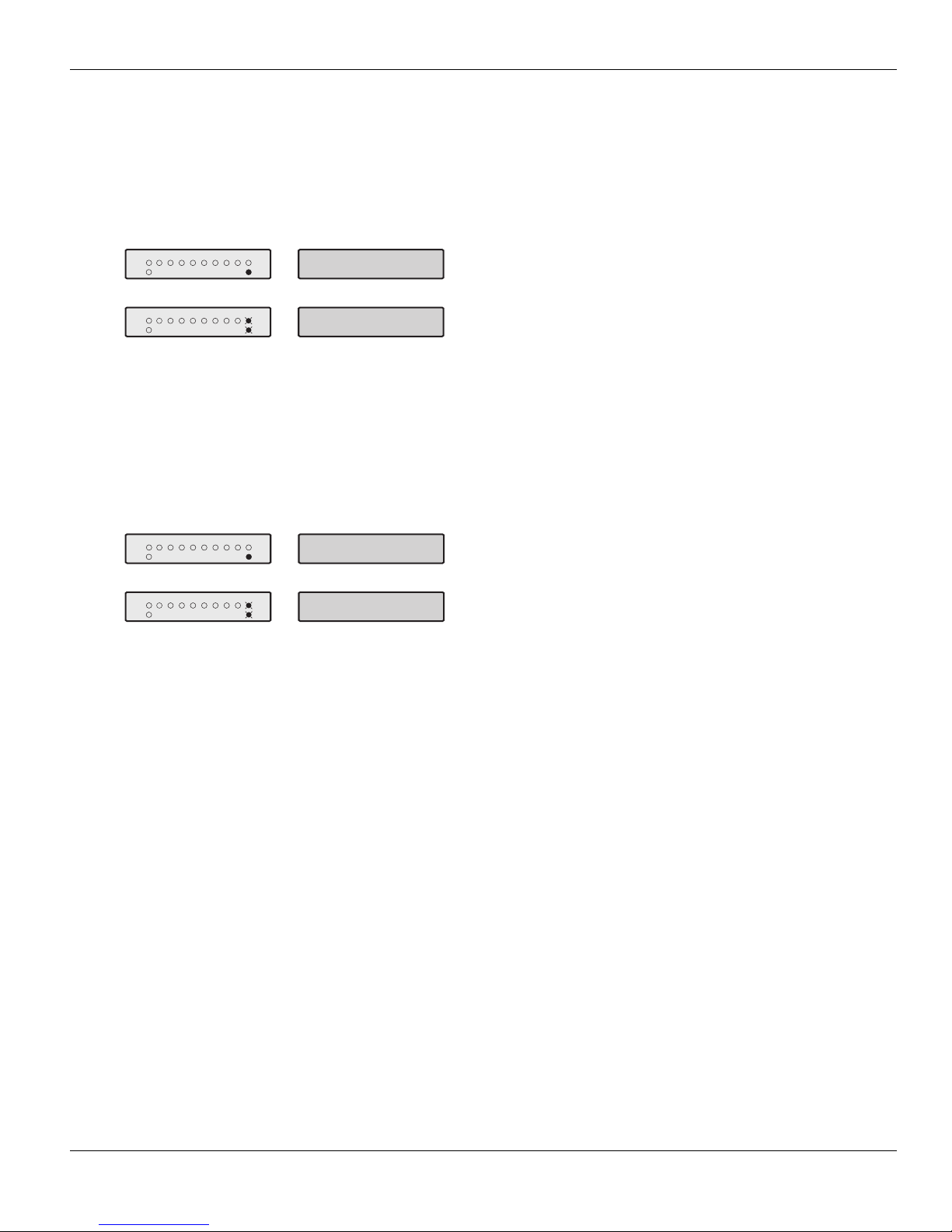

Quick Bypass and Arm

The Quick Bypass and Arm feature allows you to Bypass a predefined group of zones and Away or Stay arm the system. The alarm system has up to four groups.

" To Quick Bypass a group of zones and Away arm,

proceed as follows:

Armed

Zones

87654321

Ready

Alarm

Service

Premier 8SP

19:30.56 28/04

Enter bypass group 14-

Armed

Zones

87654321

Ready

Alarm

Service

Press a Press y

Please Exit....

19:30.56 28/04

The and lights will flash and the exit tone

will sound.

Armed Ready

When the system is Away armed

with the selected group of zones bypassed.

exit tone stops, the

" To Quick Bypass a group of zones and Stay arm,

proceed as follows:

Armed

Zones

87654321

Ready

Alarm

Service

Premier 8SP

19:30.56 28/04

Enter bypass group 14-

Armed

Zones

87654321

Ready

Alarm

Service

Press s

* SYSTEM ARMED *

19:30.56 28/04

The alarm system will arm immediately and the

and lights will flash.

Armed

Ready

The system is Stay armed with the selected group of

zones bypassed.

The Quick Keys feature must be enabled to use this feature.

Page 10

User Functions Menu Premier 8SP Master User Manual

10 INS237

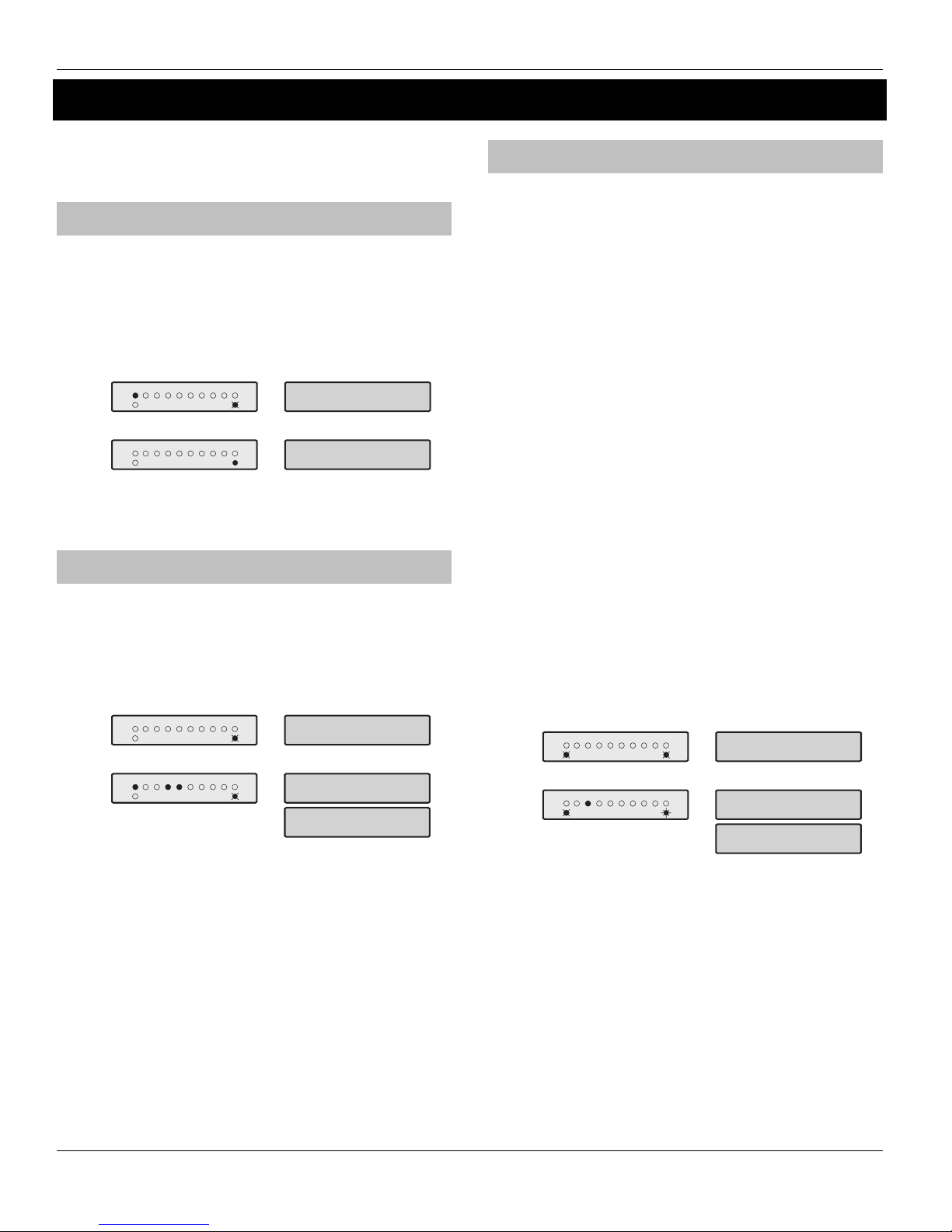

3. User Functions Menu

This section covers the more advanced functions that selected users can perform with the alarm system. The following functions are available:

Reset Alarms

This function is used to reset any standing alarms and service faults. It is also used to reset detectors with a latched alarm indication, e.g., Smoke Detectors.

" To Reset Alarms, proceed as follows:

Premier 8SP

17:30.21 28/04

YES to Arm? MENU for Options

The keypad will bleep and the alarm system will reset

all latching detectors and attempt to clear any standing

or .Alarms Service Faults

Press N0

Enter Access code ????

Press R

Armed

Zones

87654321

Ready

Alarm

Service

Armed

Zones

87654321

Ready

Alarm

Service

Last Alarm Log

The control panel has a memory that stores the zones that caused an alarm when the system was last armed.

" To view the alarm memory, proceed as follows:

Last Alarm From: Zone 03

YES to Arm? MENU for Options

The keypad will display the zones that caused an alarm

when the system was last armed.

Press to return to the normal disarmed state.N

Press N1

Enter Access code ????

Armed

Zones

87654321

Ready

Alarm

Service

Armed

Zones

87654321

Ready

Alarm

Service

Last Alarm From: Zone 04

Service Faults

The response to a Service Fault condition is programmed by the installer but is normally limited to the keypad buzzer. To silence the Service Fault alarm, enter your Access code.

A flashing Service light indicates a new fault condition. The alarm system cannot be armed whilst a new fault exists. The Service light will remain flashing until the new fault is acknowledged, after which it will revert to a steady yellow and the alarm system can be armed. The Service light will remain steady until all faults have been cleared.

After a new Service Fault has been acknowledged the Service light will revert to steady yellow and the alarm system can be armed. The Service light will remain steady yellow until all faults have been cleared.

AC Fail and Telephone Line Fault can each have a delay programmed. The Service light will turn steady yellow immediately on either of these faults but no Service Fault Alarm (transmission or audible alarm) will occur unless the delay expires.

If your installer has disabled AC fail acknowledgement the Service light will flash “rapidly” during an AC fail condition. The system can be armed without requiring acknowledgement of this fault.

Acknowledging a New Service Fault

" New service faults can be acknowledged as follows:

System Faults:Press Menu/Reset

YES to Arm? MENU for Options

The keypad will display all Service Faults.

Press or to acknowledge the fault and return to

the normal disarmed state.

Press N2

Enter Access code ????

Line Fault Press Menu/Reset

Armed

Zones

87654321

Ready

Alarm

Service

Armed

Zones

87654321

Ready

Alarm

Service

View Service Faults

" Standing faults can be viewed as follows:

1. Press the - key followed by the $ key.

2. The keypad will display any Service Faults (see

tables).

3. On completion press the - key.

Page 11

Premier 8SP Master User Manual User Functions Menu

INS237 11

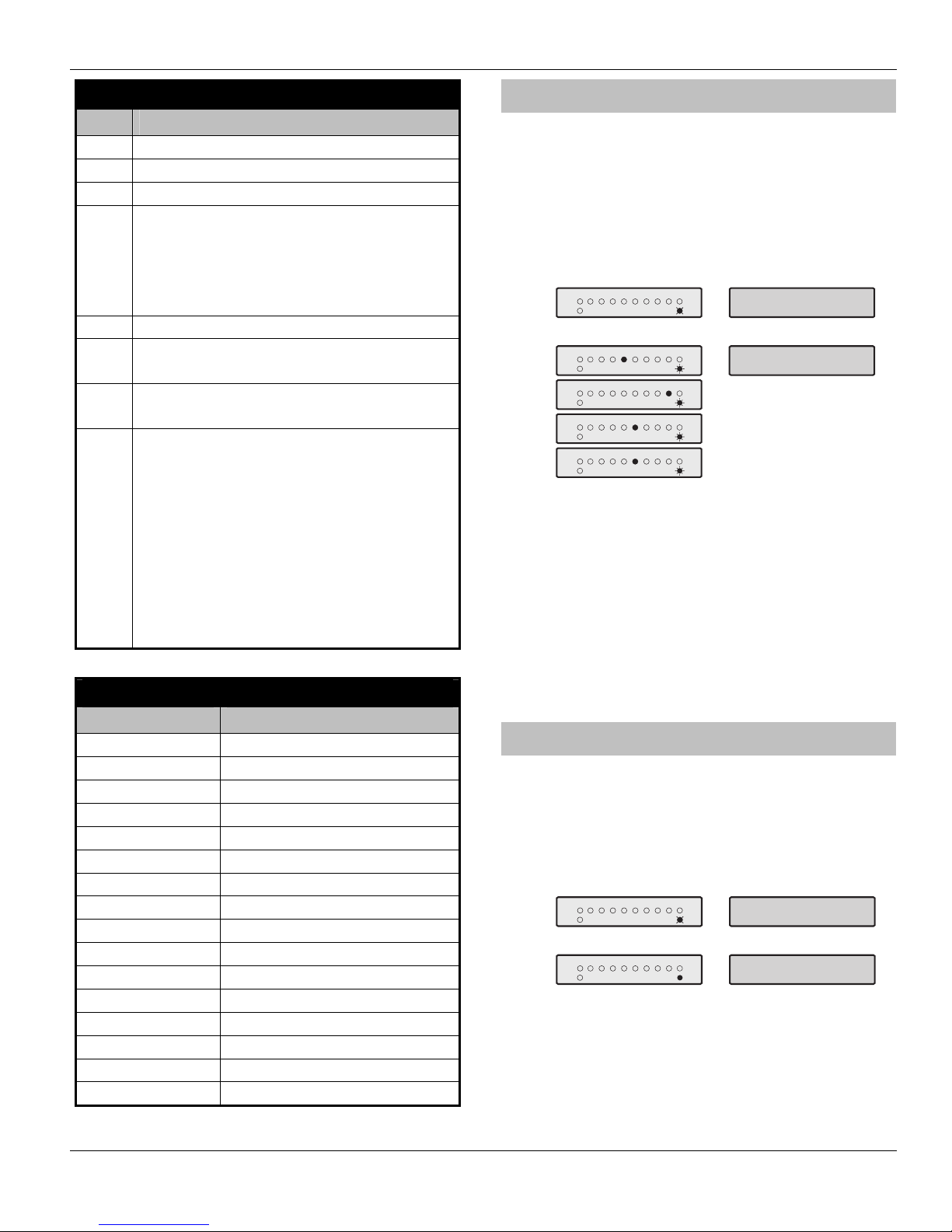

Service Faults Displayed on LED Keypads

Light Fault Condition

1 AC Fail

2 Telephone Line Fault

3 2-Wire Smoke Alarm

Tamper Inputs:

Press ( to view type, Lights 1 - 3 will light up:

Light 1 = Panel Box Tamper

Light 2 = Auxiliary Tamper

Light 3 = Bell Tamper

5 Date or Time Lost

Zone Tamper/Trouble

Press ) to view zone number

Keypad Tamper/Removed

Press * to view keypad number

Equipment Faults

Press ! to view fault type:

Light 1 = Bell Output Fault

Light 2 = Strobe Output Fault

Light 3 = Reserved

Light 4 = 2-Wire Smoke Sensor Fault

Light 5 = Auxiliary Fuse Failed

Light 6 = Battery Fault

Light 7 = Service Timer/Zone Soak Test Failed

Light 8 = Communication Fault

Service Faults Displayed on LCD Keypads

LCD Fault Condition

!"#$%&'# AC Fail

(&)*#$%+',# Telephone Line Fault

-./0*#!'%1.#2345# 2-Wire Smoke Alarm

6%)*'#7/8#9%.:*1# Panel Box Tamper

!+8&'&%1;#9%.:*1 Auxiliary Tamper

7*''#9%.:*1# Bell Tamper

<%,*=9&.*#(/>># Date or Time Lost

9%.:*1#?/)*#@#AB# Zone Tamper/Trouble

9%.:*1#C*;:%D@#B# Keypad Tamper/Removed

7*''#$%+',# Bell Output Fault

-,1/E*#$%+',# Strobe Output Fault

-./0*#-*)F#$%+',# 2-Wire Smoke Sensor Fault

!+8F#$+>*#$%+',# Auxiliary Fuse Failed

7%,,*1;#$%+',# Battery Fault

-*1G&H*#I*J+&1*D Service Timer/Zone Soak Test Failed

"/.>#$%&'*D# Communication Fault

Anti-code Reset

This feature is normally used in the UK where users are not permitted to reset the panel following a communicated alarm. However, the user can reset the panel after entering a unique remote reset number, which is supplied by their installer or ARC.

" To perform an Anti-code Reset, proceed as follows:

Quote Code> 4855 Enter Reply>????

YES to Arm? MENU for Options

The keypad will display a

randomly generated

4-digit Code.

Press N3

Enter Access code ????

Armed

Zones

87654321

Ready

Alarm

Service

Armed

Zones

87654321

Ready

Alarm

Service

Armed

Zones

87654321

Ready

Alarm

Service

Armed

Zones

87654321

Ready

Alarm

Service

Armed

Zones

87654321

Ready

Alarm

Service

Contact your ARC/Installer to obtain a Anti-code Reset

number.

Tel No.__________________________________________

Enter the Anti-code Reset number given to you by your

ARC/Installer .

If the code is accepted, the keypad will sound an

acceptance tone and the system will reset and return to

the normal disarmed state.

????

Toggle Chime On and Off

When a zone is enabled for Chime the keypad will generate a Chime tone every time the zone is violated. This function allows you to turn the Chime feature on and off.

" To toggle Chime on and off, proceed as follows:

If Chime was off, it will turn on and the keypad will

sound the Chime tone. If Chime was on, it will turn off

and the keypad will sound the acceptance tone.

Enter N4

Enter Access code ????

Armed

Zones

87654321

Ready

Alarm

Service

Premier 8SP

17:30.21 28/04

Armed

Zones

87654321

Ready

Alarm

Service

Press C

YES to Arm? MENU for Options

Page 12

User Functions Menu Premier 8SP Master User Manual

12 INS237

Change User Code

All users of the alarm system can change their own Access code number.

" To change your Access code, proceed as follows:

YES to Arm? MENU for Options

Enter new code

If the code is 4 or 5 digits the / key to

accept.

????

aypress

Enter N5

Enter Access code ????

Armed

Zones

87654321

Ready

Alarm

Service

Armed

Zones

87654321

Ready

Alarm

Service

The keypad will sound an acceptance tone if the new

Access code was accepted. If you hear an error tone

(low), please repeat from step 1.

Armed

Zones

87654321

Ready

Alarm

Service

Re-enter new code ????

Please Enter New Code : ******

Please Enter New Code : ****

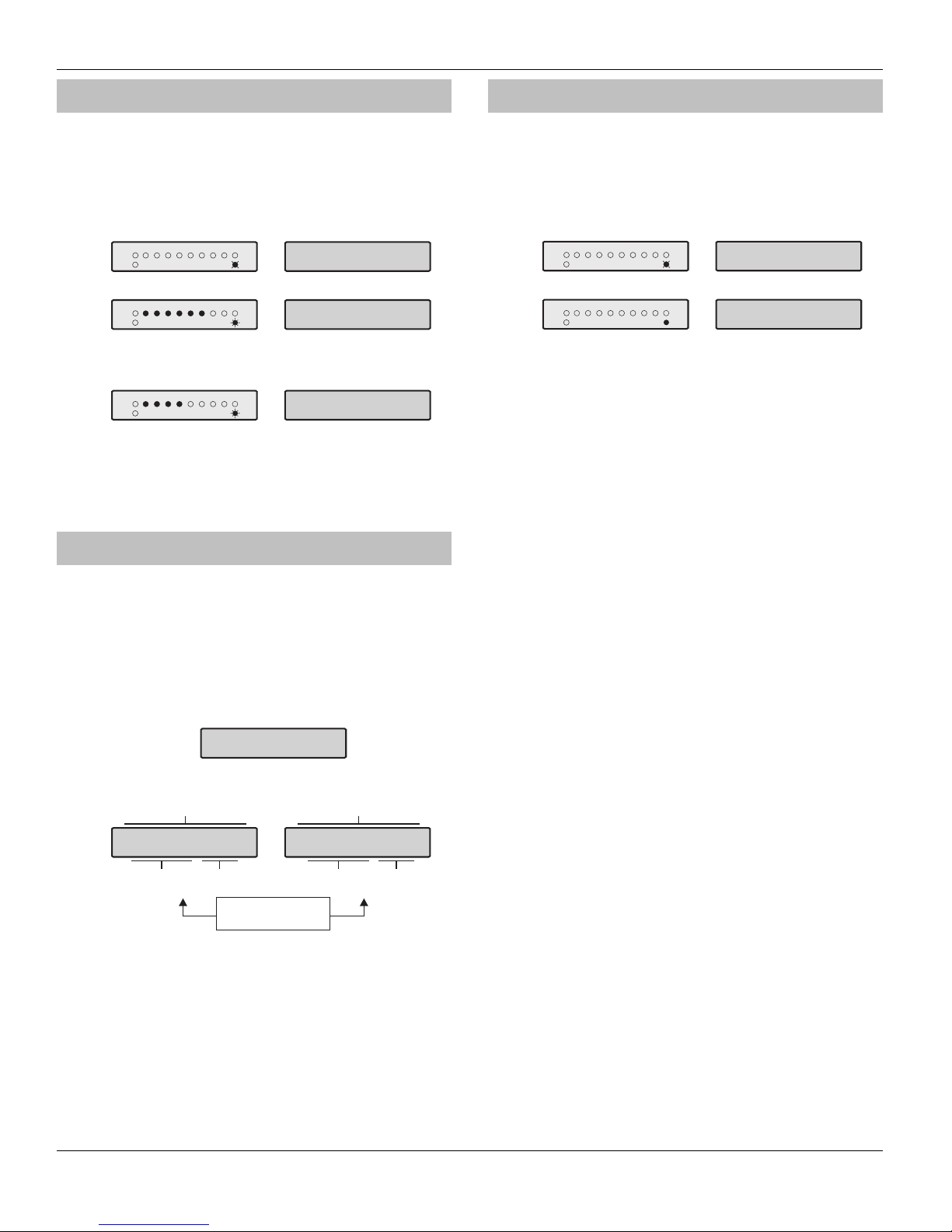

View Log (LCD Only)

The control panel has a 500 Event Log, which stores all system activity i.e., users entering their codes to arm and disarm the system, alarm events, faults etc. Each event is time and date stamped.

" To view the Event Log, proceed as follows:

Master Bedroom

13:15.56 28/04

Day/Month

Event Type

(showing Zone Text)

Time

Event Type

(Alarm Type & Zone No)

Inter. 05 Alm

13:15.56 28/04

Press to toggle

information displayed

YES to Arm? MENU for Options

Enter N6

Enter Access code ????

Press to scroll up and down through the log.

Press to when finished.

Day/MonthTime

Abort Communications

This option aborts any communications to the Alarm Receiving Centre.

" To Abort Communications, proceed as follows:

The keypad will bleep and the alarm system will abort

all communications to the Alarm Receiving Centre.

Enter N7

Enter Access code ????

Armed

Zones

87654321

Ready

Alarm

Service

Premier 8SP

17:30.21 28/04

Armed

Zones

87654321

Ready

Alarm

Service

YES to Arm? MENU for Options

Page 13

Premier 8SP Master User Manual System Program Menus

INS237 13

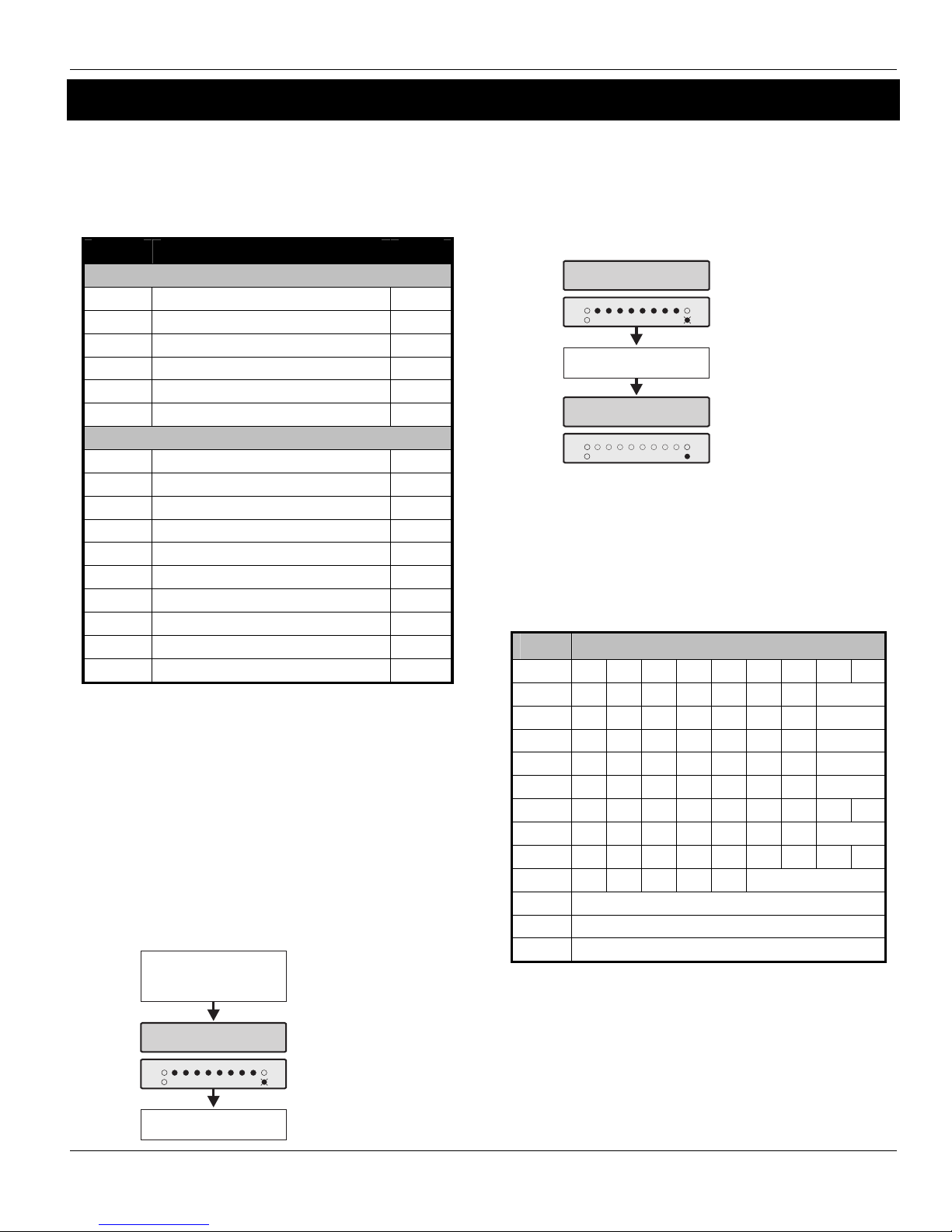

4. System Program Menus

The Master User and Users with the relevant access level can access the System Program Menus. These menus allow the users access to the more advanced features and functions of the alarm system.

The following programming menus are available:

Menu Function Page

Programming Users

!", Program User 15

!#, User Type 15

!$, User Options 16

!%, User Text 16

!(, Reserved -

!&, Program Manager Users 16

System Tests and Utilities

'", Walk Test 18

'#, Test Speakers and Outputs 18

'$, Send Test Call 18

'%, Enable Remote/Engineer Access 18

'(, Start Call Back 18

'&, Program Time 18

'), Program Date 18

'*, Program Banner Text 18

'!, Print 100 Events 18

'', Exit Program Mode 18

Menus !" - !% are restricted to Access codes enabled for Code Programming (Master Users).

Menus '" - ') are restricted to Access codes enabled for User Programming.

To abort programming at any stage and preserve the original settings, press -.

The alarm system will automatically exit program mode if no key is pressed for 60 seconds.

To access the programming menu, enter your Access code

5555 and press - followed by ':

Programming Menu Enter Code > ??

Armed

Zones

87654321

Ready

Alarm

Service

Enter Access code

Then press then

????

All Zone lights lit and

light flashesReady

Enter menu command

A programming menu is selected by entering a two-digit menu code. On completion of each menu option, the system reverts to the main programming menu, allowing other programming menu options to be accessed.

To exit the programming menu enter

'', the system

will revert to normal operation:

Programming Menu Enter Code > ??

Armed

Zones

87654321

Ready

Alarm

Service

All Zone lights lit and Ready light flashes

To exit programming mode,

enter

Premier 8SP

12:45.59 28/04

Armed

Zones

87654321

Ready

Alarm

Service

All zones clear and

light on.Ready

LCD shows banner text and time/date.

Programming Text (LCD Only)

Text is programmed in a similar way to mobile phones. Characters are selected by pressing the corresponding key the appropriate number of times (to select a character on the same key, press 6 to move the cursor along).

The table below shows the keys to use and the characters that are assigned to them:

Key Characters

. , ? ! 1 @ “ - &

a b c 2 A B C

d e f 3 D E F

g h i 4 G H I

j k l 5 J K L

m n o 6 M N O

(

p q r s 7 P Q R S

)

t u v 8 T U V

w x y z 9 W X Y Z

_ 0 , # * Custom characters

Move cursor left and right

Backspace (delete)

Accept text

Page 14

System Program Menus Premier 8SP Master User Manual

14 INS237

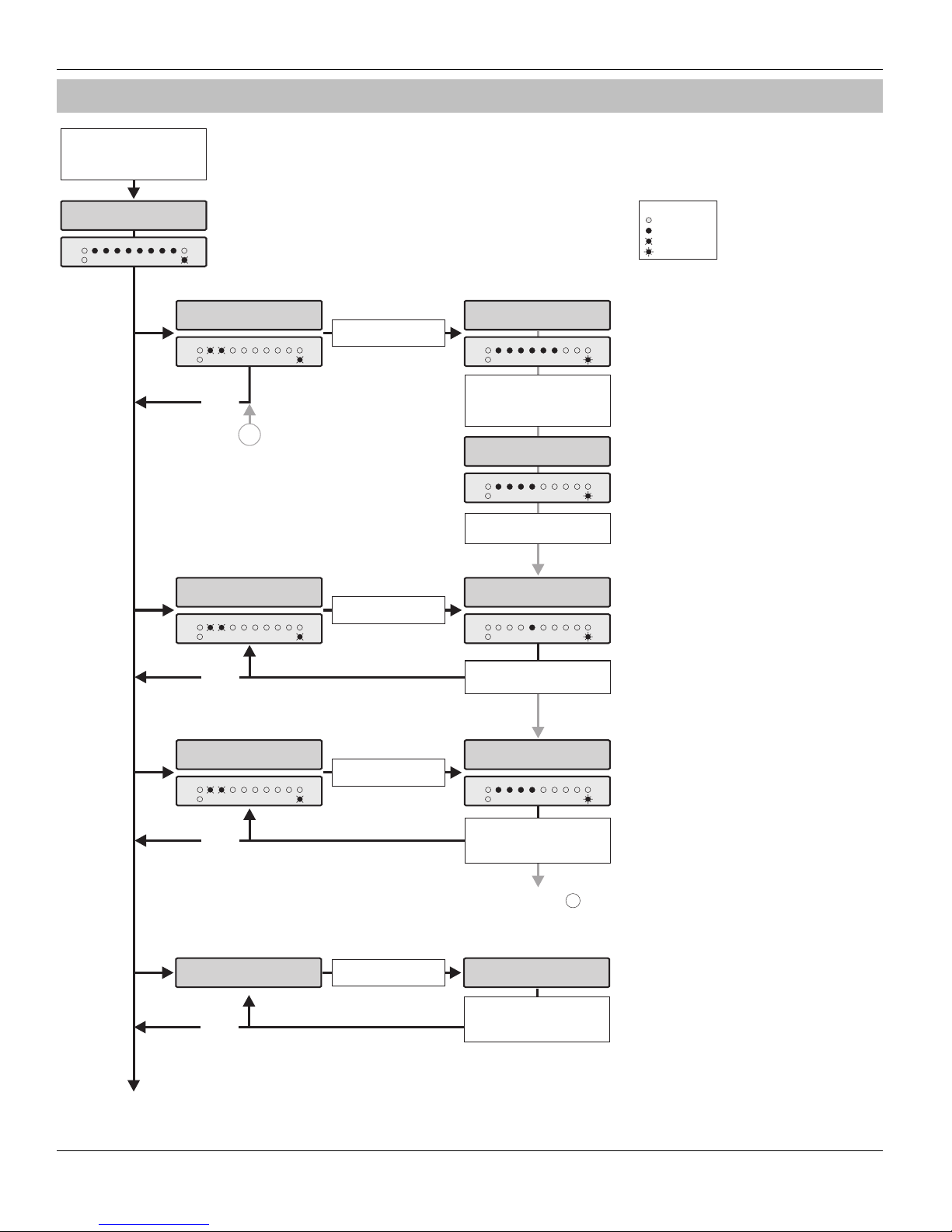

Programming Users

Led Key

Off On Slow Flash Fast Flash

Enter Access code

Then press then

????

Programming Menu Enter Code > ??

Armed

Zones

87654321

Ready

Alarm

Service

Program User

Text Editing Keys

1 2 3 4 5 6 7 8

.,?!1@”-& abc2ABC def3DEF ghI4GHI jkl5JKL mno7MNO pqrs7PQRS tuv8TUV

9 0 U R

wxyz9WXYZ Space0,#* Move Left/Right Backspace (delete)

Use keys to enter/edit text. Then press to accept.

Engineer User 00 Text

Engineer ^ser 00 Text

Use to select User.

PressUn to edit text.

User Text

User 00 Type Enter User No.??

User Type

Armed

Zones

87654321

Ready

Alarm

Service

Enter User Number

User 03 Type Standard

Armed

Zones

87654321

Ready

Alarm

Service

Enter User Type

06-

User Types

1 2 3 4 5 6

Technician Master Manager Standard Arm Only Duress

0 Engineer

User Options

1 2 3 4

Allow Arming Allow Bypassing Allow Disarming Enable Open/Close Reporting

User 00 Options Enter User No.??

User 03 Options

> 1234**** <

Armed

Zones

87654321

Ready

Alarm

Service

User Options

Armed

Zones

87654321

Ready

Alarm

Service

Use keys to

select/deselect Options.

Then press or

Enter User Number

Program User 00 Enter User No.??

Armed

Zones

87654321

Ready

Alarm

Service

Enter User Number

Program User 03 Code : ******

Armed

Zones

87654321

Ready

Alarm

Service

Enter Code

Press or if code is

less than 6 digits.

????

Program User 03 Code : ****

Armed

Zones

87654321

Ready

Alarm

Service

Re-enter New Code

????

Return to point

Continues on

Page 15

Premier 8SP Master User Manual System Program Menus

INS237 15

From

Delete User

Armed

Zones

87654321

Ready

Alarm

Service

Enter User Number

??.

Armed

Zones

87654321

Ready

Alarm

Service

Press B

Program User 00 Enter User No.??

Program User 03 Code : ******

Program User 00 Enter User No.??

Armed

Zones

87654321

Ready

Alarm

Service

Enter User Number

Program User 03 Code : ******

Armed

Zones

87654321

Ready

Alarm

Service

Enter Code

Press or if code is

less than 6 digits.

????

Program User 03 Code : ****

Armed

Zones

87654321

Ready

Alarm

Service

Re-enter New Code

????

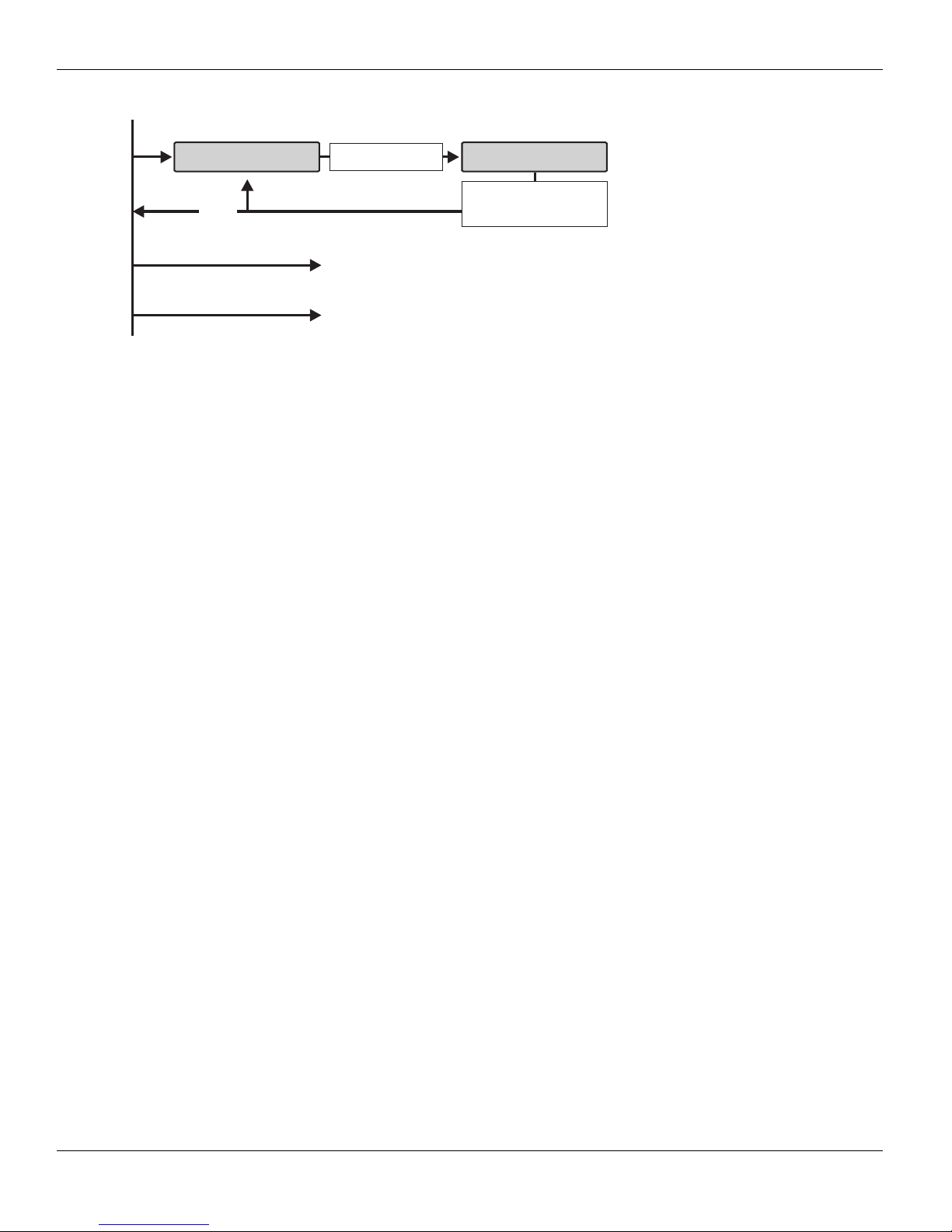

Program Manager Users

Program User !"

The system will accept up to 16 users, user 00 is the Engineer, user 01 is the Master User. This menu option allows you to assign new users (02 - 15) for the alarm system.

Each user is assigned the following attributes:

• Access Code

This is a unique 4, 5 or 6 digit code that is assigned to the user. The system will allow a mixture of different length Access codes. The Access code must be entered at a keypad before the user can operate the alarm system.

• User Type

See User Type below for details.

• User Options

See User Options below for details.

User Type !#

The user type determines the level of access to the system. The following user types are available:

" Engineer

This user type can access all programming menus.

# Technician

This user type can access all programming menus except menus 70 – 78 (Communicator programming).

$ Master User

This user type can access all user menus and add/change user codes.

% Manager

This user type can access all user menus.

( Standard

This user type can arm, disarm and bypass zones.

& Arm Only

This user type can arm and bypass zones.

) Duress

This user type can arm, disarm and bypass zones. When this access code is used the system will report a duress signal to the alarm receiving centre.

User types “Engineer” and “Technician” can only assigned by the Engineer (User 00).

Page 16

System Program Menus Premier 8SP Master User Manual

16 INS237

User Options !$

User Options can be enabled or disabled for a selected user so that the level of access to the system may be altered. The following options are available:

#, Allow Arming

On: The user can arm the system. Off: The user cannot arm the system.

$, Allow Bypassing

On: The user can bypass zones. Off: The user cannot bypass zones.

%, Allow Disarming

On: The user can disarm the system. Off: The user cannot disarm system.

The Engineer code (User 00) can only disarm the system, if the system was armed with the Engineer code.

(, Enable Open/Close Reporting

On: The system will report an Open/Close condition to the

alarm receiving centre when the Access code is used to disarm or arm the system.

Off: The system will not report an Open/Close status.

The panel will always send an Open signal after an alarm even if this option is disabled.

User Text (LCD Only) !%

If the system is fitted with a LCD remote keypad you can assign up to 8 characters of text to each user. This text is used when viewing the system Event Log, see page 12. User text is programmed in a similar way to mobile phones. Characters are selected by pressing the corresponding key the appropriate number of times (to select a character on the same key, press 6 to move the cursor along). For details on entering text, see page 13.

Program Manager Users !&

This menu option allows you to add “Manager” users to the system. The user will automatically be assigned the “Manager” type and have all “User Options” enabled.

Page 17

Premier 8SP Master User Manual System Program Menus

INS237 17

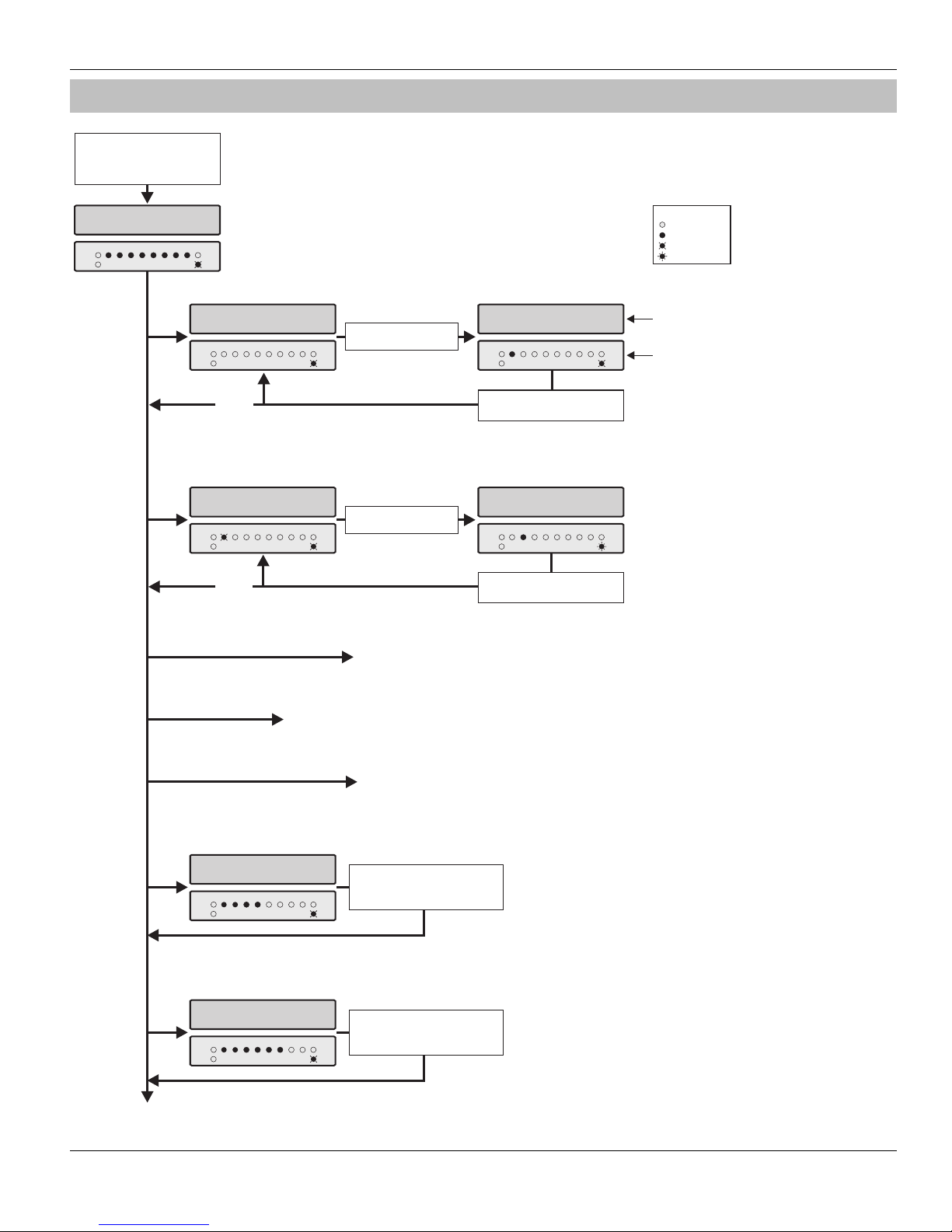

System Tests & Utilities

Led Key

Off On Slow Flash Fast Flash

Enter Access code

Then press then

????

Programming Menu Enter Code > ??

Armed

Zones

87654321

Ready

Alarm

Service

Continues on

Walk Test No Zones Tested

Walk Test

Armed

Zones

87654321

Ready

Alarm

Service

Activate Zones

Zone 01 Active Zone 01 Tested

Armed

Zones

87654321

Ready

Alarm

Service

Press to clear tested

zones from display

Top line scrolls active zones Bottom line scrolls tested zones

Zone light flashing = zone active Zone light on = zone tested

Test System Enter 1 to 5

Test Speakers & Outputs

Armed

Zones

87654321

Ready

Alarm

Service

Enter Test Number

1 - 5

Test System Bells Active

Armed

Zones

87654321

Ready

Alarm

Service

System Tests

1 2 3 4

Test Speakers Test Bells Test Strobes Test Outputs

Test LCD Display

Press to reset test0

Enable Download/Engineer Access

Start Call Back

Send Test Call

Program Date

> 28/04/01

Program Date

Armed

Zones

87654321

Ready

Alarm

Service

Enter the Date in a

format

e.g. 28 April 2001 = 280401

DDMMYY

Program Time

> 13:15

Program Time

Armed

Zones

87654321

Ready

Alarm

Service

Enter the Time in 24hr format

e.g. 6.30pm = 1830

HHMM

Page 18

System Program Menus Premier 8SP Master User Manual

18 INS237

From

Text Editing Keys

1 2 3 4 5 6 7 8

.,?!1@”-& abc2ABC def3DEF ghI4GHI jkl5JKL mno7MNO pqrs7PQRS tuv8TUV

9 0 U R

wxyz9WXYZ Space0,#* Move Left/Right Backspace (delete)

Use keys to enter/edit text. Then press to accept.

Premier 8SP

Banner Text

Premier 8SP

^anner Text

Pressnto edit text.

Banner Text (LCD Only)

Exit Program Mode

Print 100 Events

Walk Test '"

The Walk Test feature can only be performed when the system is disarmed. 24 hour zones (except Fire, Tamper and Trouble) are disabled during Zone Test allowing Audible PA buttons, Silent PA buttons, etc. to be tested.

Test Speakers & Outputs '#

This menu options allows you to perform the following tests:

# Test Speakers

$ Test Bells

% Test Strobes

( Test System Outputs

When performing the “Test System Outputs” option, only outputs programmed by your installer will be activated during this test.

Send Test Call '$

This menu options allows you to send a test call transmission to your Alarm Receiving Centre.

If the test call is unsuccessful, the keypad will sound an error tone.

Enable Remote/Engineer Access '%

Your alarm system may be configured in such a way that you have to authorise Remote/Engineer Access. Once authorised, your alarm system will allow:

• Your installer/Alarm Receiving Centre to access the alarm system via the remote downloading computer.

• Your installer/engineer to access the control panel programming menus.

The alarm system will allow access until 12.00am, after which, both Download and Engineer Access will be denied.

Start Call Back '(

This option will cause the control panel to initiate a call back sequence. This will allow the remote downloading computer to remotely access the control panel.

You should only use this feature when requested by your installer/Alarm Receiving Centre. If the Call Back is unsuccessful the keypad will sound an error tone.

Program Time '&

The control panel has a real time clock that is used to date and time stamp events that are recorded within the system log. The option allows you to set the control panel time.

Program Date ')

The control panel has a real time clock that is used to date and time stamp events that are recorded within the system log. The option allows you to set the date on the control panel.

Program Banner Text (LCD only) '*,

If the system is fitted with a LCD remote keypad you can assign up to 16 characters of text to the Banner Message. The Banner Message is displayed on the top line of the LCD display during the normal disarmed state. Text is programmed in a similar way to mobile phones. Characters are selected by pressing the corresponding key the appropriate number of times (to select a character on the same key, press 6 to move the cursor along). For details on entering text, see page 13.

Print 100 Events '!,

If your system has a printer connected, this menu option allows the last 100 events in the system Event Log to be sent to the printer.

Exit Program Mode '',

Selecting this menu option will exit the programming mode and return the system to its normal state.

Page 19

Premier 8SP Master User Manual Fire Safety & Maintenance

INS237 19

5. Fire Safety & Maintenance

Fire Safety

Fire Alarm Operation

Alarm

On a fire alarm, the bell or siren will pulse ON and OFF. If your system is fitted with a Premier RKP8/16 Plus then the Fire light will be illuminated. The alarm is also transmitted to the Alarm Receiving Centre, if your installer has enabled this feature.

Silence

To silence the bell or siren, enter your Access code.

Resetting Smoke Detectors

Once the smoke detector is reset, if it still detects smoke, the alarm sequence will resound as described above. If there is no smoke, the system will return to normal operation.

" To reset smoke detectors, proceed as follows:

4. Enter your Access code 5555.

5. Press the 2 key.

6. The keypad will bleep and the alarm system will reset

all latching detectors.

If you suspect that a fire alarm has transmitted and that there is no fire condition, call the alarm receiving centre to avoid an unnecessary response. If a fire condition is apparent, follow your evacuation plan immediately. If the alarm sounds at night, evacuate immediately.

The description above may not be applicable depending on how your installer has programmed the fire alarm operations on your system. Ask your installer for more information regarding your system's operation.

Household Fire Safety Audit

Most fires occur in the home. To minimise the risk of fire, it is recommended that a household safety audit is conducted and a fire escape plan is developed.

• Are all electrical appliances and outlets in a safe condition? Check for frayed cords, overloaded lighting circuits, etc. If you are uncertain about the condition of your electrical appliances or household service, have a professional evaluate these units.

• Are all flammable liquids stored safely in closed containers in a well ventilated cool area? Cleaning with flammable liquids should be avoided.

• Are fire hazardous materials (matches) well out of reach of children?

• Are furnaces and wood burning appliances properly installed, clean and in good working order? Have a professional evaluate these appliances.

Fire Escape Planning

There is often very little time between the detection of a fire and the time it becomes deadly. It is therefore very important that a family escape plan be developed and rehearsed.

1. Every family member should participate in developing the escape plan.

2. Study the possible escape routes from each location within the house. Since many fires occur at night, special attention should be given to the escape routes from sleeping quarters.

3. Escape from a bedroom must be possible without opening the interior door. Consider the following when making your escape plans:

• Make sure that all perimeter doors and windows are easily opened. Ensure that they are not painted shut and that their locking mechanisms operate smoothly.

• If opening or using the exit is too difficult for children, the elderly or handicapped, plans for rescue should be developed. This includes making sure that those who are to perform the rescue can promptly hear the fire warning signal.

• If the exit is above the ground level, an approved fire ladder or rope should be provided as well as training in its use.

• Exits on the ground level should be kept clear. Be sure to remove snow from exterior patio doors in winter; outdoor furniture or equipment should not block exits.

• Each person should know of a predetermined assembly point where everyone can be accounted for i.e. across the street or at a neighbour's house. Once everyone is out of the building, call the Fire Services.

• A good plan emphasises quick escape. Do not investigate or attempt to fight the fire, and do not gather belongings or pets as this wastes valuable time. Once outside, do not re-enter the house. Wait for the Fire Services.

• Write the fire escape plan down and rehearse it frequently so that should an emergency arise, everyone will know what to do. Revise the plan as conditions change, such as the number of people in the home, or if there are changes to the building's construction.

• Make sure your fire warning system is operational by conducting weekly tests (see “Fire Alarm Operation” on page 19). If you are unsure about system operation, contact your installing dealer.

Page 20

Fire Safety & Maintenance Premier 8SP Master User Manual

20 INS237

• We recommend that you contact your local fire department and request further information on fire safety and escape planning. If available, have your local fire prevention officer conduct an in-house fire safety inspection.

Maintenance

With normal use, the system requires minimum maintenance. The following points should be observed.

1. Do not wash the security control panel or keypads with a wet cloth. Light dusting with a slightly moistened cloth should remove normal accumulations of dust.

2. The battery test is designed to determine battery condition. We recommend, however, that the stand-by batteries are replaced every five years.

3. For other system devices such as smoke detectors, passive infrared, ultrasonic or microwave motion detectors or glass-break detectors, consult the respective manufacturer’s literature for testing and maintenance.

Glossary

Glossary of terms used in this manual:

Access Code: A four, five or six digit code that is used to operate the alarm system.

Alarm Receiving Centre: A remote location where alarm status data is received via the telephone line from the control panel.

Bypass: A feature that allows the user to exclude selected zones from being monitored by the alarm system.

Chime: A feature that allows the keypads and internal sounder to generate a ding-dong sound whenever the selected zones are violated.

Duress Code: A special type of Access code that reports a signal to the alarm receiving centre that indicates the system is being operated under duress.

Forced Armable: An option that can be selected on a zone by zone basis, that will allow the system to be armed, even if the selected zone is violated.

Group Bypass: A feature that allows the user to bypass a group of zones in one go.

Service: A condition that will indicate that a problem has occurred with the alarm system or with one of its detection devices.

Zone: A zone is an area of protection that has one or more detection sensors connected to it (motion detectors, glassbreak detectors, door contacts or shock sensors).

Page 21

Premier 8SP Master User Manual Installation Records

INS237 21

6. Installation Records

Control Panel

Location:

Keypads

Keypad Location

Fire

(1 & 3)

Police

(4 & 6)

Medical

(7 & 9)

Silent

Quick

Keys

Model

Timers

Timer Value Timer Value

Exit Time: Sec. Alarm Delay Time: Min.

Entry Delay 1 Time: Sec. Bell Delay Time: Min.

Entry Delay 2 Time: Sec. Bell Duration Time: Min.

Zones

Zone Protected Area Zone Text Stay Bypass Chime Zone Type

Page 22

Installation Records Premier 8SP Master User Manual

22 INS237

Users

User Name Type Arm Disarm Bypass Open/Close

00 Engineer # # # #

01 Master User # # # #

Installer Details

Installation Company: _________________________________________________________________________________

Address: _________________________________________________________________________________

_________________________________________________________________________________

Telephone: _________________________________________________________________________________

Fax: _________________________________________________________________________________

Email: _________________________________________________________________________________

Alarm Receiving Centre: ________________________________________________________________________________

Account No: _________________________________________________________________________________

Telephone: _________________________________________________________________________________

Email: _________________________________________________________________________________

Page 23

Premier 8SP Master User Manual Installation Records

INS237 23

Notes

Page 24

Premier Endstation and Keypads are protected by UK and International

Registered Design.

Registered Design Numbers: 2041830, 2047440 and 2089016

INS237
