THANK YOU FOR VOTING TEXECOM

MASTER USER GUIDE

Security Control Panels

Issue 3

1 INS167

Page 2

Overview Premier Series Master User Guide

Contents

1. Overview ....................................................................................................4

Introduction ................................................................................................................4

Keypads ......................................................................................................................6

Emergency Keys.........................................................................................................7

The Quick Arm Keys...................................................................................................8

Keypad Lock...............................................................................................................8

Reset and Service Messages ....................................................................................8

Fault Messages...........................................................................................................9

Zone Faults During Arming...................................................................................... 10

2. Using the Alarm System .........................................................................11

Introduction ..............................................................................................................11

3. Operating the Alarm System..................................................................13

Introduction ..............................................................................................................13

To FULL Arm the System ......................................................................................... 14

To PART Arm the System.........................................................................................15

To ARM Individual Areas .........................................................................................16

To DISARM the System............................................................................................17

During Entry..............................................................................................................17

When Not in Entry.....................................................................................................17

To CANCEL the Exit Mode ....................................................................................... 18

To CLEAR an Arm Fail.............................................................................................. 18

To SILENCE an Alarm .............................................................................................. 19

To RESET After an Alarm......................................................................................... 19

USER Reset ..............................................................................................................19

ENGINEER Reset......................................................................................................20

ANTI-CODE Reset.....................................................................................................20

To OMIT Zones .........................................................................................................21

To Turn CHIME On and Off...................................................................................... 22

To VIEW the Status of Zones ...................................................................................23

To OMIT 24 Hour Zones........................................................................................... 24

To SELECT Areas for Chime.................................................................................... 25

To VIEW Activity Faults ............................................................................................26

To VIEW Activity Counts ..........................................................................................27

Sending a Text Message to a Mobile Phone ..........................................................28

2 INS177

Page 3

Premier Series Master User Guide Overview

4. Programming the Alarm System............................................................29

Introduction ..............................................................................................................29

Viewing the Event Log.............................................................................................. 30

Event Log Descriptions ............................................................................................31

Changing Your User Code....................................................................................... 33

Setting up Zones for Chime..................................................................................... 34

Testing the Sounders and Strobe ...........................................................................35

Walk Testing the System .........................................................................................36

Enabling Engineer Access.......................................................................................37

Setting the System Time ..........................................................................................38

Setting the System Date...........................................................................................39

Overriding the Control Timers................................................................................. 40

Altering the Control Timers .....................................................................................41

Adding New Users to the System............................................................................ 43

Programming New Users .........................................................................................43

User Types................................................................................................................44

Available Options......................................................................................................45

User Options 1..........................................................................................................46

User Options 2..........................................................................................................47

User Config...............................................................................................................48

User Name Text ........................................................................................................49

Programming User Codes........................................................................................50

Programming Proximity TAGS .................................................................................52

Deleting Users ..........................................................................................................52

Setting up the Part Arms.......................................................................................... 53

Calling a Remote PC ................................................................................................54

Altering the Holiday Dates ....................................................................................... 55

Adjusting Speaker Volumes ....................................................................................56

Printing the Event Log.............................................................................................. 57

Editing a Mobile Telephone Number....................................................................... 58

5. Specifications..........................................................................................59

European Standards ................................................................................................59

Warranty.................................................................................................................... 59

6. Installation Records................................................................................60

INS177 3

Page 4

Overview Premier Series Master User Guide

1. Overview

Introduction

The alarm system consists of a control panel, one or more keypads and various detectors and sensors. The control panel is normally mounted out of sight in a cupboard etc. and houses the system’s electronics and stand-by battery. There is normally no reason for anyone except an installer or service person to have access to the control panel.

The keypad is used to control the alarm system and to display its status via the English text display. The keypad also provides audible feedback each time a key is pressed. Each keypad will be mounted in a convenient location inside the protected premises, near the designated points of entry/exit.

Users

Users of the alarm system will be assigned a unique 4, 5 or 6 digit User code. User codes are used to arm and disarm areas to which they are assigned. Some User codes can also access additional options such as, system tests and omitting zones.

To access the system a valid User code must be entered, if a mistake is made whilst entering a User code, simply re-enter the correct code (the system may have been programmed so that too many incorrect code entries will cause a Tamper alarm or lock the keypad out).

The User code may not allow access to certain functions i.e. if the code is only allowed to arm and disarm area A, it will not be able to arm or disarm other areas on the system.

Most User codes can arm and disarm areas assigned to them from any keypad on the system. However, Local Users will only be able to arm and disarm areas assigned to them, from keypads assigned to the same areas.

As well as or instead of a code, users of the alarm system can be assigned a Proximity TAG. Proximity TAGS replace the code number being entered with a key ring type TAG that is presented to the reader inside the keypad to operate the alarm system.

Zones

A ‘zone’ is part of the protected premises and may consist of one or more detection devices protecting rooms and points of entry/exit, (e.g. front door, kitchen, downstairs windows, upstairs bedrooms, etc.). When the alarm system is fully armed, all of the zones on the system are monitored.

Some zones may belong to more than one area, such as points of entry/exit i.e. the front door and movement sensor in an entrance lobby. These are called global zones because they are assigned to multiple areas.

A zone that is assigned to more than one area will only be monitored when all of the areas it is assigned to are armed.

4 INS177

Page 5

Premier Series Master User Guide Overview

Areas

An ‘area’ is a group of one or more zones and would normally be used to split the premises into different sections. Each area can be either ‘Full’ armed or ‘Part’ armed.

Example 1: Domestic Premises

The entire house could be area A.

Each area can be ‘Part’ armed. For instance, detection devices upstairs, i.e. PIR’s, could be programmed so that they will not be monitored during a ‘Part’ arm, allowing access to the upstairs of the house at night.

Area A forms the entire alarm system.

Example 2: Domestic Premises

The upstairs of a house could be area A, the downstairs could be area B and the garage could be area C.

Each area can be ‘Full’ armed independently from each other (all detection devices in the area monitored). For instance, downstairs and the garage in example 1 (areas B & C) could be armed at night allowing access to the upstairs of the house (area A).

All of the areas together form the entire alarm system.

Example 3: Commercial Premises

Office 1 in an office block could be area A, office 2 could be area B and office 3 could be area C.

Each area can be armed and disarmed independently from each other. For instance, any of the offices in example 2 above could be armed and disarmed to allow access without affecting the other offices.

All of the areas together form the entire alarm system.

Example 4: Office Block

The foyer of the office block in example 4 would need to be armed when the last office is armed and disarmed when the first office is disarmed.

Because the foyer is a global area (used by everyone) the zones in that area need to be assigned to areas A, B and C. This ensures that the zone is only recognised by the system when ALL areas (A, B & C) are armed, allowing access to the foyer even if one of the areas is still armed.

Monitoring

This alarm system is capable of reporting Intruder alarms, Panic alarms, Fire alarms and other types of information over telephone lines to an Alarm Receiving Centre. If you accidentally set the alarm off, call the Alarm Receiving Centre immediately to prevent an unnecessary response.

The monitoring function must be enabled before it will work.

INS177 5

Page 6

Overview Premier Series Master User Guide

Keypads

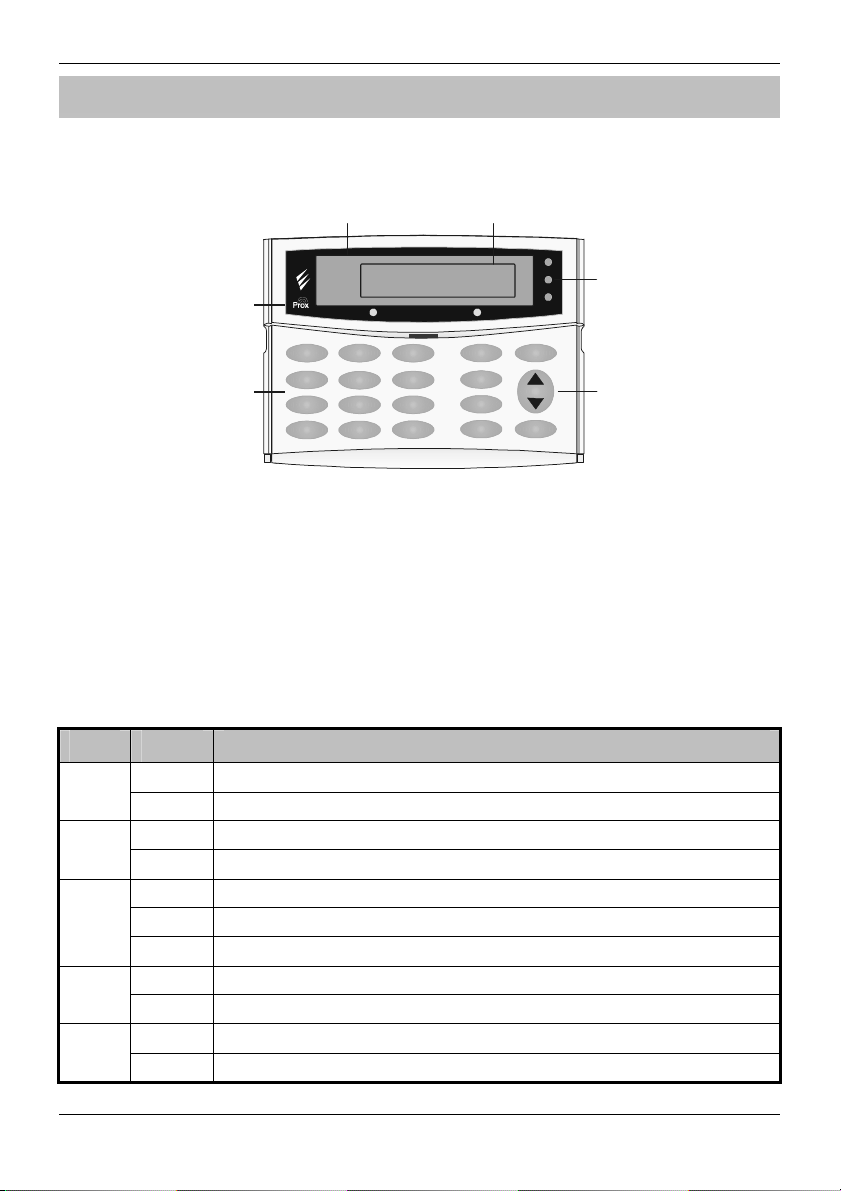

One or more keypads will be installed throughout the protected premises, usually one at each entry/exit door. The keypads are used to perform all of the system functions i.e. Arming, Disarming etc.

Premier LCD L/LCDLP

Large Display

Proximity Reader

LCDP LCDLP

( &

keypads o nly)

abc

ghi

jkl

tuv

pqrs

Normal

Keys

Yes

Display Window (Premier LCD/LCDP & LCDL/LCDLP)

The 32-Character LCD display is used to show the status of the system and to view system data.

Proximity Reader (Premier LCDP & LCDLP only)

Built in Proximity Reader for use with Proximity TAGS (approximate range is between 1 and 5 cm). Proximity TAGS can be used as an alternative to a Code number.

Premier LCD/LCDP

Standard Display

Screen Not Shown

ServiceOmit

Omit

def

Chime

mno

wxyz

Area

Part

Reset

Power

Ready

Info.

Programmable

‘Info.’ LED

Function

Keys

LED Indicators

Five LED indicators have been provided to indicate the status of the system.

LED Status Meaning

Power On AC mains is present on the control panel

Flashing AC Mains is not present, the control panel is running on the standby battery

Service On The system requires attention, contact your installer

Off The system does NOT require attention

Ready On All zones are secure and the system is ready to be armed

Off One or more zones are active

Flashing The system has zones (with the ‘Force Omit’ attribute) that are active

Info. On The system is armed (can also be programmed for other indications)

Off The system is unarmed (can also be programmed for other indications)

Omit On One or more zones are omitted

Off No zones are omitted

6 INS177

Page 7

Premier Series Master User Guide Overview

Keys

These keys are for entering User codes or programming data.

Yes & No Keys

The YES key is used to accept actions and the NO key is to cancel actions or edit data.

Omit Key

This key is used to omit zones (see page 21 for details).

Chime Key

This key is used for turning the chime facility on and off (see page 22 for details) and also for turning the Exit tones on and off during the exit mode.

Part Key

This key is used to part arm the system (see page 15 for details). It can also be used to do a ‘Quick’ part arm if this feature is enabled.

Area Key

This key is used to arm or disarm particular areas (see page 16 for details). It can also be used to do a ‘Quick’ arm if this feature is enabled.

Reset Key

This key is used to exit from a menu or to reset the system (see page 19 for details).

Scroll Key

This key is used to scroll through the various menus and options and also to slow down the display if it is scrolling through alarm information too fast.

Menu Key

This key is used to select the Arming or User menu.

Emergency Keys

In case of emergency, the alarm system can provide three immediate emergency alarms by pressing and holding two specific keys.

(

)

Press Keys UK Response Export Response

The emergency keys can be enabled/disabled for each keypad on the system.

The Panic alarm can be programmed for either audible or silent operation.

The Panic alarm can be programmed for either instant or delayed operation.

INS177 7

, . "

Panic Alarm (PA) Fire

Fire Panic Alarm (PA)

Medical Medical

Page 8

Overview Premier Series Master User Guide

The Quick Arm Keys

The ‘Quick Arm’ keys allow the system to be armed without having to enter a User code first.

The ‘Quick Arm’ keys will only work if the keypad has been programmed to allow

arming in this way.

To FULL arm the system, press

To PART arm the system, press

Keypad Lock

The keys on the keypad can be locked to prevent unwanted access to the system.

The Emergency keys will NOT operate with the keys locked.

To Lock the keys, press

To Unlock the keys, press

!, 0

and

(

followed by

together.

together again.

Reset and Service Messages

When the system requires a reset/service the display will show one of three messages. These messages can also be accessed at any time from the normal display.

These messages may have been programmed with the telephone numbers of the

installer or the Alarm Receiving Centre.

When alarm information is being displayed, pressing the SCROLL key will slow down the display and also allow manual scrolling through the events.

To display the reset/service messages, proceed as follows:

Press

followed by

Press

followed by

!"##$%#"&'$!() $$*(&$+,&-./,

followed by

!"##$012.1,,&$3( $$4,5,3$+653,'

!"##$%4!$3( 4,5,3$+653,'

to exit from the messages

)

The display will return to normal.

to view the Service message

to view the Reset message

to view the Anti-code message

8 INS177

Page 9

Premier Series Master User Guide Overview

Fault Messages

7".15$8(9,&$:;; $<=,$>?$7"&$@>>A

8B(1,$C.1,$*"=#3 $<=,$>?$7"&$@>>A

D"33,&6$*"=#3 $<=,$>?$7"&$@>>A

EEEEEEEE$<"'F,& $<=,$>?$7"&$@>>A

+,&-./,$4,G=.&,H $<=,$>?$7"&$@>>A

I$%&,"$+,/=&,H$I $<=,$>?$7"&$@>>A

$%/3.-.36$*"=#3 $<=,$>?$7"&$@>>A

EEEE$*=5,$D#(91 $<=,$>?$7"&$@>>A

%&,"$*".#,H$<,53 $<=,$>?$7"&$@>>A

4,'(3,$J,6F"H$.5 1(9$C:!J0K$(=3

<.',$%&'.12$L $$$$%)))))))

%#"&'$012.1,,& M(&N.12$:1$+.3,

There is a Mains failure (the keypad may chime every minute, enter a valid User code or press clear when mains is reapplied.

to stop the chime). The display will automatically

)

There is a Phone Line fault (the keypad may chime every minute, enter a valid User code or press automatically clear when line fault clears.

to stop the chime). The display will

)

There is a fault with the standby battery (the keypad may chime every minute, enter a valid User code or press your alarm company immediately.

to stop the chime). Contact

)

There is a Tamper fault (the alarm will sound, enter a valid User code to silence the alarm, this fault cannot normally be cleared). Contact your alarm company immediately.

The service timer has expired indicating that the system requires a service or a fault has occurred that requires attention (the system can normally still be used). Contact your alarm company to advise.

The keypad has been disabled to prevent unauthorised access. This normally occurs when a zone programmed as ‘Security Key’ is active, the display will automatically clear when the zone returns to normal.

A zone with the ‘Activity’ attribute has not been activated within the activity time period, this may be caused by an obstruction (view the zone status to find out which zone has not activated then activate the zone to clear the fault).

A fuse has blown (the alarm will sound, enter a valid User code to silence the alarm, this fault cannot be cleared). Contact your alarm company immediately.

Zones that have been placed on test by the engineer have failed the test (the system can still be used). Contact your alarm company to advise.

Too many invalid code attempts have caused the keypad to lock out. The keypad will normally remain like this for 5 minutes.

Areas are being armed using one of the control timers (enter a valid User code to defer the arming).

The alarm engineer has logged into the programming menu and is working on site (this message will clear when the engineer logs off or the system is armed).

When alarm information is being displayed, pressing the SCROLL key will slow

down the display and also allow manual scrolling through the events.

INS177 9

Page 10

Overview Premier Series Master User Guide

Zone Faults During Arming

Before attempting to arm the system, ensure that the premises are secure (all doors and windows closed etc.) and the Ready light is on.

If an attempt is made to arm the system with any zones active (e.g. door ajar, open window, etc.) the internal sounders will bleep repeatedly (fault tone) and the display will show the zones that are active.

O(1,$>>A$%/3.-, *&(13$H((&

The fault tone will stop and the exit tone will resume when all zones are secure. If it is necessary to leave a zone open then it must be omitted (see page 21 for details).

If an active zone cannot be secured then it may be ‘in fault’ in this case contact the

alarm company immediately.

Arm Fail - Failing to Arm

If the exit procedure is started and zones are still ‘Active’ at the end of the exit procedure, an Internal alarm will occur (internal sounders only) and the strobe light on the external sounder will flash.

If this occurs the arm fail must be cleared and the zone in fault identified before the

system can be armed (see page 18 for details on clearing an Arm Fail).

The Ready LED

To help prevent faults during arming, a Ready light has been provided. The Ready light works as follows:

• If the Ready light is ON then all zones are secure and the system is ready to be armed

• If the Ready light is OFF then one or more zones are active, either secure or omit

these zones before proceeding

• If the Ready light is FLASHING then the system has zones (with the ‘Force Omit’ attribute) that are active, check these zones before proceeding.

10 INS177

Page 11

Premier Series Master User Guide Using The Alarm System

2. Using the Alarm System

Introduction

The operation of the system is divided up into two sections, the Arming menu and the User menu.

To access the Arming menu enter a valid User code Arming menu, various functions can be selected by using the has been selected press

To access the User menu press options can be selected by using the

to access that option.

To exit from either menu press the

The diagram on page 12, shows both menus and the functions and options available.

The range of available functions and options will depend on the control panel

being used (some control panels do not support all of the features) and also the type of user on that system. If a function or option cannot be selected, it may be that it is not assigned to that user (see page 45 for details).

to access that function.

followed by

)

key. Once an option has been selected press

key and the display will return to normal.

1111

key. Once a function

. Once in the User menu, various

To access the Arming/User menu, proceed as follows:

. Once in the

The display will normally show the time & date (The top line is programmable).

$$ $<=,$>?$7"&$@>>A

To access the Arming menu enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

To select the User menu Press

K($6(=$9"13 P5,&$7,1=E

To access the User menu Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

The display will return to normal.

INS177 11

to exit either menu

)

11112

Page 12

Using The Alarm System Premier Series Master User Guide

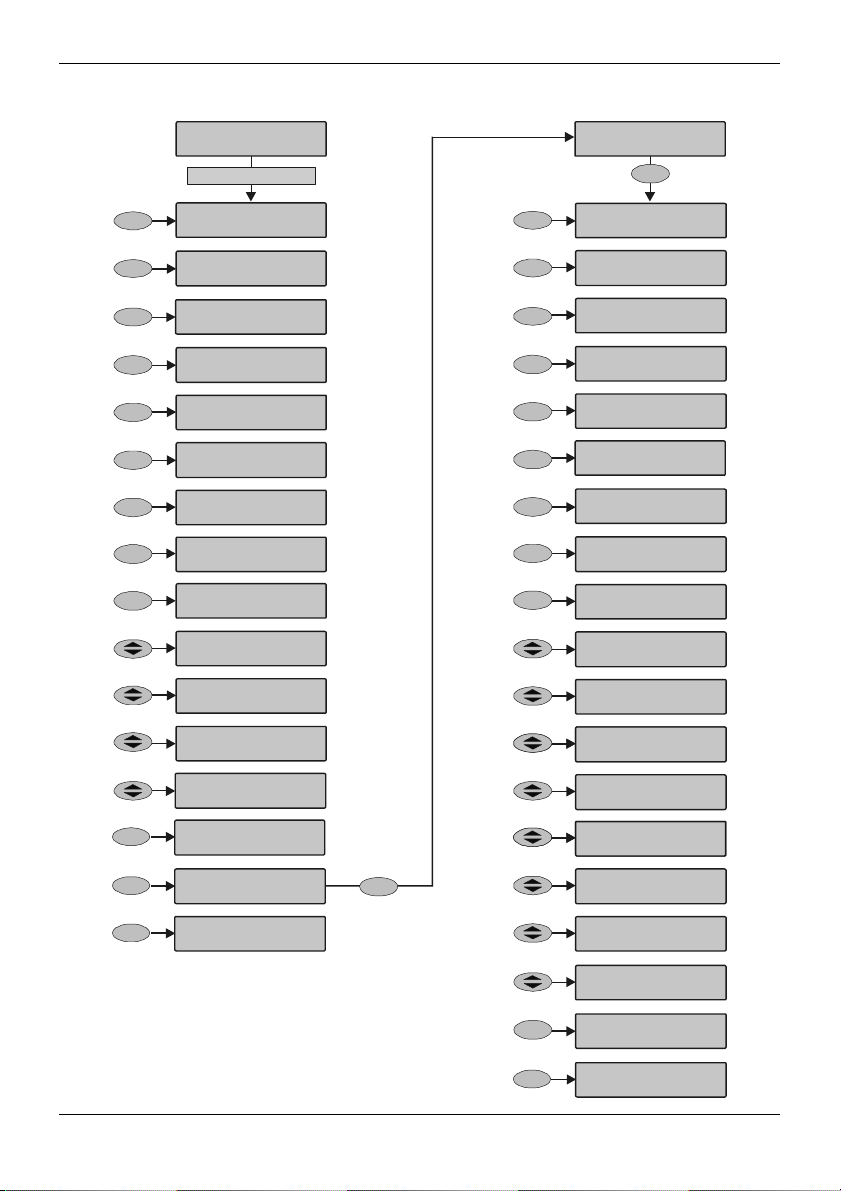

The Arming Menu

$$ A>R@S)TT"$M,H$>A

Enter A Valid User Code

K($6(=$9"13$3(

%&'$+653,'E

K($6(=$9"13$3(

abc

8"&3$%&'$+653,'E

K($6(=$9"13$3(

def

+.#,13$%&'E

K($6(=$9"13$3(

ghi

!"1/,#$0W.3E

K($6(=$9"13$3(

jkl

K.5"&'$+653,'E

K($6(=$9"13$3(

mno

P5,$%13.V/(H,E

K($6(=$9"13$3(

pqrs

:'.3$O(1,5E

tuv

wxyz

($6(=$9"1$(

,9$

(1,$"=5

($6(=$9"1$( '

($6(=$9"1$( ,

',$

(1,5

&,"5

abc

def

ghi

jkl

mno

pqrs

tuv

wxyz

The User Menu

($6(=$9"1 5,&$

,1=$

Yes

($6(=$9"1$(

,9$

-,1$(

($6(=$9"1$(

!B"12,$!(H,E

K($6(=$9"13$3(

',$

(1,5

($6(=$9"1$( ($65,'$,55

K($6(=$9"13$3( K($M"#N$<,53E

K($6(=$9"13$3(

,$11,,&

K($6(=$9"13$3(

,$65

,'$

K($6(=$9"13$3(

,$65

,'$",

($6(=$9"1$(

-,&&

',&5

($6(=$9"1$(

%#3,&$<.',&5E

0 _

Reset

($6(=$9"1$(

,9$/)$

($6(=$9"1$(

,9$/)$

($6(=$9"1$(

+,1H$+7+$<,W3$E

($6(=$9"1$(

0W.3$7,1=E

K($6(=$9"13 P5,&$7,1=$E

$$$

)

"$,$

Yes

0 _

Reset

($6(=$9"1$(

+,3=F$P5,&5E

($6(=$9"1$(

0W.3$7,1=E

,&$"&$

($6(=$9"1$( "$,'(

($6(=$9"1$(

0W.3$7,1=E

,&$()$",5

K($6(=$9"13$3( %HY=53$Q(#=',5E

($6(=$9"1$( &1$

($6(=$9"1$(

0W.3$7,1=E

-,1$(

(1,$

)

"$,$

&'5

()

12 INS177

Page 13

Premier Series Master User Guide Operating the Alarm System

3. Operating the Alarm System

Introduction

The normal day-to-day operations of the system are carried out using the Arming menu i.e. arming, disarming, omitting zones etc.

The range of available functions and options will depend on the control panel

being used (some control panels do not support all of the features) and also the type of user on that system.

Not all functions are available to all users. If a function cannot be selected, it may be that it is not assigned to that user (see page 45 for details).

If no keys are pressed, the display will return to normal after a pre-programmed time.

The table below shows the various functions available:

Arming Menu

Key Function Page

3 ! 0 ,

4 . / 5 " * * * +

Arm System" 14

Part Arm System" 15

Silent Arming" 14

Cancel Exit" 18

Disarm the System" 17

Use Anti-code" 20

Omit Zones" 21

View Zone Status" 23

Omit 24Hr Zones" 24

Set Chime Areas" 25

View Act. Faults" 26

View Act. Counts" 27

Send SMS Text" 28

User Menu" 29

INS177 13

Page 14

Operating the Alarm System Premier Series Master User Guide

To FULL Arm the System

The system is FULL Armed when ALL zones are ON (not omitted).

Your Installer may have programmed the system so that it can be set by just pressing

, if this is the case then there is no need to enter the User code below.

(

To arm the system, proceed as follows:

Ensure that the premises are secure (all doors and windows

closed etc.) and the Ready light is on.

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

The exit tone will sound (if silent arm has not been selected)

When the system has armed the exit tone will stop (if sounding)

to Silent arm (if required)

K($6(=$9"13$3( +.#,13$%&'E

Press

%&,"5$.1$0W.3$L $$$$%)))))))$

Leave the premises

$$$$ $<=,$>?$7"&$@>>A

The system is now armed.

1111

to arm

14 INS177

Page 15

Premier Series User Guide Operating the Alarm System

To PART Arm the System

The system is PART Armed, when ONE OR MORE zones have been left OFF (omitted) i.e. the landing or a bedroom.

The system is only Part Armed when zones are omitted using the ‘Part Arm’ procedure

(omitting zones manually (see page 21 for details) is not classed as Part Arming).

The bottom line of the display is programmable for each Part Arm.

Your Installer may have programmed the system so that it can be part armed by just pressing

no need to enter the User code below.

!, 0

followed by

if this is the case then there is

To part arm the system, proceed as follows:

Ensure that the premises are secure (all windows and doors not

being omitted are closed) and the Ready light is on.

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13RV 0-,1.12$"&'

Use keys

Press

The exit tone will sound (if silent arm has not been selected)

When the system has armed, the exit tone (if sounding) will stop

K($6(=$9"13RV D,H3.',$"&'

to arm normally or press

%&,"5$.1$0W.3$L $$$$%)))))))$

Leave the protected area

D,H3.',$"&' $$$$%)))))))

I$$8%4<$%470K$$I $<=,$>?$7"&$@>>A

The system is now part armed.

1111

to select the required part arm

to arm silently

INS177 15

Page 16

Operating the Alarm System Premier Series User Guide

To ARM Individual Areas

If the system has been split up into separate areas of protection i.e. Area 1 = House, Area 2 = Garage, Area 3 = Shed etc. These areas can be individually selected for FULL or PART arming as required.

Areas are selected by using keys

select an area followed by

Only areas that exist on the system can be selected. (a star means the area can be selected and a dot means the area cannot be selected).

Pressing first 8 areas and the second 8 areas (where applicable).

will select/deselect all areas, pressing

(

(the

key can also be used to

will toggle between the

(

To select areas for arming, proceed as follows:

Ensure that the premises are secure (all windows and doors not

being omitted are closed) and the Ready light is on.

Press

'!, 0

The exit tone will sound (if silent arm has not been selected)

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

+,#,/3$%&,"5$L $$L$III)))))$[

Use keys

Press

+,#,/3$%&,"5$L $$L$%DIIII))$[

followed by

1111

(

to select the required area

to FULL arm

to PART arm

%&,"5$.1$0W.3$L $$$$%D))))))$

Leave the premises

When the areas have armed, the exit tone (if sounding) will stop

%&,"5$%&',H$L $$$$%D))))))

The selected areas are now armed.

16 INS177

Page 17

Premier Series User Guide Operating the Alarm System

To DISARM the System

The Entry time is divided into two sections, the Entry time and the 2nd Entry time. If the Entry time expires, an Internal alarm will occur and the 2nd Entry time will start. If the 2nd Entry time expires, an Intruder alarm will occur (all internal and external sounders).

It is perfectly normal for the 2nd Entry time to be programmed as zero, in which

case, an Intruder alarm will occur as soon as the Entry time expires.

During Entry

To disarm the system, proceed as follows:

Enter the premises via the designated entry point

The entry tone will start

%&,"5$.1$013&6$L $$$$%D!)))))$

Enter a valid User code

The entry tone will stop

$$ $<=,$>?$7"&$@>>A

The system is now disarmed.

1111

When Not in Entry

To disarm the system, proceed as follows:

The display will look something like this:

$$ $<=,$>?$7"&$@>>A

Enter a valid User code

K($6(=$9"13$3( K.5"&'$+653,'E

Press

$$ $<=,$>?$7"&$@>>A

The system is now disarmed.

INS177 17

1111

Page 18

Operating the Alarm System Premier Series User Guide

To CANCEL the Exit Mode

Once the exit mode has been started you should leave the premise immediately, however, if for some reason you decide not to leave, the exit mode must be cancelled.

To cancel the exit mode, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( !"1/,#$0W.3E

Press

The exit tone will stop

$$ $<=,$>?$7"&$@>>A

The exit mode has now been cancelled.

1111

To CLEAR an Arm Fail

When the system tries to arm with zones active (open), the internal sounders will sound and the external strobe will be flashing to indicate a problem. For details on preventing an Arm Fail condition, please refer to page 10.

If you were not present when the arm fail occurred or you do not clear the arm fail, the

internal sounders will continue to sound and the external strobe will continue to flash.

To clear the arm fail, proceed as follows:

The alarm will be sounding and the display will look something like this:

%&,"$%47$*%\C$L $$$$%)))))))

Enter a valid User code

The internal and external sounders will stop, the external strobe will continue to flash and

the number of the zone that caused the arm fail will be displayed (in this case Zone 2).

1111

%&,"$%47$*%\C$L $$$$%)))))))

O(1,$>>@$%/3.-, D,H&(('$M.1H(9

Enter a valid User code

The arm fail has now been cleared.

18 INS177

1111

$$ $<=,$>?$7"&$@>>A

and press

)

Page 19

Premier Series User Guide Operating the Alarm System

To SILENCE an Alarm

When an alarm occurs on the system, the internal and external sounders will normally sound for a pre-programmed time (normally 15 minutes).

If you were not present when the alarm activated, the internal and external

sounders may have already stopped but the external strobe will still be flashing.

When alarm information is being displayed, pressing the SCROLL key will slow down the display and also allow manual scrolling through the events.

To silence an alarm, proceed as follows:

The alarm will be sounding and the display will look something like this:

$$ $<=,$>?$7"&$@>>A

Enter a valid User code

The internal and external sounders will stop and the number of the zone

that caused the alarm will be displayed (in this case Zone 2)

O(1,$>>@$%#"&' ASRS?)>SF$<=,$>?

<B,$U"##9"6$8.&

The alarm now needs to be reset.

1111

To RESET After an Alarm

USER Reset

Once the alarm has been silenced (see above), the system will need to be reset.

If the system has been programmed to be reset by an Engineer, pressing

return the display to normal, if this is the case see ENGINEER Reset (page 20) for details.

The system may have been programmed to be reset by Anti-code, if this is the case, see ANTI-CODE Reset (page 20) for details.

)

will not

To reset the alarm, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

The external strobe will stop, the system will chime

and the display will return to normal.

INS177 19

1111

)

Page 20

Operating the Alarm System Premier Series User Guide

ENGINEER Reset

If the system has been programmed to be reset by an Engineer following an alarm activation, you will still be able to silence the alarm by entering a valid User code (see page 19 for details).

The system cannot be armed again until the alarm has been reset.

To reset the alarm, proceed as follows:

Contact the telephone number on the display (if programmed) or

the telephone number on the last page of this User Guide.

ANTI-CODE Reset

If the system has been programmed to be reset using an Anti-Code following an alarm activation, you will still be able to silence the alarm by entering a valid User code (see page 19 for details).

The system cannot be armed again until the alarm has been reset.

To reset the alarm, proceed as follows:

Enter a valid User code

8&,55$40+0<$;(& %13.V/(H,

Press

The display will show a random code number i.e. 4281

]=(3,$L$S@^A 4,F#6$L$VVVV

Contact the telephone number on the display (if programmed) or the telephone

number on the last page of this User Guide and quote the random code number.

You will be given a 4-digit Anti-Code i.e. 5624

Enter the Anti-code that has been given to you

]=(3,$L$S@^A 4,F#6$L$T?@S

If the Anti-code is correct, the keypad will chime to indicate that the system

has been reset and the display will return to normal.

20 INS177

1111

)

Page 21

Premier Series User Guide Operating the Alarm System

To OMIT Zones

It is possible to exclude (omit) individual zones when arming i.e. if a zone is ‘in fault’. Users with access to this function can only omit zones that have been programmed as ‘Omittable’.

If the zone can be omitted, there will be a star to the right of the zone number.

Only zones that have the ‘Omit’ attribute assigned to them can be omitted.

A star will appear to the left of the zone number to indicate that the zone has been selected for omitting.

All omitted zones will be automatically reinstated the next time the system is disarmed, unless programmed otherwise.

To re-instate zones manually, simply follow the instructions again. However, when the

key is pressed this time, the zones will be re-instated.

To omit zones when arming, proceed as follows:

Enter a valid User code

Enter a zone number

Press

Repeat for other zones if required

Continue to arm the system as normal

The selected zones are now omitted (the omit light will be on).

1111

O(1,$>>AI+,/=&, *&(13$K((&$$$$$L

111

O(1,$>A>I%/3.-, C(=12,$K,3,/3(&$L

to omit the selected zone

O(1,I>A>I%/3.-, .5$:'.33,H

O(1,I>A>I+,/=&, C(=12,$K,3/3(&$L

Press

K($6(=$9"13$3( %&'$+653,'E

or use the

when finished

and press

key to search

INS177 21

Page 22

Operating the Alarm System Premier Series User Guide

To Turn CHIME On and Off

The system can be set up so that activating (opening) certain zones will cause the internal sounders to chime. This would normally be used on a front door, exit button etc.

Zones will only cause the internal sounders to chime if they are selected for chime

(see page 34 for details on selecting which zones chime).

Once a zone has been selected for chime, the Chime facility can be manually turned on and off as required.

The system can also be programmed to automatically turn Chime on and off

under certain conditions i.e. certain times of the day, door left open etc.

If no zones have been programmed for chime, then turning Chime on and off will have no effect.

To turn CHIME On proceed as follows:

Press

The Chime tone will sound.

To turn CHIME Off proceed as follows:

Press

The Fault tone will sound.

22 INS177

Page 23

Premier Series User Guide Operating the Alarm System

To VIEW the Status of Zones

Users with access to this feature will be able to check the status of each zone on the system to see whether it is in ‘Fault’, ‘Secure’, ‘Tamper’, ‘Shorted’ or ‘Inactive’.

To view the status of zones, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13$3( Q.,9$O(1,$+3"3=5

Press

O(1,$>>A$+,/=&, *&(13$K((&$$$$$L

Enter a zone number

(Pressing

appear to the right of the zone number), to clear the Chime, press

will make the zone chime every time it is activated (an Arrow will

(Pressing

(Every time the selected zone is activated, its status will be

displayed and the keypad will chime, if selected)

111

O(1,$>A>$+,/=&, C(=12,$K,3,/3(&$L

(

O(1,$>A>L%/3.-, C(=12,$K,3,/3(&$L

O(1,$>A>L+,/=&, C(=12,$K,3,/3(&$L

Press

)

The display will return to normal.

1111

or use the

will display the zone text)

when finished

to exit the menu

key to search

again)

INS177 23

Page 24

Operating the Alarm System Premier Series User Guide

To OMIT 24 Hour Zones

It is possible to exclude (omit) or include 24 Hour zones whilst the system is disarmed to allow access to an area. Users with access to this function can only omit zones that have been programmed as ‘Omittable’.

If the zone can be omitted, there will be a star to the right of the zone number.

Only zones that have the ‘Omit’ attribute assigned to them can be omitted.

A star will appear to the left of the zone number to indicate that the zone has been selected for omitting.

To re-instate the zones, simply follow the instructions again. However, when the

key is pressed on this occasion, the zones will be re-instated.

To omit 24 Hour zones, proceed as follows:

Enter a valid User code

Enter a zone number

Press

The display will look like this:

The selected 24 Hour zones are now omitted.

1111

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13$3( :'.3$@SU&$O(1,5

Press

O(1,$>>A$+,/=&, *&(13$K((&$$$$$L

111

O(1,$>AT$+,/=&, D"/N$K((&$$$$$$L

to omit the selected zone

O(1,I>AT$+,/=&, .5$:'.33,H

O(1,I>AT$+,/=&, D"/N$K((&$$$$$$L

Repeat for other zones

Press

to exit the menu

)

I$O(1,5$:'.33,H$I $<=,$>?$7"&$@>>A

or use the

when finished

key to search

24 INS177

Page 25

Premier Series User Guide Operating the Alarm System

To SELECT Areas for Chime

When a zone is enabled for Chime the Keypad will generate a chime tone every time the zone is activated. Users with access to this function will be able to turn Chime on and off for selected areas.

Zones within an area can be individually programmed for Chime in Edit Chime Zones (see page 34 for details).

Only areas that have been programmed for ‘Chime’ can be selected. A star means

the area can be selected and a dot means the area cannot be selected.

Pressing

will select/deselect all areas.

will toggle between areas A to H and I to P (Premier 168 only).

(

To select an area for Chime, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

01"X#,$!B.',$(1 $$L$III)))))$[

Use keys

(i.e.

!, 0

The display will return to normal.

and

01"X#,$!B.',$(1 $$L$%D!)))))$[

Press

)

1111

to select/deselect areas

= Areas A, B and C)

when finished

to exit the menu

INS177 25

Page 26

Operating the Alarm System Premier Series User Guide

To VIEW Activity Faults

If any zones with the ‘Activity’ attribute have not been activated within a certain time period, an activity fault will be displayed at the time of arming. Users with access to this function will be able to view the activity faults.

To view activity faults on a Premier 24, the ‘View Zone Status’ menu must be used

(see page 23 for details).

The system may have been programmed so that an activity fault will not allow arming. If this is the case the system can only be armed once the zone in fault has been activated (forced walk test).

Only zones with the ‘Activity’ attribute that have not been activated will be shown.

To view activity faults, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

until the display looks like this:

O(1,$>>A$+,/=&, *&(13$K((&$$$$$L

to scroll up and down through the zones

Press

The display will return to normal.

1111

K($6(=$9"13$3( Q.,9$%/3)$*"=#35

Press

when finished

to exit the menu

)

26 INS177

Page 27

Premier Series User Guide Operating the Alarm System

To VIEW Activity Counts

Users with access to this menu will be able to view the number of times that zones with the ‘Activity’ attribute have been activated, for each area.

To view activity counts, proceed as follows:

Use keys

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

(To reset the activity counter press

until the display looks like this:

K($6(=$9"13$3( Q.,9$%/3)$!(=135

Press

%/3.-.36$%L$>>>> <(3"#$!(=13$>>>T

to select an area or use the

%/3.-.36$DL$>>>T <(3"#$!(=13$>>>>

Press

The display will return to normal.

when finished

to exit the menu

)

1111

)

key to search

INS177 27

Page 28

Operating the Alarm System Premier Series User Guide

Sending a Text Message to a Mobile Phone

If the control panel has a Com2400 or GSM Module fitted, the keypad can be used to send a Text message directly to any of the pre-programmed mobile phone numbers.

To send a Text Message, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

Use the keypad to type a message, press

(For details on programming text please refer to page 49).

Press

until the display looks like this:

K($6(=$9"13$3( +,1H$+7+$<,W3$E

Press

$ _$$$$$$$$$$$L<`<

<,#,FB(1,$Z()$AL >a^>A@bST?

to select the required telephone number

<,#,FB(1,$Z()$bL >a^c>A@bST?

Press

$$$$ $<=,$>?$7"&$@>>A

The display will return to normal.

1111

when finished

28 INS177

Page 29

Premier Series Master User Guide Programming the Alarm System

4. Programming the Alarm System

Introduction

Advanced operations of the system are carried out using the User Menu i.e. System Tests, Assigning Users etc.

The range of available functions and options will depend on the control panel

being used (some control panels do not support all of the features) and also the type of user on that system.

Not all options are available to all users. If an option cannot be selected, it may be that it is not assigned to that user (see page 45 for details).

If no keys are pressed, the display will return to normal after a pre-programmed time.

The table below shows the various options available:

User Menu

Key Option Page

! 0 ,

4 . / 5 " * * * * * * * *

View Event Log" 30

Change Code" 33

Edit Chime Zones" 34

System Tests" 35

Walk Test" 36

Enable Engineer" 37

Set System Time" 38

Set System Date" 39

Override Timers" 40

Alter Timers" 41

Setup Users" 43

Alter Part Arms" 53

Call Remote PC" 54

Alter Hol. Dates" 55

Adjust Volumes" 56

Print Event Log" 57

Edit Phone No." 58

INS177 29

Page 30

Operating the Alarm System Premier Series User Guide

Viewing the Event Log

Users with access to this option can view the system Event Log. This log records all of the events that occur on the system, i.e. Users entering their codes to arm or disarm the system, alarms, failures to arm etc. along with the time and date on which they occurred.

The down key moves you to the previous event (backwards in time), and the up

key moves you forwards again.

The

For a full list of Event Log descriptions, please refer to the Master User Guide.

key toggles between the area information and the time/date.

(

To view the Event Log, proceed as follows:

Press

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

!(H,$>A$K"-.H $A@R@^)>S$>?d>b

Press

to toggle between the area information and the time/date

(

Press

to scroll up and down through the Log

%&,"5$K.5"&',H $A@R@^)>S$>?d>b

to display zone text (where applicable)

%&,"5$K.5"&',H $$$$%)))))))

Press

)

The display will return to normal.

1111

when finished

to exit the menu

30 INS177

Page 31

Premier Series Master User Guide Programming the Alarm System

Event Log Descriptions

Log Event Description

KSW ### Active A Keyswitch zone type has been activated (zone number ###)

RKP #,# MEDICAL A Medical alarm (7 & 9) has occurred from keypad number #,#

RKP #,# FIRE A Fire alarm (4 & 6) has occurred from keypad number #,#

RKP AUD PA #,# An Audible PA alarm (1 & 3) has occurred from keypad number #,#

RKP SIL PA #,# A Silent PA alarm (1 & 3) has occurred from keypad number #,#

DURESS User ## has entered a Duress Code at a keypad

ALARM Active An Intruder alarm signal has been activated for area ?

BELL Active The Bell output has been activated for area ?

REARM LOCK ### Zone ### has re-armed after causing an alarm

CROSS ### A Verified Cross Zone Alarm has occurred from zone ###

USER ## User ## has entered their code

AREAS EXIT The Exit mode has been started for area ?

ARMING FAILED A Exit Error-Arm Fail has occurred on area ?

AREAS ENTRY The Entry mode has been started for area ?

ARMING SUITE Area Arm Suite # was used to arm the system

ARMED WITH L/F The system has been armed with a Line Fault condition present

AREA Armed Area ? has been armed

AREA Disarmed Area ? has been disarmed

PART Armed Area ? has been Part Armed

TIME Armed Area ? was armed automatically using one of the timer controls

TIME Disarmed Area ? was disarmed automatically using one of the timer controls

DEFERRED The arming mode was deferred for area ?

ALARM ABORT An Open After Alarm-Abort has occurred for area ?

REMOTE Armed Area ? was armed using the Wintex UDL software

REMOTE Disarmed Area ? was disarmed using the Wintex UDL software

QUICK Armed Quick Arm from keypad #,#

RECENT Armed Area ? has been armed recently

#,# RESET AREAS Area have been reset using keypad #,# following an Intruder alarm

Engineer Reset A reset has been performed using an Engineers code

Anti-Code Reset A reset has been performed using the Anti-code reset procedure

Remote Reset A reset has been performed using the ‘Remote Reset’ input

Redcare Reset A reset has been performed by the Redcare

Key switch Reset A reset has been performed using a key switch

User Reset A reset has been performed using a User code

EXP #,# Reset A reset has been performed using the input on expander #,#

INS177 31

Page 32

Operating the Alarm System Premier Series User Guide

Remote PC Reset A reset has been performed by the remote download PC

FUSE #,# FAIL The Auxiliary 12V Fuse in device #,# has failed

AC POWER The control panel has registered a AC Mains failure

LOW BAT The control panel has registered a low battery condition

POWERED UP System Power Up (without doing a factory restart)

BELL FUSE The control panel Bell Fuse has failed

LINE FLT There is a problem with the telephone line

Panel Line Fault The control panel line fault input has been activated

Redcare Line Fault The Redcare has detected a line fault

Com??? Line Fault The Com300, 2400 or ISDN has detected a line fault

Exp #,# Line Fault The Input on expander #,# has been activated

COMS FAILED The Communicator has failed to report to the Alarm Receiving Centre

DOWNLOAD START An Upload/Download has been initiated

DOWNLOAD END The Upload/Download has finished

LOG ALERT 80% of the Event Log has filled (since the last Upload/Download)

DATE CHANGED The control panel Time has been changed

TIME CHANGED The control panel Date has been changed

Event Log Hotkeys

When viewing the system log there are 8 hotkeys available. These hotkeys allow certain events to be found easier without the need for searching.

The following hotkeys are available:

= Priority Alarms (PA, Fire etc.)

= Normal Alarms (Guard, 24hr, Entry/Exit etc.)

= Opens and Closings (Arm, Disarm etc.)

= Omits and Reinstates (Zone Omits etc.)

= Maintenance (System Tests, Engineer Program etc.)

= Tampers (Zone, Bell, Aux etc.)

= Test Calls (Communicator Active, successful etc.)

= Entry/Exit (Entry and Exit Procedures)

= User Codes (User codes being used)

32 INS177

Page 33

Premier Series Master User Guide Programming the Alarm System

Changing Your User Code

Users with access to this option can change their own User codes. User codes are unique to each user and can be 4, 5 or 6 digits long.

Only the User code that is entered to access the change code menu will be changed.

Before changing your code, it is vital that you memorise or write down the new code you are about to program. Failure to remember your code will require an engineer visit to re-program a new code for you. This may incur a call-out charge.

To change your User code, proceed as follows:

Enter the User code that requires changing

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

K($6(=$9"13$3( !B"12,$!(H,E

Press

013,&$Z,9$!(H,L $$$$$VVVVVV

Enter a new 4, 5 or 6-digit User code

013,&$Z,9$!(H,L $$$$$VV^c^c

Press

The display will return to normal.

to accept the new code

to exit the menu

)

1111

INS177 33

Page 34

Operating the Alarm System Premier Series User Guide

Setting up Zones for Chime

Users with access to this option will be able to select which zones cause the internal sounders to chime every time they are activated. Chime would normally be used on a front door, back door, exit button etc.

Zones will only cause the internal sounders to chime if Chime is turned on (see

page 22 for details on turning Chime on and off).

To setup zones for Chime, proceed as follows:

Enter a valid User code

Enter the zone number

Press

Once for Chime 1, twice for Chime 2 etc

Repeat for other zones if required

1111

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

K($6(=$9"13$3( 0H.3$!B.',$O(1,5

Press

O(1,$>>A$+.#,13 *&(13$K((&$$$$$L

111

O(1,$>AT$+.#,13 D"/N$K((&$$$$$$L

to select Chime

O(1,$>AT$!B.',$@ D"/N$K((&$$$$$$L

or use the

key to search

Press

The display will return to normal.

34 INS177

when finished

to exit the menu

)

Page 35

Premier Series Master User Guide Programming the Alarm System

Testing the Sounders and Strobe

Users with access to this option can test various system outputs to ensure that they operate correctly. These include any outputs that have been programmed for specific operations i.e. bringing on floodlights, sounding buzzers etc. The internal sounders, speakers and the external sounder can also be tested to ensure that they are operating correctly.

Any outputs that have been left ‘On’ will be turned ‘Off’ when the menu is exited.

To test the Sounders and Strobe, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

K($6(=$9"13$3( K($+653,'$3,535E

Press

8=5B$e0+$3($3,53 D,##$.5$$$$$L:;;

to select the BELL test

to select the STROBE test

to select the SPEAKER test

to select the USER OUTPUTS test

to select the DISPLAY test

i.e. 2 for Speaker test

8=5B$e0+$3($3,53 +F,"N,&$$$$$L:;;

to test the selected output

, when finished

to exit the menu

)

Press

The display will return to normal.

1111

INS177 35

Page 36

Programming the Alarm System Premier Series Master User Guide

Walk Testing the System

Users with access to this option can walk test any of the zones on the system to ensure that they operate correctly. A walk test can only be performed when the system or area is disarmed. 24 Hour zones (except Fire and Tampers) are disabled during walk test allowing Audible PA buttons, Silent PA buttons, etc. to be tested.

To perform a walk test, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

K($6(=$9"13$3( K($M"#N$3,53E

Press

M"#N$3,53$"&,"5L $$L$IIIIII))$[

Use keys

Every time zones are activated the keypad will chime

Press

to select an area for walk testing

M"#N$3,53$"&,"5L $$L$%IIIII))$[

$$$$I$Z:Z0$I

1111

to start the walk test

O(1,$>A>L%/3.-, C(=12,$K,3,/3(&$L

Press

The display will return to normal.

36 INS177

, when finished

to exit the menu

)

Page 37

Premier Series Master User Guide Programming the Alarm System

Enabling Engineer Access

If Engineer access (either on-site or via remote download computer) has been programmed as User authorised, this option must be used to allow the Engineer access to the programming menu. Users with access to this option can authorise Engineer access.

Engineer access is only permitted for 4 hours after it is enabled, after which, it will

automatically be disabled again.

To enable Engineer access, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

until the display looks like this:

K($6(=$9"13$3( 01"X#,$012.1,,&E

Press

012.1,,&$%//,55L K.5"X#,H

to enable/disable Engineer access

012.1,,&$%//,55L 01"X#,H

Press

)

The display will return to normal.

1111

to exit the menu

INS177 37

Page 38

Programming the Alarm System Premier Series Master User Guide

Setting the System Time

The alarm system has a real time clock that is used to date and time stamp events that are recorded within the system Log. Users with access to this option will be able to set the Time on your alarm system.

To set the System Time, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

K($6(=$9"13$3( +,3$+653,'$<.',E

Press

013,&$Z,9$<.',$L $$$$$A@R@^$D+<

Enter the new time (24 Hour format)

013,&$Z,9$<.',$L $$$$$@ARST$D+<

Press

to change between BST and GMT

)

013,&$Z,9$<.',$L $$$$$@ARST$f7<

Press

)

The display will return to normal.

1111

to exit the menu

6677

38 INS177

Page 39

Premier Series Master User Guide Programming the Alarm System

Setting the System Date

The alarm system has a real time clock that is used to date and time stamp events that are recorded within the system Log. Users with access to this option will be able to set the Date on your alarm system.

To set the System Date, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

K($6(=$9"13$3( +,3$+653,'$K"3,E

Press

013,&$Z,9$K"3,$L $$$$>?d>bd>A

Enter the new date

Press

The display will return to normal.

887799

013,&$Z,9$K"3,$L $$$$@Sd>Td>A

)

1111

when finished

to exit the menu

INS177 39

Page 40

Programming the Alarm System Premier Series Master User Guide

Overriding the Control Timers

The system has Control Timers that may have been programmed to activate outputs, arm areas or lockout users at different times of the day. Users with access to this option can turn the control timers on and off manually if required.

To turn the control timers on & off, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

Use keys

until the display looks like this:

K($6(=$9"13$3( :-,&&.H,$<.',&5E

Press

!(13&(#$ ))))))))$.5$(1

to toggle control timers on and off

(i.e. 1 = Timer 1)

!(13&(#$ A)))))))$.5$(1

Press

)

The display will return to normal.

1111

<.',&

when finished

to exit the menu

40 INS177

Page 41

Premier Series Master User Guide Programming the Alarm System

Altering the Control Timers

The system has Control Timers. Each timer has two ON and OFF times, and can be programmed to operate on any day of the week. Once configured the timers can be used to automatically arm or disarm areas, lockout User codes and control outputs etc. Users with access to this option can program the Control Timers.

To program control timers, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

Use

Enter the first On time (24 Hour format)

Use keys

(i.e.

until the display looks like this:

K($6(=$9"13$3( %#3,&$3.',&5

Press

!(13&(#$<.',&$A" .5$:1$"3$L>>R>>

to Select a Control Timer from 1 to 8

!(13&(#$<.',&$@" .5$:1$"3$L>>R>>

!(13&(#$<.',&$@" .5$:1$"3$LA@RbT

Press

<.',&$@"$:1$K"65 ))))))))))))))))

to select the On days (SUN to SAT)

and

1111

when finished

= Sunday and Monday)

6677

INS177 41

Page 42

Programming the Alarm System Premier Series Master User Guide

<.',&$@"$:1$K"65 +=7())))))))))))

Press

Enter the first Off time (24Hour format)

Press

Use keys

(i.e.

Repeat programming for the timers Second

On times, On days, Off times and Off days

to select the first Off days (SUN to SAT)

and

Press

Repeat for other Control Timers

when finished

!(13&(#$<.',&$@" .5$:;;$"3$LA@R>>

!(13&(#$<.',&$@" .5$:;;$"3$LASR>>

when finished

<.',&$@"$:;;$K"65 ))))))))))))))))

= Friday and Saturday)

<.',&$@"$:;;$K"65 ))))))))))*&+"))

when finished

!(13&(#$<.',&$@X .5$:1$"3$L>>R>>

6677

Press

The display will return to normal.

42 INS177

when finished

to exit the menu

)

Page 43

Premier Series Master User Guide Programming the Alarm System

Adding New Users to the System

When the control panel is first installed, only the Engineer code and the Master User code exist, additional users need to be added to the alarm system manually.

The factory default Master User code is

The Master User code is always User 01 and can never be deleted.

4./5

Programming New Users

Each User on the system is made up of the following elements. 1, 2 or 8, 3 and 4, these are essential for the code/TAG to function correctly, items 5, 6 and 7 are optional.

1. User Number

When users are assigned to the system, they need to be identified by the control panel. Each user is identified as Users 01, 02, 03 etc. User 01 is always the Master User.

2. User Code

This is a unique 4, 5 or 6 digit code number that is assigned to a user (the system will allow a mixture of different lengths). The User code must be entered at a keypad to operate the alarm system.

3. User Areas

Any number of areas can be assigned to the selected user. Assigning areas to a user determines which areas can be armed, disarmed, reset etc. by that user. In addition, assigning areas to a user determines which of the area related functions i.e. omitting zones, silent arming etc. will be available to that user.

4. User Types

The User type determines which functions are available to the user i.e. arming, disarming, resetting etc. and also, which options the user can access i.e. Setup Users, System Tests etc.

5. User Time Lock

This option allows the selected user to be denied access to the system at different times of the day and days of the week. When a Control Timer is assigned to a user, the User code will not allow access to any functions during the timers ‘On’ period.

6. User Name Text

Each user can be assigned up to 8 characters of name text. The name text is displayed whenever a code is entered and also when reading the log, making identification of people using the alarm easier.

7. Door Control

This option would normally be used for access control. Users are able to open/unlock doors that are assigned to their user code.

8. Proximity TAG

As well as or instead of operating the alarm system with a 4, 5 or 6-digit code number, it is also possible to operate it by presenting a Proximity TAG to the keypad (this requires a Proximity keypad).

INS177 43

Page 44

Programming the Alarm System Premier Series Master User Guide

User Types

The User type determines which functions are available to the user i.e. arming, disarming, resetting etc. and also, which options the user can access i.e. Setup Users, System Tests etc. The following User types are available:

1: Master

Master users can arm, disarm, omit zones, silence alarms and reset their assigned areas. In addition, Master users can access all User menu options. Master users can also change their own User codes and assign new users to the system. The Master user will also activate any output programmed as ‘Door Strike’.

2: Manager

Manager users can arm, disarm, omit zones, silence alarms and reset their assigned areas. In addition, Manager users can access all User menu options except Setup Users. Manager users can also change their own User codes.

3: Standard

Standard users can arm, disarm, omit zones, silence alarms and reset their assigned areas. In addition, Standard users can access all User menu options except for Setup Users, System Tests, and Change Timers. Standard users can also change their own User codes.

4: Local (Premier 48,88,168,640) Shunt (Premier 24)

Local users behave the same way as Standard users. However, Local users can only arm and disarm areas assigned to their codes from keypads assigned to the same areas.

Shunt users can omit and reinstate any zone that has been programmed as ‘Shuntable’.

5: Duress

Duress users behave the same way as Standard users. However, Duress users will activate any outputs programmed as ‘Panic Alarm’ or ‘Duress’ whenever their code is entered.

6: Arm Only (Premier 48,88,168,640) Reset Only (Premier 24)

Arm Only users can only arm and reset their assigned areas.

Reset Only users can only disarm following an alarm and then reset, rearm the alarm again.

7: Door Strike

Door Strike users have no access to User functions or Menu options. However, Door Strike users will activate any outputs programmed as ‘Door Strike’ whenever their code is entered.

8: Vacation

Vacation users behave as Standard users. However, Vacation users are automatically deleted the first time that the Master User code (User 01) is used to disarm the system.

A Vacation user is only deleted by the Master user after it has been used to disarm

the system at least once.

9: Custom

Custom users can access any functions and User menu options that have been assigned to them in ‘User Options 1 or 2’ and ‘User Config.’. This flexibility allows new User types to be created that have their own unique set of characteristics. Any number of Custom users can be assigned to the system and each one will respond differently, depending on the functions and features that have been assigned to them.

44 INS177

Page 45

Premier Series Master User Guide Programming the Alarm System

Available Options

The table below shows the options that are available to each user.

All users that have access to the ‘Arming Menu’ have the ability to ‘View Zone

Status’, ‘Set Chime Areas’, ‘View Act. Faults’ and ‘View Act. Counts’.

All users have access to the ‘User Menu’ have the ability to ‘View Event Log’, ‘Adjust Volumes’ and ‘Print Event Log’.

User Options 1

Engineer Master Manager Standard Local Duress Arm Only Door Strike Vacation Custom

Arming Arming Arming Arming Arming Arming Arming - Arming Arming

Disarming Disarming Disarming Disarming Disarming Disarming - - Disarming Disarming

Omitting Omitting Omitting Omitting Omitting Omitting - - Omitting Omitting

Eng. Reset - - - - - - - - -

- - - - Local Arming - - - - -

- - - - Local Disarm - - - - -

- - - - - - - - - -

Disarm First Disarm First - Disarm First Disarm First Disarm First Disarm First Disarm First - Disarm First Disarm First

User Options 2

Engineer Master Manager Standard Local Duress Arm Only Door Strike Vacation Custom

User Menu User Menu User Menu User Menu User Menu - User Menu - User Menu User Menu

Eng. Program - - - - - - - - -

- - - - - - - - - -

- - - - - - - - Vacation -

Door Strike Door Strike - - - - - Door Strike - -

Call Rem PC Call Rem PC Call Rem PC - - - - - - -

- - - - - Duress Code - - - -

Open/Close Open/Close Open/Close Open/Close Open/Close Open/Close Open/Close - Open/Close Open/Close

User Config

Engineer Master Manager Standard Local Duress Arm Only Door Strike Vacation Custom

Change Code Change Code Change Code Change Code Change Code - - - - -

Chime Zones Chime Zones Chime Zones Chime Zones Chime Zones - - - - -

Change Timer Change Timer Change Timer - - - - - - -

System Tests System Tests System Tests - - - - - - -

Setup Users User Setup - - - - - - - -

Eng. Access - - - - - - - - -

Add Eng Code - - - - - - - - -

NVM Locking - - - - - - - - -

INS177 45

Page 46

Programming the Alarm System Premier Series Master User Guide

User Options 1

This menu defines which options are available to the user when their code is entered. This menu is not available to all users.

Press

The following options are available:

A - Arming

Areas assigned to the selected user can be armed.

D - Disarming

Areas assigned to the selected user can be disarmed.

O - Omitting

Zones assigned to the same areas as the selected user can be omitted, providing that they have the ‘Omit’ attribute assigned to them.

R - Eng. Reset (Engineers only)

Areas programmed as ‘Engineer Reset’ can be reset after an Alarm has occurred.

a - Local Arming (not on Premier 24)

The User can only arm areas that the keypad is assigned to.

d - Local Disarm (not on Premier 24)

The User can only disarm areas that the keypad is assigned to, or areas that are in entry or alarm (provided that the code has that area assigned to it).

Y - Auto ‘YES’

After a code is entered, pressing

F - Disarm First (not on Premier 24)

If an area is armed and the user enters their code, the ‘Disarm’ option is displayed first.

to scroll through the options and press

(‘Letter’ = option IS selected, ‘Star’ = option is NOT selected).

to confirm the next action is not required.

to select them or use keys

The following attributes are only available on the Premier 24.

Some of the following options may not always be selectable or de-selectable.

T - Lock TAG = PGM2

The Users TAG is disabled whenever PGM2 is active.

C - Lock Code = PGM3

The Users code is disabled whenever PGM3 is active (default = during the Entry mode).

U - Lock User = PGM4

The Users TAG and Code is disabled whenever PGM4 is active (default = Control Timer 4).

O - Open/Close

The selected user will report open (disarm) and close (arm) events to an Alarm Receiving Centre every time they arm or disarm.

46 INS177

Page 47

Premier Series Master User Guide Programming the Alarm System

User Options 2

This menu defines which options are available to the user when their code is entered. This menu is not available to all users.

Press

The following options are available:

U - User Menu

The selected user has access to the User menu. However, the selected user will only have access to options assigned in ‘User Config.’ (see page 48 for details).

E - Eng. Program (Engineers only)

Only Available to Engineers.

D - Dual Code

The selected user can only access an area when a second User code (with the ‘Dual Code’ attribute and also assigned to the same area) is entered. Dual Code users will also activate the ‘1

V - Vacation

The selected user is enabled the first time it is used to disarm the system and can be used as many times as required. However, it will be automatically deleted the first time that the User 01 code is used to disarm. Vacation users will only be deleted by the Master user, once they have been used on the system.

S - Door Strike

The selected user will activate any outputs programmed as ‘Door Strike’, whenever their codes are entered.

R - Call Rem. PC

The selected user has access to the ‘Call Remote PC’ option, allowing them to initiate a call to a remote Upload/Download PC (see page 54 for details).

C - Duress Code

The selected user will activate any outputs programmed as ‘Duress’, whenever their codes are entered.

O - Open/Close

The selected user will report open (disarm) and close (arm) events to an Alarm Receiving Centre every time they arm or disarm.

to scroll through the options and press

(‘Letter’ = option IS selected, ‘Star’ = option is NOT selected).

and 2nd Code’ output type.

to select them or use keys

INS177 47

Page 48

Programming the Alarm System Premier Series Master User Guide

User Config.

This menu defines which menu options are available to the user when their code is entered.

This menu will only be displayed if a Custom User type is selected AND ‘User Menu’ (User Option: U) is enabled (see page 47 for details).

Press

The following options are available:

C - Change Code

The selected user can change their own User code.

Z - Chime Zones

The selected user can access the ‘Edit Chime Zones’ option, allowing them to select which zones chime when activated (see page 34 for details).

T - Change Timers

The selected user can access the ‘Override Timers’ (see page 40 for details) ‘Alter Timers’ (see page 41 for details) ‘Alter Part Arms’ (see page 53 for details) ‘Alter Hol. Dates’ (see page 55 for details) and ‘Edit Phone No.’ (see page 58 for details) menu options.

S - System Tests

The selected user can access the ‘System Tests’ option, allowing them to walk test zones, activate the external sounder etc. (see page 35 for details).

U - Setup Users

The selected user can access the ‘Setup Users’ option, allowing them to alter existing users or assign new users (see page 43 for details). However, users cannot assign User types to the system that have a higher access level than themselves. Also, if a user assigns a Custom User type, functions that are not available to them cannot be assigned to the Custom user.

E - Eng. Access

The selected user can access the ‘Enable Engineer’ option, allowing them to authorise Engineer access or Remote UDL access to the system (see page 30 for details).

A - Add Eng. Code (Engineers only)

Only Available to Engineers.

N - NVM Locking (Engineers only)

Only Available to Engineers.

to scroll through the options and press

(‘Letter’ = option IS selected, ‘Star’ = option is NOT selected).

to select them or use keys

48 INS177

Page 49

Premier Series Master User Guide Programming the Alarm System

User Name Text

Each user can be assigned up to 8 characters of name text. This can be beneficial when reading the log, as identification of people is made easier.

Text is programmed in a similar way to mobile phones. Characters are selected by pressing the corresponding key the appropriate number of times (to select a character

on the same key, press

Some control panels also features Predictive text. This can be used to make inserting words easier, i.e. when spelling the word COLIN, instead of typing 222666555444666, all that you need to do is type 26546 and the word is automatically selected.

It is advised that predictive text be turned off when programming User name text

as the library is not comprehensive enough to include all known names.

The library cannot be edited i.e. words cannot be added or changed.

The table below shows the keys to use and the characters that are assigned to them:

Key Character

32 !2 02 ,2

-2 42 .2 /2 52 "2 *2 )2 &2 '2 %2 $2

to move the cursor along).

_ 0

. , ? ! 1 @ “ - & % / + = $ : ;

A B C 2 a b c

D E F 3 d e f

G H I 4 g h i

J K L 5 j k l

M N O 6 m n o

P Q R S 7 p q r s

T U V 8 t u V

W X Y Z 9 w x y z

Move Cursor

Backspace (delete)

Copy Text

Paste Text

Predictive Text

Upper/Lowercase, Predictive text and Clear Screen

INS177 49

Page 50

Programming the Alarm System Premier Series Master User Guide

Programming User Codes

To Program User codes, proceed as follows:

Enter a valid User code

Press

Select a user

Enter the new User code

Use keys

(The code can be 4, 5 or 6-digits long)

(Refer to page 43 for a list of available User types)

1111

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

until the display looks like this:

K($6(=$9"13$3( +,3=F$P5,&5E

Press

+,3=F$P5,&5$ P5,&$>@R

or use the

(i.e. 10 = User 10)

013,&$P5,&$!(H,L $$$$$VVVVVV

key to search then press

1111

P5,&$A>$"&,"5$L $$L$%IIIIIII$[

to select/deselect areas then press

P5,&$A>$<6F,$.5L Z(3$.1$P5,

to select a User type or use the

then press

key to search

P5,&$A>$<6F,$.5L +3"1H"&H

Press

50 INS177

Page 51

Premier Series Master User Guide Programming the Alarm System

These options are only displayed if a Custom User type is selected

Press

%&'.12 L%$K$:$I$I$I$I$*

%//,55$P5,&$7,1= LP$I$I$I$I$I$I$:

(The following option is only displayed if ‘User Menu’ has been selected, see above)

!B"12,$:91$!(H, L!$O$I$I$I$0$I$I

Use keys

Press

(For details on programming text please refer to page 49). Press

to scroll through options and press

(‘Letter’ = option IS selected, ‘Star’ = option is NOT selected).

Press

to select ‘Options 2’ and press

Press

to select ‘Config’ and press

Press

to edit the User name text, press

to select a timer if required then press

when finished

Press

P5,&$A>$C(/N,HL X6$3.',&))))))))

P5,&$A>$Z"',$.5R

to select the option

P5,&$A>$:F3.(1$A $%$K$:$I$I$I$I$*

to edit

P5,&$A>$:F3.(1$@ $P$I$I$I$I$I$I$:

to edit

P5,&$A>$!(1;.2) $!$O$I$I$I$0$I$I

when finished

This option is only displayed if a User with the ‘Door Strike’ attribute is selected

P5,&$A>$K((&$!3# $$L$IIIIIIII$[

Use keys

Press

INS177 51

to assign a TAG then present the TAG to the ‘Prox’ symbol on the keypad

to select/deselect doors then press

K($6(=$9"13$3( %HH$<%f$3($P5,&E

(A confirmation tone will be heard)

Press

The display will return to normal.

when finished

to exit the menu

)

Page 52

Programming the Alarm System Premier Series Master User Guide

Programming Proximity TAGS

To program TAGS proceed as follows:

Ensure that Setup Users is selected, the display should look like this:

+,3=F$P5,&5$

Select a user

P5,&$>@R

K($6(=$9"13$3( %HH$<%f$3($P5,&E

Press

then press

Present the TAG to the ‘Prox’ symbol on the keypad

Deleting Users

To delete User codes proceed as follows:

Ensure that Setup Users is selected, the display should look like this:

Press

8&,5,13$<%f$Z:M$g

(A confirmation tone will be heard)

Press

The display will return to normal.

Select a user

to confirm deletion of the selected User code

Press

The display will return to normal.

when finished

to exit the menu

)

+,3=F$P5,&5$ P5,&$>@R

013,&$P5,&$!(H,L $$$$$VVVVVV

Press

)

K($6(=$9"13$3( K0C0<0$P5,&$AT

when finished

to exit the menu

)

then press

52 INS177

Page 53

Premier Series Master User Guide Programming the Alarm System

Setting up the Part Arms

When a Part Arm 1, 2 or 3 is selected, pre-programmed zones are omitted to allow access to certain parts of the building. This option allows these zones to be programmed or altered by any User that has access to the ‘Omit’ menu.

To set up the Part Arms, proceed as follows:

Enter a valid User code

Press Press Press

Enter a zone number

Press

to turn zone ON or OFF for the selected Part Arm

1111

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

K($6(=$9"13$3( %#3,&$8"&3$%&'5E

Press

*(&$8"&3$%&'$A O(1,$>>A$.5$L$:Z

to select Part Arm 1

to select Part Arm 2

to select Part Arm 3

*(&$8"&3$%&'$@ O(1,$>>A$.5$L$:Z

111

*(&$8"&3$%&'$@ O(1,$>A>$.5$L$:Z

*(&$8"&3$%&'$@ O(1,$>A>$.5$L:**

Repeat for other zones

or use the

, the display should look like this:

key to search

Press

The display will return to normal.

INS177 53

when finished

to exit the menu

)

Page 54

Programming the Alarm System Premier Series Master User Guide

Calling a Remote PC

This option is used to initiate a call to a remote uploading and downloading computer.

To send a call to a Remote PC, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

K($6(=$9"13 P5,&$7,1=E

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

Use keys

until the display looks like this:

K($6(=$9"13$3( !"##$4,'(3,$8!E

!"##$D"/N$Z()AR >A@bST?a^c>

(i.e.

!"##$D"/N$Z()@R >A@bST?a^c>

Press

)

The display will return to normal.

1111

Press

to select a Call Back number

= Call Back number 2)

to start the call back

to exit the menu

54 INS177

Page 55

Premier Series Master User Guide Programming the Alarm System

Altering the Holiday Dates

This option is used to alter the programmable Holiday Dates. These dates can be used to prevent the control timers from operating on certain dates of the year (bank holidays etc.) or to only operate on certain dates (reminders).

To alter Holiday Dates, proceed as follows:

Press

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

K($6(=$9"13 P5,&$7,1=E

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

Use

then enter the new date

Press

until the display looks like this:

K($6(=$9"13$3( %#3,&$U(#)$K"3,5

to Select a Holiday Date from 1 to 8

to accept the new Holiday Date

Repeat for other holiday dates

1111

Press

U(#.H"6$K"3,$AL $$$$>>d>>d>>

U(#.H"6$K"3,$bL $$$$>>d>>d>>

8877992

U(#.H"6$K"3,$bL $$$$@SdA@d>@

Press

The display will return to normal.

INS177 55

when finished

to exit the menu

)

Page 56

Programming the Alarm System Premier Series Master User Guide

Adjusting Speaker Volumes

This option is used to adjust the volume level of speakers that are connected to the control panel, keypads and expanders.

To adjust speaker volumes, proceed as follows:

Press

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

to select a Panel, Keypad or Expander speaker

until the display looks like this:

K($6(=$9"13$3( %HY=53$Q(#=',5E

Press

8"1,#$Q(#=', $$$#,-,#$h$?

J,6F"H$>b$Q(#=', $$$C,-,#$h$S

then

(1 = Minimum, 8 = Maximum)

1111

to enter a volume level

Press

56 INS177

to hear the new volume level

J,6F"H$>b$Q(#=', $$$C,-,#$hLa

to accept the new speaker volume

Repeat for other speakers

Press

The display will return to normal.

when finished

to exit the menu

)

Page 57

Premier Series Master User Guide Programming the Alarm System

Printing the Event Log

If a printer or terminal is connected to the control panel, this option can be used to print out events from the systems Event Log.

To print the Event Log, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

Enter the number of required events

until the display looks like this:

K($6(=$9"13$3( 8&.13$0-,13$C(2E

Press

Z='X,&$(;$,-,135 $$$$$L$>>T>

Z='X,&$(;$,-,135 $$$$$L$>T>>

Press

The display will return to normal.

to print the Event Log

)

1111

to exit the menu

1111

INS177 57

Page 58

Programming the Alarm System Premier Series Master User Guide

Editing a Mobile Telephone Number

If the control panel has been programmed to send SMS text messages to a mobile phone in the event of an alarm occurring etc. this option allows the mobile telephone numbers to be programmed.

To edit a Phone Number, proceed as follows:

Enter a valid User code

K($6(=$9"13$3( %&'$+653,'E

Press

K($6(=$9"13 P5,&$7,1=E

Press

K($6(=$9"13$3( Q.,9$0-,13$C(2E

Press

Enter the required mobile phone number then press

until the display looks like this:

K($6(=$9"13$3( 0H.3$8B(1,$Z()E

Press

<,#,FB(1,$Z()$AL $!%Z$Z:<$!U%Zf0

to select the required number

<,#,FB(1,$Z()$bL

Press

>a^c>A@bST? $$$$$$$$$$$_LA@b

<,#,FB(1,$Z()$bL >a^c>A@bST?

Press

)

The display will return to normal.

1111

to edit the number

when finished

to exit the menu

58 INS177

Page 59

Premier 8 Series Master User Guide Specifications

5. Specifications

European Standards

Conforms to European Union (EU) Low Voltage Directive (LVD) 73/23/EEC and ElectroMagnetic Compatibility (EMC) Directive 89/336/EEC

The CE mark indicates that this product complies with the European requirements for safety, health, environmental and customer protection.

This equipment is designed to enable an intruder alarm system in which it is installed to comply with the requirements of security grades 1 or 2 of EN 50131-1 and EN 50131-6 and is suitable for installation in any indoor environment.

Warranty

All Texecom products are designed for reliable, trouble free operation. Quality is carefully monitored by extensive computerised testing. As a result the control panel is covered by a two-year warranty against defects in materials or workmanship.

As the control panel is not a complete alarm system but only a part thereof, Texecom cannot accept responsibility or liability for any damages whatsoever based on a claim that the control panel failed to function correctly.

Due to our policy of continuous improvements Texecom reserve the right to change specification without prior notice.

Premier Keypads and Expanders are protected by UK & International Registered Design. Registered Design Number: 2089016 and 3004996.

Premier is a trademark of Texecom.

INS177 59

Page 60

Installation Records Premier Series Master User Guide

6. Installation Records

Areas

No. Description

Exit

Time

Entry

Time 1

Sec. Sec. Sec. Min. Min. Sec.

Entry

Time 2

Bell

Delay

Bell

Duration

Abort

Time

Keypads

RKP Keypad Keypad Quick

No. Location Area Arm

60 INS177

Emergency Keys

PA Fire Med

Page 61

Premier Series Master User Guide Installation Records

Zones

Zone Zone Zone Zone Zone

No. Description Type Areas Omit

Tick Zones Included in Part Arms

Part Arms

1 2 3

INS177 61

Page 62

Installation Records Premier Series Master User Guide

Zone Zone Zone Zone Zone

No. Description Type Areas Omit

Tick Zones Included in Part Arms

Part Arms

1 2 3

62 INS177

Page 63

Premier Series Master User Guide Installation Records

User Codes

User Name Type Default New Code Area Time Lock

01 Master 5678

N/A

INS177 63

Page 64

Installation Company Details

Installation Engineer:

Installation Company:

Address:

Telephone Number:

Installation Date:

Service Record

Date Serviced Comments Engineer

Emergency Telephone Numbers

For 24 Hour Call Out For Anti-Code Reset

Control Panel

Details

Model Premier 24

Location

❏

Premier 48

Premier 88

❏

INS177-3

❏

Premier 168

Premier 640 ❏

❏
