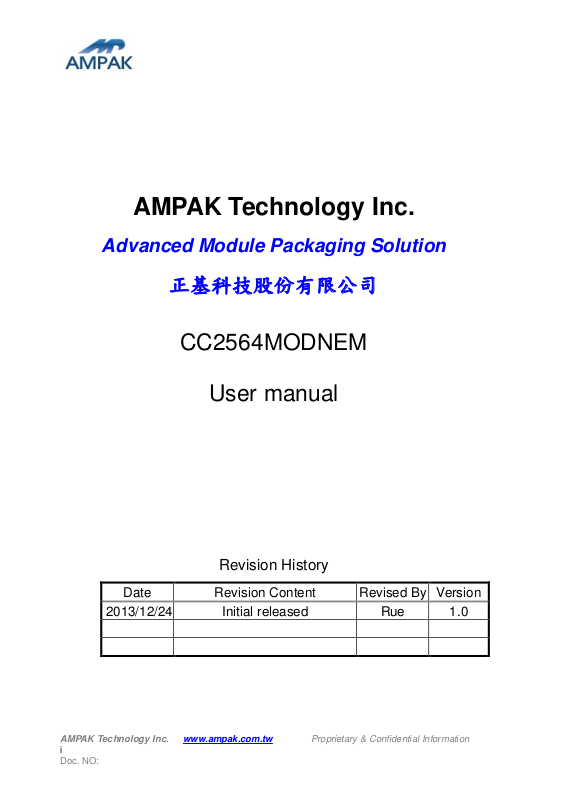

CC2564MODNEM
User manual
Revision History
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
i
Doc. NO:
Contents
1. CC2564MODN evaluation module introduction ....................................................... 1
2. PIN Description/ Operating Ratings
3. Federal Communication Commission Interference Statement ................................ 6
4. Industry Canada statement ......................................................................................... 7
/ Operating temperature ................................. 3
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information i
Doc. NO:
1. CC2564MODN evaluation module introduction
CC2564MODN evaluation module (EM) likes as figure1. That is designed for
Bluetooth 2.1+EDR application. The bottom views like as figure2. It is also
designed for TI’s MSP430 experimenter board. It is subject to provide a convenient
environment for customer’s verification on Bluetooth function. There are
controller pins on evaluation board which describes as below.
Figure1. Top view of CC2564MODNEM
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
1
Figure2. Bottom view of CC2564MODNEM
Interface highlights:
1. U5: CC2564MODN SIP module.
2. P3: U.FL connector let RF signal in/out path, which R30 need tie on 0ohm.
3. J4: VB AT_MCU: 3V3 for main system power path form RF2.
4. J3: VBAT_EDGE: 3V3 for main system power path form P2
5. J2&R10: VBAT_CC: 3V3 for CC2564MODN main power
6. J1&R7: VDO_1V8: V8 for system IO level path
7. RF1&RF2&P2: For TI’s experimenter board IO used.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
2
Dir.
2. PIN Description/ Operating Ratings/ Operating temperature
2.1 PIN Description
Connector No. Pin Name
RF1 1,19 GND Connect to ground
3 HCI_CTS_3V3 I HCI UART clear-to-send
5 SLOW_CLK_3V3 I 32.768-KHz clock in
7 HCI_RX_3V3 I HCI UART data receive
9 HCI_TX_3V3 O HCI UART data transmit
others Not connected
RF2 2 GND Connect to ground
7,9 +3V3 I Connect to +3.3V
8 AUD_OUT_3V3 O PCM data output
10 AUD_IN_3V3 I PCM data input
11 AUD_FSYNC_3V3 I/O PCM frame synch
17 AUD_CLK_3V3 I/O PCM clock
18 HCI_RTS_3V3 O HCI UART request-to-send
19 nSHUTD_3V3 I Shutdown input (active low)
Description of Options (Common)
Def.
others Not connected
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
3
Dir.
Connector No. Pin Name
P2 1 SLOW_CLK_EDGE I 32.768-KHz clock in
8 1V8_IN I Connect to +1.8V
52 AUD_CLK_1V8 I/O PCM clock
54
56
58
66
68
70
72
76
89
3, 9, 19,
37, 47,
AUD_FSYNC_1V8
AUD_IN_1V8
AUD_OUT_1V8
HCI_TX_1V8
HCI_RX_1V8
HCI_CTS_1V8
HCI_RTS_1V8
TX_DEBUG_1V8
nSHUTDOWN_1V8
I/O PCM frame synch
Description of Options (Common)
I PCM data input
O PCM data output
O HCI UART data transmit
I HCI UART data receive
I HCI UART clear-to-send
O HCI UART request-to-send
I DEBUG port use
I Shutdown input (active low)
Def.
others Not connected
63, 77,
83, 87,
95, 97,
2, 6, 18,
22, 42,
60, 64,
92
GND Connect to ground
GND Connect to ground
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
4
Description
Min.
Typ.
Max.
Unit
Input supply Voltage
2.2
3.3
4.85.5
V
2.2 Operating Ratings
Test conditions: At room temperature 25°C
2.3 Operating temperature
Operating temperature -40°C to 85°C
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
5
3. Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
6
4. Industry Canada statement
This device complies with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set forth for an
uncontrolled environment and are safe for intended operation as described in this
manual. The further RF exposure reduction can be achieved if the product can be kept
as far as possible from the user body or set the device to lower output power if such
function is available.
Déclaration d'exposition aux radiations:
Le produit est conforme aux limites d'exposition pour les appareils portables RF pour les
Etats-Unis et le Canada établies pour un environnement non contrôlé. Le produit est sûr
pour un fonctionnement tel que décrit dans ce manuel. La réduction aux expositions RF
peut être augmentée si l'appareil peut être conservé aussi loin que possible du corps de
l'utilisateur ou que le dispositif est réglé sur la puissance de sortie la plus faible si une
telle fonction est disponible.
