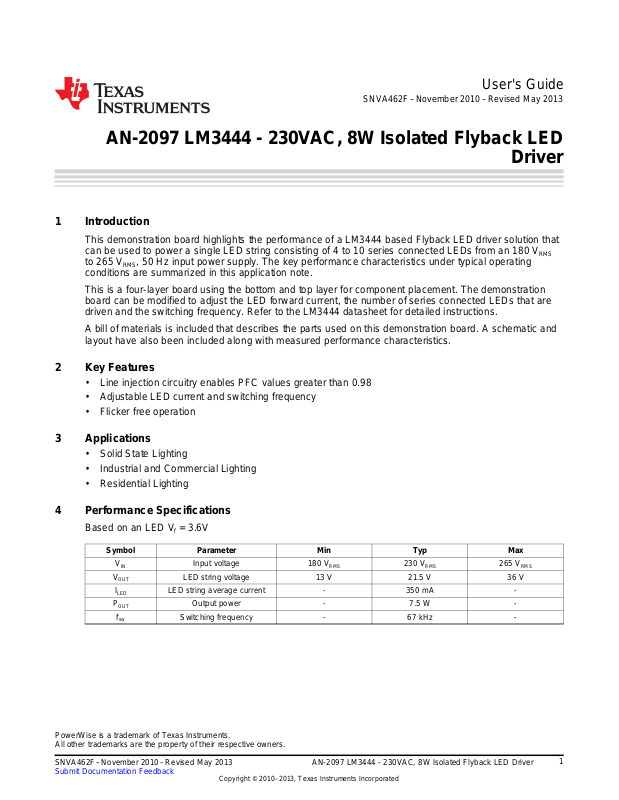

Texas Instruments Incorporated AN-2097 User's Guide

AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED

1 Introduction

This demonstration board highlights the performance of a LM3444 based Flyback LED driver solution that can be used to power a single LED string consisting of 4 to 10 series connected LEDs from an 180 V to 265 V conditions are summarized in this application note.
This is a four-layer board using the bottom and top layer for component placement. The demonstration board can be modified to adjust the LED forward current, the number of series connected LEDs that are driven and the switching frequency. Refer to the LM3444 datasheet for detailed instructions.
A bill of materials is included that describes the parts used on this demonstration board. A schematic and layout have also been included along with measured performance characteristics.

2 Key Features

Line injection circuitry enables PFC values greater than 0.98
Adjustable LED current and switching frequency
Flicker free operation
, 50 Hz input power supply. The key performance characteristics under typical operating
RMS
User's Guide
SNVA462F–November 2010–Revised May 2013
Driver
RMS

3 Applications

Solid State Lighting
Industrial and Commercial Lighting
Residential Lighting

4 Performance Specifications

Based on an LED Vf= 3.6V
Symbol Parameter Min Typ Max
V
IN
V
OUT
I
LED
P
OUT
f
sw
Input voltage 180 V
LED string voltage 13 V 21.5 V 36 V
LED string average current - 350 mA -
Output power - 7.5 W -
Switching frequency - 67 kHz -
RMS
230 V
RMS
265 V
RMS
PowerWise is a trademark of Texas Instruments. All other trademarks are the property of their respective owners.
SNVA462F–November 2010–Revised May 2013 AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
1
+
1
3
4
6
10
13
10
9
8
7
6
1
2
3
4
5
FILTER
+
VCC
NC
NC
NC
COFF
FILTER
NC
VCC
GATE
ISNS
GND
V+
LED +
LED ±
LINE
NEUTRAL
V+
VR1
RT1
F1
L1
L2
R4
C4 C5
R12
D2
INPUT EMI FILTER AND RECTIFIER
R3R8R2
R7
D5
Q1
R13
D9
D8
C2
R1
C3
D1
D3
C1
T1
D4
C9
C10
C11
C12
D6
D7
R14
C13
R15
D10
C15C14
Q2
C18R20
R19
R22 R21
R23
C20
PGND SGND
LM3444 230VAC, 8W Isolated Flyback LED Driver Demo Board Schematic
Figure 1. Demo Board
www.ti.com

5 LM3444 230VAC, 8W Isolated Flyback LED Driver Demo Board Schematic

2
AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver SNVA462F–November 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
www.ti.com
LM3444 230VAC, 8W Isolated Flyback LED Driver Demo Board Schematic
WARNING
The LM3444 evaluation board has exposed high voltage components that present a shock hazard. Caution must be taken when handling the evaluation board. Avoid touching the evaluation board and removing any cables while the evaluation board is operating.
WARNING
The ground connection on the evaluation board is NOT referenced to earth ground. If an oscilloscope ground lead is connected to the evaluation board ground test point for analysis and the mains AC power is applied (without any isolation), the fuse (F1) will fail open. For bench evaluation, either the input AC power source or the bench measurement equipment should be isolated from the earth ground connection. Isolating the evaluation board (using 1:1 line isolation transformer) rather than the oscilloscope is highly recommended.
WARNING
The LM3444 evaluation board should not be powered with an open load. For proper operation, ensure that the desired number of LEDs are connected at the output before applying power to the evaluation board.
SNVA462F–November 2010–Revised May 2013 AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
3
1
4
3
2
10
7
8
9
I
SNS
NC
GATE
NC
COFF
V
CC
NC
NC
5 6FILTER GND
LM3444 Device Pin-Out

6 LM3444 Device Pin-Out

7 Pin Descriptions – 10 Pin VSSOP

Pin # Name Description
1 NC No internal connection. 2 NC No internal connection. 3 NC No internal connection. 4 COFF OFF time setting pin. A user set current and capacitor connected from the output to this pin sets the constant
5 FILTER Filter input. A capacitor tied to this pin filters the error amplifier. Could also be used as an analog dimming
6 GND Circuit ground connection. 7 ISNS LED current sense pin. Connect a resistor from main switching MOSFET source, ISNS to GND to set the
8 GATE Power MOSFET driver pin. This output provides the gate drive for the power switching MOSFET of the buck
9 V
10 NC No internal connection.
OFF time of the switching controller.
input.
maximum LED current.
controller. Input voltage pin. This pin provides the power for the internal control circuitry and gate driver.
CC
www.ti.com

8 Bill of Materials

Designator Description Manufacturer Part Number RoHS
4
AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver SNVA462F–November 2010–Revised May 2013
U1 Offline LED Driver, PowerWise™ Texas Instruments LM3444 Y C1 Ceramic, X7R, 250VAC, 10% Murata Electronics DE1E3KX332MA5BA01 Y
C2 Ceramic, Polypropylene, 400VDC, 10% WIMA MKP10-.033/400/5P10 Y C3 CAP, CERM, 330pF, 630V, +/-5%, C0G/NP0, 1206 TDK C3216C0G2J331J Y C4 Ceramic, X7R, 250V, X2, 10%, 2220 Murata Electronics GA355DR7GF472KW01L Y
C5 CAP, Film, 0.033µF, 630V, +/-10%, TH EPCOS Inc B32921C3333K Y
C9, C11 CAP, CERM, 1µF, 50V, +/-10%, X7R, 1210 MuRata GRM32RR71H105KA01L Y
C10 CAP, CERM, 0.47µF, 50V, +/-10%, X7R, 0805 MuRata GRM21BR71H474KA88L Y C12 Aluminium Electrolytic, 680uF, 35V, 20%, Nichicon UHE1V681MHD6 Y C13 CAP, CERM, 1µF, 35V, +/-10%, X7R, 0805 Taiyo Yuden GMK212B7105KG-T Y C14 CAP, CERM, 0.1µF, 25V, +/-10%, X7R, 0603 MuRata GRM188R71E104KA01D Y C15 CAP, TANT, 47uF, 16V, +/-10%, 0.35 ohm, 6032-28 AVX TPSC476K016R0350 Y
C18 CAP, CERM, 2200pF, 50V, +/-10%, X7R, 0603 MuRata GRM188R71H222KA01D Y C20 CAP, CERM, 330pF, 50V, +/-5%, C0G/NP0, 0603 MuRata GRM1885C1H331JA01D Y
D1 DIODE TVS 250V 600W UNI 5% SMD Littelfuse P6SMB250A Y
SMD
Copyright © 2010–2013, Texas Instruments Incorporated
North America
North America
Submit Documentation Feedback
www.ti.com
Bill of Materials
Designator Description Manufacturer Part Number RoHS
D2 Diode, Switching-Bridge, 600V, 0.8A, MiniDIP Diodes Inc. HD06-T Y D3 Diode, Silicon, 1000V, 1A, SOD-123 Comchip CGRM4007-G Y
Technology
D4 Diode, Schottky, 100V, 1A, SMA STMicroelectronics STPS1H100A Y
D5, D10 Diode, Zener, 13V, 200mW, SOD-323 Diodes Inc DDZ13BS-7 Y
D6 Diode, Zener, 36V, 550mW, SMB ON Semiconductor 1SMB5938BT3G Y
D7, D8, D9 Diode, Schottky, 100V, 150 mA, SOD-323 STMicroelectronics BAT46JFILM Y
F1 Fuse, 500mA, 250V, Time-Lag, SMT Littelfuse Inc 0443.500DR Y H1, H2, H5, H6 Standoff, Hex, 0.5"L #4-40 Nylon Keystone 1902C Y H3, H4, H7, H8 Machine Screw, Round, #4-40 x 1/4, Nylon, Philips B&F Fastener NY PMS 440 0025 PH Y
panhead Supply J1, J2 Conn Term Block, 2POS, 5.08mm PCB Phoenix Contact 1715721 Y L1, L2 Inductor, Radial Lead Inductors, Shielded, 4.7mH, TDK Corporation TSL080RA-472JR13-PF Y
130mA, 12.20ohm, 7.5mm Radial,
LED+, LED-, Terminal, 22 Gauge Wire, Terminal, 22 Guage Wire 3M 923345-02-C Y
TP7, TP8
Q1 MOSFET, N-CH, 600V, 200mA, SOT-223 Fairchild FQT1N60CTF_WS Y
Semiconductor Q2 Transistor, NPN, 300V, 500mA, SOT-23 Diodes Inc. MMBTA42-7-F Y Q3 MOSFET, N-CH, 650V, 800mA, IPAK Infineon SPU01N60C3 Y
Technologies R1 RES, 221 ohm, 1%, 0.25W, 1206 Vishay-Dale CRCW1206221RFKEA Y
R2, R7 RES, 200k ohm, 1%, 0.25W, 1206 Vishay-Dale CRCW1206200KFKEA Y R3, R8 RES, 309k ohm, 1%, 0.25W, 1206 Vishay-Dale CRCW1206309KFKEA Y
R4, R12 RES, 10k ohm, 5%, 0.25W, 1206 Vishay-Dale CRCW120610K0JNEA Y
R13 RES, 33.0 ohm, 1%, 0.25W, 1206 Vishay-Dale CRCW120633R0FKEA Y R14 RES, 10 ohm, 5%, 0.125W, 0805 Vishay-Dale CRCW080510R0JNEA Y R15 RES, 10.0k ohm, 1%, 0.1W, 0603 Vishay-Dale CRCW060310K0FKEA Y R19 RES, 10 ohm, 5%, 0.1W, 0603 Vishay-Dale CRCW060310R0JNEA Y R20 RES, 1.91k ohm, 1%, 0.1W, 0603 Vishay-Dale CRCW06031K91FKEA Y R21 RES, 2.70 ohm, 1%, 0.25W, 1206 Panasonic ERJ-8RQF2R7V Y R22 RES, 10.7 ohm, 1%, 0.125W, 0805 Vishay-Dale CRCW080510R7FKEA Y R23 RES, 324k ohm, 1%, 0.1W, 0603 Vishay-Dale CRCW0603324KFKEA Y RT1 Current Limitor Inrush, 60Ohm, 20%, 5mm Raidal Cantherm MF72-060D5 Y
T1 FLBK TFR, 2.07 mH, Np=140T, Ns=26T, Na= 20T Wurth Elektornik 750815040 REV 1 Y
TP9, TP10 Terminal, Turret, TH, Double Keystone 1502-2 Y
Electronics
VR1 Varistor 275V 55J 10mm DISC EPCOS Inc S10K275E2 Y
SNVA462F–November 2010–Revised May 2013 AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
5
Transformer Design

9 Transformer Design

Mfg: Wurth Electronics, Part #: 750815040 Rev. 01
www.ti.com
Parameter Test Conditions Value
D.C. Resistance (3-1) 20°C 1.91 ± 10% D.C. Resistance (6-4) 20°C 0.36 ± 10%
D.C. Resistance (10-13) 20°C 0.12 ± 10%
Inductance (3-1) 10 kHz, 100 mVAC 2.12 mH ± 10% Inductance (6-4) 10 kHz, 100 mVAC 46.50 µH ± 10%
Inductance (10-13) 10 kHz, 100 mVAC 74.00 µH ± 10%
Leakage Inductance (3-1) 100 kHz, 100 mAVAC (tie 6+4, 10+13) 18.0 µH Typ., 22.60 µH Max.
Dielectric (1-13) tie (3+4), 4500 VAC, 1 second 4500 VAC, 1 minute
Turns Ratio (3-1):(6-4) 7:1 ± 1% Turns Ratio (3-1):(10:13) 5.384:1 ± 1%
6
AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver SNVA462F–November 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
J2
J1
TP9
TP10
LED -
LED +
LINE
NEUTRAL
www.ti.com

10 Demo Board Wiring Overview

Figure 2. Wiring Connection Diagram
Test Name I/O Description
Point
TP10, J2- LED + Output LED Constant Current Supply
1 Supplies voltage and constant-current to anode of LED string.
TP9, J2-2 LED - Output LED Return Connection (not GND)
J1-1 LINE Input AC Line Voltage
J1-2 NEUTRAL Input AC Neutral
Demo Board Wiring Overview
Connects to cathode of LED string. Do NOT connect to GND.
Connects directly to AC line of a 230VAC system.
Connects directly to AC neutral of a 230VAC system.

11 Demo Board Assembly

Figure 3. Top View
SNVA462F–November 2010–Revised May 2013 AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
7
Demo Board Assembly
www.ti.com
Figure 4. Bottom View
8
AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver SNVA462F–November 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
180 190 200 210 220 230 240 250 260
50
150
250
350
450
550
650
LED CURRENT (mA)
INPUT VOLTAGE (V
RMS
)
4 LEDs
8 LEDs
10 LEDs
6 LEDs
180 190 200 210 220 230 240 250 260
100
150
200
250
300
350
400
450
500
550
600
LED CURRENT (mA)
INPUT VOLTAGE (V
RMS
)
Mod C (10 LEDs)
Mod B (8 LEDs)
Original (6 LEDs)
Mod A (4 LEDs)
180 190 200 210 220 230 240 250 260
0.78
0.80
0.82
0.85
0.87
EFFICIENCY
INPUT VOLTAGE (V
RMS
)
10 LEDs
8 LEDs
6 LEDs
4 LEDs
180 190 200 210 220 230 240 250 260
0.60
0.64
0.68
0.73
0.77
0.81
0.85
0.89
0.93
0.97
EFFICIENCY
INPUT VOLTAGE (V
RMS
)
Mod B (8 LEDs)
Mod C (10 LEDs)
Mod A (4 LEDs)
Original (6 LEDs)
www.ti.com

12 Typical Performance Characteristics

Original Circuit (6 LEDs operating at 350mA): R21 = 2.7; Modification A (10 LEDs operating at 375mA): R21 = 1.8; Modification B (8 LEDs operating at 350mA): R21 = 2.2; Modification C (4 LEDs operating at 315mA): R21 = 3.9
The output power can be varied to achieve desired LED current by interpolating R21 values between the maximum of 3.9 and minimum of 1.8
The maximum output voltage is clamped to 36 V. For operating LED string voltage > 36 V, replace D6 with suitable alternative
Typical Performance Characteristics
Figure 5. Efficiency vs. Line Voltage Figure 6. Efficiency vs. Line Voltage
Original Circuit Modified Circuits
SNVA462F–November 2010–Revised May 2013 AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Figure 7. LED Current vs. Line Voltage Figure 8. LED Current vs. Line Voltage
Original Circuit Modified Circuits
Copyright © 2010–2013, Texas Instruments Incorporated
9
180 190 200 210 220 230 240 250 260
0.0
2.5
5.0
7.5
10.0
12.5
15.0
17.5
20.0
22.5
25.0
OUTPUT POWER (W)
INPUT VOLTAGE (V
RMS
)
Mod C (10 LEDs)
Mod B (8 LEDs)
Original (6 LEDs)
Mod A (4 LEDs)
180 190 200 210 220 230 240 250 260
0.950
0.955
0.960
0.965
0.970
0.975
0.980
0.985
0.990
0.995
1.000
POWER FACTOR
INPUT VOLTAGE (V
RMS
)
180 190 200 210 220 230 240 250 260
2
3
4
5
6
7
8
9
10
11
12
OUTPUT POWER (W)
LINE VOLTAGE (V
RMS
)
10 LEDs
8 LEDs 4 LEDs
6 LEDs
Typical Performance Characteristics
Figure 9. Power Factor vs. Line Voltage Figure 10. Output Power vs. Line Voltage
www.ti.com
Original Circuit
10
AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver SNVA462F–November 2010–Revised May 2013
Figure 11. Output Power vs. Line Voltage
Modified Circuits
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
www.ti.com
Typical Performance Characteristics
Line Voltage and Line Current Output Voltage and LED Current
(VIN= 230V
, 6 LEDs, I
RMS
= 350mA) (VIN= 230V
LED
, 6 LEDs, I
RMS
= 350mA)
LED
Figure 12. Ch1: Line Voltage (100 V/div); Figure 13. Ch1: Output Voltage (10 V/div);
Ch3: Line Current Ch3: LED Current
(20 mA/div); Time (4 ms/div) (100 mA/div); Time (4 ms/div)
Power MOSFET Drain and ISNS (Pin-7) Voltage FILTER (Pin-5) and ISNS (Pin-7) Voltage
(VIN= 230V
, 6 LEDs, I
RMS
= 350mA) (VIN=230V
LED
, 6 LEDs, I
RMS
= 350mA
LED
Figure 14. Ch1: Drain Voltage (100V/div); Figure 15. Ch1: FILTER Voltage (200 mV/div);
Ch4: ISNS Voltage ISNS Voltage
(500 mV/div); Time (4 µs/div) (200 mV/div); Time (4 µs/div)
SNVA462F–November 2010–Revised May 2013 AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
11
PCB Layout

13 PCB Layout

www.ti.com
Figure 16. Top Layer
12
Figure 17. Top Middle Layer
AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver SNVA462F–November 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
www.ti.com
Experimental Results
Figure 18. Bottom Middle Layer
Figure 19. Bottom Layer

14 Experimental Results

The LED driver is designed to accurately emulate an incandescent light bulb and therefore behave as an emulated resistor. The resistor value is determined based on the LED string configuration and the desired output power. The circuit then operates in open-loop, with a fixed duty cycle based on a constant on-time and constant off-time that is set by selecting appropriate circuit components.
SNVA462F–November 2010–Revised May 2013 AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
13
Experimental Results

14.1 Performance

In steady state, the LED string voltage is measured to be 21.55 V and the average LED current is measured as 347.5 mA. The 100 Hz current ripple flowing through the LED string was measured to be 194 mA connected across the output. The ripple current can be reduced by increasing the value of energy storage capacitor or by increasing the LED string voltage.
The LED driver switching frequency is measured to be close to the specified 67 kHz. The circuit operates with a constant duty cycle of 0.21 and consumes near 9W of input power. The driver steady state performance for an LED string consisting of 6 series LEDs is summarized in the following table.
VIN(V
at full load. The magnitude of the ripple is a function of the value of energy storage capacitors
pk-pk
) IIN(mA
RMS
180 30.65 5.42 20.59 219.40 4.52 83.3 0.9867 190 32.35 6.06 20.80 242.55 5.05 83.3 0.9869 200 34.21 6.75 21.00 267.37 5.62 83.2 0.9870 210 36.01 7.47 21.18 293.39 6.21 83.2 0.9871 220 37.74 8.20 21.37 320.18 6.84 83.3 0.9872 230 39.44 8.96 21.55 347.51 7.49 83.6 0.9873 240 41.22 9.76 21.72 375.52 8.15 83.6 0.9874 250 43..29 10.62 21.90 404.82 8.86 83.5 0.9875 260 45.06 11.57 22.07 436.75 9.64 83.3 0.9877
Table 1. Measured Efficiency and Line Regulation (6 LEDS)
) PIN(W) V
RMS
(V) I
OUT
(mA) P
LED
(W) Efficiency (%) Power Factor
OUT
www.ti.com

14.2 Current THD

The LED driver is able to achieve close to unity power factor (PF ~ 0.98) which meets Energy Star requirements. This design also exhibits low current harmonics as a percentage of the fundamental current (as shown in the following table) and therefore meets the requirements of the IEC 61000-3-2 Class-3 standard. Total harmonic distortion was measured to be less than 1.2%.
Table 2. Measured Harmonic Current
Harmonic Class C Limit (mA) Measured (mA)
2 0.78 0.022 3 11.61 0.125 5 3.90 0.11 7 2.73 0.105
9 1.95 0.11 11 1.73 0.15 13 1.73 0.093 15 1.73 0.071 17 1.73 0.154 19 1.73 0.165 21 1.73 0.065 23 1.73 0.065 25 1.73 0.08 27 1.73 0.084 29 1.73 0.065 31 1.73 0.07
14
AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver SNVA462F–November 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
LINE
NEUTRAL
V+
VR1
RT1
F1
L1
L2
R4
C4 C5
R12
D2
INPUT EMI FILTER AND RECTIFIER
www.ti.com

15 Electromagnetic Interference (EMI)

The EMI input filter of this evaluation board is configured as shown in the following circuit diagram.
Figure 20. Input EMI Filter and Rectifier Circuit
In order to get a quick estimate of the EMI filter performance, only the PEAK conductive EMI scan was measured and the data was compared to the Class B conducted EMI limits published in FCC – 47, section
15.
Electromagnetic Interference (EMI)
CISPR 15 compliance pending
Figure 21. Peak Conductive EMI scan per CISPR-22, Class B Limits
SNVA462F–November 2010–Revised May 2013 AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
15
Thermal Analysis

16 Thermal Analysis

The board temperature was measured using an IR camera (HIS-3000, Wahl) while running under the following conditions:
VIN= 230 V I
= 348 mA
LED
# of LEDs = 6 P
OUT
The results are shown in the following figures.
RMS
= 7.2 W
www.ti.com
Figure 22. Top Side Thermal Scan
Figure 23. Bottom Side Thermal Scan
16
AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver SNVA462F–November 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
t
V
FILTER
R15 C11
FILTER
R2
R7
COFF
NC
NC
NC
COFF
FILTER
NC
VCC
GND
GATE
ISNS
LM3444
1
2
3
4
5
10
9
8
7
6
V+
www.ti.com

17 Circuit Analysis and Explanations

17.1 Injecting Line Voltage Into Filter (Achieving PFC > 0.98)

If a small portion (750mV to 1.00V) of line voltage is injected at FILTER of the LM3444, the circuit is essentially turned into a constant power flyback as shown in Figure 24.
Circuit Analysis and Explanations
Figure 24. Line Voltage Injection Circuit
The LM3444 works as a constant off-time controller normally, but by injecting the 1.0V rectified AC voltage into the FILTER pin, the on-time can be made to be constant. With a DCM Flyback, Δi needs to increase as the input voltage line increases. ThereforePka constant on-time (since inductor L is constant) can be obtained.
By using the line voltage injection technique, the FILTER pin has the voltage wave shape shown in
Figure 25 on it. Voltage at V
peak should be kept below 1.25V. At 1.25V current limit is tripped. C11
FILTER
is small enough not to distort the AC signal but adds a little filtering. Although the on-time is probably never truly constant, it can be observed in Figure 26 how (by adding the
rectified voltage) the on-time is adjusted.
Figure 25. FILTER Waveform
SNVA462F–November 2010–Revised May 2013 AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
17
R
SNS
PWM
I-LIM
1.27V
I
SNS
PGND
FILTER
1M
C
FILTER
1k
750 mV
125 ns
LEADING EDGE BLANKING
1V
Nearly a constant on­time as the line varies
The PWM reference increases
as the line voltage increases.
As line voltage increases, the voltage across the
inductor increases, and the peak current increases.
1V
D x LED Current
Circuit Analysis and Explanations
For this evaluation board, the following resistor values are used: R3 = R8 = 309 k R20 = 1.91 k Therefore the voltages observed on the FILTER pin will be as follows for listed input voltages: For VIN = 180V For VIN = 230V For VIN = 265V
RMS
RMS
RMS
, V , V , V
FILTER, Pk
FILTER, Pk
FILTER, Pk
Using this technique, a power factor greater than 0.98 can be achieved without additional passive active power factor control (PFC) circuitry.
www.ti.com
= 0.78V = 1.00V = 1.15V
18
Figure 26. Typical Operation of FILTER Pin
AN-2097 LM3444 - 230VAC, 8W Isolated Flyback LED Driver SNVA462F–November 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.
Products Applications
Audio www.ti.com/audio Automotive and Transportation www.ti.com/automotive Amplifiers amplifier.ti.com Communications and Telecom www.ti.com/communications Data Converters dataconverter.ti.com Computers and Peripherals www.ti.com/computers DLP® Products www.dlp.com Consumer Electronics www.ti.com/consumer-apps DSP dsp.ti.com Energy and Lighting www.ti.com/energy Clocks and Timers www.ti.com/clocks Industrial www.ti.com/industrial Interface interface.ti.com Medical www.ti.com/medical Logic logic.ti.com Security www.ti.com/security Power Mgmt power.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video RFID www.ti-rfid.com OMAP Applications Processors www.ti.com/omap TI E2E Community e2e.ti.com Wireless Connectivity www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2013, Texas Instruments Incorporated
Loading...
