AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED
1 Introduction
This demonstration board highlights the performance of a LM3444 based Flyback LED driver solution that
can be used to power a single LED string consisting of 4 to 8 series connected LEDs from an 90 V
135 V
conditions are summarized in this application note.
This is a two-layer board using the bottom and top layer for component placement. The demonstration
board can be modified to adjust the LED forward current, the number of series connected LEDs that are
driven and the switching frequency. Refer to the LM3444 AC-DC Offline LED Driver (SNVS682) data
sheet for detailed instructions.
A bill of materials is included that describes the parts used on this demonstration board. A schematic and
layout have also been included along with measured performance characteristics.
, 60 Hz input power supply. The key performance characteristics under typical operating
RMS
User's Guide
SNVA454E–September 2010–Revised May 2013
Driver
to
RMS
2 Key Features
• Line injection circuitry enables PFC values greater than 0.99
• Adjustable LED current and switching frequency
• Flicker free operation
3 Applications
• Solid State Lighting
• Industrial and Commercial Lighting
• Residential Lighting
4 Performance Specifications
Based on an LED Vf= 3.57V
Symbol Parameter Min Typ Max
V
IN
V
OUT
I
LED
P
OUT
f
sw
Input voltage 90 V
LED string voltage 12 V 21.4 V 30 V
LED string average current - 350 mA -
Output power - 7.6 W -
Switching frequency - 79 kHz -
RMS
120 V
RMS
135 V
RMS
PowerWise is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
SNVA454E–September 2010–Revised May 2013 AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
1
Performance Specifications
www.ti.com
Figure 1. Demo Board
2
AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver SNVA454E–September 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
R15
C11
FILTER
R2
R7
R1
R3
D7
Q1
NC
NC
NC
COFF
FILTER
NC
VCC
GND
GATE
ISNS
LM3444
1
2
3
4
5
10
9
8
7
6
V+
C7 C8
V
CC
R22 D8
R12
R13 R14
+
VLED+
VLED±
L1
V+
LINE
NEUTRAL
INPUT EMI FILTER AND RECTIFIER CIRCUIT
Q2
D1
D3
D4
D5C3
C4
R16
C12
C1
C6
L2
R6
R24
C2
RT1
D2
F1
T1
C13
+
www.ti.com
LM3444 120VAC, 8W Isolated Flyback LED Driver Demo Board Schematic
5 LM3444 120VAC, 8W Isolated Flyback LED Driver Demo Board Schematic
WARNING
The LM3444 evaluation board has exposed high voltage
SNVA454E–September 2010–Revised May 2013 AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
components that present a shock hazard. Caution must be taken
when handling the evaluation board. Avoid touching the evaluation
board and removing any cables while the evaluation board is
operating. Isolating the evaluation board rather than the
oscilloscope is highly recommended.
Copyright © 2010–2013, Texas Instruments Incorporated
3
1
4
3
2
10
7
8
9
I
SNS
NC
GATE
NC
COFF
V
CC
NC
NC
5 6FILTER GND
LM3444 Device Pin-Out
The ground connection on the evaluation board is NOT referenced
to earth ground. If an oscilloscope ground lead is connected to the
evaluation board ground test point for analysis and AC power is
applied, the fuse (F1) will fail open. The oscilloscope should be
powered via an isolation transformer before an oscilloscope
ground lead is connected to the evaluation board.
The LM3444 evaluation board should not be powered with an open
load. For proper operation, ensure that the desired number of LEDs
are connected at the output before applying power to the
evaluation board.
6 LM3444 Device Pin-Out
www.ti.com
WARNING
WARNING
Pin # Name Description
10 NC No internal connection.
4
AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver SNVA454E–September 2010–Revised May 2013
Table 1. Pin Description 10-Pin VSSOP
1 NC No internal connection.
2 NC No internal connection.
3 NC No internal connection.
4 COFF OFF time setting pin. A user set current and capacitor connected from the output to this pin sets the constant
5 FILTER Filter input. A capacitor tied to this pin filters the error amplifier. Could also be used as an analog dimming
6 GND Circuit ground connection.
7 ISNS LED current sense pin. Connect a resistor from main switching MOSFET source, ISNS to GND to set the
8 GATE Power MOSFET driver pin. This output provides the gate drive for the power switching MOSFET of the buck
9 V
OFF time of the switching controller.
input.
maximum LED current.
controller.
Input voltage pin. This pin provides the power for the internal control circuitry and gate driver.
CC
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
www.ti.com
7 Bill of Materials
Designator Description Manufacturer Part Number
AA1 Printed Circuit Board - 551600530-001A
C1 CAP .047UF 630V METAL POLYPRO EPCOS Inc B32559C6473K000
C2 CAP 10000PF X7R 250VAC X2 2220 Murata Electronics North America GA355DR7GB103KY02L
C3, C4 CAP 330UF 35V ELECT PW Nichicon UPW1V331MPD6
C6 CAP .10UF 305VAC EMI SUPPRESSION EPCOS B32921C3104M
C7 CAP, CERM, 0.1µF, 16V, +/-10%, X7R, Kemet C0805C104K4RACTU
C8 CAP CER 47UF 16V X5R 1210 MuRata GRM32ER61C476ME15L
C11 CAP CER 2200PF 50V 10% X7R 0603 MuRata GRM188R71H222KA01D
C12 CAP CER 330PF 50V 5% C0G 0603 MuRata GRM1885C1H331JA01D
C13 CAP CER 2200PF 250VAC X1Y1 RAD TDK Corporation CD12-E2GA222MYNS
D1 DIODE TVS 150V 600W UNI 5% SMB Littlefuse SMAJ120A
D2 RECT BRIDGE GP 600V 0.5A MINIDIP Diodes Inc. RH06-T
D3 DIODE RECT GP 1A 1000V MINI-SMA Comchip Technology CGRM4007-G
D4 DIODE SCHOTTKY 100V 1A SMA ST Microelectronics STPS1H100A
D5 DIODE ZENER 30V 1.5W SMA ON Semiconductor 1SMA5936BT3G
D7 DIODE ZENER 12V 200MW Fairchild Semiconductor MM5Z12V
D8 DIODE SWITCH 200V 200MW Diode Inc BAV20WS-7-F
F1 FUSE BRICK 1A 125V FAST 6125FA Cooper/Bussmann 6125FA
J1, J2, J3, J4, 16 GA WIRE HOLE, 18 GA WIRE HOLE 3M 923345-02-C
TP8, TP9, TP10
J5, J6 CONN HEADER .312 VERT 2POS TIN Tyco Electronics 1-1318301-2
L1, L2 INDUCTOR 4700UH .13A RADIAL TDK Corporation TSL0808RA-472JR13-PF
Q1 MOSFET N-CH 600V 90MA SOT-89 Infineon Technologies BSS225 L6327
Q2 MOSFET N-CH 600V 1.8A TO-251 Infineon Technology SPU02N60S5
R1, R3 RES 200K OHM 1/4W 5% 1206 SMD Vishay-Dale CRCW1206200KJNEA
R2, R7 RES, 309k ohm, 1%, 0.25W, 1206 Vishay-Dale CRCW1206309KFKEA
R6, R24 RES, 10.5k ohm, 1%, 0.125W, 0805 Vishay-Dale CRCW080510K5FKEA
R12 RES 4.7 OHM 1/10W 5% 0603 SMD Vishay-Dale CRCW06034R70JNEA
R13 RES 10 OHM 1/8W 5% 0805 SMD Vishay-Dale CRCW080510R0JNEA
R14 RES 1.50 OHM 1/4W 1% 1206 SMD Vishay-Dale CRCW12061R50FNEA
R15 RES 3.48K OHM 1/10W 1% 0603 SMD Vishay-Dale CRCW06033K48FKEA
R16 RES 191K OHM 1/10W 1% 0603 SMD Vishay-Dale CRCW0603191KFKEA
R22 RES 40.2 OHM 1/8W 1% 0805 SMD Vishay-Dale CRCW080540R2FKEA
RT1 CURRENT LIMITOR INRUSH 60OHM Cantherm MF72-060D5
T1 Transformer Wurth Electronics 750311553 Rev. 01
TP2-TP5 Terminal, Turret, TH, Double Keystone Electronics 1502-2
TP7 TEST POINT ICT - -
U1 Offline LED Driver, PowerWise™ Texas Instruments LM3444
Bill of Materials
0805
20%
SNVA454E–September 2010–Revised May 2013 AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
5
LED +
LED -
NEUTRAL
LINE
J5
J6
TP3
TP2
TP4
TP5
Demo Board Wiring Overview
8 Demo Board Wiring Overview
Figure 2. Wiring Connection Diagram
Test Name I/O Description
Point
TP3 LED + Output LED Constant Current Supply
TP2 LED - Output LED Return Connection (not GND)
TP5 LINE Input AC Line Voltage
TP4 NEUTRAL Input AC Neutral
www.ti.com
Supplies voltage and constant-current to anode of LED string.
Connects to cathode of LED string. Do NOT connect to GND.
Connects directly to AC line of a 120VAC system.
Connects directly to AC neutral of a 120VAC system.
6
AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver SNVA454E–September 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
www.ti.com
9 Demo Board Assembly
Demo Board Assembly
Figure 3. Top View
Figure 4. Bottom View
SNVA454E–September 2010–Revised May 2013 AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
7
80 90 100 110 120 130 140
0.0
0.2
0.4
0.7
0.8
1.0
I
LED
(A)
LINE VOLTAGE (V
RMS
)
4 LEDs
6 LEDs
8 LEDs
80 90 100 110 120 130 140
0.0
0.2
0.4
0.7
0.8
1.0
I
LED
(A)
LINE VOLTAGE (V
RMS
)
Original
Mod A
Mod B
Mod C
80 90 100 110 120 130 140
76
78
80
82
84
86
EFFICIENCY (%)
LINE VOLTAGE (V
RMS
)
4 LEDs
6 LEDs
8 LEDs
80 90 100 110 120 130 140
76
78
80
82
84
86
EFFICIENCY (%)
LINE VOLTAGE (V
RMS
)
Mod C
Mod A
Mod B
Original
Typical Performance Characteristics
10 Typical Performance Characteristics
Original Circuit: R14 = 1.50Ω; Modification A: R14 = 1.21Ω; Modification B: R14 = 1.00Ω; Modification C:
R14 = 0.75Ω
Figure 5. Efficiency vs Line Voltage Figure 6. Efficiency vs. Line Voltage
Original Circuit Modified Circuits
www.ti.com
Figure 7. LED Current vs. Line Voltage Figure 8. LED Current vs. Line Voltage
8
AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver SNVA454E–September 2010–Revised May 2013
Original Circuit Modified Circuits
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
80 90 100 110 120 130 140
3
6
9
12
15
P
OUT
(W)
LINE VOLTAGE (V
RMS
)
Original
Mod A
Mod B
Mod C
80 90 100 110 120 130 140
0.980
0.984
0.988
0.992
0.996
1.000
POWER FACTOR
LINE VOLTAGE (V
RMS
)
80 90 100 110 120 130 140
3
6
9
12
15
P
OUT
(W)
LINE VOLTAGE (V
RMS
)
4 LEDs
6 LEDs
8 LEDs
www.ti.com
Typical Performance Characteristics

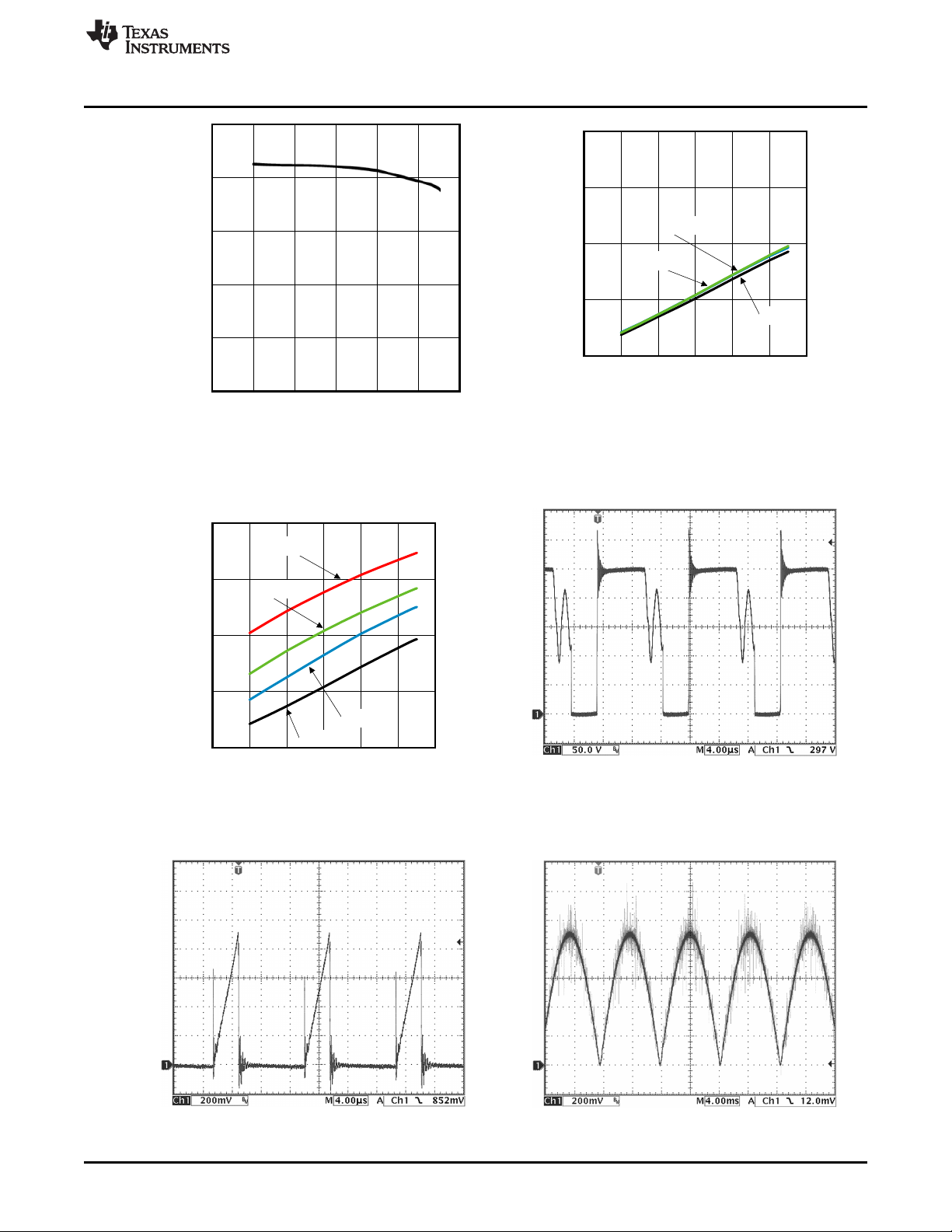

Figure 9. Power Factor vs. Line Voltage Figure 10. Output Power vs. Line Voltage
Original Circuit Original Circuit
Figure 11. Output Power vs.Line Voltage Figure 12. Power MOSFET Drain Voltage Waveform
SNVA454E–September 2010–Revised May 2013 AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Figure 13. Current Sense Waveform Figure 14. FILTER Waveform
(VIN= 120V
Modified Circuits (VIN= 120V
RMS
, 6 LEDs, I
= 350mA) (VIN= 120V
LED
Copyright © 2010–2013, Texas Instruments Incorporated
, 6 LEDs, I
RMS
, 6 LEDs, I
RMS
= 350mA)
LED
= 350mA)
LED
9
PCB Layout
11 PCB Layout
www.ti.com
Figure 15. Top Layer
10
Figure 16. Bottom Layer
AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver SNVA454E–September 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
www.ti.com
12 Transformer Design
Mfg: Wurth Electronics, Part #: 750311553 Rev. 01
Transformer Design
SNVA454E–September 2010–Revised May 2013 AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
11
Experimental Results
13 Experimental Results
The LED driver is designed to accurately emulate an incandescent light bulb and therefore behave as an
emulated resistor. The resistor value is determined based on the LED string configuration and the desired
output power. The circuit then operates in open-loop, with a fixed duty cycle based on a constant on-time
and constant off-time that is set by selecting appropriate circuit components.
13.1 Performance
In steady state, the LED string voltage is measured to be 21.38 V and the average LED current is
measured as 357 mA. The 120 Hz current ripple flowing through the LED string was measured to be 170
mA
connected across the output port. The ripple current can be reduced by increasing the value of energy
storage capacitor or by increasing the LED string voltage.
The LED driver switching frequency is measured to be close to the specified 79 kHz. The circuit operates
with a constant duty cycle of 0.28 and consumes 9.25 W of input power. The driver steady state
performance for an LED string consisting of 6 series LEDs is summarized in the following table.
at full load. The magnitude of the ripple is a function of the value of energy storage capacitors
pk-pk
Table 2. Measured Efficiency and Line Regulation (6 LEDs)
VIN(V
) IIN(mA
RMS
RMS
90 60 5.37 20.25 216 4.38 81.6 0.9970
95 63 5.95 20.47 238 4.87 81.8 0.9969
100 66 6.57 20.67 260 5.38 81.9 0.9969
105 69 7.23 20.86 285 5.94 82.1 0.9969
110 72 7.89 21.05 309 6.50 82.3 0.9968
115 75 8.59 21.23 334 7.09 82.5 0.9967
120 77 9.25 21.38 357 7.65 82.7 0.9965
125 80 9.94 21.53 382 8.23 82.8 0.9961
130 82 10.62 21.68 406 8.80 82.9 0.9957
135 84 11.26 21.80 428 9.34 83.0 0.9950
) PIN(W) V
(V) I
OUT
(mA) P
LED
www.ti.com
(W) Efficiency (%) Power Factor
OUT
12
Table 3. LED Current, Output Power versus Number of LEDs for Various Circuit Modifications (V
IN
= 120 VAC)
# of LEDs Original Circuit
I
(mA) P
LED
(1)
(W) I
OUT
Modification A
(mA) P
LED
4 508 7.57 624 9.55 710 11.05 835 13.24
6 357 7.65 440 9.58 500 11.02 590 13.35
8 277 7.69 337 9.59 382 11.00 445 13.00
(1)
Original Circuit: R14 = 1.50Ω; Modification A: R14 = 1.21Ω; Modification B: R14 = 1.00Ω; Modification C: R14 = 0.75Ω
AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver SNVA454E–September 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
(1)
(W) I
OUT
Modification B
(mA) P
LED
(1)
(W) I
OUT
Modification C
(mA) P
LED
Submit Documentation Feedback
OUT
(1)
(W)
L1
V+
LINE
NEUTRAL
C6
L2
R6
R24
C2
RT1
D2
F1
www.ti.com
13.2 Power Factor Performance
The LED driver is able to achieve close to unity power factor (P.F. ~ 0.99) which meets Energy Star
requirements. This design also exhibits low current harmonics as a percentage of the fundamental current
(as shown in Figure 17) and therefore meets the requirements of the IEC 61000-3-2 Class-3 standard.
Electromagnetic Interference (EMI)
Figure 17. Current Harmonic Performance vs. EN/IEC61000-3-2 Class C Limits
14 Electromagnetic Interference (EMI)
The EMI input filter of this evaluation board is configured as shown in the following circuit diagram.
Figure 18. Input EMI Filter and Rectifier Circuit
SNVA454E–September 2010–Revised May 2013 AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
13
Electromagnetic Interference (EMI)
In order to get a quick estimate of the EMI filter performance, only the PEAK conductive EMI scan was
measured and the data was compared to the Class B conducted EMI limits published in FCC – 47, section
15.
Figure 19. Peak Conductive EMI Scan per CISPR-22, Class B Limits
If an additional 33nF of input capacitance (C6) is utilized in the input filter, the EMI conductive
performance is further improved as shown in Figure 20.
www.ti.com
14
Figure 20. Peak Conductive EMI Scan With Additional 33nF of Input Capacitance
AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver SNVA454E–September 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
www.ti.com
15 Thermal Analysis
The board temperature was measured using an IR camera (HIS-3000, Wahl) while running under the
following conditions:
VIN= 120 V
I
= 350 mA
LED
# of LEDs = 6
P
OUT
The results are shown in the following figures.
RMS
= 7.3 W
Thermal Analysis
Figure 21. Top Side Thermal Scan
SNVA454E–September 2010–Revised May 2013 AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
15
Thermal Analysis
www.ti.com

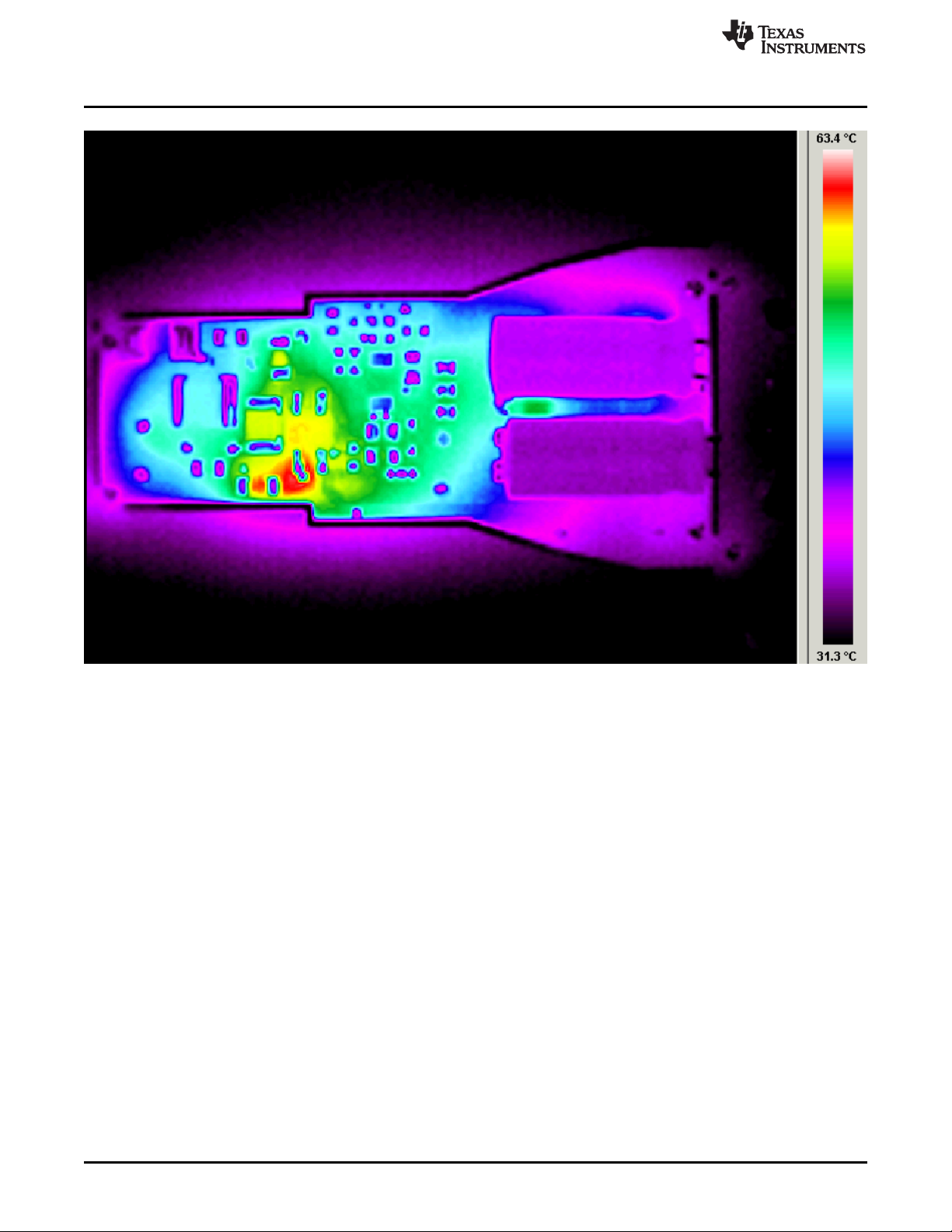

Figure 22. Bottom Side Thermal Scan
16
AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver SNVA454E–September 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
t
V
FILTER
R15 C11
R2
R7
COFF
NC
NC
NC
COFF
FILTER
NC
VCC
GND
GATE
ISNS
LM3444
1
2
3
4
5
10
9
8
7
6
V+
www.ti.com
16 Circuit Analysis and Explanations
16.1 Injecting Line Voltage Into FILTER (Achieving PFC > 0.99)
If a small portion (750mV to 1.00V) of line voltage is injected at FILTER of the LM3444, the circuit is
essentially turned into a constant power flyback, as shown in Figure 23.
Circuit Analysis and Explanations

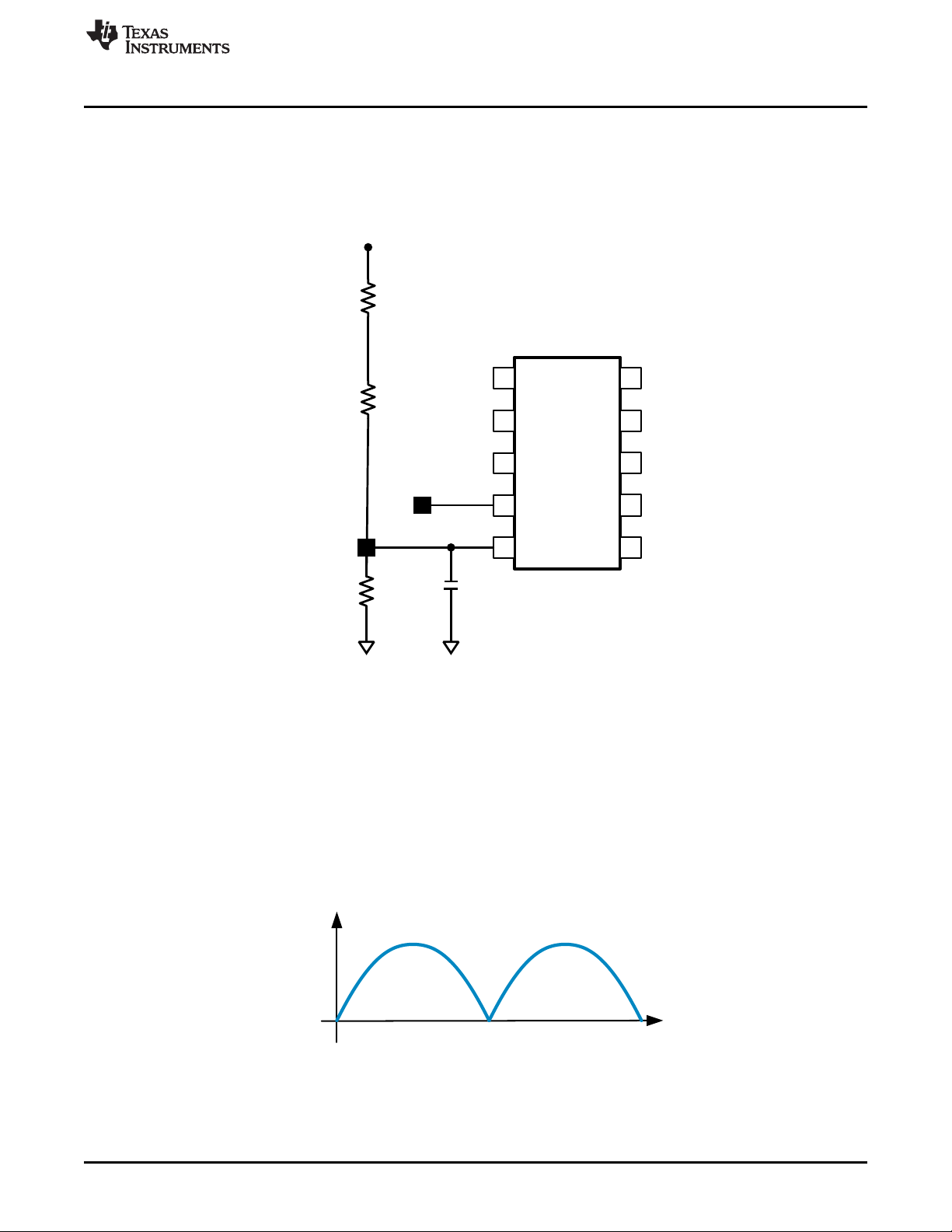

Figure 23. Line Voltage Injection Circuit
The LM3444 works as a constant off-time controller normally, but by injecting the 1.0V rectified AC voltage
into the FILTER pin, the on-time can be made to be constant. With a DCM Flyback, Δi needs to increase
as the input voltage line increases. Therefore a constant on-time (since inductor L is constant) can be
obtained.
By using the line voltage injection technique, the FILTER pin has the voltage wave shape shown in
Figure 24 on it. Voltage at V
peak should be kept below 1.25V. At 1.25V current limit is tripped. C11
FILTER
is small enough not to distort the AC signal but adds a little filtering.
Although the on-time is probably never truly constant, it can be observed in Figure 25 how (by adding the
rectified voltage) the on-time is adjusted.
Figure 24. FILTER Waveform
SNVA454E–September 2010–Revised May 2013 AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver
Submit Documentation Feedback
Copyright © 2010–2013, Texas Instruments Incorporated
17
R
SNS
PWM
I-LIM
1.27V
I
SNS
PGND
FILTER
1M
C
FILTER
1k
750 mV
125 ns
LEADING EDGE BLANKING
1V
Nearly a constant ontime as the line varies
The PWM reference increases
as the line voltage increases.
As line voltage increases, the voltage across the
inductor increases, and the peak current increases.
1V
D x LED Current
Circuit Analysis and Explanations
For this evaluation board, the following resistor values are used:
R2 = R7 = 309kΩ
R15 = 3.48kΩ
Therefore the voltages observed on the FILTER pin will be as follows for listed input voltages:
For VIN = 90V
For VIN = 120V
For VIN = 135V
RMS
RMS
RMS
, V
FILTER
, V
, V
Using this technique, a power factor greater than 0.99 can be achieved without additional passive active
power factor control (PFC) circuitry.
FILTER
FILTER
www.ti.com
= 0.71V
= 0.95V
= 1.07V
18
Figure 25. Typical Operation of FILTER Pin
AN-2082 LM3444 -120VAC, 8W Isolated Flyback LED Driver SNVA454E–September 2010–Revised May 2013
Copyright © 2010–2013, Texas Instruments Incorporated
Submit Documentation Feedback
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other
changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest
issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale
supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms
and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary
to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily
performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and
applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information
published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or
endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration
and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered
documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service
voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice.
TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements
concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support
that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which
anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause
harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use
of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to
help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and
requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties
have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in
military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components
which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and
regulatory requirements in connection with such use.
TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of
non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.
Products Applications
Audio www.ti.com/audio Automotive and Transportation www.ti.com/automotive
Amplifiers amplifier.ti.com Communications and Telecom www.ti.com/communications
Data Converters dataconverter.ti.com Computers and Peripherals www.ti.com/computers
DLP® Products www.dlp.com Consumer Electronics www.ti.com/consumer-apps
DSP dsp.ti.com Energy and Lighting www.ti.com/energy
Clocks and Timers www.ti.com/clocks Industrial www.ti.com/industrial
Interface interface.ti.com Medical www.ti.com/medical
Logic logic.ti.com Security www.ti.com/security
Power Mgmt power.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense
Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video
RFID www.ti-rfid.com
OMAP Applications Processors www.ti.com/omap TI E2E Community e2e.ti.com
Wireless Connectivity www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2013, Texas Instruments Incorporated
Loading...
