SLUU117C − September 2002 − Revised July 2003
UCC28517 EVM
Michael O’Loughlin Power Supply Control Products
Contents
1 Introduction 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Caution 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 Schematic 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 List of Materials 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Reference Design Layout 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Electrical Characteristics 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Reference Design Performance 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1 Introduction
The UCC28517 module is a 100-W offline ac-to-dc voltage converter with power factor correction (PFC). The
prototype was designed to show how the UCC28517 could be configured to control two dc-regulated outputs
offline with one control integrated circuit. The module was design to operate over a universal input range of 85
V to 265 V with two dc regulated outputs. Output B is a 12-V, 8-W regulated output intended to be used as a
bias supply and output A is a 385-V, 100-W regulated output.
For this module to function correctly output B needs a minimum load of 4 W and boost capacitor C3 needs to
be completely discharged before applying power. The input needs a minimum of 85 V
voltage is brought up slowly with the use of an ac source or a variable transformer the bootstrap circuitry will
not function correctly. If this procedure is not followed the reference design will not regulate properly.
at power up. If the input
AC
2 Caution
High-voltage levels are present on the evaluation module whenever it is energized. Proper precautions must
be taken when working with the module. Output A has a large energy storage capacitor and must be completely
discharged before the module can be handled. Serious injury can occur if proper safety precautions are not
followed.
4
UCC28517 EVM
SLUU117C − September 2002 − Revised July 2003
3 Schematic

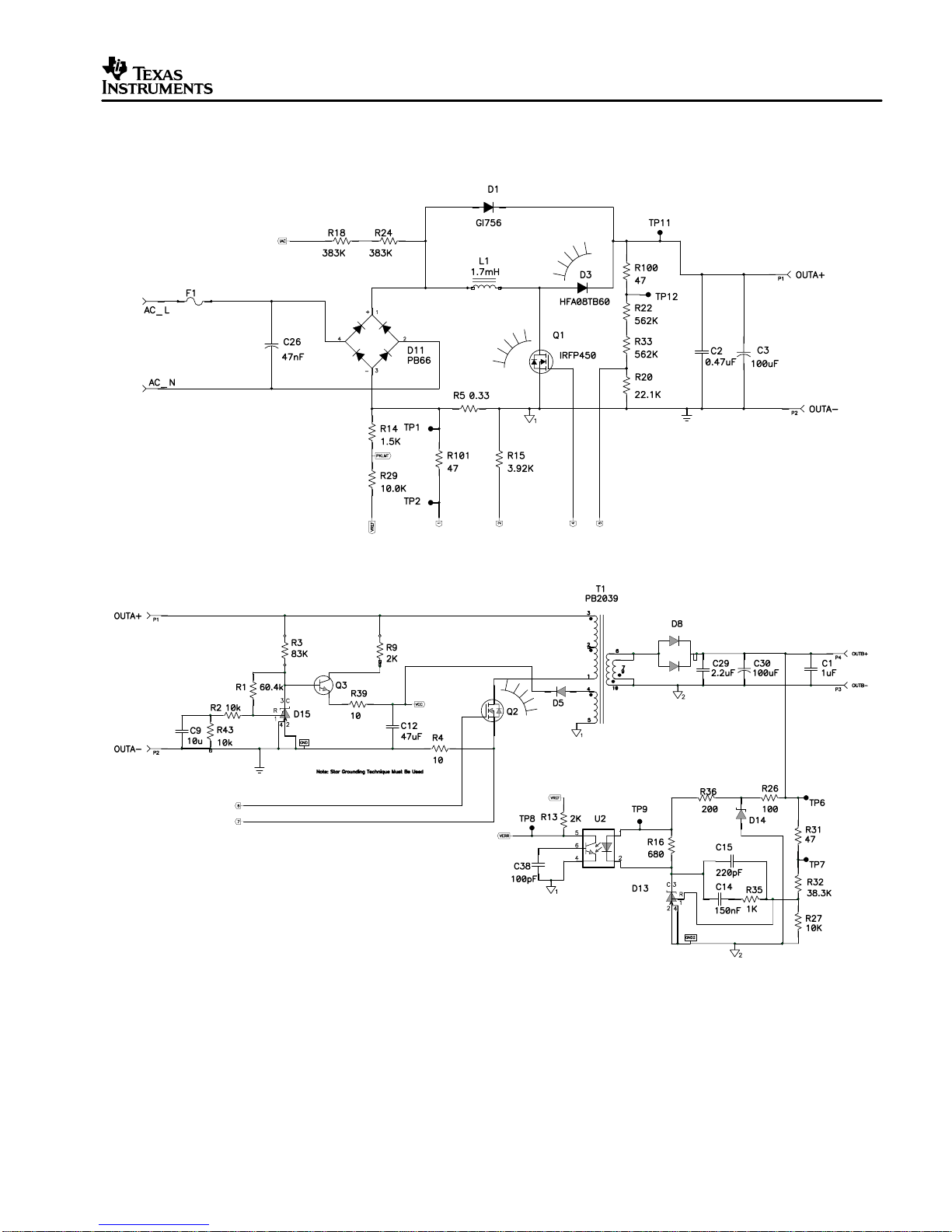

The schematic is broken up into three sections to make it more legible for the user.
+
Figure 1. Section A
Figure 2. Section B
+
UCC28517 EVM
5
SLUU117C − September 2002 − Revised July 2003
6
UCC28517 EVM
Figure 3. Section C
SLUU117C − September 2002 − Revised July 2003
4 List of Materials
Table 1 lists the components used in this design. With minor component tweaks this design could be modified
to meet a wide range of applications.
Reference Qty Description Manufacturer Part Number
Capacitor
Diode
Rectifier
Fuse Clip
Heat Sink
Inductor L1 1 Coupled, 1.7 mH, 2.5 A Cooper Electronic
C1, C27 2 Ceramic, 1 µF, 25 V Panasonic ECJ−3YB1E105K
C2 1 Multi level, 470 nF, 600 V AVX 3640CC474KATBE
C3 1 Electrolytic, 100 µF, 450 V Panasonic ECO−S2WB101BA
C4,C5 0 Ceramic, 1 µF, 25 V Panasonic ECJ−3YB1E105K
C6, C12 2 Monolithic ceramic, 47 µF, 16 V TDK C5750X5R16476M7
C7 0 1.2 nF, 1000 V, high voltage MLC AVX 1825AA122KA1ME
C8 0 1.2 nF, 1000 V, high voltage MLC AVX 1825AA122KA1ME
C9 1 Solid tantalum, 100 µF, 4 V Sprague 595D107X9004B2T
C10 1 Ceramic, 330 pF 50 V, X7R Yageo America 08052R331K9B20D
C11, C17 2 Ceramic, 100 pF, 50 V Panasonic ECJ−2VC1H101J
C13 1 Ceramic, 56 pF, 50 V Panasonic ECJ−2VC1H560J
C14 1 Ceramic, 150 nF, 25 V Vishay ECJ−2VF1H154Z
C15 1 Ceramic, 220 pF, 50 V Panasonic ECJ−2VC1H221J
C16 1 Ceramic, 10 nF, 50 V Panasonic ECJ−2VB1H103K
C18 1 Ceramic, 0.100 µF, 50 V Panasonic ECJ−2YB1H104K
C19 1 Ceramic, 2.2 nF, 50 V Panasonic ECJ−2VB1H222K
C20, C21 2 Ceramic, 2.2 µF, 50 V Panasonic ECJ−3YB1C225K
C22 1 Ceramic, 390 pF, 50 V Panasonic ECU−V1H391KBN
C23 1 Ceramic, 1.5 µF, 16 V Panasonic ECJ−3YB1C155K
C24 1 Ceramic, 100 pF, 50 V Panasonic ECJ−2VC1H101J
C25 1 Ceramic, 150 nF, 25 V Panasonic ECJ−2YB1E154K
C26 1 Metal poly film, 47 nf, 630 V Panasonic ECQ−E6473KF
C28 1 Solid aluminum, 100 µF, 20 V Sanyo 20SVP100M
D1 1 6 A, 600 V General Semiconductor GI756CT
D3 1 Ultra Fast, 6 A, 600 V International Rectifier HFA08TB60
D5 1 Schottky, 1.5 A, 45 V Vishay BYS10−45
D6, D7, D9, D10 4 Schottky, 1.5 A, 25 V Vishay BYS10−25
D8 1 Dual Schottky, 2A, 45V International Rectifier 20CJQ045
D14 1 Zener, 10 V, 0.35 W Diodes Inc BZX84C10−7
D2 0 Fast, 1.5 A, 800 V Vishay BYG21K
D4 0 Fast, 1.5 A, 800 V Vishay BYG21K
D11 1 Bridge, 6 A, 600 V Diodes Inc PB66
D13, D15 2 Programmable reference, TL431 Texas Instruments TL431CPK
F1 1 Glass Fast Acting Cartridge Type,
6 A, 250 V, 3AG 1.25”x.25”
FH1, FH2 2 3AG, for 1.25”x.25” Cooper Electronic
HS1 1 Q1 Aavid 513201B02500
HS2 1 Q2 Aavid 573300D00010
HS3 1 D3 Aavid 579302 B 0 00 00
PCB 1 Bare Bd UCC28517
Littlefuse 312 006
1A1907−06
Technologies
CTX08−14730
Technologies
UCC28517 EVM
7
SLUU117C − September 2002 − Revised July 2003
Reference Qty Description Manufacturer Part Number
FET
Transistor
Resistor
Transformer T1 1 Flyback Pulse PB2039
IC
Thermal Pad X1 at Q1 1 Silicon TO247 Berquist SP900S−104
Nut X2 at Q1 1 #6X32 (steel)
Washer
Screw X5 at Q1 1 Pan head #6−32X7/16 (steel)
Posts AC_L,AC_H,
Q1 1 N Channel, 14 A, 500 V International Rectifier IRFP450
Q2 1 N Channel, 1.7 A, 900 V International Rectifier IRFBF20S
Q3 1 NPN On Semiconductor MJD50
Q4 1 NPN Philips MMBT2222A
R1 1 44.2 kΩ, 1/4 W Panasonic ERJ−14NF4422U
R2, R43 2 10 kΩ, 1/4 W Panasonic ERJ−14YJ103U
R3 1 82 kΩ, 2W, 500 V BC Components FP698202J
R4, R6, R7, R10, R39 5 10 Ω, 1/4 W Panasonic ERJ−14NF10R0U
R5 1 0.33 Ω, 3 W Huntington Electric ALSR−3−.33
R8 1 2.55 kΩ, 1/10 W Panasonic ERJ−6ENF2551V
R9 1 2 kΩ, 2 W, 500 V BC Components 5083NW2K00J12A
R12 0 1 kΩ, 1/4 W Panasonic ERJ−14YJ102U
R13 1 2 kΩ, 1/10 W Panasonic ERJ−6ENF2001V
R14 1 1.5 kΩ, 1/4 W Panasonic ERJ−6ENF1501V
R15, R19 2 3.92 kΩ, 1/10 W Panasonic ERJ−6ENF3921V
R16 1 681 Ω, 1/10 W Panasonic ERJ−6ENF6810V
R17 1 7.5 kΩ, 1/10 W Panasonic ERJ−6ENF7501V
R18, R24 2 383 kΩ, 1/2 W Panasonic ERJ−14NF3923U
R20 1 22.1 kΩ, 1/4 W Panasonic ERJ−125F3833U
R21, R11, R35 3 1 kΩ, 1/10 W Panasonic ERJ−6ENF1001V
R22, R33 2 562 kΩ, 1/4 W Panasonic ERJ−8ENF5623V
R23, R37, R38 0 200 Ω, 1 W, 5% Panasonic ERJ−1WYJ201U
R25 1 133 kΩ, 1/8 W Yageo America 9C08052A1333FKHFT
R26 1 100 Ω, 1/10 W Panasonic ERJ−6GEYJ101V
R27, R29 2 10 kΩ, 1/10 W Panasonic ERJ−6ENF1002V
R28 1 48.7 kΩ, 1/10 W Panasonic ERJ−6ENF4872V
R30 1 30.1 kΩ, 1/10 W Panasonic ERJ−6ENF3012V
R31, R41, R44 3 47 Ω, 1/10 W Panasonic ERJ−6GEYJ470V
R32 1 38.3 kΩ, 1/10 W Panasonic ERJ−6ENF3832V
R34 1 1.18 kΩ, 1/8 W Yageo America 9C08052A1181FKHFT
R36 1 200 Ω, 1/10 W Panasonic ERJ−6GEYJ201V
R40 1 1 kΩ, 1/10 W Yageo America 9C08052A1001FKHFT
R42 1 RES 100 Ω, 1/8 W Yageo America 9C08052A1000FKHFT
U1 1 PWM Texas Instruments UCC28517DW
U2 1 Opto Isolator QT Optoelectronics 4N36
X3 at Q1 1 Split lock, #6(steel)
X4 at Q1 1 Flat #6 (steel)
X6 at Q1 1 Nylon shoulder, #6
0 Binding Johnson 111−0701−001
OUTA+,OUTA−,
OUTB+,OUTB−
8
UCC28517 EVM
5 Reference Design Layout
SLUU117C − September 2002 − Revised July 2003
HS3
Figure 4. Silkscreen Layer 1
Figure 5. Top View
UCC28517 EVM
9
SLUU117C − September 2002 − Revised July 2003
Figure 6. Bottom View
6 Electrical Characteristics
V
IN
Output A 370 385 410 V
Output B 11.4 12 12.6 V
Output A Efficiency 95%
Output B Efficiency 50%
P
A 10 100 W
OUT
P
B 4 8 W
OUT
Output Ripple A 12 V
Output Ripple B 750 mV
MIN TYP MAX UNITS
85 265 V
RMS
10
UCC28517 EVM

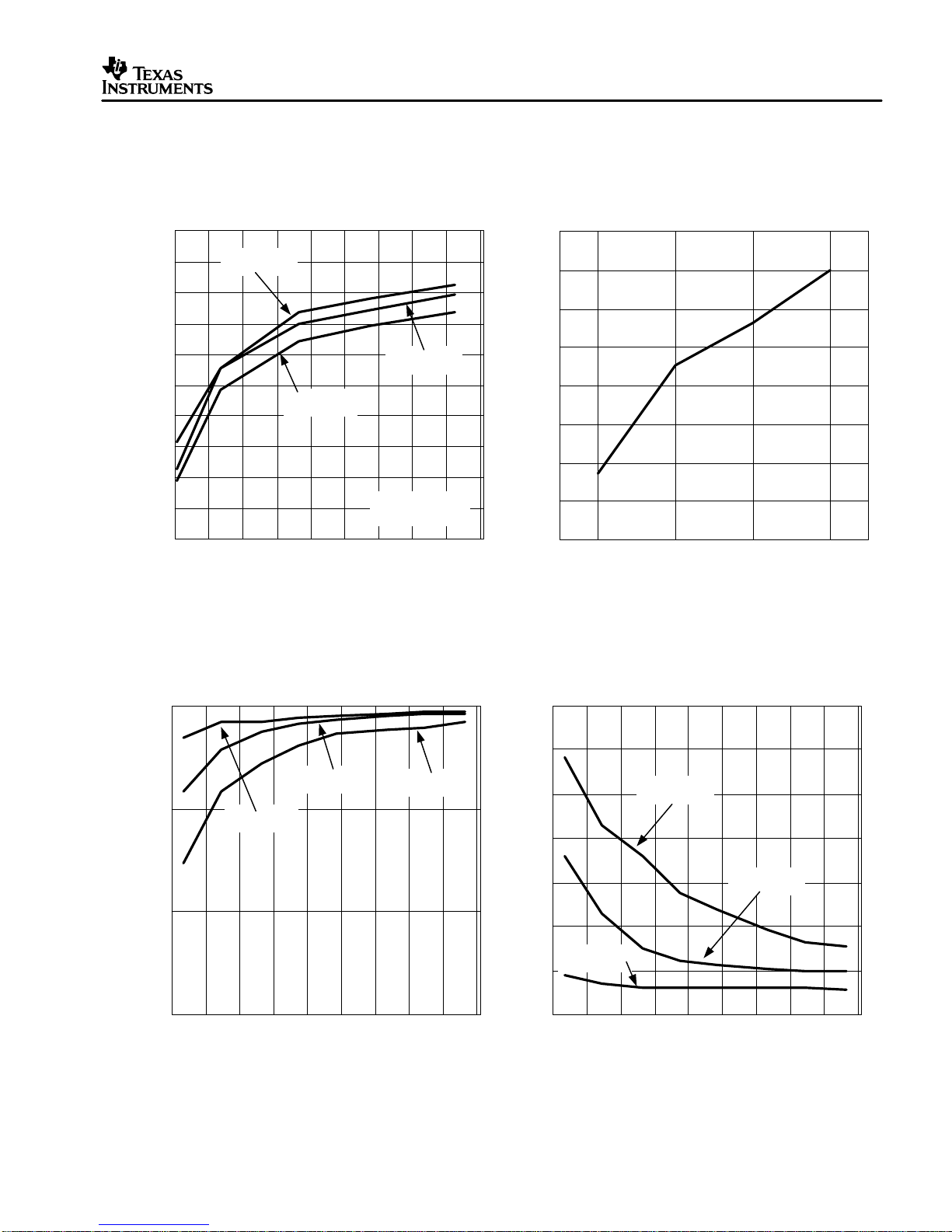

7 Reference Design Performance
SLUU117C − September 2002 − Revised July 2003
OUTPUT A EFFICIENCY
vs
OUTPUT POWER
100
95
90
85
80
75
Efficiency − %
70
65
60
55
50
10 20 30 40 50 60 70 80 90
VIN = 265 V
VIN = 85 V
P
− Output Power − W
OUT
Figure 7
VIN = 175 V
P
OUTB
= 1 W
100
Efficiency − %
OUTPUT B SECOND STAGE EFFICIENCY
vs
OUTPUT POWER
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
1 4 6 8
P
− Output Power − W
OUT
Figure 8
OUTPUT A POWER FACTOR
vs
1
0.95
PF − Power Factor
0.90
0.85
10 20 30 40 50 60 70 80 90 100
OUTPUT POWER
VIN = 175 V
VIN = 85 V
P
− Output Power − W
OUT
VIN = 265 V
Figure 9
OUTPUT A THD
vs
35
30
25
20
15
Current THD − %
10
VIN = 85 V
5
0
10 20 30 40 50 60 70 80 90 100
OUTPUT POWER
VIN = 265 V
P
− Output Power − W
OUT
VIN = 175 V
Figure 10
UCC28517 EVM
11
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications,
enhancements, improvements, and other changes to its products and services at any time and to discontinue
any product or service without notice. Customers should obtain the latest relevant information before placing
orders and should verify that such information is current and complete. All products are sold subject to TI’s terms
and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty . Testing and other quality control techniques are used to the extent TI
deems necessary to support this warranty . Except where mandated by government requirements, testing of all
parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for
their products and applications using TI components. T o minimize the risks associated with customer products
and applications, customers should provide adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right,
copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process
in which TI products or services are used. Information published by TI regarding third-party products or services
does not constitute a license from TI to use such products or services or a warranty or endorsement thereof.
Use of such information may require a license from a third party under the patents or other intellectual property
of the third party , or a license from TI under the patents or other intellectual property of TI.
Reproduction of information in TI data books or data sheets is permissible only if reproduction is without
alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction
of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for
such altered documentation.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that
product or service voids all express and any implied warranties for the associated TI product or service and
is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.
Following are URLs where you can obtain information on other Texas Instruments products and application
solutions:
Products Applications
Amplifiers amplifier.ti.com Audio www.ti.com/audio
Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DSP dsp.ti.com Broadband www.ti.com/broadband
Interface interface.ti.com Digital Control www.ti.com/digitalcontrol
Logic logic.ti.com Military www.ti.com/military
Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork
Microcontrollers microcontroller.ti.com Security www.ti.com/security
Telephony www.ti.com/telephony
Video & Imaging www.ti.com/video
Wireless www.ti.com/wireless
Mailing Address: Texas Instruments
Post Office Box 655303 Dallas, Texas 75265
Copyright 2003, Texas Instruments Incorporated
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
Texas Instruments:
UCC28517EVM
Loading...
