Texas Instruments TSR102 User Manual

3DESREADER DEMO Ver. 1.0

Reader Terminal POS Emulator Installation Instructions:

Caution: Any modification or changes to the unit not expressively authorized by the
party responsible for compliance may void the users authority to operate the
equipment.

1. Installation of POS Emulation S/W Program: 3DESREADER POS DEMO 1.0

a. Install CD into drive.

b. From file manager/explorer select file STARTUP.EXE.
c. Walk through standard installation process by following prompts.
d. Installation is now complete.

2. Installation of Reader Terminal (Refer to Fig 1)

a. Plug the RJ-45 side of the RS-232 (via RJ-45) Serial cable into the left-most

socket of the reader & the DB-9 side of the cable into one of the COM ports of
your PC (Typically COM 2 port).

c. Plug the Power input (RJ-45) into the right-most socket (Red Socket).

Power Input
(Red Socket)

RS-232
input via
RJ-45

3. Starting the 3DESREADER DEMO 1.0 Program

a. Select the Windows START button and select PROGRAMS from the drop down

b. From PROGRAMS select 3DESREADER DEMO 1.0
c. The program will now launch and you will see the screen noted in figure 2.

TI Proprietary Information 1 5/20/02

Figure 1

menu.

RS-485
input via
RJ-45

3DESREADER DEMO Ver. 1.0

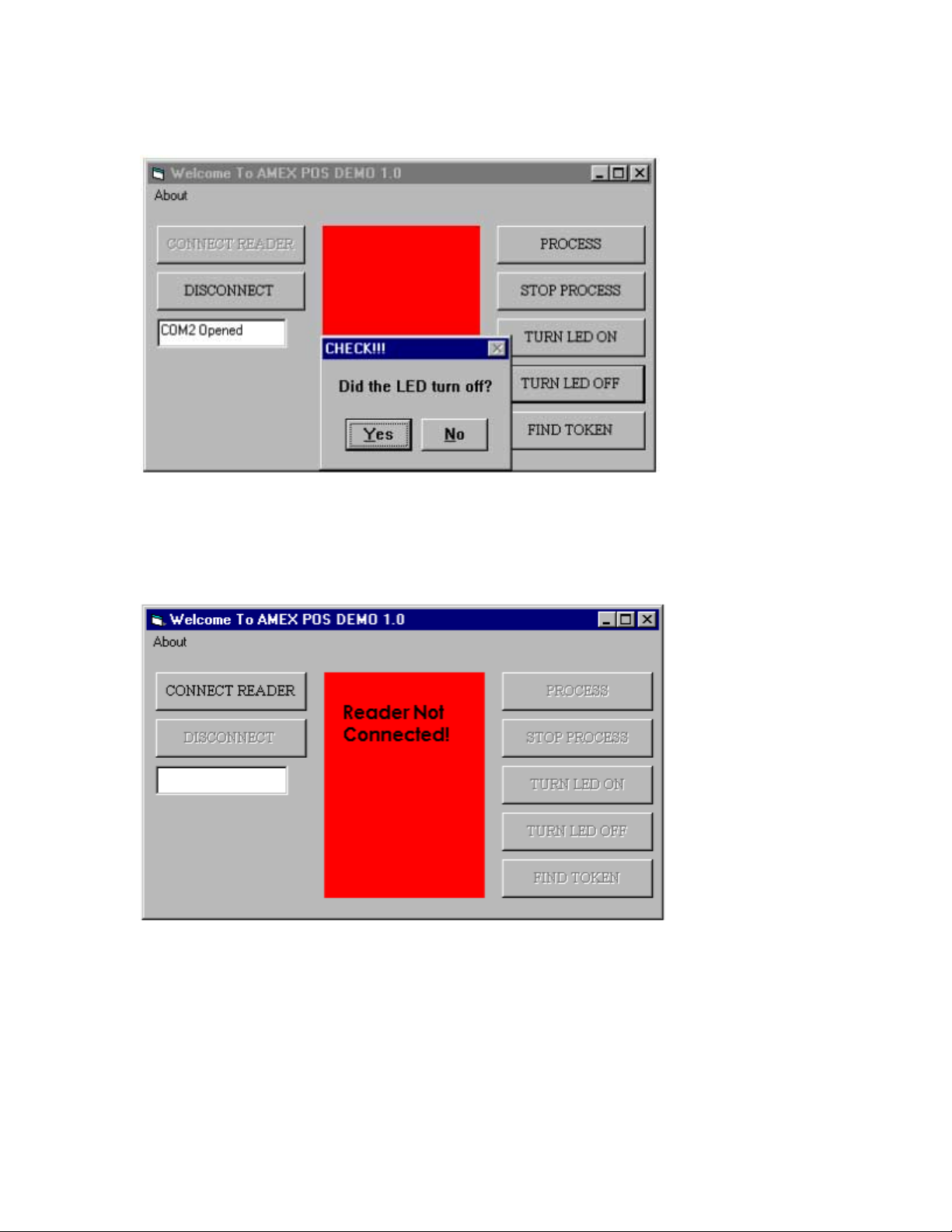

Figure 2.

4. Select the CONNECT READER button. If properly connected the screen then
should appear as that in figure 3.

Figure 3.

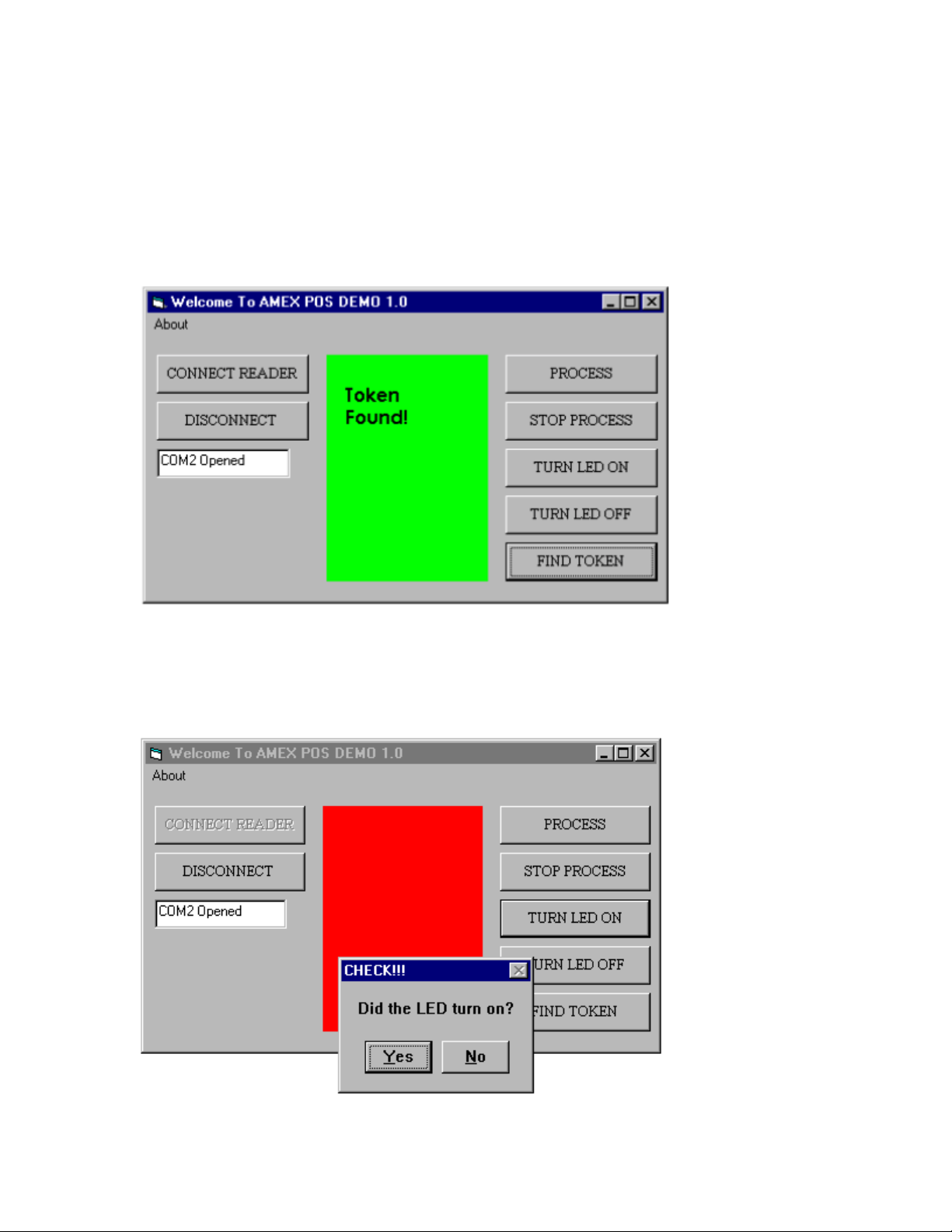

5. Press the PROCESS button and then present the token to the reader antenna. The
reader will then look for the token and the screen will then appear as that noted in
figure 4 (“Looking for Token”). Once the token is found the screen will then shift to
that as noted in figure 5.

TI Proprietary Information 2 5/20/02
