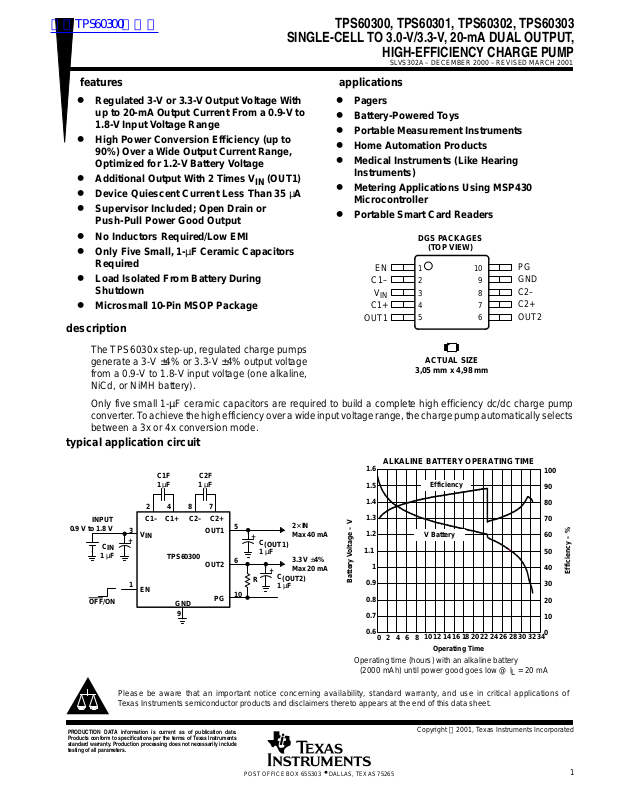

TEXAS INSTRUMENTS TPS60300, TPS60301, TPS60302, TPS60303 Technical data

查询TPS60300供应商

TPS60300, TPS60301, TPS60302, TPS60303

SINGLE-CELL TO 3.0-V/3.3-V, 20-mA DUAL OUTPUT,

HIGH-EFFICIENCY CHARGE PUMP

SLVS302A – DECEMBER 2000 – REVISED MARCH 2001

features

D Regulated 3-V or 3.3-V Output Voltage With

up to 20-mA Output Current From a 0.9-V to

1.8-V Input Voltage Range

D High Power Conversion Efficiency (up to

90%) Over a Wide Output Current Range,
Optimized for 1.2-V Battery Voltage

D Additional Output With 2 Times V

(OUT1)

IN

D Device Quiescent Current Less Than 35 µA
D Supervisor Included; Open Drain or

Push-Pull Power Good Output

D No Inductors Required/Low EMI
D Only Five Small, 1-µF Ceramic Capacitors

Required

D Load Isolated From Battery During

Shutdown

D Microsmall 10-Pin MSOP Package

description

The TPS6030x step-up, regulated charge pumps
generate a 3-V ±4% or 3.3-V ±4% output voltage
from a 0.9-V to 1.8-V input voltage (one alkaline,
NiCd, or NiMH battery).

applications

D Pagers
D Battery-Powered T oys
D Portable Measurement Instruments
D Home Automation Products
D Medical Instruments (Like Hearing

Instruments)

D Metering Applications Using MSP430

Microcontroller

D Portable Smart Card Readers

DGS PACKAGES

(TOP VIEW)

EN

C1–

V

IN

C1+

OUT1

1
2
3
4
5

ACTUAL SIZE

3,05 mm x 4,98 mm

10

9
8
7
6

PG
GND
C2–
C2+
OUT2

Only five small 1-µF ceramic capacitors are required to build a complete high efficiency dc/dc charge pump
converter. T o achieve the high ef ficiency over a wide input voltage range, the charge pump automatically selects
between a 3x or 4x conversion mode.

typical application circuit

ALKALINE BATTERY OPERATING TIME

1.6

1.5

1.4

1.3

1.2

1.1
1

Battery Voltage – V

0.9

0.8

0.7

0.6
02468

Operating time (hours) with an alkaline battery

(2000 mAh) until power good goes low @ lL = 20 mA

Efficiency

V Battery

10 12 14 16 18 20 22 24 26 28 30 32 34

Operating Time

INPUT

0.9 V to 1.8 V

C

1 µF

OFF/ON

C1F
1 µF

2487

C1– C1+ C2– C2+

3

V

IN

+

IN

1

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

TPS60300

EN

GND

9

C2F
1 µF

OUT1

OUT2

PG

(OUT1)

+

C
1 µF

2× IN
Max 40 mA

3.3 V ±4%
Max 20 mA

(OUT2)

5

+

C
1 µF

6

R

10

100
90
80
70
60
50
40
30
20
10
0

Efficiency – %

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Copyright  2001, Texas Instruments Incorporated

1

TPS60300, TPS60301, TPS60302, TPS60303
SINGLE-CELL TO 3.0-V/3.3-V, 20-mA DUAL OUTPUT,
HIGH-EFFICIENCY CHARGE PUMP

SLVS302A – DECEMBER 2000 – REVISED MARCH 2001

description (continued)

Output 1 (OUT1) can deliver a maximum of 40 mA, from a 1-V input, with output 2 (OUT2) not loaded. OUT2
can deliver a maximum of 20 mA, from a 1-V input, with OUT1 not loaded. Both outputs can be loaded in the
same time, but the total output current of the first voltage doubler must not exceed 40 mA. For example, the load
at OUT1 is 20 mA and the load at output 2 is 10 mA.

The devices operate in the newly developed LinSkip mode. In this operating mode, the device switches
seamlessly from the power saving, pulse-skip mode at light loads, to the low-noise, constant-frequency
linear-regulation mode, once the output current exceeds the device-specific output current threshold.

A power-good function supervises the output voltage of OUT2 and can be used for power up and power down
sequencing. Power good (PG) is offered as either open-drain or push-pull output.

AVAILABLE OPTIONS

OUTPUT

CURRENT 1

‡

[mA]

†

MARKING DGS

PACKAGE

PART

NUMBER

TPS60300DGS ALF 40 20 2 x V
TPS60301DGS ALG 40 20 2 x V
TPS60302DGS ALI 40 20 2 x V
TPS60303DGS ALK 40 20 2 x V

†

The DGS package is available taped and reeled. Add R suffix to device type (e.g. TPS60300DGSR) to order quantities of 2500 devices per reel.

‡

If OUT2 is not loaded

§

If OUT1 is not loaded

OUTPUT

CURRENT 2

§

[mA]

OUTPUT

VOLTAGE 1

[V]

IN
IN
IN
IN

OUTPUT

VOLTAGE 2

[V]

3.3 Open-drain power-good output

3.0 Open-drain power-good output

3.3 Push-pull power-good output

3.0 Push-pull power-good output

FEATURE

2

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

SINGLE-CELL TO 3.0-V/3.3-V, 20-mA DUAL OUTPUT,

TPS60300 and TPS60301 functional block diagram

C1F

C1+C1–

TPS60300, TPS60301, TPS60302, TPS60303

HIGH-EFFICIENCY CHARGE PUMP

SLVS302A – DECEMBER 2000 – REVISED MARCH 2001

CP1

Control

2x (Doubler)

Charge Pump

Oscillator

Reg

CP2

1.5x/2x

Charge Pump

C2F

_
+

_
+

+

V

ref

_

C2+C2–

V

IN

EN

GND

OUT1

PG
(Push-Pull Output
for TPS60302 and
TPS60303)

OUT2

Terminal Functions

TERMINAL

NAME NO.

C1+ 4 Positive terminal of the flying capacitor C1F
C1– 2 Negative terminal of the flying capacitor C1F
C2+ 7 Positive terminal of the flying capacitor C2F
C2– 8 Negative terminal of the flying capacitor C2F
EN 1 I Device-enable input

GND 9 GROUND
OUT1 5 O 2 × VIN power output. Bypass OUT1 to GND with the output filter capacitor C
OUT2 6 O Regulated

PG 10 O Power good detector output. As soon as the voltage on OUT2 reaches about 98% of its nominal value this pin goes high.

V

IN

I/O

– EN = Low disables the device. Output and input are isolated in shutdown mode.
– EN = High enables the device.

3.3-V power output (TPS60300, TPS60302) or 3-V power output (TPS60301, TPS60303), respectively
Bypass OUT2 to GND with the output filter capacitor C

Open drain output on TPS60300 and TPS60301. A pullup resistor should be connected between PG and OUT1 or
OUT2.

Push-pull output stage on TPS60302 and TPS60303

3 I Supply input. Bypass VIN to GND with a ≥1-µF capacitor.

DESCRIPTION

.

(OUT2)

(OUT1)

.

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

3

TPS60300, TPS60301, TPS60302, TPS60303
SINGLE-CELL TO 3.0-V/3.3-V, 20-mA DUAL OUTPUT,
HIGH-EFFICIENCY CHARGE PUMP

SLVS302A – DECEMBER 2000 – REVISED MARCH 2001

detailed description

operating principle

The TPS6030x charge pumps are voltage quadruplers that provide a regulated 3.3-V or 3.0-V output from a

0.9-V to 1.8-V input. They deliver a maximum load current of 20 mA. Designed specifically for space critical
battery powered applications, the complete converter requires only five external capacitors and enables the
design to use low-cost, small-sized, 1-µF ceramic capacitors. The TPS6030x circuits consist of an oscillator,
a voltage reference, an internal resistive feedback circuit, an error amplifier, two charge pump stages with
MOSFET switches, a shutdown/start-up circuit, and a control circuit.

shutdown

Driving EN low disables the converter. This disables all internal circuits, reducing input current to only 0.05 µA.
Leakage current drawn from the output pins OUT1 and OUT2 is a maximum of 1 µA. The device exits shutdown
once EN is set high (see start-up procedure described below). The typical no-load, start-up time is 400 µs. When
the device is disabled, the load is isolated from the input. This is an important feature in battery operated
products because it extends the battery shelf life.

start-up procedure

The device is enabled when EN is set from logic low to logic high. CP1 will first enter a dc start-up mode during
which the capacitor on OUT1 is charged up to about V
up to about two times V

. CP2 will then follow and charge up the capacitor on OUT2 to about the voltage on

IN

OUT1, after that, it will also start switching and boost up the voltage to its nominal value. EN must not exceed
the highest voltage applied to the device.

. After that, it starts switching to boost the voltage further

IN

NOTE:

During start-up with V

= 0 V, the highest voltage is the input voltage.

OUT

power-good detector

The power-good output is an open-drain output on the TPS60300 and TPS60301 or a push-pull output on the
TPS60302 and TPS60303. The PG-output pulls low when the output of OUT2 is out of regulation. When the
output rises to within 98% of regulation, the power-good output goes active high. In shutdown, power-good is
pulled low. In normal operation, an external pullup resistor with the TPS60300 and TPS60301 is typically used
to connect the PG pin to VOUT . The resistor should be in the 100-kΩ to 1-MΩ range. If the PG output is not used,
it should remain unconnected. Output current at PG (TPS60302, TPS60303) will reduce maximum output
current at OUT2.

4

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS60300, TPS60301, TPS60302, TPS60303

SINGLE-CELL TO 3.0-V/3.3-V, 20-mA DUAL OUTPUT,

HIGH-EFFICIENCY CHARGE PUMP

SLVS302A – DECEMBER 2000 – REVISED MARCH 2001

O(OUT1)

IN

O(OUT2)

†

+ 0.3 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

+ 0.3 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

+ 0.3 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

absolute maximum ratings over operating free-air temperature (unless otherwise noted)

Input voltage, V
Output voltage, V
Voltage, (C1+ to GND) –0.3 V to V
Voltage, (C1– to GND, C2– to GND) –0.3 V to V
Voltage, (C2+ to GND) –0.3 V to V

(IN to GND) (see Note 1) –0.3 V to 2 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

I

(OUT1,OUT2, EN, PG to GND) (see Note 1) –0.3 V to 3.6 V. . . . . . . . . . . . . . . . . . . . . . . .

O

Continuous power dissipation See Dissipation Rating Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output current, I
Output current, I
Storage temperature range, T
Maximum junction temperature, T

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTE 1: The voltage at EN and PG can exceed IN up to the maximum rated voltage without increasing the leakage current drawn by these pins.

PACKAGE

DGS 424 mW 3.4 mW/°C 271 mW 220 mW

NOTE: The thermal resistance junction to ambient of the DGS package is R

(OUT1) 80 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

O

(OUT2) 40 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

O

stg

–55°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

J

DISSIPATION RATING TABLE

TA <25°C

POWER RATING

DERATING FACTOR

ABOVE TA = 25°C

TA = 70°C

POWER RATING

= 294°C/W.

TH–JA

TA = 85°C

POWER RATING

150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

recommended operating conditions

MIN NOM MAX UNIT

Input voltage, V
Output current (OUT2), I
Output current (OUT1), I
Input capacitor, C
Flying capacitors, C1F, C2F 1 µF
Output capacitors, C
Operating junction temperature, T

I

O(OUT2)
O(OUT1)

I

, C

O(1)

O(2)

J

0.9 1.8 V
20 mA
40 mA

1 µF

1 µF

–40 125 °C

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

5

TPS60300, TPS60301, TPS60302, TPS60303

Maximum out ut current for TPS60300

V

O(OUT2)

Out ut voltage for TPS60300, TPS60302

V

V

O(OUT2)

Out ut voltage for TPS60301, TPS60303

V

SINGLE-CELL TO 3.0-V/3.3-V, 20-mA DUAL OUTPUT,
HIGH-EFFICIENCY CHARGE PUMP

SLVS302A – DECEMBER 2000 – REVISED MARCH 2001

electrical characteristics at CIN = C1F = C2F = C

= VIN (unless otherwise noted)

V

(EN)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

V

IN

I

O(OUT1)

I

O(OUT2)

I

O(OUT1)

I

O(OUT2)

V

V

V

P–P

I

Q

I

(SD)

f

OSC

V

IL(EN)

V

IH(EN)

I

lkg

NOTE 2: OUT1 not loaded. If OUT1 is connected to GND via a resistor, leakage current will be increased.

Supply voltage range 0.9 1.8 V

Maximum output current for TPS60300,
TPS60302

Maximum output current for TPS60301,
TPS60303

Output voltage for TPS60300, TPS60302

Output voltage for TPS60301, TPS60303

Output voltage ripple
Quiescent current (no-load input current) I

Shutdown supply current

Internal switching frequency 470 700 900 kHz
EN input low voltage VIN = 0.9 V to 1.8 V 0.3 × V
EN input high voltage VIN = 0.9 V to 1.8 V 0.7 × V

EN input leakage current

LinSkip switching threshold VIN = 1.25 V 7.5 mA

Short circuit current VIN = 1.8 V

Output leakage current OUT2

,

OUT2 I
OUT1

(OUT1)

VIN ≥ 1.1 V, I
I

= 0 mA

(PG,1)

VIN = 0.9 V, I
I

= 0 mA

(PG,1)

VIN ≥ 1.1 V, I
I

= 0 mA

(PG,1)

VIN = 0.9 V, I
I

= 0 mA

(PG,1)

VIN ≥ 1.1 V, I
I

= 0 mA

(PG,1)

VIN = 0.9 V, I
I

= 0 mA

(PG,1)

VIN ≥ 1.0 V, I
I

= 0 mA

(PG,1)

VIN = 0.9 V, I
I

= 0 mA

(PG,1)

1.1 V < VIN < 1.8 V,
I

O(OUT1)

0 < I

O(OUT2)

0.9 V < VIN < 1.1 V,
I

O(OUT1)

1.0 V < VIN < 1.8 V,
I

O(OUT1)

0 < I

O(OUT2)

VIN > 1.65 V, I
25 µA < I

O(OUT2)

I

O(OUT1)
O(OUT)

VIN = 1.8 V, V
See Note 2

VIN = 1.8 V, V
TC = 25°C, See Note 2

V

= 0 V or VIN or V

(EN)

V

O(OUT1)

V

O(OUT1)

V

O(OUT2)

= C

(OUT2)

O(OUT2)

O(OUT2)

O(OUT1)

O(OUT1)

O(OUT2)

O(OUT2)

O(OUT1)

O(OUT1)

= 0 mA

< 20 mA

= 0 mA, I

= 0 mA,

O(OUT2)

= 20 mA, I
= 40 mA, I

= 0 mA, VIN = 1.8 V 35 70 µA

= 3 V,
= nominal, EN = 0 V

O(OUT2)

< 20 mA

O(OUT1)

< 20 mA

O(OUT1)
O(OUT2)

V
V

= 1 µF, TC = –40°C to 85°C, VIN = 1.0 V,

= 0 mA,

= 0 mA,

= 0 mA,

= 0 mA,

= 0 mA,

= 0 mA,

= 0 mA,

= 0 mA,

< 10 mA

= 0 mA,

= 0 mA 20
= 0 mA 40

= 0 V,

(EN)

= 0 V,

(EN)

O(OUT2)

O(OUT2)
O(OUT1)

or

= 0 V 5 20 50
= 0 V 2 80 150

40

20

20

10

40

20

20

12

3.17 3.30 3.43

3.17 3.30 3.43

2.88 3 3.12

2.88 3 3.15

0.05 2.5

0.5

IN

0.01 0.1 µA

mA

mA

mV

µA

IN

mA

1 µA

V

V

P–P

V
V

6

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TPS60300, TPS60301, TPS60302, TPS60303

)

Ω

Out ut resistance at ower good

SINGLE-CELL TO 3.0-V/3.3-V, 20-mA DUAL OUTPUT,

HIGH-EFFICIENCY CHARGE PUMP

SLVS302A – DECEMBER 2000 – REVISED MARCH 2001

electrical characteristics at CIN = C1F = C2F = C

= VIN (unless otherwise noted) (continued)

V

(EN)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Output load regulation

Output line regulation
No-load start-up time 400 µs

Impedance of first charge pump stage 4 Ω

Start-up performance at OUT2 (minimum

-

p

start-up load resistance

Start-up performance at OUT1 (minimum
start-up load resistance)

VIN = 1.25 V, TC = 25°C
2 mA < I

1.0 V < VIN < 1.65 V; TC = 25°C,
I

O(OUT)

VIN ≥ 1.1 V 165
VIN ≥ 1.0 V 330
VIN = 0.9 V 1000

VIN = 1.0 V 500 Ω

(OUT1)

O(OUT2)

= 10 mA

= C

(OUT2)

< 20 mA

= 1 µF, TC = –40°C to 85°C, VIN = 1.0 V,

0.1 %/mA

0.75 %/V

Ω

electrical characteristics for power good comparator of devices TPS6030x at TC = –40°C to 85°C,

= 1.0 V and V

V

IN

V

(PG)

V

hys

V

OL

I

lkg

V

OH

I

O(PG,1)

I

O(PG,0)

R

(PG,1)

R

(PG,0)

Power good trip voltage VO ramping positive VO – 2% V
Power good trip voltage hysteresis VO ramping negative 10%

Power good output voltage low

Power good leakage current

Power good output voltage high

Output current at power good (source)
Output current at power good (sink) All devices V

Output resistance at power good

= VIN (unless otherwise noted)

(EN)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

O

TPS60300

TPS60301
TPS60302

TPS60303
TPS60302,

TPS60303

TPS60302,
TPS60303

All devices V

VO = 0 V,
I

= 1.6 mA

(PG)

VO = 3.3 V,
V

= 3.3 V

(PG)

VO = 3.0 V,
V

= 3.0 V

(PG)

I

= –5 mA

(PG)

= 0 V 1.6 mA

(PG)

V

= V

(PG)
(PG)

O(OUT2)

= 0 V 100 Ω

3

2.7
–5 mA

0.01 0.1

0.01 0.1

0.3 V

15 Ω

V

µA

V

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

7
