TPS5210

PROGRAMMABLE SYNCHRONOUS-BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

1

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

D

±1% Reference Over Full Operating
T emperature Range

D

Synchronous Rectifier Driver for Greater
Than 90% Efficiency

D

Programmable Reference V oltage Range of

1.3 V to 3.5 V

D

User–Selectable Hysteretic T ype Control

D

Droop Compensation for Improved Load
Transient Regulation

D

Adjustable Overcurrent Protection

D

Programmable Softstart

D

Overvoltage Protection

D

Active Deadtime Control

D

Power Good Output

D

Internal Bootstrap Schottky Diode

D

Low Supply Current...3-mA Typ

description

The TPS5210 is a synchronous-buck regulator controller which provides an accurate, programmable supply
voltage to microprocessors. An internal 5-bit DAC is used to program the reference voltage to within a range
of 1.3 V to 3.5 V . The output voltage can be set to be equal to the reference voltage or to some multiple of the
reference voltage. A hysteretic controller with user-selectable hysteresis and programmable droop
compensation is used to dramatically reduce overshoot and undershoot caused by load transients. Propagation
delay from the comparator inputs to the output drivers is less than 250 ns. Overcurrent shutdown and crossover
protection for the output drivers combine to eliminate destructive faults in the output FET s. The softstart current
source is proportional to the reference voltage, thereby eliminating variation of the softstart timing when
changes are made to the output voltage. PWRGD monitors the output voltage and pulls the open-collector
output low when the output drops 7% below the nominal output voltage. An overvoltage circuit disables the
output drivers if the output voltage rises 15% above the nominal value. The inhibit pin can be used to control
power sequencing. Inhibit and undervoltage lockout assures the 12-V supply voltage and system supply voltage
(5 V or 3.3 V) are within proper operating limits before the controller starts. Single-supply (12 V) operation is
easily accomplished using a low-current divider for the required 5-V signals. The output driver circuits include
2-A drivers with internal 8-V gate-voltage regulators. The high-side driver can be configured either as a
ground-referenced driver or as a floating bootstrap driver. The TPS5210 is available in a 28-pin SOIC package
and a 28-pin TSSOP PowerPAD package. It operates over a junction temperature range of 0°C to 125°C.

AVAILABLE OPTIONS

PACKAGES

T

J

SOIC
(DW)

TSSOP

(PWP)

0°C to 125°C TPS5210DW TPS5210PWPR

The DW package is available taped and reeled. Add R suffix to device
type (e.g., TPS5210DWR).

Copyright  1999, Texas Instruments Incorporated

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

1
2
3
4
5
6
7
8
9
10
11
12
13
14

28
27
26
25
24
23
22
21
20
19
18
17
16
15

IOUT

DROOP

OCP
VHYST
VREFB

VSENSE
ANAGND
SLOWST

BIAS

LODRV

LOHIB

DRVGND

LOWDR

DRV

PWRGD
VID0
VID1
VID2
VID3
VID4
INHIBIT
IOUTLO
LOSENSE
HISENSE
BOOTLO
HIGHDR
BOOT
V

CC

DW OR PWP PACKAGE

(TOP VIEW)

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

2

POST OFFICE BOX 655303 DALLAS, TEXAS 75265

•

11111

Decode

VID0
VID1
VID2
VID3
VID4

SQ

R

Deglitch

Deglitch

100 mV

+

V

OVP

1.15 V

ref

V

PGD

0.93 V

ref

Rising

Edge

Delay

–

+

+

–

PREREG

DRV REG

–

+

–

+

Hysteresis

Setting

–+

VID

MUX

and

Decoder

2x

SLOWST

OCP

INHIBIT

Bandgap Shutdown

I

VREFB

5

Shutdown

VSENSE

HIGHIN

HIGHDR

V

CC

Analog
Bias

Analog Bias

Slowstart
Comp

Hysteresis
Comp

CM Filters

VREF

–

+

Σ

28 20 21 1915 7

V

CC

ANAGND PWRGD LOSENSE IOUTLO HISENSE

2 V

10 V

V

CC

UVLO

NOCPU

Fault

Shutdown

IOUT

BIAS
DRV

BOOT
HIGHDR

BOOTLO

LOWDR
DRVGND

1

9
14

16
17

18

13
12

6

11 1042523

VID0 VID1 VID2 VID3 VID4

24252627

VREFB DROOP VHYST VSENSE LOHIB LODRV

8

3

22

I

VREFB

200 kΩ

200 kΩ

functional block diagram

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

3

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Terminal Functions

TERMINAL

NAME NO.

I/O

DESCRIPTION

ANAGND 7 Analog ground
BIAS 9 O Analog BIAS pin. A 1-µF ceramic capacitor should be connected from BIAS to ANAGND.
BOOT 16 I Bootstrap. Connect a 1-µF low-ESR capacitor from BOOT to BOOTLO.
BOOTLO 18 O Bootstrap low. Connect BOOTLO to the junction of the high-side and low-side FETs for floating drive

configuration. Connect BOOTLO to PGND for ground reference drive configuration.

DROOP 2 I Droop voltage. Voltage input used to set the amount of output-voltage set-point droop as a function of load

current. The amount of droop compensation is set with a resistor divider between IOUT and ANAGND.
DRV 14 O Drive regulator for the FET drivers. A 1-µF ceramic capacitor should be connected from DRV to DRVGND.
DRVGND 12 Drive ground. Ground for FET drivers. Connect to FET PWRGND.
HIGHDR 17 O High drive. Output drive to high-side power switching FETs
HISENSE 19 I High current sense. For current sensing across high-side FETs, connect to the drain of the high-side FETs; for

optional resistor sensing scheme, connect to power supply side of current-sense resistor placed in series with

high-side FET drain.
INHIBIT 22 I Disables the drive signals to the MOSFET drivers. Can also serve as UVLO for system logic supply (either 3.3 V

or 5 V).
IOUT 1 O Current out. Output voltage on this pin is proportional to the load current as measured across the Rds(on) of the

high-side FET s. The voltage on this pin equals 2×R

ds(on)×IOUT . In applications where very accurate current

sensing is required, a sense resistor should be connected between the input supply and the drain of the high-side

FET s.
IOUTLO 21 O Current sense low output. This is the voltage on the LOSENSE pin when the high-side FETs are on. A ceramic

capacitor should be connected from IOUTLO to HISENSE to hold the sensed voltage while the high-side FET s

are off. Capacitance range should be between 0.033 µF and 0.1 µF.
LODRV 10 I Low drive enable. Normally tied to 5 V. To activate the low-side FETs as a crowbar, pull LODRV low.
LOHIB 11 I Low side inhibit. Connect to the junction of the high and low side FET s to control the anti-cross-conduction and

eliminate shoot-through current. Disabled when configured in crowbar mode.
LOSENSE 20 I Low current sense. For current sensing across high-side FETs, connect to the source of the high-side FET s; for

optional resistor sensing scheme, connect to high-side FET drain side of current-sense resistor placed in series

with high-side FET drain.
LOWDR 13 O Low drive. Output drive to synchronous rectifier FETs
OCP 3 I Over current protection. Current limit trip point is set with a resistor divider between IOUT and ANAGND.
PWRGD 28 O Power good. Power Good signal goes high when output voltage is within 7% of voltage set by VID pins.

Open-drain output.
SLOWST 8 O Slow Start (soft start). A capacitor from SLOWST to ANAGND sets the slowstart time.

Slowstart current = I

VREFB

/5

V

CC

15 12-V supply. A 1-µF ceramic capacitor should be connected from VCC to DRVGND.

VHYST 4 I HYSTERESIS set pin. The hysteresis is set with a resistor divider from V

REFB

to ANAGND.

The hysteresis window = 2 × (V

REFB

– V

HYST

)
VID0 27 I Voltage Identification input 0
VID1 26 I Voltage Identification input 1
VID2 25 I Voltage Identification input 2
VID3 24 I Voltage Identification input 3
VID4 23 I Voltage Identification input 4. Digital inputs that set the output voltage of the converter. The code pattern for

setting the output voltage is located in T able 1. Internally pulled up to 5 V with a resistor divider biased from V

CC

.

VREFB 5 O Buffered reference voltage from VID network
VSENSE 6 I Voltage sense Input. To be connected to converter output voltage bus to sense and control output voltage. It is

recommended an RC low pass filter be connected at this pin to filter noise.

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

4

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

detailed description

V

REF

The reference/voltage identification (VID) section consists of a temperature-compensated bandgap reference
and a 5-bit voltage selection network. The 5 VID terminals are inputs to the VID selection network and are
TTL-compatible inputs internally pulled up to 5 V by a resistor divider connected to V

CC

. The VID codes conform

to the Intel

VRM 8.3 DC-DC Converter Specification

for voltage settings between 1.8 V and 3.5 V , and they are

decremented by 50 mV , down to 1.3 V, for the lower VID settings. V oltages higher than V

REF

can be implemented

using an external divider. Refer to T able 1 for the VID code settings. The output voltage of the VID network, V

REF

,

is within ±1% of the nominal setting over the VID range of 1.3 V to

2

.5 V , including a junction temperature range

of 5°C to +125°C, and a V

CC

supply voltage range of 1 1.4 V to 12.6 V . The output of the reference/VID network

is indirectly brought out through a buffer to the V

REFB

pin. The voltage on this pin will be within 2% of V

REF

. It

is not recommended to drive loads with V

REFB

, other than setting the hysteresis of the hysteretic comparator,

because the current drawn from V

REFB

sets the charging current for the slowstart capacitor. Refer to the

slowstart section for additional information.

hysteretic comparator

The hysteretic comparator regulates the output voltage of the synchronous-buck converter. The hysteresis is
set by 2 external resistors and is centered on V

REF

. The 2 external resistors form a resistor divider from V

REFB

to ANAGND, with the output voltage connecting to the V

HYST

pin. The hysteresis of the comparator will be equal

to twice the voltage

difference

between the V

REFB

and V

HYST

pins. The propagation delay from the comparator

inputs to the driver outputs is 250 ns (maximum). The maximum hysteresis setting is 60 mV.

low-side driver

The low-side driver is designed to drive low-Rds(on) n-channel MOSFETs. The current rating of the driver is
2 A, source and sink. The bias to the low-side driver is internally connected to the DRV regulator.

high-side driver

The high-side driver is designed to drive low-Rds(on) n-channel MOSFETs. The current rating of the driver is
2 A, source and sink. The high-side driver can be configured either as a ground-referenced driver or as a floating
bootstrap driver. When configured as a floating driver , the bias voltage to the driver is developed from the DR V
regulator. The internal bootstrap diode, connected between the DR V and BOOT pins, is a Schottky for improved
drive efficiency. The maximum voltage that can be applied between BOOT and DRVGND is 30 V. The driver
can be referenced to ground by connecting BOOTLO to DRVGND, and connecting BOOT to either DRV or V

CC

.

deadtime control

Deadtime control prevents shoot-through current from flowing through the main power FETs during switching
transitions by actively controlling the turn-on times of the MOSFET drivers. The high-side driver is not allowed
to turn on until the gate-drive voltage to the low-side FET s is below 2 V ; the low-side driver is not allowed to turn
on until the voltage at the junction of the high-side and low-side FETs (Vphase) is below 2 V.

current sensing

Current sensing is achieved by sampling and holding the voltage across the high-side power FETs while the
high-side FET s are on. The sampling network consists of an internal 60- Ω switch and an external ceramic hold
capacitor. Recommended value of the hold capacitor is between 0.033 µF and 0.1 µF. Internal logic controls
the turn-on and turn-off of the sample/hold switch such that the switch does not turn on until the Vphase voltage
transitions high, and the switch turns off when the input to the high-side driver goes low . The sampling will occur
only when the high-side FETs are conducting current. The voltage on the IOUT pin equals 2 times the sensed
high-side voltage. In applications where a higher accuracy in current sensing is required, a sense resistor can
be placed in series with the high-side FETs, and the voltage across the sense resistor can be sampled by the
current sensing circuit.

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

5

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

detailed description (continued)

droop compensation

The droop compensation network reduces the load transient overshoot/undershoot on V

O

, relative to V

REF

. V

O

is programmed to a voltage greater than V

REF

by an external resistor divider from VO to VSENSE to reduce the

undershoot on V

O

during a low-to-high load transient. The overshoot during a high-to-low load transient is

reduced by subtracting the voltage on DROOP from V

REF

. The voltage on IOUT is divided with an external

resistor divider, and connected to DROOP.

inhibit

INHIBIT is a TTL-compatible digital input used to enable the controller. When INHIBIT is low , the output drivers
are low and the slowstart capacitor is discharged. When INHIBIT goes high, the short across the slowstart
capacitor is released and normal converter operation begins. When the system-logic supply is connected to
INHIBIT, it also controls power sequencing by locking out controller operation until the system-logic supply
exceeds the input threshold voltage of the inhibit circuit. The 12-V supply and the system logic supply (either
5 V or 3.3 V) must be above UVLO thresholds before the controller is allowed to start up. The start threshold
is 2.1 V and the hysteresis is 100 mV for the INHIBIT comparator.

V

CC

undervoltage lockout (UVLO)

The undervoltage lockout circuit disables the controller while the V

CC

supply is below the 10-V start threshold
during power up. When the controller is disabled, the output drivers will be low and the slowstart capacitor is
discharged. When V

CC

exceeds the start threshold, the short across the slowstart capacitor is released and
normal converter operation begins. There is a 2-V hysteresis in the undervoltage lockout circuit for noise
immunity.

slowstart

The slowstart circuit controls the rate at which V

O

powers up. A capacitor is connected between SLOWST and
ANAGND and is charged by an internal current source. The current source is proportional to the reference
voltage, so that the charging rate of C

slowst

is proportional to the reference voltage. By making the charging

current proportional to V

REF

, the power-up time for VO will be independent of V

REF

. Thus, C

SLOWST

can remain

the same value for all VID settings. The slowstart charging current is determined by the following equation:

I

slowstart

= I(V

REFB

) / 5 (amps)

Where I(V

REFB

) is the current flowing out of V

REFB

.

It is recommended that no additional loads be connected to V

REFB

, other than the resistor divider for setting the

hysteresis voltage. The maximum current that can be sourced by the V

REFB

circuit is 500 µA. The equation for

setting the slowstart time is:

t

SLOWST

= 5 × C

SLOWST

× R

VREFB

(seconds)

Where R

VREFB

is the total external resistance from V

REFB

to ANAGND.

power good

The power-good circuit monitors for an undervoltage condition on V

O

. If VO is 7% below V

REF

, then the PWRGD

pin is pulled low. PWRGD is an open-drain output.

overvoltage protection

The overvoltage protection (OVP) circuit monitors V

O

for an overvoltage condition. If VO is 15% above V

REF

,

then a fault latch is set and both output drivers are turned off. The latch will remain set until V

CC

goes below the
undervoltage lockout value. A 3-µs deglitch timer is included for noise immunity. Refer to the LODRV section
for information on how to protect the microprocessor against overvoltages due to a shorted fault across the
high-side power FET.

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

6

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

detailed description (continued)

overcurrent protection

The overcurrent protection (OCP) circuit monitors the current through the high-side FET. The overcurrent
threshold is adjustable with an external resistor divider between IOUT and ANAGND, with the divider voltage
connected to the OCP pin. If the voltage on OCP exceeds 100 mV , then a fault latch is set and the output drivers
are turned off. The latch will remain set until V

CC

goes below the undervoltage lockout value. A 3-µs deglitch

timer is included for noise immunity .

The OCP circuit is also designed to protect the high-side power FET against

a short-to-ground fault on the terminal common to both power FETs.

drive regulator

The drive regulator provides drive voltage to the output drivers. The minimum drive voltage is 7 V . The minimum
short circuit current is 100 mA. Connect a 1-µF ceramic capacitor from DRV to DRVGND.

LODRV

The LODRV circuit is designed to protect the microprocessor against overvoltages that can occur if the high-side
power FETs become shorted. External components to sense an overvoltage condition are required to use this
feature. When an overvoltage fault occurs, the low-side FET s are used as a crowbar . LODR V is pulled low and
the low-side FET will be turned on, overriding all control signals inside the TPS5210 controller. The crowbar
action will short the input supply to ground through the faulted high-side FETs and the low-side FETs. A fuse
in series with V

in

should be added to disconnect the short-circuit.

Table 1. Voltage Identification Codes

VID TERMINALS

(0 = GND, 1 = floating or pull-up to 5 V)

V

REF

VID4 VID3 VID2 VID1 VID0 (Vdc)

0 1 1 1 1 1.30
0 1 1 1 0 1.35
0 1 1 0 1 1.40
0 1 1 0 0 1.45
0 1 0 1 1 1.50
0 1 0 1 0 1.55
0 1 0 0 1 1.60
0 1 0 0 0 1.65
0 0 1 1 1 1.70
0 0 1 1 0 1.75
0 0 1 0 1 1.80
0 0 1 0 0 1.85
0 0 0 1 1 1.90
0 0 0 1 0 1.95
0 0 0 0 1 2.00
0 0 0 0 0 2.05
1 1 1 1 1 No CPU
1 1 1 1 0 2.10
1 1 1 0 1 2.20
1 1 1 0 0 2.30
1 1 0 1 1 2.40
1 1 0 1 0 2.50
1 1 0 0 1 2.60

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

7

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Table 1. Voltage Identification Codes (Continued)

VID TERMINALS

(0 = GND, 1 = floating or pull-up to 5 V)

V

REF

VID4 VID3 VID2 VID1 VID0 (Vdc)

1 1 0 0 0 2.70
1 0 1 1 1 2.80
1 0 1 1 0 2.90
1 0 1 0 1 3.00
1 0 1 0 0 3.10
1 0 0 1 1 3.20
1 0 0 1 0 3.30
1 0 0 0 1 3.40
1 0 0 0 0 3.50

absolute maximum ratings over operating virtual junction temperature (unless otherwise noted)

†

Supply voltage range, V

CC

(see Note1) –0.3 V to 14 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Input voltage range: BOOT to DRVGND (High-side Driver ON) –0.3 V to 30 V. . . . . . . . . . . . . . . . . . . . . . . . .

BOOT to HIGHDRV –0.3 V to 15 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

BOOT to BOOTLO –0.3 V to 15 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

INHIBIT, VIDx, LODRV –0.3 V to 7.3 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PWRGD, OCP, DROOP –0.3 V to 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

LOHIB, LOSENSE, IOUTLO, HISENSE –0.3 V to 14 V. . . . . . . . . . . . . . . . . . . . . . . . . .

VSENSE –0.3 V to 5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage difference between ANAGND and DRVGND ±0.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output current, V

REFB

0.5 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Short circuit duration, DRV Continuous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Continuous total power dissipation See Dissipation Rating Table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating virtual junction temperature range, T

J

0°C to 125°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature range, T

stg

–65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lead temperature soldering 1,6 mm (1/16 inch) from case for 10 seconds 260°C. . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTE 1: Unless otherwise specified, all voltages are with respect to ANAGND.

DISSIPATION RATING TABLE

PACKAGE

TA ≤ 25°C

POWER RATING

DERATING FACTOR

ABOVE TA = 25°C

TA = 70°C

POWER RATING

TA = 85°C

POWER RATING

DW 1200 mW 12 mW/°C 660 mW 480 mW

PWP 1150 mW 11.5 mW/°C 630 mW 460 mW

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

8

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

recommended operating conditions

MIN MAX UNIT

Supply voltage, V

CC

11.4 13 V

Input voltage, BOOT to DRVGND 0 28 V

Input voltage, BOOT to BOOTLO 0 13 V
Input voltage, INHIBIT, VIDx, LODRV, PWRGD, OCP, DROOP 0 6 V
Input voltage, LOHIB, LOSENSE, IOUTLO, HISENSE 0 13 V
Input voltage, VSENSE 0 4.5 V
Voltage dif ference between ANAGND and DRVGND 0 ±0.2 V
Output current, V

REFB

†

0 0.4 mA

†

Not recommended to load V

REFB

other than to set hystersis since I

VREFB

sets slowstart time.

electrical characteristics over recommended operating virtual junction temperature range,
V

CC

= 12 V, I

DRV

= 0 A (unless otherwise noted)

reference/voltage identification

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

VCC = 11.4 to 12.6 V, 1.3 V ≤ V

REF

≤ 2.5 V –0.01 0.01 V/V

VCC = 11.4 to 12.6 V, V

REF

= 2.6 V –0.0104 0.0104 V/V

VCC = 11.4 to 12.6 V, V

REF

= 2.7 V –0.0108 0.0108 V/V

VCC = 11.4 to 12.6 V, V

REF

= 2.8 V –0.0112 0.0112 V/V

VCC = 11.4 to 12.6 V, V

REF

= 2.9 V –0.0116 0.0116 V/V

Reference voltage accuracy, (Includes

offset of droop compensation net-

VCC = 11.4 to 12.6 V, V

REF

= 3 V –0.0120 0.0120 V/V

work)

VCC = 11.4 to 12.6 V, V

REF

= 3.1 V –0.0124 0.0124 V/V

VCC = 11.4 to 12.6 V, V

REF

= 3.2 V –0.0128 0.0128 V/V

V

VCC = 11.4 to 12.6 V, V

REF

= 3.3 V –0.0132 0.0132 V/V

V

REF

VCC = 11.4 to 12.6 V, V

REF

= 3.4 V –0.0136 0.0136 V/V

VCC = 11.4 to 12.6 V, V

REF

= 3.5 V –0.0140 0.0140 V/V

V

REF

= 1.3 V, Hysteresis window = 30 mV –0.011 0.011

V

REF

=1.3 V , Hysteresis,

TJ = 60°C window = 30 mV (see Note 3)

–0.008 0.008

Cumulative reference accurac

y

(see Note 2)

V

REF

= 1.9 Vv, Hysteresis,

TJ = 60°C window = 30 mV (see Note 3)

–0.0090 0.0090

V/V

V

REF

= 3.5 V, Hysteresis,

TJ = 60°C window = 30 mV (see Note 3)

–0.0115 0.0115

VIDx High-level input voltage 2.25 V
VIDx Low-level input voltage 1 V

Output voltage I

VREFB

= 50 µA V

REF

–2% V

REFVREF

+2% V

V

REFB

Output regulation 10 µA ≤ IO ≤ 500 µA 2 mV
Input resistance VIDx = 0 V 36 73 95 kΩ

VID

x

Input pull-up voltage divider 4.8 4.9 5 V

NOTES: 2. Cumulative reference accuracy is the combined accuracy of the reference voltage and the input offset voltage of the hysteretic

comparator. Cumulative accuracy equals the average of the high-level and low-level thresholds of the hysteretic comparator.

3. This parameter is ensured by design and is not production tested.

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

9

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating virtual junction temperature range,
V

CC

= 12 V, I

DRV

= 0 A (unless otherwise noted) (continued)

power good

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Undervoltage trip threshold 90 93 95 %V

REF

V

OL

Low-level output voltage IO = 5 mA 0.5 0.75 V

I

OH

High-level input current V

PWRGD

= 6 V 1 µA

V

hys

Hysteresis voltage 1.3 2.9 4.5 %V

REF

slowstart

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Charge current

V

SLOWST

= 0.5 V,

I

VREFB

= 65 µA

V

VREFB

= 1.3 V,

10.4 13 15.6 µA

Discharge current V

SLOWST

= 1 V 3 mA
Comparator input offset voltage 10 mV
Comparator input bias current See Note 3 10 100 nA
Comparator hysteresis –7.5 7.5 mV

NOTE 3: This parameter is ensured by design and is not production tested.

hysteretic comparator

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Input offset voltage V

DROOP

= 0 V (see Note 3) –2.5 2.5 mV
Input bias current See Note 3 500 nA
Hysteresis accuracy V

REFB

– V

HYST

= 15 mV

(Hysteresis window = 30 mV)

–3.5 3.5 mV

Maximum hysteresis setting V

REFB

– V

HYST

= 30 mV 60 mV

NOTE 3: This parameter is ensured by design and is not production tested.

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

10

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating virtual junction temperature range,
V

CC

= 12 V, I

DRV

= 0 A (unless otherwise noted) (continued)

high-side VDS sensing

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Gain 2 V/V
Initial accuracy

V

HISENSE

= 12 V, V

LOSENSE

= 11.9 V,

Differential input to Vds sensing amp = 100 mV

194 206 mV

IOUTLO Sink current 5 V ≤ V

IOUTLO

≤ 13 V 250 nA

IOUT Source current

V

IOUT

= 0.5 V, V

HISENSE

= 12 V,

V

IOUTLO

= 11.5 V

500 µA

IOUT Sink current

V

IOUT

= 0.05 V , V

HISENSE

= 12 V ,

V

IOUTLO

= 12 V

50 µA

V

HISENSE

= 11 V, R

IOUT

= 10 kΩ 0 2 V

Output voltage swing

V

HISENSE

= 4.5 V, R

IOUT

= 10 kΩ 0 1.5 V

V

HISENSE

= 3 V, R

IOUT

= 10 kΩ 0 0.75 V

High-level input voltage

2.85 V

LOSENSE

Low-level input voltage

V

HISENSE

=

4.5 V (see Note 3)

2.4 V

11.4 V ≤ V

HISENSE

≤ 12.6 V,
LOSENSE connected to HISENSE,
V

HISENSE

– V

IOUTLO

= 0.15 V

50 60 80

Sample/hold resistance

4.5 V ≤ V

HISENSE

≤ 5.5 V,
LOSENSE connected to HISENSE,
V

HISENSE

– V

IOUTLO

= 0.15 V

62 85 123

Ω

3 V ≤ V

HISENSE

≤ 3.6 V,
LOSENSE connected to HISENSE,
V

HISENSE

– V

IOUTLO

= 0.15 V

67 95 144

CMRR

V

HISENSE

= 12.6 V to 3 V,

V

HISENSE

– V

OUTLO

= 100 mV

69 75 dB

NOTE 3. This parameter is ensured by design and is not production tested.

inhibit

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Start threshold 1.9 2.1 2.35 V
Hysteresis 0.08 0.1 0.12 V
Stop threshold 1.85 V

overvoltage protection

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Overvoltage trip threshold 112 115 120 %V

REF

Hysteresis See Note 3 10 mV

NOTE 3: This parameter is ensured by design and is not production tested.

overcurrent protection

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

OCP trip threshold 90 100 110 mV
Input bias current 100 nA

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

11

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating virtual junction temperature range,
V

CC

= 12 V, I

DRV

= 0 A (unless otherwise noted) (continued)

deadtime

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

High-level input voltage 2.4

LOHIB

Low-level input voltage 1.4

V

High-level input voltage See Note 3 3

LOWDR

Low-level input voltage See Note 3 1.7

V

NOTE 3: This parameter is ensured by design and is not production tested.

LODRV

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

High-level input voltage 1.85

LODRV

Low-level input voltage 0.95

V

droop compensation

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Initial accuracy V

DROOP

= 50 mV 46 54 mV

drive regulator

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Output voltage 11.4 V ≤ VCC ≤ 12.6 V, I

DRV

= 50 mA 7 9 V

Output regulation 1 mA ≤ I

DRV

≤ 50 mA 100 mV

Short-circuit current 100 mA

bias regulator

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Output voltage 11.4 V ≤ VCC ≤ 12.6 V, See Note 4 6 V

NOTE 4: The bias regulator is designed to provide a quiet bias supply for the TPS5210 controller. External loads should not be driven by the bias

regulator.

input undervoltage lockout

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Start threshold 9.25 10 10.75 V
Hysteresis 1.9 2 2.2 V
Stop threshold 7.5 V

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

12

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating virtual junction temperature range,
V

CC

= 12 V, I

DRV

= 0 A (unless otherwise noted) (continued)

output drivers

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

High-side sink

Duty cycle < 2%,
TJ = 125°C,

tpw < 100 µs,
V

BOOT

– V

BOOTLO

= 6.5 V,

2

Peak output

High-side source

V

HIGHDR

= 1.5 V (source) or 6 V (sink),

See Note 3

2

curren

t

(see Note 5)

Low-side sink

Duty Cycle < 2%,
TJ = 125°C,

tpw < 100 µs,
V

DRV

= 6.5 V,

2

A

Low-side source

V

LOWDR

= 1.5 V (source) or 5 V (sink),

See Note 3

2

High-side sink

T

= 125°C, V

– V

= 6.5 V,

3

Output

High-side source

J

,

BOOT BOOTLO

,

V

HIGHDR

= 6 V (source) or 0.5 V (sink)

45

resistance
(

see Note 5

)

Low-side sink

TJ = 125°C, V

DRV

= 6.5 V,

5.7

Ω

(see Note 5)

Low-side source

J DRV

V

LOWDR

= 6 V (source) or 0.5 V (sink)

45

NOTES: 3. This parameter is ensured by design and is not production tested.

5. The pull-up/pull-down circuits of the drivers are bipolar and MOSFET transistors in parallel. The peak output current rating is the
combined current from the bipolar and MOSFET transistors. The output resistance is the R

ds(on)

of the MOSFET transistor when

the voltage on the driver output is less than the saturation voltage of the bipolar transistor.

supply current

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

V

CC

Supply voltage
range

11.4 12 13 V

V

INHIBIT

= 5 V,

VCC > 10.75 V at startup,

VID code ≠ 11111,
V

BOOTLO

= 0 V

3 10

V

CC

Quiescent
current

V

INHIBIT

= 5 V,
VCC > 10.75 V at startup,
C

HIGHDR

= 50 pF,

f

SWX

= 200 kHz,

VID code ≠ 11111,
V

BOOTLO

= 0 V,

C

LOWDR

= 50 pF,

See Note 3

5

mA

High-side

V

INHIBIT

= 0 V or VID code = 11111 or VCC < 9.25 V at startup,
V

BOOT

= 13 V, V

BOOTLO

= 0 V

80 µA

driver

quiescent
current

V

INHIBIT

= 5 V,
V

BOOT

= 13 V,

C

HIGHDR

= 50 pF,

VID code ≠ 11111, VCC > 10.75 V at startup,
V

BOOTLO

= 0 V,

f

SWX

= 200 kHz (see Note 3)

2 mA

NOTE 3: This parameter is ensured by design and is not production tested.

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

13

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

switching characteristics over recommended operating virtual-junction temperature range,
V

CC

= 12 V, I

DRV

= 0 A (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

VSENSE to HIGHDR or
LOWDR (excluding dead­time)

1.3 V ≤ V

VREF

≤ 3.5 V, 10 mV overdrive

(see Note 3)

150 250 ns

p

OCP comparator 1

Pro agation delay

OVP comparator

See Note 3

1

µs
PWRGD comparator 1
SLOWST comparator Overdrive = 10 mV (see Note 3) 560 900 ns

HIGHDR output

CL = 9 nF, V

BOOT

= 6.5 V,

V

BOOTLO

= 0 V, TJ = 125°C

60

Rise time

LOWDR output

CL = 9 nF, V

DRV

= 6.5 V,

TJ = 125°C

60

ns

HIGHDR output

CL = 9 nF, V

BOOT

= 6.5 V,

V

BOOTLO

= 0 V, TJ = 125°C

60

Fall time

LOWDR output

CL = 9 nF, V

DRV

= 6.5 V,

TJ = 125°C

60

ns

Deglitch time (Includes

p

p

p

OCP

2 5
comparator propagation
delay)

OVP

See Note 3

2 5

µ

s

V

HISENSE

= 12 V,

V

IOUTLO

pulsed from 12 V to 11.9 V,

100 ns rise/fall times (see Note 3)

2

Response time High-side VDS sensing

V

HISENSE

= 4.5 V,

V

IOUTLO

pulsed from 4.5 V to 4.4 V ,

100 ns rise/fall times (see Note 3)

3

µs

V

HISENSE

= 3 V,

V

IOUTLO

pulsed from 3 V to 2.9 V ,

100 ns rise/fall times (see Note 3)

3

Short-circuit protection
rising-edge delay

SCP LOSENSE = 0 V (see Note 3) 300 500 ns

Turn-on/turn-off delay

VDS sensing sample/hold
switch

3 V ≤ V

HISENSE

≤ 11 V,

V

LOSENSE

= V

HISENSE

(see Note 3)

30 100 ns

Crossover delay time

LOWDR to HIGHDRV, and
LOHIB to LOWDR

See Note 3 30 100 ns

Prefilter pole frequency Hysteretic comparator See Note 3 5 MHz
Propagation delay LODRV See Note 3 400 ns

NOTE 3: This parameter is ensured by design and is not production tested.

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

14

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

Figure 1

SLOWSTART TIME

vs

SLOWSTART CAPACITANCE

0.0001 0.0010

Slowstart Capacitance – µF

100

0

10

1

0.1

Slowstart Time – ms

V

(VREFB)

= 2 V

I

(VREFB)

= 100 µA

TJ = 25°C

0.0100 0.1000 1

Figure 2

SLOWSTART TIME

vs

SUPPLY CURRENT (VREFB)

110

I

CC

– Supply Current (VREFB) – µA

1000

1

10

Slowstart Time – ms

V

(VREFB)

= 2 V
CS = 0.1 µF
TJ = 25°C

100 1000

100

Figure 3

DRIVER

OUTPUT RISE TIME

vs

LOAD CAPACITANCE

0.1 1
CL – Load Capacitance – nF

100

1

10

– Rise Time – ns

TJ = 25°C

10 100

t

r

High Side

Low Side

Figure 4

CL – Load Capacitance – nF

0.1 1

1000

1

10

10 100

100

– Fall Time – nst

f

DRIVER

OUTPUT FALL TIME

vs

LOAD CAPACITANCE

TJ = 25°C

High Side

Low Side

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

15

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

Figure 5

TJ – Junction Temperature – °C

OVP THRESHOLD

vs

JUNCTION TEMPERATURE

117

114

112

25 75

116

115

113

50 100 125

118

0

OVP Threshold – %

Figure 6

TJ – Junction Temperature – °C

OCP THRESHOLD VOLTAGE

vs

JUNCTION TEMPERATURE

99

95

25 75

103

101

97

50 100 125

105

0

OCP Threshold V oltage – mV

Figure 7

TJ – Junction Temperature – °C

INHIBIT START THRESHOLD VOLTAGE

vs

JUNCTION TEMPERATURE

2

1.9
25 75

2.05

1.95

50 100 125

2.1

0

Inhibit Start Threshold Voltage – V

Figure 8

TJ – Junction Temperature – °C

INHIBIT HYSTERESIS VOLTAGE

vs

JUNCTION TEMPERATURE

100

50

25 75

125

75

50 100 125

150

0

Inhibit Hysteresis Voltage – mV

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

16

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

Figure 9

TJ – Junction Temperature – °C

UVLO START THRESHOLD VOLTAGE

vs

JUNCTION TEMPERATURE

10

9

25 75

9.5

50 100 125

10.5

0

UVLO Start Threshold Voltage – V

VI = 12 V

Figure 10

TJ – Junction Temperature – °C

UVLO HYSTERESIS

vs

JUNCTION TEMPERATURE

1.9

1.5
25 75

2.3

2.1

1.7

50 100 125

2.5

0

UVLO Hysteresis – V

VI = 12 V

Figure 11

TJ – Junction Temperature – °C

QUIESCENT CURRENT

vs

JUNCTION TEMPERATURE

4

0

25 75

2

50 100 125

6

0

Quiescent Current – mA

VI = 12 V

Figure 12

TJ – Junction Temperature – °C

POWERGOOD THRESHOLD

vs

JUNCTION TEMPERATURE

92

90

25 75

94

93

91

50 100 125

95

0

Powergood Threshold – %

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

17

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

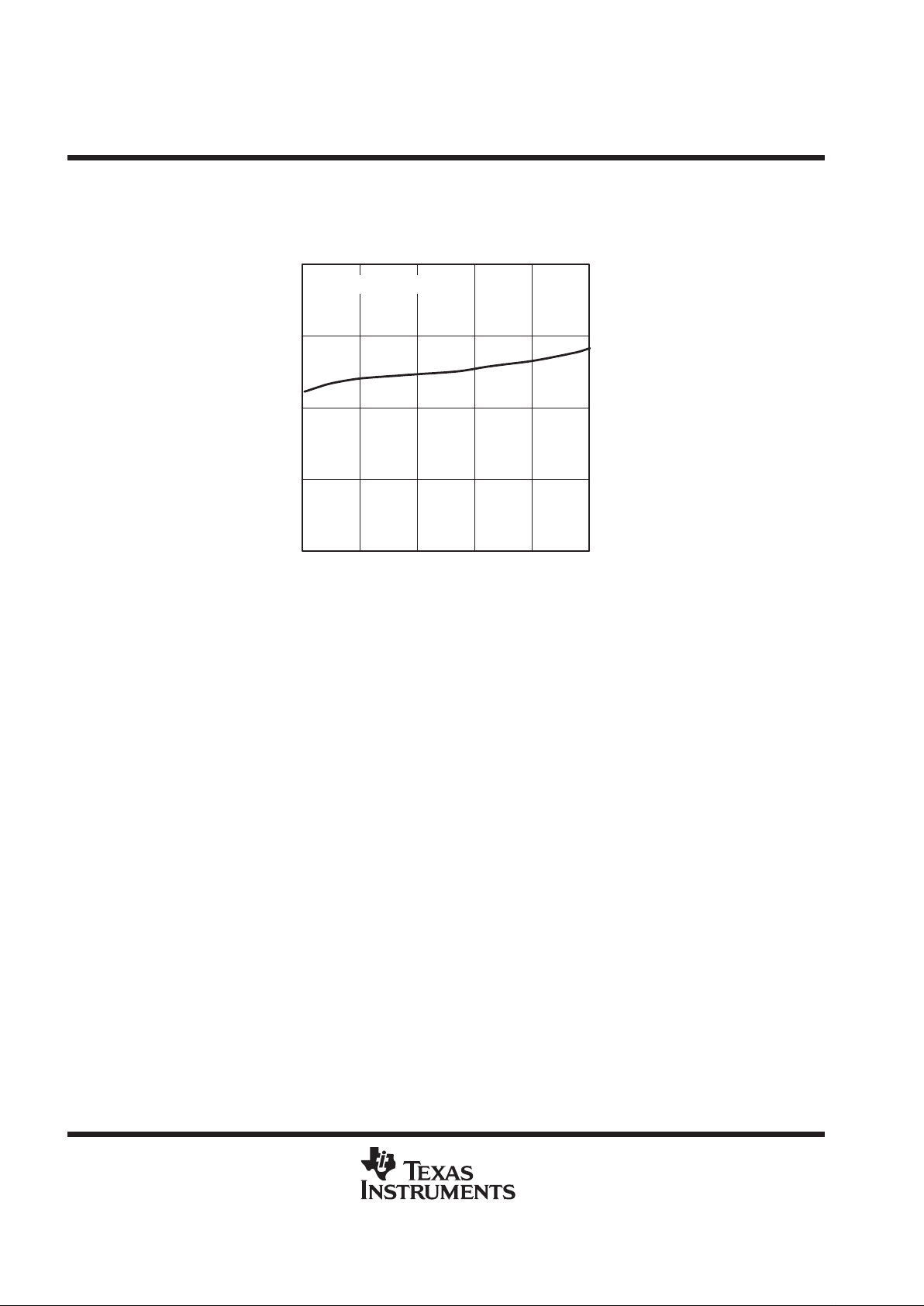

TYPICAL CHARACTERISTICS

Figure 13

TJ – Junction Temperature – °C

SLOW START CHARGE CURRENT

vs

JUNCTION TEMPERATURE

12

10

25 75

14

13

11

50 100 125

15

0

Slow Start Charge Current – Aµ

V

(VREFB)

= 1.3 V

R

(VREFB)

= 20 kΩ

Figure 14

TJ – Junction Temperature – °C

DRIVER

REGULATOR VOLTAGE

vs

JUNCTION TEMPERATURE

8

7.5
25 75

8.25

7.75

50 100 125

8.5

0

Regulator Voltage – V

Figure 15

TJ – Junction Temperature – °C

DRIVER

HIGH-SIDE OUTPUT RESISTANCE

vs

JUNCTION TEMPERATURE

2

0

25 75

4

3

1

50 100 125

5

0

– High-Side Output Resistance – R

O

Ω

Figure 16

TJ – Junction Temperature – °C

DRIVER

LOW-SIDE OUTPUT RESISTANCE

vs

JUNCTION TEMPERATURE

4

0

25 75

2

50 100 125

6

0

– Low-Side Output Resistance – R

O

Ω

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

18

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

TYPICAL CHARACTERISTICS

TJ – Junction Temperature – °C

SENSING SAMPLE/HOLD RESISTANCE

vs

JUNCTION TEMPERATURE

50

0

25 75

75

25

50 100 125

100

0

– Sensing Sample/Hold Resistance – R

O

Ω

V

(HISENSE)

= 12 V

Figure 17

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

19

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

The following figure is a typical application schematic. The circuit can be divided into the power-stage section
and the control-circuit section. The power stage must be tailored to the input/output requirements of the
application. The control circuit is basically the same for all applications with some minor tweaking of specific
values. Table 2 shows the values of the power stage components for various output-current options.

10

LODRV

11

LOHIB

12

DRVGND

13

LOWDR

14

DRV

16

BOOT

17

HIGHDR

18

BOOTLO

19

HISENSE

15

VCC

23

VID4

24

VID3

25

VID2

26

VID1

27

VID0

22

INHIBIT

28

PWRGD

1

IOUT

9

BIAS

3

OCP

4

VHYST

6

VSENSE

5

VREFB

7

ANAGND

8

SLOWST

2

DROOP

20

LOSENSE

21

IOUTLO

TPS5210

U1

C6

0.033 uF

1 uF

C3

R4

2.55 k
1%

ENABLE

C8

2200 pF

1%

R1

3.40 k

1 uF

C1

R101

GND

Control Section

Power Stage

12V

Q101

L101

C103C102

+

C101

Q102

+

C105

C106

Vo

L102

R102

C104

RTN

R10

1.00 k

R9

4.32 k

1.00 k

R8

R7

3.92 k

20.0 k

R6

100

R5

10.0 kR3

C7

1000 pF

C5

0.1 uF

C4

1 uF

R2

150

1 uF

C2

12V

HIGHDRV

HISENSE

LOSENSE

BOOTLO

DRVGND

LOHIB

LODRV

VSENSE

RTN

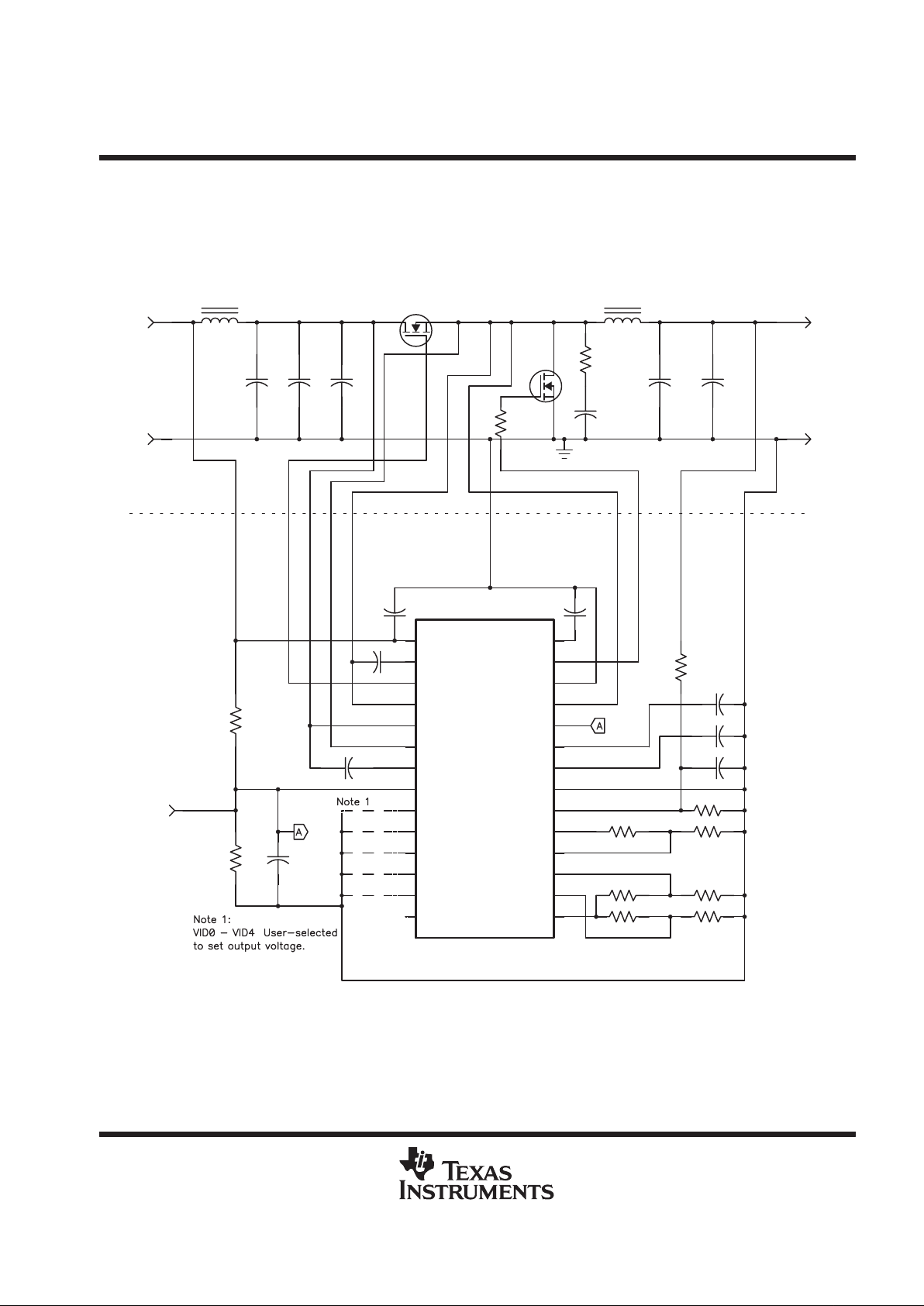

Figure 18. Standard Application Schematic

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

20

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

Table 2. Power Stage Components

Ref

12-V–Input Power Stage Components

Des

Function

4–A Out 8–A Out 12–A Out 20–A Out 40–A Out

C101

Input Bulk
Capacitor

Sanyo,
16SV100M,
100–uF, 16–V, 20%

Sanyo,
16SA470M,
2 x 470–uF , 16–V, 20%

Sanyo,
16SA470M,
2 x 470–uF , 16–V, 20%

Sanyo,
16SA470M,
3 x 470–uF , 16–V, 20%

Sanyo,
16SA470M,
4 x 470–uF , 16–V, 20%

C102

Input
Mid–Freq
Capacitor

muRata,
GRM42–6Y5V105Z025A

1.0–uF, 25–V,
+80%–20%,
Y5V

muRata,
GRM42–6Y5V225Z016A

2.2–uF, 16–V,
+80%–20%,
Y5V

muRata,
GRM42–6Y5V225Z016A

2.2–uF, 16–V,
+80%–20%,
Y5V

muRata,
GRM42–6Y5V105Z025A
3 x 1.0–uF , 25–V,
+80%–20%,
Y5V

muRata,
GRM42–6Y5V105Z025A
4 x 1.0–uF , 25–V,
+80%–20%,
Y5V

C103

Input
Hi–Freq
Bypass
Capacitor

muRata,
GRM39X7R104K016A

0.1–uF, 16–V, X7R

muRata,
GRM39X7R104K016A,

0.1–uF, 16–V, X7R

muRata,
GRM39X7R104K016A,
2 x 0.1–uF , 16–V, X7R

muRata,
GRM39X7R104K016A,
3 x 0.1–uF , 16–V, X7R

muRata,
GRM39X7R104K016A,
4 x 0.1–uF , 16–V, X7R

C104

Snubber
Capacitor

muRata,
GRM39X7R102K050A,
1000–pF, 50–V, X7R

muRata,
GRM39X7R102K050A,
1000–pF, 50–V, X7R

muRata,
GRM39X7R102K050A,
2 x 1000–pF , 50–V, X7R

muRata,
GRM39X7R102K050A,
3 x 1000–pF , 50–V, X7R

muRata,
GRM39X7R102K050A,
4 x 1000–pF , 50–V, X7R

C105

Output Bulk
Capacitor

Sanyo,
6TPB150M,
3 x 150–uF , 6.3–V, 20%

Sanyo,
4SP820M,
820–uF, 4–V, 20%

Sanyo,
4SP820M,
2 x 820–uF , 4–V, 20%

Sanyo,
4SP820M,
3 x 820–uF , 4–V, 20%

Sanyo,
4SP820M,
4 x 820–uF , 4–V, 20%

C106

Output
Hi–Freq
Bypass
Capacitor

muRata,
GRM39X7R104K016A,

0.1–uF, 16–V, X7R

muRata,
GRM39X7R104K016A,

0.1–uF, 16–V, X7R

muRata,
GRM39X7R104K016A,
2 x 0.1–uF , 16–V, X7R

muRata,
GRM39X7R104K016A,
3 x 0.1–uF , 16–V, X7R

muRata,
GRM39X7R104K016A,
4 x 0.1–uF , 16–V, X7R

L101

Input
Filter
Inductor

CoilCraft,
DO1608C–332,

3.3–uH, 2.0–A

Coiltronics,
UP2B–2R2,

2.2–uH, 7.2–A

Coiltronics,
UP2B–2R2,

2.2–uH, 7.2–A

Coiltronics,
UP3B–1R0,
1–uH, 12.5–A

Coiltronics,
UP3B–1R0,
1–uH, 12.5–A

L102

Output
Filter
Inductor

CoilCraft,
DO3316P–332,

3.3–uH, 6.1–A

Coiltronics,
UP3B–2R2,

2.2–uH, 9.2–A

Coiltronics,
UP4B–1R5,

1.5–uH, 13.4–A

MicroMetals,
T68–8/90 Core w/7T
#16, 1.0–uH, 25–A

Pulse Engineering,
P1605,

1.0–uH, 50–A

R101

Lo–Side
Gate
Resistor

3.3–Ohm,
1/16–W, 5%

3.3–Ohm,
1/16–W, 5%

2 x 3.3–Ohm,
1/16–W, 5%

3 x 3.3–Ohm,
1/16–W, 5%

4 x 3.3–Ohm,
1/16–W, 5%

R102

Snubber
Resistor

2.7–Ohm,
1/10–W, 5%

2.7–Ohm,
1/10–W, 5%

2 x 2.7–Ohm,
1/10–W, 5%

3 x 2.7–Ohm,
1/10–W, 5%

4 x 2.7–Ohm,
1/10–W, 5%

Q101

Power
Switch

Siliconix, Si4410,
NMOS, 13–mOhm

Siliconix, Si4410,
NMOS, 13–mOhm

Siliconix, 2 x Si4410,
NMOS, 13–mOhm

Siliconix, 2 x Si4410,
NMOS, 13–mOhm

IR, 2 x IRF7811,
NMOS, 11–mOhm

Q102

Synchron­ous
Switch

Siliconix, Si4410,
NMOS, 13–mOhm

Siliconix, Si4410,
NMOS, 13–mOhm

Siliconix, 2 x Si4410,
NMOS, 13–mOhm

Siliconix, 3 x Si4410,
NMOS, 13–mOhm

IR, 4 x IRF7811,
NMOS, 11–mOhm

Nominal Frequency†220 KHz 330 KHz 240 KHz 140 KHz 168 KHz
Hysteresis Window 20 mV 20 mV 20 mV 20 mV 10 mV

†

Nominal frequency measured with Vo set to 2 V.

The values listed above are recommendations based on actual test circuits. Many variations of the above are
possible based upon the desires and/or requirements of the user. Performance of the circuit is equally, if not
more, dependent upon the layout than on the specific components, as long as the device parameters are not
exceeded. Fast-response, low-noise circuits require critical attention to the layout details. Even though the
operating frequencies of typical power supplies are relatively low compared to today’s microprocessor circuits,
the power levels and edge rates can cause severe problems both in the supply and the load. The power stage,
having the highest current levels and greatest dv/dt rates, should be given the greatest attention.

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

21

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

frequency calculation

A detailed derivation of frequency calculation is shown in the application report, “

Designing Fast Response

Synchronous Buck Regulators Using the TPS5210

”, TI Literature number SL VA044. When less accurate results

are acceptable, the simplified equation shown below can be used:

f

s

≅

ǒ

VO ƪVI*

V

O

ƫ

ESR

Ǔ

ǒ

VI L

Hysteresis Window

Ǔ

Control Section

Below are the equations needed to select the various components within the control section. Details and the
derivations of the equations used in this section are available in the application report “

Designing Fast Response

Synchronous Buck Regulators Using the TPS5210

”, TI Literature number SLVA044.

output voltage selection

Of course the most important function of the power supply is to regulate the output voltage to a specific value.
V alues between 1.3 V and 3.5 V can be easily set by shorting the correct VID inputs to ground. Values above
the maximum reference voltage (3.5 V) can be set by setting the reference voltage to any convenient voltage
within its range and selecting values for R2 and R3 to give the correct output. Select R3:

R3 << than V

REF/IBIAS(VSENSE)

; a recommended value is 10 kΩ

Then, calculate R2 using:

V

O

+

V

REF

ǒ

1

)

R2
R3

Ǔ

R2

+

R3

ǒ

VO*

V

REF

Ǔ

V

REF

or

R2 and R3 can also be used to make small adjusts to the output voltage within the reference-voltage range
and/or to adjust for load-current active droop compensation. If there is no need to adjust the output voltage, R3
can be eliminated. R2, R3 (if used), and C7 are used as a noise filter; calculate using:

C7

+

150 ns

ǒ

R2øR3

Ǔ

slowstart timing

Slowstart reduces the startup stresses on the power-stage components and reduces the input current surge.
Slowstart timing is a function of the reference-voltage current (determined by R6) and is independent of the
reference voltage. The first step in setting slowstart timing will be to determine R6:

R6 should be between 7 kΩ and 300 kΩ, a recommended value is 20 kΩ.

Set the slowstart timing using the formula:

C5

+

t

SS

ǒ

5 R

VREFB

Ǔ

≅

t

SS

(

5 R6

)

Where C5 = Slowstart capacitance in µF

t

SS

= Slowstart timing in µs

R

VREFB

= Resistance from VREFB to GND in ohms (≈ R6)

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

22

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

hysteresis voltage

A hysteretic controller regulates by self-oscillation, thus requiring a small ripple voltage on the output which the
input comparator uses for sensing. Once selected, the TPS5210 hysteresis is proportional to the reference
voltage; programming Vref to a new value automatically adjusts the hysteresis to be the same percentage of
Vref. The actual output ripple voltage is the combination of the hysteresis voltage, overshoot caused by internal
delays, and the output capacitor characteristics. Figure 20 shows the hysteresis window voltage (V

HI

to VLO)

and the output voltage ripple (V

MAX

to V

MIN

). Since the output current from VREFB should be less than 500 µA,
the total divider resistance (R5 + R6) should be greater than 7 KΩ. The hysteresis voltage should be no greater
than 60 mV so R6 will dominate the divider.

R5

R6

VHSYT

VREFB

Hysteresis Window = 2 × V

R5

Figure 19. Hysteresis Divider Circuit

V

O

V

MAX

V

MIN

V

REF

V

HI

V

LO

t

Figure 20. Output Ripple

The upper divider resistor, R5, is calculated using:

()

()

()

6

1002

6

2

5

0

0

R

V

R

WindowHysteresisVREFB

WindowHysteresis

R

HYST

×

×

≅×

–×

=

Where Hysteresis Window = the desired peak-to-peak hysteresis voltage.

VREFB = selected reference voltage.
V

HYST

(%) = [(Hysteresis Window)/VREFB] * 100 < V

O(Ripple)(P–P)

(%)

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

23

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

current limit

Current limit can be implemented using the on-resistance of the upper FETs as the sensing elements. Select
R8:

()

Ω≤

×

≤<<

nA

V

I

V

R

OCPBias

OCP

10 k

100100

1.0

8

)(

(A recommended value is 1 kΩ)

The IOUT signal is used to drive the current limit and droop-circuit dividers. The voltage at IOUT at the output
current trip point will be:

()

I

NumFETs

TF

R

V

TripO

ONDS

TripIOUT

)(

)(

)(

2

×

××

=

Where NumFETS = Number of upper FETS in Parallel.

TF = R

DS(ON)

temperature correction factor.

I

O(Trip)

= Desired output current trip level (A).

Calculate R7 using:

R7

+

ǒ

V

IOUT(Trip)

0.1 V

*

1Ǔ

R8

Note that since R

DS(ON)

of MOSFET s can vary from lot to lot and with temperature, tight current-limit control (less

than 1.5 x I

O

) using this method is not practical. If tight control is required, an external current-sense resistor
in series with the drain of the upper FET can be used with HISENSE and LOSENSE connected across the
resistor.

droop compensation

Droop compensation is used to reduce the output voltage range during load transients by increasing the output
voltage setpoint toward the upper tolerance limit during light loads and decreasing the voltage setpoint toward
the lower tolerance limit during heavy loads. This allows the output voltage to swing a greater amount and still
remain within the tolerance window. The maximum droop voltage is set with R9 and R10. Select R10:

()

Ω≤

×

≤<<

nA

V

I

V

R

MaxDROOPBias

MinDROOP

1 k

100100

01.0

10

),(

)(

(Again, a value of 1 kΩ is recommended)

The voltage at IOUT during normal operation (0 to 100% load) will vary from 0 V up to:

()

I

NumFETs

TF

R

V

MaxO

ONDS

MaxIOUT

)(

)(

)(

2

×

××

=

Where I

O(Max)

= Maximum output load current (A).

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

24

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

droop compensation (continued)

Then, calculate R9:

R9

+

ǒ

V

IOUT(Max)

V

DROOP

*

1Ǔ

R10

Where V

DROOP

= Desired droop voltage

At full load, the output voltage will be:

V

O

+

V

REF

ǒ1

)

R2
R3

Ǔ

*

V

DROOP

using the TPS5210 when both 12 V and 5 V are available

When both 12 V and 5 V are available, several components can be removed from the basic schematic shown
above. R1, R4, and C9 are no longer required if 5 V is brought in directly to INHIBIT and LODRV. However, if
undervoltage lockout for the 5-V input is desired, R1 and R4 can be used to set the startup setpoint. The INHIBIT
pin trip level is 2.1 V. Select R4:

()

Ω≤

×

≤<<

k

nA

V

I

V

R

MaxINH

INH

210

100100

1.2

4

)(

Then, set the 5-V UVLO trip level with R1:

()

4

2

2

5

1

R

V

V

V

R

Trip

×

–

=

R1

R4

INHIBIT

LODRV

Figure 21. 5-V Input with UVLO

using the TPS5210 when only 5 V is available

The TPS5210 controller requires 12 V for internal control of the device. If an external source for 12 V is not
available, a small on-board source must be included in the design. Total 12-V current is very small, typically
about 20 mA, so even a small charge pump can be used to generate the supply voltage. The power stage is
not voltage dependent, but component values must be selected for 5-V inputs and the frequency of operation
is dependent upon the power stage input voltage.

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

25

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

R4

11.0 k

R1

10.0 k

ENABLE

1%

12-V
Boost
Circuit

10

LODRV

11

LOHIB

12

DRVGND

13

LOWDR

14

DRV

16

BOOT

17

HIGHDR

18

BOOTLO

19

HISENSE

15

VCC

23

VID4

24

VID3

25

VID2

26

VID1

27

VID0

22

INHIBIT

28

PWRGD

1

IOUT

9

BIAS

3

OCP

4

VHYST

6

VSENSE

5

VREFB

7

ANAGND

8

SLOWST

2

DROOP

20

LOSENSE

21

IOUTLO

TPS5210

U1

C6

0.033 uF

0.1 uF

C1

1 uF

C3

1%

C8

2200 pF

12 V

GND

5V

Control Section

Power Stage

R101

Q101

L101

C103C102

+

C101

Q102

Vo

RTN

+

C105

C106

L102

R102

C104

R10

1.00 k

R9

4.32 k

1.00 k

R8

R7

3.92 k

20.0 k

R6

100

R5

10.0 kR3

C7

1000 pF

C5

0.1 uF

C4

1 uF

R2

150

1 uF

C2

5V

HIGHDRV

HISENSE

LOSENSE

BOOTLO

DRVGND

LOHIB

LODRV

VSENSE

RTN

Figure 22. Typical 5-V-Only Application Circuit

application examples

Various application and layout examples using the TPS5210 are available from Texas Instruments. This
information can be downloaded from

http://www.ti.com/sc/docs/products/msp/pwrsply/default.htm

or received

from your TI representative.

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

26

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

layout guidelines

Good power supply results will only occur when care is given to proper design and layout. Layout will affect noise
pickup and generation and can cause a good design to perform with less than expected results. With a range
of currents from milliamps to tens or even hundreds of amps, good power supply layout is much more difficult
than most general PCB design. The general design should proceed from the switching node to the output, then
back to the driver section, and, finally, place the low-level components. Below are several specific points to
consider

before

layout of a TPS5210 design begins.

1. All sensitive analog components should be referenced to ANAGND. These include components connected
to SLOWST, DROOP, IOUT, OCP, VSENSE, VREFB, VHYST, BIAS, and LOHIB.

2. Analog ground and drive ground should be isolated as much as possible. Ideally , analog ground will connect
to the ground side of the bulk storage capacitors on V

O

, and drive ground will connect to the main ground

plane close to the source of the low-side FET.

3. Connections from the drivers to the gate of the power FETs, should be as short and wide as possible to
reduce stray inductance. This becomes more critical if external gate resistors are not being used.

4. The bypass capacitor for the DRV regulator should be placed close to the TPS5210 and be connected to
DRVGND.

5. The bypass capacitor for V

CC

should be placed close to the TPS5210 and be connected to DRVGND.

6. When configuring the high-side driver as a floating driver , the connection from BOOTLO to the power FET s
should be as short and as wide as possible. The other pins that also connect to the power FETs, LOHIB
and LOSENSE, should have a separate connection to the FETS since BOOTLO will have large peak
currents flowing through it.

7. When configuring the high-side driver as a floating driver , the bootstrap capacitor (connected from BOOT
to BOOTLO) should be placed close to the TPS5210.

8. When configuring the high-side driver as a ground-referenced driver, BOOTLO should be connected to
DRVGND.

9. The bulk storage capacitors across V

I

should be placed close to the power FETS. High-frequency bypass
capacitors should be placed in parallel with the bulk capacitors and connected close to the drain of the
high-side FET and to the source of the low-side FET.

10. High-frequency bypass capacitors should be placed across the bulk storage capacitors on V

O

.

11. HISENSE and LOSENSE should be connected very close to the drain and source, respectively, of the
high-side FET. HISENSE and LOSENSE should be routed very close to each other to minimize
differential-mode noise coupling to these traces. Ceramic decoupling capacitors should be placed close to
where HISENSE connects to Vin, to reduce high-frequency noise coupling on HISENSE.

TPS5210

PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

27

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL DATA

DW (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE

16 PIN SHOWN

4040000/C 07/96

Seating Plane

0.400 (10,15)

0.419 (10,65)

0.104 (2,65) MAX

1

0.012 (0,30)

0.004 (0,10)

A

8

16

0.020 (0,51)

0.014 (0,35)

0.293 (7,45)

0.299 (7,59)

9

0.010 (0,25)

0.050 (1,27)

0.016 (0,40)

(15,24)

(15,49)

PINS **

0.010 (0,25) NOM

A MAX

DIM

A MIN

Gage Plane

20

0.500

(12,70)

(12,95)

0.510

(10,16)

(10,41)

0.400

0.410

16

0.600

24

0.610

(17,78)

28

0.700

(18,03)

0.710

0.004 (0,10)

M

0.010 (0,25)

0.050 (1,27)

0°–8°

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion not to exceed 0.006 (0,15).
D. Falls within JEDEC MS-013

TPS5210
PROGRAMMABLE SYNCHRONOUS BUCK REGULATOR CONTROLLER

SLVS171A – SEPTEMBER 1998 – REVISED MAY 1999

28

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL DATA

PWP (R-PDSO-G**) PowerPAD PLASTIC SMALL-OUTLINE PACKAGE

4073225/E 03/97

0,50

0,75

0,25

0,15 NOM

Thermal Pad
(See Note D)

Gage Plane

2824

7,70

7,90

20

6,40

6,60

9,60

9,80

6,60
6,20

11

0,19

4,50
4,30

10

0,15

20

A

1

0,30

1,20 MAX

1614

5,10

4,90

PINS **

4,90

5,10

DIM

A MIN

A MAX

0,05

Seating Plane

0,65

0,10

M

0,10

0°–8°

20-PIN SHOWN

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusions.
D. The package thermal performance may be enhanced by bonding the thermal pad to an external thermal plane. This pad is electrically

and thermally connected to the backside of the die and possibly selected leads.

E. Falls within JEDEC MO-153

PowerPAD is a trademark of Texas Instruments Incorporated.

IMPORTANT NOTICE

T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those
pertaining to warranty, patent infringement, and limitation of liability.

TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.

CERT AIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF
DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL
APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR
WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER
CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICA TIONS IS UNDERST OOD TO
BE FULLY AT THE CUSTOMER’S RISK.

In order to minimize risks associated with the customer’s applications, adequate design and operating
safeguards must be provided by the customer to minimize inherent or procedural hazards.

TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent
that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.

Copyright  1999, Texas Instruments Incorporated
