User's Guide
SLOU270A–September 2009–Revised July 2010
TPA3111D1EVM Audio Amplifier Evaluation Board
This user's guide provides the specifications, quick-start list for stand-alone operation, the schematic, bill
of materials, and the board layout for the TPA3111DEVM evaluation module.
Contents
1 Introduction .................................................................................................................. 2
1.1 TPA3111D1EVM Specifications ................................................................................. 3
2 Operation ..................................................................................................................... 3
2.1 Quick-Start List for Stand-Alone Operation ..................................................................... 3
3 Schematic, Layout, and Bill of Materials ................................................................................. 5
3.1 TPA3111D1EVM Schematic ...................................................................................... 5
3.2 TPA3111D1EVM PCB Layers .................................................................................... 6
3.3 TPA3111D1EVM Bill of Materials ................................................................................ 7
List of Figures
1 TI TPA3111D1EVM Audio Power Amplifier – Top View............................................................... 2
2 TI TPA3111D1EVM Audio Power Amplifier – Bottom View........................................................... 2
3 TPA3111D1EVM Schematic............................................................................................... 5
4 TPA3111D1EVM – Top Side Layout..................................................................................... 6
5 TPA3111D1EVM – Bottom Side Layout ................................................................................. 6
List of Tables
1 Key Parameters............................................................................................................. 3
2 Power Supply Requirements ............................................................................................. 4
3 TPA3111D1 Control Guide ................................................................................................ 4
4 Bill of Materials for TPA3111D1EVM .................................................................................... 7
SLOU270A–September 2009–Revised July 2010 TPA3111D1EVM Audio Amplifier Evaluation Board
Copyright © 2009–2010, Texas Instruments Incorporated
1
Introduction
1 Introduction
The TPA3111D1EVM customer evaluation module (EVM) demonstrates the integrated circuit TPA3111D1
from Texas Instruments.
www.ti.com
Figure 1. TI TPA3111D1EVM Audio Power Amplifier – Top View
Figure 2. TI TPA3111D1EVM Audio Power Amplifier – Bottom View
2
TPA3111D1EVM Audio Amplifier Evaluation Board SLOU270A–September 2009–Revised July 2010
Copyright © 2009–2010, Texas Instruments Incorporated
www.ti.com
1.1 TPA3111D1EVM Specifications
Table 1. Key Parameters
Key Parameters
Power Supply Voltage 8 V to 26 V
Number of Channels 1 - Bridge-Tied Load (BTL) Mono
Load Impedance Mono BTL 4 Ω to 8 Ω (connect 33-mH series inductor for 4-Ω, 68-mH inductor or 8 Ω if using the ferrite bead
filters)
Output Power 10 W
2 Operation
2.1 Quick-Start List for Stand-Alone Operation
Follow these steps to use the TPA3111D1EVM stand-alone or when connecting it into existing circuits or
equipment. Connections to the EVM module can be made by inserting stripped wire or banana plugs for
the power supply and output connections. The outputs also can be connected via Molex connectors. The
input connectors are RCA phono jacks.
Operation
SLOU270A–September 2009–Revised July 2010 TPA3111D1EVM Audio Amplifier Evaluation Board
Copyright © 2009–2010, Texas Instruments Incorporated
3
Operation
Power Supply
A single power supply is required to power up the EVM. Most of the pins are PVCC compliant. The PVCC
supply can also be used to power the analog supply (AVCC) and can be used to pull up the logic pins for
shutdown (SD) control, fault detection (FAULT), and gain (GAIN0 and GAIN1) as long as the voltage slew
rate is limited to 10 V/ms. GVDD is an internally generated supply for the output FETs and also can be
used to power the PLIMIT circuit. PLIMIT is GVDD compliant, but not PVCC compliant. PLIMIT also can
be powered by an external supply connected to the PLIMIT pin. Take care not to power the PLIMIT pin (or
connect power to the GVDD pin inadvertently through the PLIMIT network) when the PVCC supply is
turned off. This can cause damage to the integrated circuit (IC).
1. Ensure that the external power source is set to OFF.
2. Connect the external regulated power supply adjusted from 8 V to 26 V to the module PVCC and GND
Evaluation Module Preparations
Inputs and Outputs
1. For a BTL configuration, connect a load across the outputs (OUT+ and OUT-).
2. Connect the audio input, either differential or single-ended, to the IN RCA phono plugs for BTL
Control Inputs
1. Ensure that the mode jumpers, JP1, JP2, GAIN0, and GAIN1, are set correctly depending on the
Power Up
1. Verify correct voltage and input polarity, and turn the external power supplies ON.
2. Adjust the audio source for the desired volume.
www.ti.com
Table 2. Power Supply Requirements
Description Voltage Range Current Requirements Minimum Wire Size
PVCC 8 to 26 V 3 A 24 AWG
banana jacks, taking care to observe marked polarity.
operation.
desired operating state (Table 3).
The EVM begins operation.
Table 3. TPA3111D1 Control Guide
Control Function Options Notes
JP1 Allows amplifier to self-reset after Insert jumper for self-reset. For latched SC fault, cycle power to reset the fault
GAIN1/GAIN0 Controls amplifier gain Insert jumper for zero state 00 = 20 dB (GAIN1, GAIN0)
JP2 Defeats PLIMIT function and allows Insert jumper for PLIMIT JP2 connects PLIMIT directly to GVDD.
R7 Adjust PLIMIT (an external voltage Remove JP2 to allow PLIMIT The output voltage rails are limited to
JP3, JP4 Connects LC filters to outputs.
4
TPA3111D1EVM Audio Amplifier Evaluation Board SLOU270A–September 2009–Revised July 2010
short-circuit protection event Leave off for latched SC latch. DC Detect does not recover with SDZ cycle.
fault. PVCC must be cycled to reset DC Detect.
(low). Leave off for one state 01 = 26 dB
(high). 10 = 32 dB
11 = 36 dB
amplifier to run at full power. defeat.
also can be applied to the PLIMIT test operation. approximately 4X the voltage at the PLIMIT pin.
point) Take care not to apply power to PLIMIT when the
PVCC source is off.
Copyright © 2009–2010, Texas Instruments Incorporated
AVCC
AVCC
IN
1
2
3
RCA (Red)
PVCC
PVCC
C7
0603
0.1ufd/50V
2
1
JP5
PVCC
2
1
GAIN0
GAIN1
1
2
100K
0603
R1
PVCC
PVCC
R5
1206
10,1/4W
2
1
JP1
PVCC
GND
GND
GND
GND
C11
1206
0.68ufd/50V
C16
1206
0.68ufd/50V
C6
0603
1000pfd/50V
VS-D8C8100ufd/35V
+
PVCC
C18
0603
0.1ufd/50V
GND
GND
C17
0603
1000pfd/50V
GND
GND
C3
1.0ufd/35V
0603
1000pfd/50V
0603
C10
R2
0603
100K
GND
GND
GND
GND
0603
1.0ufd/16V
C1
0603
1.0ufd/16V
C2
GND
GND
TP1
TP2
GND
C25
0603
1000pfd/50V
GND
GND
3303W
10K
R7
0603
1.00K
R6
GND
GND
PLIMIT
0603
100K
R3
OUT
1
2
0603
1000pfd/50V
C12
GND
0805
10 1/4W
R9
C13
1000pfd/50V
0603
GND
R12
10 1/4W
0805
SD
FAULT
AGND
Black
Black
Black
GND
0603
1.0ufd/16V
C5
GND
0603
1.0ufd/16V
C4
GND
OUT-
Red
OUT+
Red
GND
GND
GND
GND
0.875in
0.875in
0.875in
0.875in
PVCC
Red
GND
Black
1 2
JP3
JP4
21
JP2
21
S1
DS104C2
22uH
L1
1
2
L2
22uH
DS104C2
1
2
0.47ufd/16V
0603
C9
C14
0603
0.47ufd/16V
2
1
0805
5A/80ohms/100MHz
FB1A
2
1
FB2A
5A/80ohms/100MHz
0805
28L0138
75 Ohms@100MHz,5A
FB1
FB2
75 Ohms@100MHz,5A
28L0138
100ufd/35V
C19
VS-D8
+
U1
TPA3111D1PWP
TSSOP28-PWP
15
16
17
18
192021
22
23
24
141312
11
10
9
8
765
28
27
26
25
4
3
2
1
GND
U1
PowerPad
TPA3111D1PWP EVALUATION BOARD
STANDOFFS
GND
GND
www.ti.com
3 Schematic, Layout, and Bill of Materials
3.1 TPA3111D1EVM Schematic
Schematic, Layout, and Bill of Materials
SLOU270A–September 2009–Revised July 2010 TPA3111D1EVM Audio Amplifier Evaluation Board

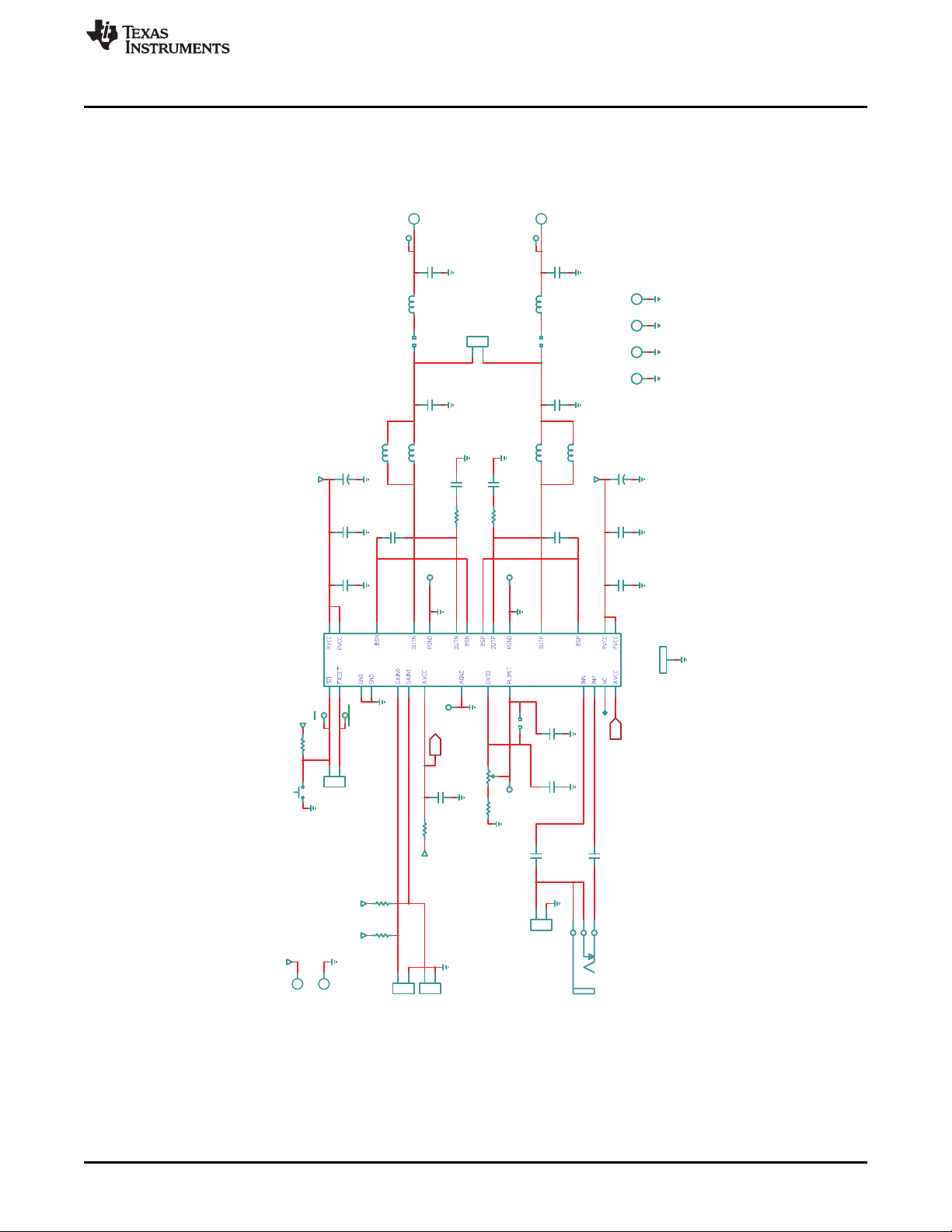

Figure 3. TPA3111D1EVM Schematic
Copyright © 2009–2010, Texas Instruments Incorporated
5
Schematic, Layout, and Bill of Materials
3.2 TPA3111D1EVM PCB Layers
www.ti.com
Figure 4. TPA3111D1EVM – Top Side Layout
Figure 5. TPA3111D1EVM – Bottom Side Layout
6
TPA3111D1EVM Audio Amplifier Evaluation Board SLOU270A–September 2009–Revised July 2010
Copyright © 2009–2010, Texas Instruments Incorporated
www.ti.com
Schematic, Layout, and Bill of Materials
3.3 TPA3111D1EVM Bill of Materials
Table 4. Bill of Materials for TPA3111D1EVM
Item MANU Part no. QTY Ref Designators Vendor Part No Description Vendor MANU
TI-SEMICONDUCTORS
1 TPA3111D1PWP 1 U1 TPA3111D1PWP 10-W MONO CLASS-D AUDIO TEXAS INSTRUMENTS TEXAS INSTRUMENTS
CAPACITORS
2 C1608C0G1H102J 6 C6,C10,C12,C13,C17,C25 445-1293-1 CAP SMD0603 CERM 1000 pF 50V DIGI-KEY TDKCORP.
3 C1608X7R1H104K 2 C7,C18 445-1314-1 CAP SMD0603 CERM 0.1 mF 50V DIGI-KEY TDK
4 0603YD474KAT2A 2 C9,C14 478-1248-1 CAP SMD0603 CERM 0.47 mF 16V DIGI-KEY AVX
5 C1206C684K5RACTU 2 C11,C16 399-3500-1 CAP SMD1206 CERM 0.68 mF 50V DIGI-KEY KEMET
6 C0603C105K4PACTU 4 C1,C2,C4,C5 399-5090-1 CAP SMD0603 CERM 1.0 mF 16V DIGI-KEY KEMET
7 GMK107BJ105KA-T 1 C3 587-1437-1 CAP SMD0603 CERM 1.0 mF 35V DIGI-KEY TAIYOYUDEN
8 EEE-1VA101XP 2 C8,C19 PCE3951CT CAP SMD ELECT 100 mF 35V 20% DIGI-KEY PANASONIC
RESISTORS
9 ESR10EZPJ100 2 R9,R12 RHM10KCT RESISTOR SMD0805 10Ω 1% 1/4W DIGI-KEY ROHM
10 ERJ-8ENF10R0 1 R5 P10.0FCT RESISTOR SMD1206 10.0Ω 1% DIGI-KEY PANASONIC
11 RC0603FR-071KL 1 R6 311-1.00KHRCT RESISTOR SMD0603 1.00KΩ 1% DIGI-KEY YAGEO
12 3303W-3-103E 1 R7 3303W-103ECT POT SMD SINGLE TURN DIGI-KEY BOURNS
13 ERJ-3EKF1003V 3 R1,R2,R3 P100KHCT RESISTOR SMD0603 100KΩ 1% DIGI-KEY PANASONIC
FERRITE BEADS AND INDUCTORS
14 HI0805R800R-10 2 FB1A,FB2A 240-2395-1 FERRITE BEAD SMD0805 DIGI-KEY STEWARD
15 28L0138-10R-10 2 FB1,FB2 240-2438-1 FERRITE BEAD THRU RN50 DIGI-KEY STEWARD
16 B952AS-220M 2 L1,L2 B952AS-220M INDUCTOR SMT 22mH 2.4A 87Ω TOKO JAPAN TOKO JAPAN
HEADERS AND JACKS
17 PBC02SAAN 7 JP1, JP2, JP3, JP4, JP5, S1011E-02 HEADER 2 PIN MALE, PCB DIGI-KEY SULLINS
GAIN0, GAIN1 STRAIGHT GOLD ROHS
POWER AMP, TSSOP28-PWP
ROIHS
5% COG ROHS
X7R ROHS
10% X5R ROHS
10% X7R ROHS
10% X5R ROHS
10% X5R ROHS
VS-D8 ROHS
ROHS
1/4W ROHS
1/10W ROHS
CERMET10K ROHS
1/16W ROHS
80Ω@100MHz 5A ROHS
75Ω@100MHz 5A ROHS
20% DS104C2 ROHS
SLOU270A–September 2009–Revised July 2010 TPA3111D1EVM Audio Amplifier Evaluation Board
Copyright © 2009–2010, Texas Instruments Incorporated
7
Schematic, Layout, and Bill of Materials
Table 4. Bill of Materials for TPA3111D1EVM (continued)
Item MANU Part no. QTY Ref Designators Vendor Part No Description Vendor MANU
18 22-23-2021 1 OUT WM4200 HEADER MALE 2PIN 100LS W/ DIGI-KEY MOLEX
19 PJRAN1X1U03X 1 IN 89K7617 JACK, RCA 3-PIN PCB-RA RED NEWARK SWITCHCRAFT
TESTPOINTS AND SWITCHES
20 5004 5 SD, FAULT, PLIMIT, TP1 TP2 5004K PC TESTPOINT, YELLOW, ROHS DIGI-KEY KEYSTONE
21 5001 3 AGND, GND, GND 5001K PC TESTPOINT, BLACK, ROHS DIGI-KEY KEYSTONE
22 TL1015AF160QG 1 S1 EG4344CT SWITCH, MOM, 160G SMT 4X3MM DIGI-KEY E-SWITCH
BINDING POSTS
23 3760-2 2 OUT+, OUT- 565-3760-2 BINDING POST, RED 60V/15A TIN MOUSER POMONA
24 3750-2 1 PVCC 565-3750-2 BINDING POST, RED 60V/15A MOUSER POMONA
25 3750-0 1 GND 565-3750-0 BINDING POST, BLACK 60V/15A MOUSER POMONA
SHUNTS
26 SPC02SYAN 7 JP1, JP2, JP3, JP4, JP5, S9001 SHUNT, BLACK AU FLASH 0.100LS DIGI-KEY SULLINS
GAIN0, GAIN1
STANDOFFS AND HARDWARE
27 PMS 440 0025 PH 4 SO1,SO2,SO3,SO4 H342 4-40 SCREW, STEEL 0.250 IN DIGI-KEY BUILDING
28 2030 4 SO1,SO2,SO3,SO4 2030K STANDOFF, 4-40, 0.875IN x 3/16IN, DIGI-KEY KEYSTONE
COMPONENTS NOT ASSEMBLED
FB1, FB2
COMPONENTS MISSING FROM SEQUENCE
C15, C20-C24, R4, R8, R10, R11
FRICTION LOCK ROHS
ROHS
ELECTRONICS
ELECTRONICS
ROHS
ROHS
GOLD ROHS
GOLD ROHS
FASTENERS
ALUM RND F-F
www.ti.com
8
TPA3111D1EVM Audio Amplifier Evaluation Board SLOU270A–September 2009–Revised July 2010
Copyright © 2009–2010, Texas Instruments Incorporated
Evaluation Board/Kit Important Notice
Texas Instruments (TI) provides the enclosed product(s) under the following conditions:
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the
product(s) must have electronics training and observe good engineering practice standards. As such, the goods being provided are
not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations,
including product safety and environmental measures typically found in end products that incorporate such semiconductor
components or circuit boards. This evaluation board/kit does not fall within the scope of the European Union directives regarding
electromagnetic compatibility, restricted substances (RoHS), recycling (WEEE), FCC, CE or UL, and therefore may not meet the
technical requirements of these directives or other related directives.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30
days from the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY
SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all
claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to
take any and all appropriate precautions with regard to electrostatic discharge.
EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive.
TI assumes no liability for applications assistance, customer product design, software performance, or infringement of
patents or services described herein.
Please read the User’s Guide and, specifically, the Warnings and Restrictions notice in the User’s Guide prior to handling the
product. This notice contains important safety information about temperatures and voltages. For additional information on TI’s
environmental and/or safety programs, please contact the TI application engineer or visit www.ti.com/esh.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used.
FCC Warning
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. It generates, uses, and
can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15
of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this
equipment in other environments may cause interference with radio communications, in which case the user at his own expense
will be required to take whatever measures may be required to correct this interference.
EVM Warnings and Restrictions
It is important to operate this EVM within the input voltage range of -0.3 V to 6.3 V and the output voltage range of -0.3 V to 30 V .
Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there are
questions concerning the input range, please contact a TI field representative prior to connecting the input power.
Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to the
EVM. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the load
specification, please contact a TI field representative.
During normal operation, some circuit components may have case temperatures greater than 85° C. The EVM is designed to
operate properly with certain components above 85° C as long as the input and output ranges are maintained. These components
include but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types of
devices can be identified using the EVM schematic located in the EVM User's Guide. When placing measurement probes near
these devices during operation, please be aware that these devices may be very warm to the touch.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2010, Texas Instruments Incorporated
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products Applications
Amplifiers amplifier.ti.com Audio www.ti.com/audio
Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DLP® Products www.dlp.com Communications and www.ti.com/communications
DSP dsp.ti.com Computers and www.ti.com/computers
Clocks and Timers www.ti.com/clocks Consumer Electronics www.ti.com/consumer-apps
Interface interface.ti.com Energy www.ti.com/energy
Logic logic.ti.com Industrial www.ti.com/industrial
Power Mgmt power.ti.com Medical www.ti.com/medical
Microcontrollers microcontroller.ti.com Security www.ti.com/security
RFID www.ti-rfid.com Space, Avionics & www.ti.com/space-avionics-defense
RF/IF and ZigBee® Solutions www.ti.com/lprf Video and Imaging www.ti.com/video
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2010, Texas Instruments Incorporated
Telecom
Peripherals
Defense
Wireless www.ti.com/wireless-apps
Loading...
