TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B

LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

FEATURES

• Low-Voltage Operation . . . Down to 1.24 V • Wide Operating Cathode Current Range . . .

• Reference Voltage Tolerances at 25 ° C

– 0.5% for B Grade – 1% for A Grade – 1.5% for Standard Grade

• Adjustable Output Voltage, V

= V

to 18 V

REF

55 µ A to 80 mA

• 0.25- Ω Typical Output Impedance

• –40 ° C to 125 ° C Specifications

• TLVH432 Provides Alternative Pinouts for

SOT-23-3 and SOT-89 Packages

• Ultra-Small SC-70 Package Offers 40%

Smaller Footprint Than SOT-23-3

DESCRIPTION/ORDERING INFORMATION

The TLVH431 and TLVH432 are low-voltage 3-terminal adjustable voltage references, with specified thermal stability over applicable industrial and commercial temperature ranges. Output voltage can be set to any value between V voltage (1.24 V) than the widely used TL431 and TL1431 shunt-regulator references.

PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

REF

(1.24 V) and 18 V with two external resistors (see Figure 2 ). These devices operate from a lower

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

www.ti.com

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

DESCRIPTION/ORDERING INFORMATION (CONTINUED)

When used with an optocoupler, the TLVH431 and TLVH432 are ideal voltage references in isolated feedback circuits for 3-V to 3.3-V switching-mode power supplies. They have a typical output impedance of 0.25 Ω . Active output circuitry provides a very sharp turn-on characteristic, making the TLVH431 and TLVH432 excellent replacements for low-voltage Zener diodes in many applications, including on-board regulation and adjustable power supplies.

The TLVH432 is identical to the TLVH431, but is offered with different pinouts for the SOT-23-3 and SOT-89 packages.

www.ti.com

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B

LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

ORDERING INFORMATION

0 ° C to 70 ° C 1% SOT-23-3 – DBZ

(1) Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at

www.ti.com/sc/package.

(2) DBV/DBZ/DCK: The actual top-side marking has one additional character that designates the assembly/test site.

REF

TOLERANCE

0.5% SOT-23-3 – DBZ

1.5% SOT-23-3 – DBZ

PACKAGE

SC-70 – DCK YH_

SOT-23-5 – DBV Y3J_

SOT-89 – PK Reel of 1000

TO-92 – LP ZA431B

SC-70 – DCK YP_

SOT-23-5 – DBV Y3P_

SOT-89 – PK Reel of 1000

TO-92 – LP ZA431A

SC-70 – DCK YU_

SOT-23-5 – DBV Y3U_

SOT-89 – PK Reel of 1000

TO-92 – LP ZA431

(1)

Reel of 3000 TLVH431BCDCKR Reel of 250 TLVH431BCDCKT Reel of 3000 TLVH431BCDBVR Reel of 250 TLVH431BCDBVT

Reel of 3000

Reel of 250

Bulk of 1000 TLVH431BCLP Reel of 2000 TLVH431BCLPR Reel of 3000 TLVH431ACDCKR Reel of 250 TLVH431ACDCKT Reel of 3000 TLVH431ACDBVR Reel of 250 TLVH431ACDBVT

Reel of 3000

Reel of 250

Bulk of 1000 TLVH431ACLP Reel of 2000 TLVH431ACLPR Reel of 3000 TLVH431CDCKR Reel of 250 TLVH431CDCKT Reel of 3000 TLVH431CDBVR Reel of 250 TLVH431CDBVT

Reel of 3000

Reel of 250

Bulk of 1000 TLVH431CLP Reel of 2000 TLVH431CLPR

ORDERABLE PART NUMBER TOP-SIDE MARKING

TLVH431BCDBZR Y3J_ TLVH432BCDBZR Y2H_ TLVH431BCDBZT Y3J_ TLVH432BCDBZT Y2H_ TLVH431BCPK V7 TLVH432BCPK VN

TLVH431ACDBZR Y3P_ TLVH432ACDBZR Y2E_ TLVH431ACDBZT Y3P_ TLVH432ACDBZT Y2E_ TLVH431ACPK W2 TLVH432ACPK VK

TLVH431CDBZR Y3U_ TLVH432CDBZR Y2A_ TLVH431CDBZT Y3U_ TLVH432CDBZT Y2A_ TLVH431CPK W4 TLVH432CPK VG

(2)

www.ti.com

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

–40 ° C to 85 ° C 1% SOT-23-3 – DBZ

REF

TOLERANCE

0.5% SOT-23-3 – DBZ

1.5% SOT-23-3 – DBZ

SC-70 – DCK YJ_

SOT-23-5 – DBV Y3K_

SOT-89 – PK Reel of 1000

TO-92 – LP ZB431B

SC-70 – DCK YT_

SOT-23-5 – DBV Y3T_

SOT-89 – PK Reel of 1000

TO-92 – LP ZB431A

SC-70 – DCK YV_

SOT-23-5 – DBV Y3V_

SOT-89 – PK Reel of 1000

TO-92 – LP ZB431

ORDERING INFORMATION (continued)

PACKAGE

(1)

Reel of 3000 TLVH431BIDCKR Reel of 250 TLVH431BIDCKT Reel of 3000 TLVH431BIDBVR Reel of 250 TLVH431BIDBVT

Reel of 3000

Reel of 250

Bulk of 1000 TLVH431BILP Reel of 2000 TLVH431BILPR Reel of 3000 TLVH431AIDCKR Reel of 250 TLVH431AIDCKT Reel of 3000 TLVH431AIDBVR Reel of 250 TLVH431AIDBVT

Reel of 3000

Reel of 250

Bulk of 1000 TLVH431AILP Reel of 2000 TLVH431AILPR Reel of 3000 TLVH431IDCKR Reel of 250 TLVH431IDCKT Reel of 3000 TLVH431IDBVR Reel of 250 TLVH431IDBVT

Reel of 3000

Reel of 250

Bulk of 1000 TLVH431ILP Reel of 2000 TLVH431ILPR

ORDERABLE PART NUMBER TOP-SIDE MARKING

TLVH431BIDBZR Y3K_ TLVH432BIDBZR Y2J_ TLVH431BIDBZT Y3K_ TLVH432BIDBZT Y2J_ TLVH431BIPK V8 TLVH432BIPK VP

TLVH431AIDBZR Y3T_ TLVH432AIDBZR Y2F_ TLVH431AIDBZT Y3T_ TLVH432AIDBZT Y2F_ TLVH431AIPK W3 TLVH432AIPK VL

TLVH431IDBZR Y3V_ TLVH432IDBZR Y2B_ TLVH431IDBZT Y3V_ TLVH432IDBZT Y2B_ TLVH431IPK W5 TLVH432IPK VH

(2)

www.ti.com

–40 ° C to 125 ° C 1% SOT-23-3 – DBZ

REF

TOLERANCE

0.5% SOT-23-3 – DBZ

1.5% SOT-23-3 – DBZ

SC-70 – DCK YK_

SOT-23-5 – DBV Y3L_

SOT-89 – PK Reel of 1000

TO-92 – LP ZD431B

SC-70 – DCK YN_

SOT-23-5 – DBV Y3N_

SOT-89 – PK Reel of 1000

TO-92 – LP ZD431A

SC-70 – DCK YM_

SOT-23-5 – DBV Y3M_

SOT-89 – PK Reel of 1000

TO-92 – LP ZD431

LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

ORDERING INFORMATION (continued)

PACKAGE

(1)

Reel of 3000 TLVH431BQDCKR Reel of 250 TLVH431BQDCKT Reel of 3000 TLVH431BQDBVR Reel of 250 TLVH431BQDBVT

Reel of 3000

Reel of 250

Bulk of 1000 TLVH431BQLP Reel of 2000 TLVH431BQLPR Reel of 3000 TLVH431AQDCKR Reel of 250 TLVH431AQDCKT Reel of 3000 TLVH431AQDBVR Reel of 250 TLVH431AQDBVT

Reel of 3000

Reel of 250

Bulk of 1000 TLVH431AQLP Reel of 2000 TLVH431AQLPR Reel of 3000 TLVH431QDCKR Reel of 250 TLVH431QDCKT Reel of 3000 TLVH431QDBVR Reel of 250 TLVH431QDBVT

Reel of 3000

Reel of 250

Bulk of 1000 TLVH431QLP Reel of 2000 TLVH431QLPR

ORDERABLE PART NUMBER TOP-SIDE MARKING

TLVH431BQDBZR Y3L_ TLVH432BQDBZR Y2K_ TLVH431BQDBZT Y3L_ TLVH432BQDBZT Y2K_ TLVH431BQPK V9 TLVH432BQPK VQ

TLVH431AQDBZR Y3N_ TLVH432AQDBZR Y2G_ TLVH431AQDBZT Y3N_ TLVH432AQDBZT Y2G_ TLVH431AQPK VD TLVH432AQPK VM

TLVH431QDBZR Y3M_ TLVH432QDBZR Y2D_ TLVH431QDBZT Y3M_ TLVH432QDBZT Y2D_ TLVH431QPK VC TLVH432QPK VJ

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

(2)

www.ti.com

CATHODE

REF

ANODE

REF

= 1.24 V

−

REF

Cathode

Anode

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

LOGIC BLOCK DIAGRAM

EQUIVALENT SCHEMATIC

www.ti.com

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B

LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)

V I I

T T

Cathode voltage

Cathode current range –25 80 mA

Reference current range –0.05 3 mA

ref

Package thermal impedance

Operating virtual junction temperature 150 ° C

Storage temperature range –65 150 ° C

stg

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings

only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating

conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. (2) Voltage values are with respect to the anode terminal, unless otherwise noted. (3) Maximum power dissipation is a function of TJ(max), θJA, and TA. The maximum allowable power dissipation at any allowable ambient

temperature is PD= (TJ(max) – TA)/ θJA. Operating at the absolute maximum TJof 150 ° C can affect reliability. (4) The package thermal impedance is calculated in accordance with JESD 51-7.

(2)

(1)

MIN MAX UNIT

DBV package 206 DBZ package 206

(3) (4)

DCK package 252 ° C/W LP package 140 PK package 52

20 V

Recommended Operating Conditions

V I

Cathode voltage V

Cathode current (continuous) 0.1 80 mA

Operating free-air temperature TLVH43X_I –40 85 ° C

MIN MAX UNIT

REF

TLVH43X_C 0 70

TLVH43X_Q –40 125

18 V

www.ti.com



V

REF





ppm







REF(dev)

REF(TA

25oC)



 10

T





∆V

∆I





∆V

∆I









1 

R1 R2



V

REF

V

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

TLVH431 Electrical Characteristics

at 25 ° C free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS UNIT

TA= 25 ° C 1.222 1.24 1.258

= V

REF

REF(dev)

ref

ref(dev)

K(min)

K(off)

|zKA| Dynamic impedance

(1) Full temperature ranges are –40 ° C to 125 ° C for TLVH431Q, –40 ° C to 85 ° C for TLVH431I, and 0 ° C to 70 ° C for TLVH431C. (2) The deviation parameters V

the rated temperature range. The average full-range temperature coefficient of the reference input voltage, α V

Reference voltage V

deviation over full

REF

temperature range

Ratio of V cathode voltage change

Reference terminal current IK= 10 mA, R1 = 10 k Ω , R2 = open, See Figure 2 0.1 0.5 µ A

ref

temperature range

Minimum cathode current for regulation

Off-state cathode current V

REF

deviation over full IK= 10 mA, R1 = 10 k Ω , R2 = open,

(2)

change to

(2)

(3)

REF(dev)

IK= 10 mA

IK= 10 mA, VK= V

See Figure 2

REF

See Figure 1

and I

ref(dev)

REF

= V

REF

= V

REF

= 0, V

= V

REF

are defined as the differences between the maximum and minimum values obtained over

TA= full range, See Figure 1

, IK= 10 mA, See Figure 1

REF

(1)

, See Figure 1 60 100 µ A

= 18 V, See Figure 3 0.02 0.1 µ A

, f ≤ 1 kHz, IK= 0.1 mA to 80 mA,

(1)

to 18 V, See Figure 2 –1.5 –2.7 mV/V

TLVH431C 1.21 1.27 TLVH431I 1.202 1.278 TLVH431Q 1.194 1.286 TLVH431C 4 12 TLVH431I 6 20 mV TLVH431Q 11 31

TLVH431C 0.05 0.3 TLVH431I 0.1 0.4 µ A TLVH431Q 0.15 0.5

TLVH431 TLVH432

MIN TYP MAX

0.25 0.4 Ω

, is defined as:

REF

where ∆ TAis the rated operating free-air temperature range of the device.

α V

can be positive or negative, depending on whether minimum V

REF

temperature. (3) The dynamic impedance is defined as:

When the device is operating with two external resistors (see Figure 2 ), the total dynamic impedance of the circuit is defined as:

or maximum V

REF

, respectively, occurs at the lower

REF

www.ti.com



V

REF





ppm







REF(dev)

REF(TA

25oC)



 10

T





∆V

∆I





∆V

∆I









1 

R1 R2



V

REF

V

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B

LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

TLVH431A Electrical Characteristics

at 25 ° C free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS UNIT

TA= 25 ° C 1.228 1.24 1.252

= V

REF

REF(dev)

ref

ref(dev)

K(min)

K(off)

|zKA| Dynamic impedance

(1) Full temperature ranges are –40 ° C to 125 ° C for TLVH431Q, –40 ° C to 85 ° C for TLVH431I, and 0 ° C to 70 ° C for TLVH431C. (2) The deviation parameters V

the rated temperature range. The average full-range temperature coefficient of the reference input voltage, α V

Reference voltage V

deviation over full

REF

temperature range

Ratio of V cathode voltage change

Reference terminal current IK= 10 mA, R1 = 10 k Ω , R2 = open, See Figure 2 0.1 0.5 µ A

ref

temperature range

Minimum cathode current for regulation

Off-state cathode current V

REF

deviation over full IK= 10 mA, R1 = 10 k Ω , R2 = open,

(2)

change to

(2)

(3)

REF(dev)

IK= 10 mA

VK= V

See Figure 2

REF

See Figure 1

and I

ref(dev)

REF

= V

REF

= V

REF

= 0, V

= V

REF

are defined as the differences between the maximum and minimum values obtained over

TA= full range, See Figure 1 )

, IK= 10 mA, See Figure 1

to 18 V, IK= 10 mA, See Figure 2 –1.5 –2.7 mV/V

(1)

, See Figure 1 60 100 µ A

= 18 V, See Figure 3 0.02 0.1 µ A

, f ≤ 1 kHz, IK= 0.1 mA to 80 mA,

(1)

TLVH431AC 1.221 1.259 TLVH431AI 1.215 1.265 TLVH431AQ 1.209 1.271 TLVH431AC 4 12 TLVH431AI 6 20 mV TLVH431AQ 11 31

TLVH431AC 0.05 0.3 TLVH431AI 0.1 0.4 µ A TLVH431AQ 0.15 0.5

TLVH431A TLVH432A

MIN TYP MAX

0.25 0.4 Ω

, is defined as:

REF

where ∆ TAis the rated operating free-air temperature range of the device.

α V

can be positive or negative, depending on whether minimum V

REF

temperature. (3) The dynamic impedance is defined as:

When the device is operating with two external resistors (see Figure 2 ), the total dynamic impedance of the circuit is defined as:

or maximum V

REF

, respectively, occurs at the lower

REF

www.ti.com



V

REF





ppm







REF(dev)

REF(TA

25oC)



 10

T





∆V

∆I





∆V

∆I









1 

R1 R2



V

REF

V

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

TLVH431B Electrical Characteristics

at 25 ° C free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS UNIT

REF

REF(dev)

ref

ref(dev)

K(min)

K(off)

|zKA| Dynamic impedance

Reference voltage V

deviation over full

REF

temperature range

Ratio of V cathode voltage change

Reference terminal current IK= 10 mA, R1 = 10 k Ω , R2 = open, See Figure 2 0.1 0.5 µ A

ref

temperature range

Minimum cathode current for regulation

Off-state cathode current V

REF

deviation over full IK= 10 mA, R1 = 10 k Ω , R2 = open,

(2)

change to

(2)

(3)

= V

IK= 10 mA

IK= 10 mA, VK= V

See Figure 2

REF

= V

, IK= 10 mA, See Figure 1

REF

(1)

= V

, See Figure 1 60 100 µ A

REF

= 0, V

= V

, f ≤ 1 kHz, IK= 0.1 mA to 80 mA, See Figure 1 0.25 0.4 Ω

REF

TLVH431B TLVH432B

MIN TYP MAX

TA= 25 ° C 1.234 1.24 1.246

TA= full range, See Figure 1

REF

= 18 V, See Figure 3 0.02 0.1 µ A

(1)

to 18 V, See Figure 2 –1.5 –2.7 mV/V

TLVH431BC 1.227 1.253 TLVH431BI 1.224 1.259 TLVH431BQ 1.221 1.265 TLVH431BC 4 12 TLVH431BI 6 20 mV TLVH431BQ 11 31

TLVH431BC 0.05 0.3 TLVH431BI 0.1 0.4 µ A TLVH431BQ 0.15 0.5

(1) Full temperature ranges are –40 ° C to 125 ° C for TLVH431Q, –40 ° C to 85 ° C for TLVH431I, and 0 ° C to 70 ° C for TLVH431C. (2) The deviation parameters V

the rated temperature range. The average full-range temperature coefficient of the reference input voltage, α V

where ∆ TAis the rated operating free-air temperature range of the device.

α V

can be positive or negative, depending on whether minimum V

REF

temperature. (3) The dynamic impedance is defined as:

When the device is operating with two external resistors (see Figure 2 ), the total dynamic impedance of the circuit is defined as:

and I

REF(dev)

are defined as the differences between the maximum and minimum values obtained over

ref(dev)

or maximum V

REF

, respectively, occurs at the lower

REF

, is defined as:

www.ti.com

REF

Input V

ref

Input

REF

K(off)

Input

LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

PARAMETER MEASUREMENT INFORMATION

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

Figure 1. Test Circuit for V

Figure 2. Test Circuit for V

= V

REF

> V

, V

= V

REF

= V

Figure 3. Test Circuit for I

, V

= V

× (1 + R1/R2) + I

REF

K(off)

= V

REF

× R1

ref

www.ti.com

1.246

1.242

1.240

1.238

− Reference Voltage − V

1.250

1.252

REFERENCE VOLTAGE

JUNCTION TEMPERATURE

1.254

1.248

1.244

−50 −25 0 25 50 75 100 125 150

IK = 10 mA

ref

TJ − Junction Temperature − °C

110

130

150

170

190

210

230

250

−50 −25 0 25 50 75 100 125 150

= 10 mA

R1 = 10 kΩ R2 = Open

REFERENCE INPUT CURRENT

JUNCTION TEMPERATURE

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

PARAMETER MEASUREMENT INFORMATION (continued)

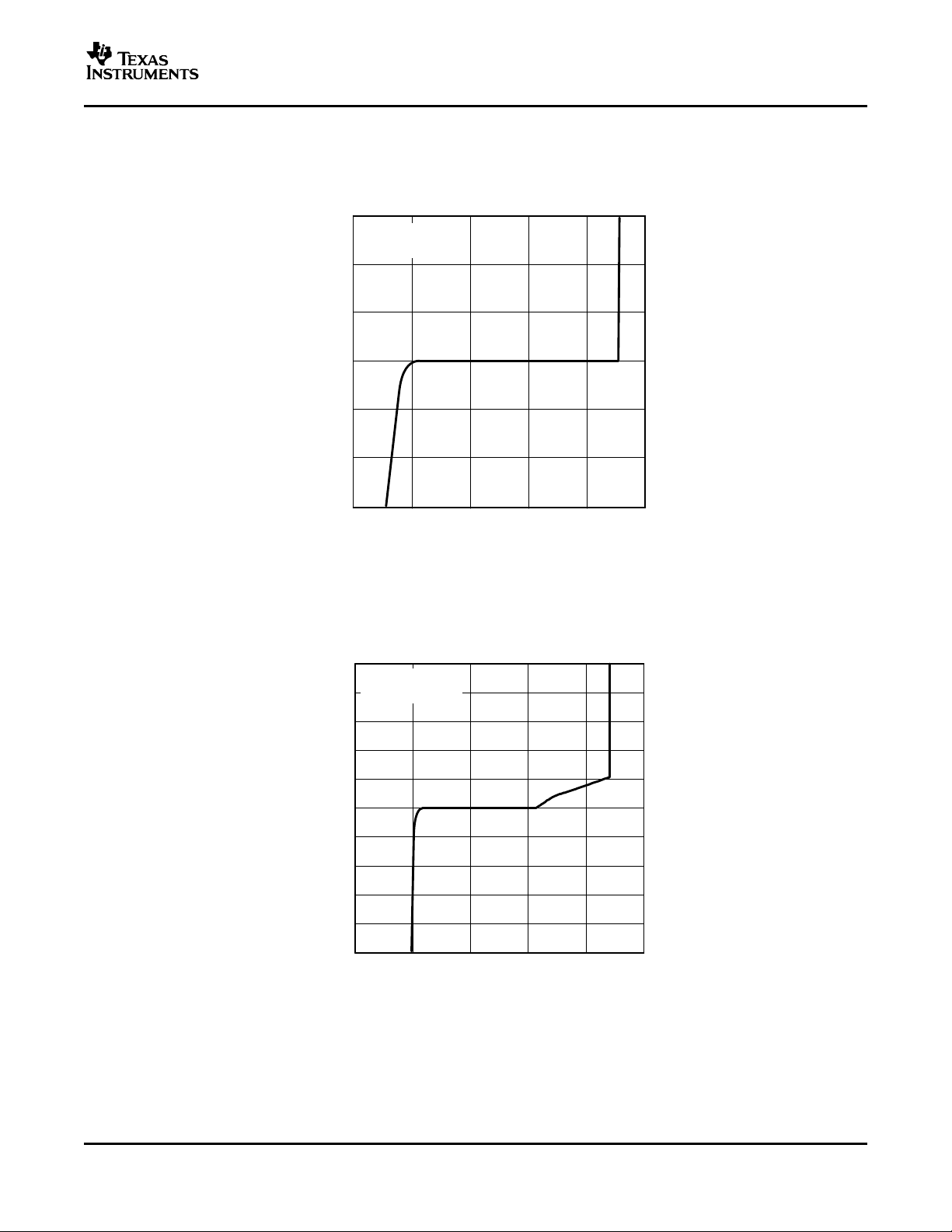

Figure 4.

Figure 5.

www.ti.com

− Cathode Current − mA

CATHODE CURRENT

CATHODE VOLTAGE

−5

−10

−15

−1 −0.5 0 0.5 1 1.5

VKA = V

REF

TA = 25°C

VKA − Cathode Voltage − V

− Cathode Current −

CATHODE CURRENT

CATHODE VOLTAGE

250 200

150 100

−200

−250

−1 −0.5 0 0.5 1 1.5

Aµ

VKA − Cathode Voltage − V

−50

−100

−150

VKA = V

REF

TA = 25°C

LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

PARAMETER MEASUREMENT INFORMATION (continued)

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

Figure 6.

Figure 7.

www.ti.com

500

1000

1500

2000

2500

3000

3500

4000

−50 −25 0 25 50 75 100 125 150

VKA = 5 V V

REF

= 0

OFF-STATE CATHODE CURRENT

JUNCTION TEMPERATURE

TJ − Junction Temperature − °C

− Off-State Cathode Current − nAI

K(off)

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

PARAMETER MEASUREMENT INFORMATION (continued)

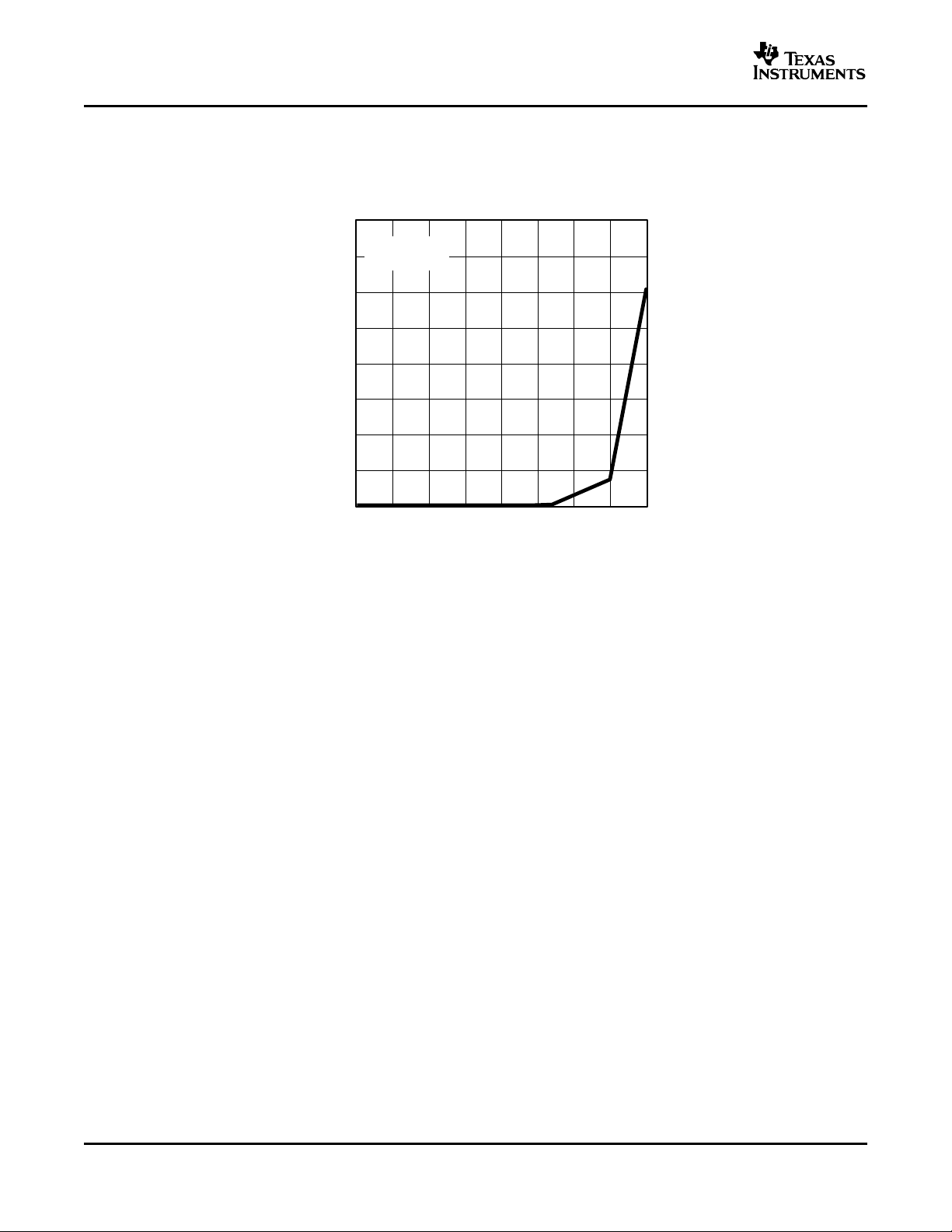

Figure 8.

www.ti.com

−1.0

−0.9

−0.8

−0.7

−0.6

−0.5

−0.4

−0.3

−0.2

−0.1

0.0

−50 −25 0 25 50 75 100 125 150

IK = 10 mA ∆VKA = V

REF

to 18 V

RATIO OF DELTA REFERENCE VOLTAGE

TO DELTA CATHODE VOLTAGE

JUNCTION TEMPERATURE

− Ratio of Delta Reference Voltage to Delta Cathode Voltage − mV/V

ref/

∆

TJ − Junction Temperature − °C

−1

− 0.025

− 0.075

− 0.1

− 0.125

Percentage Change in Vref − %

0.025

PERCENTAGE CHANGE IN V

REF

OPERATING LIFE AT 55°C

− 0.05

0 10 20 30 40 50 60

IK = 1 mA

ref

Operating Life at 55°C − kh

(1)

% Change (3δ)

% Change (−3δ)

% Change (avg)

(1) Extrapolated from life-test data taken at 125°C; the activation energy assumed is 0.7 eV.

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B

LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

PARAMETER MEASUREMENT INFORMATION (continued)

Operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied.

Figure 9.

Figure 10.

www.ti.com

200

150

10 100 1 k

− Equivalent Input Noise Voltage −

EQUIVALENT INPUT NOISE VOLTAGE

FREQUENCY

350

10 k 100 k

300

250

nV/ Hz

= V

REF

IK = 1 mA TA = 25°C

820 Ω

2200 µF

750 Ω

1 kΩ

470 µF

3 V

TLVH431 TLVH432

160 kΩ

160 Ω

TLE2027

TEST CIRCUIT FOR EQUIVALENT INPUT NOISE VOLTAGE

f – Frequency – Hz

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

PARAMETER MEASUREMENT INFORMATION (continued)

Figure 11.

www.ti.com

0 2 4 6

t − Time − s

EQUIVALENT INPUT NOISE VOLTAGE

OVER A 10-S PERIOD

8 10

8 6

4 2

−2

−4

−6

−8

−10

f = 0.1 Hz to 10 Hz IK = 1 mA TA = 25°C

− Equivalent Input Noise Voltage − V

Vµ

1 µF

750 Ω

1 kΩ

470 µF

3 V

TLVH431 TLVH432

33 kΩ

TLE2027

TEST CIRCUIT FOR 0.1-Hz TO 10-Hz EQUIVALENT NOISE VOLTAGE

33 kΩ

10 kΩ

16 Ω

0.1 µF

160 kΩ

820 Ω

2200 µF

2.2 µF

CRO

1 MΩ

TLE2027

0.47 µF

10 kΩ

LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

PARAMETER MEASUREMENT INFORMATION (continued)

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

Figure 12.

www.ti.com

SMALL-SIGNAL VOLTAGE GAIN

/PHASE MARGIN

FREQUENCY

10 µF

GND

Output

180 Ω

6.8 kΩ

1 k 10 k 100 k 1 M100

− Small-Signal Voltage Gain/Phase Margin − dB

f − Frequency − Hz

TEST CIRCUIT FOR VOLTAGE GAIN

AND PHASE MARGIN

60 50

30 20 10

−10

0°

36° 72°

108° 144° 180°

Phase Shift

4.3 kΩ

5 V

= 10 mA

TA = 25°C

−20

100 Ω

GND

Output

0.1

1 k 10 k 100 k 1 M 10 M

− Reference Impedance −

f − Frequency − Hz

REFERENCE IMPEDANCE

FREQUENCY

100

|z | Ω

IK = 0.1 mA to 80 mA TA = 25°C

TEST CIRCUIT FOR REFERENCE IMPEDANCE

0.01

−

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

PARAMETER MEASUREMENT INFORMATION (continued)

Figure 13.

Figure 14.

www.ti.com

Input and Output Voltage − V

Output

R = 18 kΩ TA = 25°C

18 kΩ

50 Ω

GND

Output

Pulse

Generator

f = 100 kHz

TEST CIRCUIT FOR PULSE RESPONSE 1

0 1 2 3 4

PULSE RESPONSE 1

5 6 7 8

3.5

2.5

1.5

0.5

−0.5

t − Time − µs

Input

Input and Output Voltage − V

Output

R = 1.8 kΩ TA = 25°C

1.8 kΩ

50 Ω

GND

Output

Pulse

Generator

f = 100 kHz

TEST CIRCUIT FOR PULSE RESPONSE 2

0 1 2 3 4

PULSE RESPONSE 2

5 6 7 8

3.5

2.5

1.5

0.5

−0.5

t − Time − µs

Input

LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

PARAMETER MEASUREMENT INFORMATION (continued)

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

Figure 15.

Figure 16.

www.ti.com

STABILITY BOUNDARY CONDITION

(1)

150 Ω

bat

TEST CIRCUIT FOR VKA = V

REF

150 Ω

bat

R1 = 10 kΩ

TEST CIRCUIT FOR VKA = 2 V , 3 V

−

(mA)

CL (µF)

0.00001 0.0001 0.001

0.01

VKA = 2 V

VKA = 18 V

VKA = V

REF

VKA = 3 V

Stable

Unstable

(1) The areas enclosed by the curves represent conditions that may cause the device to oscillate. For V

= 2-V, 3-V, and 18-V curves, R2 and V

bat

were adjusted to establish the initial V

and IK conditions with CL = 0. V

bat

and CL then were adjusted to determine the ranges of stability.

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

PARAMETER MEASUREMENT INFORMATION (continued)

Operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied.

Figure 17.

www.ti.com

−

Current

Sense

Gate Drive

GND

Controller

P P

TLVH431

3.3 V

120 V

∼

LOW-VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATORS

SLVS555F – NOVEMBER 2004 – REVISED OCTOBER 2005

APPLICATION INFORMATION

TLVH431, TLVH431A, TLVH431B TLVH432, TLVH432A, TLVH432B

Figure 18. Flyback With Isolation Using TLVH431 and TLVH432 as Voltage Reference and Error Amplifier

Figure 18 shows the TLVH431 used in a 3.3-V isolated flyback supply. Output voltage V

reference voltage V

(1.24 V). The output of the regulator plus the forward voltage drop of the optocoupler LED

REF

can be as low as

(1.24 + 1.4 = 2.64 V) determine the minimum voltage that can be regulated in an isolated supply configuration. Regulated voltage as low as 2.7 Vdc is possible in the topology shown in Figure 18 .

PACKAGE OPTION ADDENDUM

www.ti.com

PACKAGING INFORMATION

Orderable Device Status

TLVH431ACDBVR ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

TLVH431ACDBVRE4 ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

TLVH431ACDBVRG4 ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

TLVH431ACDBVT ACTIVE SOT-23 DBV 5 250 Green (RoHS &

TLVH431ACDBVTE4 ACTIVE SOT-23 DBV 5 250 Green (RoHS &

TLVH431ACDBVTG4 ACTIVE SOT-23 DBV 5 250 Green (RoHS &

TLVH431ACDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

TLVH431ACDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

TLVH431ACDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

TLVH431ACDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

TLVH431ACDCKR ACTIVE SC70 DCK 6 3000 Green (RoHS &

TLVH431ACDCKRE4 ACTIVE SC70 DCK 6 3000 Green (RoHS &

TLVH431ACDCKT ACTIVE SC70 DCK 6 250 Green (RoHS &

TLVH431ACDCKTE4 ACTIVE SC70 DCK 6 250 Green (RoHS &

TLVH431ACLP ACTIVE TO-92 LP 3 1000 TBD CU SNPB Level-NC-NC-NC

TLVH431ACLPE3 ACTIVE TO-92 LP 3 1000 Pb-Free

TLVH431ACLPR ACTIVE TO-92 LP 3 2000 TBD CU SNPB Level-NC-NC-NC

TLVH431ACLPRE3 ACTIVE TO-92 LP 3 2000 Pb-Free

TLVH431ACPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH431ACPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

TLVH431AIDBVR ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

TLVH431AIDBVRE4 ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

TLVH431AIDBVT ACTIVE SOT-23 DBV 5 250 Green (RoHS &

TLVH431AIDBVTE4 ACTIVE SOT-23 DBV 5 250 Green (RoHS &

TLVH431AIDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

TLVH431AIDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

(1)

Package

Type

Package Drawing

Pins Package

Qty

Eco Plan

no Sb/Br)

(RoHS)

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

CU SN Level-NC-NC-NC

CU SN Level-2-260C-1YEAR

CU NIPDAU Level-1-260C-UNLIM

4-Nov-2005

(3)

Addendum-Page 1

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package Drawing

Pins Package

Qty

Eco Plan

(2)

TLVH431AIDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

4-Nov-2005

no Sb/Br)

TLVH431AIDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AIDCKR ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AIDCKRE4 ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AIDCKT ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AIDCKTE4 ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AILP ACTIVE TO-92 LP 3 1000 TBD CU SNPB Level-NC-NC-NC

TLVH431AILPE3 ACTIVE TO-92 LP 3 1000 Pb-Free

CU SN Level-NC-NC-NC

(RoHS)

TLVH431AILPR ACTIVE TO-92 LP 3 2000 TBD CU SNPB Level-NC-NC-NC

TLVH431AILPRE3 ACTIVE TO-92 LP 3 2000 Pb-Free

CU SN Level-NC-NC-NC

(RoHS)

TLVH431AIPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH431AIPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH431AQDBVR ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AQDBVRE4 ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AQDBVT ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AQDBVTE4 ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AQDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AQDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AQDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AQDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AQDCKR ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AQDCKRE4 ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AQDCKT ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AQDCKTE4 ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431AQLP ACTIVE TO-92 LP 3 1000 TBD CU SNPB Level-NC-NC-NC

TLVH431AQLPR ACTIVE TO-92 LP 3 2000 TBD CU SNPB Level-NC-NC-NC

TLVH431AQPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH431AQPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

(3)

Addendum-Page 2

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package Drawing

Pins Package

Qty

Eco Plan

(2)

TLVH431BCDBVR ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

4-Nov-2005

no Sb/Br)

TLVH431BCDBVRE4 ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BCDBVT ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BCDBVTE4 ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BCDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BCDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BCDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BCDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BCDCKR ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BCDCKRE4 ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BCDCKT ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BCDCKTE4 ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BCLP ACTIVE TO-92 LP 3 1000 TBD CU SNPB Level-NC-NC-NC

TLVH431BCLPR ACTIVE TO-92 LP 3 2000 TBD CU SNPB Level-NC-NC-NC

TLVH431BCPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH431BCPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH431BIDBVR ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BIDBVRE4 ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BIDBVT ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BIDBVTE4 ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BIDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BIDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BIDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BIDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BIDCKR ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BIDCKRE4 ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BIDCKT ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

(3)

Addendum-Page 3

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package Drawing

Pins Package

Qty

Eco Plan

(2)

TLVH431BIDCKTE4 ACTIVE SC70 DCK 6 250 Green (RoHS &

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

4-Nov-2005

no Sb/Br)

TLVH431BILP ACTIVE TO-92 LP 3 1000 TBD CU SNPB Level-NC-NC-NC

TLVH431BILPR ACTIVE TO-92 LP 3 2000 TBD CU SNPB Level-NC-NC-NC

TLVH431BIPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH431BIPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH431BQDBVR ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BQDBVRE4 ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BQDBVT ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BQDBVTE4 ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BQDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BQDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BQDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BQDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BQDCKR ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BQDCKRE4 ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BQDCKT ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BQDCKTE4 ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431BQLP ACTIVE TO-92 LP 3 1000 TBD CU SNPB Level-NC-NC-NC

TLVH431BQLPR ACTIVE TO-92 LP 3 2000 TBD CU SNPB Level-NC-NC-NC

TLVH431BQPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH431BQPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH431CDBVR ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431CDBVRE4 ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431CDBVT ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431CDBVTE4 ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431CDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431CDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431CDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

(3)

Addendum-Page 4

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package Drawing

Pins Package

Qty

Eco Plan

(2)

TLVH431CDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

4-Nov-2005

no Sb/Br)

TLVH431CDCKR ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431CDCKRE4 ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431CDCKT ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431CDCKTE4 ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431CLP ACTIVE TO-92 LP 3 1000 TBD CU SNPB Level-NC-NC-NC

TLVH431CLPE3 ACTIVE TO-92 LP 3 1000 Pb-Free

CU SN Level-NC-NC-NC

(RoHS)

TLVH431CLPR ACTIVE TO-92 LP 3 2000 TBD CU SNPB Level-NC-NC-NC

TLVH431CLPRE3 ACTIVE TO-92 LP 3 2000 Pb-Free

CU SN Level-NC-NC-NC

(RoHS)

TLVH431CPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH431CPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH431IBQDBZR PREVIEW SOT-23 DBZ 3 TBD Call TI Call TI

TLVH431IDBVR ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431IDBVRE4 ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431IDBVT ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431IDBVTE4 ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431IDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431IDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431IDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431IDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431IDCKR ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431IDCKRE4 ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431IDCKT ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431IDCKTE4 ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431ILP ACTIVE TO-92 LP 3 1000 TBD CU SNPB Level-NC-NC-NC

TLVH431ILPE3 ACTIVE TO-92 LP 3 1000 Pb-Free

CU SN Level-NC-NC-NC

(RoHS)

TLVH431ILPR ACTIVE TO-92 LP 3 2000 TBD CU SNPB Level-NC-NC-NC

TLVH431ILPRE3 ACTIVE TO-92 LP 3 2000 Pb-Free

CU SN Level-NC-NC-NC

(RoHS)

(3)

Addendum-Page 5

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package Drawing

Pins Package

Qty

Eco Plan

(2)

Lead/Ball Finish MSL Peak Temp

4-Nov-2005

TLVH431IPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH431IPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH431QDBVR ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431QDBVRE4 ACTIVE SOT-23 DBV 5 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431QDBVT ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431QDBVTE4 ACTIVE SOT-23 DBV 5 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431QDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431QDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431QDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431QDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431QDCKR ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431QDCKRE4 ACTIVE SC70 DCK 6 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431QDCKT ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431QDCKTE4 ACTIVE SC70 DCK 6 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH431QLP ACTIVE TO-92 LP 3 1000 TBD CU SNPB Level-NC-NC-NC

TLVH431QLPR ACTIVE TO-92 LP 3 2000 TBD CU SNPB Level-NC-NC-NC

TLVH431QPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH431QPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH432ACDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432ACDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432ACDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432ACDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432ACPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH432ACPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH432AIDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432AIDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432AIDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432AIDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

(3)

Addendum-Page 6

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package Drawing

Pins Package

Qty

Eco Plan

(2)

Lead/Ball Finish MSL Peak Temp

4-Nov-2005

TLVH432AIPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH432AIPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH432AQDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432AQDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432AQDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432AQDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432AQPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH432AQPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH432BCDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432BCDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432BCDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432BCDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432BCPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH432BCPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH432BIDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432BIDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432BIDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432BIDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432BIPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH432BIPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH432BQDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432BQDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432BQDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432BQDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432BQPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH432BQPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH432CDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432CDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

(3)

Addendum-Page 7

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package Drawing

Pins Package

Qty

Eco Plan

TLVH432CDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

4-Nov-2005

(3)

no Sb/Br)

TLVH432CDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432CPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH432CPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH432IDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432IDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432IDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432IDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432IPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH432IPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

TLVH432QDBZR ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432QDBZRG4 ACTIVE SOT-23 DBZ 3 3000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432QDBZT ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432QDBZTG4 ACTIVE SOT-23 DBZ 3 250 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

TLVH432QPK ACTIVE SOT-89 PK 3 1000 TBD CU SNPB Level-1-220C-UNLIM

TLVH432QPKG3 ACTIVE SOT-89 PK 3 1000 Green (RoHS &

CU SN Level-2-260C-1YEAR

no Sb/Br)

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in

a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device.

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS) or Green (RoHS & no Sb/Br) - please check

http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined. Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements

for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder

temperature.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on

Addendum-Page 8

PACKAGE OPTION ADDENDUM

www.ti.com

incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

4-Nov-2005

Addendum-Page 9

MECHANICAL DATA

MSOT002A – OCTOBER 1994 – REVISED NOVEMBER 2001

LP (O-PBCY-W3) PLASTIC CYLINDRICAL PACKAGE

0.205 (5,21) 0.165 (4,19)

0.175 (4,44)

0.157 (4,00) MAX

DIA

0.210 (5,34)

0.170 (4,32)

0.500 (12,70) MIN

0.125 (3,17)

Seating Plane

0.050 (1,27) C

0.104 (2,65)

FORMED LEAD OPTION

0.135 (3,43) MIN

0.055 (1,40)

0.045 (1,14)

0.105 (2,67)

0.080 (2,03)

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice. C. Lead dimensions are not controlled within this area D. FAlls within JEDEC TO -226 Variation AA (TO-226 replaces TO-92)

E. Shipping Method:

Straight lead option available in bulk pack only. Formed lead option available in tape & reel or ammo pack.

STRAIGHT LEAD OPTION

0.022 (0,56)

0.016 (0,41)

0.105 (2,67)

0.095 (2,41)

0.105 (2,67)

0.080 (2,03)

0.016 (0,41)

0.014 (0,35)

4040001-2/C 10/01

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL DATA

MSOT002A – OCTOBER 1994 – REVISED NOVEMBER 2001

LP (O-PBCY-W3) PLASTIC CYLINDRICAL PACKAGE

0.539 (13,70)

0.460 (11,70)

1.260 (32,00)

0.905 (23,00)

0.650 (16,50)

0.610 (15,50)

0.433 (11,00)

0.335 (8,50)

0.098 (2,50)

TAPE & REEL

0.020 (0,50) MIN

0.384 (9,75)

0.335 (8,50)

0.748 (19,00)

0.217 (5,50)

0.114 (2,90)

0.094 (2,40)

0.114 (2,90)

0.094 (2,40) 0.146 (3,70)

0.266 (6,75)

0.234 (5,95)

0.512 (13,00)

0.488 (12,40)

0.169 (4,30)

0.748 (19,00)

0.689 (17,50)

DIA

4040001-3/C 10/01

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice. C. Tape and Reel information for the Format Lead Option package.

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty . Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio Data Converters dataconverter.ti.com Automotive www.ti.com/automotive

DSP dsp.ti.com Broadband www.ti.com/broadband Interface interface.ti.com Digital Control www.ti.com/digitalcontrol Logic logic.ti.com Military www.ti.com/military Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork Microcontrollers microcontroller.ti.com Security www.ti.com/security

Telephony www.ti.com/telephony Video & Imaging www.ti.com/video Wireless www.ti.com/wireless

Mailing Address: Texas Instruments

Post Office Box 655303 Dallas, Texas 75265

TEXAS INSTRUMENTS TLVH431, TLVH431A, TLVH431B, TLVH432, TLVH432A Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual
