TLC6C5724-Q1 Evaluation Module
This document is a guide for using the TLC6C5724-Q1 EVM and GUI. The TLC6C5724EVM is designed
to be controlled with the TLC65724EVM GUI via a USB2ANY communication tool. The TLC6C5724EVM
can be powered by a micro-USB supply with a PC USB port. The TLC6C5724EVM GUI is designed
demonstrate the TLC6C5724-Q1 features.
Contents
1 Introduction ................................................................................................................... 1
2 Test Setup and Results ..................................................................................................... 3
3 Board Layout ................................................................................................................. 8
4 Schematic and Bill of Materials ............................................................................................ 9
List of Figures
1 TLC6C5724EVM Kit ........................................................................................................ 2
2 TLC6C5712-Q1EVM Hardware Setup.................................................................................... 3
3 TLC6C5724EVM GUI Landing Page...................................................................................... 4
4 Connection Status ........................................................................................................... 5
5 Quick Start Page............................................................................................................. 6
6 Advanced Settings Page.................................................................................................... 7
7 PCB Layout................................................................................................................... 8
8 TLC6C5724EVM Schematic ............................................................................................... 9
1 Bill of Materials ............................................................................................................. 10
Trademarks
All trademarks are the property of their respective owners.
1 Introduction
The TLC6C5724-Q1 device is a 24-channel, constant-current LED driver designed to support automotive
LED applications.
1.1 Features
The EVM has the following features:
• 24 constant-current-sink output channels
• Excellent constant-current accuracy
• 7-bit individual dot correction
• 8-bit global brightness control
• 12-bit PWM dimming
• LED protection and diagnostics
SLAU753–December 2017
Submit Documentation Feedback
List of Tables
Copyright © 2017, Texas Instruments Incorporated
TLC6C5724-Q1 Evaluation Module
1
ADVANCE INFORMATION
Introduction
1.2 Applications
This EVM can be used in the following applications:
• Automotive cluster indicator
• Automotive HVAC panel
• Automotive E-shifter indicator
• Automotive local dimming display
• Automotive ambient lighting
1.3 Description
1.3.1 Kit Contents
TLC6C5724EVM kit contains a USB2ANY, TLC6C5724EVM, and two connection cables, as Figure 1
shows.
www.ti.com
1.3.2 Additional Items Required
The following additional items are required to run the TLCC65724EVM:
• PC with the TLC6C5724EVM GUI installed
• 5-V DC supply or USB port for LED supply
2
TLC6C5724-Q1 Evaluation Module
Figure 1. TLC6C5724EVM Kit
Copyright © 2017, Texas Instruments Incorporated
SLAU753–December 2017
Submit Documentation Feedback
USB2ANY
TLC6C5724-Q1EVM
x
x
x
x
x
DC Supply
5V
Vsense
V
CC
GND
USB
cable
Ribbon Cable
Put Shunt on J53 to
supply Vcc from
USB2ANY
ADVANCE INFORMATION
www.ti.com
2 Test Setup and Results
2.1 Hardware Setup
Figure 2 shows the hardware setup of the TLC6C5724-Q1 EVM.
• Connect the 5-V power supply to the LED board between TP1 (SENSE) and TP3 (GND), use the 5-V
micro-USB supply connected to J52 to supply the LED.
• Put a shunt on J53 to connect the USB2ANY 3.3-V supply to VCC. In this case, extra DC supply is not
needed to supply the VCC.
• Connect the host computer to the USB2ANY board via a USB cable.
• Connect the ribbon cable between the USB2ANY board and the TLC6C5724-Q1 EVM board.
Test Setup and Results
Figure 2. TLC6C5712-Q1EVM Hardware Setup
SLAU753–December 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
TLC6C5724-Q1 Evaluation Module
3
ADVANCE INFORMATION
Test Setup and Results
2.2 Software Installation
Download the GUI software from the TLC6C5724-Q1 EVM tool folder and install on the PC. Once
installed, a shortcut to the GUI is found on the desktop and also in the start-up menu under the Texas
Instruments folder. shows the landing page of the TLC6C5724EVM GUI. A support document link is on
bottom of the landing page.
www.ti.com
Figure 3. TLC6C5724EVM GUI Landing Page
4
TLC6C5724-Q1 Evaluation Module
Copyright © 2017, Texas Instruments Incorporated
SLAU753–December 2017
Submit Documentation Feedback
ADVANCE INFORMATION
www.ti.com
2.3 GUI Function
This section provides instructions to run the TLC6C5724EVM using the TLC6C5724EVM GUI.
2.3.1 Connection Status
The TLC6C5724EVM connection status appears on the GUI landing page. A Red status indicator means
Device Not connected, a Green status indicator means Device connected. Click the Quick Start button
and a quick configuration page opens for control of the TLC6C5724EVM.
Test Setup and Results
SLAU753–December 2017
Submit Documentation Feedback
Figure 4. Connection Status
Copyright © 2017, Texas Instruments Incorporated
TLC6C5724-Q1 Evaluation Module
5
ADVANCE INFORMATION
Test Setup and Results
2.3.2 Quick Start Page
The LED brightness is adjustable and the channel status is easily read on the Quick Start page. There are
two kinds of LEDs on the EVM, monochrome LEDs and RGB LEDs. The LED groups can be controlled
individually or globally. For monochrome LEDs, if the Apply this brightness to all monochrome LEDs
option is selected, all monochrome LEDs are dimmed at the same brightness, if not, the LEDs are
controlled individually. For RGB LEDs, if the Apply this color to all color LEDs option is selected, all the
four RGB LEDs color are changed simultaneously with the same color, if not, each RGB LED is changed
individually.
At the right side of the GUI, the LED status is read out every 2 seconds. A Green color of the status
stands for no error, Red color status stands for fault status. By clicking the button next to APS OK, the
detailed LOD and LSD information will show up.
At the bottom right of the page, the configuration can be saved locally. On subsequent uses of the GUI,
the existing configuration data can be loaded directly. For detailed features configuration, can click the GO
ADVANCED! button.
www.ti.com
6
TLC6C5724-Q1 Evaluation Module
Figure 5. Quick Start Page
Copyright © 2017, Texas Instruments Incorporated
SLAU753–December 2017
Submit Documentation Feedback
ADVANCE INFORMATION
www.ti.com
2.3.3 Advanced Settings Page
The Advanced Settings page (Figure 6) provides more register configuration features. GLOBAL RESET
resets the TLCC65724-Q1 internal registers, meaning all registers values are set to 0 except the Mask
LED Error bit is set to 1. INITIALIZE ALL CH VALUES turns on all channels with 50% greyscale (GS), dot
correction, and brightness control values. GS and dot correction channels can be adjusted separately.
For APS test and LOD test, turn off all output channels. For other configurations, refer to TLC6C5724-Q1
24-Channel, Full Diagnostics, Constant-Current LED Driver With 7-Bit Dot Correction and 12-Bit PWM
Dimming for details.
Test Setup and Results
2.3.4 Device Cascading
Use J50 and J55 to connect two TLC6C5724-Q1 EVMs in cascading mode.
SLAU753–December 2017
Submit Documentation Feedback
Figure 6. Advanced Settings Page
Copyright © 2017, Texas Instruments Incorporated
TLC6C5724-Q1 Evaluation Module
7
ADVANCE INFORMATION
Board Layout
3 Board Layout
Figure 7 illustrates the PCB layout of TLC6C5724EVM.
www.ti.com
8
TLC6C5724-Q1 Evaluation Module
Figure 7. PCB Layout
Copyright © 2017, Texas Instruments Incorporated
SLAU753–December 2017
Submit Documentation Feedback
213
4
Super Red
D12
213
4
Super Red
D14
213
4
Super Red
D13
213
4
True Green
D15
213
4
Amber
D6
213
4
Amber
D5
213
4
White
D7
213
4
White
D8
213
4
Super Red
D9
213
4
Super Red
D10
213
4
Super Red
D11
213
4
True Green
D16
3
B
54612
R
G
Rgb
D1
3
B
54612
R
G
Rgb
D2
3
B
54612
R
G
Rgb
D3
3
B
54612
R
G
Rgb
D4
SENSE
ERR
GND
0 R4
SENSE
4.7µF
C3
4.7µFC54.7µF
C6
IREF
OUTG0
OUTR0
OUTB0
OUTG1
OUTG2
OUTG3
OUTG4
OUTG5
OUTG6
OUTG7
OUTR1
OUTR2
OUTR3
OUTR4
OUTR5
OUTR6
OUTR7
OUTB1
OUTB2
OUTB3
OUTB4
OUTB5
OUTB6
OUTB7
BLANK
GCLK
GCLK
GCLK
LATCH
SCK_IN
SDO
SDI_IN
GND
GNDSENSE VCC
ERR
LATCH
GNDVCC 3.3V
SENSE
GND
Headers
SDO
SDO_OUT
Single Device
GND
GND
4.7µFC10.1µF
C2
Red
1 2
D17
1.0k
R1
3.3k
R2
VCC
J54
GND
GCLK
SCK_IN
SDO_OUT
GND
GND
GND
GND
123J1123J2123J3123J4123J5123
J6
123
J20
123
J19
123
J18
123
J17
123
J16
123
J15
123
J7
123
J41
123J8123
J9
123
J42
123
J10
123
J11
123
J43
123
J12
123
J13
123
J44
123
J14
SENSE
GND
J21 J22 J23 J24 J25 J26 J29
J46
J30 J31
J47
J32
J45
J33
J48
J34 J35 J36 J37 J38 J39 J40J27 J28
TP36 TP37
TP20TP19TP4 TP5 TP6 TP7 TP10
TP21 TP22 TP23 TP24 TP25 TP26 TP27 TP28 TP29 TP30
TP11 TP12 TP13 TP14 TP15 TP16 TP17 TP18
TP31 TP32 TP33 TP34 TP35
SDI_IN SCK_IN
LATCHGCLKOUTG0 OUTR0 OUTB0 OUTG1 OUTG2 OUTR2 OUTB2 OUTG3 OUTR3 OUTB3 OUTG4 OUTR4 OUTB4
OUTG5 OUTR5 OUTB5 OUTG6 OUTR6 OUTB6 OUTG7 OUTR7 OUTB7 VCC IREF ERR GND BLANK SDO
TP38
SENSE
TP8
OUTR1
TP9
OUTB1
Signal Output
1 2
3 4
5 6
7 8
9 10
J55
GND
Signal Input
1 2
3 4
5 6
7 8
9 10
J50
GND
Cascade Mode
3.3V 3.3V
J49
J53
1 2
3 4
5 6
7 8
9 10
11 12
13 14
15
17
19
21
23
25
27
29
16
18
20
22
24
26
28
30
J51
1
2
3
4
5
MP1
MP1
MP2
MP2
MP3
MP3
MP4
MP4
MP5
MP5
MP6
MP6
J52
TP1 TP2 TP3
4.7uF
C4
DNP
BLANK
GCLK
LATCH
SCK_IN
SDI_IN SDO
BLANK
GCLK
LATCH
SCK_IN
4.7µF
C7
SDI_IN
BLANK
SCK
2
SDI
1
LATCH
3
SDO
19
ERR
20
SENSE
38
BLANK
36
NC
37
VCC
35
GND
33
PAD
39
GCLK
4
GCLK
5
GCLK
6
OUTG0
7
OUTG1
10
OUTG2
13
OUTG3
16
OUTG4
23
OUTG5
26
OUTG6
29
OUTG7
32
OUTR0
8
OUTR1
11
OUTR2
14
OUTR3
17
OUTR4
22
OUTR5
25
OUTR6
28
OUTR7
31
OUTB0
9
OUTB1
12
OUTB2
15
OUTB3
18
OUTB4
21
OUTB5
24
OUTB6
27
OUTB7
30
IREF
34
U1
2.43k
R3
Copyright © 2017, Texas Instruments Incorporated
www.ti.com
Schematic and Bill of Materials
9
SLAU753–December 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
TLC6C5724-Q1 Evaluation Module
ADVANCE INFORMATION
4 Schematic and Bill of Materials
4.1 Schematic

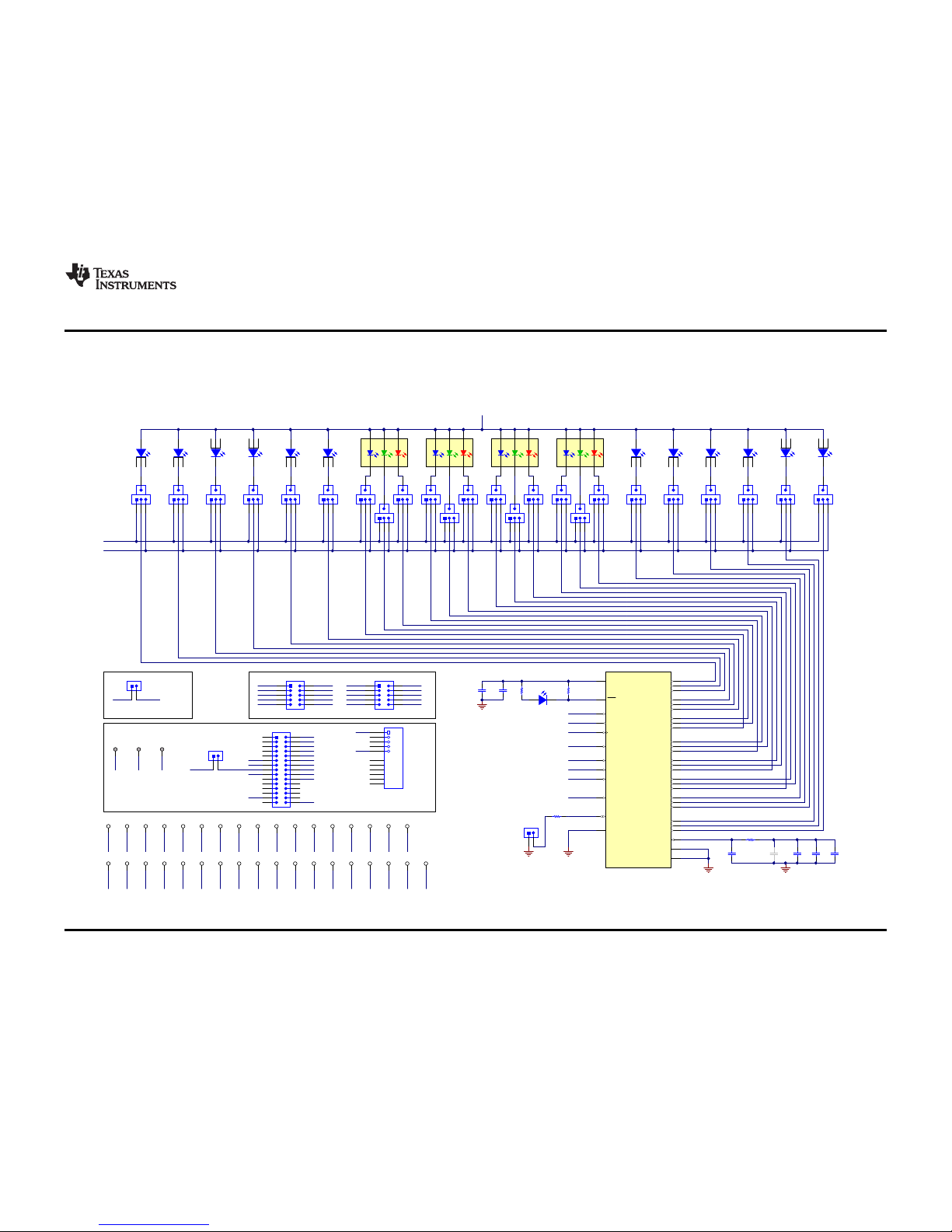

Figure 8 illustrates the TLC6C5724EVM schematic.
Figure 8. TLC6C5724EVM Schematic
Schematic and Bill of Materials
www.ti.com
10
SLAU753–December 2017
Submit Documentation Feedback
Copyright © 2017, Texas Instruments Incorporated
TLC6C5724-Q1 Evaluation Module
ADVANCE INFORMATION
4.2 Bill of Materials
Table 1 lists the TLC6C5724EVM BOM.
Table 1. Bill of Materials
Designator Quantity Value Description Package Reference Part Number Manufacturer
C1 1 4.7uF CAP, CERM, 4.7 µF, 16 V, ±10%, X5R, 0805 0805 GRM21BR61C475KA88L Murata
C2 1 0.1uF CAP, CERM, 0.1 µF, 16 V, ±5%, X7R, 0603 0603 0603YC104JAT2A AVX
C3, C5, C6, C7 4 4.7uF CAP, CERM, 4.7 µF, 16 V, ±10%, X5R, 0805 0805 EMK212BJ475KG-T Taiyo Yuden
D1, D2, D3, D4 4 Rgb LED, RGB, SMD 3.3x3mm LRTB GVSG-UEVE-24+AMAQ-29+SCUC-HR OSRAM
D5, D6 2 Amber LED, Amber, SMD 2.8x3.2mm LA E67B-T2AA-24-1 OSRAM
D7, D8 2 White LED, White, SMD 2.8x3.2mm LW E6SG-AABA-JKPL-1 OSRAM
D9, D10, D11, D12, D13, D14 6 Super Red LED, Super Red, SMD 2.8x3.2mm LS E67B-S2U1-1-1 OSRAM
D15, D16 2 True Green LED,True Green, SMD 2.8x3.2mm LT E6SG-AABB-35-1 OSRAM
D17 1 Red LED, Red, SMD Red 0805 LED LTST-C170KRKT Lite-On
J1, J2, J3, J4, J5, J6, J7, J8, J9, J10,
J11, J12, J13, J14, J15, J16, J17, J18,
J19, J20, J41, J42, J43, J44
24 Header, 100mil, 3x1, Gold, TH 3x1Header TSW-103-07-G-S Samtec
J21, J22, J23, J24, J25, J26, J27, J28,
J29, J30, J31, J32, J33, J34, J35, J36,
J37, J38, J39, J40, J45, J46, J47, J48
24 Header, 100mil, 1pos, Gold, TH Testpoint TSW-101-07-G-S Samtec
J49, J53, J54 3 Header, 100mil, 2x1, Gold, TH 2x1Header TSW-102-07-G-S Samtec
J50, J55 2 Header (shrouded), 100mil, 5x2, Gold, TH TH, 10-Leads, Body
8.5x20mm, Pitch 2.54mm
XG4C-1031 Omron Electronic
Components
J51 1 Connector, 15x2, 3A 300V STRT DIP, TH Connector, 15x2, Pitch
2.54mm, TH
XG4C-3031 Omron Electronic
Components
J52 1 Receptacle, 0.65 mm, 5x1, Gold, R/A, SMT SMD, 5-Leads, Body
7.9x5.57mm, Pitch 0.65mm
10118192-0001LF FCI
R1 1 1.0k RES, 1.0 k, 5%, 0.1 W, 0603 0603 CRCW06031K00JNEA Vishay-Dale
R2 1 3.3k RES, 3.3 k, 5%, 0.1 W, 0603 0603 CRCW06033K30JNEA Vishay-Dale
R3 1 2.43k RES, 2.43 k, 0.5%, 0.1 W, 0603 0603 RT0603DRE072K43L Yageo America
R4 1 0 RES, 0, 5%, 0.1 W, 0603 0603 ERJ-3GEY0R00V Panasonic
SH-J1, SH-J2, SH-J3, SH-J4, SH-J5,
SH-J6, SH-J7, SH-J8, SH-J9, SH-J10,
SH-J11, SH-J12, SH-J13, SH-J14,
SH-J15, SH-J16, SH-J17, SH-J18,
SH-J19, SH-J20, SH-J21, SH-J22,
SH-J23, SH-J24, SH-J25, SH-J26
26 1x2 Single Operation 2.54mm Pitch Open Top Jumper Socket Single Operation 2.54mm
Pitch Open Top Jumper
Socket
M7582-05 Harwin
TP1, TP2, TP3 3 Terminal, Turret, TH, Double Keystone1502-2 1502-2 Keystone
TP4, TP5, TP6, TP7, TP8, TP9, TP10,
TP11, TP12, TP13, TP14, TP15,
TP16, TP17, TP18, TP19, TP20,
TP21, TP22, TP23, TP24, TP25,
TP26, TP27, TP28, TP29, TP30,
TP31, TP32, TP33, TP34, TP35,
TP36, TP37, TP38
35 Test Point, Miniature, White, TH White Miniature Testpoint 5002 Keystone
U1 1 24-Channel, Full Diagnostics, Constant-Current LED Driver with 7-Bit
Dot Correction and 12-Bit PWM Dimming, DAP0038E (TSSOP-38)
DAP0038E TLC6C5724QDAPRQ1 Texas Instruments
C4 0 4.7uF CAP, CERM, 4.7 µF, 16 V,±10%, X5R, 0805 0805 EMK212BJ475KG-T Taiyo Yuden
STANDARD TERMS FOR EVALUATION MODULES
1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or
documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance
with the terms set forth herein. User's acceptance of the EVM is expressly subject to the following terms.
1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility
evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not
finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For
clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions
set forth herein but rather shall be subject to the applicable terms that accompany such Software
1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned,
or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production
system.
2 Limited Warranty and Related Remedies/Disclaimers:
2.1 These terms do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License
Agreement.
2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM
to User. Notwithstanding the foregoing, TI shall not be liable for a nonconforming EVM if (a) the nonconformity was caused by
neglect, misuse or mistreatment by an entity other than TI, including improper installation or testing, or for any EVMs that have
been altered or modified in any way by an entity other than TI, (b) the nonconformity resulted from User's design, specifications
or instructions for such EVMs or improper system design, or (c) User has not paid on time. Testing and other quality control
techniques are used to the extent TI deems necessary. TI does not test all parameters of each EVM.
User's claims against TI under this Section 2 are void if User fails to notify TI of any apparent defects in the EVMs within ten (10)
business days after delivery, or of any hidden defects with ten (10) business days after the defect has been detected.
2.3 TI's sole liability shall be at its option to repair or replace EVMs that fail to conform to the warranty set forth above, or credit
User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the warranty
period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to repair or
replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall be
warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day
warranty period.
3 Regulatory Notices:
3.1 United States
3.1.1 Notice applicable to EVMs not FCC-Approved:
FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software
associated with the kit to determine whether to incorporate such items in a finished product and software developers to write
software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or
otherwise marketed unless all required FCC equipment authorizations are first obtained. Operation is subject to the condition
that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference.
Unless the assembled kit is designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must
operate under the authority of an FCC license holder or must secure an experimental authorization under part 5 of this chapter.
3.1.2 For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:
CAUTION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
FCC Interference Statement for Class A EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
FCC Interference Statement for Class B EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
3.2 Canada
3.2.1 For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210 or RSS-247
Concerning EVMs Including Radio Transmitters:
This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Concernant les EVMs avec appareils radio:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concerning EVMs Including Detachable Antennas:
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types
listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et
d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le
présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le
manuel d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur
3.3 Japan
3.3.1 Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本国内に
輸入される評価用キット、ボードについては、次のところをご覧ください。
http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page
3.3.2 Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be certified
by TI as conforming to Technical Regulations of Radio Law of Japan.
If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required to follow the
instructions set forth by Radio Law of Japan, which includes, but is not limited to, the instructions below with respect to EVMs
(which for the avoidance of doubt are stated strictly for convenience and should be verified by User):
1. Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal
Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for
Enforcement of Radio Law of Japan,
2. Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect to
EVMs, or
3. Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of Japan
with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee. Please note
that if User does not follow the instructions above, User will be subject to penalties of Radio Law of Japan.
【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて
いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの
措置を取っていただく必要がありますのでご注意ください。
1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用
いただく。
2. 実験局の免許を取得後ご使用いただく。
3. 技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ
ンスツルメンツ株式会社
東京都新宿区西新宿６丁目２４番１号
西新宿三井ビル
3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/
/www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
3.4 European Union
3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive):
This is a class A product intended for use in environments other than domestic environments that are connected to a
low-voltage power-supply network that supplies buildings used for domestic purposes. In a domestic environment this
product may cause radio interference in which case the user may be required to take adequate measures.
4 EVM Use Restrictions and Warnings:
4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT
LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling
or using the EVM, including without limitation any warning or restriction notices. The notices contain important safety information
related to, for example, temperatures and voltages.
4.3 Safety-Related Warnings and Restrictions:
4.3.1 User shall operate the EVM within TI’s recommended specifications and environmental considerations stated in the user
guide, other available documentation provided by TI, and any other applicable requirements and employ reasonable and
customary safeguards. Exceeding the specified performance ratings and specifications (including but not limited to input
and output voltage, current, power, and environmental ranges) for the EVM may cause personal injury or death, or
property damage. If there are questions concerning performance ratings and specifications, User should contact a TI
field representative prior to connecting interface electronics including input power and intended loads. Any loads applied
outside of the specified output range may also result in unintended and/or inaccurate operation and/or possible
permanent damage to the EVM and/or interface electronics. Please consult the EVM user guide prior to connecting any
load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative.
During normal operation, even with the inputs and outputs kept within the specified allowable ranges, some circuit
components may have elevated case temperatures. These components include but are not limited to linear regulators,
switching transistors, pass transistors, current sense resistors, and heat sinks, which can be identified using the
information in the associated documentation. When working with the EVM, please be aware that the EVM may become
very warm.
4.3.2 EVMs are intended solely for use by technically qualified, professional electronics experts who are familiar with the
dangers and application risks associated with handling electrical mechanical components, systems, and subsystems.
User assumes all responsibility and liability for proper and safe handling and use of the EVM by User or its employees,
affiliates, contractors or designees. User assumes all responsibility and liability to ensure that any interfaces (electronic
and/or mechanical) between the EVM and any human body are designed with suitable isolation and means to safely
limit accessible leakage currents to minimize the risk of electrical shock hazard. User assumes all responsibility and
liability for any improper or unsafe handling or use of the EVM by User or its employees, affiliates, contractors or
designees.
4.4 User assumes all responsibility and liability to determine whether the EVM is subject to any applicable international, federal,
state, or local laws and regulations related to User’s handling and use of the EVM and, if applicable, User assumes all
responsibility and liability for compliance in all respects with such laws and regulations. User assumes all responsibility and
liability for proper disposal and recycling of the EVM consistent with all applicable international, federal, state, and local
requirements.
5. Accuracy of Information: To the extent TI provides information on the availability and function of EVMs, TI attempts to be as accurate
as possible. However, TI does not warrant the accuracy of EVM descriptions, EVM availability or other information on its websites as
accurate, complete, reliable, current, or error-free.
6. Disclaimers:
6.1 EXCEPT AS SET FORTH ABOVE, EVMS AND ANY MATERIALS PROVIDED WITH THE EVM (INCLUDING, BUT NOT
LIMITED TO, REFERENCE DESIGNS AND THE DESIGN OF THE EVM ITSELF) ARE PROVIDED "AS IS" AND "WITH ALL
FAULTS." TI DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING SUCH ITEMS, INCLUDING BUT
NOT LIMITED TO ANY EPIDEMIC FAILURE WARRANTY OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY THIRD PARTY PATENTS, COPYRIGHTS, TRADE
SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS.
6.2 EXCEPT FOR THE LIMITED RIGHT TO USE THE EVM SET FORTH HEREIN, NOTHING IN THESE TERMS SHALL BE
CONSTRUED AS GRANTING OR CONFERRING ANY RIGHTS BY LICENSE, PATENT, OR ANY OTHER INDUSTRIAL OR
INTELLECTUAL PROPERTY RIGHT OF TI, ITS SUPPLIERS/LICENSORS OR ANY OTHER THIRD PARTY, TO USE THE
EVM IN ANY FINISHED END-USER OR READY-TO-USE FINAL PRODUCT, OR FOR ANY INVENTION, DISCOVERY OR
IMPROVEMENT, REGARDLESS OF WHEN MADE, CONCEIVED OR ACQUIRED.
7. USER'S INDEMNITY OBLIGATIONS AND REPRESENTATIONS. USER WILL DEFEND, INDEMNIFY AND HOLD TI, ITS
LICENSORS AND THEIR REPRESENTATIVES HARMLESS FROM AND AGAINST ANY AND ALL CLAIMS, DAMAGES, LOSSES,
EXPENSES, COSTS AND LIABILITIES (COLLECTIVELY, "CLAIMS") ARISING OUT OF OR IN CONNECTION WITH ANY
HANDLING OR USE OF THE EVM THAT IS NOT IN ACCORDANCE WITH THESE TERMS. THIS OBLIGATION SHALL APPLY
WHETHER CLAIMS ARISE UNDER STATUTE, REGULATION, OR THE LAW OF TORT, CONTRACT OR ANY OTHER LEGAL
THEORY, AND EVEN IF THE EVM FAILS TO PERFORM AS DESCRIBED OR EXPECTED.
8. Limitations on Damages and Liability:
8.1 General Limitations. IN NO EVENT SHALL TI BE LIABLE FOR ANY SPECIAL, COLLATERAL, INDIRECT, PUNITIVE,
INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF THESE
TERMS OR THE USE OF THE EVMS , REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED TO, COST OF REMOVAL OR
REINSTALLATION, ANCILLARY COSTS TO THE PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, RETESTING,
OUTSIDE COMPUTER TIME, LABOR COSTS, LOSS OF GOODWILL, LOSS OF PROFITS, LOSS OF SAVINGS, LOSS OF
USE, LOSS OF DATA, OR BUSINESS INTERRUPTION. NO CLAIM, SUIT OR ACTION SHALL BE BROUGHT AGAINST TI
MORE THAN TWELVE (12) MONTHS AFTER THE EVENT THAT GAVE RISE TO THE CAUSE OF ACTION HAS
OCCURRED.
8.2 Specific Limitations. IN NO EVENT SHALL TI'S AGGREGATE LIABILITY FROM ANY USE OF AN EVM PROVIDED
HEREUNDER, INCLUDING FROM ANY WARRANTY, INDEMITY OR OTHER OBLIGATION ARISING OUT OF OR IN
CONNECTION WITH THESE TERMS, , EXCEED THE TOTAL AMOUNT PAID TO TI BY USER FOR THE PARTICULAR
EVM(S) AT ISSUE DURING THE PRIOR TWELVE (12) MONTHS WITH RESPECT TO WHICH LOSSES OR DAMAGES ARE
CLAIMED. THE EXISTENCE OF MORE THAN ONE CLAIM SHALL NOT ENLARGE OR EXTEND THIS LIMIT.
9. Return Policy. Except as otherwise provided, TI does not offer any refunds, returns, or exchanges. Furthermore, no return of EVM(s)
will be accepted if the package has been opened and no return of the EVM(s) will be accepted if they are damaged or otherwise not in
a resalable condition. If User feels it has been incorrectly charged for the EVM(s) it ordered or that delivery violates the applicable
order, User should contact TI. All refunds will be made in full within thirty (30) working days from the return of the components(s),
excluding any postage or packaging costs.
10. Governing Law: These terms and conditions shall be governed by and interpreted in accordance with the laws of the State of Texas,
without reference to conflict-of-laws principles. User agrees that non-exclusive jurisdiction for any dispute arising out of or relating to
these terms and conditions lies within courts located in the State of Texas and consents to venue in Dallas County, Texas.
Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief
in any United States or foreign court.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2017, Texas Instruments Incorporated
IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES
Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to,
reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are
developing applications that incorporate TI products; by downloading, accessing or using any particular TI Resource in any way, you
(individually or, if you are acting on behalf of a company, your company) agree to use it solely for this purpose and subject to the terms of
this Notice.
TI’s provision of TI Resources does not expand or otherwise alter TI’s applicable published warranties or warranty disclaimers for TI
products, and no additional obligations or liabilities arise from TI providing such TI Resources. TI reserves the right to make corrections,
enhancements, improvements and other changes to its TI Resources.
You understand and agree that you remain responsible for using your independent analysis, evaluation and judgment in designing your
applications and that you have full and exclusive responsibility to assure the safety of your applications and compliance of your applications
(and of all TI products used in or for your applications) with all applicable regulations, laws and other applicable requirements. You
represent that, with respect to your applications, you have all the necessary expertise to create and implement safeguards that (1)
anticipate dangerous consequences of failures, (2) monitor failures and their consequences, and (3) lessen the likelihood of failures that
might cause harm and take appropriate actions. You agree that prior to using or distributing any applications that include TI products, you
will thoroughly test such applications and the functionality of such TI products as used in such applications. TI has not conducted any
testing other than that specifically described in the published documentation for a particular TI Resource.
You are authorized to use, copy and modify any individual TI Resource only in connection with the development of applications that include
the TI product(s) identified in such TI Resource. NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO
ANY OTHER TI INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY TECHNOLOGY OR INTELLECTUAL PROPERTY
RIGHT OF TI OR ANY THIRD PARTY IS GRANTED HEREIN, including but not limited to any patent right, copyright, mask work right, or
other intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
regarding or referencing third-party products or services does not constitute a license to use such products or services, or a warranty or
endorsement thereof. Use of TI Resources may require a license from a third party under the patents or other intellectual property of the
third party, or a license from TI under the patents or other intellectual property of TI.
TI RESOURCES ARE PROVIDED “AS IS” AND WITH ALL FAULTS. TI DISCLAIMS ALL OTHER WARRANTIES OR
REPRESENTATIONS, EXPRESS OR IMPLIED, REGARDING TI RESOURCES OR USE THEREOF, INCLUDING BUT NOT LIMITED TO
ACCURACY OR COMPLETENESS, TITLE, ANY EPIDEMIC FAILURE WARRANTY AND ANY IMPLIED WARRANTIES OF
MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL
PROPERTY RIGHTS.
TI SHALL NOT BE LIABLE FOR AND SHALL NOT DEFEND OR INDEMNIFY YOU AGAINST ANY CLAIM, INCLUDING BUT NOT
LIMITED TO ANY INFRINGEMENT CLAIM THAT RELATES TO OR IS BASED ON ANY COMBINATION OF PRODUCTS EVEN IF
DESCRIBED IN TI RESOURCES OR OTHERWISE. IN NO EVENT SHALL TI BE LIABLE FOR ANY ACTUAL, DIRECT, SPECIAL,
COLLATERAL, INDIRECT, PUNITIVE, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY DAMAGES IN CONNECTION WITH OR
ARISING OUT OF TI RESOURCES OR USE THEREOF, AND REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
You agree to fully indemnify TI and its representatives against any damages, costs, losses, and/or liabilities arising out of your noncompliance with the terms and provisions of this Notice.
This Notice applies to TI Resources. Additional terms apply to the use and purchase of certain types of materials, TI products and services.
These include; without limitation, TI’s standard terms for semiconductor products http://www.ti.com/sc/docs/stdterms.htm), evaluation
modules, and samples (http://www.ti.com/sc/docs/sampterms.htm).
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2017, Texas Instruments Incorporated
Loading...
