User's Guide
SLOU286–December 2009
TAS5611/13PHD2EVM
This user’s guide describes the operation of the evaluation module for the TAS5613 150W (TAS5611
125W) Stereo Feedback Analog-Input Digital Amplifiers from Texas Instruments. The user’s guide also
provides measurement data and design information including the schematic, BOM, and PCB layout.
Contents
1 Overview ..................................................................................................................... 2
1.1 TAS5611/13PHD2EVM Features ................................................................................ 3
1.2 PCB Key Map ...................................................................................................... 3
2 Quick Setup Guide .......................................................................................................... 5
2.1 Electrostatic Discharge Warning ................................................................................. 5
2.2 Unpacking the EVM ................................................................................................ 5
2.3 Power Supply Setup ............................................................................................... 5
2.4 Applying Input Signal .............................................................................................. 5
2.5 Speaker Connection ............................................................................................... 6
2.6 Output configuration BTL and PBTL ............................................................................ 6
3 Protection .................................................................................................................... 7
3.1 Short-Circuit Protection and Fault-Reporting Circuitry ........................................................ 7
3.2 Fault Reporting ..................................................................................................... 8
4 Related Documentation from Texas Instruments ....................................................................... 8
4.1 Additional Documentation ......................................................................................... 8
Appendix A Design Documents ................................................................................................. 8
List of Figures
1 Integrated PurePath™ Digital Amplifier System ........................................................................ 3
2 Physical Structure for the TAS53630PHDEVM (Approximate Layout) .............................................. 4
3 Figure 3. PBTL Mode Configuration...................................................................................... 7
List of Tables
1 TAS5611/13PHD2EVM Specification .................................................................................... 2
2 Recommended Supply Voltages.......................................................................................... 5
3 TAS5611/13 Warning/Error Signal Decoding ........................................................................... 8
4 Related Documentation from Texas Instruments....................................................................... 8
PurePath is a trademark of Texas Instruments.
SLOU286–December 2009 TAS5611/13PHD2EVM
Submit Documentation Feedback
1
Copyright © 2009, Texas Instruments Incorporated
Overview
1 Overview
The TAS5611/13PHD2EVM PurePath™ Premier Pro customer evaluation module demonstrates the
integrated circuit TAS5611 or TAS5613PHD from Texas Instruments (TI).
The TAS5611 and TAS5613PHD is high-performance, integrated Stereo Feedback Analog-Input Digital
Amplifier Power Stages designed to drive 4Ω speakers at up to 150W per channel for TAS5613PHD and
125W per channel for TAS5611PHD. This amplifier requires only a simple passive demodulation filter to
deliver high-quality, high-efficiency audio amplification.
This EVM is configured with 2 BTL channels and the possibility to apply either a single ended or a
differential analog input signal. It is also possible to configure the two BTL channels into one parallel BTL
(PBTL) channel.
The OPA1632 is a High Performance Fully Differential Audio Op Amp designed to allow operation with
single ended or differential input signals to the EVM.
This EVM stuffed with either TAS5611PHD or TAS5613PHD is a complete stereo analog input power
amplifier ready for evaluation and great music.
Key Parameters
TAS5613 Output stage supply voltage 18 V – 36V
TAS5611 Output stage supply voltage 16V - 32.5V
Number of channels 2 × BTL or 1 x PBTL
Load impedance BTL 4–8 Ω
Load impedance PBTL 2–3 Ω
TAS5613 Output power BTL 150 W / 4 Ω 10% THD
TAS5613 Output power PBTL 300 W / 2Ω 10% THD
TAS5611 Output power BTL 125 W / 4Ω / 10% THD
TAS5611 Output power PBTL 250 W / 2Ω / 10% THD
DNR >100 dB(A)
Frontend OPA1632
Output stage TAS5611PHD, TAS5613PHD
Other features +15 V on-board switcher from PVDD supply
www.ti.com
Table 1. TAS5611/13PHD2EVM Specification
2
TAS5611/13PHD2EVM SLOU286–December 2009
Copyright © 2009, Texas Instruments Incorporated
Submit Documentation Feedback
2 x AnalogInput
TAS5611/13PHD2EVM
MODULE
PowerSupply
2 Channel
SpeakerOutput
+12 VFanOut
Control
www.ti.com
This document covers EVM specifications, audio performance and power efficiency measurements
graphs, and design documentation that includes schematics, parts list, layout, and mechanical design.
Overview
1.1 TAS5611/13PHD2EVM Features
• Stereo PurePath™ Premier Pro evaluation module.
• Self-contained protection system (short circuit and thermal).
• Standard 1VRMS single ended line input or differential input.
• Double-sided, plated-through PCB layout.
Figure 1. Integrated PurePath™ Digital Amplifier System
1.2 PCB Key Map
Physical structure for the TAS5611/13PHD2EVM is illustrated in Figure 2.
SLOU286–December 2009 TAS5611/13PHD2EVM
Submit Documentation Feedback
3
Copyright © 2009, Texas Instruments Incorporated
+12 V
Regulator
SE LEFT
INPUT
(J20)
OUTPUT STAGE
CHANNEL LEFT
OUTPUT STAGE
CHANNEL RIGHT
SE RIGHT
INPUT
(J21)
RESET
(SW11)
SE TO DIFF
CONVERTERS
(U15 & U16)
PVDD
(J15)
LEFT
SPEAKER
OUTPUT
(J11)
RIGHT
SPEAKER
OUTPUT
(J13)
+12 V FAN
Regulator
DIFFINPUT
(J24)
DIFFINPUT
(J25)
+12VFAN
OUT
CONTROL
(J22)
JUMPER1 JUMPER2
+15 V
Switcher
(SW1) (SW2)
PBTLPBTLBTL BTL
Overview
www.ti.com
Figure 2. Physical Structure for the TAS53630PHDEVM (Approximate Layout)
4
TAS5611/13PHD2EVM SLOU286–December 2009
Copyright © 2009, Texas Instruments Incorporated
Submit Documentation Feedback
www.ti.com
2 Quick Setup Guide
This chapter describes the TAS5611/13PHD2EVM board in regards to power supply and system
interfaces. The chapter provides information regarding handling and unpacking, absolute operating
conditions, and a description of the factory default switch and jumper configuration.
This section provides a step–by–step guide to configuring the TAS5611/13PHD2EVM for device
evaluation
2.1 Electrostatic Discharge Warning
Many of the components on the TAS5611/13PHD2EVM are susceptible to damage by electrostatic
discharge (ESD). Customers are advised to observe proper ESD handling precautions when unpacking
and handling the EVM, including the use of a grounded wrist strap at an approved ESD workstation.
Failure to observe ESD handling procedures may result in damage to EVM
components.
2.2 Unpacking the EVM
On opening the TAS5611/13PHD2EVM package, ensure that the following items are included:
• 1 pc. TAS5611/13PHD2EVM board using one TAS5611PHD or one TAS5613PHD.
If any of the items are missing, contact the Texas Instruments Product Information Center nearest you to
inquire about a replacement.
Quick Setup Guide
CAUTION
2.3 Power Supply Setup
To power up the EVM, one power supply are needed. An onboard switched voltage regulator is supplying
system power, logic and gate-drive. Power supply is connected to the EVM using connector J15.
NOTE: While powering up set switch SW11 to the RESET position.
Description Voltage Limitations Current Requirement Cable
TAS5613 Output stage power 18V - 36V 16 A J15 (marked PVDD)
supply
TAS5611 Output stage power 16V - 32.5V 16A J15 (marked PVDD)
supply
Applying voltages above the limitations given in Table 2 may cause permanent
damage to your hardware
NOTE: The length of power supply cable must be minimized. Increasing length of PSU cable is
equal to increasing the distortion for the amplifier at high output levels and low frequencies.
Table 2. Recommended Supply Voltages
CAUTION
2.4 Applying Input Signal
It is possible to apply either a single ended input signal to J20 and J21 or a differential input signal to J24
and J25.
SLOU286–December 2009 TAS5611/13PHD2EVM
Submit Documentation Feedback
5
Copyright © 2009, Texas Instruments Incorporated
+12 V
Regulator
SE LEFT
INPUT
(J20)
SE RIGHT
INPUT
(J21)
RESET
(SW11)
PVDD
(J15)
+12 V FAN
Regulator
DIFFINPUT
(J24)
DIFFINPUT
(J25)
+12VFAN
OUT
CONTROL
(J22)
JUMPER1 JUMPER2
Quick Setup Guide
NOTE: If a single ended input signal is applied please insert jumpers in the header J24 and J25.
2.5 Speaker Connection
Both positive and negative speaker outputs are floating and may not be
connected to ground (e.g., through an oscilloscope).
www.ti.com
CAUTION
2.6 Output configuration BTL and PBTL
When changing mode e.g. from BTL to PBTL make sure that RESET switch (SW11) is activated before
changing the state of mode switches SW1 and SW2. Switch SW1 and SW2 has to be synchronized in
state BTL or PBTL.
Input signal to RCA connector J20 when operating PBTL mode. J21 is disabled.
In PBTL mode, the load has to be connected according to Figure 3:
6
TAS5611/13PHD2EVM SLOU286–December 2009
Copyright © 2009, Texas Instruments Incorporated
Submit Documentation Feedback
SE LEFT
INPUT
(J20)
OUTPUT STAGE
CHANNEL LEFT
OUTPUT STAGE
CHANNEL RIGHT
SE RIGHT
INPUT
(J21)
RESET
(SW11)
PVDD
(J15)
LEFT BTL
SPEAKER
OUTPUT
(J11)
RIGHT BTL
SPEAKER
OUTPUT
(J13)
(SW1) (SW2)
PBTLPBTLBTL BTL
PBTL
PBTL Mode.:
Input
Signal
www.ti.com
Protection
Figure 3. Figure 3. PBTL Mode Configuration
3 Protection
This section describes the short-circuit protection and fault-reporting circuitry of the TAS5611 and
TAS5613 devices.
3.1 Short-Circuit Protection and Fault-Reporting Circuitry
The TAS5611 and TAS5613 is self-protecting devices that provides fault reporting (including
high-temperature protection and short-circuit protection). TAS5611 and TAS5613 is configured in
back-end auto-recovery mode, and therefore; resets automatically after all errors (M1, M2, and M3 is set
low); see the data sheet (SLAS681) (SLAS676) for further explanation. This mean that the device restart
itself after an error occasion and report through the SD error signal.
SLOU286–December 2009 TAS5611/13PHD2EVM
Submit Documentation Feedback
7
Copyright © 2009, Texas Instruments Incorporated
Related Documentation from Texas Instruments
3.2 Fault Reporting
The OTW and SD outputs from TAS5611/13 indicate fault conditions. See the
TAS5611PHD/TAS5613PHD data manual for a description of these pins.
Table 3. TAS5611/13 Warning/Error Signal Decoding
SD OTW1 OTW2 Device Condition
0 0 0 High-temperature error and/or high-current error
0 0 1 Undervoltage lockout or high current error. 100°C
temperature warning.
0 1 1 Undervoltage lockout or high-current error
1 0 0 125°C temperature warning
1 0 1 100°C temperature warning
1 1 1 Normal operation, no errors/warnings
The shutdown signals together with the temperature warning signal give chip-state information as
described in the Table 3. device fault-reporting outputs are open-drain outputs.
4 Related Documentation from Texas Instruments
Table 4 contains a list of data manuals that have detailed descriptions of the integrated circuits used in the
design of the TAS5611/13PHD2EVM. The data manuals can be obtained at the URL http://www.ti.com.
Table 4. Related Documentation from
Texas Instruments
www.ti.com
4.1 Additional Documentation
1. System Design Considerations for True Digital Audio Power Amplifiers application report (SLAA117)
2. Digital Audio Measurements application report (SLAA114)
3. PSRR for PurePath Digital™ Audio Amplifiers application report (SLEA049)
4. Power Rating in Audio Amplifiers application report (SLEA047)
5. PurePath Digital™ AM Interference Avoidance application report (SLEA040)
6. Click and Pop Measurements Technique application report (SLEA044)
7. Power Supply Recommendations for DVD-Receivers application report (SLEA027)
8. Implementation of Power Supply Volume Control application report (SLEA038)
Appendix A Design Documents
This appendix comprises design documents pertaining to the TAS5611/13PHD2EVM evaluation module.
The documents are presented in the following order.

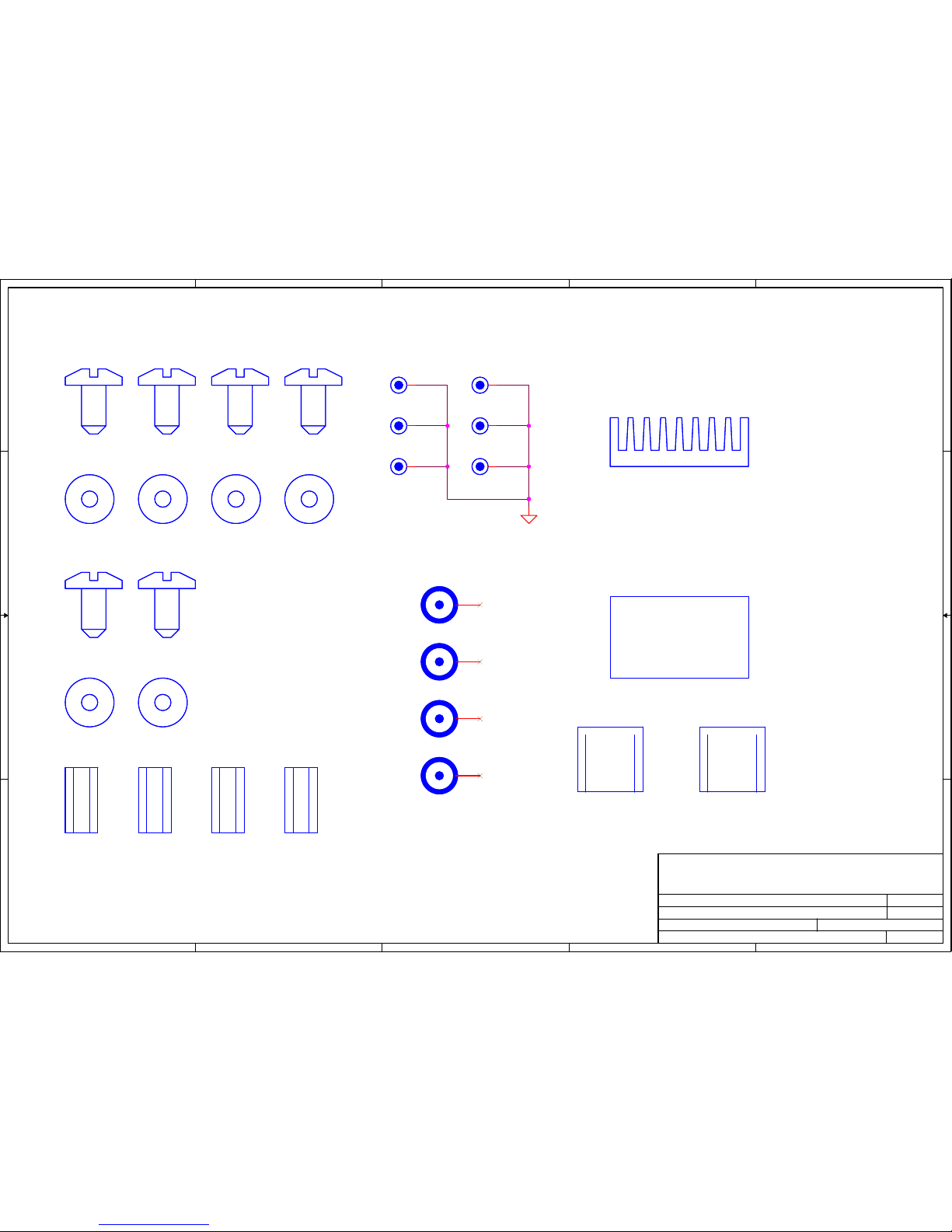

• Schematic (4 pages)
• Parts List (1 pages)
• PCB Specification (1 page)

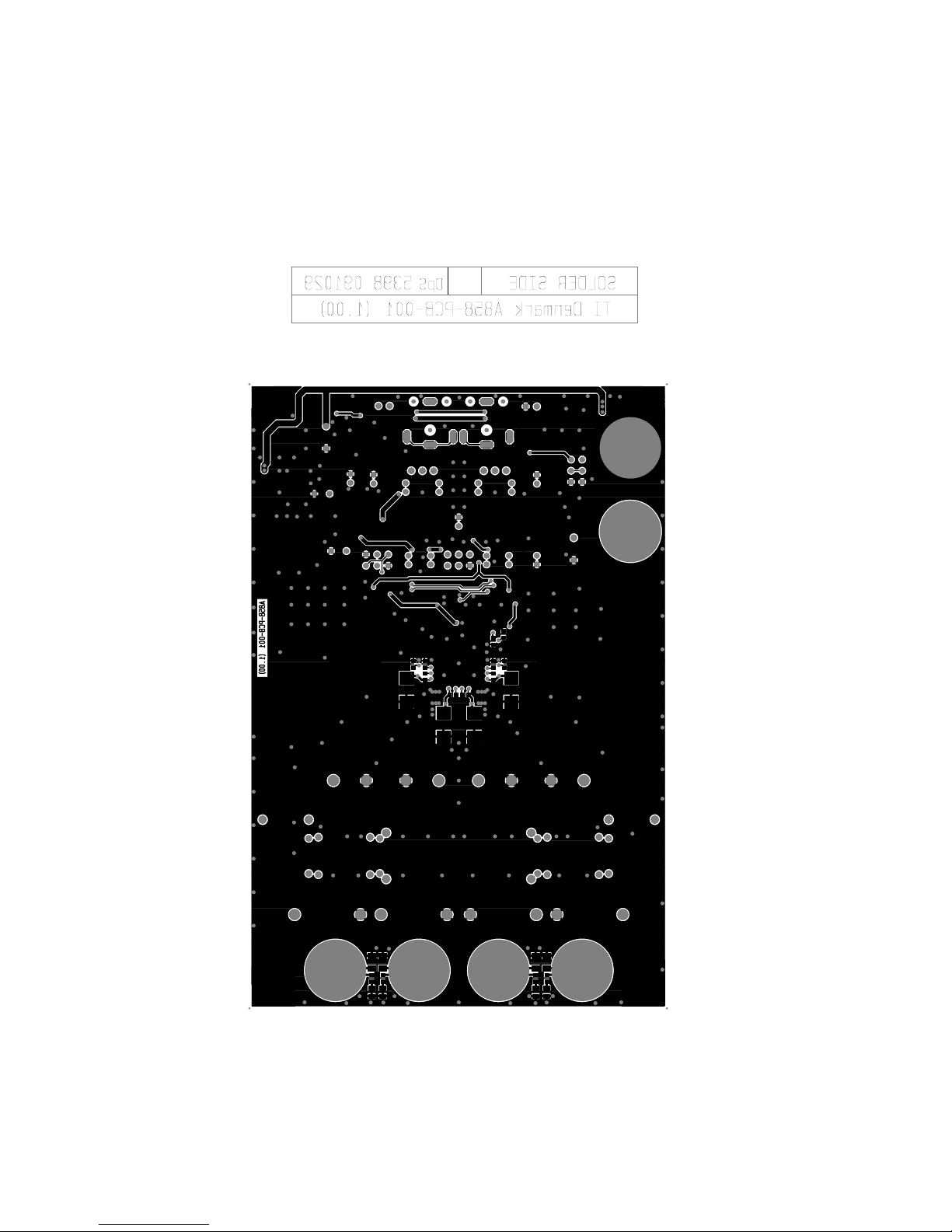

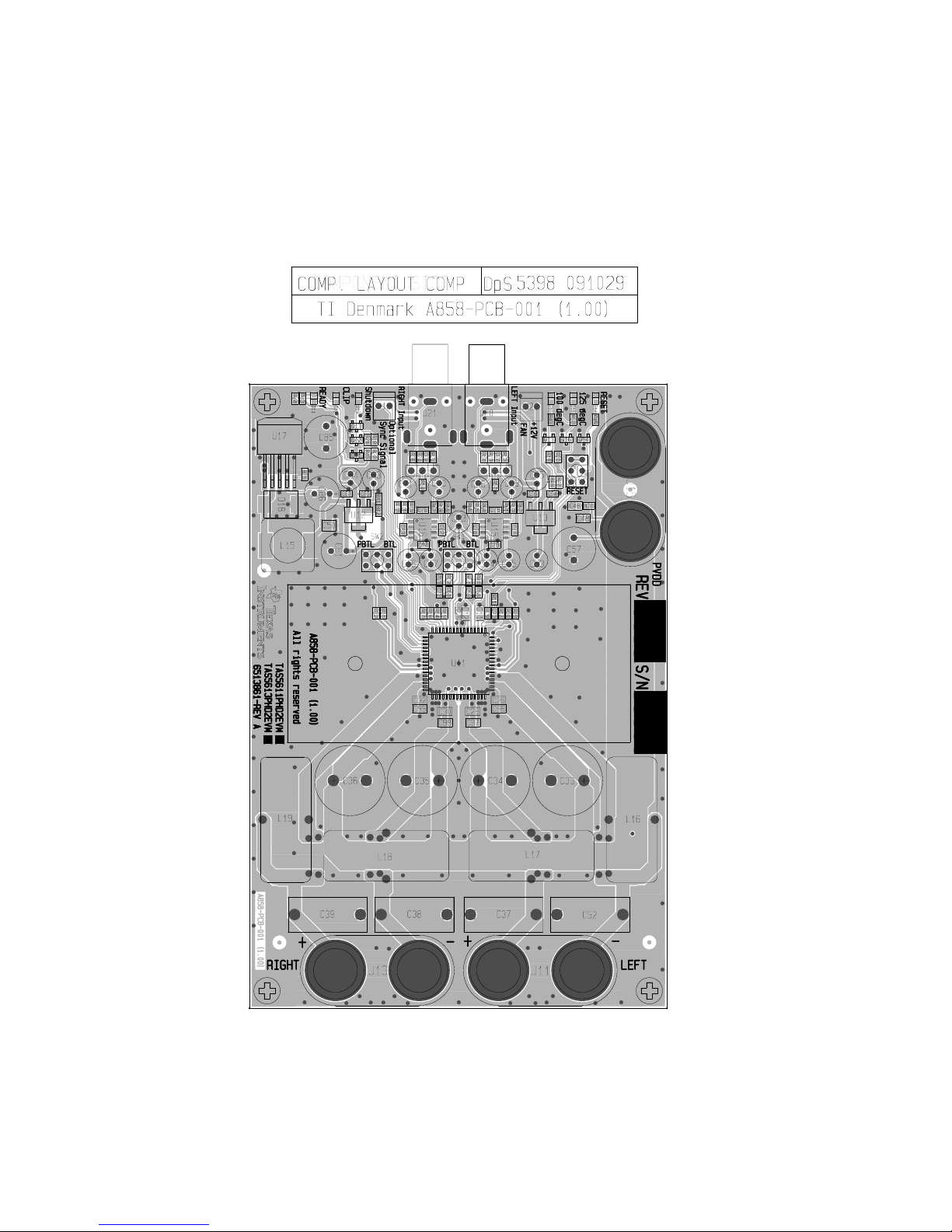

• PCB Layers (6 pages)
• Heat-Sink Drawing (1 page)
• Inductor (1 page)
Part Number Literature Number
TAS5611 SLAS681
TAS5613 SLAS676
OPA1632D SBOS286
LM317M SLVS297
TL2575HV-15I SLVS638
8
Design Documents SLOU286–December 2009
Copyright © 2009, Texas Instruments Incorporated
Submit Documentation Feedback
Evaluation Board/Kit Important Notice
Texas Instruments (TI) provides the enclosed product(s) under the following conditions:
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. Persons handling the
product(s) must have electronics training and observe good engineering practice standards. As such, the goods being provided are
not intended to be complete in terms of required design-, marketing-, and/or manufacturing-related protective considerations,
including product safety and environmental measures typically found in end products that incorporate such semiconductor
components or circuit boards. This evaluation board/kit does not fall within the scope of the European Union directives regarding
electromagnetic compatibility, restricted substances (RoHS), recycling (WEEE), FCC, CE or UL, and therefore may not meet the
technical requirements of these directives or other related directives.
Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30
days from the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY
SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING
ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.
The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all
claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to
take any and all appropriate precautions with regard to electrostatic discharge.
EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER
FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.
TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive.
TI assumes no liability for applications assistance, customer product design, software performance, or infringement of
patents or services described herein.
Please read the User’s Guide and, specifically, the Warnings and Restrictions notice in the User’s Guide prior to handling the
product. This notice contains important safety information about temperatures and voltages. For additional information on TI’s
environmental and/or safety programs, please contact the TI application engineer or visit www.ti.com/esh.
No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or
combination in which such TI products or services might be or are used.
FCC Warning
This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION
PURPOSES ONLY and is not considered by TI to be a finished end-product fit for general consumer use. It generates, uses, and
can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15
of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this
equipment in other environments may cause interference with radio communications, in which case the user at his own expense
will be required to take whatever measures may be required to correct this interference.
EVM Warnings and Restrictions
It is important to operate this EVM within the input voltage range of 0 V to 32.5 V for the TAS5611; 0 V to 36 V for the TAS5613
and the output voltage range of 0 V to 32.5 V for the TAS5611; 0 V to 36 V for the TAS5613.
Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there are
questions concerning the input range, please contact a TI field representative prior to connecting the input power.
Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to the
EVM. Please consult the EVM User's Guide prior to connecting any load to the EVM output. If there is uncertainty as to the load
specification, please contact a TI field representative.
During normal operation, some circuit components may have case temperatures greater than 90°C. The EVM is designed to
operate properly with certain components above 125°C as long as the input and output ranges are maintained. These components
include but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types of
devices can be identified using the EVM schematic located in the EVM User's Guide. When placing measurement probes near
these devices during operation, please be aware that these devices may be very warm to the touch.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2009, Texas Instruments Incorporated
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Rev:
Page Title:
TI
Home Audio Amplifiers
ALL RIGHTS RESERVED
TEXAS INSTRUMENTS INCORPORATED
Project:
File Name:
Date:
Engineer:
Page: of
Size:
AUDIO/IMAGING GROUP
A3
1.00
Jonas L. Holm
Disclaimer
A858-SCH-001.DSN
TAS5613PHD2EVM
Monday, October 26, 2009 1 4
/ TAS5613 Parts list 1.00
Rev:
Page Title:
TI
Home Audio Amplifiers
ALL RIGHTS RESERVED
TEXAS INSTRUMENTS INCORPORATED
Project:
File Name:
Date:
Engineer:
Page: of
Size:
AUDIO/IMAGING GROUP
A3
1.00
Jonas L. Holm
Disclaimer
A858-SCH-001.DSN
TAS5613PHD2EVM
Monday, October 26, 2009 1 4
/ TAS5613 Parts list 1.00
Rev:
Page Title:
TI
Home Audio Amplifiers
ALL RIGHTS RESERVED
TEXAS INSTRUMENTS INCORPORATED
Project:
File Name:
Date:
Engineer:
Page: of
Size:
AUDIO/IMAGING GROUP
A3
1.00
Jonas L. Holm
Disclaimer
A858-SCH-001.DSN
TAS5613PHD2EVM
Monday, October 26, 2009 1 4
/ TAS5613 Parts list 1.00
TAS5613PHD2EVM
Page
Design Name:
Version:
Date:
Design Engineer:
Audio Configuration:
Interfaces:
File Name: A858-SCH-001.DSN
1.00
24.Oct. 2009
Jonas Holm
PurePath Premire Pro Digital Amplifier Design
1 x TAS5613PHD
Setup:
Type: Mass Market EVM
4 Ohm (BTL) Speaker Loads
TI
Copyright 2008 Texas Instruments, Inc - All rights reserved - The TI and PurePath Digital logos are trademarks of Texas Instruments.
+36 V H-Bridge Supply Voltage
Performance: 2 x 150 W / 4 Ohm (BTL) 10% THD+N
> 102 dB Dynamic Range
J11, J13: Banana Bindingposts For Speakers
J20-J21: Single Ended Analog Audio Input
J15: Banana Bindingpost For H-Bridge Supply
3/4: Input Stage
4/4: Mechanics
2/4: TAS5613 Amplifier
1/4: Front Page and Schematic Disclaimer
SCHEMATIC DISCLAIMER
The preliminary schematic information and materials ("Materials") provided here are provided by Texas Instruments
Incorporated ("TI") as a service to its customers and/or suppliers, and may be used for informational purposes only, and
only subject to the following terms. By downloading or viewing these Materials, you are signifying your assent to these
terms.
1.) These preliminary evaluation schematics are intended for use for PRELIMINARY ENGINEERING
DEVELOPMENT AND EVALUATION PURPOSES ONLY and are not considered by Texas Instruments to be fit as a
basis for establishing production products or systems. This information may be incomplete in several respects, including
but not limited to information relating to required design, marketing, and/or manufacturing-related protective
considerations and product safety measures typically found in the end-product incorporating the
goods.
2.) Accordingly, neither TI nor its suppliers warrant the accuracy or completeness of the information, text,
graphics, links or other items contained within the Materials. TI may make changes to the Materials, or to the products
described therein, at any time without notice. TI makes no commitment to update the Materials.
3.) TI assumes no liability for applications assistance, customer product design, software performance, or services
that may be described or referenced in the Materials. The user assumes all responsibility and liability for proper and safe
design and handling of goods. Accordingly, the user indemnifies TI from all claims arising from its use of the Materials.
4.) TI currently deals with various customers for products, and therefore our arrangement with the user will not be
exclusive. TI makes no representations regarding the commercial availability of non-TI components that may be
referenced in the Materials.
5.) No license is granted under any patent right or other intellectual property right of TI covering or relating to any
combination, machine, or process in which such TI products or services might be or are used. Except as expressly
provided herein, TI and its suppliers do not grant any express or implied right to you under any patents, copyrights,
trademarks, or trade secret information.
6.) Performance tests and ratings, to the extent referenced in the Materials, are measured using specific computer
systems and/or components and reflect the approximate performance of TI products as measured by those tests. Any
difference in system hardware or software design or configuration may affect actual performance. Buyers should consult
other sources of information to evaluate the performance of systems or components they are considering purchasing.
7.) Resale of TI's products or services with statements different from or beyond the parameters stated by TI for that
product or service in official TI data books or data sheets voids all express and any implied warranties for the associated
TI product or service, and is an unfair and deceptive business practice, and TI is not responsible for any such use.
8.) The Materials are copyrighted and any unauthorized use may violate copyright, trademark, and other laws. You
may only download one copy for your internal use only, unless you are specifically licensed to do otherwise by TI in
writing. This is a license, not a transfer of title, and is subject to the following restrictions: You may not: (a) modify the
Materials (including any associated warranties, conditions, limitations or notices) or use them for any commercial
purpose, or any public display, performance, sale or rental; (b) decompile, reverse engineer, or disassemble software
Materials except and only to the extent permitted by applicable law; (c) remove any copyright or other proprietary notices
from the Materials; (d) transfer the Materials to another person. You agree to prevent any unauthorized copying of the
Materials. TI may terminate this license at any time if you are in breach of the terms of this Agreement. Upon termination,
you will immediately destroy the Materials.
9.) THE MATERIALS ARE PROVIDED "AS IS" WITHOUT ANY EXPRESS OR IMPLIED
WARRANTY OF ANY KIND INCLUDING WARRANTIES OF MERCHANTABILITY,
NONINFRINGEMENT OF INTELLECTUAL PROPERTY, OR FITNESS FOR ANY PARTICULAR
PURPOSE. IN NO EVENT SHALL TI OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES
WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS
INTERRUPTION, LOSS OF INFORMATION) ARISING OUT OF THE USE OF OR INABILITY TO USE
THE MATERIALS, EVEN IF TI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOTE1
Not Used
SCHEMATIC DISCLAIMER
The preliminary schematic information and materials ("Materials") provided here are provided by Texas Instruments
Incorporated ("TI") as a service to its customers and/or suppliers, and may be used for informational purposes only, and
only subject to the following terms. By downloading or viewing these Materials, you are signifying your assent to these
terms.
1.) These preliminary evaluation schematics are intended for use for PRELIMINARY ENGINEERING
DEVELOPMENT AND EVALUATION PURPOSES ONLY and are not considered by Texas Instruments to be fit as a
basis for establishing production products or systems. This information may be incomplete in several respects, including
but not limited to information relating to required design, marketing, and/or manufacturing-related protective
considerations and product safety measures typically found in the end-product incorporating the
goods.
2.) Accordingly, neither TI nor its suppliers warrant the accuracy or completeness of the information, text,
graphics, links or other items contained within the Materials. TI may make changes to the Materials, or to the products
described therein, at any time without notice. TI makes no commitment to update the Materials.
3.) TI assumes no liability for applications assistance, customer product design, software performance, or services
that may be described or referenced in the Materials. The user assumes all responsibility and liability for proper and safe
design and handling of goods. Accordingly, the user indemnifies TI from all claims arising from its use of the Materials.
4.) TI currently deals with various customers for products, and therefore our arrangement with the user will not be
exclusive. TI makes no representations regarding the commercial availability of non-TI components that may be
referenced in the Materials.
5.) No license is granted under any patent right or other intellectual property right of TI covering or relating to any
combination, machine, or process in which such TI products or services might be or are used. Except as expressly
provided herein, TI and its suppliers do not grant any express or implied right to you under any patents, copyrights,
trademarks, or trade secret information.
6.) Performance tests and ratings, to the extent referenced in the Materials, are measured using specific computer
systems and/or components and reflect the approximate performance of TI products as measured by those tests. Any
difference in system hardware or software design or configuration may affect actual performance. Buyers should consult
other sources of information to evaluate the performance of systems or components they are considering purchasing.
7.) Resale of TI's products or services with statements different from or beyond the parameters stated by TI for that
product or service in official TI data books or data sheets voids all express and any implied warranties for the associated
TI product or service, and is an unfair and deceptive business practice, and TI is not responsible for any such use.
8.) The Materials are copyrighted and any unauthorized use may violate copyright, trademark, and other laws. You
may only download one copy for your internal use only, unless you are specifically licensed to do otherwise by TI in
writing. This is a license, not a transfer of title, and is subject to the following restrictions: You may not: (a) modify the
Materials (including any associated warranties, conditions, limitations or notices) or use them for any commercial
purpose, or any public display, performance, sale or rental; (b) decompile, reverse engineer, or disassemble software
Materials except and only to the extent permitted by applicable law; (c) remove any copyright or other proprietary notices
from the Materials; (d) transfer the Materials to another person. You agree to prevent any unauthorized copying of the
Materials. TI may terminate this license at any time if you are in breach of the terms of this Agreement. Upon termination,
you will immediately destroy the Materials.
9.) THE MATERIALS ARE PROVIDED "AS IS" WITHOUT ANY EXPRESS OR IMPLIED
WARRANTY OF ANY KIND INCLUDING WARRANTIES OF MERCHANTABILITY,
NONINFRINGEMENT OF INTELLECTUAL PROPERTY, OR FITNESS FOR ANY PARTICULAR
PURPOSE. IN NO EVENT SHALL TI OR ITS SUPPLIERS BE LIABLE FOR ANY DAMAGES
WHATSOEVER (INCLUDING, WITHOUT LIMITATION, DAMAGES FOR LOSS OF PROFITS, BUSINESS
INTERRUPTION, LOSS OF INFORMATION) ARISING OUT OF THE USE OF OR INABILITY TO USE
THE MATERIALS, EVEN IF TI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
NOTE1
Not Used
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
OUT_A OUT_LM
OUT_LP
OUT_RM
OUT_RP
OUT_B
OUT_D
/CLIP
/OTW2
/SD
OSC_IOM
READY
/OTW1
OSC_IOP
OUT_A OUT_LM
OUT_B OUT_LP
OUT_C OUT_RM
OUT_D OUT_RP
OUT_DOUT_COUT_BOUT_A
OUT_C
OUT_A OUT_LM
OUT_B OUT_LP
OUT_C
OUT_D
OUT_RM
OUT_RP
L_IN_N
L_IN_P
R_IN_N
R_IN_P
/RESET
/SD
/OTW1
/OTW2
/CLIP
READY
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
VREG
GND
VREG
GND
GND
GND
GND
GND
+12V+12V
+12V
PVDD
PVDD
PVDD
GND
PVDD
PVDD
GND
GND
VREG
GND
VREG
VREG
GNDGND
GND GND GND GND
Rev:
Page Title:
TI
Home Audio Amplifiers
ALL RIGHTS RESERVED
TEXAS INSTRUMENTS INCORPORATED
Project:
File Name:
Date:
Engineer:
Page: of
Size:
AUDIO/IMAGING GROUP
A2
1.00
Jonas L. Holm
Main Schematic
A858-SCH-001.DSN
TAS5613PHD2EVM
Thursday, October 29, 2009 2 4
/ TAS5613 Parts list 1.00
Rev:
Page Title:
TI
Home Audio Amplifiers
ALL RIGHTS RESERVED
TEXAS INSTRUMENTS INCORPORATED
Project:
File Name:
Date:
Engineer:
Page: of
Size:
AUDIO/IMAGING GROUP
A2
1.00
Jonas L. Holm
Main Schematic
A858-SCH-001.DSN
TAS5613PHD2EVM
Thursday, October 29, 2009 2 4
/ TAS5613 Parts list 1.00
Rev:
Page Title:
TI
Home Audio Amplifiers
ALL RIGHTS RESERVED
TEXAS INSTRUMENTS INCORPORATED
Project:
File Name:
Date:
Engineer:
Page: of
Size:
AUDIO/IMAGING GROUP
A2
1.00
Jonas L. Holm
Main Schematic
A858-SCH-001.DSN
TAS5613PHD2EVM
Thursday, October 29, 2009 2 4
/ TAS5613 Parts list 1.00
LEFT
4 OHM BTL
SPEAKER
OUTPUT
RIGHT
4 OHM BTL
SPEAKER
OUTPUT
High Power
supply
PVDD
GND
Optional
Sync signal
+
-
-
+
3 OHM LOAD OPERATION:
1) Mount Schottky diodes (D24, D25, D26 and D27)
2) Change ROC = 22kOhm (R12)
OUTPUT INDUCTOR STUFFING OPTION:
C28, C30, C97 and C98: It is important to choose either a
1206 or 1210 footprint for these decoupling capacitors to
have the posibility to take the audio output trace directly
under the capacitor in layout!
R35
3.3R
R35
3.3R
12
C60
100pF
C60
100pF
2 1
L22
Not Used
L22
Not Used
132
4
R34
3.3R
R34
3.3R
12
C20
330pF
C20
330pF
2 1
C98
1uF
50V
1206
C98
1uF
50V
1206
2 1
R36
3.3R
R36
3.3R
12
C11
4.7nF
C11
4.7nF
2 1
C23
100nF
C23
100nF
21
C21
100nF
C21
100nF
2 1
C17
10uF
C17
10uF
1 2
C15
10uF
C15
10uF
1 2
J19
Header
J19
Header
1
2
R15
10k
R15
10k
12
C42
1nF
C42
1nF
2 1
C73
100pF
C73
100pF
2 1
R29
3.3R
R29
3.3R
1 2
R16
100R
R16
100R
12
C13
100nF
C13
100nF
21
L20
Not Used
L20
Not Used
132
4
C39
680nF
C39
680nF
2 1
L17
10uH
L17
10uH
1 2
R20
100R
R20
100R
12
L12
Not Used
DAEPWG-M251
L12
Not Used
DAEPWG-M251
132
4
C38
680nF
C38
680nF
2 1
R30
3.3R
R30
3.3R
1 2
C52
680nF
C52
680nF
2 1
R18
100R
R18
100R
12
C27
33nF
C27
33nF
21
R21
100R
R21
100R
12
R17
100R
R17
100R
12
C72
100pF
C72
100pF
2 1
C47
10nF
C47
10nF
2 1
C24
100nF
C24
100nF
21
R22
100R
R22
100R
12
SW1
Switch
SW1
Switch
1
3
6
4
5
2
C35
1000uF
50V
C35
1000uF
50V
12
C99
1uF
50V
0805
C99
1uF
50V
0805
2 1
R14
Not Used
R14
Not Used
12
J15J15
1
2
C58
100pF
C58
100pF
2 1
J13J13
1
2
R33
3.3R
R33
3.3R
12
C48
1uF
50V
C48
1uF
50V
2 1
C29
33nF
C29
33nF
21
R32
3.3R
R32
3.3R
12
C33
1000uF
50V
C33
1000uF
50V
12
R51
100R
R51
100R
12
C25
33nF
C25
33nF
21
R39
47k
R39
47k
12
C49
10nF
C49
10nF
2 1
C19
100nF
C19
100nF
2 1
C44
10nF
C44
10nF
2 1
R59
100R
R59
100R
12
L16
10uH
L16
10uH
1 2
R40
100R
R40
100R
12
C18
10uF
C18
10uF
12
D27
Not Used
D27
Not Used
C96
1uF
50V
0805
C96
1uF
50V
0805
2 1
C12
1nF
C12
1nF
2 1
C26
1uF
50V
0805
C26
1uF
50V
0805
2 1
R11
100R
R11
100R
12
C40
1nF
C40
1nF
2 1
D26
Not Used
D26
Not Used
C37
680nF
C37
680nF
2 1
SW2
Switch
SW2
Switch
1
3
6
4
5
2
C59
100pF
C59
100pF
2 1
R12
30.0k
R12
30.0k
12
C34
1000uF
50V
C34
1000uF
50V
12
J11J11
1
2
D25
Not Used
D25
Not Used
C45
10nF
C45
10nF
2 1
C97
1uF
50V
1206
C97
1uF
50V
1206
2 1
R31
3.3R
R31
3.3R
1 2
C31
33nF
C31
33nF
21
C30
1uF
50V
1206
C30
1uF
50V
1206
2 1
C22
100nF
C22
100nF
2 1
D24
Not Used
D24
Not Used
R19
100R
R19
100R
12
U11
PTAS5613PHD
U11
PTAS5613PHD
OC_ADJ
1
/RESET
2
C_STARTUP
3
INPUT_A
4
INPUT_B
5
VI_CM
6
GND
7
AGND
8
VREG
9
INPUT_C
10
INPUT_D
11
FREQ_ADJ
12
OSC_IO+
13
OSC_IO-
14
/SD
15
/OTW1
16
/OTW217/CLIP18READY19M120M221M322GND23GND24GVDD_C25GVDD_D26BST_D27OUT_D28OUT_D29PVDD_D30PVDD_D31GND_D
32
GND_A
48
GND_B
47
GND_B
46
OUT_B
45
OUT_B
44
PVDD_B
43
PVDD_B
42
BST_B
41
BST_C
40
PVDD_C
39
PVDD_C
38
OUT_C
37
OUT_C
36
GND_C
35
GND_C
34
GND_D
33
VDD
64
PSU_REF
63
NC62NC61NC60NC
59
GND58GND
57
GVDD_B56GVDD_A
55
BST_A
54
OUT_A53OUT_A
52
PVDD_A51PVDD_A
50
GND_A
49
C41
1nF
C41
1nF
2 1
C36
1000uF
50V
C36
1000uF
50V
1 2
L18
10uH
L18
10uH
1 2
C16
10uF
C16
10uF
1 2
L19
10uH
L19
10uH
1 2
C28
1uF
50V
1206
C28
1uF
50V
1206
2 1
R37
3.3R
R37
3.3R
12
C43
1nF
C43
1nF
2 1
C32
1uF
50V
0805
C32
1uF
50V
0805
2 1
C46
10nF
C46
10nF
2 1
C14
10uF
C14
10uF
1 2
R52
100R
R52
100R
12
C57
47uF
63V
C57
47uF
63V
12
L11
Not Used
DAEPWG-M251
L11
Not Used
DAEPWG-M251
132
4
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
/OTW2
/OTW1
/RESET
R_IN_N
R_IN_P
/SD
READY
/CLIP
L_IN_N
L_IN_P
+15V
GND
GND
GND
GND GND
GND
GND GND
+12V
GND GND
GND
GND GND
+12V
+15V
GND GND
+12V
GND GND
GND GND
GND
+12V
GND
GND
GND
+12V
PVDD
GND
+15V
GND
GND
Rev:
Page Title:
TI
Home Audio Amplifiers
ALL RIGHTS RESERVED
TEXAS INSTRUMENTS INCORPORATED
Project:
File Name:
Date:
Engineer:
Page: of
Size:
AUDIO/IMAGING GROUP
A3
1.00
Jonas L. Holm
Input Stage
A858-SCH-001.DSN
TAS5613PHD2EVM
Monday, October 26, 2009 3 4
/ TAS5613 Parts list 1.00
Rev:
Page Title:
TI
Home Audio Amplifiers
ALL RIGHTS RESERVED
TEXAS INSTRUMENTS INCORPORATED
Project:
File Name:
Date:
Engineer:
Page: of
Size:
AUDIO/IMAGING GROUP
A3
1.00
Jonas L. Holm
Input Stage
A858-SCH-001.DSN
TAS5613PHD2EVM
Monday, October 26, 2009 3 4
/ TAS5613 Parts list 1.00
Rev:
Page Title:
TI
Home Audio Amplifiers
ALL RIGHTS RESERVED
TEXAS INSTRUMENTS INCORPORATED
Project:
File Name:
Date:
Engineer:
Page: of
Size:
AUDIO/IMAGING GROUP
A3
1.00
Jonas L. Holm
Input Stage
A858-SCH-001.DSN
TAS5613PHD2EVM
Monday, October 26, 2009 3 4
/ TAS5613 Parts list 1.00
+12V
FAN
3 speed FAN Control
& Temp Indicator
125 degC
Chip temp
100 degC
Chip temp
READY
CLIP
Shutdown
RESET
ON/OFF ControlSTATUS MONITOR12V lin regulator
Optional
LEFT Input
RIGHT Input
Single ended or ballanced input
1st order high pass at 1.6Hz
& 2nd order active low pass at 80kHz
Jumper J24 & J25 pin 1-2
For single inded input
For ballanced input use J24 & J25
+15V Switcher
D14
Red
D14
Red
R43
4.7k
R43
4.7k
1 2
R70
2.2k
R70
2.2k
1 2
Q16
2N7002
Q16
2N7002
1
32
J22
Header
J22
Header
1
2
R570RR57
0R
12
C76
470pF
C76
470pF
2 1
C75
470pF
C75
470pF
2 1
C67
1nF
C67
1nF
2 1
R66 10.0kR66 10.0k
1 2
J24
Shunt Header
J24
Shunt Header
1
2
3
C62
100nF
C62
100nF
2 1
R71
2.2k
R71
2.2k
1 2
U12
LM317
U12
LM317
IN3OUT
2
ADJ
1
OUT
4
C70
10uF
C70
10uF
12
R47
560R
R47
560R
1 2
R46
4.7k
R46
4.7k
1 2
C50
2.2uF
100V
C50
2.2uF
100V
2 1
V-
V+
V_OCM
EN
U16
OPA1632
V-
V+
V_OCM
EN
U16
OPA1632
1
2
3
4
5
67
8
R530RR53
0R
12
C71
10uF
C71
10uF
12
D11
Green
D11
Green
C54
100nF
C54
100nF
2 1
C56
100nF
C56
100nF
2 1
D16
Red
D16
Red
R540RR54
0R
12
J20
Phono socket
J20
Phono socket
2
3
4
1
R64
2.2k
R64
2.2k
1 2
R42
560R
R42
560R
12
Q14
2N7002
Q14
2N7002
1
32
Q12
2N7002
Q12
2N7002
1
32
R75
10R
R75
10R
12
C85
330uF
63V
C85
330uF
63V
12
R69
2.2k
R69
2.2k
1 2
C53
10uF
C53
10uF
12
C84
100nF
C84
100nF
21
C55
10uF
C55
10uF
12
R73
100k
R73
100k
12
U17
TL2575HV-15I
U17
TL2575HV-15I
OUTPUT
2
VIN
1
GND
3
FB
4
ON/OFF5GND-PAD
6
R48
1.2k
R48
1.2k
1 2
C64
10uF
C64
10uF
12
R65
2.2k
R65
2.2k
1 2
C68
1nF
C68
1nF
2 1
R50
820R
R50
820R
1 2
J21
Phono socket
J21
Phono socket
2
3
4
1
C82 150pFC82 150pF
21
C77 150pFC77 150pF
21
D18
30BQ060
D18
30BQ060
R63
2.2k
R63
2.2k
1 2
D12
Yellow
D12
Yellow
C79
100nF
C79
100nF
21
C66
10uF
C66
10uF
12
Q15
2N7002
Q15
2N7002
1
32
R550RR55
0R
12
R49
1.00k
R49
1.00k
1 2
R61
2.2k
R61
2.2k
1 2
R560RR56
0R
12
R67
2.2k
R67
2.2k
1 2
C69
10uF
C69
10uF
12
R72 10.0kR72 10.0k
1 2
L15
1mH
L15
1mH
1 2
R74
100k
R74
100k
12
C63
10uF
C63
10uF
12
Q11
2N7002
Q11
2N7002
1
32
R580RR58
0R
12
R68 10.0kR68 10.0k
1 2
D13
Red
D13
Red
C61
470uF
C61
470uF
12
J25
Shunt Header
J25
Shunt Header
1
2
3
D15
Yellow
D15
Yellow
C65
100nF
C65
100nF
2 1
R41
4.7k
R41
4.7k
12
V-
V+
V_OCM
EN
U15
OPA1632
V-
V+
V_OCM
EN
U15
OPA1632
1
2
3
4
5
67
8
R44
4.7k
R44
4.7k
1 2
C78 150pFC78 150pF
21
C86
470uF
16V
C86
470uF
16V
12
R45
4.7k
R45
4.7k
1 2
C83 150pFC83 150pF
21
U13
LM317
U13
LM317
IN3OUT
2
ADJ
1
OUT
4
R62 10.0kR62 10.0k
1 2
SW11
Switch
SW11
Switch
1
3
6
4
5
2
Q13
2N7002
Q13
2N7002
1
32
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
GND
Rev:
Page Title:
TI
Home Audio Amplifiers
ALL RIGHTS RESERVED
TEXAS INSTRUMENTS INCORPORATED
Project:
File Name:
Date:
Engineer:
Page: of
Size:
AUDIO/IMAGING GROUP
A4
1.00
Jonas L. Holm
Mechanics
A858-SCH-001.DSN
TAS5613PHD2EVM
Wednesday, October 28, 2009 4 4
/ TAS5613 Parts list
1
Rev:
Page Title:
TI
Home Audio Amplifiers
ALL RIGHTS RESERVED
TEXAS INSTRUMENTS INCORPORATED
Project:
File Name:
Date:
Engineer:
Page: of
Size:
AUDIO/IMAGING GROUP
A4
1.00
Jonas L. Holm
Mechanics
A858-SCH-001.DSN
TAS5613PHD2EVM
Wednesday, October 28, 2009 4 4
/ TAS5613 Parts list
1
Rev:
Page Title:
TI
Home Audio Amplifiers
ALL RIGHTS RESERVED
TEXAS INSTRUMENTS INCORPORATED
Project:
File Name:
Date:
Engineer:
Page: of
Size:
AUDIO/IMAGING GROUP
A4
1.00
Jonas L. Holm
Mechanics
A858-SCH-001.DSN
TAS5613PHD2EVM
Wednesday, October 28, 2009 4 4
/ TAS5613 Parts list
1
MECHANICS
SCREW14
M3x6
SCREW14
M3x6
JUMPER2
Black
JUMPER2
Black
STANDOFF14
M3x10
STANDOFF14
M3x10
WASHER16
M3
WASHER16
M3
WASHER12
M3
WASHER12
M3
F11
Not Used
F11
Not Used
1
1
MH13
Mounting Hole
MH13
Mounting Hole
1
PCB
PCB11
A858-PCB-001_1.00
PCB
PCB11
A858-PCB-001_1.00
MH16
Mounting Hole
MH16
Mounting Hole
1
MH15
Mounting Hole
MH15
Mounting Hole
1
WASHER14
M3
WASHER14
M3
MH14
Mounting Hole
MH14
Mounting Hole
1
STANDOFF13
M3x10
STANDOFF13
M3x10
WASHER15
M3
WASHER15
M3
WASHER13
M3
WASHER13
M3
SCREW13
M3x6
SCREW13
M3x6
SCREW16
M3x6
SCREW16
M3x6
F14
Not Used
F14
Not Used
1
1
STANDOFF12
M3x10
STANDOFF12
M3x10
MH11
Mounting Hole
MH11
Mounting Hole
1
SCREW12
M3x6
SCREW12
M3x6
HEAT SINK
HEATSINK11
TIC-HSINK-068_1.00
HEAT SINK
HEATSINK11
TIC-HSINK-068_1.00
F13
Not Used
F13
Not Used
1
1
MH12
Mounting Hole
MH12
Mounting Hole
1
SCREW15
M3x6
SCREW15
M3x6
JUMPER1
Black
JUMPER1
Black
SCREW11
M3x6
SCREW11
M3x6
WASHER11
M3
WASHER11
M3
F12
Not Used
F12
Not Used
1
1
STANDOFF11
M3x10
STANDOFF11
M3x10
TAS5611_13PHD2EVM Parts List (1.00).xls
e
8
r
L
r
L
2
L
L
L
L
6
L
9
a
L
3
s
T
8
K
r
s
T
5
9
r
6
)
r
F
6
)
a
8
)
a
5
)
a
8
-
TI
Qty Part Referenc
6 R53 R54 R55 R56 R57 R5
12 R40 R51 R52 R59 100R / 100mW / 5% / 0603 Thick Film Resistor Yageo RC0603JR-07100RL
1 R49 1.00k / 100mW / 1% / 0603 Thick Film Resistor Yageo RC0603FR-071KL
1 R15 10k / 100mW / 5% / 0603 Thick Film Resisto
4 R62 R66 R68 R7
2 R73 R74 100k / 100mW / 5% / 0603 Thick Film ResistorYageo RC0603JR-07100K
1 R75 10R / 100mW / 5% / 0603 Thick Film ResistorYageo RC0603JR-0710R
1 R48 1.2k / 100mW / 5% / 0603 Thick Film Resistor Yageo RC0603JR-071K2
8 R61 R63 R64 R65 R67 R69 R70 R71 2.2k / 100mW / 5% / 0603 Thick Film Resistor Yageo RC0603JR-072K2L
1 R12 30.0k / 100mW / 1% / 0603 Thick Film Resistor Yageo RC0603FR-0730KL
9 R37 3.3R / 100mW / 5% / 0603 Thick Film Resistor Yageo RC0603JR-073R3L
5 R41 R43 R44 R45 R4
1 R39 47k / 100mW / 5% / 0603 Thick Film Resistor Yageo RC0603JR-0747KL
2 R42 R47 560R / 100mW / 5% / 0603 Thick Film Resistor Yageo RC0603JR-07560RL
1 R50 820R / 100mW / 5% / 0603 Thick Film Resistor Yageo RC0603JR-07820RL
5 C44 C45 C46 C47 C49 Ceramic 10nF / 100V / 20% X7R 0805 Capacitor BC Components 0805B103M101NT
5 C26 C32 C48 C96 C9
1 C11 Ceramic 4.7nF / 50V / 10% X7R 0805 Capacitor BC Components 0805B472K500NT
4 C40 C41 C42 C4
4 C28 C30 C97 C9
1 C50
1 C12 Ceramic 1nF / 50V / 10% NP0 0805 Capacito
C13 C19 C21 C22 C23 C24 C54 C56
12
C62 C65 C79 C84 Ceramic 100nF / 16V / 20% X7R 0603 Capacitor Vishay VJ0603Y104MXJ
4 C25 C27 C29 C31 Ceramic 33nF / 25V / 20% X7R 0603 Capacitor BC Components 0603B333M250NT
5 C58 C59 C60 C72 C73 Ceramic 100pF / 50V / 10% NP0 0603 Capacitor BC Components 0603N101K500NT
2 C67 C68 Ceramic 1nF / 50V / 10% NP0 0603 Capacitor BC Components 0603N102K500NT
4 C77 C78 C82 C83 Ceramic 150pF / 50V / 10% NP0 0603 Capacitor BC Components 0603N151K500NT
1 C20 Ceramic 330pF / 50V / 10% NP0 0603 Capacitor BC Components 0603N331K500NT
2 C75 C76 Ceramic 470pF / 50V / 10% NP0 0603 Capacitor BC Components 0603N471K500NT
4 C37 C38 C39 C52
C14 C15 C16 C17 C18 C53 C55 C63
13
C64 C66 C69 C70 C71
4 C33 C34 C35 C36
1 C85
1 C57
1 C86
1 C61 3.5mm ø8mm FC Series - Low Impedance Panasonic EEUFC1E471L
1 L15
4 L16 L17 L18 L1
1 D18 3A / 60V Schottky 30BQ060 Diode (SMC
3 D13 D14 D1
1 D11 Light Emitting Green Green LED (0603
2 D12 D1
6 Q11 Q12 Q13 Q14 Q15 Q16
1 U11
2 U15 U16
2 U12 U13
1 U17
Description Manufacture First Mfr P/N
0R / 5% / 0603 Thick Film Resisto
10.0k / 100mW / 1% / 0603 Thick Film Resistor Yageo RC0603FR-0710K
4.7k / 100mW / 5% / 0603 Thick Film Resistor Yageo RC0603JR-074K7
Ceramic 1uF / 50V / 10% X7R 0805 CapacitorMurat
Ceramic 1nF / 100V / 10% NP0 1206 CapacitorBC Component
Ceramic 1uF / 50V / 10% X7R 1206 CapacitorTDK C3216X7R1H105
Ceramic 2.2uF / 100V / 20% X7R 1210
Capacitor Murata GRM32ER72A225KA35L
Metal Film 680nF / 250V / 20% Polypropylene
15mm (W:8mm L:18mm) Capacitor Wima MKP 4 0.68uF/20%/250Vdc PCM1
Electrolytic 10uF / 16V / 20% Aluminium 2mm
ø5mm M Series - General Purpose Capacitor Panasonic ECA1CM100
Electrolytic 1000uF / 50V / 20% Aluminium
7.5mm ø16mm FC Series - Low Impedance
Capacitor Panasonic EEUFC1H102
Electrolytic 330uF / 63V / 20% Aluminium 5mm
ø10mm FC Series - Low Impedance Capacitor Panasonic EEUFC1J331L
Electrolytic 47uF / 63V / 20% Aluminium 5mm
ø10mm Capacitor BC Components 2222 136 68479
Electrolytic 470uF / 16V / 20% Aluminium
3.5mm ø8mm Low ESR Capacitor Rubycon 16ZL470M8x16
1mH / 0.55A 20% (1.68R) Ferrite Inductor
(12.8x12.8x8.0) Epcos B82477G4105M000
10uH / Ferrite Inducto
Light Emitting Red Red LED (0603
Light Emitting Yellow Yellow LED (0603
0.115A / 60V N-ch Power 2N7002 Mosfet (SOT
23) Fairchild 2N7002
TAS5611PHD or TAS5613PHD / Stereo Analog
Audio PWM Power Output Stage (PHD64) Texas Instruments TAS5611PHD or TAS5613PHD
OPA1632 / High-Performance, Fully-Differential
Audio Opamp (SO8) Texas Instruments OPA1632D
LM317 / 0.5A Positive Adjustable Regulator
(DCY) Texas Instruments LM317MDCY
TL2575HV-15I / 15V/1-A SIMPLE STEP-DOWN
SWITCHING VOLTAGE REGULATORS (KTT5) Texas Instruments TL2575HV-15IKTTR
Yageo RC0603JR-070R
Yageo RC0603JR-0710K
GRM21BR71H105KA12
1206N102K101N
BC Component
Toko C3B-A033
Int. Rectifie
Toshib
Toshib
Toshib
0805N102K500N
30BQ060PB
TLSU100
TLGU1008
TLYU100
1 of 2
17.Dec. 2009
TAS5611_13PHD2EVM Parts List (1.00).xls
h
A
SCREW11 SCREW12 SCREW13
6
SCREW14 SCREW15 SCREW16 M3x6 Pan Head, Pozidriv, A2 Screw Bossard BN 81882 M3x6
WASHER11 WASHER12 WASHER13
6
WASHER14 WASHER15 WASHER16 M3 Stainless Steel Spring Washer Bossard BN 760 M3
STANDOFF11 STANDOFF12
4
STANDOFF13 STANDOFF14 M3x10 Aluminium Stand-off Ettinger 05.03.108
2 J19 J22
2 JUMPER1 JUMPER2
2 J20 J21 Horizontal Female w. Switch Coax Phono socket Chunfeng RJ843-4W
3 J11 J13 J15
2 J24 J25
3 SW1 SW2 SW11 Switch DPDT PCB Mount Switc
1 PCB11
1 HEATSINK11
2 pins / 1 row / 2.54mm Pitch Vertical Male
Friction lock Pin header Header Molex 22-27-2021
2 pins / 1 row / 2.54mm Pitch Horizontal Female
Black Shunt Black Molex 15-29-1024
2 pins / Vertical Female Banana Red and black
banana socket Cliff TPP-3CT
3 pins / 1 row / 2.54mm Pitch Vertical Male
Shunt Header Shunt Header Samtec TSW-107-07-T-T
858-PCB-001_1.00 / TAS5613PHD2EVM2
Printed Circuit Board (ver. 1.00) Elcon A858-PCB-001(1.00)
TIC-HSINK-068_1.00 / Heatsink for 1 PHD
package, length 78 mm Phonotech TIC-HSINK-068(1.00)
NKK-Nikkai G-22-AP
TI
2 of 2
17.Dec. 2009
TI A858-PCBSPEC-001(1.00).doc
Jonas Holm
TAS5613PHD2EVM
PCB SPECIFICATION
Version 1.00
BOARD IDENTIFICATION: A858-PCB-001(1.00)
BOARD TYPE: DOUBLE-SIDED PLATED-THROUGH BOARD
LAMINATE TYPE: FR4
LAMINATE THICKNESS: 1.6mm
TOP LAYER COPPER THICKNESS: 70μm (INCL. PLATING EXTERIOR LAYER)
BOTTOM LAYER COPPER THICKNESS: 70μm (INCL. PLATING EXTERIOR LAYER)
COPPER PLATING OF HOLES: >25μm
MINIMUM HOLE DIAMETER 0.3 mm
SILKSCREEN COMPONENT SIDE: WHITE - REMOVE SILKSCREEN FROM SOLDER AREA & PRE-TINNED AREAS
SILKSCREEN SOLDER SIDE: None
SOLDER MASK COMPONENT SIDE: GREEN
SOLDER MASK SOLDER SIDE: GREEN
PROTECTIVE COATING: SOLDER COATING AND CHEMICAL SILVER ON FREE COPPER
ELECTRICAL TEST: PCB MUST BE ELECTRICAL TESTED
MANUFACTURED TO: PERFAG 2E (www.perfag.dk)
APERTURE TABLE: PERFAG 10A (www.perfag.dk)
BOARD SIZE: 95 x 142 mm
Aprox. Number of holes 468
COMMENTS: SEE DRILL INFORMATION FILE (A858-PCB-001(1.00).pdf)
Page 1 of 1
Company Confidential
Inductor Specification
Texas Instruments Denmark A/S VAT-no. 20 53 16 73
Lyngby Hovedgade 4 Phone: +45 96 34 68 68
DK-2800 Kgs. Lyngby Fax: +45 38 88 78 99
Denmark Web: http:\\www.ti.com
DWG no.: TIC-INDC-020(1.00)
Text: 10µH / 5A / 30mΩ
Diagram:
Material:
Core: Micrometals T94-2
Wire: ø1.00mm Cu, one layer lacquer, 155°C
Foot-print top view
Mechanical:
Lead length: 8mm-12mm, stripped and pre-tinned.
Production: Step 1: N1, 35 turns ø1.00mm cu 2L, start 1, end 2
Step 2: bend and strip/pre-tin leads.
Test: Inductance: pin 1 –2 9 – 11 µH @ 0.1Vrms/10kHz
Release date: 2005-04-12, Jonas Svendsen / Kim Madsen
1 2
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.
TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.
Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.
TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.
TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.
Following are URLs where you can obtain information on other Texas Instruments products and application solutions:
Products Applications
Amplifiers amplifier.ti.com Audio www.ti.com/audio
Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DLP® Products www.dlp.com Broadband www.ti.com/broadband
DSP dsp.ti.com Digital Control www.ti.com/digitalcontrol
Clocks and Timers www.ti.com/clocks Medical www.ti.com/medical
Interface interface.ti.com Military www.ti.com/military
Logic logic.ti.com Optical Networking www.ti.com/opticalnetwork
Power Mgmt power.ti.com Security www.ti.com/security
Microcontrollers microcontroller.ti.com Telephony www.ti.com/telephony
RFID www.ti-rfid.com Video & Imaging www.ti.com/video
RF/IF and ZigBee® Solutions www.ti.com/lprf Wireless www.ti.com/wireless
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2009, Texas Instruments Incorporated
Loading...
