TAS5110

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

TRUE DIGITAL AUDIO AMPLIFIER

TAS5110 PWM POWER OUTPUT STAGE

FEATURES

50-W RMS Power Into 6 Ω at 10% THD

D D 40-W RMS Power Into 6 Ω at 0.1% THD D THD+N < 0.09% Typical (1-kHz Input Signal) D 93-dB Dynamic Range (TDAA System) D Power Efficiency > 90% Into 6-Ω and 8-Ω Load D Low Profile, SMD 32-Pin PowerPAD Package D Self-Protecting Design D 3.3-V Digital Interface D EMI Compliant When Used With

Recommended System Design

APPLICATIONS

DVD Receiver

D D Home Theater D Mini/Micro Component Systems D Internet Music Appliance D Car Audio Amplifiers and Head Units

DESCRIPTION

The TAS5110 is a high-performance true digital audio amplifier (TDAA) power stage, designed to drive 50 W per channel. The TAS5110 incorporates TI’s equibitt technology and is used in conjunction with a digital audio PWM processor (T AS50xx) to deliver high-power, true digital audio amplification. The efficiency of this digital amplifier can be greater than 90%, reducing the size of both the power supplies and heat sinks needed. The TAS5110 accepts a mono PWM 3.3-V input and controls the switching of an internal CMOS H-bridge.

When used with the T AS50xx PWM processor, system performance of less than 0.09% THD is attainable. Over-current protection, over-temperature, and under-voltage protections are built into the TAS5110, safeguarding the H-bridge and speakers against output shorts, over-voltage conditions, and other fault conditions that could damage the system.

TYPICAL TDAA STEREO AUDIO SYSTEM

Digital Audio

• TAS3001

• DSP

• SPDIF

• 1394

• Volume

• EQ

• DRC

• Bass

• Treble

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PowerPAD and Equibit are trademarks of Texas Instruments.

PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

• Serial Audio Input Port

• Internal PLL

• PCM–PWM Modulator

TAS50xx

Left

Right

www.ti.com

TAS5110

• Two H-Bridge Power Devices

L-C

Filter

L-C

Filter

TAS5110

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

terminal assignments

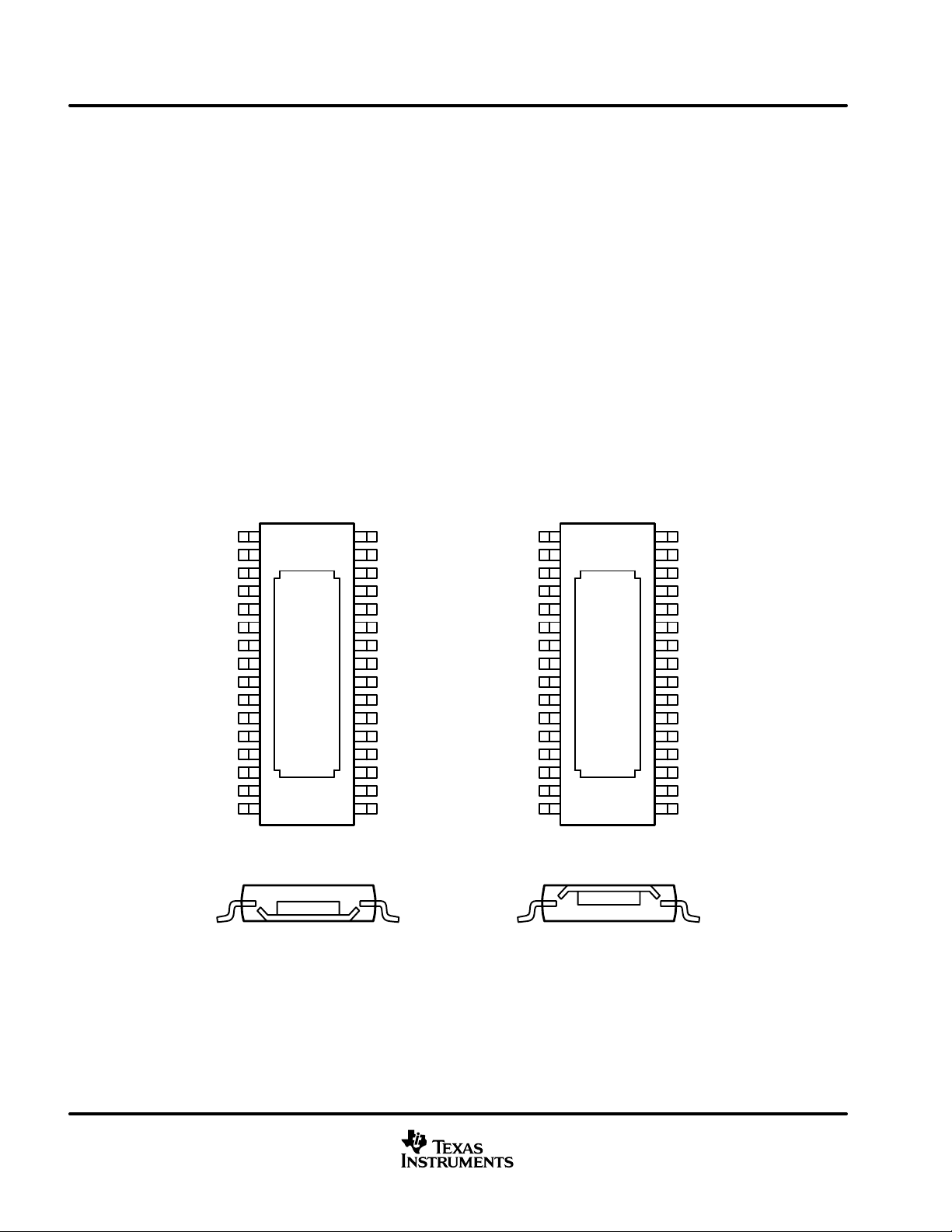

The TAS5110 is offered in a thermally enhanced 32-pin HTSSOP surface-mount package (DAP). The DAP package has the PowerPAD on the bottom.

DAP PACKAGE

(TOP VIEW)

ordering information

0°C to 70°C TAS5110DAP TAS5110DAPR

–40°C to 85°C TAS5110IDAP TAS5110IDAPR

PWM_AP

PWM_AM

ERR1 ERR0

SHUTDOWN

DVDD

DVSS DVSS DVSS

VRFILT BIAS_A BIAS_B

PWDN

RESET

PWM_BM

PWM_BP

PACKAGE TAPE AND REEL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

PVDDA2 LDROUTA BOOTSTRAPA PVDDA1 PVDDA1 OUTPUTA OUTPUTA PVSS PVSS OUTPUTB OUTPUTB PVDDB1 PVDDB1 BOOTSTRAPB LDROUTB PVDDB2

www.ti.com

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

terminal assignments

In addition to the 32-pin HTSSOP DAP package, the T AS5110 is of fered in a thermally enhanced 32-pin TSSOP surface-mount package (DAD). The DAD package has the PowerPAD on top.

DAD PACKAGE

(TOP VIEW)

TAS5110

ordering information

0°C to 70°C TAS5110DAD TAS5110DADR

–40°C to 85°C TAS5110IDAD TAS5110IDADR

references

PWM_BP

PWM_BM

RESET

PWDN BIAS_B BIAS_A

VRFILT

DVSS DVSS DVSS

DVDD

SHUTDOWN

ERR0 ERR1

PWM_AM

PWM_AP

PACKAGE TAPE AND REEL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

PVDDB2 LDROUTB BOOTSTRAPB PVDDB1 PVDDB1 OUTPUTB OUTPUTB PVSS PVSS OUTPUTA OUTPUTA PVDDA1 PVDDA1 BOOTSTRAPA LDROUTA PVDDA2

TAS5000 Digital Audio PWM Processor data manual – TI Literature Number SLAS270 T AS5001 Digital Audio PWM Processor data manual – TI Literature Number SLES009 T AS5010 Digital Audio PWM Processor data manual – TI Literature Number SLAS328 T AS5012 Digital Audio PWM Processor data manual – TI Literature Number SLES006 Digital Audio Measurements – TI literature number SLAA114 PowerPAD Thermally Enhanced Package – TI literature number SLMA002

www.ti.com

TAS5110

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

functional block diagram

PWM_AP

PWM_AM

BIAS_A

PWDN

RESET

SHUTDOWN

ERR1 ERR0

LDROUTB

PVDDB2

VRFILT

BIAS_B

PWM_BM

PWM_BP

PVDDA2

LDR

DIFF

RCVR

Control/Sense

Circuit

LDR

DIFF

RCVR

LDROUTA

Boot Strap Gate Drive

BOOTSTRAP

1/2 H-Bridge

Bandgap

Reference

1/2 H-Bridge

PVDDA1

OUTPUTA OUTPUTA

PVSS

BOOTSTRAPB

PVDDB1

OUTPUTB OUTPUTB

DVSS

DVDD

www.ti.com

PVSS

suggested system block diagrams

Digital Audio

• USB

• IEEE 1394

• SPDIF

• ADC

• Automotive

MOST Network

IIC

Audio

Control

Figure 1. System #1: Stereo Configuration With a TAS3001 Digital Audio Processor

TAS30xx

• Digital Parametric EQ

• Volume

• DRC

• Bass

• Treble

Left

TAS50xx

Right

• Serial Audio Input Port

• Internal PLL

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

TAS5110

L-C

Filter

L-C

Filter

• Two H-Bridges

TAS5110

Home Theater

DVD 6-Channel

Encoded Digital

Audio Source

TI DSP

• Dolby AC-3

• DTS

• Volume

• EQ

• DRC

• Bass

• Treble

TAS50xx

CH1

CH2

CH3

CH4

CH5

CH6

TAS5110

L-C

Filter

L-C

Filter

L-C

Filter

L-C

Filter

L-C

Filter

L-C

Filter

Left

Right

Surround Left

Surround Right

Center

Subwoofer

Figure 2. System #3: 6-Channel Audio Playback

www.ti.com

TAS5110

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

Terminal Functions

TERMINAL

NAME DAP

NO.

BIAS_A 11 6 I Connect external resistor to DVSS. BIAS_B 12 5 I Connect external resistor to DVSS. BOOTSTRAPA 30 19 O Bootstrap capacitor pin for H-bridge A BOOTSTRAPB 19 30 O Bootstrap capacitor pin for H-bridge B DVDD 6 11 I 3.3-V digital voltage supply for logic DVSS 7, 8, 9 8, 9,

ERR1 3 14 O Error/warning report indicator. This output is open drain with internal pullup resistor. ERR0 4 13 O Error/warning report indicator. This output is open drain with internal pullup resistor. LDROUTA 31 18 O Low voltage drop-out regulator output A (not to be used to supply current to external

LDROUTB 18 31 O Low voltage drop-out regulator output B (not to be used to supply current to external

OUTPUTA 26, 27 22, 23 O H-bridge output A OUTPUTB 22, 23 26, 27 O H-bridge output B PVDDA1 28, 29 20, 21 I High voltage power supply, H-bridge A PVDDA2 32 17 I High voltage power supply for low-dropout voltage regulator A-side PVDDB1 20, 21 28, 29 I High voltage power supply, H-bridge B PVDDB2 17 32 I High voltage power supply for low-dropout voltage regulator B-side PVSS 24, 25 24, 25 I High voltage power supply ground PWDN 13 4 I Power down = 0, normal mode = 1 PWM_AM 2 15 I PWM input A(–) PWM_AP 1 16 I PWM input A(+) PWM_BP 16 1 I PWM input B(+) PWM_BM 15 2 I PWM input B(–) RESET 14 3 I Reset and mute mode = 0, normal mode = 1, when in reset mode, H-bridge MOSFETs are

SHUTDOWN 5 12 O Device is in shutdown due to fault condition, normal mode = 1, shutdown = 0, when

VRFILT 10 7 O A filter capacitor must be added between VRFILT and DVSS pins.

NOTE: The four PWM inputs: PWM_AP , PWM_AM, PWM_BP, and PWM_BM must always be connected to the T AS50xx output pins, and never

left floating. Floating PWM input pins causes an illegal PWM input state signal to be asserted.

DAD

NO.

I/O DESCRIPTION

I Digital ground for logic is internally connected to PVSS. All three pins must be tied

together but not connected externally to PVSS. See Figure 5.

circuitry)

in low-low output state. Asserting the RESET cleared.

device is in shutdown mode the H-bridge MOSFETs are in low-low output state. The latched output can be cleared by asserting the RESET with internal pullup resistor.

signal low causes all fault conditions to be

signal. This output is open drain

Dual pins: OUTPUTA, OUTPUTB, PVDDA1, and PVDDB1 must have both pins connected externally to the same point on the circuit board, respectively. Both PVSS pins must also be connected together externally. These multiple pins are for the high-current DMOS output devices. Failure to connect all the multiple pins to the same respective node results in excessive current flow in the internal bond wires and can cause the device to fail. All electrical characteristics are specified and measured with all of the multiple pins conne cted to the same node, respectively .

www.ti.com

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

functional description

PWM H-bridge state control

The digital interface control signals consists of PWM_AP, PWM_AM, PWM_BP, and PWM_BM. These signals are a complementary differential signal format for the A-side half-bridge and the B-side half-bridge.

bootstrapped gate drive

The TAS5110 includes two dedicated bootstrapped power supplies. A bootstrap capacitor is connected between the individual bootstrap pin and the associated output. For example, a capacitor is connected between the BOOTSTRAPA pin and OUTPUTA pin, and another capacitor is connected between the BOOTSTRAPB pin and the OUTPUTB pin. The bootstrap power supply minimizes the number of high voltage power supply levels externally supplied to the system while providing a low-noise supply level for driving the high-side N-channel DMOS transistors.

low-dropout voltage regulator

Two on-chip low-dropout voltage regulators (LDO) are provided to minimize the number of external power supplies needed for the system. These voltage regulators are for internal circuits only and cannot be used for external circuitry. Each LDO is dedicated to a half-bridge and its gate driver. An LDO output capacitor is connected between the individual LDO output pin and the associated output return. For example, a capacitor is connected between the LDROUTA pin and PVSS pin, and another capacitor is connected between the LDROUTB pin and PVSS pin.

TAS5110

high-current H-bridge output stage

The positive outputs of the H-bridge are the two OUTPUT A pins. The negative outputs of the H-bridge are the two OUTPUTB pins. The logic for the input command to H-bridge outputs is described in the H-bridge output mapping section below. When the TAS5110 is in the normal mode, as seen in the H-bridge output mapping tables, the outputs are decoded from the inputs. However, the TAS5110 is immediately shut down if any of the following error conditions occur: over-current, over-temperature, low regulator output voltage, or an illegal PWM input state is applied. For these conditions, the outputs are set to the appropriate disabled state as specified in the H-bridge output mapping section, and the SHUTDOWN

pin is set low.

H-bridge output mapping

The A-side half-bridge output is designed to the following truth table:

INPUTS OUTPUTS

RESET PWDN PWM_AP PWM_AM SHUTDOWN OUTPUTA

X X X X 0 0 or Hi-Z X 0 X X 1 Hi-Z Powerdown 0 1 X X 1 0 Reset 1 1 0 0 0 0 Shutdown 1 1 0 1 1 0 Normal 1 1 1 0 1 1 Normal 1 1 1 1 0 0 Shutdown

†

Output is 0 for low voltage, over temperature, and illegal input. Hi-Z is for over current.

†

DESCRIPTION

Shutdown

www.ti.com

TAS5110

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

H-bridge output mapping (continued)

The B-side half-bridge output is designed to the following truth table:

INPUTS OUTPUTS

RESET PWDN PWM_BP PWM_BM SHUTDOWN OUTPUTB

X X X X 0 0 or Hi-Z X 0 X X 1 Hi-Z Powerdown 0 1 X X 1 0 Reset 1 1 0 0 0 0 Shutdown 1 1 0 1 1 0 Normal 1 1 1 0 1 1 Normal 1 1 1 1 0 0 Shutdown

†

Output is 0 for low voltage, over temperature, or illegal input. Hi-Z is for over current.

†

DESCRIPTION

Shutdown

control/sense circuitry

The control/sense circuitry consists of the following 3.3-V logic level pins: PWDN SHUTDOWN to the Hi-Z state. When the PWDN disabled so that their outputs can be pulled high. The active-low RESET

. The active-low PWDN input pin powers down all internal circuitry and forces the H-bridge outputs

pin is low, the open drain ERR0, ERR1, and SHUTDOWN pins are also

input pin forces the H-bridge outputs to the low-low state and resets the over-current shutdown latch. The PWDN ERR0

, ERR1, and SHUTDOWN outputs indicate the following conditions in the T AS51 10 as shown in the table

, RESET, ERR0, ERR1, and

pin overrides the RESET pin. The

below. These three outputs are open-drain connections with internal pullup resistors so that wire-ORed connections can be made by the user with other external control devices. The short-circuit protect error condition latches the T AS51 10 in this shutdown state and forces the H-bridge outputs to the Hi-Z state until the device is reset by means of the RESET

pin. The illegal PWM input state, over-temperature, and low regulator voltage error conditions does not latch the device in the shutdown condition. Instead the H-bridge outputs are forced to the low-low state and the T AS5110 returns to normal operation as soon as the error condition ends. Loss of clocking PWM signal is also considered an illegal PWM input state.

SHUTDOWN ERR1 ERR0 FUNCTION OUTPUTA OUTPUTB

0 0 0 Illegal PWM input state Low Low 0 0 1 Short circuit protect (latch) Hi-Z Hi-Z 0 1 0 Over temperature protect Low Low 0 1 1 Low regulator voltage protect Low Low 1 0 0 Reserved — — 1 0 1 Reserved — — 1 1 0 High temperature – warning Normal Normal 1 1 1 Normal operation Normal Normal

www.ti.com

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

device operation

power sequences

system power-up/power-down sequencing

The recommended power-up/power-down sequence is shown in Figure 3. For proper operation the RESET signal should be kept low when both DVDD and output power (PVDDA1, PVDDA2, PVDDB1, and PVDDB2) are being applied. The RESET

†

DVDD

PWDN

PVDDA2 PVDDB2

> 100 µs

PVDDA1 PVDDB1

> 100 µs

signal should remain low for at least 1 ms after output power is applied.

> 1 ms

TAS5110

RESET

> 1 ms

†

For most applications, it is recommended that the PWDN pin be connected directly to the DVDD pin.

Figure 3. Power-Up/Power-Down Sequence

RESET

function

The device is put into a reset condition when the (active low) RESET

signal is asserted. While in the reset state, the input H-bridge control signals consisting of PWM_AP , PWM_AM, PWM_BP , and PWM_BM are ignored, and the H-bridge MOSFETs are placed in a state where OUTPUTA and OUTPUTB are both low. Asserting the RESET

signal low also causes the short circuit protection latch to be reset. The RESET signal is normally

connected to the VALID signal from the TAS50xx.

reinitialization sequence

Proper initial conditions for this device include asserting the RESET

signal until the reset operation has completed (1 ms). Additionally, when using this device with the TAS50xx controller, this function can be accomplished by asserting the reset pin on the TAS50xx during the reset sequence (see Figure 3).

audio application considerations

optimal power transfer for H-bridge

The T AS51 10 is a power H-bridge that is designed to deliver a maximum of 50 W RMS into a 6-Ω load. In order to achieve 50 W into 6 Ω, the system designer must provide an adequate thermal design. See the Thermal

Methodology for the 32-Pin DAD Package 50 W, 6-Ω Test and the Thermal Methodology for the 32-Pin DAP Package 50 W, 6-Ω sections for a discussion of possible thermal solutions. Careful attention must be given to

the value of the high-voltage power supply level for a given load resistance. See recommended operating conditions. See the Maximum Available Power at Common Load Impedances for Both DAP and DAD Packages section.

www.ti.com

TAS5110

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

audio application considerations (continued)

reconstruction output filter

An output reconstruction filter is required between the H-bridge outputs and the loudspeaker load. This second order low-pass filter passes the audio information to the loudspeaker, while filtering out the high frequency out-of-band information contained in the H-bridge output PWM pulses. The values of the L and C components selected are dependent on the loudspeaker load impedance.

fault indicator usage

The T AS5110 is a self-protecting device that provides device fault reporting, including over-temperature protect, under-voltage lockout (low-regulator voltage), and short circuit protection. The short circuit protection protects against short circuits that may occur at the loudspeaker load when configured. The TAS5110 is not recommended for driving loads less than 6 Ω, since the internal current limit protection might be activated.

An under-voltage lockout signal occurs when an insufficient voltage level is present on the LDROUTA or LDROUTB pins. During this condition gate drive levels are not sufficient for driving the power MOSFET s. Normal operation is resumed when the minimum proper LDROUT A or LDROUTB level is obtained and the low regulator voltage protect signal is de-asserted. See the control/sense circuitry section for error and warning conditions.

A high temperature warning signal is asserted on pin ERR0

when the device temperature exceeds 125°C

typical. If the internal device temperature exceeds 150°C typical, the over temperature protect signal is asserted and

the TAS5110 is shut down. The device re-enables once the temperature drops to 125°C typical. See the control/sense circuitry section for error and warning conditions.

Detection of an illegal PWM input state or the loss of a clocking PWM input signal causes an illegal PWM input state signal to be asserted on the ERR1

absolute maximum ratings over operating free-air temperature (unless otherwise noted)

and ERR0 pins and sets the SHUTDOWN pin to the low state.

†

DC supply voltage range: DVDD to DVSS –0.3 V to 4.2 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PWM_AP, PWM_AM, PWM_BP, PWM_BM –0.3 V to DVDD + 0.3 V. . . . . . . . . . . . . . . . .

RESET

, PWDN –0.3 V to DVDD + 0.3 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PVDDA1 to PVSS, PVDDB1 to PVSS –0.3 V to 28 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

PVDDA2 to PVSS, PVDDB2 to PVSS –0.3 V to 27 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output DMOS drain-to-source breakdown voltage 28 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating junction temperature range, T Storage temperature range, T

stg

–40°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

–65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds) 260°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

www.ti.com

APPROXIMATE MAX OUTPUT POW

THD+N AT MAX POWER AND 1 kHz

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

recommended operating conditions (maximum output power = 50 W (RMS), TJ = 25°C)

TAS5110

thermal data

Shutdown junction temperature, T Warning junction temperature, T

Operating temperature, T

Thermal resistance junction-to-case, θ Thermal resistance junction-to-ambient, θ

†

One of the most influential components on the thermal performance of a package is board design. In order to take full advantage of the heat dissipating abilities of the PowerP AD packages, a board must be used that acts similar to a heat sink and allows for the use of the exposed (and solderable), deep downset pad. See Appendix A of the PowerPAD Thermally Enhanced Package application note, TI literature number SLMA002.

‡

For both DAD and DAP packages.

†

PARAMETER MIN NOM MAX UNIT

J(SD)

J(W)

}

Commercial 0 25 70 °C Industrial –40 25 85 °C

2 oz. trace and copper pad without solder

}

150 °C 125 °C

1.6 °C/W

44.3 °C/W

RL = 6 Ω to 8 Ω

PARAMETER MIN NOM MAX UNIT

Digital DVDD to DVSS 3 3.3 3.6 V

PVDDA2 to PVSS 16.5 22 26.5

Supply voltage

Connect LDROUTA to PVDDA2 and connect LDROUTB to PVDDB2. Under this condition, the H-bridge forward on-state resistance is increased. This increases internal power dissipation. Maximum output power may need to be reduced to meet thermal conditions.

Regulator

PVDDB2 to PVSS 16.5 22 26.5 PVDDA2 to PVSS PVDDB2 to PVSS

10.5 16.5

maximum available power at common load impedances for both DAP and DAD packages unclipped (0 dB) level, test conditions described in the Thermal Methodology for the 32-Pin DAD Package 50 W, 6-Ω T est and Thermal Methodology for the 32-Pin DAP Package 50 W, 6-Ω Test sections

LOAD IMPEDANCE (Ω) PVDAA1/PVDDB1 (VDC)

6 27 50 < 10% 6 27 43 < 0.09% 8 27 34 < 0.09%

Dependent on board design and component selection.

ER (W)

INPUT

static digital specifications

RESET, PWDN, PWM_AP, PWM_AM, PWM_BP, PWM_BM, TJ = 25°C, DVDD = 3.3 V

PARAMETERS MIN MAX UNIT

High-level input voltage, V Low-level input voltage, V Input leakage current –10 10 µA

ERR0, ERR1, SHUTDOWN, (open drain with internal pullup resistor) TJ = 25°C, DVDD = 3.3 V)

PARAMETERS MIN MAX UNIT

Internal pullup resistors from SHUTDOWN, ERR0, ERR1 to DVDD 15 kΩ Low-level output voltage (IO = 4 mA), V

2 V

0.8 V

0.4 V

www.ti.com

TAS5110

PVDDA1

PVDDA2

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

electrical characteristics

supply, TJ = 25°C (F

switching

= 384 kHz, OUTPUTA and OUTPUTB not connected, DVDD = 3.3 V,

PVDDA1 = 25 V, PVDDB1 = 25 V, PVDDA2 = 22 V, PVDDB2 = 22 V, 50% input duty cycle)

PARAMETER TYP MAX UNIT

DVDD

Supply current

†

13-kΩ resistor from BIAS_A (pin 11) to DVSS and 13-kΩ resistor from BIAS_B (pin 12) to DVSS.

PVDDA1 PVDDB1

PVDDA2 PVDDB2

Operating 2 mA PWDN = 0 500 µA Operating PWDN = 0 25 µA Operating 6.5 mA PWDN = 0 250 µA

†

6.3 mA

H-Bridge transistors, PVDDA2 = PVDDB2 = 22 V, DVDD = 3.3 V, TJ = 25°C (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Drain-to-source breakdown voltage ID = 1 mA, PWDN = 0, Hi-Z state 28 V Forward on-state resistance, low-side drivers

OUTPUTA and OUTPUTB to PVSS Forward on-state resistance, high-side drivers

PVDDA1 to OUTPUTA, PVDDB1 to OUTPUTB On-state resistance matching low-side drivers 98% On-state resistance matching high-side drivers 98%

NOTES: 1. Test time should be < 1 ms to avoid temperature change.

2. These parameters are measured with voltage-sensing contacts separate from the current-carrying contacts.

3. Connect PVDDA2 and PVDDB2 to a 22-V power supply with respect to PVSS. LDROUTA, LDROUTB, BOOTSTRAPA, and BOOTSTRAPB pins open.

4. Connect PVDDA2 to 22-V power supply with respect to PVSS. LDROUTA, LDROUTB, BOOTSTRAPA, and BOOTSTRAPB capacitors are connected respectively. Clock PWM inputs to allow bootstrap capacitors to charge. 93–99% modulation must be used on PWM_AP , PWM_AM, PWM_BP, and PWM_BM inputs to prevent the activity detector from shutting down the device during this measurement. Note that F

switching

= 2.5 A,

SINK

See Notes 1, 2, and 3, I

SOURCE

See Notes 1, 2, and 4,

= 384 kHz.

= 2.5 A,

PWM_AP = PWM_BP = 0, PWM_AM = PWM_BM = 1

PWM_AP = PWM_BP = 1, PWM_AM = PWM_BM = 0

0.2 0.24

0.2 0.24 Ω

Ω

electrical characteristics, voltage regulator, TJ = 25°C (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Output voltage (LDROUTA, LDROUTB)

NOTE 5: These voltage regulators are for internal gate drive circuits only and are not to be used under any circumstances to supply current to

external circuity .

IO = 5 mA, PVDDA2=PVDDB2 = 18 V to 27 V, See Note 5, DVDD = 3.3 V

14.5 15.3 16 V

www.ti.com

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

TAS5110

JUNCTION TEMPERATURE

ON-STATE RESISTANCE

160

140

120

100

– Junction Temperature – °C

0.15 0.20 0.25 0.30 0.35 0.40 r

– On-State Resistance – Ω

(on)

TAS50xx

RESET

PWM_M_L

PWM_P_L

VALID

3.3 V

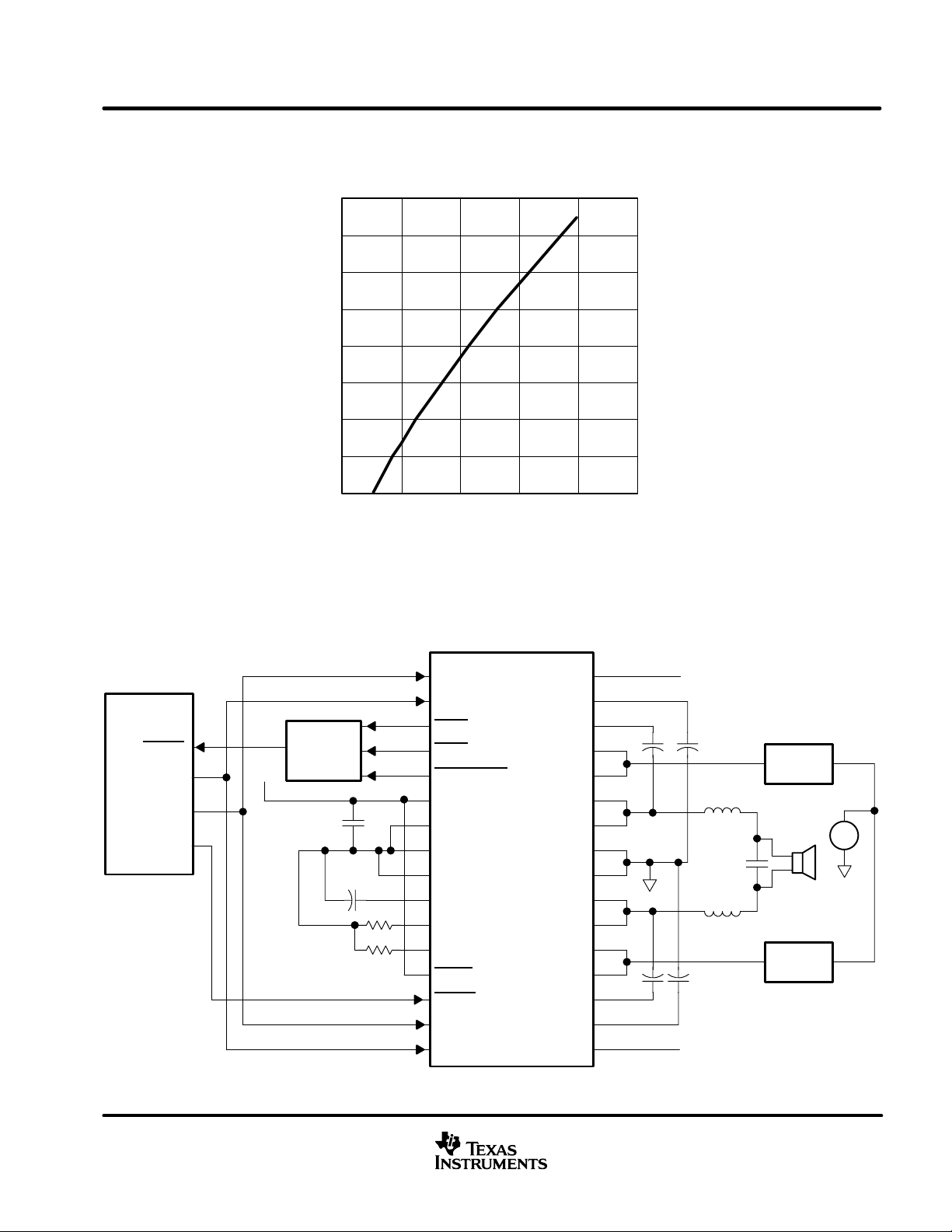

Figure 4. Temperature vs On-State Resistance

APPLICATION INFORMATION

TAS5110 (DAP Package)

Error

Reporting

R1 R2

PWM_AP

PWM_AM

ERR1

ERR0

SHUTDOWN

DVDD

DVSS

VRFILT

BIAS_A

BIAS_B

PWDN

RESET

PWM_BM

PWM_BP

PVDDA2

LDROUTA

BOOTSTRAPA

PVDDA1 PVDDA1

OUTPUTA OUTPUTA

PVSS PVSS

OUTPUTB OUTPUTB

PVDDB1 PVDDB1

BOOTSTRAPB

LDROUTB

PVDDB2

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17

22 V

C3 C4

22 V

Snubber

Circuit

Snubber

Circuit

+ _

Figure 5. Typical TAS5110 Application (One Channel Shown)

www.ti.com

TAS5110

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

THERMAL INFORMATION

The thermally enhanced DAP package is based on the 32-pin HTSSOP, but includes a thermal pad (see Figure 6) to provide an effective thermal contact between the IC and the PCB.

Traditionally, surface mount and power have been mutually exclusive terms. A variety of scaled-down TO-220 type packages have leads formed as gull wings to make them applicable for surface-mount applications. These packages, however, have two shortcomings: they do not address the low profile requirements (<2 mm) of many of today’s advanced systems, and they do not offer a terminal-count high enough to accommodate increasing integration. On the other hand, traditional low-power surface-mount packages require power-dissipation derating that severely limits the usable range of many high-performance analog circuits.

The PowerPAD package (thermally enhanced HTSSOP) combines fine-pitch surface-mount technology with thermal performance comparable to much larger power packages.

The PowerP AD package is designed to optimize the heat transfer to the PCB. Because of the very small size and limited mass of a HTSSOP package, thermal enhancement is achieved by improving the thermal conduction paths that remove heat from the component. The thermal pad is formed using a patented lead-frame design and manufacturing technique to provide a direct connection to the heat-generating IC. When this pad is soldered or otherwise thermally coupled to an external heat dissipater, high power dissipation in the ultrathin, fine-pitch, surface-mount package can be reliably achieved. See the dissipation derating table.

DAP Package DAD Package

Thermal

Pad

Bottom View DAP

DIE

End View DAP

Thermal

Pad

Top View DAD

DIE

End View DAD

Figure 6. Views of Thermally Enhanced DAP Package

www.ti.com

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

Thermal Methodology for the 32-Pin DAD Package 50 W, 6-Ω Test

The thermal test for the DAD part (e.g., thermal pad oriented away from the board) was conducted as shown in Figure 7 and Figure 8. The cooling approach was to attach a heat sink to the thermal pad and conduct the heat to ambient air.

Since the approach was to use a chassis below the board, it was inverted and a spacer bar used to connect the pads thermally to the heat sink. The bar was made high enough that the components on the board were clear of the chassis.

The pad-to-spacer thermal resistance was about 3.2_C/W with the thermal compound indicated. The chassis provided the only heat sink to air and was chosen as representative of a possible cooling approach.

A closed plastic top and insulating front and back panels ensured that only the bottom and sides of the U shaped chassis contributed to cooling. The chassis was spaced 0.25 inch from the table to simulate a normal chassis configuration. The thermal pad does not need to be isolated from ground. (Any heat sink with a thermal resistance to air of 3.9_C/W or lower also works.) In this test, the exposed chassis reached long-term equilibrium temperatures above 50_C, so the approach would have to be modified for touch temperature consideration. The chassis temperature after 10 minutes of 50 W into 6 Ω was below 50_C.

The test ran for three hours with 2 x 50 W RMS at 1 kHz into a 6-Ω resistive load at an ambient lab temperature of 23_C. No audio or thermal problems were encountered during that time.

Plastic Top Cover

TAS5110

Insulating

Front Panel

32 DAD Package

Wakefield Type 126

Thermal Compound

(3.2°C/W)

Aluminum Space Bar

(1/4 in Thick)

(2.44°C/W)

Wakefield Type 126

Thermal Compound

(0.169°C/W)

Stereo Amplifier

Board

1.25 in

Aluminum Chassis 7.2 in x 1 in x 0.1 in Thick Sides of U-Shaped Chassis Are 1.25 in High (3.9°C/W)

Figure 7. 32-Pin DAD Package Cross-Sectional View (Side)

Insulating Back Panel

www.ti.com

TAS5110

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

Plastic Top and Insulating Front and Back Panels

Stereo Amplifier Board

Aluminum Space Bar (1/4 in Thick)

Aluminum Chassis 7.2 in x 1 in x 0.1 in Thick Sides of U-Shaped Chassis Are 1.25 in High (3.9°C/W)

32 DAD Packages

(1.6°C/W)

Wakefield Type 126

Thermal Compound

(3.2°C/W)

(0.558°C/W)

2.33 in

4-40 Machine Screws With Star Washers

1.25 in

Wakefield Type 126 Thermal Compound (0.169°C/W)

1 mm

Figure 8. 32-Pin DAD Package Cross-Sectional View (Front)

Thermal Methodology for the 32-Pin DAP Package 50 W, 6-Ω Test

The thermal test for the DAP part (e.g., thermal pad soldered to the board) was conducted as shown in Figure 9 and Figure 10. The cooling approach was to conduct the dissipated heat into the via pad on the board, through the vias in the board, and into a heat sink.

The lower via pad area, slightly larger than the IC pad itself, was exposed with a window in the solder resist on the bottom surface of the board. It was not coated with solder during the board construction to maintain a flat surface. In production, this could be accomplished with a peelable solder mask.

A spacer bar was used to keep the through-hole leads from shorting to the chassis. The thermal compound indicated yielded a pad-to-spacer thermal resistance of about 3.2_C/W.

The chassis provided the only heat sink to air and was chosen as representative of a possible cooling approach. A plastic top and insulating front and back panels were used to ensure that only the bottom and sides of the U shaped chassis contributed to cooling. The chassis was spaced 0.25 inch from the table to simulate a normal chassis configuration. (Any heat sink with a thermal resistance to air of 3.9_C/W or lower also works.) In this test, the exposed chassis reached long-term equilibrium temperatures above 50_C, so the approach would have to be modified for touch temperature consideration. The chassis temperature after 10 minutes of 50 W into 6 Ω was below 50_C.

The test ran for three hours with 2 x 50 W RMS at 1 kHz into a 6-Ω resistive load at an ambient lab temperature of 23_C. No audio quality or thermal problems were encountered during that time.

www.ti.com

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

TAS5110

Insulating

Front Panel

Stereo Amplifier Board

Wakefield Type 126

Thermal Compound

Under Via Pads

(4.3°C/W)

Figure 9. 32-Pin DAP Package Cross-Sectional View (Side)

Plastic Top and Insulating Front and Back Panels

32 DAP Package

Wakefield Type 126

Thermal Compound

(0.1°C/W)

Insulating Back Panel

1 mm

1/4 in x 1/4 in x 2.33 in

Aluminum Space Bar

(0.09°C/W)

Aluminum Chassis 7.2 in x 1 in x 0.1 in Thick Sides of U-Shaped Chassis Are 1.25 in High (3.9°C/W)

Stereo Amplifier Board

Wakefield Type 126

Thermal Compound

(0.1°C/W)

Aluminum Chassis 7.2 in x 1 in x 0.1 in Thick Sides of U-Shaped Chassis Are 1.25 in High (3.9°C/W)

Figure 10. 32-Pin DAP Package Cross-Sectional View (Front)

32 DAP Packages

(1.6°C/W)

2.33 in

4-40 Machine Screws With Star Washers

Wakefield Type 126

Thermal Compound

Under Via Pads

(4.3°C/W)

Aluminum Space Bar

(1/4 in Thick)

(0.558°C/W)

www.ti.com

TAS5110

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

MECHANICAL DATA

DAP (R-PDSO-G**) PowerPAD  PLASTIC SMALL-OUTLINE PACKAGE

38 PINS SHOWN

0,65

1,20 MAX

0,30 0,19

0,15 0,05

0,13

6,20 NOM

Thermal Pad (see Note D)

8,40 7,80

0,15 NOM

Gage Plane

0,25

0°–ā8°

0,75 0,50

Seating Plane

0,10

PINS **

DIM

A MAX

A MIN

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice. C. Body dimensions do not include mold flash or protrusion. D. The package thermal performance may be enhanced by bonding the thermal pad to an external thermal plane. This pad is electrically

and thermally connected to the backside of the die and possibly selected leads. Thermal pad size is 3,86 mm X 3,91 mm for the 32-pin T AS5110 device.

E. Falls within JEDEC MO-153

PowerPAD is a trademark of Texas Instruments.

9,80

9,60

11,10

10,90

www.ti.com

11,10

12,60

12,4010,90

4073257/A 07/97

SLES028A – MAY 2002 – REVISED SEPTEMBER 2002

TAS5110

MECHANICAL DATA

DAD (R-PDSO-G**) PowerPAD PLASTIC SMALL-OUTLINE (DIE DOWN)

38 PINS SHOWN

0,65

1,20 MAX

0,30 0,19

0,15 0,05

0,13

6,20 NOM

Thermal Pad

(See Note D)

8,40 7,80

0,15 NOM

Gage Plane

0,25

0°–ā8°

0,75 0,50

Seating Plane

0,10

PINS **

DIM

A MAX

A MIN

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice. C. Body dimensions include mold flash or protrusion. D. The package thermal performance may be enhanced by attaching an external heatsink to the thermal pad.

This pad is electrically and thermally connected to the backside of the die and possibly selected leads.

E. Falls within JEDEC MO-153

PowerPAD is a trademark of Texas Instruments Incorporated.

11,10

10,90

11,10

12,60

12,4010,90

4073258/A 01/98

www.ti.com

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty . Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty . Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. T o minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third–party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party , or a license from TI under the patents or other intellectual property of TI.

Reproduction of information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

Mailing Address:

Texas Instruments Post Office Box 655303 Dallas, Texas 75265

TEXAS INSTRUMENTS TAS5110 Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual
