Texas Instruments Stellaris LM4F120 LaunchPad User Manual

Stellaris® LM4F120 LaunchPad Evaluation Board
User’s Manual
EK-LM4F120XL-UM-01 Copyright © 2012 Texas Instruments SMPU289
Copyright © 2012 Texas Instruments, Inc. All rights reserved. Stellaris and StellarisWare are registered trademarks of Texas Instruments. ARM and Thumb are registered trademarks, and Cortex is a trademark of ARM Limited. Other names and brands may be claimed as the property of others.
Texas Instruments 108 Wild Basin, Suite 350 Austin, TX 78746 http://www.ti.com/stellaris
2 August 29, 2012
Table of Contents
Chapter 1: Board Overview..............................................................................................................................6
Kit Contents............ ... ... ... ... .... ................................................ ... .... ... ... ... .... ... .....................................................7
Using the Stellaris® LaunchPad.........................................................................................................................7
Features..............................................................................................................................................................7
BoosterPacks......................................................................................................................................................8
Specifications......................................................................................................................................................8
Chapter 2: Hardware Description.................................................................................................................... 9
Functional Description ........ .................................................... ... .... ... ... ... .......................................................... 10
(Microcontroller, USB, Expansion, Buttons, and LED (Schematic on page 18)............................................10
Power Management (Schematic on page 19)............................................................................................... 13
Stellaris In-Circuit Debug Interface (ICDI) (Schematic on page 20) .............................................................14
Chapter 3: Software Development ................................................................................................................15
Software Description.........................................................................................................................................15
Source Code.....................................................................................................................................................15
Tool Options .....................................................................................................................................................15
Programming the Stellaris LaunchPad Evaluation Board.................................................................................15
Appendix A: Schematics................................................................................................................................17
Appendix B: Component Locations..............................................................................................................21
Appendix C: Bill of Materials (BOM) .............................................................................................................23
Appendix D: References ................................................................................................................................25
August 29, 2012 3
Stellaris® LM4F120 LaunchPad XL User’s Manual
List of Figures
Figure 1-1. Stellaris® LM4F120 LaunchPad Evaluation Board.........................................................................6
Figure 2-1. Stellaris® LaunchPad Evaluation Board Block Diagram.................................................................9
Figure B-1. Stellaris® LaunchPad Component Locations (Top View) ............................................................. 21
Figure B-2. Stellaris® LaunchPad Dimensions)...............................................................................................22
4 August 29, 2012
List of Tables
Table 1-1. EK-LM4F120XL Specifications........................................................................................................8
Table 2-1. USB Device Signals.................. .... ... ... ... ... .... ... ... ... .... ... ... ... .... ... ... ................................................ 10
Table 2-2. User Switches and RGB LED Signals..................................... ... ... ... ... .... ... ... ... .... ... ... ... ... .... ... ......10
Table 2-3. J1 Connector.................................................................................................................................11
Table 2-4. J2 Connector.................................................................................................................................11
Table 2-5. J3 Connector.................................................................................................................................12
Table 2-6. J4 Connector.................................................................................................................................12
Table 2-7. Stellaris® In-Circuit Debug Interface (ICDI) Signals......................................................................14
Table 2-8. Virtual COM Port Signals .............................................................................................................. 14
Table C-1. EK-LM4F120 Bill of Materials........................................................................................................23
August 29, 2012 5
CHAPTER 1
Board Overview
The Stellaris® LM4F120 LaunchPad Evaluation Board (EK-LM4F120XL) is a low-cost evaluation platform for ARM® Cortex™-M4F-based microcontrollers. The Stellaris® LaunchPad’s design highlights the LM4F120H5QR microcontrolle r's USB 2.0 Device interface and Hibernatio n module. The Stellaris® Lau nchPa d also fea tures pr ogra mmab le use r bu ttons a nd a n RGB LED for custo m applications. The stackable headers of the Stellaris® LM4F120 LaunchPad BoosterPack XL Interface demonstrate how easy it is to expand the functionality of th e Stellaris® LaunchPad when interfacing to other peripherals with Stellaris® BoosterPacks and MSP430™ BoosterPacks. Figure 1-1 shows a photo of the Stellaris® LaunchPad.
Figure 1-1. Stellaris® LM4F120 LaunchPad Evaluation Board
August 29, 2012 6
Kit Contents
The Stellaris® LM4F120 LaunchPad Evaluation Kit comes with the following:
Stellaris® LaunchPad Evaluation Board (EK-LM4F120XL)On-board Stellaris® In-Circuit Debug Interface (ICDI)USB Micro-B plug to USB-A plug cableREADME F irst document
Using the Stellaris® LaunchPad
The recommended steps for using the Stellaris® LM4F120 LaunchPad Evaluation Kit are:
1. Follow the README First document included in the kit. The README First document will help get the Stellaris® La unchPad up and running in minutes. See the
www.ti.com/stellaris-launchpad
2. Experiment with LaunchPad BoosterPacks. Stellaris® BoosterPacks and compatible MSP430™ BoosterPacks can be found at the www.ti.com/stellaris-launchpad
3. T ake your first step toward developing an application with Project 0 using your preferred ARM tool-chain and the Stellaris Peripheral Driver Library. Software
applications are loaded using the on-board Stellaris® In-Circuit Debug Interface (ICDI). See Chapter 3, “Software Development” on page 20, for the programming procedure. The StellarisWare Peripheral Driver Library Software Reference Manual contains specific information on software structure and function. For more information on Project 0, go to the
www.ti.com/stellaris-launchpad/project0
4. Customize and integrate the hardware to suit an end application. This user's manual is an important reference for understanding circuit operation and completing hardware modification.
web site for additional information to get started.
web site.
Board Overview
web site.
Features
The Stellaris® LaunchPad includes the following features:
Stellaris® LM4F120H5QR microcontrollerUSB Micro-B connector for USB DeviceRGB user LED2 user switches (application/wake)Available I/O brought out to headers on a 0.1" gridOn-board Stellaris® In-Circuit Debug Interface (ICDI)Switch-selectable power sources
Reset switchPreloaded RGB quickstart applicationSupported by StellarisWare® software including the USB library and the peripheral driver
ICDIUSB Device
library
August 29, 2012 7
Stellaris® LM4F120 LaunchPad User’s Manual
Stellaris® LM4F120 LaunchPad BoosterPack XL Interface which features stackable headers
to expand the capabilities of the Stellaris® LaunchPad development platform – For a complete list of available BoosterPacks that can be used with the Stellaris®
LaunchPad, see the www.ti.com/stellaris-launchpad
BoosterPacks
Stellaris® LaunchPad pr ovides an easy and inexpensive way to develop applications with the Stellaris® LM4F120H5 QR microcontroller. Stellaris® BoosterPacks and MSP430™ BoosterPacks expand the available peripherals and potential applications of the Stellaris® LaunchPad. BoosterPacks can be used with the Stellaris® LaunchPad or just use the on-board LM4F120H5QR microcontroller as its processor. See“(Microcontroller, USB, Expansion, Buttons, and LED (Schematic on page 18)” on page 10 in Chapter 2 for more information.
Build your own BoosterPack and take advantage of Texas Instruments’ web site to help promote it! From sharing a new idea or project, to designing, manufacturing, and selling your own
BoosterPack kit, TI offers a variety of avenues for you to reach potential customers with your solutions.
Specifications
Table 1-1 shows the specifications for the S tellaris® LaunchPad.
web site.
Table 1-1. EK-LM4F120XL Specifications
Parameter Value
Board supply voltage 4.75–5.25 V
Debugger (ICDI) USB Micro-B cable (connected to a PC)USB Device Micro-B cable (connected to a PC)
Dimensions 2.0" x 2.25" x 0.425" (L x W x H) Break-out power output  3.3 VDC (300 mA max)
5.0 VDC (depends on 3.3 VDC usage, 23 mA - 323 mA)
RoHS status Compliant
from one of the following sources:
DC
8 August 29, 2012
LM4F120H5QR
Stellaris ICDI
USB Debug
Connector
USB Device
Connector
Power Select
Switch
User
Switches
GPIO
GPIO
GPIO
GPIO
USB
Stellaris®
LaunchPad-Specific
BoosterPack XL
Expansion Headers
MSP430™
LaunchPad-Compatible
Expansion Headers
Device
JTAG/SWD
Power
Management
RGB LED
Debug Breakout Pads
I/O
I/O
Breakout Pads
HIB WAKE
VDD
UART0
ICDI
CHAPTER 2
Hardware Description
The Stellaris® LaunchPad includes a Stellaris LM4F120H5QR microcontroller and an integrated Stellaris® In-Circuit Debug Interface (ICDI) as well as a range of useful peripheral features (see the block diagram in Figure 2-1). This chapter describes how these peripherals operate and interface to the microcontroller.
Figure 2-1. Stellaris® LaunchPad Evaluation Board Block Diagram
August 29, 2012 9
Stellaris® LM4F120 LaunchPad User’s Manual
Functional Description

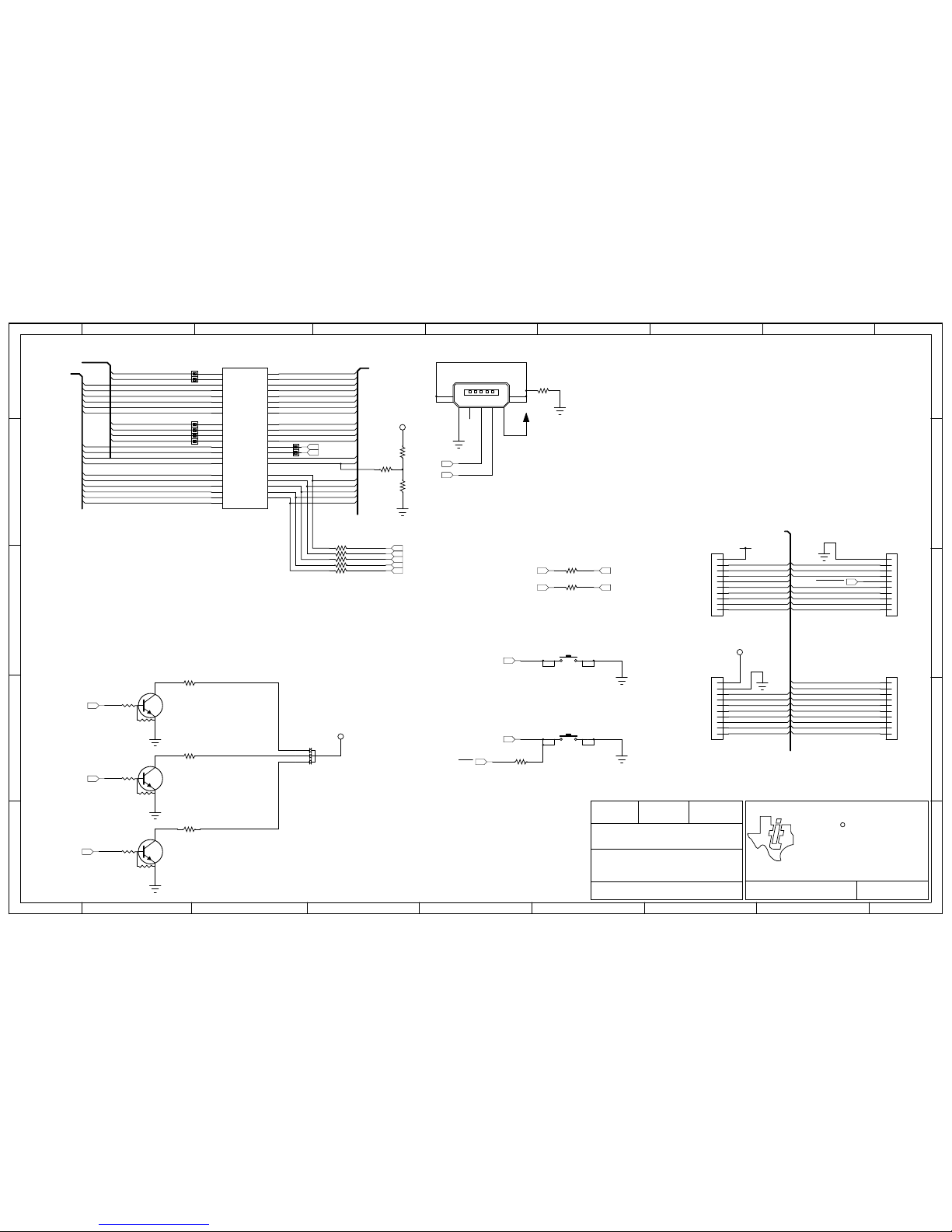

(Microcontroller, USB, Expansion, Buttons, and LED (Schematic on page 18)
Microcontroller
The Stellaris LM4F120H5QR is a 32-bit ARM® Cortex™-M4F-based microcontroller with 256-KB Flash memory, 32-KB SRAM, 80-MHz operation, USB Device, Hibernation module, and a wide range of other peripherals. See the LM4F120H5QR microcontroller data sheet (order number DS-LM4F120H5QR) for complete device details.
Most of the microcontroller signals are routed to 0.1" pitch headers. An internal multiplexer allows different peripheral functions to be assigned to each of these GPIO pads. When adding external circuitry, consider the additional load on the evaluation board’s power rails.
The LM4F120H5QR microcontroller is factory-programmed with a quickstart demo program. The quickstart program resides in on-chip Flash memory and runs each time power is applied, unless the quickstart application has been replaced with a user program.
USB Device
The Stellaris® LaunchPad includes a USB Micro-B connector to allow for USB 2.0 Device operation. The signals shown in Table 2-1 are used for USB Device.
Table 2-1. USB Device Signals
GPIO Pin Pin Function USB Device
PD4 USB0DM D­PD5 USB0DP D+
When connected as a USB Device, the evaluation board can be powered from eithe r the S tellaris® ICDI or the USB Device connectors. The user can select the power source by moving the POWER SELECT switch (SW3) to the Device position. See the Power Management schematic on page 19
User Switches and RGB User LED
The Stellaris® LaunchPad comes with an RGB LED. This LED is used in the preloaded RGB quickstart application and can be configured for use in custom applications.
Two user buttons are included on the board. The user buttons are both us e d in the prel o ad e d quickstart application to adjust the light spectrum of the RGB LED as well as go into and out of hibernation. The user buttons can be used for other purposes in the user’s custom application.
The evaluation board also has a green power LED. Table 2-2 shows how these features are connected to the pins on the microcontroller.
Table 2-2. User Switches and RGB LED Signals
GPIO Pin Pin Function Feature
PF4 GPIO SW1 PF0 GPIO SW2
10 August 29, 2012
Table 2-2. User Switches and RGB LED Signals (Continued)
GPIO Pin Pin Function Feature
PF1 GPIO RGB LED (red) PF2 GPIO RGB LED (blue) PF3 GPIO RGB LED (green)
Headers and BoosterPacks
The two double rows of stackable headers are mapped to most of the GPIO pins of the LM4F120H5QR microcontroller. These rows are labeled as connectors J1, J2, J3, and J4. Connectors J3 and J4 are located 0.1 inches inside of the J1 and J2 connectors. All 40 header pins of the J1, J2, J3, and J4 connectors make up the Stellaris® LM4F120 LaunchPad BoosterPack XL Interface. Table 2-3, Table 2-4, Table 2-5, and Table 2-6 show how these header pins are connected to the microcontro ller pins and which GPIO functions can be selected.
NOTE: To configure the device peripherals easily and intuitively using a graphical user interface
(GUI), see the Stellaris® LM4F Pinmux Utility found at www.ti.com/tool/lm4f_pinmux easy-to-use interface makes setting up alternate functions for GPIOs simple and error-free.
Table 2-3. J1 Connector
Hardware Description
. This
J1 Pin GPIO Stellaris Pin
GPIOAMSEL 1 2 3 7 8 9 14
1.01
1.02 PB5 57
1.03 PB0 45 - U1Rx - - T2CCP0 - - -
1.04 PB1 46 -
1.05 PE4 59
1.06 PE5 60 AIN8 U5Tx - I2C2SDA - CAN0Tx - -
1.07 PB4 58
1.08 PA5 22 - - SSI0Tx - - - - -
1.09 PA6 23 - - - I2C1SCL - - - -
1.10 PA7 24 - - - I2C1SDA - - - -
AIN11 - SSI2Fss - T1CCP1 CAN0Tx - -
U1Tx - - T2CCP1 - - -
AIN9 U5Rx - I2C2SCL - CAN0Rx - -
AIN10 - SSI2Clk - T1CCP0 CAN0Rx - -
GPIOPCTL Register Setting
3.3 V
Table 2-4. J2 Connector
GPIOPCTL Register Setting
J2 Pin GPIO Stellaris Pin
2.01
2.02 PB2 47 - - - I2C0SCL
2.03 PE0 9
2.04 PF0 28 - U1RTS SSI1Rx CAN0Rx T0CCP0 NMI C0o -
2.05
a
2.06
2.07
PB7 4 - - SSI2Tx - T0CCP1 - - -
b
PB6 1 - - SSI2Rx - T0CCP0 - - -
GPIOAMSEL 1 2 3 7 8 9 14
GND
T3CCP0---
AIN3 U7Rx - - - - - -
RESET
August 29, 2012 11
Stellaris® LM4F120 LaunchPad User’s Manual
Table 2-4. J2 Connector (Continued)
GPIOPCTL Register Setting
J2 Pin GPIO Stellaris Pin
GPIOAMSEL 1 2 3 7 8 9 14
2.08 PA4 21 - - SSI0Rx - - - - -
2.09 PA3 20 - - SSI0Fss - - - - -
2.10 PA2 19 - - SSI0Clk - - - - -
a. J2.06 (PB7) is also connected via 0-Ω resistor to J3.04 (PD1). b. J2.07 (PB6) is also connected via 0-Ω resistor to J3.03 (PD0).
Table 2-5. J3 Connector
GPIOPCTL Register Setting
J3 Pin GPIO Stellaris Pin
GPIOAMSEL 1 2 3 7 8 9 14
3.01
3.02 GND
3.03 PD0 61 AIN7 SSI3Clk SSI1Clk I2C3SCL WT2CCP0 - - -
3.04 PD1 62 AIN6 SSI3Fss SSI1Fss I2C3SDA WT2CCP1 - - -
3.05 PD2 63 AIN5 SSI3Rx SSI1Rx - WT3CCP0 - - -
3.06 PD3 64 AIN4 SSI3Tx SSI1Tx - WT3CCP1 - - -
3.07 PE1 8 AIN2 U7Tx - - - - - -
3.08 PE2 7 AIN1 - - - - - - -
3.09 PE3 6 AIN0 - - - - - - -
a
3.10
a. Not recommended for BoosterPack use. This signal tied to on-board function via 0-Ω resistor.
PF1 29 - U1CTS SSI1Tx - T0CCP1 - C1o TRD1
5.0V
Table 2-6. J4 Connector
J4 Pin GPIO Stellaris Pin
GPIOAMSEL 1 2 3 7 8 9 14
a
4.01
4.02
4.03 PB3 48 - - - I2C0SDA T3CCP1 - - -
4.04 PC4 16 C1- U4Rx U1Rx - WT0CCP0 U1RTS - -
4.05 PC5 15 C1+ U4Tx U1Tx - WT0CCP1 U1CTS - -
4.06 PC6 14 C0+ U3Rx - - WT1CCP0 - - -
4.07 PC7 13 C0- U3Tx - - WT1CCP1 - - -
4.08 PD6 53 - U2Rx - - WT5CCP0 - - -
4.09 PD7 10 - U2Tx - - WT5CCP1 NMI - -
4.10
PF2 30 - - SSI1Clk - T1CCP0 - - TRD0
a
PF3 31 - - SSI1Fss CAN0Tx T1CCP1 - - TRCL
a
PF4 5 - - - - T2CCP0 - - -
GPIOPCTL Register Setting
K
a. Not recommended for BoosterPack use. This signal tied to on-board function via 0-Ω resistor.
12 August 29, 2012
Connectors J1 and J2 of the Stellaris® LM4F120 LaunchPad BoosterPack XL Interface provide compatibility with MSP430™ LaunchPad BoosterPacks. Highlighted functions in Table 2-3, "J1 Connector" on page 11 and Table 2-4, "J2 Connector" on page 11 indicate configuration for compatibility with the MSP430 LaunchPad.
A complete list of Stellaris® BoosterPacks and Stellaris LaunchPad-compatible MSP430 BoosterPacks is available at www.ti.com/stellaris-launchpad
Power Management (Schematic on page 19)
Power Supplies
The Stellaris® LaunchPad can be powered from one of two power sources:
On-board Stellaris® In-Circuit Debug Interface (ICDI) USB cable (Debug, Default)USB Device cable (Device)
The POWER SELECT switch (SW3) is used to select one of the two power sources. Select only one source at a time.
Hibernate
The Stellari s® LaunchPad provides an externa l 32.768 kHz crystal (Y1) as the clock source for the LM4F120H5QR’s Hibernation module clock source. The current draw while in Hibernate mode can be measured by making some minor adjustments to the S tellaris® LaunchPa d. This is explained in more detail later in this section.
Hardware Description
.
Clocking
The conditions that can generate a wake signal to the Hibernate module on the Stellaris® LaunchPad are waking on a Real-time Clock (RTC) match and/or waking o n assertion of the WAKE
1
pin.
The second user switch (SW2) is connected to the WAKE pin on the microcontroller. The
WAKE
pin, as well as the VDD and HIB pins, are easily accessible through breakout pads on the
Stellaris® LaunchPad. See Appendix A, “Schematics” on page 22 for details. There is no external battery source on the Stellaris® LaunchPad Hibernation module, which
means the VDD3ON power control mechanism should be used. This mechanism uses internal switches to remove power from the Cortex-M4F processor as well as to most analog and digital functions while retaining I/O pin power.
To measure the Hibernation mode current or the Run mode current, the V
jumper that connects
DD
the 3.3 V pin and the MCU_PWR pin must be removed. See Appendix A, “Schematics” on page 17 for details on these pins and component locations. An ammeter should then be placed between the 3.3 V pin and the MCU_PWR pin to measure I LM4F120H5QR microcontroller uses V so I
is the Hibernation mode (VDD3ON mode) current. This measurement can also be taken
DD
during Run mode, which measures I
as its power source during V
DD
the microcontroller running current.
DD
DD
(or I
HIB_VDD3ON
). The
Hibernation mode,
DD3ON
The Stellaris® LaunchPad uses a 16.0-MHz crystal (Y2) to complete the LM4F120H5QR microcontroller's main internal clock circuit. An internal PLL, configured in software, multiples this clock to higher frequencies for core and peripheral timing.
The Hibernation module is clocked from an external 32.768 kHz crystal (Y1).
1. If the board does not turn on when you connect it to a power source, the microcontroller might be in Hibernate mode (depending on the programmed application). You must satisfy one of the programmed wake conditions and connect the power to bring the microcontroller out of Hibernate mode and turn on the board.
August 29, 2012 13
Stellaris® LM4F120 LaunchPad User’s Manual
Reset
The RESET signal into the LM4F120H5QR microcontroller conne cts to the RESET switch and to the Stellaris® ICDI circuit for a debugger-controlled reset.
External reset is asserted (active low) under any of three conditions:
Power-on reset (filtered by an R-C network)RESET switch held downBy the Stellaris® ICDI circuit when instructed by the debugger (this capability is optional, and
may not be supported by all debuggers)
Stellaris In-Circuit Debug Interface (ICDI) (Schematic on page 20)
Stellaris® In-Circuit Debug Interface (ICDI)
The Stellaris® LaunchPad evaluation board comes with an on-board Stellaris® In-Circuit Debug Interface (ICDI). The Stellaris® ICDI allows for the programming and debug of the LM4F120H5QR using LM Flash Programmer and/or any of the supported tool chains. Both JTAG and Serial Wire Debug (SWD) are supported.
Table 2-7 shows the pins used for JTAG and SWD. These signals are also mapped out to easily accessible breakout pads and headers on the board.
Table 2-7. Stellaris® In-Circuit Debug Interface (ICDI) Signals
GPIO Pin Pin Function
PC0 TCK/SWCLK PC1 TMS/SWDIO PC2 TDI PC3 TDO/SWO
Virtual COM Port
When plugged in to a PC, the device enumerates as a debugger and a virtual COM port. Table 2-8 shows the connections for the COM port to the pins on the microcontroller.
Table 2-8. Virtual COM Port Signals
GPIO Pin Pin Function
PA0 U0RX PA1 U0TX
14 August 29, 2012
CHAPTER 3
Software Development
This chapter provides general information on software development as well as instructions for Flash memory programming.
Software Description
The StellarisWare® software provided with the Stellaris® LaunchPad provides access to all of the peripheral devices supplied in the design. The Stellaris® Peripheral Driver Library is used to operate the on-chip peripherals as part of StellarisWare®.
StellarisWare® includes a set of example applications that use the StellarisWare® Peripheral Driver Library. These applications demonstrate the capabilities of the LM4F120H5QR microcontroller, as well as provide a starting point for the development of the final application for use on the Stellaris® LaunchPad evaluation board.
Source Code
The complete source code including the source code installation instructions are provided at
www.ti.com/stellaris-launchpad
tree.
. The source code and binary files are installed in the DriverLib
Tool Options
The source code installation includes directories containing projects and/or makefiles for the following tool-chains:
Keil ARM RealView® Microcontroller Development SystemIAR Embedded Workbench for ARMSour ce ry Co deBe nchTexas Instruments' Code Composer Studio™ IDE
Download evaluation versions of these tools from www.ti.com/stellaris. Due to code size restrictions, the evaluation tools may not build all example p rograms. A full license is necessary to re-build or debug all examples.
Instructions on installing and using each of the evaluation tools can be found in the Quickstart guides (for example, Quickstart-Keil, Quickstart-IAR) which are available for download from the evaluation kit section of our web site at www.ti.com/stellaris
For detailed information on using the tools, see the documentation included in the tool chain installation or visit the web site of the tools supplier.
.
Programming the Stellaris LaunchPad Evaluation Board
The Stellaris® LaunchPad software package includes pre-built binaries for each of the example applications. If you installed StellarisWare® to the default installation path of C:\StellarisWare, you can find the example applications in “C:\StellarisWare\boards\ek-lm4f120xl”. The on-board Stellaris ICDI is used with the Stellaris LM Flash Programmer tool to program applications on the Stellaris® LaunchPad.
August 29, 2012 15
Stellaris® LM4F120 LaunchPad User’s Manual
Follow these steps to program example applications into the Stellaris® LaunchPad evaluation board using the Stellaris® ICDI:
1. Install LM Flash Programmer on a Windows PC.
2. Switch the POWER SELECT switch to the right for Debug mode.
3. Connect the USB-A cable plug to an available port on the PC and the Micro-B plug to the
'Debug' USB port on the board.
4. Verify that the POWER LED D4 on the board is lit.
5. Run LM Flash Programmer.
6. In the Configuration tab, use the Quick Set control to select the EK-LM4F120XL evaluation
board.
7. Move to the Program tab and click the Browse button. Navigate to the example applications directory (the default location is “C:\StellarisWare\boards\ek-lm4f120xl\”).
8. Each example application has its own directory. Navigate to the example directory that you want to load and then into the directory which co ntains the binary (*.bin) files. Select the binary file and click Open.
9. Set the “Erase Method” to “Erase Necessary Pages,” check the “Verify After Program” box, and check “Reset MCU After Program”.
10. Click the Program button to start the Erase, Download, and Verify process.
Program execution starts once the Verify process is complete.
16 August 29, 2012
APPENDIX A
Schematics
This section contains the schematics for the Stellaris® LaunchPad board.
Microcontroller, USB, Expansion, Buttons, and LED on page 18Power Management on page 19Stellaris In-Circuit Debug Interface (ICDI) on page 20
August 29, 2012 17
Microcontroller, U SB, Expansion, Bu tton s and LED
Stellaris Launch pad
EK-LM4F120XL
0.1DGT
STELLARI S M ICROCO N T R OLLERS
www.ti.com/stellaris
AUSTIN TX, 78746
108 WILD BASI N R O AD, SU ITE 350
TEXAS I N ST R UMENTS
8/23/2012
EK-LM4F120XL Rev A.sch OF13
SHEETPART NO .
DATEREVISIONDESIGNER
FILENAME
DESCRIPTION
PROJECT
R
J1 and J2 provide compatability w ith Booster Packs designed for MSP430 Lau n ch pad
Used for VBUS detect ion w h en configured as a self-pow ered U SB Dev ice
J3 and J4 sit 100 mils inside J1 and J2 to provide extended fu nctions specific to this board. See the board user m anual for com plete table of pin m u x functions
1VB2D-3D+4ID5
G
68
97
J9
CON-USB-MICROB
1 2 3 4 5 6 7 8 9 10
J1
CON_110_100
1 2 3 4 5 6 7 8 9
10
J2
CON_110_100
SW1
SW2
R6
10k
R7
1M
R8 330
1 2 3 4 5 6 7 8 9 10
J3
CON_110_100
1 2 3 4 5 6 7 8 9
10
J4
CON_110_100
1
PB6
4
PB7
5
PF4
6
PE3
7
PE2
8
PE1
9
PE0
10
PD7
13
PC7
14
PC6
15
PC5
16
PC4
17
PA0
18
PA1
19
PA2
20
PA3
21
PA4
22
PA5
23
PA6
24
PA7
28
PF0
29
PF1
30
PF2
31
PF3
43
PD4
44
PD5
45
PB0
46
PB1
47
PB2
48
PB3
49
PC3
50
PC2
51
PC1
52
PC0
53
PD6
58
PB4
57
PB5
59
PE4
60
PE5
61
PD0
62
PD1
63
PD2
64
PD3
U1-A
LM4F120
1
A
2
R
3
G
4
B
D1
RGB_LED_0404_COMA
R9
0
R10
0
R1
0
R2
0
R11
0
R12
0
R13
0
R14
0
R15
0
R4 330
B
E
C
Q2
DTC114EET1G
R3 330
B
E
C
Q1
DTC114EET1G
R5 330
B
E
C
Q3
DTC114EET1G
USB_DM
USB_DP
DEBUG/VCOM
GPIO
GPIO
PA2 PA3 PA4 PA5 PA6 PA7
PB0 PB1 PB2 PB3 PB4 PB5 PB6 PB7
PC4 PC5 PC6 PC7
PD0 PD1 PD2 PD3
PD6 PD7
PE0 PE1 PE2 PE3 PE4 PE5
PA0/U0RX_VCP_TXD PA1/U0TX_VCP_RXD
DEBUG_PC0/TCK/SW CLK DEBUG_PC1/TM S/ SW DIO DEBUG_PC2/TDI DEBUG_PC3/TDO / SW O
USB_DM USB_DP
USR_SW2
USR_SW1
GPIO
PB0 PB1
PB4
PB7 PB6
+3.3V
USR_SW2
USR_SW1
+USB_VBUS
+USB_VBUS
WAKE
PB6
PB7
TARGETRST
PF4
PF3
PF2
PF1
PF0
PF4
PD7
+VBUS
PF2 PF3
PB2
+VBUS
LED_B
PB5
PE4 PE5
PA6
PA2
PA3
PA4
PF0
PE0
PF1
PB3 PC4 PC5 PC6 PC7 PD6
PA5 PA7
PD0 PD1 PD2 PD3 PE1 PE2 PE3
PD0
PD1
LED_G
LED_R
LED_R LED_B LED_G
Microcontroller, USB, Expansion, Buttons, and LED
Power Man agem en t
Stellaris Launch pad
EK-LM4F120XL
0.1DGT
STELLARI S M ICROCO N T R OLLERS
www.ti.com/stellaris
AUSTIN TX, 78746
108 WILD BASI N R O AD, SU ITE 350
TEXAS I N ST R UMENTS
8/23/2012
EK-LM4F120XL Rev A.sch OF23
SHEETPART NO .
DATEREVISIONDESIGNER
FILENAME
DESCRIPTION
PROJECT
R
+3.3V 400mA R eg ulator
Power Select
RESET
H24 and H 25 install ed as a single 1x 2 header on 100 m il cen ter w ith jumper
8
IN
5
EN
1
OUT
3
NR
4
GND9PAD
U8
TPS73633DRB
C18
0.01uF D4
Green
R27
330
C3
0.01uFC40.1uFC50.01uFC60.1uFC80.01uF
C10
0.1uF
C11
0.1uF
R31
1M
H1
C31 10pF
C32 10pF
Y2
16MHz
C29
24pF
C28
24pF
R28 10k
RESET
C13
0.1uF OMIT
H2
C22
2.2uF
H17
H18
H19
H20
H21
2
VDDA
3
GNDA
11
VDD
12
GND
25
VDDC
26
VDD
27
GND
32
WAKE
33
HIB
34
XOSC0
35
GNDX
36
XOSC1
37
VBAT
38
RESET
39
GND
40
OSC0
41
OSC1
42
VDD
54
VDD
55
GND56VDDC
U1-B
LM4F120
Y1
32.768Khz
1
2
3
4
5
6
SW3
H22H23
R26
0
R30
0
OMIT
H11 H12
H10H13
H24 H25
1
A
2
A
3 K
D2
R17 10k
1
GND
2
RESET
3
VDD
U4
TLV803
C7
1.0uF
C12
1.0uF
C14
1.0uF
+3.3V
+VBUS
WAKE
TARGETRST
+USB_VBUS
+ICDI_VBU S
+VBUS
+MCU_VDDC
+MCU_PWR
+3.3V
HIB
TARGETRST ICDI_RST
+3.3V
+VBUS
+MCU_PWR
Power Management
SStellaris In Circuit Debu g I n terf ace
Stellaris Launch pad
EK-LM4F120XL
0.1 8/23/2012DGT
STELLARI S M ICROCO N T R OLLERS
www.ti.com/stellaris
AUSTIN TX, 78746
108 WILD BASI N R O AD, SU ITE 350
TEXAS I N ST R UMENTS
EK-LM4F120XL Rev A.sch OF33
SHEETPART NO .
DATEREVISIONDESIGNER
FILENAME
DESCRIPTION
PROJECT
R
ICDI J T AG
Stellaris In-Circuit Debug Interface (ICDI)
5 4 3 2 1
6 7 8 9 10
J5
TC2050-IDC-NL
C15
0.01uF
C17
0.1uF
C19
0.01uF
C20
0.1uF
C21
0.01uF
C23
0.1uF
C24
0.1uF
C25 10pF
C26 10pF
Y5
16MHz
R19 10k
C34
0.1uF OMIT
R21 10k
R22 10k
C9
2.2uF
R18 10k
R23 10k
H14
1
VB
2
D-
3
D+
4
ID
5
G
68
97
J11
CON-USB-MICROB
R24
330
H15
1
PB6
4
PB7
5
PF4
6
PE3
7
PE2
8
PE1
9
PE0
10
PD7
13
PC7
14
PC6
15
PC5
16
PC4
17
PA0
18
PA1
19
PA2
20
PA3
21
PA4
22
PA5
23
PA6
24
PA7
28
PF0
29
PF1
30
PF2
31
PF3
43
PD4
44
PD5
45
PB0
46
PB1
47
PB2
48
PB3
49
PC3
50
PC2
51
PC1
52
PC0
53
PD6
58
PB4
57
PB5
59
PE4
60
PE5
61
PD0
62
PD1
63
PD2
64
PD3
U2-A
LM4F120
2
VDDA
3
GNDA
11
VDD
12
GND
25
VDDC
26
VDD
27
GND
32
WAKE
33
HIB
34
XOSC0
35
GNDX
36
XOSC1
37
VBAT
38
RESET
39
GND
40
OSC0
41
OSC1
42
VDD
54
VDD
55
GND56VDDC
U2-B
LM4F120
R16
0
C1
1.0uF
C2
1.0uF
R20
0
ICDI_T M S
ICDI_T CK
ICDI_T DO ICDI_T DI ICDI_RST
+3.3V
+3.3V
+3.3V
ICDI_T CK ICDI_T M S
ICDI_T DI
ICDI_T DO
ICDI_RST
+3.3V
DEBUG/VCOM
PA1/U0TX_VCP_RXD PA0/U0RX_VCP_TXD
DEBUG_PC0/TCK/SW CLK DEBUG_PC1/TM S/ SW DIO DEBUG_PC3/TDO / SW O DEBUG_PC2/TDI
TARGETRST
EXTDBG
DEBUG_PC3/TDO / SW O
DEBUG_PC1/TM S/ SW DIO DEBUG_PC0/TCK/SW CLK
+3.3V +I CDI_VBUS
+MCU_PWR
Stellaris In-Circuit Debug Interface (ICDI)
APPENDIX B
Component Locations
Plots of the top-side component locations are shown in Figure B-1 and the board dimensions are shown in Figure B-2.
Figure B-1. Stellaris® LaunchPad Component Locations (Top View)
August 29, 2012 21
Stellaris® LM4F120 LaunchPad User’s Manual
NOTE: Units are in mil (one thousandth of an inch):
1 mil = 0.001 inch
Figure B-2. Stellaris® LaunchPad Dimensions)
22 August 29, 2012
APPENDIX C
Bill of Materials (BOM)
Table C-1 shows the Bill of Materials for the EK-LM4F120XL evaluation board.
Table C-1. EK-LM4F120 Bill of Materials
Item Ref Qty Description Mfg Part Number
1 C1-2 C7 C12 C14 5 Capacitor, 0402, X5R, 10V, Low ESR Johanson
Dielectrics Inc
2 C25-26 C31-32 4 Capacitor, 10pF , 50V , 5%, NPO/COG,
0402
3 C28-29 2 Capacitor, 24pF , 50V , 5%, NPO/COG,
0402
4 C3 C5 C8 C15
C18-19 C21
5 C4 C6 C10-11 C17
C20 C23-24
6 C9 C22 2 Capacitor, 2.2uF, 16V, 10%, 0603,
7 D1 1 LED, Tri-Color RGB, 0404 SMD
8 D2 1 DIODE, Dual Schottky, SC70, BAS70
9 D4 1 LED, Green 565nm, Clear 0805 SMD Lite-On L T ST-C171GKT
7 Capacitor, 0.01uF 25V, 10% 0402
X7R
8 Capacitor, 0.1uF 16V, 10% 0402 X7R Taiyo Yuden EMK105B7104KV-F
X5R
Common Anode
Common Cathode
Murata GRM1555C1H100JZ0
TDK C1005C0G1H240J
Taiyo Yuden TMK105B7103KV-F
Murata GRM188R61C225KE1
Everlight 18-038/RSGHBHC1-S
Diodes Inc BAS70W-05-7-F
Lite-On LTST-C171GKT
100R07X105KV4T
1D
5D
02/2T
10 H24 1 Header, 1x2, 0.100, T-Hole, Vertical
1 1 H25 1 Jumper, 0.100, Gold, Black, Closed Sullins SPC02SYAN 12 J1 J4 2 Header, 2x10, T-Hole Vertical
13 J9 J11 2 USB Connectors MICRO B RECEPT
14 Q1-3 3 NPN SC70 pre-biased Diodes Inc DTC114EET1G 15 R1-2 R9-16 R20
R26
16 R3-5 R8 R27 5 Resistor, 330 ohm, 1/10W , 5%, 0402 Y ageo RC0402FR-07330RL
August 29, 2012 23
12 Resistor, 0 OHM 1/10W 0603 SMD Panasonic ERJ-3GEY0R00V
3M 961102-6404-AR
Unshrouded, 0.220 Mate
FCI 68001-102HLF
Samtec SSW-110-23-S-D
unshrouded stacking
Hirose ZX62-B-5PA
RA SMT BTTM MNT
Stellaris® LM4F120 LaunchPad User’s Manual
Table C-1. EK-LM4F120 Bill of Materials (Cont inued)
Item Ref Qty Description Mfg Part Number
17 R6 R17-19 R21-23
R28
8 Resistor, 10k ohm, 1/10W, 5%, 0402
Thick Film
Yageo RC0402FR-0710KL
18 R7 R31 2 Resistor, 1M Ohm 1/10W, 5%, 0402 Rohm MCR01MRTF1004 19 RESET SW1 SW2 3 Switch, Tact 6mm SMT, 160gf Omron B3S-1000 20 SW3 1 Switch, DPDT, SMT 300 mA*2 @ 6V C&K
JS202011SCQN
Components
21 U1 U2 2 Stellaris MCU LM4F120H5QRFIGA3 Texas
LM4F120H5QRFIG
Instruments
22 U4 1 I C, Single Voltage Supervisor, 5V,
DBV
23 U8 1 Reg ualtor, 3.3V, 400mA, LDO Texas
Texas Instruments
TL V803MDBZR
TPS73633DRBT
Instruments
24 Y1 1 Crystal, 32.768KHz Radial Can Abracon AB26TRB-32.768KHZ-
T
25 Y2 Y5 2 Crystal, 16.00MHz 5.0x3.2mm SMT NDK NX5032GA-16.000000
MHZ
Abracon ABM3-16.000MHZ-B2-
T PCB Do Not Populate List (Shown for information only) 26 C31 C34 2 Capacitor, 0.1uF 16V, 10% 0402 X7R Taiyo Yuden EMK105B7104KV-F
27 R24 1 Resistor, 330 ohm, 1/10W, 5%, 0402 Yageo RC0402FR-07330RL 28 R30 1 Resistor, 0 OHM 1/10W 0603 SMD Panasonic ERJ-3GEY0R00V
24 August 29, 2012
APPENDIX D
References
In addition to this document, the following references are included on the Stellaris LM4F120H5QR Evaluation Kit CD and are also available for download at www.ti.com
Stellaris LM4F120H5QR Microcontroller Data Sheet, publication DS-LM4F120H5QRStellarisWare Driver Library
StellarisWare Driver Library User’s Manual, publication SW-DRL-UG
Additional references include:
Low- Dr op ou t Re gu lat or with Reverse Current Protection Data Sheet (TPS73633DRB)Voltage Supervisor Data Sheet (TLV803)
Information on development tool being used:
RealView MDK web site, www.keil.com/arm/rvmdkkit.aspIAR Embedded Workbench web site, www.iar.comSourcery CodeBench development tools web site,
www.codesourcery.com/gnu_toolchains/arm
Texas Instruments’ Code Composer Studio™ IDE web site, www.ti.com/ccs
.
August 29, 2012 25
IMPORTANT NOTICE
Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46C and to discontinue any product or service per JESD48B. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.
TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily performed.
TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide adequate design and operating safeguards.
TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.
Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.
Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.
Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use of any TI components in safety-critical applications.
In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and requirements. Nonetheless, such components are subject to these terms.
No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties have executed a special agreement specifically governing such use.
Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and regulatory requirements in connection with such use.
TI has specifically designated certain components which meet ISO/TS16949 requirements, mainly for automotive use. Components which have not been so designated are neither designed nor intended for automotive use; and TI will not be responsible for any failure of such components to meet such requirements.
Products Applications
Audio www.ti.com/audio Automotive and Transportation www.ti.com/automotive Amplifiers amplifier.ti.com Communications and Telecom www.ti.com/communications Data Converters dataconverter.ti.com Computers and Peripherals www.ti.com/computers DLP® Products www.dlp.com Consumer Electronics www.ti.com/consumer-apps DSP dsp.ti.com Energy and Lighting www.ti.com/energy Clocks and Timers www.ti.com/clocks Industrial www.ti.com/industrial Interface interface.ti.com Medical www.ti.com/medical Logic logic.ti.com Security www.ti.com/security Power Mgmt power.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video RFID www.ti-rfid.com OMAP Mobile Processors www.ti.com/omap TI E2E Community e2e.ti.com Wireless Connectivity www.ti.com/wirelessconnectivity
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2012, Texas Instruments Incorporated
Loading...
