SN75LVCP601

www.ti.com

SLLSE41 –JUNE 2010

Two-Channel SATA 6-Gb/s Redriver

Check for Samples: SN75LVCP601

FEATURES

• 1.5/3/6-Gbps Two-Channel Redriver • High Protection Against ESD Transient

• Integrated Output Squelch – HBM: 10,000 V

• Programmable Rx/Tx Equalization and – CDM: 1,500 V De-Emphasis Width Control

• Power-Save Feature Lowers Power by >80% in Auto Low-Power Mode

• Low Power APPLICATIONS – <220 mW Typ – <50 mW (in Auto Low-Power Mode) – <5m W (in Standby Mode)

• Excellent Jitter and Loss Compensation Capability to Over 24-Inch (61-cm) FR4 Trace

DESCRIPTION

SN75LVCP601 is a dual-channel, single-lane SATA redriver and signal conditioner supporting data rates up to 6 Gbps. The device complies with SATA physical link 2m and 3i specifications. SN75LVCP601 operates from a single 3.3-V supply and has 100-Ω line termination with a self-biasing feature, making the device suitable for ac coupling. The inputs incorporate an out-of-band (OOB) detector, which automatically squelches the output while maintaining a stable common-mode voltage compliant to the SATA link. The device is also designed to handle spread-spectrum clocking (SSC) transmission per the SATA specification.

The SN75LVCP601 handles interconnect losses at both its input and output. The input stage of each channel offers selectable equalization settings that can be programmed to match the loss in the channel. The differential outputs provide selectable de-emphasis to compensate for the distortion that the SATA signal is expected to experience. The level of equalization and de-emphasis settings depends on the length of interconnect and its characteristics. Both equalization and de-emphasis levels are controlled by the setting of signal control pins EQ1, EQ2, DE1, and DE2.

The device is hot-plug capable (requires the use of ac-coupling capacitors at differential inputs and outputs), preventing device damage under device hot-insertion, such as async signal plug/removal, unpowered plug/removal, powered plug/removal, or surprise plug/removal.

• 20-Pin 4 × 4 QFN Package

– MM: 200 V

• Pin-Compatible to LVCP412A/MAX4951

• Notebooks, Desktops, Docking Stations, Servers. and Workstations

ORDERING INFORMATION

PART NUMBER PART MARKING PACKAGE

SN75LVCP601RTJR LVC601 20-pin RTJ, reel (large) SN75LVCP601RTJT LVC601 20-pin RTJ, reel (small)

(1) For the most current package and ordering information, see the Package Option Addendum at the end of this document, or see the TI

Web site at www.ti.com.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of the Texas Instruments standard warranty. Production processing does not necessarily include testingof all parameters.

(1)

ICH

HDD

eSATA

Cable

eSATA

connector

PC/WSMB

R = SN75LVCP601

ICH

Notebook

Dock

Dock Connector

PC/Workstation

Motherboard

NotebookDock

HDD

eSATA Cable

(2m)

eSATA

connector

SATA 6GHost

HDD

DTMB

DesktopMainBoard

iSATA

connector

SN75LVCP601

SLLSE41 –JUNE 2010

These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

www.ti.com

Figure 1. Typical Application

Product Folder Link(s): SN75LVCP601

RX1P [1]

CTRL

VBB= 1.7 V TYP

Equalizer

Driver

OOB

Detect

OOB

Detect

SN75LVCP601

TX1P [15]

RX1N [2]

TX1N [14]

RX2N [12]

RX2P [11]

TX2N [4]

TX2P [5]

EN[7]

DE2[8]

DE1[9]

VCC[10,20]

GND[3,13,18]

EQ1[17]

EQ2[19]

DEW1 [16]

DEW2 [6]

SN75LVCP601

www.ti.com

SLLSE41 –JUNE 2010

NAME PIN DESCRIPTION NAME PIN DESCRIPTION

RX1P 1 Input 1, non-inverting RX2P 11 Input 2, non-inverting RX1N 2 Input 1, inverting RX2N 12 Input 2, inverting GND 3 Ground GND 13 Ground TX2N 4 Output 2, inverting TX1N 14 Output 1, inverting TX2P 5 Output 2, non-inverting TX1P 15 Output 1, non-inverting

(1)

DEW2

(1)

(2)

DE2

(2)

DE1 Vcc 10 3.3-V supply Vcc 20 3.3-V supply

(1) DEW1/2, EN tied to Vcc via internal PU resistor (2) DE1, DE2, EQ1, EQ2 are tied to Vcc/2 via internal resistor

6 De-emphasis width cntrl.-CH 2 DEW1 7 Enable EQ1 8 De-emphasis CH2 GND 18 Ground 9 De-emphasis CH1 EQ2

Figure 2. Data Flow Block Diagram

PIN TABLE

(1)

(2)

16 De-emphasis width cntrl.-CH 1 17 EQ control CH 1

19 EQ control CH 2

Product Folder Link(s): SN75LVCP601

RX1P

RX1N

GND

TX2 N

TX2 P

VCC

DE 2

DE 1

DEW 2

RX2P

RX2N

GND

TX1 N

TX1 P

EQ 2

EQ 1

VCC

DEW 1

GND

LVCP601RTJ

Thermal Pad must

be soldered to PCB

GND plane for

efficient thermal

performance

Bottom View

RX1P

RX1N

GND

TX2 N

TX2 P

DEW 2

DE 1

DE 2

VCC

RX2P

RX2N

GND

TX1 N

TX1 P

VCC

DEW 1

EQ 2

EQ 1

GND

LVCP601RTJ

Top View

SN75LVCP601

SLLSE41 –JUNE 2010

www.ti.com

PACKAGE PINOUT

PIN FUNCTIONS

NO. NAME

HIGH-SPEED DIFFERENTIAL I/O

2 RX1N I, CML 1 RX1P I, CML 12 RX2N I, CML 11 RX2P I, CML 14 TX1N O, CML 15 TX1P O, CML 4 TX2N O, CML 5 TX2P O, CML

CONTROL PINS

4 EN I, LVCMOS Device enable/disable pin, internally pulled to Vcc. See Table 2. 8, 9 DE1, DE2 17, 19 EQ1, EQ2 16, 6 DEW1, DEW2 I, LVCMOS De-emphasis width control for CH 1 and CH 2. See Table 2.

POWER

10, 20 Vcc Power Positive supply should be 3.3 V ± 10%. 3, 13, 18 GND Power Supply ground

(1) Internally biased to Vcc/2 with >200-kΩ pullup/pulldown. When 3-state pins are left as NC, board leakage at the pin pad must be <1 µA;

otherwise, drive to Vcc/2 to assert mid-level state.

(1)

PIN TYPE DESCRIPTION

Non-inverting and inverting CML differential input for CH 1 and CH 2. These pins are tied to an internal voltage bias by a dual-termination resistor circuit.

Non-inverting and inverting CML differential output for CH 1 and CH 2. These pins are internally tied to voltage bias by termination resistors.

I, LVCMOS Selects de-emphasis settings for CH 1 and CH 2 per Table 1. Internally tied to Vcc/2 I, LVCMOS Selects equalization settings for CH 1 and CH 2 per Table 1. Internally tied to Vcc/2

Product Folder Link(s): SN75LVCP601

16 in. (40.6 cm)

24 in. (61 cm)

SATA Host

Redriver

Redriver on Motherboard

Main Board

SATA Host

Redriver

Dock Board

Redriver on Dock Board

SATA Connector

16 in. (40.6 cm)

8 in.

(20.3 cm)

8 in.

(20.3 cm)

24 in. (61 cm)

SN75LVCP601

www.ti.com

Table 1. Tx/Rx EQ and DE Pulse-Duration Settings

DE1/DE2 EQ1/EQ2

NC (default) –4 NC (default) 0

0 0 0 7 1 –2 1 14

DEW1/DEW2 Device Function → DE Width for CH1/CH2

0 De-emphasis pulse duration, short (recommended setting when link operates at SATA

1 (default) De-emphasis pulse duration, long (recommended setting when link operates at SATA

CH1/CH2De-Emphasis CH1/CH2Equalization

dB (at 6Gbps) dB (at 6Gbps)

1.5/3/6 Gbps)

1.5/3 Gbps speed only)

Table 2. Control Pin Settings

EN Device Function → Standby Mode

0 Device in standby mode

1 (default) Device enabled

SLLSE41 –JUNE 2010

NOTE: *Trace lengths are suggested values based on TI spice simulations (done over programmable limits of input EQ and

output de-emphasis) to meet SATA loss and jitter spec. Actual trace length supported by the LVCP601 may be more or less than suggested values and depends on board

layout, trace widths, and number of connectors used in the SATA signal path.

Figure 3. Trace Length Example* for LVCP601

Product Folder Link(s): SN75LVCP601

3.3 V

LVCP601 RTJ

RX1P

RX1N

TX2N

TX2P

TX1P

TX1N

RX2N

RX2P

10 nF

EQ2

EQ1

DEW1

1.0 Fm

SATA Host

SATA

Connector

DEW2

DE1

DE2

Vcc

SN75LVCP601

SLLSE41 –JUNE 2010

(1) Place supply capacitors close to device pin. (2) EN can be left open or tied to supply when no external control is implemented. (3) Output de-emphasis selection is set at –2 dB, EQ at 7 dB, and DE duration for SATA I/II/III operation for both

channels.

(4) Actual EQ/DE duration settings depend on device placement relative to host and SATA connector.

Figure 4. Typical Device Implementation

www.ti.com

OPERATION DESCRIPTION

INPUT EQUALIZATION

Each differential input of the SN75LVCP601 has programmable equalization in its front stage. The equalization setting is shown in Table 1. The input equalizer is designed to recover a signal even when no eye is present at the receiver, and effectively supports FR4 trace at the input anywhere from 4 in. (10.2 cm) to 20 in. (50.8 cm) at SATA 6G speed.

OUTPUT DE-EMPHASIS

The SN75LVCP601 provides the de-emphasis settings shown in Table 1. De-emphasis is controlled independently for each channel, and is set by the control pins DE1 and DE2 as shown in Table 1. There are two de-emphasis duration settings available in the device. DEW1 and DEW2 control the DE durations for channels one and two, respectively. The recommended settings for these control pins are listed Table 1. Output de-emphasis is capable of supporting FR4 trace at the output anywhere from 2 in. (5.1 cm) to 12 in. (30.5 cm) at SATA 3G/6G speed.

LOW-POWER MODE

Two low-power modes are supported by the SN75LVCP601, listed as follows:

1. Standby mode (triggered by the EN pin, EN = 0 V) – Low-power mode is controlled by the enable (EN) pin. In its default state, this pin is internally pulled high.

Pulling this pin LOW puts the device in standby mode within 2 µs (max). In this mode, all active components of the device are driven to their quiescent level, and differential outputs are driven to Hi-Z (open). Maximum power dissipation in this mode is 5 mW. Exiting from this mode to normal operation requires a maximum latency of 5 µs.

Product Folder Link(s): SN75LVCP601

SN75LVCP601

www.ti.com

SLLSE41 –JUNE 2010

2. Auto low-power mode (triggered when a given channel is in the electrically idle state for more than 100 µs and EN = Vcc)

– The device enters and exits low-power mode by actively monitoring the input signal (VIDp-p) level on

each of its channels independently. When the input signal on either or both channels is in the electrically idle state, i.e., VIDp-p < 50 mV and stays in this state for >100 µs, the associated channel(s) enters into the low-power state. In this state, output of the associated channel(s) is driven to VCM and the device selectively shuts off some circuitry to lower power by >80% of its normal operating power. Exit time from the auto low-power mode is <50 ns.

Out-of-Band (OOB) SUPPORT

The squelch detector circuit within the device enables full detection of OOB signaling as specified in the SATA specification. Differential signal amplitude at the receiver input of 50 mVpp or less is not detected as an activity and hence not passed to the output. Differential signal amplitude of 150 mVp-p or more is detected as an activity and therefore passed to the output, indicating activity. Squelch circuit ON/OFF time is 5 ns, maximum. While in squelch mode, outputs are held to VCM.

DEVICE POWER

The SN75LVCP601 is designed to operate from a single 3.3 V supply. Always practice proper power-supply sequencing procedure. Apply Vcc first, before any input signals are applied to the device. The power-down sequence is in reverse order.

ABSOLUTE MAXIMUM RATINGS

over operating free-air temperature range (unless otherwise noted)

Supply voltage range Voltage range Differential I/O –0.5 to 4 V

Electrostatic discharge Charged-device model

Continuous power dissipation See Thermal Table

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings

only, and functional operation of the device at these or any conditions beyond those indicated under Recommended Operating Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) All voltage values, except differential voltages, are with respect to the network ground terminal. (3) Tested in accordance with JEDEC Standard 22, Test Method A114-B. (4) Tested in accordance with JEDEC Standard 22, Test Method C101-A. (5) Tested in accordance with JEDEC Standard 22, Test Method A115-A.

(2)

Control I/O –0.5 to Vcc + 0.5 V Human-body model

Machine model

(3)

(4)

(5)

(1)

VALUE UNIT

–0.5 to 4 V

±10,000 V

±1500 V

±200 V

THERMAL INFORMATION

SN75LVCP601

THERMAL METRIC

JCtop

(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953. (2) The junction-to-ambient thermal resistance under natural convection is obtained in a simulation on a JEDEC-standard, high-K board, as

specified in JESD51-7, in an environment described in JESD51-2a.

(3) The junction-to-case (top) thermal resistance is obtained by simulating a cold plate test on the package top. No specific

JEDEC-standard test exists, but a close description can be found in the ANSI SEMI standard G30-88.

(4) The junction-to-board thermal resistance is obtained by simulating in an environment with a ring cold plate fixture to control the PCB

temperature, as described in JESD51-8.

Junction-to-ambient thermal resistance Junction-to-case (top) thermal resistance Junction-to-board thermal resistance

Product Folder Link(s): SN75LVCP601

(1)

(2)

(3)

(4)

QFN UNITS

20 PINS

38 °C/W 40 °C/W 10 °C/W

SN75LVCP601

SLLSE41 –JUNE 2010

www.ti.com

THERMAL INFORMATION (continued)

SN75LVCP601

THERMAL METRIC

(1)

QFN UNITS

20 PINS

P P

JT JB

JCbot

D SD

Junction-to-top characterization parameter Junction-to-board characterization parameter Junction-to-case (bottom) thermal resistance Device power dissipation in active mode 215 to 288 mW Device power dissipation under standby mode 5 mW

(5)

(6)

(7)

0.5 °C/W

0.9 °C/W

15.2 °C/W

(5) The junction-to-top characterization parameter, yJT, estimates the junction temperature of a device in a real system and is extracted

from the simulation data for obtaining qJA, using a procedure described in JESD51-2a (sections 6 and 7).

(6) The junction-to-board characterization parameter, yJB, estimates the junction temperature of a device in a real system and is extracted

from the simulation data for obtaining qJA, using a procedure described in JESD51-2a (sections 6 and 7).

(7) The junction-to-case (bottom) thermal resistance is obtained by simulating a cold plate test on the exposed (power) pad. No specific

JEDEC standard test exists, but a close description can be found in the ANSI SEMI standard G30-88.

RECOMMENDED OPERATING CONDITIONS

(Typical values for all parameters are at VCC= 3.3V and TA= 25°C. All temp limits are specified by design)

PARAMETER CONDITIONS MIN TYP MAX UNITS

COUPLING

Supply voltage 3 3.3 3.6 V Coupling capacitor 12 nF Operating free-air temperature 0 85 °C

ELECTRICAL CHARACTERISTICS

over operating free-air temperature range (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

DEVICE PARAMETERS

CC_ALP

CC_STDBY

PDelay

AutoLP AutoLP t

ENB

DIS

ENTRY EXIT

Power dissipation in active mode 215 288 mW Power dissipation in standby EN = 0 V, DEWx = EQx = DEx = NC, K28.5

mode pattern at 6 Gbps, VID= 700 mV Active-mode supply current 65 80 mA

Acive power-save mode I

Standby mode supply current EN = 0 V 1 mA Maximum data rate 1 6 Gbps Propagation delay Measured using K28.5 pattern. See Figure 8. 323 400 ps Auto low-power entry time Electrical idle at input; see Figure 9. 80 105 130 µs Auto low-power exit time After first signal activity; see Figure 9. 42 50 ns Device enable time EN 0→1 5 µs Device disable time EN 1→0 2 µs

DEWx = EN = Vcc, EQx = DEx = NC, K28.5 pattern at 6 Gbps, VID= 700 mV

EN = 3.3 V, DEWx= 0 V, EQx/DEx = NC, K28.5 pattern at 6 Gbps, VID= 700 mV

When device is enabled and auto low-power conditions are met

p-p

5 mW

p-p

6.5 10 mA

Product Folder Link(s): SN75LVCP601

SN75LVCP601

www.ti.com

ELECTRICAL CHARACTERISTICS (continued)

over operating free-air temperature range (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

OUT-OF-BAND (OOB)

OOB

VdiffOOB

VCMOOB

OOB1

OOB2

CONTROL LOGIC

VIN

HYS

RECEIVER AC/DC

DIFFRX

SERX

VCM

DiffRX

DiffRLSlope

CMRX

diffRX

20-80RX

skewRX

Input OOB threshold f = 750 MHz 50 78 150 mVpp OOB differential delta 25 mV OOB common-mode delta 50 mV OOB mode enter See Figure 9. 3 5 ns OOB mode exit 3 5 ns

Input high voltage For all control pins 1.4 V Input low voltage 0.5 V Input hysteresis 115 mV

High-level input current µA

Low-level input current µA

EQx, DEx = Vcc 30 EN, DEWx = Vcc 1 EQx, DEx = GND –30 EN, DEWx = GND –10

Differential-input impedance 85 100 115 Ω Single-ended input impedance 40 Ω Common-mode voltage 1.8 V

f = 150 MHz–300 MHz 18 28 f = 300 MHz–600 MHz 14 17

Differential-mode return loss (RL) f = 600 MHz–1.2 GHz 10 12 dB

f = 1.2 GHz–2.4 GHz 8 9 f = 2.4 GHz–3 GHz 3 9

Differential-mode RL slope f = 300 MHz–6 GHz (See Figure 5.) –13 dB/dec

f = 150 MHz–300 MHz 5 10 f = 300 MHz–600 MHz 5 17

Common-mode return loss f = 600 MHz–1.2 GHz 2 23 dB

f = 1.2 GHz–2.4 GHz 1 16 f = 2.4 GHz–3 GHz 1 12

Differential input voltage PP f = 1.5 GHz and 3 GHz 120 1600 mVppd

f = 150 MHz–300 MHz 30 41 f = 300 MHz–600 MHz 30 38 f = 600 MHz–1.2 GHz 20 32

Impedance balance f = 1.2 GHz–2.4 GHz 10 26 dB

f = 2.4 GHz–3 GHz 10 25 f = 3 GHz–5 GHz 4 20 f = 5 GHz–6.5 GHz 4 17 Rise times and fall times measured between

Rise/fall time 62 75 ps

20% and 80% of the signal. SATA 6-Gbps speed measured 1 in, (2.5 cm) from device pin

Difference between the single-ended

Differential skew 30 ps

midpoint of the RX+ signal rising/falling edge, and the single-ended midpoint of the RX– signal falling/rising edge

SLLSE41 –JUNE 2010

Product Folder Link(s): SN75LVCP601

SN75LVCP601

SLLSE41 –JUNE 2010

www.ti.com

ELECTRICAL CHARACTERISTICS (continued)

over operating free-air temperature range (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

TRANSMITTER AC/DC

diffTX

SETX

TXtrans

DiffTX

DiffRLSlope

CMTX

Diff

VppTX

DE Output de-emphasis f = 3 GHz, DE1/DE2 = 1 –2 dB

VCM

AC_TX

VCM

20-80TX

skewTX

TxR/F

Imb

TxAmp

Imb

Pair differential impedance 85 100 122 Ω Single-ended impedance 40 Ω

Sequencing transient voltage –1.2 1.2 V

Transient voltages on the serial data bus during power sequencing (lab load)

f = 150 MHz–300 MHz 14 24 f = 300 MHz–600 MHz 8 19

Differential-mode return loss f = 600 MHz–1.2 GHz 6 14 dB

f = 1.2 GHz–2.4 GHz 6 10 f = 2.4 GHz–3 GHz 3 10

Differential-mode RL slope f = 300 MHz–3 GHz (SeeFigure 5.) –13 dB/dec

f = 150 MHz–300 MHz 5 20 f = 300 MHz–600 MHz 5 19

Common-mode return loss f = 600 MHz–1.2 GHz 2 17 dB

f = 1.2 GHz–2.4 GHz 1 12 f = 2.4 GHz–3.0 GHz 1 11 f = 150 MHz–300 MHz 30 41 f = 300 MHz–600 MHz 30 38 f = 600 MHz–1.2 GHz 20 33

Impedance balance f = 1.2 GHz–2.4 GHz 10 24 dB

f = 2.4 GHz–3 GHz 10 26 f = 3 GHz–5 GHz 4 22 f = 5 GHz–6.5 GHz 4 21

Differential output-voltage swing 550 mVppd

f = 3 GHz, DE1/DE2 = 0, DEWx = NC, (under no interconnect loss)

f = 3 GHz, DE1/DE2 = 0 0

f = 3 GHz, DE1/DE2 = NC –4

De-emphasis duration ps

DEWx = 0 94 DEWx = 1 215 At 1.5 GHz 20 50 mVppd

TX AC CM voltage At 3 GHz 12 26

At 6 GHz 13 30

dBmV

(rms)

Common-mode voltage 1.8 V

Rise times and fall times measured between

Rise/fall time 20% and 80% of the signal. At 6Gbps under 42 55 75 ps

no load conditions Difference between the single-ended

Differential skew 6 20 ps

mid-point of the TX+ signal rising/falling edge, and the single-ended mid-point of the

TX- signal falling/rising edge. TX rise-fall imbalance At 3 Gbps 6% 20% TX amplitude imbalance 2% 10%

Product Folder Link(s): SN75LVCP601

12" 6mil

Stripline

Jitter

Measurement

8" 6 milStripline

AWG*

Jitter

Measurement

CP = Compliancepoint

SN75LVCP601

www.ti.com

SLLSE41 –JUNE 2010

ELECTRICAL CHARACTERISTICS (continued)

over operating free-air temperature range (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

TRANSMITTER JITTER

(1) TJ = (14.1 × RJSD+ DJ), where RJSDis one standard deviation value of RJ Gaussian distribution. Jitter measurement is at the SATA

connector and includes jitter generated at the package connection on the printed circuit board, and at the board interconnect as shown in .

Deterministic jitter

Figure 6

Residual random jitter Deterministic jitter

Figure 6

Residual random jitter

(1)

at CP in

(1)

at CP in

(1)

VID = 500 mVpp, UI = 333 ps,

K28.5 control character

VID = 500 mVpp, UI = 333 ps,

K28.7 control character

VID = 500 mVpp, UI = 167 ps,

K28.5 control character

VID = 500 mVpp, UI = 167 ps,

K28.7 control character

0.06 0.19 UIp-p

0.01 2 ps-rms

0.08 0.34 UIp-p

0.09 2 ps-rms

Figure 5. TX, RX Differential Return Loss Limits

Figure 6. Jitter Measurement Test Condition

Product Folder Link(s): SN75LVCP601

PDelay

OUT

OOB2

OOB1

Vcm

IN+

IN-

OUT+

OUT-

Vcm

50 mV

OOB1

VCM

AutoLP

ENTRY

AutoLP

EXIT

RX1,2P

RX1,2N

TX1,2P

TX1,2N

PowerSaving

Mode

SN75LVCP601

SLLSE41 –JUNE 2010

www.ti.com

Figure 7. Propagation Delay Timing Diagram

Figure 8. OOB Enter and Exit Timing

Figure 9. Auto Low-Power Mode Enter and Exit Timing

Product Folder Link(s): SN75LVCP601

1-bit 1 toNbits

1-bit

1 toNbits

Diff

VppTX

Diff

VppTX_DE

0 dB

-2 dB

-4 dB

LVCP601

Agilent

DCA -J

Agilent

ParBERT

With LVCP601

Without LVCP601

TP1

TP2

TP3

TP4

TP1 TP4

EQ = 14 dB DE = –2 dB

Agilent

ParBERT

Agilent

DCA -J

16-in., 4-mil (40.6-cm, 0.101-mm)

FR4 Trace +

2-in., 9.5-mil (5.05-cm, 0.241-mm)

FR4 Trace

8-in., 4-mil (20.3-cm, 0.101-mm)

FR4 Trace +

2-in., 9.5-mil (5.05-cm, 0.241-mm)

FR4 Trace

16-in., 4-mil (40.6-cm, 0.101-mm) FR4 Trace +

8-in., 4-mil (20.3-cm, 0.101-mm) FR4 Trace

4-in., 9.5-mil (10.1-cm, 0.241-mm) FR4 Trace +

SN75LVCP601

www.ti.com

Figure 10. TX Differential Output De-Emphasis

SN75LVCP601 TYPICAL PERFORMANCE CURVE

• Input signal characteristics – Data rate = 6 Gbps, 3 Gbps, 1.5 Gbps – Amplitude = 500 mVp-p – Data pattern = K28.5

• SN75LVCP601 device setup – Temperature = 25°C – Voltage = 3.3 V – De-emphasis duration = 117 ps (short) – Equalization and de-emphasis set to optimize performance at 6 Gbps

SLLSE41 –JUNE 2010

Figure 11. Performance Curve Measurement Setup

Product Folder Link(s): SN75LVCP601

13.24101165.42.0029.856.7TP4

Without

LVCP601

459.62149.7557.11.9212.739.0TP4

With

LVCP601

623.02141.3788.81.9115.942.0TP3

81.2428.92401.9365.491.8TP2

350.52159.2412.41.883.329.0TP1

Eye

Diagram

Eye

Opening

Eye

Width

Eye

Amplitude

(rms)

(δ-δ)

(1e-12)

TestPoint

122.26118258.81.96101.8128.6TP4

Without

LVCP601

463.42305.0615.31.9920.347.9TP4

With

LVCP601

611.62321714.51.9612.839.6TP3

222.36237314.91.8946.872.7TP2

392.84326430.91.893.829.7TP1

Eye

Diagram

Eye

Opening

Eye

Width

Eye

Amplitude

(rms)

(δ-δ)

(1e-12)

TestPoint

SN75LVCP601

SLLSE41 –JUNE 2010

www.ti.com

SN75LVCP601 TYPICAL PERFORMANCE CURVE (continued)

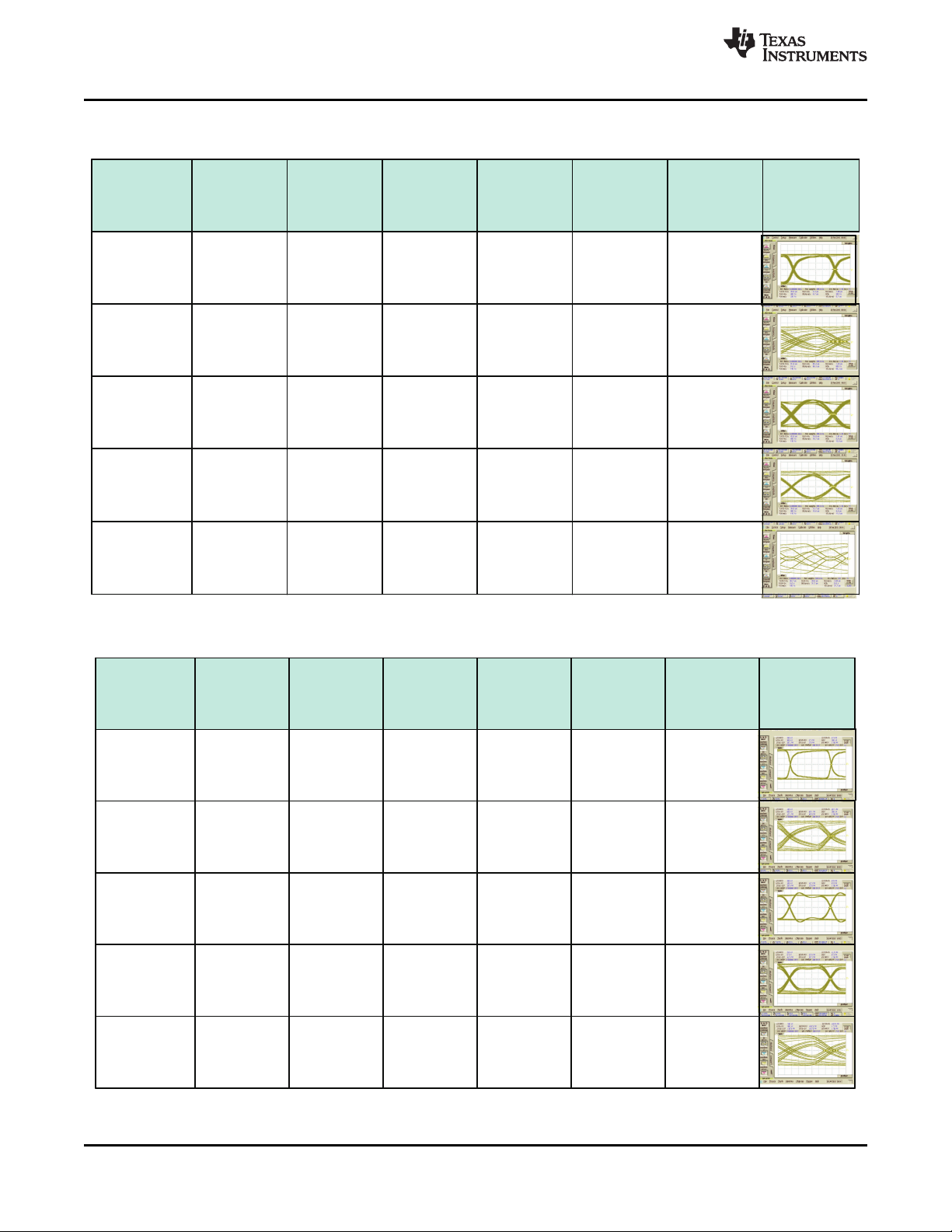

Figure 12. Jitter and VOD Results: Case 1 at 6 Gbps

Figure 13. Jitter and VOD Results: Case 2 at 3 Gbps

Product Folder Link(s): SN75LVCP601

217.46493322.82.3081.9113.3TP4

Without

LVCP601

442.42632.0672.82.6221.557.3TP4

With

LVCP601

604.02649753.12.3113.244.9TP3

318.48589363.42.1138.667.5TP2

417.286594482.263.434.3TP1

Eye

Diagram

Eye

Opening

Eye

Width

Eye

Amplitude

(rms)

(δ-δ)

(1e-12)

TestPoint

Input Trace Length (in)

Residual DJ (ps)

Eye Opening (V)

2 4 6 8 10 12 14 16 18 20 22

0 0.1

2 0.2

4 0.3

6 0.4

8 0.5

10 0.6

12 0.7

14 0.8

G001

Residual DJ 3Gbps Residual DJ 6Gbps Eye Opening 3Gbps Eye Opening 6Gbps

SN75LVCP601

www.ti.com

SLLSE41 –JUNE 2010

SN75LVCP601 TYPICAL PERFORMANCE CURVE (continued)

Figure 14. Jitter and VOD Results: Case 3 at 1.5 Gbps

TYPICAL CHARACTERISTICS

RESIDUAL DJ AND EYE OPENING

INPUT TRACE LENGTH

Figure 15.

Product Folder Link(s): SN75LVCP601

Output Trace Length (in)

Residual DJ (ps)

Eye Opening (V)

2 4 6 8 10 12 14 16 18 20 22

0 0

5 0.1

10 0.2

15 0.3

20 0.4

25 0.5

30 0.6

35 0.7

40 0.8

G002

Residual DJ 3Gbps Residual DJ 6Gbps Eye Opening 3Gbps Eye Opening 6Gbps

SN75LVCP601

SLLSE41 –JUNE 2010

www.ti.com

TYPICAL CHARACTERISTICS (continued)

RESIDUAL DJ AND EYE OPENING

OUTPUT TRACE LENGTH

Figure 16.

Product Folder Link(s): SN75LVCP601

PACKAGE OPTION ADDENDUM

www.ti.com

2-Jul-2010

PACKAGING INFORMATION

Orderable Device

SN75LVCP601RTJR ACTIVE QFN RTJ 20 3000 Green (RoHS

SN75LVCP601RTJT ACTIVE QFN RTJ 20 250 Green (RoHS

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs. LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect. NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design. PREVIEW: Device has been announced but is not in production. Samples may or may not be available. OBSOLETE: TI has discontinued the production of the device.

Status

(1)

Package Type Package

Drawing

Pins Package Qty

Eco Plan

& no Sb/Br)

(2)

Lead/

Ball Finish

CU NIPDAU Level-2-260C-1 YEAR Purchase Samples

MSL Peak Temp

(3)

Samples

(Requires Login)

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check http://www.ti.com/productcontent for the latest availability

information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined. Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements for all 6 substances, including the requirement that

lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes. Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS compatible) as defined above. Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

Addendum-Page 1

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in such safety-critical applications.

TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated products in automotive applications, TI will not be responsible for any failure to meet such requirements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio Data Converters dataconverter.ti.com Automotive www.ti.com/automotive DLP® Products www.dlp.com Communications and www.ti.com/communications

DSP dsp.ti.com Computers and www.ti.com/computers

Clocks and Timers www.ti.com/clocks Consumer Electronics www.ti.com/consumer-apps Interface interface.ti.com Energy www.ti.com/energy Logic logic.ti.com Industrial www.ti.com/industrial Power Mgmt power.ti.com Medical www.ti.com/medical Microcontrollers microcontroller.ti.com Security www.ti.com/security RFID www.ti-rfid.com Space, Avionics & www.ti.com/space-avionics-defense

RF/IF and ZigBee® Solutions www.ti.com/lprf Video and Imaging www.ti.com/video

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Telecom

Peripherals

Defense

Wireless www.ti.com/wireless-apps

Texas instruments SN75LVCP601 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

FEATURES

• Low Power APPLICATIONS – <220 mW Typ – <50 mW (in Auto Low-Power Mode) – <5m W (in Standby Mode)

DESCRIPTION

PACKAGE PINOUT

OPERATION DESCRIPTION

INPUT EQUALIZATION

OUTPUT DE-EMPHASIS

LOW-POWER MODE

Out-of-Band (OOB) SUPPORT

DEVICE POWER

ABSOLUTE MAXIMUM RATINGS

THERMAL INFORMATION

RECOMMENDED OPERATING CONDITIONS

ELECTRICAL CHARACTERISTICS

SN75LVCP601 TYPICAL PERFORMANCE CURVE

TYPICAL CHARACTERISTICS
