SN74LVCH16652A
16-BIT BUS TRANSCEIVER AND REGISTER
WITH 3-STATE OUTPUTS
SCAS319G – NOVEMBER 1993 – REVISED JUNE 1998
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
D
Member of the Texas Instruments
Widebus
Family
D
EPIC
(Enhanced-Performance Implanted
CMOS) Submicron Process
D
T ypical V
OLP
(Output Ground Bounce)
< 0.8 V at V
CC
= 3.3 V, TA = 25°C
D
T ypical V
OHV
(Output VOH Undershoot)
> 2 V at V
CC
= 3.3 V, TA = 25°C
D
Power Off Disables Outputs, Permitting
Live Insertion
D
Supports Mixed-Mode Signal Operation on
All Ports (5-V Input/Output Voltage With
3.3-V V
CC
)
D
ESD Protection Exceeds 2000 V Per
MIL-STD-883, Method 3015; Exceeds 200 V
Using Machine Model (C = 200 pF, R = 0)
D
Latch-Up Performance Exceeds 250 mA Per
JESD 17
D
Bus Hold on Data Inputs Eliminates the
Need for External Pullup/Pulldown
Resistors
D
Package Options Include Plastic 300-mil
Shrink Small-Outline (DL) and Thin Shrink
Small-Outline (DGG) Packages
description
This 16-bit bus transceiver and register is
designed for 1.65-V to 3.6-V V
CC
operation.
The SN74LVCH16652A consists of D-type
flip-flops and control circuitry arranged for
multiplexed transmission of data directly from the
data bus or from the internal storage registers.
The device can be used as two 8-bit transceivers
or one 16-bit transceiver.
Complementary output-enable (OEAB and OEBA
) inputs control the transceiver functions. Select-control (SAB
and SBA) inputs select whether real-time or stored data is transferred. A low input level selects real-time data,
and a high input level selects stored data. The circuitry used for select control eliminates the typical decoding
glitch that occurs in a multiplexer during the transition between stored and real-time data. Figure 1 illustrates
the four fundamental bus-management functions that can be performed with the SN74LVCH16652A.
Copyright 1998, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
EPIC and Widebus are trademarks of Texas Instruments Incorporated.
DGG OR DL PACKAGE
(TOP VIEW)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
1OEAB
1CLKAB
1SAB
GND
1A1
1A2
V
CC
1A3
1A4
1A5
GND
1A6
1A7
1A8
2A1
2A2
2A3
GND
2A4
2A5
2A6
V
CC
2A7
2A8
GND
2SAB
2CLKAB
2OEAB
1OEBA
1CLKBA
1SBA
GND
1B1
1B2
V
CC
1B3
1B4
1B5
GND
1B6
1B7
1B8
2B1
2B2
2B3
GND
2B4
2B5
2B6
V
CC
2B7
2B8
GND
2SBA
2CLKBA
2OEBA
SN74LVCH16652A
16-BIT BUS TRANSCEIVER AND REGISTER
WITH 3-STATE OUTPUTS
SCAS319G – NOVEMBER 1993 – REVISED JUNE 1998
2
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
description (continued)
Data on the A or B bus, or both, can be stored in the internal D flip-flops by low-to-high transitions at the
appropriate clock (CLKAB or CLKBA) inputs regardless of the levels on the select-control or output-enable
inputs. When SAB and SBA are in the real-time transfer mode, it is also possible to store data without using the
internal D-type flip-flops by simultaneously enabling OEAB and OEBA
. In this configuration, each output
reinforces its input. When all other data sources to the two sets of bus lines are at high impedance, each set
of bus lines remains at its last level configuration.
To ensure the high-impedance state during power up or power down, OEBA
should be tied to VCC through a
pullup resistor and OEAB should be tied to GND through a pulldown resistor; the minimum value of the resistor
is determined by the current-sinking/current-sourcing capability of the driver.
Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of these devices as translators
in a mixed 3.3-V/5-V system environment.
Active bus-hold circuitry holds unused or floating data inputs at a valid logic level.
The SN74LVCH16652A is characterized for operation from –40°C to 85°C.
FUNCTION TABLE
INPUTS
DATA I/O
†
OEAB
OEBA
CLKAB CLKBA SAB SBA A1–A8 B1–B8
OPERATION OR FUNCTION
L H H or L H or L X X Input Input Isolation
L H ↑↑X X Input Input Store A and B data
X H ↑ H or L X X Input Unspecified
‡
Store A, hold B
H H ↑↑X
‡
X Input Output Store A in both registers
L X H or L ↑ X X Unspecified
‡
Input Hold A, store B
L L ↑↑XX
‡
Output Input Store B in both registers
L L X X X L Output Input Real-time B data to A bus
L L X H or L X H Output Input Stored B data to A bus
H H X X L X Input Output Real-time A data to B bus
H H H or L X H X Input Output Stored A data to B bus
H L H or L H or L H H Output Output
Stored A data to B bus and
stored B data to A bus
†
The data-output functions may be enabled or disabled by a variety of level combinations at OEAB or OEBA
. Data-input functions always are
enabled; i.e., data at the bus terminals is stored on every low-to-high transition of the clock inputs.
‡
Select control = L; clocks can occur simultaneously.
Select control = H; clocks must be staggered to load both registers.
SN74LVCH16652A
16-BIT BUS TRANSCEIVER AND REGISTER
WITH 3-STATE OUTPUTS
SCAS319G – NOVEMBER 1993 – REVISED JUNE 1998
3
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
REAL-TIME TRANSFER
BUS B TO BUS A
REAL-TIME TRANSFER
BUS A TO BUS B
STORAGE FROM
A, B, OR A AND B
TRANSFER STORED DATA
TO A AND/OR B
BUS B
BUS A
BUS B
BUS A
BUS B
BUS A
BUS B
BUS A
OEAB
X
L
L
OEAB
LL
CLKABXCLKBAXSABXSBA
L
CLKABXCLKBAXSABLSBA
X
H
CLKAB CLKBAXSABXSBA
X
CLKAB CLKBA SAB SBA
X
H
XX
X
X
X
H L H or L H H
↑
↑
↑↑
OEBA
OEBA
HH
OEAB OEBA
OEAB OEBA
H or L
Figure 1. Bus-Management Functions
SN74LVCH16652A
16-BIT BUS TRANSCEIVER AND REGISTER
WITH 3-STATE OUTPUTS
SCAS319G – NOVEMBER 1993 – REVISED JUNE 1998
4
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
logic symbol
†
C3
EN7 [BA]
29
G12
26
2SAB
5
1A1
1A2
6
1A3
8
1A4
9
1A5
10
1A6
12
1A7
13
1A8
14
1B6
45
1B7
44
1B8
43
1B2
51
1B3
49
1B4
48
1B5
47
1B1
52
3D
27
2CLKAB
G10
31
2SBA
30
2CLKBA
EN8 [AB]
28
2OEAB
EN1 [BA]
56
G6
3
1SAB
2
1CLKAB
G4
54
1SBA
55
1CLKBA
EN2 [AB]
1
1OEAB
C5
C9
C11
15
2A1
2A2
16
2A3
17
2A4
19
2A5
20
2A6
21
2A7
23
2A8
24
2B6
36
2B7
34
2B8
33
2B2
41
2B3
40
2B4
38
2B5
37
2B1
42
9D
1OEBA
2OEBA
5D
1
≥ 1
≥ 1
2
16
6
4
4
1
11D
7
≥ 1
≥ 1
8
112
12
10
10
1
†
This symbol is in accordance with ANSI/IEEE Std 91-1984 and IEC Publication 617-12.
SN74LVCH16652A
16-BIT BUS TRANSCEIVER AND REGISTER
WITH 3-STATE OUTPUTS
SCAS319G – NOVEMBER 1993 – REVISED JUNE 1998
5
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
logic diagram (positive logic)
1A1
1B1
One of Eight Channels
1SAB
1CLKAB
1SBA
1CLKBA
1OEAB
1OEBA
To Seven Other Channels
2A1
2B1
One of Eight Channels
2SAB
2CLKAB
2SBA
2CLKBA
2OEAB
2OEBA
To Seven Other Channels
1
55
54
2
3
5
29
28
30
31
27
26
15
1D
C1
1D
C1
52
56
42
1D
C1
1D
C1
SN74LVCH16652A
16-BIT BUS TRANSCEIVER AND REGISTER
WITH 3-STATE OUTPUTS
SCAS319G – NOVEMBER 1993 – REVISED JUNE 1998
6
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
†
Supply voltage range, V
CC
–0.5 V to 6.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage range, V
I
: (see Note 1) –0.5 V to 6.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltage range applied to any output in the high-impedance or power-off state, V
O
(see Note 1) –0.5 V to 6.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltage range applied to any output in the high or low state, V
O
(see Notes 1 and 2) –0.5 V to VCC + 0.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input clamp current, I
IK
(VI < 0) –50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output clamp current, I
OK
(VO < 0) –50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous output current, I
O
±50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous current through V
CC
or GND ±100 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Package thermal impedance, θ
JA
(see Note 3): DGG package 81°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DL package 74°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range, T
stg
–65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
†
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. The value of VCC is provided in the recommended operating conditions table.
3. The package thermal impedance is calculated in accordance with JESD 51.
recommended operating conditions (see Note 4)
MIN MAX UNIT
pp
Operating 1.65 3.6
VCCSuppl
y v
oltage
Data retention only 1.5
V
VCC = 1.65 V to 1.95 V 0.65 × V
CC
V
IH
High-level input voltage
VCC = 2.3 V to 2.7 V 1.7
V
VCC = 2.7 V to 3.6 V 2
VCC = 1.65 V to 1.95 V 0.35 × V
CC
V
IL
Low-level input voltage
VCC = 2.3 V to 2.7 V
0.7
V
VCC = 2.7 V to 3.6 V 0.8
V
I
Input voltage 0 5.5 V
p
High or low state 0 V
CC
VOOutput voltage
3 state 0 5.5
V
VCC = 1.65 V –4
p
VCC = 2.3 V –8
IOHHigh-level output current
VCC = 2.7 V –12
mA
VCC = 3 V –24
VCC = 1.65 V 4
p
VCC = 2.3 V 8
IOLLow-level output current
VCC = 2.7 V 12
mA
VCC = 3 V 24
∆t/∆v Input transition rise or fall rate 0 10 ns/V
T
A
Operating free-air temperature –40 85 °C
NOTE 4: All unused control inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs
, literature number SCBA004.
SN74LVCH16652A
16-BIT BUS TRANSCEIVER AND REGISTER
WITH 3-STATE OUTPUTS
SCAS319G – NOVEMBER 1993 – REVISED JUNE 1998
7
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted)
PARAMETER TEST CONDITIONS
V
CC
MIN TYP†MAX UNIT
IOH = –100 µA 1.65 V to 3.6 V VCC–0.2
IOH = –4 mA 1.65 V 1.2
IOH = –8 mA 2.3 V 1.7
V
OH
2.7 V 2.2
V
I
OH
= –12
mA
3 V 2.4
IOH = –24 mA 3 V 2.2
IOL = 100 µA 1.65 V to 3.6 V 0.2
IOL = 4 mA 1.65 V 0.45
V
OL
IOL = 8 mA 2.3 V 0.7
V
IOL = 12 mA 2.7 V 0.4
IOL = 24 mA 3 V 0.55
I
I
Control inputs VI = 0 to 5.5 V 3.6 V ±5 µA
VI = 0.58 V
‡
VI = 1.07 V
1.65 V
‡
VI = 0.7 V
45
I
I(hold)
A or B ports
VI = 1.7 V
2.3 V
–45
µA
()
VI = 0.8 V
75
VI = 2 V
3 V
–75
VI = 0 to 3.6 V
§
3..6 V ±500
I
off
VI or VO = 5.5 V 0 ±10 µA
I
OZ
¶
VO = 0 to 5.5 V 3.6 V ±10 µA
VI = VCC or GND
20
I
CC
3.6 V ≤ VI ≤ 5.5 V
#
I
O
=
0
3.6 V
20
µ
A
∆I
CC
One input at VCC – 0.6 V,
Other inputs at
VCC or GND
2.7 V to 3.6 V 500 µA
C
i
Control inputs VI = VCC or GND 3.3 V 5 pF
C
io
A or B ports VO = VCC or GND 3.3 V 8 pF
†
All typical values are at VCC = 3.3 V, TA = 25°C.
‡
This information was not available at the time of publication.
§
This is the bus-hold maximum dynamic current required to switch the input from one state to another.
¶
For I/O ports, the parameter IOZ includes the input leakage current, but not I
I(hold)
.
#
This applies in the disabled state only.
timing requirements over recommended operating free-air temperature range (unless otherwise
noted) (see Figures 2 through 4)
VCC = 1.8 V
± 0.15 V
VCC = 2.5 V
± 0.2 V
VCC = 2.7 V
VCC = 3.3 V
± 0.3 V
UNIT
MIN MAX MIN MAX MIN MAX MIN MAX
f
clock
Clock frequency ‡ ‡ 150 150 MHz
t
w
Pulse duration, CLK high or low ‡ ‡ 3.3 3.3 ns
t
su
Setup time, A or B before CLKAB↑ or CLKBA↑ ‡ ‡ 3.4 3 ns
t
h
Hold time, A or B after CLKAB↑ or CLKBA↑ ‡ ‡ 0 0.2 ns
‡
This information was not available at the time of publication.
SN74LVCH16652A
16-BIT BUS TRANSCEIVER AND REGISTER
WITH 3-STATE OUTPUTS
SCAS319G – NOVEMBER 1993 – REVISED JUNE 1998
8
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
switching characteristics over recommended operating free-air temperature range (unless
otherwise noted) (see Figures 2 through 4)
PARAMETER
FROM
TO
VCC = 1.8 V
± 0.15 V
VCC = 2.5 V
± 0.2 V
VCC = 2.7 V
VCC = 3.3 V
± 0.3 V
UNIT
(INPUT)
(OUTPUT)
MIN MAX MIN MAX MIN MAX MIN MAX
f
max
† † 150 150 MHz
A or B B or A † † † † 6.4 1.4 6.3
t
pd
CLKAB or CLKBA A or B † † † † 7.3 2.4 6.4
ns
SAB or SBA B or A † † † † 8.8 1.9 7.4
t
en
OE or OE A or B † † † † 6.6 1.6 6.3 ns
t
dis
OE or OE
A or B † † † † 6.6 1.2 6.2 ns
†
This information was not available at the time of publication.
operating characteristics, T
A
= 25°C
PARAMETER
TEST
VCC = 1.8 V
± 0.15 V
VCC = 2.5 V
± 0.2 V
VCC = 3.3 V
± 0.3 V
UNIT
CONDITIONS
TYP TYP TYP
Power dissipation capacitance
Outputs enabled
† † 55
p
C
p
d
per transceiver
Outputs disabled
f
= 10 MHz
† † 12
pF
†
This information was not available at the time of publication.
SN74LVCH16652A
16-BIT BUS TRANSCEIVER AND REGISTER
WITH 3-STATE OUTPUTS
SCAS319G – NOVEMBER 1993 – REVISED JUNE 1998
9
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PARAMETER MEASUREMENT INFORMATION
V
CC
= 1.8 V ± 0.15 V
VCC/2
VCC/2
VCC/2VCC/2
VCC/2VCC/2
VCC/2
VCC/2
V
OH
V
OL
t
h
t
su
From Output
Under Test
CL = 30 pF
(see Note A)
LOAD CIRCUIT
S1
Open
GND
1k Ω
1k Ω
Output
Control
(low-level
enabling)
Output
Waveform 1
S1 at 2 × V
CC
(see Note B)
Output
Waveform 2
S1 at Open
(see Note B)
t
PZL
t
PZH
t
PLZ
t
PHZ
0 V
VOL + 0.15 V
VOH – 0.15 V
0 V
V
CC
0 V
0 V
t
w
V
CC
V
CC
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
VOLTAGE WAVEFORMS
PULSE DURATION
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
Timing
Input
Data
Input
Input
t
pd
t
PLZ/tPZL
t
PHZ/tPZH
Open
2 × V
CC
Open
TEST S1
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr ≤ 2 ns, tf ≤ 2 ns.
D. The outputs are measured one at a time with one transition per measurement.
E. t
PLZ
and t
PHZ
are the same as t
dis
.
F. t
PZL
and t
PZH
are the same as ten.
G. t
PLH
and t
PHL
are the same as tpd.
0 V
V
CC
VCC/2
t
PHL
VCC/2 VCC/2
V
CC
0 V
V
OH
V
OL
Input
Output
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
VCC/2 VCC/2
t
PLH
2 × V
CC
V
CC

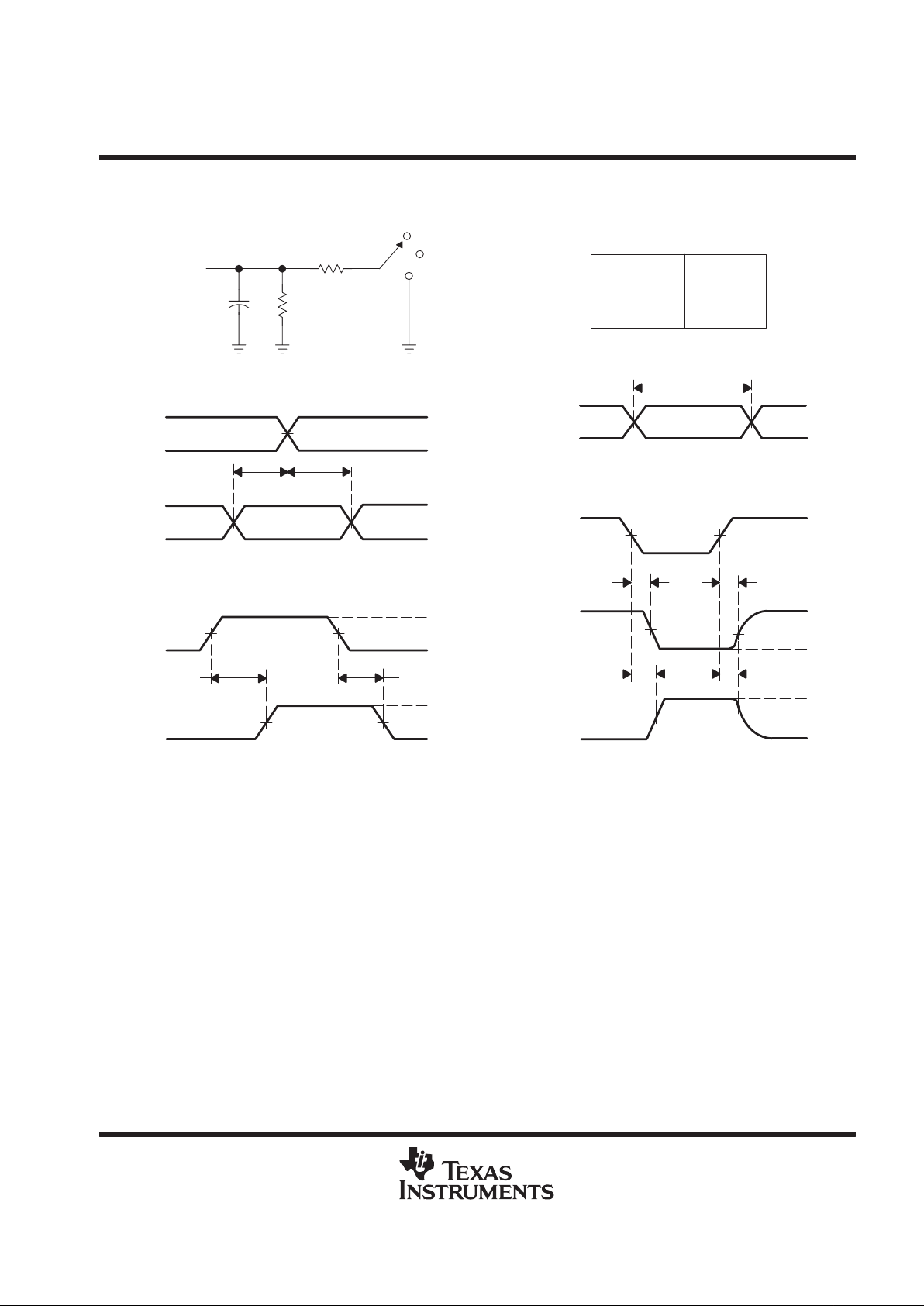

Figure 2. Load Circuit and Voltage Waveforms
SN74LVCH16652A
16-BIT BUS TRANSCEIVER AND REGISTER
WITH 3-STATE OUTPUTS
SCAS319G – NOVEMBER 1993 – REVISED JUNE 1998
10
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PARAMETER MEASUREMENT INFORMATION
V
CC
= 2.5 V ± 0.2 V
VCC/2
VCC/2
VCC/2VCC/2
VCC/2VCC/2
VCC/2
VCC/2
V
OH
V
OL
t
h
t
su
From Output
Under Test
CL = 30 pF
(see Note A)
LOAD CIRCUIT
S1
Open
GND
500 Ω
500 Ω
Output
Control
(low-level
enabling)
Output
Waveform 1
S1 at 2 × V
CC
(see Note B)
Output
Waveform 2
S1 at GND
(see Note B)
t
PZL
t
PZH
t
PLZ
t
PHZ
0 V
VOL + 0.15 V
VOH – 0.15 V
0 V
V
CC
0 V
0 V
t
w
V
CC
V
CC
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
VOLTAGE WAVEFORMS
PULSE DURATION
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
Timing
Input
Data
Input
Input
t
pd
t
PLZ/tPZL
t
PHZ/tPZH
Open
2 × V
CC
GND
TEST S1
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr ≤ 2 ns, tf ≤ 2 ns.
D. The outputs are measured one at a time with one transition per measurement.
E. t
PLZ
and t
PHZ
are the same as t
dis
.
F. t
PZL
and t
PZH
are the same as ten.
G. t
PLH
and t
PHL
are the same as tpd.
0 V
V
CC
VCC/2
t
PHL
VCC/2 VCC/2
V
CC
0 V
V
OH
V
OL
Input
Output
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
VCC/2 VCC/2
t
PLH
2 × V
CC
V
CC
Figure 3. Load Circuit and Voltage Waveforms
SN74LVCH16652A
16-BIT BUS TRANSCEIVER AND REGISTER
WITH 3-STATE OUTPUTS
SCAS319G – NOVEMBER 1993 – REVISED JUNE 1998
11
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PARAMETER MEASUREMENT INFORMATION
V
CC
= 2.7 V AND 3.3 V ± 0.3 V
V
OH
V
OL
t
h
t
su
From Output
Under Test
CL = 50 pF
(see Note A)
LOAD CIRCUIT
S1
6 V
Open
GND
500 Ω
500 Ω
t
PLH
t
PHL
Output
Control
(low-level
enabling)
Output
Waveform 1
S1 at 6 V
(see Note B)
Output
Waveform 2
S1 at GND
(see Note B)
t
PZL
t
PZH
t
PLZ
t
PHZ
1.5 V1.5 V
1.5 V 1.5 V
2.7 V
0 V
1.5 V 1.5 V
V
OH
V
OL
0 V
1.5 V
VOL + 0.3 V
1.5 V
VOH – 0.3 V
0 V
1.5 V
2.7 V
0 V
1.5 V 1.5 V
0 V
2.7 V
0 V
1.5 V 1.5 V
t
w
Input
2.7 V
2.7 V
3 V
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
VOLTAGE WAVEFORMS
PULSE DURATION
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
Timing
Input
Data
Input
Output
Input
t
pd
t
PLZ/tPZL
t
PHZ/tPZH
Open
6 V
GND
TEST S1
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤10 MHz, ZO = 50 Ω, tr ≤2.5 ns, tf ≤2.5 ns.
D. The outputs are measured one at a time with one transition per measurement.
E. t
PLZ
and t
PHZ
are the same as t
dis
.
F. t
PZL
and t
PZH
are the same as ten.
G. t
PLH
and t
PHL
are the same as tpd.
Figure 4. Load Circuit and Voltage Waveforms
IMPORTANT NOTICE
T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those
pertaining to warranty, patent infringement, and limitation of liability.
TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.
CERT AIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF
DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL
APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR
WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER
CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICA TIONS IS UNDERST OOD TO
BE FULLY AT THE CUSTOMER’S RISK.
In order to minimize risks associated with the customer’s applications, adequate design and operating
safeguards must be provided by the customer to minimize inherent or procedural hazards.
TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent
that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.
Copyright 1998, Texas Instruments Incorporated
Loading...
