TEXAS INSTRUMENTS SN74LVC08A-Q1 Technical data

SN74LVC08A-Q1

OUTPUT

QUADRUPLE 2-INPUT POSITIVE-AND GATE

SCES480C − AUGUST 2003 − REVISED JANUARY 2008

D Qualified for Automotive Applications

D ESD Protection Exceeds 2000 V Per

MIL-STD-883, Method 3015; Exceeds 200 V
Using Machine Model (C = 200 pF, R = 0)

D Operates From 1.65 V to 3.6 V

D Inputs Accept Voltages to 5.5 V

D Max t

D Typical V

<0.8 V at V

D Typical V

>2 V at V

of 4.1 ns at 3.3 V

pd

(Output Ground Bounce)

OLP

= 3.3 V, TA = 25°C

CC

(Output VOH Undershoot)

OHV

= 3.3 V, TA = 25°C

CC

D OR PW PACKAGE

(TOP VIEW)

1

1A

2

1B

3

1Y

4

2A

5

2B

6

2Y

GND

7

14

13

12

11

10

V

CC

4B
4A
4Y
3B

9

3A

8

3Y

description/ordering information

The SN74LVC08A-Q1 quadruple 2-input positive-AND gate is designed for 2.7-V to 3.6-V VCC operation.

The device performs the Boolean function

Inputs can be driven from either 3.3-V or 5-V devices. This feature allows the use of this device as a translator
in a mixed 3.3-V/5-V system environment.

T

A

−40°C to 125°C

†

For the most current package and ordering information, see the Package Option Addendum at the end of this
document, or see the TI web site at www.ti.com.

‡

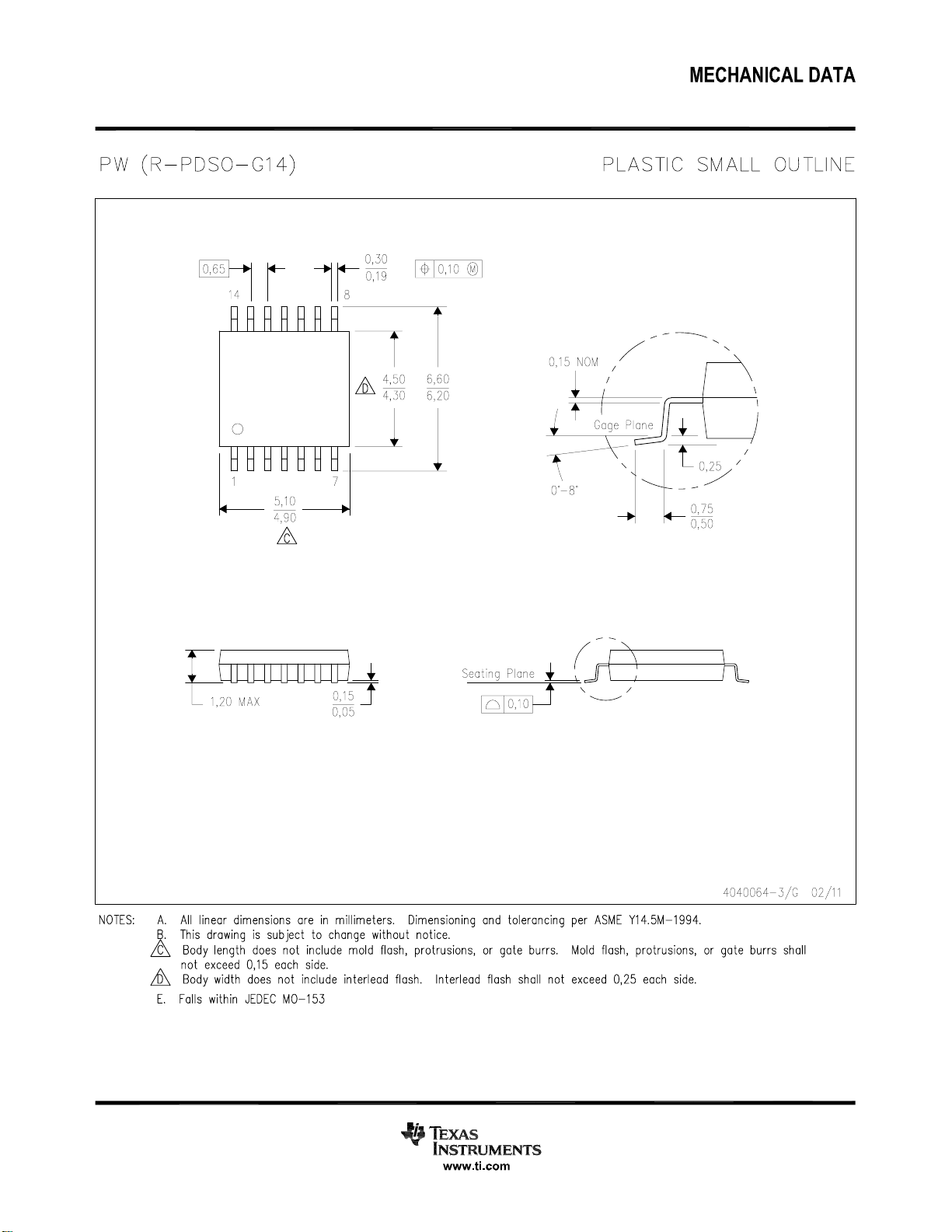

Package drawings, thermal data, and symbolization are available at www.ti.com/packaging.

SOIC − D Reel of 2500 SN74LVC08AQDRQ1 LVC08AQ

TSSOP − PW Reel of 2000 SN74LVC08AQPWRQ1 LVC08AQ

PACKAGE

Y + A • BorY+ A ) B

ORDERING INFORMATION

‡

ORDERABLE

PART NUMBER

in positive logic.

†

TOP-SIDE
MARKING

logic diagram, each gate (positive logic)

A

B

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.

FUNCTION TABLE

(each gate)

INPUTS

A B

H H H

L XL

X L L

OUTPUT

Y

Y

Copyright © 2008, Texas Instruments Incorporated

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

1

SN74LVC08A-Q1
QUADRUPLE 2-INPUT POSITIVE-AND GATE

SCES480C − AUGUST 2003 − REVISED JANUARY 2008

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)

Supply voltage range, VCC −0.5 V to 6.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Input voltage range, V
Output voltage range, V
Input clamp current, I
Output clamp current, I
Continuous output current, I
Continuous current through V
Package thermal impedance, θ

(see Note 1) −0.5 V to 6.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

I

(see Notes 1 and 2) −0.5 V to VCC + 0.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

O

(VI < 0) −50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

IK

(VO < 0) −50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

OK

±50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

O

or GND ±100 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CC

(see Note 3): D package 86°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

JA

PW package 113°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature range, T

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. The input and output negative-voltage ratings may be exceeded if the input and output current ratings are observed.

2. The value of V

3. The package thermal impedance is calculated in accordance with JESD 51-7.

is provided in the recommended operating conditions table.

CC

−65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

stg

recommended operating conditions (see Note 4)

MIN MAX UNIT

V

Supply voltage

CC

V

High-level input voltage VCC = 2.7 V to 3.6 V 2 V

IH

V

Low-level input voltage VCC = 2.7 V to 3.6 V 0.8 V

IL

V

Input voltage 0 5.5 V

I

V

Output voltage 0 V

O

I

High-level output current

OH

I

Low-level output current

OL

Δt/Δv Input transition rise or fall rate 0 8 ns/V

T

Operating free-air temperature Q suffix −40 125 °C

A

NOTE 4: All unused inputs of the device must be held at V

Implications of Slow or Floating CMOS Inputs, literature number SCBA004.

or GND to ensure proper device operation. Refer to the TI application report,

CC

Operating 2 3.6

Data retention only

VCC = 2.7 V −12

V

= 3 V −24

CC

VCC = 2.7 V 12

V

= 3 V 24

CC

1.5

CC

V

V

mA

mA

†

2

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

SN74LVC08A-Q1

V

OL

V

PARAMETER

UNIT

QUADRUPLE 2-INPUT POSITIVE-AND GATE

SCES480C − AUGUST 2003 − REVISED JANUARY 2008

electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted)

PARAMETER TEST CONDITIONS

V

OH

V

OL

I

I

I

CC

ΔI

CC

C

i

†

All typical values are at VCC = 3.3 V, TA = 25°C.

V

CC

IOH = −100 μA 2.7 V to 3.6 V VCC−0.2

IOH = −12 mA

IOH = −24 mA 3 V 2.2

IOL = 100 μA 2.7 V to 3.6 V 0.2

IOL = 12 mA 2.7 V 0.4

IOL = 24 mA 3 V 0.55

VI = 5.5 V or GND 3.6 V ±5 μA

VI = VCC or GND, IO = 0 3.6 V 10 μA

One input at VCC − 0.6 V,
Other inputs at V

VI = VCC or GND 3.3 V 5 pF

or GND

CC

2.7 V 2.2

3 V 2.4

2.7 V to 3.6 V 500 μA

MIN TYP†MAX UNIT

V

V

switching characteristics over recommended operating free-air temperature range (unless
otherwise noted) (see Figure 1)

VCC = 3.3 V

± 0.3 V

4.8 1 4.1 ns

UNIT

t

pd

PARAMETER

FROM

(INPUT) (OUTPUT)

A or B

TO

Y

VCC = 2.7 V

MIN MAX MIN MAX

operating characteristics, T

PARAMETER

C

pd

Power dissipation capacitance per gate f = 10 MHz 9.8 10 pF

= 25°C

A

TEST CONDITIONS

VCC = 2.5 V VCC = 3.3 V

TYP TYP

UNIT

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

3
