SN74ALVCH162334
16-BIT UNIVERSAL BUS DRIVER
WITH 3-STATE OUTPUTS
SCES120F – JULY 1997 – REVISED JUNE 1999
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
D
Member of the Texas Instruments
Widebus
Family
D
EPIC
(Enhanced-Performance Implanted
CMOS) Submicron Process
D
Output Port Has Equivalent 26-Ω Series
Resistors, So No External Resistors Are
Required
D
Designed to Comply With JEDEC 168-Pin
and 200-Pin SDRAM Buffered DIMM
Specification
D
ESD Protection Exceeds 2000 V Per
MIL-STD-883, Method 3015; Exceeds 200 V
Using Machine Model (C = 200 pF, R = 0)
D
Latch-Up Performance Exceeds 250 mA Per
JESD 17
D
Bus Hold on Data Inputs Eliminates the
Need for External Pullup/Pulldown
Resistors
D
Package Options Include Plastic Shrink
Small-Outline (DL), Thin Shrink
Small-Outline (DGG), and Thin Very
Small-Outline (DGV) Packages
NOTE: For tape and reel order entry:
The DGGR package is abbreviated to GR, and
the DGVR package is abbreviated to VR.
description
This 16-bit universal bus driver is designed for
1.65-V to 3.6-V V
CC
operation.
Data flow from A to Y is controlled by the
output-enable (OE
) input. The device operates in
the transparent mode when the latch-enable (LE
)
input is low. When LE
is high, the A data is latched if the clock (CLK) input is held at a high or low logic level.
If LE
is high, the A data is stored in the latch/flip-flop on the low-to-high transition of CLK. When OE is high, the
outputs are in the high-impedance state.
The output port includes equivalent 26-Ω series resistors to reduce overshoot and undershoot.
T o ensure the high-impedance state during power up or power down, OE
should be tied to VCC through a pullup
resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
Active bus-hold circuitry is provided to hold unused or floating data inputs at a valid logic level.
The SN74ALVCH162334 is characterized for operation from –40°C to 85°C.
Copyright 1999, Texas Instruments Incorporated
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
DGG, DGV, OR DL PACKAGE
(TOP VIEW)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
OE
Y1
Y2
GND
Y3
Y4
V
CC
Y5
Y6
GND
Y7
Y8
Y9
Y10
GND
Y1 1
Y12
V
CC
Y13
Y14
GND
Y15
Y16
NC
CLK
A1
A2
GND
A3
A4
V
CC
A5
A6
GND
A7
A8
A9
A10
GND
A1 1
A12
V
CC
A13
A14
GND
A15
A16
LE
NC – No internal connection
EPIC and Widebus are trademarks of Texas Instruments Incorporated.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
SN74ALVCH162334
16-BIT UNIVERSAL BUS DRIVER
WITH 3-STATE OUTPUTS
SCES120F – JULY 1997 – REVISED JUNE 1999
2
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
FUNCTION TABLE
INPUTS
OUTPUT
OE LE CLK A
Y
H X X X Z
L LXL L
LLXH H
LH↑LL
LH↑HH
LHL or H X Y
0
†
†
Output level before the indicated steady-state
input conditions were established
logic symbol
‡
A6
40
A7
38
A8
37
A9
36
A10
35
A11
33
A12
32
A13
30
A14
29
A15
27
A16
26
OE
EN1
1
48
CLK
2
Y1
3
Y2
5
Y3
1
6
Y4
8
Y5
9
Y6
11
Y7
12
Y8
13
Y9
14
Y10
16
Y11
17
Y12
19
Y13
20
Y14
22
Y15
23
Y16
C3
25
G2
LE
2C3
11
‡
This symbol is in accordance with ANSI/IEEE Std 91-1984 and IEC Publication 617-12.
A1
47
3D
A2
46
A3
44
A4
43
A5
41
SN74ALVCH162334
16-BIT UNIVERSAL BUS DRIVER
WITH 3-STATE OUTPUTS
SCES120F – JULY 1997 – REVISED JUNE 1999
3
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
logic diagram (positive logic)
1
48
25
47
1D
C1
CLK
2
To 15 Other Channels
OE
CLK
LE
A1
Y1
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
†
Supply voltage range, V
CC
–0.5 V to 4.6 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage range, V
I
(see Note 1) –0.5 V to 4.6 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output voltage range, V
O
(see Notes 1 and 2) –0.5 V to VCC + 0.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input clamp current, I
IK
(VI < 0) –50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Output clamp current, I
OK
(VO < 0) –50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous output current, I
O
±50 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Continuous current through each V
CC
or GND ±100 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Package thermal impedance, θ
JA
(see Note 3): DGG package 89°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DGV package 93°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DL package 94°C/W. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range, T
stg
–65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
†
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
NOTES: 1. The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
2. This value is limited to 4.6 V maximum.
3. The package thermal impedance is calculated in accordance with JESD 51.
SN74ALVCH162334
16-BIT UNIVERSAL BUS DRIVER
WITH 3-STATE OUTPUTS
SCES120F – JULY 1997 – REVISED JUNE 1999
4
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
recommended operating conditions (see Note 4)
MIN MAX UNIT
V
CC
Supply voltage 1.65 3.6 V
VCC = 1.65 V to 1.95 V 0.65 × V
CC
V
IH
High-level input voltage
VCC = 2.3 V to 2.7 V
1.7
V
VCC = 2.7 V to 3.6 V 2
VCC = 1.65 V to 1.95 V 0.35 × V
CC
V
IL
Low-level input voltage
VCC = 2.3 V to 2.7 V 0.7
V
VCC = 2.7 V to 3.6 V 0.8
V
I
Input voltage 0 V
CC
V
V
O
Output voltage 0 V
CC
V
VCC = 1.65 V –2
p
VCC = 2.3 V –6
IOHHigh-level output current
VCC = 2.7 V –8
mA
VCC = 3 V –12
VCC = 1.65 V 2
p
VCC = 2.3 V 6
IOLLow-level output current
VCC = 2.7 V 8
mA
VCC = 3 V 12
∆t/∆v Input transition rise or fall rate 10 ns/V
T
A
Operating free-air temperature –40 85 °C
NOTE 4: All unused control inputs of the device must be held at VCC or GND to ensure proper device operation. Refer to the TI application report,
Implications of Slow or Floating CMOS Inputs
, literature number SCBA004.
SN74ALVCH162334
16-BIT UNIVERSAL BUS DRIVER
WITH 3-STATE OUTPUTS
SCES120F – JULY 1997 – REVISED JUNE 1999
5
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted)
PARAMETER TEST CONDITIONS
V
CC
MIN TYP†MAX UNIT
IOH = –100 µA 1.65 V to 3.6 V VCC–0.2
IOH = –2 mA 1.65 V 1.2
IOH = –4 mA 2.3 V 1.9
V
OH
2.3 V 1.7
V
I
OH
= –6
mA
3 V 2.4
IOH = –8 mA 2.7 V 2
IOH = –12 mA 3 V 2
IOL = 100 µA 1.65 V to 3.6 V 0.2
IOL = 2 mA 1.65 V 0.45
IOL = 4 mA 2.3 V 0.4
V
OL
2.3 V 0.55
V
I
OL
= 6
mA
3 V 0.55
IOL = 8 mA 2.7 V 0.6
IOL = 12 mA 3 V 0.8
I
I
VI = VCC or GND 3.6 V ±5 µA
VI = 0.58 V 1.65 V 25
VI = 1.07 V 1.65 V –25
VI = 0.7 V 2.3 V 45
I
I(hold)
VI = 1.7 V 2.3 V –45
µA
()
VI = 0.8 V 3 V 75
VI = 2 V 3 V –75
VI = 0 to 3.6 V
‡
3.6 V ±500
I
OZ
VO = VCC or GND 3.6 V ±10 µA
I
CC
VI = VCC or GND, IO = 0 3.6 V 40 µA
∆I
CC
One input at VCC – 0.6 V, Other inputs at VCC or GND 3 V to 3.6 V 750 µA
Control inputs
5.5
p
C
i
Data inputs
V
I
=
V
CC
or
GND
3.3 V
6
pF
C
o
Outputs VO = VCC or GND 3.3 V 8 pF
†
All typical values are at VCC = 3.3 V, TA = 25°C.
‡
This is the bus-hold maximum dynamic current. It is the minimum overdrive current required to switch the input from one state to another.
SN74ALVCH162334
16-BIT UNIVERSAL BUS DRIVER
WITH 3-STATE OUTPUTS
SCES120F – JULY 1997 – REVISED JUNE 1999
6
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
timing requirements over recommended operating free-air temperature range (unless otherwise
noted) (see Figures 1 through 3)
VCC = 1.8 V
VCC = 2.5 V
± 0.2 V
VCC = 2.7 V
VCC = 3.3 V
± 0.3 V
UNIT
MIN MAX MIN MAX MIN MAX MIN MAX
f
clock
Clock frequency
†
150 150 150 MHz
LE low
†
3.3 3.3 3.3
twPulse duration
CLK high or low
†
3.3 3.3 3.3
ns
Data before CLK↑
†
1.4 1.7 1.5
t
su
Setup time
CLK high
†
1.2 1.6 1.3
ns
D
ata before
LE↑
CLK low
†
1.4 1.5 1.2
Data after CLK↑
†
0.9 0.8 0.9
t
h
Hold time
Data after LE↑
CLK
high or low
†
1.2 1.1 1.1
ns
†
This information was not available at the time of publication.
switching characteristics over recommended operating free-air temperature range (unless
otherwise noted) (see Figures 1 through 3)
PARAMETER
FROM
TO
VCC = 1.8 V
VCC = 2.5 V
± 0.2 V
VCC = 2.7 V
VCC = 3.3 V
± 0.3 V
UNIT
(INPUT)
(OUTPUT)
MIN TYP MIN MAX MIN MAX MIN MAX
f
max
†
150 150 150 MHz
A
†
1 3.9 4.5 1.1 3.9
t
pd
LE
Y
†
1 5 6 1.3 5
ns
CLK
†
1 4.9 5.4 1 4.9
t
en
OE Y
†
1 5.4 6.4 1.1 5.4 ns
t
dis
OE Y
†
1 5 5.1 1.7 5 ns
†
This information was not available at the time of publication.
operating characteristics, T
A
= 25°C
VCC = 1.8 V VCC = 2.5 V VCC = 3.3 V
PARAMETER
TEST CONDITIONS
TYP TYP TYP
UNIT
Power dissipation
Outputs enabled
†
32 37
p
C
pd
capacitance
Outputs disabled
C
L
= 0,f = 10 MHz
†
7 11.5
pF
†
This information was not available at the time of publication.
SN74ALVCH162334
16-BIT UNIVERSAL BUS DRIVER
WITH 3-STATE OUTPUTS
SCES120F – JULY 1997 – REVISED JUNE 1999
7
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

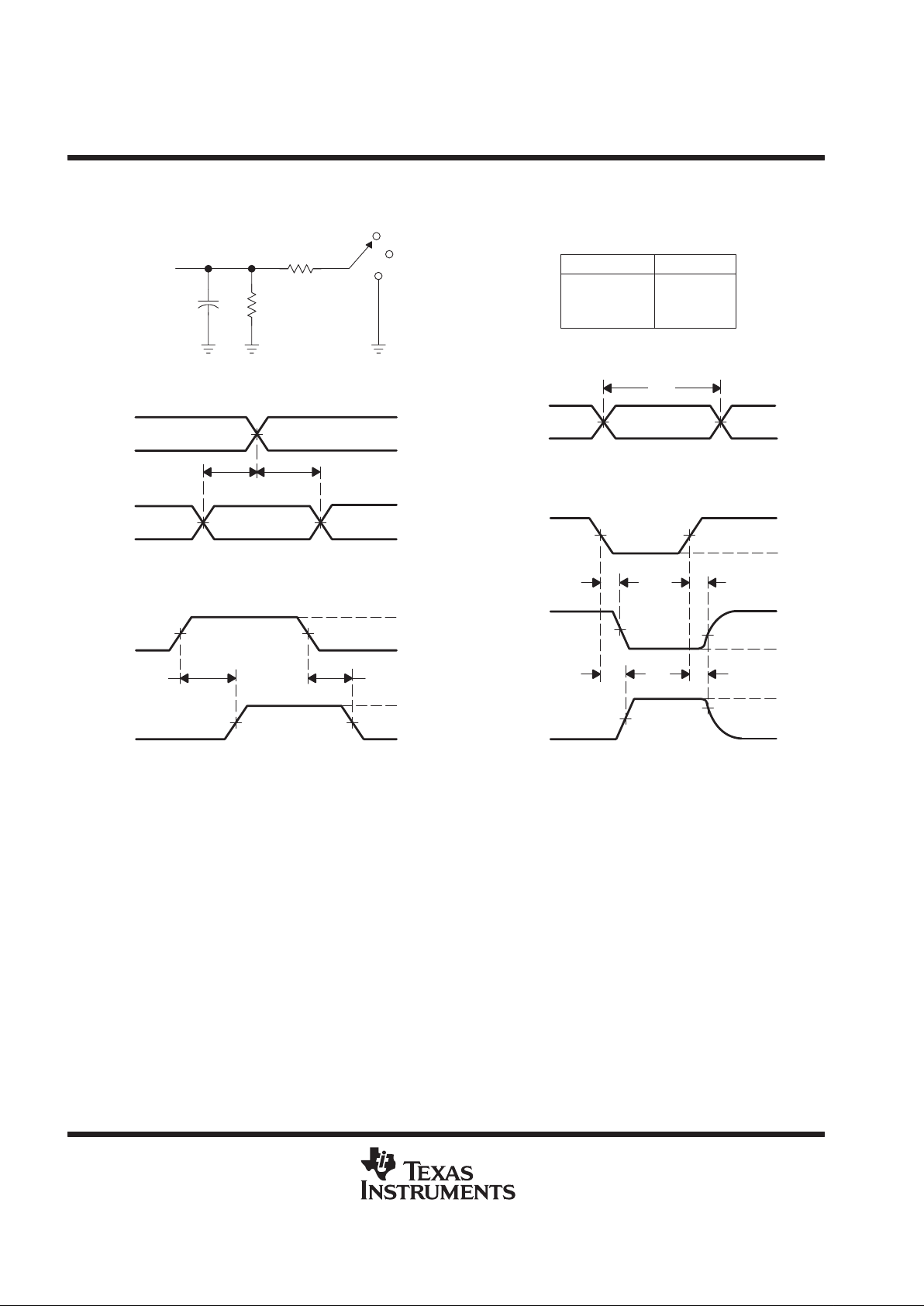

PARAMETER MEASUREMENT INFORMATION
V
CC
= 1.8 V
VCC/2
VCC/2
VCC/2VCC/2
VCC/2VCC/2
VCC/2VCC/2
V
OH
V
OL
t
h
t
su
From Output
Under Test
CL = 30 pF
(see Note A)
LOAD CIRCUIT
S1
Open
GND
1 kΩ
1 kΩ
Output
Control
(low-level
enabling)
Output
Waveform 1
S1 at 2 × V
CC
(see Note B)
Output
Waveform 2
S1 at GND
(see Note B)
t
PZL
t
PZH
t
PLZ
t
PHZ
0 V
VOL + 0.15 V
VOH – 0.15 V
0 V
V
CC
0 V
0 V
t
w
V
CC
V
CC
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
VOLTAGE WAVEFORMS
PULSE DURATION
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
Timing
Input
Data
Input
Input
t
pd
t
PLZ/tPZL
t
PHZ/tPZH
Open
2 × V
CC
GND
TEST S1
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr ≤ 2 ns, tf ≤ 2 ns.
D. The outputs are measured one at a time with one transition per measurement.
E. t
PLZ
and t
PHZ
are the same as t
dis
.
F. t
PZL
and t
PZH
are the same as ten.
G. t
PLH
and t
PHL
are the same as tpd.
0 V
V
CC
VCC/2
t
PHL
VCC/2 VCC/2
V
CC
0 V
V
OH
V
OL
Input
Output
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
VCC/2 VCC/2
t
PLH
2 × V
CC
V
CC
Figure 1. Load Circuit and Voltage Waveforms
SN74ALVCH162334
16-BIT UNIVERSAL BUS DRIVER
WITH 3-STATE OUTPUTS
SCES120F – JULY 1997 – REVISED JUNE 1999
8
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PARAMETER MEASUREMENT INFORMATION
V
CC
= 2.5 V ± 0.2 V
VCC/2
VCC/2
VCC/2VCC/2
VCC/2VCC/2
VCC/2VCC/2
V
OH
V
OL
t
h
t
su
From Output
Under Test
CL = 30 pF
(see Note A)
LOAD CIRCUIT
S1
Open
GND
500 Ω
500 Ω
Output
Control
(low-level
enabling)
Output
Waveform 1
S1 at 2 × V
CC
(see Note B)
Output
Waveform 2
S1 at GND
(see Note B)
t
PZL
t
PZH
t
PLZ
t
PHZ
0 V
VOL + 0.15 V
VOH – 0.15 V
0 V
V
CC
0 V
0 V
t
w
V
CC
V
CC
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
VOLTAGE WAVEFORMS
PULSE DURATION
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
Timing
Input
Data
Input
Input
t
pd
t
PLZ/tPZL
t
PHZ/tPZH
Open
2 × V
CC
GND
TEST S1
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr ≤ 2 ns, tf ≤ 2 ns.
D. The outputs are measured one at a time with one transition per measurement.
E. t
PLZ
and t
PHZ
are the same as t
dis
.
F. t
PZL
and t
PZH
are the same as ten.
G. t
PLH
and t
PHL
are the same as tpd.
0 V
V
CC
VCC/2
t
PHL
VCC/2 VCC/2
V
CC
0 V
V
OH
V
OL
Input
Output
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
VCC/2 VCC/2
t
PLH
2 × V
CC
V
CC
Figure 2. Load Circuit and Voltage Waveforms
SN74ALVCH162334
16-BIT UNIVERSAL BUS DRIVER
WITH 3-STATE OUTPUTS
SCES120F – JULY 1997 – REVISED JUNE 1999
9
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
PARAMETER MEASUREMENT INFORMATION
V
CC
= 2.7 V AND 3.3 V ± 0.3 V
V
OH
V
OL
From Output
Under Test
CL = 50 pF
(see Note A)
LOAD CIRCUIT
S1
6 V
Open
GND
500 Ω
500 Ω
t
PLH
t
PHL
Output
Control
(low-level
enabling)
Output
Waveform 1
S1 at 6 V
(see Note B)
Output
Waveform 2
S1 at GND
(see Note B)
t
PZL
t
PZH
t
PLZ
t
PHZ
1.5 V1.5 V
1.5 V 1.5 V
2.7 V
0 V
1.5 V 1.5 V
V
OH
V
OL
0 V
1.5 V
VOL + 0.3 V
1.5 V
VOH – 0.3 V
0 V
1.5 V
2.7 V
0 V
0 V
2.7 V
0 V
Input
2.7 V
2.7 V
3 V
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
VOLTAGE WAVEFORMS
PULSE DURATION
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES
Timing
Input
Data
Input
Output
Input
t
pd
t
PLZ/tPZL
t
PHZ/tPZH
Open
6 V
GND
TEST S1
1.5 V 1.5 V
t
w
t
h
t
su
1.5 V 1.5 V
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω, tr ≤ 2.5 ns, tf ≤ 2.5 ns.
D. The outputs are measured one at a time with one transition per measurement.
E. t
PLZ
and t
PHZ
are the same as t
dis
.
F. t
PZL
and t
PZH
are the same as ten.
G. t
PLH
and t
PHL
are the same as tpd.
Figure 3. Load Circuit and Voltage Waveforms
IMPORTANT NOTICE
T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those
pertaining to warranty, patent infringement, and limitation of liability.
TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.
CERT AIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF
DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL
APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR
WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER
CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICA TIONS IS UNDERST OOD TO
BE FULLY AT THE CUSTOMER’S RISK.
In order to minimize risks associated with the customer’s applications, adequate design and operating
safeguards must be provided by the customer to minimize inherent or procedural hazards.
TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent
that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.
Copyright 1999, Texas Instruments Incorporated
Loading...
