TEXAS INSTRUMENTS SN74ALVC08 Technical data

www.ti.com

FEATURES

A + B

D, DGV, NS, OR PW PACKAGE

(TOP VIEW)

1
2
3
4
5
6
7

14
13
12
11
10

9
8

1A
1B
1Y
2A
2B
2Y

GND

V

CC

4B
4A
4Y
3B
3A
3Y

RGY PACKAGE

(TOP VIEW)

1 14

7 8

2
3
4
5
6

13
12
11
10

9

4B
4A
4Y
3B
3A

1B
1Y
2A
2B
2Y

1A

3Y

V

GND

CC

A
B

Y

• Operates From 1.65 V to 3.6 V

• Max tpdof 2.9 ns at 3.3 V

• ± 24-mA Output Drive at 3.3 V

• Latch-Up Performance Exceeds 250 mA Per

JESD 17

• ESD Protection Exceeds JESD 22

– 2000-V Human-Body Model (A114-A)
– 200-V Machine Model (A115-A)
– 1000-V Charged-Device Model (C101)

DESCRIPTION/ORDERING INFORMATION

This quadruple 2-input positive-AND gate is designed
for 1.65-V to 3.6-V V

The device performs the Boolean function Y = A · B
or Y =

in positive logic.

operation.

CC

SN74ALVC08

QUADRUPLE 2-INPUT POSITIVE-AND GATE

SCES101I – JULY 1997 – REVISED OCTOBER 2004

T

A

-40 ° C to 85 ° C

(1) Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at

www.ti.com/sc/package.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.

ORDERING INFORMATION

PACKAGE

QFN - RGY Tape and reel SN74ALVC08RGYR VA08

SOIC - D ALVC08

SOP - NS Tape and reel SN74ALVC08NSR ALVC08
TSSOP - PW Tape and reel SN74ALVC08PWR VA08
TVSOP - DGV Tape and reel SN74ALVC08DGVR VA08

(1)

Tube SN74ALVC08D
Tape and reel SN74ALVC08DR

ORDERABLE PART NUMBER TOP-SIDE MARKING

FUNCTION TABLE

(each gate)

INPUTS

A B

H H H
L X L
X L L

OUTPUT

Y

LOGIC DIAGRAM, EACH GATE (POSITIVE LOGIC)

Copyright © 1997–2004, Texas Instruments Incorporated

www.ti.com

SN74ALVC08
QUADRUPLE 2-INPUT POSITIVE-AND GATE

SCES101I – JULY 1997 – REVISED OCTOBER 2004

ABSOLUTE MAXIMUM RATINGS

over operating free-air temperature range (unless otherwise noted)

V

Supply voltage range -0.5 4.6 V

CC

V

Input voltage range

I

V

Output voltage range

O

I

Input clamp current VI< 0 -50 mA

IK

I

Output clamp current VO< 0 -50 mA

OK

I

Continuous output current ± 50 mA

O

Continuous current through V

θ

Package thermal impedance NS package

JA

T

Storage temperature range -65 150 ° C

stg

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings

only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating

conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) The input negative-voltage and output voltage ratings may be exceeded if the input and output current ratings are observed.
(3) This value is limited to 4.6 V maximum.
(4) The package thermal impedance is calculated in accordance with JESD 51-7.
(5) The package thermal impedance is calculated in accordance with JESD 51-5.

(2)

(2) (3)

CC

(1)

MIN MAX UNIT

-0.5 4.6 V

-0.5 V

+ 0.5 V

CC

or GND ± 100 mA

D package
DGV package

PW package
RGY package

(4)

(4)

(4)

(4)

(5)

86

127

76 ° C/W

113

47

RECOMMENDED OPERATING CONDITIONS

(1)

MIN MAX UNIT

V

V

V

V
V

I

OH

I

OL

Supply voltage 1.65 3.6 V

CC

V

= 1.65 V to 1.95 V 0.65 × V

CC

High-level input voltage V

IH

Low-level input voltage V

IL

Input voltage 0 3.6 V

I

Output voltage 0 V

O

High-level output current mA

Low-level output current mA

= 2.3 V to 2.7 V 1.7 V

CC

V

= 2.7 V to 3.6 V 2

CC

V

= 1.65 V to 1.95 V 0.35 × V

CC

= 2.3 V to 2.7 V 0.7 V

CC

V

= 2.7 V to 3.6 V 0.8

CC

V

= 1.65 V -4

CC

V

= 2.3 V -12

CC

V

= 2.7 V -12

CC

V

= 3 V -24

CC

V

= 1.65 V 4

CC

V

= 2.3 V 12

CC

V

= 2.7 V 12

CC

V

= 3 V 24

CC

CC

∆ t/ ∆ v Input transition rise or fall rate 5 ns/V
T

(1) All unused inputs of the device must be held at V

Operating free-air temperature -40 85 ° C

A

or GND to ensure proper device operation. Refer to the TI application report,

Implications of Slow or Floating CMOS Inputs, literature number SCBA004.

CC

CC

CC

V

2

www.ti.com

QUADRUPLE 2-INPUT POSITIVE-AND GATE

ELECTRICAL CHARACTERISTICS

over recommended operating free-air temperature range (unless otherwise noted)

PARAMETER TEST CONDITIONS V

IOH= -100 µ A 1.65 V to 3.6 V V
IOH= -4 mA 1.65 V 1.2
IOH= -6 mA 2.3 V 2

V

OH

IOH= -12 mA 2.7 V 2.2

IOH= -24 mA 3 V 2
IOL= 100 µ A 1.65 V to 3.6 V 0.2
IOL= 4 mA 1.65 V 0.45

V

OL

I

I

I

CC

∆ I

CC

C

i

(1) All typical values are at V

IOL= 6 mA 2.3 V 0.4

IOL= 12 mA

IOL= 24 mA 3 V 0.55
VI= V
VI= V
One input at V
VI= V

or GND 3.6 V ± 5 µ A

CC

or GND, IO= 0 3.6 V 10 µ A

CC

- 0.6 V, Other inputs at V

CC

or GND 3.3 V 4.5 pF

CC

= 3.3 V, TA= 25 ° C.

CC

or GND 3 V to 3.6 V 750 µ A

CC

SN74ALVC08

SCES101I – JULY 1997 – REVISED OCTOBER 2004

CC

MIN TYP

- 0.2

CC

2.3 V 1.7 V

3 V 2.4

2.3 V 0.7

2.7 V 0.4

(1)

MAX UNIT

V

SWITCHING CHARACTERISTICS

over recommended operating free-air temperature range (unless otherwise noted) (see Figure 1)

V

= 1.8 V V

PARAMETER UNIT

t

pd

FROM TO

(INPUT) (OUTPUT)

A or B Y 1.2 5.3 1 3.2 3 1.2 2.9 ns

CC

± 0.15 V ± 0.2 V ± 0.3 V
MIN MAX MIN MAX MIN MAX MIN MAX

= 2.5 V V

CC

V

= 2.7 V

CC

= 3.3 V

CC

OPERATING CHARACTERISTICS

TA= 25 ° C

V

= 1.8 V V

PARAMETER TEST CONDITIONS UNIT

C

Power dissipation capacitance per gate CL= 0, f = 10 MHz 24 25 26 pF

pd

CC

TYP TYP TYP

= 2.5 V V

CC

= 3.3 V

CC

3

www.ti.com

V

M

V

M

V

M

V

M

V

M

V

M

V

M

V

M

V

OH

V

OL

t

h

t

su

From Output

Under Test

C

L

(see Note A)

LOAD CIRCUIT

S1

Open

GND

R

L

R

L

Output

Control

(low-level

enabling)

Output
Waveform 1
S1 at V

LOAD

(see Note B)

Output
Waveform 2

S1 at GND

(see Note B)

t

PZL

t

PZH

t

PLZ

t

PHZ

0 V

VOL + V

∆

VOH − V

∆

0 V

V

I

0 V

0 V

t

w

V

I

V

I

VOLTAGE WAVEFORMS

SETUP AND HOLD TIMES

VOLTAGE WAVEFORMS

PULSE DURATION

VOLTAGE WAVEFORMS

ENABLE AND DISABLE TIMES

Timing

Input

Data

Input

Input

t

pd

t

PLZ/tPZL

t

PHZ/tPZH

Open

V

LOAD

GND

TEST S1

NOTES: A. CL includes probe and jig capacitance.

B. Waveform 1 is for an output with internal conditions such that the output is low, except when disabled by the output control.

Waveform2 is for an output with internal conditions such that the output is high, except when disabled by the output control.
C. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω.
D. The outputs are measured one at a time, with one transition per measurement.
E. t

PLZ

and t

PHZ

are the same as t

dis

.

F. t

PZL

and t

PZH

are the same as ten.

G. t

PLH

and t

PHL

are the same as tpd.

H. All parameters and waveforms are not applicable to all devices.

0 V

V

I

V

M

t

PHL

V

M

V

M

V

I

0 V

V

OH

V

OL

Input

Output

VOLTAGE WAVEFORMS

PROPAGATION DELAY TIMES

V

M

V

M

t

PLH

V

LOAD

V

LOAD

/2

1.8 V ± 0.15 V

2.5 V ± 0.2 V

2.7 V

3.3 V ± 0.3 V

1 kΩ
500 Ω
500 Ω
500 Ω

V

CC

R

L

2 × V

CC

2 × V

CC

6 V
6 V

V

LOAD

C

L

30 pF
30 pF
50 pF
50 pF

0.15 V

0.15 V

0.3 V

0.3 V

V

∆

V

CC

V

CC

2.7 V

2.7 V

V

I

VCC/2
VCC/2

1.5 V

1.5 V

V

M

tr/t

f

≤2 ns

≤2 ns
≤2.5 ns
≤2.5 ns

INPUT

SN74ALVC08
QUADRUPLE 2-INPUT POSITIVE-AND GATE

SCES101I – JULY 1997 – REVISED OCTOBER 2004

PARAMETER MEASUREMENT INFORMATION

Figure 1. Load Circuit and Voltage Waveforms

4

PACKAGE OPTION ADDENDUM

www.ti.com

20-Mar-2008

PACKAGING INFORMATION

Orderable Device Status

(1)

Package

Type

Package
Drawing

Pins Package

Qty

Eco Plan

SN74ALVC08D ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

SN74ALVC08DE4 ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

SN74ALVC08DG4 ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

SN74ALVC08DGVR ACTIVE TVSOP DGV 14 2000 Green (RoHS &

no Sb/Br)

SN74ALVC08DGVRE4 ACTIVE TVSOP DGV 14 2000 Green (RoHS &

no Sb/Br)

SN74ALVC08DGVRG4 ACTIVE TVSOP DGV 14 2000 Green (RoHS &

no Sb/Br)

SN74ALVC08DR ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

SN74ALVC08DRE4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

SN74ALVC08DRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

SN74ALVC08IDRG4Q1 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

SN74ALVC08NSR ACTIVE SO NS 14 2000 Green (RoHS &

no Sb/Br)

SN74ALVC08NSRE4 ACTIVE SO NS 14 2000 Green (RoHS &

no Sb/Br)

SN74ALVC08NSRG4 ACTIVE SO NS 14 2000 Green (RoHS &

no Sb/Br)

SN74ALVC08PWR ACTIVE TSSOP PW 14 2000 Green (RoHS &

no Sb/Br)

SN74ALVC08PWRE4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

no Sb/Br)

SN74ALVC08PWRG4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

no Sb/Br)

SN74ALVC08RGYR ACTIVE QFN RGY 14 1000 Green (RoHS &

no Sb/Br)

SN74ALVC08RGYRG4 ACTIVE QFN RGY 14 1000 Green (RoHS &

no Sb/Br)

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in

a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-2-260C-1 YEAR

CU NIPDAU Level-2-260C-1 YEAR

(3)

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check

http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements

for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered
at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and

Addendum-Page 1

PACKAGE OPTION ADDENDUM

www.ti.com

package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS
compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame
retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder

temperature.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is
provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the
accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take
reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on
incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited
information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI
to Customer on an annual basis.

20-Mar-2008

Addendum-Page 2

PACKAGE MATERIALS INFORMATION

www.ti.com

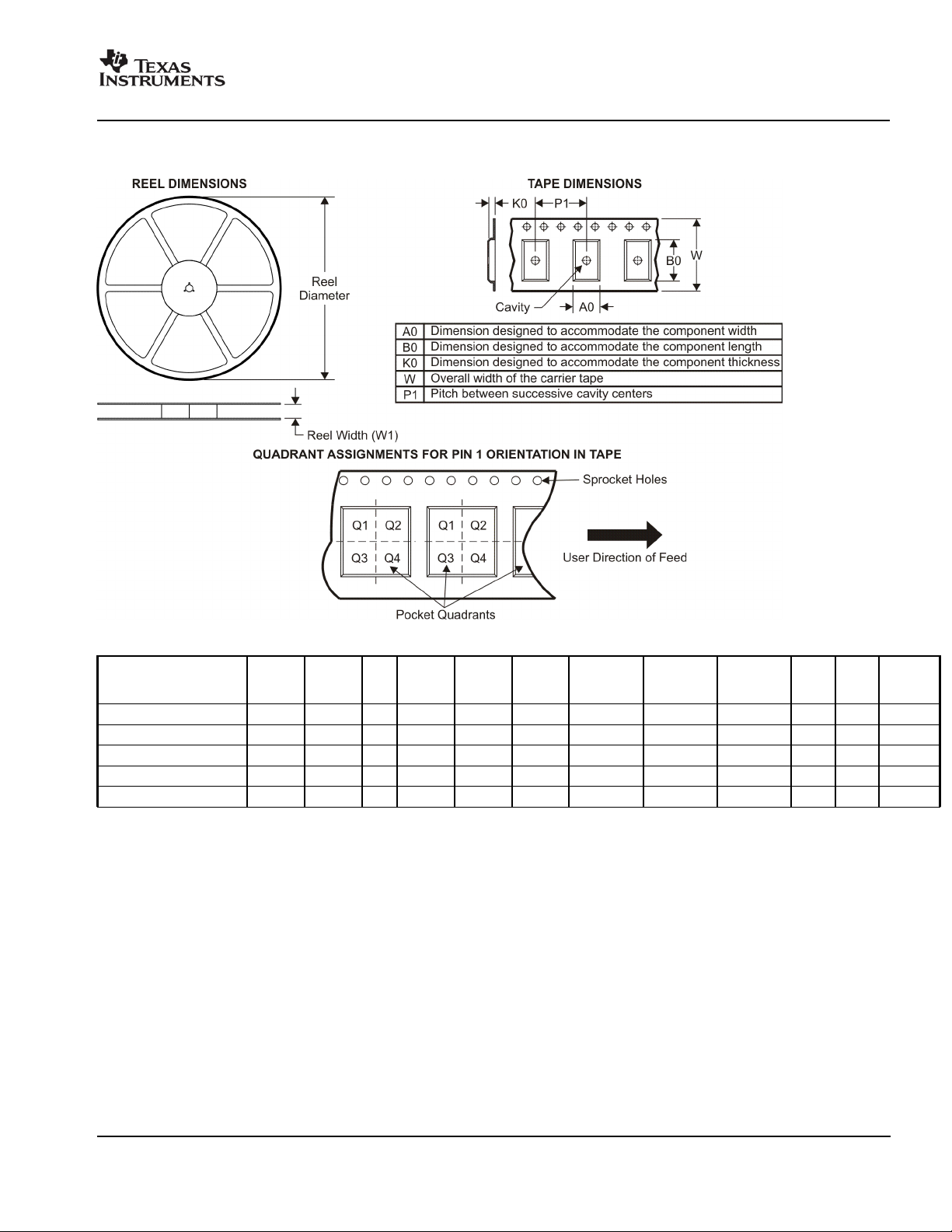

TAPE AND REEL INFORMATION

19-Mar-2008

*All dimensions are nominal

Device Package

Type

SN74ALVC08DGVR TVSOP DGV 14 2000 330.0 12.4 6.8 4.0 1.6 8.0 12.0 Q1

SN74ALVC08DR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1

SN74ALVC08NSR SO NS 14 2000 330.0 16.4 8.2 10.5 2.5 12.0 16.0 Q1

SN74ALVC08PWR TSSOP PW 14 2000 330.0 12.4 7.0 5.6 1.6 8.0 12.0 Q1

SN74ALVC08RGYR QFN RGY 14 1000 180.0 12.4 3.85 3.85 1.35 8.0 12.0 Q1

Package
Drawing

Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

A0 (mm) B0 (mm) K0 (mm) P1

(mm)W(mm)

Pin1

Quadrant

Pack Materials-Page 1

PACKAGE MATERIALS INFORMATION

www.ti.com

19-Mar-2008

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

SN74ALVC08DGVR TVSOP DGV 14 2000 346.0 346.0 29.0

SN74ALVC08DR SOIC D 14 2500 346.0 346.0 33.0

SN74ALVC08NSR SO NS 14 2000 346.0 346.0 33.0

SN74ALVC08PWR TSSOP PW 14 2000 346.0 346.0 29.0

SN74ALVC08RGYR QFN RGY 14 1000 190.5 212.7 31.8

Pack Materials-Page 2

MECHANICAL DATA

MTSS001C – JANUARY 1995 – REVISED FEBRUARY 1999

PW (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE

14 PINS SHOWN

0,65

1,20 MAX

14

0,30
0,19

8

4,50
4,30

PINS **

7

Seating Plane

0,15
0,05

8

1

A

DIM

14

0,10

6,60
6,20

M

0,10

0,15 NOM

2016

0°–8°

Gage Plane

24

0,25

0,75
0,50

28

A MAX

A MIN

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion not to exceed 0,15.
D. Falls within JEDEC MO-153

3,10

2,90

5,10

4,90

5,10

4,90

6,60

6,40

7,90

7,70

9,80

9,60

4040064/F 01/97

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL DATA

MPDS006C – FEBRUARY 1996 – REVISED AUGUST 2000

DGV (R-PDSO-G**) PLASTIC SMALL-OUTLINE

24 PINS SHOWN

0,40

24

112

A

0,23
0,13

13

0,07

4,50
4,30

M

6,60
6,20

0,16 NOM

Gage Plane

0,25

0°–8°

0,75
0,50

1,20 MAX

PINS **

DIM

A MAX

A MIN

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion, not to exceed 0,15 per side.
D. Falls within JEDEC: 24/48 Pins – MO-153

14/16/20/56 Pins – MO-194

0,15
0,05

14

3,70

3,50

Seating Plane

3,50

20

5,10

4,90

0,08

5,103,70

4,90

382416

7,90

7,70

48

9,80

9,60

56

11,40

11,20

4073251/E 08/00

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

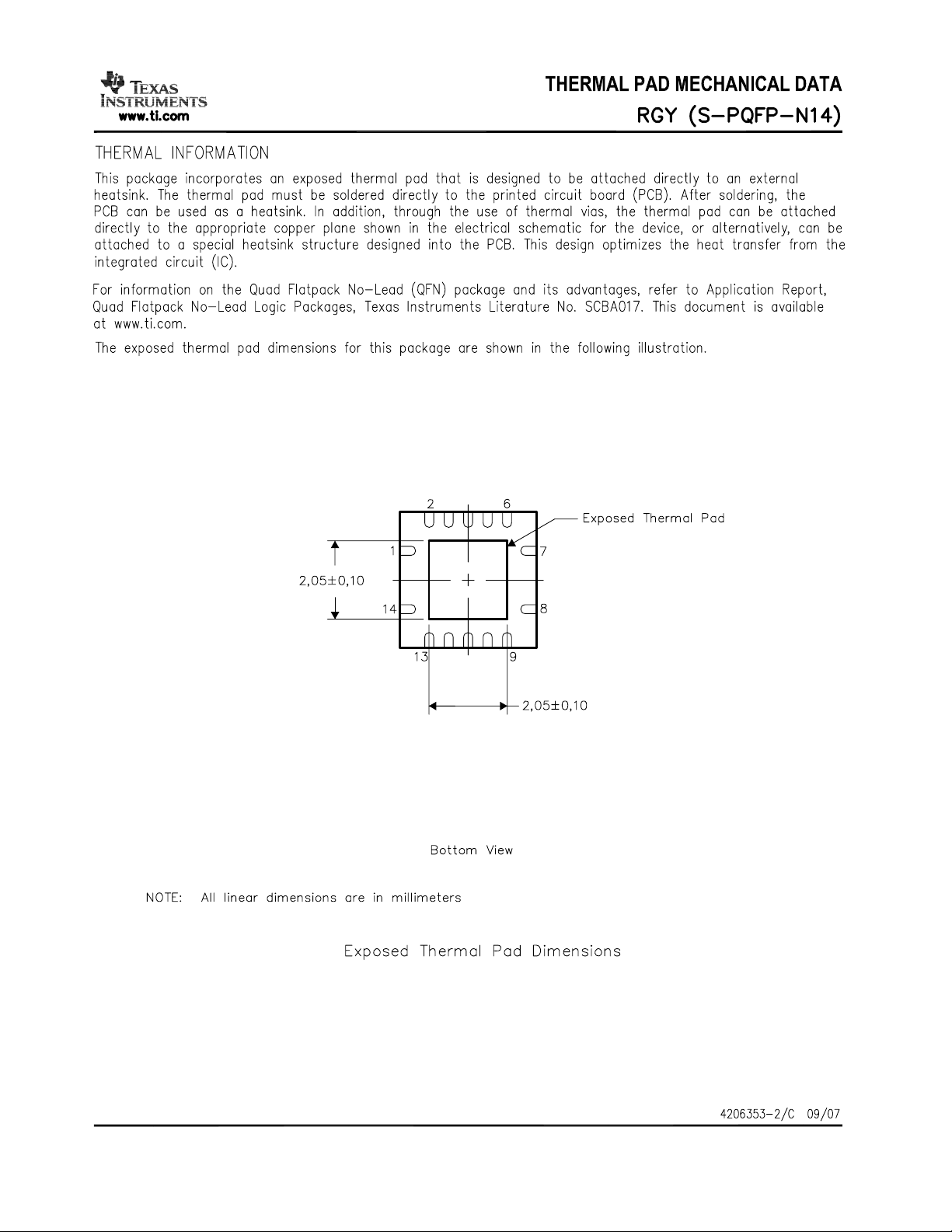

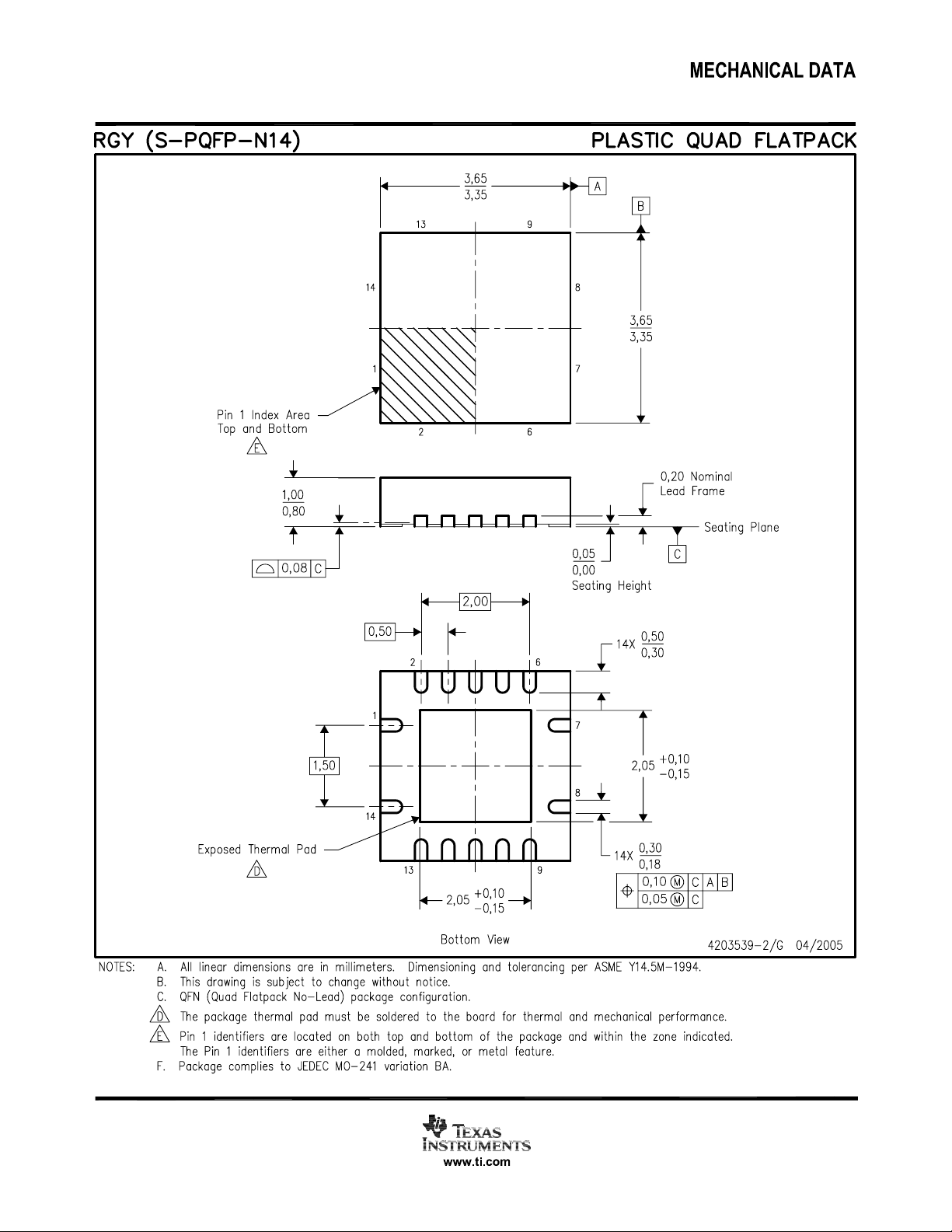

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.

TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.

TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio
Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DSP dsp.ti.com Broadband www.ti.com/broadband
Clocks and Timers www.ti.com/clocks Digital Control www.ti.com/digitalcontrol
Interface interface.ti.com Medical www.ti.com/medical
Logic logic.ti.com Military www.ti.com/military
Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork
Microcontrollers microcontroller.ti.com Security www.ti.com/security
RFID www.ti-rfid.com Telephony www.ti.com/telephony
RF/IF and ZigBee® Solutions www.ti.com/lprf Video & Imaging www.ti.com/video

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2008, Texas Instruments Incorporated

Wireless www.ti.com/wireless
