SN54ALS243A, SN74ALS243A
QUADRUPLE BUS TRANSCEIVERS
WITH 3-STATE OUTPUTS
SDAS069B – DECEMBER 1982 – REVISED DECEMBER 1994
Copyright 1994, Texas Instruments Incorporated
1
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
• Two-Way Asynchronous Communication
Between Data Buses
• pnp Inputs Reduce dc Loading
• Package Options Include Plastic
Small-Outline (D) Packages, Ceramic Chip
Carriers (FK), and Standard Plastic (N) and
Ceramic (J) 300-mil DIPs
description
These quadruple bus transceivers are designed
for asynchronous two-way communication
between data buses. The control-function
implementation allows for maximum flexibility in
timing. These devices allow data transmission
from the A bus to the B bus or from the B bus to the
A bus depending upon the logic levels at the
output-enable (OEBA and OEAB
) inputs. The
output-enable inputs can be used to disable the
device so that the buses are effectively isolated.
The dual-enable configuration gives the
quadruple bus transceivers the capability to store
data by simultaneously enabling OEBA and
OEAB
. Each output reinforces its input in this
transceiver configuration. When both control
inputs are enabled and all other data sources to
the two sets of bus lines are at high impedance,
both sets of bus lines (eight in all) retain their
states. The 4-bit codes appearing on the two sets
of buses are identical.
The SN54ALS243A is characterized for operation over the full military temperature range of –55°C to 125°C.
The SN74ALS243A is characterized for operation from 0°C to 70°C.
FUNCTION TABLE
INPUTS
OEAB
OEBA
FUNCTION
L L A to B
H H B to A
H L Isolation
L H
Latch A and B
(A = B)
SN54ALS243A ...J PACKAGE
SN74ALS243A ...D OR N PACKAGE
(TOP VIEW)
SN54ALS243A . . . FK PACKAGE
(TOP VIEW)
3212019
910111213
4
5
6
7
8
18
17
16
15
14
NC
NC
B1
NC
B2
A1
NC
A2
NC
A3
NC
OEAB
NC
B4
B3
V
OEBA
A4
GND
NC
CC
NC – No internal connection
1
2
3
4
5
6
7
14
13
12
11
10
9
8
OEAB
NC
A1
A2
A3
A4
GND
V
CC
OEBA
NC
B1
B2
B3
B4
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
SN54ALS243A, SN74ALS243A
QUADRUPLE BUS TRANSCEIVERS
WITH 3-STATE OUTPUTS
SDAS069B – DECEMBER 1982 – REVISED DECEMBER 1994
2
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
logic symbol
†
logic diagram (positive logic)
B4
B3
B2
B1
OEBA
8
9
10
11
13
A4
A3
A2
A1
OEAB
6
5
4
3
1
3
A1
B1
11
EN2
1
EN1
13
OEBA
5
A3
6
A4
4
A2
B2
10
B3
9
B4
8
OEAB
1
2
†
This symbol is in accordance with ANSI/IEEE Std 91-1984 and
IEC Publication 617-12.
Pin numbers shown are for the D, J, and N packages.
absolute maximum ratings over operating free-air temperature range (unless otherwise noted)
‡
Supply voltage, V
CC
7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Input voltage, V
I
: All inputs 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
I/O ports 5.5 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Operating free-air temperature range, T
A
: SN54ALS243A –55°C to 125°C. . . . . . . . . . . . . . . . . . . . . . . . . . .
SN74ALS243A 0°C to 70°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage temperature range –65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
‡
Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
recommended operating conditions
SN54ALS243A SN74ALS243A
MIN NOM MAX MIN NOM MAX
UNIT
V
CC
Supply voltage 4.5 5 5.5 4.5 5 5.5 V
V
IH
High-level input voltage 2 2 V
V
IL
Low-level input voltage 0.7 0.8 V
I
OH
High-level output current –12 –15 mA
I
OL
Low-level output current 12 24 mA
T
A
Operating free-air temperature –55 125 0 70 °C
SN54ALS243A, SN74ALS243A
QUADRUPLE BUS TRANSCEIVERS
WITH 3-STATE OUTPUTS
SDAS069B – DECEMBER 1982 – REVISED DECEMBER 1994
3
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted)
SN54ALS243A SN74ALS243A
PARAMETER
TEST CONDITIONS
MIN TYP†MAX MIN TYP†MAX
UNIT
V
IK
VCC = 4.5 V, II = –18 mA –1.2 –1.2 V
VCC = 4.5 V to 5.5 V, IOH = –0.4 mA VCC –2 VCC –2
IOH = –3 mA 2.4 3.2 2.4 3.2
V
OH
VCC = 4.5 V
IOH = –12 mA 2
V
IOH = –15 mA 2
IOL = 12 mA 0.25 0.4 0.25 0.4
VOLV
CC
= 4.5
V
IOL = 24 mA 0.35 0.5
V
Control inputs
VI = 7 V 0.1 0.1
I
I
A or B ports
V
CC
= 5.5
V
VI = 5.5 V 0.1 0.1
mA
Control inputs
20 20
I
IH
A or B ports
‡
V
CC
=
5.5 V
,
V
I
=
2.7 V
20 20
µ
A
Control inputs
–0.1 –0.1
I
IL
A or B ports
‡
V
CC
= 5.5 V,
V
I
= 0.4
V
–0.1 –0.1
mA
I
O
§
VCC = 5.5 V, VO = 2.25 V –20 –112 –30 –112 mA
Outputs high 15 30 15 25
I
CC
VCC = 5.5 V
Outputs low 20 35 20 30
mA
Outputs disabled 21 37 21 32
†
All typical values are at VCC = 5 V, TA = 25°C.
‡
For I/O ports, the parameters IIH and IIL include the off-state output current.
§
The output conditions have been chosen to produce a current that closely approximates one half of the true short-circuit output current, IOS.
switching characteristics (see Figure 1)
PARAMETER
FROM
(INPUT)
TO
(OUTPUT)
VCC = 4.5 V to 5.5 V,
CL = 50 pF,
R1 = 500 Ω
,
R2 = 500 Ω,
TA = MIN to MAX
¶
UNIT
SN54ALS243A SN74ALS243A
MIN MAX MIN MAX
t
PLH
4 15 4 11
t
PHL
A or B
B
or
A
4 15 4 11
ns
t
PZH
7 25 7 20
t
PZL
OEAB
B
7 25 7 20
ns
t
PHZ
2 16 2 14
t
PLZ
OEAB
B
3 27 3 22
ns
t
PZH
7 25 7 20
t
PZL
OEBA
A
7 25 7 20
ns
t
PHZ
2 16 2 14
t
PLZ
OEBA
A
3 27 3 22
ns
¶
For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions.
SN54ALS243A, SN74ALS243A
QUADRUPLE BUS TRANSCEIVERS
WITH 3-STATE OUTPUTS
SDAS069B – DECEMBER 1982 – REVISED DECEMBER 1994
4
POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

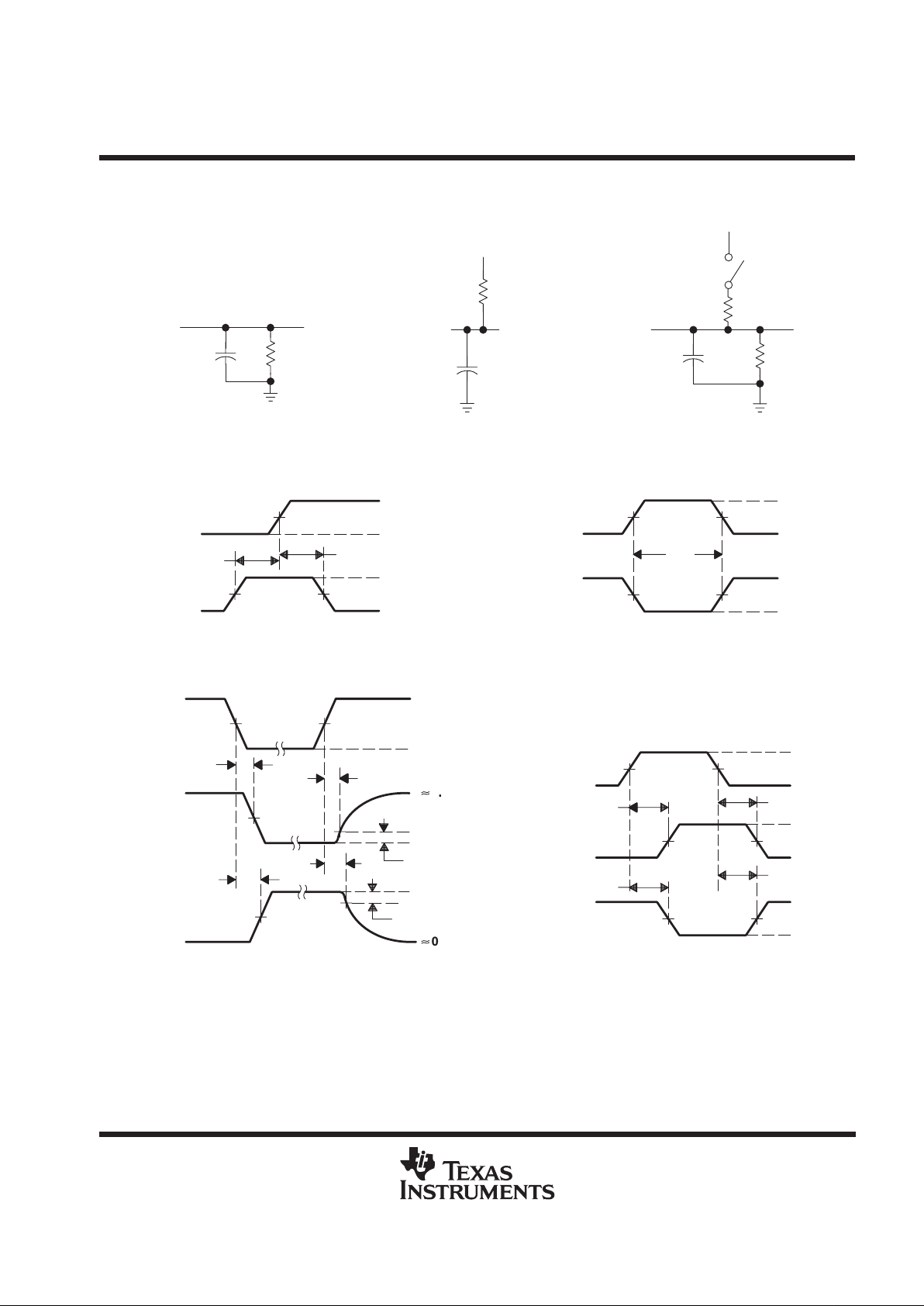

PARAMETER MEASUREMENT INFORMATION
SERIES 54ALS/74ALS AND 54AS/74AS DEVICES
t
PHZ
t
PLZ
t
PHL
t
PLH
0.3 V
t
PZL
t
PZH
t
PLH
t
PHL
LOAD CIRCUIT
FOR 3-STATE OUTPUTS
From Output
Under Test
Test
Point
R1
S1
C
L
(see Note A)
7 V
1.3 V
1.3 V1.3 V
3.5 V
3.5 V
0.3 V
0.3 V
t
h
t
su
VOLTAGE WAVEFORMS
SETUP AND HOLD TIMES
Timing
Input
Data
Input
1.3 V 1.3 V
3.5 V
3.5 V
0.3 V
0.3 V
High-Level
Pulse
Low-Level
Pulse
t
w
VOLTAGE WAVEFORMS
PULSE DURATIONS
Input
Out-of-Phase
Output
(see Note C)
1.3 V 1.3 V
1.3 V1.3 V
1.3 V 1.3 V
1.3 V1.3 V
1.3 V
1.3 V
3.5 V
3.5 V
0.3 V
0.3 V
V
OL
V
OH
V
OH
V
OL
Output
Control
(low-level
enabling)
Waveform 1
S1 Closed
(see Note B)
Waveform 2
S1 Open
(see Note B)
[
0 V
V
OH
V
OL
[
3.5 V
In-Phase
Output
0.3 V
1.3 V 1.3 V
VOLTAGE WAVEFORMS
PROPAGATION DELAY TIMES
VOLTAGE WAVEFORMS
ENABLE AND DISABLE TIMES, 3-STATE OUTPUTS
R2
V
CC
R
L
Test
Point
From Output
Under Test
C
L
(see Note A)
LOAD CIRCUIT
FOR OPEN-COLLECTOR OUTPUTS
LOAD CIRCUIT FOR
BI-STATE
TOTEM-POLE OUTPUTS
From Output
Under Test
Test
Point
C
L
(see Note A)
R
L
RL = R1 = R2
NOTES: A. CL includes probe and jig capacitance.
B. Waveform 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Waveform 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
C. When measuring propagation delay items of 3-state outputs, switch S1 is open.
D. All input pulses have the following characteristics: PRR ≤ 1 MHz, tr = tf = 2 ns, duty cycle = 50%.
E. The outputs are measured one at a time with one transition per measurement.
Figure 1. Load Circuits and Voltage Waveforms
IMPORTANT NOTICE
T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those
pertaining to warranty, patent infringement, and limitation of liability.
TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.
CERT AIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF
DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL
APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR
WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER
CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICA TIONS IS UNDERST OOD TO
BE FULLY AT THE CUSTOMER’S RISK.
In order to minimize risks associated with the customer’s applications, adequate design and operating
safeguards must be provided by the customer to minimize inherent or procedural hazards.
TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent
that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.
Copyright 1998, Texas Instruments Incorporated
