Texas Instruments SN65LVDM050D, SN65LVDM050DR, SN65LVDM051D, SN65LVDM179DR, SN65LVDM180D Datasheet

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

D

Low-Voltage Differential Drivers and
Receivers for Half-Duplex Operation

D

Signaling Rates up to 400 Mbps

D

Bus-T erminal ESD Exceeds 12 kV

D

Operates from a Single 3.3 V Supply

D

Low-Voltage Differential Signaling with
Typical Output Voltages of 340 mV with a
50-Ω Load

D

Propagation Delay Times
– Driver: 1.7 ns Typ
– Receiver: 3.7 ns Typ

D

Power Dissipation at 200 MHz
– Driver: 50 mW Typical
– Receiver: 60 mW Typical

D

LVTTL Input Levels are 5 V Tolerant

D

Driver is High Impedance When Disabled or
With V

D

Receiver has Open-Circuit Fail Safe

D

Surface-Mount Packaging
– D Package (SOIC)
– DGK Package (MSOP) (’LVDM179 Only)

description

The SN65LVDM179, SN65LVDM180,
SN65L VDM050, and SN65LVDM051 are differen­tial line drivers and receivers that use low-voltage
differential signaling (LVDS) to achieve signaling
rates as high as 400 Mbps. These circuits are
similar to TIA/EIA-644 standard compliant
devices (SN65LVDS) counterparts, except that
the output current of the drivers is doubled. This
modification provides a minimum differential
output voltage magnitude of 247 mV into a 50-Ω
load and allows double-terminated lines and
half-duplex operation. The receivers detect a
voltage difference of 100 mV with up to 1 V of
ground potential difference between a transmitter
and receiver.

The intended application of these devices and
signaling technique is half-duplex or multiplex
baseband data transmission over controlled
impedance media of approximately 100-Ω
characteristic impedance. The transmission
media may be printed-circuit board traces,
backplanes, or cables.

< 1.5 V

CC

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

SN65LVDM179D (Marked as DM179 or LVM179)

SN65LVDM179DGK (Marked as M79)

SN65LVDM180D (Marked as LVDM180)

GND
GND

SN65LVDM050D (Marked as LVDM050)

GND

SN65LVDM051D (Marked as LVDM051)

1DE

GND

V

CC

GND

NC

R
RE
DE

D

1B
1A
1R

RE

2R
2A
2B

1B
1A
1R

2R
2A
2B

R
D

(TOP VIEW)

1
2
3
4

(TOP VIEW)

1

14

2

13

3

12

4

11

5

10
6
7

(TOP VIEW)

1

16

2

15

3

14

4

13

5

12

6

11

7

10

8

(TOP VIEW)

1

16

2

15

3

14

4

13

5

12

6

11

7

10

8

A

8

B

7

Z

6
5

Y

V

CC

V

CC

A
B

D

R

D

DE
RE

Z

1D

DE

2D

R

15

12

Y

9

NC

8

V

CC

1D
1Y
1Z
DE
2Z

1R

2Y

9

2D

V

CC

1D
1Y
1Z

RE

2R

1D

1DE

1R

15

2DE
2Z
2Y

9

2D

2D

2DE

2R

12

3

2

5
4

3
2

9

3

4
5

4
3

9

5

5

Y

6

Z

8

A

7

B

9

Y

10

Z

12

A

11

B

14

1Y

13

1Z

10

2Y

11

2Z

2

1A

1

1B

6

2A

7

2B

14

1Y

13

1Z

2

1A

1

1B

10

2Y

11

2Z

6

2A

7

2B

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Copyright  1998, Texas Instruments Incorporated

1

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051

40°C to 85°C

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

description (continued)

AVAILABLE OPTIONS

PACKAGE

T

A

°

–

°

The ultimate rate and distance of data transfer is dependent upon the attenuation
characteristics of the media, the noise coupling to the environment, and other application
specific characteristics.

The SN65LVDM179, SN65LVDM180, SN65LVDM050, and SN65LVDM051 are characterized for operation
from –40°C to 85°C.

SMALL OUTLINE

(D)

SN65LVDM050D —
SN65LVDM051D —
SN65LVDM179D SN65LVDM179DGK
SN65LVDM180D —

SMALL OUTLINE

(DGK)

NOTE:

Function Tables

SN65LVDM179 RECEIVER

INPUTS

VID = VA – V

VID ≥ 100 mV H

–100 MV < VID < 100 mV ?

VID ≤ –100 mV L

Open H

H = high level, L = low level, ? = indeterminate

SN65LVDM179 DRIVER

INPUT

D Y Z

L L H

H H L

Open L H

H = high level, L = low level

SN65LVDM180, SN65LVDM050, and

SN65LVDM051 RECEIVER

INPUTS

VID = VA – V

VID ≥ 100 mV L H

–100 MV < VID < 100 mV L ?

VID ≤ –100 mV L L

Open L H

X H Z

H = high level, L = low level, Z = high impedance,
X = don’t care

B

OUTPUTS

B

OUTPUT

R

OUTPUT

RE R

2

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SN65LVDM180, SN65LVDM050, and

SN65LVDM051 DRIVER

INPUTS OUTPUTS

D DE Y Z

L H L H

H H H L

Open H L H

X L Z Z

H = high level, L = low level, Z = high impedance,
X = don’t care

equivalent input and output schematic diagrams

V

CC

300 kΩ

D or RE

Input

7 V

50 Ω

300 kΩ

DE

50 Ω

Input

7 V

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

V

CC

V

CC

10 kΩ

5 Ω

Y or Z
Output

7 V

7 V

V

CC

300 kΩ300 kΩ

B InputA Input

7 V

V

CC

5 Ω

R Output

7 V

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

3

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051
HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

absolute maximum ratings over operating free-air temperature (unless otherwise noted)

†

Supply voltage range, VCC (see Note 1) –0.5 V to 4 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage range (D, R, DE, RE) –0.5 V to 6 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage range (Y, Z, A, and B) –0.5 V to 4 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Electrostatic discharge (Y, Z, A, B , and GND) (see Note 2) CLass 3, A:12 kV, B:600 V. . . . . . . . . . . . . . . . . .

All Class 3, A:7 kV, B:500 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Continuous power dissipation see dissipation rating table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature range –65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds 250°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. All voltage values, except differential I/O bus voltages are with respect to network ground terminal.

2. Tested in accordance with MIL-STD-883C Method 3015.7.

DISSIPATION RATING TABLE

PACKAGE

D8 725 mW 5.8 mW/°C 377 mW

D14 or D16 950 mW 7.8 mW/°C 494 mW

DGK 424 mW 3.4 mW/°C 220 mW

†

This is the inverse of the junction-to-ambient thermal resistance when board-mounted and with no air flow.

TA ≤ 25°C

POWER RATING

DERATING FACTOR

ABOVE TA = 25°C

†

TA = 85°C

POWER RATING

recommended operating conditions

MIN NOM MAX UNIT

Supply voltage, V
High-level input voltage, V
Low-level input voltage, V
Magnitude of differential input voltage, VID 0.1 0.6 V

Common–mode input voltage, VIC (see Figure 6)

Operating free–air temperature, T

CC

IH

IL

A

3 3.3 3.6 V
2 V

0.8 V

Ť

Ť

V

ID

2

–40 85 °C

2.4

*

VCC–0.8

Ť

V

ID

2

Ť

V

4

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

SN65LVDM180

mA

SN65LVDM050

mA

SN65LVDM051

mA

R
IIHHigh-level input current

V

5 V

A

IILLow-level input current

V

V

A

IOSShort-circuit output current

mA

IOZHigh-impedance output current

A

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

device electrical characteristics over recommended operating conditions (unless otherwise
noted)

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

SN65LVDM179 No receiver load, Driver RL = 50 Ω 10 15 mA

Driver and receiver enabled, No receiver load,
Driver RL = 50 Ω

SN65LVDM180

I

Supply current

CC

SN65LVDM050

†

All typical values are at 25°C and with a 3.3 V supply.

Driver enabled, Receiver disabled, RL = 50 Ω 9 13
Driver disabled, Receiver enabled, No load 1.7 5
Disabled 0.5 2
Drivers and receivers enabled, No receiver loads,

Driver RL = 50 Ω
Drivers enabled, Receivers disabled, RL = 50 Ω 16 24
Drivers disabled, Receivers enabled, No loads 4 6
Disabled 0.5 1
Drivers enabled, No receiver loads, Driver RL = 50 Ω 19 27
Drivers disabled, No loads 4 6

10 15

mA

19 27

mA

driver electrical characteristics over recommended operating conditions (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

VOD Differential output voltage magnitude

∆VOD
V

OC(SS)

∆V

OC(SS)

V

OC(PP)

I

O(OFF)

C

IN

Change in differential output voltage magnitude between logic
states

Steady-state common-mode output voltage 1.125 1.2 1.375 V
Change in steady-state common-mode output voltage between

logic states
Peak-to-peak common-mode output voltage 50 150 mV

p

p

p

p

Power-off output current VCC = 0 V, VO = 3.6 V ±1 µA
Input capacitance 3 pF

p

= 50 Ω,

L

See Figure 1 and Figure 2

See Figure 3

DE

D

DE

D

=

IH

= 0.8

IL

VOY or VOZ = 0 V 7 10
VOD = 0 V 7 10
VOD = 600 mV ±1
VO = 0 V or V

CC

247 340 454

±1

mV

µ

µ

µ

–50 50

–50 50 mV

–0.5 –20

2 20

–0.5 –10

2 10

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

5

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051

See Figure 5 and Table 1

mV

IIInput current (A or B inputs)

A

C
See

6

See Figure 6

See Figure 7

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

receiver electrical characteristics over recommended operating conditions (unless otherwise
noted)

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

V

ITH+

V

ITH–

V

OH

V

OL

I

I(OFF)

I

IH

I

IL

I

OZ

C

I

†

All typical values are at 25°C and with a 3.3-V supply.

driver switching characteristics over recommended operating conditions (unless otherwise
noted)

t

PLH

t

PHL

t

r

t

f

t

sk(p)

t

sk(o)

t

PZH

t

PZL

t

PHZ

t

pLZ

†

All typical values are at 25°C and with a 3.3-V supply.

‡

t

sk(o)

Positive-going differential input voltage threshold
Negative-going differential input voltage threshold
High-level output voltage IOH = –8 mA 2.4 V
Low-level output voltage IOL = 8 mA 0.4 V

p

Power-off input current (A or B inputs) VCC = 0 ±20 µA
High-level input current (enables) VIH = 5 V 10 µA
Low-level input current (enables) VIL = 0.8 V 10 µA
High-impedance output current VO = 0 or 5 V ±10 µA

Input capacitance 5 pF

Propagation delay time, low-to-high-level output 1.7 2.7 ns
Propagation delay time, high-to-low-level output 1.7 2.7 ns
Differential output signal rise time
Differential output signal fall time
Pulse skew (|t
Channel-to-channel output skew
Propagation delay time, high-impedance-to-high-level output 6 10 ns
Propagation delay time, high-impedance-to-low-level output
Propagation delay time, high-level-to-high-impedance output
Propagation delay time, low-level-to-high-impedance output 5 10 ns

is the maximum delay time difference between drivers on the same device.

p

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

– t

pLH

|)

‡

pHL

VI = 0 –2 –11 –20
VI = 2.4 V –1.2 –3

RL = 50Ω,

= 10 pF,

p

L

Figure

–100

250 ps
100 ps

100

0.6 1 ns

0.6 1 ns

6 10 ns
4 10 ns

µ

6

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

See Figure 6

L

,

See Figure 7

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

receiver switching characteristics over recommended operating conditions (unless otherwise
noted)

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

t

PLH

t

PHL

t

sk(p)

t

sk(o)

t

r

t

f

t

PZH

t

PZL

t

PHZ

t

PLZ

†

All typical values are at 25°C and with a 3.3-V supply.

Propagation delay time, low-to-high-level output
Propagation delay time, high-to-low-level output
Pulse skew (|t
Channel-to-channel output skew 0.2 ns
Output signal rise time
Output signal fall time
Propagation delay time, high-level-to-high-impedance output 2.5 ns
Propagation delay time, low-level-to-low-impedance output
Propagation delay time, high-impedance-to-high-level output
Propagation delay time, low-impedance-to-high-level output 4 ns

pHL

– t

pLH

|)

CL = 10 pF,

C

= 10 pF,

See Figure 6

3.7 4.5 ns

3.7 4.5 ns

0.1 ns

0.7 1.5 ns

0.9 1.5 ns

2.5 ns
7 ns

PARAMETER MEASUREMENT INFORMATION

driver

I

Driver Enable

I

I

A

V

I

OY

Y

V

OD

I

OZ

Z

V

OY

V

OZ

Figure 1. Driver Voltage and Current Definitions

VOY)

V

OZ

2

V

OC

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

7

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051
HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

PARAMETER MEASUREMENT INFORMATION

driver (continued)

Driver Enable

Y

V

OD

CL = 10 pF
(2 Places)

t

PHL

Input

Output

t

PLH

Input

V

OD(H)

Z

50 Ω
±1%

2 V

1.4 V

0.8 V

100%
80%

0 V

V

OD(L)

20%
0%

t

f

NOTE A: All input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 1 ns, pulse repetition rate (PRR) = 50 Mpps,

pulse width = 10 ± 0.2 ns . CL includes instrumentation and fixture capacitance within 0,06 mm of the D.U.T.

t

r

Figure 2. Test Circuit, Timing, and Voltage Definitions for the Differential Output Signal

Driver Enable

Y

Input

Z

NOTE A: All input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 1 ns, pulse repetition rate (PRR) = 50 Mpps,

pulse width = 10 ± 0.2 ns . CL includes instrumentation and fixture capacitance within 0,06 mm of the D.U.T . The measurement of V
is made on test equipment with a –3 dB bandwidth of at least 300 MHz.

25 Ω, ±1% (2 Places)

CL = 10 pF
(2 Places)

3 V

0 V

V

OC

V

OC

V

OC(PP)

V

OC(SS)

OC(PP)

Figure 3. Test Circuit and Definitions for the Driver Common-Mode Output V oltage

8

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

driver (continued)

PARAMETER MEASUREMENT INFORMATION

0.8 V or 2 V

DE

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

25 Ω, ±1% (2 Places)

Y

Z

CL = 10 pF

(2 Places)

V

OYVOZ

1.2 V

DE

VOY or V

VOZ or V

NOTE A: All input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 1 ns, pulse repetition rate (PRR) = 0.5 Mpps,

pulse width = 500 ± 10 ns . CL includes instrumentation and fixture capacitance within 0,06 mm of the D.U.T.

OZ

OY

t

PZH

t

PZL

t

PHZ

t

PLZ

2 V

1.4 V

0.8 V
~1.4 V

1.25 V

1.2 V

1.2 V

1.15 V
~1 V

D at 2 V and input to DE

D at 0.8 V and input to DE

Figure 4. Enable and Disable Time Circuit and Definitions

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

9

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051
HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

PARAMETER MEASUREMENT INFORMATION

receiver

A

VIA)

V

IB

2

V

IA

V

IC

Figure 5. Receiver Voltage Definitions

Table 1. Receiver Minimum and Maximum Input Threshold Test Voltages

V

ID

B

V

IB

R

V

O

APPLIED VOLTAGES

V

1.25 1.15 100 1.2

1.15 1.25 –100 1.2

(V)

IA

2.4 2.3 100 2.35

2.3 2.4 –100 2.35

0.1 0 100 0.05
0 0.1 –100 0.05

1.5 0.9 600 1.2

0.9 1.5 –600 1.2

2.4 1.8 600 2.1

1.8 2.4 –600 2.1

0.6 0 600 0.3
0 0.6 –600 0.3

V

IB

RESULTING DIFFERENTIAL

INPUT VOLTAGE

(mV)

V

ID

RESULTING COMMON-

MODE INPUT VOLTAGE

V

(V)

IC

10

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

receiver (continued)

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

PARAMETER MEASUREMENT INFORMATION

V

ID

V

IA

V

IB

C

L

10 pF

V

O

V

IA

V

IB

V

ID

t

PHL

V

O

NOTE A: All input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 1 ns, pulse repetition rate (PRR) = 50 Mpps,

pulse width = 10 ± 0.2 ns. CL includes instrumentation and fixture capacitance within 0,06 m of the D.U.T.

2.4 V

0.4 V
t

f

t

PLH

t

r

1.4 V

1 V

0.4 V

0 V

–0.4 V

V

OH

1.4 V
V

OL

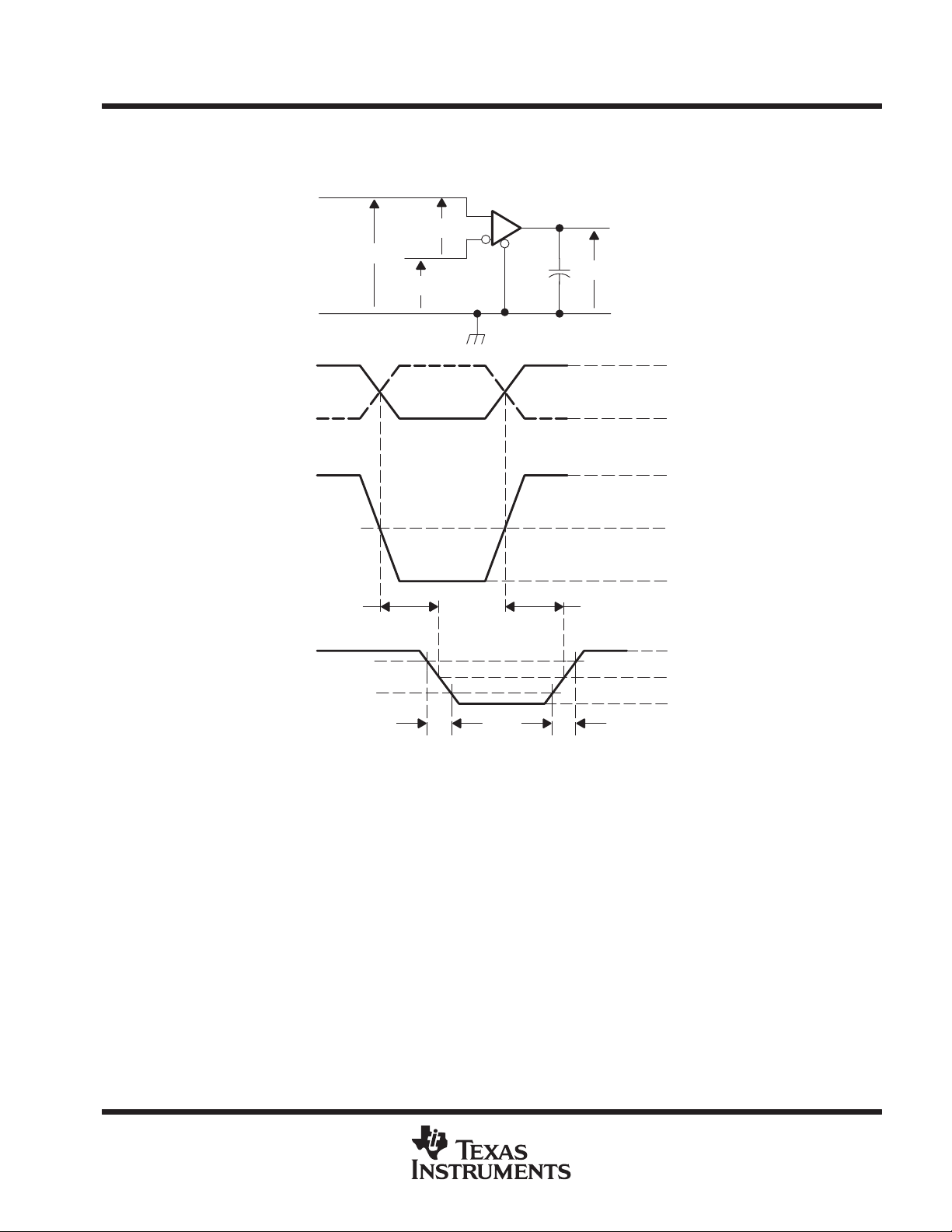

Figure 6. Timing Test Circuit and Waveforms

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

11

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051
HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

PARAMETER MEASUREMENT INFORMATION

receiver (continued)

1.2 V

Inputs

NOTE A: All input pulses are supplied by a generator having the following characteristics: tr or tf ≤ 1 ns, pulse repetition rate (PRR) = 0.5 Mpps,

pulse width = 500 ± 10 ns. CL includes instrumentation and fixture capacitance within 0,06 m of the D.U.T.

V

TEST

A

RE

t

PZL

t

PZL

RE

B

500 Ω

A

C

L

10 pF

PLZ

+
–

V

2.5 V

1 V

2 V

1.4 V

0.8 V

TEST

V

O

t

2.5 V

1.4 V
V

0 V

1.4 V

2 V

1.4 V

0.8 V

V

1.4 V

0 V

V

TEST

RE

t

R

A

PZH

R

VOL +0.5 V

t

PZH

VOH –0.5 V

t

PHZ

Figure 7. Enable/Disable Time Test Circuit and Waveforms

OL

OH

12

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

TYPICAL CHARACTERISTICS

COMMON-MODE INPUT VOLTAGE

vs

SUPPLY VOLTAGE

2.5
VCC > 3.15 V

4

2

1.5

1

0.5

– Common-Mode Input Voltage – V

IC

V

0

0

DRIVER

LOW-LEVEL OUTPUT VOLTAGE

vs

LOW-LEVEL OUTPUT CURRENT

VCC = 3.3 V
TA = 25°C

VCC = 3 V

MIN

0.1 0.3

0.2 0.4 0.6

|VID|– Differential Input Voltage – V

Figure 8

3.5

3

0.5

DRIVER

HIGH-LEVEL OUTPUT VOLTAGE

vs

HIGH-LEVEL OUTPUT CURRENT

VCC = 3.3 V
TA = 25°C

3

2

1

– Low-Level Output Voltage – V

OL

V

0

6102

IOL – Low-Level Output Current – mA

80

Figure 9

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

2.5

2

1.5

1

– High-Level Output Voltage – V

OH

.5

V

124

0

0

IOH – High-Level Output Current – mA

–4 –6

–8–2

Figure 10

13

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051
HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

TYPICAL CHARACTERISTICS

4

3

2

1

– High-Level Output Voltage – V
OH

V

0

RECEIVER

HIGH-LEVEL OUTPUT VOLTAGE

vs

HIGH-LEVEL OUTPUT CURRENT

VCC = 3.3 V
TA = 25°C

0

–20

IOH – High-Level Output Current – mA

–40 –60

Figure 11

–80

5

4

3

2

– Low-Level Output Votlage – V

1

OL

V

0

0

RECEIVER

LOW-LEVEL OUTPUT VOLTAGE

vs

LOW-LEVEL OUTPUT CURRENT

VCC = 3.3 V
TA = 25°C

10

IOL – Low-Level Output Current – mA

20 30

40 50

Figure 12

60

DRIVER

HIGH-TO-LOW LEVEL PROPAGATION DELAY TIME

vs

FREE-AIR TEMPERATURE

2.5

2

PLH – High-To-Low Propagation Delay Time – ns

1.5

t

–50

VCC = 3 V

–30

–10

TA – Free-Air Temperature – °C

VCC = 3.3 V

VCC = 3.6 V

10

30 70

50 90

Figure 13

DRIVER

LOW-TO-HIGH LEVEL PROPAGATION DELAY TIME

vs

FREE-AIR TEMPERATURE

2.5

2

PLH – Low-To-High Propagation Delay Time – ns

1.5

t

–50

VCC = 3 V

–30

–10

TA – Free-Air Temperature – °C

VCC = 3.3 V

VCC = 3.6 V

10

30 70

50 90

Figure 14

14

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

TYPICAL CHARACTERISTICS

RECEIVER

HIGH-TO-LOW LEVEL PROPAGATION DELAY TIME

vs

FREE-AIR TEMPERATURE

4.5

4

3.5

– High-To-Low Level Propagation Dealy T ime – ns

2.5

PLH

t

3

–50

VCC = 3 V

–30

TA – Free–Air Temperature – °C

VCC = 3.3 V

VCC = 3.6 V

–10

10

30 70

50 90

Figure 15

RECEIVER

LOW-TO-HIGH LEVEL PROPAGATION DELAY TIME

vs

FREE–AIR TEMPERATURE

4.5

VCC = 3 V

4

3.5

3

2.5

PLH – Low-To-High Level Propagation Delay Time – ns

t

–50

–30

VCC = 3.3 V

VCC = 3.6 V

–10

TA – Free-Air Temperature – °C

10

50 90

30 70

Figure 16

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

15

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051
HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

APPLICATION INFORMATION

The devices are generally used as building blocks for high-speed point-to-point data transmission. Ground
differences are less than 1 V with a low common–mode output and balanced interface for very low noise emissions.
Devices can interoperate with RS-422, PECL, and IEEE-P1596. Drivers/Receivers maintain ECL speeds without the
power and dual supply requirements.

1000

100

5% Jitter

10

1

Transmission Distance – m

24 AWG UTP 96 Ω (PVC Dielectric)

0.1
100k 10M 100M

1M

30% Jitter

Data Rate – Hz

Figure 17. Data Transmission Distance Versus Rate

16

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

APPLICATION INFORMATION

fail safe

One of the most common problems with differential signaling applications is how the system responds when
no differential voltage is present on the signal pair . The LVDS receiver is like most differential line receivers, in
that its output logic state can be indeterminate when the differential input voltage is between –100 mV and 100
mV and within its recommended input common-mode voltage range. TI’s L VDS receiver is dif ferent, however,
in how it handles the open-input circuit situation.

Open-circuit means that there is little or no input current to the receiver from the data line itself. This could be
when the driver is in a high-impedance state or the cable is disconnected. When this occurs, the L VDS receiver
will pull each line of the signal pair to near V
feature uses an AND gate with input voltage thresholds at about 2.3 V to detect this condition and force the
output to a high-level, regardless of the differential input voltage.

300 kΩ 300 kΩ

through 300-kΩ resistors as shown in Figure 1 1. The fail-safe

CC

V

CC

A

Rt = 100 Ω (Typ)

B

VIT ≈ 2.3 V

Y

Figure 18. Open-Circuit Fail Safe of the LVDS Receiver

It is only under these conditions that the output of the receiver will be valid with less than a 100-mV differential
input voltage magnitude. The presence of the termination resistor, Rt, does not af fect the fail-safe function as
long as it is connected as shown in the figure. Other termination circuits may allow a dc current to ground that
could defeat the pull-up currents from the receiver and the fail-safe feature.

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

17

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051
HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

MECHANICAL DATA

D (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE

14 PIN SHOWN

0.050 (1,27)

14

1

0.069 (1,75) MAX

A

0.020 (0,51)

0.014 (0,35)

0.010 (0,25)

0.004 (0,10)

DIM

8

7

PINS **

0.010 (0,25)

0.157 (4,00)

0.150 (3,81)

M

0.244 (6,20)

0.228 (5,80)

Seating Plane

0.004 (0,10)

8

14

0.008 (0,20) NOM

0°–8°

16

Gage Plane

0.010 (0,25)

0.044 (1,12)

0.016 (0,40)

A MAX

A MIN

NOTES: A. All linear dimensions are in inches (millimeters).

18

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion, not to exceed 0.006 (0,15).
D. Falls within JEDEC MS-012

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

0.197

(5,00)

0.189

(4,80)

0.344

(8,75)

0.337

(8,55)

0.394

(10,00)

0.386

(9,80)

4040047/D 10/96

SN65LVDM179, SN65LVDM180, SN65LVDM050, SN65LVDM051

HIGH-SPEED DIFFERENTIAL LINE DRIVERS AND RECEIVERS

SLLS324B – DECEMBER 1998 – REVISED MARCH 2000

MECHANICAL DATA

DGK (R-PDSO-G8) PLASTIC SMALL-OUTLINE PACKAGE

0,65

0,38
0,25

8

1

3,05
2,95

5

3,05
2,95

4

Seating Plane

0,25

4,98
4,78

M

0,15 NOM

Gage Plane

0,25

0°–6°

0,69
0,41

1,07 MAX

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion.
D. Falls within JEDEC MO-187

0,15 MIN

0,10

4073329/A 02/97

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

19

IMPORTANT NOTICE

T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue
any product or service without notice, and advise customers to obtain the latest version of relevant information
to verify, before placing orders, that information being relied on is current and complete. All products are sold
subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those
pertaining to warranty, patent infringement, and limitation of liability.

TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in
accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent
TI deems necessary to support this warranty . Specific testing of all parameters of each device is not necessarily
performed, except those mandated by government requirements.

CERTAIN APPLICA TIONS USING SEMICONDUCTOR PRODUCTS MA Y INVOLVE POTENTIAL RISKS OF
DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL
APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR
WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER
CRITICAL APPLICA TIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICATIONS IS UNDERST OOD TO
BE FULLY AT THE CUSTOMER’S RISK.

In order to minimize risks associated with the customer’s applications, adequate design and operating
safeguards must be provided by the customer to minimize inherent or procedural hazards.

TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent
that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other
intellectual property right of TI covering or relating to any combination, machine, or process in which such
semiconductor products or services might be or are used. TI’s publication of information regarding any third
party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.

Copyright  2000, Texas Instruments Incorporated
