About This Manual
Trademarks
Preface
This user’s guide describes the SN65LVCP22/23 evaluation module (EVM).
This guide contains the EVM schematic, bill of materials, assembly drawing,
and board layouts.
How to Use This Manual
This document contains the following chapters:
- Chapter 1– Introduction
- Chapter 2– Setup and Equipment Required
- Chapter 3– EVM Construction
- Chapter 4– PCB Fabrication and Bill of Materials
This user’s guide may contain cautions and warnings. The information in a
caution or a warning is provided for your protection. Please read each caution
and warning carefully.
Related Documentation From Texas Instruments
SN65LVCP22 – LVDS crosspoint switch data sheet (SLLS553)
SN65LVCP23 – LVPECL crosspoint switch data sheet (SLLS554)
Trademarks
Trademarks are the property of their respective owners.
v
Trademarks
Electrostatic Sensitive Devices
This EVM contains components that can potentially be damaged by
electrostatic discharge. Always transport and store the EVM in its
supplied ESD bag when not in use. Handle using an antistatic
wristband. Operate on an antistatic work surface. For more
information on proper handling, refer to SSYA008.
vi
Contents
1 Introduction 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 Overview 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Signal Paths 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Setup and Equipment Required 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1 Overview 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Applying an Input 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Observing an Output 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.4 Typical Test Results 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3 EVM Construction 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.1 Schematics 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 Board Layout Patterns 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4 PCB Fabrication and Bill of Materials 4-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1 PCB Fabrication Notes and Stackup 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2 Bill of Materials for SN65LVCP22/23 EVM 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
vii
Contents
1–1 Functional Configurations of the SN65LVCP22 and SN65LVCP23 1-2. . . . . . . . . . . . . . . . . . .
1–2 SN65LVCP22/23 EVM 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1–3 SN65LVCP22/23 EVM 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–1 EVM Power Connections for SN65LVCP22/23 Evaluation—With LVDS Inputs 2-2. . . . . . . .
2–2 External Termination for Interfacing CML or LVPECL Drivers 2-3. . . . . . . . . . . . . . . . . . . . . . . .

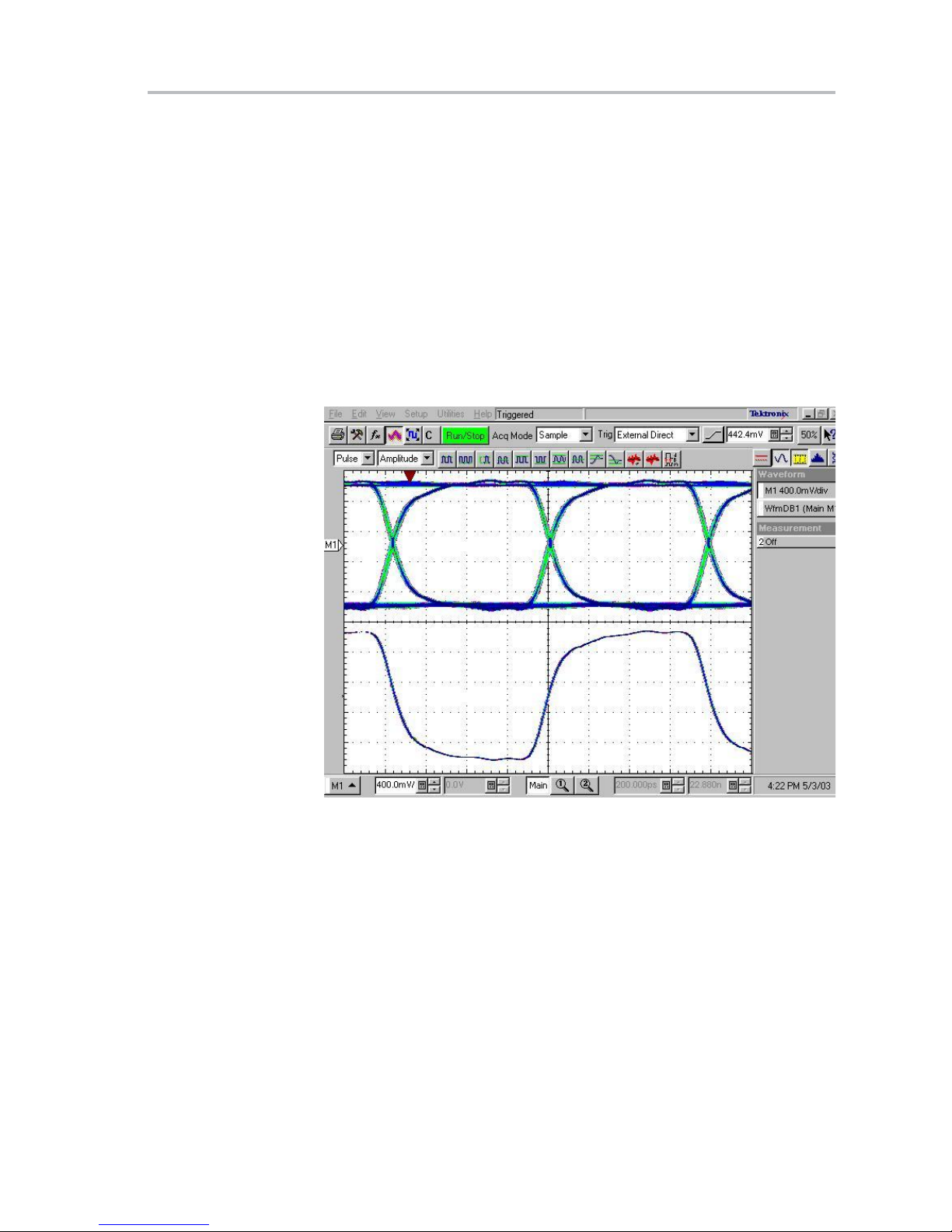

2–3 Typical Test Results of the SN65LVCP23 with the SN65LVCP22/23EVM 2-5. . . . . . . . . . . . .

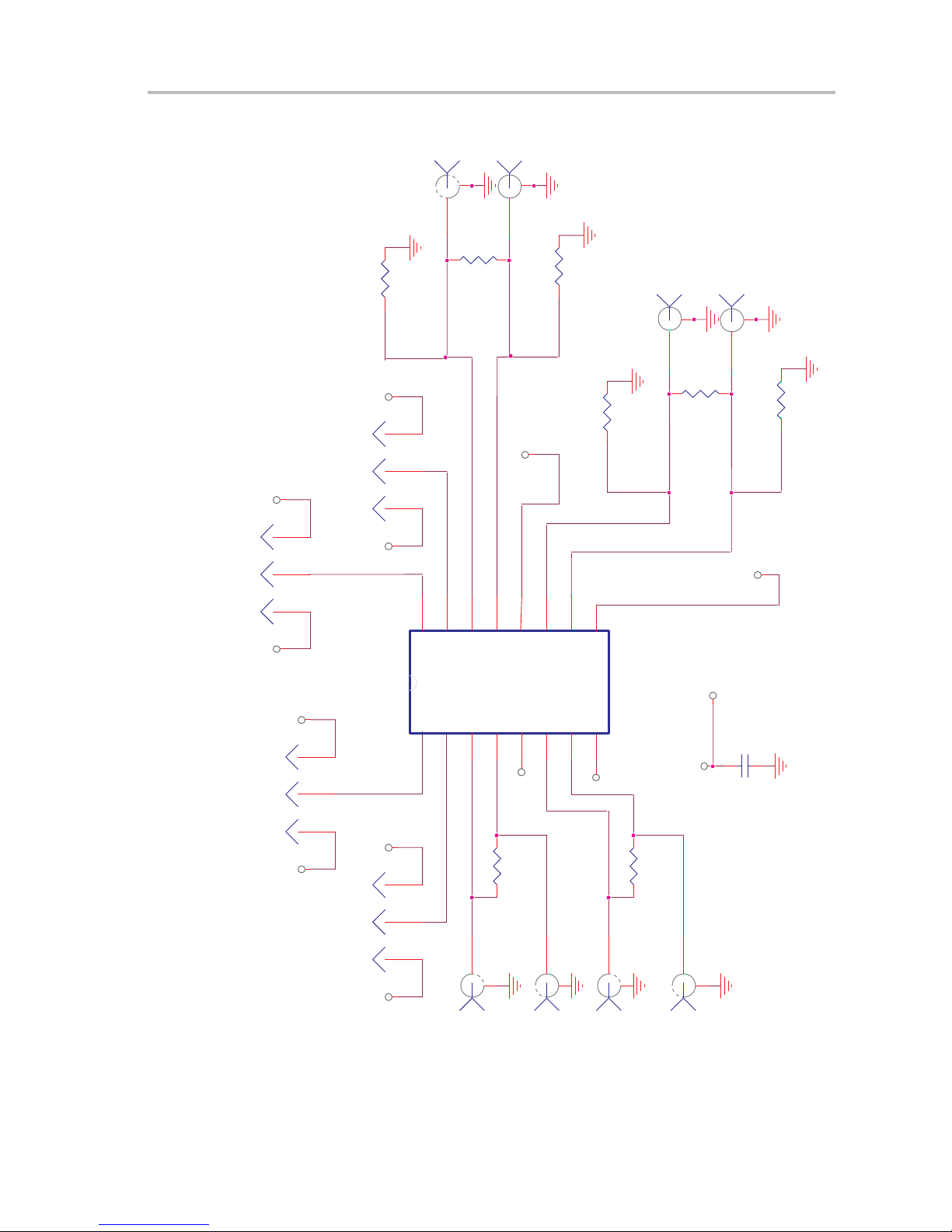

3–1 SN65LVCP22D Schematic 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–2 SN65LVCP23D Schematic 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–3 SN65LVCP22/23 Silk Screen 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–4 Layer 1 – Signal Plane 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–5 Layer 2 – GND Plane 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–6 Layer 3 – Split Plane (VCC/VCC01) 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3–7 Layer 4 – GND Plane 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–1 Crosspoint Function Table 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
viii
Chapter 1
The SN65LVCP22/23 EVM highlights the high-speed performance and
functionality of the SN65LVCP22 and SN65LVCP23 2x2 crosspoint switches.
Topic Page
1.1 Overview 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.2 Signal Paths 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Introduction
1-1
Overview
1.1 Overview
The SN65LVCP22 (LVDS output) and SN65LVCP23 (LVPECL output) are
high-speed 2x2 crosspoint switches. The four different functions that these
crosspoints provide are shown in Figure 1–1. The functions of these
crosspoints are selected via pins SEL0 and SEL1. Control pins EN0 and EN1
enable or disable the outputs. The receiver has a wide input common-mode
voltage range with an ability to accept LVDS, LVPECL and CML signaling
levels.
Figure 1–1.Functional Configurations of the SN65LVCP22 and SN65LVCP23
IN0+ OUT0+
IN0–
IN1+
IN1–
2x2 Crosspoint
IN+
(1 OR 2)
IN–
1:2 Splitter

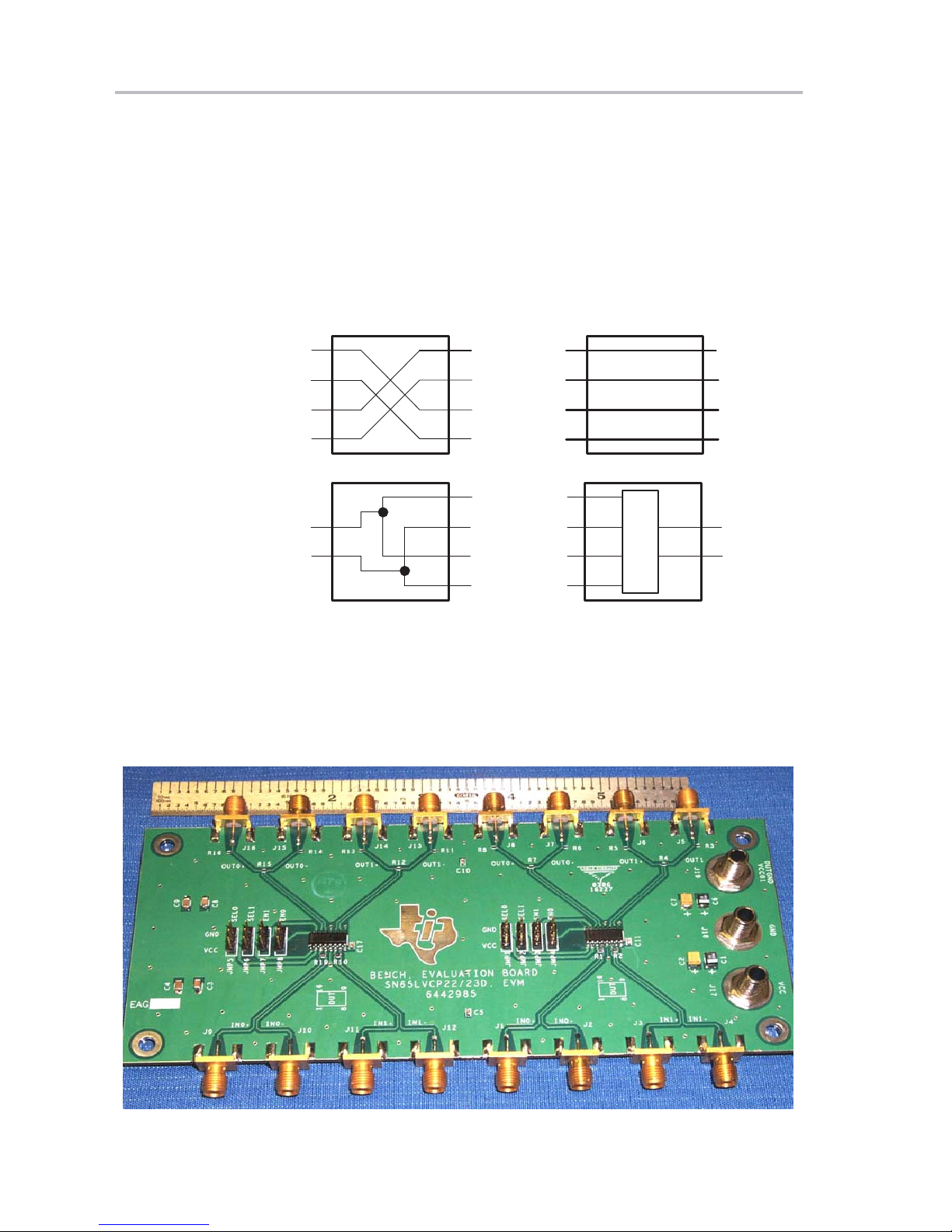

Figure 1–2 is a picture of the SN65LVCP22/23 EVM. The EVM part number
is SN65LVCP22/23EVM. The EVM comes with the SN65LVCP22D and
SN65LVCP23D (SOIC both) installed. A copy of the datasheet is shipped with
the EVM. The latest version of the datasheet is available from www.ti.com.
Figure 1–2.SN65LVCP22/23 EVM
OUT0–
OUT1+
OUT1–
OUT0+
OUT0–
OUT1+
OUT1–
IN0+
IN0–
IN1+
IN1–
IN0+
IN0–
IN1+
IN1–
Dual Repeater
MUX
2:1 MUX
OUT0+
OUT0–
OUT1+
OUT1–
OUT+
(1 OR 2)
OUT–
1-2
1.2 Signal Paths
The signal paths on this EVM include 16 edge-launch SMA connectors
(J1–J16) for high-speed data transmission, 4 jumpers (JMP1, JMP2 for
DUT1and JMP5, JMP6 for DUT2) for active switch logic control, 4
jumpers (JMP3, JMP4 for DUT1and JMP7, JMP8 for DUT2) for
enabling and disabling the outputs, and three banana jacks (J17, J18,
J19) for power and ground connections. See Figure 1–3.
Figure 1–3.SN65LVCP22/23 EVM
Signal Paths
SEL0
JMP5
J15
R16
uninstalled
SEL1
EN1
JMP6
JMP7
J10
uninstalled
EN0
JMP8
J16
GND
VCC
J9
{
{GND is tied to Vcc01
100Ω
161
R15
uninstalled
R14
R19
J11
J14
R13
R10
F
0.010µ
R12
DUT2
C 17
100Ω
R11
uninstalled
J13
uninstalled
J12
uninstalled
SEL1
EN1
JMP2
JMP3
J7
R 8
EN0
JMP4
R 7
uninstalled
116
1
100Ω
uninstalled
R 6
R1
J8
SEL0
{
GND
VCC
JMP1
J1 J2 J3
R2
R 5
DUT1
C 11
F
0.010µ
100Ω
R 4
R 3
uninstalled
C6C7 C8
F
F1µF
10µ
68µ
F
10µF68µ
C1 C2 C3C4 C5
J5J6
uninstalled
C9
C10
F
F
0.1µ
0.010µ
F
F
F
1µ
0.1µ
0.010µ
J4
J19
J18
J17
VCC01
DUTGND
GNDVCC
Introduction
1-3
1-4
Chapter 2
Topic Page
2.1 Overview 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.2 Applying an Input 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.3 Observing an Output 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.4 Typical Test Results 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup and Equipment Required
2-1
Overview
2.1 Overview
The output characteristics of the SN65LVCP23 (LVPECL) drivers are
generally loaded with 50-Ω resistors to a termination bias voltage, V
. VTT is
TT
usually 2 V below the supply voltage of the driver circuit. When the driver
operates from a 3.3-V supply, V
is set to approximately 1.3 V.
TT
The output characteristics of the SN65LVCP22 are specified in the
TIA/EIA-644 standard. LVDS drivers nominally provide a 350-mV differential
signal, with a 1.25–V offset from ground. These levels are attained when
driving a 100-W differential line-termination test load. This requirement
includes the effects of up to 32 standard receivers with their ground reference
up to 1 V d ifferent from that of the driver. This common-mode loading limitation
of LVDS drivers affects how they are observed and much of the test setup that
follows..
The EVM is designed to support the SN65LVCP22 LVDS output device as well
as the SN65LVCP23 LVPECL output device. By using the three power jacks
(J17, J18, J19), as well as installing termination resistors (R3–R8 and
R11–R16), different methods of termination and probing can be used to
evaluate the device output characteristics. The typical setup for the
SN65LVCP22 is shown in Figure 2–1.
Figure 2–1.EVM Power Connections for SN65LVCP22/23 Evaluation—With LVDS Inputs
+
Power Supply #1 3.3 V
–
+
Power Supply #2 1.2 V
–
Pattern
Generator
OUTPUT 1
OUTPUT 1
OUTPUT 2
OUTPUT 2
J1 or J9
J2 or J10
J3 or J11
J4 or J12
VCC01
(DUT GND)
R1 or R19
100 Ω
R2 or R10
100 Ω
SN65LVCP22/23 EVM
GND
(EVM GND)
VCC
J17J18J19
J8 or J16
J7 or J15
J6 or J14
J5 or J13
CH1
50 Ω
CH2
50 Ω
CH3
50 Ω
CH4
50 Ω
Oscilloscope
2-2
2.2 Applying an Input
When using a general-purpose signal generator with 50-Ω output impedance,
make sure that the signal levels are between 0-V and 4-V with respect to J19,
device under test ground (DUT GND), designated as Vcc01.
Inputs should be applied to the SMA connectors J1, J2, J3, and J4 for DUT1
(or J9, J10, J11 and J12 for DUT2). Matched cable lengths must be used when
connecting the signal generator to the EVM to avoid inducing skew between
the noninverting and inverting inputs. The EVM comes with 100-Ω resistors
installed across the differential inputs for LVDS termination. The simple 100-Ω
terminations do not provide the necessary termination for LVPECL or CML
output structures. In order to interface the SN65LVCP22/23 EVM with CML or
LVPECL drivers, external terminations are required. Figure 2–2 shows an
example termination for LVPECL and CML output structures. Remove
resistors R1, R2, R10 and R19 when using the external terminations.
Figure 2–2.External Termination for Interfacing CML or LVPECL Drivers
VTT for LVPECL
VCC for CML
Applying an Input
[1]
50 Ω
LVPECL or CML
Driver
50 Ω
VTT for LVPECL
VCC for CML
IN+
EVM (Inputs 1 or 2)
IN–
The use of external resistors creates a significant stub between the
termination and the actual device receivers. The user needs to verify that the
transition time of the input signal, coupled with the stub length, does not lead
to reflection problems. In normal applications, the termination would be placed
as close as possible to the device inputs to minimize reflections.
The control lines SEL0 and SEL1 require LVTTL levels and are stimulated by
the Vcc power supply, via jumpers JMP1 and JMP2 (DUT1) and JMP5 and
JMP6 (DUT2). Table 2–1 shows the different functions and the control line
settings for each.
[1]
CML is not a standardized physical layer and therefore the output structures and required termination differ from vendor
to vendor.
Setup and Equipment Required
2-3
Observing an Output
Table 2–1.Crosspoint Function Table
SEL0 SEL1 OUT0 OUT1 Function
0 0 IN0 IN0 1:2 Splitter
0 1 IN0 IN1 Repeater
1 0 IN1 IN0 Switch
1 1 IN1 IN1 1:2 Splitter
2.3 Observing an Output
Direct connection to an oscilloscope with 50–Ω internal terminations to ground
is accomplished without R3–R8 (DUT1) and R11–R16 (DUT2) installed. The
outputs are available at J5–J8 (DUT1) and J13–J16 (DUT2) for direct
connection to oscilloscope inputs. Matched cable lengths must be used when
connecting the EVM to a scope to avoid inducing skew between the
noninverting (+) and inverting (–) outputs.
The three power jacks (J17, J18, J19) are used to provide power and a ground
reference for the EVM. The power connections to the EVM determine the
common-mode load to the device. As mentioned earlier, LVDS drivers have
limited common-mode driver capability. When connecting the EVM outputs
directly to oscilloscope inputs, setting of the oscilloscope common-mode
offset voltage is required, as the oscilloscope presents low common-mode
load impedance to the device.
Returning to Figure 2–1, power supply 1 is used to provide the required 3.3 V
to the EVM. Power supply 2 is used to offset the EVM ground relative to the
DUT ground. The EVM ground is connected to the oscilloscope ground
through the returns on SMA connectors J5–J8 (DUT1) and J13–J16 (DUT2).
With power applied as shown in Figure 2–1, the common-mode voltage seen
by the SN65LVCP22 is approximately equal to the reference voltage being
used inside the device, preventing significant common-mode current to flow.
Optimum device setup can be confirmed by adjusting the voltage on power
supply 2 until its current is minimized. It is important to note that use of the dual
supplies and offsetting the EVM ground relative to the DUT ground are simply
steps needed for the test and evaluation of devices. Actual designs include
high-impedance receivers, which do not require the setup steps outlined
above.
LVPECL drivers need a 50-Ω termination to V
. A modification of Figure 2–1
TT
and the above instructions are used when evaluating an SN65LVCP23 with a
direct connection to a 50-Ω oscilloscope. With power supply 1 in Figure 2–1
set to 3.3 V, power supply 2 should be set to 1.3 V (2 V below Vcc) to provide
the correct termination voltage.
If the outputs are to be evaluated with a high-impedance probe, direct probing
on the EVM board is supported via installation of a 50-Ω resistor across the
solder pads for R6 and R8, and another 50-Ω resistor across the solder pads
for R3 and R5 for DUT1. Or, LVDS outputs can be observed by installing a
100-W resistor at R4, R7, R12, or R15. LVPECL outputs can be observed by
installing R3, R5, R11, R13, R14, and R16 (49.9-Ω resistors) and setting power
supply #2 to 1.3 V. (Note that power supply #2 must be able to sink current.)
2-4
Typical Test Results
2.4 Typical Test Results
Figure 2–3 is a typical result obtained with the EVM setup shown in
Figure 2–1. The upper waveform is the difference voltage between channels
1 and 2 of the oscilloscope and the lower trace is the difference voltage
between channels 3 and 4. The DUT was configured to send the IN0+/IN0–
inputs to the outputs OUT0+/OUT0– and inputs IN1+/IN1– to outputs
OUT1+/OUT1– by setting EN0 and EN1 to a high level and by setting SEL0
23
to Gnd and SEL1 to Vcc. The stimuli were a 2
Gbps, and a 650 MHz clock to J3 and J4. The input levels for both clock and
data were a differential voltage of 400 mV, with a common-mode voltage of 0V
(referenced to the ground of the pattern generator).
Figure 2–3.Typical Test Results of the SN65LVCP23 with the SN65LVCP22/23EVM
–1 PRBS to J1 and J2 at 1.3
1.3 Gbps
223 –1 PRBS
|VID| = 200 mV, VIC = 1.2 V
Vertical Scale=400mV/div
VCC = 3.3 V
650 MHz
OUTPUT 1
OUTPUT 2
Horizontal Scale = 200 ps
Setup and Equipment Required
2-5
Chapter 3
Topic Page
3.1 Schematics 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3.2 Board Layout Patterns 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
EVM Construction
3-1
Schematics
3.1 Schematics
Figure 3–1.SN65LVCP22D Schematic
VCC
J17
VCC
11
GND
R7
UNINSTALLED
UNINSTALLED
10
J7
GND
R6
UNINSTALLED
J6
9
J5
GND
R4
UNINSTALLED
GND
R3
UNINSTALLED
VCC01
UNINSTALLED
13
J8
R5
VCC01
12
3
2
1
C10
C9
C8
C7
C6
++
0.001 µF
1µ F
µF
68
J19
VCC01
VCC01
R8
0.1µF
VCC01VCC
3
2
JMP3
10µF
VCC01VCC
3pin_berg
1
16
15
14
J18
GND
C5
0.001 µF
C4
0.1µF
C3
µF1µF
C2
+
C1
10µF68
+
JMP4
3pin_berg
3-2
JMP2
3pin_berg
3
2
1
VCCVCC01
JMP1
3pin_berg
3
2
1
DUT1
VCC
VCC01
SEL1
1
EN0
SEL0
2
EN1
OUT0+
IN0 +
3
J1
4
R1
OUT0–
IN0 –
5
100Ω
GND
GND
VCC
VCC
OUT1+
IN1 –
6
J2
OUT1–
IN1+
7
GND
8
NC
NC
VCC
J3
SN6 5LVCP22D
R2
100Ω
GND
VCC
J4
VCC
VCC
C11
.010µF
GND
Figure 3–2.SN65LVCP23D Schematic
6
J
5
J
J
J
Schematics
JMP8
3pin_berg
J1
R16
VCC01VCC
3
2
1
JMP7
3pin_berg
UNINSTALLED
VCC01VCC
3
2
1
16
15
14
GND
R15
UNINSTALLED
J1
GND
R14
UNINSTALLED
R13
VCC01
13
12
11
10
9
J14
UNINSTALLED
J13
R12
UNINSTALLED
R11
UNINSTALLED
VCC01
JMP6
3pin_berg
3
2
1
VCCVCC01
JMP5
3pin_berg
EN1
EN0
DUT2
SEL1
1
3
2
1
VCC01 VCC
SEL0
2
OUT0+
IN0+
3
9
4
R19
OUT0–
IN0–
5
100Ω
GND
VCC
VCC
GND
OUT1+
IN1+
6
10
OUT1–
IN1–
7
GND
VCC
8
GND
11
SN65LVCP23D
VCC
R10
100Ω
GND
12
VCC
GND
C17
.010 µ F
EVM Construction
3-3
Board Layout Patterns
3.2 Board Layout Patterns
Figure 3–3.SN65LVCP22/23 Silk Screen
Figure 3–4.Layer 1 – Signal Plane
3-4
Figure 3–5.Layer 2 – GND Plane
Board Layout Patterns
Figure 3–6.Layer 3 – Split Plane (VCC/V
CC01
)
EVM Construction
3-5
Board Layout Patterns
Figure 3–7.Layer 4 – GND Plane
3-6
Chapter 4
Topic Page
4.1 PCB Fabrication Notes and Stackup 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2 Bill of Materials 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCB Fabrication and Bill of Materials
4-1
PCB Fabrication Notes and Stackup
4.1 PCB Fabrication Notes and Stackup
Notes: 1) All fabrication items must meet or exceed best
industry practice. IPC–A 600C (Commercial Std.)
2) Laminate material NELCO N4000–13 [DO NOT
USE–13SI]
3) Copper weight: 1 oz start internal and 1/2 oz start
external
4) Finished board thickness: 0.62” ±0.10”
5) Maximum warp and twist to be 0.005 inch per inch
6) Minimim copper wall thickness of plate-through holes
0.002 inch
7) Minimum annular ring of plate-through holes to be
0.001 inch
8) Minimum allowable line reduction to be 20% or 0.002
inch whichever is greater
9) 0.0125 inch signal lines on layer 1 to be impednace
controlled 100 W to each other ±10%
10)Dielectric constants are core 3.9
11)Fill vias that are in a pad are prepreg 3.9
Stackup
Signal: Layer 1
0.008”
GND: Layer 2
0.040”
Split Power: Layer 3
0.008”
GND: Layer 4
4.2 Bill of Materials for SN65LVCP22/23 EVM
Comment Quantity Components
10 µF, 35V, 10% 2 C1, C6
68 µF, 10 V, 20%, Low ESR 2 C2, C7
1 µF, 25 V +80% –20% 2 C3, C8
0.1 µF, 50 V, 5% 2 C4, C9
0.001 µF, 25 V, 5% 2 C5, C10
0.01 µF, 50 V, ±10% 2 C11, C17
SN65LVCP22D 1 DUT1
SN65LVCP23D 1 DUT2
3POS_JUMPER 8 JMP1, JMP2, JMP3, JMP4, JMP5, JMP6, JM7, JMP8
SMA_PCB_MT_MOD 16 J1, J2, J3, J4, J5, J6, J7, J8, J9, J10, J11, J12, J13, J14,
J15, J16
Banana Jack 3 J17, J18, J19
100 Ω, 1/4 Watt, 1% 4 R1, R2,R10,R19
49.9 Ω, 1/4 Watt, 1% (uninstalled) 12 R3, R4, R5, R6, R7, R8, R11, R12, R13, R14, R15, R16
4-2
Loading...
