About This Manual

This user’s guide describes techniques for designing synchronous buck
converters using TI’s SL VP11 1 1–114 evaluation modules (EVM) and TPS56xx
ripple regulator controllers.

How to Use This Manual

Information About Cautions and Warnings

Preface

Read This First

This document contains the following chapters:

 Chapter 1 Introduction
 Chapter 2 Design Procedure
 Chapter 3 Test Results

Information About Cautions and Warnings

This book may contain cautions and warnings.

This is an example of a caution statement.
A caution statement describes a situation that could potentially

damage your software or equipment.

This is an example of a warning statement.
A warning statement describes a situation that could potentially

cause harm to you

.

The information in a caution or a warning is provided for your protection.
Please read each caution and warning carefully.

Read This First

iii

Trademarks

Related Documentation From Texas Instruments



Synchronous Buck Converter Design Using TPS56xx Controllers in
SLVP10x EVMs User’s Guide

 TPS56xx data sheet (literature number SLVS177A)

(literature number SLVU007).

 Designer’s Notebook

The TPS56xx Family of Power Supply Controllers

(literature number SLVT140A)

 Designing Fast Response Synchronous Buck Regulators Using the

TPS5210 (literaure number SLVA044).

FCC Warning

This equipment is intended for use in a laboratory test environment only . It gen­erates, uses, and can radiate radio frequency energy and has not been tested
for compliance with the limits of computing devices pursuant to subpart J of
part 15 of FCC rules, which are designed to provide reasonable protection
against radio frequency interference. Operation of this equipment in other en­vironments may cause interference with radio communications, in which case
the user at his own expense will be required to take whatever measures may
be required to correct this interference.

Trademarks

TI is a trademark of Texas Instruments Incorporated.

iv

Running Title—Attribute Reference

Contents

1 Introduction 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1 Synchronous Buck Regulator Operation 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2 Hysteretic Control Operation 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3 Design Strategy 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.4 Design Specification Summary 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5 Schematic 1-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.6 Bill of Materials 1-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.7 Board Layout 1-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Design Procedure 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1 TPS56xx Functions 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.1 V

2.1.2 Inhibit 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.3 Slowstart Design 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.4 Hysteresis Setting 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.5 Noise Suppression 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.6 Overcurrent Protection 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.7 Overvoltage Protection 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.8 Power Good 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.9 Bias 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1.10 Gate Drivers 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2 External Component Selection 2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.1 Duty Cycle Estimate 2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.2 Input Capacitance 2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.3 Output Filter Design 2-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.4 Switching Frequency Analysis 2-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.5 Power MOSFET Selection 2-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Undervoltage Lockout 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CC

3 Test Results 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1 Test Summary 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.1 Static Line and Load Regulation 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.2 Output Voltage Ripple 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.3 Efficiency and Power Losses 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.4 Output Start-Up and Overshoot 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.5 Frequency Variation 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.6 Load Current Transient Response 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.7 Features 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1.8 Conclusion 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2 Test Setup 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3 Test Results 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter Title—Attribute Reference

v

Running Title—Attribute Reference

Figures

1–1 Simplified Synchronous Buck Converter Schematic 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–2 Simplified Hysteretic Controlled Output Voltage Waveform 1-3. . . . . . . . . . . . . . . . . . . . . . . . . .

1–3 SLVP111–114 EVM Converter Schematic Diagram 1-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–4 Top Assembly 1-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–5 Bottom Assembly (Top View) 1-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–6 Top Layer 1-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–7 Bottom Layer (Top VIew) 1-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–1 TPS56xx Functional Block Diagram 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–2 Block Diagram Showing Noise Suppression Circuits 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–3 V

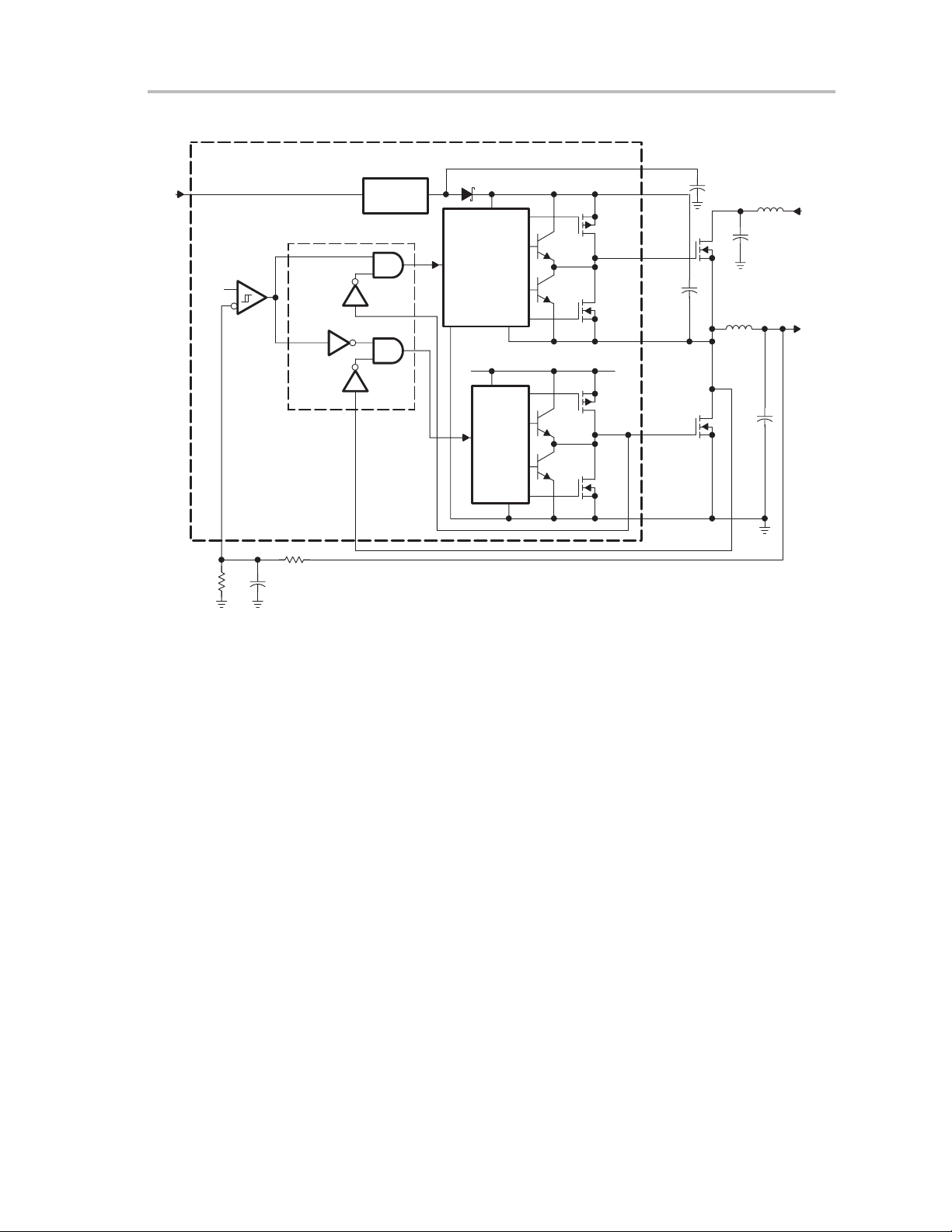

2–4 Gate Driver Block Diagram 2-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

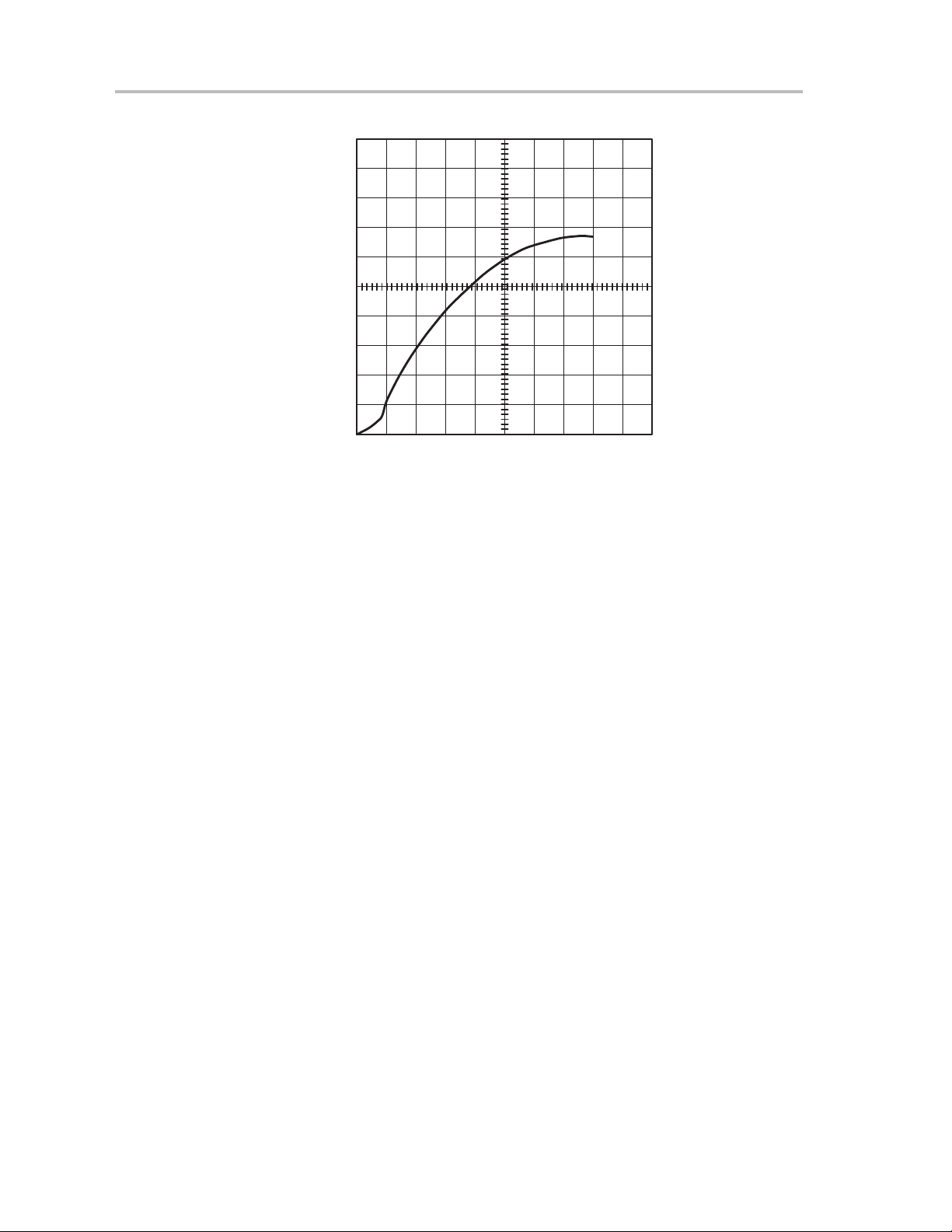

2–5 I–V Characteristic Curve for Low-Side Gate Drivers 2-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2–6 Output Ripple Voltage Detail 2-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–1 Test Setup 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–2 SLVP111 Measured Load Regulation 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–3 SLVP111Measured Efficiency 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–4 SLVP111Measured Power Dissipation 3-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–5 SLVP111Measured Switching Frequency 3-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–6 SLVP111 Measured Switching Waveforms 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–7 SLVP111Measured Start-Up (INHIBIT) Waveforms 3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–8 SLVP111 Measured Start-Up (V
3–9 SLVP111Measured Start-Up (V

3–10 SLVP111 Measured Load Transient Waveforms 3-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–11 SLVP112 Measured Load Regulation 3-11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–12 SLVP112 Measured Efficiency 3-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–13 SLVP112 Measured Power Dissipation 3-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–14 SLVP112 Measured Switching Frequency 3-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–15 SLVP112 Measured Switching W aveforms 3-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–16 SLVP112 Measured Start-Up (INHIBIT) W aveforms 3-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–17 SLVP112 Measured Start-Up (V

3–18 SLVP112 Measured Start-Up (VIN) Waveforms 3-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–19 SLVP112 Measured Load T ransient Waveforms 3-15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–20 SLVP113 Measured Load Regulation 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–21 SLVP113 Measured Efficiency 3-16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–22 SLVP113 Measured Power Dissipation 3-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–23 SLVP113 Measured Switching Frequency 3-17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–24 SLVP113 Measured Switching W aveforms 3-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–25 SLVP113 Measured Start-Up (INHIBIT) W aveforms 3-18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–26 SLVP113 Measured Start-Up (V

Sensing Circuit 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

DS

) Waveforms 3-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CC

) Waveforms 3-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

IN

) Waveforms 3-14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CC

) Waveforms 3-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CC

vi

Running Title—Attribute Reference

3–27 SLVP113 Measured Start-Up (VIN) Waveforms 3-19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–28 SLVP113 Measured Load T ransient Waveforms 3-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–29 SLVP114 Measured Load Regulation 3-20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–30 SLVP114 Measured Efficiency 3-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–31 SLVP114 Measured Power Dissipation 3-21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–32 SLVP114 Measured Switching Frequency 3-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–33 SLVP114 Measured Switching W aveforms 3-22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–34 SLVP114 Measured Start-Up (INHIBIT) W aveforms 3-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3–35 SLVP114 Measured Start-Up (V
3–36 SLVP114 Measured Start-Up (V

3–37 SLVP114 Measured Load T ransient Waveforms 3-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

) Waveforms 3-23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CC

) Waveforms 3-24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

IN

T ables

1–1 Summary of EVM Converter Modules 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–2 EVM Converter Operating Specifications 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1–3 SLVP111–114 EVMs Bill of Materials 1-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Contents

vii

viii

Chapter 1

Introduction

The SLVP111/112/113/114 evaluation modules (EVMs) have been designed
and tested using the TPS56xx hysteretic controllers. These boards are
synchronous dc-dc buck converters with fixed output voltages of 3.3 V , 2.5 V,

1.8 V and 1.5 V respectively. They use only surface mount components and
are design examples of how to use TI’s TPS56xx controllers in high density,
low loss applications with tight static and dynamic output voltage
requirements. Detailed test results taken from the EVMs are presented.

Design simplicity , low component count, and lower cost make buck converters
popular solutions where low input voltages are available for the converter and
where isolation is not a requirement.

This user’s guide describes techniques for designing synchronous buck
converters using TI’s SLVP111–114 EVMs and TPS56xx ripple regulator
controllers. Synchronous buck converters provide an elegant power supply
solution for rapidly transitioning DSP loads (such as the Texas Instruments
TMS320C62x/67x family), fast memory, and similar processors. An order of
magnitude improvement in dynamic response of this converter over standard
control methods reduces hold-up capacitance needs near the transitioning
loads, thus saving cost and board space.

Topic Page

1.1 Synchronous Buck Regulator Operation 1–2. . . . . . . . . . . . . . . . . . . . . . . .

1.2 Hysteretic Control Operation 1–3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.3 Design Strategy 1–4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.4 Design Specification Summary 1–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.5 Schematic 1–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.6 Bill of Materials 1–8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.7 Board Layout 1–10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Introduction

1-1

Synchronous Buck Regulator Operation

1.1 Synchronous Buck Regulator Operation

The synchronous buck converter is a variation of the traditional buck
converter. The main switching device is usually a power MOSFET and is
driven in the same manner as in a traditional buck converter. The freewheeling
rectifier, usually a Schottky device, is replaced by a power MOSFET and is
driven in a complementary or synchronous fashion relative to the main
switching device; when one MOSFET is on, the other is off. The freewheeling
MOSFET is selected so that its ON voltage drop is less than the forward drop
of the original freewheeling rectifier, thus increasing conversion efficiency. A
very important design issue when using a synchronous buck converter is
preventing cross-conduction of the two power MOSFET s, i.e., preventing both
MOSFETs from being on simultaneously. A small amount of deadtime is
necessary.

Figure 1 shows a simplified schematic of a synchronous buck converter. The
TPS56xx senses the output voltage and then drives Q1 and Q2 depending on
the sensed voltage. The TPS56xx senses the voltage at the junction of Q1, Q2,
and L1 and uses it to actively prevent simultaneous conduction of Q1 and Q2.

Figure 1–1.Simplified Synchronous Buck Converter Schematic

V

I

TPS56xx

Q1

Q2

+

L1

V

O

+

C

1-2

1.2 Hysteretic Control Operation

Hysteretic control, also called bang-bang control or ripple regulator control,
maintains the output voltage within the hysteresis band centered about the
internal reference voltage. Figure 1–2 shows a simplified example of a
hysteretic controlled output voltage using the TPS5625 with a reference
voltage of 2.500 V and a hysteresis band of 50 mV. If the output voltage is at
or below the level of the reference minus one-half of the hysteresis band
(V

= 2.475 V), the TPS5625 turns off the low-side MOSFET (Q2 in Figure

Lo

1–1) and turns on the high-side MOSFET (Q1 in Figure 1–1) of the
synchronous buck converter power stage. This is the power stage on-state,
and it causes the output voltage to increase. When the output voltage reaches
or exceeds the reference plus one-half of the hysteresis band (V
the TPS5625 turns off the high-side MOSFET and turns on the low-side
MOSFET. This is the power stage off-state, and it causes the output voltage
to decrease. This hysteretic method of control keeps the output voltage within
the hysteresis band around the reference voltage. If output-load current steps
or input-voltage transients force the output voltage out of the hysteresis band,
the TPS5625 sets the power-stage MOSFET s in the continuous on or off state
as required to return the output voltage to the hysteresis band. Thus, the
output voltage is corrected as quickly as the output filter allows. There are no
error amplifier sensing and adjusting delays, as is the case with either voltage­or current-mode controllers. Other advantages of hysteretic control include no
loop compensation design and no input filter interaction problems.

Hysteretic Control Operation

= 2.525 V),

Hi

Figure 1–2.Simplified Hysteretic Controlled Output Voltage Waveform

Output

Voltage

2.525 V

2.500 V

2.475 V

On Time Off Time

T

s

V

Hi

V

Lo

Time

Hysteresis

Introduction

1-3

Design Strategy

1.3 Design Strategy

The SLVP111–114 evaluation modules (EVMs) are optimized for 5-V main
input voltage and 6-A output current. The EVMs need an additional low current
12-V (30 mA max) input voltage for the controller. TI’s application report,

Providing a DSP Power Solution from 5 V or 3.3 V Only Systems

number SPRA525 describes how one can implement a simple boost circuit for
5-V only input voltage applications. These EVMs are pin to pin compatible with
SLVP104/105/106/115 evaluation boards with 8 A output current, which
combine surface mount and through hole components. This surface mount
version has the same length, 2″, and width, 0.75″, but the height is significantly
lower, 0.375″ versus 0.6″ for through hole version.

The TI SLVP111–114 evaluation modules (EVM) provide synchronous buck
converter circuits for evaluating the capabilities of the TPS56xx family of ripple
regulator controllers. The EVM converters can provide proven, demonstrated
reference designs to aid in the rapid development of application-specific
synchronous buck converters. Output capacities of the EVM converters are
optimized for the Siliconix Si4410 power MOSFET device.

The 6-ampere output current level is a reasonable selection criteria for
powering circuit cards with multiple DSPs, and for providing the regulated
voltage to other hardware on the circuit card. Component size can be reduced
for designs requiring lower power levels.

, TI literature

The TPS56xx controllers each provide one of four popular output voltage
levels. The last two digits of the part number correlate to the set-point voltage
level: TPS5633 is the 3.3-V controller, TPS5625 is the 2.5-V controller,
TPS5618 is the 1.8-V controller, and TPS5615 is the 1.5-V controller. Many
digital devices, memories, and DSP I/O circuits use the 3.3-V level. The core
of the TMS320C6201 requires 2.5-V . All of the other DSPs in the TMS320C62x
and the TMS320C67x family need 1.8 V. The GTL bus, as well as various
processors and future DSPs, may require the 1.5-V controller. An external
resistor divider can be used to fine tune the output voltages of these controllers
for other applications including output voltages up to approximately
V

– 0.5 V.

IN

Table 1–1 summarizes the four EVM converter modules.

Table 1–1.Summary of EVM Converter Modules

EVM Part Number EVM Board

TPS5633EVM–111 SLVP111 TPS5633 3.3 V 6 A
TPS5625EVM–112 SLVP112 TPS5625 2.5 V 6 A
TPS5618EVM–113 SLVP113 TPS5618 1.8 V 6 A
TPS5615EVM–114 SLVP114 TPS5615 1.5 V 6 A

Number

Controller Output

Voltage

Max. Output

Current

†
†
†
†

1-4

†

Output current is limited by the temperature rise of the power MOSFETs chosen. Higher or
lower current designs are possible

.

1.4 Design Specification Summary

g

y

k

O erating frequency

()

S

)

This section summarizes the design requirements of the EVM converters.
Although every attempt was made to accurately describe the performance of
the EVM converters and the TPS56xx controllers, in case of conflicts, the
TPS56xx data sheet takes precedence over this document.

The TPS56xx family of controllers provides the necessary regulation
functions. In addition to a reference voltage accuracy of ±1% over the full
operating temperature range, the controller has remote sense inputs to
provide a precisely regulated output voltage. The controller also provides
undervoltage lock-out, overload protection, overvoltage protection, and
overtemperature protection. The controller has a logic level INHIBIT input to
control the converter turn-on and turn-off and a power good output to indicate
output voltage status. Undervoltage lock-out prevents operation of the power
supply when the 12 Vdc input voltage is not sufficient for proper operation.
Overload protection protects the power supply from accidental overloads or
short circuits. Overvoltage protection prevents damage to the load in the event
of an internal power supply failure or presence of high voltages on the output
from an external condition. Both overvoltage and overcurrent cause a latched
shutdown. Both power MOSFETs are driven to an OFF state. Recovery from
shutdown requires removal of the 12 V control input supply for reset. T able 1–2
lists the operating specifications of the EVM converters.

Design Specification Summary

Table 1–2.EVM Converter Operating Specifications

Specification Min Typ Max Units

Power input voltage range 4.5 6 V
Control input voltage range 10.8 13.2 V
Static voltage tolerance

SLVP111 (3.3 V)
SLVP112 (2.5 V)
SLVP113 (1.8 V)
SLVP114 (1.5 V)

Line regulation
Load regulation
Transient response

Output current range
Current limit
Operatin

SLVP111 (3.3 V) 135 kHz
SLVP112 (2.5 V) 225 kHz
SLVP113 (1.8 V)

LVP114 (1.8 V

‡

§

#

frequenc

†

3.27

2.47

1.78

1.48

¶

#

3.30

2.50

1.80

1.50

± 0.05% ± 0.1%

± 0.2% ± 0.4%

± 100

50

06A

295
360 kHz

3.33

2.53

1.82

1.52

10 A

V
V
V

mV pk

µsec

kHz

Introduction

1-5

Design Specification Summary

Table 1–2.EVM Converter Operating Specifications (Continued)

Specification Min Typ Max Units

Output ripple

SLVP111 (3.3 V)
SLVP112 (2.5 V)
SLVP113 (1.8 V)
SLVP114 (1.5 V)

||

66
50
36
30

mV p–p
mV p–p
mV p–p
mV p–p

Efficiency, 6 A load

SLVP111 (3.3 V)
SLVP112 (2.5 V)
SLVP113 (1.8 V)
SLVP114 (1.5 V)

90%

86.4%

83.2%

79.8%

Efficiency, 4 A load

SLVP111 (3.3 V)
SLVP112 (2.5 V)
SLVP113 (1.8 V)
SLVP114 (1.5 V)

†

Vi = 5 V, Io = 6 A

‡

Io = 6 A, Vi = 5 V ±10%

§

Vi = 5 V

¶

Vi = 5 V, Io stepped repetitively from 0 A to 6.5 A

#

Output current rating is limited by thermal considerations. Load currents above this rating may
cause damage to the power supply.

||

Unless otherwise specified, all test conditions are TA = 25_C, Vi = 5 V, Io = 6 A, Vo = nominal.

k

Vi = 5 V, Io = 6 A, Vo = nominal

91.6%

88.6%

85.1%

81.9%

1-6

1.5 Schematic

Figure 1–3 shows the EVM converter schematic diagram. The schematic
diagrams for the other EVM converters are identical except for the controller
IC used.

Figure 1–3.SLVP111–114 EVM Converter Schematic Diagram

Schematic

O

V

J1–18

J1–17

J1–16

J1–15

SLVP111 = 3.3 V

SLVP112 = 2.5 V

SLVP113 = 1.8 V

SLVP114 = 1.5 V

L2

1.5 µ H

6.3 V

6.3 V

150 µ F

+

C2

L1

2.2 µ H

+C1

6.3 V

150 µ F

150 µ F

+

+

C3

C4

Q1

Si4410

R3

R15

1 M

C7

C5 0.1µF

R2

10 kΩ

R1

1 kΩ

10 V

33 µ F

1µF

0.1 µ F
C6

2.2 µ F

C9

10 Ω

C8

VCC

BOOT

16

HUGHDR

17

BOOTLO

18

HISENSE

19

LOSENSE

20

IOUTLO

21

INHIBIT

22

NC

23

NC

24

NC

25

NC

26

NC

27

PWRGD

28

J1–4

R6

4.7 Ω

10 µ F

C14

+

C13

150 µ F

+

C12

150 µ F

+

C11

150 µ F

+

C10

150 µ F

2.7 Ω

R5

R4

1µF

DRV

14 15

LOWDR

13

DRVGND

12

LOHIB

11

LODRV

10

BIAS

9

SLOWST

8

ANAGND

7

VSENSE

6

VREFB

5

VHYST

4

OCP

3

AGND2

2

IOUT

1

TPS5633 (See Note)
U1

SENSEHVSENSEL/VANAGND

J1–2

4 V

C15

0.01 µ F

Q2

10 Ω

C16

Si4410

1µF

PWR

GND

J1–11

J1–14

J1–13

J1–12

R12

4.7 Ω

C18

0.1 µ F

R8

100 Ω 1%

C22

1µF

C21

0.1 µ F

1%

R11

20 kΩ

C20

1000 pF

R10

C17

R7

1 kΩ

R10

1%

100 Ω

0.1 µ F

R9

1%

20 kΩ

C19

0.01 µ F

TPS5633 = 3.3 V (SLVP111)

TPS5625 = 2.5 V (SLVP112)

TPS5618 = 1.8 V (SLVP113)

R13

11 kΩ

750 Ω

TPS5618 = 1.5 V (SLVP114)

NOTE: Last two digits of U1 indicates output voltage option

J1–5

V

J1–6
I

J1–9

J1–10

RETURN

J1–7

12 V

J1–8

J1–3

PG

RETURN

J1–1

INHIBIT

Introduction

1-7

Bill of Materials

1.6 Bill of Materials

Table 1–3 lists materials required for the SLVP111–114 EVMs.

Table 1–3.SLVP111–114 EVMs Bill of Materials

Ref Des Part Number Description MFG

C1 10TPA33M Capacitor, POSCAP, 33 µF, 10 V, 20% Sanyo
C2 6TPB150M Capacitor, POSCAP, 150 µF, 6.3 V, 20% Sanyo
C3 6TPB150M Capacitor, POSCAP, 150 µF, 6.3 V, 20% Sanyo
C4 6TPB150M Capacitor, POSCAP, 150 µF, 6.3 V, 20% Sanyo
C5 GRM39X7R104K016A Capacitor, Ceramic, 0.1 µF, 16 V, 10%, X7R muRata
C6 GRM39X7R104K016A Capacitor, Ceramic, 0.1 µF, 16 V, 10%, X7R muRata
C7 GRM42–6Y5V105Z016A Capacitor, Ceramic, 1.0 µF, 16 V, +80%–20% muRata
C8 GRM42–6Y5V105Z016A Capacitor, Ceramic, 1.0 µF, 16V, +80%–20% muRata
C9 GRM42–6Y5V225Z016A Capacitor, Ceramic, 2.2 µF, 16V, Y5V muRata
C10 4TPC150M Capacitor, POSCAP, 150 µF, 4 V, 20% Sanyo
C11 4TPC150M Capacitor, POSCAP, 150 µF, 4 V, 20% Sanyo
C12 4TPC150M Capacitor, POSCAP, 150 µF, 4 V, 20% Sanyo
C13 4TPC150M Capacitor, POSCAP, 150 µF, 4 V, 20% Sanyo
C14 GRM235Y5V106Z016A Capacitor, Ceramic, 10 µF, 16 V, Y5V muRata
C15 GRM42-6Y5V103Z025A Capacitor, Ceramic, 0.01 µF, 25 V, +80%–20%, Y5V muRata
C16 GRM42–6Y5V105Z016A Capacitor, Ceramic, 1.0 µF, 16 V, +80%–20% muRata
C17 GRM39X7R104K016A Capacitor, Ceramic, 0.1 µF, 16 V, 10%, X7R muRata
C18 GRM39X7R104K016A Capacitor, Ceramic, 0.1 µF, 16 V, 10%, X7R muRata
C19 GRM39X7R103K025A Capacitor, Ceramic, 0.01 µF, 25 V, 10%, X7R muRata
C20 GRM39X7R102K050A Capacitor, Ceramic, 1000 pF, 50 V, 10%, X7R muRata
C21 GRM39X7R104K016A Capacitor, Ceramic, 0.1 µF, 16 V, 10%, X7R muRata
C22 GRM42–6Y5V105Z016A Capacitor, Ceramic, 1.0 µF, 16 V, +80%–20% muRata
J1 S1122–18–ND Header, RA, 18-pin, 0.23 Posts x 0.20 Tails Sullins
L1 DO3316P–222HC Inductor, 2.2 µH, 7.4 A Coilcraft
L2 DO3316P–152HC Inductor, 1.5 µH, 9 A Coilcraft
Q1 Si4410DY FET , N-ch, 30-V, 10-A, 13-mΩ Siliconix
Q2 Si4410DY FET , N-ch, 30-V, 10-A, 13-mΩ Siliconix
R1 Std Resistor, Chip, 1 kΩ, 1/16W, 5%
R2 Std Resistor, Chip, 10 kΩ, 1/16W, 5%
R3 Std Resistor, Chip, 10 Ω, 1/10W, 5%
R4 Std Resistor, Chip, 10 Ω, 1/10W, 5%
R5 Std Resistor, Chip, 2.7 Ω, 1/4W, 5%
R6

Std Resistor, Chip, 4.7 Ω, 1/16W, 5%

1-8

Bill of Materials

Table 1–3.SLVP111–114 EVMs Bill of Materials (Continued)

Ref Des Part Number Description MFG

R7 Std Resistor, Chip, 1 kΩ, 1/16W, 5%
R8 Std Resistor, Chip, 100 Ω, 1/16W, 1%
R9 Std Resistor, Chip, 11 kΩ, 1/16W, 5%
R10 Std Resistor, Chip, 100 Ω, 1/16W, 1%
R1 1 Std Resistor, Chip, 20 kΩ, 1/16W, 1%
R12 Std Resistor, Chip, 4.7 Ω, 1/16W, 5%
R13 Std Resistor, Chip, 750 Ω, 1/16W, 5%
R14 Std Resistor, Chip, 20 kΩ, 1/16W, 1%
R15 Std Resistor, Chip, 1 MΩ, 1/16W, 5%
U1a TPS5633PWP IC, PWM Ripple Controller, Fixed 3.3-V (SLVP111 only) TI
U1b TPS5625PWP IC, PWM Ripple Controller, Fixed 2.5-V (SLVP112 only) TI
U1c TPS5618PWP IC, PWM Ripple Controller, Fixed 1.8-V (SLVP113 only) TI
U1d

TPS5615PWP IC, PWM Ripple Controller, Fixed 1.5-V (SLVP114 only) TI

Introduction

1-9

Board Layout

1.7 Board Layout

Figures 1–4 through 1–7 show the board layouts for the SLVP111–114
evaluation modules.

Figure 1–4.Top Assembly

Figure 1–5.Bottom Assembly (Top View)

Top Assembly

Figure 1–6.Top Layer

1-10

Bottom Assembly (Top View)

Top Layer

Figure 1–7.Bottom Layer (Top VIew)

Board Layout

Bottom Layer (Top View)

Introduction

1-1 1

1-12

Chapter 2

Design Procedure

The SL VP11 1–1 14 are dc-dc synchronous buck converter evaluation modules
(EVMs) that provide a regulated output voltage at up to 6 A with a power input
voltage range of 4.5 V to 6 V . A low power 12-V , 20-mA source is also required
to power the TPS56xx controller. The controller operates at a nominal
frequency of 135 kHz for 5 V input and 3.3 V output. T o provide the highest level
of performance, the EVM converters use
Hysteretic-controlled synchronous buck
over conventional PWM-controlled power supplies:

 Correction of output voltage variations caused by output-load or input-

voltage transients is extremely fast.

 The user controls output ripple by adjusting the operational parameters of

the converter, instead of relying on brute force methods requiring the
choice of an output filter.

hysteretic

converters have several advantages

, or ripple, control.

 Hysteretic control sets the operational frequency of the converter. For a

given set of external components, the lower the permissible ripple setting,
the higher the operational frequency.

 There is no control loop to design.

Topic Page

2.1 TPS56xx Functions 2–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2 External Component Selection 2–14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Design Procedure

2-1

TPS56xx Functions

2.1 TPS56xx Functions

The functional block diagram of the TPS56xx family of controllers is given in
Figure 2–1. The controller has the following main features:

 ±1% reference over 0°C to125°C junction temperature range.
 Synchronous-buck gate drivers with adaptive deadtime control
 High-side MOSFET driver voltage rating of 30 V
 MOSFET driver peak current rating of 2 A
 Hysteretic comparator: 250-ns propagation delay to gate driver outputs,

2.5-mV offset voltage, symmetrical hysteresis, hysteresis setting is a
percentage of Vref.

 Lossless output current sensing circuit
 Slowstart circuit; slowstart time independent of VID setting
 Internal 8-V drive regulator for reduced gate charge power losses
 POWERGOOD comparator, 93% of Vref trip
 UVLO, Vcc undervoltage lockout, 10-V start, 2-V hysteresis
 INHIBIT comparator that can also monitor UVLO of the system logic

supply, 2.1-V start, 100-mV hysteresis.

 Latched overcurrent shutdown circuit
 Latched overvoltage shutdown circuit
 LODRV pin that activates the low-side MOSFETs as a crowbar to protect

against a short across the high-side MOSFETs.

2-2

Figure 2–1.TPS56xx Functional Block Diagram

15 7 28 20

V

CC

V

CC

TPS56xx Functions

21

19

HISENSEIOUTLOLOSENSEPWRGDANAGND

22

INHIBIT

3

OCP

8

SLOWST

V

_

+

100mV

Bandgap

2 V

10 V

CC

VOVP

1.15 VREF

+

Deglitch

Deglitch

Shutdown

_

UVLO

VSENSE

I

VREFB

VREF

_

+

I

VREFB

Analog

Bias

5

Q

S

R

CM Filters

Hysteresis

Setting

Fault

Shutdown

VPGD

0.93 VREF

Slowstart

Comparator

+
_

+
_

Shutdown

Hysteresis

Comparator

V

CC

PREREG

DRV REG

Rising

Edge

Delay

HIGHIN

Analog

Bias

HIGHDR

+
_

2X

9

BIAS

14

DRV

16

BOOT

17

HIGHDR

18

BOOTLO

13

LOWDR

12

DRVGND

1

IOUT

25 4 6 11 10

VREFBAGND2 VSENSEVHYST LODRVLOHIB

This section describes the functions governed by the TPS556xx. A procedure
is given to determine the values of components used in the example design
given in Figure 1–3. Example calculations for the 3.3-V output version accom­pany the design equations. There are many possible ways to proceed when
designing power supplies and some iteration may be necessary when actual
performance differs from design predictions. Reference designators refer to
the circuit in Figure 1–3.

2.1.1 VCC Undervoltage Lockout

The VCC undervoltage lockout circuit disables the controller while VCC is below
the 10-V start threshold during power up. While the controller is disabled, the
output drivers will be low and the slowstart capacitor will be shorted. When V
exceeds the start threshold, the short across the slowstart capacitor is
released and normal converter operation begins. There is a 2-V hysteresis in
the undervoltage lockout circuit for noise immunity.

Design Procedure

CC

2-3

TPS56xx Functions

2.1.2 Inhibit

The inhibit circuit is a comparator with a 2.1-V start voltage and a 100-mV
hysteresis. When inhibit is low, the output drivers are low and the slowstart
capacitor is discharged. When inhibit is above the start threshold, the short
across the slowstart capacitor is released and normal operation begins.

When the system logic supply is connected to the inhibit pin, the inhibit pin also
controls power sequencing by locking out controller operation until the system
logic supply exceeds the input threshold voltage of the inhibit circuit; thus, the
12-V supply and the system logic supply must be above UVLO thresholds
before the controller is allowed to start up.

2.1.3 Slowstart Design

Slowstart or soft-start is added to reduce power-up transients. Without
slowstart, when input power is first applied, the TPS56xx attempts to raise the
output voltage (initially zero) to its normal operating level by turning on the top
MOSFET until the voltage is approximately Vref. This can cause high transient
currents to flow in the output inductor and output capacitor. Although this form
of startup usually does not cause component failures, it does apply stresses
much greater than those typically encountered in normal operation. It is good
design practice to include slowstart circuitry to avoid these unnecessary
stresses.

The slowstart circuit in the TPS56xx controls the rate at which the output
voltage powers up. A capacitor, C21, connected between SLOWST (pin 8) and
ANAGND (pin 7), is charged by an internal current source. This current source
is proportional to the reference voltage and is adjustable by an external
resistance selected by the user. The output voltage follows the voltage on the
slowstart capacitor during startup. Since the charging current is proportional
to the reference voltage, the slowstart time is independent of the reference
voltage for a given resistor value.

Choices of the slowstart time and the slowstart capacitor value are largely
arbitrary as long as system start-up time requirements are met. For this
example design, a slowstart time of 10 ms is chosen, and the slowstart
capacitor is chosen to be 0.1 µF. Therefore, to charge 0.1 µF from zero volts
to 3.3 V in 10 ms, the following equation holds:

I

SLOWSTART



C

SLOWSTART





t

V

c

 0.1 

ss

3.3

10

V

ms

 33 

A

F





The slowstart charging current is determined by the following equation:

I

SLOWSTART

I(VREFB



)

5

where I(VREFB) = the current out of VREFB (pin 5).
For an I

I(VREFB

SLOWSTART

)

 5 

current equal to 33 µA, I(VREFB) should be set to:

I

SLOWSTART

 5  33 A 165 

A

2-4

The voltage on VREFB (pin 5) is a buffered reference voltage. The resistance
from the VREFB pin to ANAGND can be calculated as:

TPS56xx Functions

3.3

R

VREFB

This value is used to determine the values of R10 and R14 that set the
hysteresis level.

The equations above can be used to derive a simplified relationship for the
slowstart time as shown:

+

165 m

V

A

+ 20

k

W

t

SLOWSTART

V

O

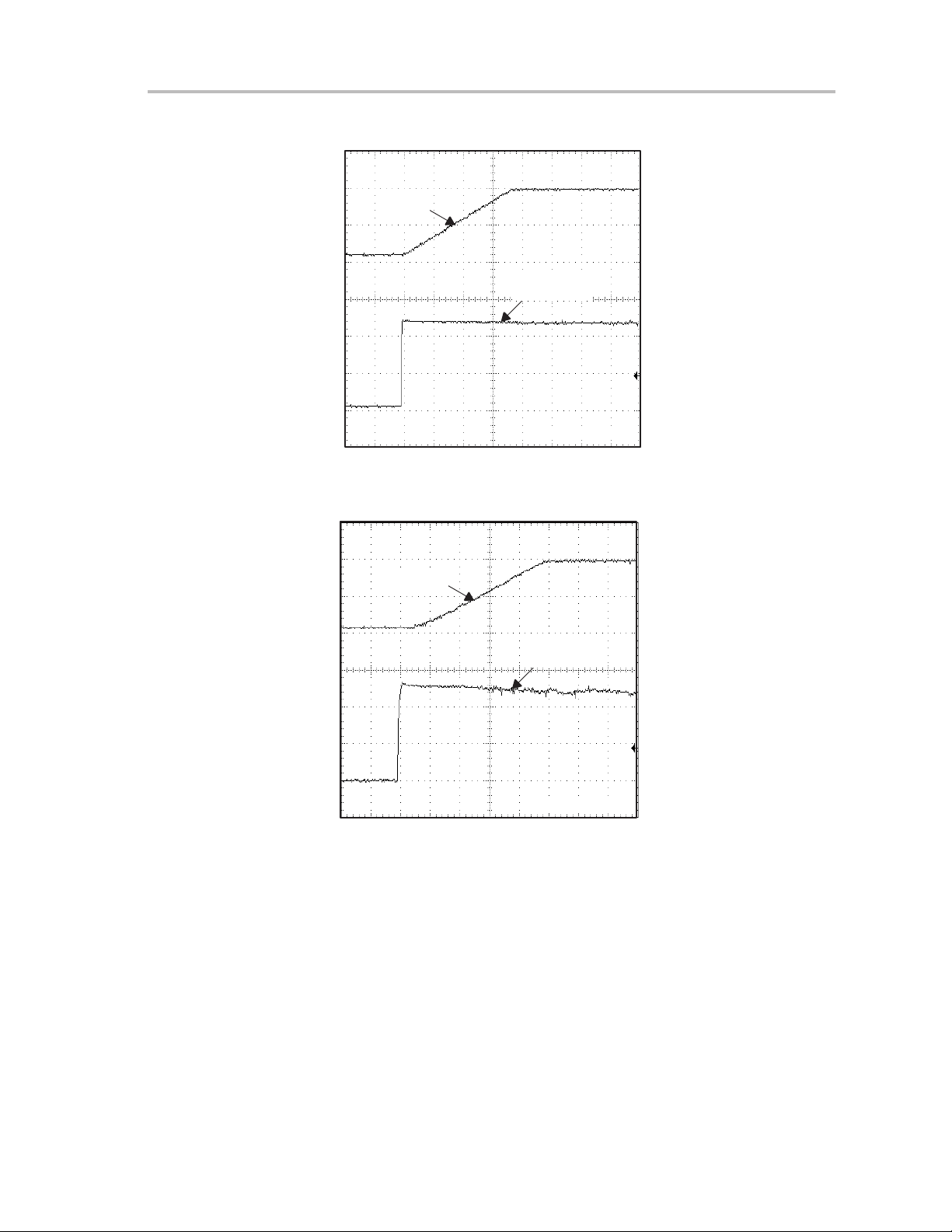

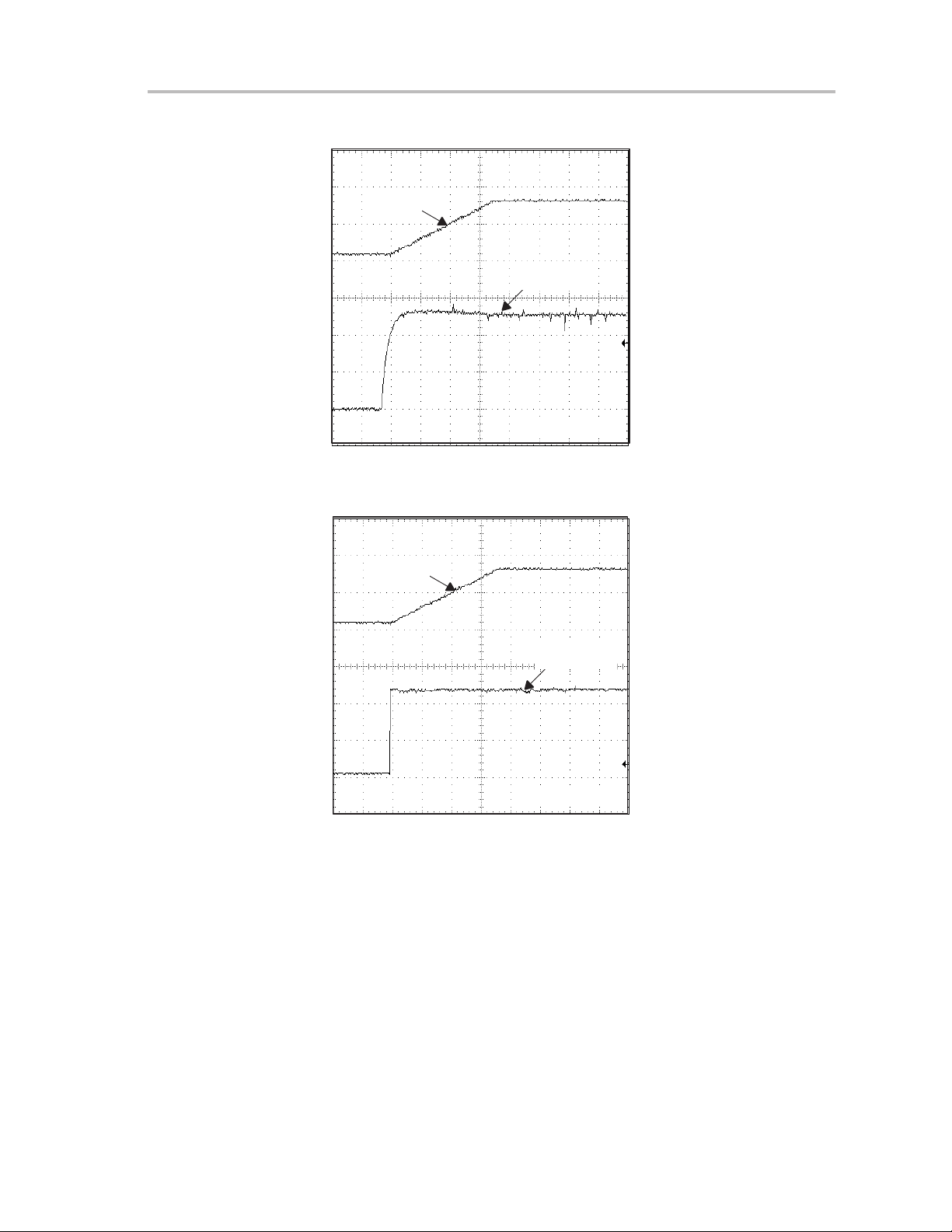

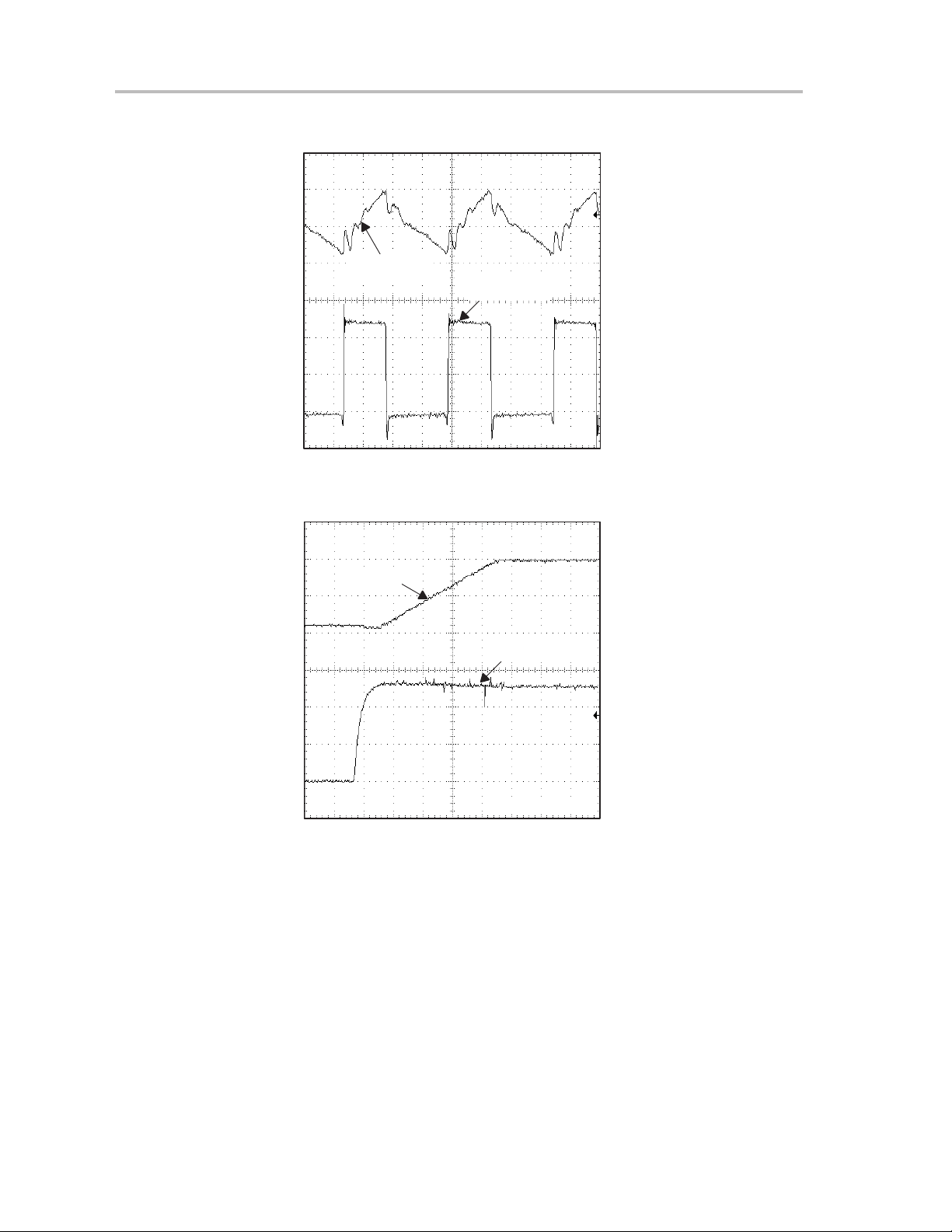

Figures 3–7, 3–8, 3–9, 3–16, 3–17, 3–18, 3–25, 3–26, 3–27, 3–34, 3–35, and
3–36 in the test results section, showing that slowstart time is independent of
the reference voltage.

2.1.4 Hysteresis Setting

The next step in this design is choosing the desired output voltage ripple. As
a first approximation, the output voltage ripple is simply the difference between
the two levels (V
the hysteresis comparator of the TPS56xx sets these two levels. The
hysteresis is set by two external resistors and is centered around VREF (pin

5). The hysteretic comparator is designed with low input offset voltage
(±2.5 mV max) low propagation delays (250ns max to gate driver outputs with
10mV overdrive) and accurate hysteresis setting (±3.5 mV max). The
hysteresis is proportional to the reference voltage; setting Vref to a new value
automatically adjusts the hysteresis to be the same percentage of Vref.

The total output ripple is greater than the ripple set by the hysteresis compara­tor. To accurately choose the output voltage ripple, all of the propagation de­lays must be considered. The first step is to calculate the amount of ripple ex­pected due to the delays, in addition to the ripple set by the hysteresis compa­rator. Using the terminology of Section 2.2.4.1, this additional ripple is equal
to V

+ 5

start-up waveforms for different reference voltage settings are given in

– Hyst and will be referred to V

p-p

C

SLOWSTART

and VHi) shown in Figure 1–2. The hysteresis setting of

LO

R

VREFB

for ease of reference. Or:

del

V

+

p-p

Where:

Assuming the output ripple during the delay time is primarily caused by the
inductor ripple current flowing through the output capacitors’ ESR, the
additional ripple, V

V

Where L is the value of the output inductor.

Hyst)V

V

=the total output ripple,

p-p

Hyst = the hysteresis setting of the hysteretic comparator, and
V

= the output ripple exceeding Hyst and due to all propagation

del

delays.

VI–V

ƪ

+

del

del

, can be estimated as:

del

O

L

t

del

ƫ

ESR

)

V

O

ƪ

t

L

Design Procedure

del

ƫ

ESR

V

+

I

L

t

del

2-5

TPS56xx Functions

Note that V
To calculate V

is independent of the output voltage.

del

for this example design, use the component measurements

del

given in Section 2.2.4.2. They are repeated here for convenience:

L = 1.5 µH
ESR = 10 mΩ
T

= 400 ns

del

Now calculate V

V

+

del

Since V

does not depend on the output voltage setting, V

del

:

del

5

1.5 10

400 10

–

6

–

9

10 10

–

3

+ 13.3

mV

is a larger por-

del

tion of the total output voltage ripple for lower output voltages. So, the hystere­sis (which is proportional to the output voltage setting) should be set so that
the desired output ripple voltage is obtained for the lowest output voltage. The
total output voltage ripple requirement per Table 1–2 for an output voltage of

1.5 V is 30 mV, the hysteresis is set as:

V

Hysteresis

+ 30

mV*V

del

+ 30

mV

* 13.3

mV

+ 16.7

mV

For convenience, and allowing a little margin, the hysteresis will be designed
for 15 mV.

To set the hysteresis, connect two external resistors to form a resistor divider
from VREFB (pin 5) to ANAGND (pin 7) with the center of the divider connected
to VHYST (pin 4). The hysteresis of the comparator is equal to twice the
voltage that is between the VREFB (pin 5) and VHYST (pin 4) pins. Or,

V

Hysteresis

+ 2

(

VREFB–VHYST

)

For this design, 15 mV of hysteresis was chosen for a 1.5 V output voltage.

V

Hysteresis

+ 15

mV

+ 2 (1.5

V–VHYST

)

Solving for VHYST:

V

VHYST+VREFB–

Hysteresis

2

+ 1.5

15

mV

–

2

+ 1.4925

V

Referring to the schematic, Figure 1–3, the two external resistors are R10 and
R14. From the previous section, the total resistance required is 20 kΩ. Since
R10 is very small compared to R14, for simplicity set R14 = 20 kΩ . T o calculate
the value of R13:

R

VHYST+VREFB

14

R

14 )R10

Solving for R10:

R

10 +

VREFB R

VHYST

14

–R

14 +

(

1.5

)(

V

1.4925

20

)

k



–20k

V

 + 100 

The controller hysteresis is now set to 15 mV . This, in addition to the 13.3 mV
due to propagation delays, results in a total ripple voltage of less than the
design goal of 30 mV for an output voltage of 1.5 V.

2-6

2.1.5 Noise Suppression

TPS56xx Functions

Hysteretic regulators, by nature, have a fast response time to V
and are thus inherently noise sensitive due to the very high bandwidth of the
controller. Noise suppression circuits were added to the TPS56xx to improve
the noise immunity , as shown in Figure 2–2. Internal low-pass filters with a pole
frequency of 5 MHz were added to the inputs of the hysteretic comparator.
These low-pass filters are referenced to the same analog ground as the
hysteretic comparator. There is a common-mode filter with a 4-MHz pole
between VREFB and VHYST to filter out noise between these pins. A double
pulse suppression circuit prohibits spurious pulses from propagating to the
gate drivers. The double pulse suppression circuit becomes active when the
comparator has toggled or when the LOHIB pin (which is connected to the
power MOSFETs) has transitioned, providing additional noise immunity from
internally and externally generated noise. The suppression circuit is active for
150 ns.

A low-pass filter is recommended between V

O

C3 in Figure 2–2); recommended values are 100 ohms and 1 nF . This low-pass
filter is included in the evaluation design of Figure 1–3 (R8, R11, and C20).

Figure 2–2.Block Diagram Showing Noise Suppression Circuits

V

ds

Sensing

5 MHz

Filter

5 MHz

Filter

Double Pulse

Suppression

Circuit

Adaptive

Deadtime

Control

Reference

V

ref

+–

transients

O

and the VSENSE pin (R1 and

V

in

L1

V

C1

L2

phase

C2

HIGHDR
LOHIB

LOWDR

VO

Hysteresis

Setting

4 MHz

Filter

IOUT

R5

VH_SET

R6

VREFB

R3

R4

VHYST

2.1.6 Overcurrent Protection

Overcurrent protection is provided by measuring the on-state voltage of the
high-side MOSFET, conditioning the measured voltage, and comparing the
result to a reference voltage. If the output current exceeds the current limit
setpoint, a fault latch is set and the output drivers are turned off. Vcc (12 V)
must be reduced to below the undervoltage lockout value to restart the
converter.

A sample-and-hold circuit measures the power supply output current by
sensing the on-state drain-to-source voltage of the high-side MOSFET (Q1 in

VSENSE

TPS56xx Synchronous-Buck Controller

R1

C3R2

Design Procedure

2-7

TPS56xx Functions

Figure 1–3). This arrangement improves efficiency over solutions having a
separate current sensing resistor. The drain of the high-side MOSFET is
connected to HISENSE (pin 19). The source of the high-side MOSFET is
connected to LOSENSE (pin 20). When the high-side MOSFET is on, a
TPS56xx internal switch is also on and samples the source voltage of the
high-side MOSFET. This sampled voltage is applied to IOUTLO (pin 21) and
is held by the external 0.1-µF capacitor, C6, which is connected from IOUTLO
(pin 21) to HISENSE (pin 19). The TPS56xx amplifies (gain=2) the
sampled-and-held voltage on C6 and sends the output voltage to IOUT (pin

1).

Figure 2–3.VDS Sensing Circuit

Cs/h

IOUTLOHISENSE

+

–

Gain of 2

V

ref

Vds Sensing Circuit

Shutdown

Adaptive

Deadtime

Control

Rising

Edge
Delay

HIGHIN

LOWIN

HIGHDR
LOSENSE

LOWDR

V

in

L1

C1

VO

C2

V

phase

L2

IOUT

TPS56xx Synchronous-Buck Controller

R2

VSENSE

C3

R1

Figure 2–3 gives a simple block diagram of the Vds sensing circuit. The Vds
sensing circuit measures the average voltage across the high-side MOSFET
when the high-side MOSFET is on, and holds that value on a sample/hold
capacitor when the high-side MOSFET is off. The voltage on the sample/hold
capacitor is directly proportional to the load current. Sensing across the
high-side MOSFET rather than the low-side MOSFET ensures that shorted
loads can be detected. The RC time constant of the sample/hold network must
be greater than the conduction-time of the high-side MOSFET, otherwise the
sample/hold circuit will function as a peak detector circuit and will not hold the
average Vds voltage. The differential voltage across the sample/hold
capacitor is amplified by 2 and converted to a single-ended signal on the IOUT
pin. The DC CMRR of the Vds sensing amplifier is 69 dB minimum. Added logic
ensures that sampling begins and ends while the high-side MOSFET is
conducting. The turn-on and turn-off delays of the sample/hold switch are less
than 100 ns. Additional logic and a rising edge delay circuit are included to
guarantee sampling during a short-to-ground fault across the low-side
MOSFET; the rising edge delay time is 500 ns.

2-8

Resistors R7 and R13 in Figure 1–3 set the current limit setpoint. This
resistor-divider network applies the IOUT output voltage to OCP (pin 3). The

TPS56xx Functions

resistor-divider network is designed so that the voltage applied to OCP is
100 mV for the desired output current limit point. If the voltage on OCP
exceeds 100 mV , a fault latch is set and the output drivers are turned of f. The
latch remains set until VCC (pin 15) goes below the undervoltage lockout
value.

The following equations summarize the relationships discussed above.
The on state drain-to-source voltage of the high-side MOSFET, Q1, is:

ǒ

V

HISENSE–VIOUTLO

where R
correction for elevated temperature if necessary.

The voltage difference,
gain of two to produce the IOUT (pin 1) signal.

V

IOUT

The

V

IOUT

OCP pin:

V

OCP

Therefore, to set the power supply output current, first calculate the quantity

IO × R

DS(on)

including its temperature dependence, should be considered, since this
parameter can vary a significant amount for typical MOSFETs. Next, multiply
this voltage by two. Finally , set the R7 and R13 voltage divider to produce 100
mV at the desired current limit point.

For this design, the maximum output current is 6 A. In most power supply
designs, the exact current limit set point rarely needs to be very accurate.
Limiting the current to a level that is not destructive is the main consideration.
In this case, the nominal current limit is set for approximately 25% above the
maximum, including an elevated temperature correction factor of 1.4 applied
to a nominal R

I

OCP

is the value obtained from the high-side MOSFET and includes

DS(on)

ǒ

+

V

HISENSE–VIOUTLO

signal is scaled for the desired current limit level and applied to the

+

V

IOUT

for the value of

DS(on)

+

I

O(Max

Ǔ

+

I

R

O

DS(on

)

V

HISENSE

R

of 11 mΩ. The current limit set point, I

1.25 + 6 (1.25) + 7.5

)

– V

IOUTLO

Ǔ

R

13

13 )R7

I

desired for current limit. V ariations in

O

, is internally amplified by a fixed

2

Amps

, is given by:

OCP

R

DS(on)

,

For the above current level, V

R

+

)

7 +

ǒ

I

O

ǒ

R

DS(on

V

IOUT(Trip

0.1

V

V

IOUT(Trip

Choose R13 = 750 Ω.
Now, calculate R7 using:

In the above calculations, the nominal value for R
Worst case analysis should always be performed to insure that current limit
does not interfere with delivering maximum load.

IOUT(Trip)

Ǔ

2 +(7.5A 0.011  1.4) 2 + 0.23

)

)

* 1

Ǔ

is given by:

R

13 + 983  +u 1

k



of 1 1 mΩ was used.

DS(on)

Design Procedure

V

2-9

TPS56xx Functions

An alternate current sensing scheme is to insert a current sense resistor in
series with the drain of Q1. Higher accuracy may be obtained at the expense
of lower efficiency.

2.1.7 Overvoltage Protection

If V

exceeds Vref by 15%, a fault latch is set and the output gate drivers are

O

turned off. The latch remains set until VCC (pin 15) goes below the
undervoltage lockout value.

In addition to the standard OVP protection, the LODRV circuit protects the
processor against overvoltages due to a short across the high-side power
MOSFET. External components to sense an overvoltage condition are
required to use this feature. When a shorted high-side MOSFET occurs, the
low-side MOSFET is used as a crowbar. LODR V is pulled low and the low-side
MOSFET is turned on, overriding all control signals inside the controller. The
crowbar action shorts the input supply to ground through the faulted high-side
MOSFET. A fuse in series with V
short-circuit.

must be added to disconnect the

I

2.1.8 Power Good

2.1.9 Bias

2.1.10 Gate Drivers

The power-good circuit monitors for an undervoltage condition on VO. If V
drops below 93% of VREF, then the PWRGD output is pulled low. PWRGD is
an open-drain output and needs a pullup resistor.

Analog BIAS (pin 9), the output of the internal analog bias regulator, is
designed to provide a quiet bias supply for the internal TPS56xx circuitry.
External loads should not be driven by the bias regulator. A 1-µF capacitor,
C22, is connected from BIAS to ANAGND.

The gate drivers drive large capacitive loads quickly and efficiently . Figure 2–4
is a block diagram of the drivers. The output stage of the drivers consists of
bipolar and MOS transistors in parallel. The bipolar transistors provide the
majority of the 2-A drive current. The driver outputs get pulled to ground
(during sinking) or to the supply rail (during sourcing) by the MOS transistors.
If the MOS transistors were not in the design, the voltage level on the driver
outputs could only be driven to the saturation voltage level of the bipolar
transistors. This could be a serious limitation, especially if logic-level power
MOSFETs are used in the power stage, resulting in shoot-through current
through the power MOSFETs.

O

2-10

Figure 2–4.Gate Driver Block Diagram

TPS56xx Functions

TPS56xx Synchronous-Buck Controller

V

CC

12 V

V

REF

R1

R2

C5

Adaptive

Deadtime

Control

8 V Drive

Regulator

LOWDR

Level

Shifter/

Predriver

Predriver

Highside Driver

Lowside Driver

M1

45 Ω

M2

5 Ω

M3

45 Ω

M4

5 Ω

DRV

BOOT

HIGHDR

C4

BOOTLO

LOWDR

DRVGND

C3

V

phase

L1

V

in

C1

L2

C2

VO

Figure 2–5 gives an I–V sweep of the low-side driver during sinking. The
Rds(on) of the MOS transistors for the sink stage is 5 Ω at T

= 125°C and is

J

45 Ω for the source stage. The Rds(on) is lower for the sink stage to provide
a low impedance path for the displacement current that flows through the Miller
capacitance of the power MOSFET when the drain switches. This is especially
important for the low-side driver to keep the low-side MOSFET off when the
high-side MOSFET is turned on.

Design Procedure

2-11

TPS56xx Functions

Figure 2–5.I–V Characteristic Curve for Low-Side Gate Drivers

Driver Sink Current – 0.5 A/div

Driver Output Voltage – 1 V/div

The high-side gate driver is a bootstrap configuration with an internally
integrated Schottky bootstrap diode. The voltage rating of the BOOT pin to
DRVGND is 30 V. The gate drivers are biased from an internal 8-V drive
regulator to minimize the gate drive power losses that are dissipated inside the
TPS55xx.

The gate drivers have also been optimized to reduce the amount of internal
shoot-through current, which will result when either the low-side or high-side
driver is switching states.

The adaptive deadtime control minimizes the deadtime between conduction
intervals of the power MOSFETs.

The low-side gate driver is not allowed to turn on until the Vphase voltage is
below 2 V; the high-side gate driver is not allowed to turn on until the LOWDR
pin falls below 2 V.

Fast switching and short dead times improve efficiency. There is 100-mA
current limiting within the internal 8-V voltage regulator to protect the regulator
and IC against a short fault on one of the driver pins.

2.1.10.1 Low-Side Driver Controls

The TPS56xx contains two control inputs to control the low-side MOSFET
drive for various applications. They are LODRV (pin 10) and LOHIB (pin 11).

LODRV (pin 10) is an enable input for the low-side MOSFET driver. This pin
is connected to the 5-V input supply for normal synchronous operation.

For added overvoltage protection, external sensing circuitry can be included
to drive the LODRV input low in the event of an overvoltage. Applying a logic
low to LODRV causes the driver for the low-side MOSFET to go to a high state
causing the low-side MOSFET to turn on and act as a crowbar for the output.
This input has precedence over any input present at LOHIB (pin 1 1); i.e., a low
input to LODRV (pin 10) overrides the inhibit function.

2-12

LOHIB (pin 11) is an inhibit input for the low-side MOSFET driver. This input
has to be logic low before the low-side MOSFET is allowed to be turned on,
i.e., a logic high on LOHIB prevents the low-side MOSFET driver from turning
on the low-side MOSFET. For normal synchronous operation, this pin is
connected to the junction of the high and low-side MOSFETs. This prevents
cross-conduction of the two MOSFET s by constraining the low-side MOSFET
to be OFF unless its drain-to-source voltage is at a low level. Shoot-through
current caused by both MOSFETs being ON simultaneously is actively
prevented. However, if LODRV is low, the low-side MOSFET is turned ON
regardless of the LOHIB input.

2.1.10.2 High-Side Driver

The driver for the high-side MOSFET can be configured either as a
ground-referenced driver or as a floating bootstrap driver. When configured as
a floating driver, the bias voltage to the driver is developed from the DRV
regulator. The maximum voltage that can be applied between BOOT and
DRVGND is 30 V. The driver can be referenced to ground by connecting
BOOTLO to DRVGND, and connecting VCC to BOOT. A 1-µF capacitor , C7, is
connected from BOOT (pin 16) to BOOTLO (pin 18) for bypassing.

2.1.10.3 Grounding

TPS56xx Functions

Three separate ground connections enable the user to isolate high-current
grounds from low current logic grounds. The low-current logic ground is called
analog
analog ground

ground. ANAGND (pin 7) and AGND2 (pin2) are the connections for

.

The high-current ground is called power ground and must be
connected to DRVGND (pin 12). The maximum voltage difference between
ANAGND and DRVGND must be limited to less than ±0.2 V.

Refer to the

Layout Guidelines

section of the TPS56xx data sheet for further

information on grounding.

Design Procedure

2-13

External Component Selection

2.2 External Component Selection

This section shows the procedure used in designing and selecting the power
stage components to meet the performance parameters shown in Table 1–2
for the example circuit shown in Figure 1–3.

2.2.1 Duty Cycle Estimate

An estimate of the duty cycle is used frequently in the following sections. The
duty cycle, D, is the ratio of the high-side power-switch conduction time to the
period of one switching cycle. The duty cycle for a continuous mode step-down
converter is given by:

V

)

O

D

+

Where:

V

= An estimate of the on-voltage of the power MOSFETs.

DS(ON)

V

DS(ON

V

I

)

For an initial estimate for V
and an input voltage of 5 V, the duty cycle calculates to:

2.2.2 Input Capacitance

The input capacitance provides a low-impedance voltage source for the power
stage. The ESR, ESL, RMS current rating and capacitance value of the input
capacitance are important parameters in the selection process. The most
stringent requirement is often the RMS current that the capacitance must
handle. An equation for the RMS current seen by the input capacitance for a
buck converter is given by:

The above equation assumes that the output ripple current is small, that there
is an input inductor, and that its ripple current is small. For

I

= 6 A, we get:

O

I

Cin(RMS

3.3

V

Ǹ

) 0.2

5

V

Ǹ

+

D

)

D

+

I

Cin(RMS

+ 0.7 (1–0.7) 6

)

DS(ON)

V

+ 0.7

(

)

1

–D

, use 0.2 V . So, for an output voltage of 3.3 V

2

I

O

V

= 5 V and

I

2

+ 2.7

ARMS

The input capacitance for this design uses three 150-µF, 6.3-V Sanyo
POSCAP type electrolytic capacitors in parallel. They are C2, C3, and C4 in
Figure 1–3. The ripple current rating for one of these capacitors is 1.9 A RMS
at 45°C. The total ripple current rating for the input capacitance is
3 × 1.9 = 5.7 A RMS.

2.2.3 Output Filter Design

Unlike fixed-frequency PWM-controlled power supplies, the output filter
design is driven primarily by the need to provide satisfactory output voltage

2-14

performance in response to fast load transients encountered when supplying
power to current- and next-generation microprocessors. A secondary
consideration is the switching frequency resulting from the output filter
component values. This section discusses important considerations when
selecting/designing the output filter elements. A detailed analysis of the output
voltage ripple characteristics is also presented, resulting in an expression for
predicting the power supply switching frequency.

2.2.3.1 Output Capacitance

Normally, the output capacitor is selected to limit ripple voltage to the level
required by the specification, but in a hysteretic regulator, such as this one, the
TPS55xx essentially determines the output voltage ripple. The output ripple
is previously chosen to be less than 2% of V
the output capacitor characteristics. Since output voltage ripple is set by the
comparator hysteresis band, the output capacitor is chosen to provide
satisfactory response to fast load transients.

To show the importance of the output capacitor characteristics, consider the
following: This example circuit is designed for a worst case load step of no load
(0 Amps) to full load (6 Amps) with a slew rate of 30 A/µs. For a transient of
this slew rate, the output filter alone controls the initial output voltage deviation.
Further examination shows that the output filter inductor current changes little
during the load transient. Therefore, for fast load transients, the output
capacitor characteristics dominate the output filter performance. In this
design, the output capacitor’s ESR (equivalent series resistance) and ESL
(equivalent series inductance) are the parameters that are most critical.

External Component Selection

and is relatively independent of

O

To calculate the ESR requirement, assume that all the load transient current
is supplied by the output capacitor. Also assume that the output voltage
change due to the capacitor’s capacitance is much smaller than the voltage
change due to the ESR, and that the capacitor’s ESL is negligible. In most
practical applications, these assumptions are reasonable and they greatly
simplify calculations. The ESR required to limit output voltage change to
100 mV due to a 6 amp load step is:

D

V

100

ESR

v

O

+

D

I

O

mV

+ 16.7

6

A

m

W

The required level of ESR requires a large amount of capacitance. For this
design, four Sanyo POSCAP type electrolytic capacitors connected in parallel
are selected. These capacitors are a good compromise between
performance, cost, and board area requirements. The particular part used is
an 150-µF, 4-V capacitor with a specified maximum ESR of 45 mΩ, giving a
total maximum ESR of 11.25 mΩ. These capacitors are C10, C11, C12, and
C13 in Figure 1–3. For good design practice, C14, a 10-µF ceramic capacitor,
is placed in parallel with C10–C13. Ceramic capacitors are very effective for
suppressing high frequency switching spikes and reducing the effects of the
ESL of C10–C13.

To summarize, the output capacitance must be selected to provide a
sufficiently low ESR. The capacitor(s) must have an adequate voltage rating

Design Procedure

2-15

External Component Selection

for the particular application. In addition, the capacitor(s) must have an ample
ripple current rating to handle the applied ripple current. This ripple current is
dependent on the ripple current in the output inductance that is calculated in
the next section. The RMS current in the output capacitance is calculated as
follows for 3.3 V output:

I

CRMS

Where ∆IL is the peak-to-peak ripple current in the output inductor.
The ripple current rating for one of these capacitors is 1.7 A RMS at 45°C. The

total ripple current rating for the output capacitance is 4 × 1.7 = 6.8 A RMS as­suming that each cap shares equally . Poor layout may cause one or more of
the caps to take an unequal share.

2.2.3.2 Output Inductance

The output filter inductance is the next quantity to be determined. Like the out­put capacitance selection, the primary consideration is providing satisfactory
response to a fast load transient.

The inductance affects the output voltage response to transient loads by
governing the rate at which its current can increase (or decrease). For
example, during a load transient where the output current increases from no
load to full load, the output capacitor supplies all of the output current until the
inductor current has time to increase to full load. So, a relatively small
inductance is desired.

+ 

Ǹ

3

I

+ 

I

L

6

0.289 + 7.3A 0.289 + 2.1

L

A

RMS

On the other hand, the inductance also plays a part in the power supply
switching frequency , because the inductance limits how fast the output voltage
traverses through the hysteresis band. As the inductance decreases, the
output voltage changes faster, giving rise to higher switching frequencies.

Therefore, the inductor value is fairly critical and should be stable over the
expected load and temperature range. Care should be exercised in the
inductance selection because design requirements for hysteretic regulators
are different from PWM controlled converters. Recall that for a fixed frequency
PWM controlled buck converter, for a given operating point, the output
inductance governs the peak-to-peak amplitude and the slope (di/dt) of the
inductor current. In a hysteretic regulator, the ripple current is set by the output
voltage ripple setting and the output capacitance impedance.

Other important factors to be considered when designing or selecting the
inductor are current capability, allowable operating frequency, and dc
resistance.

After choosing an initial inductance value, the power supply switching
frequency must be estimated to insure that it is within the desired range. The
switching frequency for the example design given in Figure 1–3 is nominally
135 kHz for 5-V input and a 3.3-V output. A detailed analysis of the switching
frequency and an equation to predict it is given later.

T o calculate the maximum inductance allowed for a given response time, load
step, and operating point, the following simple relationship is used:

2-16

External Component Selection

V

+L

L

I

TRAN



t

åLv

V

I

TRAN

L



t

Where:

V

= the voltage applied across the output inductor,

L

I

= the magnitude of the load step, and

TRAN

∆t = the desired response time.

For a load step from light load to heavy load, the voltage applied across the
inductor can be assumed to be V

– VO. This also assumes that the duty cycle

I

is 100% as the output voltage is corrected. Alternatively , for a load step from
heavy load to light load, the voltage across the inductor can be assumed to be

. This assumes that the duty cycle is 0% as the output voltage is corrected.

V

O

For the example circuit described here, the condition which gives the smallest
inductor value is a load step from light load to heavy load for a 3.3-V output.
This is because the voltage applied to the output inductor is the lowest, i.e.,
the input voltage minus the output voltage. For this case, allowing 5 µs for the
inductor current to change, an inductance value is calculated as follows:

V

v

L

I

TRAN

t+

L

5

–

3.3

6

5 10

–

6

+ 1.4 

H

For convenience, a 1.5-µH inductor was designed for this circuit.
Figures 3–10, 3–19, 3–28, and 3–37 illustrate satisfactory transient load per­formance for the output filter values selected in this and the previous sections.

2.2.4 Switching Frequency Analysis

After the elements of the output filter are determined, the power supply
switching frequency must be estimated. If the estimated switching frequency
is too high, the switching losses in the power MOSFET s will be high, resulting
in less than optimum efficiency . If the estimated switching frequency is too low,
the inductor value may be too high, resulting in unsatisfactory transient
response. A switching frequency outside the desired range should be
corrected by changing either the output ripple setting, the output capacitance,
or the output inductance.

To accurately predict the switching frequency of a hysteretic regulator, the
output voltage ripple must be investigated. This should be expected, since the
power supply switching instants are based upon the state of the output
voltage. A simple and accurate method of determining the switching frequency
is described below.

2.2.4.1 Output Ripple

The three elements of the capacitor that contribute to ripple are ESR, ESL, and
capacitance. Assume that all three elements are in series and there are no
other parasitic components to consider. Figure 2–6 shows the voltage
waveforms across each component of the output capacitor and the
corresponding equations.

Design Procedure

2-17

External Component Selection

Figure 2–6.Output Ripple Voltage Detail

(a) Current waveform through output capacitor
(b) Voltage waveform across ideal capacitor with initial value at

∆Ι

Vp–p

beginning of high-side MOSFET on-time

V

+

C

2

(c) Voltage waveform across ESR

V

(d) Voltage waveform across ESL

(e) Composite output voltage ripple waveform

V

V

V

I

AC

V

ESR

ESL

ripple

t

(a)

C

(b)

(c)

(d)
t

del

(e)

t

on

off

T

s

t

t

t

t

H

yst

t

t

del

High-side MOSFET ON High-side MOSFET OFF

2



I t

Co D Ts

High-side MOSFET ON High-side MOSFET OFF

+

ESR

ESR

High-side MOSFET ON High-side MOSFET OFF

V

+

ESL

V

+

ripple

ESL

D

V

C

D

)

–



I

2

I t



Ts

V

Ts

I

ESR

Co

–

t



I

2

)

V

V

+

C

ESL

V



2

ESR

V

I t

Co

ESL

2

–

I

Co



I

–

2

ESL

(1–D)

(

1

(1–D)



–

+

ESR

+

2

t

–D

I

I

Ts

)

Ts

t

Ts

Figures 3–6, 3–15, 3–24, and 3–33 show the phase voltage (voltage at
junction of high-side MOSFET with low-side MOSFET), and output voltage
ripple waveforms for the example circuit of Figure 1–3. The output voltage
waveform is slightly different from the theoretical waveform of Figure 2–6(e)
due to the smoothing effect of the 10-µF ceramic capacitor in parallel with the
electrolytic capacitors.

2.2.4.2 Switching Frequency Equation

Assume that the input and output voltage ripple magnitudes are relatively
negligible compared to the dc component. Also assume that the time constant

L/(R

and R

DS(on)

DS(on)

+ RL)

, where L is the output inductance, RL is the inductor resistance

is the on-state resistance of the high-side MOSFET(s), is high in
comparison with the switching period. Assume the body diode conduction time
and switching transition time are much smaller than the switching period.
These assumptions are reasonable for low voltage ripple and high efficiency
regulators. In such a case the output inductor current can be modeled as
the sum of the dc component, which is equal to the output current Io, and
the ac linear ramp component, which flows through the output capacitor
[Figure 2–6(a)].

The numbered equations in this section are used to derive the switching
frequency equation.

2-18

External Component Selection

Peak to peak value of the inductor current ∆I is given by the following equation:

VI–Io

I+

Where:

V

=the input voltage

I

V

= the output voltage

O

Ts = the switching period

+

Hyst,

ESL

L

ǒ

R

V

V

)Io

+

t

ON

Ts

Ts–tON)

– t

OFF

O

and tONis the on time of the high-side MOSFET.

(see Figure 2–6 (b)). In this case the voltage

V

p-p

del

D

D +

Referring to Figure 2–6 (e), the output voltage ripple,
hysteresis band,
switching instants are equal for simplicity. The ideal capacitor voltage
component has the same initial value during switching instants
(

On the other hand, the hysteresis band is equal to the difference between the
peak-peak values of the V

t

ǒ

R

DS(on

L

Ǔ

)

R

)

O

L

ESR

ripple,

DS(on

I

because of the delays,

V

) I

I

Ǔ

)

R

–V

L

)

is the duty cycle which is defined as :

v

ripple,

O

D

t

. Assume that delays for both

del

at the moments

Ts

V

,

is higher than the

p-p

V

is:

p-p

tON – t

t

ON

del

and

and

(1)

(2)

ESR

(3)

v

ESL

(4)

and

Hyst+V

After substituting equation (1) into equations for
(Figure 2–6) and using equations (2) and (3), the following equation for the
switching frequency,

f

+

s

V

I

Equation (4) shows that the switching frequency strongly depends on

ESL

. It is important that

t

ǒ

ESR t

ESL

If it does not, the voltage step across the ESL during switching exceeds the
hysteresis window, and the switching frequency becomes too high and
uncontrollable.

The switching frequency does not depend on the load current in equation (4),
because a synchronous regulator has the same two stages of operation during
the switching period over the load current range, including no load condition.
There is no discontinuous mode operation at very light loads. In reality there
is a weak dependence of the switching frequency on the load current because

ǒ

ripple

t

ON

f

, can be derived:

S

ǒ

V

VI–V

O

ǒ

V

ESR t

I

ESL

del

Ǔ

*

t

*

del

Ǔ ǒ

O

)

del

meet the following condition:

)

Hyst L DńVout

ǒ

V

ESR–t

Hyst L–ESL V

ripple

t

del

OFF

ń

Co

*

Ǔ

Ǔ

v

t

del

C

,

Ǔ

I

v

ESR

Ǔ

and

Design Procedure

2-19

External Component Selection

of power losses and additional voltage drops through non-ideal components.
Equation (4) should be sufficiently accurate for the first frequency estimate at
the beginning of a design.

2.2.5 Power MOSFET Selection

The TPS56xx is designed to drive N-channel power MOSFETs in a
synchronous rectifier configuration. The MOSFET chosen for this design is the
Siliconix Si4410DY. This device is chosen for its low r
drain-to-source breakdown voltage rating of 30 V.

Power dissipation for the switching MOSFET s, which includes both conduction
and switching losses, is given by:

of 13.5 mΩ and

DS(on)

P

P

P

P

An example MOSFET power dissipation calculation for Q1 and Q3 is shown
below with the following assumptions:

The total switching time,
An
A 60°C maximum ambient temperature,

= 5.0 V, VO = 3.3 V, and IO = 6 A then :

V

I

2

(6)

+

D(Q

1)

+ 0.48 ) 0.20 + 0.68

2

(6)

+

D(Q

2)

+ 0.20 ) 0.20 + 0.40

The thermal impedance of these devices, R
copper and a one-inch-square pattern, thus:

T

J(Q

2

ǒ

+

I

D(Q

1)

ǒ

+

D(Q

2)

r

DS (on)

1)

high temperature adjustment factor = 1.4,

(

0.0135 1.4) 0.7 ) 0.5 5 6 100 10

(

0.0135 1.4) 0.3 ) 0.5 5 6 100 10

+

T

)

A

r

DS(on

O

2

I

r

DS(on

O

W

W

ǒ

R



JA

)

)

t

= 100 ns,

r+f

Ǔ

P

+ 60 )(50 0.90)+ 94°

D

ǒ

Ǔ

D

)

0.5

V

ǒ

Ǔ

(

)

1

–D

)

0.5

= 90°C/W for FR-4 with 2-oz.

θJA

I

i

V

t

r)f

O

I

i

t

O

–

9

135 10

–

9

135 10

C

r)f

f

sw

Ǔ

Ǔ

f

sw

3

3

2-20

T

It is good design practice to check power dissipation at the extreme limits of
input voltage to find the worst case.

J(Q

+

2)

ǒ

T

)

R

A



JA

Ǔ

P

+ 60 )(50 1.40)+ 80°

D

C

Chapter 3

Test Results

This chapter shows the test setups used, and the test results obtained, in
designing the SLVP111–114 EVMS.

Topic Page

3.1 T est Summary 3–2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2 Test Setup 3–5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2 T est Results 3–7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Test Results

3-1

Test Summary

3.1 Test Summary

The detailed test results and waveforms are presented in Figures 3–2 to 3–10
for the SL VP1 1 1, Figures 3–1 1 to 3–19 for the SLVP112, Figures 3–20 to 3–28
for the SL VP1 13 and Figures 3–29 to 3–37 for the SL VP1 14. The following are
summarized results.

3.1.1 Static Line and Load Regulation

The precise reference voltage regulator implemented in the TPS56XX
controller using both positive and negative remote sense pins provides
excellent regulation characteristics. The load regulation from no load to
6 amps load current does not exceed 0.26%. The line regulation is less than

0.045% for the input voltage range from 4.5 V to 5.5 V . Line and load regulation
is shown in Figures 3–2, 3–1 1, 3–20, and 3–29. The set point tolerance is less
than 0.333%. The measured results have a good margin for high volume
production.

3.1.2 Output Voltage Ripple

The output voltage peak to peak ripple is less than ±1%. This is a typical value
but it can be optimized for lower ripple applications. Measured output ripple
waveforms are shown in Figures 3–6, 3–15, 3–24, and 3–33.

The output filter for this EVM design is optimized for fast transient response
due to the high slew-rate load current transitions. Therefore, the output filter
is not optimized for low ripple and has a moderate amount of output ripple.

3.1.3 Efficiency and Power Losses

Efficiency and power losses for 5 V input voltage and maximum output current
6 A are presented in the following table:

Evaluation Board Efficiency, % Power Losses, W

SLVP111, 3.3V 90 2.2

SL VP112, 2.5V 86.4 2.37
SL VP113, 1.8V 83.2 2.18
SL VP114, 1.5V

Efficiency graphs versus load and at different line voltages are shown in
Figures 3–3, 3–12, 3–21, and 3–30.

Low power loss in each component decreases their temperature rise and
improves long term reliability. The EVMs do not require forced air cooling at
room temperature with good margin.

79.8 2.27

3.1.4 Output Start-Up and Overshoot

All possible start-up combinations are tested and waveforms are presented.
Output voltage rise time does not depend on the load current and ramps up

3-2

in a linear fashion. There is no discernable overshoot in the waveforms. In this
application, output voltage rise time is set to approximately 9 mS with an
external capacitor. Although the EVMs have been tested with a very short Vcc
rise time, (see Figures 3–26 and 3–35) it is recommended to keep the rise time
of Vcc longer than 3mS as shown in Figures 3–8 and 3–17.

3.1.5 Frequency Variation

The switching frequency for a hysteretic controller depends on the input and
output voltages and the output filter characteristics. It has approximately the
same frequency variation as constant OFF time controllers. The precise
equation for switching frequency , confirmed by experiment, is presented in TI’s
application report

Using the TPS5210
Efficient Synchronous-Buck Controller for Microprocessor Power Supplies

http://www.ti.com/sc/docs/msp/papers/index.htm.
The frequency variation over all input voltage and output current combinations

is presented in the following table.
Switching frequency graphs versus load at different line voltages are shown

in Figures 3–5, 3–14, 3–23, and 3–32.

Test Summary

Designing Fast Response Synchronous Buck Converters

and in the paper, represented at HFPC–98

A Fast,

Evaluation Board

SLVP111, 3.3 V 97–175

SLVP112, 2.5 V 189–247

SLVP113, 1.8 V 262–312

SLVP114, 1.5 V

3.1.6 Load Current Transient Response

The hysteretic controller has excellent dynamic characteristics (see
Figures 3–10, 3–19, 3–28 and 3–37) and does not require any feedback
compensation circuitry . These figures show that the
load transient within the same switching cycle as when the transient occurs.
In addition, it is necessary to optimize the output filter to meet high slew-rate
load current transient requirements thus saving money and board space by
using only the fewest expensive bulk capacitors. Special attention should also
be paid to high frequency decoupling within the output filter to control the initial
transient voltage deviation because it does not depend on controller
characteristics.

3.1.7 Features

Frequency Variation,

(kHz)

296–378

controller

responds to a

The EVMs have all the features, which are described in detail in the datasheet
for TPS56XX controller.

The features include undervoltage lockout for both 12 V and 5 V input, inhibit
signal, power good signal, overvoltage protection, slow start, remote sense,
and overcurrent protection. Overcurrent limit is set to an 8 amp – 10 amp level.

Test Results

3-3

Test Summary

3.1.8 Conclusion

The test results of the SLVP111/112/113/114 EVMs demonstrate the
advantages of TPS56xx controllers to meet stringent supply requirements to
power supplies, especially for powering DSPs and microprocessors. The
power system designer has a good solution to optimize system for his
particular application. Detailed information how to design a dc-dc converter by
using TPS56xx controller is represented in TI’s User’s Guide

Synchronous

Buck Converter Design Using TPS56xx Controllers in SLVP10x EVMs

Literature Number SL VU007 or

Regulators Using the TPS5210

Designing Fast Response Synchronous Buck

, Literature Number SLVA044.

,

3-4

3.2 Test Setup

Follow these steps for initial power up of the SLVP112:

1) Connect an electronic load from Vout to PwrGND (J1-15, -16,

-17, -18 to J1-1 1, -12, -13, -14) adjusted to draw approximately
1 A at 2.5 V . The exact current is not critical; any nominal current
is sufficient. A fixed resistor can also be used in place of the
electronic load. The output current drawn by the resistor is

2.5

I



O

resistor power rating, P

V

amps where R is the value of the load resistor. The

R

should be at least

R

Connect the sense lines from the load to VsenseH and VsenseL
(J1-4 and J1-2).

2) Connect a 12-V lab power supply to the 12-V input (J1-7
referenced to PwrGND, J1-8) of the SL VP112. A current limit set
for 20 mA should be adequate for the controller’s power
requirements.

3) Connect another lab power supply to the 5 V dc input of the
SLVP112 (J1-5, -6 referenced to Return, J1-9, -10). Verify that
the current limit is set for at least 2 A and that it is set to 0 V.

2.5

2

R

Test Setup

 2

Watts

.

4) Turn on the 12-V lab supply. Turn on the 5-V power supply and
ramp the input voltage up to 5 V. Once proper operation is
verified, this order is not important.

5) Verify that the SL VP1 12 output voltage (measured at the module
output pins) is 2.5 V ± 0.025 V.

6) For subsequent testing, ensure the lab supply output current
capacity and current limit are at least 7 A so that the SLVP112
can be operated at maximum load of 6 A.

7) For initial power up of the other converters, replace any
reference to 2.5 V in the above discussion with a reference to the
appropriate output voltage.

8) Refer to Chapter 3 for selected typical waveforms and operating
conditions for verification of proper module operation.

Figure 3–1 shows the SLVP112 test setup.

Test Results

3-5

Test Setup

Figure 3–1.Test Setup

5V Power Supply

+

–

+

+–

–

Load

12-V Power Supply

3-6

3.3 Test Results

Figures 3–2 to 3–102 show test results for the SLVP111.

Figure 3–2.SLVP111 Measured Load Regulation

SLVP111 MEASURED LOAD REGULATION

3.305

3.3

– V

O

V

3.295
Vin = 5.5 V

Vin = 5 V

Test Results

3.29

3.285

01234 56

Figure 3–3.SLVP111Measured Efficiency

SLVP111 MEASURED EFFICIENCY

94

Vin = 4.5 V

92

90

Vin = 5.5 V

88

Efficiency – %

86

84

Vin = 4.5 V

IO – A

Vin = 5 V

82

123456

IO – A

Test Results

3-7

Test Results

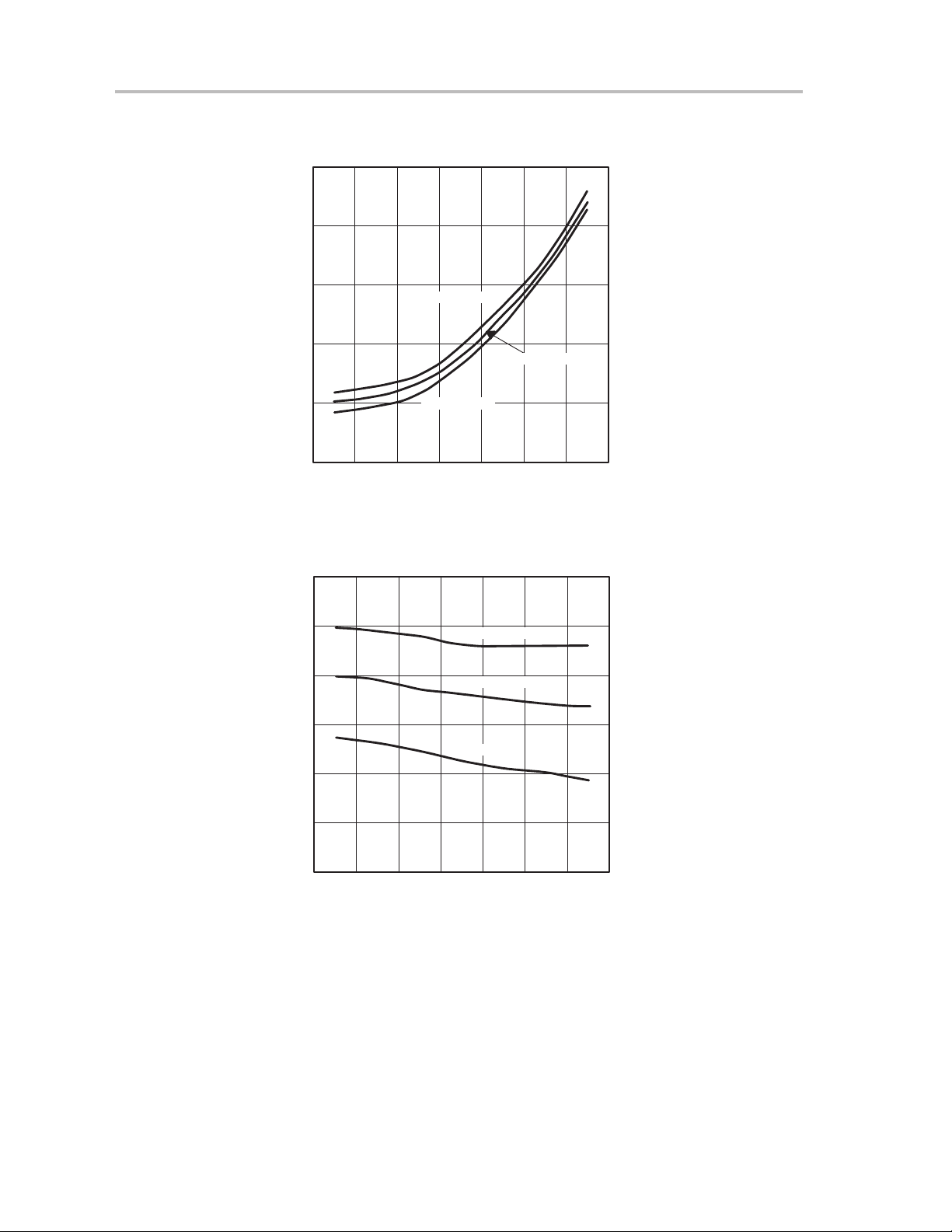

Figure 3–4.SLVP111Measured Power Dissipation

SLVP111 MEASURED POWER DISSIPATION

2.5

2

1.5

Ploss – W

1

0.5

0

0123456

Vin = 4.5 V

Vin = 5 V

Vin = 5.5 V

IO – A

Figure 3–5.SLVP111Measured Switching Frequency

SLVP111 MEASURED SWITCHING FREQUENCY

200

175

150

125

Frequency – kHz

100

Vin = 5.5 V

Vin = 5 V

Vin = 4.5 V

3-8

75

50

0123456

IO – A

Figure 3–6.SLVP111 Measured Switching Waveforms

V

O

20 mV/div

VDS Q2
2 V/div

2.5 µs/div

Figure 3–7.SLVP111Measured Start-Up (INHIBIT) Waveforms

Test Results

C3 Pk–Pk

50.8 mV

C3 Frequency

130.088 kHz
Low Signal
Amplitude

C4 Max

5.20 V

C4 + Duty

70.4%

V

O

2 V/div

INHIBIT
1 V/div

2.5 ms/div

C3 Pk–Pk

3.36 V

C3 Rise

7.500 ms
Low Signal
Amplitude

C3 + Over

2.5%

Test Results

3-9

Test Results

Figure 3–8.SLVP111 Measured Start-Up (VCC) Waveforms

V

O

2 V/div

VCC (12 V)
5 V/div

UVLO
Threshold

2.5 ms/div

Figure 3–9.SLVP111Measured Start-Up (VIN) Waveforms

C3 Pk–Pk

3.36 V

C3 Rise

7.300 ms
Low Signal
Amplitude

C3 + Over

2.5%

V

O

2 V/div

VIN (5 V)
1 V/div

2.5 ms/div

C3 Pk–Pk

3.52 V

C3 Rise

8.540 ms
Low Signal
Amplitude

C3 + Over

2.4%

3-10

Figure 3–10. SLVP111 Measured Load Transient Waveforms

V

O

100 mV/div

I

O

5 A/div

6.5 A

2.5 µs/div

Figure 3–11. SLVP112 Measured Load Regulation

SLVP112 MEASURED LOAD REGULATION

2.51

Test Results

C3 Pk–Pk
208 mV

C2 High

6.5 V

– VV

O

2.505

2.5

2.495

Vin = 5.5 V

0123456

IO – A

Vin = 5 V

Vin = 4.5 V

Test Results

3-11

Test Results

Figure 3–12. SLVP112 Measured Efficiency

SLVP111 MEASURED EFFICIENCY

90

Vin = 4.5 V

88

Vin = 5 V

86

84

Eficiency – %

82

80

78

123456

Vin = 5.5 V

IO – A

Figure 3–13. SLVP112 Measured Power Dissipation

SLVP111 MEASURED POWER DISSIPATION

2.5

2

1.5

Ploss – W

1

Vin = 5 V

Vin = 5.5 V

3-12

Vin = 4.5 V

0.5

0

0123456

I

– A

O

Figure 3–14. SLVP112 Measured Switching Frequency

SLVP112 MEASURED SWITCHING FREQUENCY

300

275

Test Results

250

225

Frequency – kHz

200

175

150

01234 56

Vin = 5 V

Vin = 5.5 V

Vin = 4.5 V

IO – A

Figure 3–15. SLVP112 Measured Switching Waveforms

V

O

20 mV/div

VDS Q2
2 V/div

C3 Pk–Pk

43.2 mV

C3 Frequency

218.800 kHz
Low Signal
Amplitude

C4 Max

5.72 V

2.5 µs/div

C3 + Duty

54.2%

Test Results

3-13

Test Results

Figure 3–16. SLVP112 Measured Start-Up (INHIBIT) Waveforms

V

O

1 V/div

INHIBIT
1 V/div

2.5 ms/div

C3 Pk–Pk

2.64 V

C3 Rise

7.885 ms

C3 + Over

3.2%

Figure 3–17. SLVP112 Measured Start-Up (VCC) Waveforms

V

O

2 V/div

UVLO
Threshold

VCC (12 V)
5 V/div

2.5 ms/div

C3 Pk–Pk

2.56 V

C3 Rise

7.995 ms

C3 + Over

3.3%

3-14

Figure 3–18. SLVP112 Measured Start-Up (VIN) Waveforms

Test Results

V

O

1 V/div

VIN (5 V)
1 V/div

2.5 ms/div

Figure 3–19. SLVP112 Measured Load Transient Waveforms

V

O

100 mV/div

I

O

2 A/div

C3 Pk–Pk

2.60 V

C3 Rise

7.635 ms

C3 + Over

3.2%

C3 Pk–Pk
200 mV

C2 High

7.00 V

5 A

25 µs/div

Test Results

3-15

Test Results

Figure 3–20. SLVP113 Measured Load Regulation

SLVP113 MEASURED LOAD REGULATION

1.805

Vin = 5 V

IO – A

1.8025

– VV

1.8

O

1.7975

1.795

Vin = 5.5 V

Vin = 4.5 V

0123456

Figure 3–21. SLVP113 Measured Efficiency

SLVP113 MEASURED EFFICIENCY

88

86

Vin = 4.5 V

84

82

Vin = 5.5 V

80

Vin = 5 V

3-16

Efficiency – %

78

76

74

72

1 23456

IO – A

Figure 3–22. SLVP113 Measured Power Dissipation

SLVP113 MEASURED POWER DISSIPATION

2.5

2

1.5
Vin = 5.5 V

Test Results

Ploss – W

1

0.5

0

Vin = 5 V

Vin = 4.5 V

0123456

I

– A

O

Figure 3–23. SLVP113 Measured Switching Frequency

SLVP113 MEASURED SWITCHING FREQUENCY

350

325

300

275

250

225

Frequency – kHz

Vin = 5.5 V

Vin = 5 V

Vin = 4.5 V

200

175

150

01234 56

IO – A

Test Results

3-17

Test Results

Figure 3–24. SLVP113 Measured Switching Waveforms

V

O

20 mV/div

VDS Q2
2 V/div

1 µs/div

Figure 3–25. SLVP113 Measured Start-Up (INHIBIT) Waveforms

C3 Pk–Pk

34.8 mV

C3 Frequency

285.52 kHz
Low Signal
Amplitude

C5 Max

5.80 V

C4 + Duty

40.4%

V

O

1 V/div

INHIBIT
1 V/div

2.5 ms/div

C3 Pk–Pk

1.88 V

C3 Rise

7.360 ms
Low Signal
Amplitude

C3 + Over

2.3%

3-18

Figure 3–26. SLVP113 Measured Start-Up (VCC) Waveforms

Test Results

V

O

2 V/div

VCC (12 V)
5 V/div

2.5 ms/div

Figure 3–27. SLVP113 Measured Start-Up (VIN) Waveforms

V

O

1 V/div

VIN (5 V)
1 V/div

C3 Pk–Pk

1.84 V

C3 Rise

7.195 ms
Low Signal
Amplitude

C3 + Over

2.3%

C3 Pk–Pk

1.88 V

C3 Rise

8.300 ms
Low Signal
Amplitude

C3 + Over

2.2%

2.5 ms/div

Test Results

3-19

Test Results

Figure 3–28. SLVP113 Measured Load Transient Waveforms

V

O

100 mV/div

I

O

5 A/div

3.6 A

25 µs/div

Figure 3–29. SLVP114 Measured Load Regulation

SLVP114 MEASURED LOAD REGULATION

1.5

C3 Pk–Pk
112 mV

C2 High

3.64 V

– VV

O

1.499

1.498

1.497

1.496

1.495

1.494

1.493

1.492

1.491

1.49

Vin = 5 V

Vin = 5.5 V

Vin = 4.5 V

0123456

IO – A

3-20

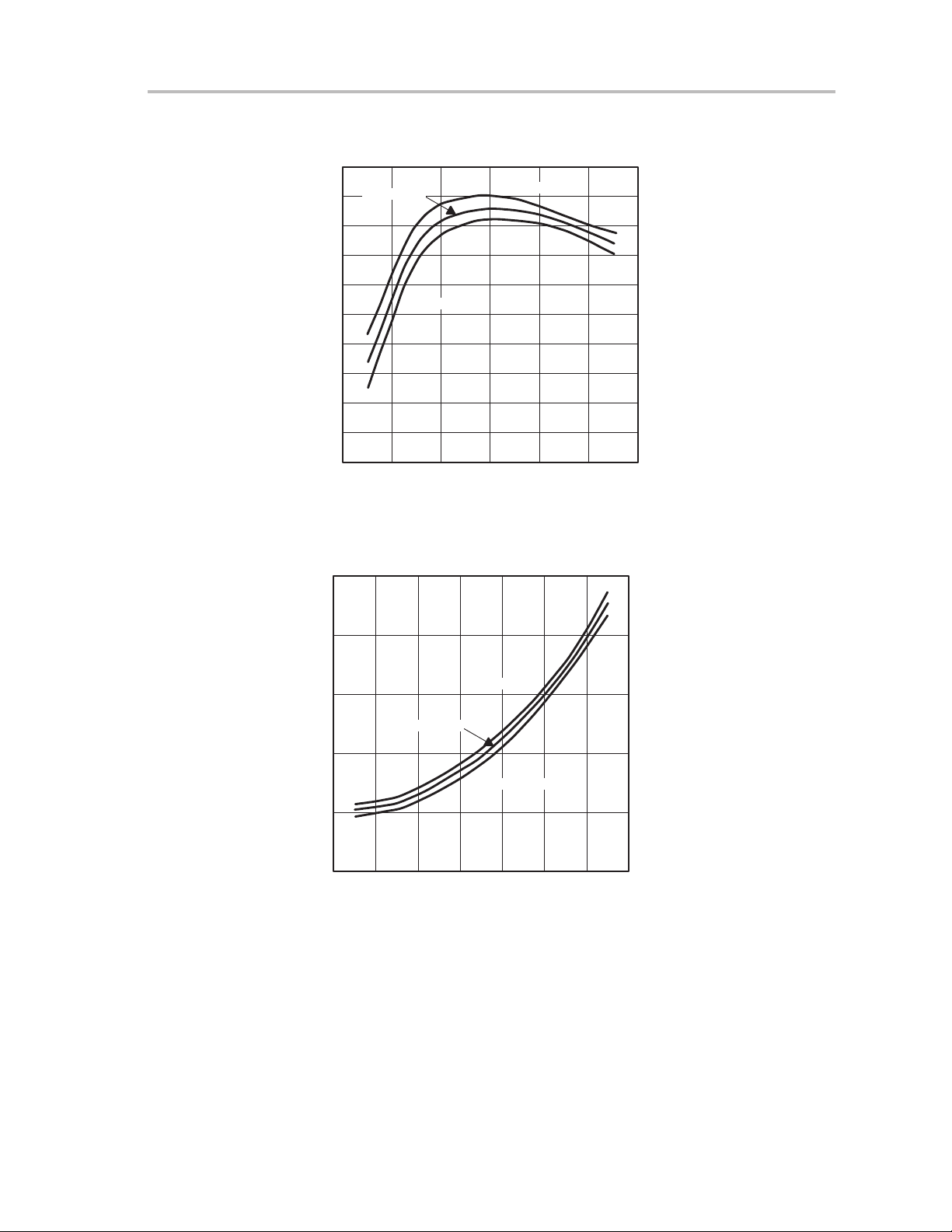

Figure 3–30. SLVP114 Measured Efficiency

SLVP114 MEASURED EFFICIENCY

85

Vin = 5 V

83
81

79

Test Results

Vin = 4.5 V

77
75

73

Efficiency – %

71
69

67
65

Vin = 5.5 V

12 3 4 5 6

IO – A

Figure 3–31. SLVP114 Measured Power Dissipation

SLVP114 MEASURED POWER DISSIPATION

2.5

2

1.5

Ploss – W

1

Vin = 5 V

Vin = 5.5 V

Vin = 4.5 V

0.5

0

0123456

IO – A

Test Results

3-21

Test Results

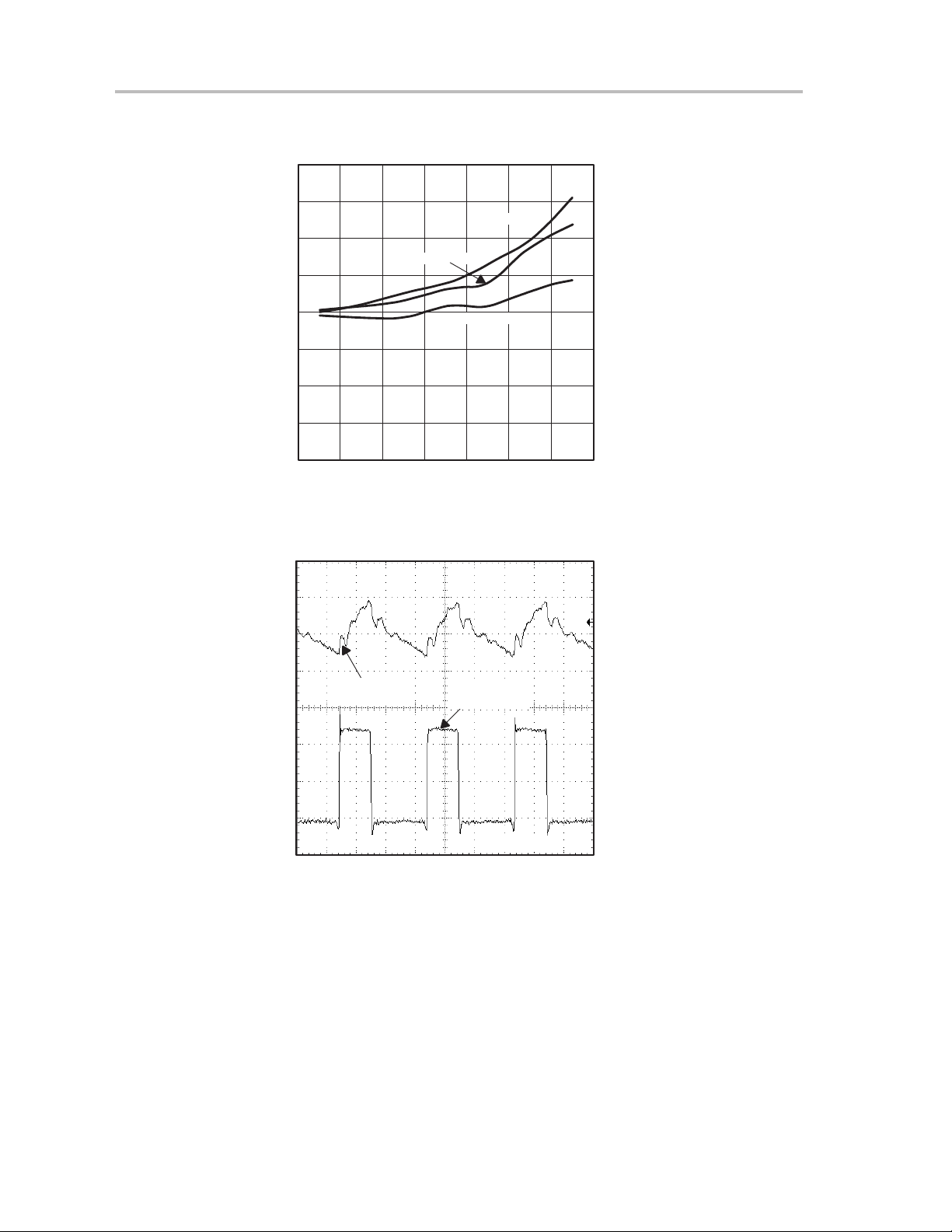

Figure 3–32. SLVP114 Measured Switching Frequency

SLVP114 MEASURED SWITCHING FREQUENCY

400

375

350

325

300

275

Frequency – kHz

250

225

200

0123456

Vin = 5 V

Vin = 5.5 V

Vin = 4.5 V

IO – A

Figure 3–33. SLVP114 Measured Switching Waveforms

C3 Pk–Pk

30.8 mV

V

O

20 mV/div

VDS Q2
2 V/div

C3 Frequency

337.82 kHz
Low Signal
Amplitude

C4 Max

7.44 V

C4 + Duty

36.2%

1 µs/div

3-22

Figure 3–34. SLVP114 Measured Start-Up (INHIBIT) Waveforms

Test Results

V

O

1 V/div

INHIBIT
1 V/div

2.5 ms/div

Figure 3–35. SLVP114 Measured Start-Up (VCC) Waveforms

V

O

1 V/div

VCC (12 V)
5 V/div

C3 Pk–Pk

1.56 V

C3 Rise

6.990 ms
Low Signal
Amplitude

C3 + Over

2.8%

C3 Pk–Pk

1.56 V

C3 Rise

7.090 ms
Low Signal
Amplitude

C3 + Over

2.8%

2.5 ms/div

Test Results

3-23

Test Results

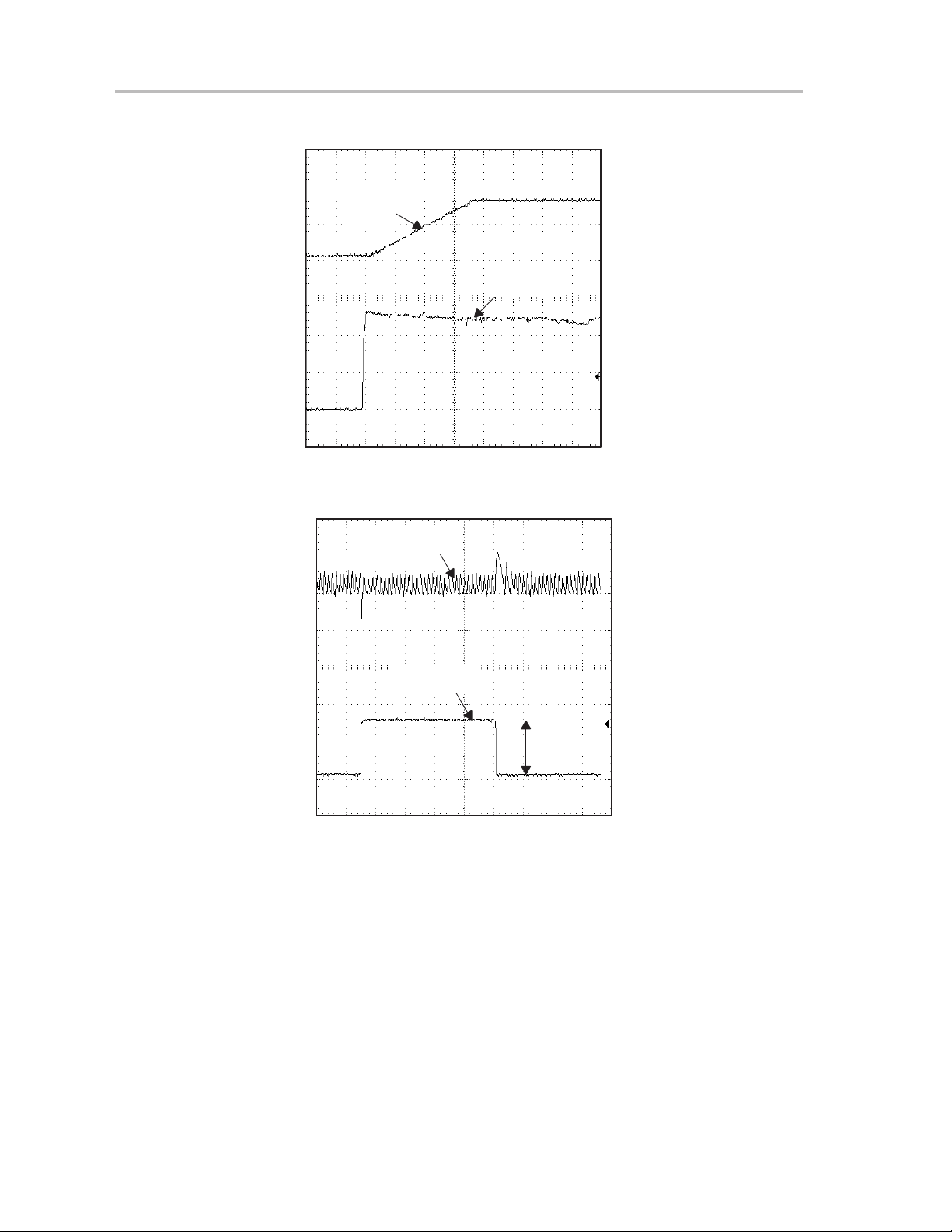

Figure 3–36. SLVP114 Measured Start-Up (VIN) Waveforms

V

O

1 V/div

VIN (5 V)
1 V/div

2.5 ms/div

Figure 3–37. SLVP114 Measured Load Transient Waveforms

V

O

50 mV/div

C3 Pk–Pk

1.56 V

C3 Rise

7.07 ms
Low Signal
Amplitude

C3 + Over

2.7%

C3 Pk–Pk
108 mV

C2 High

3.08 V

I

O

2 A/div

3 A

25 µs/div

3-24
