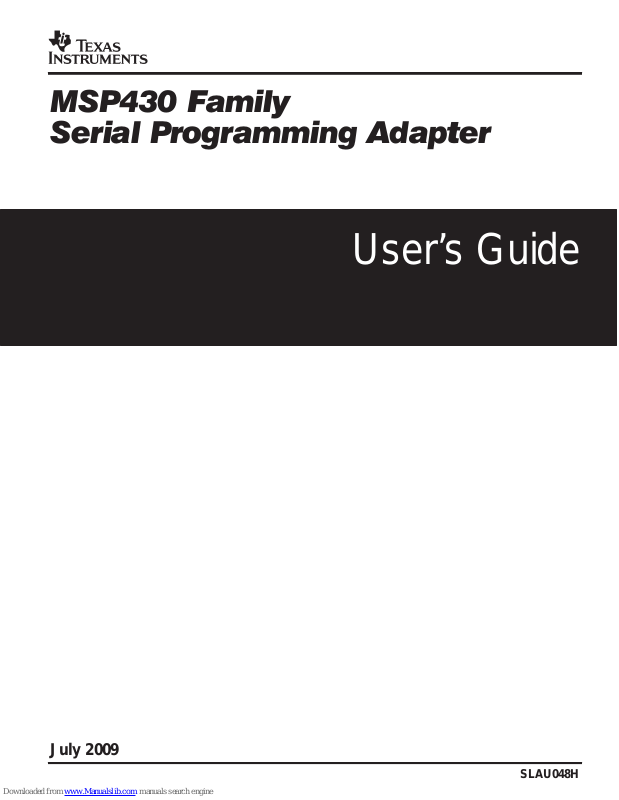

Texas Instruments Serial Programming Adapter MSP430 User Manual

Download

    

User’s Guide

July 2009

SLAU048H

EVALUATION BOARD/KIT IMPORTANT NOTICE

Texas Instruments (TI) provides the enclosed product(s) under the following conditions:. This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR

EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end−product fit for general consumer use. Persons handling the product(s) must have electronics training and observe good engineering practice standards. As such, the goods being provided are not intended to be complete in terms of required design−, marketing−, and/or manufacturing−related protective considerations, including product safety and environmental measures typically found in end products that incorporate such semiconductor components or circuit boards. This evaluation board/kit does not fall within the scope of the European Union directives regarding electromagnetic compatibility, restricted substances (RoHS), recycling (WEEE), FCC, CE or UL, and therefore may not meet the technical requirements of these directives or other related directives.

Should this evaluation board/kit not meet the specifications indicated in the User’s Guide, the board/kit may be returned within 30 days from the date of delivery for a full refund. THE FOREGOING WARRANTY IS THE EXCLUSIVE WARRANTY MADE BY SELLER TO BUYER AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESSED, IMPLIED, OR STATUTORY, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE.

The user assumes all responsibility and liability for proper and safe handling of the goods. Further, the user indemnifies TI from all claims arising from the handling or use of the goods. Due to the open construction of the product, it is the user’s responsibility to take any and all appropriate precautions with regard to electrostatic discharge.

EXCEPT TO THE EXTENT OF THE INDEMNITY SET FORTH ABOVE, NEITHER PARTY SHALL BE LIABLE TO THE OTHER FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES.

TI currently deals with a variety of customers for products, and therefore our arrangement with the user is not exclusive.

TI assumes no liability for applications assistance, customer product design, software performance, or infringement of patents or services described herein.

Please read the User’s Guide and, specifically, the Warnings and Restrictions notice in the User’s Guide prior to handling the product. This notice contains important safety information about temperatures and voltages. For additional information on TI’s environmental and/or safety programs, please contact the TI application engineer or visit www.ti.com/esh

No license is granted under any patent right or other intellectual property right of TI covering or relating to any machine, process, or combination in which such TI products or services might be or are used.

FCC WARNING

This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRATION, OR EVALUATION PURPOSES ONLY and is not considered by TI to be a finished end−product fit for general

consumer use. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15 of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this equipment in other environments may cause interference with radio communications, in which case the user at his own expense will be required to take whatever measures may be required to correct this interference.

Mailing Address: Texas Instruments Post Office Box 655303 Dallas, Texas 75265

EVM WARNINGS AND RESTRICTIONS

It is important to operate this EVM within the specified input and output ranges described in the EVM User’s Guide.

Exceeding the specified input range may cause unexpected operation and/or irreversible damage to the EVM. If there are questions concerning the input range, please contact a TI field representative prior to connecting the input power.

Applying loads outside of the specified output range may result in unintended operation and/or possible permanent damage to the EVM. Please consult the EVM User’s Guide prior to connecting any load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative.

During normal operation, some circuit components may have case temperatures greater than 60°C. The EVM is designed to operate properly with certain components above 60°C as long as the input and output ranges are maintained. These components include but are not limited to linear regulators, switching transistors, pass transistors, and current sense resistors. These types of devices can be identified using the EVM schematic located in the EVM User’s Guide. When placing measurement probes near these devices during operation, please be aware that these devices may be very warm to the touch.

Mailing Address:

Texas Instruments Post Office Box 655303 Dallas, Texas 75265

About This Manual

Trademarks

Preface



This document describes the MSP430-family hardware, operation, and software installation and setup.

How to Use This Manual

This document contains the following chapters:

- Chapter 1 − Installation and Setup

- Chapter 2 − Operation

- Chapter 3 − Hardware

- Appendix A − Hex Object Format

- Appendix B − Schematics

Notational Conventions

This document uses the following conventions.

- Program code and program examples are shown in a special

typeface similar to a typewriter’s.

Here is an example of programming code:

long int VerifyFile(char* lpszFileName, long int iFileType)

Trademarks

Microsoft Windows is a trademark of Microsoft Corporation. Intel is a trademark of Intel Corporation.

Read This First

FCC Warning

This evaluation board/kit is intended for use for ENGINEERING DEVELOPMENT, DEMONSTRA TION, OR EVALUA TION PURPOSES O N LY and is not considered by TI to be a finished end-product fit for general consumer use. It generates, uses, and can radiate radio frequency energy and has not been tested for compliance with the limits of computing devices pursuant to part 15 of FCC rules, which are designed to provide reasonable protection against radio frequency interference. Operation of this equipment in other environments may cause interference with radio communications, in which case the user at his own expense will be required to take whatever measures may be required to correct this interference.

Running Title—Attribute Reference



1 Installation and Setup 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.1 Installing the Software 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2 Installing the Hardware 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 Operation 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.1 Software/Hardware Layers of the PRGS430 Environment 2-2. . . . . . . . . . . . . . . . . . . . . . . .

2.2 Programming MSP430 Devices With the GUI 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.1 Basic Procedure 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.2 Description of the MSP-PRGS430 GUI 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.3 Error Messages 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.4 Content of PRGS430.ini File 2-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.2.5 Use of a [Project].ini File 2-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3 Command Line Options 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3.1 General Definitions 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.3.2 Return Values/Error Codes in .ini File 2-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.4 PRGS430.DLL—Description 2-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.4.1 Return Values/Error Codes From PRGS430.DLL 2-23. . . . . . . . . . . . . . . . . . . . . . .

3 Hardware 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.1 Specifications 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2 Basic Hints 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3 Programming Adapter Target Connector Signals 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.4 MSP-PRGS430 Circuit Diagrams 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5 Location of Components − MSP-PRGS430 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.6 Interconnection of MSP-PRGS430 to OTP/EPROM-Based

MSP430 Devices 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7 Interconnection of MSP−PRGS430 to Flash-Based MSP430 Devices 3-7. . . . . . . . . . . . . .

A Hex Object Format A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A.1 Intel-Hex Object Format A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A.2 TI-TXT File Format A-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

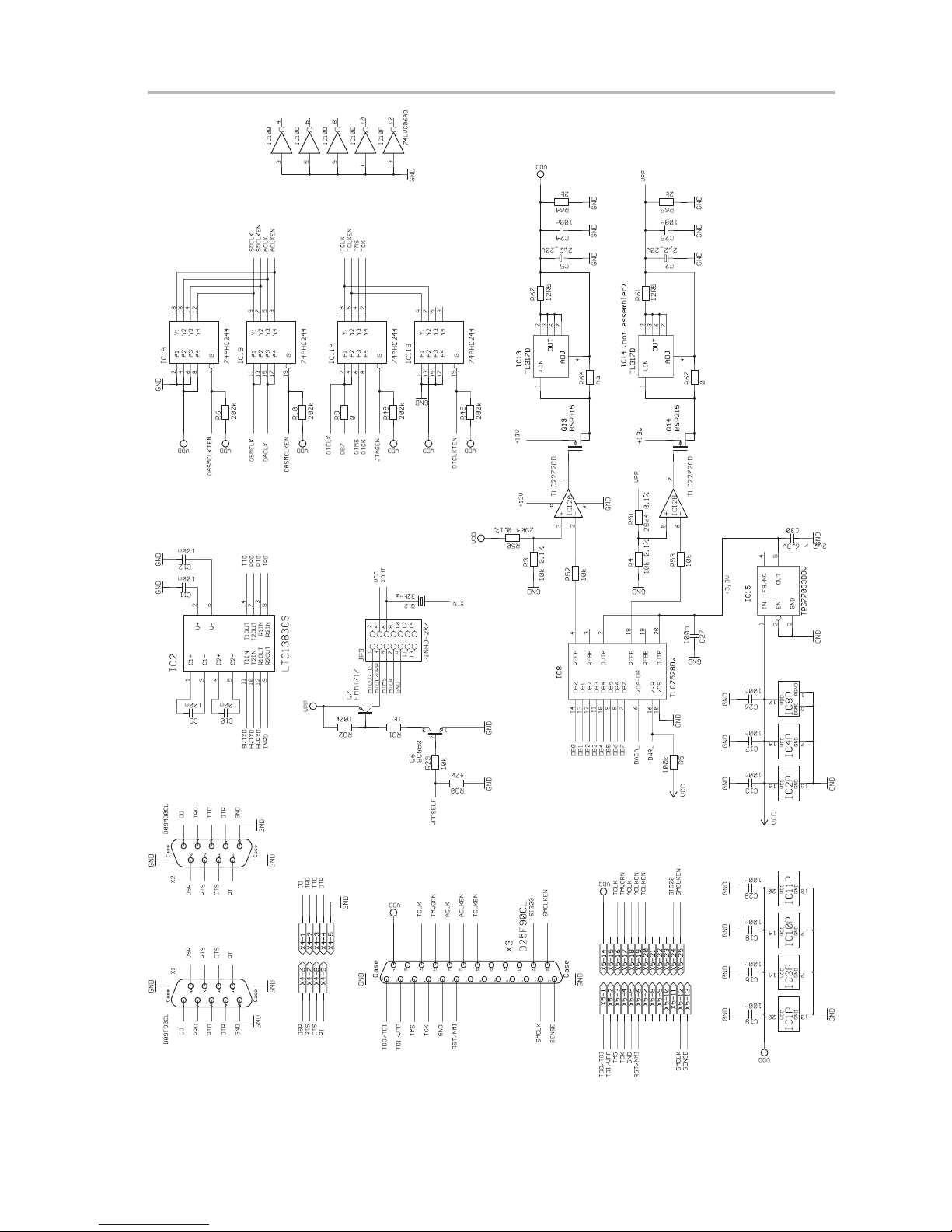

B Schematics B-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter Title—Attribute Reference

vii

Running Title—Attribute Reference



1−1 ADT430 Program Icons 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1−2 Serial Programming Adapter 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−1 MSP430 Programmer Dialog Box 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

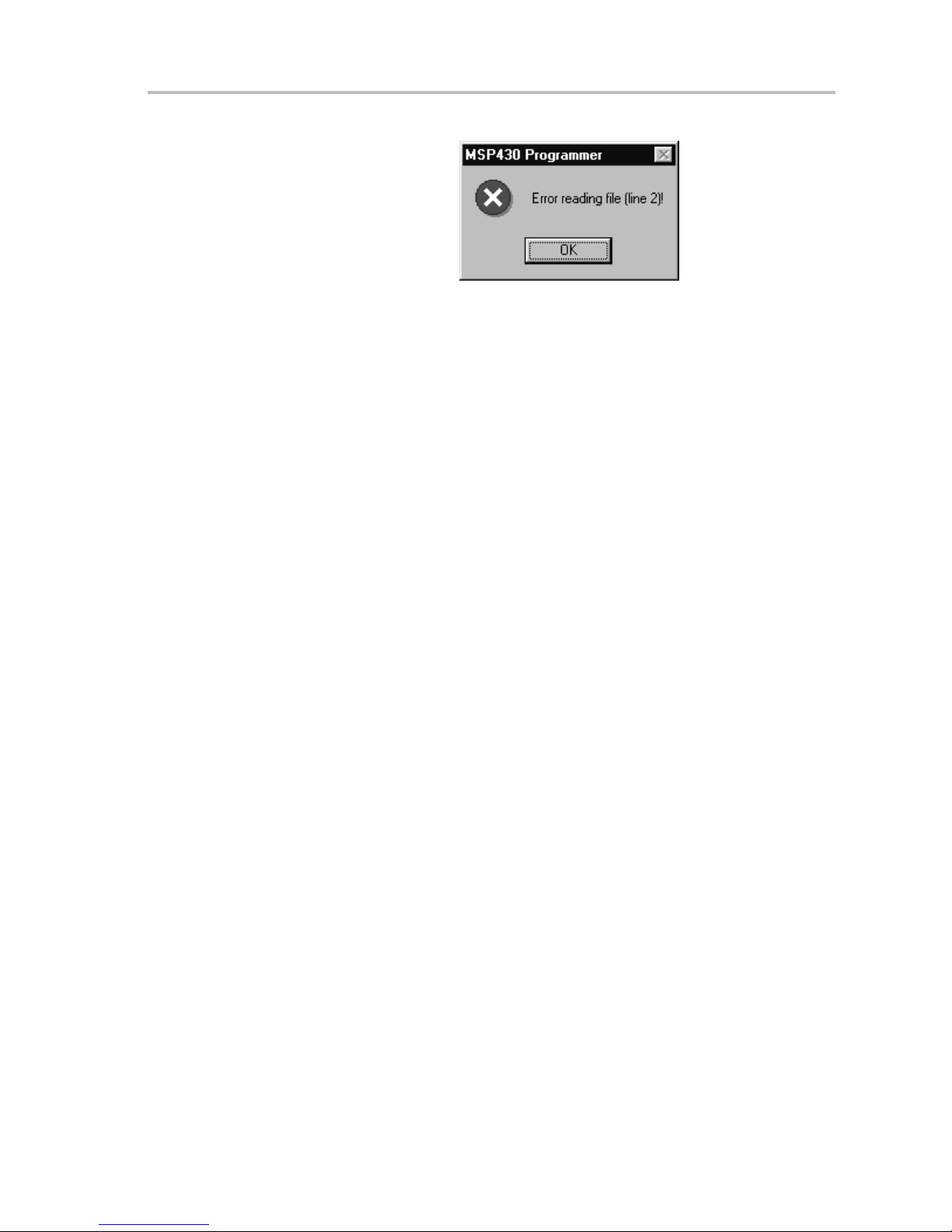

2−2 Communication Error Box 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−3 Communication Error Box for Blown Fuse 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−4 Erase Check Error Message 2-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−5 Data Error 2-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

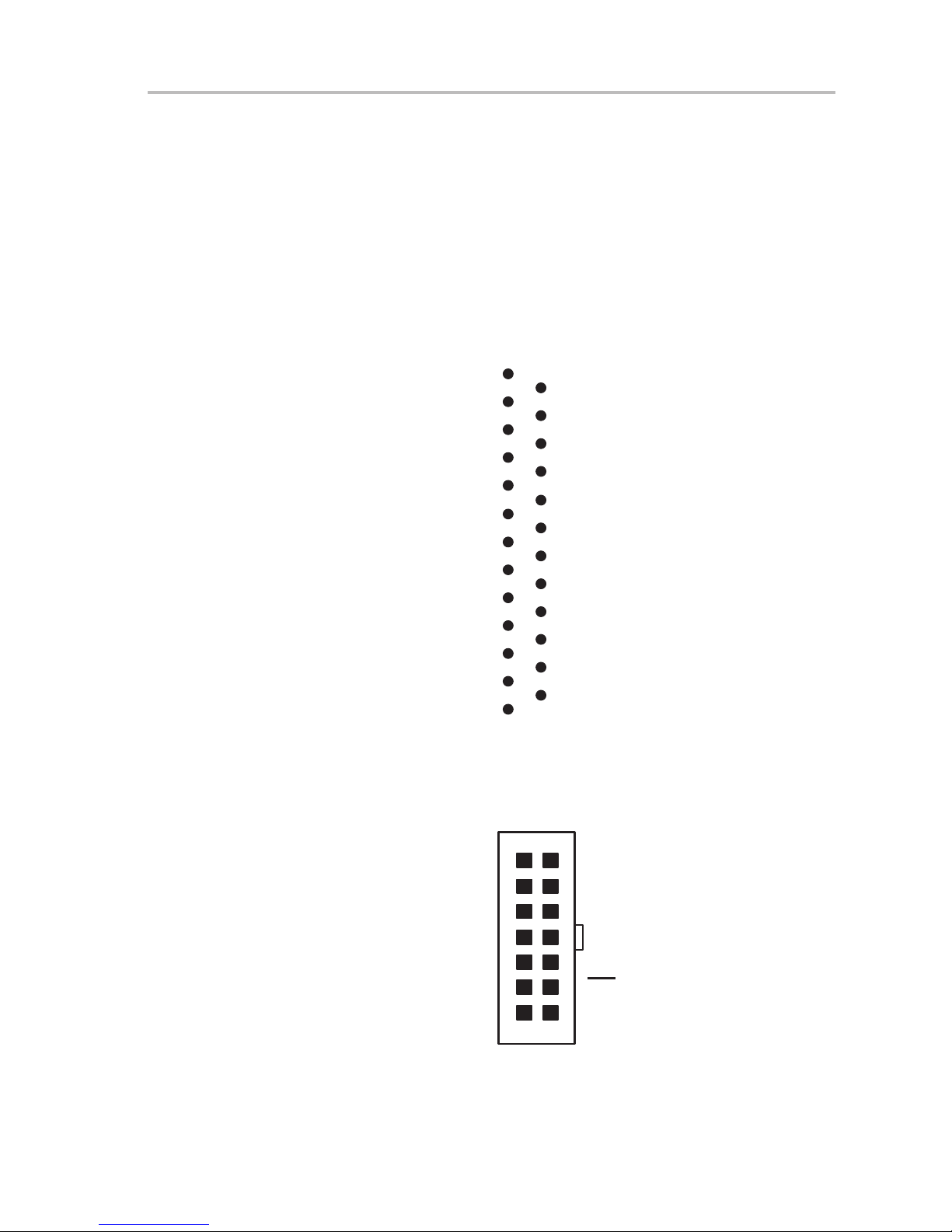

3−1 25-Pin Sub-D at Programming Adapter 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−2 14-Pin Connector at End of Interconnect Cable 3-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−3 MSP-PRGS430 Components 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−4 MSP−PRGS430 Used to Program OTP/EPROM-Based MSP430 Devices 3-6. . . . . . . . . . . .

3−5 MSP−PRGS430 Used to Program Flash-Based MSP430 Devices 3-7. . . . . . . . . . . . . . . . . . .

A−1 Intel-Hex Object Format A−2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .



2−1 MSP430 Function Buttons and Descriptions 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−2 Error Messages 2-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2−3 Command Line Options 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−1 MSP430 Hardware Specifications 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−2 Target Connector Signal Functions 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3−3 Programming Adapter Signal Levels 3-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

viii

Chapter 1

  

This chapter describes the process of installing and programming the hardware and software for the MSP430-PRGS430 programming adapter used with the MSP430 family of microcontrollers.

Topic Page

1.1 Installing the Software 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1.2 Installing the Hardware 1-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation and Setup

1-1

Installing the Software

1.1 Installing the Software

To install the MSP-PRGS430 software, perform the following steps: NOTE: To ensure that you are using the latest version of the MSP-PRGS430

software, you must download the installation executable from the TI web site.

1) Browse to the MSP-PRGS430 page on www.ti.com (http://www.ti.com/prgs430).

2) Go to the Support Software section and click on the link to the MSP-PRGS430 Software (the latest version of this software can also be downloaded from this address: http://www.ti.com/lit/zip/slac029).

3) Save the zip file to your local drive. After download is complete, uncompress the file to extract the installation exectuable (PRGS430_Rxxx.exe).

4) Navigate to this saved file (PRGS430_Rxxx.exe) and run it. A welcoming message is displayed.

5) Follow the setup instructions on the screen. The setup program guides you through the installation process.

6) During setup, the MSP430 program icons are installed in the selected folder. Click on the PRGS430 Read Me First icon, shown in Figure 1−1, to obtain important information about the program device hardware and software.

Figure 1−1.ADT430 Program Icons

7) The appropriate program group and icons are added to the Windows program manager.

8) To start the programming adapter software, click the PRGS430 icon in the selected program group (default: ADT430).

1-2

1.2 Installing the Hardware

To install the programming adapter hardware, perform the following steps:

1) Using the 9-pin SUB-D connector, connect the programming adapter to the serial port (COM1−COM4) of the PC.

2) Connect an external power supply to the programming adapter. The voltage of the power supply must be between 14 V and 20 V dc and must provide a minimum of 200 mA of power . The center terminal of the supply connector at the programming adapter is the plus pole.

3) The red LED on the programming adapter lights if the power supply is properly connected. If the LED does not light and the power supply is properly connected, check the F1 fuse on the programming adapter printed-wire board (PWB).

4) The MSP430 devices, in a socket or on a PWB, should be connected to the programming adapter through the 14-pin cable.

Installing the Hardware

The programming adapter provides the selected supply voltage V 14 of the 25-pin SUB-D connector, or at pin 2 of the 14-pin connector to supply the MSP430 device. The signal name is VCC_MSP.

If an external supply voltage V voltage VCC_MSP must be set to the same voltage level.

Figure 1−2.Serial Programming Adapter

Power Supply

200 mA

14−20 V

RS232 From PC

RS232

PC Serial Port

RS232

MSP−PRGS430

Target

MSP430 Serial Programming Adapter

(JTAG)

at pin

is used for the MSP430, the internal

RS232 Out

OUT

May Be Connected to an EVK

JTAG Connector for the MSP430

Installation and Setup

1-3

1-4

Chapter 2



This chapter describes the programming procedure for MSP430 devices and the error messages you may encounter during the procedure.

Topic Page

2.1 Software/Hardware Layers of the PRGS430 Environment 2-2. . . . . . . . .

2.2 Programming MSP430 Devices With the GUI 2-3. . . . . . . . . . . . . . . . . . . .

2.3 Command Line Options 2-10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2.4 PRGS430.DLL—Description 2-13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operation

2-1

Software/Hardware Layers of the PRGS430 Environment

2.1 Software/Hardware Layers of the PRGS430 Environment

GUI

PC − Software

PRGS430.EXE PRGS430.INI

CommandLine

Function

PRGS430.DLL

RS232

DEVICE.CFG

[Project] .INI

PRGS430

JTAG

MSP430

Serial Programming Adapter

Target Socket or Application

There are three ways to handle and communicate with the PRGS430 hardware:

- Using the graphical user interface (see Section 2.2)

- Using command line parameters (see Section 2.3)

- Using the PRGS430.dll (see Section 2.4)

Note: this is the fastest way if the PRGS430 should be used in an in-system program and test environment.

2-2

Programming MSP430 Devices With the GUI

2.2 Programming MSP430 Devices With the GUI

2.2.1 Basic Procedure

The following steps should be used to program the MSP430 devices:

1) Click on the Program Device icon during the installation-selected program group (default: ADT430). The MSP430 programmer dialog box appears.

The status line at the bottom of the window shows the actual or the most recent activity (see Figure 2−1).

The status line displays the message Connecting to adapter... until the programming adapter is detected and the baud rate is set.

2) Select the correct device and supply voltage.

3) Select the name of the object file (TI-TXT (.txt) or Intel-hex (.a43) format).

4) Select the additional options to program, if necessary using Erase Flash, Erase Check, or Verify (see Note 1 at the end of Table 2−1).

5) Click on the Program button to start programming. The status line at the bottom of the window shows the actual or most recent activity (see Figure 2−1).

Figure 2−1.MSP430 Programmer Dialog Box

Operation

2-3

Programming MSP430 Devices With the GUI

Program

2.2.2 Description of the MSP-PRGS430 GUI

An MSP430 device is commonly programmed as follows:

1) Select the file that contains the data to program from the MSP430 programmer dialog box (see Figure 2−1).

2) Select the device. An error message appears on the screen if the device selected is different or not connected.

3) Set the required supply voltage, communication port COMx, and baud rate. The device configuration and memory type are selected automatically according to the selected device.

4) Use the program button to start the programming operation (see Note 1 at the end of Table 2−1).

Table 2−1 describes the function of the buttons for different options and combinations for the MSP430 programmer dialog box.

Table 2−1.MSP430 Function Buttons and Descriptions

Button Name Sub-Functions Description

File Name Selects the name of the file to program (Intel-hex or TI-TXT format) Device Select Selects the MSP430 device type to program via pulldown menu

Selects the supply voltage for the MSP430

Supply Voltage

Program

Erase Flash

Erase Check

VCC switch off If selected (default), the supply voltage is switched off after each MSP430

access; otherwise, the supply voltage remains connected. An object code is programmed to the on-chip memory using the select

options.

With Erase Flash Memory is erased before programming (only with flash devices).

The following options are possible:

− Main and information memory

− Main memory only With Erase Check Erase check is performed before programming operation is executed. With Verify Each section is verified after it is programmed, or an error message is

displayed if verification fails.

With Blow Fuse The code-protection fuse is blown after the entire object code, with verify, is

programmed. This action is irreversible and disables future on-chip memory access (reading or programming). This step is not performed if verify is disabled or verify fails. A warning is displayed.

Erase operation can be done only with flash devices, according to the selected option.

By file Only the memory locations corresponding to the selected object file are

erased. All other memory locations keep their old data (smart erase). By device The entire flash memory of the device is erased. By range An erase is performed depending on the values entered in the range fields.

Checks if memory locations are erased. By file Checks only the memory locations used by the selected object file. By device Checks the entire programmable memory of the device. (No RAM is

checked.) By range An erase check is performed according to the range of memory locations in

the range for Erase Check/Readout field.

2-4

Programming MSP430 Devices With the GUI

A verification of the memory locations vs the selected object file is

Verify

A verification of the memory locations vs the selected object file is

Verify

Table 2−1.MSP430 Function Buttons and Descriptions (Continued)

Button Name Sub-Functions Description

Verify the data in the MSP430 device according to the selected option. By file By device By range Verify memory locations defined in the range field vs the data in the

Blow Fuse

Read Out

Reset

COM Port Selects the COM port to which the programming adapter is connected Baud Rate

Help

By device Read out the entire memory of the device and store the data into the file

By range Read out the memory locations selected by the range field and store the

PUC A software reset of the chip is generated. RST/NMI Generates a hardware reset by applying a low pulse on RST/NMI pin. With JTAG-release JTAG is released after the execution of the reset (via JT AG or RST/NMI).

performed. (By file and by device are the same functions.)

selected file. The defined range should not contain memory locations

outside the data stored in the selected file, otherwise an error is reported.

The on-chip security fuse is irreversibly disabled and any access, such

as reading or programming of the MSP430, is impossible via JTAG.

Access via bootstrap loader interface is possible for devices that support

that interface.

Read out data from MSP430 device. When this function is executed, a

dialog box appears; the file name for the data to store should be selected.

selected in the file name field.

data in the file selected in the file name field.

The reset of a MSP430 can be performed in two ways. After reset, the

MSP430 may remain under JTAG control or can be released to operate

normally and execute the program.

Selects the baud rate for communication with the programming adapter

hardware

Help is available for programming MSP430 devices, command buttons,

selectors, and the object file format used.

The Help menu can be found in the system menu of the serial

programming adapter software (right click on the symbol at the upper-left

corner of the program window) or with the F1 function key.

Note 1: For some MSP430 family members, e.g., MSP430F2xxx devices, portions of flash information memory are factory preprogrammed with calibration data. Depending on which method is used for erasing the flash memory, this calibration data may be erased. Should the calibration data be conserved, it must be read out prior to the information memory erase or a flash erase method that does not affect the calibration data memory locations must be used. See the respective device data sheet for further information on preprogrammed calibration data memory locations.

If it should be saved, the following erase options must not be used as the Info memory will be entirely erased:

− Program with Erase Flash (flash-erase options: Main and Info Memory) or

− Erase Flash by Device

Instead, Erase Flash by File or by Range should be used.

Operation

2-5

Programming MSP430 Devices With the GUI

2.2.3 Error Messages

One of the following messages may show up if JTAG communication is not established correctly:

If the MSP430 device to program can not be found, the message shown in Figure 2−2 appears. This problem can be caused by the PRGS430 not being connected to the hardware, the device not inserted or incorrectly inserted into the socket, or the device not powered.

The problem could be that the PRGS430 is not connected to the hardware, the device is not inserted or is incorrectly inserted into the socket, or the device is not powered.

Figure 2−2.Communication Error Box

If the fuse is already blown, the error message shown in Figure 2−3 appears.

Figure 2−3.Communication Error Box for Blown Fuse

Additional message boxes appear for general error messages, such as erase check (see Figure 2−4).

Figure 2−4.Erase Check Error Message

When a read error is detected in the input file, such as a format error, the following message is displayed (see Figure 2−5).

2-6

Figure 2−5.Data Error

Programming MSP430 Devices With the GUI

Operation

2-7

Programming MSP430 Devices With the GUI

Table 2−2.Error Messages

Error Type Error Message

Communication Communication failed! Communication Adapter not connected! Communication Synchronization with adapter failed! Communication The present adapter is not an MSP-PRGS430! Communication Missing setting of VCC! MSP430 Target not connected! MSP430 Wrong JTAG version! MSP430 PUC failed! MSP430 Wrong target! MSP430 Target fuse is blown! MSP430 Blown fuse failed! MSP430 Supply voltage to low! MSP430 Fuse not released for this device! Setting Unknown target! Setting No target selected! Setting Wrong VCC selected! Setting Wrong baud rate! Setting Communication port error! Setting The selected range is invalid! Setting Wrong argument! Setting Error at target address (during erase check or verify) Setting Unknown command line option Setting Command line option out of valid range System DEVICE.CFG corrupted System General error! System File type could not be detected! System Unexpected end of file! System PROJECT.INI corrupted! System Filename mismatch System Error in DEVICE.CFG Windows Error during file I/O

2-8

2.2.4 Content of PRGS430.ini File

The last settings of the PRGS430 graphical user interface (GUI) are stored in the .ini file before exiting the program. This information is stored under the Program Device System section.

Additionally, the following parameters are in the [Options] section and may be modified:

[Options] \BlowFuse = 1 → The blow fuse button in the GUI is disabled to prevent

accidental blow of the irreversible fuse. LastResult = 0 → If the program is called with command-line parameter, the

error code which is returned to the system when exiting the program is also stored here.

2.2.5 Use of a [Project].ini File

Some default options could be changed within a [Project].ini file. This file has to be in the same directory as the object code file. The following variables could be defined or redefined there.

Content of PRGS430.ini File

The name of the file should have the same name as the object file with the extension .ini.

[ProgramDevice] UserMemProtect = Start, Size UserMemProtect2 = Start, Size UserMemProtect3 = Start, Size UserMemProtectn = Start, Size DisableTIMemProtect = 0

Memory ranges defined in the UserMemProtect and UserMemProtect [n] option are read out and reprogrammed after erase (flash device only). [n] could be a number ≥2 and be in ascending order.

If a memory protection is activated in the device definition file from Texas Instruments, it could be switched off with the DisableTIMemProtect = 1 option.

Operation

2-9

Command Line Options

/SVolt:x.x

Selects supply voltage MSP_VCC of the programming adapter. The voltage is supplied

2.3 Command Line Options

2.3.1 General Definitions

0: Off 1: First selectable option 1: On 2: Second selectable option

3: Third selectable option

The PRGS430.ini file options are used if they are not specified in the command line. The command line option overwrites the .ini file options.

The program exits automatically if a command is passed via the command line and the command was executed. There is only a small status window opened during the execution.

Only one command identifier (/cmd:) is allowed within the command line. Otherwise, the execution is canceled and an error is returned.

If an error in the command line parameter is detected, the program exits with an error message.

The filename may also contain a path. If special characters are used, the string has to be inside quotes (for example, \\server\adt430\PRG files\test.txt). If an error is detected within the filename, the operation is canceled and an error is returned.

Table 2−3.Command Line Options

Commands:

/cmd:PRG Program command /cmd:VFY Verify command /cmd:ERS Erase command /cmd:CHK Erase check command /cmd:READ Read out command /cmd:RST Reset command /cmd:BLOW Blow fuse command

Options:

/COM:x Specifies the serial port: /COM:1, /COM:2, /COM:3, or /COM:4 /BR:xxxxxx Sets baud rate to be used: 9600/19200/38400/57600/115200, e.g., /BR:57600 /Dev: Selects the device according to the name in the device.cfg file, e.g., /Dev:MSP430F1121 /SVolt:x.x Selects supply voltage MSP_VCC of the programming adapter. The voltage is supplie

between GND and MSP VCC, e.g., /Svolt: 3.0.

/SVoff:{0,1} Switches off supply voltage MSP_VCC after execution

0: Disable (do not switch off)

1: Enable (switch off) filename Specifies name of the object file to be programmed or verified /FILE filename (Second way to define the filename − space separated)

2-10

Table 2−3.Command Line Options (Continued)

Options for Program Command:

/PE:{0,1,2} Option program with erase (flash only)

0: Without erase 1: Main and Info memory 2: Main memory only

/PC:{0,1} Option program with erase check

0: Disable 1: Enable

/PV:{0,1} Option program with verify

0: Disable 1: Enable

/PB:{0,1} Option program with blow fuse (only valid with verify successful)

0: Disable 1: Enable

Options for Erase/Erase Check and Verify Command

/E:{1,2,..} Option erase/erasecheck/verify by file/device/range

1: File 2: Device 3: Range

Command Line Options

/ERange:0xXXX, 0xYYYY

Options for Read Out Command:

/RO:{1,2} Option read out by device/range

/RRange:0xXXXX, 0xYYYY

/Rfile:filename,{1,2}

Log Options:

/Log:filename Specifies Log file name

/ALog:{0,1} Option accumulative Log file

Option erase/erasecheck/verify range (start: 0xXXXX, length: 0xYYYY)

1: Device 2: Range

Option read out range (start: 0xXXXX, length: 0xYYYY)

Specifies read out file name 1: TI-TXT 2: Intel-hex (Default directory should be the last object file directory)

(Default directory should be the PRGS430.exe directory)

0: Disable 1: Enable

Example:

PRGS430.exe ”C:\adt430\test\test.txt” /Dev:MSP430F1121 /cmd:PRG /PE:1 /PC:0 /PV:1 /COM:2

This command programs the file test.txt, located in the directory C:adt430\test, into a MSP430F149 device. The device is erased before programming. The erase check is disabled. The code is verified after programming. The programming adapter is connected to ComPort 2. The baud rate is not passed with the command line, so the setting in the PRGS430.ini file is used.

Operation

2-11

2.3.2 Return Values/Error Codes in .ini File

The error code is returned to the PC operating system and also is stored in PRGS430.ini.

File in the [Options] section:

LastResult=0

0 Ok 2 Communication failed! 3 Target not connected! 4 Adapter not connected! 5 Wrong JTAG version! 6 PUC failed! 7 Synchronization with adapter failed! 8 The present adapter is not an MSP−PRGS430!

9 Unknown target! 10 Wrong target! 11 No target selected! 12 Target fuse is blown! 13 Blow fuse failed! 14 Missing setting of VCC! 15 Wrong VCC selected! 16 Wrong baudrate! 17 Communication port error! 18 DEVICE.CFG corrupted! 19 General error! 20 The selected range is invalid! 21 Wrong argument! 22 Error during file I/O 23 File type could not be detected! 24 Unexpected end of file! 25 PROJECT.INI corrupted! 26 Vcc voltage too low for selected function! 27 Fuse not release for this device!

101 Error at target address (during erase check or verify) 102 Unknown command line option 103 Command line option out of valid range 104 Filename mismatch 105 Error in device.cfg

2-12

2.4 PRGS430.DLL—Description

The PRGS430.dll is used to communicate with the MSP−PRGS430 hardware and the connected MSP430 device.

The initialization of the PRGS430 should be done with the following sequence: InitCom

SetDeviceType SetV

. InitTarget

. ...

. ReleaseTarget ReleaseCom

Several examples showing how the DLL could be used are located in the “DLL_Usage_Examples” subdirectory of the PRGS430 system.

This dll could be used separately using the following conventions:

/FN0001/ InitCom

long int InitCom(char* lpszComPort, long int lBaudRate)

PRGS430.DLL—Description

InitCom initializes (opens) the given communications port, establishes communication with the PRGS430 hardware, and sets the baud rate of the MSP−PRGS430. If successful, the MSP−PRGS430 is reset and V

is set to

0.0 V (the voltage should be set after the first user action to validate the correct value).

lBaudRate: valid baud rates are: 9600, 19200, 38400, 56800, and 115200 baud. The default baud rate after installation is 115200 baud.

lpszComPort: the name of the communication port—COM1, COM2, COM3, or COM4.

Example: lFuncReturn = InitCom(”COM1” 115200)

/FN0002/ ReleaseCom

long int ReleaseCom (void) This new function is the counterpart to InitCom. It allows to close a

communication with the MSP-PRGS430 hardware.

is set to 0 and all outputs are set to the Hi-Z state.

Example: IFuncReturn = ReleaseComm()

/FN0003/ SetDeviceType

Example:

lFuncReturn = SetDeviceType(char* lpszDeviceName)

Selects the device type. lpszDeviceName: name of the device in file device.cfg Example: lFuncReturn = SetDeviceType(”MSP430F1121”)

Operation

2-13

PRGS430.DLL—Description

/FN0004/ InitTarget

long int InitTarget(char* lpszDeviceName) Initializes the JTAG access to the target device, detects the device type, and

reports when the detected device does not match the parameter DeviceName passed.

lpszDeviceName: name of the device in file device.cfg Example: lFuncReturn = InitTarget (”MSP430F1121”)

/FN0005/ ReleaseTarget

long int ReleaseTarget(void) This function performs a PUC and releases the JTAG access to the target

device. All JTAG signals from the serial programming adapter are switched to Hi-Z. The device starts program execution if it is still connected to V

Example: lFuncReturn = ReleaseTarget()

/FN0006/ Erase

long int Erase(long int wStart, long int wLength, long int Flags) This function erases flash memory (if available). The protection of areas can

be disabled by setting the DISABLE_TI_MEM_PROTECT−Bit in Flags. wStart: start address of the area to be erased. Allowed values :

0x0000−0xFFFE (see memory map of the corresponding device) wLength: length of the area. Allowed values : 0x0000−0xFFFE (see the

memory map of the corresponding device) If erasing information and main memory segments, first erase the information

memory segments, then erase the main memory segments. The mass erase sequence then would be: Erase(InfoStart,InfoLength,0);

Erase(MainStart,MainLength,0); The function invokes a mass erase for information or main memory if the start

address and the complete memory range of the information or main memory is specified. If the range specified is not complete for that device, a segment erase of the individual segments is performed.

Flags DISABLE_TI_MEM_PROTECT (0x01)

If this bit is set, the memory protection settings in device.cfg are ignored. Example:

lFuncReturn = Erase(long:0xF000, long:0x1000, long:1)

2-14

PRGS430.DLL—Description

Note: For some MSP430 family members, e.g., MSP430F2xxx devices, portions of flash information memory are factory preprogrammed with calibration data. Depending on which method is used for erasing the flash memory, this calibration data may be erased. Should the calibration data be conserved, it must be read out prior to the information memory erase or a flash erase method that does not affect the calibration data memory locations must be used. See the respective device data sheet for further information on preprogrammed calibration data memory locations.

/FN0007/ EraseFile

long int EraseFile(char* lpszFileName, long int iFileType, long int Flags, char* lpszProjectIni)

EraseFile() erases all addresses used in the specified file. iFileType: FILETYPE_AUTO (0x00) − Autodetection of file type (Intel-hex or

TI-TXT) FILETYPE_TI_TXT (0x01) − File type is TI-TXT FILETYPE_INTEL_HEX(0x02) − File type is Intel-hex Flags: DISABLE_TI_MEM_PROTECT (0x01) If this bit is set, the memory protection setting device.cfg is ignored. lpszProjectIni: name of the {project}.ini file, if protection settings from this file

shall be used. If there is no protection, replace lpszProjectIni with NULL. Example:

lFuncReturn = EraseFile(”text.txt”, long:0, long:0,

NULL)

Note: For some MSP430 family members, e.g. MSP430F2xxx devices, portions of flash information memory are factory preprogrammed with calibration data. Depending on which method is used for erasing the flash memory, this calibration data may be erased. Should the calibration data be conserved, it must be read out prior to the information memory erase or a flash erase method that does not affect the calibration data memory locations must be used. See the respective device data sheet for further information on preprogrammed calibration data memory locations.

/FN0008/ EraseCheck

long int EraseCheck(long int wStart, long int wLength) Performs an erase check of an area of the target memory wStart: Start address of the memory area. Allowed values : 0x0000−0xFFFE

(see memory map of the corresponding device). wLength: Size of the area. Allowed values : 0x0000−0xFFFE (see memory

map of the corresponding device) The function EraseCheck() simply uses PatternCheck(), with 0xFFFF as

pattern. EraseCheck(long int wStart, long int wLength) { return PatternCheck(wStart, wLength, 0xFFFF); } Example:

lFuncReturn = EraseCheck(long:0xF000, long:0x1000)

Operation

2-15

PRGS430.DLL—Description

/FN0009/ EraseCheckFile

long int EraseCheckFile(char* lpszFileName, long int iFileType) This function checks if all memory addresses, which are in the file, are erased.

lpszFilName: Name of the file iFileType: FILETYPE_AUTO (0x00) − autodetection of file type (Intel-hex or

TI-TXT) FILETYPE_TI_TXT (0x01) − file type is TI-TXT FILETYPE_INTEL_HEX(0x02) − file type is Intel-hex

Function returns success or first address with mismatching data. Example:

lFuncReturn = EraseCheckFile(”test.txt”, long:0)

/FN00010/ PatternCheck

long int PatternCheck(long int wStart, long int wLength, long int wPattern) Checks a memory range with word pattern passed wStart: Start address of the memory area. Allowed values : 0x0000−0xFFFE

(see memory map of the corresponding device) wLength: Size of the area. Allowed values : 0x0000−0xFFFE (see memory

map of the corresponding device) wPattern: Word pattern for check

Function returns success or first address with mismatching data. Example: lFuncReturn = PatternCheck(long:0xF000,

long:0x1000, long:0xFFFF)

/FN00011/ VerifyData

long int VerifyData(long int wStart, long int wLength, void* lpData) This function verifies the content of the device with the data stored at passed

pointer to data. wStart: Start address of memory area. Allowed values : 0x0000−0xFFFE (see

memory map of the corresponding device) wLength: Length of the memory area to be checked. Allowed values :

0x0000−0xFFFE (see memory map of the corresponding device) lpData: Pointer to buffer with data bytes in it

Function returns success or first address with mismatching data. Example:

lFuncReturn = VerifyData(long:0xF000, long:0x1000, void* lpData)

2-16

PRGS430.DLL—Description

/FN00012/ VerifyFile

long int VerifyFile(char* lpszFileName, long int iFileType) This function checks if the memory contents of the target device are equal to

the file contents. lpszFileName: Name of the file iFileType FILETYPE_AUTO (0x00) − autodetection of file type (Intel-hex or

TI-TXT) FILETYPE_TI_TXT (0x01) − file type is TI-TXT FILETYPE_INTEL_HEX(0x02) − file type is Intel-hex

Function returns success or first address with mismatching data. Example: lFuncReturn = VerifyFile(”test.txt”, long:0)

/FN00013/ VerifyFileRange

long int VerifyFileRange(char* lpszFileName, long int iFileType, long int wStart, long int wLength)

This function evaluates if the memory contents of the target device are equal to the file contents in a passed range.

lpszFileName: Name of the file iFileType: FILETYPE_AUTO (0x00) − autodetection of file type (Intel-hex or

TI-TXT) FILETYPE_TI_TXT (0x01) − file type is TI-TXT FILETYPE_INTEL_HEX(0x02) − file type is Intel-hex wStart: Start address of memory area. Allowed values : 0x0000−0xFFFE (see

memory map of the corresponding device) wLength: Length of the memory area to be checked. Allowed values :

0x0000−0xFFFE (see memory map of the corresponding device) Function returns success or first address with mismatching data. Example: lFuncReturn = VerifyFileRange(”test.txt”,

long:0, long:0xF000, long:0x1000)

/FN0014/ ProgramData

long int ProgramData(long int wStart, long int wLength, void* lpData This function writes data into an MSP430 device. Protection of ranges of

memory locations defined in the DEVICE.CFG file can be disabled by setting the DISABLE_TI_MEM_PROTECT−Bit in Flags.

Operation

2-17

PRGS430.DLL—Description

wStart: Start address of the range that is to be erased. Allowed values : 0x0000−0xFFFE (see memory map of the corresponding device)

wLength: Length of the range Allowed values : 0x0000−0xFFFE (see memory map of the corresponding de-

vice) lpData: Pointer to the Data to be programmed Flags: The bits in Flags control the operation of ProgramData(). Example: lFuncReturn = ProgramData(long:0xF000,

long:0x1000, void* lpData)

/FN0015/ ProgramFile

long int ProgramFile(char* lpszFileName, long int iFileType, long int iFlags, char* lpszProjectIni) This function writes data from the file to the MSP430 device. The protection

of ranges of memory locations defined in the DEVICE.CFG file can be disabled by setting the DISABLE_TI_MEM_PROTECT−Bit in Flags.

If the PGM_WITH_ERASE option are not selected the program data is preserved. This means that the data is read from the flash and replaced with the new data. All other information is restored automatically. The handling of the information memory works with the same mechanism.

For the fastest programming speed, select the PGM_WITH_ERASE and PGM_ERASE_INFO options.

lpszFileName: Name of the file to be written into the target iFileType: FILETYPE_AUTO (0x00) − autodetection of file type (Intel-hex or

TI-TXT) FILETYPE_TI_TXT (0x01) − file type is TI-TXT FILETYPE_INTEL_HEX(0x02) − file type is Intel-hex iFlags: DISABLE_TI_MEMPROTECT (0x01) PGM_WITH_ERASE (0x02) // Erases the main memory before

programming

PGM_ERASE_INFO (0x04) // Erases the info memory before

programming

PGM_WITH_ERASECHECK (0x08) // Erase check by device and the

PGM_WITH_V erify (0x10) // Read out device, merge with file to

2-18

programs the device

be programmed, and write back to device

PRGS430.DLL—Description

Note: Use PGM_ERASE_INFO only together with the PGM_WITH_ERASE flag.

lpszProjectIni Name of the {project}.ini file, if protection settings from this file are used. If no

protection is required, replace lpszProjectIni with NULL. The added features do not need to be used—for ProgramFile according to

older specification, just call ProgramFile(FileName, FileType, 0, NULL); if no {project}.ini file or erase check is used, just call:

Example: lFuncReturn = ProgramFile(FileName, 0, 0, NULL); // with autodetect file type

Note: If an erase or erase-check function reports an error, the function ProgramFile() is aborted before programming is started.

/FN0016/ BlowFuse

long int BlowFuse(void) This function blows the security fuse of the target device. Example: lFuncReturn = BlowFuse(void)

/FN0017/ SetVcc

long int SetVcc(long int iVoltage) This function sets the VCC_MSP voltage of the programming adapter to the

given value. iVoltage: V

in mV. (3000 −> 3 V)

The correct MSP430 device should be selected before using this function. The voltage range is limited to the voltage range allowed for the selected

MSP430 device. Example: lFuncReturn = SetVcc(Long:3000)

/FN0018/ ReadOutData

long int ReadOutData(long int wStart, long int wLength, void* lpBuffer) Reads out data from the device and writes it to the buffer passed wStart: Start address of the area to be read out. Allowed values :

0x0000−0xFFFE (see memory map for the corresponding device) wLength: Length of the area. Allowed values : 0x0000−0xFFFE (see memory

map for the corresponding device) lpBuffer: Pointer points to a buffer that receives the data. The buffer must be

large enough to hold the entire data; otherwise, a fatal error of the operating system may occur.

Operation

2-19

PRGS430.DLL—Description

Example: lFuncReturn = ReadOutData(long:0xF000,

long:0x1000, void* lpBuffer)

/FN0019/ ReadOutFile

long int ReadOutFile(long int wStart, long int wLength, char* lpszFileName, long int iFileType)

Reads out data from the device and writes it to a file wStart: Start address of the area to be read out. Allowed values :

0x0000−0xFFFE (see memory map of the corresponding device) wLength: Length of the area. Allowed values : 0x0000−0xFFFE (see memory

map of the corresponding device) lpszFileName: Name of the file to receive data. If the file does not exist, it is

created; If the file already exists, it is overwritten. iFileType: FILETYPE_TI_TXT (0x01) − file type is TI-TXT FILETYPE_INTEL_HEX (0x02) − file type is Intel-hex Example: lFuncReturn = ReadOutFile(long:0xF000,

long:0x1000, ”test.out”, long:1)

/FN0020/ Reset

long int Reset(long int Flags) This function provides the reset functionality for the target. Flags: Flags is a bitmap and determines the type of reset.

PUC 0x01 RST_NMI 0x02 WITH_RELEASE 0x04

Reset | PUC means that the JTAG sends the command to the MSP430. Reset | RST_NMI performs a reset via the RST/NMI pin of the MSP430. The

JTAG is also reset. If the WITH_RELEASE option is selected, the device is released from the

JTAG access after the reset. Example: lFuncReturn = Reset(long:5)

2-20

PRGS430.DLL—Description

/FN0022/ SetNotificationWnd

LONG SetNotificationWnd(LONG hWnd, LONG IMessageID) SetNotificationWnd() enables the status notification of a window. hWnd

passes a window handle and IMessageID passes a message identifier. Each time a notification of the status window is necessary, the DLL sends a IMessageID message to the hWnd window. The execution status of an operation is passed in the WParam of this message. Completion status of the current operation is passed (0..100) in the LParam.

The following status codes are defined:

Status WParam Current Operation

STATUS_CONNECTSPA 1 Connecting to SPA430 ST ATUS_CONNECTTARGET 3 Connecting to target ST ATUS_RELEASETARGET 5 Releasing target STATUS_RELEASESPA 7 Releasing SPA430 ST ATUS_RESETTARGET 9 Resetting target STATUS_ERASE 11 Erasing target STATUS_ERASECHECK 13 Erase checking target STATUS_PATTERNCHECK 15 Pattern checking target ST ATUS_VERIFY 17 Verifying target ST ATUS_PROGRAM 19 Programming target ST ATUS_READOUT 21 Reading target out STATUS_BLOWFUSE 23 Blowing fuse

/FN0023/ GetDeviceCfgInfo

long int GetDeviceCfgInfo(long int InfoCmd, long int InfoIdx, void* lpBuf) InfoType:

DEVICE_COUNT (0x01) GetDeviceCfgInfo returns number of devices in Device.cfg; InfoIdx and lpBuf are ignored.

SELECT_DEVICE (0x02) Selects the given device for further commands (device number in InfoIndex, first device is number 0; lpBuf is ignored).

DEVICE_NAME (0x03) Fills the name of the selected device into lpBuf; InfoIdx is ignored.

DEVICE_ID (0x04) Fills the DeviceID into lpBuf, InfoIdx is ignored.

DEVICE_DEFAULTOPTIONS (0x05) Fills the default options into lpBuf, InfoIdx is ignored.

DEVICE_MEMDEF_COUNT (0x06) GetDeviceCfgInfo() returns the number of memory definitions for selected device; lpBuf and InfoIdx are ignored.

Operation

2-21

PRGS430.DLL—Description

DEVICE_MEMDEF (0x07) Fills the definition of a memory definition (index passed by InfoIdx) into lpBuf.

DEVICE_MEMPROTECT_COUNT(0x08) GetDeviceCfgInfo() returns the number of memory-protection definitions for the selected device; lpBuf and InfoIdx are ignored.

DEVICE_MEMPROTECT (0x09) Fills the definition of a memory protection definition (index passed by InfoIdx) into lpBuf.

DEVICE_VCC (0x0A) GetDeviceCfgInfo() returns the Vcc setting for selected device in mV; lpBuf and InfoIdx are ignored.

DEVICE_VPP (0x0B) GetDeviceCfgInfo() returns the Vpp setting for selected device in mV; lpBuf and InfoIdx are ignored.

DEVICE_VFUSE (0x0C) GetDeviceCfgInfo() returns the blow-fuse setting for the selected device; lpBuf and InfoIdx are ignored.

/FN0024/ AccessSFR

long int AccessSFR(LONG wAddr, void *IpData, LONG iFlags); This function writes or reads data into the special function registers of the

MSP430 device. (implemented in PRGS320.dll versions 1.05 and higher). wAddr: SFR address that should be accessed. Allowed values:

0x0000−0x1FE (see the memory map of the corresponding device) IpData: Pointer to the data to be written, or buffer which should receive the read

data Flags: The bits in Flags control the operation of AccessSFR() iFlags:

SFR_READ (0x00) SFR_Write (0x01)

Example:

IFuncReturn = AccessSFR(long:0x0020, &IpData, 0)

2-22

PRGS430.DLL—Description

2.4.1 Return Values/Error Codes From PRGS430.DLL

Status Return Value Comment

OK 0 SUCCESS −1 Operation OK ERR_COMMUNICATION −2 Communication error (SSP) ERR_TARGET_NOT_CONNECTED −3 No target connected ERR_SPA430_NOT_CONNECTED −4 No SP A430 connected ERR_WRONG_JTAG_VERSION −5 JTAG version above 3 ERR_PUC_FAILED −6 PUC did not succeed ERR_SPA430_SYNC_FAILED −7 Could not sync SPA430 ERR_NO_SPA430 −8 Adapter is not SPA430 ERR_UNKNOWN_TARGET −9 Target type unknown ERR_WRONG_TARGET −10 Target type does not match ERR_NO_TARGET_SELECTED −11 No target selected (missing SetDeviceType() call) ERR_TARGET_FUSE_BLOWN −12 No target access because of blown fuse ERR_BLOW_FUSE_FAILED −13 Blown-fuse command failed ERR_VCC_NOT_SET −14 No VCC selected (missing SetVolt() call) ERR_WRONG_VCC −15 VCC out of allowed range ERR_WRONG_BAUDRATE −16 Invalid baud rate ERR_COMPORT −17 Error accessing the communications port ERR_DEVICE_CFG −18 Device.cfg corrupted ERR_GENERAL −19 General error (should not occur!) ERR_RANGE −20 Wrong range specified ERR_ARGUMENT −21 Wrong argument ERR_FILE_IO −22 Error during file I/O ERR_FILE_DETECT −23 File type could not be detected

ERR_FILE_END −24 Unexpected end of file ERR_PROJECT_INI −25 Error reading {project}.ini ERR_VCC_BELOW_VCCMINPROG −26 VCC to low for selected function ERR_FUSE_NOT_RELEASED −27 Fuse not release for this device STATUS_CONNECTSPA 1 Connecting to SPA430 STATUS_CONNECTTARGET 3 Connecting to target STATUS_RELEASETARGET 5 Releasing target STATUS_RELEASESPA 7 Releasing SPA430 STATUS_RESETTARGET 9 Resetting target STATUS_ERASE 11 Erasing target STATUS_ERASECHECK 13 Erase checking target STATUS_PATTERNCHECK 15 Pattern checking target STATUS_VERIFY 17 Verifying target STATUS_PROGRAM 19 Programming target STATUS_READOUT 21 Reading out target STATUS_BLOWFUSE 23 Blowing fuse ERR_READOUT_LOCKED −28 Read out prohibited

Operation

2-23

2-24

Chapter 3



This chapter describes the hardware for the MSP430 family of microcontrollers, including specifications, components of the programming adapters, and connection of the programming adapter to the MSP430 device families.

Topic Page

3.1 Specifications 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.2 Basic Hints 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.3 Programming Adapter Target Connector Signals 3-3. . . . . . . . . . . . . . . .

3.4 MSP-PRGS430 Circuit Diagrams 3-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.5 Location of Components − MSP-PRGS430 3-5. . . . . . . . . . . . . . . . . . . . . .

3.6 Interconnection of MSP-PRGS430 to OTP/EPROM-Based

MSP430 Devices 3-6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3.7 Interconnection of MSP-PRGS430 to Flash-Based

MSP430 Devices 3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hardware

3-1

Specifications

3.1 Specifications

The specifications for the MSP430 hardware are shown in Table 3−1.

Table 3−1.MSP430 Hardware Specifications

Temperature range 10°C–45°C Humidity 40%–70% Power supply 14 V–20 V, 200 mA minimum

3.2 Basic Hints

Dimensions

150 mm (W) × 30 mm (H) × 95 mm (D)

These basic hints are useful for programming MSP430 devices or MSP430 devices on printed-wire boards (PWB).

- All V

pins of an MSP430 device are tied together and connected to the

most positive terminal of the supply.

- All V

pins of an MSP430 device are tied together and connected to the

most negative terminal of the supply.

- The interface should supply the MSP430 with proper conditions according

to the device data sheet, in terms of current, voltage levels, and timing conditions.

- Make sure the proper signal connections (see Section 3.3) are made.

- Short cables to interconnect the interface to the MSP430 device or PWB;

less than 20 cm is recommended.

- Ensure low-impedance interconnections − especially for the path of the

programming and fuse blow voltage.

- When a device with a transparent window (MSP430E3xx family) is

programmed, the window should be already covered with an opaque label while the device is programmed. Since ambient light contains the correct wavelength for erasure, keep the transparent window covered after the device is programmed.

3-2

Programming Adapter Target Connector Signals

3.3 Programming Adapter Target Connector Signals

The target connector signals for the programming adapter ensure communication between the programming adapter and MSP430 devices and supply low energy to systems without extra supply sources.

Figure 3−1 and Figure 3−2 show the target connector signals for the programming adapter.

Figure 3−1.25-Pin Sub-D at Programming Adapter

25-Pin Sub-D at the

Programming Adapter

TMS

TCK

GND

12 13

2 3

4 5

6 7 8

VCC_MSP

XOUT / TCLK

Test/V

(ACLK)

(ACLKEN)

(TCLKEN)

21 22

23 24

(SIG20)

(SMCLKEN)

TDO/TDI

TDI/Vpp

RST/NMI

(SMCLK) (SENSE)

Figure 3−2.14-Pin Connector at End of Interconnect Cable

14-Pin Connector/Female at End

of Interconnect Cable

VCC_MSP

XOUT

Test/V

(ACLK) (ACLKEN) (TCLKEN)

14 13

Table 3−2 lists the target connector signals and describes their requirement statuses and functions.

TDO/TDI TDI/Vpp TMS

TCK GND

/NMI

RST NC

Hardware

3-3

Programming Adapter Target Connector Signals

Table 3−2.Target Connector Signal Functions

Signal/Terminal Name Required Function/Comment

TMS Mandatory Test mode select functions according to IEEE1149.1 TCK Mandatory Test clock functions according to IEEE1149.1 TDI/VPP Mandatory Test data input functions according to IEEE1149.1, but

with additional programming voltage for 3xx devices.

TDO/TDI Mandatory Test data output functions according to IEEE1149.1, but

additional data input is used when programming voltage

is applied by TDI/VPP. GND Mandatory GND is the most-negative terminal. VCC_MSP Mandatory (if internal

supply voltage is used) XOUT Mandatory Signal supplies the MSP430 system with clock signals. RST/NMI Optional If not connected, RST/NMI must be held high. Test/VPP Mandatory

(depending on device)

Voltage source is used with MSP430 devices or PWBs. The voltage level is set by software.

Signal used to select pin or JTAG function or to apply VPP

The output signal levels of the programming adapter are near GND or VCC_MSP.

- The RST/NMI terminal of the device must be high; otherwise, the access

to the device via JTAG system may fail.

- The programming procedure (handling of the SW) is described in

Chapters 1 and 2 of this manual.

- The connections from the MSP430 terminals must follow EMI rules, such

as short lines and ground planes. If TMS line receives one negative pulse by EMI strike, the fuse current is activated (with fuse version 1.0). The fuse current flows from TDI(/VPP) pin to GND (or VSS).

Table 3−3.Programming Adapter Signal Levels

Signal/Pin Signal/Pin Levels

TMS VSS or VCC_MSP

TCK VSS or VCC_MSP

TDI/VPP VSS or VCC_MSP or VPP

TDO/TDI VSS or VCC_MSP

XOUT VSS or VCC_MSP

RST/NMI VSS or VCC_MSP

Test/VPP VSS or VCC_MSP or VPP

3-4

3.4 MSP-PRGS430 Circuit Diagrams

The MSP-PRGS430 circuit diagrams are found in Appendix B.

3.5 Location of Components − MSP-PRGS430

Figure 3−3.MSP-PRGS430 Components

MSP430P337

MSP-PRGS430 Circuit Diagrams

Note: Do not use J2 pin 9 as RST/NMI pullup.

Hardware

3-5

Interconnection of MSP-PRGS430 to OTP/EPROM-Based

3.6 Interconnection of MSP-PRGS430 to OTP/EPROM-Based MSP430 Devices

The circuit diagram in Figure 3−4 shows the connections required to program OTP (MSP430Pxxx) and EPROM (MSP430Exxx) based MSP430 devices with the MSP-PRGS430 programming adapter. Consult the device data sheet for the specific device location of the supply and JTAG pins. Ensure that all positive and negative supply pins are connected together.

Figure 3−4.MSP−PRGS430 Used to Program OTP/EPROM-Based MSP430 Devices

VCC_MSP

XOUT

TEST/VPP

JTAG 2 4 6 8 10

12 14 13

TDO/TDI

TDI/VPP

TMS

TCK

GND

RST

47 kΩ

10 µF

68 kΩ 68 kΩ

0.1 µF

VCC/A VCC/DV

MSP430Pxxx MSP430Exxx

RST/NMI TDO/TDI TDI/VPP TMS TCK

TEST/VPP XOUT

/AVSS/DV

The RST/NMI terminal on the MSP430 device has to be held high by an external resistor during access of the device through JTAG. In a noisy environment, consider using an additional capacitor from RST

/NMI to VSS.

Note:

The example schematic shows a system where the target voltage is supplied by the MSP−PRGS430. For in-system programming with an external supply voltage, do not connect pin 2 of the JTAG connector. In this case, the supply voltage setting in the PRGS430 must be adjusted to the external supply voltage level. The TEST/VPP connection is only required on lower pin-count devices with multiplexed JTAG pins.

3-6

Interconnection of MSP−PRGS430 to Flash-Based MSP430 Devices

3.7 Interconnection of MSP−PRGS430 to Flash-Based MSP430 Devices

The circuit diagram in Figure 3−5 shows the connections required to program flash-based MSP430 devices (MSP430Fxxx) with the MSP−PRGS430 programming adapter. Consult the device data sheet for the specific device location of the power supply and JTAG pins. Ensure that all positive and negative power supply pins are connected together.

The signal TEST/VPP is only required on lower pin-count devices with multiplexed JTAG pins. In this case, special attention must be given to the circuit design around the four JTAG pins (TDO/TDI, TDI, TMS, and TCK), since they are shared between the applications hardware and the JTAG interface used by programming adapter.

Figure 3−5.MSP−PRGS430 Used to Program Flash-Based MSP430 Devices

/A VCC/DV

47 kΩ

10 µF

0.1 µF

MSP430Fxxx

VCC_MSP

TEST/VPP

JTAG

TDO/TDI

2 4 65 8 10 12 14 13

1 3

7 9

TDI/VPP TMS TCK GND RST

RST/NMI TDO/TDI TDI/VPP TMS TCK

TEST/VPP

/AVSS/DV

Note:

The example schematic shows a system where the target voltage is supplied by the MSP-PRGS430. For in-system programming with an external supply voltage, do not connect pin 2 of the JTAG connector. In this case, the PRGS430 supply voltage setting must be adjusted to the external supply voltage level. The TEST/VPP connection is only required on lower pin-count devices with multiplexed JTAG pins.

Hardware

3-7

3-8

Appendix A

  

This appendix discusses the hex object format.

Topic Page

A.1 Intel-Hex Object Format A-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

A.2 TI-TXT File Format A-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Hex Object Format

A-1

Intel-Hex Object Format

A.1 Intel-Hex Object Format

The Intel-hex object format supports 16-bit addresses and consists of a nine-character (four field) prefix that defines the start of record, byte count, load address, record type, and a two character sumcheck suffix.

The two record types, which are represented in the nine-character prefix, are described below:

00 = Data record (begins with the colon start character) 01 = End-of-file record

Record type 00, the data record, begins with the colon (:) start character and is followed by the byte count, the address of the first data byte, the record type (00), and the sumcheck. The sumcheck is the 2s complement (in binary) of the preceding bytes in the record, including the byte count, address, and data bytes.

Record type 01, the end-of-file record, also begins with the colon (:) start character. The colon is followed by the byte count, address, record type (01), and sumcheck.

Figure A−1.Intel-Hex Object Format

Start

Character

Byte Count

Address

:10000000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF00 :10001000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF0

:10002000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFE0 :10003000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFD0 :10004000FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFC0 :10000001FF

Sumcheck

Record Type

Data Records

A-2

A.2 TI-TXT File Format

The TI-TXT file format used by the tool is shown as follows:

@ADDR1

DATA01 DATA02 ........ DATA16

DATA17 DATA32 ........ DATA32

........

DATAm ........DATAn

@ADDR2

DATA01 .................... DATAn

Whereas: @ADDR is the start address of a section (hexadecimal)

DATAn represents a data byte (hexadecimal) q is the termination of the file

TI-TXT File Format

For example:

@F000

31 40 00 03 B2 40 80 5A 20 01 D2 D3 22 00 D2 E3

21 00 3F 40 E8 FD 1F 83 FE 23 F9 3F

@FFFE

00 F0

Restrictions:

- The number of sections is unlimited.

- The start address must be even.

- Each line must have 16 data bytes, except the last line of a section.

- Data bytes are separated by a single space.

- The termination tag q indicates end-of-file is mandatory.

Hex Object Format

A-3

A-4

Appendix B



This appendix contains the schematic diagrams for the serial programming adapter.

Schematics

B-1

B-2

Schematics

B-3

B-4

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements, and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and applications using TI components. To minimize the risks associated with customer products and applications, customers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in such safety-critical applications.

TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated products in automotive applications, TI will not be responsible for any failure to meet such requirements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio Data Converters dataconverter.ti.com Automotive www.ti.com/automotive DLP® Products www.dlp.com Broadband www.ti.com/broadband DSP dsp.ti.com Digital Control www.ti.com/digitalcontrol Clocks and Timers www.ti.com/clocks Medical www.ti.com/medical Interface interface.ti.com Military www.ti.com/military Logic logic.ti.com Optical Networking www.ti.com/opticalnetwork Power Mgmt power.ti.com Security www.ti.com/security Microcontrollers microcontroller.ti.com Telephony www.ti.com/telephony RFID www.ti-rfid.com Video & Imaging www.ti.com/video RF/IF and ZigBee® Solutions www.ti.com/lprf Wireless www.ti.com/wireless

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Texas Instruments Serial Programming Adapter MSP430 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
