Texas Instruments RU1001A Added requested info

UHF Reader System Series 7000
Reader Module RI-RU1-001A-XX
Reference Guide
Draft Document
FCC ID: A92RU1001A
1
August 2001 Series 7000 Reader Reference Guide
First Edition - August 2001
This is the first ed ition of this manual. It describes the oper ation of the Series 7000 UHF Reader.
It contains a description of the following reader module: Reader Module: RI-RU1-001A-00
Texas Instruments (TI) reserves the right to make changes to its products or services or
to discontinue any pro duct or service at any time w ithout notice. TI provides customer assistance in various technical are as, but does not hav e full access to data concern ing the use and applications of customer’s products
Therefore, TI assum es no liability and is n ot responsible for c ustomer applications or product or software design or performance relating to systems or applications incorporating TI products. In addi tion, TI assumes n o liability and is not respons ible for infringement of patents and/ or any ot her intell ectua l or ind ustria l proper ty rig hts of thir d parties, which may result from assistance provided by TI.
TI products are not designed, intend ed, authorized or warranted to be suitable for life support applicatio ns or any other life critical app lications which c ould involve potential risk of death, personal injury or severe property or environmental damage.
The TIRIS logo, the words RFID Systems, TIRIS and Tag-it registered trademarks of Texas Instruments Incorporated (TI).
Copyright © 2001 Texas Instruments Incorporated (TI).
This document may be downloaded onto a computer, stored and duplicated as necessary to support the use of the related TI pr oducts. Any other type of duplica tion, circulation or storag e on dat a carr iers i n an y m anner not author ized b y T I repr esents a violation of the applicable copyright laws and shall be prosecuted.
are trademarks or
2
FCC ID: A92RU1001A
About This Manual
This reference guide for the Series 7000 Ultra High-frequency (UHF) Reader is designed for use by TI customers who are engineers experienced with RFID Systems and Radio Frequency Identification Devices (RFID).
Regulatory, safety and warranty notices that must be followed are provided in Chapter 4.
Conventions
Preface
Read This First
Device Name Firmware Version
RI-RU1-001-00 TBD
The following pictograms and designations are used in the operating instructions:
WARNING:
Draft Document
A WARNING IS USED WHERE CARE MUST BE TAKEN, OR A CERTAIN PROCEDURE MUST BE FOLLOWED, IN ORDER TO PREVENT INJURY OR HARM TO YOUR HEALTH.
CAUTION: This indicates information on conditions, which must be
met, or a procedure, which must be followed, which if not needed could cause permanent damage to the system.
Note:
Indicates conditions, which must be met, or procedures which must be followed, to ensure proper functioning.
Information:
Indicates conditions or procedures that should be followed to ensure proper functioning of the system.
FCC ID: A92RU1001A
3
August 2001 Series 7000 Reader Reference Guide
If You Need Assistance
Application Centers are locat ed in Europe, Nor th and South Am erica, the Far Eas t and Australia to provide direct engineering support.
For more information, p leas e c ontact your nearest T IRIS S ales an d A pp lic at ion Cen ter . The contact addresses can be found on our home page: http://www.tiris.com.
Numerical Representations
Unless otherwise noted, numbers are represented as decimal. Hexadecimal numbers are represented with the suffix Binary numbers are represented with the suffix 2, e.g. 1011 Byte representations: the leas t significant bit (lsb) is bit 0 a nd the most significant bit
(msb) is bit 7.
, e.g. A5F1
16
2
Draft Document
16
FCC ID: A92RU1001A
4
August 2001 Series 7000 Reader Reference Guide
Document Overview
Chapter 1: Introduction..............................................................................................................6
1.1 Description..........................................................................................................7
Programming Interface...........................................................................................7
1.2................................................................. Summary of Chapters and Appendixes
...................................................................................................................................8
Chapter 2: Frame Request/Response Protocol.......................................................................9
2.1 General Specification .......................................................................................10
Specification .........................................................................................................10
DB-25 Connector Function...................................................................................11
DB-25 Pin Assignments........................................................................................11
Pin Assignment Details.........................................................................................11
Chapter 3: Message Structure.................................................................................................14
3.1 Reader Panel Configurations ...........................................................................15
RI-RU1-001A-00 Front Panel Configuration.........................................................15
RI-RU1-001A-00 Rear Panel Configuration.........................................................15
Typical Reader Installation Steps............................................................................16
Connect External Antennas..................................................................................16
Draft Document
Chapter 4: Service and Error Codes.......................................................................................21
Appendix A: RF Exposure Labeling Requirements................................................................25
Placing the Antennas ............................................................................................16
Connecting to a PC Serial Port or RS-232...........................................................17
Connecting to a DC Source..................................................................................17
Testing the Reader Set-up ...................................................................................17
Aligning the Antenna ............................................................................................19
Writing Information to Tag-it UHF inlay Inlays......................................................19
4.1 FCC Part 15 Compliance..................................................................................22
Radio Frequency (RF) Exposure..........................................................................22
4.2 ETSI Conformity...............................................................................................23
4.3 CE Conformity ..................................................................................................23
4.4 Environmental Requirements...........................................................................23
4.5 Warranty and Liability.......................................................................................24
RF Exposure "Caution" Label..................................................................................25
RF Exposure "Caution" Sign ................................................................................... 26
FCC ID: A92RU1001A
5
August 2001 Series 7000 Reader Reference Guide
Chapter 1
Introduction
Topic Page
1.1 Description..........................................................................................................7
Programming Interface...........................................................................................7
1.2 Summary of Chapters and Appendixes..............................................................8
Draft Document
FCC ID: A92RU1001A
6
August 2001 Series 7000 Reader Reference Guide

1.1 Description

This document descr ibes the features and operat ional characteristic s of the RI-RU1-001A-00 S eries 7000 Ultra-High Frequenc y Reader as shown in Figure 1. The Series 7000 Re ader operates at a frequency of 915MHZ and is compatible with Tag-it UHF inlays and tags.
The reader provides nine coaxial connectors for supporting up to nine external antennas. Each antenna plugs into its o wn connector on th e rear panel of th e reader. The re ader can be conf igured to read inlays in the following modes:
Collective or selective data to be read from a single inlay.
Collective or selective data to be read from multiple inlays without requiring sorting or unpacking.
Classes of inlays to be filtered according to user-defined criteria.
This technology employs an interrogation feature that enables applications to uniquely identify all inlays in the scan field, witho ut misident ificatio n. It a lso uses a protocol t hat maintai ns a un iform per ­inlay scan time, regardless of the number of inl ays in the scan fie ld. The protocol pro vides a flexible software applicatio n interface that can be customi zed to the specific needs of particular indust ries or applications. T his reference guide provid es the details that are neces sary to properly interf ace and use the reader as a part of an integrated system.
Draft Document

Programming Interface

The Series 7000 Reader is designed to operate as a part of a host-based reader system, which essentially relegates the rea der to be a slave to th e host. Host-to-Reader serial communic ations are accomplished within data packets, which occurs at RS-232 levels using 57,600. By definition, the host is always the primary station and initiates all communication sequences.
Figure 1: RI-RU1-001A-00 UHF Reader
FCC ID: A92RU1001A
7
August 2001 Series 7000 Reader Reference Guide
1.2 Summary of Chapters and Appendixes
Chapter 1: Introduction Chapter 2: Hardware Description Chapter 3: Reader Operation Chapter 4: Regulatory and Warning Notices Appendix A: RF Exposure Labeling Requirements
Draft Document
FCC ID: A92RU1001A
8
Chapter 2
Hardware Description
Topic Page
2.1 General Specification .......................................................................................10
Specification .........................................................................................................10
DB-25 Connector Function...................................................................................11
DB-25 Pin Assignments........................................................................................11
Pin Assignment Details.........................................................................................11
FCC ID: A92RU1001A
9
August 2001 Series 7000 Reader Reference Guide

2.1 General Specification

This chapter describes the elec trical and m echanical spec ifications of the Series 7 000 RI-RU1-001 A­00 reader. Operating at a frequency of 915 MHz, this low profile device is designed to be easily integrated into many logistics managem ent systems and supports as m any as nine ante nnas throu gh nine separate coaxial connectors. All reader I/O is accomplished through the use of a DB-9F connector, to include all communication, which is asynchronous RS232 as controlled by a host system. The reader also has a DB-25 connector that is intended for general diagnostic functions.

Specification

Operating Frequency: 915 MHz LEDs: One Power ON LED, one Transmit ON LED, and one Activity/Error LED Communication Method: RS-232 Serial Transmission Rate: Up to 57,600 bps Connectors: One Female DB-9F for RS-232 communications
One DB-25 for diagnostic use
DB9F Pin Assignments: Pin 1 _ Not used
Pin 2 - Transmit Data (Input) Pin 3 - Receive Data (Output) Pin 4 - Internally connected to Pin 6 Pin 5 - Protective Ground Pin 6 - Internally connected to Pin 4 Pin 7 - Internally connected to Pin 8 Pin 8 - Internally connected to Pin 7 Pin 9 - Protective Ground
Power Input: 12 V, 3 Amps RF Output Power: 1 Watt Power Consumption: 15 watts Ambient Operating Temperature: 0° to 50° C (32° to 122° F) Maximum Serial Cable Length: 10 meters (30 Feet) Dimensions: 36 cm x 20 cm x 11 cm
Weight: 3 Kg (7 lbs.)
Draft Document
(14 in x 8 in x 4.5 in)
CAUTION: The Series 7000 reader is an intentional radiator, and when
integrated, the integrator is subject to meeting FCC Part 15, Subpart C, and similar tenets under European Standard EN 300330.
10
FCC ID: A92RU1001A
August 2001 Series 7000 Reader Reference Guide

DB-25 Connector Function

DB-25 Pin Assignments

Pin Name Function
1 2
3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
Draft Document
18 19 20 21 22 23 24 25
GND BUFCOMP
GND PER_IN2 PER_IN0 PER_OUT6 PER_OUT4 TX_ASEL5 TX_ASEL3 TX_ASEL1 RX_ASEL5 RX_ASEL3 RX_ASEL1 VCC BUFCOMPIN PER_I PER_I BLAN PER_OU PER_OU TX_ASE TX_ASE GN RX_ASE R-ASEL
Ground Digital test signal: output of receiver comparator Ground Peripheral input bit 2 Peripheral input bit 0 Peripheral output bit 6 Peripheral output bit 4 Transmit antenna select bit 5 Transmit antenna select bit 3 Transmit antenna select bit 1 Receive antenna select bit 5 Receive antenna select bit 3 Receive antenna select bit 1 +5 volts Analog test signal: input to receiver comparator Peripheral input Peripheral input Digital test signal Peripheral output Peripheral output Transmit antenna Transmit antenna Ground Receive antenna Receive antenna

Pin Assignment Details

Receive Antenna Select Lines

Pins 13, 25, 12, 24, and 11 are the high order bits of the hardware pins that select the receive antenna. Bit 0 is kept intern al to the interrogator . These lines are use d to drive externa l multiplexers for multi-antenna systems. They are controlled by:
1. Setting up the antenna select table in flash memory (if necessary) using Load Antenna Table command.
2. Issue the Set Antenna Quantity command.
FCC ID: A92RU1001A
11
August 2001 Series 7000 Reader Reference Guide
3. Default mode autom atically cycles through all antennas . The interrogator will freeze at a c ertain antenna selection by issuing the Select Receive Antenna command.

Transmit Antenna Select Lines

Pins 10, 22, 9, 21, and 8 are the high order bits of the hard ware p ins that s elec t the trans m it antenn a. Bit 0 is kept internal to the interrogator . These lines are used to drive external m ultiplexers f or multi­antenna systems. They are controlled by:
1. Setting up the antenna select table in flash memory (if necessary) using Load Antenna Table command.
2. Issue the Set Antenna Quantity command.
3. Default mode autom atically cycles through all antennas . The interrogator will freeze at a c ertain antenna selection by issuing the Select Transmit Antenna command.

Peripheral Inputs

Pins 5, 17, 4, and 16 are TTL level inputs that can be read with the Read Peripheral Inputs command.
Description Minimum Maximum Input - High Level 2.0 V VCC* Input - Low Level 0V 0.8V Input Signal transition Time Input Leakage Current Input Capacitance - 10pF
- 250nS
-10µA +10µA
*Note: VCC Min. is 4.75 volts, VCC is nominally 5.0 volts. All voltage values are DC.

Peripheral Outputs

There are 8 peripheral outputs internal to the interrogator. 4 of these are available at the DB-25 connector: pins 20, 7, 19, and 6 can be controlled by setting or resetting bits, 3, 4, 5 and/or 6 of the command data byte of the Write Peripheral Outputs command. The outputs are compatible with CMOS levels.
*Note: VCC Min. is 4.75 volts, VCC is nominally 5.0 volts. All voltages values are DC.
Draft Document
Description Minimum Maximum High level output voltage @ I
OutputHigh
VCC* Min. Low level output voltage @ I
OutputHigh
mA, VCC* Min. Source current - -1.0 mA Sink current - 12.0 mA Output leakage current
= 1.0 mA,
= 12.0
VCC* - 0.5 Volts -
-.4 Volts
-10 µA+10 µA
Additional Pin Assignments
FCC ID: A92RU1001A
12
August 2001 Series 7000 Reader Reference Guide
Buffered Comparator Input (BUFCOMPIN)
This is the analog output of the RF receiver. The pin must remain unconnected, or deterioration of read capability will occur.
Buffered Comparator (BUFCOMP)
This is the digitized output of the RF receiver.
Receiver blanking signal (BLANK)
When low, the microcontroller is ignoring the output from the RF receiver.
VCC
This is the 5.0 V regulated power for the interrogator. It should only be used as a reference. Current drawn in excess of 50 mA may cause the system to shut down.
Draft Document
13
FCC ID: A92RU1001A
Chapter 3
Reader Operation
This chapter provides configuration information for the RI-RU1-001A-00 reader when used with the appropriate inlay(s). The reader provides the connectors and LEDs described in the following sections.
Topic Page
3.1 Reader Panel Configurations ...........................................................................15
RI-RU1-001A-00 Front Panel Configuration.........................................................15
RI-RU1-001A-00 Rear Panel Configuration.........................................................15
Typical Reader Installation Steps............................................................................16
Connect External Antennas..................................................................................16
Placing the Antennas ............................................................................................16
Connecting to a PC Serial Port or RS-232...........................................................17
Connecting to a DC Source..................................................................................17
Testing the Reader Set-up ...................................................................................17
Aligning the Antenna ............................................................................................19
Writing Information to Tag-it UHF inlay Inlays......................................................19
14
FCC ID: A92RU1001A
August 2001 Series 7000 Reader Reference Guide

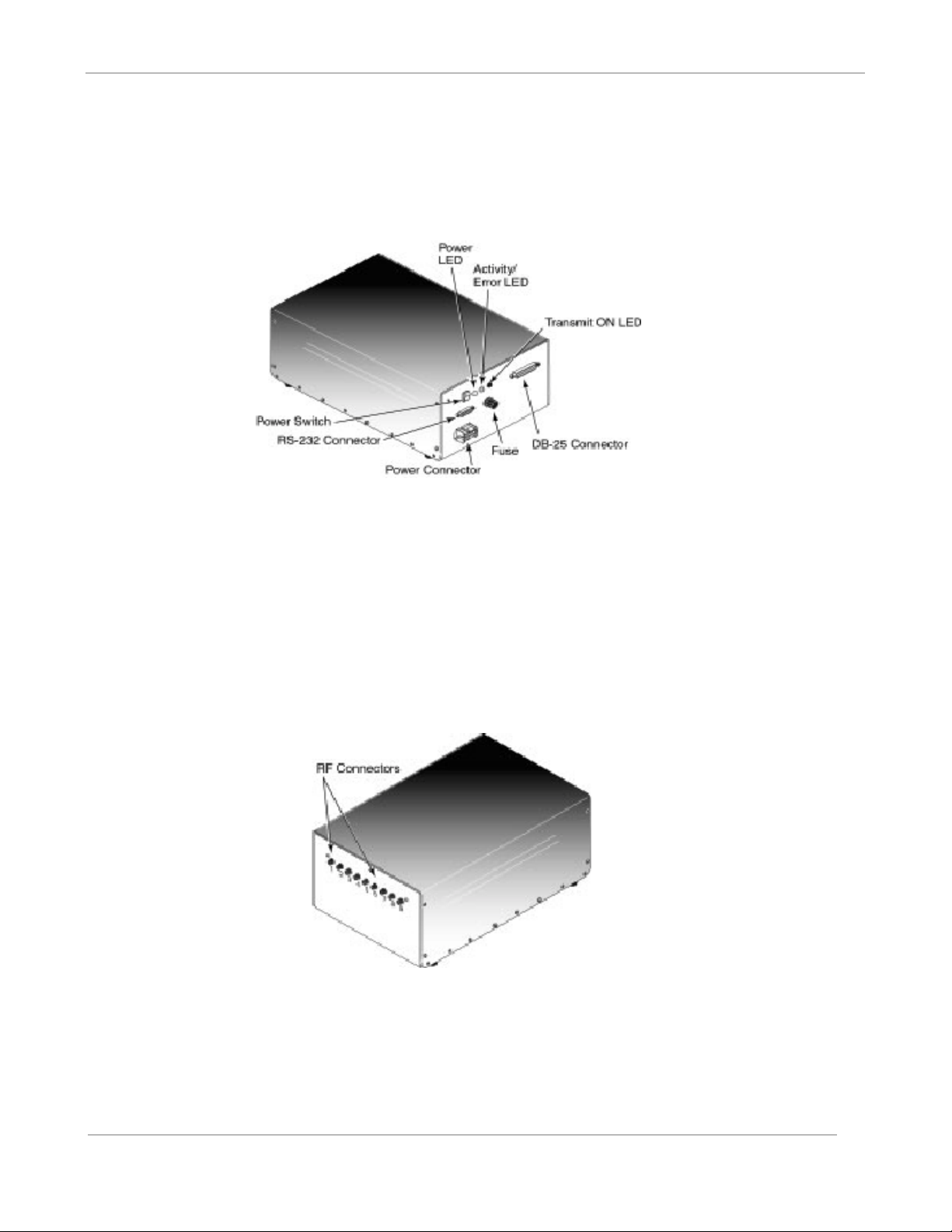

3.1 Reader Panel Configurations

RI-RU1-001A-00 Front Panel Configuration

The reader front pane l h as an O n /Of f switch. In the ON ( up) p os ition, the reader is turned on. The red Power ON LED should go ON, indicating that the reader is receiving power. In the OFF (down) position, the reader is turned off and not receiving power, even if connected to a power outlet. The front panel also c ontains three c onnectors . The lower c onnector is a DC power rece ptacle. The middle connector is the 9-pin RS-232 port. The RS-232 serial port connector allows the reader to communicate with a personal computer.

RI-RU1-001A-00 Rear Panel Configuration

Draft Document
The rear panel has n ine coaxial connectors for connec ting external antennas. Note that th e reader can also operate with fewer than nine antennas.
FCC ID: A92RU1001A
15
August 2001 Series 7000 Reader Reference Guide

Typical Reader Installation Steps

The reader installation consists of the following typical steps:
1. Position the reader — locate near desired antenna locations.
2. Connect external antennas
3. Place the antenna for optimum read/write operation
4. Connect the reader to PC serial port or RS-232
5. Connecting to a DC source
6. Configure the reader
7. Align the antenna

Connect External Antennas

The rear panel provid es nine coaxial antenna connectors. Each connector accommodates a singl e external antenna. The RI-RU1-001A-0 0 can be used with f ewer than n ine antenn as. Instal l antennas sequentially, starting with the left-most connector.

Placing the Antennas

Antenna placement is critical to ensure information is written to and read from inlays accurately. Observe the following guidelines when placing the antenna:
Locate the antenna a way from metal objects, m icrowave ovens, and other dev ices that may induce radio frequency interference. In addition, make sure there are no metallic surfaces between, or in relative proximity to, the reader and inlay.
When reading, the antenna should be plac ed no m ore than 84 inches from the obj ects bearing inla ys. When writing, the antenna should be no more than 24 inches from objects bearing the inlay.
The front of the antenn a must be free of obstr uctions. Otherwise, i nformation may not be written to and read from inlays accurately.
Draft Document
WARNING:
To meet FCC RF Exposure compliance, operator(s) should not be closer than 9 inches to the transmitting antenna. See RF Exposure precautions in Chapter 4.
16
FCC ID: A92RU1001A
August 2001 Series 7000 Reader Reference Guide
CAUTION: Antennas must be labled indicating minimum seperation
distance per FCC RF Exposure requirements. If the information on the label is not clearly visible, a sign with the same information must be posted within 36” of the antenna. See last section of this manual.

Connecting to a PC Serial Port or RS-232

The reader has a 9-p in female RS-232 c onnector that c onnects to a seria l port or RS-232 c onnector on an IBM or compatib le person al com puter. The s erial port c an oper ate up to 57 ,600 bps. To m ake this connection, you need:
An appropriately configured serial cable.
One of the following adapters, if your computer's serial port does not have a 9-pin connector:
- A 15-pin to 9-pin adapter, if your computer has a 15-pin serial port connector.
- A 25-pin to 9-pin adapter, if your computer has a 25-pin serial port connector.
Use the following procedure to connect the reader to your computer's serial port.
1. Attach the male connector on the seri al c a ble to t he 9- pin s er ial c on nec tor on the rea der 's front panel.
2. Connect the other end of the cable to your computer's serial port. Use an adapter, if appropriate, to make this connection.

Connecting to a DC Source

Testing the Reader Set-up

Draft Document
The following procedure describes how to connect the reader to an AC Outlet.
1. Verify that the On/Off switch on the reader front panel is in the OFF (down) position.
2. Connect a DC power supply to the DC receptacle on the reader front panel. The DC power supply must provide between 8-35 VDC at 2 AMPs and must have an A MP connector, with part number 1-480698-0, and socket terminations.
3. Set the On/Off switch to the ON (up) position. The Power ON LED light will illuminate.
The following procedure will verify that the RS-232 link between the reader and the computer is functioning correctly, and test the full functionality (read, write, multiread) of the reader in the surrounding environment.
1. Insert the supplied Development and Demo Tools, Disk 1, into an available floppy disk drive.
2. Open the "My Computer" icon on the desktop.
3. Open the floppy disk drive (typically A:).
FCC ID: A92RU1001A
17
August 2001 Series 7000 Reader Reference Guide
4. Run the application "Install.exe"
5. Installshield will launch and guide you through the installation of the Demo Tools onto your computer.
6. Turn on the reader and ensure that the antennas are connected to the reader. Connect each antenna from left to right.
7. Select the "Test Tool" icon in the tools folder from the start menu.
8. If the reader is attached to COM1 or COM2, it will be recognized by the application automatically. In the application dialog, you will see the text "found reader (rev XX.XX) on COMX".
9. If the reader is attached to COM3 or COM4, the application will not recognize the reader automatically. In the application dialog, you will see the text "Can't find Reader, use Manual Connect." Select the appropr iat e COM PORT by pressing the down arrow in the "Reader <-> Host" frame. Hit the connect button. You should see the text message "Connect: found reader (revision XX.XX) on COMX".
10. Look for the text "Reader type = XXXX" in the application dialog. If "XXXX" is not "RI-RU1-001A­00", select "RI-RU1-001A-00" from the Reader menu of the Test Tool application.
11. Look for the text "Mode = ..." in the application dialog. If the mode is not "Basic Function Test", select "Basic Function Test" from the Mode menu of the Test Tool application.
12. There are three tests you must run in order to confirm that the reader is working correctly. These are "Read Test", "List Test", and "Write Test".
13. Select "Antenna 1" button at the top of the Reader Test window. Hold a inlay in front of the antenna while ensuring that your hand is not between the antenna and inlay, or covering the inlay antenna.
14. Position an object with a inlay within 84 inches of the antenna.
15. Click the "Read Test" button. You should see the text "- Check Read: PASS _" appear in the Test Results box. If the test fails, follow the instructions given by the application.
16. Remove all inlays from around the antenna and click the "List Test" button. Wait two seconds. If
Draft Document
the test is successful, you should see the following text appear in the Test Results box.
"- Check List _" "List Start: OK" "List Stop: OK" "List Report: OK" "Found 0 inlays:" "Place 1 inlay in the field and run test again."
17. Each List Test is composed of three commands given to the reader. If the test is successful, all these tests should say "OK" after the test name. The application will ask you to repeat the List Test with 1) A single inlay, and 2) two inlays in front of the antenna. The test is complete when the application successfully detects two inlays.
18. The Write Test requires a write - capable inlay. Place the inlay within 24 inches of the antenna.
19. Click on the Write Test button and observe the results in the Test Results box. If the test passes, you will see:
FCC ID: A92RU1001A
18
August 2001 Series 7000 Reader Reference Guide
"- Check Write _" "Write: OK"
20. If the test fails, follow the instructions given by the application. If you repeatedly get the "Move inlay closer to antenna" instruction, ensure the inlay is directly over the antenna and there are no objects between the antenna and inla y.
21. For each antenna that is connected to the reader, repeat steps 13-20 for that antenna.
22. This completes the reader test.

Aligning the Antenna

After verifying that the reader is operating properly, use the following procedure to align the antenna(s). Aligning the antenna(s) ensures optimal performance.
1. Connect the reader to COM1 or COM2 and turn the power on.
2. Run the application "Test Tool" in the "Tools" folder in the start menu.
3. From the mode menu, choose "Antenna Alignment".
4. Select the antenna you wish to align with the available antenna buttons. Press the "Go" button.
5. Position an object with a inlay in the "scanning area", the point where you inte nd to scan.
6. Adjust the antenna until the application indicates it detects a inlay. You can find the complete scanning field by moving the inlay around. When the application detects a inlay, the window will flash with the message "Label Found". Press the "GO" button again to stop the alignment test.
7. If you have other antennas connected, you can select the different antennas by using the antenna buttons on the top of the window.
Draft Document

Writing Information to Tag-it UHF inlay Inlays

Read/write inlays can be written to using the reader. Each bit of memory is write once, read many (WORM). Meaning after you have written to a specific bit, it is permanent and cannot be overwritten or erased. To add more data to the inlay you must write to a different bit. Another feature included with each user-writable word of mem ory is a Write-Protect bit. This bit allows you to protect an entire word (16 bits) after any or all of the bits have been written.
1. Start the Demo application as described in the previous section.
2. Position an object with a inlay within 24 inches of the transmitting antenna and double click on its ID to bring up the inlay dialog.
3. In the Write Protect frame, hit "Query All". Any writable memory location will become editable (white), while write protected m em ory locations will stay gray.
4. Move the mouse cursor over a memory location and click within that location to edit it. Enter a new value and then hit "refresh" or move the cursor to a different memory location and click. The application will attempt to write the value you specified to the inl ay.
FCC ID: A92RU1001A
19
August 2001 Series 7000 Reader Reference Guide
5. The status of the inlay will be displayed in the status box at the lower part of the screen. If the write was unsuccessful, the value in the memory location will change back to reflect the value actually stored there.
6. To write protect a memory location, move the cursor to a memory location and click the "Set" button in the Write Protect section. The memory location will change from a white background to a gray background to show that it is now write protected.
7. To write to a block of memory locations, use the commands in the block section of the window. Enter the starting memory location in the "From" window. Enter number of memory locations in the "Length" window. The ending memory location will be automatically calculated in the "To:" window. Click the box to the left of the "Write" text and enter the data in the window below the "Write" command.
8. To write protect the entire block, click the box to the left of the "Write Protect" text.
9. To complete the block write command, select the "Perform" button.
10. To return to the List ID mode, click the "OK" button.
Draft Document
FCC ID: A92RU1001A
20
August 2001 Series 7000 Reader Reference Guide
Chapter 4
Regulatory and Warranty Notices
Topic Page
4.1 FCC Part 15 Compliance..................................................................................22
Radio Frequency (RF) Exposure......................................................................22
4.2 ETSI Conformity...............................................................................................23
4.3 CE Conformity ..................................................................................................23
4.4 Environmental Requirements...........................................................................23
4.5 Warranty and Liability.......................................................................................24
21
FCC ID: A92RU1001A
August 2001 Series 7000 Reader Reference Guide
4.1 FCC Part 15 Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate ra dio frequency energ y and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installat ion. If this equipm ent d oes c ause har mf ul inter fer ence to ra dio or tele vis ion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio technician for help.
Note:
This device complies with the lim its for a Class B digital device, pursuant to Part 15. The Class B limits help insure that this device provides reasonable protection against harmful interference in residential insta llatio ns. T his equipm ent g enera tes, uses, and ca n radiate radio frequency energy and, if not installed and used in accordance with the instructions in this manual, may cause harmful interference to radio communications.
Draft Document

Radio Frequency (RF) Exposure

In order for this dev ice to comply with FCC-adopted RF expos ure limits, precautions m ust be taken. To meet the requirements of the FCC’s Maximum Permissible Exposure (MPE) guidelines, persons should not be closure than 9 inches (23cm) to a transmitting antenna.
For installations where an operator must handle a tag or diagnostic to ol closer than 9 inches to the transmitting antenna, the operator should ensure that the RF antenna is not transmitting prior to positioning t he tag or too l closer than 9 inches to the trans mitting a ntenna, the operator should ensure that the RF antenna is n ot transmitting pri or to positionin g the tag or t ool. Once the operator has positioned t he tag or diagn ostic tool, and m oved awa y a minimum of 9 inc hes from the antenna, the antenna can be re- activated. For all inst allations labels must be placed
Note:
NO MODIFICATIONS: Modifications to this device shall not be made without the written consent of Texas Instruments Incorporated. Unauthorized m odifications may void the authorit y granted under Federal Communications Commission Rules permitting the operation of this device.
22
FCC ID: A92RU1001A
August 2001 Series 7000 Reader Reference Guide
on individual antennas, or signs must be displayed, indicating “CAUTION: A minimum separation distance of 9 inches must be maintained between an antenna and persons for meeting FCC RF Exposure compliance. See Reference Guide for details on operational requirements.” See Appendix A for site labelling requirements.
For more information on RF Exposure, where incidental exposure may exceed the above guidelines, please refer to the FCC Office of Engineering and Technology Bulletin 65, Supplement C, Guidelines for Human Exposure to Radio-frequency Electromagnetic Fields, available at:
http://www.fcc.gov/oet/info/documents/bulletins/
Disclaimer:
Operation of any radio transmitting equipment, including the reader, may interfere with the functionality of inadequately protected medical devices. Consult a physician or the manufacturer of the m edical de vice if you have any questi ons. Other electron ic equi pment m ay also be subject to interference.
Draft Document

4.2 ETSI Conformity

Any device or system incorporating the Series 7000 reader, in full or in part, may need to comply with European Standard EN 300330. It is the responsibility of each system integrator t o have their complete s ystem tested an d to obt ain a ppro vals as requir ed from the local author ities before operating or selling this system.

4.3 CE Conformity

Any device or system incorporati ng t he Ser ies 70 00 r e ader, in full or in part, m ay need to have a CE Declaration of Conf ormity stating t hat it meets Europ ean EMC directi ve 99/5/EC. This m ust be issued by the s ystem integr ator or us er of suc h a s ystem prior to m arketing or operating it i n the European community.

4.4 Environmental Requirements

The Series 7000 Reader is qualified to meet the following environmental guidelines:
- Life Test: Oper ating temperature tests in accor dance with MIL_STD_810E, Met hod 501.1, using the following parameters: 85 degrees C, duration 500 hours.
- High Temperature S torage: Storage temperature tests in accordance with MIL-STD- 810E, method 501.3, Procedure 1 using the following parameters: High temperature 85 degrees C, 500 hours.
- Low Temperature Storage: Storage temperature tests in accordance with MIL-STD-810E, method 502.3, Procedur e 1 using the following p arameters: Low temperature -45 degrees C, 500 hours.
- Humidity Environment: Humidity tests in accordance with MIL-STD-810E, Method 507.3, procedure III, aggravated scree ning, using the followin g humidity param eters: 80 % relat ive humidity, non-condensing at 70
o
C, duration 500 hours.
23
FCC ID: A92RU1001A
August 2001 Series 7000 Reader Reference Guide
- Thermal Shock : Thermal Shock testing in accordance with MIL-STD-810E, Method 503.3, using the following thermal shock par am eter s: - 45 to 85 d egr ees C, 10 0 cycles duratio n, 3 0 minutes per temperature.
- Mechanical S hock Environment: Shock tes t performed in accordance with MIL-STD-810E, Method 516.3 using t he followin g param eters: 5 G's at 10 m s, half-sinus oidal wave, 6 axes, and 3 shocks per axis.
- Vibration Environment: Vibration tests in accordance with MIL-STD-810E, Method 514.4, using the following parameters: 15 to 500 Hz, 1-g peak, 30 minutes sweep, logarithmic.

4.5 Warranty and Liability

The "General Conditions of Sale and Delivery" of Texas Instruments Incorporated or a TI subsidiary apply. Warranty and liability claims for defect products, injuries to persons and property damages are void if they are the result of one or more of the following causes:
! Improper use of the reader module. ! Unauthorized assembly, operation and maintenance of the reader module. ! Operation of the reader modules with defective and/or non-functioning safety and
protective equipment.
! Failure to observe the instructions during transport, storage, assembly, operation,
maintenance and setting up of the reader modules.
! Unauthorized changes to the reader modules. ! Insufficient monitoring of the reader modules' operation or environmental conditions. ! Improperly conducted repairs. ! Catastrophes caused by foreign bodies and acts of God.
Draft Document
24
FCC ID: A92RU1001A
August 2001 Series 7000 Reader Reference Guide
Appendix A
RF Exposure Labeling Requirements

RF Exposure "Caution" Label

Draft Document
Purpose: To meet FCC requirements with regard to RF Exposure, for applications where an individual antenna is used in conjunction with an S7000 UHF Reader, the antenna must have affixed to it, a label indicating the minimum separation distance required to meet FCC RF Exposure compliance. See sample label below.
Label Specification
Size: 1" x 3" Stock: White, adhesive-backed
Sample Label:
Caution: A minimum separation distance of 9
inches must be maintained between an antenna and persons to meet FCC RF Exposure compliance. See Reference Manual for details on operational requirements.
Placement: Label will be placed on antenna r adome surface suc h that it is cl ear ly visible/legible a t a dis ta nce of no less than 9 inc hes from the transmitting antenna, t o the operator or any pers ons who may enter the vicinity of the antenna.
Exception: If this is not feasib le to af f ix a la be l to the ant enn a r ad ome such that it is vis ibl e/l eg ibl e d ue t o th e restraints of a particular a pplication, a "Caution" s ign must be posted with in 36 inches of the antenna, s uch that the verbiage on the sign is clearly visible/legible at a distance no closer than 9 inches from the transmitting antenna, to any person who may enter the vicinity of the antenna. See RF Expos ure "Caution"
Sign Specification .
25
FCC ID: A92RU1001A
August 2001 Series 7000 Reader Reference Guide

RF Exposure "Caution" Sign

Purpose: To meet FCC requirements with regard to RF Exposure, for applications where a group of RF
antennas is used in conjunction with an S7 000 UHF Reader, a sign must be posted ind icating the minimum separation distance required to meet FCC RF Exposure compliance. See sample sign below.
Sign Specification
Size: 5.5" x 8.5"
Specification: One-half sheet of standard white paper.
Sample Sign:
8.5”
Caution:
A minimum separation distance of 9 inches must be maintained between an ante nna and
5.5”
persons to meet FCC RF Exposure compliance. See Reference Manual for details on operational requir ements.
Placement: In applications that require a group of antennas, a "Caution" sign must be posted within 36 inches of the antennas, such that the verbia ge on the sign is clearly legible at a distance no closer than 9 inches from the transmitting antenna, to any person who may enter the vicinity of the antenna.
Draft Document
26
FCC ID: A92RU1001A
Loading...
