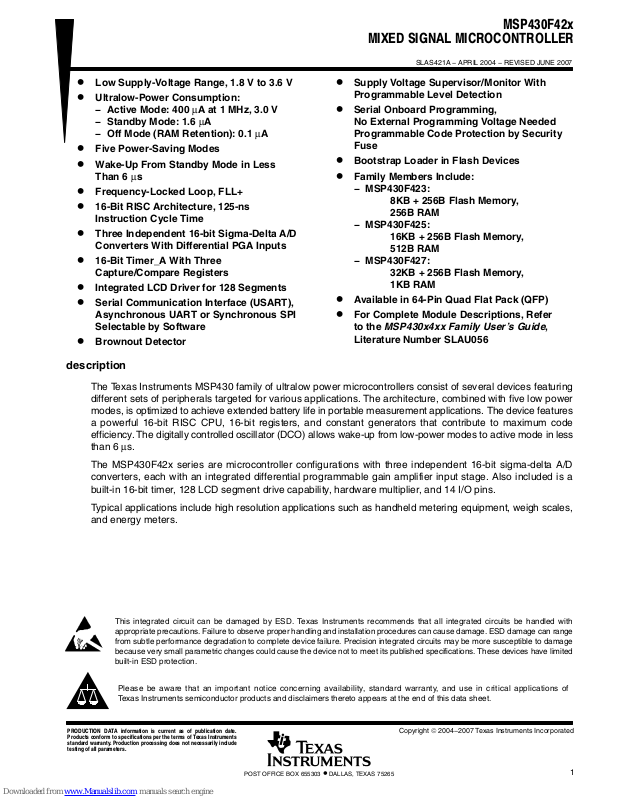

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

1

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

D Low Supply-Voltage Range, 1.8 V to 3.6 V
D Ultralow-Power Consumption:

− Active Mode: 400 μA at 1 MHz, 3.0 V

− Standby Mode: 1.6 μA

− Off Mode (RAM Retention): 0.1 μA

D Five Power-Saving Modes
D Wake-Up From Standby Mode in Less

Than 6 μs

D Frequency-Locked Loop, FLL+
D 16-Bit RISC Architecture, 125-ns

Instruction Cycle Time

D Three Independent 16-bit Sigma-Delta A/D

Converters With Differential PGA Inputs

D 16-Bit Timer_A With Three

Capture/Compare Registers

D Integrated LCD Driver for 128 Segments
D Serial Communication Interface (USART),

Asynchronous UART or Synchronous SPI
Selectable by Software

D Brownout Detector

D Supply Voltage Supervisor/Monitor With

Programmable Level Detection

D Serial Onboard Programming,

No External Programming Voltage Needed
Programmable Code Protection by Security
Fuse

D Bootstrap Loader in Flash Devices
D Family Members Include:

− MSP430F423:
8KB + 256B Flash Memory,
256B RAM

− MSP430F425:
16KB + 256B Flash Memory,
512B RAM

− MSP430F427:
32KB + 256B Flash Memory,
1KB RAM

D Available in 64-Pin Quad Flat Pack (QFP)
D For Complete Module Descriptions, Refer

to the MSP430x4xx Family User’s Guide,
Literature Number SLAU056

description

The Texas Instruments MSP430 family of ultralow power microcontrollers consist of several devices featuring
different sets of peripherals targeted for various applications. The architecture, combined with five low power
modes, is optimized to achieve extended battery life in portable measurement applications. The device features
a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code
efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less
than 6 μs.

The MSP430F42x series are microcontroller configurations with three independent 16-bit sigma-delta A/D
converters, each with an integrated differential programmable gain amplifier input stage. Also included is a
built-in 16-bit timer, 128 LCD segment drive capability, hardware multiplier, and 14 I/O pins.

Typical applications include high resolution applications such as handheld metering equipment, weigh scales,
and energy meters.

This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range
from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage
because very small parametric changes could cause the device not to meet its published specifications. These devices have limited
built-in ESD protection.

Copyright © 2004−2007 Texas Instruments Incorporated

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

2

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

AVAILABLE OPTIONS

PACKAGED DEVICES

T

A

PLASTIC 64-PIN QFP

(PM)

−40°C to 85°C

MSP430F423IPM
MSP430F425IPM
MSP430F427IPM

pin designation{

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

P1.5/TACLK/ACLK/S28

P2.3/SVSIN

P2.4/UTXD0

P2.5/URXD0

RST/NMI

TCK

TMS

TDI/TCLK

TDO/TDI

P1.0/TA0

P1.1/TA0/MCLK

P1.2/TA1/S31

P1.3/SVSOUT/S3

0

P1.4/S29

S5S6S7S8S9

S10

S11

S12

S13

S14

S15

S16

S17

S18

S19

S20

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33

P1.6/SIMO0/S27
P1.7/SOMI0/S26
P2.0/TA2/S25
P2.1/UCLK0/S24

R33

R23
R13
R03
COM3
COM2
COM1
COM0
S23

S21

S22

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

A0.0+
A0.0−
A1.0+
A1.0−
A2.0+
A2.0−

XIN

XOUT

P2.2/STE0

S0
S1
S2

S4

S3

MSP430F42x

V

REF

AV

CC

DV

CC

AV

SS

DV

SS

†

Open connection recommended for all unused analog inputs.

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

3

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

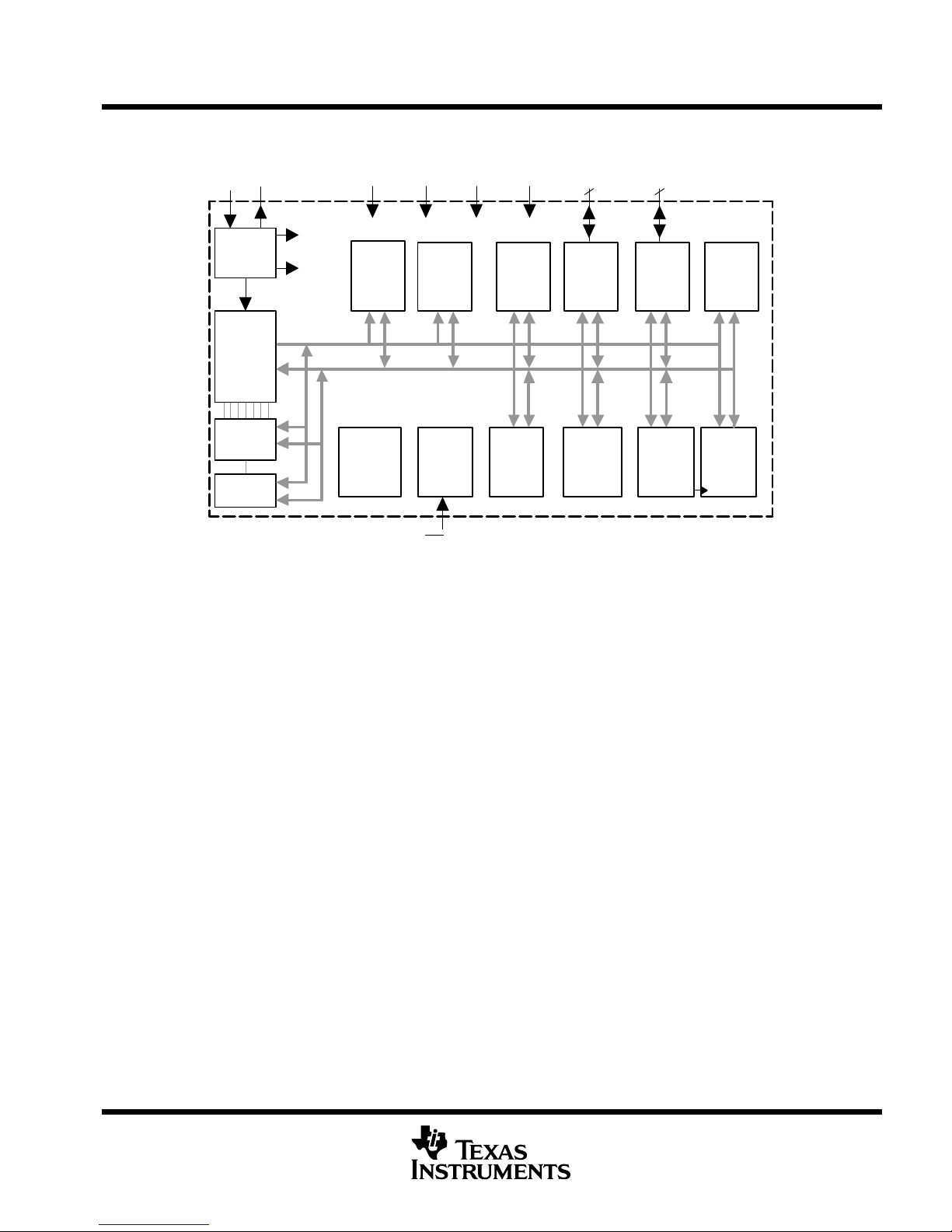

functional block diagram

SD16

Three 16-bit
Sigma-Delta

A/D

Converters

DV

CC

DV

SS

AV

CC

AV

SS

RST/NMI

P1

Flash

32KB
16KB

8KB

RAM

1KB
512B
256B

Watchdog

WDT+

15/16-Bit

Timer_A3

3 CC Reg

Port 1

8 I/O

Interrupt

Capability

POR/
SVS/

Brownout

Basic

Timer 1

1 Interrupt

Vector

LCD

128

Segments

1,2,3,4 MUX

f

LCD

8

USART0

UART or

SPI

Function

Oscillators

FLL+

MCLK

8 MHz

CPU

incl. 16

Registers

XOUT

JTAG

Interface

XIN

SMCLK

ACLK

MDB

MAB

Emulation

P2

Port 2

6 I/O

Interrupt

Capability

6

Module

Hardware

Multiplier

MPY, MPYS
MAC,MACS

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

4

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430F42x Terminal Functions

TERMINAL

PN

I/O DESCRIPTION

NAME NO.

I/O

DESCRIPTION

DV

CC

1 Digital supply voltage, positive terminal.
A0.0+ 2 I Internal connection to SD16 Channel 0, input 0 +. (see Note 1)
A0.0− 3 I Internal connection to SD16 Channel 0, input 0 −. (see Note 1)
A1.0+ 4 I Internal connection to SD16 Channel 1, input 0 +. (see Note 1)
A1.0− 5 I Internal connection to SD16 Channel 1, input 0 −. (see Note 1)
A2.0+ 6 I Internal connection to SD16 Channel 2, input 0 +. (see Note 1)
A2.0− 7 I Internal connection to SD16 Channel 2, input 0 −. (see Note 1)
XIN 8 I Input port for crystal oscillator XT1. Standard or watch crystals can be connected.
XOUT 9 O Output terminal of crystal oscillator XT1
V

REF

10 I/O Input for an external reference voltage / internal reference voltage output (can be used as mid-voltage)
P2.2/STE0 11 I/O General-purpose digital I/O / slave transmit enable—USART0/SPI mode
S0 12 O LCD segment output 0
S1 13 O LCD segment output 1
S2 14 O LCD segment output 2
S3 15 O LCD segment output 3
S4 16 O LCD segment output 4
S5 17 O LCD segment output 5
S6 18 O LCD segment output 6
S7 19 O LCD segment output 7
S8 20 O LCD segment output 8
S9 21 O LCD segment output 9
S10 22 O LCD segment output 10
S11 23 O LCD segment output 11
S12 24 O LCD segment output 12
S13 25 O LCD segment output 13
S14 26 O LCD segment output 14
S15 27 O LCD segment output 15
S16 28 O LCD segment output 16
S17 29 O LCD segment output 17
S18 30 O LCD segment output 18
S19 31 O LCD segment output 19
S20 32 O LCD segment output 20
S21 33 O LCD segment output 21
S22 34 O LCD segment output 22
S23 35 O LCD segment output 23
COM0 36 O Common output, COM0−3 are used for LCD backplanes.
COM1 37 O Common output, COM0−3 are used for LCD backplanes.
COM2 38 O Common output, COM0−3 are used for LCD backplanes.
COM3 39 O Common output, COM0−3 are used for LCD backplanes.
R03 40 I Input port of fourth positive (lowest) analog LCD level (V5)

NOTE 1: Open connection recommended for all unused analog inputs.

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

5

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MSP430F42x Terminal Functions (Continued)

TERMINAL

PN

I/O DESCRIPTION

NAME NO.

R13 41 I Input port of third most positive analog LCD level (V4 or V3)
R23 42 I Input port of second most positive analog LCD level (V2)
R33 43 O Output port of most positive analog LCD level (V1)

P2.1/UCLK0/S24 44 I/O

General-purpose digital I/O / external clock input-USART0/UART or SPI mode, clock output—USART0/SPI
mode / LCD segment output 24 (See Note 1)

P2.0/TA2/S25 45 I/O

General-purpose digital I/O / Timer_A Capture: CCI2A input, Compare: Out2 output / LCD segment output
25 (See Note 1)

P1.7/SOMI0/S26 46 I/O

General-purpose digital I/O / slave out/master in of USART0/SPI mode / LCD segment output 26
(See Note 1)

P1.6/SIMO0/S27 47 I/O

General-purpose digital I/O / slave in/master out of USART0/SPI mode / LCD segment output 27
(See Note 1)

P1.5/TACLK/
ACLK/S28

48 I/O

General-purpose digital I/O / Timer_A and SD16 clock signal TACLK input / ACLK output (divided by 1,

2, 4, or 8) / LCD segment output 28 (See Note 1)
P1.4/S29 49 I/O General-purpose digital I/O / LCD segment output 29 (See Note 1)
P1.3/SVSOUT/

S30

50 I/O General-purpose digital I/O / SVS: output of SVS comparator / LCD segment output 30 (See Note 1)

P1.2/TA1/S31 51 I/O

General-purpose digital I/O / Timer_A, Capture: CCI1A, CCI1B input, Compare: Out1 output / LCD segment

output 31 (See Note 1)

P1.1/TA0/MCLK 52 I/O

General-purpose digital I/O / Timer_A, Capture: CCI0B input / MCLK output.

Note: TA0 is only an input on this pin / BSL receive
P1.0/TA0 53 I/O General-purpose digital I/O / Timer_A, Capture: CCI0A input, Compare: Out0 output / BSL transmit
TDO/TDI 54 I/O Test data output port. TDO/TDI data output or programming data input terminal.
TDI/TCLK 55 I Test data input or test clock input. The device protection fuse is connected to TDI.
TMS 56 I Test mode select. TMS is used as an input port for device programming and test.
TCK 57 I Test clock. TCK is the clock input port for device programming and test.
RST/NMI 58 I Reset input or nonmaskable interrupt input port
P2.5/URXD0 59 I/O General-purpose digital I/O / receive data in—USART0/UART mode
P2.4/UTXD0 60 I/O General-purpose digital I/O / transmit data out—USART0/UART mode
P2.3/SVSIN 61 I/O General-purpose digital I/O / Analog input to brownout, supply voltage supervisor

AV

SS

62

Analog supply voltage, negative terminal. Supplies SD16, SVS, brownout, oscillator, and LCD resistive

divider circuitry.
DV

SS

63 Digital supply voltage, negative terminal

AV

CC

64

Analog supply voltage, positive terminal. Supplies SD16, SVS, brownout, oscillator, and LCD resistive

divider circuitry; must not power up prior to DV

CC

.

NOTE 1: LCD function selected automatically when applicable LCD module control bits are set, not with PxSEL bits.

General-Purpose Register

Program Counter

Stack Pointer

Status Register

Constant Generator

General-Purpose Register

General-Purpose Register

General-Purpose Register

PC/R0

SP/R1

SR/CG1/R2

CG2/R3

R4

R5

R12

R13

General-Purpose Register

General-Purpose Register

R6

R7

General-Purpose Register

General-Purpose Register

R8

R9

General-Purpose Register

General-Purpose Register

R10

R11

General-Purpose Register

General-Purpose Register

R14

R15

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

6

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

short-form description

CPU

The MSP430 CPU has a 16-bit RISC architecture
that is highly transparent to the application. All
operations, other than program-flow instructions,
are performed as register operations in
conjunction with seven addressing modes for
source operand and four addressing modes for
destination operand.

The CPU is integrated with 16 registers that
provide reduced instruction execution time. The
register-to-register operation execution time is
one cycle of the CPU clock.

Four of the registers, R0 to R3, are dedicated as
program counter, stack pointer, status register,
and constant generator respectively. The
remaining registers are general-purpose
registers.

Peripherals are connected to the CPU using data,
address, and control buses, and can be handled
with all instructions.

instruction set

The instruction set consists of 51 instructions with
three formats and seven address modes. Each
instruction can operate on word and byte data.
Table 1 shows examples of the three types of
instruction formats; the address modes are listed
in Table 2.

Table 1. Instruction Word Formats

Dual operands, source-destination e.g. ADD R4,R5 R4 + R5 −−−> R5
Single operands, destination only e.g. CALL R8 PC −−>(TOS), R8−−> PC
Relative jump, un/conditional e.g. JNE Jump-on-equal bit = 0

Table 2. Address Mode Descriptions

ADDRESS MODE S D SYNTAX EXAMPLE OPERATION

Register D

D

MOV Rs,Rd MOV R10,R11 R10 −−> R11

Indexed D D MOV X(Rn),Y(Rm) MOV 2(R5),6(R6) M(2+R5)−−> M(6+R6)

Symbolic (PC relative) D D MOV EDE,TONI M(EDE) −−> M(TONI)

Absolute D D MOV &MEM,&TCDAT M(MEM) −−> M(TCDAT)

Indirect D MOV @Rn,Y(Rm) MOV @R10,Tab(R6) M(R10) −−> M(Tab+R6)
Indirect

autoincrement

D MOV @Rn+,Rm MOV @R10+,R11

M(R10) −−> R11
R10 + 2−−> R10

Immediate D MOV #X,TONI MOV #45,TONI #45 −−> M(TONI)

NOTE: S = source D = destination

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

7

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

operating modes

The MSP430 has one active mode and five software-selectable low-power modes of operation. An interrupt
event can wake up the device from any of the five low-power modes, service the request, and restore back to
the low-power mode on return from the interrupt program.

The following six operating modes can be configured by software:

D Active mode (AM)

− All clocks are active

D Low-power mode 0 (LPM0)

− CPU is disabled
ACLK and SMCLK remain active, MCLK is available to modules
FLL+ loop control remains active

D Low-power mode 1 (LPM1)

− CPU is disabled
ACLK and SMCLK remain active, MCLK is available to modules
FLL+ loop control is disabled

D Low-power mode 2 (LPM2)

− CPU is disabled
MCLK, FLL+ loop control, and DCOCLK are disabled
DCO’s dc-generator remains enabled
ACLK remains active

D Low-power mode 3 (LPM3)

− CPU is disabled
MCLK, FLL+ loop control, and DCOCLK are disabled
DCO’s dc-generator is disabled
ACLK remains active

D Low-power mode 4 (LPM4)

− CPU is disabled
ACLK is disabled
MCLK, FLL+ loop control, and DCOCLK are disabled
DCO’s dc-generator is disabled
Crystal oscillator is stopped

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

8

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

interrupt vector addresses

The interrupt vectors and the power-up starting address are located in the address range of 0FFFFh−0FFE0h.
The vector contains the 16-bit address of the appropriate interrupt-handler instruction sequence.

INTERRUPT SOURCE INTERRUPT FLAG SYSTEM INTERRUPT WORD ADDRESS PRIORITY

Power-up

External Reset

Watchdog

Flash memory

PC Out-of-Range (see Note 4)

WDTIFG

KEYV

(see Note 1)

Reset 0FFFEh 15, highest

NMI

Oscillator Fault

Flash memory access violation

NMIIFG (see Notes 1 and 3)

OFIFG (see Notes 1 and 3)

ACCVIFG (see Notes 1 and 3)

(Non)maskable
(Non)maskable
(Non)maskable

0FFFCh 14

0FFFAh 13

SD16

SD16CCTLx SD16OVIFG,

SD16CCTLx SD16IFG

(see Notes 1 and 2)

Maskable 0FFF8h 12

0FFF6h 11

Watchdog Timer WDTIFG Maskable 0FFF4h 10

USART0 Receive URXIFG0 Maskable 0FFF2h 9

USART0 Transmit UTXIFG0 Maskable 0FFF0h 8

0FFEEh 7

Timer_A3 TACCR0 CCIFG (see Note 2) Maskable 0FFECh 6

Timer_A3

TACCR1 and TACCR2

CCIFGs, and TACTL TAIFG

(see Notes 1 and 2)

Maskable 0FFEAh 5

I/O port P1 (eight flags)

P1IFG.0 to P1IFG.7
(see Notes 1 and 2)

Maskable 0FFE8h 4

0FFE6h 3
0FFE4h 2

I/O port P2 (eight flags)

P2IFG.0 to P2IFG.7
(see Notes 1 and 2)

Maskable 0FFE2h 1

Basic Timer1 BTIFG Maskable 0FFE0h 0, lowest

NOTES: 1. Multiple source flags

2. Interrupt flags are located in the module.

3. (Non)maskable: the individual interrupt-enable bit can disable an interrupt event, but the general interrupt-enable cannot.

4. A reset is generated if the CPU tries to fetch instructions from within the module register memory address range (0h−01FFh) or from
within unused address ranges (from 0600h to 0BFFh).

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

9

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

special function registers

Most interrupt and module enable bits are collected into the lowest address space. Special function register bits
that are not allocated to a functional purpose are not physically present in the device. Simple software access
is provided with this arrangement.

interrupt enable 1 and 2

7654 0

UTXIE0 OFIE WDTIE

321

rw–0 rw–0 rw–0

Address
0h URXIE0 ACCVIE NMIIE

rw–0 rw–0 rw–0

WDTIE: Watchdog-timer interrupt enable. Inactive if watchdog mode is selected. Active if watchdog

timer is configured in interval timer mode.
OFIE: Oscillator-fault-interrupt enable
NMIIE: Nonmaskable-interrupt enable
ACCVIE: Flash access violation interrupt enable
URXIE0: USART0: UART and SPI receive-interrupt enable
UTXIE0: USART0: UART and SPI transmit-interrupt enable

7654 0321

Address
1h BTIE

rw-0

BTIE: Basic Timer1 interrupt enable

interrupt flag register 1 and 2

7654 0

UTXIFG0 OFIFG WDTIFG

321

rw–0 rw–1 rw–(0)

Address
02h URXIFG0 NMIIFG

rw–1 rw–0

WDTIFG: Set on watchdog timer overflow (in watchdog mode) or security key violation. Reset on V

CC

power up or a reset condition at the RST/NMI pin in reset mode.
OFIFG: Flag set on oscillator fault
NMIIFG: Set via RST

/NMI pin
URXIFG0: USART0: UART and SPI receive flag
UTXIFG0: USART0: UART and SPI transmit flag

7654 0321

Address
3h BTIFG

rw-0

BTIFG: Basic Timer1 interrupt flag

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

10

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

module enable registers 1 and 2

7654 0

UTXE0

321

rw–0 rw–0

Address
04h

URXE0
USPIE0

URXE0: USART0: UART mode receive enable
UTXE0: USART0: UART mode transmit enable
USPIE0: USART0: SPI mode transmit and receive enable

7654 0321

Address
05h

Legend: rw−0,1: Bit Can Be Read and Written. It Is Reset or Set by PUC.

rw−(0,1): Bit Can Be Read and Written. It Is Reset or Set by POR.

SFR Bit Not Present in Device.

memory organization

MSP430F423 MSP430F425 MSP430F427

Memory
Interrupt vector
Code memory

Size
Flash
Flash

8KB

0FFFFh − 0FFE0h

0FFFFh − 0E000h

16KB
0FFFFh − 0FFE0h
0FFFFh − 0C000h

32KB

0FFFFh − 0FFE0h

0FFFFh − 08000h

Information memory Size 256 Byte

010FFh − 01000h

256 Byte

010FFh − 01000h

256 Byte

010FFh − 01000h

Boot memory Size 1kB

0FFFh − 0C00h

1kB

0FFFh − 0C00h

1kB

0FFFh − 0C00h

RAM Size 256 Byte

02FFh − 0200h

512 Byte

03FFh − 0200h

1KB

05FFh − 0200h

Peripherals 16-bit

8-bit

8-bit SFR

01FFh − 0100h

0FFh − 010h

0Fh − 00h

01FFh − 0100h

0FFh − 010h

0Fh − 00h

01FFh − 0100h

0FFh − 010h

0Fh − 00h

bootstrap loader (BSL)

The MSP430 bootstrap loader (BSL) enables users to program the flash memory or RAM using a UART serial
interface. Access to the MSP430 memory via the BSL is protected by user-defined password. For complete
description of the features of the BSL and its implementation, see the Application report Features of the MSP430
Bootstrap Loader, Literature Number SLAA089.

BSL Function PM Package Pins

Data Transmit 53 - P1.0

Data Receive 52 - P1.1

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

11

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

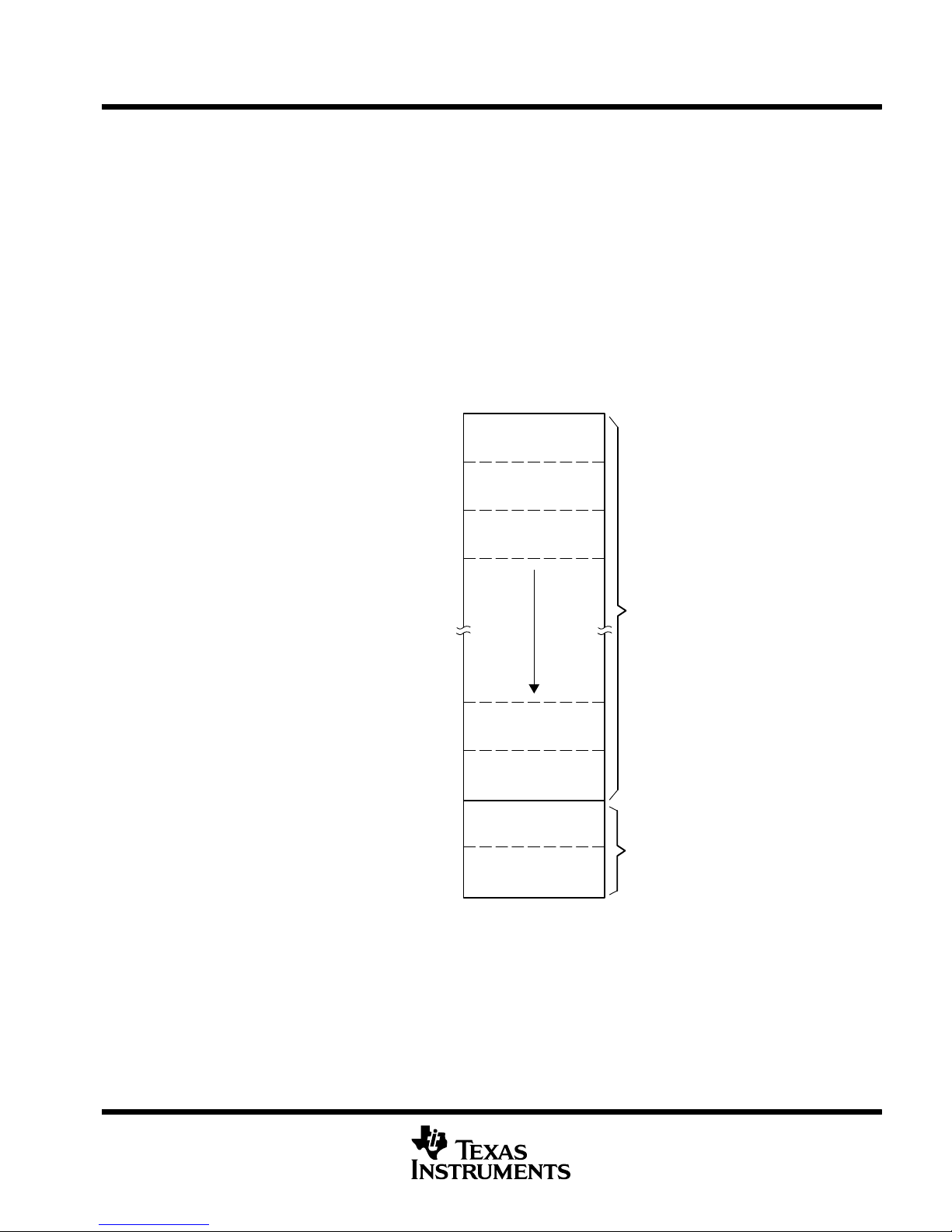

flash memory

The flash memory can be programmed via the JTAG port, the bootstrap loader, or in-system by the CPU. The
CPU can perform single-byte and single-word writes to the flash memory. Features of the flash memory include:

D Flash memory has n segments of main memory and two segments of information memory (A and B) of

128 bytes each. Each segment in main memory is 512 bytes in size.

D Segments 0 to n may be erased in one step, or each segment may be individually erased.
D Segments A and B can be erased individually, or as a group with segments 0−n.

Segments A and B are also called information memory.

D New devices may have some bytes programmed in the information memory (needed for test during

manufacturing). The user should perform an erase of the information memory prior to the first use.

Segment 0

With Interrupt Vectors

Segment 1

Segment 2

Segment n−1

Segment n

32KB

Segment A

Segment B

Main Memory

Information Memory

0FFFFh

0FA00h

0FE00h

0FDFFh

0FC00h

0FBFFh

0F9FFh

08400h

083FFh

08200h

081FFh

01000h

010FFh

08000h

01080h

0107Fh

16KB

0FFFFh

0FA00h

0FE00h

0FDFFh

0FC00h

0FBFFh

0F9FFh

0C400h

0C3FFh

0C200h

0C1FFh

01000h

010FFh

0C000h

01080h

0107Fh

8KB

0FFFFh

0FA00h

0FE00h

0FDFFh

0FC00h

0FBFFh

0F9FFh

0E400h

0E3FFh

0E200h

0E1FFh

01000h

010FFh

0E000h

01080h

0107Fh

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

12

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

peripherals

Peripherals are connected to the CPU through data, address, and control busses and can be handled using
all instructions. For complete module descriptions, see the MSP430x4xx Family User’s Guide, TI literature
number SLAU056.

oscillator and system clock

The clock system in the MSP430F42x family of devices is supported by the FLL+ module that includes support
for a 32768-Hz watch crystal oscillator, an internal digitally-controlled oscillator (DCO), and a high frequency
crystal oscillator. The FLL+ clock module is designed to meet the requirements of both low system cost and low
power consumption. The FLL+ features digital frequency locked loop (FLL) hardware that, in conjunction with
a digital modulator, stabilizes the DCO frequency to a programmable multiple of the watch crystal frequency.
The internal DCO provides a fast turn-on clock source and stabilizes in less than 6 μs. The FLL+ module
provides the following clock signals:

D Auxiliary clock (ACLK), sourced from a 32768-Hz watch crystal or a high frequency crystal.
D Main clock (MCLK), the system clock used by the CPU.
D Sub-Main clock (SMCLK), the sub-system clock used by the peripheral modules.
D ACLK/n, the buffered output of ACLK, ACLK/2, ACLK/4, or ACLK/8.

brownout, supply voltage supervisor

The brownout circuit is implemented to provide the proper internal reset signal to the device during power on
and power off. The supply voltage supervisor (SVS) circuitry detects if the supply voltage drops below a user
selectable level and supports both supply voltage supervision (the device is automatically reset) and supply
voltage monitoring (SVM, the device is not automatically reset).

The CPU begins code execution after the brownout circuit releases the device reset. However, V

CC

may not

have ramped to V

CC(min)

at that time. The user must insure the default FLL+ settings are not changed until V

CC

reaches V

CC(min)

. If desired, the SVS circuit can be used to determine when VCC reaches V

CC(min)

.

digital I/O

There are two 8-bit I/O ports implemented—ports P1 and P2 (only six P2 I/O signals are available on external
pins):

D All individual I/O bits are independently programmable.
D Any combination of input, output, and interrupt conditions is possible.
D Edge-selectable interrupt input capability for all the eight bits of port P1 and six bits of P2.
D Read/write access to port-control registers is supported by all instructions.

NOTE:

Six bits of port P2 (P2.0 to P2.5) are available on external pins, but all control and data bits for port
P2 are implemented.

Basic Timer1

The Basic Timer1 has two independent 8-bit timers which can be cascaded to form a 16-bit timer/counter. Both
timers can be read and written by software. The Basic Timer1 can be used to generate periodic interrupts and
clock for the LCD module.

LCD drive

The LCD driver generates the segment and common signals required to drive an LCD display. The LCD
controller has dedicated data memory to hold segment drive information. Common and segment signals are
generated as defined by the mode. Static, 2-MUX, 3-MUX, and 4-MUX LCDs are supported by this peripheral.

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

13

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

WDT+ watchdog timer

The primary function of the watchdog timer (WDT+) module is to perform a controlled system restart after a
software problem occurs. If the selected time interval expires, a system reset is generated. If the watchdog
function is not needed in an application, the module can be configured as an interval timer and can generate
interrupts at selected time intervals.

timer_A3

Timer_A3 is a 16-bit timer/counter with three capture/compare registers. Timer_A3 can support multiple
capture/compares, PWM outputs, and interval timing. Timer_A3 also has extensive interrupt capabilities.
Interrupts may be generated from the counter on overflow conditions and from each of the capture/compare
registers.

Timer_A3 Signal Connections

Input Pin Number Device Input Signal Module Input Name Module Block Module Output Signal Output Pin Number

48 - P1.5 TACLK TACLK

ACLK ACLK

SMCLK SMCLK

Timer NA

48 - P1.5 TACLK INCLK
53 - P1.0 TA0 CCI0A

53 - P1.0

52 - P1.1 TA0 CCI0B

DV

SS

GND

CCR0 TA 0

DV

CC

V

CC

51 - P1.2 TA1 CCI1A

51 - P1.2

51 - P1.2 TA1 CCI1B

DV

SS

GND

CCR1 TA 1

DV

CC

V

CC

45 - P2.0 TA2 CCI2A

45 - P2.0

ACLK (internal) CCI2B

DV

SS

GND

CCR2 TA 2

DV

CC

V

CC

USART0

The MSP430F42x devices have one hardware universal synchronous/asynchronous receive transmit
(USART0) peripheral module that is used for serial data communication. The USART supports synchronous
SPI (3 or 4 pin) and asynchronous UART communication protocols, using double-buffered transmit and receive
channels.

hardware multiplier

The multiplication operation is supported by a dedicated peripheral module. The module performs 16 16,
16 8, 8 16, and 8 8 bit operations. The module is capable of supporting signed and unsigned multiplication
as well as signed and unsigned multiply and accumulate operations. The result of an operation can be accessed
immediately after the operands have been loaded into the peripheral registers. No additional clock cycles are
required.

SD16

The SD16 module integrates three independent 16-bit sigma-delta A/D converters, internal temperature sensor
and built-in voltage reference. Each channel is designed with a fully differential analog input pair and
programmable gain amplifier input stage.

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

14

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

peripheral file map

PERIPHERALS WITH WORD ACCESS
Watchdog Watchdog Timer control WDTCTL 0120h
Timer_A3

Timer_A interrupt vector TAIV 012Eh

_

Timer_A control TACTL 0160h
Capture/compare control 0 TACCTL0 0162h
Capture/compare control 1 TACCTL1 0164h
Capture/compare control 2 TACCTL2 0166h
Timer_A register TAR 0170h
Capture/compare register 0 TACCR0 0172h
Capture/compare register 1 TACCR1 0174h
Capture/compare register 2 TACCR2 0176h

Hardware Multiplier

Sum extend SUMEXT 013Eh

p

Result high word RESHI 013Ch
Result low word RESLO 013Ah
Second operand OP2 0138h
Multiply signed + accumulate/operand1 MACS 0136h
Multiply + accumulate/operand1 MAC 0134h
Multiply signed/operand1 MPYS 0132h
Multiply unsigned/operand1 MPY 0130h

Flash

Flash control 3 FCTL3 012Ch
Flash control 2 FCTL2 012Ah
Flash control 1 FCTL1 0128h

SD16

General Control SD16CTL 0100h

(see also: Peripherals

Channel 0 Control SD16CCTL0 0102h

with Byte Access)

Channel 1 Control SD16CCTL1 0104h
Channel 2 Control SD16CCTL2 0106h
Reserved 0108h
Reserved 010Ah
Reserved 010Ch
Reserved 010Eh
Interrupt vector word register SD16IV 0110h
Channel 0 conversion memory SD16MEM0 0112h
Channel 1 conversion memory SD16MEM1 0114h
Channel 2 conversion memory SD16MEM2 0116h
Reserved 0118h
Reserved 011Ah
Reserved 011Ch
Reserved 011Eh

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

15

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

peripheral file map (continued)

PERIPHERALS WITH BYTE ACCESS

SD16

Channel 0 Input Control SD16INCTL0 0B0h

(see also: Peripherals

Channel 1 Input Control SD16INCTL1 0B1h

with Word Access)

Channel 2 Input Control SD16INCTL2 0B2h
Reserved 0B3h
Reserved 0B4h
Reserved 0B5h
Reserved 0B6h
Reserved 0B7h
Channel 0 preload SD16PRE0 0B8h
Channel 1 preload SD16PRE1 0B9h
Channel 2 preload SD16PRE2 0BAh
Reserved 0BBh
Reserved 0BCh
Reserved 0BDh
Reserved 0BEh
Reserved 0BFh

LCD

LCD memory 20 LCDM20 0A4h
: : :
LCD memory 16 LCDM16 0A0h
LCD memory 15 LCDM15 09Fh
: : :
LCD memory 1 LCDM1 091h
LCD control and mode LCDCTL 090h

USART0

Transmit buffer U0TXBUF 077h
Receive buffer U0RXBUF 076h
Baud rate U0BR1 075h
Baud rate U0BR0 074h
Modulation control U0MCTL 073h
Receive control U0RCTL 072h
Transmit control U0TCTL 071h
USART control U0CTL 070h

Brownout, SVS SVS control register SVSCTL 056h
FLL+ Clock

FLL+ Control1 FLL_CTL1 054h
FLL+ Control0 FLL_CTL0 053h
System clock frequency control SCFQCTL 052h
System clock frequency integrator SCFI1 051h
System clock frequency integrator SCFI0 050h

Basic Timer1

BT counter2 BTCNT2 047h
BT counter1 BTCNT1 046h
BT control BTCTL 040h

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

16

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

peripheral file map (continued)

PERIPHERALS WITH BYTE ACCESS (CONTINUED)

Port P2

Port P2 selection P2SEL 02Eh
Port P2 interrupt enable P2IE 02Dh
Port P2 interrupt-edge select P2IES 02Ch
Port P2 interrupt flag P2IFG 02Bh
Port P2 direction P2DIR 02Ah
Port P2 output P2OUT 029h
Port P2 input P2IN 028h

Port P1

Port P1 selection P1SEL 026h
Port P1 interrupt enable P1IE 025h
Port P1 interrupt-edge select P1IES 024h
Port P1 interrupt flag P1IFG 023h
Port P1 direction P1DIR 022h
Port P1 output P1OUT 021h
Port P1 input P1IN 020h

Special Functions

SFR module enable 2 ME2 005h

p

SFR module enable 1 ME1 004h
SFR interrupt flag 2 IFG2 003h
SFR interrupt flag 1 IFG1 002h
SFR interrupt enable2 IE2 001h
SFR interrupt enable1 IE1 000h

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

17

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

absolute maximum ratings

†

Voltage applied at VCC to VSS −0.3 V to + 4.1 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage applied to any pin (see Note 1) −0.3 V to V

CC

+ 0.3 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Diode current at any device terminal . ±2 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature (unprogrammed device) −55°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature (programmed device) −40°C to 85°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTE 1: All voltages referenced to V

SS

. The JTAG fuse-blow voltage, VFB, is allowed to exceed the absolute maximum rating. The voltage is

applied to the TDI/TCLK pin when blowing the JTAG fuse.

recommended operating conditions

PARAMETER MIN NOM MAX UNITS

Supply voltage during program execution; SD16 disabled.
V

CC

(AVCC = DVCC = VCC) (see Note 1)

MSP430F42x 1.8 3.6 V

Supply voltage during program execution; SD16 disabled, SVS enabled, and
PORON = 1. V

CC

(AVCC = DVCC = VCC) (see Note 1 and Note 2)

MSP430F42x 2.0 3.6 V

Supply voltage during program execution; SD16 enabled or
during programming of flash memory. V

CC

(AVCC = DVCC = VCC)

MSP430F42x 2.7 3.6 V

Supply voltage, V

SS

(AVSS = DVSS = VSS) 0 0 V

Operating free-air temperature range, T

A

MSP430F42x −40 85 °C

LF selected, XTS_FLL=0 Watch crystal 32768 Hz

LFXT1 crystal frequency, f

(

LFXT1

)

(see Note 3)

XT1 selected, XTS_FLL=1 Ceramic resonator 450 8000 kHz

LFXT1 crystal frequency, f

(LFXT1)

(see Note 3)

XT1 selected, XTS_FLL=1 Crystal 1000 8000 kHz

VCC = 1.8 V DC 4.15

Processor frequency (signal MCLK), f

(System)

VCC = 3.6 V DC 8

MHz

NOTES: 1. It is recommended to power AVCC and DVCC from the same source. A maximum difference of 0.3 V between AVCC and DVCC can

be tolerated during power up and operation.

2. The minimum operating supply voltage is defined according to the trip point where POR is going active by decreasing supply voltage.
POR is going inactive when the supply voltage is raised above minimum supply voltage plus the hysteresis of the SVS circuitry.

3. The LFXT1 oscillator in LF-mode requires a watch crystal.

f (MHz)

1.8 V 3.6 V

2.7 V 3 V

4.15 MHz

8 MHz

VCC − Supply Voltage − V

f

System

− Maximum Processor Frequency − MHz

Supply Voltage Range with SD16
Enabled or During Programming

of the Flash Memory

Supply Voltage Range

During Program

Execution

6 MHz

Figure 1. Frequency vs Supply Voltage

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

18

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted)

supply current into AVCC + DVCC excluding external current (see Note 1)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

I

(AM)

Active mode,
f

(MCLK)

= f

(SMCLK)

= f

(DCO)

= 1 MHz,

f

(ACLK)

= 32,768 Hz, XTS_FLL = 0

(program executes in flash)

TA = −40°C to 85°C VCC = 3 V 400 500 μA

I

(LPM0)

Low-power mode, (LPM0/LPM1)
f

(MCLK)

= f

(SMCLK)

= f

(DCO)

= 1 MHz,

f

(ACLK)

= 32,768 Hz, XTS_FLL = 0

FN_8=FN_4=FN_3=FN_2=0 (see Note 2)

TA = −40°C to 85°C VCC = 3 V 130 150 μA

I

(LPM2)

Low-power mode, (LPM2) (see Note 2) TA = −40°C to 85°C VCC = 3 V 10 22 μA

TA = −40°C 1.5 2.0
TA = 25°C

1.6 2.1

I

(LPM3)

Low-power mode, (LPM3) (see Note 2)

T

A

= 60°C

VCC = 3 V

1.7 2.2

μA

TA = 85°C 2.0 2.6
TA = −40°C 0.1 0.5

I

(

LPM4

)

Low-power mode, (LPM4) (see Note 2)

T

A

= 25°C

VCC = 3 V

0.1 0.5

μA

I

(LPM4)

Low power mode, (LPM4) (see Note 2)

TA = 85°C

V

CC

3

V

0.8 2.5

μA

NOTES: 1. All inputs are tied to 0 V or VCC. Outputs do not source or sink any current.

The current consumption in LPM2, LPM3, and LPM4 are measured with active Basic Timer1 and LCD (ACLK selected).
The current consumption of the SD16 and the SVS module are specified in their respective sections.
LPMx currents measured with WDT disabled.
The currents are characterized with a KDS Daishinku DT−38 (6 pF) crystal.

2. Current for brownout included.

current consumption of active mode versus system frequency

I

(AM)

= I

(AM) [1 MHz]

× f

(System) [MHz]

current consumption of active mode versus supply voltage

I

(AM)

= I

(AM) [3 V]

+ 170 μA/V × (VCC – 3 V)

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

19

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

Schmitt-trigger inputs − Ports P1 and P2; RST/NMI; JTAG: TCK, TMS, TDI/TCLK, TDO/TDI

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

V

IT+

Positive-going input threshold voltage VCC = 3 V 1.5 1.98 V

V

IT−

Negative-going input threshold voltage VCC = 3 V 0.9 1.3 V

V

hys

Input voltage hysteresis (V

IT+

− V

IT−

) VCC = 3 V 0.45 1 V

inputs Px.x, TAx

PARAMETER TEST CONDITIONS V

CC

MIN TYP MAX UNIT

Port P1, P2: P1.x to P2.x, External trigger signal

3 V 1.5 cycle

t

(int)

External interrupt timing

Port P1, P2: P1.x to P2.x, External trigger signal

for the interrupt flag, (see Note 1)

3 V 50 ns

t

(cap)

Timer_A, capture timing TAx 3 V 50 ns

f

(TAext)

Timer_A clock frequency
externally applied to pin

TACLK, INCLK t

(H)

= t

(L)

3 V 10 MHz

f

(TAint)

Timer_A clock frequency SMCLK or ACLK signal selected 3 V 10 MHz

NOTES: 1. The external signal sets the interrupt flag every time the minimum t

(int)

cycle and time parameters are met. It may be set even with

trigger signals shorter than t

(int)

. Both the cycle and timing specifications must be met to ensure the flag is set. t

(int)

is measured in

MCLK cycles.

leakage current (see Note 1)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

I

lkg(P1.x)

Leakage

Port P1 Port 1: V

(P1.x)

(see Note 2)

±50

I

lkg(P2.x)

Leakage

current

Port P2 Port 2: V

(P2.x)

(see Note 2)

VCC = 3 V

±50

nA

NOTES: 1. The leakage current is measured with VSS or VCC applied to the corresponding pin(s), unless otherwise noted.

2. The port pin must be selected as an input.

outputs − Ports P1 and P2

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

I

OH(max)

= −1.5 mA, V

CC

= 3 V, See Note 1 VCC−0.25 V

CC

V

OH

High-level output voltage

I

OH(max)

= −6 mA, V

CC

= 3 V, See Note 2 VCC−0.6 V

CC

V

I

OL(max)

= 1.5 mA, V

CC

= 3 V, See Note 1 V

SS

VSS+0.25

V

OL

Low-level output voltage

I

OL(max)

= 6 mA, V

CC

= 3 V, See Note 2 V

SS

VSS+0.6

V

NOTES: 1. The maximum total current, I

OH(max)

and I

OL(max),

for all outputs combined, should not exceed ±12 mA to satisfy the

maximum specified voltage drop.

2. The maximum total current, I

OH(max)

and I

OL(max),

for all outputs combined, should not exceed ±48 mA to satisfy the

maximum specified voltage drop.

output frequency

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

f

Px.y

(1 ≤ x ≤ 2, 0 ≤ y ≤ 7)

CL = 20 pF,
I

L

= ± 1.5mA

V

CC

= 3 V DC 12 MHz

f

ACLK,

f

MCLK,

f

SMCLK

P1.1/TA0/MCLK
P1.5/TACLK/ACLK/S28

CL = 20 pF V

CC

= 3 V 12 MHz

f

ACLK

= f

LFXT1

= f

XT1

40% 60%

P1.5/TACLK/ACLK/

S28, CL = 20 pF

f

ACLK

= f

LFXT1

= f

LF

30% 70%

S28, C

L

20

pF

VCC = 3 V

f

ACLK

= f

LFXT1

50%

t

Xdc

Duty cycle of output frequency

P1.1/TA0/MCLK,
C

L

= 20 pF,

V

CC

= 3 V

f

MCLK

= f

DCOCLK

50%−

15 ns

50%

50%+

15 ns

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

20

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

outputs − Ports P1 and P2 (continued)

Figure 2

VOL − Low-Level Output Voltage − V

0

5

10

15

20

25

30

0.0 0.5 1.0 1.5 2.0 2.5

VCC = 2.2 V
P2.1

TYPICAL LOW-LEVEL OUTPUT CURRENT

vs

LOW-LEVEL OUTPUT VOLTAGE

TA = 25°C

TA = 85°C

OL

I

− Typical Low-level Output Current − mA

Figure 3

VOL − Low-Level Output Voltage − V

0

10

20

30

40

50

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5

VCC = 3 V
P2.1

TYPICAL LOW-LEVEL OUTPUT CURRENT

vs

LOW-LEVEL OUTPUT VOLTAGE

TA = 25°C

TA = 85°C

OL

I

− Typical Low-level Output Current − mA

Figure 4

VOH − High-Level Output Voltage − V

−30

−25

−20

−15

−10

−5

0

0.0 0.5 1.0 1.5 2.0 2.5

VCC = 2.2 V
P2.1

TYPICAL HIGH-LEVEL OUTPUT CURRENT

vs

HIGH-LEVEL OUTPUT VOLTAGE

TA = 25°C

TA = 85°C

OL

I

− Typical High-level Output Current − mA

Figure 5

VOH − High-Level Output Voltage − V

−50

−40

−30

−20

−10

0

0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5

VCC = 3 V
P2.1

TYPICAL HIGH-LEVEL OUTPUT CURRENT

vs

HIGH-LEVEL OUTPUT VOLTAGE

TA = 25°C

TA = 85°C

OL

I

− Typical High-level Output Current − mA

NOTE: One output loaded at a time

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

21

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

wake-up LPM3

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

f = 1 MHz 6

t

d(LPM3

)

Delay time

f = 2 MHz

V

CC

= 3 V

6

μs

t

d(LPM3)

Delay time

f = 3 MHz

V

CC

3 V

6

μs

RAM (see Note 1)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

VRAMh CPU halted (see Note 1) 1.6 V

NOTE 1: This parameter defines the minimum supply voltage when the data in the program memory RAM remain unchanged. No program

execution should take place during this supply voltage condition.

LCD

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

V

(33)

Voltage at R33 2.5 VCC +0.2

V

(23)

Voltage at R23

(V33−V03) × 2/3 + V

03

V

(13)

Analog voltage

Voltage at R13

VCC = 3 V

(V

(33)−V(03)

) × 1/3 + V

(03)

V

V

(33) −

V

(03)

Voltage at R33/R03 2.5 VCC +0.2

I

(R03)

R03 = V

SS

No load at all

±20

I

(R13)

Input leakage

R13 = VCC/3

segment and

±20

nA

I

(R23)

pg

R23 = 2 × VCC/3

common lines,
V

CC

= 3 V

±20

V

(Sxx0)

V

(03)

V

(03)

− 0.1

V

(Sxx1)

Segment line

V

(13)

V

(13)

− 0.1

V

(Sxx2)

Segment line

voltage

I

(Sxx)

= −3 μA, VCC = 3 V

V(

23)

V

(23)

− 0.1

V

V

(Sxx3)

V(

33)

V

(33)

+ 0.1

USART0 (see Note 1)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

t

(τ)

USART0: deglitch time VCC = 3 V, SYNC = 0, UART mode 150 280 500 ns

NOTE 1: The signal applied to the USART0 receive signal/terminal (URXD0) should meet the timing requirements of t

(τ

)

to ensure that the URXS

flip-flop is set. The URXS flip-flop is set with negative pulses meeting the minimum-timing condition of t

(τ

)

. The operating conditions to
set the flag must be met independently from this timing constraint. The deglitch circuitry is active only on negative transitions on the
URXD0 line.

POR brownout, reset (see Notes 1 and 2)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

t

d(BOR)

2000 μs

V

CC(start)

dVCC/dt ≤ 3 V/s (see Figure 6) 0.7 × V

(B_IT−)

V

V

(B_IT−)

dVCC/dt ≤ 3 V/s (see Figure 6, Figure 7, and Figure 8) 1.71 V

V

hys(B_IT−)

B

rownout

dVCC/dt ≤ 3 V/s (see Figure 6) 70 130 180 mV

t

(reset)

Pulse length needed at RST/NMI pin to accepted reset internally,
V

CC

= 3 V

2 μs

NOTES: 1. The current consumption of the brownout module is already included in the ICC current consumption data. The voltage level

V

(B_IT−)

+ V

hys(B_IT−)

is ≤ 1.8 V.

2. During power up, the CPU begins code execution following a period of t

d(BOR)

after VCC = V

(B_IT−)

+ V

hys(B_IT−)

.

The default FLL+ settings must not be changed until V

CC

≥ V

CC(min)

, where V

CC(min)

is the minimum supply voltage for the desired

operating frequency. See the MSP430x4xx Family User’s Guide (SLAU056) for more information on the brownout/SVS circuit.

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

22

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

0

1

V

V

CC(start)

V

hys(B_IT−)

V

CC

t

d(BOR)

(B_IT−)

Figure 6. POR/Brownout Reset (BOR) vs Supply Voltage

V

CC

(drop) − V

0

0.5

1

1.5

2

0.001 1 1000

V = 3 V

Typical Conditions

1 ns 1 ns

tpw − Pulse Width − μst

pw

− Pulse Width − μs

cc

V

CC

3 V

V

CC(drop)

t

pw

Figure 7. V

CC(drop)

Level With a Square Voltage Drop to Generate a POR/Brownout Signal

V

CC

3 V

V

CC(drop)

t

pw

0

0.5

1

1.5

2

tpw − Pulse Width − μs

0.001 1 1000

t

f

t

r

tpw − Pulse Width − μs

t

f

= t

r

V = 3 V

Typical Conditions

cc

V

CC

(drop) − V

Figure 8. V

CC(drop)

Level With a Triangle Voltage Drop to Generate a POR/Brownout Signal

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

23

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

SVS (supply voltage supervisor/monitor) (see Note 1)

PARAMETER TEST CONDITIONS MIN NOM MAX UNIT

dVCC/dt > 30 V/ms (see Figure 9) 5 150

t

(SVSR)4

dVCC/dt ≤ 30 V/ms 2000

μs

t

d(SVSon)

SVSon, switch from VLD=0 to VLD ≠ 0, VCC = 3 V 20 150 μs

t

settle

VLD ≠ 0

‡

12 μs

V

(SVSstart)

VLD ≠ 0, VCC/dt ≤ 3 V/s (see Figure 9) 1.55 1.7 V

VLD = 1 70 120 155 mV

V

hys(SVS_IT−

)

VCC/dt ≤ 3 V/s (see Figure 9)

VLD = 2 .. 14

V

(SVS_IT−)

x 0.004

V

(SVS_IT−)

x 0.008

V

hys(SVS_IT−)

VCC/dt ≤ 3 V/s (see Figure 9), external voltage applied
on P2.3

VLD = 15 4.4 10.4 mV

VLD = 1 1.8 1.9 2.05
VLD = 2 1.94 2.1 2.25
VLD = 3 2.05 2.2 2.37
VLD = 4 2.14 2.3 2.48
VLD = 5 2.24 2.4 2.6
VLD = 6 2.33 2.5 2.71
VLD = 7 2.46 2.65 2.86

VCC/dt ≤ 3 V/s (see Figure 9)

VLD = 8 2.58 2.8 3

V

(SVS_IT−)

VLD = 9 2.69 2.9 3.13

V

VLD = 10 2.83 3.05 3.29
VLD = 11 2.94 3.2 3.42
VLD = 12 3.11 3.35 3.61

†

VLD = 13 3.24 3.5 3.76

†

VLD = 14 3.43 3.7

†

3.99

†

VCC/dt ≤ 3 V/s (see Figure 9), external voltage applied
on P2.3

VLD = 15 1.1 1.2 1.3

I

CC(SVS)

(see Note 1)

VLD ≠ 0, VCC = 2.2 V/3 V 10 15 μA

†

The recommended operating voltage range is limited to 3.6 V.

‡

t

settle

is the settling time that the comparator o/p needs to have a stable level after VLD is switched VLD ≠ 0 to a different VLD value somewhere

between 2 and 15. The overdrive is assumed to be > 50 mV.

NOTE 1: The current consumption of the SVS module is not included in the I

CC

current consumption data.

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

24

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

V

CC(start)

V

CC

V

(B_IT−)

Brownout

Region

V

(SVSstart)

V

Software Sets VLD>0:
SVS is Active

Undefined

0

1

Brownout

0

1

0

1

Set POR

Brownout

Region

SVS Circuit is Active From VLD > to VCC < V

(B_IT−)

SVS out

V

hys(SVS_IT−)

V

hys(B_IT−)

t

d(BOR)

t

d(SVSon)

t

d(SVSR)

t

d(BOR)

(SVS_IT−)

Figure 9. SVS Reset (SVSR) vs Supply Voltage

V

CC(drop)

0

0.5

1

1.5

2

1 ns 1 ns

t

pw

− Pulse Width − μs

1 10 1000

t

f

t

r

t − Pulse Width − μs

100

t

f

= t

r

Rectangular Drop

V

CC(drop)

− V

Triangular Drop

3 V

V

CC

t

pw

3 V

V

CC

t

pw

V

CC(drop)

Figure 10. V

CC(drop)

With a Square Voltage Drop and a Triangle Voltage Drop to Generate an SVS Signal

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

25

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

DCO

PARAMETER TEST CONDITIONS V

CC

MIN TYP MAX UNIT

f

(DCOCLK)

N

(DCO)

=01Eh, FN_8=FN_4=FN_3=FN_2=0, D = 2; DCOPLUS= 0,

f

Crystal

= 32.768 kHz

3 V 1 MHz

f

(DCO=2)

FN_8=FN_4=FN_3=FN_2=0 ; DCOPLUS = 1 3 V 0.3 0.7 1.3 MHz

f

(DCO=27)

FN_8=FN_4=FN_3=FN_2=0; DCOPLUS = 1 3 V 2.7 6.1 11.3 MHz

f

(DCO=2)

FN_8=FN_4=FN_3=0, FN_2=1; DCOPLUS = 1 3 V 0.8 1.5 2.5 MHz

f

(DCO=27)

FN_8=FN_4=FN_3=0, FN_2=1; DCOPLUS = 1 3 V 6.5 12.1 20 MHz

f

(DCO=2)

FN_8=FN_4=0, FN_3= 1, FN_2=x; DCOPLUS = 1 3 V 1.3 2.2 3.5 MHz

f

(DCO=27)

FN_8=FN_4=0, FN_3= 1, FN_2=x; DCOPLUS = 1 3 V 10.3 17.9 28.5 MHz

f

(DCO=2)

FN_8=0, FN_4= 1, FN_3= FN_2=x; DCOPLUS = 1 3 V 2.1 3.4 5.2 MHz

f

(DCO=27)

FN_8=0, FN_4=1, FN_3= FN_2=x; DCOPLUS = 1 3 V 16 26.6 41 MHz

f

(DCO=2)

FN_8=1, FN_4=FN_3=FN_2=x; DCOPLUS = 1 3 V 4.2 6.3 9.2 MHz

f

(DCO=27)

FN_8=1,FN_4=FN_3=FN_2=x; DCOPLUS = 1 3 V 30 46 70 MHz

Step size between adjacent DCO taps:

1 < TAP ≤ 20 1.06 1.11

S

n

Step size between adjacent DCO taps:

Sn = f

DCO(Tap n+1)

/ f

DCO(Tap n)

, (see Figure 12 for taps 21 to 27)

TAP = 27 1.07 1.17

D

t

Temperature drift, N

(DCO)

= 01Eh, FN_8=FN_4=FN_3=FN_2=0

D = 2; DCOPLUS = 0

3 V –0.2 –0.3 –0.4 %/_C

D

V

Drift with VCC variation, N

(DCO)

= 01Eh, FN_8=FN_4=FN_3=FN_2=0

D = 2; DCOPLUS = 0

0 5 15 %/V

TA − °CVCC − V

f

(DCO)

f

(DCO205C)

f

(DCO)

f

(DCO3V)

1.8 3.02.4 3.6

1.0

20 6040 85

1.0

0−20−400

Figure 11. DCO Frequency vs Supply Voltage VCC and vs Ambient Temperature

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

26

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

12720

1.11

1.17

DCO Tap

S

n

- Stepsize Ratio between DCO Taps

Min

Max

1.07

1.06

Figure 12. DCO Tap Step Size

DCO Frequency
Adjusted by Bits
2

9

to 25 in SCFI1 {N

{DCO}

}

FN_2=0
FN_3=0
FN_4=0
FN_8=0

FN_2=1
FN_3=0
FN_4=0
FN_8=0

FN_2=x
FN_3=1
FN_4=0
FN_8=0

FN_2=x
FN_3=x
FN_4=1
FN_8=0

FN_2=x
FN_3=x
FN_4=x
FN_8=1

Legend

Tolerance at Tap 27

Tolerance at Tap 2

Overlapping DCO Ranges:
Uninterrupted Frequency Range

f

(DCO)

Figure 13. Five Overlapping DCO Ranges Controlled by FN_x Bits

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

27

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

crystal oscillator, LFXT1 oscillator (see Notes 1 and 2)

PARAMETER TEST CONDITIONS V

CC

MIN TYP MAX UNIT

OSCCAPx = 0h 3 V 0

Integrated input capacitance

OSCCAPx = 1h

3 V 10

C

XIN

Integrated input capacitance

(see Note 4)

OSCCAPx = 2h

3 V 14

pF

OSCCAPx = 3h 3 V 18
OSCCAPx = 0h 3 V 0

Integrated output capacitance

OSCCAPx = 1h

3 V 10

C

XOUT

Integrated output capacitance

(see Note 4)

OSCCAPx = 2h

3 V 14

pF

OSCCAPx = 3h 3 V 18

V

IL

V

SS

0.2×V

CC

V

IH

Input levels at XIN see Note 3 3 V

0.8×V

CC

V

CC

V

NOTES: 1. The parasitic capacitance from the package and board may be estimated to be 2pF. The effective load capacitor for the crystal is

(C

XIN

x C

XOUT

) / (C

XIN

+ C

XOUT

). It is independent of XTS_FLL.

2. To improve EMI on the low-power LFXT1 oscillator, particularly in the LF mode (32 kHz), the following guidelines must be
observed:

• Keep as short a trace as possible between the ’F42x and the crystal.

• Design a good ground plane around oscillator pins.

• Prevent crosstalk from other clock or data lines into oscillator pins XIN and XOUT.

• Avoid running PCB traces underneath or adjacent to XIN an XOUT pins.

• Use assembly materials and praxis to avoid any parasitic load on the oscillator XIN and XOUT pins.

• If conformal coating is used, ensure that it does not induce capacitive/resistive leakage between the oscillator pins.

• Do not route the XOUT line to the JTAG header to support the serial programming adapter as shown in other documentation.

This signal is no longer required for the serial programming adapter.

3. Applies only when using an external logic-level clock source. XTS_FLL must be set. Not applicable when using a crystal or resonator.

4. External capacitance is recommended for precision real-time clock applications; OSCCAPx = 0h.

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

28

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

SD16, power supply and recommended operating conditions

PARAMETER TEST CONDITIONS V

CC

MIN TYP MAX UNIT

AV

CC

Analog supply
voltage

AVCC = DV

CC

AVSS = DVSS = 0V

2.7 3.6 V

=

GAIN: 1, 2 3 V 650 950

Analog supply

SD16LP

= 0,

f

SD16

= 1 MHz,

GAIN: 4, 8, 16 3 V 730 1100

current: 1 active

f

SD16

1

MHz,

SD16OSR = 256

GAIN: 32 3 V 1050 1550

I

SD16

SD16 channel

including internal

SD16LP = 1,

GAIN: 1 3 V 620 930

μ

A

reference

f

SD16

= 0.5 MHz,

SD16OSR = 256

GAIN: 32 3 V 700 1060

Analog front-end

SD16LP = 0 (Low power mode disabled) 3 V 1

f

SD16

input clock
frequency

SD16LP = 1 (Low power mode enabled) 3 V 0.5

MHz

SD16, analog input range (see Note 1)

PARAMETER TEST CONDITIONS V

CC

MIN TYP MAX UNIT

SD16GAINx = 1, SD16REFON = 1 ±500

Differential input

SD16GAINx = 2, SD16REFON = 1 ±250

Differential input

voltage range for

SD16GAINx = 4, SD16REFON = 1 ±125

V

ID

specified

SD16GAINx = 8, SD16REFON = 1 ±62

mV

performance

(see Note 2)

SD16GAINx = 16, SD16REFON = 1 ±31

(see Note 2)

SD16GAINx = 32, SD16REFON = 1 ±15

Input impedance

f

SD16

= 1MHz, SD16GAINx = 1 3 V 200

Z

I

(one input pin
to AV

SS

)

f

SD16

= 1MHz, SD16GAINx = 32 3 V 75

kΩ

Differential

f

SD16

= 1MHz, SD16GAINx = 1 3 V 300 400

Z

ID

input impedance
(IN+ to IN−)

f

SD16

= 1MHz, SD16GAINx = 32 3 V 100 150

kΩ

V

I

Absolute input
voltage range

AVSS-

1.0V

AV

CC

V

V

IC

Common-mode
input voltage range

AVSS-

1.0V

AV

CC

V

NOTES: 1. All parameters pertain to each SD16 channel.

2. The analog input range depends on the reference voltage applied to V

REF

. If V

REF

is sourced externally, the full-scale range

is defined by V

FSR+

= +(V

REF

/2)/GAIN and V

FSR−

= −(V

REF

/2)/GAIN. The analog input range should not exceed 80% of

V

FSR+

or V

FSR−

.

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

29

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

SD16, analog performance (f

SD16

= 1MHz, SD16OSRx = 256, SD16REFON = 1)

PARAMETER TEST CONDITIONS V

CC

MIN TYP MAX UNIT

SD16GAINx = 1,Signal Amplitude = 500mV 3 V 83.5 85
SD16GAINx = 2,Signal Amplitude = 250mV 3 V 81.5 84

Signal-to-noise +

SD16GAINx = 4,Signal Amplitude = 125mV

fIN = 50Hz,

3 V 76 79.5

SINAD

Signal to noise +

distortion ratio

SD16GAINx = 8,Signal Amplitude = 62mV

f

IN

=

50Hz

,

100Hz

3 V 73 76.5

dB

SD16GAINx = 16,Signal Amplitude = 31mV 3 V 69 73
SD16GAINx = 32,Signal Amplitude = 15mV 3 V 62 69
SD16GAINx = 1 3 V 0.97 1.00 1.02
SD16GAINx = 2 3 V 1.90 1.96 2.02
SD16GAINx = 4 3 V 3.76 3.86 3.96

G

Nominal gain

SD16GAINx = 8 3 V 7.36 7.62 7.84
SD16GAINx = 16 3 V 14.56 15.04 15.52
SD16GAINx = 32 3 V 27.20 28.35 29.76
SD16GAINx = 1 3 V ±0.2

E

OS

Offset error

SD16GAINx = 32 3 V ±1.5

%FSR

Offset error

SD16GAINx = 1 3 V ±4 ±20

pp

m

dEOS/dT

temperature
coefficient

SD16GAINx = 32 3 V ±20 ±100

ppm

FSR/_C

Common-mode

SD16GAINx = 1, Common-mode input signal:
V

ID

= 500 mV, fIN = 50 Hz, 100 Hz

3 V >90

CMRR

Common mode

rejection ratio

SD16GAINx = 32, Common-mode input signal:
V

ID

= 16 mV, fIN = 50 Hz, 100 Hz

3 V >75

dB

AC PSRR

AC power supply
rejection ratio

SD16GAINx = 1, VCC = 3 V ± 100 mV, f

VCC

= 50 Hz 3 V >80 dB

X

T

Crosstalk 3 V <−100 dB

SD16, built-in temperature sensor

PARAMETER TEST CONDITIONS V

CC

MIN TYP MAX UNIT

TC

Sensor

Sensor temperature
coefficient

1.18 1.32 1.46 mV/K

V

Offset,sensor

Sensor offset
voltage

−100 100 mV

Temperature sensor voltage at TA = 85°C 3 V 435 475 515

V

Sensor

Sensor output

Temperature sensor voltage at TA = 25°C 3 V 355 395 435

mV

V

Sensor

voltage (see Note

2)

Temperature sensor voltage at TA = 0°C 3 V 320 360 400

mV

NOTES: 1. The following formula can be used to calculate the temperature sensor output voltage:

V

Sensor,typ

= TC

Sensor

( 273 + T [°C] ) + V

Offset,sensor

[mV]

2. Results based on characterization and/or production test, not TC

Sensor

or V

Offset,sensor

.

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

30

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

SD16, built-in voltage reference

PARAMETER TEST CONDITIONS V

CC

MIN TYP MAX UNIT

V

REF

Internal reference
voltage

SD16REFON = 1, SD16VMIDON = 0 3 V 1.14 1.20 1.26 V

I

REF

Reference supply
current

SD16REFON = 1, SD16VMIDON = 0 3 V 175 260 μA

TC

Temperature
coefficient

SD16REFON = 1, SD16VMIDON = 0 3 V 20 50 ppm/K

C

REF

V

REF

load

capacitance

SD16REFON = 1, SD16VMIDON = 0 (see Note 1) 100 nF

I

LOAD

V

REF

maximum load

current

SD16REFON = 0 3 V ±200 nA

t

ON

Turn-on time SD16REFON = 0 → 1, SD16VMIDON = 0, C

REF

= 100 nF 3 V 5 ms

DC PSR

DC power supply
rejection,
ΔV

REF

/ΔV

CC

SD16REFON = 1, SD16VMIDON = 0, VCC = 2.5 V to 3.6 V 200 μV/V

NOTES: 1. There is no capacitance required on V

REF

. However, a capacitance of at least 100nF is recommended to reduce any reference

voltage noise.

SD16, built-in reference output buffer

PARAMETER TEST CONDITIONS V

CC

MIN TYP MAX UNIT

V

REF,BUF

Reference buffer
output voltage

SD16REFON = 1, SD16VMIDON = 1 3 V 1.2 V

I

REF,BUF

Reference Supply +
Reference output
buffer quiescent
current

SD16REFON = 1, SD16VMIDON = 1 3 V 385 600 μA

C

REF(O)

Required load
capacitance on
V

REF

SD16REFON = 1, SD16VMIDON = 1 470 nF

I

LOAD,Max

Maximum load
current on V

REF

SD16REFON = 1, SD16VMIDON = 1 3 V ±1 mA

Maximum voltage
variation vs. load
current

|I

LOAD

| = 0 to 1mA 3 V −15 +15 mV

t

ON

Turn-on time SD16REFON = 0 → 1, SD16VMIDON = 1, C

REF

= 470 nF 3 V 100 μs

SD16, external reference input

PARAMETER TEST CONDITIONS V

CC

MIN TYP MAX UNIT

V

REF(I)

Input voltage range SD16REFON = 0 3 V 1.0 1.25 1.5 V

I

REF(I)

Input current SD16REFON = 0 3 V 50 nA

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

31

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

electrical characteristics over recommended operating free-air temperature (unless otherwise
noted) (continued)

Flash Memory

PARAMETER

TEST

CONDITIONS

V

CC

MIN NOM MAX UNIT

V

CC(PGM/

ERASE)

Program and Erase supply voltage 2.7 3.6 V

f

FTG

Flash Timing Generator frequency 257 476 kHz

I

PGM

Supply current from DVCC during program 2.7 V/ 3.6 V 3 5 mA

I

ERASE

Supply current from DVCC during erase 2.7 V/ 3.6 V 3 7 mA

t

CPT

Cumulative program time see Note 1 2.7 V/ 3.6 V 10 ms

t

CMErase

Cumulative mass erase time see Note 2 2.7 V/ 3.6 V 200 ms
Program/Erase endurance 10

4

10

5

cycles

t

Retention

Data retention duration TJ = 25°C 100 years

t

Word

Word or byte program time 35

t

Block, 0

Block program time for 1st byte or word 30

t

Block, 1-63

Block program time for each additional byte or word

21

t

Block, End

Block program end-sequence wait time

see Note 3

6

t

FTG

t

Mass Erase

Mass erase time 5297

t

Seg Erase

Segment erase time 4819

NOTES: 1. The cumulative programming time must not be exceeded when writing to a 64-byte flash block. This parameter applies to all

programming methods: individual word/byte write and block write modes.

2. The mass erase duration generated by the flash timing generator is at least 11.1ms ( = 5297x1/f

FTG

,max = 5297x1/476kHz). To
achieve the required cumulative mass erase time the Flash Controller’s mass erase operation can be repeated until this time is met.
(A worst case minimum of 19 cycles are required).

3. These values are hardwired into the Flash Controller’s state machine (t

FTG

= 1/f

FTG

).

JTAG Interface

PARAMETER

TEST

CONDITIONS

V

CC

MIN NOM MAX UNIT

2.2 V 0 5 MHz

f

TCK

TCK input frequency see Note 1

3 V 0 10 MHz

R

Internal

Internal pull-up resistance on TMS, TCK, TDI/TCLK see Note 2 2.2 V/ 3 V 25 60 90 kΩ

NOTES: 1. f

TCK

may be restricted to meet the timing requirements of the module selected.

2. TMS, TDI/TCLK, and TCK pull-up resistors are implemented in all versions.

JTAG Fuse (see Note 1)

PARAMETER

TEST

CONDITIONS

V

CC

MIN NOM MAX UNIT

V

CC(FB)

Supply voltage during fuse-blow condition TA = 25°C 2.5 V

V

FB

Voltage level on TDI/TCLK for fuse-blow 6 7 V

I

FB

Supply current into TDI/TCLK during fuse-blow 100 mA

t

FB

Time to blow fuse 1 ms

NOTES: 1. Once the fuse is blown, no further access to the MSP430 JTAG/Test and emulation features is possible. The JTAG block is switched

to bypass mode.

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

32

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

input/output schematic

Port P1, P1.0 to P1.1, input/output with Schmitt-trigger

P1OUT.x

Module X OUT

P1DIR.x

Direction Control

From Module

P1SEL.x

D

EN

Interrupt

Edge

Select

P1IES.x P1SEL.x

P1IE.x

P1IFG.x

P1IRQ.x

EN

Set

Q

0

1

1
0

Pad Logic

0: Input
1: Output

Bus
keeper

CAPD.x

PnSEL.x PnDIR.x

Direction

From Module

PnOUT.x

Module X

OUT

PnIN.x

PnIE.x

PnIFG.x

PnIES.x

Module X IN

P1SEL.1 P1DIR.1 P1OUT.1 P1IN.1 P1IE.1 P1IFG.1 P1IES.1

P1SEL.0

P1DIR.0

P1OUT.0

P1IN.0

P1IE.0 P1IFG.0 P1IES.0

P1DIR.1

P1DIR.0

MCLK

Module X IN

P1IN.x

P1.0/TA0
P1.1/TA0/MCLK

Control

NOTE: 0 ≤ x ≤ 1.

Port Function is Active if CAPD.x = 0

†

Timer_A3

Out0 Sig.

†

CCI0A

†

CCI0B

†

CAPD.x

DVSS

DVSS

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

33

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

input/output schematic (continued)

Port P1, P1.2 to P1.7, input/output with Schmitt-trigger

DVSS

P1OUT.x

Module X OUT

P1DIR.x

Direction Control

From Module

P1SEL.x

D

EN

Interrupt

Edge

Select

P1IES.x P1SEL.x

P1IE.x

P1IFG.x

P1IRQ.x

EN

Set

Q

0

1

1
0

Pad Logic

0: Input
1: Output

Bus
keeper

DVSS

PnSEL.x PnDIR.x

Direction

From Module

PnOUT.x

Module X

OUT

PnIN.x

PnIE.x

PnIFG.x

PnIES.x

Module X IN

P1SEL.7 P1DIR.7 P1OUT.7 P1IN.7 P1IE.7 P1IFG.7 P1IES.7

P1SEL.2 P1DIR.2 P1OUT.2 P1IN.2 P1IE.2 P1IFG.2 P1IES.2

P1SEL.3 P1DIR.3 P1OUT.3 P1IN.3 P1IE.3 P1IFG.3 P1IES.3

P1SEL.4 P1DIR.4

P1OUT.4 P1IN.4 P1IE.4 P1IFG.4 P1IES.4

P1SEL.5 P1DIR.5 P1OUT.5 P1IN.5 P1IE.5 P1IFG.5 P1IES.5

P1SEL.6

P1DIR.6

P1OUT.6

P1IN.6

P1IE.6 P1IFG.6 P1IES.6

SVSOUT

DCM_SOMI

P1DIR.2

P1DIR.3

P1DIR.4

P1DIR.5

DCM_SIMO

ACLK

Module X IN

P1IN.x

P1.5/TACLK/ACLK/S28

P1.2/TA1/S31

P1.4/S29

P1.3/SVSOUT/S30

Control

NOTE: 2 ≤ x ≤ 7.

Port Function is Active if Port/LCD = 0

†

Timer_A3

‡

USART0

SIMO0(o)

‡

Out1 Sig.

†

CCI1A

†

unused

unused

TACLK

†

P1.7/SOMI0/S26

P1.6/SIMO0/S27

Segment xx

Port/LCD

Port/LCD

Segment

S26

S31

S30

S29

S28

S27

SOMI0(o)

‡

SIMO0(i)

‡

SOMI0(i)

‡

0: LCDM

< 0E0h

1: LCDM

≥ 0E0h

0: LCDM

< 0C0h

1: LCDM

≥ 0C0h

SYNC

MM

STC
STE

SYNC

MM
STC
STE

DCM_SOMI

DCM_SIMO

Direction Control for SOMI0

Direction Control for SIMO0

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

34

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

input/output schematic (continued)

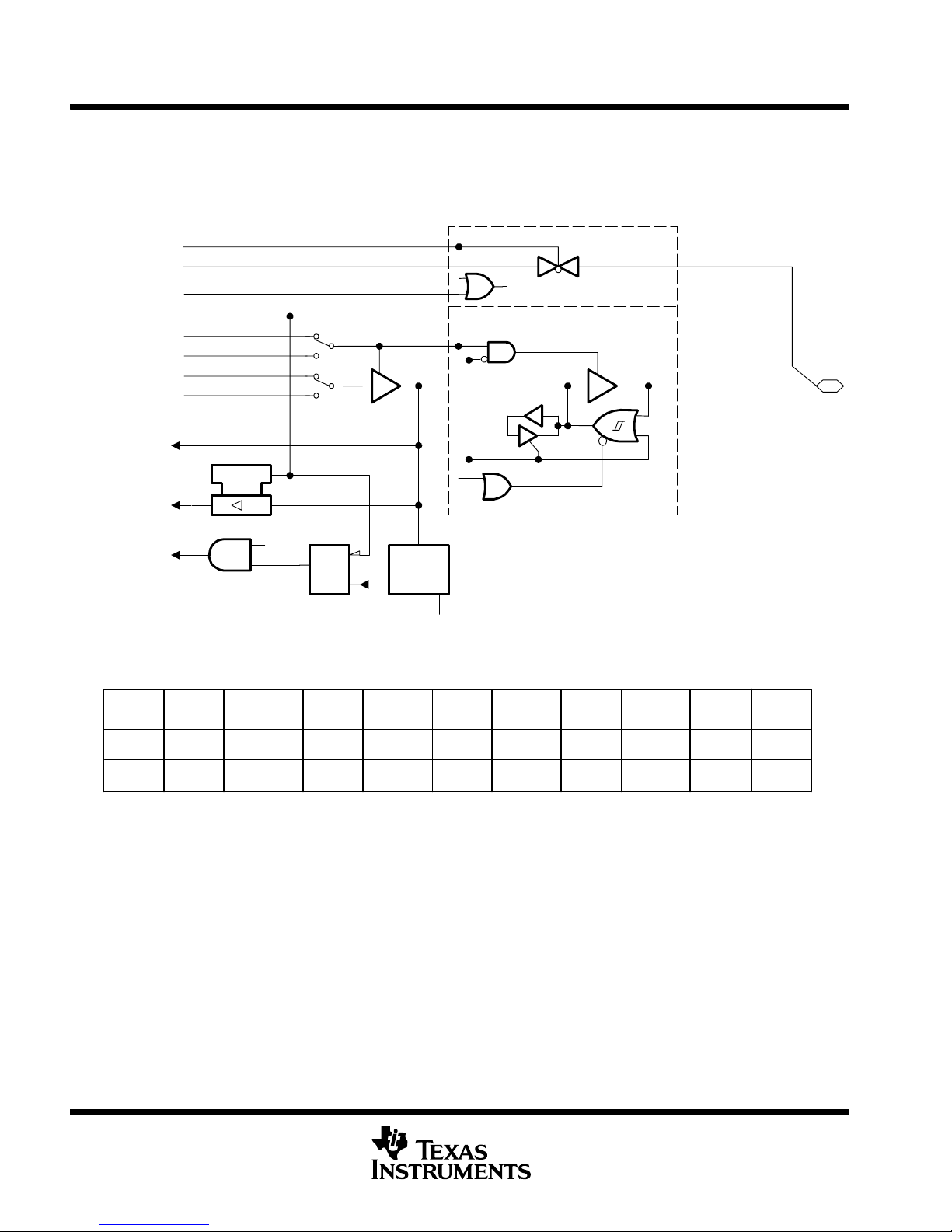

port P2, P2.0 to P2.1, input/output with Schmitt-trigger

P2OUT.x

Module X OUT

P2DIR.x

Direction Control

From Module

P2SEL.x

D

EN

Interrupt

Edge

Select

P2IES.x P2SEL.x

P2IE.x

P2IFG.x

P2IRQ.x

EN

Set

Q

0

1

1

0

PnSel.x PnDIR.x

Dir. Control

from module

PnOUT.x

Module X

OUT

PnIN.x PnIE.x PnIFG.x PnIES.xModule X IN

0: Port active
1: Segment xx function active

P2Sel.0 P2DIR.0

P2Sel.1 P2DIR.1

P2DIR.0

DCM_UCLK

P2OUT.0

P2OUT.1

P2IN.0

P2IN.1 UCLK0(i)

Out2sig.

UCLK0(o)

P2IE.0

P2IE.1

P2IFG.0

P2IFG.1

P2IES.0

P2IES.1

Module X IN

P2IN.x

Pad Logic

0: Input
1: Output

Bus
Keeper

CCI2A

Port/LCD

Port/LCD

Segment xx

P2.0/TA2/S25

P2.1/UCLK0/S24

†

†

Timer_A3

‡

USART0

‡

†

‡

Segment

S25

S24

0: LCDM

< 0E0h

1: LCDM

≥ 0E0h

NOTE: 0 ≤ x ≤ 1.

Port Function is Active if Port/LCD = 0

SYNC

MM

STC

STE

DCM_UCLK

Direction Control for UCLK0

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

35

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

input/output schematic (continued)

port P2, P2.2 to P2.5, input/output with Schmitt-trigger

DVSS

P2OUT.x

Module X OUT

P2DIR.x

Direction Control

From Module

P2SEL.x

D

EN

Interrupt

Edge

Select

P2IES.x P2SEL.x

P2IE.x

P2IFG.x

P2IRQ.x

EN

Set

Q

0

1

1
0

Pad Logic

0: Input
1: Output

Bus
keeper

CAPD.x

PnSEL.x PnDIR.x

Direction

From Module

PnOUT.x

Module X

OUT

PnIN.x

PnIE.x

PnIFG.x

PnIES.x

Module X IN

P2SEL.2 P2DIR.2 P2OUT.2 P2IN.2 P2IE.2 P2IFG.2 P2IES.2

P2SEL.3 P2DIR.3 P2OUT.3 P2IN.3 P2IE.3 P2IFG.3 P2IES.3

P2SEL.4 P2DIR.4

P2OUT.4 P2IN.4 P2IE.4 P2IFG.4 P2IES.4

P2SEL.5 P2DIR.5 P2OUT.5 P2IN.5 P2IE.5 P2IFG.5 P2IES.5

DVSS

DVSS

P2DIR.3

DVCC

DVSS DVSS

Module X IN

P2IN.x

P2.5/URXD0

P2.2/STE0

P2.4/UTXD0

P2.3/SVSIN

Control

NOTE: 2 ≤ x ≤ 5

Port function is active if CAPD.x = 0

†

USART0

UTXD0

†

STE0

†

unused

unused

URXD0

†

DVSS

DVSS

CAPD.x

To BrownOut/SVS for P2.3/SVSIN

DVSS

SVSCTL VLD

DVSS

DVSS

= 1111 b

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

36

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

input/output schematic (continued)

Port P2, unbonded GPIOs P2.6 and P2.7

EN

D

0

1

0

1

Interrupt

Edge

Select

EN

Set

Q

P2IE.x

P2IFG.x

P2IRQ.x

Interrupt
Flag

P2IES.x

P2SEL.x

Module X IN

P2IN.x

P2OUT.x

Module X OUT

Direction Control

From Module

P2DIR.x

P2SEL.x

Bus Keeper

0

1

0: Input
1: Output

Node Is Reset With PUC

PUC

NOTE: x = Bit/identifier, 6 to 7 for port P2 without external pins

P2Sel.x

P2DIR.x

DIRECTION

CONTROL

FROM MODULE

P2OUT.x MODULE X OUT P2IN.x MODULE X IN P2IE.x P2IFG.x P2IES.x

P2Sel.6 P2DIR.6 P2DIR.6 P2OUT.6 DV

SS

P2IN.6 unused P2IE.6 P2IFG.6 P2IES.6

P2Sel.7 P2DIR.7 P2DIR.7 P2OUT.7 DV

SS

P2IN.7 unused P2IE.7 P2IFG.7 P2IES.7

NOTE: Unbonded GPIOs 6 and 7 of port P2 can be used as interrupt flags. Only software can affect the interrupt flags. They work as software

interrupts.

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

37

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

JTAG pins TMS, TCK, TDI/TCLK, TDO/TDI, input/output with Schmitt-trigger or output

TDI

TDO

TMS

TDI/TCLK

TDO/TDI

Controlled

by JTAG

TCK

TMS

TCK

DV

CC

Controlled by JTAG

Test

JTAG

and

Emulation

Module

DV

CC

DV

CC

Burn and Test

Fuse

G

D
S

U

G

D
S

U

TCK

Tau ~ 50 ns

Brownout

Controlled by JTAG

RST/NMI

MSP430F42x
MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

38

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

APPLICATION INFORMATION

JTAG fuse check mode

MSP430 devices that have the fuse on the TDI/TCLK terminal have a fuse check mode that tests the continuity
of the fuse the first time the JTAG port is accessed after a power-on reset (POR). When activated, a fuse check
current, I

TF

, of 1.8 mA at 3 V can flow from the TDI/TCLK pin to ground if the fuse is not burned. Care must be

taken to avoid accidentally activating the fuse check mode and increasing overall system power consumption.
Activation of the fuse check mode occurs with the first negative edge on the TMS pin after power up or if the

TMS is being held low during power up. The second positive edge on the TMS pin deactivates the fuse check
mode. After deactivation, the fuse check mode remains inactive until another POR occurs. After each POR the
fuse check mode has the potential to be activated.

The fuse check current only flows when the fuse check mode is active and the TMS pin is in a low state (see
Figure 14). Therefore, the additional current flow can be prevented by holding the TMS pin high (default
condition).

The JTAG pins are terminated internally, and therefore do not require external termination.

Time TMS Goes Low After POR

TMS

I

TF

I

TDI/TCLK

Figure 14. Fuse Check Mode Current, MSP430F42x

MSP430F42x

MIXED SIGNAL MICROCONTROLLER

SLAS421A − APRIL 2004 − REVISED JUNE 2007

39

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

Data Sheet Revision History

Literature

Number

Summary

SLAS421 Production datasheet release

SLAS421A

Updated functional block diagram (page 3)
Clarified test conditions in recommended operating conditions table (page 17)
Changed “Supply voltage during program execution; SD16 disabled, SVS enabled, and PORON = 1” MIN value from 2.2 V
to 2.0 V (page 17)
Clarified test conditions for I

(LPM0)

in supply current into AVCC + DVCC table (page 18)
Clarified test conditions in USART0 table (page 21)
Changed PSRR to AC PSRR in SD16 analog performance table (page 29)
Added DC PSR in SD16, built-in voltage reference table (page 30)
Added t

ON

parameter to SD16, built-in voltage reference and SD16, built-in reference output buffer tables (page 30)

Changed t

CPT

maximum value from 4 ms to 10 ms in Flash memory table (page 31)

NOTE: Page and figure numbers refer to the respective document revision.

PACKAGE OPTION ADDENDUM

www.ti.com

15-Nov-2006

PACKAGING INFORMATION

Orderable Device Status

(1)

Package

Type

Package
Drawing

Pins Package

Qty

Eco Plan

MSP430F423IPM ACTIVE LQFP PM 64 160 Green (RoHS &

no Sb/Br)

MSP430F423IPMR ACTIVE LQFP PM 64 1000 Green (RoHS &

no Sb/Br)

MSP430F425IPM ACTIVE LQFP PM 64 160 Green (RoHS &

no Sb/Br)

MSP430F425IPMR ACTIVE LQFP PM 64 1000 Green (RoHS &

no Sb/Br)

MSP430F427IPM ACTIVE LQFP PM 64 160 Green (RoHS &

no Sb/Br)

MSP430F427IPMR ACTIVE LQFP PM 64 1000 Green (RoHS &

no Sb/Br)

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in

a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-3-260C-168 HR

CU NIPDAU Level-3-260C-168 HR

CU NIPDAU Level-3-260C-168 HR

CU NIPDAU Level-3-260C-168 HR

CU NIPDAU Level-3-260C-168 HR

CU NIPDAU Level-3-260C-168 HR

(3)

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check

http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements

for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered
at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and
package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS
compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame
retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder

temperature.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is
provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the
accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take
reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on
incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited
information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI
to Customer on an annual basis.

Addendum-Page 1

MECHANICAL DATA

MTQF008A – JANUARY 1995 – REVISED DECEMBER 1996

PM (S-PQFP-G64) PLASTIC QUAD FLATPACK

49

64

0,50

48

0,27
0,17

33

1

7,50 TYP
10,20

SQ

9,80

12,20

SQ

11,80

16

0,08

32

17

M

0,05 MIN

0,13 NOM

Gage Plane

0,25

0°–7°

1,45
1,35

1,60 MAX

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.
C. Falls within JEDEC MS-026
D. May also be thermally enhanced plastic with leads connected to the die pads.

0,75
0,45

Seating Plane

0,08

4040152/C 11/96

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

1

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements,
improvements, and other changes to its products and services at any time and to discontinue any product or service without notice.
Customers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s
standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this
warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily
performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should
provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask
work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services
are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such
products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under
the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of information in TI data books or data sheets is permissible only if reproduction is without alteration and is
accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an
unfair and deceptive business practice. TI is not responsible or liable for such altered documentation.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service
voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business
practice. TI is not responsible or liable for any such statements.

TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would
reasonably be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement
specifically governing such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications
of their applications, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related
requirements concerning their products and any use of TI products in such safety-critical applications, notwithstanding any
applications-related information or support that may be provided by TI. Further, Buyers must fully indemnify TI and its
representatives against any damages arising out of the use of TI products in such safety-critical applications.

TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is
solely at the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in
connection with such use.

TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products
are designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any
non-designated products in automotive applications, TI will not be responsible for any failure to meet such requirements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio
Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DSP dsp.ti.com Broadband www.ti.com/broadband
Interface interface.ti.com Digital Control www.ti.com/digitalcontrol
Logic logic.ti.com Military www.ti.com/military
Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork
Microcontrollers microcontroller.ti.com Security www.ti.com/security
RFID www.ti-rfid.com Telephony www.ti.com/telephony
Low Power www.ti.com/lpw Video & Imaging www.ti.com/video

Wireless

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Wireless www.ti.com/wireless

Copyright © 2007, Texas Instruments Incorporated
