User's Guide
SNVU636–November 2018
LMR36015xxxEVM User’s Guide
The Texas Instruments LMR36015FSCEVM and LMR36015AEVM evaluation modules (EVM) help
designers evaluate the operation and performance of the LMR36015-Q1 wide-input buck regulators. The
LMR36015-Q1 is an easy-to-use synchronous step-down DC/DC converter capable of driving up to 1.5 A
of load current from an input voltage of up to 60 V. The LMR36015FSCEVM features a selectable output
voltage of 3.3 V or 5 V and a switching frequency of 2.1 MHz. The LMR36015AEVM features a selectable
output voltage of 3.3 V or 5 V and a switching frequency of 400 kHz. See the LMR36015-Q1 data sheets
for additional features, detailed descriptions, and available options.
The EVM options are found in Table 1.
Table 1. Device and Package Configurations
EVM U1 FREQUENCY FPWM SPREAD SPECTRUM CURRENT
LMR36015AEVM LMR36015-Q1 400 kHz Disabled Disabled 1.5 A
LMR36015FSCEVM LMR36015-Q1 2.1 MHz Enabled Enabled 1.5 A
Contents
1 Posts, Probes, and Jumpers ............................................................................................... 3
2 Operation ..................................................................................................................... 5
3 Schematic..................................................................................................................... 6
4 Board Layout ................................................................................................................. 7
5 Bill of Materials ............................................................................................................. 13
6 Test Results................................................................................................................. 14
1 EVM Board Connections.................................................................................................... 3
2 Jumper Locations............................................................................................................ 4
3 LMR36015xxxEVM Schematic............................................................................................. 6
4 Top View of EVM ............................................................................................................ 7
5 EVM Top Copper Layer..................................................................................................... 8
6 EVM Mid Layer One......................................................................................................... 9
7 EVM Mid Layer Two ....................................................................................................... 10
8 EVM Bottom Copper Layer ............................................................................................... 11
9 EVM Bottom View.......................................................................................................... 12
10 LMR36015AEVM 5 V
11 LMR36015AEVM 3.3 V
12 LMR36015AEVM 5 V
13 LMR36015AEVM 3.3 V
14 LMR36015AEVM 5 V
15 LMR36015AEVM 3.3 V
16 LMR36015AEVM 5 V
17 LMR36015AEVM 3.3 V
18 LMR36015A Low Frequency Conducted EMI Results for 5 V
19 LMR36015AEVM High Frequency Conducted EMI Results for 5 V
SNVU636–November 2018
Submit Documentation Feedback
List of Figures
Efficiency ...................................................................................... 14
OUT
Efficiency .................................................................................... 14
OUT
Load Regulation .............................................................................. 14
OUT
Load Regulation............................................................................ 14
OUT
Load Transient, 24 VIN, I
OUT
Load Transient, 24 VIN, I
OUT
Start-Up Waveform, 24 V
OUT
Start-Up Waveform, 24 V
OUT
Copyright © 2018, Texas Instruments Incorporated
= 0 A to 1.5 A, TR= T
OUT
= 0 A to 1.5 A, TR= T
OUT
,1.5 A Load .................................................... 15
IN
,1.5 A Load.................................................. 15
IN
(Blue-Average and Yellow-Peak) ........... 16
OUT
OUT
= 1 µs.............................. 15
F
= 1 µs............................ 15
F
(Blue-Average and Yellow-Peak)...... 16
LMR36015xxxEVM User’s Guide
1
www.ti.com
20 LMR36015FSCEVM 5 V
21 LMR36015FSCEVM 3.3 V
22 LMR36015FSCEVM 5 V
23 LMR36015FSCEVM 3.3 V
24 LMR36015FSCEVM 5 V
25 LMR36015FSCEVM 3.3 V
26 LMR36015FSCEVM 5 V
27 LMR36015FSCEVM 3.3 V
28 LMR36015FSCEVM Low Frequency Conducted EMI Results for 3.3 V
29 LMR36015FSCEVM High Frequency Conducted EMI Results for 3.3 V
1 Device and Package Configurations ...................................................................................... 1
2 Bill of Materials ............................................................................................................. 13
Trademarks
All trademarks are the property of their respective owners.
Efficiency................................................................................... 17
OUT
Efficiency................................................................................. 17
OUT
Load Regulation........................................................................... 17
OUT
Load Regulation ........................................................................ 17
OUT
Load Transient, 12 VIN, I
OUT
Load Transient, 12 VIN, I
OUT
Start-Up Waveform, 12 V
OUT
Start-Up Waveform, 24 V
OUT
Average and Yellow-Peak)................................................................................................ 19
Average and Yellow-Peak)................................................................................................ 19
= 0 A to 1.5 A, TR= T
OUT
= 0 A to 1.5 A, TR= T
OUT
,1.5 A Load................................................. 18
IN
,1.5 A Load .............................................. 18
IN
OUT
= 1 µs .......................... 18
F
= 1 µs........................ 18
F
With Spread Spectrum (Blue-
With Spread Spectrum (Blue-
OUT
List of Tables
2
LMR36015xxxEVM User’s Guide
Copyright © 2018, Texas Instruments Incorporated
SNVU636–November 2018
Submit Documentation Feedback
VOUT
Connection:
Load
VIN
Connection
with EMI Filter:
Input Supply
VIN
Connection:
Input Supply
www.ti.com
1 Posts, Probes, and Jumpers
This section describes the test points and connectors on the EVM and how to properly connect, set up,
and use the LMR36015AEVM and the LMR36015FSCEVM.
1.1 Screw Terminal Connectors
The screw terminals on the top of the board can be used for connecting to the input and output of the
EVM. See Figure 1 for the screw terminal connections. The functions of the screw terminal connections
are:
• VIN - Input supply to EVM. Connect to a suitable input supply. See LMR36015-Q1 data sheet for input
supply requirements.
• GND - System ground.
• IN+ - Input supply to EVM including an EMI filter. Connect to a suitable input supply. See LMR36015-
Q1 data sheet for input supply requirements.
• IN– - System ground including an EMI filter.
• VOUT - Output of EVM — connect to desired load.
Posts, Probes, and Jumpers
SNVU636–November 2018
Submit Documentation Feedback
Figure 1. EVM Board Connections
Copyright © 2018, Texas Instruments Incorporated
LMR36015xxxEVM User’s Guide
3
Power Good
Jumper
Enable Jumper
Feedback
Jumper
Posts, Probes, and Jumpers
1.2 Jumpers
See Figure 2 for jumper locations.
• EN - This jumper allows the ENABLE input to be connected to either GND (OFF) or VIN (ON). The 2to-3 position enables the device; while the 1-to-2 position disables the device. Remove this jumper to
allow an external logic signal to control the EN function.
• VOUT - Use this jumper to select one of the two pre-defined output voltages. The 2-to-3 position
provides a 3.3-V output; while the 1-to-2 position provides a 5-V output.
• PGOOD - Use this jumper to select the PGOOD pullup configuration. PGOOD can be connected to
either VOUT or VCC. The 2-to-3 position connects PGOOD to VOUT, while the 1-to-2 position
connects PGOOD to VCC.
www.ti.com
1.3 Test Points
• VOUTS - Output voltage sense connection; connect to DMM. Also, use for frequency response
analyzer connection.
• VINS - Input voltage sense connection; connect to DMM.
• GNDS1 and GNDS2 - Ground sense point for analog measurements; connect to DMM.
• VCC - Test point to measure internal VCC of device; approximately 5 V.
• EN - Connection for external EN logic input. Remove EN jumper and connect controlling logic to EN
test point for external enable control.
• PGOOD - Power-good flag output. This test point is connected to VCC or VOUT through a 100-kΩ
resistor. The power-good function can be monitored at this test point.
Figure 2. Jumper Locations
4
LMR36015xxxEVM User’s Guide
Copyright © 2018, Texas Instruments Incorporated
SNVU636–November 2018
Submit Documentation Feedback
www.ti.com
2 Operation
2.1 Quick Start
1. Connect the voltage supply between VIN and GND screw terminal connectors using short and thick
wires.
2. Connect the load between VOUT and GND screw terminal connectors using short and thick wires.
3. Set the supply voltage at an appropriate level between 4.2 V to 60 V. Set the current limit of the supply
to an appropriate level.
4. Turn on the power supply. With the default configuration, the EVM powers up and provides V
5. Monitor the output voltage. The maximum load current must be 1.5 A with the LMR36015-Q1 device.
2.2 Efficiency Measurement
1. Connect power supply to VIN and GND screw terminal connectors and make sure the power supply
provides sufficient current.
NOTE: There is no reverse polarity protection or fuse on the evaluation board.
2. Connect electronic load to VOUT and GND screw terminal connectors. For all power wires it is
preferable to use twisted lab wires. If the power supply wires are very long > 50 cm, solder an
additional 470-µF, 100-V bulk capacitor to posts VIN and GND. Use sufficient power wires to avoid
voltage drops, and use short sense probe connection for the measurement.
Operation
= 5 V.
OUT
NOTE: These sense lines are not designed to carry power.
3. To accurately sense input and output voltage use the test points VINS, VOUTS, and GNDS.
Alternatively, sense wires can be soldered directly over input capacitors C
capacitors CO1or CO2.
4. Make sure the IC is enabled by having jumper J5 set to [EN-VIN] and check that test point EN is driven
high. While measuring IQ(unloaded input current) remove all the input and output voltage probes that
are most likely causing additional current draw.
2.3 Measure Load Transient
1. Connect power supply to VIN and GND screw terminal connectors, and make sure the power supply
can provide sufficient peak current.
NOTE: There is no reverse polarity protection or fuse on the evaluation board.
2. Connect transient load to VOUT and GND screw terminal connectors. For all power wires use
preferable twisted lab wires. If the power supply wires are very long > 50 cm, solder an additional 470µF, 100-V bulk capacitor to posts VIN and GND. Use short sense probe connection for the
measurement.
3. To accurately sense the output voltage, place the scope probe directly over the output capacitors C
or CO2. Make sure to connect scope probe GND ring directly to the output capacitor GND pad for
minimal ground loop. Ground loops can introduce ringing in observed waveforms, which is an artifact
and not present on the PCB. Alternatively, use differential probe over output capacitors CO1or CO2. Do
not use wires to differential probe and always probe directly with shortest possible pins. Make sure the
IC is enabled by having jumper J5 set to [EN-VIN] and check test point EN is driven high and not
drooping during the load transient.
IN1
or C
and the output
IN2
O1
SNVU636–November 2018
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
LMR36015xxxEVM User’s Guide
5
Schematic
3 Schematic
www.ti.com
Figure 3. LMR36015xxxEVM Schematic
6
LMR36015xxxEVM User’s Guide
SNVU636–November 2018
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
www.ti.com
4 Board Layout
Board Layout
SNVU636–November 2018
Submit Documentation Feedback
Figure 4. Top View of EVM
Copyright © 2018, Texas Instruments Incorporated
LMR36015xxxEVM User’s Guide
7
Board Layout
www.ti.com
Figure 5. EVM Top Copper Layer
8
LMR36015xxxEVM User’s Guide
Copyright © 2018, Texas Instruments Incorporated
SNVU636–November 2018
Submit Documentation Feedback
www.ti.com
Board Layout
SNVU636–November 2018
Submit Documentation Feedback
Figure 6. EVM Mid Layer One
Copyright © 2018, Texas Instruments Incorporated
LMR36015xxxEVM User’s Guide
9
Board Layout
www.ti.com
10
LMR36015xxxEVM User’s Guide
Figure 7. EVM Mid Layer Two
Copyright © 2018, Texas Instruments Incorporated
SNVU636–November 2018
Submit Documentation Feedback
www.ti.com
Board Layout
SNVU636–November 2018
Submit Documentation Feedback
Figure 8. EVM Bottom Copper Layer
Copyright © 2018, Texas Instruments Incorporated
LMR36015xxxEVM User’s Guide
11
Board Layout
www.ti.com
12
LMR36015xxxEVM User’s Guide
Figure 9. EVM Bottom View
Copyright © 2018, Texas Instruments Incorporated
SNVU636–November 2018
Submit Documentation Feedback
www.ti.com
5 Bill of Materials
Designator Description Manufacturer Part Number Quantity
C5 CAP, AL, 68 µF, 63 V, +/- 20%, 0.65 ohm,
C7, C8 CAP, CERM, 2.2 µF, 100 V,+/- 10%, X7R,
C9, C10, C13 CAP, CERM, 0.047 µF, 100 V, +/- 10%,
C11 CAP, CERM, 4.7 µF, 100 V, +/- 10%, X7S,
C16 CAP, CERM, 0.1 uF, 25 V, +/- 10%, X7R,
C17 CAP, CERM, 1 uF, 25 V, +/- 10%, X7R,
C18 CAP, CERM, 22 pF, 50 V,+/- 5%, C0G/NP0,
H1, H2, H3, H4 Machine Screw, Round, #4-40 x 1/4, Nylon,
H5, H6, H7, H8 Standoff, Hex, 0.5"L #4-40 Nylon Keystone 1902C 4
J1, J2, J3 Terminal Block, 3.5mm Pitch, 2x1, TH On-Shore
J4, J5, J6 Header, 100mil, 3x1, Gold, TH Samtec HTSW-103-07-G-S 3
L2 Inductor, Shielded, Composite, 1 uH, 8.75 A,
L3 Ferrite Bead, 600 ohm @ 100 MHz, 3 A,
LBL1 Thermal Transfer Printable Labels, 0.650" W
R1, R2 RES, 10.0 k, 1%, 0.1 W, 0603 Vishay-Dale CRCW060310K0FKEA 2
R3 RES, 100 k, 1%, 0.1 W, 0603 Vishay-Dale CRCW0603100KFKEA 1
R4 RES, 135 k, 0.1%, 0.1 W, 0603 Yageo America RT0603BRD07135KL 1
R5 RES, 100 k, 1%, 0.1 W, 0603 Yageo America RC0603FR-07100KL 1
R6 RES, 24.9 k, 1%, 0.1 W, 0603 Vishay-Dale CRCW060324K9FKEA 1
SH-J1, SH-J2,
SH-J3
TP1, TP4 Test Point, Multipurpose, Red, TH Keystone 5000 2
TP2, TP3 Test Point, Multipurpose, Black, TH Keystone 5001 2
TP5, TP6, TP7 Test Point, Multipurpose, Yellow, TH Keystone 5014 3
U1 4.2V to 60V, 1.5A Synchronous Step-Down Texas Instruments LMR36015AQRNXRQ1 1
C1, C2, C3, C4 CAP, CERM, 22 µF, 16 V, +/- 10%, X7R,
C12, C14 CAP, CERM, 2.2 µF, 100 V,+/- 10%, X7R,
C15 CAP, CERM, 0.047 µF, 100 V, +/- 10%,
L1 Inductor, Shielded, Composite, 10 uH, 3 A,
U1 4.2V to 60V, 1.5A Synchronous Step-Down Texas Instruments LMR36015FSCQRNXRQ1 1
C1, C2 CAP, CERM, 22 µF, 16 V, +/- 10%, X7R,
C6 CAP, AL, 47 uF, 80 V, +/- 20%, 0.7 ohm,
Bill of Materials
Table 2. Bill of Materials
AEC-Q200 Grade 2, SMD
1206
X7S, 0603
AEC-Q200 Grade 1, 1210
0402
0603
AEC-Q200 Grade 1, 0603
Philips panhead
0.01 ohm, SMD
1210
x 0.200" H - 10,000 per roll
Shunt, 100mil, Gold plated, Black 3M 969102-0000-DA 3
LMR36015AEVM: Adjustable 3.3V/5V Output, 400kHz, 1.5A
1210
1206
X7S, 0603
0.084 ohm, SMD
LMR36015FSCEVM: Adjustable 3.3V/5V Output, 2.1MHz, 1.5A
1210
SMD
Panasonic EEE-FK1J680UP 0
MuRata GRM31CR72A225KA73L 2
TDK CGA3E3X7S2A473K080AB 3
TDK CGA6M3X7S2A475K200A 1
MuRata GRM155R71E104KE14D 1
TDK C1608X7R1E105K080AB 1
TDK CGA3E2C0G1H220J080AA 1
B&F Fastener
Supply
Technology
Coilcraft XAL4020-102MEB 1
Taiyo Yuden FBMH3225HM601NT 1
Brady THT-14-423-10 1
MuRata GRM32ER71C226KE18L 4
MuRata GRM31CR72A225KA73L 2
TDK CGA3E3X7S2A473K080AB 1
Coilcraft XAL4040-103MEB 1
MuRata GRM32ER71C226KE18L 2
Chemi-Con EMZA800ADA470MJA0G 1
NY PMS 440 0025 PH 2
ED555/2DS 3
SNVU636–November 2018
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
LMR36015xxxEVM User’s Guide
13
Output Current (A)
Output Voltage (V)
0 0.25 0.5 0.75 1 1.25 1.5
4.96
4.98
5
5.02
5.04
5.06
5.08
LMR3
8 V
IN
12 V
IN
24 V
IN
48 V
IN
60 V
IN
Output Current (A)
Output Voltage (V)
0 0.25 0.5 0.75 1 1.25 1.5
3.28
3.29
3.3
3.31
3.32
3.33
3.34
LMR3
6 V
IN
12 V
IN
24 V
IN
48 V
IN
60 V
IN
Output Current (A)
Efficiency
0.001 0.005 0.02 0.05 0.1 0.20.3 0.5 1 2
0
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
LMR3
8 V
IN
12 V
IN
24 V
IN
48 V
IN
60 V
IN
Output Current (A)
Efficiency
0.001 0.005 0.02 0.05 0.1 0.20.3 0.5 1 2
0
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
LMR3
6 V
IN
12 V
IN
24 V
IN
48 V
IN
60 V
IN
Test Results
Table 2. Bill of Materials (continued)
Designator Description Manufacturer Part Number Quantity
L1 Inductor, Shielded, Composite, 2.2 uH, 5.6
A, 0.04 ohm, SMD
6 Test Results
Section 6.1 details the test results from the LMR36015AEVM variant. Section 6.2 details the test results
from the LMR36015FSCEVM.
6.1 LMR36015AEVMTest Results
The LMR36015AEVM variant is used for all figures from Figure 10 to Figure 19 variant.
6.1.1 Efficiency and Load Regulation
www.ti.com
Coilcraft XAL4020-222MEB 1
Figure 10. LMR36015AEVM 5 V
Figure 12. LMR36015AEVM 5 V
14
LMR36015xxxEVM User’s Guide
Efficiency Figure 11. LMR36015AEVM 3.3 V
OUT
Load Regulation Figure 13. LMR36015AEVM 3.3 V
OUT
Copyright © 2018, Texas Instruments Incorporated
Efficiency
OUT
Load Regulation
OUT
SNVU636–November 2018
Submit Documentation Feedback
VOUT
100mV/div
ILOAD
370mA/div
PG
5V/div
100µs/div
VOUT
100mV/div
ILOAD
370mA/div
PG
5V/div
100µs/div
www.ti.com

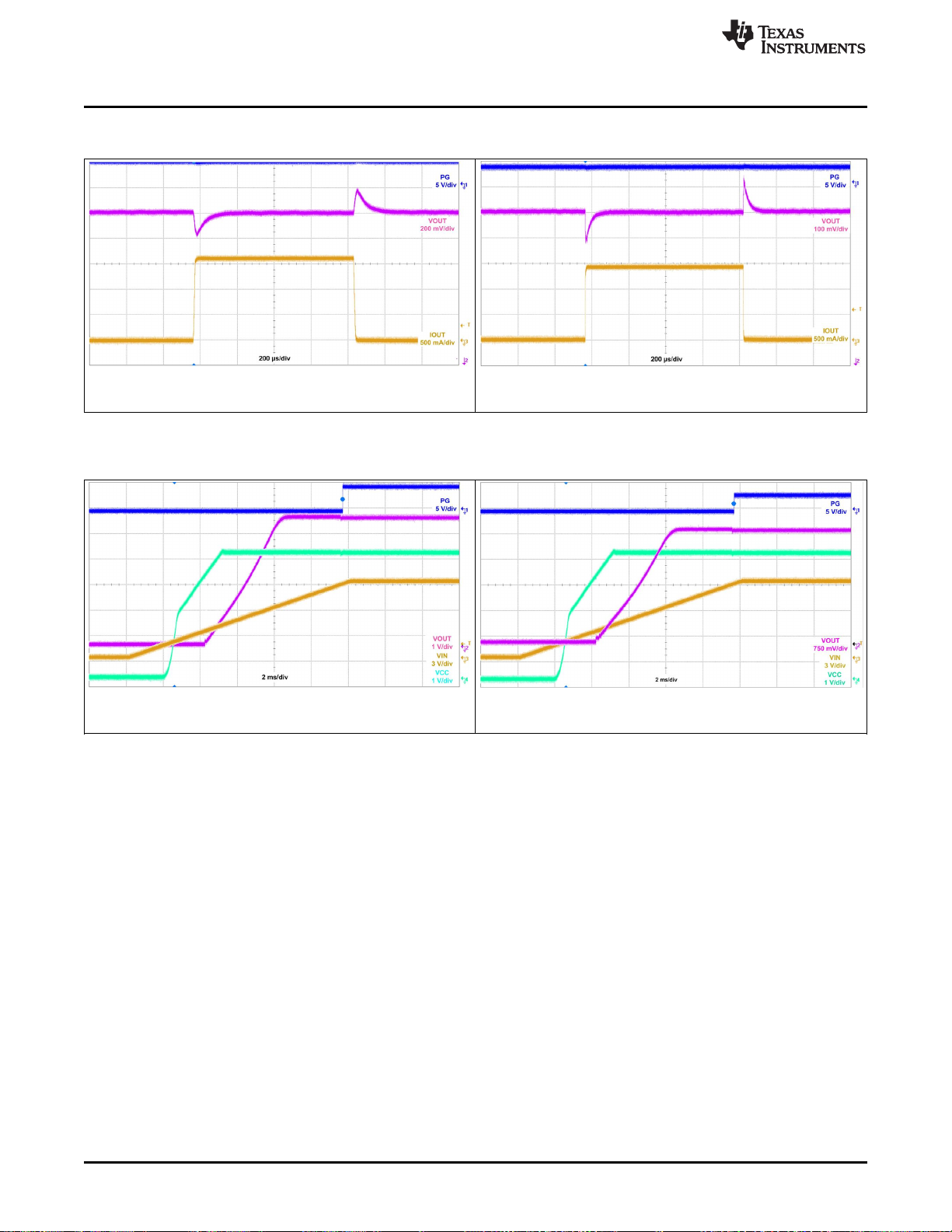

6.1.2 Load Transients
Test Results
Figure 14. LMR36015AEVM 5 V
I
= 0 A to 1.5 A, TR= TF= 1 µs
OUT
6.1.3 Start Up Waveforms
Figure 16. LMR36015AEVM 5 V
24 VIN,1.5 A Load
Load Transient, 24 VIN,
OUT
Start-Up Waveform,
OUT
Figure 15. LMR36015AEVM 3.3 V
I
= 0 A to 1.5 A, TR= TF= 1 µs
OUT
Figure 17. LMR36015AEVM 3.3 V
24 VIN,1.5 A Load
Load Transient, 24 VIN,
OUT
Start-Up Waveform,
OUT
SNVU636–November 2018
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
LMR36015xxxEVM User’s Guide
15
Test Results
6.1.4 Conducted EMI
www.ti.com
Figure 18. LMR36015A Low Frequency Conducted EMI
Results for 5 V
(Blue-Average and Yellow-Peak)
OUT
Figure 19. LMR36015AEVM High Frequency Conducted
EMI Results for 5 V
(Blue-Average and Yellow-Peak)
OUT
16
LMR36015xxxEVM User’s Guide
Copyright © 2018, Texas Instruments Incorporated
SNVU636–November 2018
Submit Documentation Feedback
Output Current (A)
Output Voltage (V)
0 0.25 0.5 0.75 1 1.25 1.5
4.94
4.96
4.98
5
5.02
5.04
LMR3
8 V
IN
12 V
IN
24 V
IN
Output Current (A)
Output Voltage (V)
0 0.25 0.5 0.75 1 1.25 1.5
3.27
3.275
3.28
3.285
3.29
3.295
3.3
3.305
3.31
3.315
3.32
LMR3
6 V
IN
12 V
IN
18 V
IN
Output Current (A)
Efficiency
0 0.25 0.5 0.75 1 1.25 1.5
0
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
LMR3
8 V
IN
12 V
IN
24 V
IN
Output Current (A)
Efficiency
0 0.25 0.5 0.75 1 1.25 1.5
0
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
LMR3LMR3
6 V
IN
12 V
IN
18 V
IN
www.ti.com
6.2 LMR36015FSCEVM Test Results
The LMR36015FSCEVM variant is used for all figures from Figure 20 to Figure 29.
6.2.1 Efficiency and Load Regulation
Test Results
Figure 20. LMR36015FSCEVM 5 V
Figure 22. LMR36015FSCEVM 5 V
Efficiency Figure 21. LMR36015FSCEVM 3.3 V
OUT
Load Regulation Figure 23. LMR36015FSCEVM 3.3 V
OUT
Efficiency
OUT
Load Regulation
OUT
SNVU636–November 2018
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
LMR36015xxxEVM User’s Guide
17
Test Results
6.2.2 Load Transients
www.ti.com
Figure 24. LMR36015FSCEVM 5 V
VIN, I
= 0 A to 1.5 A, TR= TF= 1 µs
OUT
6.2.3 Start Up Waveforms
Figure 26. LMR36015FSCEVM 5 V
12 VIN,1.5 A Load
Load Transient, 12
OUT
Start-Up Waveform,
OUT
Figure 25. LMR36015FSCEVM 3.3 V
VIN, I
= 0 A to 1.5 A, TR= TF= 1 µs
OUT
Figure 27. LMR36015FSCEVM 3.3 V
24 VIN,1.5 A Load
Load Transient, 12
OUT
Start-Up Waveform,
OUT
18
LMR36015xxxEVM User’s Guide
Copyright © 2018, Texas Instruments Incorporated
SNVU636–November 2018
Submit Documentation Feedback
www.ti.com
6.2.4 Conducted EMI Results
Test Results
Figure 28. LMR36015FSCEVM Low Frequency Conducted
EMI Results for 3.3 V
With Spread Spectrum (Blue-
OUT
Average and Yellow-Peak)
Figure 29. LMR36015FSCEVM High Frequency Conducted
EMI Results for 3.3 V
With Spread Spectrum (Blue-
OUT
Average and Yellow-Peak)
SNVU636–November 2018
Submit Documentation Feedback
Copyright © 2018, Texas Instruments Incorporated
LMR36015xxxEVM User’s Guide
19
STANDARD TERMS FOR EVALUATION MODULES
1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or
documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance
with the terms set forth herein. User's acceptance of the EVM is expressly subject to the following terms.
1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility
evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not
finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For
clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions
set forth herein but rather shall be subject to the applicable terms that accompany such Software
1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned,
or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production
system.
2 Limited Warranty and Related Remedies/Disclaimers:
2.1 These terms do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License
Agreement.
2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM
to User. Notwithstanding the foregoing, TI shall not be liable for a nonconforming EVM if (a) the nonconformity was caused by
neglect, misuse or mistreatment by an entity other than TI, including improper installation or testing, or for any EVMs that have
been altered or modified in any way by an entity other than TI, (b) the nonconformity resulted from User's design, specifications
or instructions for such EVMs or improper system design, or (c) User has not paid on time. Testing and other quality control
techniques are used to the extent TI deems necessary. TI does not test all parameters of each EVM.
User's claims against TI under this Section 2 are void if User fails to notify TI of any apparent defects in the EVMs within ten (10)
business days after delivery, or of any hidden defects with ten (10) business days after the defect has been detected.
2.3 TI's sole liability shall be at its option to repair or replace EVMs that fail to conform to the warranty set forth above, or credit
User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the warranty
period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to repair or
replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall be
warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day
warranty period.
3 Regulatory Notices:
3.1 United States
3.1.1 Notice applicable to EVMs not FCC-Approved:
FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software
associated with the kit to determine whether to incorporate such items in a finished product and software developers to write
software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or
otherwise marketed unless all required FCC equipment authorizations are first obtained. Operation is subject to the condition
that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference.
Unless the assembled kit is designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must
operate under the authority of an FCC license holder or must secure an experimental authorization under part 5 of this chapter.
3.1.2 For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:
CAUTION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
FCC Interference Statement for Class A EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
FCC Interference Statement for Class B EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
3.2 Canada
3.2.1 For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210 or RSS-247
Concerning EVMs Including Radio Transmitters:
This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Concernant les EVMs avec appareils radio:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concerning EVMs Including Detachable Antennas:
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types
listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et
d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le
présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le
manuel d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur
3.3 Japan
3.3.1 Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本国内に
輸入される評価用キット、ボードについては、次のところをご覧ください。
http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page
3.3.2 Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be certified
by TI as conforming to Technical Regulations of Radio Law of Japan.
If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required to follow the
instructions set forth by Radio Law of Japan, which includes, but is not limited to, the instructions below with respect to EVMs
(which for the avoidance of doubt are stated strictly for convenience and should be verified by User):
1. Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal
Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for
Enforcement of Radio Law of Japan,
2. Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect to
EVMs, or
3. Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of Japan
with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee. Please note
that if User does not follow the instructions above, User will be subject to penalties of Radio Law of Japan.
【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて
いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの
措置を取っていただく必要がありますのでご注意ください。
1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用
いただく。
2. 実験局の免許を取得後ご使用いただく。
3. 技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ
ンスツルメンツ株式会社
東京都新宿区西新宿６丁目２４番１号
西新宿三井ビル
3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/
/www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
3.4 European Union
3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive):
This is a class A product intended for use in environments other than domestic environments that are connected to a
low-voltage power-supply network that supplies buildings used for domestic purposes. In a domestic environment this
product may cause radio interference in which case the user may be required to take adequate measures.
4 EVM Use Restrictions and Warnings:
4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT
LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling
or using the EVM, including without limitation any warning or restriction notices. The notices contain important safety information
related to, for example, temperatures and voltages.
4.3 Safety-Related Warnings and Restrictions:
4.3.1 User shall operate the EVM within TI’s recommended specifications and environmental considerations stated in the user
guide, other available documentation provided by TI, and any other applicable requirements and employ reasonable and
customary safeguards. Exceeding the specified performance ratings and specifications (including but not limited to input
and output voltage, current, power, and environmental ranges) for the EVM may cause personal injury or death, or
property damage. If there are questions concerning performance ratings and specifications, User should contact a TI
field representative prior to connecting interface electronics including input power and intended loads. Any loads applied
outside of the specified output range may also result in unintended and/or inaccurate operation and/or possible
permanent damage to the EVM and/or interface electronics. Please consult the EVM user guide prior to connecting any
load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative.
During normal operation, even with the inputs and outputs kept within the specified allowable ranges, some circuit
components may have elevated case temperatures. These components include but are not limited to linear regulators,
switching transistors, pass transistors, current sense resistors, and heat sinks, which can be identified using the
information in the associated documentation. When working with the EVM, please be aware that the EVM may become
very warm.
4.3.2 EVMs are intended solely for use by technically qualified, professional electronics experts who are familiar with the
dangers and application risks associated with handling electrical mechanical components, systems, and subsystems.
User assumes all responsibility and liability for proper and safe handling and use of the EVM by User or its employees,
affiliates, contractors or designees. User assumes all responsibility and liability to ensure that any interfaces (electronic
and/or mechanical) between the EVM and any human body are designed with suitable isolation and means to safely
limit accessible leakage currents to minimize the risk of electrical shock hazard. User assumes all responsibility and
liability for any improper or unsafe handling or use of the EVM by User or its employees, affiliates, contractors or
designees.
4.4 User assumes all responsibility and liability to determine whether the EVM is subject to any applicable international, federal,
state, or local laws and regulations related to User’s handling and use of the EVM and, if applicable, User assumes all
responsibility and liability for compliance in all respects with such laws and regulations. User assumes all responsibility and
liability for proper disposal and recycling of the EVM consistent with all applicable international, federal, state, and local
requirements.
5. Accuracy of Information: To the extent TI provides information on the availability and function of EVMs, TI attempts to be as accurate
as possible. However, TI does not warrant the accuracy of EVM descriptions, EVM availability or other information on its websites as
accurate, complete, reliable, current, or error-free.
6. Disclaimers:
6.1 EXCEPT AS SET FORTH ABOVE, EVMS AND ANY MATERIALS PROVIDED WITH THE EVM (INCLUDING, BUT NOT
LIMITED TO, REFERENCE DESIGNS AND THE DESIGN OF THE EVM ITSELF) ARE PROVIDED "AS IS" AND "WITH ALL
FAULTS." TI DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING SUCH ITEMS, INCLUDING BUT
NOT LIMITED TO ANY EPIDEMIC FAILURE WARRANTY OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY THIRD PARTY PATENTS, COPYRIGHTS, TRADE
SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS.
6.2 EXCEPT FOR THE LIMITED RIGHT TO USE THE EVM SET FORTH HEREIN, NOTHING IN THESE TERMS SHALL BE
CONSTRUED AS GRANTING OR CONFERRING ANY RIGHTS BY LICENSE, PATENT, OR ANY OTHER INDUSTRIAL OR
INTELLECTUAL PROPERTY RIGHT OF TI, ITS SUPPLIERS/LICENSORS OR ANY OTHER THIRD PARTY, TO USE THE
EVM IN ANY FINISHED END-USER OR READY-TO-USE FINAL PRODUCT, OR FOR ANY INVENTION, DISCOVERY OR
IMPROVEMENT, REGARDLESS OF WHEN MADE, CONCEIVED OR ACQUIRED.
7. USER'S INDEMNITY OBLIGATIONS AND REPRESENTATIONS. USER WILL DEFEND, INDEMNIFY AND HOLD TI, ITS
LICENSORS AND THEIR REPRESENTATIVES HARMLESS FROM AND AGAINST ANY AND ALL CLAIMS, DAMAGES, LOSSES,
EXPENSES, COSTS AND LIABILITIES (COLLECTIVELY, "CLAIMS") ARISING OUT OF OR IN CONNECTION WITH ANY
HANDLING OR USE OF THE EVM THAT IS NOT IN ACCORDANCE WITH THESE TERMS. THIS OBLIGATION SHALL APPLY
WHETHER CLAIMS ARISE UNDER STATUTE, REGULATION, OR THE LAW OF TORT, CONTRACT OR ANY OTHER LEGAL
THEORY, AND EVEN IF THE EVM FAILS TO PERFORM AS DESCRIBED OR EXPECTED.
8. Limitations on Damages and Liability:
8.1 General Limitations. IN NO EVENT SHALL TI BE LIABLE FOR ANY SPECIAL, COLLATERAL, INDIRECT, PUNITIVE,
INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF THESE
TERMS OR THE USE OF THE EVMS , REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED TO, COST OF REMOVAL OR
REINSTALLATION, ANCILLARY COSTS TO THE PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, RETESTING,
OUTSIDE COMPUTER TIME, LABOR COSTS, LOSS OF GOODWILL, LOSS OF PROFITS, LOSS OF SAVINGS, LOSS OF
USE, LOSS OF DATA, OR BUSINESS INTERRUPTION. NO CLAIM, SUIT OR ACTION SHALL BE BROUGHT AGAINST TI
MORE THAN TWELVE (12) MONTHS AFTER THE EVENT THAT GAVE RISE TO THE CAUSE OF ACTION HAS
OCCURRED.
8.2 Specific Limitations. IN NO EVENT SHALL TI'S AGGREGATE LIABILITY FROM ANY USE OF AN EVM PROVIDED
HEREUNDER, INCLUDING FROM ANY WARRANTY, INDEMITY OR OTHER OBLIGATION ARISING OUT OF OR IN
CONNECTION WITH THESE TERMS, , EXCEED THE TOTAL AMOUNT PAID TO TI BY USER FOR THE PARTICULAR
EVM(S) AT ISSUE DURING THE PRIOR TWELVE (12) MONTHS WITH RESPECT TO WHICH LOSSES OR DAMAGES ARE
CLAIMED. THE EXISTENCE OF MORE THAN ONE CLAIM SHALL NOT ENLARGE OR EXTEND THIS LIMIT.
9. Return Policy. Except as otherwise provided, TI does not offer any refunds, returns, or exchanges. Furthermore, no return of EVM(s)
will be accepted if the package has been opened and no return of the EVM(s) will be accepted if they are damaged or otherwise not in
a resalable condition. If User feels it has been incorrectly charged for the EVM(s) it ordered or that delivery violates the applicable
order, User should contact TI. All refunds will be made in full within thirty (30) working days from the return of the components(s),
excluding any postage or packaging costs.
10. Governing Law: These terms and conditions shall be governed by and interpreted in accordance with the laws of the State of Texas,
without reference to conflict-of-laws principles. User agrees that non-exclusive jurisdiction for any dispute arising out of or relating to
these terms and conditions lies within courts located in the State of Texas and consents to venue in Dallas County, Texas.
Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief
in any United States or foreign court.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2018, Texas Instruments Incorporated
IMPORTANT NOTICE AND DISCLAIMER
TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE
DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”
AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD
PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate
TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable
standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you
permission to use these resources only for development of an application that uses the TI products described in the resource. Other
reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third
party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims,
damages, costs, losses, and liabilities arising out of your use of these resources.
TI’s products are provided subject to TI’s Terms of Sale (www.ti.com/legal/termsofsale.html) or other applicable terms available either on
ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable
warranties or warranty disclaimers for TI products.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2018, Texas Instruments Incorporated
Loading...
