LMX2430/33/34 Evaluation Board

User's Guide

November 2013

SNAU049A

LMX2430/33/34

Evaluation Board Instructions

2 SNAU049A LMK2430/33/34 Family November 2013

www.ti.com

QUIPMENT

ASIC OPERATION

LMX243X B LMX2430 M LMX2433 M LMX2434 M A

PPENDIX A: SCHEMATIC

PPENDIX B: BUILD DIAGRAM

PPENDIX C: FABRICATION AND ASSEMBLY

PPENDIX D: BILL OF MATERIALS PPENDIX E: QUICK START FOR

................................................................................................................................................................. 4

....................................................................................................................................................... 5

OARD INFORMATION

EASUREMENTS EASUREMENTS EASUREMENTS

......................................................................................................................................... 14

............................................................................................................................... 7

........................................................................................................................................ 8

...................................................................................................................................... 10

...................................................................................................................................... 12

................................................................................................................................. 15

............................................................................................................................ 20

EVM C

TABLE OF CONTENTS

............................................................................................................ 20

OMMUNICATIONS

....................................................................................... 22

        



November 2013 LMK2430/33/34 Family SNAU049A 3

www.ti.com

Equipment

Power Supply The Power Supply should be a low n oise p ower supply. An Agil ent 6623A Tri ple powe r supply with LC filte rs on the output to reduce noise was used in creating the se evaluation bo ard instructi ons.

Signal Generator The Signal Generator should be capable of frequencies and power level required for the part. A Rohde & Schwarz SML03 was used in creating these eval uation board instru ctions.

Phase Noise / Spectrum Analyzer For measuring phase noise an Agilent E5052A is recommended. An Agilent E4445A PSA Spectrum Analyzer with the Phase Noise option is also usable although the architecture of the E5052A is superior for phase noise measurements. At frequencies less than 100 MHz the local oscillator noise of the PSA is too high and measurements will be of the local oscillator, not the device under test.

Oscilloscope The oscilloscope and probes should be capable of measuring the output frequencies of interest when evaluating this board. The Agilent Infiniium DSO81204A was used in creating these evaluation board instructions.

4 SNAU049A LMK2430/33/34 Family November 2013

www.ti.com

Basic Operation

1. Connect the signal generator output to the OSCin input of the board. For this example w e use a 10 MHz sin signal at +5dBm power level.

2. Connect a low noise 5.0 V power supply to the Vcc connector lo cated at the top left of the b oard.

3. Please see Appendix C for quick start on interfacing the board. Connect PC to the uWire header.

Pleasesee

AppendixDfor

interfaceinfo

LaptoporPC

SMA

Cable

Signal

10MHz

OSCin

Vcc

Generator

4. Run CodeLoader4.exe

5. Select the Device on board by “Select Device”  “PLL-Dual integer”  LMX24xx

Power Supply

5.0V

November 2013 LMK2430/33/34 Family SNAU049A 5

www.ti.com

6. On the “RF PLL” Tab, make sure Reference Oscillator is 10 MHz and output frequency is set to within the range of the VCO on the board. Press “Enter ” after makin g a change.

7. To program the settings into the device, Click “Keyboard Co ntrols”  “Load Device”, or Press CTRL + L

6 SNAU049A LMK2430/33/34 Family November 2013

www.ti.com

LMX243x Board Information

Closed Loop Transfer Funct ion

Closed Loop Gain (dB)

-20

-40

-60

1.E+02 1.E+03 1.E+04 1.E+05 1.E+06 1.E+07

Offset (Hz)

LMX2430 LMX2433 LMX 2434

Parameter LMX2430 LMX2433 LMX2434

VCO Frequency

(MHz)

VCO Gain

(MHz/V)

1600 – 1675 3200 - 3400 4690 - 4890

32 90 94

Charge Pump Gain (mA) 4 4 4

VCO Input Capacitance 39 22 12

Phase Detector Frequency (MHz) 1 1 1

OSCin Frequency (MHz) 100 100 100

Loop Bandwidth (kHz) 27.9 31.1 41.2

Phase Margin (deg) 56.8 59.6 58.4

Gamma 0.57 0.90 0.87

T3/T1 Ratio (%) 220.8 177.1 213.9

C1_LF (nF) 0.18 0.27 0.1 C2_LF (nF) 6.8 10 3.9 C3_LF (nF) 1 1 1

C4_LF (nF) Open Open Open R2_LF (Kohm) 2.2 1.8 3.3 R3_LF (Kohm) 0.82 0.82 0.68 R4_LF (Kohm) 0 0 0

November 2013 LMK2430/33/34 Family SNAU049A 7

www.ti.com

LMX2430 Measurements

8 SNAU049A LMK2430/33/34 Family November 2013

www.ti.com

Spur at 1600 MHz VCO frequency is -79.9 dBc.

Spur at 1650 MHz VCO frequency is -79.5 dBc. Note that this spur is not symmetrical.

Spur at 1675 MHz VCO frequency is -77.6 dBc.

November 2013 LMK2430/33/34 Family SNAU049A 9

www.ti.com

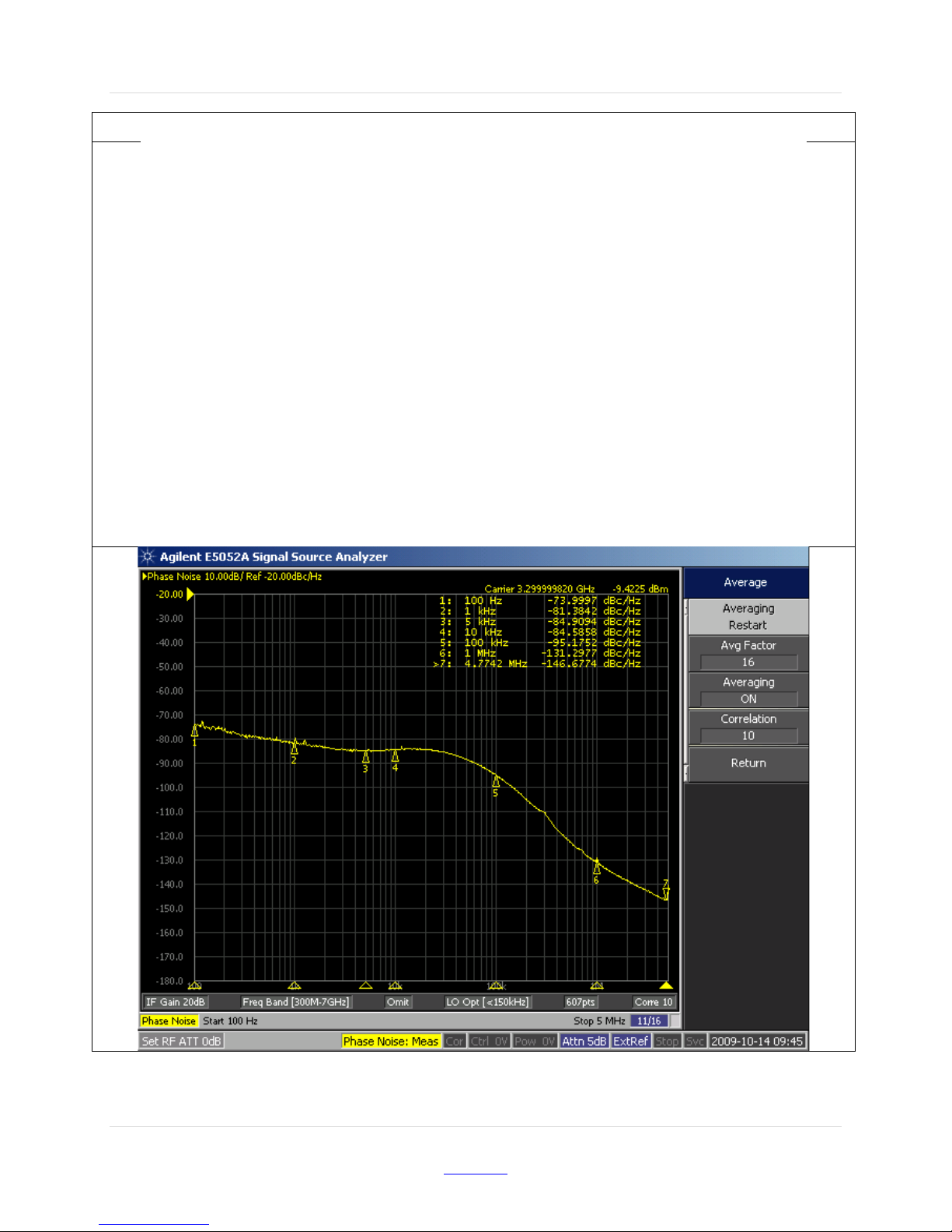

LMX2433 Measurements

10 SNAU049A LMK2430/33/34 Family November 2013

www.ti.com

Spur at 3200 MHz VCO frequency is below the noise floor.

Spur at 3300 MHz VCO frequency is - 83.4 dBc.

Spur at 3400 MHz VCO frequency is - 83.6 dBc. Note that this spur is not symmetrical.

November 2013 LMK2430/33/34 Family SNAU049A 11

www.ti.com

LMX2434 Measurements

12 SNAU049A LMK2430/33/34 Family November 2013

www.ti.com

Spur at 4690 MHz VCO is -

77.1 dBc.

Spur at 4790 MHz VCO frequency is -79.1 dBc.

Spur at 4890 MHz VCO frequency is -76.5 dBc.

November 2013 LMK2430/33/34 Family SNAU049A 13

www.ti.com

14 SNAU049A LMK2430/33/34 Family November 2013

www.ti.com

Appendix A: Schematic

C1_RF

TBD

C2pRF

TBD

C2_RF

TBD

C3_RF

TBD

C1_IF

TBD

C13

100 pF

C14

100 pF

C2pIF

TBD

C2_IF

TBD

R2_IF

TBD

R3_IF

TBD

C3_IF

TBD

100 pF

R18

18 ohm

R2_RF

TBD

R3_RF

TBD

R26

18 ohm

R27

18 ohm

R28

18 ohm

10 k

R19

18 ohm

R17

18 ohm

R2pRF

Open

R2pIF

Open

C21

100 pF

Vcc_P LL

C12

100 pF

Vcc_P LL

100 pF

Vcc_P LL

C10

1 uF

Vcc_R F

1 uF

Vcc_I F

100 pF

C15

100 pF

R12

10 k

R14

Open

R15

Open

0.1 uF

R16

51 ohm

R29

51 ohm

C20

1 uF

R32

10 k

C17

1 uF

R30

Open

C11

Open

Vcc_P LL

10 k

8.2 k

1 2

3 4

5 6

7 8

9 10

uWir e

HEADER_2X5(POLARIZED)

C19

10 uF

C16

10 uF

C18

0.1 uF

10 k

8.2 k

10 k

8.2 k

=organ izatio n =title

=documentnumber =revision

GND1Vt2GND3GND

GND

MOD

GND

RFout

GND11GND

GND

Vcc

GND

VCO

GND1Vt2GND3GND

GND

MOD

GND

RFout

GND11GND

GND

Vcc

GND

VCO

R4_IF

0 ohm

C4_IF

Open

R11

Open

R10

Open

R34

3.3 ohm

R20

3.3 ohm

R25

3.3 ohm

R4_RF

0 ohm

C4_RF

Open

Vcc_PLL

POWER

HEADER_2X4

Vcc_AMP

Vcc_R F

Vcc_ IF

Vcc

SMA

IF_OUT

Open

OSCi n

SMA

Ftest/ LD

Open

RFout

SMA

Vin

GND

Vout

LP5900 2.5V

NC2Ven

GND

LP5900

R31

10 ohm

R24

5.6 ohm

R13

5.6 ohm

Vcc

GND

FinIF

CPoutiF

ENos c

OSCi n

Vcc

Ftest/LD10FLoutRF

GND

CPoutRF

GND

FinRF

FinRF*

Vcc

CLK

DATA

OSC out

LMX243X

PCB

LM X2430TM EBPCB

PCB

Vout

V-

IN+

IN-4V+

LM6211

Vcc_AMP

Vcc_P LL

R21

100 k

R22

100 k

R23

10 ohm

1 uF

R1aRF

0 ohm

Ca_LF

Open

R1bRF

Open

R1_RF

0 ohm

R35

Ferrite

R33

10 ohm

VccRFVCO

VccIFVCO

VccPLL

VccAM P

Vcc_P LL

Red LED

C23

1 uF

C22

10 uF

C24

0.1 uF

C25

1 nF

Vcc_P LL

GND

November 2013 LMK2430/33/34 Family SNAU049A 15

www.ti.com

Appendix B: Build Diagram

16 SNAU049A LMK2430/33/34 Family November 2013

www.ti.com

Top Layer

November 2013 LMK2430/33/34 Family SNAU049A 17

www.ti.com

GND Layer

18 SNAU049A LMK2430/33/34 Family November 2013

www.ti.com

POWER Layer

November 2013 LMK2430/33/34 Family SNAU049A 19

www.ti.com

Bottom Copper

Appendix C: Fabrication and Assembly

Board Material Number of Layers

Board Thickness Copper Weight Finish Solder Mask Color Testing

Name K Tand RO4003 (16 mil) 3.38 0.0022

Rogers RO4003 (Top Layer to Ground Plane (.G1)) Remaining layers - FR4 4

0.062” 1 oz Finished Immersion Gold Green/Gloss 100% Electrical Testing

Top Copper. 1oz thick

[LMX2434.GTL]

RO4003 (r = 3.38)

CONTROLLED THICKNESS of

16 mils thick

GND Layer [LMX2434.G1]

FR4 (r = ~4.6)

?? mils thick, but thinner is preferable

POWER Layer [LMX2434.G2]

FR4

?? mils thick

Bottom Copper – Thermal relief

[LMX2434.GBL]

62 mils thick total

20 SNAU049A LMK2430/33/34 Family November 2013

www.ti.com

Appendix D: Bill of Materials

Revision 8.19.2009 LMX243X

Part Manufacturer Part Number Qty Identifier

Capacitors

100 pF Kemet C0603C101J5GAC 8 C2, C3, C5, C12, C13, C14, C15, C21

1 nF Kemet C0603C102J5GAC 1 C25

0.1 uF Kemet C0603C104K5RAC 3 C4, C18, C24 1 uF Kemet C0603C105K8VAC 6 C1, C8, C9, C10, C17, C20, C23

10 uF Kemet C0805C106K9PAC 3 C16, C19, C22

Resistors

0 ohm Vishay/Dale CRCW06030000Z0EA 4 R1_RF, R1aRF, R4_IF, R4_RF

3.3 ohm Vishay/Dale CRCW06033R3JNEA 3 R20, R25, R34

5.6 ohm Vishay/Dale CRCW06035R6JNEA 2 R13, R24 10 ohm Vishay/Dale CRCW060310R0JNEA 3 R23, R31, R33 18 ohm Vishay/Dale CRCW060318R0JNEA 3 R17, R18, R19, R26, R27, R28 51 ohm Vishay/Dale CRCW060351R0JNEA 2 R16, R29

8.2 k Vishay/Dale CRCW06038K20JNEA 3 R2, R4, R5 10 k Vishay/Dale CRCW060310K0JNEA 6 R1, R3, R6, R7, R12, R32

100 k Vishay/Dale CRCW0603100KJNEA 2 R21, R22

Other

Ferrite Digikey 490-1015-1-ND 1 R35 HEADER_2X4 Comm Con Connectors HTSM3203-8G2 1 POWER HEADER_2X5 (POLARIZED) FCI Electronics 52601-S10-8 1 uWire

Red LED Lumex SML-LX2832IC-TR 1 D1

SMA Johnson Components 142-0701-851 4 IF_OUT, OSCin, RFout, Vcc

Op AMP Texas Instruments LM6211 1 U5

LDO Texas Instruments LP5900-2.5 1 U4

Standoff SPC Technology SPCS-6 4 Place in 4 holes in corners of board

Jumper Sullins Electronics Corp. S9000 4 Place on the POWER header

Open

Open Capacitors Open Open 6 C4_RF, C6, C7, C11, Ca_LF,C2pRF

Open Resistors Open Open 9

Open IF Loop Filter 10

Open Other - Open 2 Y1, Ftest/LD

LMX2430 Build Only

PLL Texas Instruments LMX2430TM 1 U1

VCO RF Microdevices/VARIL VCO190-1650T(Y) 1 U2

180 pF Kemet C0603C181J5GAC 1 C1_RF

6.8 nF Kemet C0603C682J5GAC 1 C2_RF 1 nF Kemet C0603C102J5GAC 1 C3_RF

2.2 k Vishay/Dale CRCW06032K20JNEA 1 R2_RF

820 ohm Vishay/Dale CRCW0603820RJNEA 1 R3_RF

LMX2433 Build Only

PLL Texas Instruments LMX2433TM 1 U1

VCO RF Microdevices/VARIL VCO690-3300T 1 U2

270 pF Kemet C0603C271J5GAC 1 C1_RF

10 nF Kemet C0603C103J3GAC 1 C2_RF

1 nF Kemet C0603C102J5GAC 1 C3_RF

1.8 k Vishay/Dale CRCW06031K80JNEA 1 R2_RF

820 ohm Vishay/Dale CRCW0603820RJNEA 1 R3_RF

LMX2434 Build Only

PLL Texas Instruments LMX2434TM 1 U1

VCO RF Microdevices/VARIL VCO690-4790T 1 U2

100 pF Kemet C0603C101J5GAC 1 C1_RF

3.9 nF Kemet C0603C392J5GAC 1 C2_RF 1 nF Kemet C0603C102J5GAC 1 C3_RF

3.3 k Vishay/Dale CRCW06033K30JNEA 1 R2_RF

680 ohm Vishay/Dale CRCW0603680RJNEA 1 R3_RF

R1bRF, R2pRF, R8, R9, R10,

R11, R14, R15, R30

C1_IF, C2_IF, C2pIF, C3_IF, C4_IF, R2_IF,

R2pIF, R3_IF, R4_IF, U3

November 2013 LMK2430/33/34 Family SNAU049A 21

www.ti.com

Appendix E: Quick Start for EVM Communications

Codeloader is the software used to communicate with the EVM (Please download the latest version from TI.com -

http://www.ti.com/tool/codeloader). This EVM can be controlled through the uWire interface on board. There are

two options in communicating with the uWire interface from the computer.

OPTION 1

Open Codeloader. exe  Click “Select Device”  Click “Port Setup” tab  Click “LPT” (in Communication Mode)

OPTION 2

22 SNAU049A LMK2430/33/34 Family November 2013

www.ti.com

The Adapter Board

This table describes the pins configuration on the adapter board for each EVM board (See examples below table)

EVM

A B C D E F G H

Jumper Bank Code Loader Configuration

LMX2581 A4 B1 C2 E5 F1 G1 H1 BUFEN (pin 1), Trigger (pin 7) LMX2541 A4 C3 E4 F1 G1 H1 CE (pin 1), Trigger (pin 10) LMK0400x A0 C3 E5 F1 G1 H1 GOE (pin 7) LMK01000 A0 C1 E5 F1 G1 H1 GOE (pin 7) LMK030xx A0 C1 E5 F1 G1 H1 SYNC (pin 7) LMK02000 A0 C1 E5 F1 G1 H1 SYNC (pin 7) LMK0480x A0 B2 C3 E5 F0 G0 H1 Status_CLKin1 (pin 3) LMK04816/4906 A0 B2 C3 E5 F0 G0 H1 Status_CLKin1 (pin 3) LMK01801 A0 B4 C5 E2 F0 G0 H1 Test (pin 3), SYNC0 (pin 10) LMK0482x (prelease) A0 B5 C3 D2 E4 F0 G0 H1 CLKin1_SEL (pin 6), Reset (pin 10) LMX2531 A0 E5 F2 G1 H2 Trigger (pin 1) LMX2485/7 A0 C1 E5 F2 G1 H0 ENOSC (pin 7), CE (pin 10) LMK03200 A0 E5 F0 G0 H1 SYNC (pin 7) LMK03806 A0 C1 E5 F0 G0 H1 LMK04100 A0 C1 E5 F1 G1 H1

Example adapter configuration (LMK01801)

Open Codeloader. exe  Click “Select Device”  Click “Port Setup” Tab  Click “USB” (in Communication Mode) *Remember to also make modifications in “Pin Configuration” Section according to Table above.

November 2013 LMK2430/33/34 Family SNAU049A 23

www.ti.com

STANDARD TERMS AND CONDITIONS FOR EVALUATION MODULES

1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, or documentation (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms and conditions set forth herein. Acceptance of the EVM is expressly subject to the following terms and conditions.

1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions set forth herein but rather shall be subject to the applicable terms and conditions that accompany such Software

1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned, or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production system.

2 Limited Warranty and Related Remedies/Disclaimers:

2.1 These terms and conditions do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License Agreement.

2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM to User. Notwithstanding the foregoing, TI shall not be liable for any defects that are caused by neglect, misuse or mistreatment by an entity other than TI, including improper installation or testing, or for any EVMs that have been altered or modified in any way by an entity other than TI. Moreover, TI shall not be liable for any defects that result from User's design, specifications or instructions for such EVMs. Testing and other quality control techniques are used to the extent TI deems necessary or as mandated by government requirements. TI does not test all parameters of each EVM.

2.3 If any EVM fails to conform to the warranty set forth above, TI's sole liability shall be at its option to repair or replace such EVM, or credit User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the warranty period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to repair or replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall be warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day warranty period.

3 Regulatory Notices:

3.1 United States

3.1.1 Notice applicable to EVMs not FCC-Approved:

This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or otherwise marketed unless all required FCC equipment authorizations are first obtained. Operation is subject to the condition that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference. Unless the assembled kit is designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must operate under the authority of an FCC license holder or must secure an experimental authorization under part 5 of this chapter.

3.1.2 For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:

CAUTION

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC Interference Statement for Class A EVM devices

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

SPACER SPACER SPACER SPACER SPACER SPACER SPACER SPACER

FCC Interference Statement for Class B EVM devices

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

3.2 Canada

3.2.1 For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210

Concerning EVMs Including Radio Transmitters:

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Concernant les EVMs avec appareils radio:

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Concerning EVMs Including Detachable Antennas:

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

Concernant les EVMs avec antennes détachables

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le manuel d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de l'émetteur

3.3 Japan

3.3.1 Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本国内に

輸入される評価用キット、ボードについては、次のところをご覧ください。

http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page

3.3.2 Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be certified by TI as conforming to Technical Regulations of Radio Law of Japan.

If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required by Radio Law of Japan to follow the instructions below with respect to EVMs:

1. Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for Enforcement of Radio Law of Japan,

2. Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect to EVMs, or

3. Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of Japan with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee. Please note that if User does not follow the instructions above, User will be subject to penalties of Radio Law of Japan.

SPACER SPACER SPACER SPACER SPACER

【無線電波を送信する製品の開発キットをお使いになる際の注意事項】開発キットの中には技術基準適合証明を受けていないものがあります。技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの措置を取っていただく必要がありますのでご注意ください。

1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用いただく。

2. 実験局の免許を取得後ご使用いただく。

3. 技術基準適合証明を取得後ご使用いただく。

なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。

上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。日本テキサス・インスツルメンツ株式会社東京都新宿区西新宿６丁目２４番１号西新宿三井ビル

3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page

電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧くださ

い。http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page

SPACER

4 EVM Use Restrictions and Warnings:

4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.

4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices. The notices contain important safety information related to, for example, temperatures and voltages.

4.3 Safety-Related Warnings and Restrictions:

4.3.1 User shall operate the EVM within TI’s recommended specifications and environmental considerations stated in the user guide, other available documentation provided by TI, and any other applicable requirements and employ reasonable and customary safeguards. Exceeding the specified performance ratings and specifications (including but not limited to input and output voltage, current, power, and environmental ranges) for the EVM may cause personal injury or death, or property damage. If there are questions concerning performance ratings and specifications, User should contact a TI field representative prior to connecting interface electronics including input power and intended loads. Any loads applied outside of the specified output range may also result in unintended and/or inaccurate operation and/or possible permanent damage to the EVM and/or interface electronics. Please consult the EVM user guide prior to connecting any load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative. During normal operation, even with the inputs and outputs kept within the specified allowable ranges, some circuit components may have elevated case temperatures. These components include but are not limited to linear regulators, switching transistors, pass transistors, current sense resistors, and heat sinks, which can be identified using the information in the associated documentation. When working with the EVM, please be aware that the EVM may become very warm.

4.3.2 EVMs are intended solely for use by technically qualified, professional electronics experts who are familiar with the dangers and application risks associated with handling electrical mechanical components, systems, and subsystems. User assumes all responsibility and liability for proper and safe handling and use of the EVM by User or its employees, affiliates, contractors or designees. User assumes all responsibility and liability to ensure that any interfaces (electronic and/or mechanical) between the EVM and any human body are designed with suitable isolation and means to safely limit accessible leakage currents to minimize the risk of electrical shock hazard. User assumes all responsibility and liability for any improper or unsafe handling or use of the EVM by User or its employees, affiliates, contractors or designees.

4.4 User assumes all responsibility and liability to determine whether the EVM is subject to any applicable international, federal, state, or local laws and regulations related to User’s handling and use of the EVM and, if applicable, User assumes all responsibility and liability for compliance in all respects with such laws and regulations. User assumes all responsibility and liability for proper disposal and recycling of the EVM consistent with all applicable international, federal, state, and local requirements.

5. Accuracy of Information: To the extent TI provides information on the availability and function of EVMs, TI attempts to be as accurate as possible. However, TI does not warrant the accuracy of EVM descriptions, EVM availability or other information on its websites as accurate, complete, reliable, current, or error-free.

SPACER SPACER SPACER SPACER SPACER SPACER

SPACER

6. Disclaimers:

6.1 EXCEPT AS SET FORTH ABOVE, EVMS AND ANY WRITTEN DESIGN MATERIALS PROVIDED WITH THE EVM (AND THE DESIGN OF THE EVM ITSELF) ARE PROVIDED "AS IS" AND "WITH ALL FAULTS." TI DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING SUCH ITEMS, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY THIRD PARTY PATENTS, COPYRIGHTS, TRADE SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS.

6.2 EXCEPT FOR THE LIMITED RIGHT TO USE THE EVM SET FORTH HEREIN, NOTHING IN THESE TERMS AND CONDITIONS SHALL BE CONSTRUED AS GRANTING OR CONFERRING ANY RIGHTS BY LICENSE, PATENT, OR ANY OTHER INDUSTRIAL OR INTELLECTUAL PROPERTY RIGHT OF TI, ITS SUPPLIERS/LICENSORS OR ANY OTHER THIRD PARTY, TO USE THE EVM IN ANY FINISHED END-USER OR READY-TO-USE FINAL PRODUCT, OR FOR ANY INVENTION, DISCOVERY OR IMPROVEMENT MADE, CONCEIVED OR ACQUIRED PRIOR TO OR AFTER DELIVERY OF THE EVM.

7. USER'S INDEMNITY OBLIGATIONS AND REPRESENTATIONS. USER WILL DEFEND, INDEMNIFY AND HOLD TI, ITS LICENSORS AND THEIR REPRESENTATIVES HARMLESS FROM AND AGAINST ANY AND ALL CLAIMS, DAMAGES, LOSSES, EXPENSES, COSTS AND LIABILITIES (COLLECTIVELY, "CLAIMS") ARISING OUT OF OR IN CONNECTION WITH ANY HANDLING OR USE OF THE EVM THAT IS NOT IN ACCORDANCE WITH THESE TERMS AND CONDITIONS. THIS OBLIGATION SHALL APPLY WHETHER CLAIMS ARISE UNDER STATUTE, REGULATION, OR THE LAW OF TORT, CONTRACT OR ANY OTHER LEGAL THEORY, AND EVEN IF THE EVM FAILS TO PERFORM AS DESCRIBED OR EXPECTED.

8. Limitations on Damages and Liability:

8.1 General Limitations. IN NO EVENT SHALL TI BE LIABLE FOR ANY SPECIAL, COLLATERAL, INDIRECT, PUNITIVE, INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF THESE TERMS ANDCONDITIONS OR THE USE OF THE EVMS PROVIDED HEREUNDER, REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED TO, COST OF REMOVAL OR REINSTALLATION, ANCILLARY COSTS TO THE PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, RETESTING, OUTSIDE COMPUTER TIME, LABOR COSTS, LOSS OF GOODWILL, LOSS OF PROFITS, LOSS OF SAVINGS, LOSS OF USE, LOSS OF DATA, OR BUSINESS INTERRUPTION. NO CLAIM, SUIT OR ACTION SHALL BE BROUGHT AGAINST TI MORE THAN ONE YEAR AFTER THE RELATED CAUSE OF ACTION HAS OCCURRED.

8.2 Specific Limitations. IN NO EVENT SHALL TI'S AGGREGATE LIABILITY FROM ANY WARRANTY OR OTHER OBLIGATION ARISING OUT OF OR IN CONNECTION WITH THESE TERMS AND CONDITIONS, OR ANY USE OF ANY TI EVM PROVIDED HEREUNDER, EXCEED THE TOTAL AMOUNT PAID TO TI FOR THE PARTICULAR UNITS SOLD UNDER THESE TERMS AND CONDITIONS WITH RESPECT TO WHICH LOSSES OR DAMAGES ARE CLAIMED. THE EXISTENCE OF MORE THAN ONE CLAIM AGAINST THE PARTICULAR UNITS SOLD TO USER UNDER THESE TERMS AND CONDITIONS SHALL NOT ENLARGE OR EXTEND THIS LIMIT.

9. Return Policy. Except as otherwise provided, TI does not offer any refunds, returns, or exchanges. Furthermore, no return of EVM(s) will be accepted if the package has been opened and no return of the EVM(s) will be accepted if they are damaged or otherwise not in a resalable condition. If User feels it has been incorrectly charged for the EVM(s) it ordered or that delivery violates the applicable order, User should contact TI. All refunds will be made in full within thirty (30) working days from the return of the components(s), excluding any postage or packaging costs.

10. Governing Law: These terms and conditions shall be governed by and interpreted in accordance with the laws of the State of Texas, without reference to conflict-of-laws principles. User agrees that non-exclusive jurisdiction for any dispute arising out of or relating to these terms and conditions lies within courts located in the State of Texas and consents to venue in Dallas County, Texas. Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

spacer

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, enhancements, improvements and other changes to its semiconductor products and services per JESD46, latest issue, and to discontinue any product or service per JESD48, latest issue. Buyers should obtain the latest relevant information before placing orders and should verify that such information is current and complete. All semiconductor products (also referred to herein as “components”) are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its components to the specifications applicable at the time of sale, in accordance with the warranty in TI’s terms and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily performed.

TI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and applications using TI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, machine, or process in which TI components or services are used. Information published by TI regarding third-party products or services does not constitute a license to use such products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of significant portions of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied by all associated warranties, conditions, limitations, and notices. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional restrictions.

Resale of TI components or services with statements different from or beyond the parameters stated by TI for that component or service voids all express and any implied warranties for the associated TI component or service and is an unfair and deceptive business practice. TI is not responsible or liable for any such statements.

Buyer acknowledges and agrees that it is solely responsible for compliance with all legal, regulatory and safety-related requirements concerning its products, and any use of TI components in its applications, notwithstanding any applications-related information or support that may be provided by TI. Buyer represents and agrees that it has all the necessary expertise to create and implement safeguards which anticipate dangerous consequences of failures, monitor failures and their consequences, lessen the likelihood of failures that might cause harm and take appropriate remedial actions. Buyer will fully indemnify TI and its representatives against any damages arising out of the use of any TI components in safety-critical applications.

In some cases, TI components may be promoted specifically to facilitate safety-related applications. With such components, TI’s goal is to help enable customers to design and create their own end-product solutions that meet applicable functional safety standards and requirements. Nonetheless, such components are subject to these terms.

No TI components are authorized for use in FDA Class III (or similar life-critical medical equipment) unless authorized officers of the parties have executed a special agreement specifically governing such use.

Only those TI components which TI has specifically designated as military grade or “enhanced plastic” are designed and intended for use in military/aerospace applications or environments. Buyer acknowledges and agrees that any military or aerospace use of TI components which have not been so designated is solely at the Buyer's risk, and that Buyer is solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI has specifically designated certain components as meeting ISO/TS16949 requirements, mainly for automotive use. In any case of use of non-designated products, TI will not be responsible for any failure to meet ISO/TS16949.

Products Applications

Audio www.ti.com/audio Automotive and Transportation www.ti.com/automotive Amplifiers amplifier.ti.com Communications and Telecom www.ti.com/communications Data Converters dataconverter.ti.com Computers and Peripherals www.ti.com/computers DLP® Products www.dlp.com Consumer Electronics www.ti.com/consumer-apps DSP dsp.ti.com Energy and Lighting www.ti.com/energy Clocks and Timers www.ti.com/clocks Industrial www.ti.com/industrial Interface interface.ti.com Medical www.ti.com/medical Logic logic.ti.com Security www.ti.com/security Power Mgmt power.ti.com Space, Avionics and Defense www.ti.com/space-avionics-defense Microcontrollers microcontroller.ti.com Video and Imaging www.ti.com/video RFID www.ti-rfid.com OMAP Applications Processors www.ti.com/omap TI E2E Community e2e.ti.com Wireless Connectivity www.ti.com/wirelessconnectivity

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Texas Instruments: LMX2430EVAL/NOPB LMX2434EVAL LMX2434EVAL/NOPB

Texas Instruments LMX2430, LMX2434, LMX2433, LMK04808B, LMK04806B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
