User's Guide
SNVU621C–May 2019–Revised December 2019
LM61460-Q1 EVM User's Guide
The LM61460-Q1 evaluation module (EVM) is designed to help customers evaluate the performance of
the LM61460-Q1 synchronous step-down voltage converter. This EVM implements the LM61460-Q1 in a
14-pin wettable flanks Hotrod™ package, as shown in Table 1. It is capable of delivering 5-V output
voltage and up to 6-A load current with exceptional efficiency and output accuracy in a very small solution
size. The EVM provides multiple power connectors and test points. It also provides a good layout
example, which is optimized for EMI and thermal performance.
Table 1. Device and Package Configurations
CONVERTER IC PACKAGE
U1 LM61460-Q1 14-pin wettable flanks Hotrod package 4.0 mm × 3.5 mm × 1.0 mm
Figure 1. LM61460EVM Front Figure 2. LM61460EVM Angle
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
LM61460-Q1 EVM User's Guide
1
Introduction
Contents
1 Introduction ................................................................................................................... 2
2 Quick Start.................................................................................................................... 3
3 Detailed Descriptions........................................................................................................ 5
4 Schematic..................................................................................................................... 6
5 Board Layout ................................................................................................................. 9
6 LM61460EVM Board Test Results....................................................................................... 10
7 Bill of Materials ............................................................................................................. 16
Trademarks
Hotrod is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
1 Introduction
1.1 LM61460 Synchronous Step-Down Voltage Converter
The LM61460-Q1 device is an easy-to-use synchronous step-down DC/DC converter capable of driving
up to 6 A of load current from a supply voltage ranging from 3 V to 36 V. The LM61460-Q1 provides
exceptional efficiency and output accuracy in a very small solution size. The LM61460-Q1 is capable of
delivering 6 A of load current and is peak current limit controlled. The following are additional features that
provide both flexible and easy-to-use solutions for a wide range of applications:
• Adjustable switching frequency
• Synchronization to an external clock
• FPWM variant (LM61460AFS)
• Power-good flag
• Precision enable
Automatic frequency foldback at light load and optional external bias improve efficiency over the entire
load range. The device requires few external components and has a pinout designed for optimal EMI and
thermal performance. Protection features include the following:
• Thermal shutdown
• Input undervoltage lockout
• Cycle-by-cycle current limiting
• Hiccup short-circuit protection
The LM61460-Q1 device is pin-to-pin compatible with the LM61440-Q1 for easy output current scaling.
For a quick reference, Figure 3 shows the pin configuration of the LM61460-Q1 and Figure 4 shows the
simplified schematic. See the LM61460-Q1 Automotive 3-V to 36-V, 6-A, Low-Noise Synchronous Step-
Down Converter Data Sheet for more detailed feature descriptions and design guide.
www.ti.com
2
LM61460-Q1 EVM User's Guide
Copyright © 2019, Texas Instruments Incorporated
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
LM61460-Q1
RESET
EN/SYNC
RT
PGND1
AGND
VCC
CBOOT
SW
FB
BIAS
RBOOT
3.0 V to 36 V input
VIN1
PGND2
VIN2
3.5 mm
4 mm
BIAS
CBOOT
RBOOT
EN/
SYNC
RESET
VIN1
VIN2
PGND1
PGND2
SW
FB
AGND
VCC
RT
www.ti.com
/RESET and PGOOD are used to describe the same device
pin throughout this document and other documents. Be aware
that these pin nomenclatures are used to describe the same
pin.
Figure 3. LM61460-Q1 Pin Configuration (Top View) Figure 4. LM61460-Q1 Schematic
1.2 LM61460-Q1 Evaluation Module
The LM61460-Q1 EVM has the board populated with the LM61460 in either one of two variants. Based on
the label populated, you can figure out which device trim is populated on the EVM and the corresponding
features. This board uses the LM61460-Q1 and limiting current to 6 A and comes with auto mode enabled.
Introduction
LABEL U1 I
LM61460EV
M-AS-400K
LM61460EV
M-FS-400K
LM61460AA
SQRJRRQ1
LM61460AF
SQRJRRQ1
2 Quick Start
1. Connect the voltage supply between the VIN and GND connectors or between VIN_EMI and
GND_EMI to include the on-board input filter in the input path. Use short and thick gauge wires to
minimize inductance and IR drop. Note that sense points for VINand V
2. Connect the load of the converter between VOUT and GND connectors using short and thick wires.
3. Set the supply voltage at an appropriate level between 6 V to 36 V. The 6 V minimum ensures enough
head room for V
appropriate level to supply needed current and protection.
4. Turn on the power supply. With the default configuration, the EVM powers up and provides V
5. Monitor the output voltage with sense points. The maximum load current must be 6 A with the
LM61460-Q1. Note that the maximum output current may need to derate if ambient temperature is
high, especially if device is operated at higher frequency, ie: 2.2MHz.
See Figure 5 for connector locations.
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
OUT
Table 2. EVM Variants
OUT
SWITCHING
FREQUENCY
6 A 400 kHz 3 to 36 V 5 V Enabled Disabled Enabled
6 A 400 kHz 3 to 36 V 5 V Disabled Enabled Enabled
V
IN
RANGE
OUT
AUTO
MODE
FPWM SPREAD SPECTRUM
are provided.
OUT
V
to equal 5 V at a 6 A load current. Set the current limit of the supply to an
LM61460-Q1 EVM User's Guide
Copyright © 2019, Texas Instruments Incorporated
OUT
= 5 V.
3
CAUTION
Caution Hot surface.
Contact may cause burns.
Do not touch.
Quick Start
www.ti.com
Figure 5. Top View of LM61460-Q1 EVM
4
LM61460-Q1 EVM User's Guide
Copyright © 2019, Texas Instruments Incorporated
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
www.ti.com
3 Detailed Descriptions
This section describes the connectors on the EVM and how to properly connect, set up, and use the EVM.
See Figure 5 for a top view of the EVM.
VOUT —Output voltage of the converter
VOUT connectors connect to the power inductor and output capacitors. Connect the load between
VOUT connector and the GND connector right next to it to provide load current. Connect the
loading device to the board with short and thick wires to handle the large DC output current.
GND —Ground of the converter
The GND is connected to the PGND and AGND pins of the device, as well as the ground of the
input and output capacitors. The GND connections next to VIN, VIN_EMI, and VOUT connectors
are meant for current return path for the supply voltage and load, respectively. Connectors are
provided in pairs to allow easy and accurate sensing of voltages. Connect to supply and load
grounds with short and thick wires. Other GND connectors are for signal measurement and probing.
VIN— Input voltage to the converter
The VINconnector connects to the input capacitors and the VIN pins of the LM61460-Q1. Connect
the supply voltage from a power supply or a battery between VIN and GND connectors as power
input to the device. The voltage range must be higher than 3.9 V for the device to start up. V
higher than 6 V provides regulated 5 V output voltage. VINmust be no higher than 36 V to avoid
damaging the device. After start-up, the device stays active until VINdrops below 3 V. The current
limit on the supply must be high enough to provide the needed supply current. Otherwise, the
supply voltage does not maintain the desired voltage. The supply voltage must be connected to the
board with short and thick wires to handle the pulsing input current. If long cables are used to
power up the board, damping must be provided by added CFLT3 and RFLT3 to avoid oscillation
between the cable parasitic inductance and the low-ESR ceramic capacitors.
Detailed Descriptions
IN
VIN_EMI —Input voltage to input filter of the converter
If the input filter is desired between the supply and the LM61460-Q1, connect the supply voltage
between VIN_EMI and GND_EMI. The supply voltage must be connected to the board with short
and thick wires to handle pulsing input current.
The input filter consists of the following: CF1, CF2, CF3, CF4, CF5, CF6, and L2. CD1, CD2, RD1,
and RD2 are provided to allow more options to during filter design. To include the input filter in the
power path, connect the supply voltage between the VIN_EMI and GND_EMI connectors. The
output of the filter is connected to VIN, which is connected to the VINpins of the LM61460-Q1 and
the input capacitors.
Conducted EMI arises from the normal operation of switching circuits. The ON and OFF actions of
the power switches generate large discontinuous currents. The discontinuous currents are present
at the input side of buck converters. Voltage ripple generated by discontinuous currents can be
conducted to the voltage supply for the buck converter. Without filtering, excessive input voltage
ripple can compromise operation of other circuits connected to this source. The input filter helps
smooth out the voltage perturbations leading to less noise at the power source.
GND_EMI —Ground return for the input filter
This is the current return path for the supply connected to VIN_EMI. It provides a short-loop
connection to the input filter capacitors to best filter the conducted noise generated from the PCB.
Use VIN_EMI and GND_EMI connection if input filter is used and conducted EMI test is desired.
CLK —For synchronization clock input
The CLK input connector is designed for external clock input to the EN/SYNC pin. Switching action
of the buck is synchronized to the external clock when it is present. The operation mode changes to
forced PWM mode automatically, maintaining a constant switching frequency at light load.
EN — To monitor the EN pin or input EN control signal
This test point is used to monitor the voltage on the device EN pin. By default, the EN pin is
connected to the mid-point of an enable divider. Note that the lower resistor in this divider, RENB, is
not populated.
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
LM61460-Q1 EVM User's Guide
5
Schematic
PG — To monitor the PGOOD/RESET pin
The PGOOD flag indicates whether the output voltage is within the regulation band. The PGOOD
pin of the device is an open-drain output and it is pulled up to V
resistor. This flag is high impedance when the output voltage is in regulation.
Vinj —To aid when making bode plots
There is a low value resistor, Rinj, between VOUT and this node. This feedback divider of the board
is connected to this node as well. Stimulus can be applied between this node and VOUT when
taking measurements for bode plots.
VOUTS —Kelvin sensing for VOUT
This connector is provided to allow V
VINS —Kelvin sensing for VIN
This connector is provided to allow VINto be measured more accurately.
4 Schematic
The bill of materials from Table 2 is tabulated in Section 7. In addition, Figure 6 shows the corresponding
schematic.
OUT
to be measured more accurately.
OUT
www.ti.com
on this board through a pullup
6
LM61460-Q1 EVM User's Guide
Copyright © 2019, Texas Instruments Incorporated
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
www.ti.com
Schematic
NOTE: Long leads and additional inductance in used to power the DC/DC may cause issues for ideal device operation. RD2, CD2, RD1, and
CD1 are placeholders for damping networks to be populated. For more information regarding this topic, reference the EMI Filter
Components and Their Nonidealities for Automotive DC/DC Regulators Technical Brief.
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
Figure 6. LM61460-AS-400K Rev A EVM Schematic
Copyright © 2019, Texas Instruments Incorporated
LM61460-Q1 EVM User's Guide
7
Schematic
4.1 Alternative BOM Configurations
Table 3. Different BOM Configurations
VOUT FREQUENCY RFBB RT COUT CIN + CHF L1
3.3 V 400 kHz 43.2 kΩ 33.2 kΩ 6 x 22 µF 2 x 4.7 µF + 2 x
3.3 V 2100 kHz 43.2 kΩ 6.04 kΩ 3 x 22 µF 2 x 4.7 µF + 2 x
5 V 400 kHz 24.9 kΩ 33.2 kΩ 4 x 22 µF 2 x 4.7 µF + 2 x
5 V 2100 kHz 24.9 kΩ 6.04 kΩ 3 x 22 µF 2 x 4.7 µF + 2 x
100 nF
100 nF
100 nF
100 nF
www.ti.com
4.7 µH
(XHMI6060)
1 µH (XEL5030)
4.7 µH
(XHMI6060)
1 µH (XEL5030)
8
LM61460-Q1 EVM User's Guide
Copyright © 2019, Texas Instruments Incorporated
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
www.ti.com
5 Board Layout

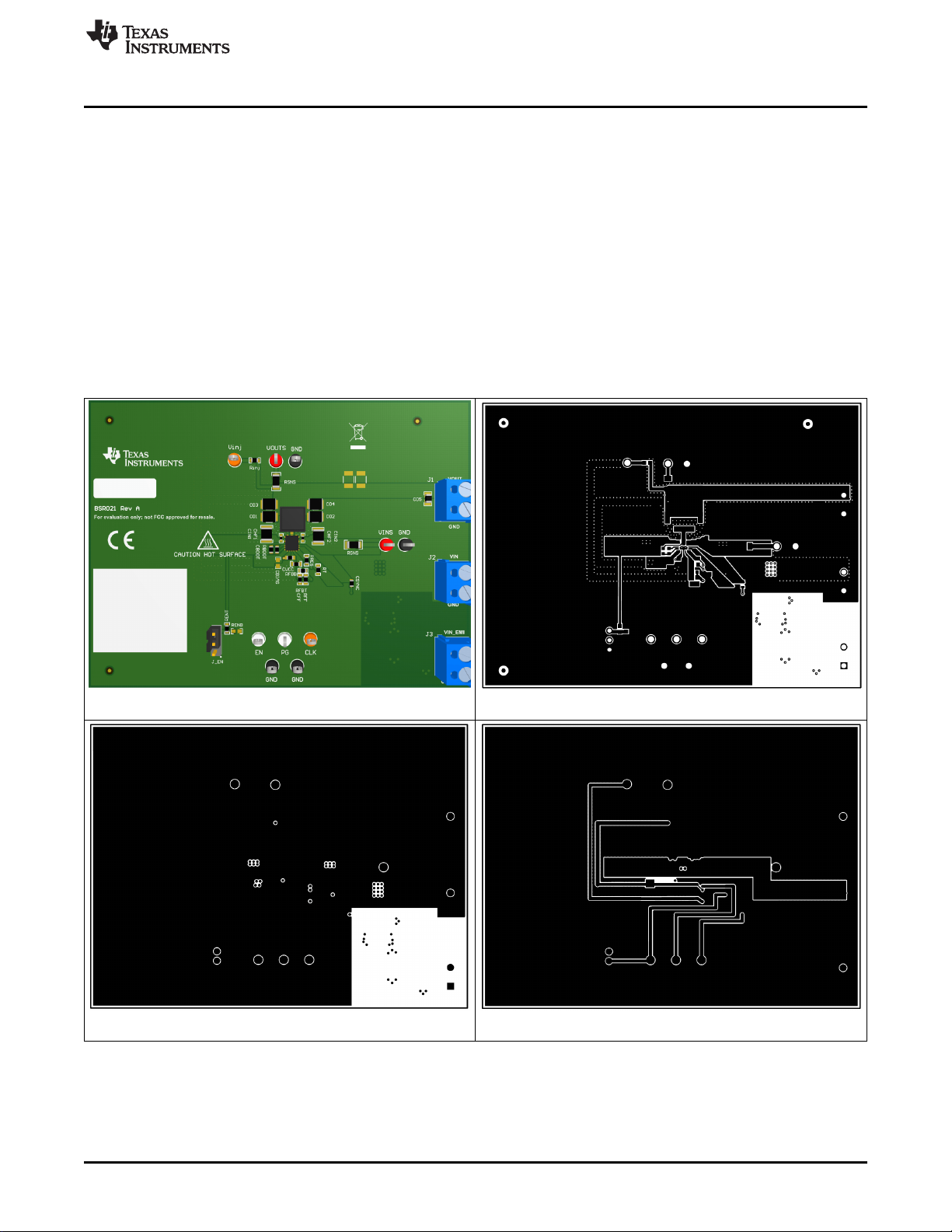

Figure 7 through Figure 12 show the board layout for the LM61460-Q1 EVM. The EVM offers resistors,
capacitors, and test points to configure the following:
• Output voltage
• Precision enable pin
• Set frequency
• External clock synchronization
The 14-pin Hotrod package offers a very small size and low-noise solution. The PCB consists of a 4-layer
design. There are 2-oz copper planes on the top and bottom and 1-oz copper mid-layer planes to
dissipate heat with an array of thermal vias to connect to all four layers.
Test points have been provided for ease of use to connect the power supply and required load, and to
monitor critical signals.
Board Layout
Figure 7. Top 3D View
Figure 9. Signal Layer 1 - Ground Plane
Figure 8. Top Layer
Figure 10. Signal Layer 2 - Routing
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
LM61460-Q1 EVM User's Guide
9
LM61460EVM Board Test Results
www.ti.com
Figure 11. Bottom Layer
6 LM61460EVM Board Test Results
6.1 Thermals
A thermal image of the IC was captured to determine rise in-temp with a 5 V, 6 A load. The device was
soaked for 30 minutes to obtain accurate measurement.
Figure 12. Bottom 3D view
6.2 EMI
The EMI measurements were taken following CISPR 25, Class 5 standards. The measurements were
taken at 13.5 VIN, 5 VOUT with a 6 A load.
10
LM61460-Q1 EVM User's Guide
Figure 13. Thermal Image Capture of IC at VIN = 13.5 V, VOUT = 5 V, Load = 6 A
NOTE: Thermal image captures top of case temperature. This is essentially junction temperature as
the case package is very thin, resulting in low psi-jt. This demonstrates device capability of
operating greater than 85°C ambient with headroom.
SNVU621C–May 2019–Revised December 2019
Copyright © 2019, Texas Instruments Incorporated
Submit Documentation Feedback
www.ti.com
LM61460EVM Board Test Results
Figure 14. Conducted EMI Measurement with CISPR 25
Class 5 Limit Lines (150 kHz to 30 MHz)
Figure 16. Radiated EMI Measurement with Horizontal
Bicon Antenna Under CISPR 25 Class 5 Limits
Figure 15. Conducted EMI Measurement with CISPR 25
Class 5 Limit Lines (30 MHz to 110 MHz)
Figure 17. Radiated EMI Measurement with Vertical Bicon
Antenna Under CISPR 25 Class 5 Limits
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
LM61460-Q1 EVM User's Guide
11
LM61460EVM Board Test Results
www.ti.com
Figure 18. Radiated EMI Measurement with Horizontal Log
Antenna Under CISPR 25 Class 5 Limits
Figure 20. Radiated EMI Measurement with Rod Antenna Under CISPR 25 Class 5 Limits
6.3 Board Efficiency
This section provides efficiency plots for the board with LM61460AAS populated for Auto mode efficiency
and LM61460AFS populated for FPWM mode efficiency. For 2-MHz data, the output stage has to be
changed from the default BOM. The inductor (L1) selected was XEL5030-102MEB.
Figure 19. Radiated EMI Measurement with Vertical Log
Antenna Under CISPR 25 Class 5 Limits
12
LM61460-Q1 EVM User's Guide
Copyright © 2019, Texas Instruments Incorporated
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
Load Current (A)
Efficiency (%)
0.001 0.010.02 0.05 0.1 0.2 0.5 1 2 3 45 7 10
60%
65%
70%
75%
80%
85%
90%
95%
100%
LM61
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Load Current (A)
Efficiency (%)
0 1 2 3 4 5 6 7
50%
55%
60%
65%
70%
75%
80%
85%
90%
95%
100%
LM61
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Output Current (A)
Efficiency (%)
0.001 0.010.02 0.05 0.1 0.2 0.5 1 2 3 45 7 10
60%
65%
70%
75%
80%
85%
90%
95%
100%
LM61
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Output Current (A)
Efficiency (%)
0 1 2 3 4 5 6 7
50%
55%
60%
65%
70%
75%
80%
85%
90%
95%
100%
LM61
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Load Current (A)
Efficiency (%)
0.0001 0.001 0.01 0.1 0.2 0.5 1 2 3 5 710
60%
65%
70%
75%
80%
85%
90%
95%
100%
LM61
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Load Current (A)
Efficiency (%)
0 1 2 3 4 5 6 7
50%
55%
60%
65%
70%
75%
80%
85%
90%
95%
100%
LM61
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
www.ti.com
LM61460EVM Board Test Results
Figure 21. FSW= 400 kHz, 5 VOUT, Auto Mode Figure 22. FSW= 400 kHz, 5 VOUT, FPWM Mode
Figure 23. FSW= 400 kHz, 3.3 VOUT, Auto Mode Figure 24. FSW= 400 kHz, 3.3 VOUT, FPWM Mode
Figure 25. FSW= 2.2 MHz, 5 VOUT, Auto Mode Figure 26. FSW= 2.2 MHz, 5 VOUT, FPWM Mode
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
LM61460-Q1 EVM User's Guide
13
Output Current (A)
Output Voltage (V)
0 1 2 3 4 5 6 7
3.29
3.31
3.33
3.35
3.37
SNVS
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Output Current (A)
Output Voltage (V)
0 1 2 3 4 5 6 7
3.29
3.31
3.33
3.35
3.37
SNVS
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Output Current (A)
Output Voltage (V)
0 1 2 3 4 5 6 7
4.95
4.97
4.99
5.01
5.03
5.05
5.07
5.09
5.11
SNVS
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Output Current (A)
Output Voltage (V)
0 1 2 3 4 5 6 7
4.95
4.97
4.99
5.01
5.03
5.05
5.07
5.09
5.11
SNVS
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Output Current (A)
Efficiency (%)
0.001 0.010.02 0.05 0.1 0.2 0.5 1 2 3 45 7 10
60%
65%
70%
75%
80%
85%
90%
95%
100%
LM61
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Output Current (A)
Efficiency (%)
0 1 2 3 4 5 6 7
50%
55%
60%
65%
70%
75%
80%
85%
90%
95%
100%
LM61
V
IN
= 8 V
V
IN
= 13.5 V
V
IN
= 24 V
LM61460EVM Board Test Results
Figure 27. FSW= 2.2 MHz, 3.3 VOUT, Auto Mode Figure 28. FSW= 2.2 MHz, 3.3 VOUT, FPWM Mode
6.4 Load Regulation
This section provides efficiency plots for the board with LM61460AAS populated for Auto mode efficiency
and LM61460AFS populated for FPWM mode efficiency. For 2-MHz data, the output stage has to be
changed from the default BOM. The inductor (L1) selected was XEL5030-102MEB.
www.ti.com
Figure 29. FSW= 400 kHz, 5 VOUT, Auto Mode Figure 30. FSW= 400 kHz, 5 VOUT, FPWM Mode
14
Figure 31. FSW= 400 kHz, 3.3 VOUT, Auto Mode Figure 32. FSW= 400 kHz, 3.3 VOUT, FPWM Mode
LM61460-Q1 EVM User's Guide
Copyright © 2019, Texas Instruments Incorporated
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
Output Current (A)
Output Voltage (V)
0 1 2 3 4 5 6 7
3.29
3.31
3.33
3.35
3.37
SNVS
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Output Current (A)
Output Voltage (V)
0 1 2 3 4 5 6 7
3.29
3.31
3.33
3.35
3.37
SNVS
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Output Current (A)
Output Voltage (V)
0 1 2 3 4 5 6 7
4.95
4.97
4.99
5.01
5.03
5.05
5.07
5.09
5.11
SNVS
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
Output Current (A)
Output Voltage (V)
0 1 2 3 4 5 6 7
4.95
4.97
4.99
5.01
5.03
5.05
5.07
5.09
5.11
SNVS
VIN = 8 V
VIN = 13.5 V
VIN = 24 V
www.ti.com
LM61460EVM Board Test Results
Figure 33. FSW= 2.2 MHz, 5 VOUT, Auto Mode Figure 34. FSW= 2.2 MHz, 5 VOUT, FPWM Mode
Figure 35. FSW= 2.2 MHz, 3.3 VOUT, Auto Mode Figure 36. FSW= 2.2 MHz, 3.3 VOUT, FPWM Mode
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
LM61460-Q1 EVM User's Guide
15
Bill of Materials
7 Bill of Materials
The bill of material is shown Table 4 for Rev A of the LM61460EVM-AS-400K and LM61460EVM-FS-400K. Note that the BOM difference between
the two EVM variants is the selection of the IC populated (U1).
www.ti.com
Table 4. LM61460EVM-xS-400K Rev A EVM Bill of Materials
DESIGNATOR QUANTITY VALUE DESCRIPTION
C1, C4 2 4.7 µF CAP, CERM, 4.7 µF, 50 V, ±20%, X7R, AEC-
Q200 Grade 1, 1210
C2, C3 2 0.022 µF CAP, CERM, 0.022 µF, 50 V, ±10%, X7R,
0402
C5 1 1 µF CAP, CERM, 1 µF, 25 V, ±10%, X7R, 0805 0805 C0805C105K3RACTU Kemet
C6, C7, C8, C9 4 22 µF CAP, CERM, 22 µF, 16 V, ±20%, X7R, AEC-
Q200 Grade 1, 1210
C12 1 1000 pF CAP, CERM, 1000 pF, 50 V, ±0%, X7R, 0603 0603 C0603C102K5RACTU Kemet
C13 1 0.1 µF CAP, CERM, 0.1 µF, 10 V, ±10%, X7R, 0603 0603 C0603X104K8RACTU Kemet
C15 1 1 µF CAP, CERM, 1 µF, 16 V, ±10%, X7R, 0603 0603 885012206052 Wurth Elektronik
C16 1 22 pF CAP, CERM, 22 pF, 50 V, ±5%, C0G/NP0,
AEC-Q200 Grade 1, 0603
C17, C18, C19, C20 4 2.2 µF CAP, CERM, 2.2 µF, 50 V, ±10%, X7R, AEC-
Q200 Grade 1, 0805
C21, C22 2 0.47 µF CAP, CERM, 0.47 µF, 50 V, ±10%, X7R,
AEC-Q200 Grade 1, 0603
J1, J2, J3 3 Terminal Block, 5 mm, 2x1, Tin, TH Terminal Block, 5 mm,
J4 1 Header, 100 mil, 3x1, Gold, TH Header, 100 mil, 3x1, TH HTSW-103-07-G-S Samtec
L1 1 4.7 µH Inductor, Shielded, Hyperflux, 4.7 µH, 7.4 A,
0.0143 Ω, SMD
L2 1 1.2 µH Shielded Molded Inductor 7.5 A, 11.3
mΩ Max 2-SMD
LBL1 1 PCB Label 0.650 x 0.200
R1, R6 2 1.00 k RES, 1.00 k, 1%, 0.25 W, 1206 1206 RC1206FR-071KL Yageo America
R2 1 0 RES, 0, 5%, 0.1 W, 0603 0603 RC0603JR-070RL Yageo
R3 1 33.2 k RES, 33.2 k, 1%, 0.1 W, AEC-Q200 Grade 0,
0603
R4, R7 2 100 k RES, 100 k, 1%, 0.1 W, 0603 0603 RC0603FR-07100KL Yageo
R5 1 100 RES, 100, 1%, 0.1 W, 0603 0603 RC0603FR-07100RL Yageo
R8 1 24.9 k RES, 24.9 k, 1%, 0.1 W, 0603 0603 RC0603FR-0724K9L Yageo
R9 1 1.00 k RES, 1.00 k, 1%, 0.1 W, 0603 0603 ERJ-3EKF1001V Panasonic
PACKAGE
REFERENCE
1210 UMK325B7475MMHT Taiyo Yuden
0402 GRM155R71H223KA12DMuRata
1210 CGA6P1X7R1C226M25
0603 CGA3E2C0G1H220J080AATDK
0805 CGA4J3X7R1H225K125ABTDK
0603 CGA3E3X7R1H474K080AETDK
2x1, TH
6.65x6.45 mm 74439346047 Wurth Elektronik
SMD2 744316220 Wurth Electronics
inch
0603 CRCW060333K2FKEA Vishay-Dale
PART NUMBER MANUFACTURER
TDK
0AC
691 101 710 002 Wurth Elektronik
THT-14-423-10 Brady
16
LM61460-Q1 EVM User's Guide
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
www.ti.com
Bill of Materials
Table 4. LM61460EVM-xS-400K Rev A EVM Bill of Materials (continued)
DESIGNATOR QUANTITY VALUE DESCRIPTION
R10 1 255 k RES, 255 k, 1%, 0.1 W, 0603 0603 RC0603FR-07255KL Yageo
SH-J1 1 Shunt, 100 mil, Gold plated, Black Shunt 2 pos. 100 mil 881545-2 TE Connectivity
TP1, TP9 2 Test Point, Multipurpose, Red, TH Red Multipurpose
TP2, TP3, TP5, TP6 4 Test Point, Multipurpose, Black, TH Black Multipurpose
TP4, TP7 2 Test Point, Multipurpose, Orange, TH Orange Multipurpose
TP8, TP10 2 Test Point, Multipurpose, White, TH White Multipurpose
U1 (changes based on
EVM variant)
C10, C11 0 22 µF CAP, CERM, 22 µF, 16 V, ±20%, X7R, AEC-
C14 0 1 µF CAP, CERM, 1 µF, 10 V, ±10%, X7R, 0603 0603 GRM188R71A105KA61DMuRata
C23, C24 0 1 µF CAP, CERM, 1 µF, 50 V, ±10%, X7R, 0603 0603 UMK107AB7105KA-T Taiyo Yuden
FID1, FID2, FID3, FID4,
FID5, FID6
R12 0 0.51 RES, 0.51, 1%, 0.25 W, 0805 0805 CRM0805-FX-R510ELF Bourns
R13 0 100 k RES, 100 k, 1%, 0.1 W, 0603 0603 RC0603FR-07100KL Yageo
1 Automotive 6-A Low Noise Synchronous Buck
Regulators, RJR0014A (VQFN-HR-14)
Q200 Grade 1, 1210
0 Fiducial mark. There is nothing to buy or
mount.
PACKAGE
REFERENCE
Testpoint
Testpoint
Testpoint
Testpoint
RJR0014A LM61460AASQRJRRQ1
1210 CGA6P1X7R1C226M25
N/A N/A N/A
PART NUMBER MANUFACTURER
5010 Keystone
5011 Keystone
5013 Keystone
5012 Keystone
Texas Instruments
(LM61460EVM-AS400K) or
LM61460AFSQRJRRQ1
(LM61460EVM-FS-400K
TDK
0AC
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
Copyright © 2019, Texas Instruments Incorporated
LM61460-Q1 EVM User's Guide
17
Revision History
www.ti.com
Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from B Revision (November 2019) to C Revision ........................................................................................... Page
• Added Section 4.1......................................................................................................................... 8
• Added plots to Section 6.2.............................................................................................................. 10
• Added Section 6.3 ....................................................................................................................... 12
• Added Section 6.4 ....................................................................................................................... 14
Changes from A Revision (September 2019) to B Revision .......................................................................................... Page
• Updated Figure 5 through Figure 12 to match the revised EVM design........................................................... 4
• Added Figure 20 through Figure 15................................................................................................... 10
Changes from Original (May 2019) to A Revision ........................................................................................................... Page
• Changed Figure 5 through Figure 12................................................................................................... 4
• Changed connected descriptions to match the new EVM design .................................................................. 5
• Changed the Bill of Materials........................................................................................................... 16
18
Revision History
Copyright © 2019, Texas Instruments Incorporated
SNVU621C–May 2019–Revised December 2019
Submit Documentation Feedback
STANDARD TERMS FOR EVALUATION MODULES
1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or
documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance
with the terms set forth herein. User's acceptance of the EVM is expressly subject to the following terms.
1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility
evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not
finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For
clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions
set forth herein but rather shall be subject to the applicable terms that accompany such Software
1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned,
or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production
system.
2 Limited Warranty and Related Remedies/Disclaimers:
2.1 These terms do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License
Agreement.
2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM
to User. Notwithstanding the foregoing, TI shall not be liable for a nonconforming EVM if (a) the nonconformity was caused by
neglect, misuse or mistreatment by an entity other than TI, including improper installation or testing, or for any EVMs that have
been altered or modified in any way by an entity other than TI, (b) the nonconformity resulted from User's design, specifications
or instructions for such EVMs or improper system design, or (c) User has not paid on time. Testing and other quality control
techniques are used to the extent TI deems necessary. TI does not test all parameters of each EVM.
User's claims against TI under this Section 2 are void if User fails to notify TI of any apparent defects in the EVMs within ten (10)
business days after delivery, or of any hidden defects with ten (10) business days after the defect has been detected.
2.3 TI's sole liability shall be at its option to repair or replace EVMs that fail to conform to the warranty set forth above, or credit
User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the warranty
period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to repair or
replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall be
warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day
warranty period.
WARNING
Evaluation Kits are intended solely for use by technically qualified,
professional electronics experts who are familiar with the dangers
and application risks associated with handling electrical mechanical
components, systems, and subsystems.
User shall operate the Evaluation Kit within TI’s recommended
guidelines and any applicable legal or environmental requirements
as well as reasonable and customary safeguards. Failure to set up
and/or operate the Evaluation Kit within TI’s recommended
guidelines may result in personal injury or death or property
damage. Proper set up entails following TI’s instructions for
electrical ratings of interface circuits such as input, output and
electrical loads.
NOTE:
EXPOSURE TO ELECTROSTATIC DISCHARGE (ESD) MAY CAUSE DEGREDATION OR FAILURE OF THE EVALUATION
KIT; TI RECOMMENDS STORAGE OF THE EVALUATION KIT IN A PROTECTIVE ESD BAG.
3 Regulatory Notices:
3.1 United States
3.1.1 Notice applicable to EVMs not FCC-Approved:
FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software
associated with the kit to determine whether to incorporate such items in a finished product and software developers to write
software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or
otherwise marketed unless all required FCC equipment authorizations are first obtained. Operation is subject to the condition
that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference.
Unless the assembled kit is designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must
operate under the authority of an FCC license holder or must secure an experimental authorization under part 5 of this chapter.
3.1.2 For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:
CAUTION
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
FCC Interference Statement for Class A EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
www.ti.com
FCC Interference Statement for Class B EVM devices
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
3.2 Canada
3.2.1 For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210 or RSS-247
Concerning EVMs Including Radio Transmitters:
This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may
cause undesired operation of the device.
Concernant les EVMs avec appareils radio:
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation
est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.
Concerning EVMs Including Detachable Antennas:
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)
gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type
and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for
successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types
listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated.
Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited
for use with this device.
2
www.ti.com
3.3 Japan
Concernant les EVMs avec antennes détachables
Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et
d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage
radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le
présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le
manuel d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne
non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur
3.3.1 Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本国内に
輸入される評価用キット、ボードについては、次のところをご覧ください。
http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page
3.3.2 Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be certified
by TI as conforming to Technical Regulations of Radio Law of Japan.
If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required to follow the
instructions set forth by Radio Law of Japan, which includes, but is not limited to, the instructions below with respect to EVMs
(which for the avoidance of doubt are stated strictly for convenience and should be verified by User):
1. Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal
Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for
Enforcement of Radio Law of Japan,
2. Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect to
EVMs, or
3. Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of Japan
with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee. Please note
that if User does not follow the instructions above, User will be subject to penalties of Radio Law of Japan.
【無線電波を送信する製品の開発キットをお使いになる際の注意事項】 開発キットの中には技術基準適合証明を受けて
いないものがあります。 技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの
措置を取っていただく必要がありますのでご注意ください。
1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用
いただく。
2. 実験局の免許を取得後ご使用いただく。
3. 技術基準適合証明を取得後ご使用いただく。
なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。
上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。 日本テキサス・イ
ンスツルメンツ株式会社
東京都新宿区西新宿６丁目２４番１号
西新宿三井ビル
3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/
/www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page
3.4 European Union
3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive):
This is a class A product intended for use in environments other than domestic environments that are connected to a
low-voltage power-supply network that supplies buildings used for domestic purposes. In a domestic environment this
product may cause radio interference in which case the user may be required to take adequate measures.
3
www.ti.com
4 EVM Use Restrictions and Warnings:
4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT
LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.
4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling
or using the EVM, including without limitation any warning or restriction notices. The notices contain important safety information
related to, for example, temperatures and voltages.
4.3 Safety-Related Warnings and Restrictions:
4.3.1 User shall operate the EVM within TI’s recommended specifications and environmental considerations stated in the user
guide, other available documentation provided by TI, and any other applicable requirements and employ reasonable and
customary safeguards. Exceeding the specified performance ratings and specifications (including but not limited to input
and output voltage, current, power, and environmental ranges) for the EVM may cause personal injury or death, or
property damage. If there are questions concerning performance ratings and specifications, User should contact a TI
field representative prior to connecting interface electronics including input power and intended loads. Any loads applied
outside of the specified output range may also result in unintended and/or inaccurate operation and/or possible
permanent damage to the EVM and/or interface electronics. Please consult the EVM user guide prior to connecting any
load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative.
During normal operation, even with the inputs and outputs kept within the specified allowable ranges, some circuit
components may have elevated case temperatures. These components include but are not limited to linear regulators,
switching transistors, pass transistors, current sense resistors, and heat sinks, which can be identified using the
information in the associated documentation. When working with the EVM, please be aware that the EVM may become
very warm.
4.3.2 EVMs are intended solely for use by technically qualified, professional electronics experts who are familiar with the
dangers and application risks associated with handling electrical mechanical components, systems, and subsystems.
User assumes all responsibility and liability for proper and safe handling and use of the EVM by User or its employees,
affiliates, contractors or designees. User assumes all responsibility and liability to ensure that any interfaces (electronic
and/or mechanical) between the EVM and any human body are designed with suitable isolation and means to safely
limit accessible leakage currents to minimize the risk of electrical shock hazard. User assumes all responsibility and
liability for any improper or unsafe handling or use of the EVM by User or its employees, affiliates, contractors or
designees.
4.4 User assumes all responsibility and liability to determine whether the EVM is subject to any applicable international, federal,
state, or local laws and regulations related to User’s handling and use of the EVM and, if applicable, User assumes all
responsibility and liability for compliance in all respects with such laws and regulations. User assumes all responsibility and
liability for proper disposal and recycling of the EVM consistent with all applicable international, federal, state, and local
requirements.
5. Accuracy of Information: To the extent TI provides information on the availability and function of EVMs, TI attempts to be as accurate
as possible. However, TI does not warrant the accuracy of EVM descriptions, EVM availability or other information on its websites as
accurate, complete, reliable, current, or error-free.
6. Disclaimers:
6.1 EXCEPT AS SET FORTH ABOVE, EVMS AND ANY MATERIALS PROVIDED WITH THE EVM (INCLUDING, BUT NOT
LIMITED TO, REFERENCE DESIGNS AND THE DESIGN OF THE EVM ITSELF) ARE PROVIDED "AS IS" AND "WITH ALL
FAULTS." TI DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING SUCH ITEMS, INCLUDING BUT
NOT LIMITED TO ANY EPIDEMIC FAILURE WARRANTY OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY THIRD PARTY PATENTS, COPYRIGHTS, TRADE
SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS.
6.2 EXCEPT FOR THE LIMITED RIGHT TO USE THE EVM SET FORTH HEREIN, NOTHING IN THESE TERMS SHALL BE
CONSTRUED AS GRANTING OR CONFERRING ANY RIGHTS BY LICENSE, PATENT, OR ANY OTHER INDUSTRIAL OR
INTELLECTUAL PROPERTY RIGHT OF TI, ITS SUPPLIERS/LICENSORS OR ANY OTHER THIRD PARTY, TO USE THE
EVM IN ANY FINISHED END-USER OR READY-TO-USE FINAL PRODUCT, OR FOR ANY INVENTION, DISCOVERY OR
IMPROVEMENT, REGARDLESS OF WHEN MADE, CONCEIVED OR ACQUIRED.
7. USER'S INDEMNITY OBLIGATIONS AND REPRESENTATIONS. USER WILL DEFEND, INDEMNIFY AND HOLD TI, ITS
LICENSORS AND THEIR REPRESENTATIVES HARMLESS FROM AND AGAINST ANY AND ALL CLAIMS, DAMAGES, LOSSES,
EXPENSES, COSTS AND LIABILITIES (COLLECTIVELY, "CLAIMS") ARISING OUT OF OR IN CONNECTION WITH ANY
HANDLING OR USE OF THE EVM THAT IS NOT IN ACCORDANCE WITH THESE TERMS. THIS OBLIGATION SHALL APPLY
WHETHER CLAIMS ARISE UNDER STATUTE, REGULATION, OR THE LAW OF TORT, CONTRACT OR ANY OTHER LEGAL
THEORY, AND EVEN IF THE EVM FAILS TO PERFORM AS DESCRIBED OR EXPECTED.
4
www.ti.com
8. Limitations on Damages and Liability:
8.1 General Limitations. IN NO EVENT SHALL TI BE LIABLE FOR ANY SPECIAL, COLLATERAL, INDIRECT, PUNITIVE,
INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF THESE
TERMS OR THE USE OF THE EVMS , REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED TO, COST OF REMOVAL OR
REINSTALLATION, ANCILLARY COSTS TO THE PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, RETESTING,
OUTSIDE COMPUTER TIME, LABOR COSTS, LOSS OF GOODWILL, LOSS OF PROFITS, LOSS OF SAVINGS, LOSS OF
USE, LOSS OF DATA, OR BUSINESS INTERRUPTION. NO CLAIM, SUIT OR ACTION SHALL BE BROUGHT AGAINST TI
MORE THAN TWELVE (12) MONTHS AFTER THE EVENT THAT GAVE RISE TO THE CAUSE OF ACTION HAS
OCCURRED.
8.2 Specific Limitations. IN NO EVENT SHALL TI'S AGGREGATE LIABILITY FROM ANY USE OF AN EVM PROVIDED
HEREUNDER, INCLUDING FROM ANY WARRANTY, INDEMITY OR OTHER OBLIGATION ARISING OUT OF OR IN
CONNECTION WITH THESE TERMS, , EXCEED THE TOTAL AMOUNT PAID TO TI BY USER FOR THE PARTICULAR
EVM(S) AT ISSUE DURING THE PRIOR TWELVE (12) MONTHS WITH RESPECT TO WHICH LOSSES OR DAMAGES ARE
CLAIMED. THE EXISTENCE OF MORE THAN ONE CLAIM SHALL NOT ENLARGE OR EXTEND THIS LIMIT.
9. Return Policy. Except as otherwise provided, TI does not offer any refunds, returns, or exchanges. Furthermore, no return of EVM(s)
will be accepted if the package has been opened and no return of the EVM(s) will be accepted if they are damaged or otherwise not in
a resalable condition. If User feels it has been incorrectly charged for the EVM(s) it ordered or that delivery violates the applicable
order, User should contact TI. All refunds will be made in full within thirty (30) working days from the return of the components(s),
excluding any postage or packaging costs.
10. Governing Law: These terms and conditions shall be governed by and interpreted in accordance with the laws of the State of Texas,
without reference to conflict-of-laws principles. User agrees that non-exclusive jurisdiction for any dispute arising out of or relating to
these terms and conditions lies within courts located in the State of Texas and consents to venue in Dallas County, Texas.
Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief
in any United States or foreign court.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2019, Texas Instruments Incorporated
5
IMPORTANT NOTICE AND DISCLAIMER
TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE
DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”
AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD
PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate
TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable
standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you
permission to use these resources only for development of an application that uses the TI products described in the resource. Other
reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third
party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims,
damages, costs, losses, and liabilities arising out of your use of these resources.
TI’s products are provided subject to TI’s Terms of Sale (www.ti.com/legal/termsofsale.html) or other applicable terms available either on
ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable
warranties or warranty disclaimers for TI products.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2019, Texas Instruments Incorporated
Loading...
