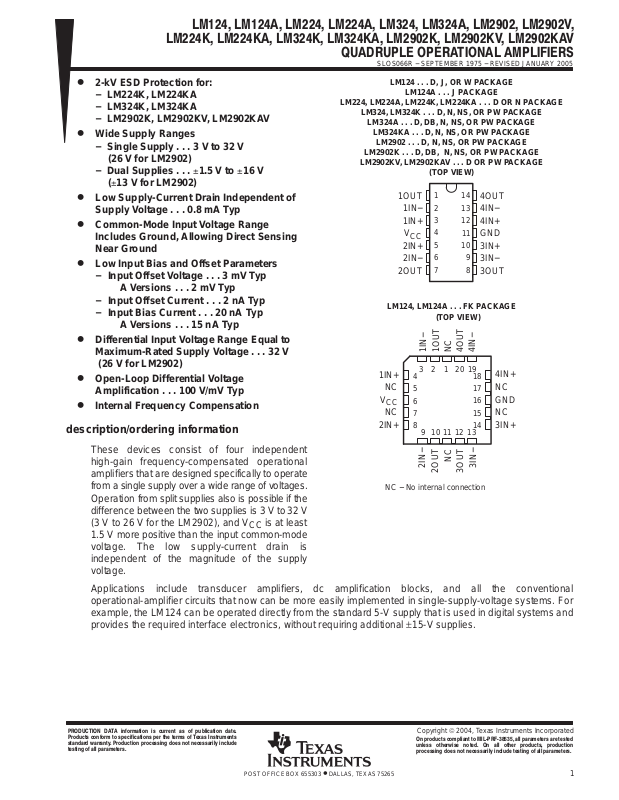

Texas Instruments LM124 Specifications

       

LM124 . . . D, J, OR W PACKAGE

      

  

SLOS066R − SEPTEMBER 1975 − REVISED JANUARY 2005

D 2-kV ESD Protection for:

− LM224K, LM224KA

− LM324K, LM324KA

− LM2902K, LM2902KV, LM2902KAV

D Wide Supply Ranges

− Single Supply ...3 V to 32 V
(26 V for LM2902)

− Dual Supplies . . . +1.5 V to +16 V
(+13 V for LM2902)

D Low Supply-Current Drain Independent of

Supply Voltage . . . 0.8 mA Typ

D Common-Mode Input Voltage Range

Includes Ground, Allowing Direct Sensing
Near Ground

D Low Input Bias and Offset Parameters

− Input Offset Voltage ...3 mV Typ

A Versions ...2 mV Typ

− Input Offset Current ...2 nA Typ

− Input Bias Current...20 nA Typ

A Versions . . . 15 nA Typ

D Differential Input Voltage Range Equal to

Maximum-Rated Supply Voltage ...32 V
(26 V for LM2902)

D Open-Loop Differential Voltage

Amplification . . . 100 V/mV Typ

D Internal Frequency Compensation

description/ordering information

LM224, LM224A, LM224K, LM224KA ...D OR N PACKAGE

LM324, LM324K . . . D, N, NS, OR PW PACKAGE

LM324A . . . D, DB, N, NS, OR PW PACKAGE

LM324KA . . . D, N, NS, OR PW PACKAGE

LM2902K . . . D, DB, N, NS, OR PW PACKAGE

LM2902KV, LM2902KAV ...D OR PW PACKAGE

LM124A ...J PACKAGE

LM2902 . . . D, N, NS, OR PW PACKAGE

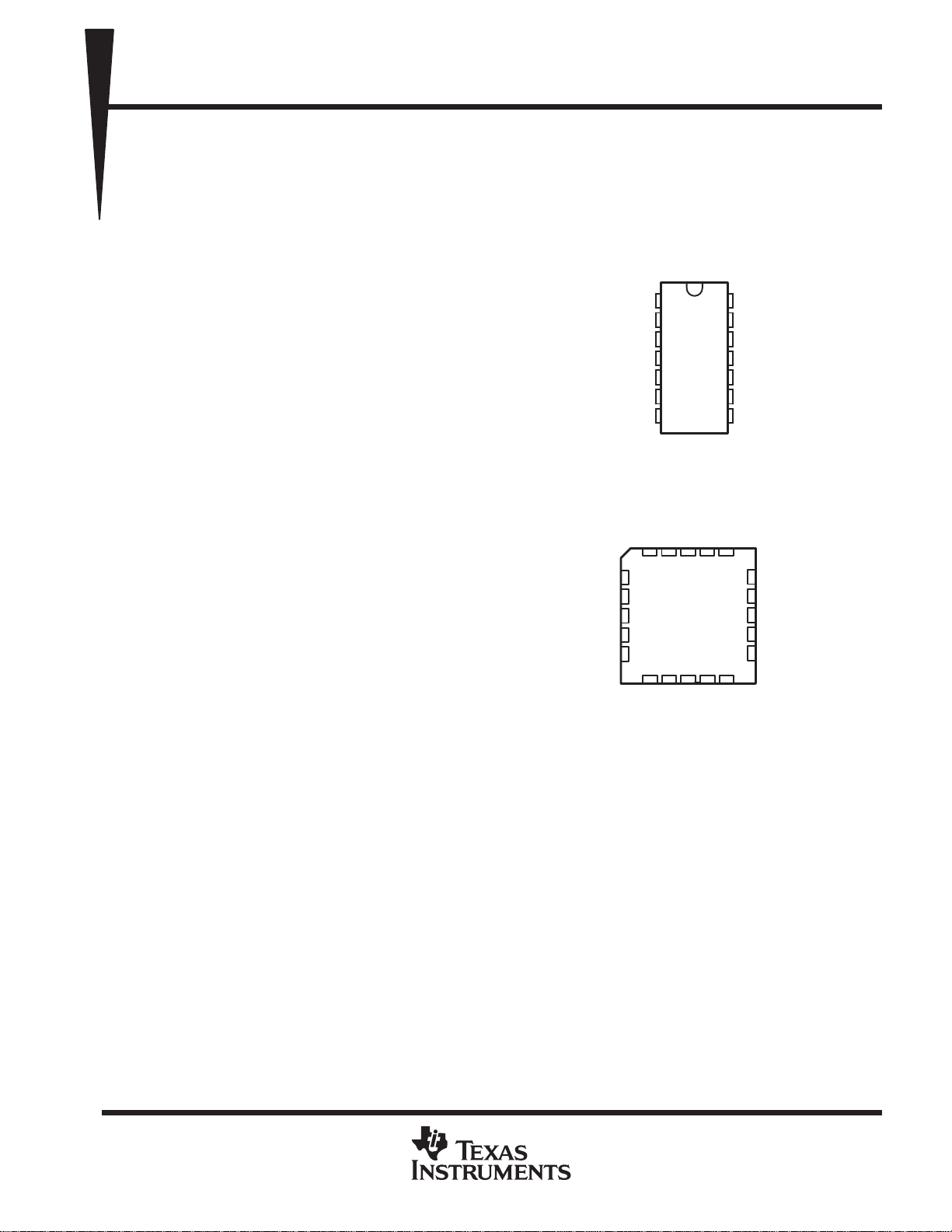

(TOP VIEW)

1

14

NC

13
12
11
10

9
8

4IN−

4OUT

18
17
16
15
14

4OUT
4IN−
4IN+
GND
3IN+
3IN−
3OUT

4IN+
NC
GND
NC
3IN+

1OUT

1IN−
1IN+

2IN+
2IN−

2OUT

LM124, LM124A . . . FK PACKAGE

1IN+

NC

V

CC

NC

2IN+

2
3
4

V

CC

5
6
7

(TOP VIEW)

1IN−

1OUT

3 2 1 20 19

4
5
6
7
8

910111213

These devices consist of four independent
high-gain frequency-compensated operational
amplifiers that are designed specifically to operate
from a single supply over a wide range of voltages.

NC − No internal connection

2IN−

NC

2OUT

3IN−

3OUT

Operation from split supplies also is possible if the
difference between the two supplies is 3 V to 3 2 V
(3 V to 26 V for the LM2902), and V

is at least

CC

1.5 V more positive than the input common-mode
voltage. The low supply-current drain is
independent of the magnitude of the supply
voltage.

Applications include transducer amplifiers, dc amplification blocks, and all the conventional
operational-amplifier circuits that now can be more easily implemented in single-supply-voltage systems. For
example, the LM124 can be operated directly from the standard 5-V supply that is used in digital systems and
provides the required interface electronics, without requiring additional ±15-V supplies.

  !" # $%&" !#  '%()$!" *!"&+
*%$"# $ " #'&$$!"# '& ",& "&#  &-!# #"%&"#
#"!*!* .!!"/+ *%$" '$&##0 *&# " &$&##!)/ $)%*&
"&#"0  !)) '!!&"&#+

Copyright  2004, Texas Instruments Incorporated

 '*%$"# $')!" " 11233 !)) '!!&"&# !& "&#"&*
%)&## ",&.#& "&*+  !)) ",& '*%$"# '*%$"
'$&##0 *&# " &$&##!)/ $)%*& "&#"0  !)) '!!&"&#+

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

1

       

7 mV

30 V

SOP (NS)

0 C to 70 C

SOP (NS)

      
  

SLOS066R − SEPTEMBER 1975 − REVISED JANUARY 2005

description/ordering information (continued)

ORDERING INFORMATION

T

A

0°C to 70°C

−25°C to 85°C

†

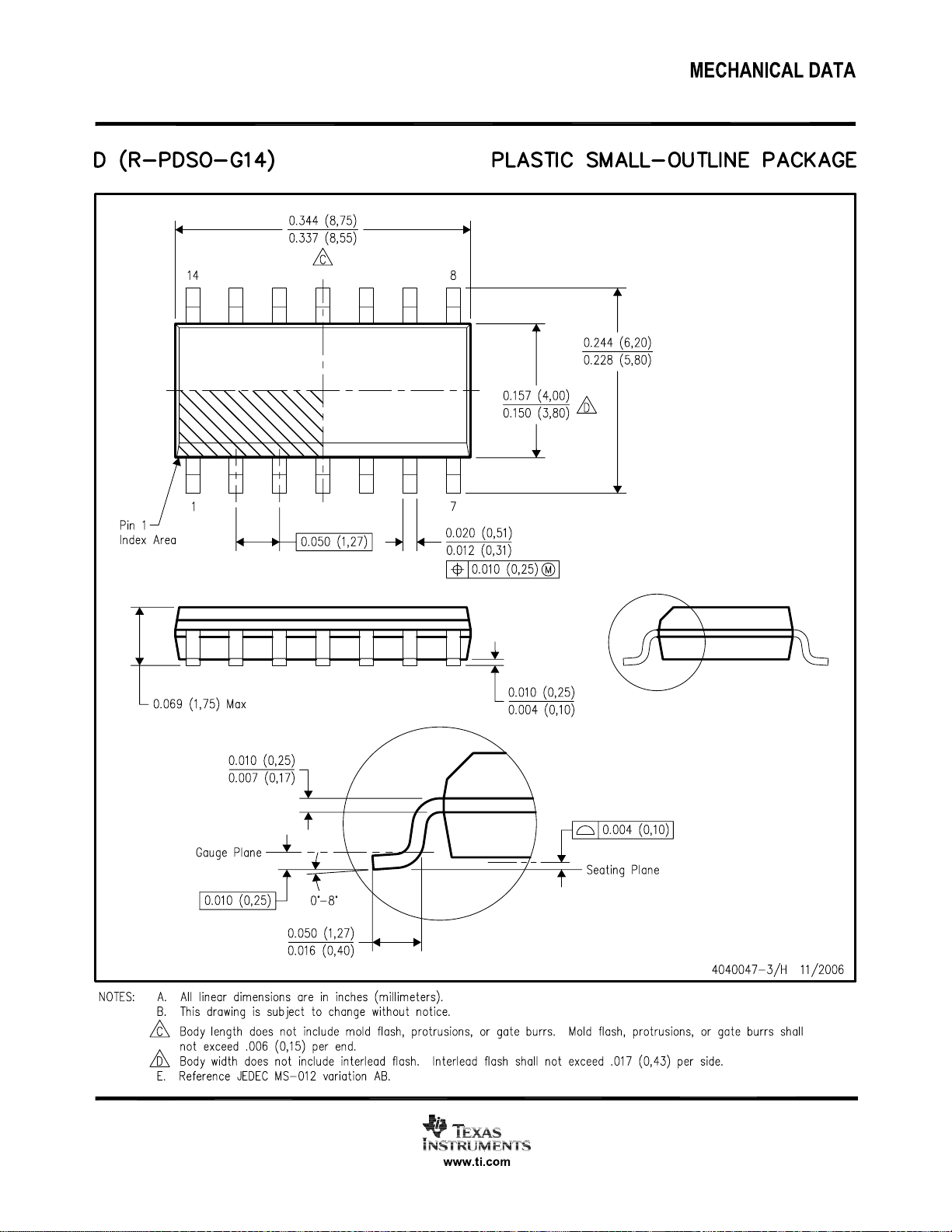

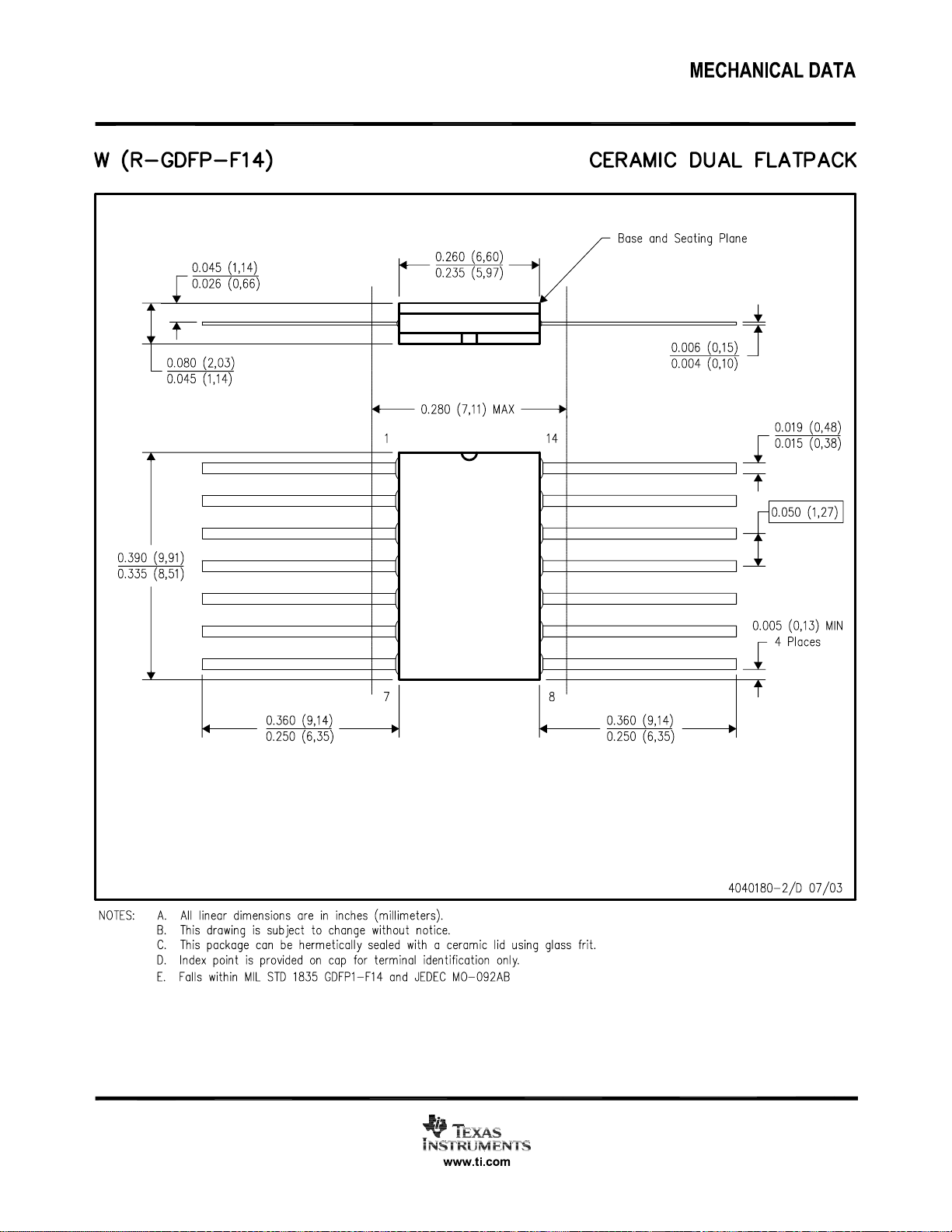

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.

VIOmax
AT 25°C

7 mV 30 V

3 mV 30 V

5 mV 30 V

3 mV 30 V

MAX

TESTED

V

CC

PACKAGE

PDIP (N) Tube of 25

SOIC (D)

SOP (NS)

TSSOP (PW)

PDIP (N)

SOIC (D)

SOP (NS)

SSOP (DB) Reel of 2000 LM324ADBR LM324A

TSSOP (PW)

PDIP (N) Tube of 25

SOIC (D)

PDIP (N)

SOIC (D)

†

Tube of 50 LM324D
Reel of 2500 LM324DR
Tube of 50 LM324KD
Reel of 2500 LM324KDR
Reel of 2000 LM324NSR LM324
Tube of 50 LM324KNS
Reel of 2000 LM324KNSR
Tube of 90 LM324PW
Reel of 2000 LM324PWR
Tube of 90 LM324KPW
Reel of 2000 LM324KPWR
Tube of 25 LM324AN LM324AN
Tube of 25 LM324KAN LM324KAN
Tube of 50 LM324AD
Reel of 2500 LM324ADR
Tube of 50 LM324KAD
Reel of 2500 LM324KADR
Reel of 2000 LM324ANSR LM324A
Tube of 50 LM324KANS
Reel of 2000 LM324KANSR

Tube of 90 LM324APW
Reel of 2000 LM324APWR
Tube of 90 LM324KAPW
Reel of 2000 LM324KAPWR

Tube of 50 LM224D
Reel of 2500 LM224DR
Tube of 50 LM224KD
Reel of 2500 LM224KDR
Tube of 25 LM224AN LM224AN
Tube of 25 LM224KAN LM224KAN
Tube of 50 LM224AD
Reel of 2500 LM224ADR
Tube of 50 LM224KAD
Reel of 2500 LM224KADR

ORDERABLE

PART NUMBER

LM324N LM324N
LM324KN LM324KN

LM224N LM224N
LM224KN LM224KN

TOP-SIDE

MARKING

LM324

LM324K

LM324K

L324

L324K

LM324A

LM324KA

LM324KA

L324A

L324KA

LM224

LM224K

LM224A

LM224KA

2

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

       

26 V

SOP (NS)

7 mV

−40 C to 125 C
32 V

2 mV

32 V

5 mV

30 V

−55 C to 125 C
2 mV

30 V

      

  

SLOS066R − SEPTEMBER 1975 − REVISED JANUARY 2005

ORDERING INFORMATION (CONTINUED)

T

A

−40°C to 125°C

−55°C to 125°C

†

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.

VIOmax
AT 25°C

7 mV

5 mV 30 V

MAX

TESTED

V

CC

PDIP (N)

SOIC (D)

26 V SOP (NS)

SSOP (DB)

TSSOP (PW)

SOIC (D) Reel of 2500 LM2902KVQDR L2902KV
TSSOP (PW) Reel of 2000 LM2902KVQPWR L2902KV

SOIC (D) Reel of 2500 LM2902KAVQDR L2902KA
TSSOP (PW) Reel of 2000 LM2902KAVQPWR L2902KA

CDIP (J) Tube of 25 LM124J LM124J
CFP (W) T ube of 25 LM124W LM124W
LCCC (FK) Tube of 55 LM124FK LM124FK

SOIC (D)
CDIP (J) Tube of 25 LM124AJ LM124AJ

LCCC (FK) Tube of 55 LM124AFK LM124AFK

PACKAGE

†

Tube of 25 LM2902N LM2902N
Tube of 25 LM2902KN LM2902KN
Tube of 50 LM2902D
Reel of 2500 LM2902DR
Tube of 50 LM2902KD
Reel of 2500 LM2902KDR
Reel of 2000 LM2902NSR LM2902
Tube of 50 LM2902KNS
Reel of 2000 LM2902KNSR
Tube of 80 LM2902KDB
Reel of 2000 LM2902KDBR
Tube of 90 LM2902PW
Reel of 2000 LM2902PWR
Tube of 90 LM2902KPW
Reel of 2000 LM2902KPWR

Tube of 50 LM124D
Reel of 2500 LM124DR

ORDERABLE

PART NUMBER

TOP-SIDE
MARKING

LM2902

LM2902K

LM2902K

L2902K

L2902

L2902K

LM124

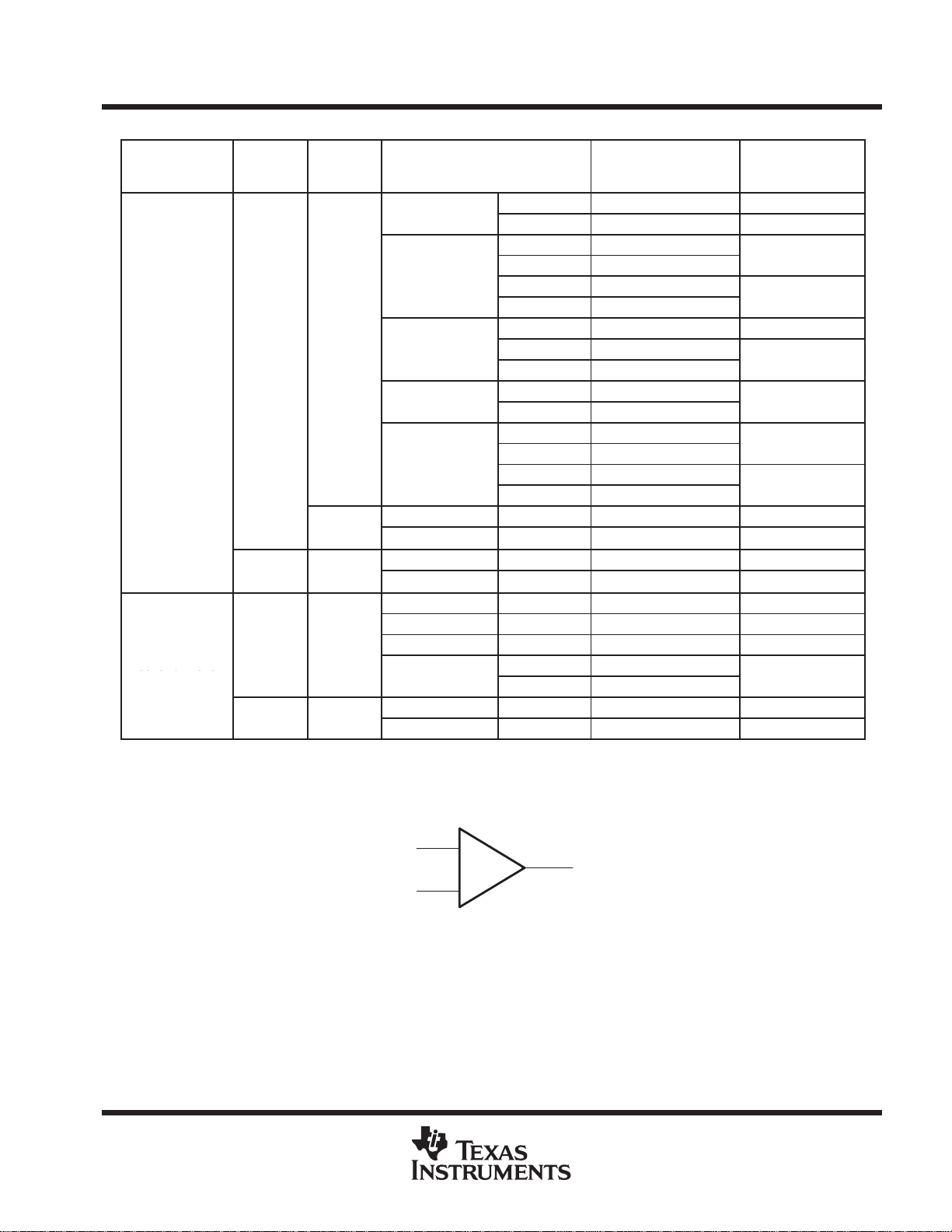

symbol (each amplifier)

IN−

IN+

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

−
OUT

+

3

       
      
  

SLOS066R − SEPTEMBER 1975 − REVISED JANUARY 2005

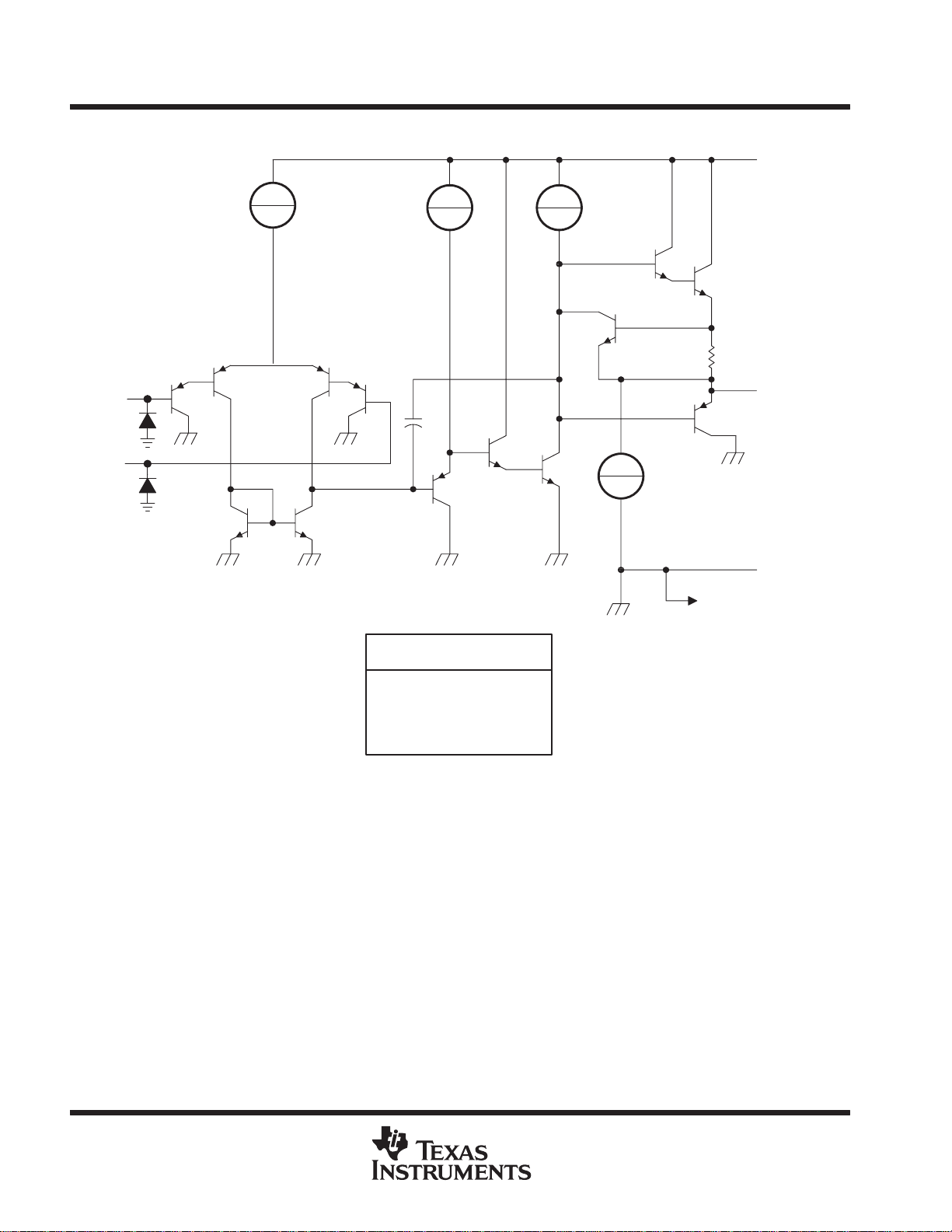

schematic (each amplifier)

V

CC

IN−

IN+

≈6-µA

Current

Regulator

†

†

≈6-µA

Current

Regulator

≈100-µA
Current
Regulator

OUT

≈50-µA
Current
Regulator

GND

To Other
Amplifiers

COMPONENT COUNT

Epi-FET
Transistors
Diodes
Resistors
Capacitors

†

ESD protection cells - available on LM324K and LM324KA only

(total device)

1

95

4

11

4

4

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

       

Package thermal impedance, θJA (see Notes 4 and 5)

C/W

Package thermal impedance, qJC (see Notes 6 and 7)

C/W

      

  

SLOS066R − SEPTEMBER 1975 − REVISED JANUARY 2005

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)

LM2902

Supply voltage, VCC (see Note 1) ±13 or 26 ±16 or 32 V
Differential input voltage, VID (see Note 2) ±26 ±32 V
Input voltage, VI (either input) −0.3 to 26 −0.3 to 32 V
Duration of output short circuit (one amplifier) to ground at (or below) TA = 25°C,

VCC ≤ 15 V (see Note 3)

D package 86 86
DB package 96 96

Package thermal impedance, θJA (see Notes 4 and 5)

Package thermal impedance, qJC (see Notes 6 and 7)

Operating virtual junction temperature, T
Case temperature for 60 seconds FK package 260 °C
Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds J or W package 300 300 °C
Storage temperature range, T

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only , a nd
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1. All voltage values (except differential voltages and VCC specified for the measurement of IOS) are with respect to the network GND.

2. Differential voltages are at IN+, with respect to IN−.

3. Short circuits from outputs to VCC can cause excessive heating and eventual destruction.

4. Maximum power dissipation is a function of TJ(max), qJA, and TA. The maximum allowable power dissipation at any allowable
ambient temperature is PD = (TJ(max) − TA)/qJA. Operating at the absolute maximum TJ of 150°C can affect reliability.

5. The package thermal impedance is calculated in accordance with JESD 51-7.

6. Maximum power dissipation is a function of TJ(max), qJC, and TC. The maximum allowable power dissipation at any allowable case
temperature is PD = (TJ(max) − TC)/qJC. Operating at the absolute maximum TJ of 150°C can affect reliability.

7. The package thermal impedance is calculated in accordance with MIL-STD-883.

stg

J

N package 80 80
NS package 76 76
PW package 113 113
FK package 5.61
J package 15.05
W package 14.65

Unlimited Unlimited

150 150 °C

−65 to 150 −65 to 150 °C

ALL OTHER

DEVICES

†

UNIT

°C/W

°C/W

ESD protection

Human-Body Model LM224K, LM224KA, LM324K, LM324KA, LM2902K, LM2902KV, LM2902KAV ±2 kV

TEST CONDITIONS TYP UNIT

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

5

       

PARAMETER

TEST CONDITIONS

T

UNIT

PARAMETER

TEST CONDITIONS

†

T

A

‡

UNIT

V

= 5 V to MAX,

VCC = 5 V to MAX,

0 to

0 to

Common-mode

0 to

0 to

Common-mode

0 to

0 to

input voltage range

0 to

0 to

High-level

High-level

output voltage
V

= 15 V, V

= 1 V to 11 V,

VCC = 15 V, VO = 1 V to 11 V,

CC

VCC = 15 V,

O

IOOutput current

VCC = 15 V,

O

      
  

SLOS066R − SEPTEMBER 1975 − REVISED JANUARY 2005

electrical characteristics at specified free-air temperature, V

†

V

IO

I

IO

I

IB

V

ICR

V

OH

V

OL

A

VD

CMRR

k

SVR

VO1/V

I

O

I

OS

I

CC

†

All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified. MAX VCC for
testing purposes is 26 V for LM2902 and 30 V for the others.

‡

Full range is −55°C to 125°C for LM124, −25°C to 85°C for LM224, and 0°C to 70°C for LM324.

§

All typical values are at TA = 25°C.

Input offset voltage

Input offset current VO = 1.4 V

Input bias current VO = 1.4 V

input voltage range

output voltage

Low-level
output voltage

Large-signal
differential voltage
amplification

Common-mode
rejection ratio

Supply-voltage
rejection ratio
(∆V

/∆VIO)

Crosstalk

O2

attenuation

Output current VCC = 15 V,

Short-circuit
output current

Supply current
(four amplifiers)

VIC = V

VCC = 5 V to MAX

RL = 2 kΩ 25°C VCC − 1.5 VCC − 1.5
RL = 10 kΩ 25°C

VCC = MAX

RL ≤ 10 kΩ Full range 5 20 5 20 mV

RL ≥ 2 kΩ

VIC = V

f = 1 kHz to 20 kHz 25°C 120 120 dB

VCC = 15 V,
VID = 1 V,
V

VID = −1 V,
V

VID = −1 V, VO = 200 mV 25°C 12 30 12 30 µA
VCC at 5 V,

GND at −5 V
VO = 2.5 V, No load Full range 0.7 1.2 0.7 1.2
VCC = MAX,

VO = 0.5 VCC, No load

min, VO = 1.4 V

ICR

RL = 2 kΩ Full range 26 26
RL ≥ 10 kΩ Full range 27 28 27 28

min 25°C 70 80 65 80 dB

ICR

= 0

= 15 V

Source

Sink

VO = 0,

‡

MIN TYP§MAX MIN TYP§MAX

25°C 3 5 3 7

Full range 7 9

25°C 2 30 2 50

Full range 100 150

25°C −20 −150 −20 −250

Full range −300 −500

25°C

Full range

25°C 50 100 25 100

Full range 25 15

25°C 65 100 65 100 dB

25°C −20 −30 −60 −20 −30 −60

Full range −10 −10

25°C 10 20 10 20

Full range 5 5

25°C ±40 ±60 ±40 ±60 mA

Full range 1.4 3 1.4 3

VCC − 1.5

VCC − 2

= 5 V (unless otherwise noted)

CC

LM124
LM224

VCC − 1.5

VCC − 2

LM324

LM324K

mV

nA

nA

V

V

V/mV

mA

mA

6

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

       

PARAMETER

†

‡

Non-A-suffix

MAX,

Non-A-suffix

MAX,

,

A-suffix

VIC = V

ICR

min,

A-suffix

0 to

0 to

Common-mode

0 to

0 to

Common-mode

0 to

0 to

input voltage range

0 to

0 to

High-level

High-level

output voltage
V

= 15 V, V

= 1 V to 11 V,

VCC = 15 V, VO = 1 V to 11 V,

CC

VCC = 15 V,

O

VCC = 15 V,

O

      

  

SLOS066R − SEPTEMBER 1975 − REVISED JANUARY 2005

electrical characteristics at specified free-air temperature, V

TEST CONDITIONS

VCC = 5 V to

V

IO

∆VIO/∆T

I

IO

∆IIO/∆T

I

IB

V

ICR

V

OH

V

OL

A

VD

CMRR

k

SVR

VO1/V

I

O

I

OS

I

CC

†

All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified. MAX VCC for
testing purposes is 26 V for LM2902 and 32 V for LM2902V.

‡

Full range is −40°C to 125°C for LM2902.

§

All typical values are at TA = 25°C.

Input offset voltage

Input offset voltage
temperature drift

Input offset current VO = 1.4 V

Input offset current
temperature drift

Input bias current VO = 1.4 V

input voltage range

output voltage

Low-level
output voltage

Large-signal
differential voltage
amplification

Common-mode
rejection ratio

Supply-voltage
rejection ratio
(∆V

/∆VIO)

Crosstalk

O2

attenuation

Output current

Short-circuit
output current

Supply current
(four amplifiers)

VIC = V

ICR

VO = 1.4 V

RS = 0 Ω Full range 7 µV/°C

VCC = 5 V to MAX

RL = 2 kΩ 25°C
RL = 10 kΩ 25°C VCC − 1.5 VCC − 1.5

VCC = MAX

RL ≤ 10 kΩ Full range 5 20 5 20 mV

RL ≥ 2 kΩ

VIC = V

ICR

f = 1 kHz to 20 kHz 25°C 120 120 dB

VCC = 15 V,
VID = 1 V,
VO = 0

VCC = 15 V,
VID = −1 V,

= 15 V

V
VID = −1 V, VO = 200 mV 25°C 30 12 40 µA
VCC at 5 V,

GND at −5 V
VO = 2.5 V, No load Full range 0.7 1.2 0.7 1.2
VCC = MAX,

VO = 0.5 VCC, No load

devices

min

devices

RL = 2 kΩ Full range 22 26
RL ≥ 10 kΩ Full range 23 24 27

min 25°C 50 80 60 80 dB

Source

Sink

VO = 0,

T

A

25°C 3 7 3 7

Full range 10 10

25°C 1 2

Full range 4

25°C 2 50 2 50

Full range 300 150
Full range 10 pA/°C

25°C −20 −250 −20 −250

Full range −500 −500

25°C

Full range

25°C 25 100 25 100

Full range 15 15

25°C 50 100 60 100 dB

25°C −20 −30 −60 −20 −30 −60

Full range −10 −10

25°C 10 20 10 20

Full range 5 5

25°C ±40 ±60 ±40 ±60 mA

Full range 1.4 3 1.4 3

MIN TYP§MAX MIN TYP§MAX

VCC − 1.5

VCC − 2

= 5 V (unless otherwise noted)

CC

LM2902 LM2902V

VCC − 1.5

VCC − 2

UNIT

mV

nA

nA

V

V

V/mV

mA

mA

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

7

4444444

PARAMETER

TEST CONDITIONS

T

A

UNIT

PARAMETER

TEST CONDITIONS

†

T

A

‡

UNIT

V

IO

Input offset voltage

V

CC

= 5 V to 30 V,
mV

V

CC

= 5 V to 30 V,

I

IO

Input offset current

V

O

= 1.4 V

nA
I

IB

Input bias current

V

O

= 1.4 V

nA
V

ICR

Common-mode input

V

CC

= 30 V

V

Common-mode input

OH

V

CC

= 30 V

V

OH

High-level output voltage

V

A

VD

Large-signal differential

V

CC

= 15 V, V

O

= 1 V to 11 V,

V/mV

Large-signal differential

V

CC

= 15 V, V

O

= 1 V to 11 V,

V

ID

= 1 V,

Source

CC

O

Source

mA

V

ID

= −1 V,

Sink

O

CC

O

Supply current

444444
44

SLOS066R − SEPTEMBER 1975 − REVISED JANUARY 2005

V

MAX

mV

nA

nA

§

TYP

LM324A,

LM324KA

− 1.5

0 to

0 to

CC

V

MAX MIN

§

TYP

− 1.5

0 to

0 to

CC

V

MAX MIN

§

TYP

LM124A LM224A

= 5 V (unless otherwise noted)

CC

MIN

0 to

− 1.5
CC

V

0 to

− 2
CC

V

− 2
CC

V

− 2
CC

V

− 1.5
CC

− 1.5 V
CC

− 1.5 V
CC

V

V/mV

mA

mA

‡

25°C 2 2 3 2 3

25°C 10 2 15 2 30

Full range 4 4 5

25°C −50 −15 −80 −15 −100

Full range 30 30 75

Full range −100 −100 −200

25°C

Full range

25°C 50 100 50 100 25 100

25°C 65 65 100 65 100 dB

Full range 25 25 15

25°C −20 −20 −30 −60 −20 −30 −60

Full range −10 −10 −10

25°C 10 10 20 10 20

Full range 5 5 5

25°C ±40 ±60 ±40 ±60 ±40 ±60 mA

Full range 1.4 3 1.4 3 1.4 3

†

= 2 kΩ Full range 26 26 26

= 1.4 V

O

min, V

ICR

= V

= 1.4 V

= 1.4 V

O

IC

V

Input offset voltage

IO

electrical characteristics at specified free-air temperature, V

V

O

Input offset current V

Input bias current V

IO

IB

I

I

= 30 V

CC

V

voltage range

ICR

V

L

R

= 30 V

= 2 kΩ 25°C V

L

CC

R

V

High-level output voltage

V

≥ 10 kΩ Full range 27 27 28 27 28

L

R

min 25°C 70 70 80 65 80 dB

≤ 10 kΩ Full range 20 5 20 5 20 mV

≥ 2 kΩ

L

L

R

Low-level output voltage R

voltage amplification

OL

VD

V

A

ICR

= V

IC

Supply-voltage rejection ratio

CMRR Common-mode rejection ratio V

k

)

IO

/∆V

CC

(∆V

SVR

Crosstalk attenuation f = 1 kHz to 20 kHz 25°C 120 120 120 dB

/V
V

O2
O1

= 15 V,
V

CC

= 1 V,

= 0

ID

V

V

= 15 V,

CC

Output current V

O

I

Sink

= −1 V,

ID

V

= 200 mV 25°C 12 12 30 12 30 µA

O

at 5 V, GND at −5 V,

= −1 V, V

= 15 V
V

= 0

ID

CC

O

V

V

V

Short-circuit output current

OS

I

= 15 V,

O

= 30 V, V

= 2.5 V, No load Full range 0.7 1.2 0.7 1.2 0.7 1.2

O

CC

V

V

No load

Supply current

(four amplifiers)

CC

I

= 25°C.

A

All typical values are at T

All characteristics are measured under open-loop conditions, with zero common-mode input voltage, unless otherwise specified.

Full range is −55°C to 125°C for LM124A, −25°C to 85°C for LM224A, and 0°C to 70°C for LM324A.

§

†

‡

8

POST OFFICE BOX 655303 DALLAS, TEXAS 75265

•

       

900

      

  

SLOS066R − SEPTEMBER 1975 − REVISED JANUARY 2005

operating conditions, VCC = ±15 V, TA = 25°C

PARAMETER TEST CONDITIONS TYP UNIT

SR Slew rate at unity gain RL = 1 MΩ, CL = 30 pF, VI = ±10 V (see Figure 1) 0.5 V/µs
B
V

Unity-gain bandwidth RL = 1 MΩ, CL = 20 pF (see Figure 1) 1.2 MHz

1

Equivalent input noise voltage RS = 100 Ω, VI = 0 V, f = 1 kHz (see Figure 2) 35 nV/√Hz

n

V

CC+

V

I

VI = 0 V

−
+

C

V

CC−

L

R

L

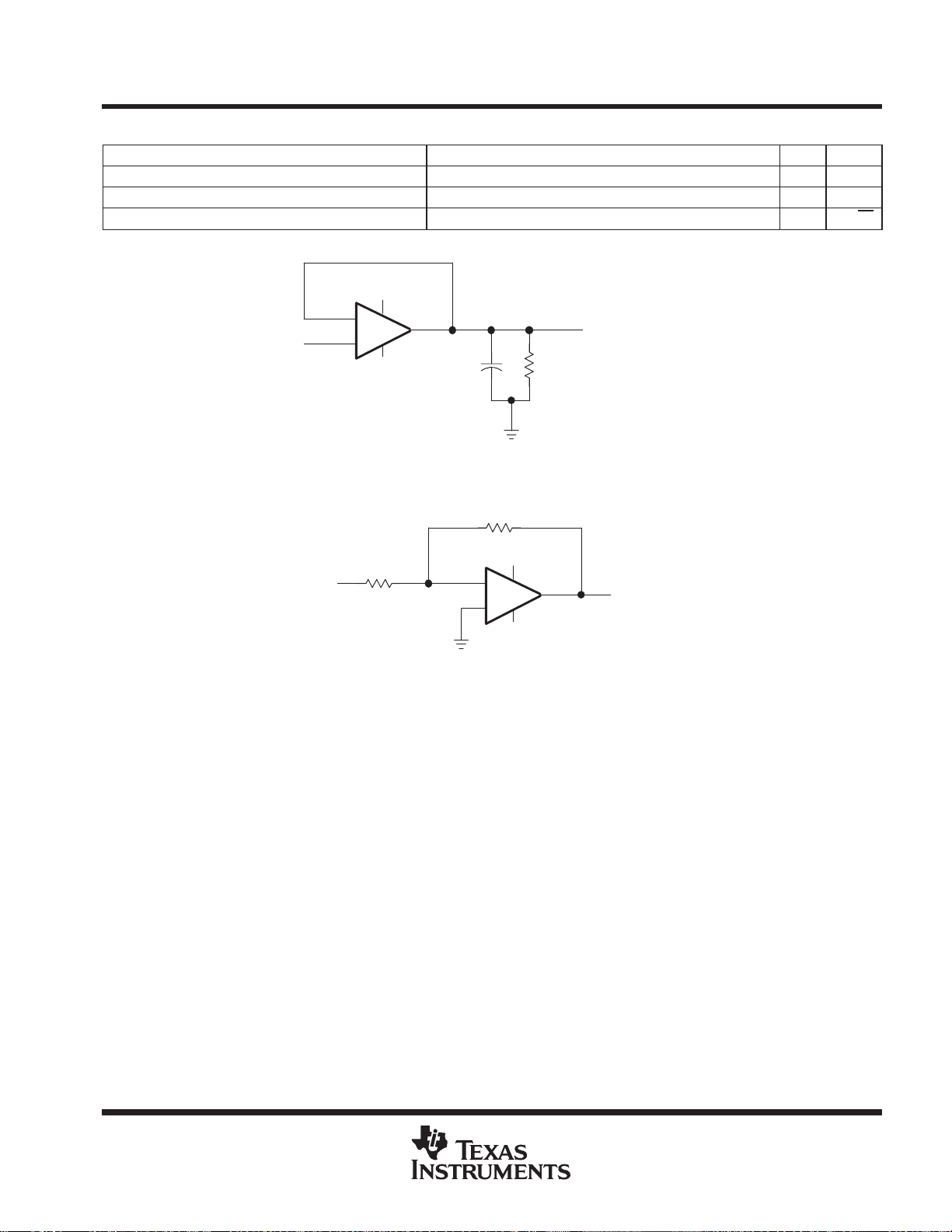

Figure 1. Unity-Gain Amplifier

Ω

V

100 Ω

RS

CC+

−
+

V

CC−

Figure 2. Noise-Test Circuit

V

O

V

O

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

9

PACKAGE OPTION ADDENDUM

www.ti.com

PACKAGING INFORMATION

Orderable Device Status

5962-7704301VCA ACTIVE CDIP J 14 1 TBD A42 SNPB N / A for Pkg Type

77043012A ACTIVE LCCC FK 20 1 TBD POST-PLATE N / A for Pkg Type
7704301CA ACTIVE CDIP J 14 1 TBD A42 SNPB N / A for Pkg Type
7704301DA ACTIVE CFP W 14 1 TBD A42 SNPB N / A for Pkg Type

77043022A ACTIVE LCCC FK 20 1 TBD POST-PLATE N / A for Pkg Type
7704302CA ACTIVE CDIP J 14 1 TBD A42 SNPB N / A for Pkg Type

JM38510/11005BCA ACTIVE CDIP J 14 1 TBD A42 SNPB N / A for Pkg Type

LM124ADR OBSOLETE SOIC D 14 TBD Call TI Call TI

LM124AFKB ACTIVE LCCC FK 20 1 TBD POST-PLATE N / A for Pkg Type

LM124AJ ACTIVE CDIP J 14 1 TBD A42 SNPB N / A for Pkg Type

LM124AJB ACTIVE CDIP J 14 1 TBD A42 SNPB N / A for Pkg Type

LM124D ACTIVE SOIC D 14 50 TBD CU NIPDAU Level-3-245C-168 HR

LM124DG4 ACTIVE SOIC D 14 50 Green (RoHS &

LM124DR ACTIVE SOIC D 14 2500 TBD CU NIPDAU Level-3-245C-168 HR

LM124DRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

LM124FKB ACTIVE LCCC FK 20 1 TBD POST-PLATE N / A for Pkg Type

LM124J ACTIVE CDIP J 14 1 TBD A42 SNPB N / A for Pkg Type

LM124JB ACTIVE CDIP J 14 1 TBD A42 SNPB N / A for Pkg Type

LM124N OBSOLETE PDIP N 14 TBD Call TI Call TI

LM124W ACTIVE CFP W 14 1 TBD A42 SNPB N / A for Pkg Type

LM124WB ACTIVE CFP W 14 1 TBD A42 SNPB N / A for Pkg Type

LM224AD ACTIVE SOIC D 14 50 Green (RoHS &

LM224ADE4 ACTIVE SOIC D 14 50 Green (RoHS &

LM224ADG4 ACTIVE SOIC D 14 50 Green (RoHS &

LM224ADR ACTIVE SOIC D 14 2500 Green (RoHS &

LM224ADRE4 ACTIVE SOIC D 14 2500 Green (RoHS &

LM224ADRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

LM224AN ACTIVE PDIP N 14 25 Pb-Free

LM224ANE4 ACTIVE PDIP N 14 25 Pb-Free

LM224D ACTIVE SOIC D 14 50 Green (RoHS &

LM224DE4 ACTIVE SOIC D 14 50 Green (RoHS &

LM224DG4 ACTIVE SOIC D 14 50 Green (RoHS &

LM224DR ACTIVE SOIC D 14 2500 Green (RoHS & CU NIPDAU Level-1-260C-UNLIM

(1)

Package

Type

Package
Drawing

Pins Package

Qty

Eco Plan

no Sb/Br)

no Sb/Br)

no Sb/Br)

no Sb/Br)

no Sb/Br)

no Sb/Br)

no Sb/Br)

no Sb/Br)

no Sb/Br)

no Sb/Br)

no Sb/Br)

(RoHS)

(RoHS)

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU N / A for Pkg Type

CU NIPDAU N / A for Pkg Type

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

17-May-2008

(3)

Addendum-Page 1

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package
Drawing

Pins Package

Qty

Eco Plan

no Sb/Br)

LM224DRE4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

LM224DRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

LM224KAD ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

LM224KADE4 ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

LM224KADG4 ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

LM224KADR ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

LM224KADRE4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

LM224KADRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

LM224KAN ACTIVE PDIP N 14 25 Pb-Free

(RoHS)

LM224KANE4 ACTIVE PDIP N 14 25 Pb-Free

(RoHS)

LM224KD ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

LM224KDE4 ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

LM224KDG4 ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

LM224KDR ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

LM224KDRE4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

LM224KDRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

LM224KN ACTIVE PDIP N 14 25 Pb-Free

(RoHS)

LM224KNE4 ACTIVE PDIP N 14 25 Pb-Free

(RoHS)

LM224N ACTIVE PDIP N 14 25 Pb-Free

(RoHS)

LM224NE4 ACTIVE PDIP N 14 25 Pb-Free

(RoHS)

LM2902D ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

LM2902DE4 ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

LM2902DG4 ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

LM2902DR ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

LM2902DRE4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU N / A for Pkg Type

CU NIPDAU N / A for Pkg Type

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU N / A for Pkg Type

CU NIPDAU N / A for Pkg Type

CU NIPDAU N / A for Pkg Type

CU NIPDAU N / A for Pkg Type

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

17-May-2008

(3)

Addendum-Page 2

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package
Drawing

Pins Package

Qty

Eco Plan

LM2902DRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

17-May-2008

no Sb/Br)

LM2902KAVQDR ACTIVE SOIC D 14 2500 Pb-Free

(RoHS)

LM2902KAVQDRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-2-250C-1 YEAR/

Level-1-235C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KAVQPWR ACTIVE TSSOP PW 14 2000 TBD CU NIPDAU Level-1-250C-UNLIM

LM2902KAVQPWRG4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KD ACTIVE SOIC D 14 50 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KDB ACTIVE SSOP DB 14 80 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KDBE4 ACTIVE SSOP DB 14 80 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KDBG4 ACTIVE SSOP DB 14 80 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KDBR ACTIVE SSOP DB 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KDBRE4 ACTIVE SSOP DB 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KDBRG4 ACTIVE SSOP DB 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KDE4 ACTIVE SOIC D 14 50 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KDG4 ACTIVE SOIC D 14 50 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KDR ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KDRE4 ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KDRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KN ACTIVE PDIP N 14 25 Pb-Free

CU NIPDAU N / A for Pkg Type

(RoHS)

LM2902KNE4 ACTIVE PDIP N 14 25 Pb-Free

CU NIPDAU N / A for Pkg Type

(RoHS)

LM2902KNSR ACTIVE SO NS 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KNSRE4 ACTIVE SO NS 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KNSRG4 ACTIVE SO NS 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KPW ACTIVE TSSOP PW 14 90 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KPWE4 ACTIVE TSSOP PW 14 90 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KPWG4 ACTIVE TSSOP PW 14 90 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KPWR ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

(3)

Addendum-Page 3

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package
Drawing

Pins Package

Qty

Eco Plan

(2)

LM2902KPWRE4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

17-May-2008

no Sb/Br)

LM2902KPWRG4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KVQDR ACTIVE SOIC D 14 2500 Pb-Free

(RoHS)

LM2902KVQDRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-2-250C-1 YEAR/

Level-1-235C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902KVQPWR ACTIVE TSSOP PW 14 2000 TBD CU NIPDAU Level-1-250C-UNLIM

LM2902KVQPWRG4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902N ACTIVE PDIP N 14 25 Pb-Free

CU NIPDAU N / A for Pkg Type

(RoHS)

LM2902NE4 ACTIVE PDIP N 14 25 Pb-Free

CU NIPDAU N / A for Pkg Type

(RoHS)

LM2902NSR ACTIVE SO NS 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902NSRG4 ACTIVE SO NS 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902PW ACTIVE TSSOP PW 14 90 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902PWE4 ACTIVE TSSOP PW 14 90 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902PWG4 ACTIVE TSSOP PW 14 90 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902PWLE OBSOLETE TSSOP PW 14 TBD Call TI Call TI

LM2902PWR ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902PWRE4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902PWRG4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM2902QN OBSOLETE PDIP N 14 TBD Call TI Call TI

LM324AD ACTIVE SOIC D 14 50 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324ADBLE OBSOLETE SSOP DB 14 TBD Call TI Call TI

LM324ADBR ACTIVE SSOP DB 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324ADBRE4 ACTIVE SSOP DB 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324ADBRG4 ACTIVE SSOP DB 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324ADE4 ACTIVE SOIC D 14 50 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324ADG4 ACTIVE SOIC D 14 50 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324ADR ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324ADRE4 ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324ADRG4 ACTIVE SOIC D 14 2500 Green (RoHS & CU NIPDAU Level-1-260C-UNLIM

(3)

Addendum-Page 4

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package
Drawing

Pins Package

Qty

Eco Plan

(2)

Lead/Ball Finish MSL Peak Temp

17-May-2008

no Sb/Br)

LM324AN ACTIVE PDIP N 14 25 Pb-Free

CU NIPDAU N / A for Pkg Type

(RoHS)

LM324ANE4 ACTIVE PDIP N 14 25 Pb-Free

CU NIPDAU N / A for Pkg Type

(RoHS)

LM324ANSR ACTIVE SO NS 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324ANSRE4 ACTIVE SO NS 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324ANSRG4 ACTIVE SO NS 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324APW ACTIVE TSSOP PW 14 90 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324APWE4 ACTIVE TSSOP PW 14 90 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324APWG4 ACTIVE TSSOP PW 14 90 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324APWLE OBSOLETE TSSOP PW 14 TBD Call TI Call TI

LM324APWR ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324APWRE4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324APWRG4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324D ACTIVE SOIC D 14 50 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324DE4 ACTIVE SOIC D 14 50 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324DG4 ACTIVE SOIC D 14 50 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324DR ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324DRE4 ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324DRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324KAD ACTIVE SOIC D 14 50 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324KADE4 ACTIVE SOIC D 14 50 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324KADG4 ACTIVE SOIC D 14 50 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324KADR ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324KADRE4 ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324KADRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324KAN ACTIVE PDIP N 14 25 Pb-Free

CU NIPDAU N / A for Pkg Type

(RoHS)

LM324KANE4 ACTIVE PDIP N 14 25 Pb-Free CU NIPDAU N / A for Pkg Type

(3)

Addendum-Page 5

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package
Drawing

Pins Package

Qty

Eco Plan

(2)

(RoHS)

LM324KANS PREVIEW SO NS 14 50 Green (RoHS &

no Sb/Br)

LM324KANSR ACTIVE SO NS 14 2000 Green (RoHS &

no Sb/Br)

LM324KANSRE4 ACTIVE SO NS 14 2000 Green (RoHS &

no Sb/Br)

LM324KANSRG4 ACTIVE SO NS 14 2000 Green (RoHS &

no Sb/Br)

LM324KAPW ACTIVE TSSOP PW 14 90 Green (RoHS &

no Sb/Br)

LM324KAPWE4 ACTIVE TSSOP PW 14 90 Green (RoHS &

no Sb/Br)

LM324KAPWG4 ACTIVE TSSOP PW 14 90 Green (RoHS &

no Sb/Br)

LM324KAPWR ACTIVE TSSOP PW 14 2000 Green (RoHS &

no Sb/Br)

LM324KAPWRE4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

no Sb/Br)

LM324KAPWRG4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

no Sb/Br)

LM324KD ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

LM324KDE4 ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

LM324KDG4 ACTIVE SOIC D 14 50 Green (RoHS &

no Sb/Br)

LM324KDR ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

LM324KDRE4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

LM324KDRG4 ACTIVE SOIC D 14 2500 Green (RoHS &

no Sb/Br)

LM324KN ACTIVE PDIP N 14 25 Pb-Free

(RoHS)

LM324KNE4 ACTIVE PDIP N 14 25 Pb-Free

(RoHS)

LM324KNS PREVIEW SO NS 14 50 Green (RoHS &

no Sb/Br)

LM324KNSR ACTIVE SO NS 14 2000 Green (RoHS &

no Sb/Br)

LM324KNSRE4 ACTIVE SO NS 14 2000 Green (RoHS &

no Sb/Br)

LM324KNSRG4 ACTIVE SO NS 14 2000 Green (RoHS &

no Sb/Br)

LM324KPW ACTIVE TSSOP PW 14 90 Green (RoHS &

no Sb/Br)

LM324KPWE4 ACTIVE TSSOP PW 14 90 Green (RoHS &

no Sb/Br)

LM324KPWG4 ACTIVE TSSOP PW 14 90 Green (RoHS &

no Sb/Br)

17-May-2008

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU N / A for Pkg Type

CU NIPDAU N / A for Pkg Type

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

(3)

Addendum-Page 6

PACKAGE OPTION ADDENDUM

www.ti.com

Orderable Device Status

(1)

Package

Type

Package
Drawing

Pins Package

Qty

Eco Plan

LM324KPWR ACTIVE TSSOP PW 14 2000 Green (RoHS &

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

17-May-2008

(3)

no Sb/Br)

LM324KPWRE4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324KPWRG4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324N ACTIVE PDIP N 14 25 Pb-Free

CU NIPDAU N / A for Pkg Type

(RoHS)

LM324NE4 ACTIVE PDIP N 14 25 Pb-Free

CU NIPDAU N / A for Pkg Type

(RoHS)

LM324NSR ACTIVE SO NS 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324NSRE4 ACTIVE SO NS 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324NSRG4 ACTIVE SO NS 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324PW ACTIVE TSSOP PW 14 90 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324PWE4 ACTIVE TSSOP PW 14 90 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324PWG4 ACTIVE TSSOP PW 14 90 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324PWLE OBSOLETE TSSOP PW 14 TBD Call TI Call TI

LM324PWR ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324PWRE4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324PWRG4 ACTIVE TSSOP PW 14 2000 Green (RoHS &

CU NIPDAU Level-1-260C-UNLIM

no Sb/Br)

LM324Y OBSOLETE DIESALE Y 0 TBD Call TI Call TI

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in

a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check

http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements

for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered
at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and
package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS
compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame
retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder

temperature.

Addendum-Page 7

PACKAGE OPTION ADDENDUM

www.ti.com

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is
provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the
accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take
reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on
incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited
information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI
to Customer on an annual basis.

17-May-2008

Addendum-Page 8

PACKAGE MATERIALS INFORMATION

www.ti.com

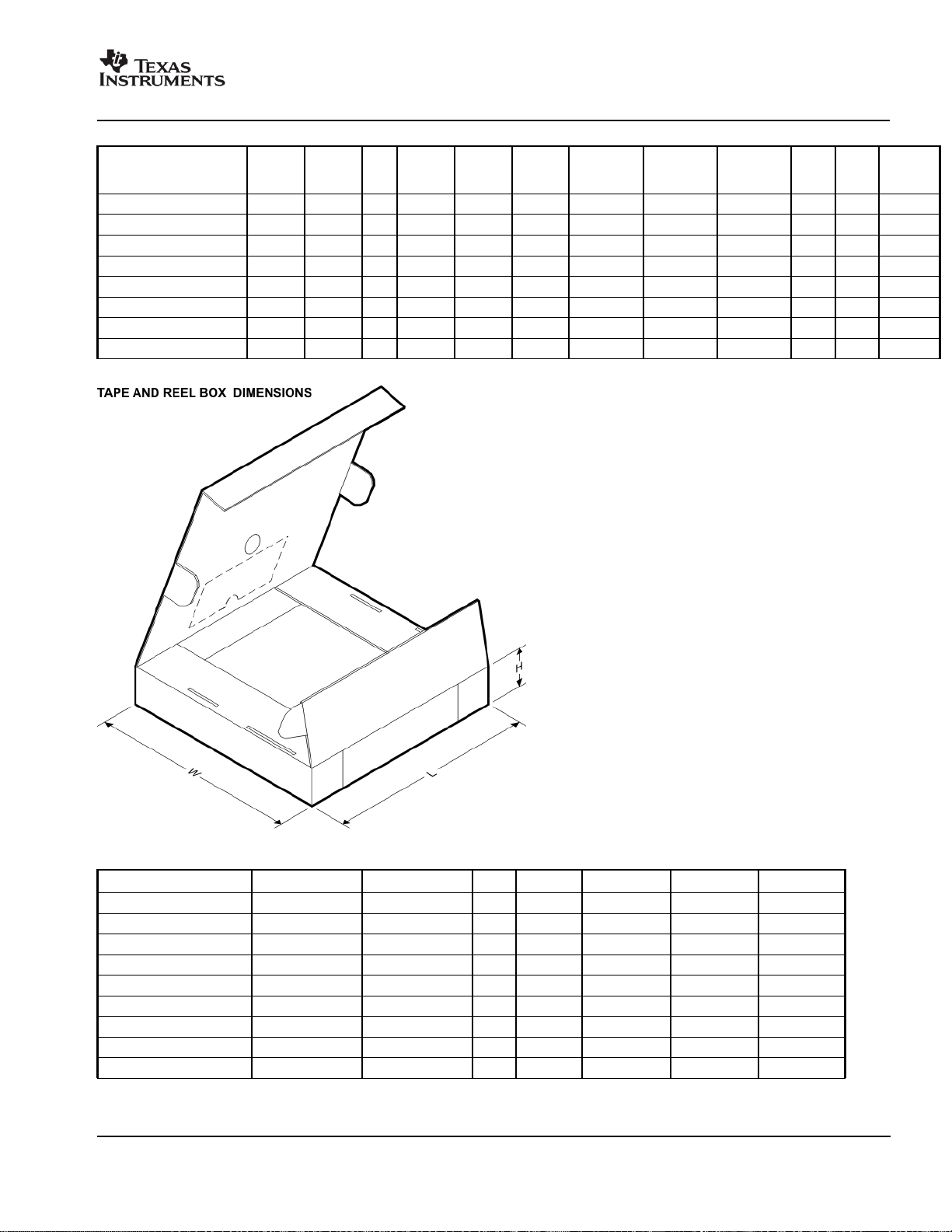

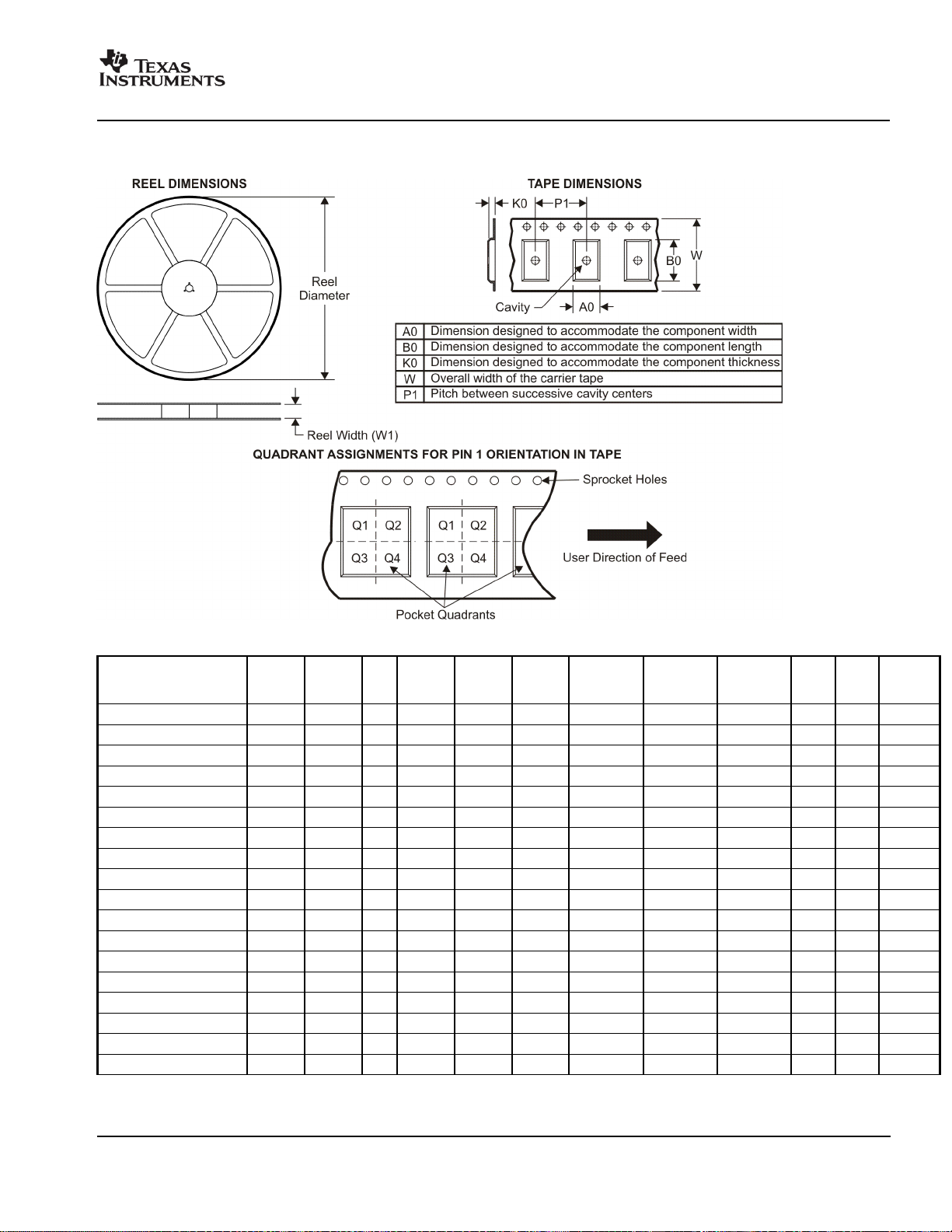

TAPE AND REEL INFORMATION

19-Mar-2008

*All dimensions are nominal

Device Package

LM224ADR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1

LM224DR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1

LM224KADR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1

LM224KDR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1
LM2902DR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1
LM2902DR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1

LM2902KDBR SSOP DB 14 2000 330.0 16.4 8.2 6.6 2.5 12.0 16.0 Q1

LM2902KDR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1

LM2902KNSR SO NS 14 2000 330.0 16.4 8.2 10.5 2.5 12.0 16.0 Q1

LM2902KPWR TSSOP PW 14 2000 330.0 12.4 7.0 5.6 1.6 8.0 12.0 Q1

LM2902NSR SO NS 14 2000 330.0 16.4 8.2 10.5 2.5 12.0 16.0 Q1

LM2902PWR TSSOP PW 14 2000 330.0 12.4 7.0 5.6 1.6 8.0 12.0 Q1

LM324ADBR SSOP DB 14 2000 330.0 16.4 8.2 6.6 2.5 12.0 16.0 Q1

LM324ADR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1

LM324ANSR SO NS 14 2000 330.0 16.4 8.2 10.5 2.5 12.0 16.0 Q1

LM324APWR TSSOP PW 14 2000 330.0 12.4 7.0 5.6 1.6 8.0 12.0 Q1

LM324DR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1

LM324DR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1

Type

Package

Drawing

Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

A0 (mm) B0 (mm) K0 (mm) P1

(mm)W(mm)

Pin1

Quadrant

Pack Materials-Page 1

PACKAGE MATERIALS INFORMATION

www.ti.com

Device Package

LM324KADR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1

LM324KANSR SO NS 14 2000 330.0 16.4 8.2 10.5 2.5 12.0 16.0 Q1

LM324KAPWR TSSOP PW 14 2000 330.0 12.4 7.0 5.6 1.6 8.0 12.0 Q1

LM324KDR SOIC D 14 2500 330.0 16.4 6.5 9.0 2.1 8.0 16.0 Q1

LM324KNSR SO NS 14 2000 330.0 16.4 8.2 10.5 2.5 12.0 16.0 Q1

LM324KPWR TSSOP PW 14 2000 330.0 12.4 7.0 5.6 1.6 8.0 12.0 Q1

LM324NSR SO NS 14 2000 330.0 16.4 8.2 10.5 2.5 12.0 16.0 Q1

LM324PWR TSSOP PW 14 2000 330.0 12.4 7.0 5.6 1.6 8.0 12.0 Q1

Type

Package

Drawing

Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

A0 (mm) B0 (mm) K0 (mm) P1

19-Mar-2008

(mm)W(mm)

Pin1

Quadrant

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

LM224ADR SOIC D 14 2500 346.0 346.0 33.0

LM224DR SOIC D 14 2500 346.0 346.0 33.0

LM224KADR SOIC D 14 2500 346.0 346.0 33.0

LM224KDR SOIC D 14 2500 346.0 346.0 33.0
LM2902DR SOIC D 14 2500 333.2 345.9 28.6
LM2902DR SOIC D 14 2500 346.0 346.0 33.0

LM2902KDBR SSOP DB 14 2000 346.0 346.0 33.0

LM2902KDR SOIC D 14 2500 346.0 346.0 33.0

LM2902KNSR SO NS 14 2000 346.0 346.0 33.0

Pack Materials-Page 2

PACKAGE MATERIALS INFORMATION

www.ti.com

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

LM2902KPWR TSSOP PW 14 2000 346.0 346.0 29.0

LM2902NSR SO NS 14 2000 346.0 346.0 33.0

LM2902PWR TSSOP PW 14 2000 346.0 346.0 29.0

LM324ADBR SSOP DB 14 2000 346.0 346.0 33.0

LM324ADR SOIC D 14 2500 346.0 346.0 33.0

LM324ANSR SO NS 14 2000 346.0 346.0 33.0

LM324APWR TSSOP PW 14 2000 346.0 346.0 29.0

LM324DR SOIC D 14 2500 346.0 346.0 33.0
LM324DR SOIC D 14 2500 333.2 345.9 28.6

LM324KADR SOIC D 14 2500 346.0 346.0 33.0
LM324KANSR SO NS 14 2000 346.0 346.0 33.0
LM324KAPWR TSSOP PW 14 2000 346.0 346.0 29.0

LM324KDR SOIC D 14 2500 346.0 346.0 33.0

LM324KNSR SO NS 14 2000 346.0 346.0 33.0

LM324KPWR TSSOP PW 14 2000 346.0 346.0 29.0

LM324NSR SO NS 14 2000 346.0 346.0 33.0

LM324PWR TSSOP PW 14 2000 346.0 346.0 29.0

19-Mar-2008

Pack Materials-Page 3

MECHANICAL DATA

MTSS001C – JANUARY 1995 – REVISED FEBRUARY 1999

PW (R-PDSO-G**) PLASTIC SMALL-OUTLINE PACKAGE

14 PINS SHOWN

0,65

1,20 MAX

14

0,30
0,19

8

4,50
4,30

PINS **

7

Seating Plane

0,15

0,05

8

1

A

DIM

6,60
6,20

14

0,10

M

0,10

0,15 NOM

0°–8°

2016

Gage Plane

24

0,25

0,75
0,50

28

A MAX

A MIN

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.
C. Body dimensions do not include mold flash or protrusion not to exceed 0,15.
D. Falls within JEDEC MO-153

3,10

2,90

5,10

4,90

5,10

4,90

6,60

6,40

7,90

7,70

9,80

9,60

4040064/F 01/97

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MECHANICAL DATA

MLCC006B – OCTOBER 1996

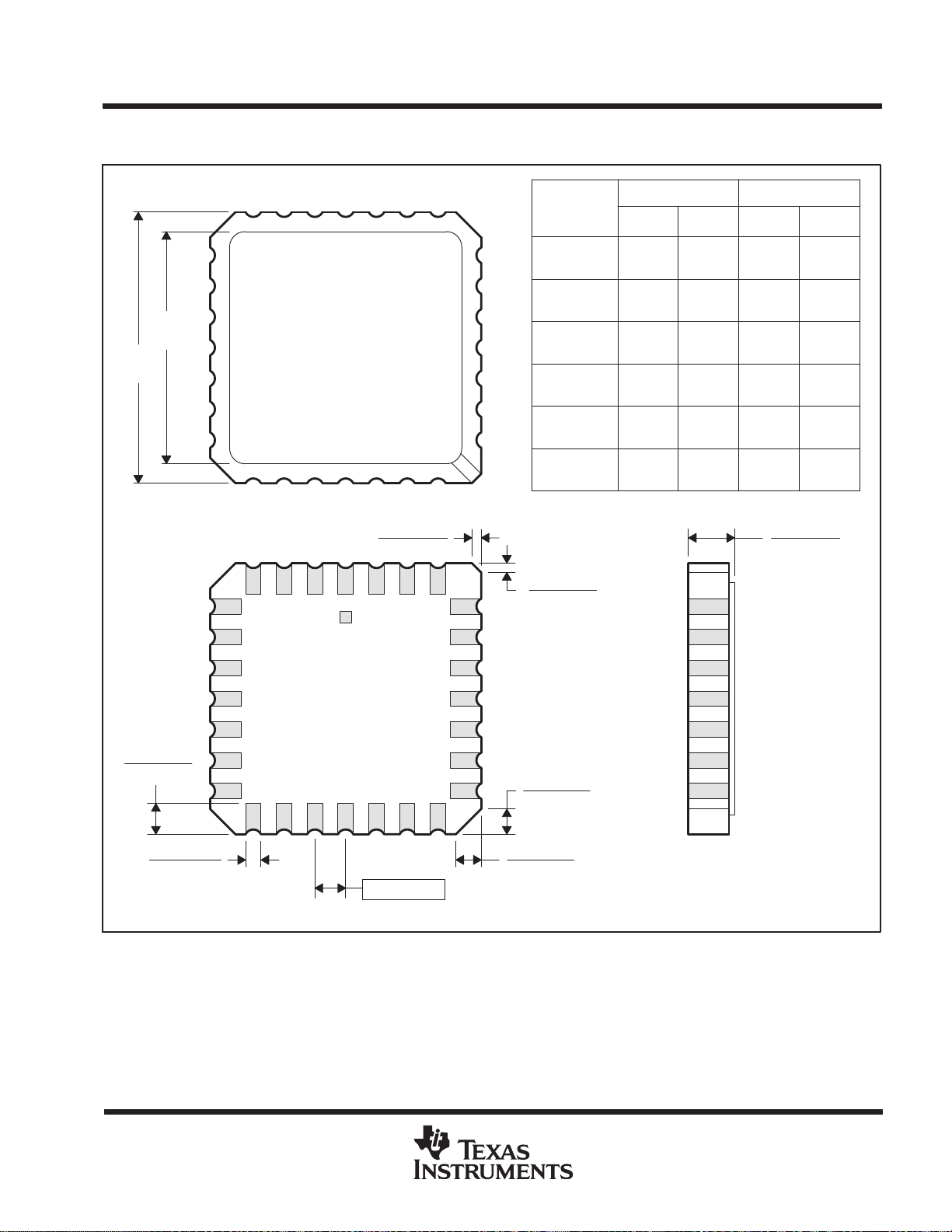

FK (S-CQCC-N**) LEADLESS CERAMIC CHIP CARRIER

28 TERMINAL SHOWN

A SQ

B SQ

19

20

21

22

23

24

25

12826 27

12

1314151618 17

0.020 (0,51)

0.010 (0,25)

MIN

0.342
(8,69)

0.442

0.640

0.739

0.938

1.141

A

0.358
(9,09)

0.458

(11,63)

0.660

(16,76)

0.761

(19,32)(18,78)

0.962

(24,43)

1.165

(29,59)

NO. OF

TERMINALS

**

11

10

9

8

7

6

5

432

20

28

44

52

68

84

0.020 (0,51)

0.010 (0,25)

(11,23)

(16,26)

(23,83)

(28,99)

MINMAX

0.307
(7,80)

0.406

(10,31)

0.495

(12,58)

0.495

(12,58)

0.850
(21,6)

1.047
(26,6)

0.080 (2,03)

0.064 (1,63)

B

MAX

0.358
(9,09)

0.458

(11,63)

0.560

(14,22)

0.560

(14,22)

0.858
(21,8)

1.063
(27,0)

0.055 (1,40)

0.045 (1,14)

0.028 (0,71)

0.022 (0,54)

0.050 (1,27)

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.
C. This package can be hermetically sealed with a metal lid.
D. The terminals are gold plated.
E. Falls within JEDEC MS-004

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

0.045 (1,14)

0.035 (0,89)

0.045 (1,14)

0.035 (0,89)

4040140/D 10/96

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements, improvements,
and other changes to its products and services at any time and to discontinue any product or service without notice. Customers should
obtain the latest relevant information before placing orders and should verify that such information is current and complete. All products are
sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s standard
warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this warranty. Except where
mandated by government requirements, testing of all parameters of each product is not necessarily performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should provide
adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask work right,
or other TI intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information
published by TI regarding third-party products or services does not constitute a license from TI to use such products or services or a
warranty or endorsement thereof. Use of such information may require a license from a third party under the patents or other intellectual
property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is accompanied
by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an unfair and deceptive
business practice. TI is not responsible or liable for such altered documentation. Information of third parties may be subject to additional
restrictions.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service voids all
express and any implied warranties for the associated TI product or service and is an unfair and deceptive business practice. TI is not
responsible or liable for any such statements.

TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would reasonably
be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement specifically governing
such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications of their applications, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products
and any use of TI products in such safety-critical applications, notwithstanding any applications-related information or support that may be
provided by TI. Further, Buyers must fully indemnify TI and its representatives against any damages arising out of the use of TI products in
such safety-critical applications.

TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is solely at
the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in connection with such use.

TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products are
designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-designated
products in automotive applications, TI will not be responsible for any failure to meet such requirements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio
Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DSP dsp.ti.com Broadband www.ti.com/broadband
Clocks and Timers www.ti.com/clocks Digital Control www.ti.com/digitalcontrol
Interface interface.ti.com Medical www.ti.com/medical
Logic logic.ti.com Military www.ti.com/military
Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork
Microcontrollers microcontroller.ti.com Security www.ti.com/security
RFID www.ti-rfid.com Telephony www.ti.com/telephony
RF/IF and ZigBee® Solutions www.ti.com/lprf Video & Imaging www.ti.com/video

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2008, Texas Instruments Incorporated

Wireless www.ti.com/wireless
