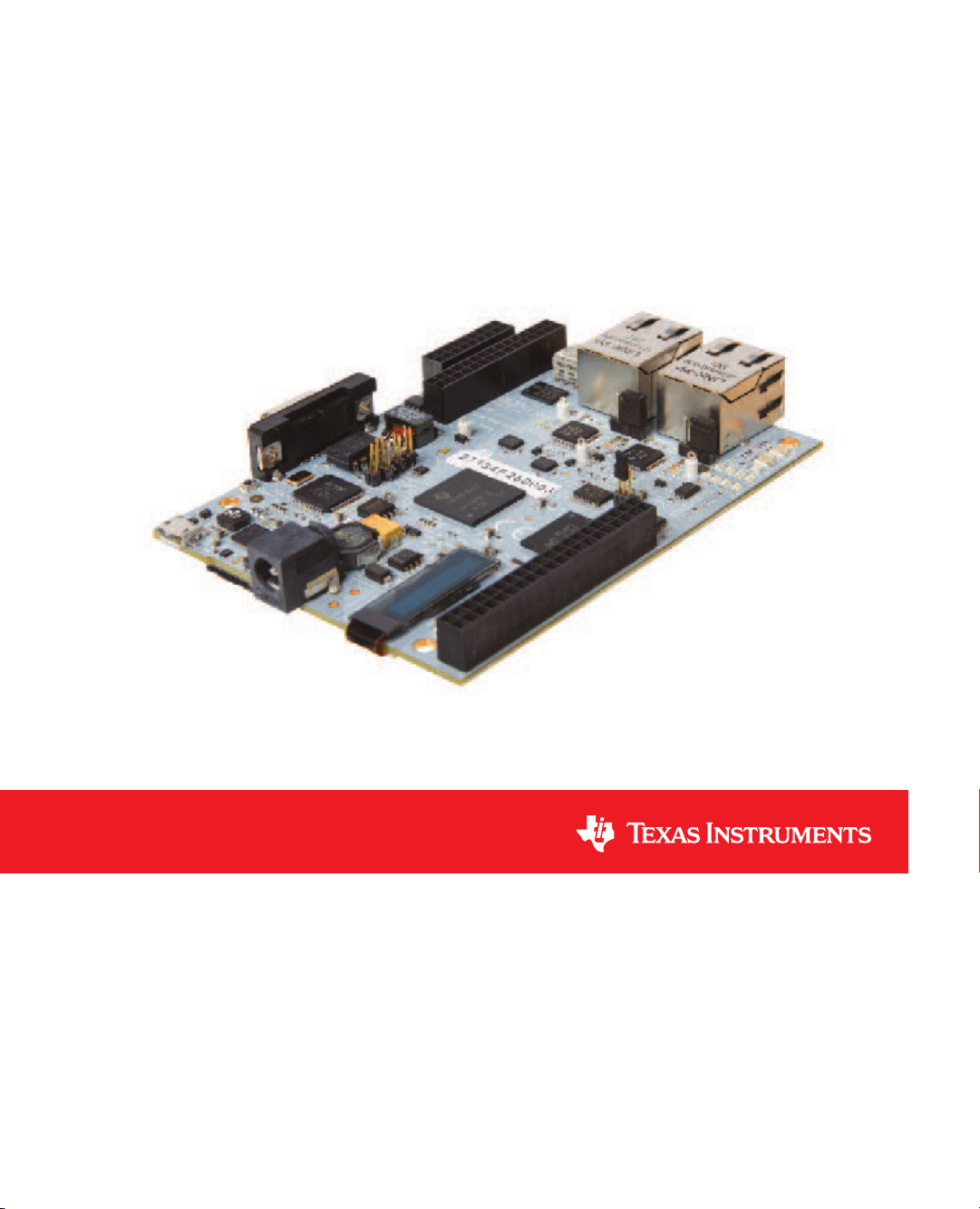

AM3359 Industrial
Communications Engine
for Industrial Automation
The Industrial Automation Quick Start Guide for the AM3359 Industrial Communications Engine (ICE) is
comprised of the following steps:
Hardware setup
• Connect network cable between the PC and
EtherCAT® port.
• Connect 24V to the board.
• Power up EVM (after the Software setup).
Software setup
• Install TwinCAT (one-month evaluation is
available for free download from
www.beckhoff.de/tcatweb/twincat_
download_e.aspx – select PLC mode for
installa-tion and check the I/O drivers box .
• Copy sdk\examples\ethercat\esi\
TiEtherCATLib.xml to
<Drive>:\TwinCAT\Io\EtherCAT folder.
• Start TwinCAT system manager.
• Go to Options > Show Real Time Ethernet
Compatible Devices and install the RT
Ethernet Adapter connected to the ICE.
• • Connect the CAT5 Ethernet cable from
TwinCAT PC to ECAT IN/Port0 (J2) of the ICE.
If you have multiple ICEs in a chain, please
connect from ECAT OUT/Po
• Go to I/O – Confi guration > I/O Devices
– right click and select Scan Device. You
will see a list of Ethernet adapters on your
system, with a tick next to the adapter connected to the ICE. Choose OK. Device n
(EtherCAT) will be added to I/O devices.
• Choose “Yes” in response for “Scan for
boxes”.
• Box n (TIESC-001) will be detected
automatically.
• Choose “Yes” in response for “Activate
Free Run”.
• Now select Device1 (EtherCAT) and go to
Actions > Select Set/Reset TwinCAT to Confi
g Mode or use shortcut Shift-F4.
• A dialog will pop up asking Load I/O Devices.
Select Yes.
• The next dialog asks for confi rmation to
Activate Free Run. Select Yes. This will put TI
ESC into OP mode.
• Now the user can control digital out LEDs
using TwinCAT. Select Box n (TIESC-001)
>RxPDO > 32Bit Output. The LEDs are
controlled by the least signifi cant byte on the
32-bit output. Open Online tab, and click the
Write button to control the LEDs.
• Additional information is available at
www.ti.com/am335x_twincat.

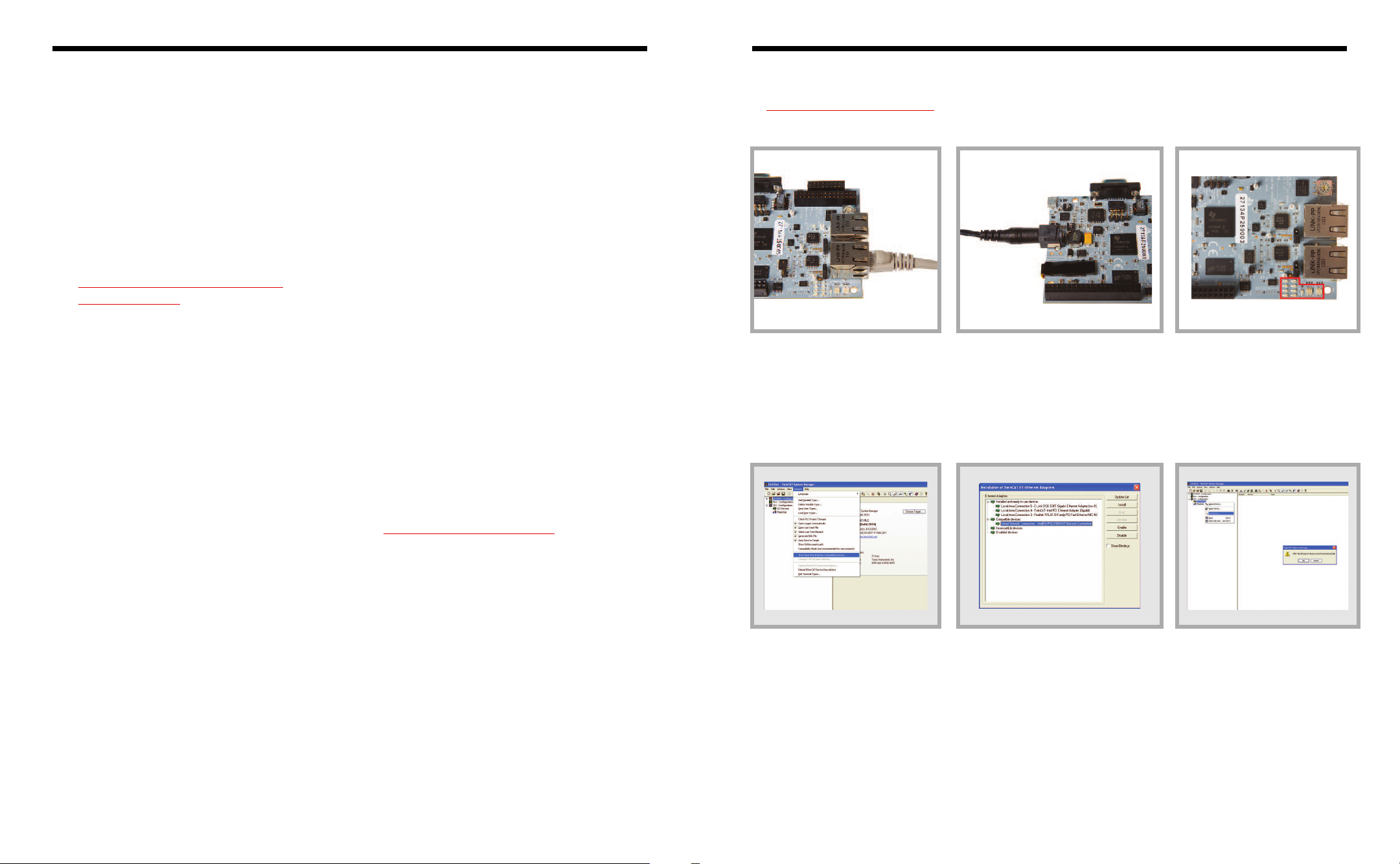

Setup for EtherCAT Operation
Quick start instructions are provided below. For detailed instructions and troubleshooting, please refer
to www.ti.com/am335x_twincat.
Connect the network cable
between EtherCAT ports
1
and the PC with TwinCAT
installation.
Power ICE board with 24V
power supply. Once software
2
installation on the PC with
TwinCat has been completed,
power up the board.
Observe the LEDs for
a pattern to confi rm
3
EtherCAT application
has started.
2
Texas Instruments
Start TwinCat for the first
time you need to defi ne
4
which Ethernet port will be
used as the EtherCAT port.
Select the ethernet port
from the list of compatible
5
devices, and press Install.
This will install a Beckhoff
EtherCAT driver. Once
installed, the Ethernet port
will show up as above.
3
Texas Instruments

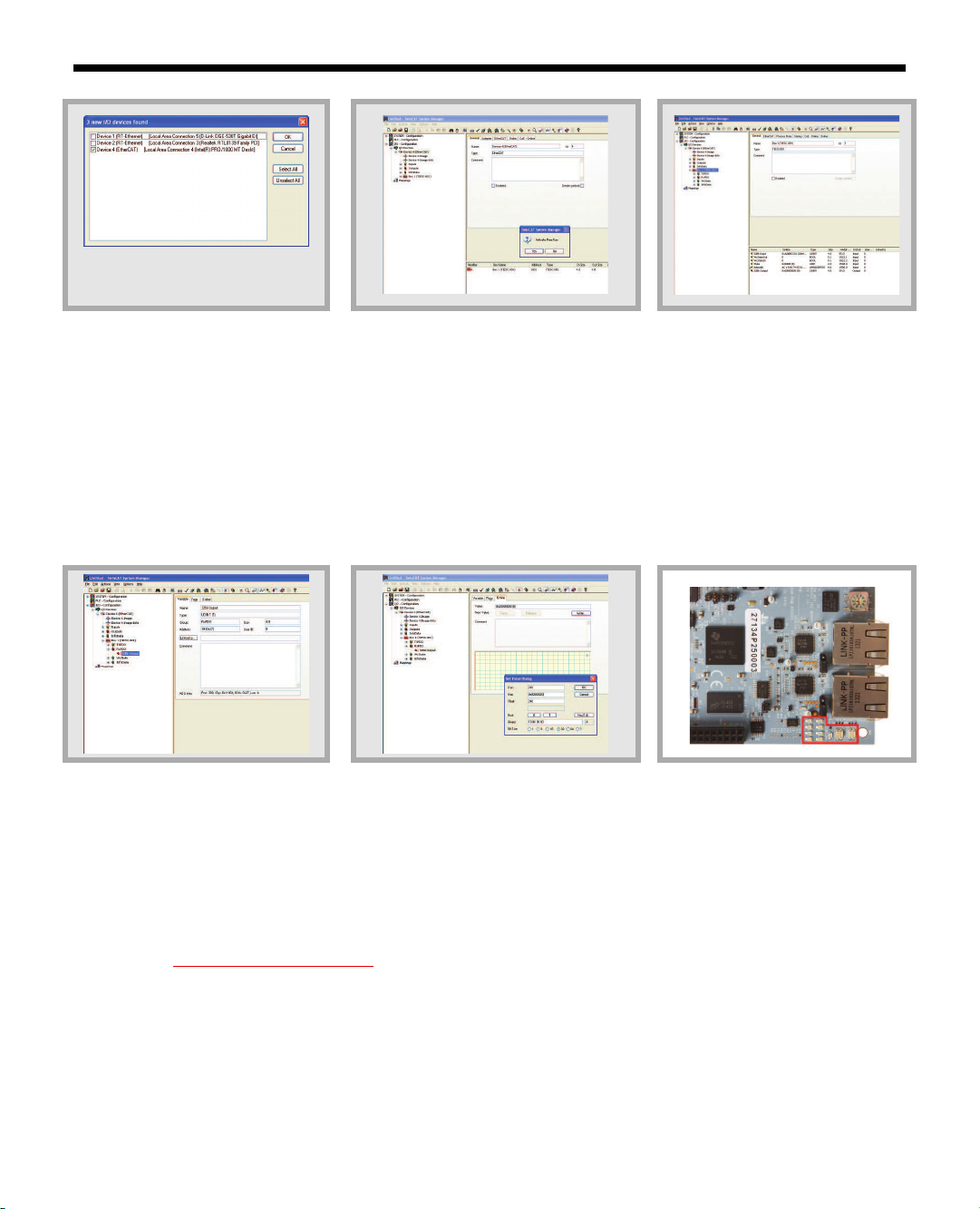

Right click on I/O devices
and select Scan Device;
6
Press OK in the next
dia-log to start scanning
for EtherCAT devices.
Once an EtherCat compatible device has been
7
detected on this Ethernet
port, the following dialog
shows up. Note that there
is a tick mark next to the
adapter to which the ICE is
connected. Press OK, and
confi rm to start “Scan for
boxes”.
The TI device will be listed
“Box n (TIESC-001)”. Press
8
Yes to activate Free Run.
Expand the box to see
Process Data Inputs (PDI)
9
and Outputs (PDO).
Select 32-bit output
10
Get Started
Please visit www.ti.com/am3359ice2. Here you’ll fi nd instructions to begin programming the
AM3359 Industrial Communications Engine, detailed information and resources.
Important Notice: The products and services of Texas Instruments Incorporated and its subsidiaries described herein are sold subject to TI’s standard terms and conditions of sale. Customers are advised to
obtain the most current and complete information about TI products and services before placing orders. TI assumes no liability for applications assistance, customer’s applications or product designs, software
performance, or infringement of patents. The publication of information regarding any other company’s products or services does not constitute TI’s approval, warranty or endorsement thereof.
Trademarks in this issue: The platform bar and Sitara are trademarks of Texas Instruments. All other trademarks are the property of their respective owners.
© 2018 Texas Instruments Incorporated
Printed in U.S.A.
from RxPDO node.
11
Select online tab on
the right side panel and
press Write. Enter the
value in hexadecimal
format, wher e each bit
in LSB represents an
4
Texas Instruments
12
Changing the LED
value will set/clear
the appro-priate
LED.
SPRW231
