For most current data sheet and other product
information, visit www.burr-brown.com
®
ADS1252
ADS1252
24-Bit, 40kHz
ANALOG-TO-DIGITAL CONVERTER
FEATURES
● 24 BITS NO MISSING CODES
● 19 BITS EFFECTIVE RESOLUTION UP TO
40kHz DATA RATE
● LOW NOISE: 2.5ppm
● DIFFERENTIAL INPUTS
● INL: 0.0015% (max)
● EXTERNAL REFERENCE
● POWER-DOWN MODE
● SYNC MODE
APPLICATIONS
● CARDIAC DIAGNOSTICS
● DIRECT THERMOCOUPLE INTERFACE
● BLOOD ANALYSIS
● INFRARED PYROMETER
● LIQUID/GAS CHROMATOGRAPHY
● PRECISION PROCESS CONTROL
DESCRIPTION
The ADS1252 is a precision, wide dynamic range,
delta-sigma, Analog-to-Digital (A/D) converter with
24-bit resolution operating from a single +5V supply.
The delta-sigma architecture is used for wide dynamic
range and to guarantee 24 bits of no missing code
performance. An effective resolution of 19 bits (2.5ppm
of rms noise) is achieved for conversion rates up to
40kHz.
The ADS1252 is designed for high-resolution measurement applications in cardiac diagnostics, smart
transmitters, industrial process control, weigh scales,
chromatography, and portable instrumentation. The
converter includes a flexible, two-wire synchronous
serial interface for low-cost isolation.
The ADS1252 is a single-channel converter and is
offered in an SO-8 package.
ADS1252
V
REF
CLK
+V
IN
–V
IN
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111
Twx: 910-952-1111 • Internet: http://www.burr-brown.com/ • Cable: BBRCORP • Telex: 066-6491 • FAX: (520) 889-1510 • Immediate Product Info: (800) 548-6132
©
1999 Burr-Brown Corporation PDS-1550 Printed in U.S.A. June, 2000
+
–
4th-Order
∆Σ
Modulator
Digital
Filter
Serial
Interface
Control
SCLK
DOUT/DRDY
+V
DD
GND
SPECIFICATIONS
All specifications at T
PARAMETER CONDITIONS MIN TYP MAX UNITS
ANALOG INPUT
Input Voltage Range
Input Impedance (differential) R = 6 ÷ (20pF • CLK) 19 kΩ
Input Capacitance 20 pF
Input Leakage At +25°C550pA
DYNAMIC CHARACTERISTICS
Data Rate 41.7 kHz
Bandwidth –3dB 9 kHz
Serial Clock (SCLK) 16 MHz
System Clock Input (CLK) 16 MHz
ACCURACY
Integral Linearity Error
THD 1kHz Input; 0.1dB below FS 97 dB
Noise 2.5 3.8 ppm of FSR, rms
Resolution 24 Bits
No Missing Codes 24 Bits
Common-Mode Rejection
Gain Error 0.4 1 % of FSR
Offset Error ±100 ±200 ppm of FSR
Gain Sensitivity to V
Power Supply Rejection Ratio 60 80 dB
PERFORMANCE OVER TEMPERATURE
Offset Drift 0.07 ppm/°C
Gain Drift 13 ppm/°C
VOLTAGE REFERENCE
V
REF
Load Current 200 µA
DIGITAL INPUT/OUTPUT
Logic Family CMOS
Logic Level: V
Input (SCLK, CLK) Histeresis 0.6 V
Data Format Offset Two’s Complement
POWER SUPPLY REQUIREMENTS
Operation +4.75 +5 +5.25 VDC
Quiescent Current V
Operating Power 40 50 mW
Power-Down Current 110µA
TEMPERATURE RANGE
Operating –40 +85 °C
Storage –60 +100 °C
NOTES: (1) In order to achieve the converter’s full-scale range, the input must be fully differential. If the input is single-ended (+V
full scale range is one-half that of the differential range. (2) Applies to full-differential signals. (3) The common-mode rejection test is performed with a 100mV
differential input.
to T
MIN
, VDD = +5V, CLK = 16MHz, and V
MAX
= 4.096, unless otherwise specified.
REF
ADS1252U
(1)
REF
At T
to T
MIN
MAX
(2)
(3)
at DC 90 100 dB
V
= 4.096V ±0.1V 1:1
REF
0 ±V
±0.0004 ±0.0015 % of FSR
REF
V
1nA
4.096 V
IH
V
IL
V
OH
V
OL
IOH = –500µA +4.5 V
IOL = 500µA 0.4 V
= +5VDC 8 10 mA
DD
+4.0 +VDD + 0.3 V
–0.3 +0.8 V
or –VIN is fixed), then the
IN
®
ADS1252
2
ABSOLUTE MAXIMUM RATINGS
Analog Input: Current................................................ ±100mA, Momentary
V
to GND ..............................................................................–0.3V to 6V
DD
V
REF
Digital Input Voltage to GND...................................... –0.3V to V
Digital Output Voltage to GND ................................... –0.3V to V
Lead Temperature (soldering, 10s) .............................................. +300°C
Power Dissipation (any package) .................................................. 500mW
Voltage ....................................... GND –0.3V to V
Voltage to GND ................................................. –0.3V to VDD + 0.3V
±10mA, Continuous
DD
DD
DD
+ 0.3V
+ 0.3V
+ 0.3V
This integrated circuit can be damaged by ESD. Burr-Brown
recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and
installation procedures can cause damage.
Electrostatic discharge can cause damage ranging from
ELECTROSTATIC
DISCHARGE SENSITIVITY
performance degradation to complete device failure. BurrBrown Corporation recommends that all integrated circuits be
handled and stored using appropriate ESD protection
methods.
PACKAGE/ORDERING INFORMATION
PACKAGE SPECIFIED
PRODUCT PACKAGE NUMBER RANGE MARKING NUMBER
DRAWING TEMPERATURE PACKAGE ORDERING TRANSPORT
ADS1252U SO-8 182 –40°C to +85°C ADS1252U ADS1252U Rails
(1)
MEDIA
"""""ADS1252U/2K5 Tape and Reel
NOTE: (1) Models with a slash (/) are available only in Tape and Reel in the quantities indicated (e.g., /2K5 indicates 2500 devices per reel). Ordering 2500 pieces
of “ADS1252U/2K5” will get a single 2500-piece Tape and Reel.
PIN CONFIGURATION
Top View SO-8
+V
–V
+V
CLK
1
IN
2
IN
3
DD
4
ADS1252U
V
8
REF
7
GND
SCLK
6
5
DOUT/DRDY
PIN DESCRIPTIONS
PIN NAME PIN DESCRIPTION
1+V
2–V
3+VDDInput: Power Supply Voltage, +5V.
4 CLK Digital Input: Device System Clock. The system clock is in the form of a CMOS-compatible clock. This is a Schmitt-Trigger input.
5 DOUT/DRDY Digital Output: Serial Data Output/Data Ready. A logic LOW on this output indicates that a new output word is available from the
6 SCLK Digital Input: Serial Clock. The serial clock is in the form of a CMOS-compatible clock. The serial clock operates indepen dently
7 GND Input: Ground.
8V
IN
IN
REF
Analog Input: Positive Input of the Differential Analog Input.
Analog Input: Negative Input of the Differential Analog Input.
ADS1252 data output register. The serial data is clocked out of the serial data output shift register using SCLK.
from the system clock, therefore, it is possible to run SCLK at a higher frequency than CLK. The normal state of SCLK is LOW.
Holding SCLK HIGH will either initiate a modulator reset for synchronizing multiple converters or enter power-down mode. This
is a Schmitt-Trigger input.
Analog Input: Reference Voltage Input.
The information provided herein is believed to be reliable; however, BURR-BROWN assumes no responsibility for inaccuracies or omissions. BURR-BROWN assumes
no responsibility for the use of this information, and all use of such information shall be entirely at the user’s own risk. Prices and specifications are subject to change
without notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. BURR-BROWN does not authorize or warrant
any BURR-BROWN product for use in life-support devices and/or systems.
3
ADS1252
®
TYPICAL PERFORMANCE CURVES
3.4
3.3
3.2
3.1
3
2.9
2.8
RMS NOISE vs TEMPERATURE
Temperature (°C)
–40 –20 0 20 40 60 80 100
RMS Noise (ppm of FS)
At TA = +25°C, VDD = +5V, CLK = 14.7456MHz, and V
= 4.096, unless otherwise specified.
REF
3
2.5
2
1.5
1
RMS Noise (ppm of FS)
0.5
0
3.5
3
2.5
2
1.5
1
RMS Noise (ppm of FS)
0.5
0
–4 –2 0 2 4
RMS NOISE vs DATA OUTPUT RATE
1k100 10k 100k
Data Output Rate (Hz)
RMS NOISE vs INPUT VOLTAGE
Differential Analog Input Voltage (V)
INTEGRAL NON-LINEARITY vs TEMPERATURE
8
7
6
5
4
3
INL (ppm of FS)
2
1
0
–40 –20 0 20 40 60 80 100
Temperature (°C)
INTEGRAL NON-LINEARITY vs DATA OUTPUT RATE
8
7
6
5
4
3
INL (ppm of FS)
2
1
0
100 1k 10k 100k
Data Output Rate (Hz)
®
ADS1252
Offset Drift (ppm of FS)
4
20
OFFSET DRIFT vs TEMPERATURE
18
16
14
12
10
8
6
4
2
0
–40 –20 0 20 40 60 80 100
Temperature (°C)
TYPICAL PERFORMANCE CURVES (Cont.)
0
–20
–40
–60
–80
–100
–120
–140
–160
–180
TYPICAL FFT ANALYSIS
OF THE 1kHz f
S
INPUT SIGNAL
Frequency (Hz)
0 2000 60004000 8000 10000 12000 14000
Dynamic Range (dB)
9.5
9
8.5
8
7.5
7
6.5
6
5.5
5
CURRENT vs FREQUENCY
Temperature (°C)
–40 –20 0 20 40 60 80 100
Current (mA)
At TA = +25°C, VDD = +5V, CLK = 14.7456MHz, and V
= 4.096, unless otherwise specified.
REF
600
500
400
300
200
100
0
–100
Gain Drift (ppm of FS)
–200
–300
–400
–40 –20 0 20 40 60 80 100
110
105
100
GAIN DRIFT vs TEMPERATURE
Temperature (°C)
COMMON-MODE REJECTION RATIO
vs FREQUENCY
POWER SUPPLY REJECTION RATIO
100
95
90
85
80
PSRR (dB)
75
70
65
60
0 5 10 15 20
vs TEMPERATURE
CLK Frequency (MHz)
95
CMRR (dB)
90
85
80
0 5 10 15 20
Frequency (Hz)
45
40
35
30
25
20
15
10
Power Dissipation (mW)
POWER DISSIPATION vs CLOCK FREQUENCY
5
0
0 5 10 15 20
Clock Frequency (MHz)
®
5
ADS1252
THEORY OF OPERATION
The ADS1252 is a precision, high dynamic range, 24-bit,
delta-sigma, A/D converter capable of achieving very highresolution digital results at high data rates. The analog input
signal is sampled at a rate determined by the frequency of
the system clock (CLK). The sampled analog input is modulated by the delta-sigma A/D modulator. This is followed by
a digital filter. A sinc5 digital low-pass filter processes the
output of the delta-sigma modulator and writes the result
into the data output register. The DOUT/DRDY pin is pulled
LOW indicating that new data is available to be read by the
external microcontroller/microprocessor. As shown in the
block diagram, the main functional blocks of the ADS1252
are the fourth-order delta-sigma modulator, a digital filter,
control logic, and a serial interface. Each of these functional
blocks is described below.
ANALOG INPUT
The ADS1252 contains a fully differential analog input. In
order to provide low system noise, common-mode rejection
of 100dB, and excellent power supply rejection, the design
topology is based on a fully differential switched-capacitor
architecture. The bipolar input voltage range is from –4.096
to +4.096V when the reference input voltage equals +4.096V.
The bipolar range is with respect to –VIN and not with
respect to GND.

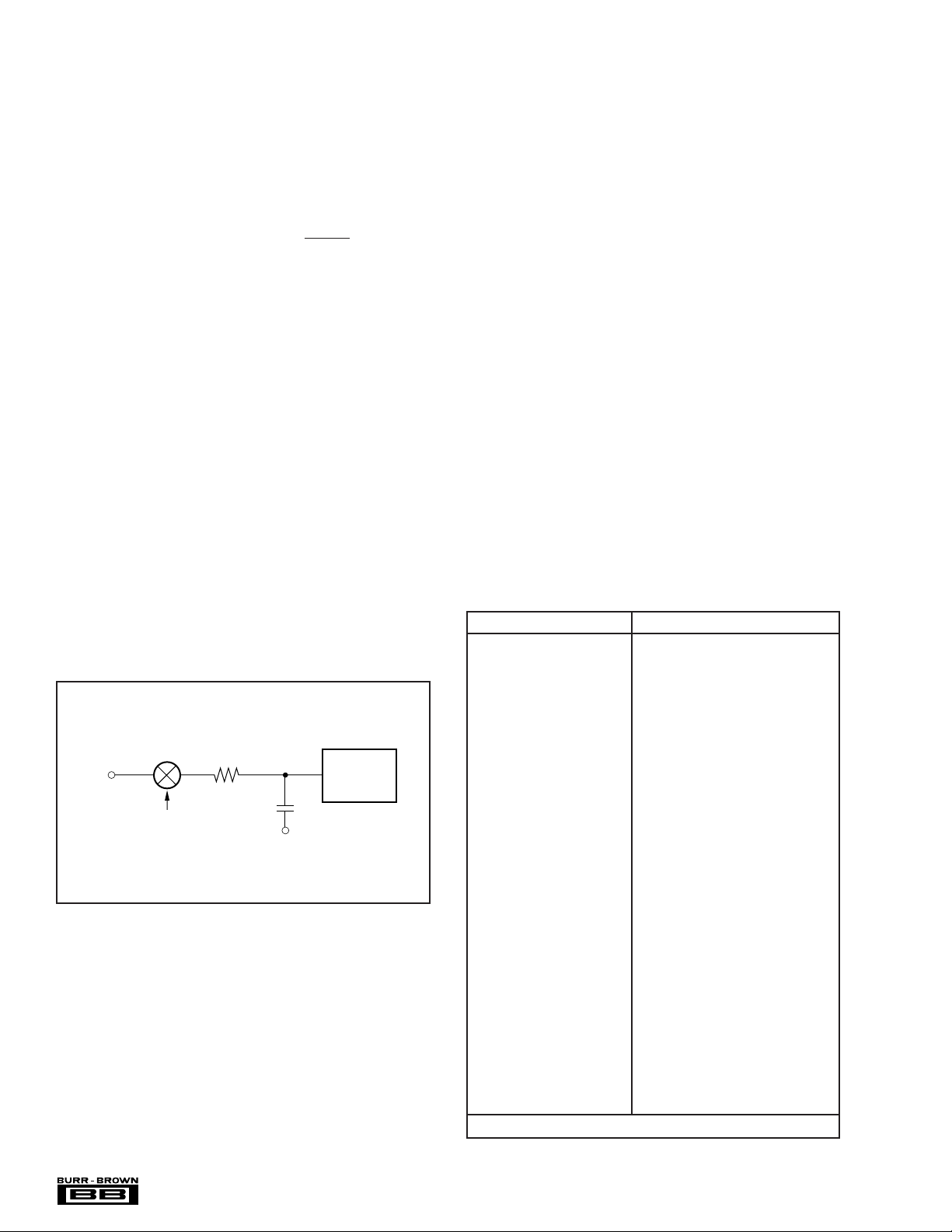

Figure 1 shows the basic input structure of the ADS1252.
The impedance is directly related to the sampling frequency
of the input capacitor which is set by the CLK rate. Higher
CLK rates result in lower impedance and lower CLK rates
result in higher impedance.
R
SW
(300Ω typical)
A
IN
Modulator Frequency
= f
MOD
V
CM
FIGURE 1. Analog Input Structure.
The input impedance of the analog input changes with
ADS1252 system clock frequency (CLK). The relationship
is:
AIN Impedance (Ω) = (16MHz/CLK) • 19,000
With regard to the analog input signal, the overall analog
performance of the device is affected by three items. First,
the input impedance can affect accuracy. If the source
impedance of the input signal is significant, or if there is
passive filtering prior to the ADS1252, a significant portion
of the signal can be lost across this external impedance. The
®
ADS1252
Internal
Circuitry
C
INT
(20pF typical)
magnitude of the effect is dependent on the desired system
performance.
Second, the current into or out of the analog inputs must be
limited. Under no conditions should the current into or out
of the analog inputs exceed 10mA.
Third, to prevent aliasing of the input signal, the bandwidth
of the analog input signal must be band limited. The bandwidth is a function of the system clock frequency. With a
system clock frequency of 16MHz, the data output rate is
41.667kHz, with a –3dB frequency of 9kHz. The –3dB
frequency scales with the system clock frequency.
To guarantee the best linearity of the ADS1252, a fully
differential signal is recommended.
DELTA-SIGMA MODULATOR
The ADS1252 operates from a nominal system clock frequency of 16MHz. The modulator frequency is fixed in
relation to the system clock frequency. The system clock
frequency is divided by 6 to derive the modulator frequency.
Therefore, with a system clock frequency of 16MHz, the
modulator frequency is 2.667MHz. Furthermore, the
oversampling ratio of the modulator is fixed in relation to the
modulator frequency. The oversampling ratio of the modulator is 64, and with the modulator frequency running at
2.667MHz, the data rate is 41.667kHz. Using a slower
system clock frequency will result in a lower data output
rate, as shown in Table I.
CLK (MHz) DATA OUTPUT RATE (Hz)
(1)
16.000
(1)
15.360
(1)
15.000
14.745600
14.318180
12.288000
12.000000
11.059220
10.000000
7.372800
6.144000
6.000000
4.915200
3.686400
3.072000
2.457600
1.843200
NOTE: (1) Standard Clock Oscillator.
(1)
(1)
(1)
(1)
(1)
(1)
9.600000 25,000
(1)
(1)
(1)
(1)
(1)
(1)
(1)
(1)
0.921600 2,400
0.460800 1,200
0.384000 1,000
0.192000 500
0.038400 100
0.023040 60
0.019200 50
0.011520 30
0.009600 25
0.007680 20
0.006400 16.67
0.005760 15
0.004800 12.50
0.003840 10
41.667
40,000
30,063
38,400
37,287
32,000
31,250
28,800
26,042
19,200
16,000
15,625
12,800
9,600
8,000
6,400
4,800
TABLE I. CLK Rate versus Data Output Rate.
6
2
3
+5V
0.10µF
7
OPA350
4
6
+
10µF
0.1µF
To V
REF
Pin 8 of
the ADS1252
+5V
1
4.99kΩ
10kΩ
LM404-4.1
+
10µF
0.10µF
FIGURE 2. Recommended External Voltage Reference Circuit for Best Low Noise Operation with the ADS1252.
REFERENCE INPUT
Reference input takes an average current of 220µA with a
16MHz system clock. This current will be proportional to
the system clock. A buffered reference is needed for
ADS1252. The recommended reference circuit is shown in
Figure 2.
Reference voltages higher than 4.096V will increase the
full-scale range, while the absolute internal circuit noise of
the converter remains the same. This will decrease the noise
in terms of ppm of full scale, which increases the effective
resolution.
Reference voltages lower than 4.096V will decrease the fullscale range, while the absolute internal circuit noise at the
converter remains the same. This will increase the noise in
terms of ppm of full scale. Therefore, the use of a lower
reference voltage will reduce the effective resolution.
DIGITAL FILTER
The digital filter of the ADS1252, referred to as a sinc5 filter,
computes the digital result based on the most recent outputs
from the delta-sigma modulator. At the most basic level, the
digital filter can be thought of as simply averaging the
modulator results in a weighted form and presenting this
average as the digital output. The digital output rate, or data
rate, scales directly with the system CLK frequency. This
allows the data output rate to be changed over a very wide
range (five orders of magnitude) by changing the system
CLK frequency. However, it is important to note that the
–3dB point of the filter is 0.216 times the data output rate,
so the data output rate should allow for sufficient margin to
prevent attenuation of the signal of interest.
Since the conversion result is essentially an average, the data
output rate determines the location of the resulting notches
in the digital filter (see Figure 3). Note that the first notch is
located at the data output rate frequency, and subsequent
notches are located at integer multiples of the data output
rate to allow for rejection of not only the fundamental
frequency, but also harmonic frequencies. In this manner,
the data output rate can be used to set specific notch
frequencies in the digital filter response. For example, if the
rejection of power line frequencies is desired, then the data
output rate can simply be set to the power line frequency.
For 50Hz rejection, the system CLK frequency should be
19.200kHz, this will set the data output rate to 50Hz (see
Table I and Figure 4). For 60Hz rejection, the system CLK
frequency should be 20.040kHz, this will set the data output
rate to 60Hz (see Table I and Figure 5). If both 50Hz and
60Hz rejection is required, then the system CLK should be
3.840kHz; this will set the data output rate to 10Hz and
reject both 50Hz and 60Hz (See Table I and Figure 6).
There is an additional benefit in using a lower data output
rate. It provides better rejection of signals in the frequency
band of interest. For example, with a 50Hz data output rate,
a significant signal at 75Hz may alias back into the passband
at 25Hz. This is due to the fact that rejection at 75Hz may
only be 66dB in the stopband—frequencies higher than the
first notch frequency (see Figure 4). However, setting the
data output rate to 10Hz will provide 135 dB rejection at
75Hz (see Figure 6). A similar benefit is gained at frequencies near the data output rate (see Figures 7, 8, 9, and 10).
For example, with a 50Hz data output rate, rejection at 55Hz
may only be 105dB (see Figure 7). However, with a 10Hz
data output rate, rejection at 55Hz will be 122dB (see Figure
8). If a slower data output rate does not meet the system
requirements, then the analog front end can be designed to
provide the needed attenuation to prevent aliasing. Additionally the data output rate may be increased and additional
digital filtering may be done in the processor or controller.
The digital filter is described by the following transfer
function:
f
MOD
5
•
f
H f
( )
ππ64
• •
•sin
f
MOD
f
sin
=
64
or
5
–
64
z
–
1
z
( )
H z
=
64 1
1
–
• –
( )
The digital filter requires five conversions to fully settle. The
modulator has an oversampling ratio of 64, therefore, it
requires 5 • 64, or 320 modulator results, or clocks, to fully
settle. Since the modulator clock is derived from the system
®
7
ADS1252
0
–20
–40
–60
–80
–100
–120
Gain (dB)
–140
–160
–180
–200
NORMALIZED DIGITAL FILTER RESPONSE
123456789100
Frequency (Hz)
0
–20
–40
–60
–80
–100
–120
Gain (dB)
–140
–160
–180
–200
DIGITAL FILTER RESPONSE
50 100 150 200 250 3000
Frequency (Hz)
FIGURE 3. Normalized Digital Filter Response.
0
–20
–40
–60
–80
–100
–120
Gain (dB)
–140
–160
–180
–200
DIGITAL FILTER RESPONSE
50 100 150 200 250 3000
Frequency (Hz)
FIGURE 4. Digital Filter Response (50Hz).
0
–20
–40
–60
–80
–100
–120
Gain (dB)
–140
–160
–180
–200
10 20 30 40 50 60 70 80 90 1000
DIGITAL FILTER RESPONSE
Frequency (Hz)
FIGURE 5. Digital Filter Response (60Hz). FIGURE 6. Digital Filter Response (10Hz Multiples).
0
–20
–40
–60
–80
–100
–120
Gain (dB)
–140
–160
–180
–200
46 47 48 49 50 51 52 53 54 5545
DIGITAL FILTER RESPONSE
Frequency (Hz)
FIGURE 7. Expanded Digital Filter Response (50Hz with a
50Hz Notch).
®
ADS1252
0
–20
–40
–60
–80
–100
–120
Gain (dB)
–140
–160
–180
–200
46 47 48 49 50 51 52 53 54 5545
DIGITAL FILTER RESPONSE
Frequency (Hz)
FIGURE 8. Expanded Digital Filter Response (50Hz with a
10Hz Notch).
8
0
DIGITAL FILTER RESPONSE
0
–20
–40
–60
–80
–100
–120
–140
–160
–180
–200
56 57 58 59 60 61 62 63 64 6555
Frequency (Hz)
Gain (dB)
–20
–40
–60
–80
–100
–120
Gain (dB)
–140
–160
–180
–200
DIGITAL FILTER RESPONSE
56 57 58 59 60 61 62 63 64 6555
Frequency (Hz)

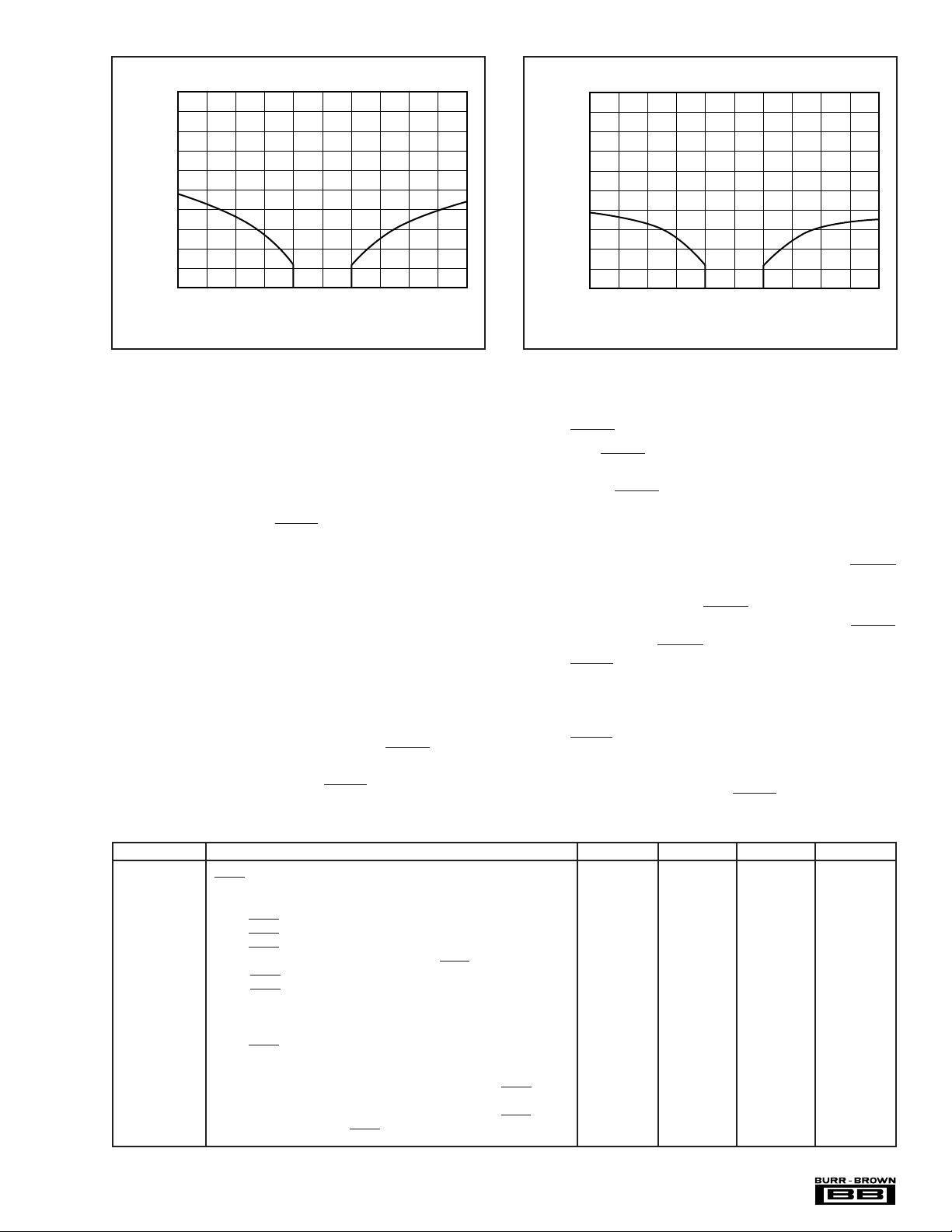

FIGURE 9. Expanded Digital Filter Response (60Hz with a
60Hz Notch).
clock (CLK) (modulator clock = CLK ÷ 6), the number of
system clocks required for the digital filter to fully settle is
5 • 64 • 6, or 1920 CLKs. This means that any significant
step change at the analog input requires five full conversions
to settle. However, if the analog input change occurs asynchronously to the DOUT/DRDY pulse, six conversions are
required to ensure full settling.
CONTROL LOGIC
The control logic is used for communications and control of
the ADS1252.
Power-Up Sequence
Prior to power-up, all digital and analog input pins must be
LOW. At the time of power-up, these signal inputs can be
biased to a voltage other than 0V, however, they should
never exceed +VD.
Once the ADS1252 powers up, the DOUT/DRDY line will
pulse LOW on the first conversion. This data will not be
valid. The sixth pulse of DOUT/DRDY will be valid data
from the analog input signal.
FIGURE 10. Expanded Digital Filter Response (60Hz with
a 10Hz Notch).
DOUT/DRDY
The DOUT/DRDY output signal alternates between two
modes of operation. The first mode of operation is the Data
Ready mode (DRDY) to indicate that new data has been
loaded into the data output register and is ready to be read.
The second mode of operation is the Data Output (DOUT)
mode and is used to serially shift data out of the Data Output
Register (DOR). The time domain partitioning of the DRDY
and DOUT function is shown in Figure 11.
The basic timing for DOUT/DRDY is shown in Figure 12.
During the time defined by t2, t3, and t4, the DOUT/DRDY
pin functions in DRDY mode. The state of the
DOUT/DRDY pin would be HIGH prior to the internal
transfer of new data to the DOR. The result of the A/D
conversion would be written to the DOR from MSB to LSB
in the time defined by t1 (see Figures 11 and 12). The
DOUT/DRDY line would then pulse LOW for the time
defined by t2, and then pulse HIGH for the time defined by
t3 to indicate that new data was available to be read. At this
point, the function of the DOUT/DRDY pin would change
SYMBOL DESCRIPTION MIN TYP MAX UNITS
t
DRDY
DRDY Mode DRDY Mode 36 • CLK ns
DOUT Mode DOUT Mode 348 • CLK ns
t
1
t
2
t
3
t
4
t
5
t
6
t
7
t
8
t
9
t
10
t
11
t
12
t
13
t
14
t
15
t
16
t
17
TABLE II. Digital Timing.
Conversion Cycle 384 • CLK ns
DOR Write Time 6 • CLK ns
DOUT/DRDY LOW Time 6 • CLK ns
DOUT/DRDY HIGH Time (Prior to Data Out) 6 • CLK ns
DOUT/DRDY HIGH Time (Prior to Data Ready) 24 • CLK ns
Rising Edge of CLK to Falling Edge of DOUT/DRDY 30 ns
End of DRDY Mode to Rising Edge of First SCLK 30 ns
End of DRDY Mode to Data Valid (Propogation Delay) 30 ns
Falling Edge of SCLK to Data Valid (Hold Time) 5 ns
Falling Edge of SCLK to Next Data Out Valid (Propogation Delay) 30 ns
SCLK Setup Time for Synchronization or Power Down 30 ns
DOUT/DRDY Pulse for Synchronization or Power Down 3 • CLK ns
Rising Edge of SCLK Until Start of Synchronization 1537 • CLK 7679 • CLK ns
Synchronization Time 0.5 • CLK 6143.5 • CLK ns
Falling Edge of CLK (After SCLK Goes Low) Until Start of DRDY Mode 314.5 • CLK ns
Rising Edge of SCLK Until Start of Power Down 7681 • CLK ns
Falling Edge of CLK (After SCLK Goes Low) Until Start of DRDY Mode 591.5 • CLK 592.5 • CLK ns
Falling Edge of Last DOUT/DRDY to Start of Power Down 6143.5 • CLK ns
9
ADS1252
®
DRDY Mode
t
4
t2t
DOUT ModeDOUT Mode
3
DRDY Mode
DOUT/DRDY
DATA
t
1
FIGURE 11. DOUT/DRDY Partitioning.
to DOUT mode. Data would be shifted out on the pin after
t7. The device communicating with the ADS1252 can provide SCLKs to the ADS1252 after the time defined by t6.
The normal mode of reading data from the ADS1252 would
be for the device reading the ADS1252 to latch the data on
the rising edge of SCLK (since data is shifted out of the
ADS1252 on the falling edge of SCLK). In order to retrieve
valid data, the entire DOR must be read before the
DOUT/DRDY pin reverts back to DRDY mode.
If SCLKs were not provided to the ADS1252 during the
DOUT mode, the MSB of the DOR would be present on the
DOUT/DRDY line until the time defined by t4. If an incomplete read of the ADS1252 took place while in DOUT mode
(i.e., less than 24 SCLKs were provided), the state of the last
bit read would be present on the DOUT/DRDY line until the
time defined by t4. If more than 24 SCLKs were provided
during DOUT mode, the DOUT/DRDY line would stay
LOW until the time defined by t4.
The internal data pointer for shifting data out on
DOUT/DRDY is reset on the falling edge of the time defined
by t1 and t4. This ensures that the first bit of data shifted out
of the ADS1252 after DRDY mode is always the MSB of
new data.
SYNCHRONIZING MULTIPLE CONVERTERS
The normal state of SCLK is LOW. However, by holding
SCLK HIGH, multiple ADS1252s can be synchronized.
This is accomplished by holding SCLK HIGH for at least
four, but less than twenty, consecutive DOUT/DRDY cycles
(see Figure 13). After the ADS1252 circuitry detects that
SCLK has been held HIGH for four consecutive
DOUT/DRDY cycles, the DOUT/DRDY pin will pulse
LOW for 3 CLK cycles and then be held HIGH, and the
modulator will be held in a reset state. The modulator will be
released from reset and synchronization will occur on the
falling edge of SCLK. It is important to note that prior to
synchronization, the DOUT/DRDY pulse of multiple
ADS1252s in the system could have a difference in timing
up to one DRDY period. Therefore to ensure synchronization, the SCLK should be held HIGH for at least five DRDY
cycles. The first DOUT/DRDY pulse after the falling edge
of SCLK will occur at t14. Valid data will not be present until
the sixth DOUT/DRDY pulse.
DATA DATA
POWER-DOWN MODE
The normal state of SCLK is LOW. However, by holding
SCLK HIGH, the ADS1252 will enter power-down mode.
This is accomplished by holding SCLK HIGH for at least
twenty consecutive DOUT/DRDY periods (see Figure 14).
After the ADS1252 circuitry detects that SCLK has been
held HIGH for four consecutive DOUT/DRDY cycles, the
DOUT/DRDY pin will pulse LOW for 3 CLK cycles and
then be held HIGH, and the modulator will be held in a reset
state. If SCLK is held HIGH for an additional sixteen
DOUT/DRDY periods, the ADS1252 will enter powerdown mode. The part will be released from power-down
mode on the falling edge of SCLK. It is important to note
that the DOUT/DRDY pin will be held HIGH after four
DOUT/DRDY cycles, but power-down mode will not be
entered for an additional sixteen DOUT/DRDY periods. The
first DOUT/DRDY pulse after the falling edge of SCLK will
occur at t16. Subsequent DOUT/DRDY pulses will occur
normally. Valid data will not be present until the sixth
DOUT/DRDY pulse.
SERIAL INTERFACE
The ADS1252 includes a simple serial interface which can
be connected to microcontrollers and digital signal processors in a variety of ways. Communications with the ADS1252
can commence on the first detection of the DOUT/DRDY
pulse after power up, although data will not be valid until the
sixth conversion.
It is important to note that the data from the ADS1252 is a
24-bit result transmitted MSB-first in Offset Two’s Complement format, as shown in Table III.
DIFFERENTIAL VOLTAGE INPUT DIGITAL OUTPUT (HEX)
+Fulll Scale 7FFFFFH
Zero 000000H
–Full Scale 800000H
TABLE III. ADS1252 Data Format (Offset Two's Complement).
®
ADS1252
10
CLK
DOUT/DRDY
SCLK
t
3
t
4
t
15
t
2
t
11
t
17
t
16
t
DRDY
t
10
t
DRDY
4 t
DRDY
DATA
DATA
DATA
Power Down Occurs Here
DOUT
Mode
t
3
t
4
t
2
DOUT
Mode
t
11
CLK
DOUT/DRDY
SCLK
t
3
t
4
t
12
t
2
t
11
t
13
t
14
t
DRDY
t
10
t
DRDY
4 t
DRDY
DATA
DATA
DATA
Synchronization Mode Starts Here
Synchronization Begins Here
DOUT
Mode
t
3
t
4
t
2
DOUT
Mode
CLK
DOUT/DRDY
SCLK
t
5
t
1
t
2
t
3
t
4
t
7
t
6
t
8
t
9
DRDY Mode
DOUT Mode
t
DRDY
MSB LSB
FIGURE 12. DOUT/DRDY Timing.
11
FIGURE 13. Synchronization Mode.
ADS1252
FIGURE 14. Power-Down Mode.
®
A simple two-wire interface is shown in Figure 15. Essentially
P3.2 (INT0) generates an internal interrupt when DOUT/
DRDY pulses LOW. The user firmware in the 8xC51 vectors
to the interupt handler and shifts the data in using P3.1 as
SCLK and P3.2 as data in. The P1.0 output from 8xC51 is a
free-running clock.
The data must be clocked out before the ADS1252 enters
DRDY mode to ensure reception of valid data, as described
in the DOUT/DRDY section of this data sheet.
ISOLATION
The serial interface of the ADS1252 provides for simple
isolation methods. An example of an isolated three-wire
interface is shown in Figure 16. The ISO150 is used to
transmit the digital clocks over the isolation barrier. In
addition, the digital output of the ADS1252 can, in some
cases, drive opto-isolators directly.
DV
8xC51
DD
P1.0/T2
P1.1
P1.2
P1.3
P1.4
V
REF
Circuit
V
S
+V
–V
+V
CLK
IN
IN
DD
ADS1252
V
REF
GND
SCLK
DOUT/DRDY
XTAL
C1
C2
P1.5
P1.6
P1.7
RST
P3.0
P3.1
P3.2 (INT0)
P3.3
P3.4
P3.5
P3.6
P3.7
XTAL2
XTAL1
V
SS
V
P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7
EA
ALE
PSEN
P2.7
P2.6
P2.5
P2.4
P2.3
P2.2
P2.1
P2.0
CC
FIGURE 15. Two-Wire Interface to an 8xC51.
®
ADS1252
DGND
12
LAYOUT
SYSTEM CONSIDERATIONS
POWER SUPPLY
The power supply should be well regulated and low noise.
For designs requiring very high resolution from the ADS1252,
power supply rejection will be a concern. Avoid running
digital lines under the device as they may couple noise onto
the die. High frequency noise can capacitively couple into
the analog portion of the device and will alias back into the
passband of the digital filter, affecting the conversion result.
GROUNDING
The analog and digital sections of the system design should
be carefully and cleanly partitioned. Each section should
have its own ground plane with no overlap between them.
GND should be connected to the analog ground plane, as
well as all other analog grounds. Do not join the analog and
digital ground planes on the board, but instead connect the
two with a moderate signal trace. For multiple converters,
connect the two ground planes at one location as central to
all of the converters as possible. In some cases, experimentation may be required to find the best point to connect the
two planes together. The printed circuit board can be designed to provide different analog/digital ground connections via short jumpers. The initial prototype can be used to
establish which connection works best.
DECOUPLING
Good decoupling practices should be used for the ADS1252
and for all components in the design. All decoupling capacitors, and specifically the 0.1µF ceramic capacitors, should
be placed as close as possible to the pin being decoupled. A
1µF to 10µF capacitor, in parallel with a 0.1µF ceramic
capacitor, should be used to decouple VD to GND.
The recommendations for power supplies and grounding will
change depending on the requirements and specific design of
the overall system. Achieving 24 bits of noise performance
is a great deal more difficult than achieving 12 bits of noise
performance. In general, a system can be broken up into four
different stages:
• Analog Processing
• Analog Portion of the ADS1252
• Digital Portion of the ADS1252
• Digital Processing
For the simplest system consisting of minimal analog signal
processing (basic filtering and gain), a microcontroller, and
one clock source, one can achieve high resolution by powering all components by a common power supply. In addition,
all components could share a common ground plane. Thus,
there would be no distinctions between “analog” power and
ground, and “digital” power and ground. The layout should
still include a power plane, a ground plane, and careful
decoupling. In a more extreme case the design could include:
• Multiple ADS1252s
• Extensive Analog Signal Processing
• One or More Microcontrollers, Digital Signal Processors,
or Microprocessors
• Many Different Clock Sources
• Interconnections to Various Other Systems
High resolution will be very difficult to achieve for this
design. The approach would be to break the system into as
many different parts as possible. For example, each ADS1252
may have its own “analog” processing front end.
V
REF
Circuit
V
S
+V
–V
+V
CLK
IN
IN
ADS1252
DD
V
REF
GND
SCLK
DOUT/DRDY
FIGURE 16. Isolated Three-Wire Interface.
13
V
DD1
2A
2A
D
R/T
D1AR/T1AV
GND
A
G
SA
GND
V
DD1
ISO150
GND
V
DD2
SB
V
GBR/T1BD
V
GND
SCLK
2BD2B
R/T
1B
DOUT/DRDY
DD2
®
ADS1252
DEFINITION OF TERMS
An attempt has been made to be consistent with the terminology used in this data sheet. In that regard, the definition
of each term is given as follows:
Analog Input Differential Voltage—for an analog signal
that is fully differential, the voltage range can be compared
to that of an instrumentation amplifier. For example, if both
analog inputs of the ADS1252 are at 2.048V, the differential
Effective Resolution (ER)—of the ADS1252 in a particular
configuration can be expressed in two different units:
bits rms (referenced to output) and µVrms (referenced to
input). Computed directly from the converter's output data,
each is a statistical calculation based on a given number of
results. Noise occurs randomly; the rms value represents a
statistical measure which is one standard deviation. The ER
in bits can be computed as follows:
voltage is 0V. If one analog input is at 0V and the other
analog input is at 4.096V, then the differential voltage
magnitude is 4.096V. This is the case regardless of which
input is at 0V and which is at 4.096V. The digital output
result, however, is quite different. The analog input differential voltage is given by the following equation:
+VIN – –V
IN
A positive digital output is produced whenever the analog
input differential voltage is positive, while a negative digital
output is produced whenever the differential is negative. For
example, a positive full-scale output is produced when the
converter is configured with a 4.096V reference, and the
analog input differential is 4.096V. The negative full-scale
output is produced when the differential voltage is –4.096V.
In each case, the actual input voltages must remain within
the XGND to +VDD range.
Actual Analog Input Voltage—the voltage at any one
analog input relative to GND.
Full-Scale Range (FSR)—as with most A/D converters, the
The 2 • V
scale range of the ADS1252. This means that both units are
absolute expressions of resolution—the performance in different configurations can be directly compared, regardless of
the units.
Noise Reduction—for random noise, the ER can be improved with averaging. The result is the reduction in noise
by the factor √N, where N is the number of averages, as
shown in Table IV. This can be used to achieve true 24-bit
performance at a lower data rate. To achieve 24 bits of
resolution, more than 24 bits must be accumulated. A 36-bit
accumulator is required to achieve an ER of 24 bits. The
following uses V
ting data at 40kHz, a 4096 point average will take 102.4ms.
The benefits of averaging will be degraded if the input signal
drifts during that 100ms.
full-scale range of the ADS1252 is defined as the “input”
which produces the positive full-scale digital output minus
the “input” which produces the negative full-scale digital
(NUMBER REDUCTION IN IN
OF AVERAGES) FACTOR VRMS BITS RMS
output. For example, when the converter is configured with
a 4.096V reference, the differential full-scale range is:
[4.096V (positive full scale) – (–4.096V) (negative full scale)] = 8.192V
Least Significant Bit (LSB) Weight—this is the theoretical
amount of voltage that the differential voltage at the analog
input would have to change in order to observe a change in
the output data of one least significant bit. It is computed as
follows:
Full Scale Range
LSBWeight
−
=
N
2
where N is the number of bits in the digital output.
Conversion Cycle—as used here, a conversion cycle refers
128 11.3 2.77µV 21.5
256 16 1.96µV22
512 22.6 1.38µV 22.5
1024 32 978nV 23
2048 45.25 692nV 23.5
4096 64 489nV 24
TABLE IV. Averaging.
to the time period between DOUT/DRDY pulses.
20 log2•
ER in bits rms =
figure in each calculation represents the full-
REF
= 4.096V. With the ADS1252 output-
REF
N NOISE ER ER
1 1 31.3µV18
2 1.414 22.1µV 18.5
4 2 15.6µV19
8 2.82 11.1µV 19.5
16 4 7.82µV20
32 5.66 5.53µV 20.5
64 8 3.91µV21
•
Vrms noise
6 02.
V
REF
®
ADS1252
14
Loading...
