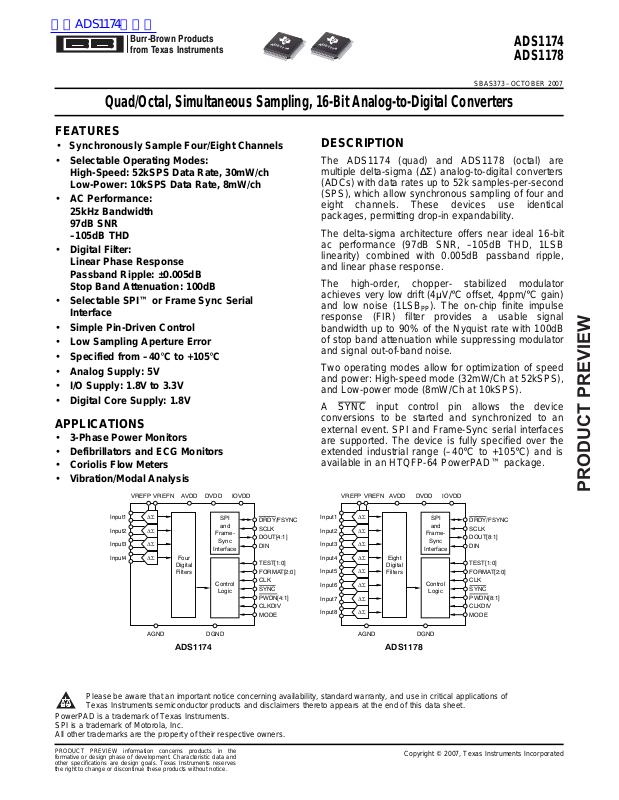

TEXAS INSTRUMENTS ADS1174, ADS1178 Technical data

    
ADS1174
ADS1178
PRODUCTPREVIEW
VREFP VREFN AVDD DVDD
TEST[1:0] FORMAT[2:0] CLK SYNC PWDN[8:1] CLKDIV
Control
Logic
SPI and
Frame-
Sync
Interface
IOVDD
DGNDAGND
DRDY/FSYNC SCLK DOUT[8:1] DIN
Input2
Input1
Input4
Input3
Input6
Input5
Input8
Input7
DS
DS
DS
DS
DS
DS
DS
DS
PWDN[4:1]
ADS1178
Four Digital Filters
AVDD DVDD
TEST[1:0] FORMAT[2:0] CLK SYNC
CLKDIV
Control
Logic
SPI and
Frame-
Sync
Interface
IOVDD
DGNDAGND
DRDY/FSYNC SCLK DOUT[4:1] DIN
ADS1174
MODE
MODE
Eight Digital Filters
VREFP VREFN
Input2
Input1
Input4
Input3
DS
DS
DS
DS
查询ADS1174供应商
Quad/Octal, Simultaneous Sampling, 16-Bit Analog-to-Digital Converters
1
234
Synchronously Sample Four/Eight Channels
Selectable Operating Modes:
High-Speed: 52kSPS Data Rate, 30mW/ch Low-Power: 10kSPS Data Rate, 8mW/ch
AC Performance:
25kHz Bandwidth 97dB SNR – 105dB THD
Digital Filter:
Linear Phase Response Passband Ripple: ± 0.005dB Stop Band Attenuation: 100dB
Selectable SPI™ or Frame Sync Serial
Interface
Simple Pin-Driven Control
Low Sampling Aperture Error
Specified from 40 ° C to +105 ° C
Analog Supply: 5V
I/O Supply: 1.8V to 3.3V
Digital Core Supply: 1.8V
APPLICATIONS
3-Phase Power Monitors
Defibrillators and ECG Monitors
Coriolis Flow Meters
Vibration/Modal Analysis
ADS1174 ADS1178
SBAS373 – OCTOBER 2007
DESCRIPTION
The ADS1174 (quad) and ADS1178 (octal) are multiple delta-sigma ( Δ Σ ) analog-to-digital converters (ADCs) with data rates up to 52k samples-per-second (SPS), which allow synchronous sampling of four and eight channels. These devices use identical packages, permitting drop-in expandability.
The delta-sigma architecture offers near ideal 16-bit ac performance (97dB SNR, 105dB THD, 1LSB linearity) combined with 0.005dB passband ripple, and linear phase response.
The high-order, chopper- stabilized modulator achieves very low drift (4 μ V/ ° C offset, 4ppm/ ° C gain) and low noise (1LSB response (FIR) filter provides a usable signal bandwidth up to 90% of the Nyquist rate with 100dB of stop band attenuation while suppressing modulator and signal out-of-band noise.
Two operating modes allow for optimization of speed and power: High-speed mode (32mW/Ch at 52kSPS), and Low-power mode (8mW/Ch at 10kSPS).
A SYNC input control pin allows the device conversions to be started and synchronized to an external event. SPI and Frame-Sync serial interfaces are supported. The device is fully specified over the extended industrial range ( – 40 ° C to +105 ° C) and is available in an HTQFP-64 PowerPAD™ package.
). The on-chip finite impulse
PP
1
2 PowerPAD is a trademark of Texas Instruments. 3 SPI is a trademark of Motorola, Inc. 4 All other trademarks are the property of their respective owners.
PRODUCT PREVIEW information concerns products in the formative or design phase of development. Characteristic data and other specifications are design goals. Texas Instruments reserves the right to change or discontinue these products without notice.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright © 2007, Texas Instruments Incorporated
www.ti.com
PRODUCTPREVIEW
ADS1174 ADS1178
SBAS373 – OCTOBER 2007
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.
ORDERING INFORMATION
For the most current package and ordering information see the Package Option Addendum at the end of this document, or see the TI web site at www.ti.com .
ABSOLUTE MAXIMUM RATINGS
over operating free-air temperature range unless otherwise noted
AVDD to AGND – 0.3 to +6.0 V DVDD, IOVDD to DGND – 0.3 to +3.6 V AGND to DGND – 0.3 to +0.3 V
Input Current
Analog Input to AGND – 0.3 to AVDD + 0.3 V Digital Input or Output to DGND – 0.3 to DVDD + 0.3 V Maximum Junction Temperature +150 ° C Operating Temperature Range – 40 to +105 ° C Storage Temperature Range – 60 to +150 ° C
(1) Stresses above these ratings may cause permanent damage. Exposure to absolute maximum conditions for extended periods may
degrade device reliability. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those specified is not implied.
(1)
ADS1174, ADS1178 UNIT
100, Momentary mA
10, Continuous mA
2 Submit Documentation Feedback Copyright © 2007, Texas Instruments Incorporated
Product Folder Link(s): ADS1174 ADS1178
www.ti.com
PRODUCTPREVIEW
ELECTRICAL CHARACTERISTICS
All specifications at TA= – 40 ° C to +105 ° C, AVDD = +5V, DVDD = +1.8V, IOVDD = +3.3V, f VREFN = 0V, and all channels active, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
ANALOG INPUTS
Full-scale input voltage (FSR Absolute input voltage AINP or AINN to AGND AGND – 0.1 AVDD + 0.1 V Common-mode input voltage VCM= (AINP + AINN)/2 2.5 V
Differential input impedance
DC PERFORMANCE
Resolution No missing codes 16 Bits
Data rate (f
Integral nonlinearity (INL) Differential input 0.5 TBD LSB Offset error 0.150 TBD mV Offset drift 1.8 μ V/ ° C Offset match TBD mV Gain error 0.1 TBD % Gain drift 2 ppm/ ° C Gain match TBD % Noise Shorted input 1 TBD LSB Common-mode rejection fCM= 60Hz 100 dB
Power-supply rejection
AC PERFORMANCE
Crosstalk VIN= 1kHz, – 0.5dBFS 107 dB Sampling aperture match 200 ps Signal-to-noise ratio (SNR) (unweighted) 97 dB Total harmonic distortion (THD) Spurious-free dynamic range – 108 dB Passband ripple ± 0.005 dB Passband 0.453 f – 3dB Bandwidth 0.49 f Stop band attenuation 100 dB Stop band 0.547 f Group delay 38/f Settling time (latency) Complete settling 76/f
)
DATA
(1) FSR = full-scale range = 2V (2) THD includes the first nine harmonics of the input signal.
(1)
) VIN= (AINP – AINN) ± V
High-Speed mode 28 k Low-Power mode 140 k
High-Speed mode 52,734 SPS Low-Power mode 10,547 SPS
AVDD f = 60Hz 80 dB DVDD f = 60Hz 80 dB
(2)
High-Speed mode VIN= 1kHz, – 0.5dBFS – 105 dB
REF
ADS1174 ADS1178
SBAS373 – OCTOBER 2007
= 27MHz, VREFP = 2.5V,
CLK
ADS1174, ADS1178
REF
DATA DATA
DATA
63.453 f
DATA DATA DATA
V
PP
Hz Hz
Hz
s s
Copyright © 2007, Texas Instruments Incorporated Submit Documentation Feedback 3
Product Folder Link(s): ADS1174 ADS1178
www.ti.com
PRODUCTPREVIEW
ADS1174 ADS1178
SBAS373 – OCTOBER 2007
ELECTRICAL CHARACTERISTICS (continued)
All specifications at TA= – 40 ° C to +105 ° C, AVDD = +5V, DVDD = +1.8V, IOVDD = +3.3V, f VREFN = 0V, and all channels active, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VOLTAGE REFERENCE INPUTS
Reference input voltage (V Negative reference input (VREFN) AGND – 0.1 VREFP – 0.5 V Positive reference input (VREFP) VREFN + 0.5 AVDD + 0.1 V
ADS1174 Reference Input impedance
ADS1178 Reference Input impedance
DIGITAL INPUT/OUTPUT (IOVDD = 1.8V to 3.6V)
V
IH
V
IL
V
OH
V
OL
Input leakage 0 < V Master clock rate (f
POWER SUPPLY
AVDD 4.75 5 5.25 V DVDD 1.65 1.8 1.95 V IOVDD 1.65 3.3 3.6 V
ADS1174 AVDD current
ADS1178 AVDD current
ADS1174 DVDD current
ADS1178 DVDD current
ADS1174 IOVDD current
ADS1178 IOVDD current
ADS1174 Power dissipation
ADS1178 Power dissipation
CLK
) V
REF
) 0.1 27 MHz
= 27MHz, VREFP = 2.5V,
CLK
ADS1174, ADS1178
= VREFP – VREFN 0.5 2.5 3.1 V
REF
High-Speed mode 2.6 k Low-Power mode 13 k High-Speed mode 1.3 Low-Power mode 6.5
0.7 IOVDD IOVDD V DGND 0.3 IOVDD V
IOH= 5mA 0.8 IOVDD IOVDD V IOL= 5mA DGND 0.2 IOVDD V
< IOVDD ± 10 μ A
IN DIGITAL
High-Speed mode 22 TBD mA Low-Power mode 5 TBD mA Power-Down mode 1 TBD μ A High-Speed mode 40 TBD mA Low-Power mode 9 TBD mA Power-Down mode 1 TBD μ A High-Speed mode 9 TBD mA Low-Power mode 2.5 TBD mA Power-Down mode 1 TBD μ A High-Speed mode 17 TBD mA Low-Power mode 4.5 TBD mA Power-Down mode 1 TBD μ A High-Speed mode 100 TBD μ A Low-Power mode 100 TBD μ A Power-Down mode 1 TBD μ A High-Speed mode 150 TBD μ A Low-Power mode 150 TBD μ A Power-Down mode 1 TBD μ A High-Speed mode 125 TBD mW Low-Power mode 32 TBD mW High-Speed mode 225 TBD mW Low-Power mode 60 TBD mW
4 Submit Documentation Feedback Copyright © 2007, Texas Instruments Incorporated
Product Folder Link(s): ADS1174 ADS1178
www.ti.com
PRODUCTPREVIEW
ADS1174/ADS1178 PIN ASSIGNMENTS
AINN7
(1)
AINP7
(1)
AINN8
(1)
AINP8
(1)
AVDD
AGND
PWDN1
PWDN2
PWDN3
PWDN4
PWDN5
(1)
PWDN6
(1)
PWDN7
(1)
PWDN8
(1)
MODE
IOVDD
AINP2
AINN2
AINP1
AINN1
AVDD
AGND
DGND
TEST0
TEST1
CLKDIV
SYNC
DIN
DOUT8
(1)
DOUT7
(1)
DOUT6
(1)
DOUT5
(1)
AINN3
AINP3
AINN4
AINP4
AVDD
AGND
VREFN
VREFP
VCOM
AGND
AVDD
AINP5
(1)
AINN6
(1)
AINP6
(1)
AINN5
(1)
DOUT4
DOUT3
DOUT2
DOUT1
DGND
IOVDD
IOVDD
DGND
DGND
DVDD
CLK
SCLK
DRDY
/FSYNC
FORMAT2
FORMAT1
FORMAT0
ADS1174/ADS1178
AGND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
(PowerPADOutline)
NOTE:(1) pinnamesarefor only;Boldface ADS1178
seepindescriptions.
ADS1174 ADS1178
SBAS373 – OCTOBER 2007
PAP PACKAGE
HTQFP-64
(TOP VIEW)
NAME NO. FUNCTION DESCRIPTION
AGND Analog ground Analog ground; connect to DGND using a single plane. AINP1 3 Analog input
AINP2 1 Analog input AINP3 63 Analog input ADS1178: AINP[8:1] Positive analog input, channels 8 through 1. AINP4 61 Analog input AINP5 51 Analog input ADS1174: AINP[8:5] Connected to internal ESD rails. The inputs may float. AINP6 49 Analog input AINP7 47 Analog input
PIN
6, 43, 54,
58, 59
AINP8 45 Analog input
ADS1174/ADS1178 PIN DESCRIPTIONS
AINP[4:1] Positive analog input, channels 4 through 1.
Copyright © 2007, Texas Instruments Incorporated Submit Documentation Feedback 5
Product Folder Link(s): ADS1174 ADS1178
www.ti.com
PRODUCTPREVIEW
ADS1174 ADS1178
SBAS373 – OCTOBER 2007
PIN
NAME NO. FUNCTION DESCRIPTION
AINN1 4 Analog input AINN2 2 Analog input AINN3 64 Analog input ADS1178: AINN[8:1] Negative analog input, channels 8 through 1. AINN4 62 Analog input AINN5 52 Analog input ADS1174: AINN[8:5] Connected to internal ESD rails. The inputs may float. AINN6 50 Analog input AINN7 48 Analog input AINN8 46 Analog input
AVDD 5, 44, 53, 60 Analog power supply Analog power supply (4.75V to 5.25V).
VCOM 55 Analog output AVDD/2 Unbuffered analog output. VREFN 57 Analog input Negative reference input. VREFP 56 Analog input Positive reference input.
CLK 27 Digital input Master clock input (maximum 27MHz).
CLKDIV 10 Digital input
DGND 7, 21, 24, 25 Digital ground Digital ground power supply.
DIN 12 Digital input Daisy-chain data input. DOUT1 20 Digital output DOUT1 is TDM data output (TDM mode). DOUT2 19 Digital output DOUT3 18 Digital output ADS1178: DOUT[8:1] Data output for channels 8 through 1. DOUT4 17 Digital output DOUT5 16 Digital output ADS1174: DOUT[8:5] Internally connected to active circuitry; outputs are driven. DOUT6 15 Digital output DOUT7 14 Digital output DOUT8 13 Digital output
DRDY/
FSYNC
DVDD 26 Digital power supply Digital core power supply (+1.65V to +1.95V). FORMAT0 32 Digital input FORMAT1 31 Digital input outputs, fixed/dynamic position TDM data, and modulator mode/normal operating FORMAT2 30 Digital input
IOVDD 22, 23, 33 Digital power supply I/O power supply (+1.65V to +3.6V).
MODE 34 Digital input
MODE1 33 Digital input PWDN1 42 Digital input PWDN2 41 Digital input PWDN3 40 Digital input ADS1178: PWDN[8:1] Power-down control for channels 8 through 1. PWDN4 39 Digital input PWDN5 38 Digital input ADS1174: PWDN[8:5] must = 0V. PWDN6 37 Digital input PWDN7 36 Digital input PWDN8 35 Digital input
SCLK 28 Digital input Serial clock input.
SYNC 11 Digital input Synchronize input (all channels). TEST0 8 Digital input TEST[1:0] Test mode select: TEST1 9 Digital input
29 Digital input/output Frame-Sync protocol: frame clock input; SPI protocol: data ready output.
ADS1174/ADS1178 PIN DESCRIPTIONS (continued)
AINN[4:1] Negative analog input, channels 4 through 1.
CLK input divider control: 1 = 27MHz
0 = 13.5MHz (high-speed) / 5.4MHz (low-power)
DOUT[4:1] Data output for channels 4 through 1.
FORMAT[2:0] Selects between Frame-Sync/SPI protocol, TDM/discrete data mode.
MODE: 0 = High-Speed mode
1 = Low-Power mode.
PWDN[4:1] Power-down control for channels 4 through 1.
00 = normal operation 11 = boundary scan test mode
6 Submit Documentation Feedback Copyright © 2007, Texas Instruments Incorporated
Product Folder Link(s): ADS1174 ADS1178
