Extensa

60x and 65x Series Notebook Computers

Maintenance Manual

TI Part No. 9813564-0001, Rev. A

Original Issue: September 1996

Revision A Issue Date: October 1996

Changes may be made periodically to the information in this publication. Such changes will be incorporated in new editions of this manual.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopy, recording, or otherwise, without the prior written permission of Texas Instruments.

The equipment, as well as the programs that TI has created to use with them, are tools that can help people better manage the information used in their business; but tools — including TI products — cannot replace sound judgement nor make the manager's business decisions.

Consequently, TI cannot warrant that its products are suitable for any specific customer application. The manager must rely on judgement of what is best for his or her business.

Address all correspondence regarding orders to:

Texas Instruments

P.O. Box 6102, M/S 3255

Temple, Texas 76503

Extensa and BatteryPro are trademarks of Texas Instruments. The icons in the Windows Notebook and Startup groups are copyrighted by Texas Instruments. TranXit is a trademark of Puma Technology, Inc. Kensington is a registered trademark of Kensington Microware Ltd. PS/2 is a registered trademark of International Business Machines Corporation. Windows and MS-DOS are registered trademarks of Microsoft Corporation. Intel and Pentium are registered trademarks of Intel Corporation. Cirrus is a registered trademark of Cirrus Logic, Inc. Ethernet is a registered trademark of Xerox Corporation. IRDA is a trademark of Infra Red Data Association. Sound Blaster is a trademark of Creative Technology, Ltd. SimulSCAN is a trademark of Cirrus Logic, Inc.

Introduction

This manual provides installation, operation and servicing data for the ExtensaTM 60x and 65x Series Notebook Computers.

Intended Audience

This manual is primarily intended for use by qualified service technicians but contains information useful to non-technical users.

Contents

This manual contains six sections that are common to all Extensa 60x and 65x Series Notebook Computers (differences described as they are covered):

♦ Section 1: General Description - Introduces the main features of the Extensa 60x

and 65x Series Notebook Computers; identifies all options, provides physical and electrical specifications.

♦ Section 2: Installation - Describes how to unpack, install options and begin using

the notebook.

Preface

♦ Section 3: Operating Instructions - Describes the notebook computer operating

controls and indicators and basic operating procedures required to support maintenance operations.

♦ Section 4: Theory of Operation - Provides a block diagram level theory of operation

for the Extensa Series Notebooks.

♦ Section 5: T roubleshooting Procedures - Provides troubleshooting procedures for the

notebook computer series.

♦ Section 6: Field Service - Provides preventive and corrective maintenance

procedures for the notebook computer series including FRU removal/ replacement procedures.

This manual also includes a set of appendices containing model-dependent maintenance data including;

♦ Appendix A: 60x Series Maintenance Data - Contains listing of FRUs and set of

schematics for the Extensa 60x Series Notebook Computers.

♦ Appendix B: 65x Series Maintenance Data - Contains listing of FRUs and set of

schematics for the Extensa 65x Series Notebook Computers.

Preface vii

Other Manuals About the System

The following documents provide additional information related to the Extensa Notebook Computer Series:

♦ Extensa Series Notebook Computers Users Guide - Contains user reference

information for the Extensa 60x and 65x Series Notebook Computers.

♦ PC-Doctor Help and Technical Reference (online)

Ordering Parts and Supplies

To order a copy of any TI publication or to order option kits, spare parts or supplies for your system, contact your TI reseller:

Telephone Toll-free: 1-800-TI TEXAS.

viii Preface

Paragraph Page Preface

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - vii Intended Audience - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - vii Contents- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - vii Other Manuals About the System- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - viii Ordering Parts and Supplies - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - viii

Section 1 General Description

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1 Product Overview - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-2

Notebook Model Summary - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-3 Extensa 60x Series- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-3 Extensa 65x Series Notebooks- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-4 Video Display Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-6 Internal LCD - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-6 External CRTs - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-7 Display Hot Key Sequences (All Extensa Models) - - - - - - - - - - - - - - - - - - - - - - - - - - 1-7 Software Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-7 60x Series External Ports - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-9 65x Series External Ports - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1-10 Standard Peripheral Devices - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1-11 Expansion Capabilities- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1-11 PCMCIA Card Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1-12

Standard Test Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1-13

Power On Self Test - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-13

PC-Doctor Diagnostics Program - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-13 International Product Models- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-14 Extensa 60x and 65x Series Specifications- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-16 Regulatory Agency Approvals - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -1-22

Section 2 Installation

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1 Unpacking Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-1 Installing Internal Notebook Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-2

Installing Main Memory Expansion (Optional)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-2

Setting Up the Software - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-3 Installing External Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-4

Installing PCMCIA Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-4 Installing External Notebook Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-6

Contents iii

Contents (continued)

Paragraph Page

Section 2 Installation (continued)

Installing Ext. Keyboard/Mouse/Numeric Keypad - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-6 Installing an External Parallel Printer or Floppy Drive - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-7 Installing an External Serial Port Device - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-8 Installing an External VGA Monitor - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-9

Installing the Security Lock Option - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-10 Battery Pack Installation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-10 Installing the AC Power Adapter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-11 Initial System Checkout - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-11 Making Backups of System Software - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2-12

Section 3 Operating Instructions

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-1 Controls/Indicators - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-1

Power On/Off Switch - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-2

Notebook LEDs - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3-2

Section 4 Theory of Operation

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-1 Notebook Functional Overview- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-1

System Processor - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-2

Memory Subsystem - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-3

Main Memory - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-3

Flash ROM - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-3 Video Subsystem - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-3 Sound Subsystem - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-4 Keyboard Subsystem - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-4 Hard Disk Drive Subsystem - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-4

Hard Disk Drive Power Management - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-4 Floppy Disk Drive Subsystem - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-5 Power Subsystem - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-5

AC Power Adapter - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-5 Detailed Circuit Theory- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-5

Major Components- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-6

System Architecture - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4-6

Section 5 Troubleshooting Procedures

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-1 Overview of Fault Isolation Process - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-1 Troubleshooting Procedures - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-3

Troubleshooting a Power Supply Problem - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-3

iv Contents

Contents (continued)

Paragraph Page

Section 5 Troubleshooting Procedures (continued)

Troubleshooting a Display Problem - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-3

Fault Isolation Using Self Test - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-5

Self Test Error Messages- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-5 Self Test Beep Error Messages - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-8

PCMCIA Modem Problems - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-10 Fault Isolation Using Diagnostics - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-11

PC-Doctor (In DOS Mode or DOS Windows) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-11

Supporting Online Documentation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-12

User Interface to PC-Doctor - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-12

Quitting PC-Doctor - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5-13

Section 6 Field Service

Introduction- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-1 Preventive Maintenance - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-1

Cleaning the Computer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-1

Handling the Computer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-2

Handling the Computer Battery Pack - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-2

Password Caution- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-3 Required Tools and Equipment - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-3 Notebook FRUs - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-3 FRU Removal/Replacement Procedures - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-3

Removing/Replacing the Notebook Battery Pack- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-4

Removing/Replacing PCMCIA Options - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-6

Removing/Replacing the Hard Disk Drive Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-7

Removing/Replacing the Keyboard Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-9

Removing/Replacing Expansion Memory - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-10

Removing/Replacing the Heat Sink Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-12

Removing/Replacing the CPU Chip - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-13

FDD/CD-ROM Removal/Replacement - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-14

Removing/Replacing the Display Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-16

Removing/Replacing the Top Cover - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-17

Removing/Replacing the Fan Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-18

Removing/Replacing the LED Board (65x Series) - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-20

Removing/Replacing the Battery Board (65x Series) - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-21

Removing/Replacing the Inside Frame Assembly (60x Series) - - - - - - - - - - - - - - - - - - - - 6-21

Removing/Replacing the Inside Frame Assembly (65x Series) - - - - - - - - - - - - - - - - - - - - 6-21

Removing/Replacing the Power Supply Board - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-22

Removing/Replacing the Motherboard Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-23

Contents v

Contents (continued)

Paragraph Page

Section 6 Field Service (continued)

Removing/Replacing the FIR/Audio Board (65x Series) - - - - - - - - - - - - - - - - - - - - - - - - - 6-26 Removing/Replacing the VGA Video Board (60x Only)- - - - - - - - - - - - - - - - - - - - - - - - - 6-29 Removing/Replacing the PCMCIA Connector Module- - - - - - - - - - - - - - - - - - - - - - - - - - 6-29 Removing/Replacing the Touchpad Assembly- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-30 Removing/Replacing the Display Bezel - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-31 Removing/Replacing the Display Inverter Boards - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-33 Removing/Replacing the LCD Panel - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6-33

Appendix A Model 60x Maintenance Data

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A-1 Model 60x Features Summary- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A-1 Field-Replaceable Units (FRUs) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A-1

Cover-Display Assembly- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A-2 System Base Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A-4

Logic Diagrams - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A-8

Appendix B Model 65x Maintenance Data

Introduction - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -B-1 Model 65x Features Summary- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -B-1 Field-Replaceable Units (FRUs) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -B-1

Cover-Display Assembly- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -B-2 System Base Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -B-5

65x Logic Diagrams - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -B-8

vi Contents

1.1 Introduction

General Description

This manual contains field and factory level servicing information for the Extensa and 65x Series Notebook Computers manufactured for Texas Instruments. The first six sections contain information common to all members of the Extensa 60x/65x Family of Notebook Computers (any differences are described); the appendices contain model dependent maintenance information.

This section provides a general overview of the Extensa 60x/65x Series, describes the standard and optional features, and identifies the major assemblies and subassemblies. This section also contains detailed functional and environmental specifications for the Extensa 60x/65x Series Notebook Computers.

60x

Figure 1-1 Extensa 60x/65x Series Notebook Computers

General Description 1-1

1.2 Product Overview

The Extensa Series contains two major product lines including:

♦ 60x Series

♦ 65x Series

Both notebook series are similar in construction and appearance, have similar operating controls and indicators and use the same software. Both notebook series use a similar startup self test program and diagnostics program (described in detail in Section 5 of this manual). There are differences at the board level which affect assembly/ disassembly as described in Section 6 of this manual. There are also differences in Field-Replaceable Units (FRUs), particularly the Printed Circuit Boards, so separate FRU lists and logic diagram sets are provided in the appendices.

Table 1-1 summarizes some of the major differences between the 60x Series and the 65x Series Notebook Computers.

Table 1-1 Feature Comparison for 60x/65x Series Notebooks

Feature 60x Series 65x Series

CPU

Standard Onboard

Memory

Maximum

Expandable Memory

HDD

LCD Display Type

Video Memory

Infrared Port

Internal Microphone

Port Replicator

Option

Advanced PCI

Options

120 MHz Pentium 133 MHz Pentium

8 MB 16 MB

64 MB 80 MB

810 MB 1.3 GB or 1.6 GB

ASTN or DSTN DSTN or TFT

1 MB 2 MB

115 Kb/s SIR 4 Mb/s FIR

No Yes

1-2 General Description

1.2.1 Notebook Model Summary

Table 1-2 contains a summary of the available models in the 60x and 65x Series.

Table 1-2 Extensa 60x/65x Model Summary

Characteristic Model

600

Part Number

Product Code

CPU

HDD

Memory

FDD

CD-ROM Drive

Display

Software

Port

9811739 9811743 9811745 9811751 9811753 9811750

050 051 052 053 054 055

Pentium 120 MHz

810 MB 810 MB 810 MB 1.3 GB 1.3 GB 1.6 GB

8 MB 8 MB 8 MB 16 MB 16 MB 16 MB

Std External External Std* Std* Std*

No Std Std Std* Std* Std*

11.3- inch ASTN

Dual Load, Localized

No No No Yes Yes Yes

Replicator Support

Model

600CD

Pentium 120 MHz

12.1-inch DSTN

Dual Load, Localized

Model

605CD

Pentium 120 MHz

12.1-inch DSTN

Win 95 Dual Load,

Model

650CD

Pentium 133 MHz

12.1-inch DSTN

Localized

Model

655CD

Pentium 133 MHz

12.1-inch DSTN

Win 95 Dual Load,

Model

650CDT

Pentium 133 MHz

11.3-inch TFT

Localized

Feature Board

No No No Yes Yes Yes

* Standard Module Bay

1.2.2 Extensa 60x Series

The Extensa 60x Series Notebook Computers are large screen, high-performance, multimedia notebooks powered by the Intel MHz). Other major features of the 60x Series include:

♦ PCI Bus architecture ♦ 8 MB (Extended Data Out) memory ♦ 1 MB video memory

General Description 1-3

P54CSLM Pentium

Processor Chip (120-

♦ Fast video graphics accelerator

♦ 0-Volt Suspend, 5-Volt Suspend and Standby power saving modes

♦ No-reboot setup function

♦ ASTN or DSTN color display

♦ 16-bit stereo audio

♦ Serial infrared communication

♦ Duracell NiMH (Nickel-Metal-Hydride) or optional Li-Ion (Lithium-Ion)

battery pack

♦ 810 MB capacity hard disk drive with Local Bus

♦ Internal touchpad pointing device

♦ Small, lightweight AC adapter

♦ PS/2 port for connecting an external keyboard, numeric keypad, or mouse

♦ 9-pin serial port for connecting external devices such as a modem or mouse

♦ Simultaneous display with external CRT

♦ One Type III or two Type II/I Cardbus PC Card slots; lower slot accepts

Zoomed Video port enabled PC cards

♦ Parallel port with EPP and ECP for connecting to a printer or the floppy disk

drive module

♦ 8 MB, 16 MB and 32 MB EDO 64-bit type small outline dual inline memory

module (soDIMM) upgrades

1.2.3 Extensa 65x Series Notebooks

Both the Extensa 60x Series and the 65x Series share a great deal of commonality (similar physical construction and operating system software). However, in contrast to the 60x Series, the Extensa 65x Series Notebooks feature a faster Pentium Processor (133 MHz), more onboard RAM (16 MB), and a greater maximum memory size (80 MB). The 65x Series also contain a Fast Infrared port (4 Mb/s FIR) and greater expandability through the Port Replicator and APCI Board (described in greater detail in the following paragraphs).

Some of the other features of the 65x Series include:

1-4 General Description

♦ PCI Bus architecture ♦ 16 MB (Extended Data Out) memory ♦ 2 MB video memory ♦ Fast video graphics accelerator ♦ 0-Volt Suspend, 5-Volt Suspend and Standby power saving modes ♦ No-reboot setup function ♦ STN or TFT color display (Model Dependent) ♦ 16-bit stereo audio ♦ Fast infrared communication ♦ Duracell NiMH (Nickel-Metal-Hydride) or optional Li-Ion (Lithium-Ion)

battery pack

♦ 1.08 GB (or higher) capacity hard disk drive with Local Bus ♦ Internal touchpad pointing device ♦ Small, lightweight AC adapter ♦ Modular bay for expansion ♦ PS/2 port for connecting an external keyboard, numeric keypad, or mouse ♦ 9-pin serial port for connecting external devices such as a modem or mouse ♦ Simultaneous display with external CRT ♦ One Type III or two Type II/I Cardbus PC Card slots; lower slot accepts

Zoomed Video port enabled PC cards

♦ Parallel port with EPP and ECP for connecting to a printer or the floppy disk

drive module

8 MB, 16 MB and 32 MB EDO 64-bit type small outline dual inline memory

♦

module (soDIMM) upgrades

♦ Advanced PCI Card slot for installing a feature upgrade option

General Description 1-5

Cover Release Button

Right Speaker

LCD Display

Status LEDs

Left Speaker

PCMCIA Sl ots

Power Switch

CD-ROM Drive (or FDD on 600 Series)

Battery Pack

Touchpad Pointing Device

Touchpad Select Switches

Keyboard

HDD (Underneath)

Figure 1-2 60x/65x Notebook External Features

1.2.4 Video Display Features

The Extensa 60x/65x Series Notebooks contain large screen internal LCD displays and can simultaneously drive an external CRT (SimulSCAN

the LCD screen brightness, contrast, video mode of operation, etc. are adjustable from the keyboard as described in Paragraph 1.2.4.3.

1.2.4.1 Internal LCD

The Extensa 60x/65x Series Notebooks contain one of the following LCDs (model dependent):

♦ 11.3-Inch ASTN display

♦ 12.1-Inch DSTN display

mode). On all Extensa models,

1-6 General Description

♦ 11.3-Inch TFT (650CDT only)

1.2.4.2 External CRTs

The Extensa 60x and 65x Series Notebooks are equipped with a 15-pin SVGA connector that can drive an external CRT (either alone or simultaneously with the internal LCD).

When the notebook is set to the SimulSCAN mode, a minimum resolution of 800 x 600 x 256 colors is supported. When operating in the External CRT Mode, resolutions up to 1280 x 1024 x 256 colors are supported.

1.2.4.3 Display Hot Key Sequences (All Extensa Models)

The display mode of operation (LCD only, Simultaneous LCD and external CRT and external CRT only modes) is keyboard-selectable using the following hot key sequences.

♦ Fn-Up Arrow and Fn-Down Arrow - control LCD screen brightness (higher

brightness setting uses more battery energy)

♦ Fn-Right Arrow - lightens the LCD screen contrast ♦ Fn-Left Arrow - darkens the LCD screen contrast ♦ Fn-F12 - alternates between display modes (LCD, External CRT or both) ♦ Fn-F11 - turns off the LCD backlight; pressing any key turns the LCD

backlight on.

Note: In addition to the hot keys that control the notebook display functions, there are several other hot key functions that control other notebook functions such as turning the Touchpad on/off, etc. For these sequences, refer to Section 3.

1.2.5 Software Features

As a standard feature, the Extensa 60x and 65x notebooks are factory loaded with either dual load (Windows dependent) software to allow the user to configure the notebook’s operating system environment as summarized in Table 1-3.

95 or Windows for Workgroups) or Windows 95 only (model

General Description 1-7

Table 1-3 User-Selectable Operating System Environments

Operating

Description

System

Windows 95 Supports both desktop and mobile operation with Plug N Play capabilities and

Advanced Power Management; customized to include TI startup screen, CSL Support information, Internet browser, multimedia options, and choice of wallpaper to customize different computer resources, TI utilities such as wBattery, wSetpower, TISetup, variety of device drivers including Cirrus Device Drivers, WinModem Device Drivers, PC-Card Bus Socket Services and Card Services Device Drivers, and Windows 95 MPEG-1 Software Audio/Video Compression Device Drivers.

Windows/DOS 6.22 This environment has some limitations in the Plug N Play area; includes TI utilities and

various device drivers including Cirrus CL-GD7548, ESS 1888 Sound Device Drivers, WinModem Device Drivers, PC-Card Bus Socket Services and Card Services Device Drivers, and TranXit

Serial Infrared (IRDATM) Device Drivers, etc.

CL-GD7548, ESS 1888 Sound

1-8 General Description

1.2.6 60x Series External Ports

PS/2 Port

VGA

Port Paral l el Port

Serial Port

Serial Infrared Port

AC Adap ter Conne ctor

Mic-In

Line-In

Line-Out

The Extensa 60x Series notebooks have a variety of external ports (connectors) for the desktop environment as shown in Figure 1-3 and summarized in Table 1-4.

Figure 1-3 Extensa 60x External Ports

Table 1-4 Extensa 60x Notebook External Ports

Port Assignment Description

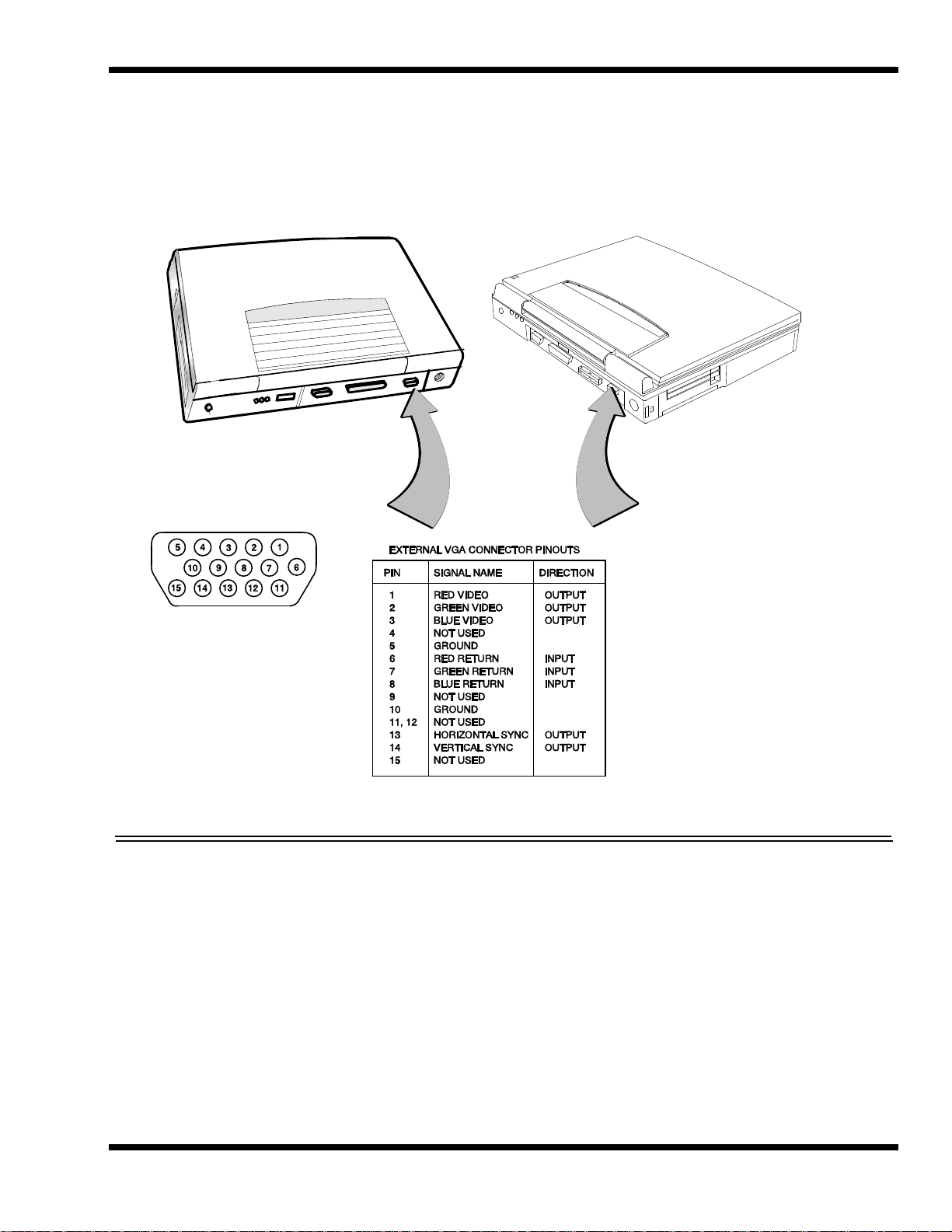

External VGA Port 15-Pin Female connector used to attach an

external SVGA monitor to the notebook.

Serial Port 9-Pin Male connector used to attach an RS-232

serial device to the notebook.

Parallel/Floppy Port 25-Pin Female connector used to attach a

bidirectional printer or an external floppy disk drive (requires special cable for use with floppy disk drive).

PS/2

Port

General Description 1-9

6-Pin Circular connectors used to attach external keyboard/mouse devices to the notebook.

Table 1-4 Extensa 60x Notebook External Ports

Port Assignment Description

DC-IN Connector Power in connector used to attach the output of

the AC adapter to the notebook.

Serial Infrared Port Medium speed Serial Infrared Port (115 K/b)

used for wireless communications between the notebook and an SIR-equipped device such as keyboard, another notebook, printer, etc.

Audio In/Out, Mic In Jacks Provide for input of external sound source or

audio output to drive external speakers

1.2.7 65x Series External Ports

The 65x Series notebook includes most of the ports defined for the 60x Series but also includes an Expansion Bus port for connection to an external Port Replicator and a Fast infrared (FIR) Port. The external ports for the 65x Series are shown in Figure 1-4 and described in Table 1-5.

DC-in

Line-out

Line-in

Mic-in

Serial

FIR

Parallel

Expansion

VGA

PS/2

Figure 1-4 65x Series External Ports

PCMCIA

1-10 General Description

Table 1-5 65x Series External Ports

Port Assignment Description

External VGA Port 15-Pin Female connector used to attach an

external SVGA monitor to the notebook.

Serial Port 9-Pin Male connector used to attach an RS-232

serial device to the notebook.

Parallel/Floppy Port 25-Pin Female connector used to attach a

bidirectional printer or an external floppy disk drive (requires special cable for use with floppy disk drive).

PS/2

Port

DC-IN Connector Power in connector used to attach the output of

Fast Infrared Port Fast Infrared Port (4 M/b) used for wireless

Audio In/Out, Mic In Jacks Provide for input of external sound source or

Expansion Bus 120-Pin PCI Bus that supports an external Port

6-Pin Circular connectors used to attach external keyboard/mouse devices to the notebook.

the AC adapter to the notebook.

communications between the notebook and an FIR-equipped device such as keyboard, another notebook, printer, etc.

audio output to drive external speakers

Replicator

1.2.8 Standard Peripheral Devices

As standard features, the Extensa notebooks include a user-removable internal hard drive and either a 3.5-inch floppy disk drive or CD-ROM drive and built-in point touchpad (mouse device). On the 65x Series, the FDD or CD-ROM drive is user removable.

1.2.9 Expansion Capabilities

The Extensa 60x and 65x Series Notebooks are designed with a variety of expansion features that permit substantial functionality and performance upgrades over the life of the product. The expansion capabilities built into the notebook are summarized in Table 1-6 and described in greater detail in the following paragraphs.

General Description 1-11

Table 1-6 Extensa 60x/65x Expansion Features Summary

Expansion Feature Description

CD-ROM Drive Reads from Audio CD, Photo CD or CD ROM

3.5-inch Diskette Drive Module Provides convenient storage on a removable disk format Memory Expansion Features Main memory can be expanded from 8 MB to a maximum of 64 MB

(60x Series) or 16 MB to maximum of 80 MB (65x Series) using soDIMM modules (8 MB, 16 MB or 32 MB configurations).

Flash ROM (hardware feature) Permits new versions of BIOS to be downloaded into Flash ROM

without physically having to replace the ROMs

PCMCIA Slots Allows installation of any optional PCMCIA device such as

speakerphone modems, Ethernet

Desktop Connectivity Ports Permits attaching a variety of external devices to the notebook

including external CRTs, keyboards, mouse devices, modems, printers, etc.

Port Replicator (65x Series only) Device that attaches to the Expansion Bus on the 65x Series and

provides the connectivity for the desktop environment. Removing and replacing the notebook from/to the desktop environment is greatly simplified using the Port Replicator option.

cards, and full motion video cards.

1.2.10 PCMCIA Card Options

The Notebook contains an onboard PCMCIA Controller and two 64-pin sockets that can accept up to two credit-card size (14.5 mm) Type I or Type II PCMCIA option cards or one Type III card. The PCMCIA Card options install on the left side of the notebook (Figure 1-4) and are removed using the PCMCIA Release Buttons.

1-12 General Description

One or two Type I/ II PCMCIA Option Cards or one Type III Option Ca rd

Figure 1-5 Installing PCMCIA Card Options

1.3 Standard Test Features

PCMCIA Release Buttons

The Extensa 60x and 65x Series Notebook Computers use modular design and builtin test features to reduce the mean time to repair. A power on self test program automatically verifies the operational state of the primary circuits and a powerful suite of diagnostic tests (known as PC-Doctor) are available to further test selected parts of the system.

1.3.1 Power On Self Test

The Extensa line of notebook computers contain a BIOS-resident, Power On Self Test (POST) that automatically performs a test of memory and all major circuits each time the computer is powered up. In the event of a failure, the computer displays a descriptive error message and issues a series of coded beeps (in case the display subsystem is not functioning). If self test completes normally, the computer displays the amount of memory tested, loads the Operating System and Windows environment.

1.3.2 PC-Doctor Diagnostics Program

The Extensa 60x and 65x Series Notebooks are shipped with PC-Doctor for Windows, a powerful diagnostics tool that can help you scan a system for viruses, determine the hardware configuration of a local or remote system, benchmark its performance, analyze the performance of all subsystems, and perform a suite of interactive and noninteractive tests on attached devices (such as printers, joystick devices, VGA monitors, SCSI devices, CD-ROM drives). The test results are stored in a log which can be printed out (by pressing F2) or saved in a disk file (by pressing F3).

General Description 1-13

Features of the diagnostic program are accessed through a series of pull-down menus and basic keyboard keys (cursor keys to move highlighted pointer, Enter key to select a highlighted feature, Esc key to cancel a function and move back one level.

PC-Doctor is typically user friendly but if you don't understand a feature, contextsensitive help information is available at any time by pressing the F1 function key; pressing the F1 function key twice accesses the online Technical Reference Manual for PC-Doctor.

A powerful set of utilities within PC-Doctor (that can be run locally or remotely) simplify the task of determining system configuration data, allocating and using system memory, IRQ and DMA use, what device drivers are installed, what COM and LPT ports are assigned and what ports are available, identifying partitioning data for fixed disk drive(s), determining the VGA setup information, reading the software interrupts/ interrupt vectors, etc.

Note: Refer to the Troubleshooting Section (Section 5) for additional information regarding the Diagnostics Program.

1.4 International Product Models

The Extensa 60x and 65x Series Notebooks are available in various international configurations as listed in Table 1-7. The Models 600, 600CD, and 650CDT Dual Load systems are also available with localized software.

1-14 General Description

Table 1-8 Extensa International Models

Configuration Dash

No.

United States

UK Configuration

German Configuration

French Configuration

Spanish Configuration

Swiss/German Configuration

Italian Configuration

Portuguese Configuration

Western European Configuration

Swedish Configuration

Swiss/French Configuration

Danish Configuration

Norwegian Configuration

Finnish Configuration

-0001

-0002

-0003

-0004

-0005

-0006

-0007

-0008

-0009

-0010

-0011

-0012

-0013

-0014

Belgian Configuration

Austrian Configuration

Asia Pacific Configuration

Latin American Configuration

Chinese Configuration

-0015

-0016

-0017

-0018

-0019

General Description 1-15

1.5 Extensa 60x and 65x Series Specifications

General specifications for the Extensa 60x and 65x Series Notebooks are provided in Table 1-8.

Table 1-9 Extensa 60x and 65x Specifications

Characteristic

CPU

Internal Hard

Disk Drive

Disk Storage Capacity:

Average access time

Throughput

Model

600

Pentium P54CSLM, 120 MHz; 3.1 Vol t,

810 MB

12 ms or less

11+ Million I/O's per second

Model

600CD

Pentium P54CSLM, 120 MHz; 3.1 Vol t,

810 MB

12 ms or less

11+ Million I/O's per second

Model

605CD

Pentium P54CSLM, 120 MHz; 3.1 Vol t,

810 MB

12 ms or less

11+ Million I/O's per second

Model

650CD

Pentium P54CSLM, 133 MHz; 3.1 Vol t,

1.3 GB

12 ms or less

11+ Million I/O's per second

Model

655CD

Pentium P54CSLM, 133 MHz; 3.1 Vol t,

1.3 GB

12 ms or less

11+ Million I/O's per second

Model

650CDT

Pentium P54CSLM, 133 MHz; 3.1 Vol t,

1.6 GB

12 ms or less

11+ Million I/O's per second

DRAM

Memory

8 MB DRAM,

Size

Maximum Expansion Size

Flash ROM:

1-16 General Description

60-ns, pageinterleaved,

64 MB

256 KB 256 KB 256 KB 256 KB 256 KB 256 KB

8 MB DRAM, 60-ns, pageinterleaved,

64 MB

8 MB DRAM, 60-ns, pageinterleaved,

64 MB

16 MB DRAM, 60-ns, pageinterleaved,

80 MB

16 MB DRAM, 60-ns, pageinterleaved,

80 MB

16 MB DRAM, 60-ns, pageinterleaved,

80 MB

Table 1-9 Extensa 60x and 65x Specifications

Characteristic

FDD

Disk Storage Capacity

Disk Size

Drive Height

Mode

CD-ROM Drive

LCD Display

Model

600

Internal

1.44 MB

3.5-inch disk

12.5 mm

Choice of 720 KB/1.2 MB or

1.44 MB

No Standard Standard

11.3- inch ASTN VGA

Model

600CD

Ext.(Parallel Interface)

1.44 MB

3.5-inch disk

12.5 mm

Choice of 720 KB/1.2 MB or

1.44 MB

12.1-inch DSTN SVGA

Model

605CD

Ext.(Parallel Interface)

1.44 MB

3.5-inch disk

12.5 mm

Choice of 720 KB/1.2 MB or

1.44 MB

12.1-inch DSTN SVGA

Model

650CD

Media Bay Modular

1.44 MB

3.5-inch disk

12.5 mm

Choice of 720 KB/1.2 MB or

1.44 MB

Media Bay Media Bay Media Bay

12.1-inch DSTN SVGA

Model

655CD

Media Bay Modular

1.44 MB

3.5-inch disk

12.5 mm

Choice of 720 KB/1.2 MB or

1.44 MB

12.1-inch DSTN SVGA

Model

650CDT

Media Bay Modular

1.44 MB

3.5-inch disk

12.5 mm

Choice of 720 KB/1.2 MB or

1.44 MB

11.3-inch TFT SVGA

Software

Internal Keyboard

Numeric Keypad

Key Travel

Localization Features

Key Spacing

Built-in Mouse Device

Dual Load, Localized

84/85-Key, PS/2 and ATCompatible

Embedded

3 mm

All major International Language Configurations

19 mm

Touchpad built-in to the base of the keyboard (select buttons just below Touchpad)

Dual Load, Localized

84/85-Key, PS/2 and ATCompatible

Embedded

3 mm

All major International Language Configurations

19 mm

Touchpad built-in to the base of the keyboard (select buttons just below Touchpad)

Win 95 Dual Load,

Localized

84/85-Key, PS/2 and ATCompatible

Embedded

3 mm

All major International Language Configurations

19 mm

Touchpad built-in to the base of the keyboard (select buttons just below Touchpad)

84/85-Key, PS/2 and ATCompatible

Embedded

3 mm

All major International Language Configurations

19 mm

Touchpad built-in to the base of the keyboard (select buttons just below Touchpad)

Win 95 Dual Load,

Localized

84/85-Key, PS/2 and ATCompatible

Embedded

3 mm

All major International Language Configurations

19 mm

Touchpad built-in to the base of the keyboard (select buttons just below Touchpad)

84/85-Key, PS/2 and ATCompatible

Embedded

3 mm

All major International Language Configurations

19 mm

Touchpad built-in to the base of the keyboard (select buttons just below Touchpad)

General Description 1-17

Table 1-9 Extensa 60x and 65x Specifications

Characteristic

Video

Subsystem

LCD Aspect Ratio

Emulations:

Video Memory Size

Video Bus

LCD Resolution:

LCD Characters/Line

Model

600

1-1

SVGA

1 MByte

32 bits

640 x 480 pixels bitmapped at 256 colors;

Model

600CD

1-1

SVGA

1 MByte

32 bits

640 x 480 pixels bitmapped at 256 colors; 600 x 800 at 256 colors.

Model

605CD

1-1

SVGA

1 MByte

32 bits

640 x 480 pixels bitmapped at 256 colors; 600 x 800 at 256 colors.

Model

650CD

1-1

SVGA

2 MByte

32 bits

640 x 480 pixels bitmapped at

16.77 million colors; 600 x 800 at 65K colors.

Model

655CD

1-1

SVGA

2 MByte

32 bits

640 x 480 pixels bitmapped at

16.77 million colors; 600 x 800 at 65K colors.

Model

650CDT

1-1

SVGA

2 MByte

32 bits

640 x 480 pixels bitmapped at

16.77 million colors; 600 x 800 at 65K colors.

LCD Lines/ Screen:

LCD Brightness Control:

Function hot key brightness and contrast control and SimulSCAN control

1-18 General Description

Function hot key brightness and contrast control and SimulSCAN control

Function hot key brightness and contrast control and SimuSCAN control

Function hot key brightness and contrast control and SimulSCAN control

Table 1-9 Extensa 60x and 65x Specifications

Characteristic

External CRT

Monitor

Interface

Connector Type:

Monitors Supported

Model

600

15-Pin, female, D-type connector

640 x 480 with 16.7 million colors on CRT

800 x 600 with 65 K colors on CRT

1024 x 768 with up to 256 colors on CRT

Model

600CD

15-Pin, female, D-type connector

640 x 480 with 16.7 million colors on CRT

800 x 600 with 65 K colors on CRT

1024 x 768 with up to 256 colors on CRT

Model

605CD

15-Pin, female, D-type connector

640 x 480 with 16.7 million colors on CRT

800 x 600 with 16.7 million colors on CRT

1024 x 768 with up to 64K colors on CRT

Model

650CD

15-Pin, female, D-type connector

640 x 480 with 16.7 million colors on CRT

800 x 600 with 16.7 million colors on CRT

1024 x 768 with up to 64K colors on CRT

1280 x 1024 with 256 colors on CRT (interlaced)

Model

655CD

15-Pin, female, D-type connector

640 x 480 with 16.7 million colors on CRT

800 x 600 with 16.7 million colors on CRT

1024 x 768 with up to 64K colors on CRT

1280 x 1024 with 256 colors on CRT (interlaced)

Model

650CDT

15-Pin, female, D-type connector

640 x 480 with 16.7 million colors on CRT

800 x 600 with 16.7 million colors on CRT

1024 x 768 with up to 64K colors on CRT

1280 x 1024 with 256 colors on CRT (interlaced)

General Description 1-19

Table 1-9 Extensa 60x and 65x Specifications

Characteristic

RS-232-D Serial

Port

Method:

Type:

Bits per second:

Parity:

Transmit

Receive:

Line control:

Model

600

9-Pin, male, sub-D-type connector

EIA RS-232-D

Asynchronous transmission

110, 200, 300, 600, 1200, 2400, 4800, 9600, 19200

Odd, even, mark, space

Data check: odd, even

READY/ BUSY, DC1/ DC3

Model

600CD

9-Pin, male, sub-D-type connector

EIA RS-232-D

Asynchronous transmission

110, 200, 300, 600, 1200, 2400, 4800, 9600, 19200

Odd, even, mark, space

Data check: odd, even

READY/ BUSY, DC1/ DC3

Model

605CD

9-Pin, male, sub-D-type connector

EIA RS-232-D

Asynchronous transmission

110, 200, 300, 600, 1200, 2400, 4800, 9600, 19200

Odd, even, mark, space

Data check: odd, even

READY/ BUSY, DC1/ DC3

Model

650CD

9-Pin, male, sub-D-type connector

EIA RS-232-D

Asynchronous transmission

110, 200, 300, 600, 1200, 2400, 4800, 9600, 19200

Odd, even, mark, space

Data check: odd, even

READY/ BUSY, DC1/ DC3

Model

655CD

9-Pin, male, sub-D-type connector

EIA RS-232-D

Asynchronous transmission

110, 200, 300, 600, 1200, 2400, 4800, 9600, 19200

Odd, even, mark, space

Data check: odd, even

READY/ BUSY, DC1/ DC3

Model

650CDT

9-Pin, male, sub-D-type connector

EIA RS-232-D

Asynchronous transmission

110, 200, 300, 600, 1200, 2400, 4800, 9600, 19200

Odd, even, mark, space

Data check: odd, even

READY/ BUSY, DC1/ DC3

Data word:

16550 UART Support

Selectable Serial Port (BIOS Setup)

7- or 8-bit

Yes

COM1(IRQ4, 3F8h)

COM2(IRQ3, 2F8h)

COM3(IRQ4, 3E8h)

COM4(IRQ4, 2E8h)

Disable

7- or 8-bit

Yes

COM1(IRQ4, 3F8h)

COM2(IRQ3, 2F8h)

COM3(IRQ4, 3E8h)

COM4(IRQ4, 2E8h)

Disable

7- or 8-bit

Yes

COM1(IRQ4, 3F8h)

COM2(IRQ3, 2F8h)

COM3(IRQ4, 3E8h)

COM4(IRQ4, 2E8h)

Disable

7- or 8-bit

Yes

COM1(IRQ4, 3F8h)

COM2(IRQ3, 2F8h)

COM3(IRQ4, 3E8h)

COM4(IRQ4, 2E8h)

Disable

7- or 8-bit

Yes

COM1(IRQ4, 3F8h)

COM2(IRQ3, 2F8h)

COM3(IRQ4, 3E8h)

COM4(IRQ4, 2E8h)

Disable

7- or 8-bit

Yes

COM1(IRQ4, 3F8h)

COM2(IRQ3, 2F8h)

COM3(IRQ4, 3E8h)

COM4(IRQ4, 2E8h)

Disable

1-20 General Description

Table 1-9 Extensa 60x and 65x Specifications

Characteristic

Parallel Port

Connector Type

FDD Support

Selectable Parallel Port (BIOS Setup)

Model

600

EPP/ECP Bidirectional

25-Pin, DB-25 Connector

Yes, Hot Pluggable & AutoDetection if BIOS Setup is set to 1.44 MB

LPT 1 (IRQ5, 278h)

LPT 2 (IRQ7, 378h)

Disable

Model

600CD

EPP/ECP Bidirectional

25-Pin, DB-25 Connector

Yes, Hot Pluggable & AutoDetection if BIOS Setup is set to 1.44 MB

LPT 1 (IRQ5, 278h)

LPT 2 (IRQ7, 378h)

Disable

Model

605CD

EPP/ECP Bidirectional

25-Pin, DB-25 Connector

Yes, Hot Pluggable & AutoDetection if BIOS Setup is set to 1.44 MB

LPT 1 (IRQ5, 278h)

LPT 2 (IRQ7, 378h)

Disable

Model

650CD

EPP/ECP Bidirectional

25-Pin, DB-25 Connector

Yes, Hot Pluggable & AutoDetection if BIOS Setup is set to 1.44 MB

LPT 1 (IRQ5, 278h)

LPT 2 (IRQ7, 378h)

Disable

Model

655CD

EPP/ECP Bidirectional

25-Pin, DB-25 Connector

Yes, Hot Pluggable & AutoDetection if BIOS Setup is set to 1.44 MB

LPT 1 (IRQ5, 278h)

LPT 2 (IRQ7, 378h)

Disable

Model

650CDT

EPP/ECP Bidirectional

25-Pin, DB-25 Connector

Yes, Hot Pluggable & AutoDetection if BIOS Setup is set to 1.44 MB

LPT 1 (IRQ5, 278h)

LPT 2 (IRQ7, 378h)

Disable

Serial I/R Port

Transfer Data Rate

Transfer Distance

Standard

Yes

115 Kbaud

100 cm

IrDA

Yes

115 Kbaud

100 cm

IrDA

Yes

115 Kbaud

100 cm

IrDA

No No No

General Description 1-21

Table 1-9 Extensa 60x and 65x Specifications

Characteristic

Fast I/R

Port

Transfer Data Rate

Transfer Distance

Standard

Expansion

Bus Port

Model

600

No No No Yes

No No No 128-pin 128-pin 128-pin

Model

600CD

Model

605CD

Model

650CD

4M bit/sec

100cm

IrDA

Model

655CD

Yes

4M bit/sec

100cm

IrDA

Model

650CDT

Yes

4M bit/sec

100cm

IrDA

1.6 Regulatory Agency Approvals

All Extensa 60x and 65x Series products meet the following regulatory agency standards:

♦ Underwriter’s Lab (UL) Standard 1950 (safety) ♦ Canadian Standards Association (CSA) Standard 950 or CUL (safety) ♦ FCC CFR 47, Part 15, Subpart B, FCC Level B (Emissions) ♦ Canadian Department of Communications (DOC) ICES, Class B (Emissions) ♦ VDE- EN60950 (Safety) ♦ EN 50082-1 (Immunity: ESD, RFI, EFT, and Surge) ♦ EN 50081-1 (Emissions: RFI, EMI, Harmonics, and Flicker) ♦ Approval Marks: UL, CUL, VDE, FCC, ICES, and CE

1-22 General Description

2.1 Introduction

This section contains unpacking and preparation for use instructions for the Extensa 60x and 65x Series Notebook Computers. This includes:

♦ Removing the computer and all manuals, options and accessories from the

shipping container(s)

♦ Installing Internal Notebook Options ♦ Installing External Notebook Options ♦ Installing Battery Packs ♦ Installing Desktop Devices ♦ Installing the AC Adapter

Installation

♦ Checking Out the System ♦ Configuring the System ♦ Making Backups of System Software ♦ Loading Application Software

2.2 Unpacking Instructions

Unpack the computer using the following instructions:

1. Carefully cut the tape that seals the top flap of the shipping carton.

2. Remove the computer and the accessories Carton from the main shipping

carton.

3. Remove all protective coverings from the computer.

4. Open the accessory box; remove the contents.

Note: Save the two shipping containers and packaging for later reuse.

Installation 2-1

2.3 Installing Internal Notebook Options

If you have no internal options to install at this time, skip to Paragraph 2.4. Otherwise, continue with Paragraph 2.3.1.

2.3.1 Installing Main Memory Expansion (Optional)

Main memory on the 60x/65x Series Notebooks can be expanded using EDO Small Outline Dual Inline Memory Modules (EDO soDIMMs). These modules currently are available in 8 MB, 16 MB or 32 MB sizes and install in expansion memory slot(s) on the Main Board accessed through the Memory Expansion Door on the bottom of the notebook. The installation process consists of the following steps:

Caution: The EDO soDIMM module option contains components that are sensitive to static electricity. When handling the module and the internal parts of the computer, protect against static electricity by using wrist or ankle grounding straps and grounded working mats. When moving or storing items, use the anti-static bags supplied with the items.

1. Ensure that the notebook is powered off and the AC adapter

disconnected from the AC outlet. Also, ensure that the battery is out of the unit.

2. Disconnect any peripheral device interface cables from the external interface

connectors and remove any installed PCMCIA options.

3. Turn the notebook over and locate the Expansion Memory Access Cover on

the bottom of the notebook.

4. Remove the screw holding the Expansion Memory Access Cover and remove

the cover.

5. Remove the EDO soDIMM module from its shipping container.

6. Refer to Figure 2-1. To install an soDIMM module, first align the connector

edge of the memory module with the key in the connector. Insert the edge of the memory module board into the connector using a rocking motion to fully insert the module. Push downward on each side of the memory module until it snaps in place.

7. If installing a second soDIMM (65x Series only), repeat Step 6.

8. Reinstall the Expansion Memory Access Cover using the screw removed in

Step 4.

9. Replace the Keyboard Assembly and any components previously removed.

Replace the AC adapter.

10. Power up the notebook and reboot. If all of the installed memory is not

recognized, try reseating the soDIMM module(s) and rebooting.

2-2 Installation

Removing Expansion Memory

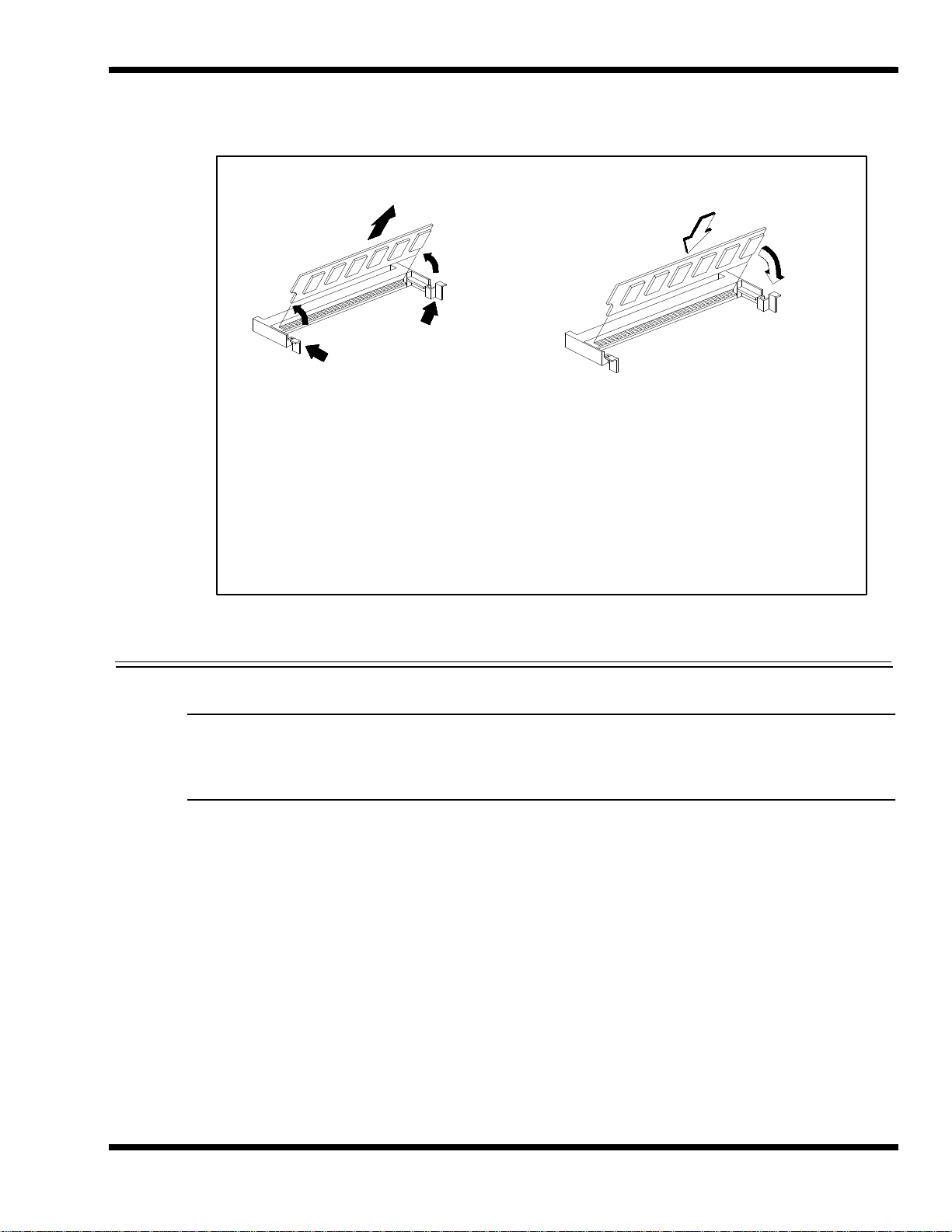

Figure 2-1 Memory Expansion Removal/Replacement

NOTE: After installing expansion memory in your notebook, you must run the

PHDISK utility in order for the Save-To-Disk or 0V Suspend functions to operate correctly.

Installing Expansion Memory

2.3.2 Setting up the Software

After installing expansion memory, perform the following procedure:

1. Run PHDISK.

♦ In Windows 95

1. From the Taskbar, select Start, then Shut Down.

2. Select the "Restart the Computer in MS-DOS mode" option.

3. Click on Yes.

Installation 2-3

4. Type PHDISK/C/F at the DOS prompt.

♦ In Windows for Workgroups

1. Exit all applications and exit Windows to DOS.

2. At the DOS command prompt, type PHDISK/C/F. This will create a file

which can be used to save the contents of your memory system when you perform a 0V Suspend operation.

2.4 Installing External Options

2.4.1 Installing PCMCIA Options

The Notebook has two connector slots for PCMCIA option cards. These two slots can be used to install one Type III or two Type I/II credit card size PCMCIA option cards. You can install a PCMCIA (PC card) without turning the computer off.

Use the following procedure to install a PCMCIA option:

1. Review the installation instructions supplied with the PCMCIA option card(s).

2. Hold the card at the end opposite the connector pins with the label side up.

Insert the card into an unused slot on the left side of the Notebook.

3. If the option requires external cabling (e.g. Modem option), connect external

cabling at this time.

Note : After installation of a PCMCIA option card, Windows 95 displays the New Hardware Found dialog box to help you configure the new device. To remove a

card, click on the PCMCIA icon; then, press the appropriate PC Card Release Button (or press both buttons for a Type III device) and remove the option.

2-4 Installation

PCMCIA Release Buttons

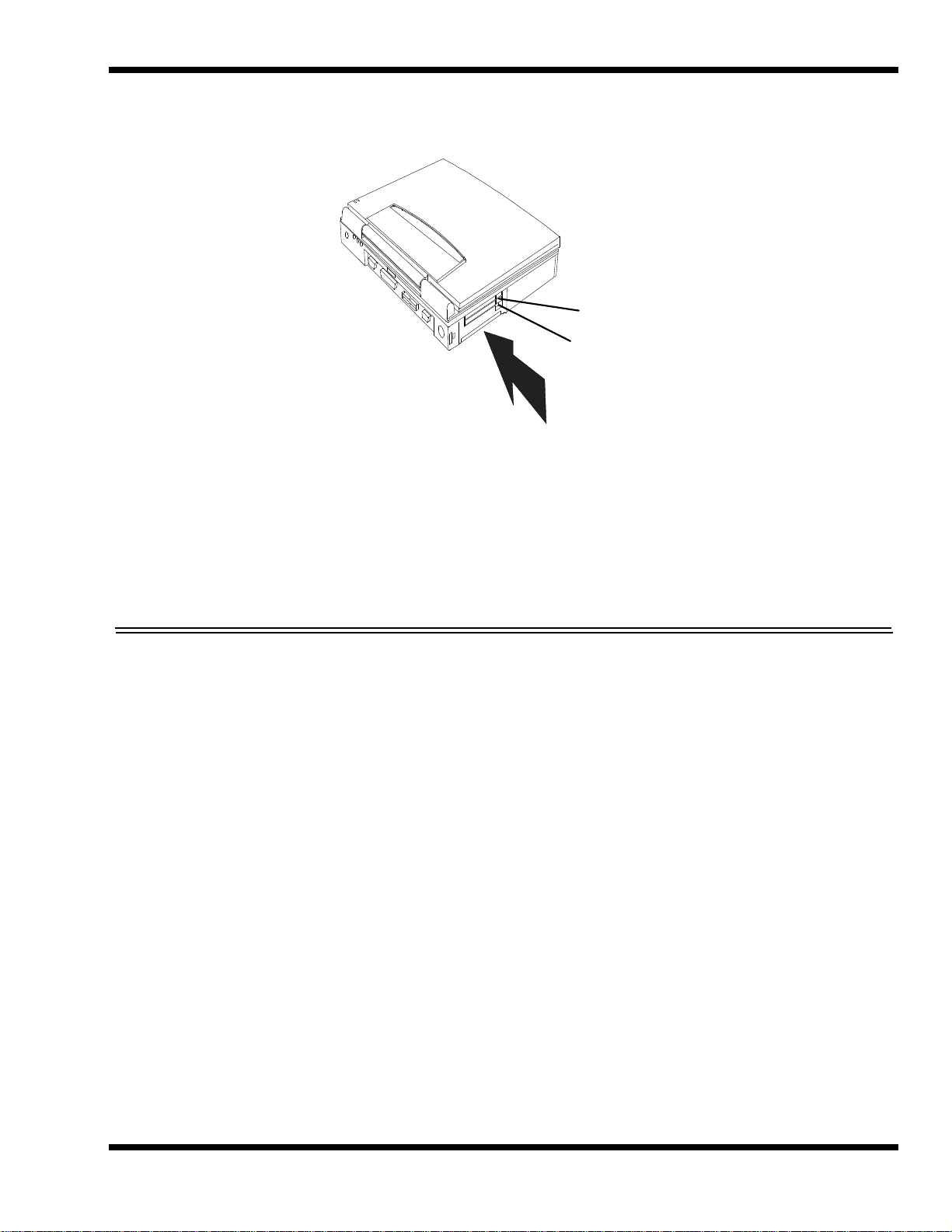

One or two Type I/ II PCMCIA Optio n Cards or one Type III Option C a rd

Figure 2-2 Installing PCMCIA Option Cards

Installation 2-5

2.5 Installing External Notebook Options

2.5.1 Installing Ext. Keyboard/Mouse/Numeric Keypad

A PS/2 compatible Keyboard, mouse or an optional PS/2-compatible numeric keypad may be installed on the notebook via the mouse connector on the left rear port as shown in Figure 2-4.

65X Series Notebook

60X Series Notebook

2-6 Installation

Figure 2-4 PS/2 Port Pinouts

2.5.2 Installing an External Parallel Printer or Floppy Drive

The Notebook is equipped with an external, bidirectional, ECC/EPP compatible, 25-pin parallel printer port. The connector pinouts and connector location are shown in Figure 2-5. When used with a special cable, an external floppy disk drive may also be attached to the notebook via the parallel port. When a floppy disk drive is connected to the parallel port, the floppy disk drive in the Modular Bay is disabled, if present.

60X Series Notebook

PARALLEL PORT PINOUTS

SIGNAL

Strobe*

Data Bit 0

2 3

Data Bit 1

Data Bit 2 Data Bit 3

5 6

Data Bit 4

Data Bit 5 Data Bit 6

Data Bit 7

Acknowledge*

10 11

Busy

Paper Out

Select

Auto Line Feed*

Error*

Initialize Printer*

Select In*

LPT 18

VCC

PLP120

PLP121

PLP122

FDD 5V

LP125

25 26

Ground

Note:

* Denot es

Active Low

SPP Mode

STB*

PD0

PD1 PD2 PD3 PD4 PD5 PD6 PD7 ACK*

BUSY PE

SLCT AFD*

ERR*

INIT* SLIN* LPT18

VCC PLP120

PLP121

PLP122

FDD 5V

FDD 5V LP125

Ground

65X Series Noteboo

Figure 2-5 Parallel Port Pinouts

Installation 2-7

2.5.3 Installing an External Serial Port Device

The notebook contains an external RS-232 serial port with a 9-pin, male DB-9 connector as shown in Figure 2-6 (25-pin cables require the use of an adapter for use with the 9pin port). The serial ports are used to interconnect such devices as:

♦ External Modem ♦ Serial Mouse ♦ Serial Printer ♦ Any device that uses an RS-232 interface

Caution: Never connect a parallel device to a serial port or a serial device to a parallel port or video port; this may cause damage to the notebook and/or external device. If you are uncertain of what type connector the external device has, refer to the technical manual for the external device.

2-8 Installation

Figure 2-6 Serial Port Pinouts

2.5.4 Installing an External VGA Monitor

The notebook contains an external CRT port that can drive one of a variety of monitor resolutions and colors as summarized in Table 1-9. The associated connector location and pinouts are shown in Figure 2-7.

60X Series Notebook

65X Series Notebook

Figure 2-7 External VGA Pinouts

Use the following procedure to install an external monitor:

1. Turn off power to both the notebook and monitor.

2. Connect the 15-pin external VGA cable from the monitor to the VGA connector

on the notebook computer (refer to Figure 2-7).

3. Power up the notebook computer first; then turn on power to the monitor.

4. Setup the notebook display mode for LCD only, simultaneous LCD and CRT

or CRT only (under Windows 95, select the Change Display Utility; under Windows for Workgroups, use the WinMode Utility.

5. Install the correct driver if required (refer to the Monitor Installation

Instructions supplied by the CRT vendor).

Installation 2-9

2.5.5 Installing the Security Lock Option

Use the following procedure to install the optional Kensington® security lock.

1. Unpack the Kensington Lock Kit.

2. Secure the loop end of the lock to a permanent fixture located such that

the notebook can be installed in a desired location.

3. Insert the lock into the slot on the left side of the computer.

4. Rotate the key to its locked position and remove the key.

This completes the options installation subsection.

2.6 Battery Pack Installation

1. Turn off the computer and disconnect the AC adapter if attached to the

computer.

2. Unlatch the battery compartment door (right front corner of the unit) as

shown in Figure 2-3.

3. Slide the battery compartment door out slightly and then swing the door

outward as shown in Figure 2-3.

4. If changing batteries, grasp the loop attached to the battery and pull the

battery out of the compartment.

5. Look for label "THIS SIDE UP" and insert the battery with label up until it

snaps in place; then close the battery compartment door.

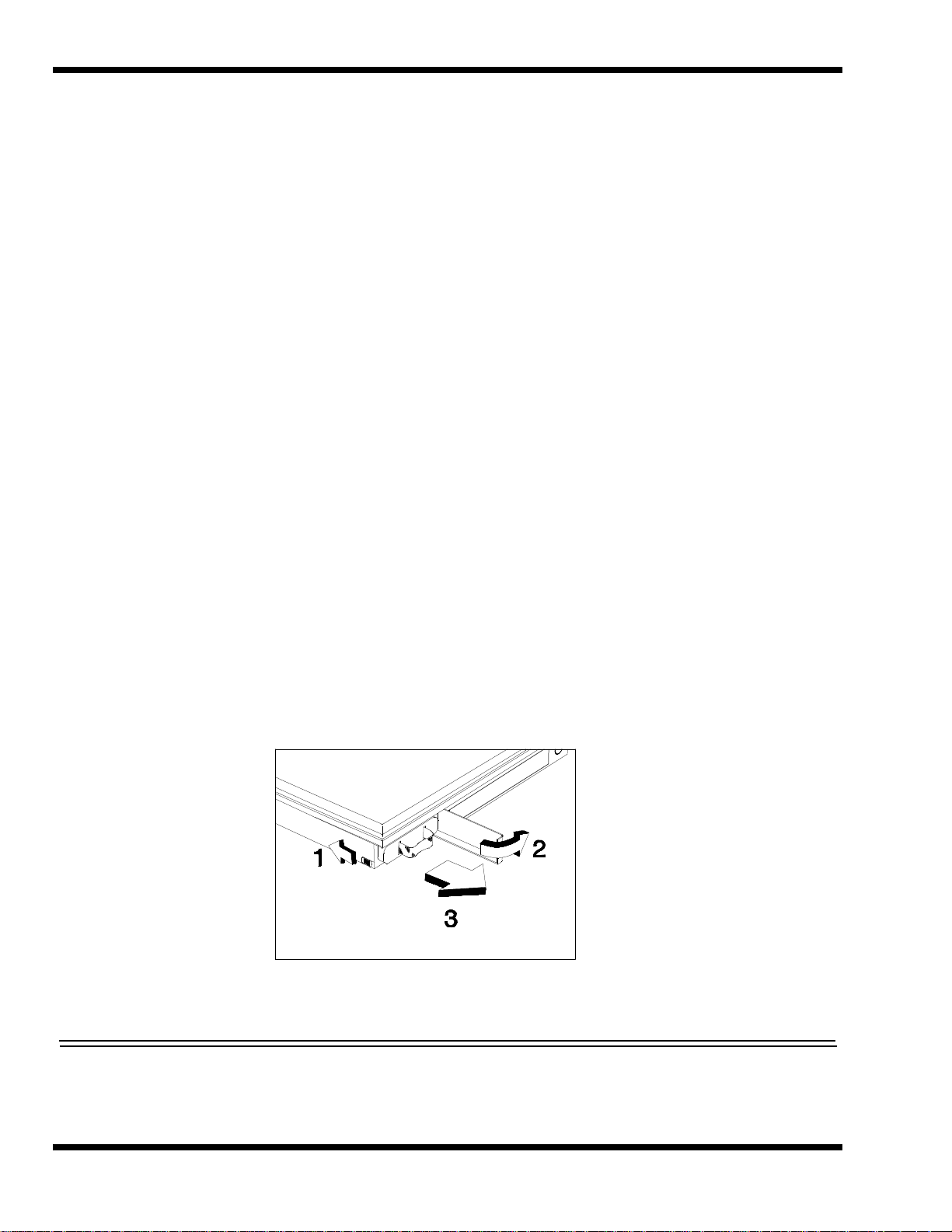

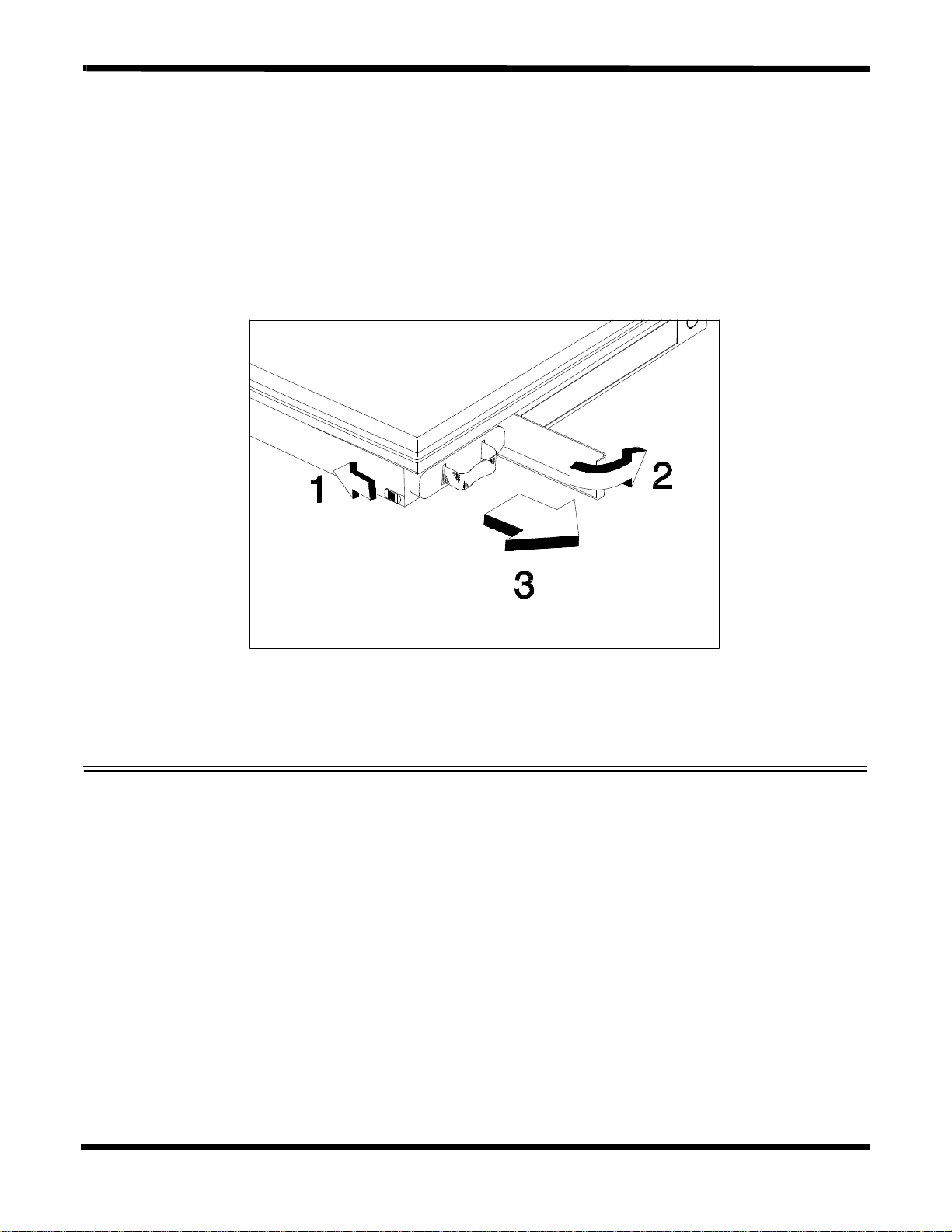

Figure 2-3 Battery Pack Installation

2-10 Installation

2.7 Installing the AC Power Adapter

Use the following procedures to connect the AC adapter to the system:

Caution: Use only the AC adapter supplied with the computer; other adapters can damage the unit.

1. Remove the AC adapter from the packaging. Connect the round coaxial

connector supplied with the notebook to the DC IN power receptacle on the left rear of the notebook as shown in Figure 2-8.

2. Connect the female side of the AC power cord to the AC adapter and connect

the male end to a grounded AC outlet.

DC-IN

AC Power (120VAC to 230 VAC, 50 to 60 Hz)

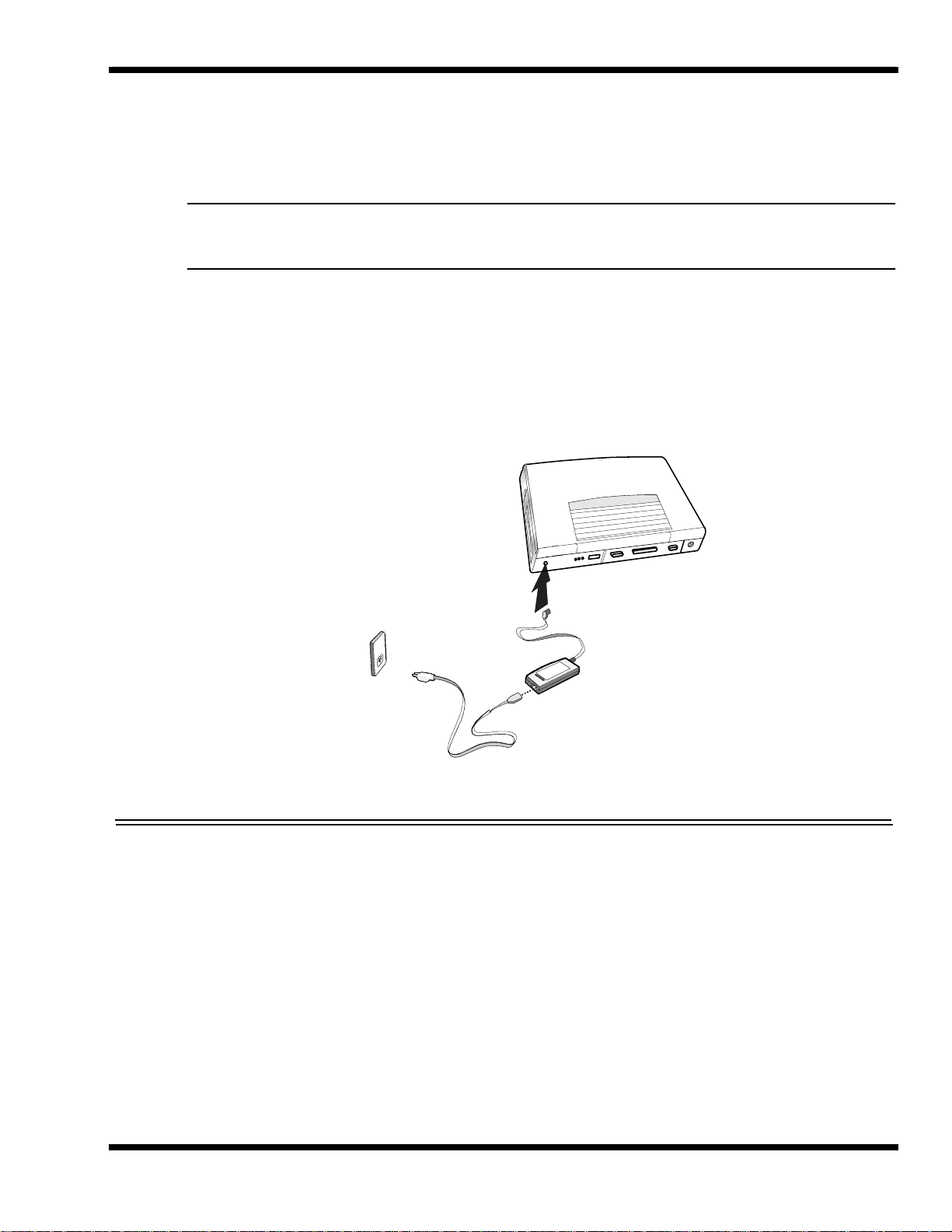

Figure 2-12 - Installing the AC Adapter

2.8 Initial System Checkout

After you've installed all internal options and external cabling, you're ready for system checkout and software configuration.

To check out the system, press the power button on the left side of the notebook which initiates self test. During self test execution, the computer checks the operation of all key hardware including memory and CPU (and displays copyright and version number data during test execution).

AC Adapter

Upon successful conclusion of self test, the computer automatically loads its operating system and windows environment. If self test fails to complete and an error message is displayed, try powering down the computer for a couple of minutes and turning power

Installation 2-11

back on to repeat self test. If the error message persists, refer to Section 5 for troubleshooting information.

2.9 Making Backups of System Software

Immediately after completion of the installation procedures, make backups of all software. In the event of a disk problem, restore the system using the System Files Recovery disk and the set of backup disks.

Note: Refer to the Extensa Series Notebook Computer User’s Guide for additional information.

2-12 Installation

Operating Instructions

3.1 Introduction

This section contains a summary of notebook operating procedures useful for maintenance operations. For additional detail, refer to the Extensa Series Notebook Computer User’s Guide supplied with the notebook.

3.2 Controls/Indicators

The operating controls and indicators for the 60x and 65x Series Notebooks are identical (refer to Figure 3-1). A brief description of the controls and indicators is provided in the following paragraphs.

Disk Media LED

Battery Charging LED

Num Lock

Caps Lock LED

Figure 3-1 60x/65x Operating Controls and Indicators

LED

Power/Battery Lo Indicator

Standby Mode Indicator

Power Button

Operating Instructions 3-1

3.2.1 Power On/Off Switch

The notebook contains an alternate action power button located on the right side of the notebook as shown in Figure 3-1. On the first button depression, power is turned on to the notebook. On the second depression, power is turned off.

3.2.2 Notebook LEDs

The notebook contains four front indicator LEDs and two right side LEDs as shown in Figure 3-1 and described in Table 3-1.

Table 3-1 60x/65x Series Indicators

Icon Indicator Light Description

Power/ Battery-low Indicator Lights when the system is on and there is power to the system.

Standby Mode Indicator Lights when the computer is in Standby mode. Flashes when the

Disk Media Indicator Lights when the computer writes to or reads from the hard disk

Battery Charging Indicator Lights when a powered AC adapter connected to the computer is

Caps Lock Indicator Lights when the caps lock function is toggled ON using the Caps

Num Lock Indicator Lights when the embedded numeric keypad is toggled ON using

Flashes when the battery power is low. Connect a powered AC adapter to the computer as soon as possible.

computer is in 5V Suspend mode. The computer enters Standby mode if the Standby hot key

(Fn+F4 ) is pressed or the Setup is enabled and expires.

The computer enters 5V Suspend mode when you press the 5V Suspend hot key (Fn+F3 ),

TIMEOUT

display is closed.

drive, or reads from the CD-ROM drive.

charging the battery. Flashes when there is a problem with the battery or the battery is

not recognized by the smart charger. Turns off when there is no battery or the battery is fully charged.

Lock key.

the Num Lock hot key ( Fn+F7).

parameter in Setup is enabled and expires, or the

STANDBY TIMEOUT

5 VOLT SUSPEND

the

parameter in

3.2.2.1 Hot Key Sequences

Table 3-2 contains a summary of hot key sequences useful when performing maintenance operations.

3-2 Operating Instructions

Table 3-2 Summary of Notebook Hot Key Sequences

Function Key Sequence

Increase LCD screen brightness Fn-Up Arrow

Decrease LCD screen brightness Fn-Down Arrow Lighten LCD screen contrast Fn-Right Arrow Darken the LCD screen contrast Fn-Left Arrow Alternate between display modes (LCD, Ext.l CRT or both) Fn-F12 Enter 0V Suspend Mode Fn-F2 Exit 0V Suspend Mode Press Power Button Enter Standby Mode Fn-F4 Resume from Standby Mode Press any key Toggle speaker output on/off Fn-End Numeric Lock Fn-F7 Turn off the LCD backlight Fn-F11 Turn on the LCD backlight Press any key Stop a command or application Ctrl-Pause Resume a command or application Press any key Send the contents of the screen to the printer Shift-PrtSc Sets the notebook to echo keystrokes to the printer; prints a

line when you press Enter; continues until you press Ctrl-P Enable/disable the internal keypad Fn-T Toggle Scroll Lock function on/off Fn-F6 Bring up the setup screen anytime Fn-F1 Warm boot Ctrl-Alt-Del Start Windows logo key Activate next taskbar button Windows logo key-Tab Explore the computer Windows logo key-E Minimize all Windows logo key-M Display run dialog box Windows logo key-R

Ctrl-P

Display the application’s context menu Application key

3-3 Operating Instructions

Theory of Operation

4.1 Introduction

This section contains a general block diagram theory of operation description of the Extensa 60x/65x Series Notebook Computers.

Note: Various internal components may change on future models and busses/ bus speeds are subject to change.

4.2 Notebook Functional Overview

The Extensa 60x/65x Series Notebooks consist of eight major functions or sections including:

♦ System Processor - implemented on the Motherboard Assembly ♦ Memory Subsystem - implemented on the Motherboard Assembly

♦ Processor/Memory/I/O Control - implemented on the Motherboard

Assembly

♦ Keyboard Subsystem - implemented on the Motherboard and the Keyboard

Assemblies

♦ Video Subsystem - implemented on the Top Board and on the LCD Display

Assembly

♦ Sound Subsystem - implemented on the Motherboard Assembly. ♦ Touchpad Mouse Subsystem- implemented on the Touchpad assembly and

on the Motherboard Assembly

♦ Hard Disk Drive Subsystem - implemented on the Motherboard Assembly

and the Hard Disk Drive Assembly

♦ Floppy Disk Drive Subsystem - implemented on the Motherboard and Floppy

Disk Drive Assembly

♦ Power Subsystem - implemented on the Power Supply Board, Inverter Board,

battery packs, and AC adapter

Theory of Operation 4-1

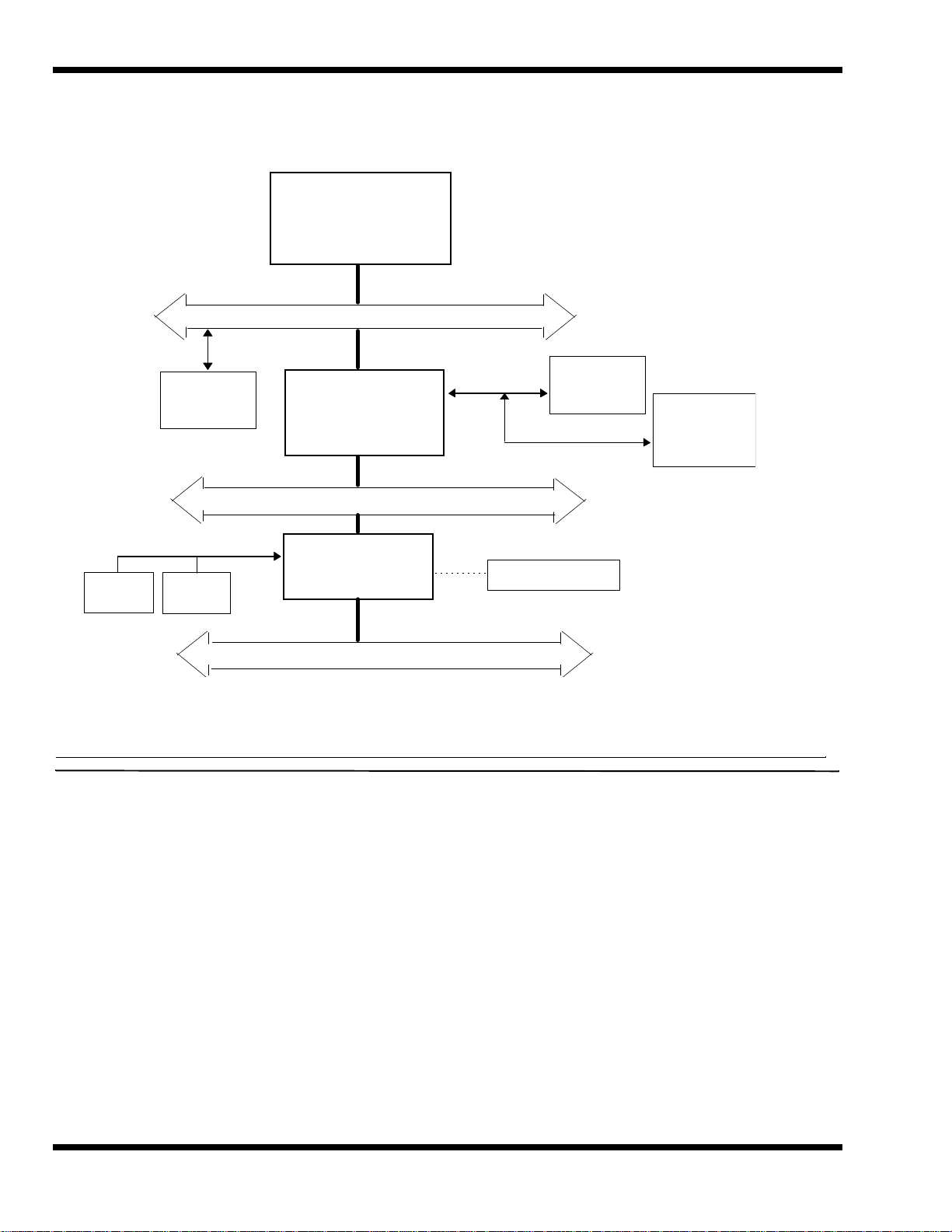

Figure 4-1 Extensa Functional Block Diagram

586

M1521

BGA

DRAM

HDD

M1523

IDE Master

USB connector

controller

Graphic

UMA

SRAM

CPU Bus

ISA Bus

PCI Bus

CPU

4.2.1 System Processor

The System Processor function for the notebook is implemented on the Motherboard in the form of an Intel Pentium P54-C Superscalar 586 Processor Chip. The processor operates in conjunction with RAM and ROM Memory and other control logic to process software instructions (BIOS, DOS, Windows, and applications). The processor communicates with the hard disk drive and the memory components using high speed busses.

The Processor also interacts with other hardware logic to provide the power savings features for the notebook. These features include controlling CPU clock speeds, reducing clock speeds whenever possible (e.g. when performing floppy disk drive accesses), powering down unused devices, etc.

4-2 Theory of Operation

4.2.2 Memory Subsystem

The memory subsystem comprises the following components:

♦ Main memory ♦ L2 Secondary Memory (cache) ♦ Flash ROM

The Extensa Series uses fast Extended Data Out (EDO) DRAM for main and video memory and high-speed synchronous, pipelined burst SRAM for L2 cache memory. Main BIOS and Video BIOS are stored in Flash ROM.

4.2.2.1 Main Memory

The standard 60x Series notebook comes with 8 MB of Main memory installed on the attached soDIMM. Memory expansion accommodations are provided via a standard soDIMM connector on the bottom of the Motherboard Assembly.

The 65x Series Notebooks come standard with 16 MB main memory, expandable to 80 MB.

4.2.2.2 Flash ROM

All versions of the Extensa notebook family use a "Flash" ROM that contains both the main system BIOS and the VGA BIOS. The Flash ROM contains "Boot Block" logic that allows downloading new versions of BIOS without destroying the Boot Load area.

The Flash ROM execution is 8 bits wide. However, better performance can be attained by enabling the Shadow ROM in the CMOS setup routine or by selecting the Windows Control Panel Applet. When the Shadow ROM is enabled, BIOS is copied into 32-bit high speed system.

4.2.3 Video Subsystem

The video subsystem is implemented on the VGA Video Board and on the Motherboard Assemblies.

The notebook contains a built-in 10.4 inch (or larger) LCD and features simultaneous LCD and external VGA display.

The video subsystem includes a 1 MB (60x Series) or 2 MB (65x Series) DRAM memory, 32-bit DRAM bus, and separate display and memory clocks. An additional frame buffer/ accelerator DRAM increases the available memory band width for CPU accesses. The

Theory of Operation 4-3

video section also uses additional levels of write FIFOs, a read cache, page mode DRAM.

4.2.4 Sound Subsystem

The Extensa Series Notebook is equipped with a sound chip set that is Sound Blaster and Sound Blaster Pro compatible. Internal stereo speakers provide the Notebook with sound generation capabilities. A set of 3.5 mm connectors allow for external microphone and line inputs and headphone/speaker outputs.

The sound subsystem also includes a variety of sound utilities that combine to provide additional multi-media functions:

4.2.5 Keyboard Subsystem

The keyboard subsystem, implemented on the Keyboard Assembly and the Motherboard Assemblies Board, consists of the following major sections:

♦ Keyboard Assembly ♦ Keyboard Scanner ♦ Status LED Interface

4.2.6 Hard Disk Drive Subsystem

The Hard Disk Drive Subsystem, implemented on the Motherboard Board and on the associated hard disk drive module(s), provides disk storage for all system software and user files.

The notebook is equipped with an 810 MB or larger hard disk drive. The hard disk drive also features built-in power conservation features configured from the standard CMOS Setup Routine. An Automatic Power Down mode can be selected which powers down the drive motor during periods of inactivity. An additional level of power conservation may also be selected which powers down the motor plus all control circuits.

The hard disk drives are factory formatted as a single drive (Drive C:) and are preloaded with installation versions of Windows 95 or Windows for Workgroups (in dual load versions, the user selects operating system during software installation).

4.2.6.1 Hard Disk Drive Power Management

Both the internal hard disk drive and the hard disk drive installed in the media bay

4-4 Theory of Operation

implement power savings features. From the CMOS setup routine, an automatic power down mode can be selected which enables the drive to turn off its motor after a specified period of inactivity. Additional Sleep modes can direct additional power savings during inactive periods by powering down the control circuitry.

4.2.7 Floppy Disk Drive Subsystem

The Extensa 60x and 65x Series notebooks contain provisions for supporting a Floppy Disk Drive installed internally or externally connected to the parallel port. The Floppy Disk Drive Subsystem consists of a Floppy Controller and the Floppy Disk Drive located either in the media bay or external to the notebook (not both).

The 3.5-inch floppy disk drive can read/write standard 3.5-inch disks (either1.44 MB or 2 MB capacity). The drive can also read a 720 KB disk (for interchange of data with other computers).

The data transfer rate for the floppy disk drive is 500 Kbits per second for high-density disks and 250 Kbits per second for double-density disks.

4.2.8 Power Subsystem

The notebook is equipped with a software/hardware monitored/controlled Power Subsystem that minimizes battery usage for prolonged battery operation and automatically recharges the batteries when the notebook is used with an AC adapter.

4.2.8.1 AC Power Adapter

The computer is equipped with a universal AC power adapter that converts AC voltage into DC voltage (approx. 46 Watts of power) used to operate the notebook and charge the batteries. The specifications for the AC adapter include:

♦ Input Voltage: 100 to 250 VAC ♦ Input Current: Approximately 1.5 Amps ♦ Input Frequency: 50 to 60 Hz

4.3 Detailed Circuit Theory

The remainder of this section provides chip-level circuit description for the Extensa Series Notebooks.

Theory of Operation 4-5

4.3.1 Major Components

Component

M1521

M1523

M6377

65550

TI1130

NS87336VJG

ESS1688

T62.045.C.00

T62.041.C.00

DAC-07B008

M38802

Table 4-1 shows a listing the of the major components used in the Extensa Series Notebooks.

Table 4-1 Maj or Chips List

Vendor Descript ion

Acer System data buffer Acer System controller chip Acer Power management unit C&T (Chips & Technology) Video control ler Texas Instruments PCMCIA controller NS (National Semiconductor) Super I/O controller ESS Technology Sound controller Ambit Battery Charger Ambit DC-DC Converter Delta DC-AC Inverter Phoenix Keyboard encoder & controller

4.3.2 System Architecture

Figure 4-2 shows the Extensa system architecture. The remainder of this section provides a detailed description of the major chips used in the Extensa Notebooks.

4-6 Theory of Operation

M1521

M1523

SYSTEM ARCHITECTURE

ta g 8/ 11- bit

TTL

SRAM

208-PQFP/RTC/KBC

328-BGA

586 CPU

addr

data

PCI

ISA

DRAM

CTLR

IDE bus

HDD

128K/256K

Flash

XD - TTL

USB conn

Figure 4-2 Extensa Series System Architecture Diagram

Theory of Operation 4-7

ALI M1521 (PCI , Cache, and Memory Controller)

The ALADDIN-III consists of two chips, ALI M1521 and M1523 to give a 586 class system the complete solution with the most up-to -d ate feature and architecture for the new multimedia/multithreading operating system. It utilizes the BGA package to improve the AC characterization, resolves system bottleneck and make the system manufacturing easier. The ALADDIN-III gives a highly-integrated system solution and a most up-todate system architecture including the UMA, ECC, PBSRAM, SDRAM/BEDO, and multi-bus with highly efficient, deep FIFO between the buses, such as the HOST/PCI/ISA dedicated IDE bus. The M1521 provides a complete integrated solution for the system controller and data path components in a Pentium-based syst em. It provides 64-bit CPU bus interface, 32-bit PCI bus interface, 64/72 DRAM data bus with ECC or parity, secondary cache interface including pipeline burst SRAM or asynchronous SRAM, PCI master to DRAM interface, four PCI master arbiters, and a UMA arbiter. The M1521 bus interfaces are designed to interface with 3V and 5V buses. It directly

The signal descriptions for the M1521 are provided in Table 4-2. The chip pinouts are provided in Figure 4-3.

4-8 Theory of Operation

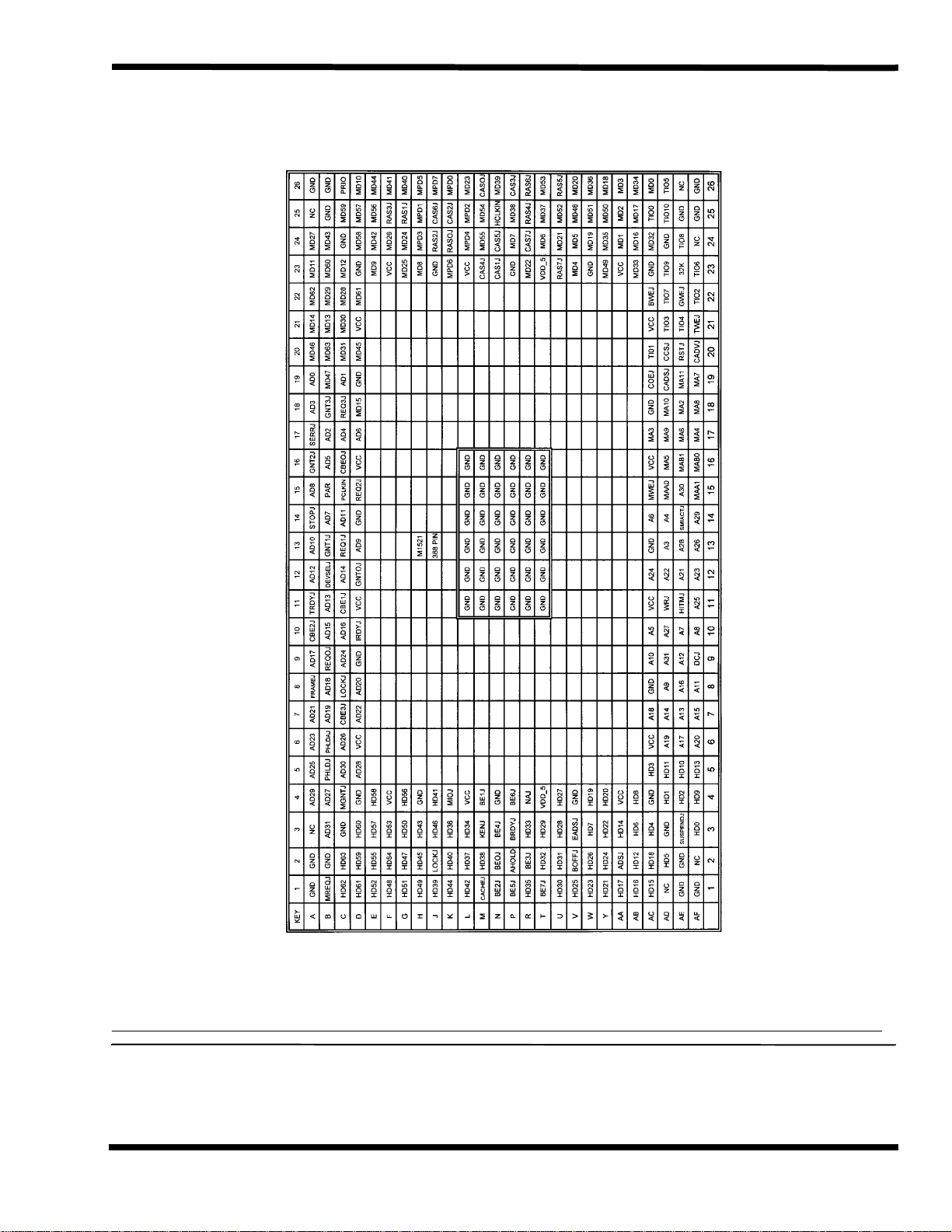

Figure 4-3 M1521 Pin Assignments

Theory of Operation 4-9

4.3.2.1 ALI M1523 (PCI-ISA Bridge)

The M1523 is a bridge between PCI and ISA bus, providing full PCI and ISA compatible functions. The M1523 has Integrat ed System Per ipherals (ISP) on-chip and p rovides advanced features in the DMA controller. This chip contains the keyboard controller, real-time clock and IDE master controller. This chip also supports the Advanced Programmable Interrupt controller (APIC) interface. One eight-byte bidirectional l i ne buffer is provided for ISA/DMA master memor y read/wri t es. One 32-bit wide posted-write buffer is provided for PCI memory write cycles to the ISA bus. It also supports a PCI to ISA IRQ routing table and level-to-edge trigger transfer. The chip has two extra IRQ lines and one programmable chip select for motherboard Plug-and-Play functions. The interrupt lines can be routed to any of the available ISA interrupts. The on-chip IDE controller supports two IDE connectors for up to four IDE devices providing an interface for IDE ha rd disks and CD- ROMs. The ATA bus pins are dedicated to improve the per form ance of IDE master. The M1523 supports the Super Green feature for Intel and Intel compatible CPUs. It implements programmable hardware events, software event an d ex ternal s witches (for susp end/turbo/ring - in). The M1523 provides CPU clock control (STPCLKJ). The STPCLKJ can be active (low) or inactive (high) in turn by throttling control.

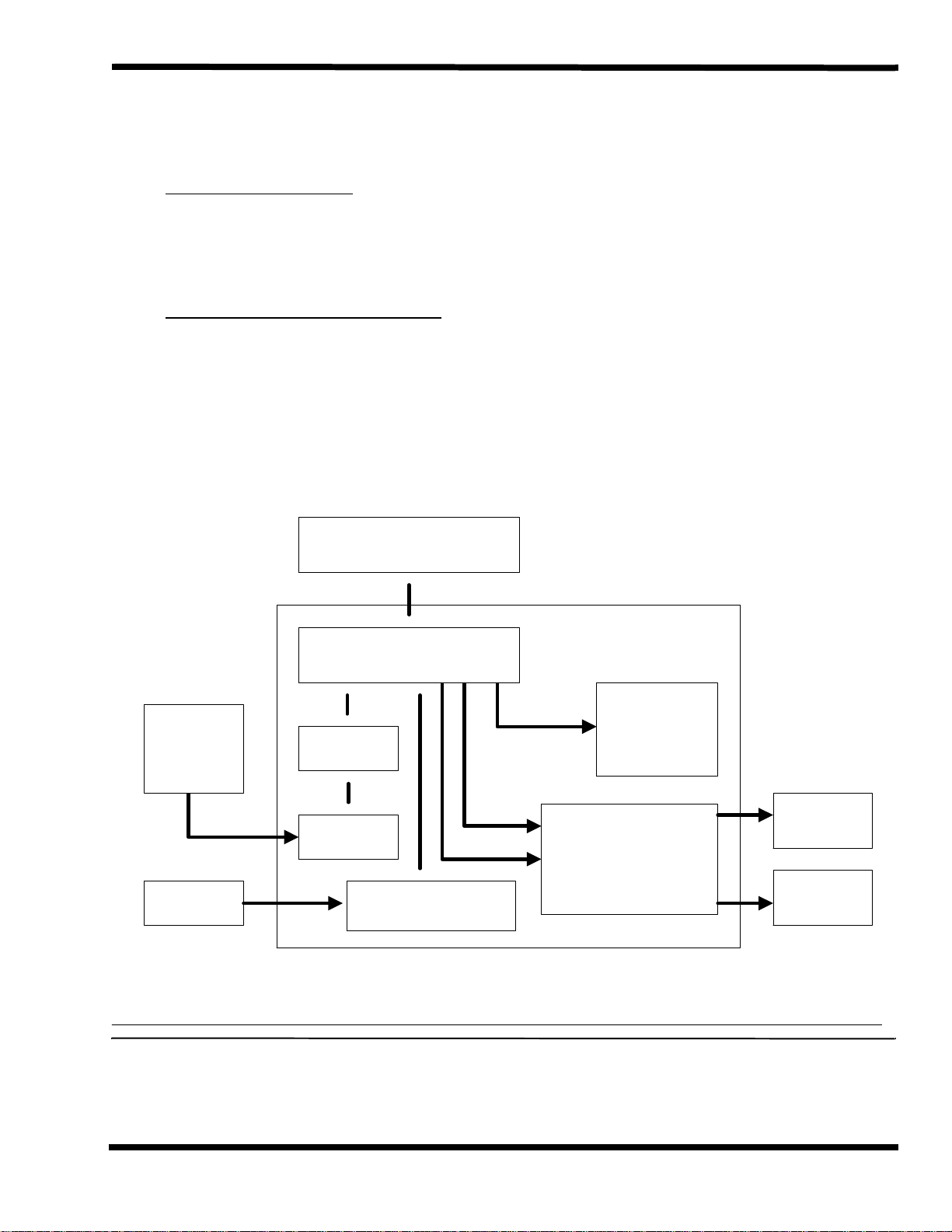

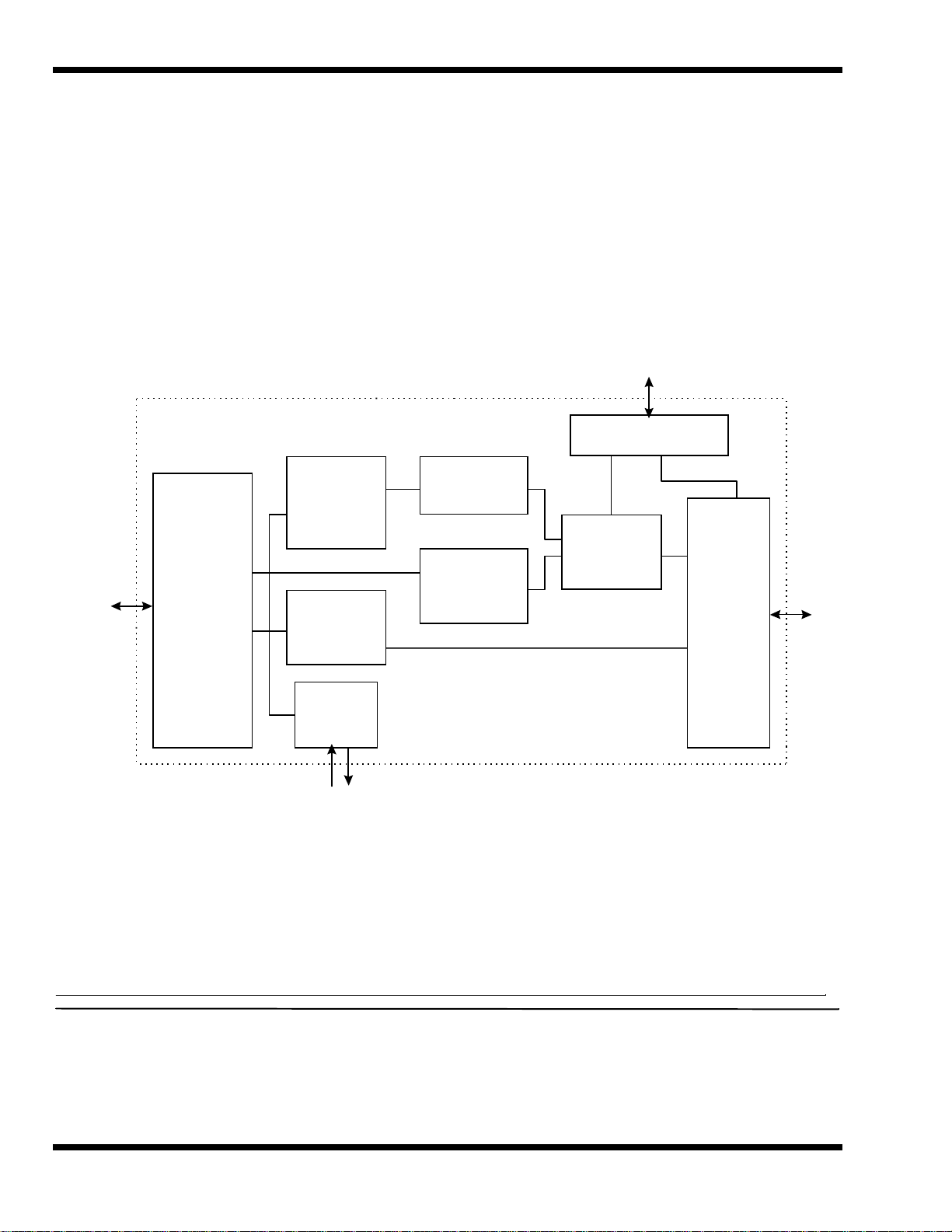

A simplified block diagram of the M1523 chip is shown in Figure 4-4 and the associated pinouts are provided in Figure 4-5.

4-10 Theory of Operation

M1523 Block Diagram

DATA

Buffer

Control

Address

Buffer

Decoder

Clock & Reset

PCI BUS Interface

UNIT

PCI

Arbiter

Interface

ISA

Interrupt

UNIT

PCI

Interrupt

UNIT

CPU

Interface

USB

Interface

(reserved)

PCI IDE

Master

Interface

ISA BUS Interface

UNIT

DMA

Refresh

UNIT

PMU or APIC

Interface

PS2/AT

Keyboard

Controller

Timer

UNIT

MISC. Logic

REAL

Time

Clock

PWG CPURST RSTDRV OSC14M

PCICLK CBEJ[3:0] AD[31:0] FRAMEJ TRDYJ IRDYJ STOPJ DEVSELJ SERRJ

PAR PHOLDJ PHLDAJ

FERRJ IRQ[15:14] IRQ[11:3] INTAJ/M1II NTBJ/S0 INTCJ/S1 INTDJ/S2

IGNNEJ INTR NMI A20MJ

USBCLK USBP[11:10]

IDRQ[0:1] IDAKJ[0:1] IDERDY IDEIORJ IDEIOWJ IDESCS3J IDESCS1J IDEPCS3J IDEPCS1J IDE_A[2:0] IDE_D[15:0]

SD[15:8] XD[7:0] SA[19:0] SBHEJ LA[23:17] IO16J M16J MEMRJ MEMWJ AEN IOCHRDYJ NOWSJ IOCHKJ SYSCLK BALE IORJ IOWJ SMEMRJ/LMEGJ SMEMWJ/RTCAS

EXTSW STPCLKJ

SPKR

SIRQI XDIR SPLED ROMCSJ

SIRQII RTC32KI RTC32KII

KBINH/IRQ1 KBCLK/KBCSJ KBDATA MSCLK IRQ12/MDATA

DREQ[7:5] DREQ[3:0] DACKJ[7:5] DACK2J/3J TC REFSHJ

Theory of Operation 4-1 1

Figure 4-4 M1523 Chip Simplified Block Diagram

Vss

BALE

SA2

SA1

SA0

SBHEJ

M16J

LA23

IO16J

LA22

IRQ10

LA21

IRQ11

VDD/BAT

RTC32KII

RTC32KI

PWG

LA20

LA19

IRQ15

LA18

IRQ14

LA17

MEMRJ

DREQ0

Vss

MEMWJ

DACK5J

SD8

DREQ5

SD9

DACK6J

SD10

DREQ6

SD11

DACK7J

SD12

DREQ7

SD13

VDD

SD14

SD15

OSC14M

SIRQI

SIRQII

USBCLK

DACK0J

DACK1J

CPURST

SMIJ

STPCLKJ

Vss

ALi

M1523

VDD

IRQ12

MSCLK

KBDATA

KBCLK/KBCSJ

KBINH/IRQ1

IDESCS3J IDESCS1J IDEPCS3J IDEPCS1J

IDE_A0 IDE_A2 IDE_A1 IDAKJ1 IDAKJ0

IDERDY

IDEIORJ

IDEIOW J

IDRQ1 IDRQ0

IDE_D0

IDE_D15

Vss

IDE_D1

IDE_D14

IDE_D2

IDE_D13

IDE_D3

IDE_D12

IDE_D4

IDE_D11

IDE_D5

IDE_D10

IDE_D6 IDE_D9 IDE_D7

VDD

IDE_D8

AD0 AD1 AD2 AD3 AD4 AD5 AD6 AD7

CBEJ0

AD8

AD9 AD10 AD11

VDD

156 155 154 153 152 151 150 149 148 147 146 145 144 143 142 141 140 139 138 137 136 135 134 133 132 131 130 129 128 127 126 125 124 123 122 121 120 119 118 117 116 115 114 113 112 111 110 109 108 107 106 105

4-12 Theory of Operation

Figure 4-5 M1523 Pinouts

4.3.2.2 ALI M6377 (Power Management Unit)

Three operat ion states

•

ON state

•

DOZE state

•

SLEEP state

•

Programmable DOZE and SLEEP timers

•

Programmable EL timer for backlight control

•

Three output pins dependin g on operati on sta t e, each pi n is programmable and power configurable.

•

Provide system activity monitoring, including:

•

video

•

hard disk

•

floppy disk

•

serial port

•

key b o ard

•

parallel port

•

two programmable I/O groups activity monitor, each gr oup contains 16/8 I/O addresses.

•

one predefined I/O group activity monitor

•

Mult iple external wake up events from DOZE an d SLEEP sta tes

•

External push button

•

RTC alarm

•

Two levels battery warning monitor

•

AC power monitoring to disable PMU function

•

A simplified block diagram of the M6377 Power Management Unit is provided in Figure 4-6. The chip pinouts are provided in Figure 4-7.

Theory of Operation 4-13

WAKEUP

EVENT

HANDLER

ACTIVITY

MONITOR

STATE

CONTROLLER

Timebase

BUS

INTERF

ACE

EL TIMER

PROGRAMABLE

APM TIMER

BATTERY MONITOR

OTHER

SMI

HANDLER

x 2

GPIO

4-14 Theory of Operation

Figure 4-6 M6377 Simplified Block Diagram

Figure 4-7 M6377 Chip Pinouts

Theory of Operation 4-15

4.3.2.4 C&T 65550 High Perf ormance Flat Panel / CRT VGA Controller

The C&T65550 of high performance multimedia flat panel / CRT GUI accelerators extend CHIPS’ offering of high performance flat panel con tr ollers for full-featured note books and sub-notebooks. The C&T65550 offers 64-bit high performance and new hardware multimedia support features.

HIGH PERFORMANCE

Based on a totally new internal architecture, the C&T65550, integrates a powerful 64-bit graphics accelerator engine for Bit Block Transfer (BitBLT), hardware cursor, and other functions intensively used in graphical User Interfaces (GUls) such as Microsoft Windows. Superior performance is also achieved through a direct 32-bit interface to the PCI Local Bus. The C&T65550 offers exceptional performance when combined with CHIPS advanced linear acceleration driver technology .

HARDWARE MULTIMEDIA SUPPORT

The C&T65550 implements independent multimedia capture (and display systems on-chip. The capture system places data in display memory (usually off screen) and the display system places it in a window on the s creen. The capture system can receive data from either the system bus or from the ZV enabled video port in either RGB or YUV format. The input data can also scaled down before storage in display memory (c.g., from any size larger than 320x240 down to 352x248). Capture of input data may also be double buffered for smoothing and to prevent image tearing. The display system can independently place either RGB or YUV data from any where in display memory into an on-screen window which can be any size and located at any pixel boundary (YUV data is converted to RGB "on-the-fly" on out put). Non-rectangular windows .are supported via color keying. The data can be functionally zoomed on output up to 8x to fit the onscreen window and can be horizontally and vertically inter polated to scale or zoom artifacts. Interlaced and non-interlaced data are supported in both capture and displa y systems.

VERSATILE PA NEL SUPPORT

The C&T65550 supports a wide variety of monochrome and color Single-Panel, Single-Dri ve (SS) and Dual-Panel, Dual Drive (DD) standard and high-resolution passive STN and active matrix TFT/MIM LCD, and EL panels. For monochrome panels, up to 64 gray scales are suppor ted. Up to 4096 different colors can be displayed on passive STN LCDs and up to 16M colors on 24-bit active matrix LCDs.

4-16 Theory of Operation

LOW POWER CONSUMPTION

The C&T65550 employs a variety of advanced power management features to reduce power consumption of the display sub-system and extend battery life. Although optimized for 3.3V operation, Th e C&T65550 controller's internal logic. memory interface, bus interface, and panel interfaces can he independently configu red to opera te at either 3.3 V or 5V.

SOFTWARE COMPATIBILITY/FL EXIBILITY

The C&T65550 are fully compatible with VGA at the register, and BIOS levels. CHIPS and third-party vendors supply fully VGA-compatible BIOS, end-user u t i l i t i es a nd drivers for common app l i cation programs Pin names in parentheses (...) indicate alternate functions.

A simplified block diagram of the C&T65550 is shown in Figure 4-8.

Video Memory

Video

Capture

Port

PCI Bus

Memory Controller

Graphics

Scaling

Capture

YUV to RGB

Engine

Color Key Zoom

Bus Interface

Figure 4-8 C&T65550 Simplified Block Diagram

64-bit

Analog

RGB

Digital

RGB

Theory of Operation 4-17

4.3.2.5 TI 1130 PCMCIA Controller

The Tl PCI1130 is a high-performance PCI-to-PC Card controller that supports two independent PC Card sockets compliant with the 1995 PC card standard. The PCI1130 provides a set of features that make it ideal for bridging between PCI and PC Cards in both notebook and desktop computers. The 1995 PC Card standard retains the 16-bit PC Card specification defined in PCMCIA release 2.1 and defines the new 32bit PC Card, called CardBus, capable of full 32-bit data transfers at 33 MHz. Th e PCI1130 supports any combination of 16-bit and CardBus PC Cards in its two sockets, powered at 3.3 V or 5 V as required. The PCI 1130 is compliant with the PCI local bus specification revision 2.1, and its PCI interface can act as either a PCI master device or a PCI slave device. The PCI bus mastering is initiated during 16-bit PC Card DMA transfers or CardBus PC Card bus mastering cycles. All card signals are internally buffered to allow hot insertion and removal without external buffering. The PCI1130 internal data path logic allows the host to access 8-, 16-, and 32-bit cards using full 32-bit PCI cycles for maximum performance. Independent 32-bit write buffers allow fast-posted writes to improve system-bus utilization. An advanced CMOS process is used to achieve low system-power consumption while operating at PCI clock rates up to 33 MHz. Several low-power modes allow the host power-management system to further reduce power consumption.

A simplified block diagram of the PCMCIA Controller is shown in Figure 4-9.

4-18 Theory of Operation

Figure 4-9 PCMCIA Controller, Simplified Block Diagram

Theory of Operation 4-19

4.3.2.6 NS87336VJG Super I/O Controller

The PC87336VJG is a single chip solution for most commonly used I/O peripherals in ISA, a nd EISA based computers. It in corporates a Floppy Disk Controller(FDC), two full featured UARTs, and an IEEE 1284 compatible parallel port Standard PC-AT address decoding for all the periph er a ls and a set of configuration registers are also implemented in this highly integrated member of the Super l/O family. Advanced power management features, mixed voltage operation and integrated Serial-lnfrared(both IrDA and Shar p) support m a kes th e PC87336 an i deal ch oice for low-power and/or portable personal computer applications. The PC87336 FDC uses a high performance digital da ta separ at or elim i nating the need for any external filter components. It is fully compatible with the PC8477 and in corporates a superset of DP8473, NEC PD765 and N82077 floppy disk controller functions. All popular 5.25' a nd 3.5' floppy drives, includin g the 2.88 MB 3.5' floppy drive, are supported. In addit i on, a ut omatic media sense an d 2 Mbps tape drive suppor t are provided by the F DC . The two UARTs are fully NS16450 and NS16550 compatible. Both ports support MIDI baud rates and one port als o s u pports IrDAs the HP SIR and Sharp SIR compliant signaling prot ocol. The parallel port is fully IEEE 1284 level 2 compatible. The SPP(Standard Parallel Port) is fully compatible wit ISA and EISA parallel ports. In addition to the SPP, EPP(Enhanced Parallel Port) and ECP(Extended Capabilities Port) modes are supported by the parallel port. A set of configurati on registers are provided to control the Plug and Pl ay and ot her va rious fu nctions of the PC87336. These registers are accessed using two 8-bit wide index and data registers. The ISA I/O address of the register pair can be relocated using a power-up strapping option an d the software configuration after power-up. When idle, advanced power management features allows the PC87336 to enter extremely low power modes under software control. The PC87336 car operate from a 5V or a 3.3V power supply. An unique I/O cell structure allows the PC87336 to interface directly with 5V external components while operating from a 3.3V power supply.

Some of the major features include:

100% compatible with ISA, and EISA architectures

•

The Floppy Disk Controller:

•

Software compatible with the DP8473, the 765A and th e N82077

•

16-byte FlFO(disabled by default)

•

Burst and Non-Burst modes

•

Perpendicular Recording drive support

•

New high-performance internal digital data separator(no external filter components required)

•

Low-power CMOS with enhanced power-down mode

•

Automatic media-sense support, with full IBM TDR(Tape Drive Register) implementation

•

Supports fast 2 Mbps and standard 1 Mbps/500 kbps/250 kbps tape drives

•

4-20 Theory of Operation

Paral l el Por t

•

Enh a nced Parallel Port(EPP) compatible

•

Extended Capabilities Port(ECP) compatible, including level 2 support

•

Bidirectional under either software or hardware control

•

Compatible with ISA, and EISA, architectures

•

Ability to multiplex FDC signals on parallel port pins allows use of an external Floppy Disk

•

Drive(FDD) Includes protection circuit to prevent damage to the parallel port when a connected printer is

•

powered up or is operated at a higher voltage

The UARTs:

•

Software compatible with the PC16550A and PC16450

•

MIDI baud rate support

•

Infrared support on UART2(IrDA and Sharp-compliant)

•

The Address Decoder

•

6 bit or 10 bit decoding

•

External Chip Select capability when 10 bit decoding

•

Full relocation capability(No limitation)

•

Enhanced Power Management

•

Specia l configuration registers for power-down

•

Enhanced programmable power-down FDC command

•

Auto power-down and wake-up modes

•

2 special pins for power managemen t

•

Typical current consumption durin g power-down is less than 10 uA

•

Reduced pin leakage curren t

•

Mixed Voltage support

•

Supports standard 5V operation

•

Supports 3.3V operation

•

Supports mixed intern al 3. 3V operati on with 3. 3V/5V external configuration

•

The General Purpose Pins:

•

2 pins The Bidirectional Par a l lel Port:, for 2 separat e progr am ma ble chip select decoders, can

•

be programmed for game port control

Theory of Operation 4-21

Plug and Play Compatible:

•

16 bit addressing(full programmable)

•

10 selectable IRQs

•

3 selectable DMA Channels

•

3 SIRQ Inputs allows external devices to mapping IRQs

•

100-Pin TQFP package - PC87336VJG

A simplified block diagram of the Super I/O controller is provided in Figure 4-10.

Config.

Inputs

Interface

Configuration

Registers

(16550 or 16450)

General

Purpose

Registers

I/O Ports Control

Down Logic

Serial

Power

UART

Interrupt

Serial

Interface

Interrupt

Interface

UART

+ IrDA/HP & Sharp IR

(16550 or 16450)

IEEEE1284

Parallel Port

Hifh Current Driver

Interrupt Data Handshake

Floppy

Drive

Interface

Floppy Disk

Controller with

Digital Data

Separator

(Enhabced 8477)

Interrupt

OSC

and

DMA

Floppy

Drive

Interface

4-22 Theory of Operation

Figure 4-10 Super I/O Controller Block Diagram

4.3.2.6 ESS1688 Audio Controller

ESS Technology has developed the ES1688 AudioDrive, a single chip solution for adding 16-bit ster eo a udio and four - op erator FM music synt hes is to personal computers. It ha s integrat ed a ll the major blocks of audio in to a single chip that can be designed into a motherboard, notebook PC, add-on card, or integrated onto other peripheral cards such as VGA, LAN, I/O, etc. The ES1688 AudioDrive can record, compress, and playback voice, sound and music with built-in mixer controls. It consists of an embedded microprocessor, 16-bit stereo A/D and D/A, 20-voice FM music synthesizer , MIDI serial port compatible with MPU401 UART mode, DMA control, and ISA bus interface logic. A DSP serial interface allows an external DSP to take over analog resources such as the D/A or A/D converters. Control of I/O address, DMA, and interrupt selection can be by jumper or by control of system software. Interface to analog inputs is extremely simple. T here are stereo inputs for CD-audio, line-in, and an external music synthesis chip, and a mono microphone input to an internal pre-amp. A digital PC speaker input is converted to an analog signal with volume control and is available as an analog output signal. Address decode outputs s i mplif y interfacing to a game port. Advanced power ma nagement features such as Suspend/Resume and partial power-down are supported. The ES1688 AudioDrive is compatible with Sound Blaster PRO version 3.01 voic e a nd mu s i c functions as documented in the Sound Blaster Series Developer Kit. The ES1688 is pin-compatible with the ES688 AudioDrive.

Theory of Operation 4-23

DSP Interface

ISA

Bus

Interface.

FIFO

/DMA

Control

Mixer

MPU

401

256-Byte

FIFO

ES1688

Processor

A/D

& D/A

Control

Analog

Circuit

4-24 Theory of Operation

Figure 4-11 ES1688 Sound Chip Block Diagram

Troubleshooting Procedures

5.1 Introduction

This section provides an overview of the fault isolation process, provides guidelines for isolating 60x/65x Series computer malfunctions to replaceable subassemblies and provides instructions for executing diagnostics and interpreting error messages.

5.2 Overview of Fault Isolation Process

The fault isolation process (summarized in Figure 5-1) consists of the following steps:

♦ Notebook power system (including battery packs and AC adapter

connections) - refer to Paragraph 5.4.

♦ Switch settings (ensure Power is On) ♦ Press the Shift key to ensure that Notebook is not in Suspend mode ♦ Verify if computer is configured to boot from the A: Drive or C: Drive.

♦ Check LCD brightness adjustment (press Fn-Up Arrow keys to increase

brightness)

♦ Ensure that computer is not set for external monitor (press Fn-F12 to select

internal screen)

♦ Record and attempt to resolve any displayed error messages or error beeps

(refer to Paragraph 5.2.3.1 and Tables 5-1 and 5-2)

♦ Try rebooting the system (Ctrl-Alt-Del) ♦ If the computer is capable of running the Setup program; check the serial

and parallel port configurations, Sound System enable/disable, and other features that may affect system operation.

♦ Run PC-Doctor Diagnostics to further isolate problem area (refer to

Paragraph 5.4). For indicated hardware failures, cycle power and repeat self test to verify that a hard failure has occurred.

♦ Remove and replace suspect hardware (as described in Section 6 of this

manual) and retest the system using the diagnostic tests as described in Paragraph 5.4.5.

Troubleshooting Procedures 5-1

START

COMPUT ER

TROUBLE

INDICATION

DEAD COMPUTER SYMPTOMS

RUN

SELF TEST

ERROR

MESSAG E

MODEM

PROBLEM

RUN

DIAG NOSTI CS

DIAGNOSTI CS

ERRO R MSG

YES

SEE PARAGRAPH

5.3.4

YES

See Paragraphs

5.3.3.1 and 5.3.3.2

See Paragraphs

5.3. 1 & 5.3 .2

YES

See Paragraph

5.4

When Power button is pressed, no indication of power is present (dark LCD, no Status icons lit, no disk drive activity, etc.)

Press Power button; Selftest automatically runs when power turned on.

Figure 5-1 Notebook Computer Troubleshooting Flow Chart

5-2 Troubleshooting Procedures

5.3 Troubleshooting Procedures

The built-in self test program and the disk resident diagnostics program (PC-Doctor) are useful tools in computer troubleshooting. However, if the computer has a power, keyboard or display problem, you must first solve this problem before running diagnostics. If the computer powers up and displays messages on the LCD or emits a series of beeps, skip to Paragraph 5.3.3 for further instructions.

5.3.1 Troubleshooting a Power Supply Problem

If the computer does not power up when the Power Switch is set to the ON position, you most likely have a malfunction in the power subsystem (loss of power at the AC outlet, faulty AC adapter, discharged Battery Packs, or faulty Power Supply on the Main Board). With a power problem, all LEDs are extinguished, the LCD screen is blank, the system does not respond when the suspend switch is pressed several times consecutively and no drive activity can be heard. The computer is unable to load software and displays no visible signs of activity. To fault isolate a power problem, check the following:

♦ AC adapter and Battery - Plug in the AC adapter and double-check all

connections on the adapter and computer. Ensure that the Notebook Power switch is set to the On position and that the system is not in Suspend or sleep mode.

♦ Measure the voltage at the AC outlet or plug in a known good appliance (e.g.

a lamp) to verify that voltage is present. If the voltage is ok, try replacing the AC adapter.

♦ Check to see that the battery packs are installed correctly and that the

battery charge indicators on the front of the battery packs indicate the batteries are charged (try using a new battery pack if batteries are discharged).

♦ If the AC outlet voltage, AC adapter, and battery packs test normal but the

computer will not power up, try disconnecting the display cable from the base (refer to Section 6 for disassembly instructions) to see if a short in the display assembly has occurred.

♦ If the display assembly appears to be normal, replace the Bottom Board as

described in Section 6 and retest system.

5.3.2 Troubleshooting a Display Problem

If the LCD remains blank when you turn on the computer, and the status indicators

Troubleshooting Procedures 5-3

light, check the following controls on the display):

♦ LCD suspend mode - press Shift to terminate Suspend mode. ♦ Brightness set too low - press Fn-Up Arrow keys to increase screen

brightness

♦ Notebook Set for External Monitor - press Fn-F12 to switch to the internal

screen.

♦ Faulty LCD - Replace the cover-display assembly as described in Section 6

of this manual.

♦ Low battery - Use a fully charged battery and/or plug in the AC adapter.

Table 5-1 contains fault isolation information for Display Problems on the notebook. Symptoms are listed along the left side of the chart and the various Display FRUs are listed along the top of the chart. Within the body of the table are the probabilities of each of the FRUs causing that particular problem. For example, a single display line on the screen is most likely caused by the LCD Panel or Display Cable; other components have a low probability of causing the problem.

Table 5-1 Display Troubleshooting Guide

Problem Description Inverter

Board

Single line on LCD display (horizontal or vertical)

Multiple lines on display (horizontal or vertical)

Sections of the display are missing characters

Scrambled Display Low Medium Low Medium Medium Intermittent characters on display Low Medium Medium Medium Low Bright display, no visible

characters Brightness level fluctuating or

display blinking on/off Display goes dim over time High Medium Low Low Low Dim display but characters very

visible

Low High Medium Low Low

Low Medium Medium Low Low

Low Medium Medium Medium Low

High Low Medium Low Low

Medium Medium Low Low Low

LCD

Panel

Display

Cable

Mother

Board

BIOS

5-4 Troubleshooting Procedures

Table 5-1 Display Troubleshooting Guide

Problem Description Inverter

Very dark display and characters are slightly visible when a light is directed at surface of the display

Very dark display and no characters are visible

Board

High Low Low Low Low

Low High High Medium Low

LCD

Panel

5.3.3 Fault Isolation Using Self Test

When the computer is first powered up, it automatically performs a self test of its central hardware and memory functions. During self test (which lasts for a few seconds), the display shows copyright and version number information.

Note: Some procedures in this paragraph require you to use keystroke sequences, such as Ctrl-Alt-Del. To execute a keystroke sequence such as this, you must press all three keys simultaneously.

Display

Cable

Mother

Board

BIOS

5.3.3.1 Self Test Error Messages

Upon successful completion of the self test, the computer automatically loads its operating system and other built-in utilities. If the self test fails to complete successfully, the display shows one of the error messages described in Table 5-2.

Note: In the event of a hardware problem that affects the display, the Notebook also communicates errors via a series of beeps. The interpretation of the beep codes is provided in Table 5-3.

Troubleshooting Procedures 5-5

Table 5-2 Self Test Error Messages

Diskette drive 0 failure

This message indicates the internal floppy disk (drive A) has failed (or is not installed on the computer). Press Ctrl-Alt-Esc to ensure that drive type is correctly set (3.5 inch, 1.44 MB).

Run the Diagnostics to check Drive A as described in Paragraph 5.4. Also try using a new, correctly formatted disk.

Diskette read failure - strike F1 to try to retry boot

This message indicates the disk is defective or not formatted. Try another known good formatted disk and press F1. Fixed disk failure This message indicates the system disk drive failed to complete the self test or

that the nonvolatile random-access memory (NVRAM) is configured incorrectly for the installed drive type.

Ensure that the notebook is configured to boot from the C: Drive. Press Ctrl-Alt-Esc to ensure that the hard disk drive type is correctly identified

in Setup (should be default for the internal hard disk drive). Press the Ctrl-Alt-Del keys to attempt to reboot the system. If the error occurs

a second time, run the diagnostics as described in Paragraph 5.4.

Fixed disk read failure - strike F1 to retry boot

This message indicates that the hard disk drive improperly formatted, or that a hardware failure has occurred in the hard disk drive subsystem.

Press Ctrl-Alt-Esc to ensure that the hard disk drive type is correctly identified in Setup (should be default for the internal hard drive).

If the booting process still fails, run the diagnostics as described in Paragraph

5.4.

Invalid configuration information

This message indicates the computer has been configured incorrectly. Check the settings in the Setup program menu. Also, NVRAM battery failure (resulting in loss of configuration data) can generate this error message. Install an AC adapter and recharge the system. If the problem persists, replace Top Board.

Keyboard clock/data line failure

This message indicates either the keyboard or the external keyboard (if one is installed) is defective. If the computer has an external keyboard connected, check the connection to ensure that it is connected correctly. If the problem still exists, run the diagnostics as described in Paragraph 5.4.

Keyboard stuck key failure

This message indicates the self test has detected a stuck key on the keyboard.

5-6 Troubleshooting Procedures

Table 5-2 Self Test Error Messages (Continued)

Try the keyboard keys to determine if they appear to be working properly and reboot the computer.

Note: Also, ensure that no key is pressed during power up and that no keys are jammed.

If the self test still fails, execute the diagnostics as described in Paragraph 5.4.

No boot device available - press F1 to retry boot

This message indicates the system disk, the disk drive, or the disk is defective (if loading MS-DOS

from disk) or that the NVRAM is not correctly configured for the installed disk drive type. Replace the disk and reboot the computer. If the self test still fails, run the diagnostics as described in Paragraph 5.4.

No boot sector on system disk - press F1 to retry boot

This message indicates the system disk is not formatted. Try powering down the system and re-running the self test. Press Ctrl-Alt-Esc to ensure that the drive type is correctly set in Setup. Also, press F1 to try loading MS-DOS from the hard disk drive again. If the message persists, the disk must be reformatted and software reloaded from disks (refer to Section 3).

Non-System Disk or Disk error. Replace and press any key when ready.

This message indicates the disk installed in floppy disk Drive A is not a bootable disk. Format an MS-DOS bootable disk and install the disk in Drive A, Reboot the computer. Also try pressing Ctrl-Alt-Esc to ensure the disk drive type is correctly set in Setup.

Time-of-day clock stopped

This message indicates that the battery sustaining the system configuration has failed. Reset the configuration.

Note: The following messages are informational messages that do not necessarily indicate a self test failure.

NNN Main Memory, NNN Extended

This message lists the amount of standard memory and optional extended memory that has tested successfully during self test execution. This message is only displayed if Quick Boot is off in System Setup.

Troubleshooting Procedures 5-7

Table 5-2 Self Test Error Messages (Continued)

Memory tests terminated by keystroke

This message tells you that you have pressed the Space Bar while the memory tests were running. Pressing the Space Bar during memory testing stops the tests.

Press F1 to continue

This message tells you that an error was found during self test execution. Press

F1 to attempt to reboot the computer.

Save-to-Disk file is too small

This message occurs when you add memory. Use the MS-DOS program PHDISK to increase the size of the save-to-disk file.

Save-to-disk file is missing

Use the MS-DOS program PHDISK to create a new save-to-disk file.

Swap File is missing

Use the MS-DOS program PHDISK to create a new swap file.

5.3.3.2 Self Test Beep Error Messages

In the event of a hardware problem that affects the display, the Notebook also communicates errors via a series of beeps. These codes may be heard over the system's speaker as three bursts of beeps. The interpretation of the beep codes is provided in Table 5-3.

To recover from a self test error, try cycling power to the computer. Also, press Ctrl-Alt-Esc to ensure that the Setup configuration is correct. In general, most of the failures are associated with the Upper and Lower Electronics Boards and may require board removal/replacement.

Try running PC-Doctor (Paragraph 5.4) if possible to verify the source of problem.

5-8 Troubleshooting Procedures

Table 5-3 Self Test Beep Messages

Beep Code Port 80h Description

None 01h CPU Register Test in Progress 1-1-3 02h CMOS Write/Read Failure 1-1-4 03h ROM BIOS Checksum Failure 1-2-1 04h Programmable Interval Timer Failure 1-2-2 05h DMA Initialization Failure 1-2-3 06h DMA Page Register Write/Read Failure 1-3-1 08h DRAM Refresh Verification Failure None 09h 1ST 64K RAM Test in Progress 1-3-3 0Ah 1ST 64K RAM Chip or Data line Failure 1-3-4 0Bh 1ST 64K RAM Odd/Even Logic Failure 1-4-1 0Ch Address Line Failure, 1ST 64K RAM 1-4-2 0Dh Parity Failure, 1ST 64K RAM 2-1-1 10h Bit 0, 1ST 64K RAM Failure 2-1-2 11h Bit 1, 1ST 64K RAM Failure 2-1-3 12h Bit 2, 1ST 64K RAM Failure 2-1-4 13h Bit 3, 1ST 64K RAM Failure 2-2-1 14h Bit 4, 1ST 64K RAM Failure 2-2-2 15h Bit 5, 1ST 64K RAM Failure 2-2-3 16h Bit 6, 1ST 64K RAM Failure 2-2-4 17h Bit 7, 1ST 64K RAM Failure 2-3-1 18h Bit 8, 1ST 64K RAM Failure 2-3-2 19h Bit 9, 1ST 64K RAM Failure 2-3-3 1Ah Bit A, 1ST 64K RAM Failure 2-3-4 1Bh Bit B, 1ST 64K RAM Failure 2-4-1 1Ch Bit C, 1ST 64K RAM Failure 2-4-2 1Dh Bit D, 1ST 64K RAM Failure 2-4-3 1Eh Bit E, 1ST 64K RAM Failure 2-4-4 1Fh Bit F, 1ST 64K RAM Failure 3-1-1 20h Slave DMA Register Failure 3-1-2 21h Master DMA Register Failure 3-1-3 22h Master Interrupt Mask Register Failure

Troubleshooting Procedures 5-9

Table 5-3 Self Test Beep Codes (continued)

Beep Code Port 80h Description

3-1-4 23h Slave Interrupt Mask Register Failure None 25h Interrupt Vector Loading In Progress 3-2-4 27h Keyboard Controller Test Failure None 28h CMOS Power Failure and Checksum in

Progress None 29h CMOS Configuration Validation in Progress 3-3-4 2Bh Screen Memory Test Failure 3-4-1 2Ch Screen Initialization Failure 3-4-2 2Dh Screen Retrace Test Failure None 2Eh Search for Video ROM in progress 1-2 2Eh Cirrus Video Chip Failure 1-3 2Eh Cirrus RAM DAC or Video RAM Failure None 30h Screen Believed Operable; running with

Video ROM None 31h Monochrome Monitor Believed Operable None 32h Color Monitor (40 Column) Believed

Operable None 33h Color Monitor (80 Column) Believed

Operable 4-2-1 34h No Time Tick 4-2-2 35h Shutdown Failure 4-2-3 36h Gate A20 Failure 4-2-4 37h Unexpected Interrupt in Protected Mode 4-3-1 38h Memory High Address Line Failure at

010000h-0A0000h 4-3-3 3Ah Timer Chip Counter 2 Failed 4-3-4 3Bh Time of Day Clock Stopped 4-4-1 3Ch Serial Port Failure 4-4-2 3Dh Parallel Port Failure 4-4-3 3Eh Math Coprocessor Failure

5.3.4 PCMCIA Modem Problems

If an optional PCMCIA modem does not work properly, check the following items:

5-10 Troubleshooting Procedures

♦ Dialing problem or wrong number - Try dialing a number that you have

previously dialed successfully.

♦ Faulty phone line - Connect a telephone to the line and listen for a dial tone. ♦ Software program - Check to ensure that you have installed the software

correctly.

5.4 Fault Isolation Using Diagnostics

PC-Doctor, supplied with the Extensa Series Notebooks, is a powerful diagnostics tool that can help you determine the hardware configuration of a local or remote system, benchmark its performance, analyze the performance of all subsystems, and perform a suite of interactive and non-interactive tests on attached devices (such as printers, joystick devices, VGA monitors, SCSI devices, CD-ROM drives). The test results are stored in a log which can be printed out or saved in a disk file.

5.4.1 PC-Doctor (In DOS Mode or DOS Window)

PC-Doctor is typically user friendly but if you don't understand a feature, contextsensitive "help" information is available at any time by pressing the F1 function key; pressing the F1 function key twice accesses the online Technical Reference Manual for PC-Doctor.

Functionally, PC-Doctor includes the following:

♦ Group of non-Interactive diagnostic tests that perform a non-destructive test

of the major hardware functions in the notebook (Processor, Memory, System board, video section, serial and parallel ports (when loopback adapters are installed), hard disk drive and floppy disk drive).

♦ Group of Interactive tests (require operator input) for testing the keyboard,

video sections, sound subsystem, mouse, joystick, disk drive, printer subsystem and the SCSI/CD-ROM Drive subsystems supported by the docking station options.

Troubleshooting Procedures 5-11

♦ Utility that provides detailed system information such as configuration data,

allocation and use of system memory, IRQ and DMA use, what device drivers are installed, what COM and LPT ports are assigned and what ports are available, partitioning data for fixed disk drive(s), VGA setup information, software interrupts and interrupt vectors, and installed SCSI options.

♦ Group of special purpose utilities to run other tests from PC-Doctor, perform

a virus scan of the system, edit configuration files, surface scan hard drives, measure system performance, open a DOS prompt, provides terminal access to devices connected to serial ports, supports memory debug operations, enables remote operations, permits deep discharge of notebook batteries and provides an extensive test reporting function.

5.4.2 Supporting Online Documentation

The PC-Doctor Diagnostic contains the following online information sources:

♦ Online Technical Manual - selected at any time by pressing F1 key twice

or by clicking on the Question Mark in the upper left hand corner of any PC-Doctor Menu

♦ On-line Help system - provides context sensitive information from every

PC-Doctor screen- accessed by pressing F1 key once (pressing F1 twice gets you into the online manual)

5.4.3 User Interface to PC-Doctor

PC-Doctor is structured as a text-mode, windowed user interface with pull-down menus. Program operation requires the use of the following keys:

♦ Cursor Keys - Moves the highlighted pointer ♦ Enter Key - Selects the highlighted option ♦ Esc Key - Cancels current function and goes back one step ♦ F1 Key - Activates the context-sensitive help feature (pressing F1 twice in a

row calls up the online Technical Reference Manual for PC-Doctor)

Scrolling windows, which show the results of various operations, use the following keys:

♦ Page Up/Page Down - Moves the screen one page at a time ♦

F2 - Prints the log to PRN

♦ F3 - Saves the log to a file

5-12 Troubleshooting Procedures

You can also use the mouse or Point to interact with PC-Doctor. The leftmost Select key is used to choose objects (menu entries and action codes typically enclosed in brackets). The rightmost Select key is equivalent to the Esc key which takes you back to your previous step.

5.4.4 Quitting PC-Doctor

To exit PC-Doctor, select the Quit pull down menu and then select the Quit option.

Note: For additional information, access the Online Reference Manual for

PC-Doctor.

Troubleshooting Procedures 5-13

6.1 Introduction

This section contains general preventive and corrective maintenance procedures that apply to all members of the Extensa 60x and 65x Series Notebook Computers. The first part of the section describes the computer cleaning procedures and preferred handling procedures for sensitive components (e.g. disk drives, batteries).

The second part of the section identifies all field-replaceable parts; the remainder of the section contains removal and replacement procedures for the field-replaceable parts.

6.2 Preventive Maintenance

Preventive maintenance is limited to cleaning the plastic case, keyboard and the display screen.

6.2.1 Cleaning the Computer

Field Service

When it is necessary to clean the plastic case and keyboard use a soft, lint-free cloth, slightly dampened with a mild detergent solution or use the contents of any commercially available computer cleaning kit.

Caution: Never spray any liquids directly on the computer case, keyboard, or screen. If the liquid-crystal display (LCD) screen has become smeared or dusty, clean the screen first with a soft, clean, lint-free cloth and gently wipe the glass. If the glass is still smeared, use distilled water or a 25% solution of alcohol and distilled water.

Caution: Do not use paper towels to clean the display screen. Paper can scratch the display screen matte.

Field Service 6-1

6.2.2 Handling the Computer

The notebook computer requires reasonable care and handling for extended life. Some of the precautions to follow to protect your computer against accidental damage include:

♦ Never pick up or carry the unit by the cover ♦ Do not force the cover beyond its fully opened position (about 180 degrees) ♦ Never subject the computer to harsh environments (dusty areas or areas of

rapidly changing temperatures)

♦ Never place anything on top of the computer, particularly when it is operating

or charging (could result in overheating and damage to the computer).

♦ Never move the computer while the hard drive is rotating (press the Suspend

button to put the computer in a Sleep mode before closing cover).

♦ Never expose the computer hard disk drive(s) or disks to strong magnetic

fields such as those generated by transformers, speakers, or telephone handsets.

6.2.3 Handling the Computer Battery Pack

The battery pack furnished with the computer requires reasonable care and handling to ensure efficient operation and maximum life. Periodically inspect the battery terminals and the batteries for evidence of corrosion and oxide build-up; clean if necessary.

To ensure that the battery packs endure normal life cycle, always observe the following precautions when handling the battery packs:

♦ Do not drop the battery pack or subject it to excessive shock and vibration. ♦ Do not expose the battery pack to direct sunlight, moisture, or chemical

compounds.

♦ Do not disassemble the battery pack. ♦ Do not use the battery pack to power other devices. ♦ Do not short the battery leads or connect the battery with reversed polarity. ♦ Never attempt to charge the battery pack in any way other than as described

in this manual.

♦ Always charge the battery pack as soon as possible after a low battery

6-2 Field Service

indication.

6.2.4 Password Caution

The notebook computer can be password protected to prevent unauthorized use. However, if the password is lost, the notebook must be returned to the Texas Instruments manufacturing facility in Temple, Texas U.S.A. to restore access. This service is not covered by warranty.

6.3 Required Tools and Equipment

All Extensa 60x and 65x Series Notebook corrective maintenance procedures can be performed using the following tools:

♦ Tweezers ♦ Plastic Stick ♦ Small flat-blade screwdriver ♦ Small Phillips screwdriver

Caution: All boards, options and peripherals contain components that are sensitive to static electricity. When handling any of these items, protect against static electricity by using wrist grounding straps and grounded working mats. When moving or storing items, use the anti-static bags supplied with the items.

6.4 Notebook FRUs

For a listing and description of the notebook Field Replacement Units (FRUs), refer to the appendices in this manual for the appropriate models (e.g. Appendix A contains maintenance data from the 60x Series; Appendix B contains maintenance data for the 65x Series.)

6.5 FRU Removal/Replacement Procedures

The following paragraphs contain field service-level removal/replacement procedures for the 60x/65x Series Notebook Computers.

Most FRU removal/replacement procedures involve connecting and disconnecting

Field Service 6-3

cable connectors. The Extensa series uses two types of connectors including:

♦ Locking-type connectors - use a plastic stick to unlock and lock these type

of connectors as shown in Figure 6-1.

♦ Non-locking connectors

Unplugging the Cable

Figure 6-1 Removing/Installing Cables with Locking-Type Connectors

Connecting the Cable

6.5.1 Removing/Replacing the Notebook Battery Pack

Before performing any of the assembly/disassembly procedures, always disconnect the AC adapter from the notebook and remove the battery pack. The procedure for removing and replacing the battery pack is as follows:

1. Turn off the computer and disconnect the AC adapter from the computer.

2. Unlatch the battery compartment door (right front corner of the unit) as

shown in Figure 6-2.

3. Slide the battery compartment door out slightly and then swing the door

outwards as shown in Figure 6-2.

4. Grasp the loop attached to the battery and pull the battery out of the

6-4 Field Service

compartment.

5. Insert the replacement battery with "THIS SIDE UP" label facing upwards

until it snaps in place and then close the battery compartment door (reverse of Steps 2 and 3.

Figure 6-2. Battery Removal/Replacement

Field Service 6-5

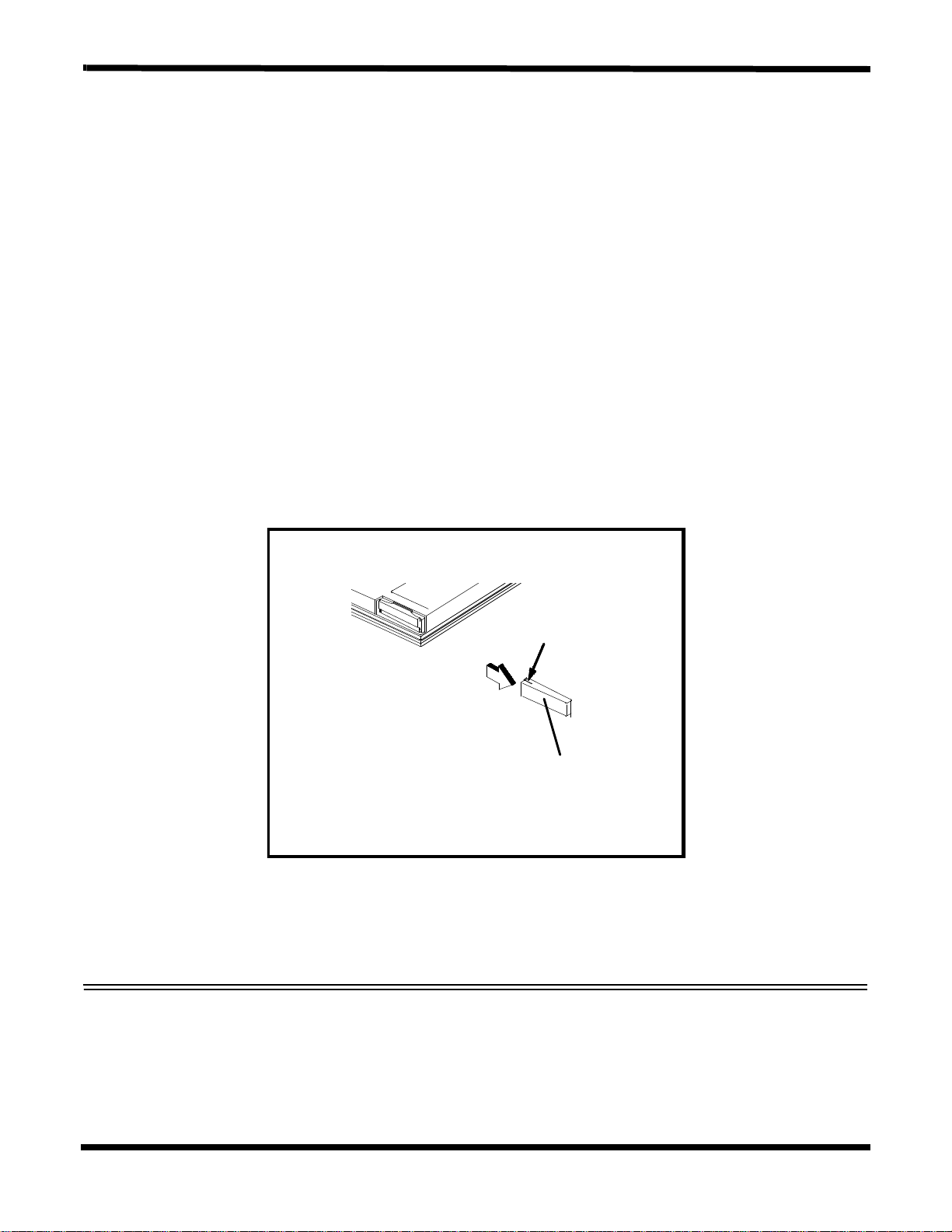

6.5.2 Removing/Replacing PCMCIA Options

The procedure for removing and replacing the PCMCIA options is as follows:

1. Turn off the computer and remove the battery pack as described in Paragraph

6.5.1.

2. Press the upper card eject button to eject the upper card, lower button

controls the lower card and use both buttons for Type III devices.

3. To replace the PCMCIA device, remove any filler cards present and insert the

device. Reinstall any external cabling required for the device.

PCMCIA Release Buttons

One or two Type I/ II PCMCIA Option Cards or one Type III Option Ca rd

Figure 6-3 Installing/Removing PCMCIA Options

6-6 Field Service

Release Tab

Bay Cover

Bottom of Unit

6.5.3 Removing/Replacing the Hard Disk Drive Assembly

The procedure for removing and replacing the Hard Disk Drive assembly is as follows:

1. Power down the notebook, disconnect the AC adapter, if installed, and remove

the battery pack as described in Paragraph 6.5.1.

2. Disconnect any peripheral device interface cables from the external interface

connectors and remove any installed PCMCIA options.

3. Turn the computer over and locate the release tab for the hard disk drive bay

cover (refer to Figure 6-4).

4. While pressing slightly on the release tab (Figure 6-4), slide the cover to the

right and set aside.

Figure 6-4 Removing the HDD Bay Cover

Field Service 6-7

5. While lifting upward on the HDD release tab ( using your fingernails), use

both finger grip areas (Figure 6-5) and pull the HDD module out of the notebook.

CAUTION: Exercise care to only handle the drive by its sides to prevent damage to the drive.

6. Store the HDD in an antistatic bag.

7. Replacement is the reverse of Steps 1 through 5.

Finger Grip

Release Tab

Area

Reference View

Finger Grip Area

HDD

Release Tab

6-8 Field Service

Removing the HDD

Figure 6-5 Removing/Replacing the Hard Disk Drive Module

6.5.4 Removing/Replacing the Keyboard Assembly

Slide hinge cover out and then pull up

Open Notebook to 180 degree position

The procedure for removing and replacing the keyboard assembly is as follows:

1. Turn off the computer; disconnect the AC power adapter (if it is attached),

and remove the battery pack as described in Paragraph 6.5.1.

2. Press the Cover Release Latch and open the notebook to a full 180 degree

position as shown in Figure 6-6.

3. Slide each of the two display hinge covers out and pull upward to remove

from the notebook.

4. Pull up on the keyboard as shown in Figure 6-7 and disconnect the Touchpad

Figure 6-6 Removing the Display Hinge Covers

cable connector J0104.

Field Service 6-9

J0102

Removing Keyboard

J0103

J0104

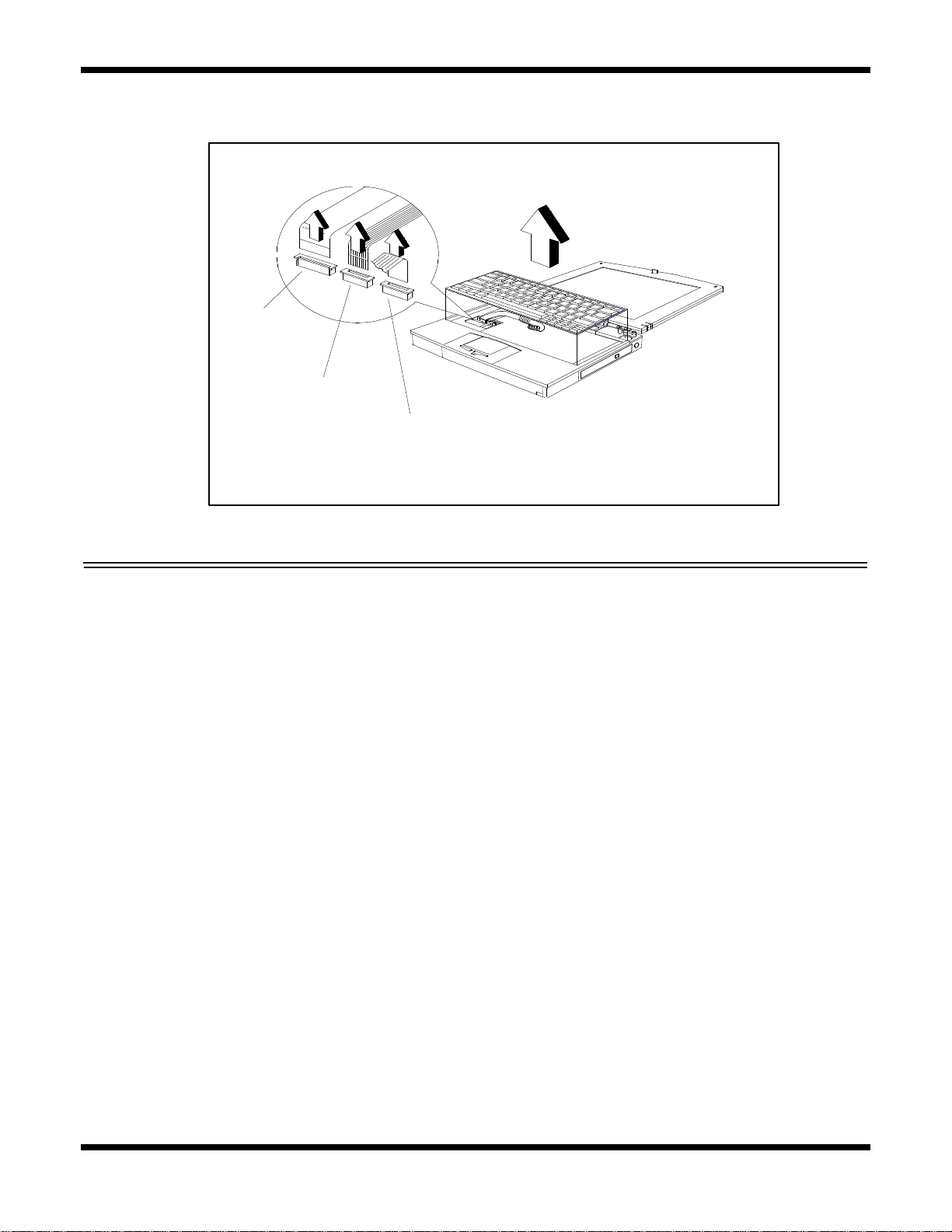

Figure 6-7 Removing/Replacing the Keyboard Assembly

5. Unplug the keyboard connectors J0102 and J0103 from the Keyboard

Transfer Board and remove the keyboard and keyboard transfer board from the notebook.

6. Install the replacement keyboard assembly by reversing Steps 1 through 5.

6.5.5 Removing/Replacing Expansion Memory

To remove and replace an expansion memory module (soDIMM), perform the following procedure:

1. Power down the notebook, disconnect the AC adapter, and any installed

battery packs.

2. Disconnect any peripheral device interface cables from the external interface

connectors and remove any installed PCMCIA options.

3. Turn the notebook over and locate the Expansion Memory Access Cover on

the bottom of the notebook.

4. Remove the screw holding the Expansion Memory Access Cover and remove

the cover.

5. To remove a memory module, first release the slot locks located on each side

of the Expansion Memory Connector to release the DIMM. Then pull the

6-10 Field Service

memory module out (refer to Figure 6-8).

6. To replace or install a DIMM module, first align the connector edge of the

memory module with the key in the connector. Insert the edge of the memory module board into the connector using a rocking motion to fully insert the module. Push downward on each side of the memory module until it snaps in place.

7. Reinstall the Expansion Memory Access Cover using the screw removed in

Step 4.

Removing Expansion Memory

Figure 6-8 Memory Expansion Removal/Replacement

NOTE: After installing expansion memory in your notebook, you must run the PHDISK utility in order for the Save-To-Disk or 0V Suspend functions to operate correctly (refer to the procedure in Section 2 of this manual).

Installing Expansion Memory

Field Service 6-11

6.5.6 Removing the Heat Sink Assembly

Use the following procedure to remove and replace the Heat Sink Assembly:

1. Remove the Keyboard Assembly as described in Paragraph 6.5.4.

2. Remove the two screws that secure the heat plate to the housing as shown

in Figure 6-9.

3. Replacement is the reverse of Steps 1 and 2.

Heat Sink Assembly

6-12 Field Service

Figure 6-9 Removing/Replacing the Heat Sink Assembly

6.5.7 Removing/Replacing the CPU Chip

The CPU chip is installed in a Zero Insertion Force type socket to facilitate removal and replacement. To remove the CPU, refer to Figure 6-10 and use the following procedure:

1. Power down the notebook, remove the battery packs, and disconnect the AC

Adapter, and remove the Heat Sink Assembly as described in Paragraph 6.5.7.

2. Refer to Figure 6-10. Insert a flat-blade screwdriver into the opening at the

left end of the socket labeled OPEN and push toward the other end of the socket.

3. Pull out the CPU and insert the replacement unit. Ensure that the CPU is

properly keyed before pressing it into the socket.

4. Insert a flat-bladed screwdriver into the opening at the right end of the socket

labeled LOCK and push toward the opposite end to lock the socket.

Flat Blade Screw driver

Step 1- Unlock the ZIF Connector

Step 2 Remove/insert

CPU

Step 3- Lock the ZIF Connector

Figure 6-10 Removing/Replacing the CPU Chip

Field Service 6-13

6.5.8 FDD/CD-ROM Drive Removal

Internal Drive Removal (FDD or CD- ROM Drive)

FDD/C D-ROM Drive Latch es

J20

J18

6.5.8.1 60x Series Drive

Use the following procedure to remove/replace the internal drive (either Floppy Disk Drive or CD-ROM Drive) from a 60x Series Notebook:

1. Remove the battery and AC adapter as described in Paragraph 6.5.1.

2. Remove the keyboard assembly as described in Paragraph 6.5.5.

3. Remove the Heat Sink Assembly as described in Paragraph 6.5.10.

4. Refer to Figure 6-14 and unplug the two internal drive cables, J18 and J20.

5. Remove the FDD/CD-ROM Module Latches as shown in Figure 6-11 and pull

out the internal drive (store in an anti-static bag for ESD protection).

6. Reassembly is the reverse of Steps 1 through 5.

Figure 6-11 Removing/Replacing Internal Drive (FDD or CD-ROM) (60x Series)

6-14 Field Service

6.5.8.2 Removing/Replacing 65x Series Module

1. Remove the battery and AC adapter as described in Paragraph 6.5.1.

2. Unlatch the module by pushing the Module Lock (Figure 6-12 ) toward the

unlock icon.

3. Grasp the recessed grip area on the module and pull the module straight out.

4. Reinstall the module by reversing Step 3.

Module Lock

Grip Area

Figure 6-12 Removing/Replacing a 65x Series Module

Field Service 6-15

6.5.9 Removing/Replacing the Display Assembly

Remove the two screws holding the display cable to the motherboard

Use the following procedure to remove/replace the display assembly:

1. Remove the battery and AC adapter as described in Paragraph 6.5.1.

2. Refer to Figure 6-13 and remove the two screws that secure the display cable

to the Motherboard assembly. Then unplug display cable J19

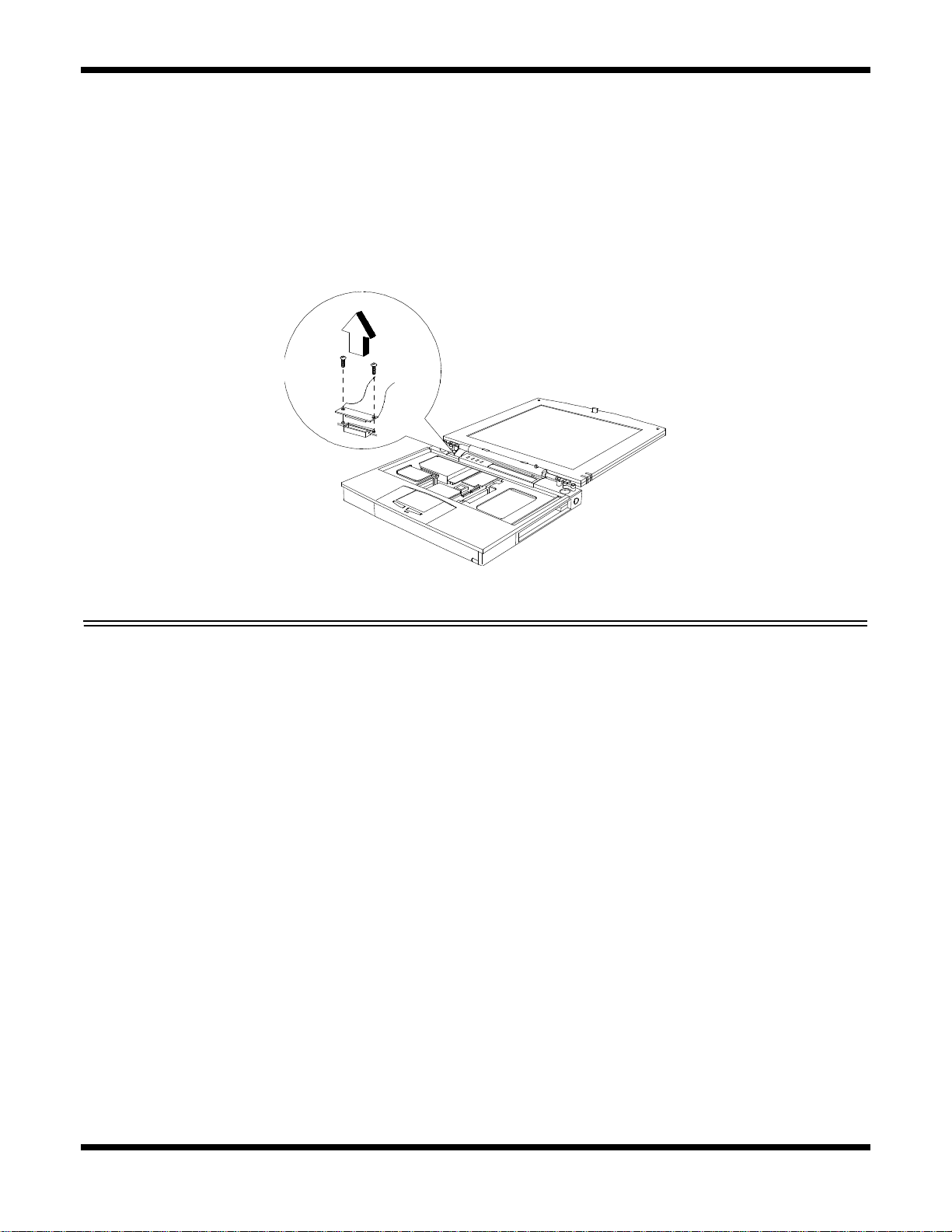

Figure 6-13 Unplugging the Display Cable

3. Remove the four display hinge screws (Figure 6-14) and separate the Display

Assembly from the Base Assembly.

6-16 Field Service

Texas Instruments 60X User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Preface

Preface vii

Contents

General Description

Installation

Operating Instructions

Theory of Operation

Troubleshooting Procedures

Field Service
