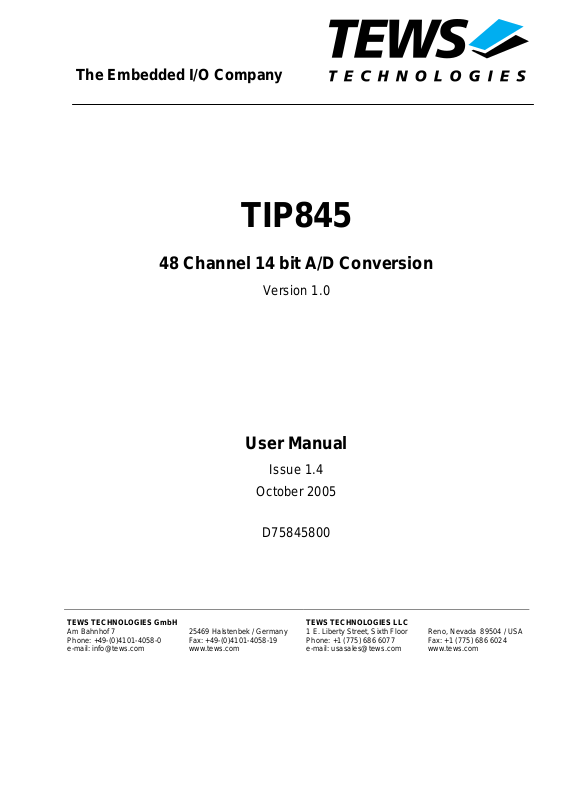

The Embedded I/O Company
TIP845
48 Channel 14 bit A/D Conversion
Version 1.0
User Manual
Issue 1.4
October 2005
D75845800
TEWS TECHNOLOGIES GmbH
Am Bahnhof 7 25469 Halstenbek / Germany
Phone: +49-(0)4101-4058-0 Fax: +49-(0)4101-4058-19
e-mail: info@tews.com www.tews.com
TEWS TECHNOLOGIES LLC
1 E. Liberty Street, Sixth Floor Reno, Nevada 89504 / USA
Phone: +1 (775) 686 6077 Fax: +1 (775) 686 6024
e-mail: usasales@tews.com www.tews.com
TIP845-10
48 Channel 14 bit A/D Conversion
This document contains information, which is
proprietary to TEWS TECHNOLOGIES GmbH. Any
reproduction without written permission is forbidden.
TEWS TECHNOLOGIES GmbH has made any
effort to ensure that this manual is accurate and
complete. However TEWS TECHNOLOGIES GmbH
reserves the right to change the product described
in this document at any time without notice.
TEWS TECHNOLOGIES GmbH is not liable for any
damage arising out of the application or use of the
device described herein.
Style Conventions
Hexadecimal characters are specified with prefix 0x,
i.e. 0x029E (that means hexadecimal value 029E).
For signals on hardware products, an ‚Active Low’ is
represented by the signal name with # following, i.e.
IP_RESET#.
Access terms are described as:
W Write Only
R Read Only
R/W Read/Write
R/C Read/Clear
R/S Read/Set
2003-2005 by TEWS TECHNOLOGIES GmbH
Issue Description Date
1.0 Initial Issue November 2003
1.1 Changed ADC correction formula, corrected typos April 2004
1.2 Added Programming Note and Installation Note October 2004
1.3 Updated Technical Specification June 2005
1.4 Summarization of Important Notes October 2005
TIP845 User Manual Issue 1.4 Page 2 of 32
Table of Contents
1 PRODUCT DESCRIPTION.........................................................................................5
2 TECHNICAL SPECIFICATION...................................................................................6
3 FUNCTIONAL DESCRIPTION ...................................................................................7
3.1 Data Correction ...............................................................................................................................7
3.1.1 ADC Correction Formula......................................................................................................8
4 ID PROM CONTENTS................................................................................................ 9
5 IP ADDRESSING......................................................................................................10
5.1 I/O Addressing...............................................................................................................................10
ADC Register Set..................................................................................................................................11
5.1.1 ADC Control Register CONTREG (Address 0x00) ............................................................11
5.1.2 ADC Data Register DATAREG (Address 0x02).................................................................13
5.1.3 ADC Status Register STATREG (Address 0x05)...............................................................14
5.1.4 ADC Conversion Start Register (Address 0x07)................................................................14
5.2 Sequencer Register Set................................................................................................................15
5.2.1 Sequencer Control Register SEQCONT (Address 0x0B)..................................................15
5.2.2 Sequencer Status Register SEQSTAT (Address 0x0D).....................................................16
5.2.3 Sequencer Timer Register SEQTIMER (Address 0x0E)....................................................17
5.2.4 Sequencer Instruction RAM (Address 0x21…0x4F) ..........................................................17
5.3 Additional Registers.....................................................................................................................20
5.3.1 Interrupt Status Register INTSTAT (Address 0x09)...........................................................20
5.3.2 Interrupt Vector Register IVEC (Address 0x11) .................................................................20
5.4 Memory Addressing......................................................................................................................20
5.4.1 Sequencer Data RAM SDRAM0-47 (Offset 0x00 to 0x5E)................................................21
6 OPERATING MODES...............................................................................................22
6.1 Manual Mode .................................................................................................................................22
6.2 Sequencer Mode ...........................................................................................................................23
6.2.1 Sequencer Errors................................................................................................................24
6.3 Application Examples...................................................................................................................25
6.3.1 Fastest Conversion of an Arbitrary Single Channel ...........................................................25
6.3.2 Fastest Conversion of a Specific Single Channel ..............................................................25
6.3.3 Periodic Conversion of Multiple Channels..........................................................................28
6.3.4 Continuous Conversion of Multiple Channels ....................................................................29
7 PIN ASSIGNMENT – I/O CONNECTOR ..................................................................30
8 IMPORTANT NOTES ...............................................................................................32
8.1 Dummy Conversions after Power-up..........................................................................................32
8.2 Open Multiplexer Inputs...............................................................................................................32
TIP845 User Manual Issue 1.4 Page 3 of 32
Table of Figures
FIGURE 1-1 : BLOCK DIAGRAM......................................................................................................................5
FIGURE 2-1 : TECHNICAL SPECIFICATION...................................................................................................6
FIGURE 4-1 : ID PROM CONTENTS ...............................................................................................................9
FIGURE 5-1 : REGISTER SET .......................................................................................................................10
FIGURE 5-2 : ADC CONTROL REGISTER....................................................................................................12
FIGURE 5-3 : ADC DATA REGISTER............................................................................................................13
FIGURE 5-4 : ADC DATA CODING................................................................................................................13
FIGURE 5-5 : ADC STATUS REGISTER .......................................................................................................14
FIGURE 5-6 : SEQUENCER CONTROL REGISTER.....................................................................................15
FIGURE 5-7 : SEQUENCER STATUS REGISTER........................................................................................16
FIGURE 5-8 : SEQUENCER INSTRUCTION RAM ADDRESSING...............................................................17
FIGURE 5-9 : SEQUENCER INSTRUCTION BYTE BREAKDOWN..............................................................17
FIGURE 5-10: SEQUENCER INSTRUCTION RAM.......................................................................................19
FIGURE 5-11: INTERRUPT STATUS REGISTER.........................................................................................20
FIGURE 5-12: INTERRUPT VECTOR REGISTER ........................................................................................20
FIGURE 5-13: SEQUENCER DATA RAM......................................................................................................21
FIGURE 5-14: SEQUENCER DATA RAM LOCATIONS................................................................................21
FIGURE 6-1 : SEQUENCER ERRORS ..........................................................................................................24
FIGURE 6-2 : FLOW OF FASTEST CONVERSION OF AN ARBITRARY SINGLE CHANNEL....................25
FIGURE 6-3 : FLOW OF FASTEST CONVERSION OF A SPECIFIC SINGLE CHANNEL...........................27
FIGURE 6-4 : FLOW OF PERIODIC CONVERSION OF MULTIPLE CHANNELS........................................28
FIGURE 6-5 : FLOW OF CONTINUOUS CONVERSION OF MULTIPLE CHANNELS.................................29
FIGURE 7-1 : PIN ASSIGNMENT I/O CONNECTOR.....................................................................................31
TIP845 User Manual Issue 1.4 Page 4 of 32
1 Product Description
The TIP845 is an IndustryPack® compatible module providing 48 single-ended or 24 differential ADC
input channels. The data acquisition and conversion time is up to 2.5µs without channel / gain change
and up to 10.5µs with channel / gain change. The resolution is 14 bit.
The input multiplexer of the A/D circuit offers analog overvoltage protection of up to 70Vpp. A
programmable gain amplifier allows gains of 1, 2, 4 or 8 resulting in input voltage ranges of +/-10V, +/5V, +/-2.5V or +/-1.25V.
Additionally the TIP845 provides a sequencer to control the analog inputs without wasting CPU time.
Each of the A/D channels can be independently enabled and configured by a sequencer instruction
RAM. After the last instruction of a programmed sequence has completed, the ADC data of all enabled
channels are stored in the data RAM. The repeat frequency of the sequencer can be programmed by
using the sequence timer. The sequence timer is programmable from 100µs to 6.5535s in steps of
100µs. The sequencer starts a new sequence whenever the timer reaches the programmed value. A
special function is the sequencer continuous mode. It is activated by setting the Sequence Timer
Register to ‘0’. In this mode the sequencer will start again with the first instruction of the sequence as
soon as the last instruction of the previous sequence has been completed.
An interrupt can be generated at end-of-settling, end-of-conversion or end-of-sequencer cycle
supporting an 8 bit vector.
Each TIP845 is factory calibrated. The calibration information is stored in the Identification-PROM
unique to each IP.
Figure 1-1 : Block Diagram
TIP845 User Manual Issue 1.4 Page 5 of 32
2 Technical Specification
IP Interface
Interface
ID ROM Data
I/O Space
Memory Space
Interrupts
DMA
Clock Rate
Module Type
I/O Interface
Number of Analog Inputs
Input Gain Amplifier
Input Voltage Range
Input Overvoltage
Protection
Calibration Data
Conversion Time
ADC Resolution
ADC INL/DNL Error
Interface Connector
Power Requirements
Single Size IndustryPack Logic Interface compliant to
ANSI/VITA 4-1995
Format I
1 wait state
Used with no wait states
Used with 1 wait state
Int0 used / Int1 not used
Not supported
8 MHz
Type I
48 single-ended or 24 differential channels
Programmable for gain 1, 2, 4 and 8
±10V for gain = 1
±5V for gain = 2
±2.5V for gain = 4
±1.25V for gain = 8
70Vpp
Calibration data for gain and offset correction in ID PROM
2.5µs without channel/gain change
10.5µs with channel/gain change
8µs in sequencer mode
14 bit with no missing codes
±2/±1 LSB
50-conductor flat cable
140mA typical @ +5V DC
Physical Data
Temperature Range
MTBF
Humidity
Weight
TIP845 User Manual Issue 1.4 Page 6 of 32
Operating
Storage
738000 h
5 – 95 % non-condensing
31 g
Figure 2-1 : Technical Specification
-40°C to +85 °C
-40°C to +125°C
3 Functional Description
The TIP845-10 provides 48 single-ended or 24 differential multiplexed analog inputs. The desired
input channel and the mode (single-ended or differential) are selected by programming the input
multiplexer.
A software programmable gain amplifier with gain settings of 1, 2, 4 and 8 allows a direct connection
of a wide range of sensors and instrumentation. The maximum analog input voltage range is ±10V at a
gain of 1.
Because the TIP845 is a multiplexed analog input system, a settling time is required to pass after
changing the input channel and / or gain. The TIP845 provides a status bit for polling the settling time
status. An Automatic Settling Time Control Mode is also provided. In this mode, data conversion is
automatically started after the settling time has elapsed.
The absolute accuracy of the module can be increased by performing a data correction in software,
using the factory calibration factors stored in the on board ID PROM.
3.1 Data Correction
There are two errors which affect the DC accuracy of the ADC.
• ADC Offset Error:
The Offset Error is the data value if converting with the connected input to its own ground in
single-ended mode, or with shorted inputs in differential mode. This error is corrected by
subtracting the known error from the Readings.
• ADC Gain Error:
The Gain Error is the difference between the ideal gain and the actual gain of the programmable
gain amplifier and the ADC. It is corrected by multiplying the Reading with a correction factor.
The data correction values are obtained during factory calibration and are stored in the modules
individual version of the ID PROM. The ADC has a pair of offset and gain correction values for each of
the programmable gains. The offset and gain error values are the same for all channel 1-48.
TIP845 User Manual Issue 1.4 Page 7 of 32
3.1.1 ADC Correction Formula
Please use the total 16 bit data register value for the ADC correction formula.
The basic formula for correcting any ADC reading for the TIP845-10 (bipolar input voltage range) is:
Gain
Value = Reading
Value is the corrected result.
Reading is the data read from the ADC Data Register.
Gain
The correction values are stored as two’s complement 8 bit values in the range -128 to 127. For higher
accuracy they are scaled to ¼ LSB.
Floating point arithmetic or scaled integer arithmetic is necessary to avoid rounding error
while computing above formula.
and Offset
corr
−⋅
1
32768
are the correction factors from the ID PROM stored for each gain factor.
corr
corr
Offset
−
corr
TIP845 User Manual Issue 1.4 Page 8 of 32
4 ID PROM Contents
Address Function Contents
0x01
0x03
0x05
0x07
0x09
0x0B
0x0D
0x0F
0x11
0x13
0x15
0x17
0x19
0x1B
0x1D
0x1F
0x21
0x23
0x25
0x27
0x29…0x3F
ASCII ‘I’
ASCII ‘P’
ASCII ‘A’
ASCII ‘C’
Manufacturer ID
Model Number
Revision
Reserved
Driver-ID Low - Byte
Driver-ID High - Byte
Number of bytes used
CRC
Offset Error Gain 1
Offset Error Gain 2
Offset Error Gain 4
Offset Error Gain 8
Gain Error Gain 1
Gain Error Gain 2
Gain Error Gain 4
Gain Error Gain 8
Not used
0x49
0x50
0x41
0x43
0xB3
0x39
0x10
0x00
0x00
0x00
0x14
variable
Board dependent
Board dependent
Board dependent
Board dependent
Board dependent
Board dependent
Board dependent
Board dependent
Figure 4-1 : ID PROM Contents
The ID PROM data is available 200 µs after reset.
TIP845 User Manual Issue 1.4 Page 9 of 32
5 IP Addressing
5.1 I/O Addressing
The TIP845 is controlled by a set of registers which are directly accessible in the I/O space of the IP
module.
Address Symbol Description Size (Bit) Access
0x00 CONTREG ADC Control Register 16 R/W
0x02 DATAREG ADC Data Register 16 R
0x05 STATREG ADC Status Register 8 R
0x07 CONVERT ADC Conversion Start Register 8 W
0x09 INTSTAT Input Interrupt Status Register 8 R/W
0x0B SEQCONT Sequencer Control Register 8 R/W
0x0D SEQSTAT Sequencer Status Register 8 R/W
0x0E SEQTIMER Sequencer Timer Register 16 R/W
0x11 IVEC Interrupt Vector Register 8 R/W
0x12.. 0x20 - Reserved, do not write - 0x21.. 0x4F SIRAM1-24 Sequencer Instruction RAM 24 x byte R/W
Figure 5-1 : Register Set
TIP845 User Manual Issue 1.4 Page 10 of 32
ADC Register Set
5.1.1 ADC Control Register CONTREG (Address 0x00)
Bit Symbol Description Access
15:12 -
Reserved
R 0
Write: don't care
Read: always reads as '0'
11 IRQC
IRQ after Conversion
R/W 0
0 = No interrupt generation after finished conversion
1 = Interrupt generation after finished conversion
10 IRQST
IRQ after Settling Time
R/W 0
0 = No interrupt generation after settling time has
elapsed
1 = Interrupt generation after settling time has elapsed
9 ASTC
Automatic Settling Time Control
R/W 0
0 = OFF (Normal Mode)
A conversion must be initiated manually in the
CONVERT register
1 = ON (Automatic Mode)
A conversion is automatically initiated after the
settling time has elapsed.
The settling time for the TIP845 is appr. 8µs
8:7 GAIN[1:0]
Gain Selection (Analog Input Amplifier)
R/W 00
GAIN1 GAIN0 Gain Factor Input Voltage Range
0 0 1 ±10V
0 1 2 ±5V
1 0 4 ±2.5V
1 1 8 ±1.25V
Reset
Value
6 SE/DIFF
Single/Differential Mode Control
R/W 0
0 = Single-ended mode
48 single-ended input channels available
1 = Differential mode
24 differential input channels available
Mixed modes are possible
TIP845 User Manual Issue 1.4 Page 11 of 32
Bit Symbol Description Access
5:0 CS[5:0]
Channel Select (Analog Input Channel)
R/W 0x3F
Reset
Value
CS[5:0]
000000 CH1 CH1
… … …
010111 CH24 CH24
011000 CH25 N/A
… … …
101111 CH48 N/A
110000 N/A N/A
… … …
111111 N/A N/A
Single-ended
Channel
SE/DIFF = 0
Differential
Channel
SE/DIFF = 1
‘N/A’ = ADC Input connected to GND
Figure 5-2 : ADC Control Register
A write to this register sets the new channel and gain. Subsequent write accesses are ignored
until the settling time has elapsed. To change both channel and gain, or to archive a full
channel setup, a word access is recommended.
TIP845 User Manual Issue 1.4 Page 12 of 32
5.1.2 ADC Data Register DATAREG (Address 0x02)
The ADC Data Register contains the converted data value. Output coding is two’s complement binary
(1 LSB = FSR/16384 = 1.22 mV for the ±10 V range). This 14 bit ADC value is shifted to the higher
bits of the register by hardware. This allows direct processing of the data as a 16 bit two's complement
integer value.
Bit Symbol Description Access
15:2
Stores the converted 14 bit data value, shifted by
R 0
hardware to the higher bits
1:0
Always read as '0'
R 0
Figure 5-3 : ADC Data Register
Description Shifted ADC Data Value
Full Scale (pos.) 0x7FFC
… …
Midscale + 1 LSB 0x0004
Midscale 0x0000
Midscale – 1 LSB 0xFFFC
… …
Full Scale (neg.) 0x8000
Figure 5-4 : ADC Data Coding
Reset
Value
TIP845 User Manual Issue 1.4 Page 13 of 32
5.1.3 ADC Status Register STATREG (Address 0x05)
Bit Symbol Description Access
7:2 -
Reserved
R 000000
Read: always read as '0'
1
SETTL
BUSY
SETTL_BUSY
Indicates that the required settling time after a write to
R 0
the CONTREG register is not yet done.
If Automatic Settling Time Mode is OFF, this bit is set by
writing to the CONTREG register. The bit is cleared if
the required settling time has elapsed.
This bit must be read as '0' before a conversion is
started by a write to the CONVERT register.
The settling time for the TIP845 is appr. 8µs
0
ADC
BUSY
ADC_BUSY
Indicates if an actual data conversion is in progress.
R 0
If Automatic Settling Time Mode is OFF, this bit is set by
writing to the CONVERT register.
If Automatic Settling Time Mode is ON, this bit is set
automatically after the settling time has elapsed.
This bit must be read as '0' before the conversion data
is read from the DATAREG register.
Figure 5-5 : ADC Status Register
Reset
Value
5.1.4 ADC Conversion Start Register (Address 0x07)
The ADC Conversion Start Register CONVERT is an 8 bit wide write only register. The ADC
Conversion Start Register is used to start an ADC conversion if Automatic Settling Time Mode is OFF.
The user must read the SETTL_BUSY bit in the ADC Status Register as '0' before the conversion is
started. The ADC_BUSY bit in the ADC Status Register indicates if the conversion data in the ADC
Data Register is valid (ADC_BUSY bit = '0').
It is allowed to set up a new channel/gain by writing to the ADC Control Register CONTREG
immediately after starting an ADC conversion.
If Sequencer Mode is selected (SEQCONT Register bit 0 is set to ‘1’) a write access to the ADC
Conversion Start Register is ignored.
Please pay attention to the chapter “Important Notes”.
TIP845 User Manual Issue 1.4 Page 14 of 32
5.2 Sequencer Register Set
5.2.1 Sequencer Control Register SEQCONT (Address 0x0B)
Bit Symbol Description Access
7:2 -
Reserved
R 0
Reset
Value
Write: don't care
Read: always reads as '0'
1
SEQ
INT
ENA
Sequencer Interrupt Enable Control
0 = Sequencer interrupt disabled
1 = Sequencer interrupt enabled
R/W 0
An interrupt request will be generated if any bit is set
in the SEQSTAT register (sequencer data valid or
sequencer error).
0
SEQ
ON
Sequencer Start / Stop Control
0 = Stops the sequencer after the last instruction
R/W 0
1 = Starts the sequencer immediately
Figure 5-6 : Sequencer Control Register
If an error flag is set in the Sequencer Status Register SEQSTAT, the sequencer will be stopped
after the last instruction (SEQ_ON will be set to '0'). The user must clear the status bits and
start the sequencer again.
Please pay attention to the chapter “Important Notes” before using the sequencer.
TIP845 User Manual Issue 1.4 Page 15 of 32
5.2.2 Sequencer Status Register SEQSTAT (Address 0x0D)
Bit Symbol Description Access
7:4
- Reserved
R 0
Write: don't care
Read: always reads as '0'
3
I-RAM
ERROR
Instruction RAM Error Flag
Set by the sequencer if the sequencer has been started
and there is no correct instruction in the Instruction RAM.
R/W 0
To clear this flag the user must write ‘1’ to this bit.
2
TIMER
ERROR
Time Error Flag
Set by the sequencer if the sequencer timer has elapsed
but the actual sequence is still in progress.
R/W 0
To clear the Timer Error Flag the user must write ‘1’ to
this bit.
If the Sequencer Timer Register is 0 (Sequencer
Continuous Mode) the Timer Error Flag always read as
‘0’.
1
DATA
OF
ERROR
Data Overflow Error Flag
Set by the sequencer if the last sequencer instruction is
done and the Data Available Flag of the previous
sequence has not yet been cleared by the user.
R/W 0
To clear the error flag the user must write ‘1’ to this bit.
If the Sequencer Timer Register is 0 (Sequencer
Continuous Mode) the Data Overflow Error Flag always
read as ‘0’.
0
DATA
AV
Data Available Flag
Set if a sequence is done and new ADC Data is
available in the ADC Data RAM.
R/W 0
After reading the ADC Data RAM the user must clear the
Data Available Flag by writing ‘1’ to this bit.
Reset
Value
Figure 5-7 : Sequencer Status Register
As long as any of the bits [3:1] (error flags) of the Sequencer Status Register SEQSTAT is read
as ‘1’, the sequencer will be stopped after the last instruction (SEQ_ON will be set to '0'). The
user must clear the status bit and start the sequencer again.
TIP845 User Manual Issue 1.4 Page 16 of 32
5.2.3 Sequencer Timer Register SEQTIMER (Address 0x0E)
The Sequencer Timer Register SEQTIMER is a 16 bit wide read/write register.
The Sequence Timer is programmable from 100µs to 6.5535s in 100µs steps.
Whenever the timer reaches the programmed value the sequencer starts a new sequence with the
first instruction found in the instruction RAM.
Assure that the needed time to complete a sequence is suitable to the chosen sequence timer value. If
the sequence timer elapses while a sequence is still in progress, a timer error will be asserted.
If the Sequencer Timer Register is set to ‘0’, the Sequencer Continuous Mode is selected. The
sequencer will start again with the first instruction of the sequence immediately after the last
instruction of the previous sequence has been completed.
5.2.4 Sequencer Instruction RAM (Address 0x21…0x4F)
The Sequencer Instruction RAM is a 24 x 8 bit wide RAM which is accessible in the I/O space.
In each sequencer instruction byte configures either one differential ADC channel or two single-ended
ADC channels.
The following table shows which sequencer instruction byte is allocated to which channels:
SIRAM
Address
0x21 1 1 2 0x39 13 25 26
0x23 2 3 4 0x3B 14 27 28
0x25 3 5 6 0x3D 15 29 30
0x27 4 7 8 0x3F 16 31 32
0x29 5 9 10 0x41 17 33 34
0x2B 6 11 12 0x43 18 35 36
0x2D 7 13 14 0x45 19 37 38
0x2F 8 15 16 0x47 20 39 40
0x31 9 17 18 0x49 21 41 42
0x33 10 19 20 0x4B 22 43 44
0x35 11 21 22 0x4D 23 45 46
0x37 12 23 24 0x4F 24 47 48
Each sequencer instruction byte is subdivided into following parts:
Sequencer Instruction Byte Bits [6:4] Bits [3:0]
Differential configuration Ignored Differential Channel
Single-ended configuration
Diff.
Channel
Figure 5-8 : Sequencer Instruction RAM addressing
SE Channels
A B
Single-Ended Channel
B
SIRAM
Address
Diff.
Channel
Single-Ended Channel A
SE Channels
A B
Figure 5-9 : Sequencer Instruction Byte breakdown
TIP845 User Manual Issue 1.4 Page 17 of 32
Examples:
To configure single-ended channel 3 to gain 2 and single-ended channel 4 to gain 1 write 0x16 to
SIRAM address 0x23.
To configure channel 3 as differential channel with gain 4, write 0x0B to SIRAM address 0x23. By
configuration Channel 4 is not available and any settings for channel 27 are ignored.
Bit Symbol Description Access
7 - Reserved
Write: don't care
Read: always reads as '0'
6:5 GAIN[1:0]
4 ENA
3:2 GAIN[1:0]
1 ENA
Single-Ended Channel B:
Gain Selection (Analog Input Amplifier)
GAIN1 GAIN0
0 0 1 ±10V
0 1 2 ±5V
1 0 4 ±2.5V
1 1 8 ±1.25V
If SE/DIFF = '1', this bits are ignored.
Single-Ended Channel B:
Enable the ADC Channel for the sequencer
0 = Sequencer will pass over the ADC Channel
1 = Sequencer converts the ADC Channel and
updates the ADC Data in the Sequencer Data
RAM at the end of the sequence.
If SE/DIFF = '1', this bit is ignored.
Single-Ended Channel A / Differential Channel:
Gain Selection (Analog Input Amplifier)
GAIN1 GAIN0
0 0 1 ±10V
0 1 2 ±5V
1 0 4 ±2.5V
1 1 8 ±1.25V
Single-Ended Channel A / Differential Channel:
Enable the ADC Channel for the sequencer
0 = Sequencer will pass over the ADC Channel
1 = Sequencer converts the ADC Channel and
updates the ADC Data in the Sequencer Data
RAM at the end of the sequence.
If SE/DIFF = '1', this bit enables the differential
channel. Example: If only channel 1, channel 2 and
channel 8 are enabled, only the three ADC RAM
locations for channel 1, channel 2 and channel 8 are
updated at the end of the sequence.
The user must only read these three ADC RAM
locations then.
Gain
Factor
Gain
Factor
Input Voltage
Range
Input Voltage
Range
R 0
R/W 00
R/W 0
R/W 00
R/W 0
Power-up
Value
TIP845 User Manual Issue 1.4 Page 18 of 32
Bit Symbol Description Access
0 SE/DIFF Single/Differential Mode Control
0 = Single-ended mode
48 single-ended channels available
1 = Differential mode
24 differential channels 1 to 24 available
Mixed mode is possible. E.g. channel 1 to channel 8
selected as differential inputs (equivalent to singleended inputs 1-16), and channel 17 to channel 48 as
single-ended input channels.
R/W 0
Power-up
Value
Figure 5-10: Sequencer Instruction RAM
The Sequencer Instruction RAM is not cleared by a reset. Be sure to set up the entire
Sequencer Instruction RAM if it is used after a reset.
TIP845 User Manual Issue 1.4 Page 19 of 32
5.3 Additional Registers
5.3.1 Interrupt Status Register INTSTAT (Address 0x09)
Bit Symbol Description Access
7:3 -
2
1
0
SEQ
READY
SETTL
READY
ADC
READY
Reserved
Write: don't care
Read: always reads as '0'
Sequencer Interrupt Pending Flag (bit is controlled by the
sequencer logic)
If sequencer interrupts are enabled (SEQCONT register
bit 1 set to '1’) and a sequencer interrupt is pending (any
of the SEQSTAT register bits [3:0] is ‘1’) the sequencer
interrupt pending flag is read as ‘1’.
The interrupt is cleared by writing ’1’ to the
corresponding status bits in the SEQSTAT register.
SETTL_READY Interrupt Flag (bit is controlled by the
settling time controller)
If interrupts are enabled (CONTREG register bit 10 is set
to ‘1’) and Automatic Settling Time Mode is OFF
(CONTREG register bit 8 is set to ‘0’) this interrupt is
generated, if the settling time is expired.
The interrupt is cleared by writing ’1’ to this bit.
ADC_READY Interrupt Flag (bit is controlled by the ADC
controller)
If interrupts are enabled (CONTREG register bit 11 is set
to ‘1’) this interrupt is generated, if a data conversion is
done.
The interrupt is cleared by writing ’1’ to this bit.
R 0
R/W 0
R/W 0
R/W 0
Reset
Value
Figure 5-11: Interrupt Status Register
5.3.2 Interrupt Vector Register IVEC (Address 0x11)
Bit Symbol Description Access
7:0 IVEC
Interrupt Vector
Figure 5-12: Interrupt Vector Register
R/W 0
Reset
Value
5.4 Memory Addressing
In Sequencer Mode the converted ADC data is accessible in the IP Memory Space.
TIP845 User Manual Issue 1.4 Page 20 of 32
5.4.1 Sequencer Data RAM SDRAM0-47 (Offset 0x00 to 0x5E)
The Sequencer Data RAM is a 48 x 16 bit wide RAM storing the converted data values.
Address Symbol Description Size (Bit) Access
0x00…
0x5E
Each channel has its own ADC Data location.
Address Symbol Description Size (Bit) Access
0x00 SDRAM1 Differential Channel 1 /
0x02 SDRAM2 Single-En ded Channel 2 16 R
0x04 SDRAM3 Differential Channel 2 /
0x06 SDRAM4 Single-En ded Channel 4 16 R
…
0x2C SDRAM23 Differential Channel 12 /
0x2E SDRAM24 Single-Ended Channel 24 16 R
0x30 SDRAM25 Differential Channel 13 /
0x32 SDRAM26 Single-Ended Channel 26 16 R
…
0x58 SDRAM45 Differential Channel 23 /
0x5A SDRAM46 Single-Ended Channel 46 16 R
0x5C SDRAM47 Differential Channel 24 /
0x5E SDRAM48 Single-Ended Channel 48 16 R
SDRAM148
…
…
Sequencer Data RAM 48 x 16 R
Figure 5-13: Sequencer Data RAM
16 R
Single-Ended Channel 1
16 R
Single-Ended Channel 3
…
Single-Ended Channel 23
Single-Ended Channel 25
…
Single-Ended Channel 45
Single-Ended Channel 47
…
16 R
16 R
…
16 R
16 R
…
…
Figure 5-14: Sequencer Data RAM locations
Note that only enabled channels in the Sequencer Instruction RAM are updated. Channels that
are not enabled in the Sequencer Instruction RAM are not updated and may contain invalid
data from former conversions.
The Sequencer Data RAM is not cleared by a reset and may contain invalid data from former
conversions.
Word accesses are recommended to read this registers.
TIP845 User Manual Issue 1.4 Page 21 of 32
6 Operating Modes
There are two modes of operation: the Manual Mode, with little or none support through automation, and the Sequencer Mode, with large support through automation.
• Manual Mode
In this mode, the converter operation relies on the user. The channel and gain are set by the
user, and the user has large influence on the converter operation.
Use this mode to convert specific channels and to control conversion timing or to read a
channel repeatedly without the need to await the settling time.
• Sequencer Mode
In this mode almost everything is automated and the converter operation is transparent to the
user.
Use this mode to convert all channels at specific time intervals, or to have always current data
available.
6.1 Manual Mode
The Manual Mode is useful, if direct control of converter operation is needed. Setup the desired
channel and gain by writing to the CONTREG register. If the Automatic Settling Time Control is
deactivated, the user has to wait until the ADC_SETTL flag reads '0'. Then the conversion can be
started by writing to the CONVERT register. If the Automatic Settling Time Control is activated, the
conversion starts automatically after the settling time has elapsed.
It is possible to select the next channel and/or gain by writing to the CONTREG register immediately
after the write to the CONVERT register. Then the conversion and the settling time will proceed
simultaneously.
The conversion data is available in the DATAREG register if the ADC_BUSY flag in the STATREG
register reads as '0'.
If interrupts are enabled, two interrupts will be generated: the first interrupt is generated if the settling
time has elapsed (and the Automatic Settling Time Control is deactivated); the second interrupt is
generated if the conversion has finished. Using the interrupts exempts from polling the ADC_SETTL
and ADC_BUSY flags.
Without Automatic Settling Time Control:
! Setup the conversion in the ADC Control Register
! Poll for SETTL_BUSY flag
! After settling time has elapsed, write to the CONVERT register to start conversion
! Poll for ADC_BUSY flag
! After conversion time has elapsed, read conversion data in the ADC Data Register
TIP845 User Manual Issue 1.4 Page 22 of 32
With Automatic Settling Time Control:
! Setup the conversion in the ADC Control Register
! Poll for SETTL_BUSY flag
! Poll for ADC_BUSY flag
! After conversion time has elapsed, read conversion data in the ADC Data Register
6.2 Sequencer Mode
The Sequencer Mode is very useful for periodic measurements or to always provide actual conversion data. The sequencer converts all enabled ADC channels and stores the results in the Sequencer Data RAM. After a programmable time the sequencer repeats the sequence.
To use the sequencer, all channels must be configured for the sequence in the Sequencer Instruction
RAM. In the Sequencer Instruction RAM the channels are enabled for the sequence, and the gain and
the mode (single-ended or differential) are selected.
Once the sequencer is started, all enabled channels are converted and the results are stored in the
Sequencer Data RAM. If the last sequencer instruction has been completed, the Data Available Flag
DATA_AV in the Sequencer Status Register (SEQSTAT) is set to '1' and, if enabled, an interrupt
request will be asserted. The user can now read the ADC data from the Sequencer Data RAM.
Afterwards the DATA_AV flag must be cleared by writing a '1' to the Sequencer Status Register
SEQSTAT bit 0.
Only the enabled channels are updated; not enabled channels in the Sequencer Instruction
RAM are not updated and may contain invalid data from former conversions.
The repeat frequency of the sequencer can be programmed in the Sequencer Timer Register. The
Sequencer Timer is programmable from 100µs to 6.5535s in steps of 100µs. Whenever the timer
reaches the programmed value the sequencer starts a new sequence.
A special function is the Sequencer Continuous Mode. It is activated if the Sequencer Timer Register
is set to 0x0000. In this mode the sequencer immediately starts a new sequence if the actual
sequence has been completed. If the sequencer is in Sequencer Continuous Mode, the user can read
valid data from the Sequencer Data RAM at any time. The Sequencer Data RAM locations of the
enabled ADC channels are updated with every sequence.
If the Sequencer Continuous Mode is active, the Data Overflow Error Flag DATA_OF_ERROR is
deactivated and always reads as '0'. Clearing the Data Available Flag DATA_AV is not necessary in
the Sequencer Continuous Mode, but it is recommended to monitor the completion of the sequences.
The update rate depends on the number of enabled channels:
Update Rate = 8µs · number of enabled channels
TIP845 User Manual Issue 1.4 Page 23 of 32
6.2.1 Sequencer Errors
If the sequencer detects an error, it will stop after the last instruction and sets the corresponding error
flag in the Sequencer Status Register SEQSTAT.
Error Description Sequencer Action User Action
Data Overflow
Error
Timer Error
Error occurs if the
sequencer has new
data to store but the
user has not yet
acknowledged that the
data from the previous
sequence has been
read out.
(Sequencer Timer Mode
only)
Error occurs if the
programmed sequencer
time is shorter than the
sequence itself.
(Sequencer Timer Mode
only)
Sequencer stops after the
last instruction is done.
Data Overflow Error Flag is
set.
If it is enabled, an interrupt
request will be asserted.
Sequencer stops after the
last instruction is done.
Timer Error Flag is set.
If it is enabled, an interrupt
request will be asserted.
Write a ‘1’ to the Sequencer
Status Register bit 1.
Make sure the Sequencer
Data is read and
acknowledged within the
programmed sequence
time.
Start sequencer again.
Write a ‘1’ to the Sequencer
Status Register bit 2.
Program a longer sequence
time.
Start sequencer again.
Instruction
RAM Error
If the Sequence Timer Register is set to 0x0000 (Sequencer Continuous Mode) the sequencer
ignores the data overflow. The Data Overflow Error Flag is always read as ‘0’ in this mode.
Error occurs if no
channel is enabled for
the sequence (bit 1 or
bit 4 of sequencer
Instruction RAM word)
and the sequencer is
started.
Figure 6-1 : Sequencer Errors
Sequencer stops after the
last instruction is done.
Instruction RAM Error Flag
is set.
If it is enabled, an interrupt
request will be asserted.
Write a ‘1’ to the Sequencer
Status Register bit 3.
Correct the Sequencer
Instruction RAM setting.
Start sequencer again.
TIP845 User Manual Issue 1.4 Page 24 of 32
6.3 Application Examples
All following examples use interrupts. The use of interrupts can be replaced by polling the according
status flags in the ADC Status Register or the Sequencer Status Register.
6.3.1 Fastest Conversion of an Arbitrary Single Channel
! Program the desired channel and gain in the ADC Control Register CONTREG. Activate the
Automatic Settling Time Control (ASTC = '1') and the IRQ after conversion (IRQC = '1')
! The channel is now converted without any further user action. After completion of the conversion
an interrupt is issued which signals that the conversion data is available in the DATAREG Register
! Acknowledge the interrupt in the Interrupt Status Register INTSTAT (ADC_READY = '1') and read
DATAREG
Figure 6-2 : Flow of fastest conversion of an arbitrary single channel
Conversion time is approx. 10.5µs.
6.3.2 Fastest Conversion of a Specific Single Channel
! Program the ADC Control Register with desired channel and gain, and activate the IRQ after
Settling Time (IRQS = '1'), and the IRQ after conversion (IRQC = '1').
TIP845 User Manual Issue 1.4 Page 25 of 32
! If the IRQ after settling time is issued, the channel is ready for conversion. Write to the CONVERT
register and acknowledge the interrupt in the Interrupt Status Register INTSTAT (SETTL_READY
= '1').
! After completion of the conversion an interrupt is issued which signals that the conversion data is
available in the DATAREG register.
! Write again to the CONVERT register to start the next conversion of this channel, acknowledge
the interrupt in the Interrupt Status Register INTSTAT (ADC_READY = '1') and read DATAREG.
TIP845 User Manual Issue 1.4 Page 26 of 32
Figure 6-3 : Flow of fastest conversion of a specific single channel
Conversion time is approx 2.5µs, as long as neither the channel nor the gain is changed.
TIP845 User Manual Issue 1.4 Page 27 of 32
6.3.3 Periodic Conversion of Multiple Channels
! Activate the channels to be converted and program the gain in the Sequencer Instruction RAM.
! Set the sequencer period in the Sequencer Timer Register SEQTIMER.
! Enable the Sequencer Interrupt SEQ_INT_ENA and start the sequencer in the Sequencer Control
Register SEQCONT.
! After completion of the sequence an interrupt is issued which signals that the conversion data is
available in the Sequencer Data RAM.
! Acknowledge the interrupt in the Interrupt Status Register INTSTAT (SEQ_READY = '1'), clear the
DATA_AV flag in the Sequencer Status Register and read the Sequencer Data RAM.
Figure 6-4 : Flow of periodic conversion of multiple channels
TIP845 User Manual Issue 1.4 Page 28 of 32
6.3.4 Continuous Conversion of Multiple Channels
! Activate the channels to be converted and program the gain and mode of these channels in the
Sequencer Instruction RAM.
! Set the Sequencer Timer Register SEQTIMER to 0x0000.
! Start the sequencer in the Sequencer Control Register SEQCONT.
! Read the data from the Sequencer Data RAM as needed.
Figure 6-5 : Flow of continuous conversion of multiple channels
TIP845 User Manual Issue 1.4 Page 29 of 32
7 Pin Assignment – I/O Connector
Pin Differential mode Single-ended mode
1 ADC Input 1+ ADC Input 1
2 ADC Input 1- ADC Input 2
3 ADC Input 2+ ADC Input 3
4 ADC Input 2- ADC Input 4
5 ADC Input 3+ ADC Input 5
6 ADC Input 3- ADC Input 6
7 ADC Input 4+ ADC Input 7
8 ADC Input 4- ADC Input 8
9 ADC Input 5+ ADC Input 9
10 ADC Input 5- ADC Input 10
11 ADC Input 6+ ADC Input 11
12 ADC Input 6- ADC Input 12
13 ADC Input 7+ ADC Input 13
14 ADC Input 7- ADC Input 14
15 ADC Input 8+ ADC Input 15
16 ADC Input 8- ADC Input 16
17 ADC Input 9+ ADC Input 17
18 ADC Input 9- ADC Input 18
19 ADC Input 10+ ADC Input 19
20 ADC Input 10- ADC Input 20
21 ADC Input 11+ ADC Input 21
22 ADC Input 11- ADC Input 22
23 ADC Input 12+ ADC Input 23
24 ADC Input 12- ADC Input 24
25 GND GND
26 GND GND
27 ADC Input 13+ ADC Input 25
28 ADC Input 13- ADC Input 26
29 ADC Input 14+ ADC Input 27
30 ADC Input 14- ADC Input 28
31 ADC Input 15+ ADC Input 29
32 ADC Input 15- ADC Input 30
33 ADC Input 16+ ADC Input 31
34 ADC Input 16- ADC Input 32
35 ADC Input 17+ ADC Input 33
36 ADC Input 17- ADC Input 34
37 ADC Input 18+ ADC Input 35
38 ADC Input 18- ADC Input 36
39 ADC Input 19+ ADC Input 37
TIP845 User Manual Issue 1.4 Page 30 of 32
Pin Differential mode Single-ended mode
40 ADC Input 19- ADC Input 38
41 ADC Input 20+ ADC Input 39
42 ADC Input 20- ADC Input 40
43 ADC Input 21+ ADC Input 41
44 ADC Input 21- ADC Input 42
45 ADC Input 22+ ADC Input 43
46 ADC Input 22- ADC Input 44
47 ADC Input 23+ ADC Input 45
48 ADC Input 23- ADC Input 46
49 ADC Input 24+ ADC Input 47
50 ADC Input 24- ADC Input 48
Figure 7-1 : Pin Assignment I/O Connector
TIP845 User Manual Issue 1.4 Page 31 of 32
8 Important Notes
8.1 Dummy Conversions after Power-up
After power-up the ADC’s logic will be in a random state and may not perform correctly. This has two
consequences:
1. The first conversion results are not valid and should be ignored.
2. The ADC starts in a mode that prevents a correct start of the sequencer.
Therefore, two dummy conversions are required after each power-up, whose results should be
ignored.
Use the ADC Conversion Start Register (CONVERT) Register to perform th e dummy conversions.
If the sequencer is to be used, these two dummy conversions are absolutely necessary.
If one of our software drivers is used, these two dummy conversions are already included.
8.2 Open Multiplexer Inputs
Unused Multiplexer inputs can pick up stray signals which are injected into the device’s substrate. This
turns on spurious substrate devices which badly degrade the performance of the whole multiplexer
device.
Make sure that all unused analog input pins are tied to the analog ground signal level (or any
other valid signal level within the analog input voltage range). This is required even if the
unused channels are turned off by software.
TIP845 User Manual Issue 1.4 Page 32 of 32
Loading...
