Tevion STB7017 Instruction Manual

DIGITAL SET TOP BOX

STB7017

INSTRUCTION MANUAL

CHANNEL

STB 7017

Now you have purchased a Tevion product you can rest

assured in the knowledge that as well as your 3 year parts

and labour warranty you have the added peace of mind of

dedicated helplines :

After Sales Support

Table of Contents

Welcome section ----------------------------------------------------------------------- 1
Introduction----------------------------------------------------------------------------- 2
Safety Information--------------------------------------------------------------------- 3
Remote Control-------------------------------------------------------------------------- 4
Front and Rear panel illustration --------------------------------------------------- 6
Connecting to a Television ----------- ----------------------------------------------- 7
Connecting to a Television and Video--------------------------------------------- 8
Connecting to a Surround Sound System--------------------------------------- 9
Getting Started ------------------------------------------------------------------------ 10

-------------------------------------------------------------------------- 12

Basic Operations---------------------------------------------------------------------- 15

--------------------------------------------------------------------- 18

Channel List----------------------------------------------------------------------------- 19

Favourite List--------------------------------------------------------------------------- 20

--------------------------------------------------- 20

------------------------------------------------- 20

Help and Advice------------------------------------------------------------------------- 21
Technical Specifications -------------------------------------------------------------22

Switching on for the first time------------------------------------------------------ 10
Automatic channel scan------------------------------------------------------------ 11
Manual channel scan---------------------------------------------------------------- 11

System Setting

A/V Setting---------------------------------------------------------------------------- 12
Antenna Power----------------------------------------------------------------------- 13
First Time Installation--------------------------------------------------------------- 13
System Info---------------------------------------------------------------------------- 13
Change Pin Code--------------------------------------------------------------------- 14
Software Update--------------------------------------------------------------------- 14

Changing Channels----------------------------------------------------------------- 15
Volume Control---------------------------------------------------------------------- 17
Teletext/Subtitle---------------------------------------------------------------------- 17
TV Format------------------------------------------------------------------------------17
Pausing the current picture---------------------------------------------------------17

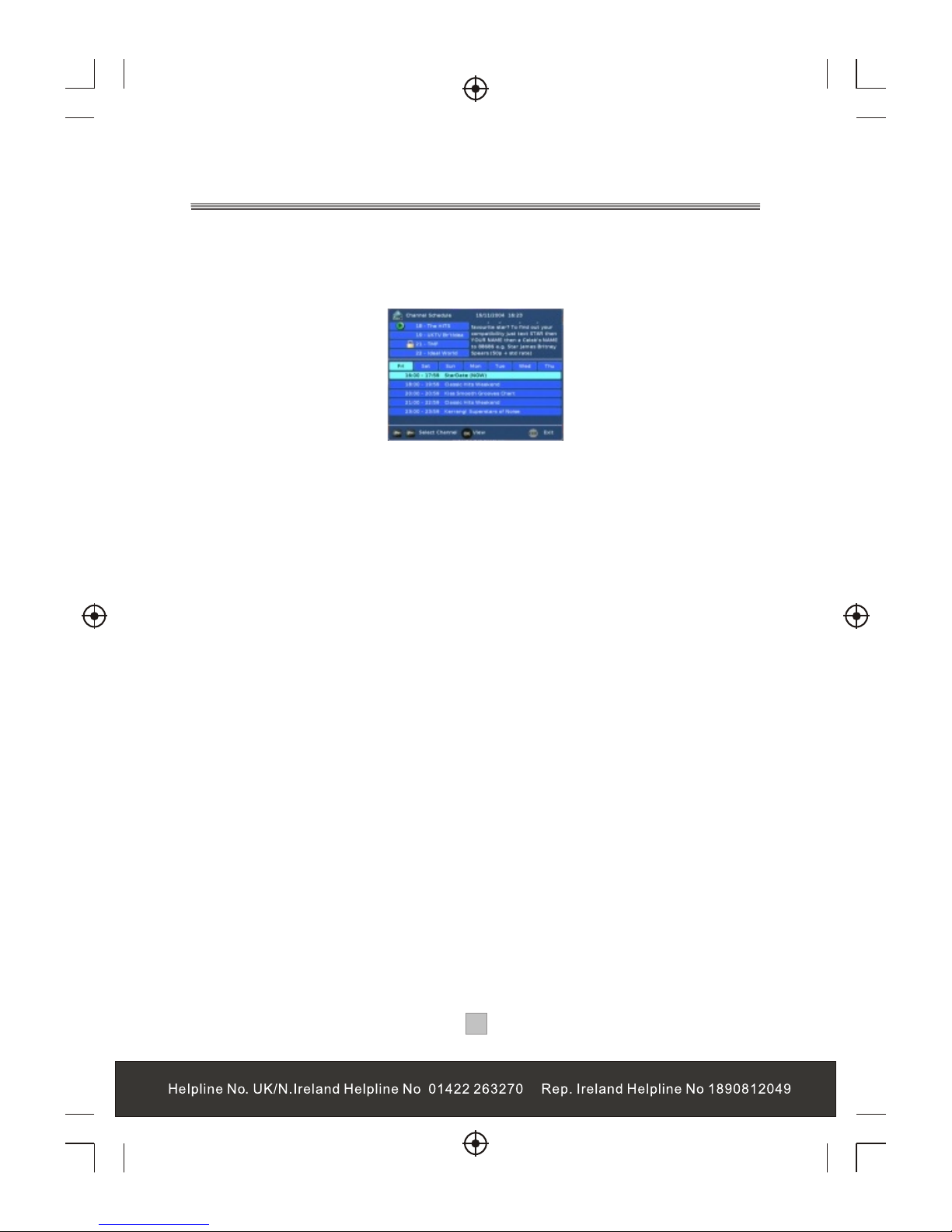

Channel Schedule

Delete a channel---------------------------------------------------------------------- 19
Lock/Unlock a channel---------------------------------------------------------------19

Adding channels to favourite list

Remove favourite channels from favourite list---------------------------------- 20
Accessing the favourite channels

11

Introduction

Thank you for purchasing this product which has been designed and

manufactured to give you many years of trouble-free service.

About This User Guide

This user guide contains all the information you need to know about how to
setup and watch available free view Channels using your set top box.

22

Trade Mark of the DVB Digital Video Broadcasting
Project(1991 to 1996)

Digital Video
Broadcasting

Accessories In the Box

Remove your Digital set top box carefully from the box ,and remove the
packaging from each part.

You will find the following items:

Digital set top box with fitted mains plug
Remote Control with 2XAAA batteries (not installed)

What is Freeview?

It is the new, free digital service currently providing up to thirty digital channels,
over twenty digital radio stations plus a whole new world of interactive services. It
is broadcast from transmitters and is received via a rooftop aerial.Freeview works
like traditional TV, but because the signals are digital you need a set top box or
interactive digital TV to convert them. This means more channels can be
transmitted with extra features such as interactivity and widescreen pictures.

Quick Start Guide

User Manual

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Safety Information

Position the cables so that they cannot be walked on or pinched by items
placed on or against them.

Do not use the set top box in humid or damp conditions.
Do not allow the set top box to get wet.

Do not place water filled objects such as vases on top of the set top box.

Do not expose the set top box to dripping or splashing.
Do not place naked flame sources, such as candles, on the top of the set

top box.

Cleaning

ALWAYS unplug the set top box before you clean it.
Do not use liquid or aerosol cleaners.
Clean the set top box with a soft, damp (not wet) cloth.

Ventilation

The slots and openings on the set top box are for ventilation. Do not cover
or block them as it may cause overheating.

NEVER let children push anything into the holes or slots on the case.

Servicing

There are no user serviceable parts in this set top box.

When servicing, refer to qualified service personnel.
Consult your dealer if you are ever in doubt about the installation, operation
or safety of this unit.

33

Battery Disposal

Please ensure batteries are disposed of safely.

Check with your local authority for disposal regulations.

Safety is Important

To ensure your safety and the safety of others, please ensure you read
the Safety Instructions before you operate this product.

Keep this information in a safe place for future reference. Please read all
the safety information before using the product.
Safety Considerations.

Never dispose of batteries in a fire or with other household waste.

OK

DTV/VCR

MUTE

PAUSE

1 2 3

4 5 6

7 8 9 0

TEXT

FAVOURITE

STANDBY

LANGUAGESUBTITLE

WIDE

P+

P-

VOL+

RECALL

VOL-

EXITMENU

INFOEPG

Remote Control

44

Remote Key Function:

1. DTV/VCR Used to switch between the VCR SCART input

and the DTV output mode.

2. MUTE Used to turn the sound on or off.

3. P+: Used to change the channels.

4. PAUSE Used to pause or playback the programme being

viewed .

5. P-: Used change the channels.

6. EXIT Used to return to the previous screen or menu.

7. OK Used to confirm a selection within a menu.

8. CURSORS(Up/Down/Left/Right): Used to move around

the menu screens.

9. INFO Used to display information about the channel being
viewed or further information about the programme when in
small EPG screen.

10 FAVOURITE Used to access your favourite channels.

11. RECALL Used to switch between the last two viewed

channels.

12. LANGUAGE Used to switch between different audio
languages that are broadcasted.

13. WIDE: Used to change the TV picture aspect.

14. STANDBY Used to switch the set top box to on and off.

15. VOL+ Used to change the volume.

16. VOL- Used to change the volume.

17. MENU Used to open the main menu window.

18. EPG Used to display information about the programme being

viewed and what's on next.

19. NUMBER KEYS Used to select channel numbers or input
numbers in menus.

20. TEXT: Used to open interactive digital teletext display if
teletext available in the broadcasted stream.

21. SUBTITLE: Used to switch among different subtitles that
are broadcasted.

22. COLOUR KEYS(Red/Green/Yellow/Blue): Used to operate
different functions in TEXT screen or other menus.

Note: SUBTITLE/TEXT/LANGUAGE may not be available
for all channels.

55

Installing the Batteries

Remove the battery cover from the remote control and put 2xAAA size batteries
inside the compartment.
The diagram inside the battery compartment shows the correct way to install the
batteries.

O

P

E

N

O

P

E

N

1.Open the cover

2.Install batteries

3.Close the cover

Using the Remote Control

To use the remote control, point it towards the front of the digital set top box
The remote control has a range of up to 7 metres from the set top box at an angle
of up to 60 degrees.
The remote control will not operate if its path is blocked.

Sunlight or very bright light will decrease the sensitivity of the remote

control.

CHANNEL

STB 7017

66

Front Panel and Rear Panel Illustration

1. Front panel

1 RF IN : This socket connects to your external aerial.
2 RF LOOP THROUGH: This socket will bypass the RF signal to either your TV or another

video system.

3 COAXIAL: This socket connects to a coaxial socket on your surround sound system.
4 VCR SCART: This socket connects to either a DVD or other video system.
5 TV SCART: This socket connects to your TV.
6 RS-232 PORT: This socket is only used for software upgrade.
7 MAINS CABLE: This is used to connect to your main power supply.

1 POWER BUTTON: Used to switch the set top box on and off.
2 Standby Indicator: Used to visually show power state of the set top box, the green

LED will show if turned on the set top box and the red LED will be light if the set top box
entered standby mode.

3 REMOTE CONTROL SENSOR: Used to receive the signal from the remote control.
4 CHANNEL UP/DOWN: Used to change channels without using the remote control.

3 4

ININRR FF

LOOPLOOPR RF F

THROUGHTHROUGH

CoaxialCoaxial

Digital
Audio

Digital
Audio

VCR O OVCR O O

TVTV

Serial No.:

DIGITAL TERRESTRIAL RECEIVER
POWER SUPPLY: 100-240V~ 50/60Hz
MAX POWER CONSUMPTION: 10WATTS
MADE IN CHINA

100-240V~

50/60Hz

SERVICE

STB 7017
