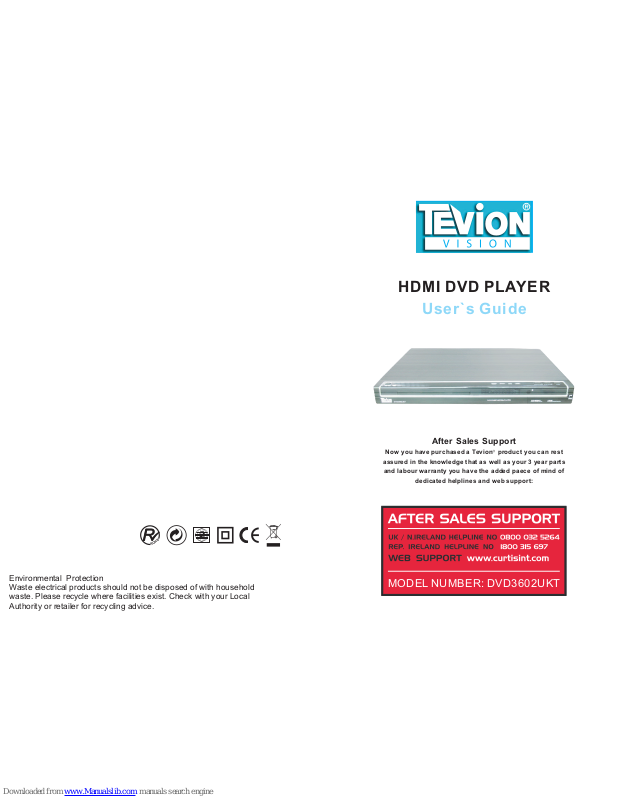

Tevion DVD3602UKT User Manual

Environmental Protection Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

HDMI DVD PLAYER

User`s Guide

After Sales Support

Now you have purchased a Tevion product you can rest

assured in the knowledge that as well as your 3 year parts

and labour warranty you have the added paece of mind of

dedicated helplines and web support:

MODEL NUMBER: DVD3602UKT

The lightning flash with arrowhead symbol within an equilateral triangle

intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosurethat may of sufficient magnitudeto constitute a risk of electric shock to persons.

The exclamation point within an

equilateral triangle is intended to alert

the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

1. READ INSTRUCTIONS

2. RETAIN INSTRUCTIONS

3. HEED WARNINGS

4. FOLLOW INSTRUCTIONS

5. CLEANING

6. ATTACHMENTS

7. WATER AND MOISTURE

8. ACCESSORIES

- All the safety and operating instructions should be read before the product is operated.

- Thesafety and operating instructions should be retained for future reference.

- All warnings on the product and in the operating instructions should be adhered to.

- All operating and

use instructions should be followed.

- Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a soft dry cloth for cleaning.

- Do not use attachments not recommended by the product manufacturer as they may cause hazards.

- Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

- Do not place this product on an unstable trolley, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product.

Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer. A Product and Cart Combination Should Be Moved with Care - Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.

- Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface.This product should not be placed in a built-in installation, such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

- Thisproduct should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult a professional electrician or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

- Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where exit from the product.

9. VENTILATION

10. POWER SOURCES

11. POWER-CORD PROTECTION

IMPORTANT SAFETY INSTRUCTIONS

Helpline No.UK/Northern lr ela nd 0800 032 5264 Rep. lr eland 1800 315 697 W eb S upport www.curtisint.com Model Number: DVD3602UKT

13. OUTDOORANTENNA GROUNDING

14. LIGHTNING

15. POWER LINES

16. OVERLOADING

17. OBJECTAND LIQUID ENTRY

18. SERVICING

-Ifan outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Below diagram provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for theg rounding electrode. See Figure 1.

- For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.This will prevent damage to the product due to lightning and power-line surges.

- An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or other electric light or power circuits. When installing an outside antenna system, extreme care should be taken to keep from touching power lines or circuits as contact with them might be fatal.

- Do not overload wall outlets, extension cords, or integral convenience receptacles a s this can result in a risk of fire or electric shock.

- Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

- Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

. NONUSE PERIODS -The power cord of the product should be unplugged from the outlet when left unused for long periods of time.

19. DAMAGES REQUIRING SERVICE

20. REPLACEMENT PARTS

21. SAFETY CHECK

22. HEAT

23.

24.

25.

26.

27.

28.

29.

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions. a) When the power-supply cord or plug is damaged. b) If liquid has been spilled, or objects have fallen

into the product. c) If the product has been exposed to rain or water. d) If the product does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions as an improving adjustment of other

controls may result in damage and will often

require extensive work by a qualified technician

to restore the product to its normal operation. e) When the product exhibits a distinct change in

performance - this indicates a need for service.

- When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part, Unauthorized substitutions may result in fire, electric shock or other hazards.

- Upon completion of any service or repair to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

- The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.

Keep minimum distances (5cm) around the apparatus

for sufficient ventilation.

The ventilation should not be impeded by covering the rear panel for ventilation with items, such as newspapers, table-cloths, curtains, etc.

No naked flame sources, such as lighted candles, should be placed on the apparatus.

Don’t use the apparatus in tropical climates.

Where the mains plug is used as the disconnect device, the disconnect device shall remain readily operable.

The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

Attention should be drawn to the environmental aspects of battery disposal. Don’t throw used batteries in dustbin. Please contact your retailer in order to protect the environment.

ANTENNA LEADWIRE

ANTENNADISCHARGE UNT

POWERSERVICE GROUNDING ELECTRODESYSTEM

GROUDCLAMP

GROUNDINGCONDUCTORS

GROUND CLAMP

ELECTRIC SERVICE SQUIPMENT

EXAMPLEOF ANTENNAGROUNDING

IMPORTANT SAFETY INSTRUCTIONS

TROUBLESHOOTING

Check the chart below for a possible cause of the problem you are experiencing before requesting service forthis unit, Some simple checks or minor adjustmenton your part may eliminate the problem and restore proper operation. Let the technicianmaintain the unit.Keep away from static electricity properly beforemaintenance as loader, keyIC are easyto be damaged by it.

Suggested solution

Plug thepower cord intothe power outlettight to turnon/off once

Disc accesstime within 10-20seconds is normal The discis scratched ordefiled (change disc) The codeof disc isdifferent from the code of unit (change the disc) PALto NTSC error(Set video outputas AUTO)

If yourTV does not have P-Scan function, pressing VIDEO button onthe remote maycause this. PressVIDEO button againto rectify.

Ensure thatthe equipment isconnected properly. Ensure thatthe TV or audio equipments are not muted. Ensure thatthe audio outputsetting is correct.

The picturewill be somewhatdistorted at times. This isnormal advance orreverse.

Choose thecorrect setup atTV TYPE item that matches theTV set.

Check thebatteries being installedwith correct polarities. Replace thebatteries depleted. Pointat remote controlsensor and operate itwithin 5 meters.

Turn the unit off andthen back toon. Alternatively,turn off the unit, disconnect theAC power cord for 5 to10 minutes andthen reconnect it.

If theaudio soundtrack and/orsubtitle language doesnot exist inthe disc, thelanguage selected atthe initial settingswill not beseen/heard. Alternative audiosoundtrack (or An alternative language isnot selected with discswhich contain subtitle)language cannot bemore than one language selected.

This functiondepends on softwareavailability. Even ifa disc hasa number ofangles recorded, these anglesmay be recordedfor specific scenesonly.

This functionis suitable forVCD with playbackcontrol disc. In programplaying mode, norepeat, A-B functions are available.

No power

Cannot readdisc

No picture

No sound

Picture isdistorted during fastforward or reverse

No (4:3)(16:9)picture

Remote controldoes not function

Unit sor remote control buttonsare not functioningor other abnormal phenomena

Audio soundtrackand/ or subtitlelanguage not foundin settings

Can notchange angle

No playbackmenu

Miscellaneous

Trouble

Helpline No.UK/Northern lr ela nd 0800 032 5264 Rep. lr eland 1800 315 697 W eb S upport www.curtisint.com Model Number: DVD3602UKT

Toprotect intellectual property, theinvolved organizations partition the world into six regions,each of which canonly use the DVD player and DVD disc with the given regional code. The illustrationon the right shows symbols of the six regions. One DVD player witha given regional code cannotplay disc of another regional code.The partition of regional codes is shown asfollows:

1. Canada,USA;

2. Japan,Europe, South Africa, MiddleEast

3. SoutheastAsia, EastAsia

4. Australia, New Zealand, Oceania, Central America, Mexico, Latin America, Caribbean Sea;

5. Russia,India, Africa, Korea, Mongolia.

6. China.

1234

Connecting tothe multi-system TV

Connecting toNTSC TV Connecting toPAL TV

DISC

PAL

NTSC

TV MONITOR

Play inPAL system

Play inNTSC system

DISC

PAL

NTSC

TV MONITOR

No clearimages are shown on thescreen.

Play inNTSC system

DISC

PAL

NTSC

TV MONITOR

Play inPAL system

No clearimages are shown on thescreen.

TV connectionsfor DVD discsrecorded in PAL and NTSC systems

Generally, DVD discs are recordedin PALor NTSC systems,please refer tothe following table:

Note: THEREGION CODE FORTHE UNIT IS 2.

IMPORTANT SAFETY INSTRUCTIONS

Definition ofterms

Angle

Recorded ontosome DVD discsare scenes whichhave been simultaneouslyshot from anumber of different angles (i.e. The same scene isshot from thefrom, left sideand right sideetc.). With such discs, theANGLE button can be used toview the scenefrom different angles.

Chapter Number

These numbersare recorded onDVD discs, A title is subdivided into many sections. Each ofthem is number andspecific parts ofvideo presentations canbe searched quicklyusing these numbers.

DVD disc

This refersto a high-densityoptical disc onwhich high qualitypictures and soundhave been recorded by meansof digital signals.Incorporating a newvideo compression technology(MPEG2) and highdensity recordingtechnology, DVD enables full-motion video tobe recorded overlong periods oftime (for instance,a whole moviecan be recorded).

Subtitles

These arethe printed linesappearing at thebottom of thescreen which translateor transcribe the dialogue. They are recorded on DVD discs and upto 32 languages.

PBC

The languageindicates on TV screen to imply operation or disc information.

Audio

Language recordedon discs andthe maximum languagesare up to8.

Time

This indicatesthe play timeelapsed from thestart of adisc or atitle. It canbe used tofind a specific scene quickly(it may notwork with somediscs).

Title Number

These numbersare recorded onDVD discs. Whena disc containstwo or moremovies, these movies are numberedas title1, title2,etc.

Track Number

These numbersare assigned tothe tracks whichare recorded onaudio CDS. They enable specific tracks tobe located quickly. RAW The originalDTS, AC-3 signals non-decoded. If userschoose RAW as audiosetting, they mustconnect a decoderto decode thoseoriginal audio signals.

Power requirement: AC 100-240V~50/60Hz Power consumption: 10W Signal system: NTSC/PAL/AUTO Dimension: 360mm x38mm x 250mm

Disc played:

1. DVD-videodisc 12cm single-sided, single-layer 12cm single-dided,double-layer 12cm double-dided,double-layer 8cm single-sided,single-layer 8cm single-sided,double-layer 8cm double-sided,double-layer

2. CDdisc 12cm disc 8cm disc

Video output

Output level: 1+0.2Vp-p (75ohm) Horizontal resolution: >500 lines S/N ratio: >60dB

Audio output(Impedance: 10k ohm):

Output level: 1.8+0.2/-0.8Vrms (1KHz 0dB) Harmonic distortion: <0.01% (JIS-A1KHz, typical) Dynamic range: >80 dB(JIS-A 1KHz, typical) S/N ratio: 90dB(JIS-A 1KHz, typical)

Weight and dimensions are approximate Specifications are subject tochange with orwithout notice.

SPECIFICATIONS

REFERENCE

Helpline No.UK/Northern lr ela nd 0800 032 5264 Rep. lr eland 1800 315 697 W eb S upport www.curtisint.com Model Number: DVD3602UKT

Please read the user manual carefully before connection or operation

TABLE OF CONTENT

Important Safety Features Precautions Accessories Front Panel Rear Panel Remote Control Basic Connection Remote ControlPreparation Operations Preparation Play Stop Prev/Next Rev/Fwd Slow Step Pause Number(0-9,10+) button Mute VOL+/VOLReturn Osd Zoom A-B Repeat Repeat Angle Audio Program PBC Time Menu Subtitle Video N/Pl Shuffle Reset USB/CART Setup Reference(Menu/Submenu/Options) HDMI setup Handing Precautions player Maintenance Definition ofterms Specifications Troubleshooting

1 5 5 6 6 6 7 8 11 12 12 12 12 12 12 12 12 12 12 13 13 13 13 13 13 13 13 13 13 13 14 14 14 14 14 14 14 14 15 16 17 17 17 18 18 19

REFERENCE

Handling Precautions

Maintenance

Handling

Hold the disc by the edge so the surface will not be soiled with fingerprints. Fingerprints, dirt and scratches can cause skipping and distortion. Do not use record cleaning sprays, benzene, thinner. Static electricityprevention liquids orany other solvent.Be careful notto drop orbend the disc.Do not try toclose the disctray when discis not installedproperly. Be sure to store thedisc in itsexclusive case whennot in use.

Wipe gentlywith a soft,damp (water only)cloth. Move thecloth from thecentre hole towardsthe outer edge. lmproperdisc disc storage:Discs may bedamaged if theyare stored inthe following places:Areas exposed todirect sunlight; Humidor dusty areas;Areas directly exposed to a heatoutlet or heating appliance.

Player Maintenance

Be sureto turn theunit off and disconnect the ACpower cord beforemaintaining the unit.Keep the unit clean. Ifthe surfaces areextremely dirty, wipe the unit witha dry softcloth. Never usealcohol, benzene or otherchemicals. Do notuse compressed airto remove dust.Ask the technician to maintain theunit when troublehappens.

None Present

Off Left Right Center Left surr. Right surr. Subwoofer

1m 2m 3m 4m

5.1m OFF

PCM ALL

1.Kid safe

SUBMENU OPTIONS DESCRIPTION

Subwoofer

AUDIO

Testtones

Center delay

Surr.delay

Digital output

Rating

Passwood

Rating

----------

Input number by users to change password, default setting 8888

MISC

Default Return tofactory setupRead

When Audio output 2.0 CHselect none

Testtones off TestLeft Tes t R ig ht Tes t

Center

Tes t

Left surr.

Tes t

Right surr.

Tes t

Subwoofer

Center delaytime

Surround delaytime

Digital outputPCM

Digital outputOFF

Digital outputRAW

In setupmode, Press button on remotecontrol to selectvideo, then press button toselect HD. Press button to select HD resolution, Press button toselect Auto,480P/576P,720P,1080i,1080P , etc HDMIoutput mode. Press button toselect audio digitaloutput for PCM. Remarks:It isonly apply toTV with HDMI jack.

HDMI SETUP

“”

Suitable forchildren. Suitable forall age groups.

The presence of parents is recommended. Some scenes may be unsuitable for children.

The presence of parents is strictly recommended. Some scenes may be unsuitable for children under the age of 13.

The presence of parents is strictly necessary.

Young persons under the age of 17 may only view this film in the presence of an adult.

Children and juveniles under the age of 17 are not allowed to watch this film.

The film must only be watched by adults.

0.3m

0.6m 1m

1.4m

1.7m

No Delay

2.G

3.PG

4.PG-13

5.PG-R

6.R

7.NC-17

8.ADUIT

Helpline No.UK/Northern lr ela nd 0800 032 5264 Rep. lr eland 1800 315 697 W eb S upport www.curtisint.com Model Number: DVD3602UKT

Placement

Non-use Periods

Turn off the power whenthe unit isnot used. It shouldbe unplugged whenthe unit isidle for along period oftime.

No fingersor other objectsinside

Touchinginternal parts ofthis unit isdangerous, and maycause serious damageto the unitand even humaninjury. Do nottry to disassemblethis unit. Do notput any otherobject on thedisc tray.

Keep awayfrom water andmagnets

Keep theunit away fromflower vases, tubs,sinks, etc. Ifliquids are spilledinto the unit,serious damage couldoccur. Never placemagnetic objects suchas speakers nearthe unit.

The internalparts may beseriously damaged ifthe unit isplaced in areasof:

Direct sunlightor heating radiatorsor closed automobiles; High temperature(over 35 C)or high humidity(over 90%) Excessive dust; Strong magneticor static electricity; Vibration, impact or where the surface is tilted.

Stacking

Place theunit in ahorizontal position anddo not placeanything heavy onit. Do notput the uniton amplifiers orother equipment.

Condensation

Moisture mayform on thelens under thefollowing conditions:

In asteamy or veryhumid room. Immediately aftera heater isturned on. If moistureforms inside thisunit, it maynot operate properly. In this case, turn on the powerand wait forabout 1 hourto evaporate it.

Interference forthe TV broadcast

Depending onthe reception conditionof the TV, interference may appear on the TVscreen while you arewatching a TV broadcast and the unit is turned on,This is not a malfunction of the unit of the TV. Just ensure that the unit is turned off whenyou watch aTV broadcast.

DVD -A completely new dimension in videoentertainment

Subtitles maybe displayed inone of amaximum of 32languages available (multi-subtitles DVD only). Audio soundtrackcan be heardin up to8 languages (multi-languagesDVD only). Multi-angle functionallows you tochoose the viewingangles of scene (for DVDwith multiple cameraangles only).

Other convenientfeatures

Parental locksettings to preventplaying unsuitable discsfor some audiences(DVD only). A full function remote controlprovides quick accessto DVD functions.

Compatible withPAL DVD and NTSCDVD

This playercan play discsrecorded in eitherPAL orNTSC system.

Power cordprotection

Toavoid any malfunctionsof the unit,and to protectagainst electric shock,fire or personalinjury, please observethe following. Hold theplug firmly whenconnecting or disconnectingthe AC power cord to thisunit. Do notconnect or disconnectthe AC power cord when yourhands are wet. Keep theAC power cord away from heatingappliances. Never putany heavy objecton the AC power cord. Do notattempt to repairor reconstruct theAC power cord. Remove dust,dirt etc. onthe plug regularly. If theunit has beendropped or otherwisedamaged, turn off thepower and disconnectthe AC power cord. If youfind smoke, unusualodour or noisefrom the unit,turn off the power and disconnect the AC power cord.

FEATURES

Compatible withCD besides DVD,MP3, CD-R

This playercould play variousdiscs such asDVD, CD (8cm/12cmdiscs).

PRECAUTIONS

Please readthese precautions beforeoperating this unit.

REFERENCE

Menu, Submenuand Options

SUBMENU OPTIONS DESCRIPTION

LANGUAGE

Language

Subtitle

Audio

English Français

Español Deutsch Itoliano

English OnScreen Display

On ScreenDisplay

On ScreenDisplay On ScreenDisplay

Italian OnScreen Display

French Spanish German

DVD menu

English French Spanish German Italian Auto Off

English OnScreen Display

On ScreenDisplay

On ScreenDisplay Italian OnScreen Display Auto OnScreen Display Off On Screen Display

French Spanish German

English French Spanish German Italian

English OnScreen Display

On ScreenDisplay

On ScreenDisplay Italian OnScreen Display

French Spanish German

English French Spanish German Italian

English OnScreen Display

On ScreenDisplay

On ScreenDisplay Italian OnScreen Display

French Spanish German

VIDEO

Aspect Ratio

4:3 16:9

View mode

Pan scan

TV System

NTSC PAL AUTO

Video out

HD Resolution

Bass management

Set TV screen at 4:3 Set TV at screen 16:9

Component

RGB

Component videooutput

P-SCAN videooutput

S-VIDEO

RGB videooutput

P-SCAN HD

S-VIDEO videooutput

Auto 480p/576p 720p 1080i 1080p

AUDIO

Off On

Front speakers

Large Small

Center Speaker

Large Small None

Surround Speakers

Large Small None

HDMI switch HDMI autooutput HDMI output480p/576p

HDMI output720p HDMI output1080i HDMI output1080p

Bass managementoff

Bass managementon

When Audio output 2.0 CHselect small

When Audio output 2.0 CHselect none

Takethe maximum valueof horizontally fit scale ratioand vertically fitscale ratio.

Like letter box.Take the minimum value of horizontally fit scale ratio and vertically fit scale ratio

Fit the original screen size. (Only for Divx / MPEG)

Scale up/down the image in horizontal and vertical direction respectively to fill the screen height and width

Fill

Original

Auto fit

Output signalas NTSC Output signalas PAL Output signalas per defaultof disc

Helpline No.UK/Northern lr ela nd 0800 032 5264 Rep. lr eland 1800 315 697 W eb S upport www.curtisint.com Model Number: DVD3602UKT

ACCESSORIES

(Please check whether all the following accessories are available after unpacking.)

Instruction

Manual

A Pair of Batteries

Video/Audio cord

FRONT PANEL

REAR PANEL

1. Leftaudio output jack

2. Rightaudio output jack

3. Digitalsignal coaxial outputjack

4.Component outputjacks (Y, Pb,Pr)

5. Video outputjack

1. Power switch key

2. Open/Close key

3. Play/Pause key

4. Stop key

5. Disc tray

6. Display window

7. Remote control sensor

8. SD/MMC

9. USB

10. Cover open

6. HDMIoutput jack

7. S-videooutput jack

8. Opticaloutput jack

9. 5.1channel output jack

10.Scart outoutput jack

11.AC power cord

SETUP

Once theinitial settings havebeen completed, theplayer can alwaysbe operated underthe same conditions (especiallywith DVD discs).The settings will be retained in the memory even afterturning off the power until the settings are changed. We setthe initial languageto English whenthe player is out offactory. You may change the language into that youpreferred. Operation

1. PressSETUP button to enter setup interface as followed, you cansetup Language, Video, Audio,Rating,Misc.

SETUP

2. Press and to choose the desired section and ENTER button to entersubmenu or pressSETUP to leavethe setup Video. Followingis the languagesetup Video for your reference where you can set OSDmenu, Subtitle, Audio Language and DVDmenu Language.

POWER

DVD3602UKT

DVD/CD/MP3/MPEG4PLAYER

OPEN/CLOSE PLAY/PAUSE STOP

8 9

Y Pb/Cb Pr/Cr

L R COAXIAL

HDMI

S-VIDEO OPTICAL

VIDEO

SL SR CEN

FL FR SW

SCARTOUT

WARNING

RISKOF ELECTRIC SHOCK

DONOT OPEN

MODELNO.:DVD3602UKT ~100-240V50/60Hz POWER:10W

DVDPLAYER

CLASS 1LASER PRODUCT

~100-240V

50/60Hz

MADEIN CHINA

AUDIO

1 342 6 7 8 9

Remote control

POWER

OPEN/CLOSE

OSD P/N REPEAT A-B

SHUFFLE

VIDEO

SUBTITLE

ANGLE

10+

+10

TIME

MUTE

SLOW

STEP L/R

SETUP

AUDIO

ENTER

TITLE

ZOOM

USB/CARD

PBC PAUSE PLAY STOP

REV

PREV NEXT

16:9/4:3VOL

PROG

DVD3602UKT

RESET

RETURN

HDMI cord

Helpline No.UK/Northern lr ela nd 0800 032 5264 Rep. lr eland 1800 315 697 W eb S upport www.curtisint.com Model Number: DVD3602UKT

Note:

The samebuttons on remotecontrol and frontpanel have identicalfunctions.

REMOTE CONTROL

OPERATION

TIME

In theplay, you press TIMEand button on the remote control. You can search the disc

based onits title/chapter/track asshown in thefigure. Press TIME button, a search menu will display. Use or button to select the searchitem/time/title/chapter. The selected willbe shown inhighlight. Use numberbutton to selectthe search item/time/title/chapter, and press ENTER button to play.

Note:

For someDVD discs whichcannot be searched,invalid will beappear on TV screen. Input thetime, title andchapter of thedisc to search. For VCDin PBC modeis ON, itcan only searchfor the time.

Press MENUbutton on remotecontrol when playinga disc, alist of titleson the disc(depends on discs) will bedisplayed on TV monitor. Use thedirection or numberbutton to selectyour preferred itemsthen press ENTERbutton to playas selected.

SUBTITLE

Note:

Press SUBTITLEbutton on remotecontrol during playback.Subtitle: [1] willbe displayed onTV monitor that meansa kind oflanguage. Press oncemore, Subtitle: [2]appeared on TV monitor means another kind oflanguage and accordinglysubtitles appear thatrepresents how manykind os languagebeing selected. Subtitle:[OFF] appears thattoggle subtitle.

This functionis valid onlyfor DVD discswith subtitle function.It is invalidfor DVD discwith single

subtitle function.

N/P

Press N/Pbutton during stop state can switch output signal to NTSC,PAL orAUTO. The default setting is PAL.

SHUFFLE

Press SHUFFLEbutton while playingDVD /MP3/CD/JPG orVCD disc(PBC OFF),the player willplaying the discrandomly.

VIDEO

Press VIDEObutton during stopstate to usedirection to selectthe video outputprogressive scan (YPbPr) orother mode (S-VIDEO,Component,RGB,P-SCAN,HD).

POWER

OPEN/CLOSE

OSD P/N REPEAT A-B

SHUFFLE

VIDEO

SUBTITLE

ANGLE

10+

+10

TIME

MUTE

SLOW

STEP L/R

SETUP

AUDIO

ENTER

TITLE

ZOOM

USB/CARD

PBC PAUSE PLAY

STOP

REV

PREV NEXT

16:9/4:3VOL

PROG

DVD3602UKT

POWER

OPEN/CLOSE

OSD P/N REPEAT A-B

SHUFFLE

VIDEO

SUBTITLE

ANGLE

10+

+10

TIME

MUTE

SLOW

STEP L/R

SETUP

AUDIO

ENTER

TITLE

ZOOM

USB/CARD

PBC PAUSE PLAY

STOP

REV

PREV NEXT

16:9/4:3VOL

PROG

2 3 4 5

6 7

8 9

12 13

36 35 34 33

31 30

23 22

19 18

1. Powerbutton

2. A-B button

3. Repeatbutton

4. Angle button

5. Subtitlebutton

6. Programbutton

7. Slowbutton

8. 16:9/4:3button

9. L/R button

10. Audio button

11. Return button

12. Zoombutton

13. USB/CARDbutton

14. Stopbutton

15. Playbutton

16. Nextbutton

17. Prevbutton

18. FWDbutton

19. REVbutton

20. Pausebutton

21. PBCbutton

22. TITLE button

23. Menubutton

24. Resetbutton

25. Button

26. Enterbutton

27. Setupbutton

28. Stepbutton

29.Vol+/Vol-button

30. Mutebutton

31. Time button

32. Number(0-9) button

33. Video button

34. Shuffle button

35. P/Nbutton

36. OSDbutton

37. Open/Closebutton

RESET

RETURN

RESET

Press RESETbutton to resume the original setting of this unit.

USB/CARD READERPLAY

This DVDplayer can compatiblewith the playingfunction of USB flash disc and CART reader.

You connect the USB or SD/MMC/MS card to the USB port or CARD port ,

press USB/CARD button on the remote control. Then press button to USB,

Press ENTERbutton to USBflash disc orSD/MMC/MS card, press button toselect

your preferedtitle or chapter, press ENTER button to play.

Helpline No.UK/Northern lr ela nd 0800 032 5264 Rep. lr eland 1800 315 697 W eb S upport www.curtisint.com Model Number: DVD3602UKT

BASIC CONNECTION

Ensure thatthe power switchof this unitand other equipmentto be connectedis turned off before commencingconnection. Read throughthe instructions beforeconnecting other equipment. Ensure thatyou observe thecolour-coding when connectingaudio and videocords.

A: Connectingto a stereoTV set

1. TV set (optional)

2. DVD/CDplayer

3. ConnectingVideo, R/L audio cords

4. To TV set audio inputconnector

5.Connecting cordto Scart jack(option)

6.ToScart jack Toget the bestviewing quality youare advised to use S-videocord to connectthe TV set with S-video input andto change theTV set to S-video input mode.

B: Connectionto monophonic TV

1. TV set (optional)

2. DVD/CDplayer

3. Audio cords

4. To TV set audio inputconnector

5. To TV set video inputconnector

6.Component connectorcord (optional)

7.ToTV component (Y,Pb/Cb,Pr/Cr)input connector

C: Connectionto audio equipment

1. Audio player (optional)

2. TV set (optional)

3. DVD/CDplayers

4. Video/audio cords

5. To TV video input connector(yellow)

6. To audio input connectors (red, white)

7. To TV S-video input connector

OPERATION

MUTE

Press MUTEbutton during play, the player shows and thereis no audiooutput (silence), Press againto cancel MUTE.

VOL+/VOL-

Press VOL+/VOL- button play may change volume foraudio output.

RETURN

For VCDwhen playing 2.0PBC is operating.Press RETURN key, it will return to menu mode.

OSD

Press OSDbutton during playto show thedisc s relevantinformation on TV screen(such as playing time,chapter number, playback status).

ZOOM

Zoom functioncan only beoperated in JPEGdisc and VCD/DVDformat disc. By pressing zoom button When playing JPEG disc, there are3 levels of zoom available( 1, 2, 3)

when playingDVD/VCD discs, thereare 3 levelsof zoom available( 1, 2, 3)

Note: Zoomfunction is notworking on PAL system DVDs.

MP3 doesnot have thisfunction

A-B REPEAT

Press A-B button during playbackat the pointwhere repeat playis to commence(a) then pressagain at thepoint where repeatplay is tobe concluded (B).Repeat playback betweenpoint (A) andpoint (b) starts. PressA-B button once more where TVscreen appears REPOFF to return to normal play.

REPEAT

Press therepeat key tochoose repeat playchapter or title(DVD) and playsingle audio orfull disc (VCD, CD,MP3).

Note: SomeVCD do nothave repeat functionwith PBC ONstate.

PBC function(only VCD)

When playingVCD 2.0 pressPBC button todisplay title menuuse number keychoice and ENTER button toplay music.

ANGLE

Press ANGLE continuously during playbackDVD disc totoggle the discbetween available angles recorded onthe disc ifthe disc hasmulti-angle function.

When playingDVD/MP3/JPG discs. PressRETURN key, it will return tomenu mode.

AUDIO

Press AUDIO button during playbackto toggle betweenavailable audio languagerecorded on the discif the dischas this multi-language.

Press AUDIO button could toggleavailable audio languagesoundtracks.Note:

PROGRAM

Press PROG button, the programplayback screen appears onthe TV monitor, 12 tracks or chapters can be programmed.Use number(0-9,10+) and button on the remote control to select your preferredtrack (CD/VCD) or titleand chapter (DVD), press button to play , then press ENTER buttonto confirm.“” press button to “clear program”, thenpress ENTER button toclear program. You can only press the PLAY button on the remotecontrol to start playing after you finish the program setting. Pressthe PROG button directlyto return to normal play mode. In this case, the programis not confirmed.

YPb/CbPr/Cr

L R COAXIAL

HDMI

S-VIDEO OPTICAL

VIDEO

SL SR CEN

FL FR SW

SCARTOUT

AUDIO

YPb/CbPr/Cr

L R COAXIAL

HDMI

S-VIDEO OPTICAL

VIDEO

SL SR CEN

FL FR SW

SCARTOUT

AUDIO

YPb/CbPr/Cr

L R COAXIAL

HDMI

S-VIDEO OPTICAL

VIDEO

SL SR CEN

FL FR SW

SCARTOUT

AUDIO

CD/MP3 PROGRAM

Press PROG button, the programplayback screen appears onthe TV monitor,

Select the “Edit mode” on theTV screen and pressdivect key “ ” to program and select track. press “ ” button select “and to program”then press the “ENTER”and select “program view”. Press the “Play” button toprogram playing.

BASIC CONNECTION

D: Connectingto AVamplifier with 2-channelinput connector

1.TV set (optional)

2.DVD / CD player

3.Video / Audio cords / S-video cord (optional)

4.Amplifier with 2 channel inputconnectors

5.To audio input connector (L,R)

6.Left speaker

7.Right speaker

OPERATION

PREPARATION BEFORE PLAYING DISC

The optionof display languagecatalogue is presetto English. Pleaserefer to Setupoperation Most functionsare operated byremote control. Eitheroperation of remotecontrol of frontpanel is effective when their buttons indicate the same function.

Preparation

Turn the TV on andselect AVas the TV input. Switch onthe related systempower if theplayer has beenconnected to amplifierequipment etc.

1. ConnectAC power cord toAC outlet.

2. Switchon the power, the displayed LOADING indicates the normal power supply. (Note: the disc

information appearsafter several secondsif there hasdisc after LOADINGdisplayed otherwise appears NODISC).

3. PressOPEN/CLOSE.

4. Placea disc (8cmor 12cm) ontothe tray. (For one-sided disc, positionit with printedtitle side facing

up. Fortwo-sided disc, positionside to beplayback facing down).

5. PressOPEN/CLOSE again toclose disc tray.

6. PressPLAY to playback disc.You mayoperate according toMENU indication afterMENU shows on

screen thenpress ENTER buttonto play back.Some discs mayplay automatically afterloaded.

PLAY

STOP

Press STOP button to stop playing (TV show ). Whenplay back isstopped the“STOP” unit recordsthe point whereSTOP was pressed (resume function). Press PLAY again, andplay will resume fromthis point. PressSTOP button twice, resume function will be cancelled.

PREV/NEXT

Press PREVbutton or NEXTbutton on remote control when playing a disc, a chapter(DVD) or atrack (CD) isskipped backward orforward correspondingly eachtime the buttonis pressed.

REV/FWD

Press REV/FWDbutton on theremote control duringplayback, the discwill be playedin a statusof forward orreverse correspondingly. Forward or Reverse speedis relatively slowat first. Whenpress again, thespeed becomes faster. The more times that you press thebuttons, the fasterthe fast forwardor reverse speedwill be. There are 5 levels of speed available: X2,X4, X8and X16.To return to normal Play, press PLAY button on the player orthe remote control.

Note: Somediscs including MP3disc have nosuch function.

SLOW

Press SLOWbutton on theremote control duringplayback and theunit will enterslow forward status. There are5 speeds available:1/2,1/4,1/6 and 1/8.To return to normal play. Press PLAY button on player or remote controlagain.

Note: Somediscs including MP3disc have nosuch function.

STEP

Press STEPbutton during play, theplayer will enterthe still picturemode. If thebutton is pressed again, thedisc is advancedby one frame(step). When thebutton is keptpressed, consecutive frame advance works.To return to normal play, press PLAY button.

Note: Somediscs do nothave such function.

PAU SE

Press PAUSE key to stop playing and restore playby pressing PLAY key again.

Number (0-9,10+)button

By pressingthe Number (0-9)button, you canaccess directly tothe desired trackor chapters whilea disc isplayed. For track or chapterover 10, press10+ and then0-9 button.

Helpline No.UK/Northern lr ela nd 0800 032 5264 Rep. lr eland 1800 315 697 W eb S upport www.curtisint.com Model Number: DVD3602UKT

YPb/CbPr/Cr

L R COAXIAL

HDMI

S-VIDEO OPTICAL

VIDEO

SL SR CEN

FL FR SW

SCARTOUT

AUDIO

YPb/CbPr/Cr

L R COAXIAL

HDMI

S-VIDEO OPTICAL

VIDEO

SL SR CEN

FL FR SW

SCARTOUT

AUDIO

E: Connectingto TV HDMIconnector

1.TV set (optional)

2.DVD / CD player

3.HDMI cord(optional),

4.to TV HDMI input connector

Helpline No.UK/Northern lr ela nd 0800 032 5264 Rep. lr eland 1800 315 697 W eb S upport www.curtisint.com Model Number: DVD3602UKT

F: Connectingto an externaldecoder or apower amplifier

When DVDdiscs recorded inDolby digital, MPEG audio or other formats areplayed, corresponding bit stream is output from theplayer s COAXIAL digital audio output connector. When the player is connected to an external decoderor a power amplifier, you can enjoy quality of theatre level at your home!

DVD

MP3

Sound

recording format

Dolby digital

DTS

Linear PCM

Other

MP3

Linear PCM

Digital outputsetting

PCM(44.1KHZ sampling)*1 Raw

OFF

Raw OFF

PCM(44.1KHZ sampling) PCM(44.1KHZ sampling) PCM(44.1KHZ sampling)

PCM(44.1KHZ sampling)

*1 soundhaving 192KHz samplingis converted to 48KHz samplingwhen it isoutput from theCoaxial digital audiooutput connector.

Please referto the setupoperations for setup

method.

Note:

For yourreference:

Caution forthe coaxial audio output connector.

Dolby Digital(AC-3),a digital soundcompression technique developedby the DolbyLaboratories Licensing Corporationsupports 5.1-channel surround output andstereo sound systemenables the capacity of massstorage recorded indiscs Linear PCMis a signal-recording formatused in CDs While CDs are recorded in44.1KHz/16bit, DVDs are48KHz/16bit up to192KHz/24bit.

Do notconnect an amplifier(with an Coaxialdigital input connector)which does notcontain the Dolby Digital (AC-3)or MPEG audiodecoder, otherwise it maybe harmfulto your earsand damage your speakers, ChooseRAW in the digital audio setup to activatecoaxial or opticaloutput when playingdisc with DTSoutput.

BASIC CONNECTION

TV set(optional)

S-Video cord (optional)

Euro SCART (optional)

Video/audio (optional)

DVD/CD player

Coaxial audio

cord

Decoder of amplifier with Dolby digital (AC-3) orMPEG (optional)

REMOTE CONTROL PREPARATION

Remoto controlsensor

Among 5meters

Battery Installation

Service lifeof batteries

Notes:

Insert thebatteries while observingthe positive (+) and Negative(-) polarities asFigure A.

The batteriesnormally last fora year althoughthis depends onthe operation andon how oftenthe remote control isused. If theremote control unitfails to workeven when itis operated nearthe player, replace the batteries with new ones.Use size AAA UM-4 batteries (2 pieces).

Do notuse rechargeable (Ni-Cd)batteries. Install batteriescorrectly observing the(+/-) polarity signs. Do notdrop, step onthe remote control,otherwise it maydamage the partsor lead tomalfunctioning. Use onlythe recommended batterytype or equivalent (voltage andsize).

Always replacea complete setof batteries atthe

same time. Do notmix batteries ofdifferent types. Never mixnew and usedbatteries in thesame compartment. Remove exhaustedbatteries immediately. Remove batterieswhen product isnot in use. Do notdispose of batteriesin fire asthey may explode. Do notrecharge non-rechargeable batteries. Do notshort circuit thesupply terminals. Ensure batteriesare stored awayfrom metal objects as contactmay cause ashort circuit. Remote controloperation range isno more than5 m from andwithin about 60degree wide infront of the unit (FigureB).

Do notpoint bright lightsto the remotecontrol sensor. Do notplace objects betweenthe remote controland the remotecontrol sensor. Do notuse this remotecontrol together withthe remote controlof any otherequipment.

Notes:

YPb/CbPr/Cr

L R COAXIAL

HDMI

S-VIDEO OPTICAL

VIDEO

SL SR CEN

FL FR SW

SCARTOUT

AUDIO

POWER

DVD3602UKT

DVD/CD/MP3/MPEG4PLAYER

OPEN/CLOSE PLAY/PAUSE STOP

5.1 CH

(optional)

POWER

OPEN/CLOSE

OSD P/N REPEAT A-B

SHUFFLE

VIDEO

SUBTITLE

ANGLE

10+

+10

TIME

MUTE

SLOW

STEP L/R

SETUP

AUDIO

ENTER

TITLE

ZOOM

USB/CARD

PBC PAUSE PLAY STOP

REV

PREV NEXT

16:9/4:3VOL

PROG

DVD3602UKT

RESET

RETURN

Remark:

Batteries (batterypack or batteriesinstalled) shall notbe exposed toexcessive heat such assunshine, fire orthe like.

Tevion DVD3602UKT User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
